  • #31
    Thanks Stew,
    I was looking around and found those thru HobbyKing......Decided to go with Hangar 9 10-32 Swivel Clevis Horn instead. Main reason is their little bit better quality and fit.

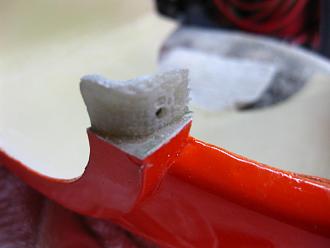

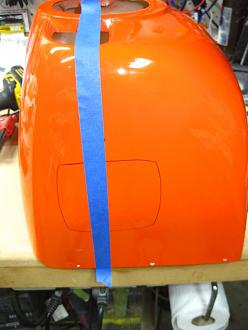

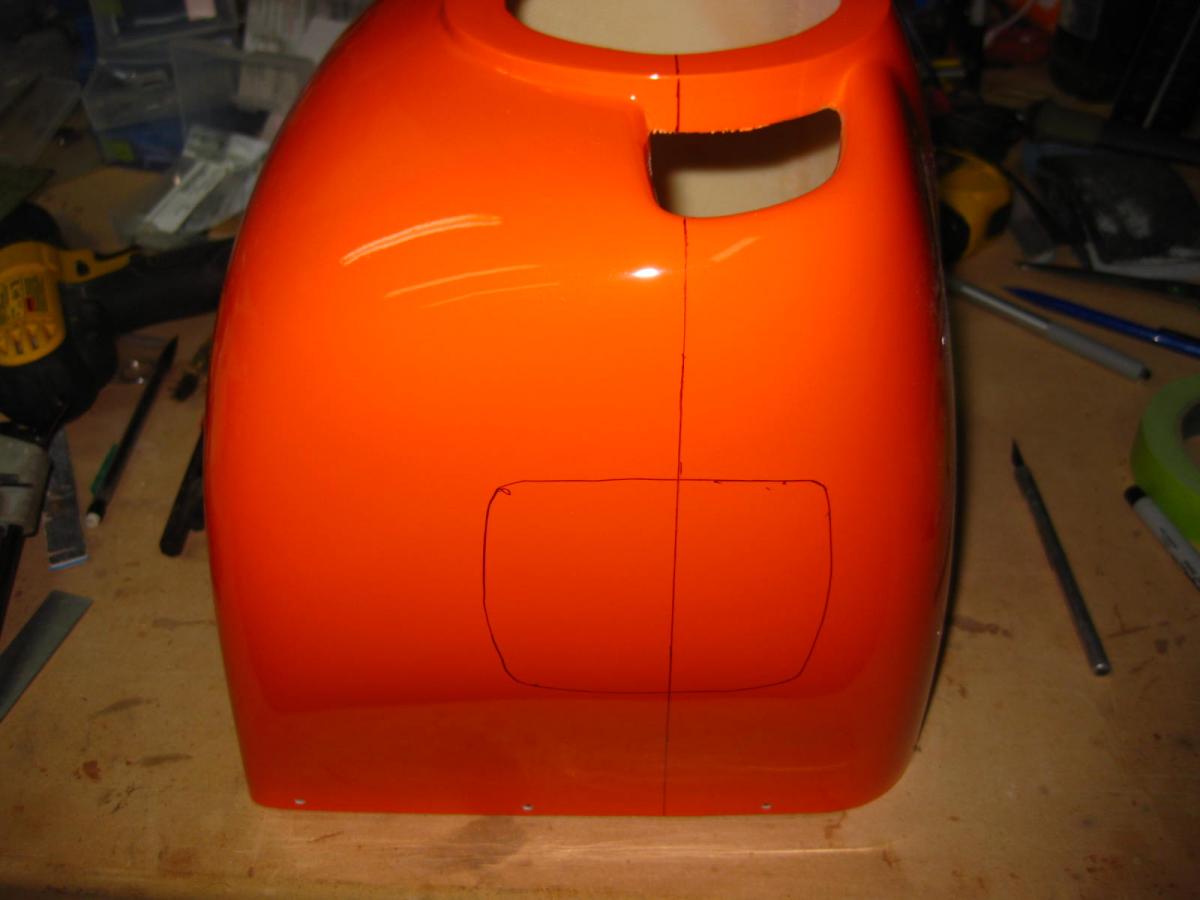

    Fun with the Cowl....

    Click image for larger version

Name:	IMG_3296.JPG
Views:	427
Size:	60.8 KB
ID:	6677 Click image for larger version

Name:	IMG_3295.JPG
Views:	426
Size:	54.6 KB
ID:	6676 Click image for larger version

Name:	IMG_3290.JPG
Views:	424
Size:	37.4 KB
ID:	6675

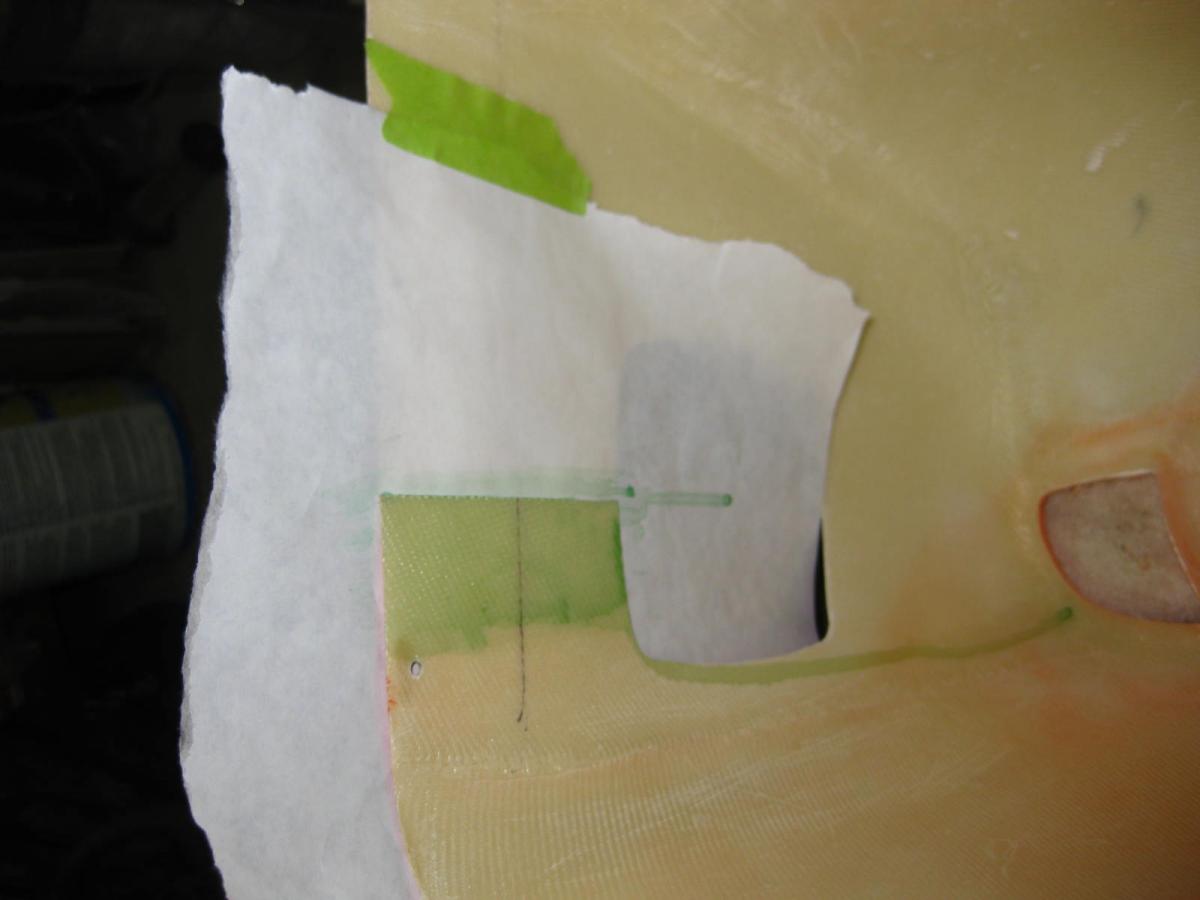

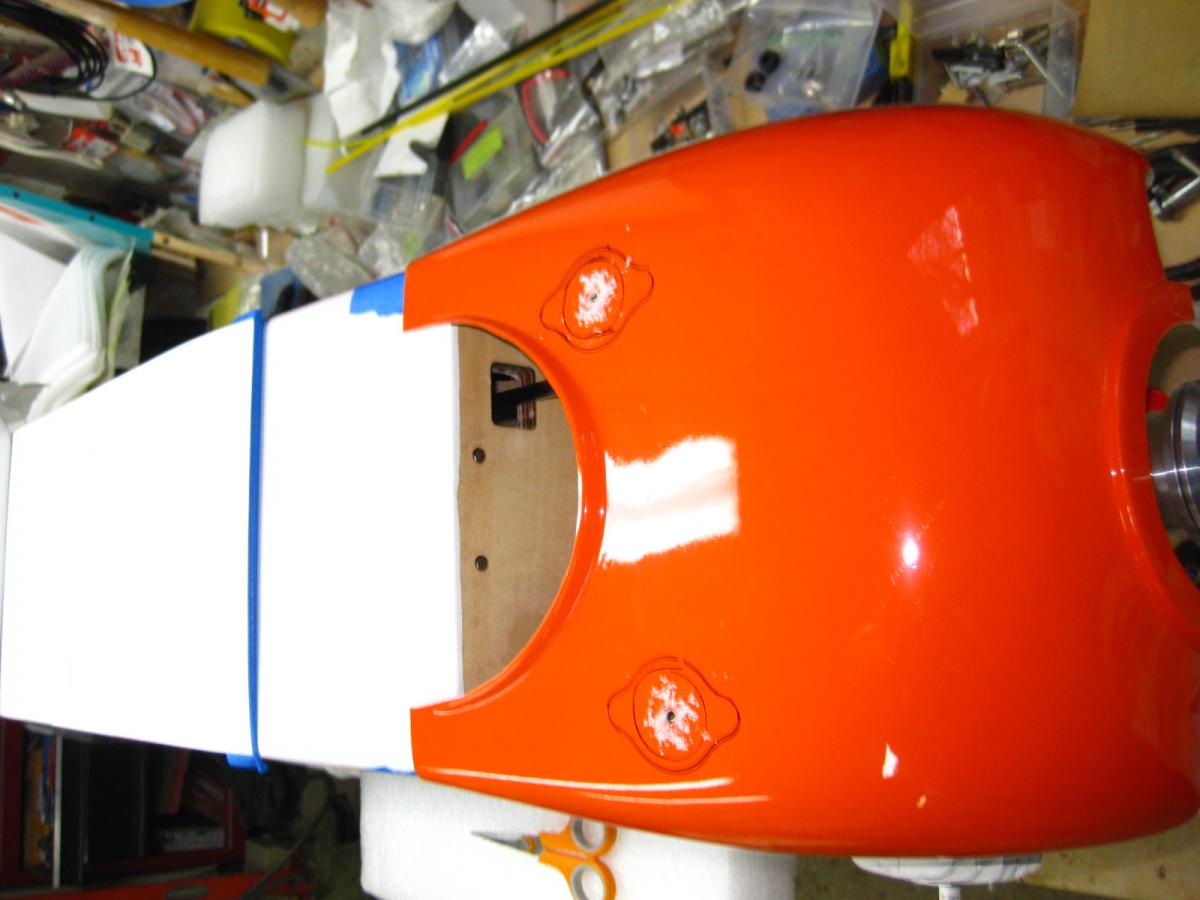

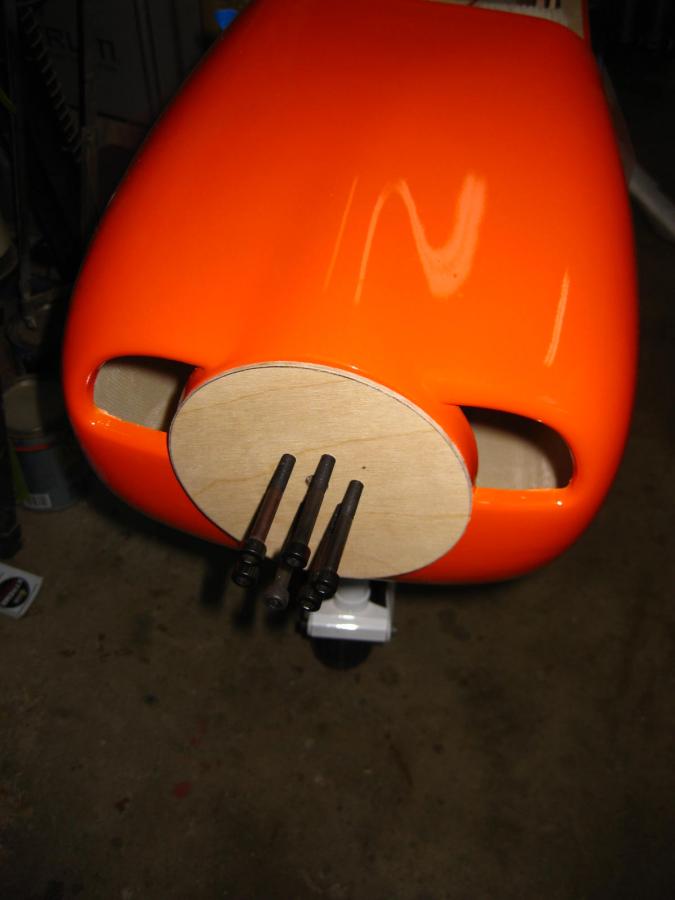

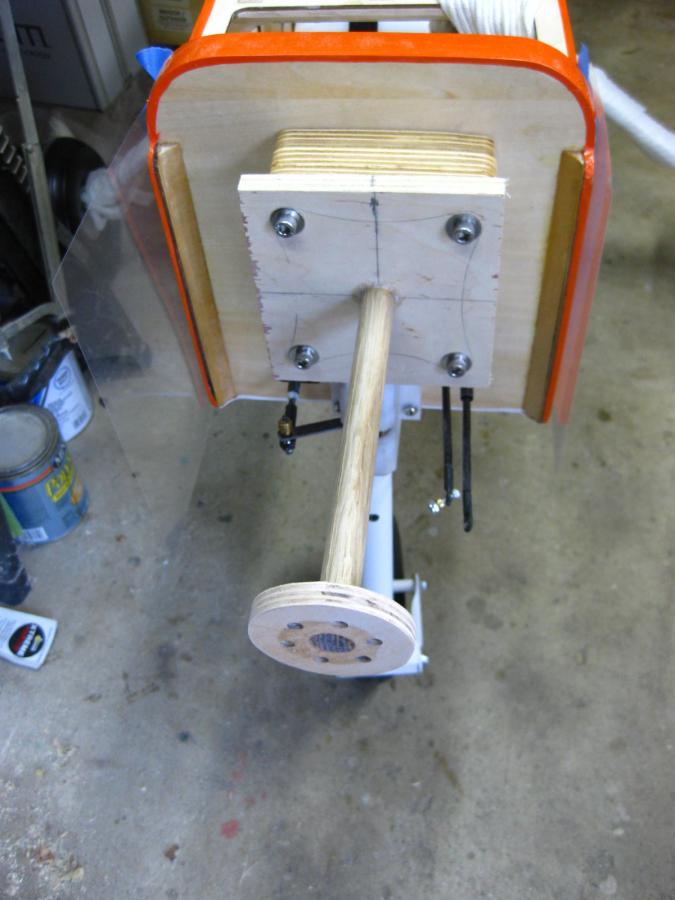

    Using transparent overhead projector sheets to transfer the mounting holes / engine cylinders

    Click image for larger version

Name:	IMG_3292.JPG
Views:	411
Size:	43.7 KB
ID:	6680 Click image for larger version

Name:	IMG_3297.JPG
Views:	430
Size:	76.3 KB
ID:	6679 Click image for larger version

Name:	IMG_3300.JPG
Views:	429
Size:	49.5 KB
ID:	6681

    now just have to build up the courage to start cutting....
    Click image for larger version

Name:	IMG_3304.JPG
Views:	434
Size:	60.0 KB
ID:	6682
    Attached Files
    Last edited by MarnochS; 02-25-2016, 02:10 PM.

    Comment


    • #32
      Ohhhhh
      Been there!!!
      Len Buffinton
      Team Horizon Hobby

      Comment


      • #33

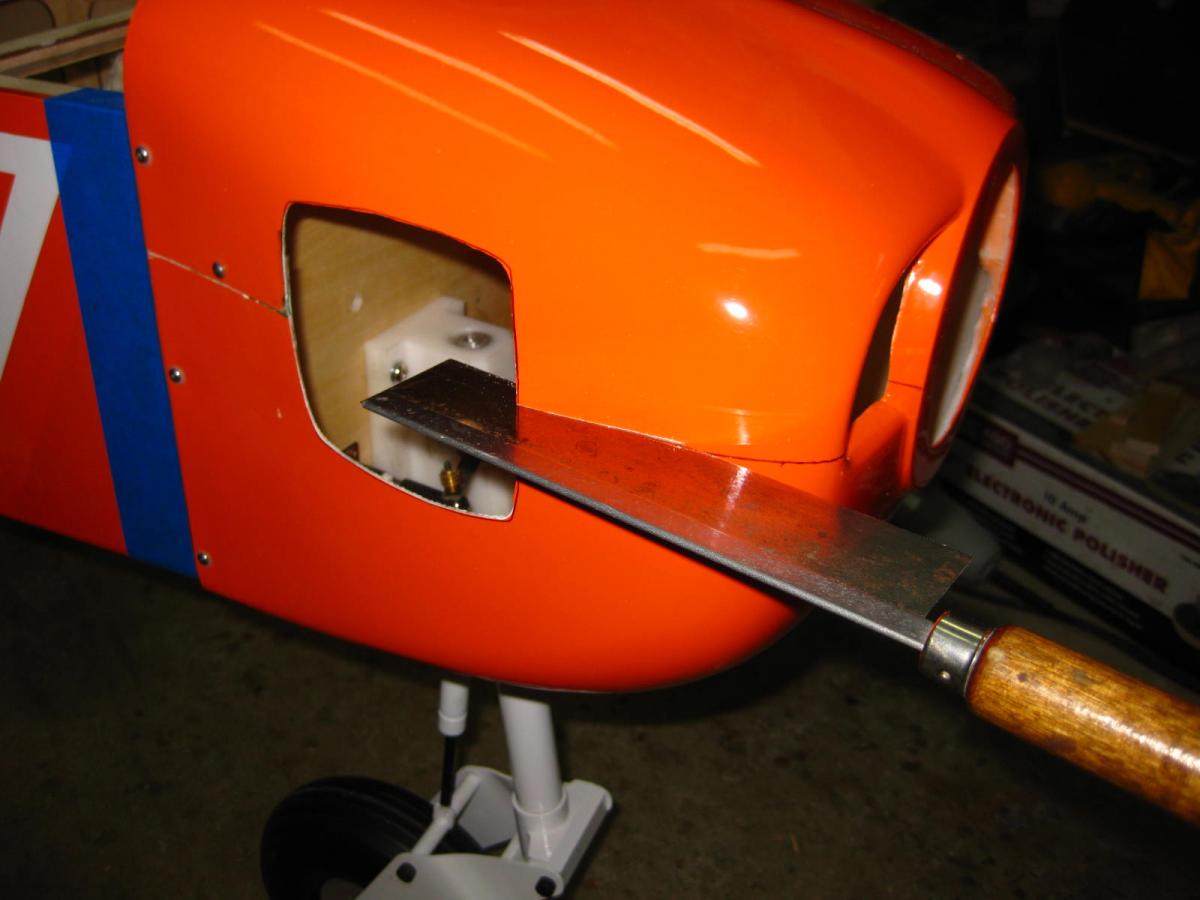

        Zonal saw Anxiety overcome........plus I have some "Omaha" orange paint for ....."corrections"

        Click image for larger version

Name:	IMG_3318.JPG
Views:	442
Size:	71.5 KB
ID:	6900

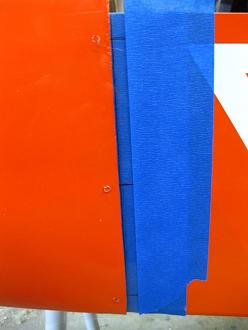

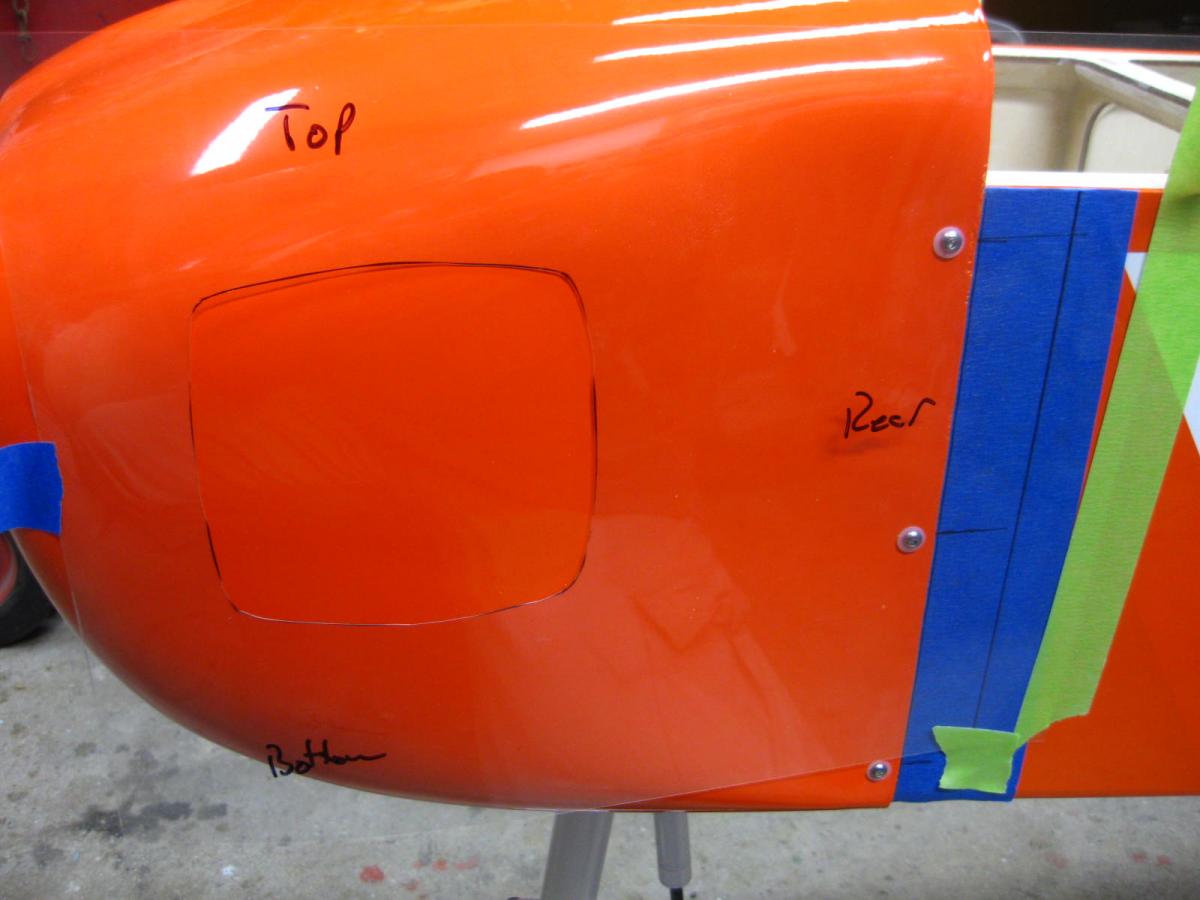

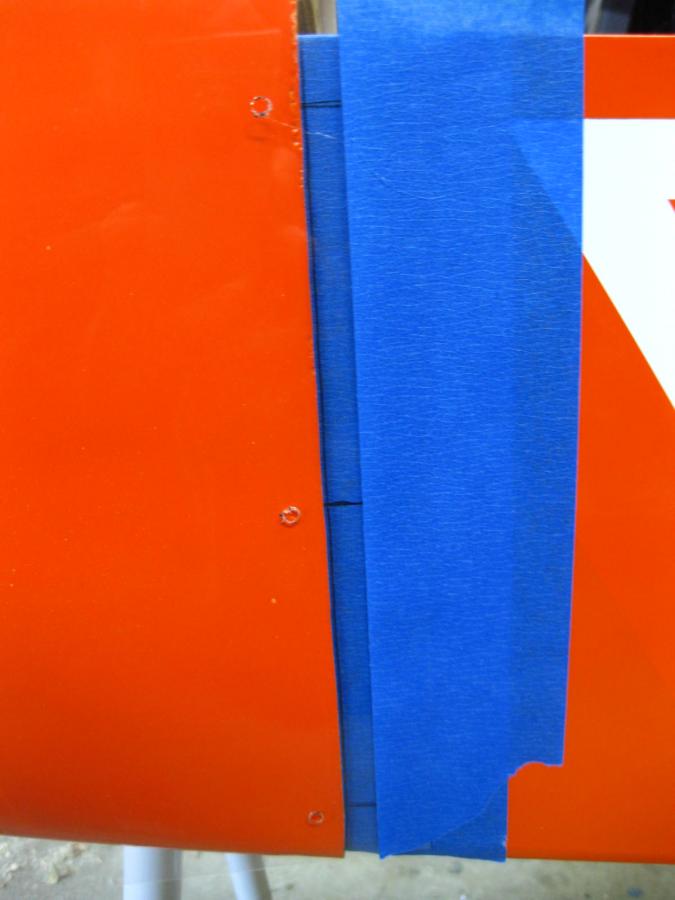

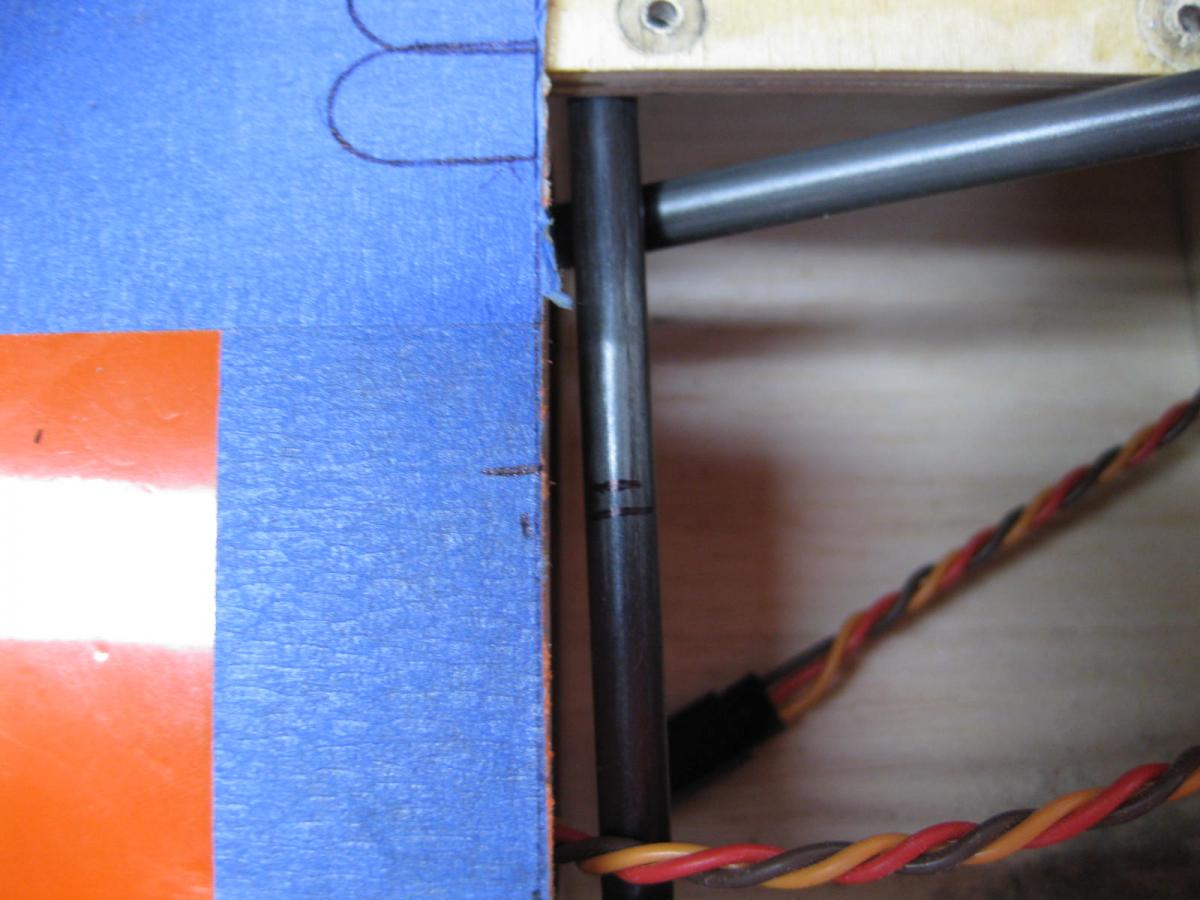

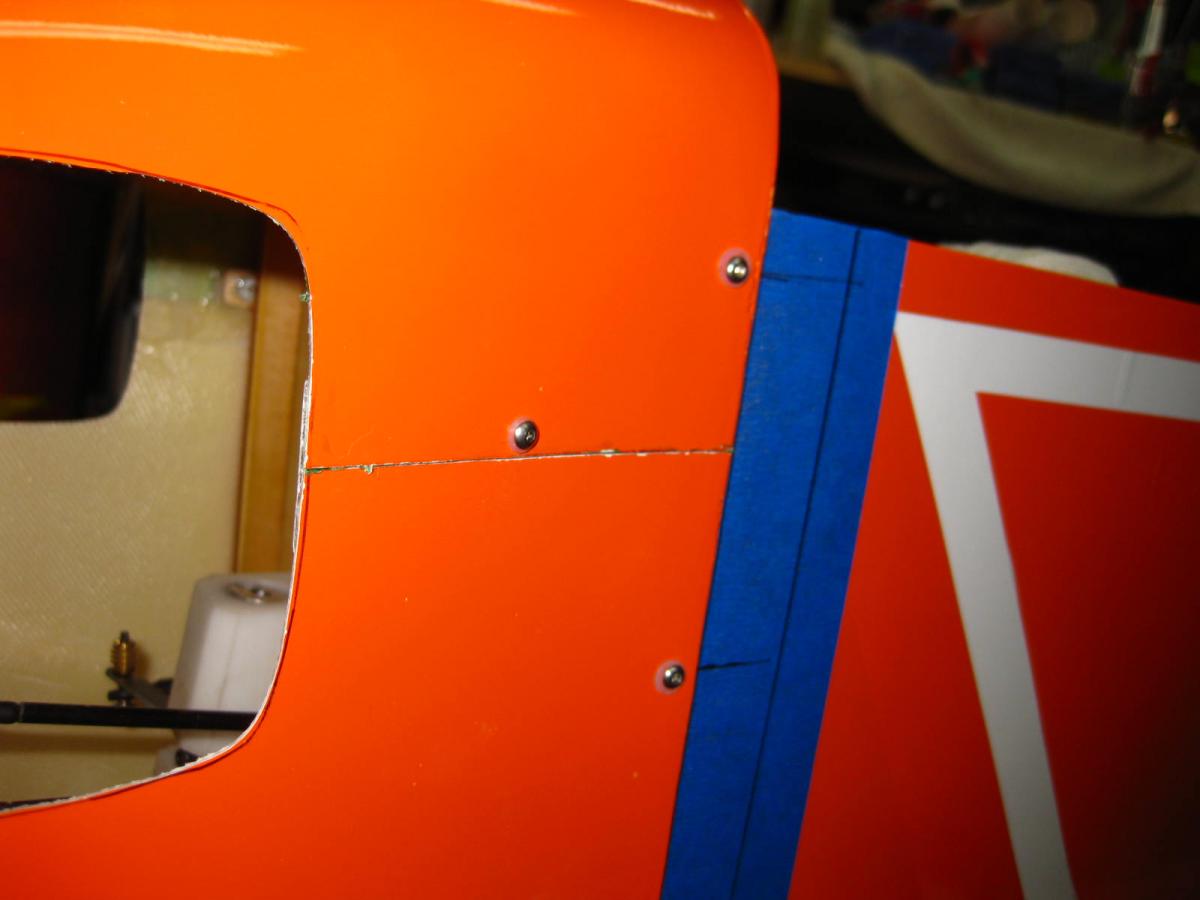

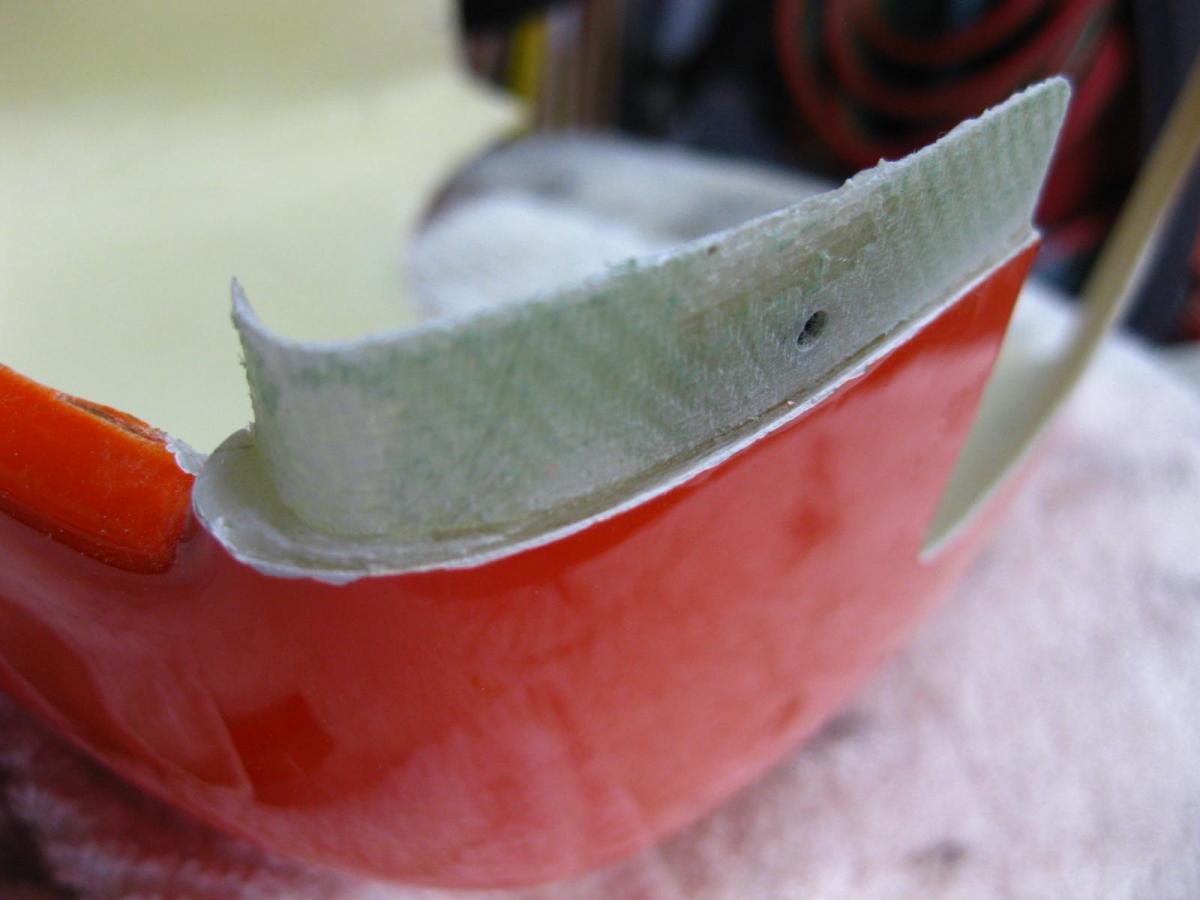

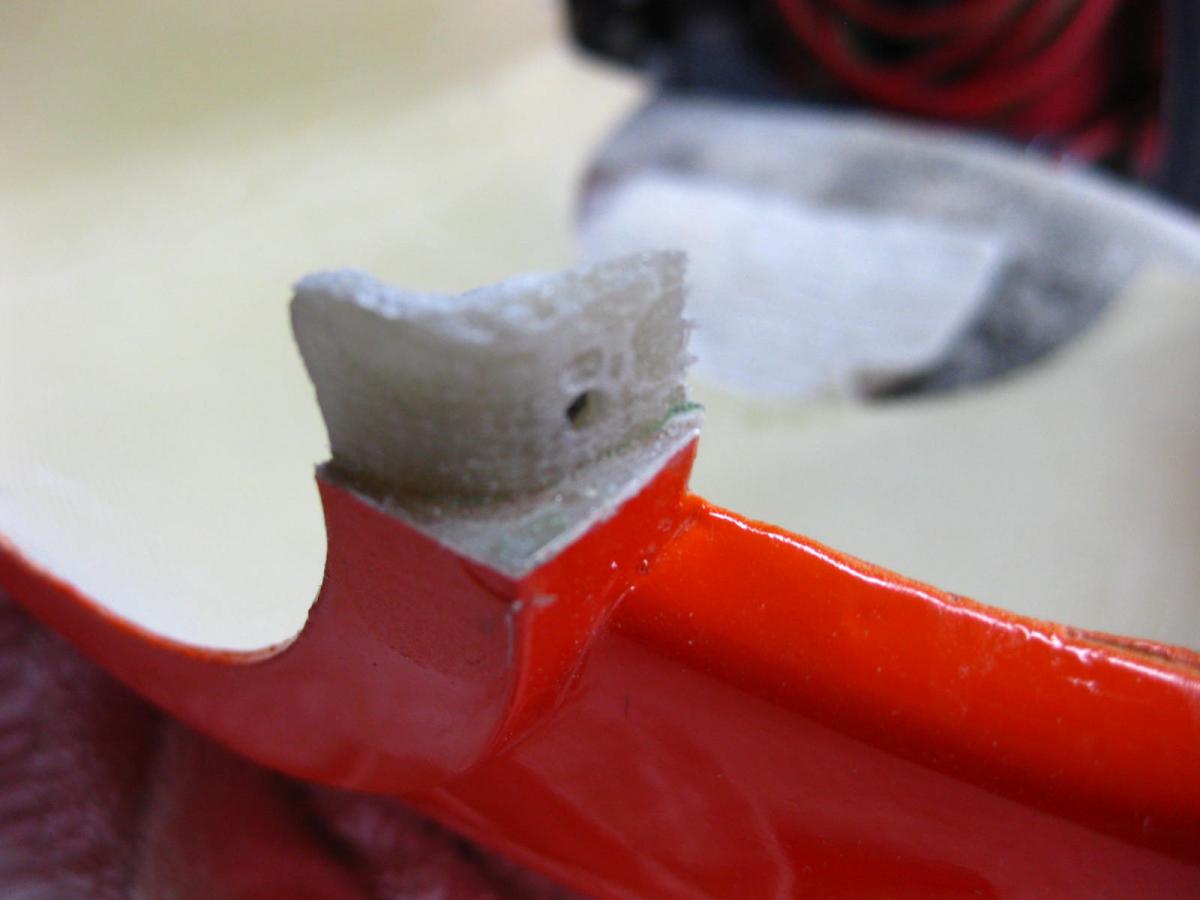

        Going for the stepped approach to keep things lined up...cut and installed the rear overlap .. then moving on to the front

        Click image for larger version

Name:	IMG_3305.JPG
Views:	436
Size:	53.1 KB
ID:	6901 Click image for larger version

Name:	IMG_3307.JPG
Views:	449
Size:	132.8 KB
ID:	6902
        Click image for larger version

Name:	IMG_3316.JPG
Views:	454
Size:	118.6 KB
ID:	6903 Click image for larger version

Name:	IMG_3317.JPG
Views:	443
Size:	54.2 KB
ID:	6904

        Scott

        Comment


        • #34
          Good idea using a step approach, never really thought about that!! Hmm. gotta remember that one.

          Len Buffinton
          Team Horizon Hobby

          Comment


          • #35

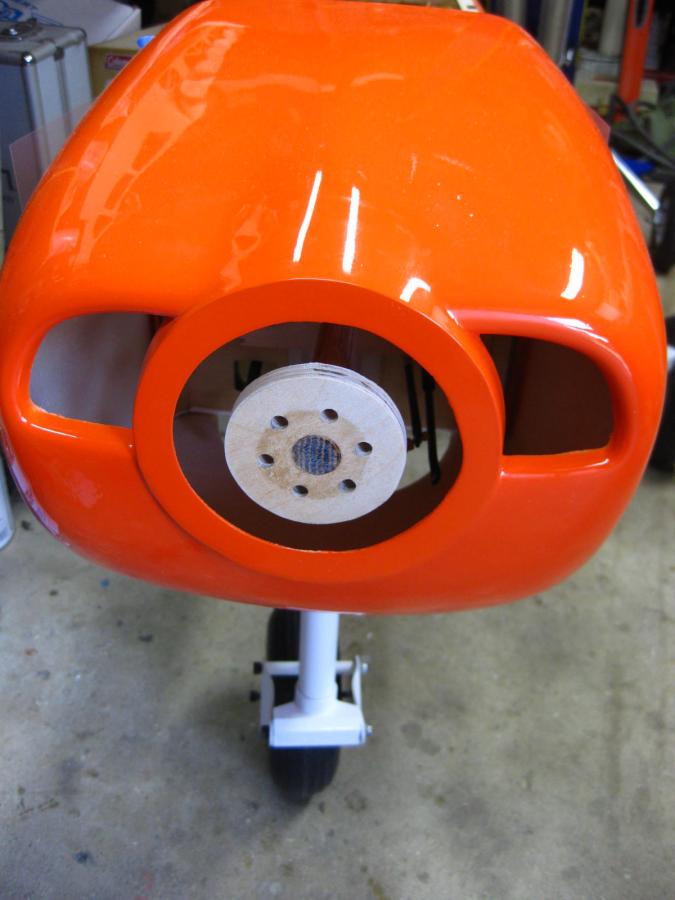

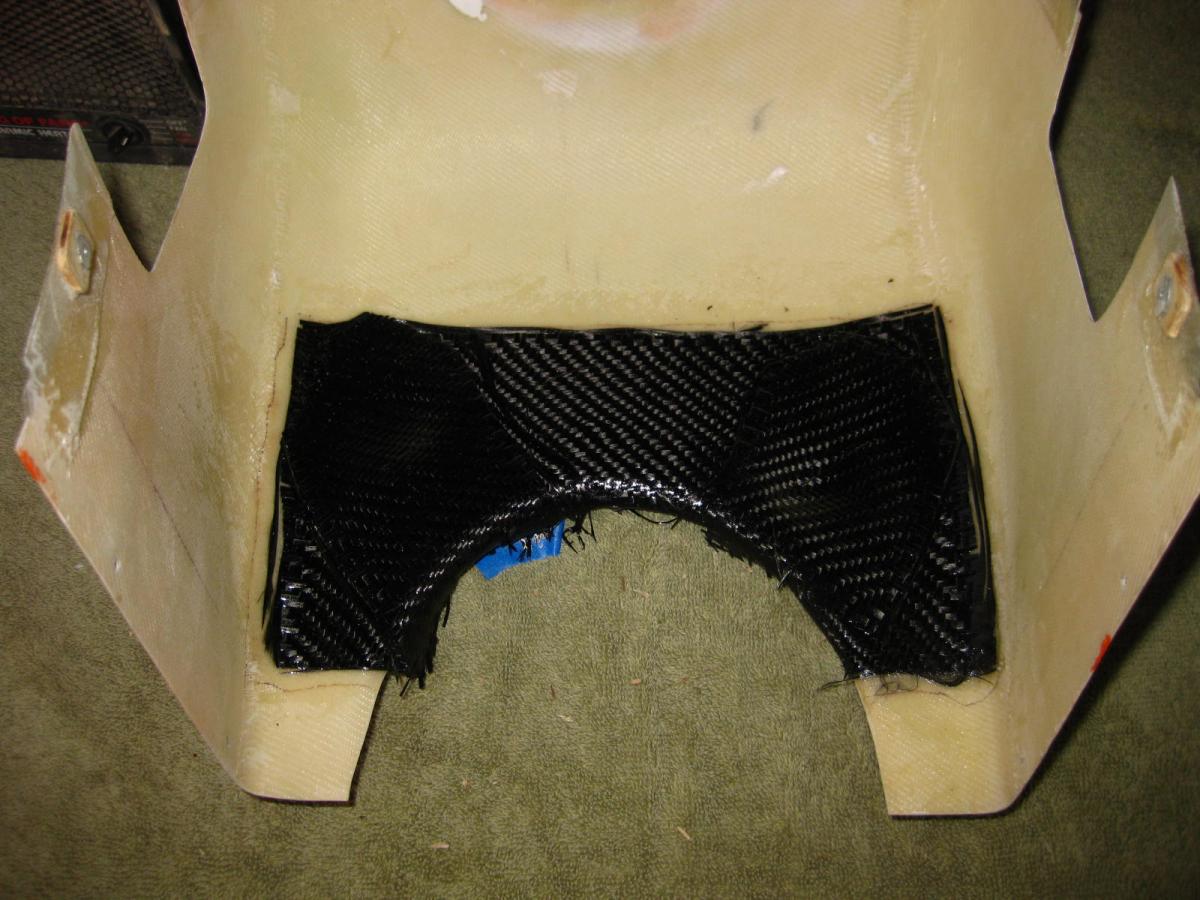

            Really happy with the result on the forward cowl sections

            Click image for larger version

Name:	IMG_3352.JPG
Views:	438
Size:	65.7 KB
ID:	7322 Click image for larger version

Name:	IMG_3353.JPG
Views:	449
Size:	55.6 KB
ID:	7323

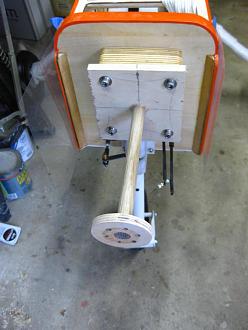

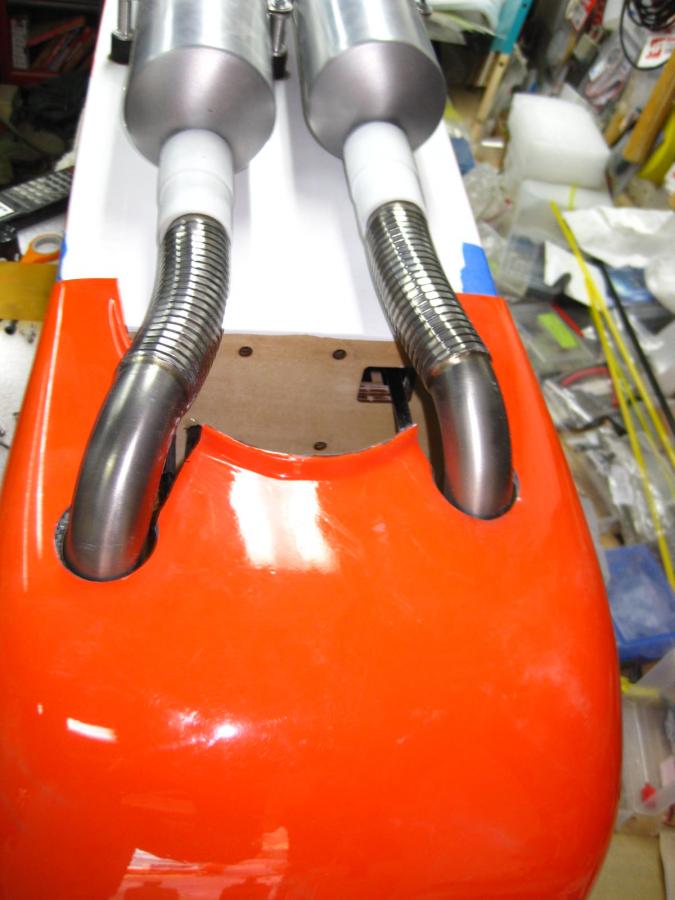

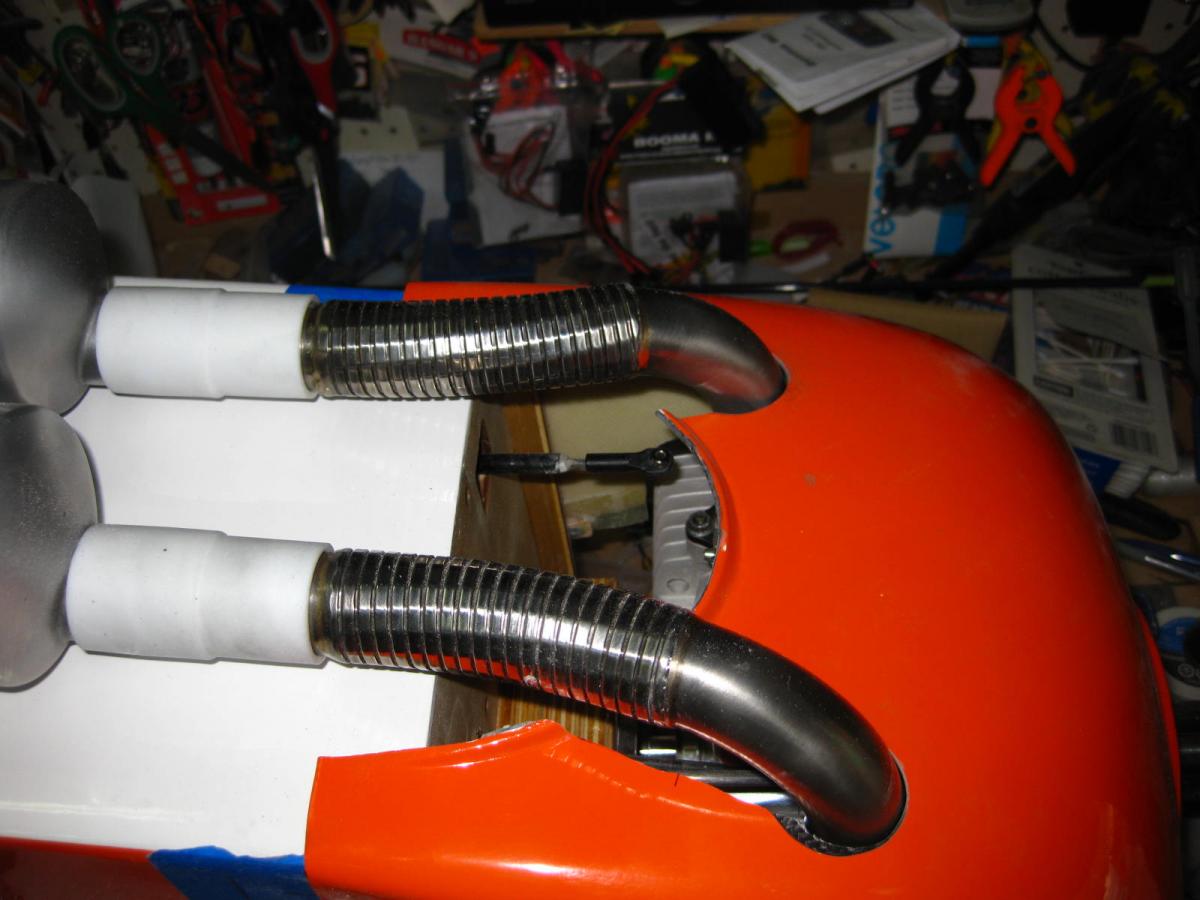

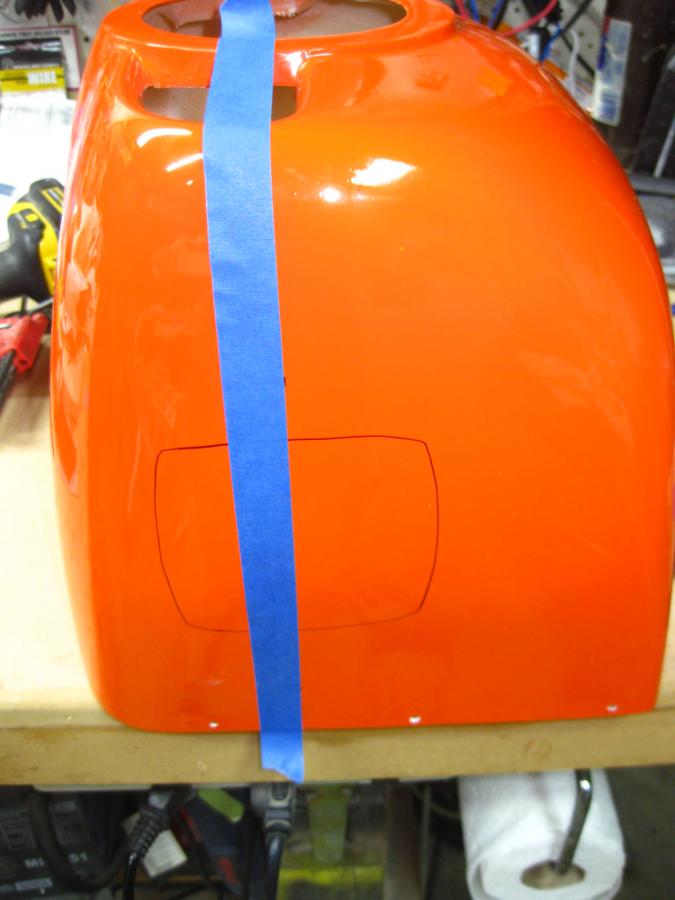

            Bolted the DA170 back on the fuselage and checked the fit....and started with the exhaust system. I decided on the "functional" approach to removing the cowl and cut slots. I think eventually I'll probably make some covers to go over the pipes on the cowl. I did add a 5.7oz carbon cloth to the bottom of the cowl to stiffen it up.

            Click image for larger version

Name:	IMG_3355.JPG
Views:	437
Size:	80.1 KB
ID:	7324 Click image for larger version

Name:	IMG_3356.JPG
Views:	437
Size:	132.1 KB
ID:	7325
            Click image for larger version

Name:	IMG_3361.JPG
Views:	451
Size:	90.0 KB
ID:	7326 Click image for larger version

Name:	IMG_3359.JPG
Views:	436
Size:	62.2 KB
ID:	7327

            Comment


            • #36
              Excellent job Scott.
              I agonized over that same issue. In the end, I cut holes, but every time I have to pull off the cowl, I kick myself.
              Len Buffinton
              Team Horizon Hobby

              Comment


              • #37

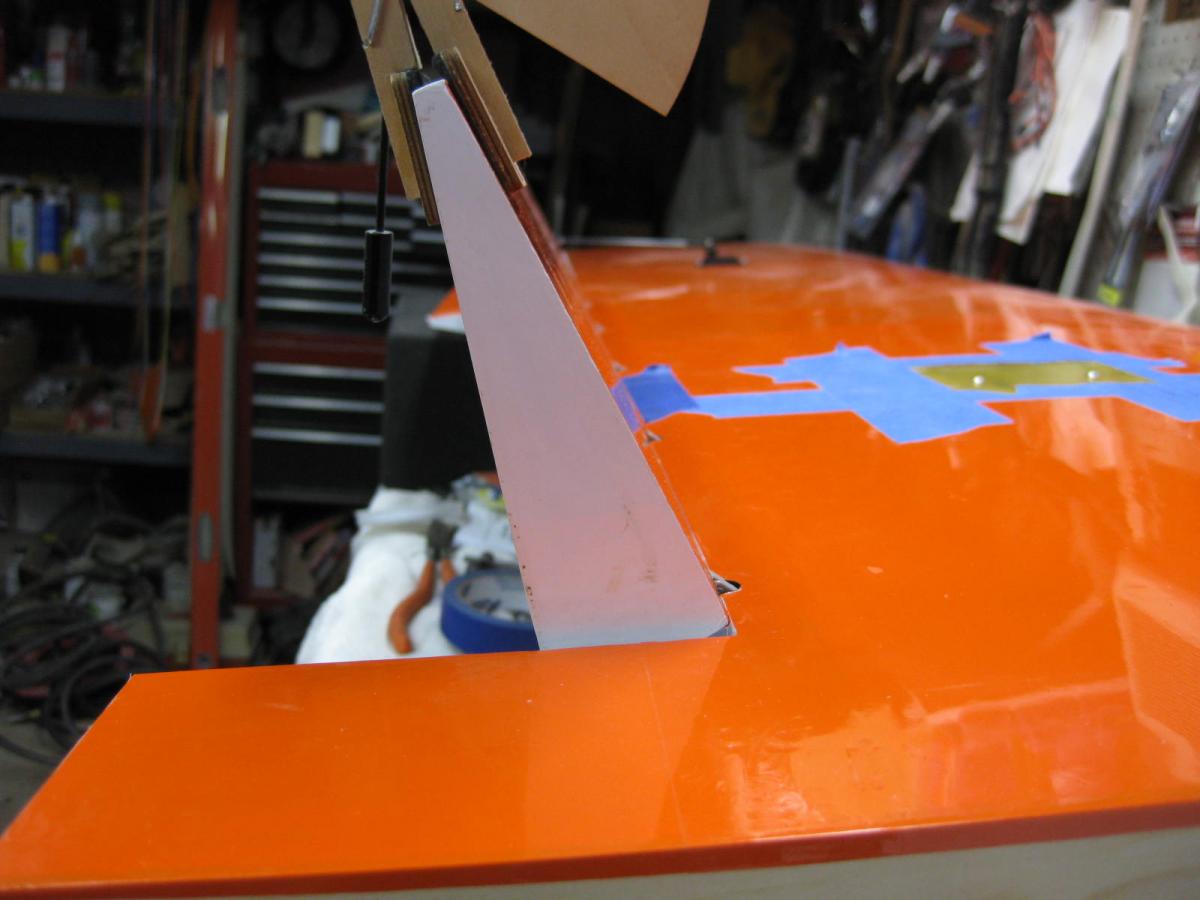

                Moving on to the wing / flap modification for top driven flaps for 70-80 degrees deflection ( 145mm travel ) and 180 degrees of servo travel ( to reduce servo current when the flaps are down )

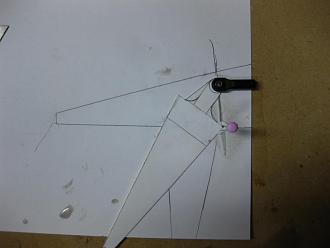

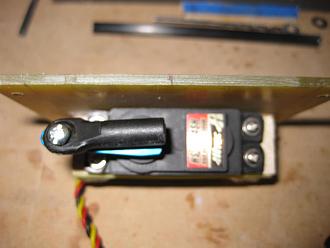

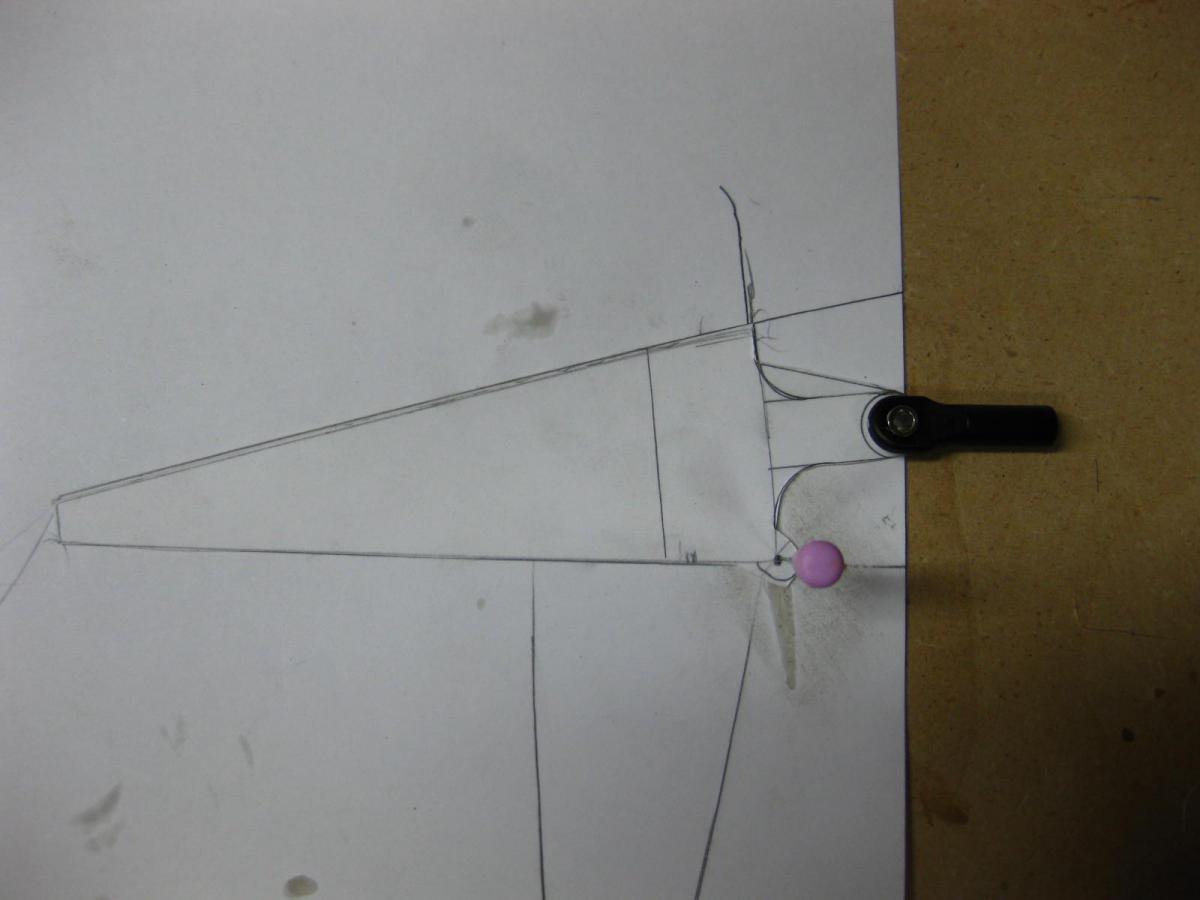

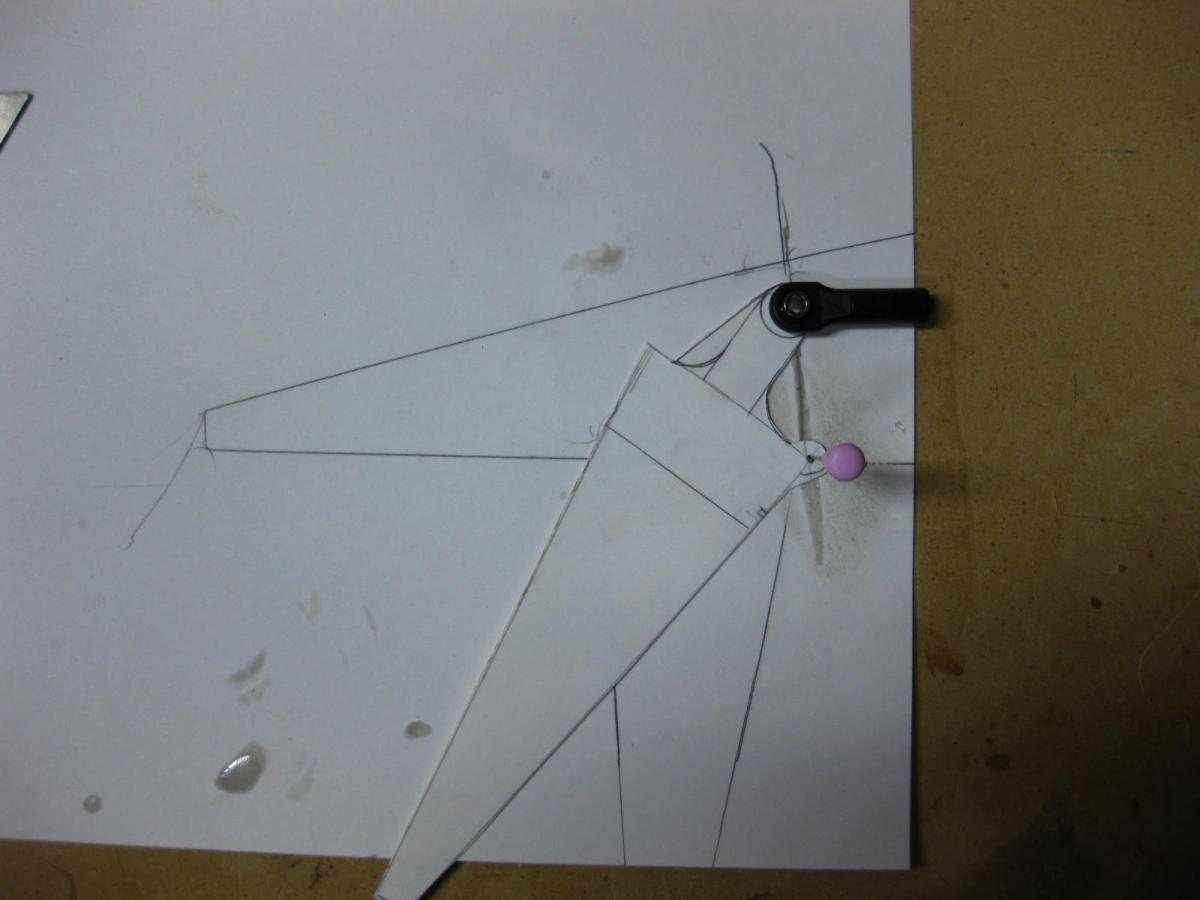

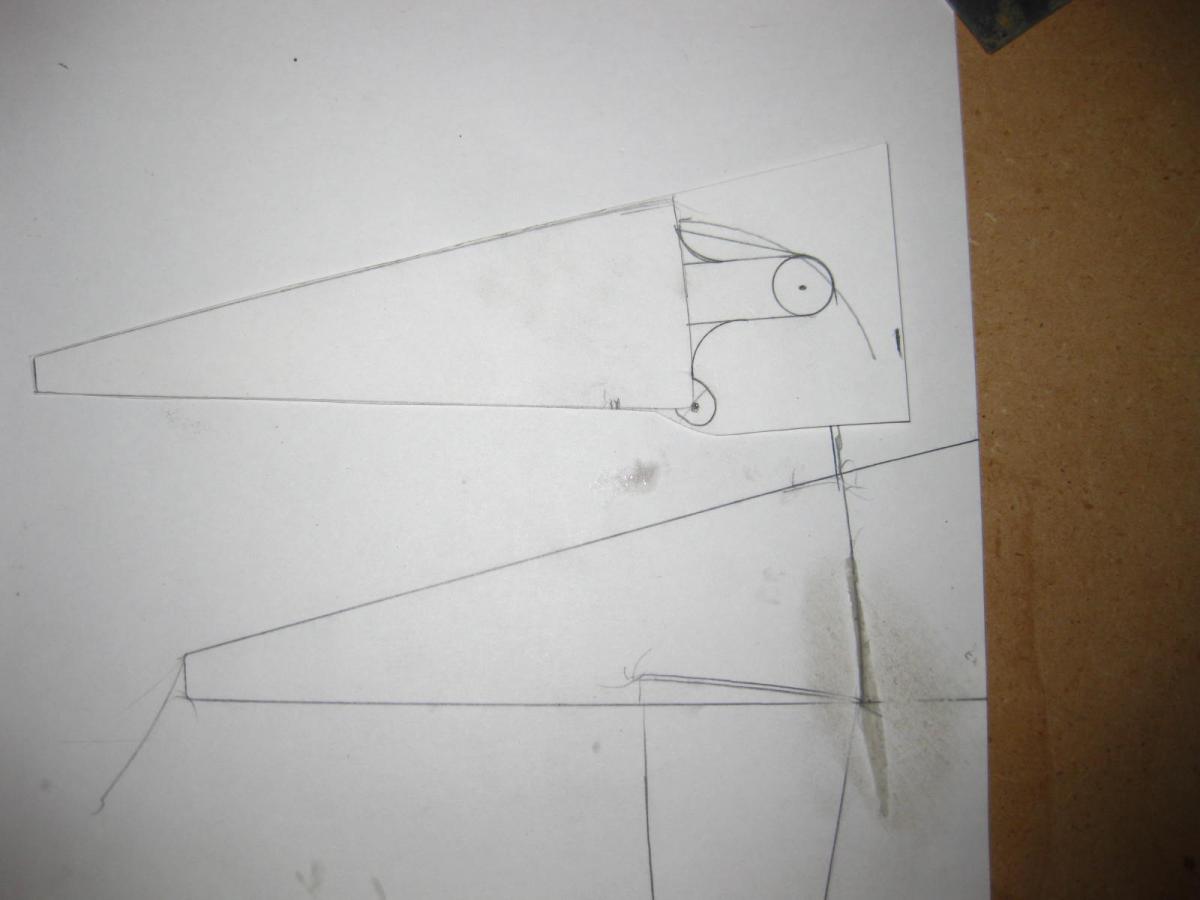

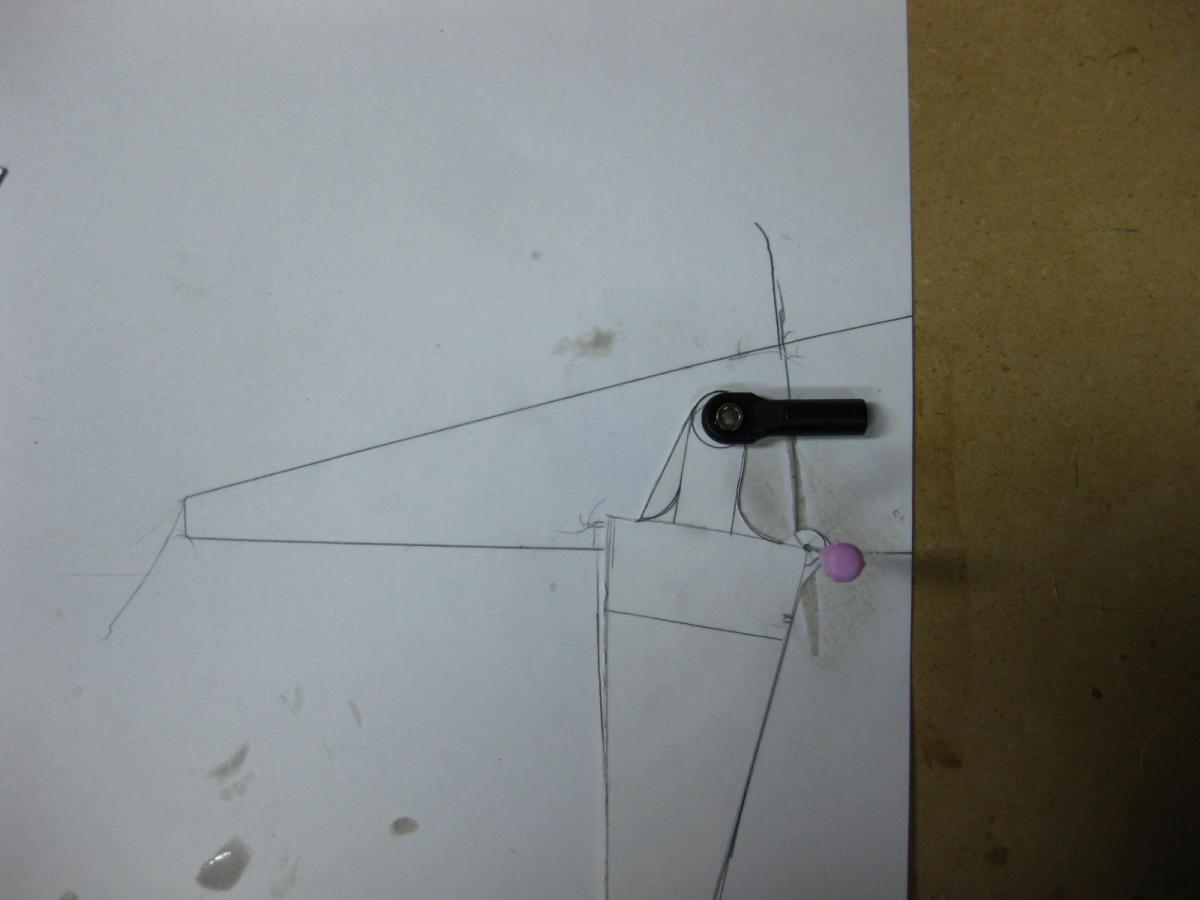

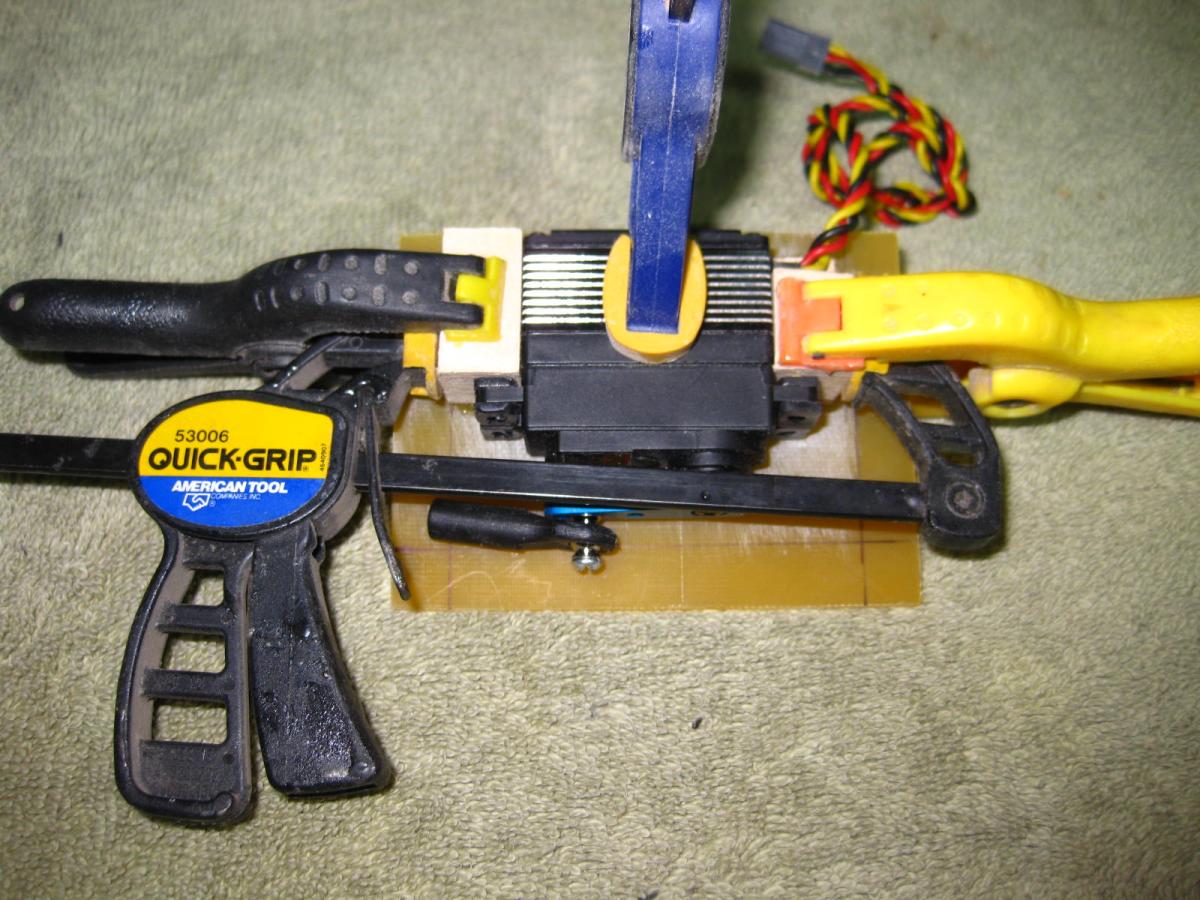

                First thing is the mock-up ....to see if things will fit (the mock-up got epoxied from the DG600 horizontal stab fiberglassing)

                Click image for larger version

Name:	image_3055.jpg
Views:	424
Size:	58.0 KB
ID:	7982 Click image for larger version

Name:	IMG_3372.JPG
Views:	412
Size:	55.9 KB
ID:	7999
                Click image for larger version

Name:	IMG_3374.JPG
Views:	425
Size:	57.7 KB
ID:	8000 Click image for larger version

Name:	IMG_3375.JPG
Views:	405
Size:	55.3 KB
ID:	8001

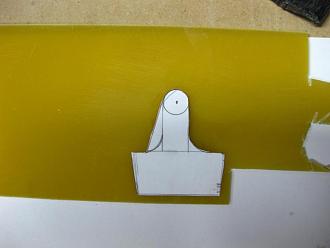

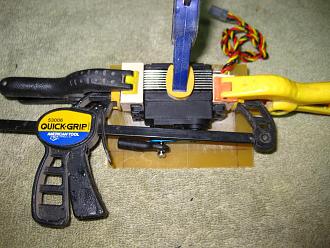

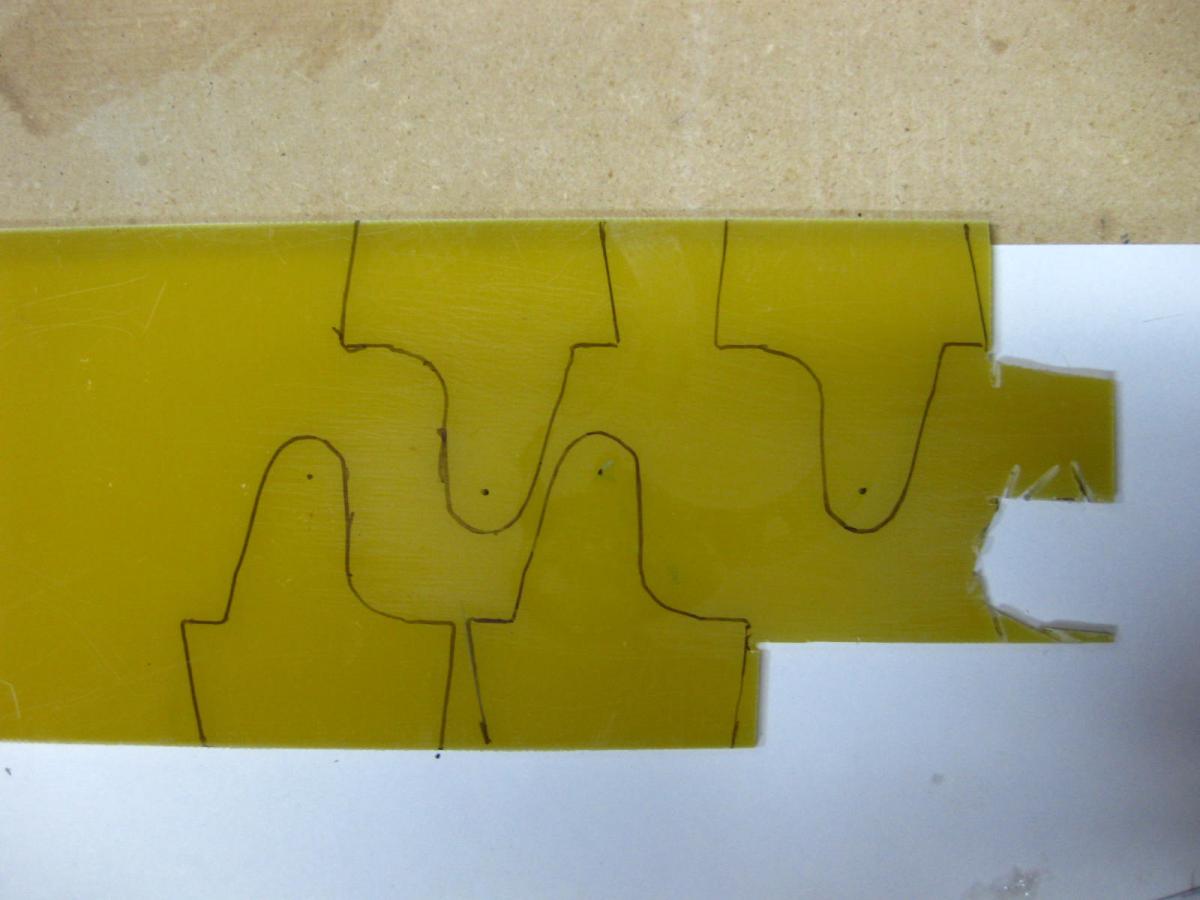

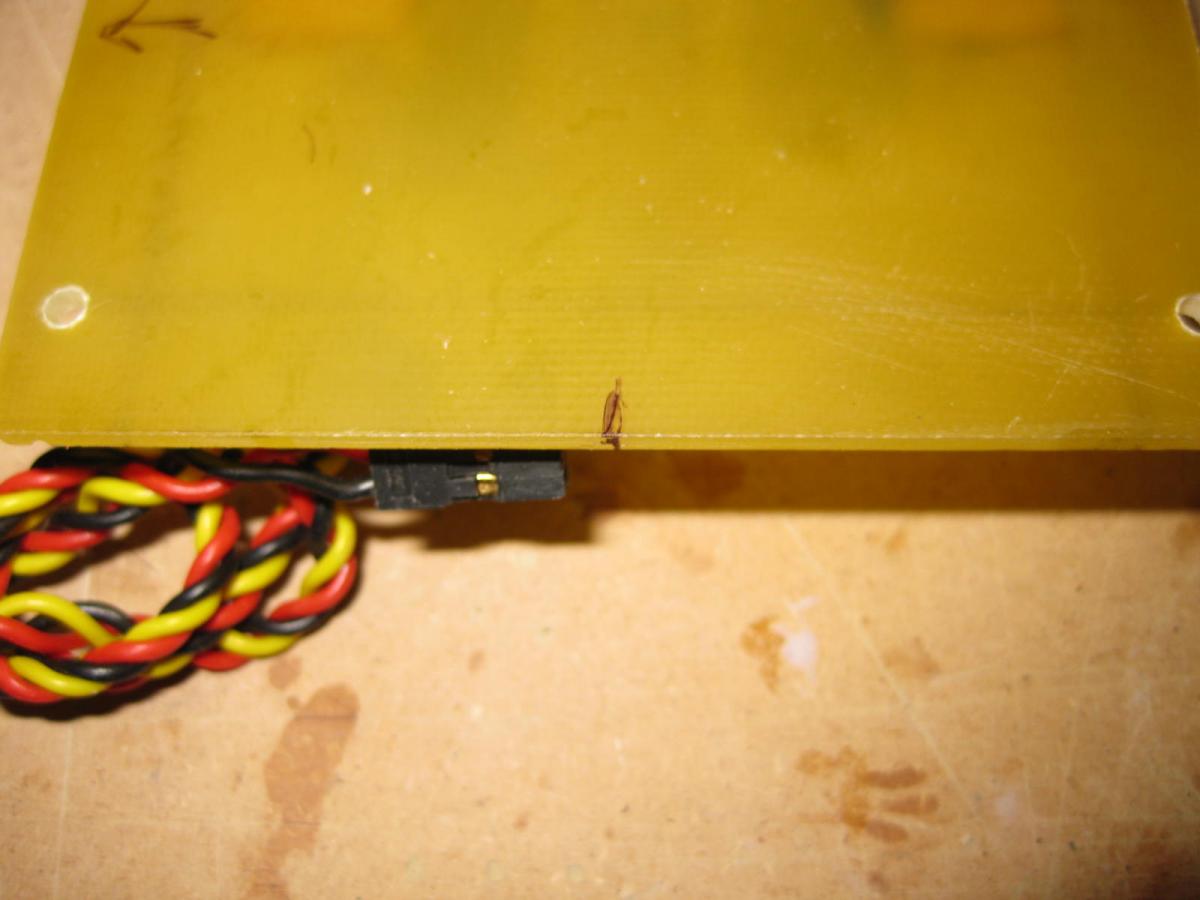

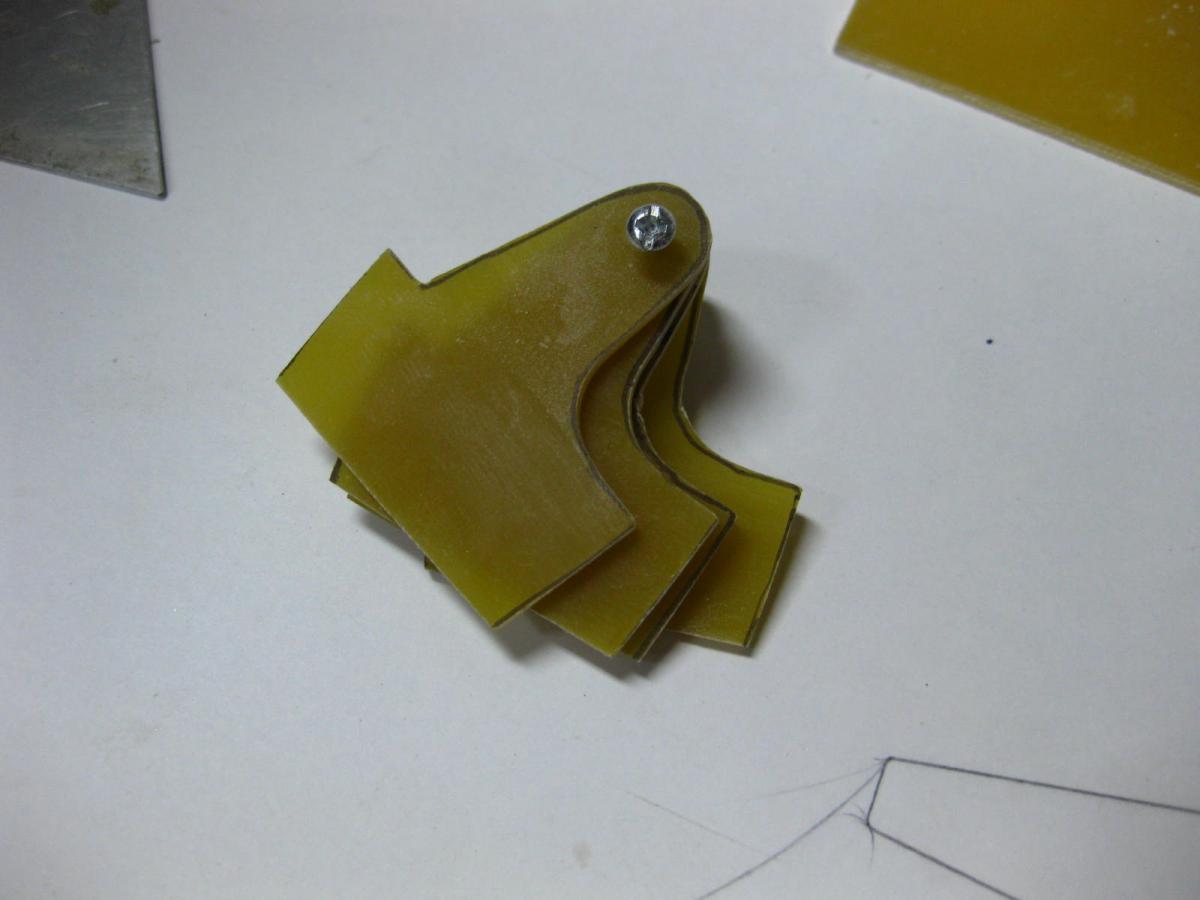

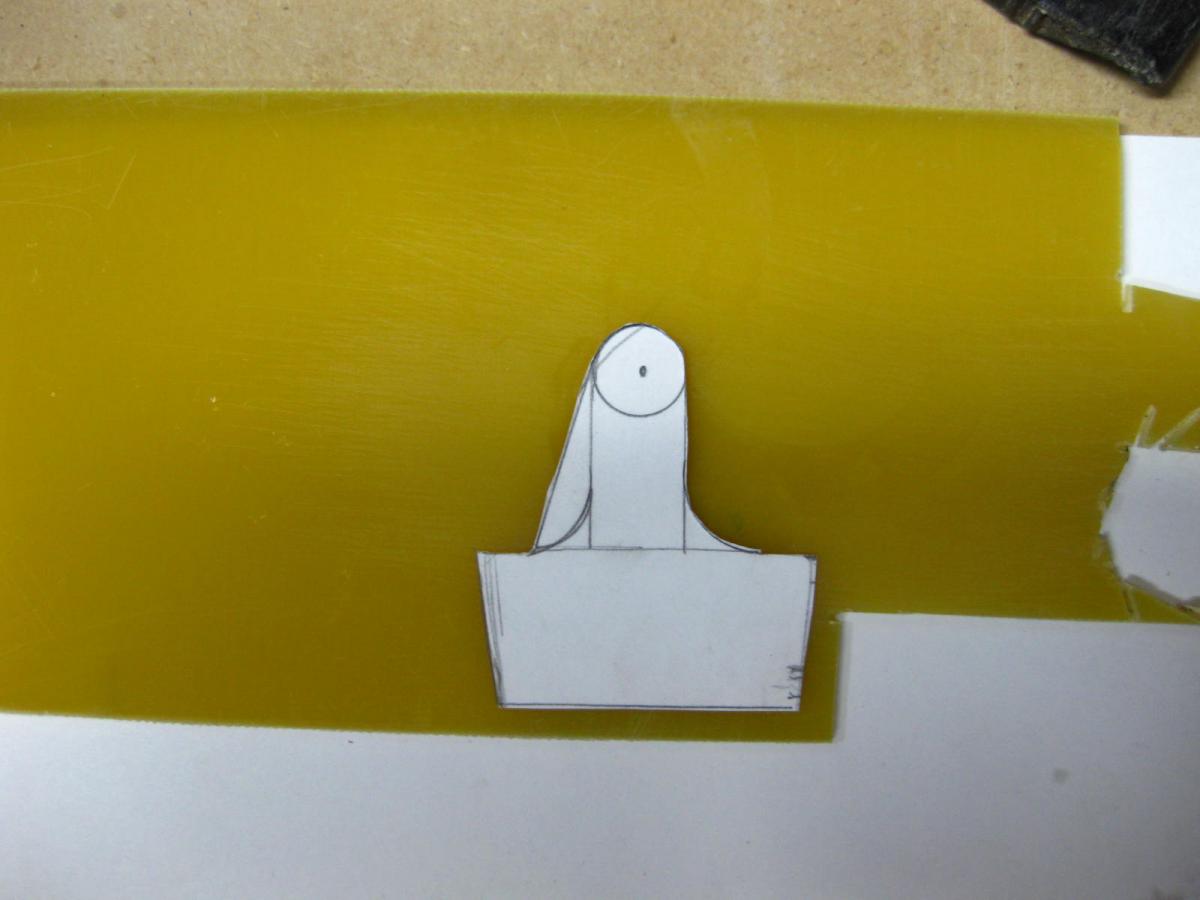

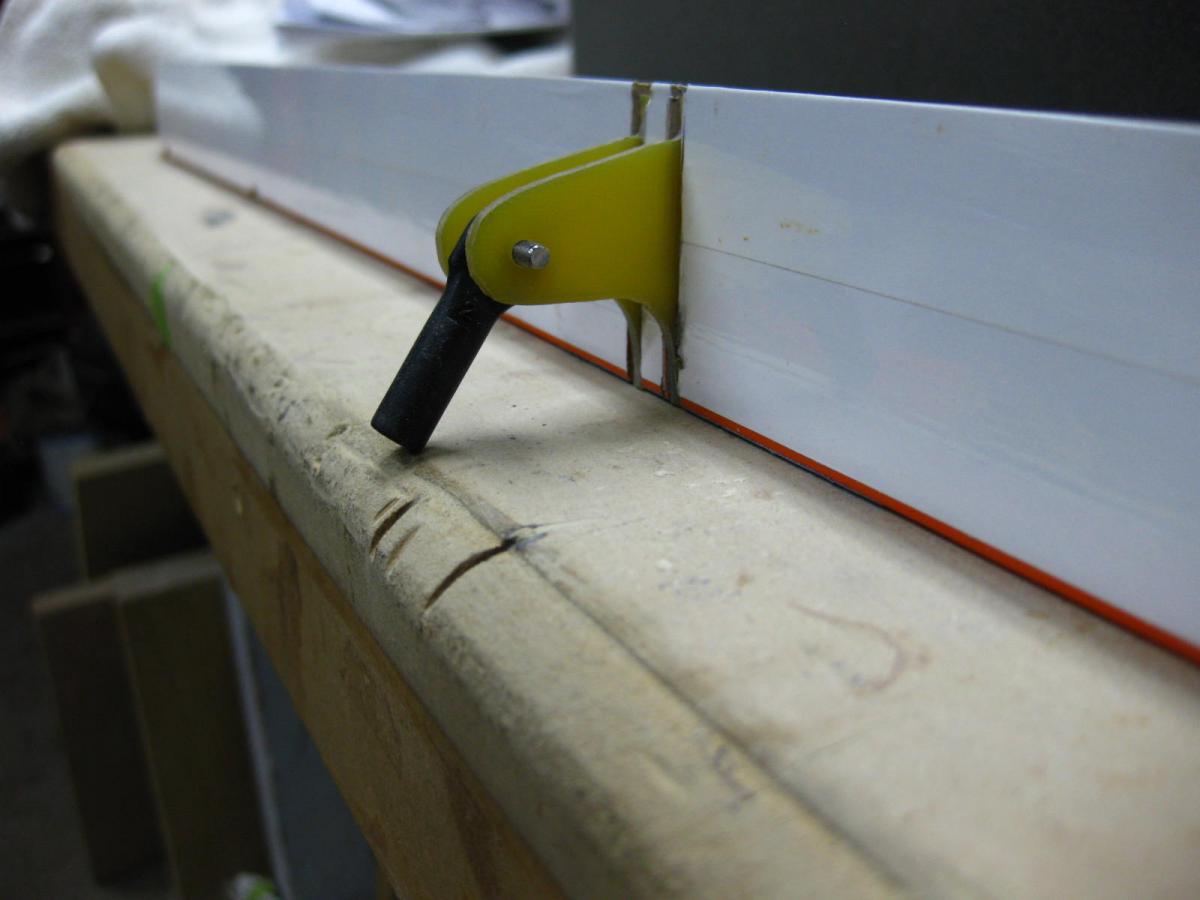

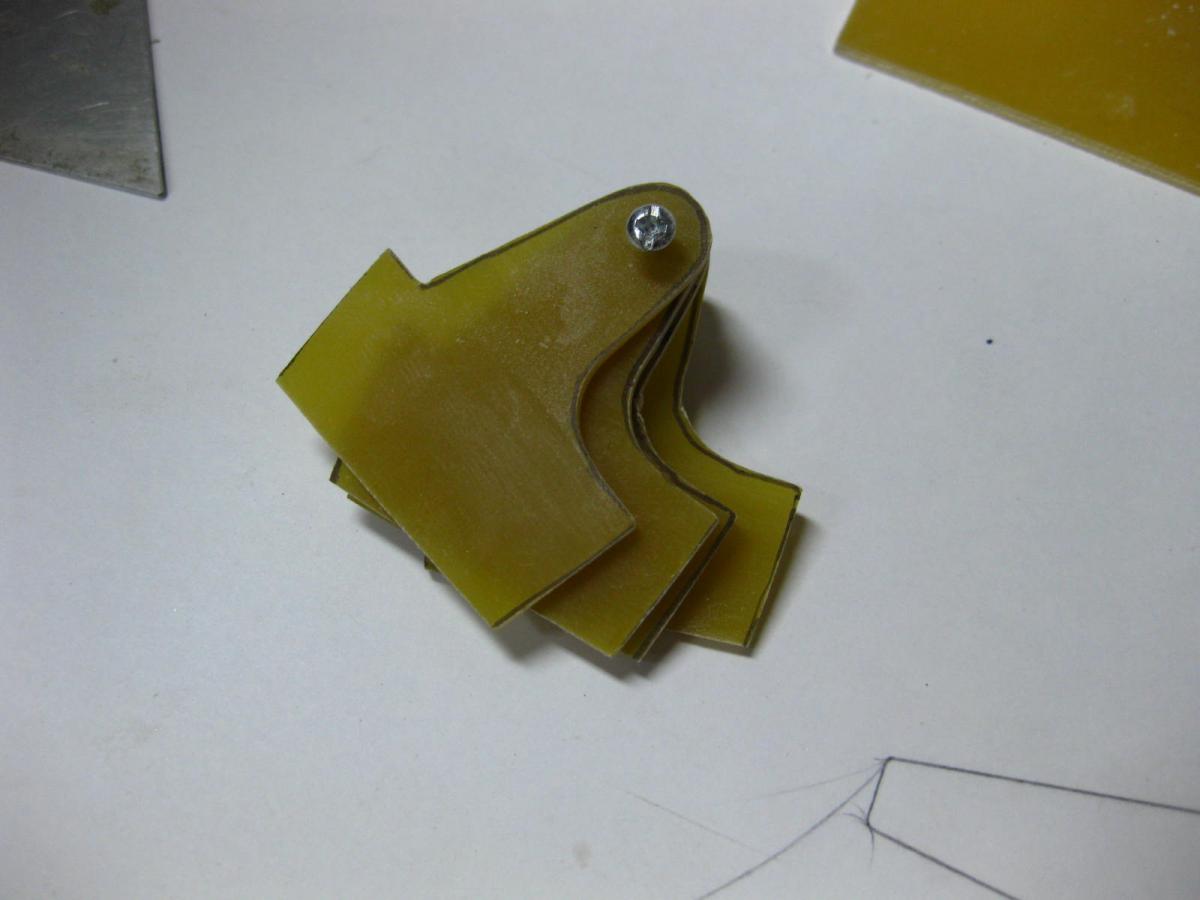

                Using 0.080 G10 material for the attachment point

                Click image for larger version

Name:	IMG_3376.JPG
Views:	452
Size:	60.4 KB
ID:	7988 Click image for larger version

Name:	IMG_3377.JPG
Views:	448
Size:	71.6 KB
ID:	7990 Click image for larger version

Name:	IMG_3378.JPG
Views:	414
Size:	57.8 KB
ID:	7991

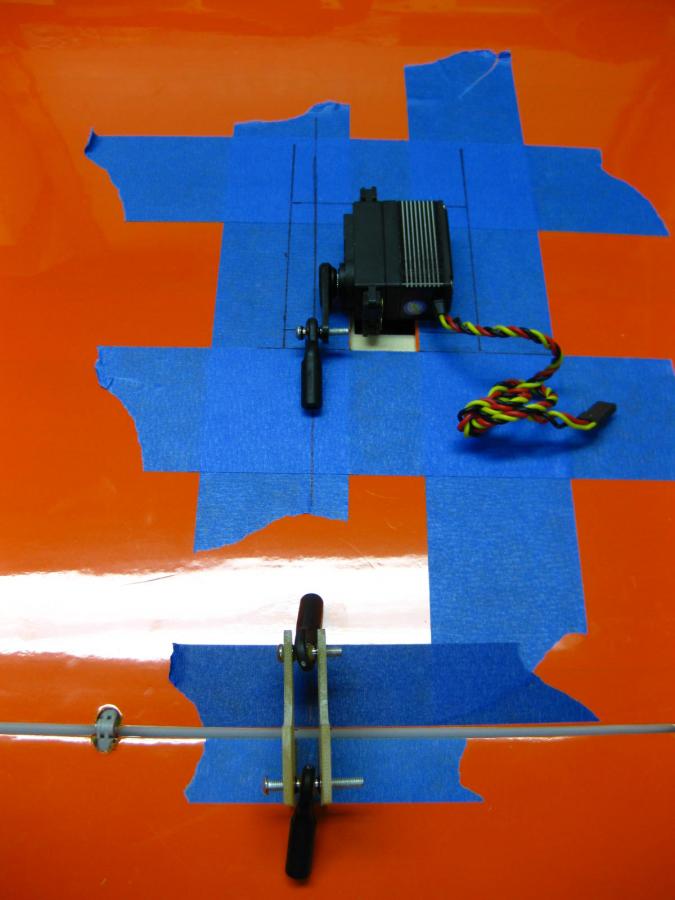

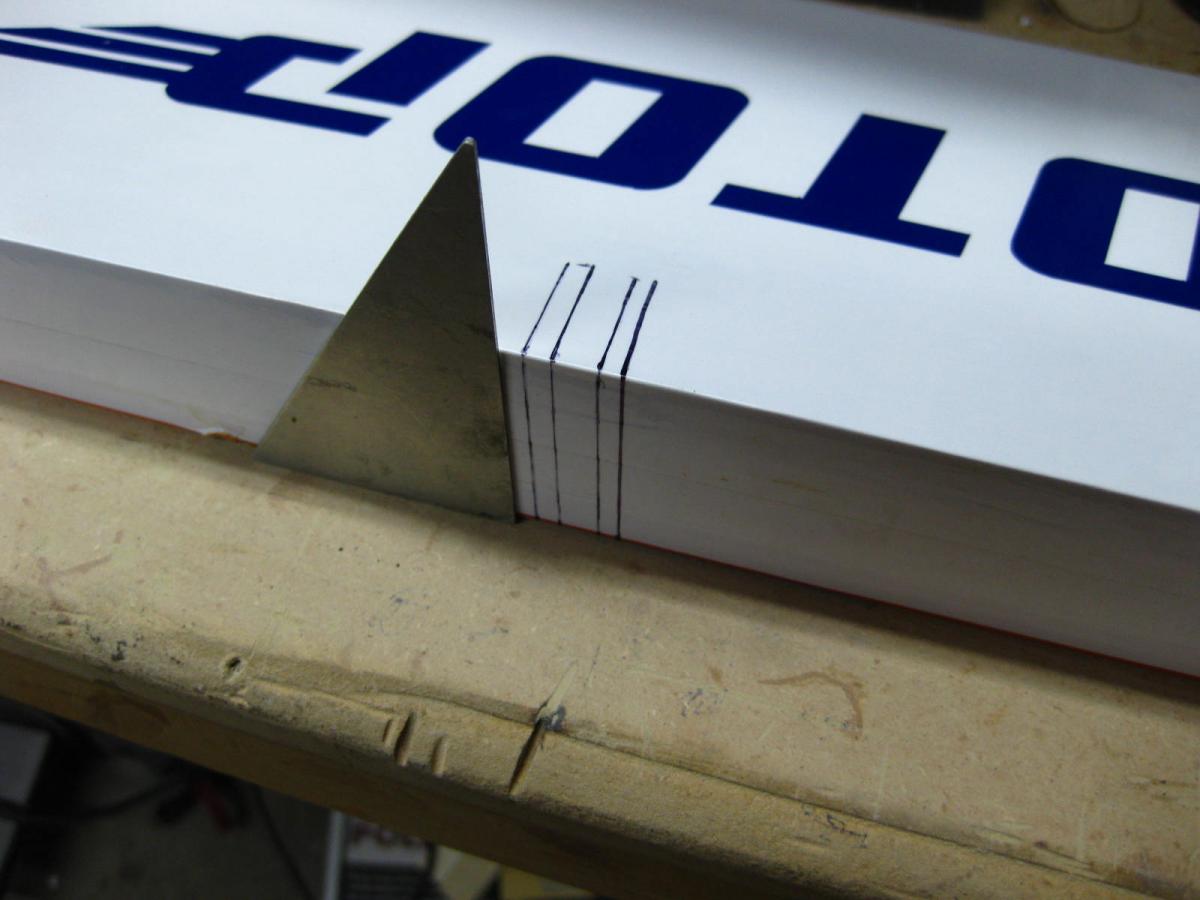

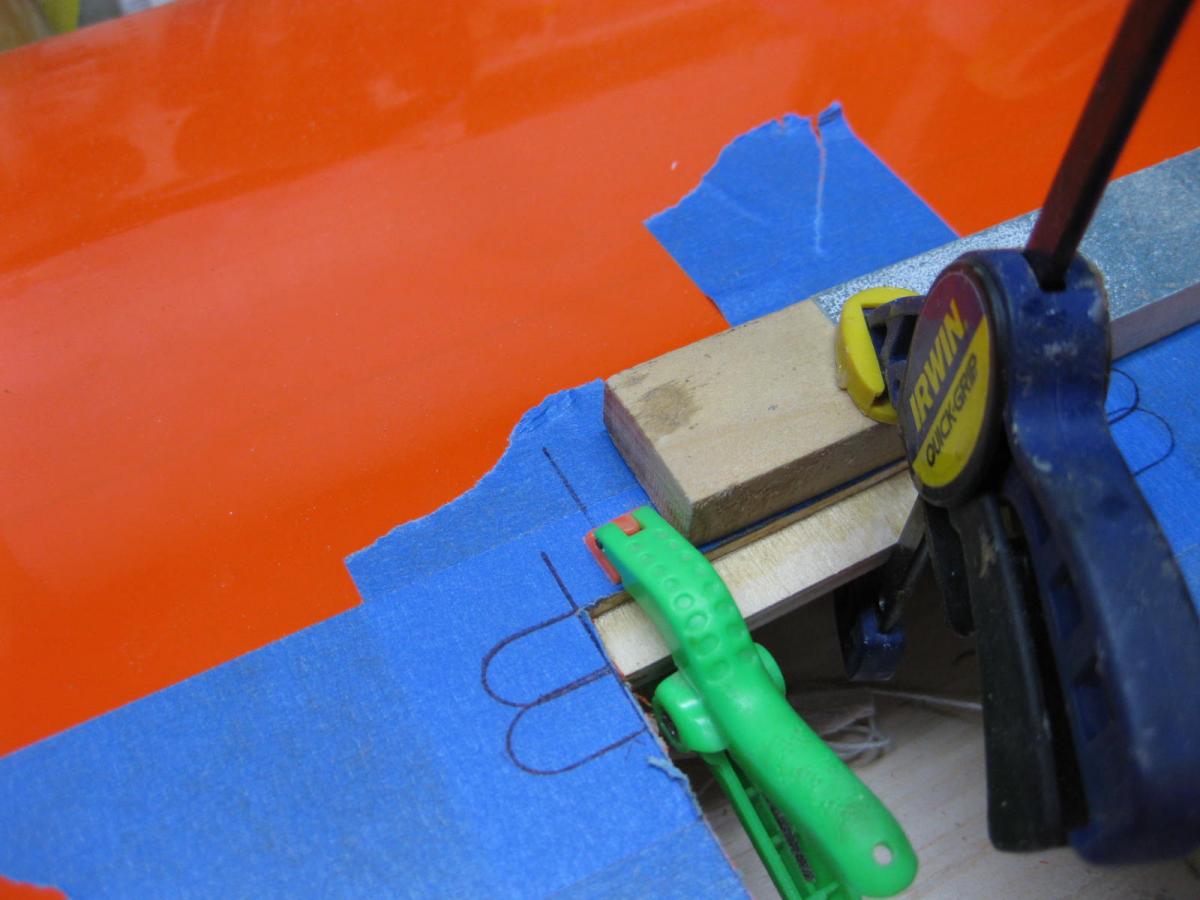

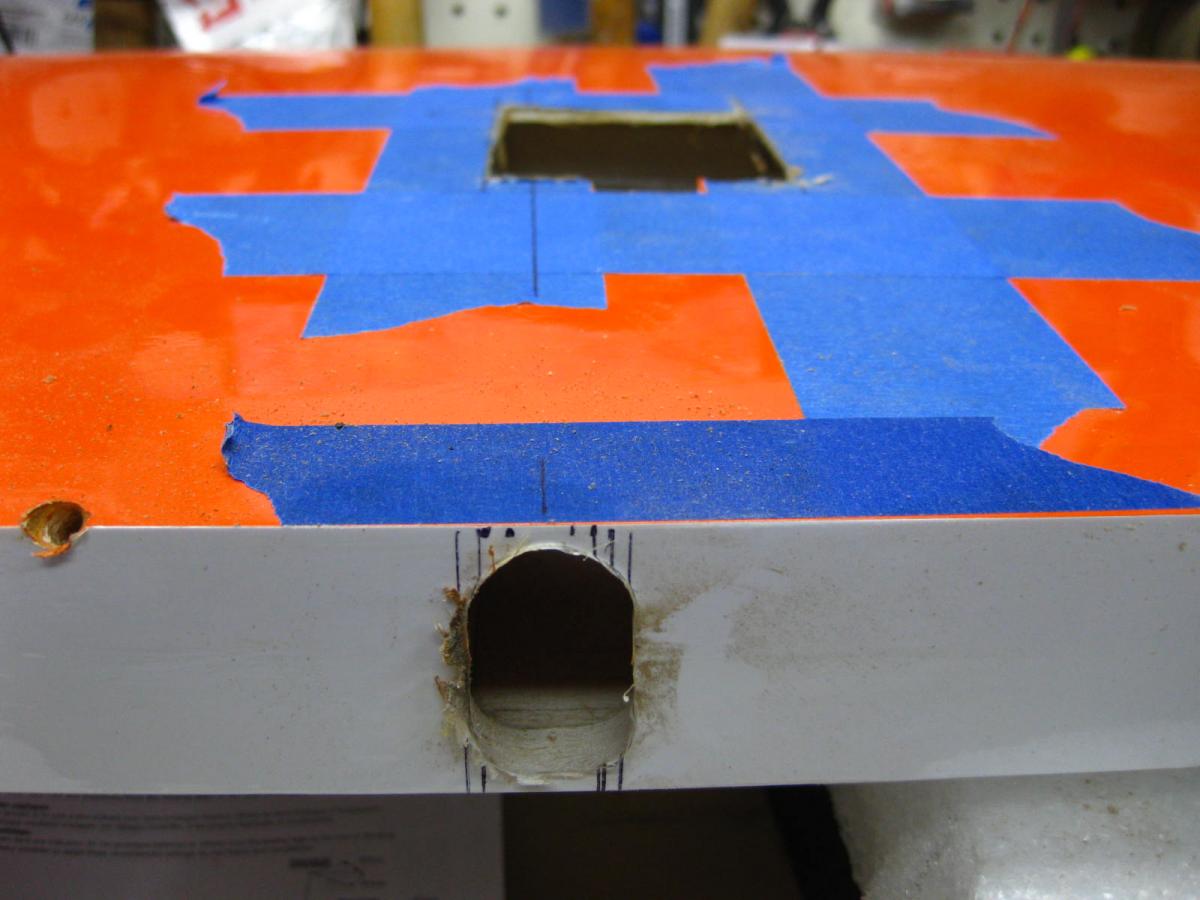

                Then lining thing up and ....cutting

                Click image for larger version

Name:	IMG_3381.JPG
Views:	415
Size:	51.9 KB
ID:	7992 Click image for larger version

Name:	IMG_3382.JPG
Views:	443
Size:	78.0 KB
ID:	7993
                Click image for larger version

Name:	IMG_3385.JPG
Views:	423
Size:	67.3 KB
ID:	7994
                Attached Files
                Last edited by MarnochS; 02-24-2016, 03:19 AM.

                Comment


                • #38
                  I'm committed now

                  Click image for larger version

Name:	IMG_3387.JPG
Views:	403
Size:	86.1 KB
ID:	8095

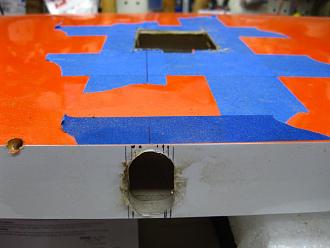

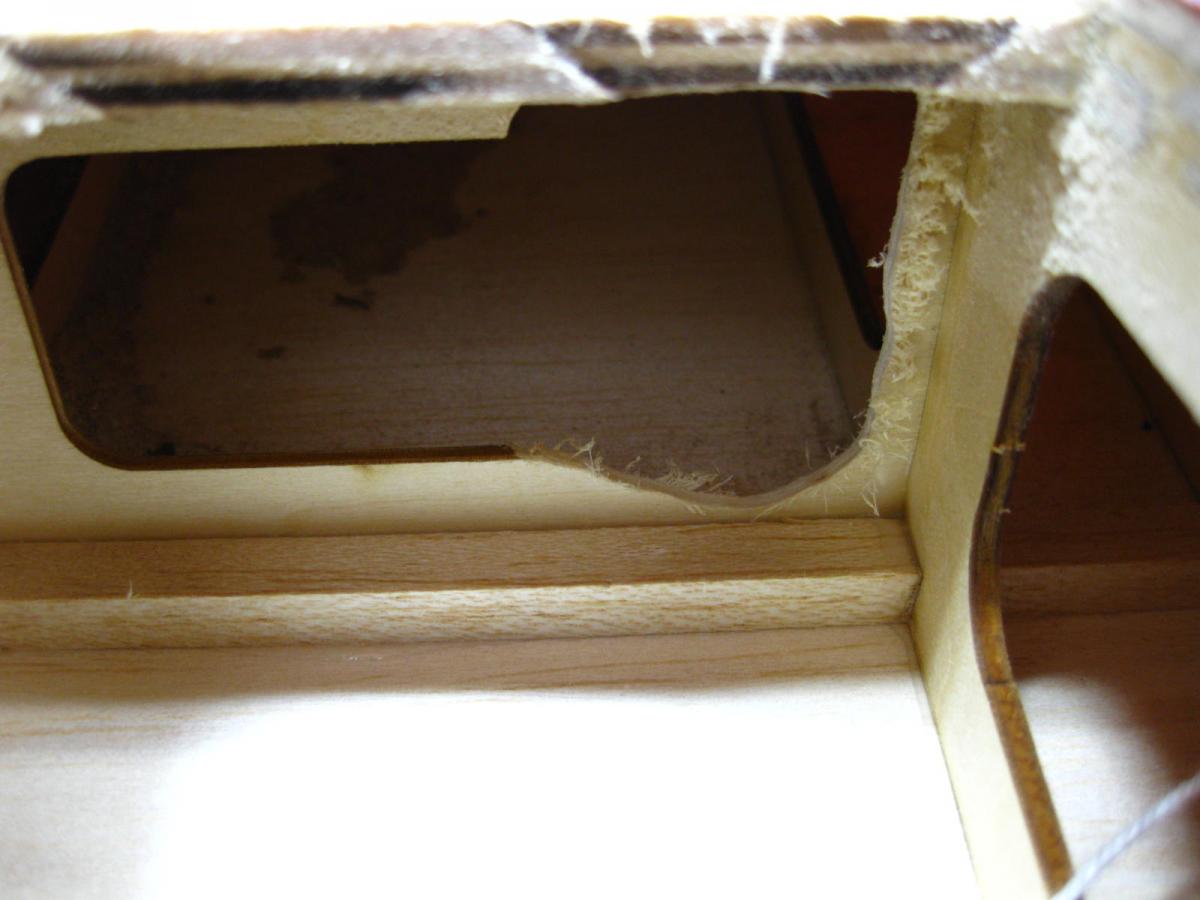

                  found there was a former supporting the original servo mount....so......

                  Click image for larger version

Name:	IMG_3390.JPG
Views:	399
Size:	42.0 KB
ID:	8096 Click image for larger version

Name:	IMG_3392.JPG
Views:	404
Size:	77.1 KB
ID:	8097
                  Attached Files

                  Comment


                  • #39

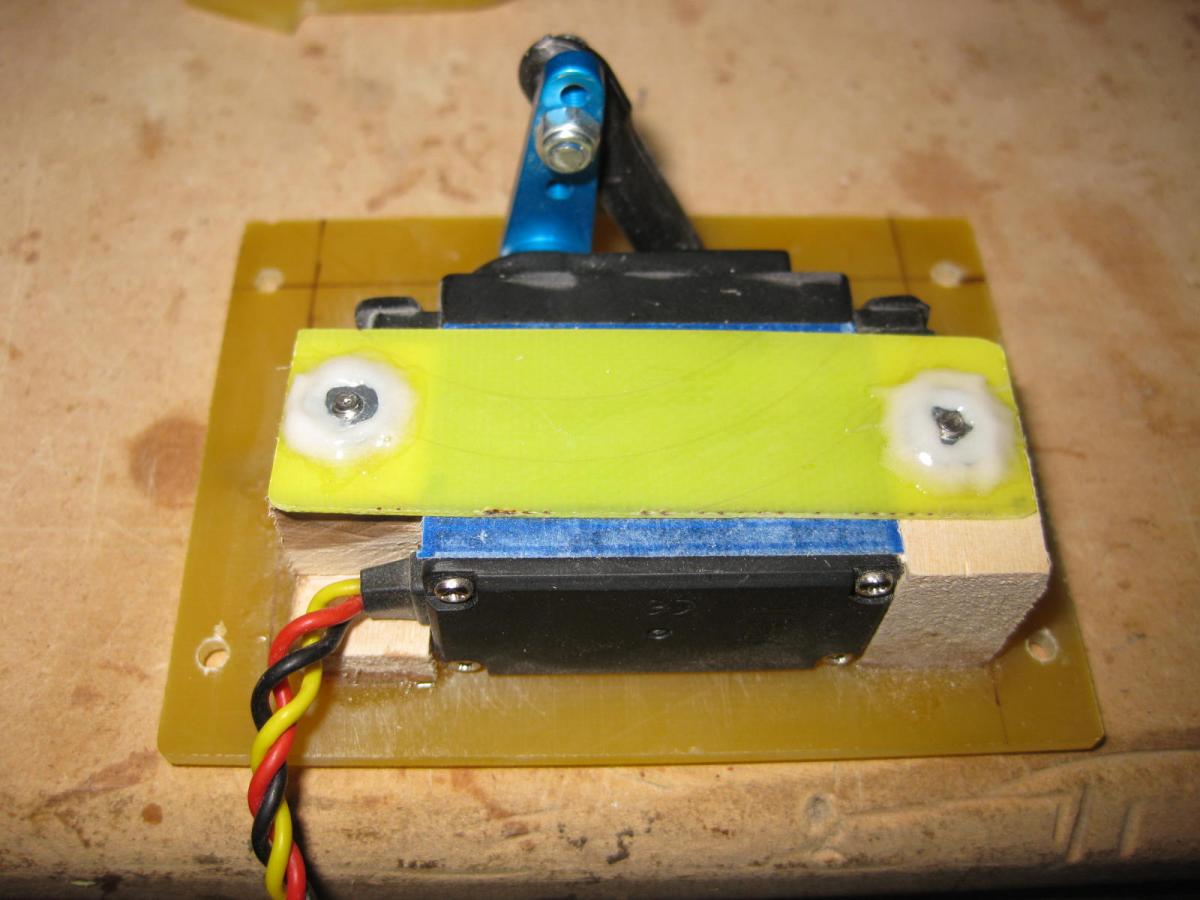

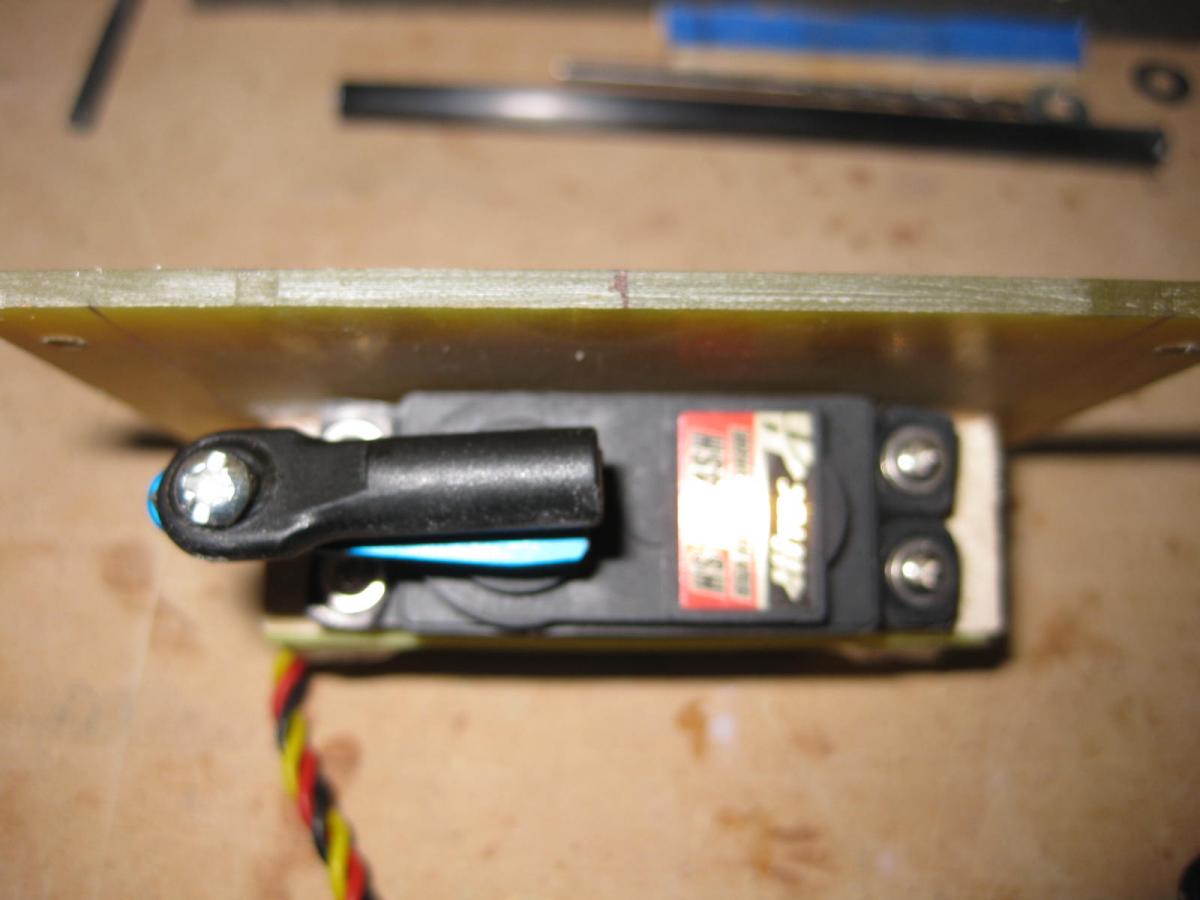

                    More Flap servo installation progress

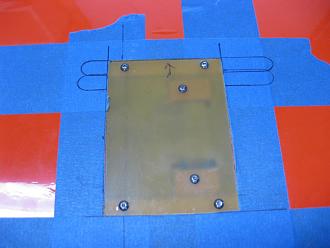

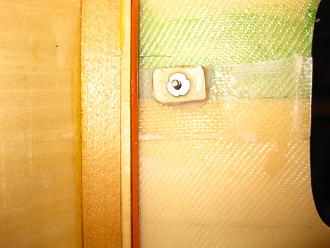

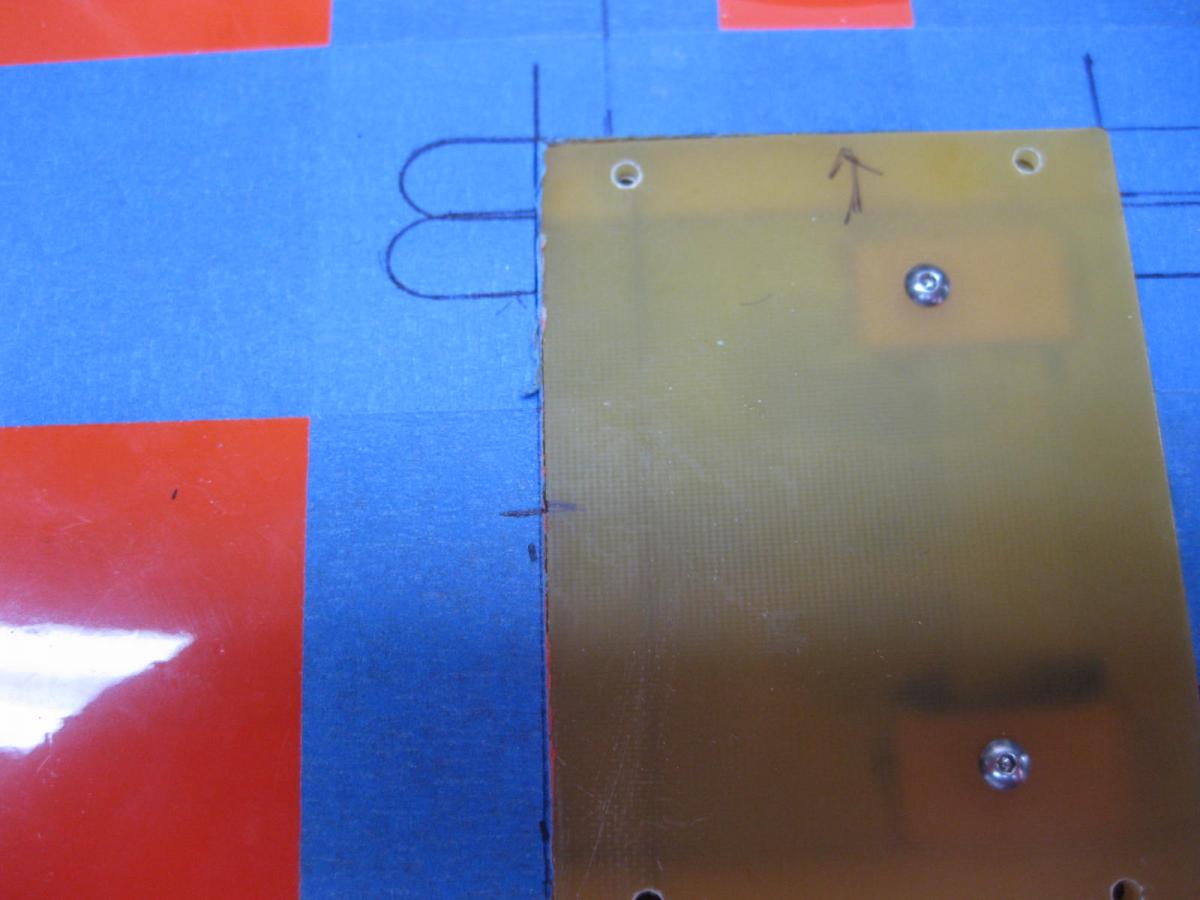

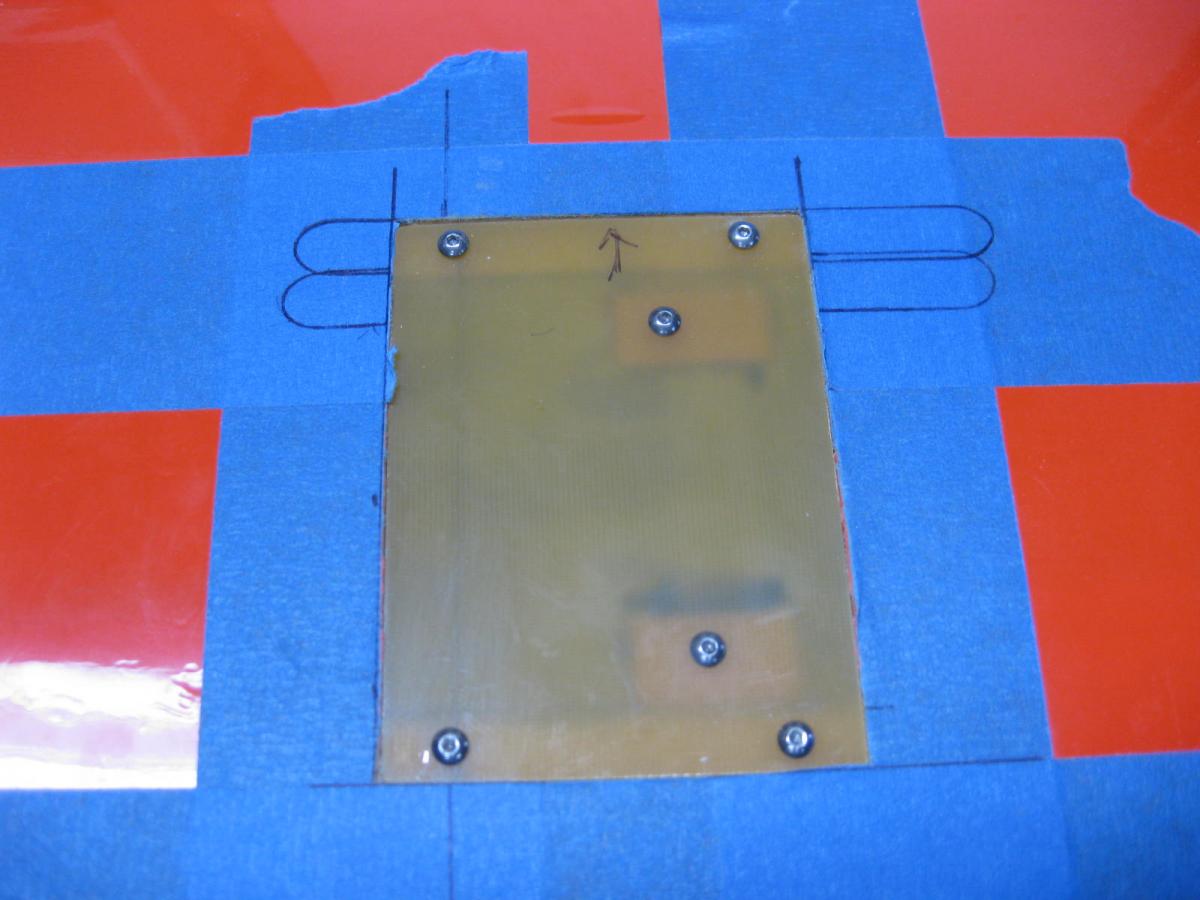

                    0.100 G10 for the cover, 4-40 button head stainless screws to attach everything

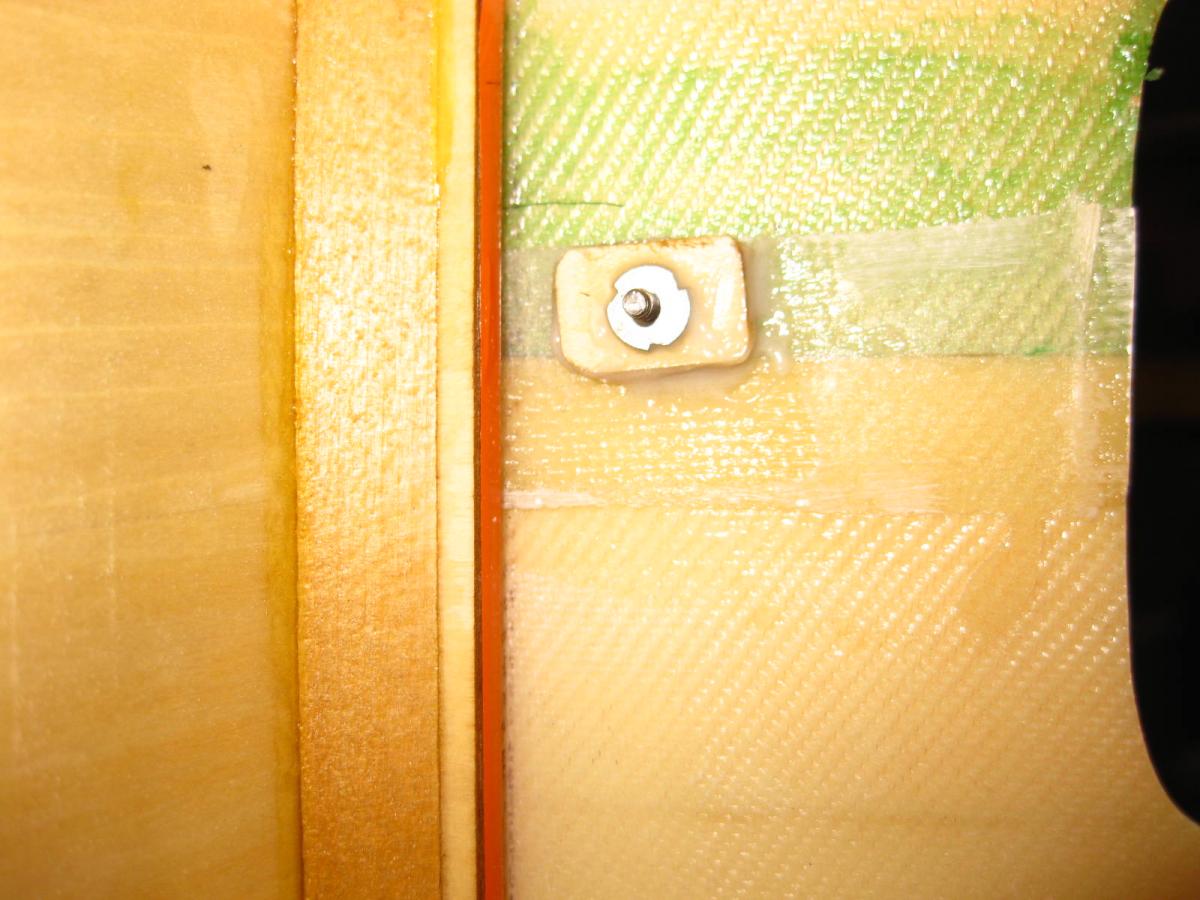

                    Button head screws weren't long enough to use a standard lock nut so I improvised by glueing T-nuts to the plate
                    Click image for larger version

Name:	IMG_3394.JPG
Views:	362
Size:	157.8 KB
ID:	8141 Click image for larger version

Name:	IMG_3397.JPG
Views:	385
Size:	85.1 KB
ID:	8139
                    Click image for larger version

Name:	IMG_3405.JPG
Views:	380
Size:	94.0 KB
ID:	8140 Click image for larger version

Name:	IMG_3402.JPG
Views:	383
Size:	81.6 KB
ID:	8138

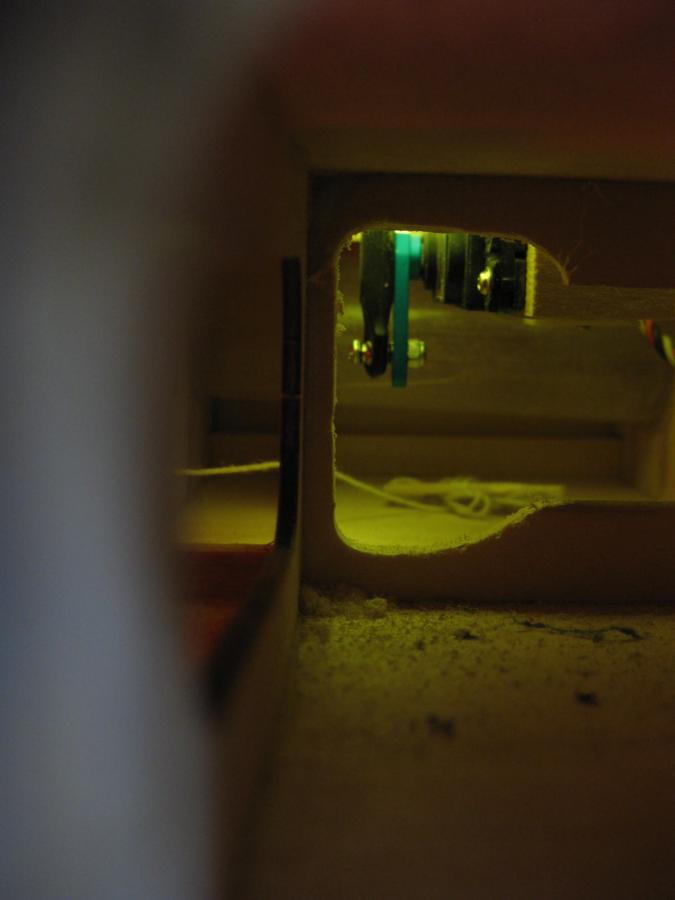

                    Checking on how things line up

                    Click image for larger version

Name:	IMG_3399.JPG
Views:	362
Size:	29.9 KB
ID:	8137

                    Comment


                    • #40
                      Control Surface Actuators

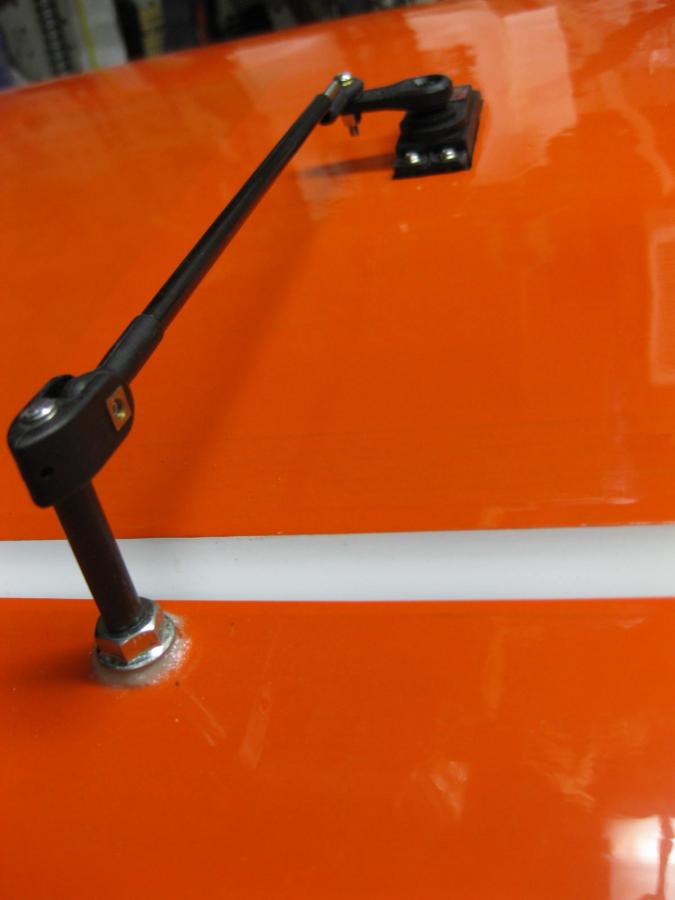

                      For the Aileron servo connection I used Hanger 9 10-32 Swivel Clevis horns (HAN3615) utilizing the threaded rod. I just threaded/glue it in from the bottom side. As you can see there's some filler at the base. Since I didn't want to look at the threaded rod, I found some thin wall Carbon tube ( 0.235 od/ 0.190 id.), Same for the servo pushrod ( 0.180 od. / 0.109 id) although I did have to run a small round file thru the center to get the 3mm threaded rod to fit.
                      Click image for larger version

Name:	IMG_3408.JPG
Views:	362
Size:	33.6 KB
ID:	8239

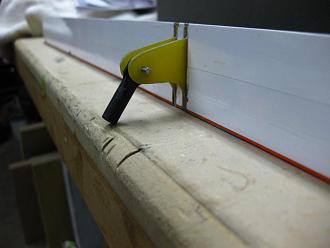

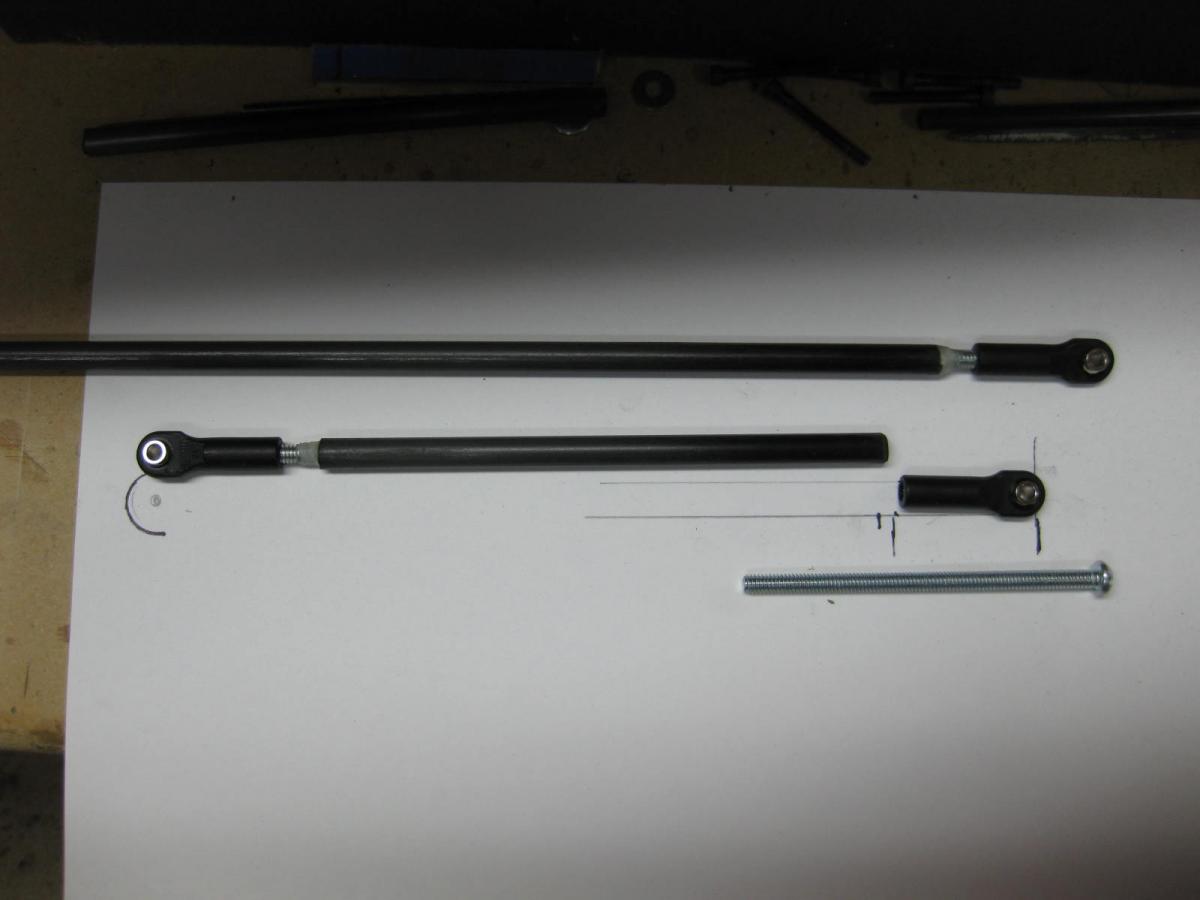

                      Flap push rods consist of 8-32 thread rod glued into Carbon tubes ( 0.250 od / 0.154 id ) then the 4mm Traxxas Ball links are threaded on. Also a sequence of getting the pushrod length close
                      Click image for larger version

Name:	IMG_3421.JPG
Views:	367
Size:	52.8 KB
ID:	8240 Click image for larger version

Name:	IMG_3414.JPG
Views:	368
Size:	66.8 KB
ID:	8241
                      Click image for larger version

Name:	IMG_3415.JPG
Views:	352
Size:	64.1 KB
ID:	8242 Click image for larger version

Name:	IMG_3416.JPG
Views:	345
Size:	74.0 KB
ID:	8243
                      Click image for larger version

Name:	IMG_3418.JPG
Views:	371
Size:	95.0 KB
ID:	8244

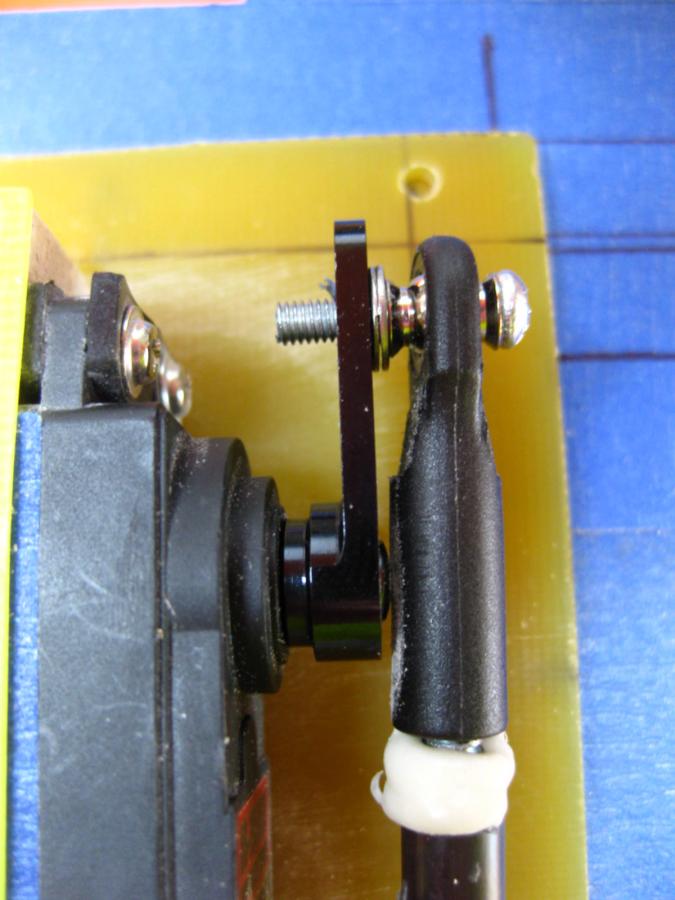

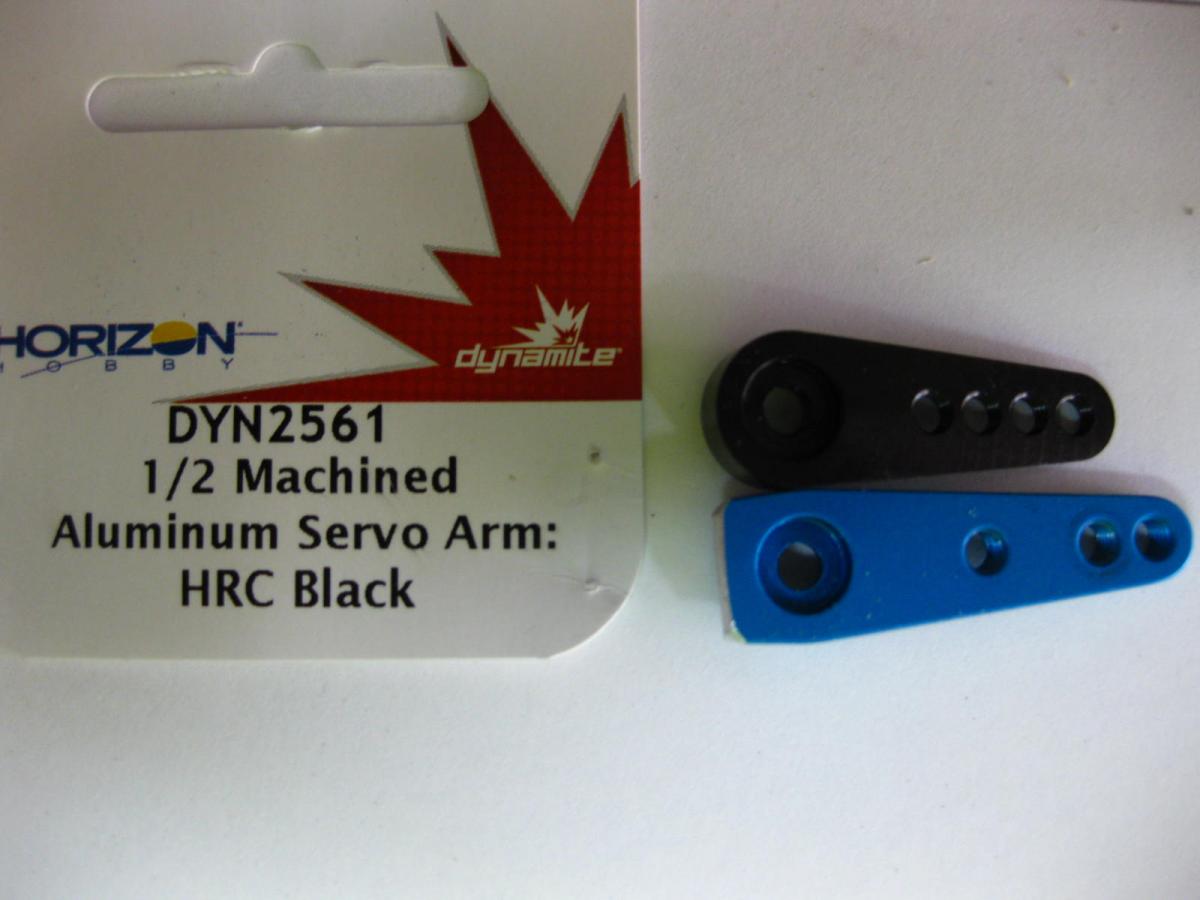

                      I using Horizon Dynamite DYN2561 Aluminum servo horns as they have a 15mm position which give me the correct throw for 70 degrees (130mm) of flap
                      The Hitec arms 20 mm gave a 90 degree flap which I may try later on.

                      Click image for larger version

Name:	IMG_3427.JPG
Views:	361
Size:	67.3 KB
ID:	8245 Click image for larger version

Name:	IMG_3425.JPG
Views:	360
Size:	62.0 KB
ID:	8246
                      Click image for larger version

Name:	IMG_3422.JPG
Views:	370
Size:	77.1 KB
ID:	8247
                      Last edited by MarnochS; 03-03-2016, 05:32 PM.

                      Comment


                      • #41
                        Nice work Scott!

                        Everytime I look at this thread I think of a line in that great Eagles song.... "Working on the Bidule California"

                        Pete
                        Last edited by Xroadie; 03-03-2016, 11:18 PM.

                        Comment


                        • #42
                          Thanks Pete.....well.... technically I live on a desert highway ....and burrrr.....there's a cool wind.....it must be down to 65 or something.......


                          And of course, ....the gratuitous flap actuation video......



                          The BoomaRC master and ignition switches a nicely hidden by the blue stripe.

                          Scott
                          Last edited by MarnochS; 03-05-2016, 02:18 AM.

                          Comment


                          • #43

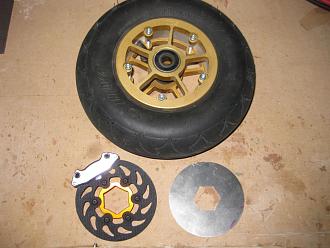

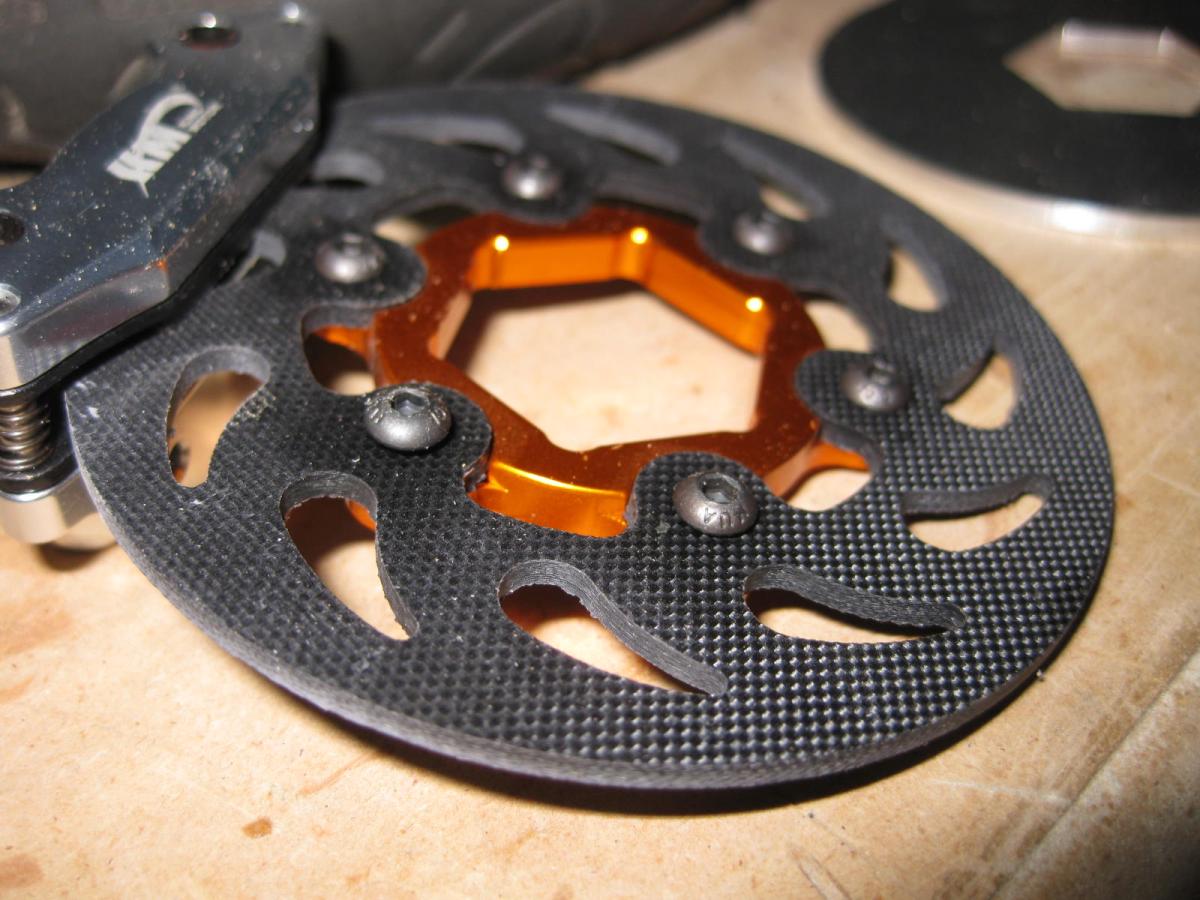

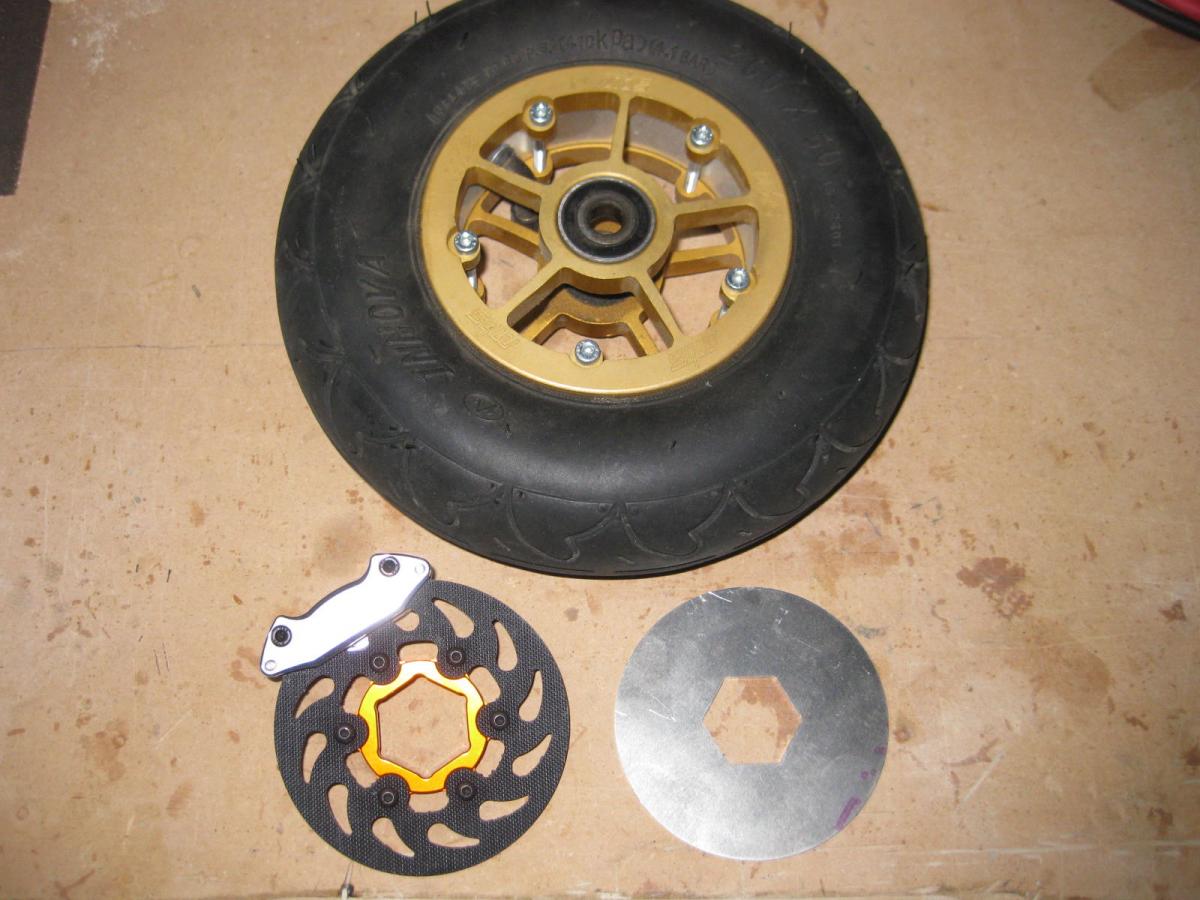

                            Bidule Brakes........

                            Well I got my super cool Aviation Concepts brakes in and attempted to order the Aeroworks 8.25" wheels......but found out that they are" out of stock" for an indefinite time frame.

                            Plan B....

                            going to have to manufacture an a disc rotor adapter for the MBS off road skateboard wheels. In the research process I found some really cool carbon rotors......super Bling....
                            Have a set of 200x75 tires on order as the current 200x50 are a little small for the main wheels.

                            Click image for larger version

Name:	IMG_3451.JPG
Views:	357
Size:	120.4 KB
ID:	8986 Click image for larger version

Name:	IMG_3455.JPG
Views:	341
Size:	131.7 KB
ID:	8985

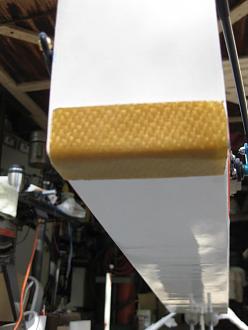

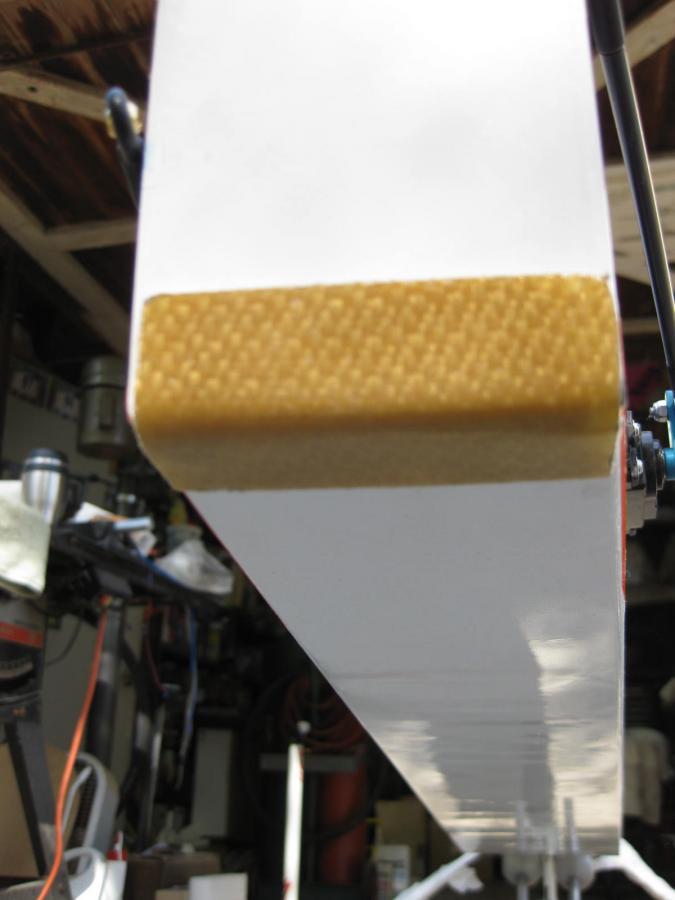

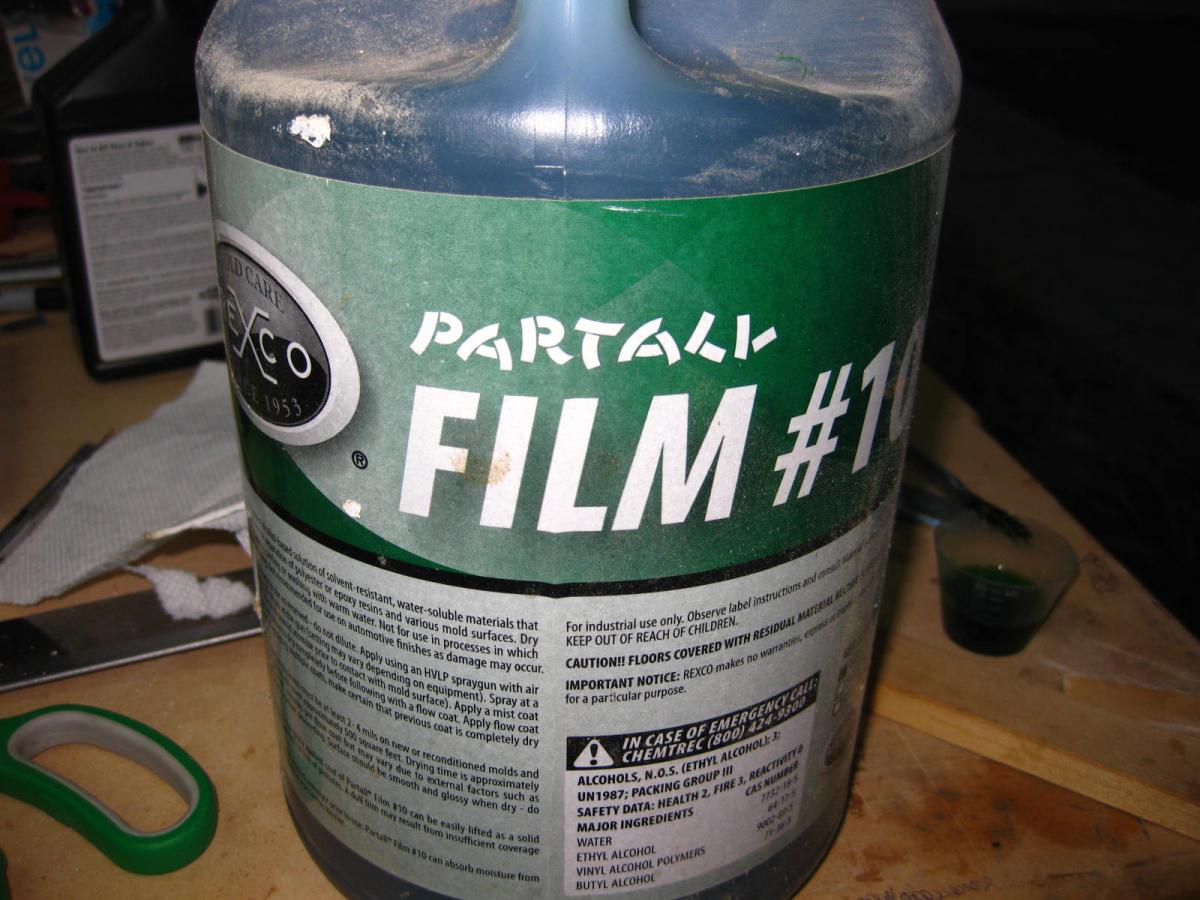

                            I saw a photo of one of Len's High Alpha landings and figured I needed a tail skid.......had some 5.7 oz. Kevlar cloth....so....

                            Click image for larger version

Name:	IMG_3449.JPG
Views:	321
Size:	44.3 KB
ID:	8987
                            Last edited by MarnochS; 04-04-2016, 03:17 PM.

                            Comment


                            • #44
                              Hi Scott,

                              Super looking rotor bling!!

                              Like the tail skid also, nice touch.
                              Len Buffinton
                              Team Horizon Hobby

                              Comment


                              • #45
                                Thanks Len,

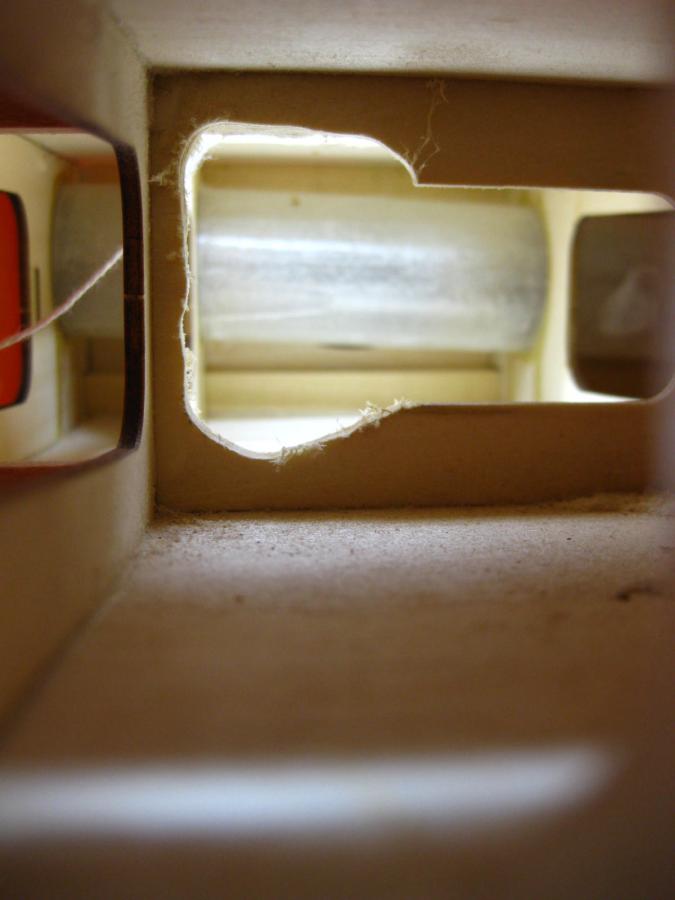

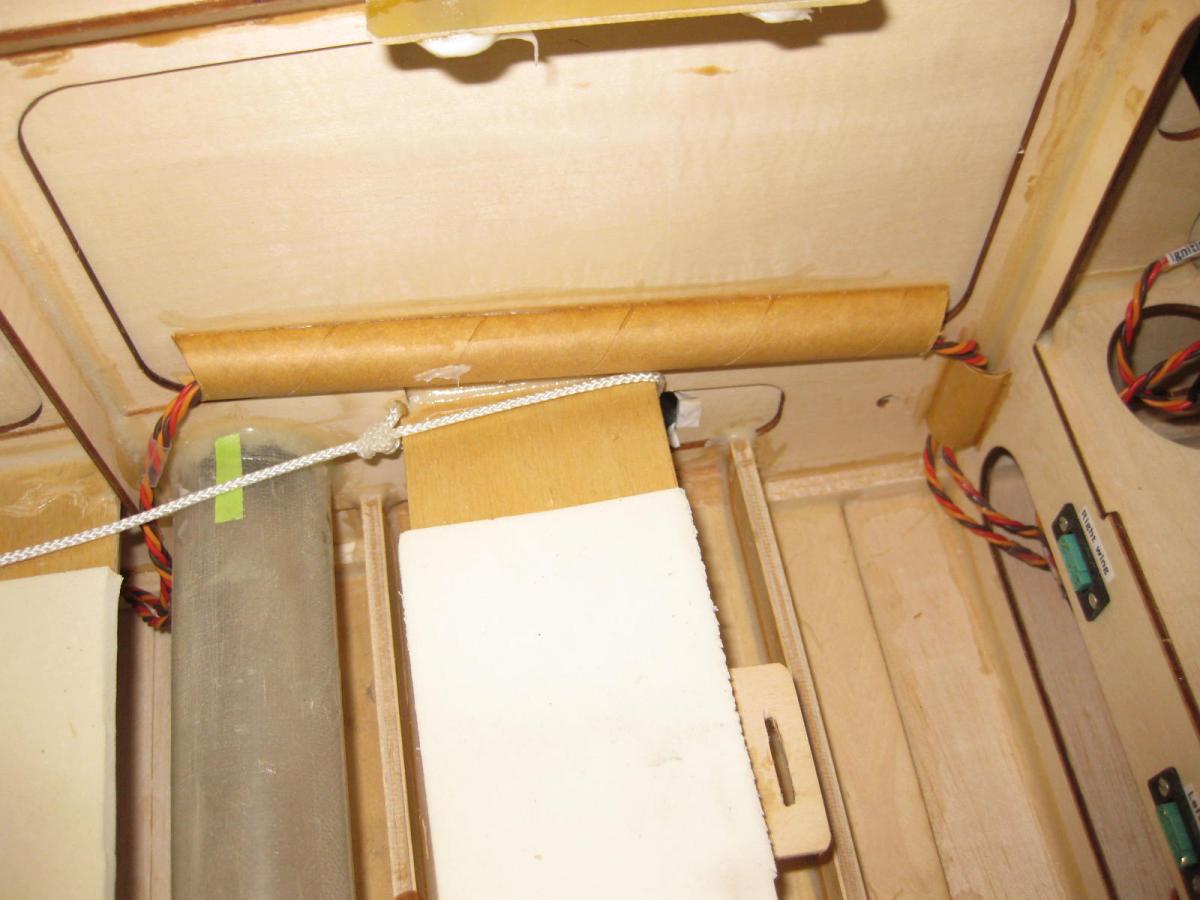

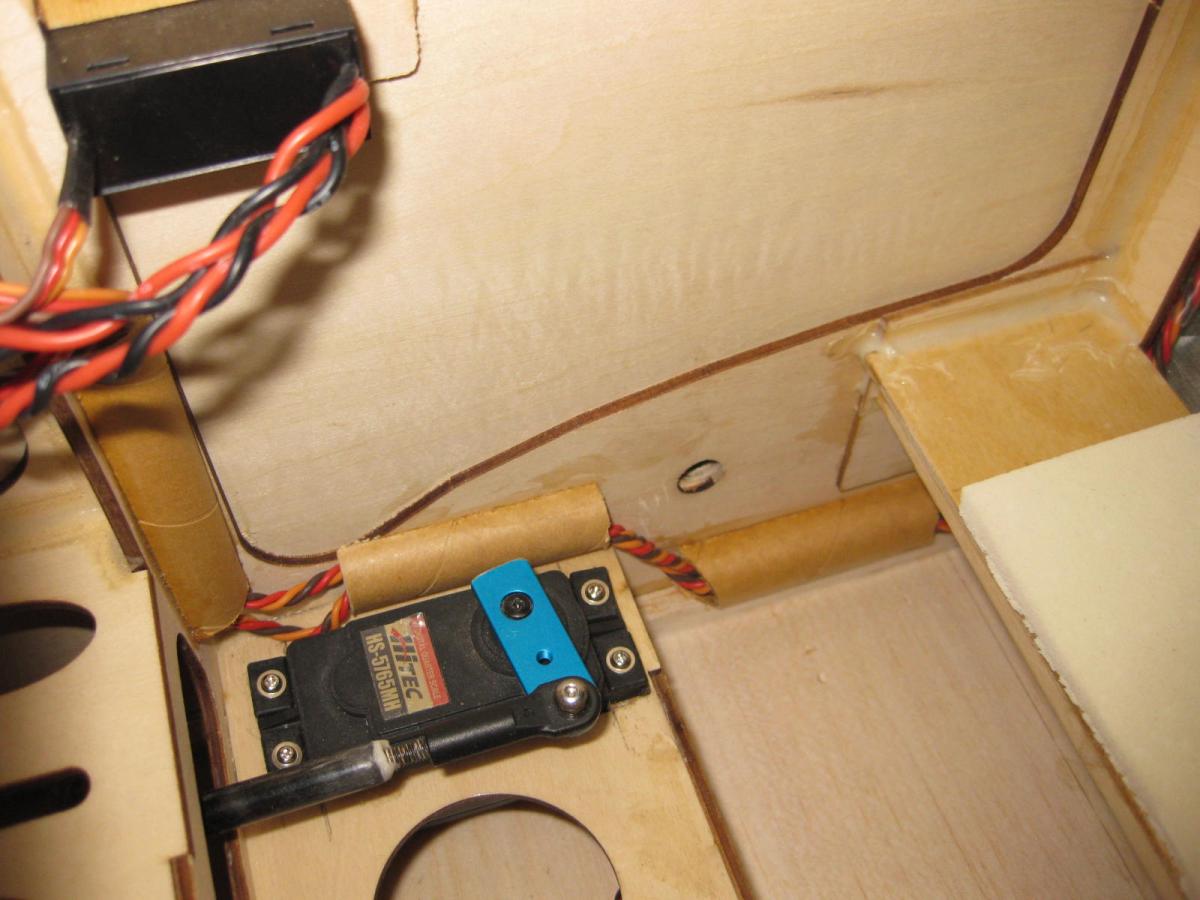

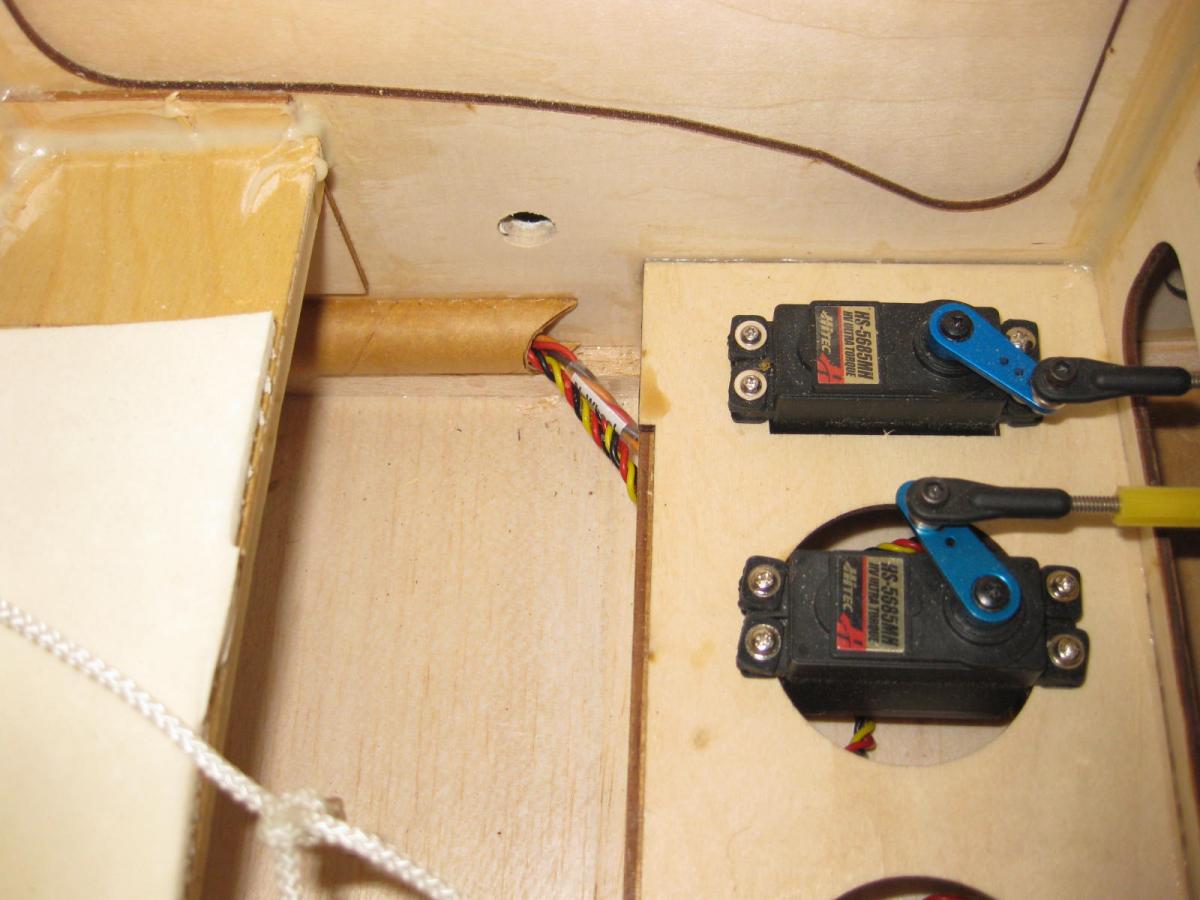

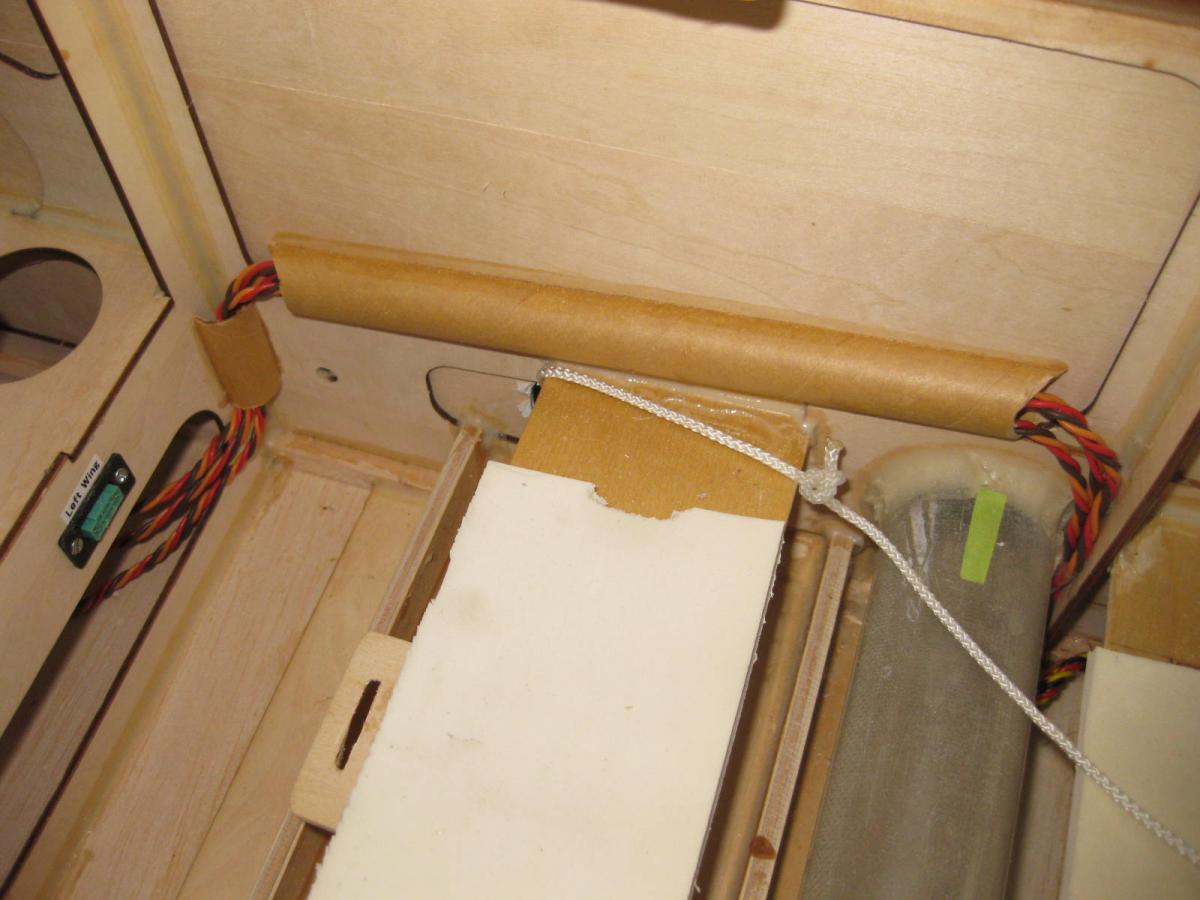

                                Moving on to the Servo Lead "Wrangling" step of the fuselage, I'm using 5/8' wing sockets from TNT cut down a little more than half. (5/8?)
                                Glued on with Tightbond3

                                Click image for larger version

Name:	IMG_3458.JPG
Views:	321
Size:	100.2 KB
ID:	9070 Click image for larger version

Name:	IMG_3459.JPG
Views:	336
Size:	96.7 KB
ID:	9072
                                Click image for larger version

Name:	IMG_3457.JPG
Views:	334
Size:	94.6 KB
ID:	9071 Click image for larger version

Name:	IMG_3460.JPG
Views:	308
Size:	93.1 KB
ID:	9073


                                Scott
