  • California Bidules

    Bidule 170's have come to California The unveiling occurred at the Visalia Fall AeroTow, Mac was gracious enough to open the box so we could all "look inside". Click image for larger version

Name:	Happy Campers.JPG
Views:	174
Size:	85.6 KB
ID:	4938 Mac has S/N - 66 and I have S/N - 71 Scott

  • #2
    ahh...., it's a California "Thing". You will enjoy it.

    Comment


    • #3
      Thanks Asher, we're both looking forward to them

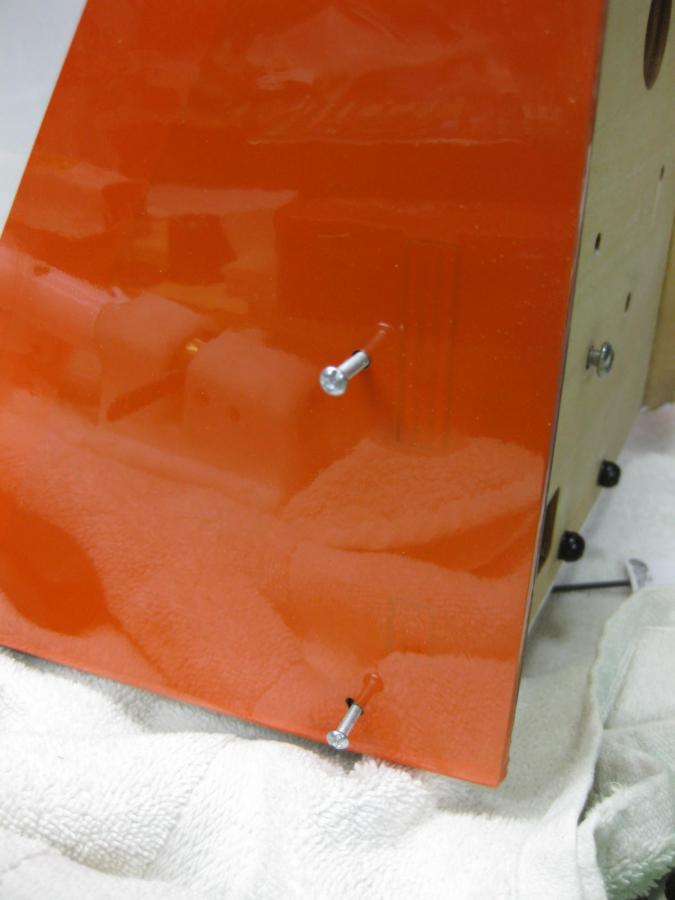

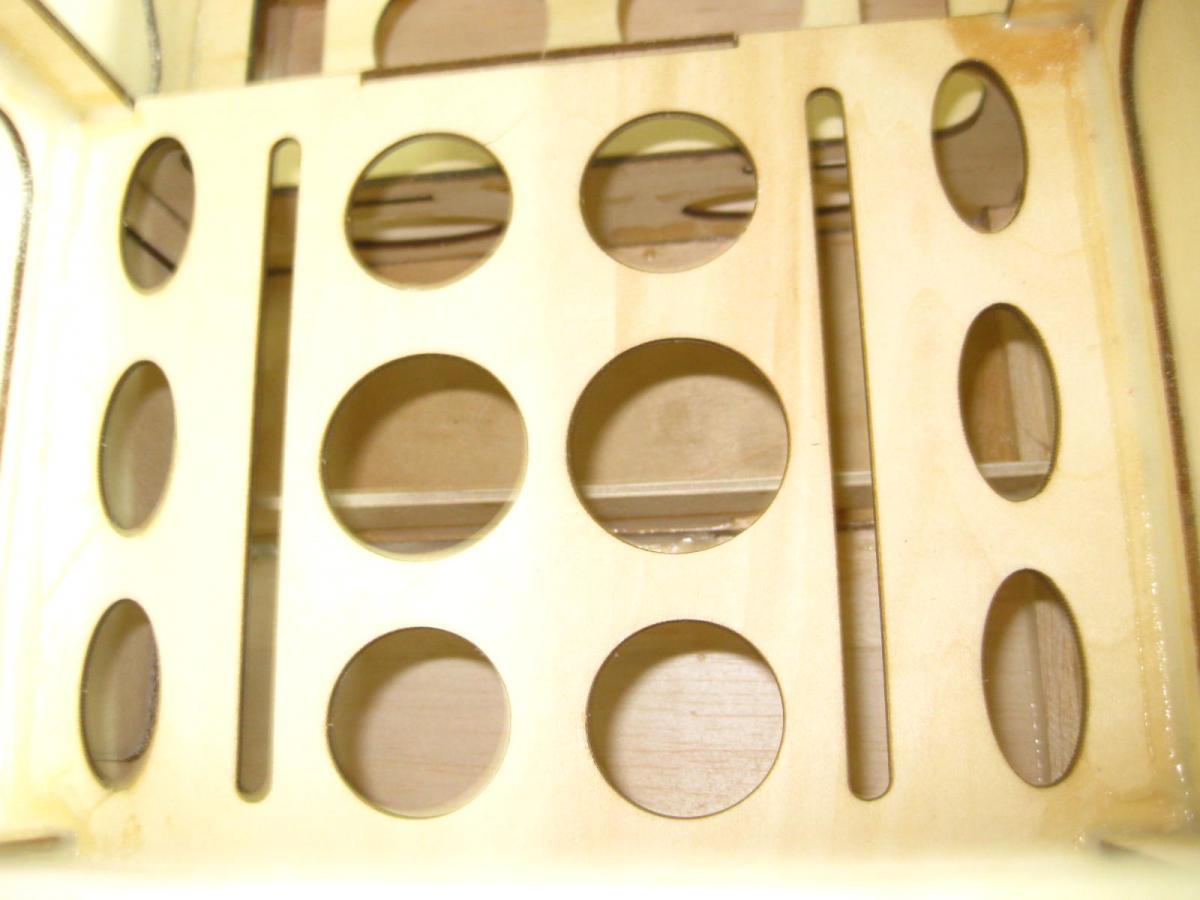

      Firewall reinforcement

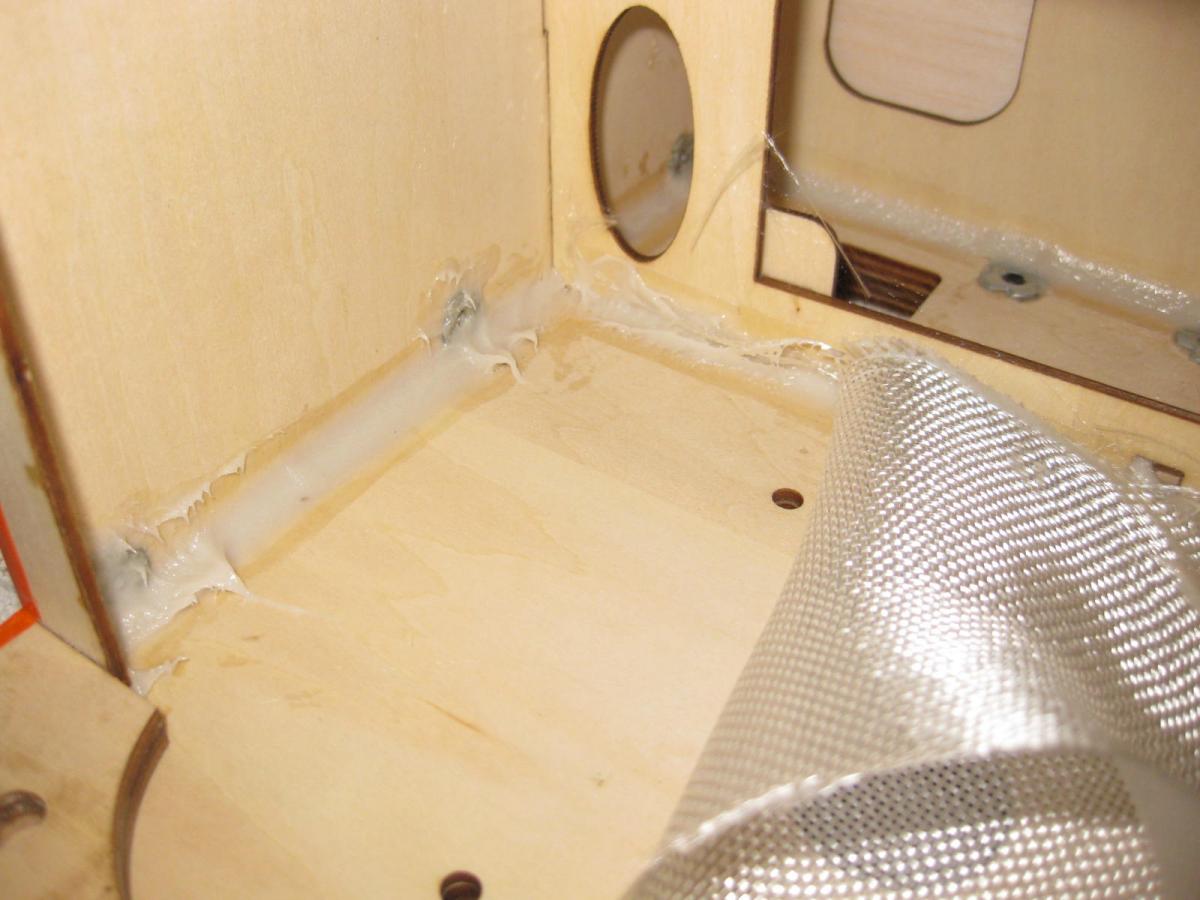

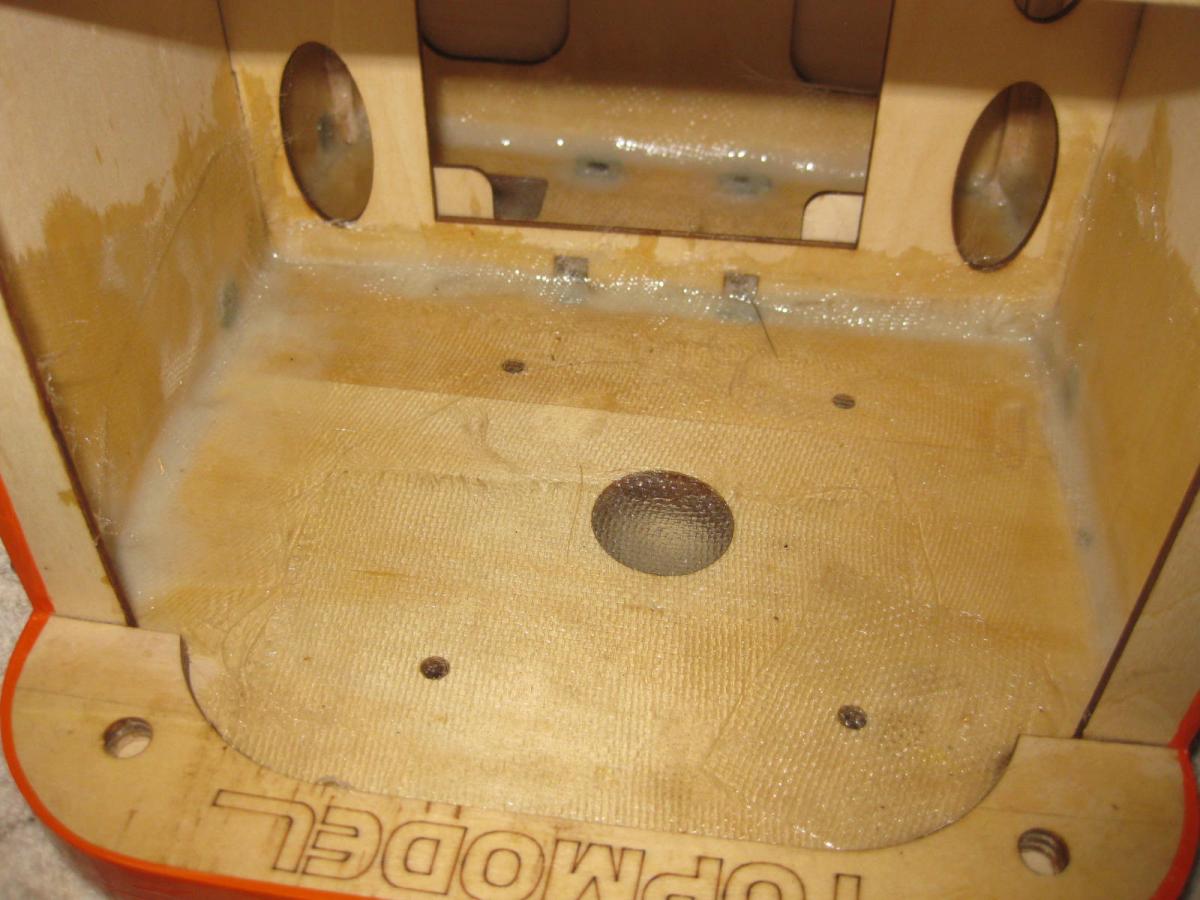

      I opted for West System 404 (high strength adhesive) to form a filet around the backside of the firewall (there were some large gaps) and then put down 6 oz fiberglass cloth ( 3' up the sides )

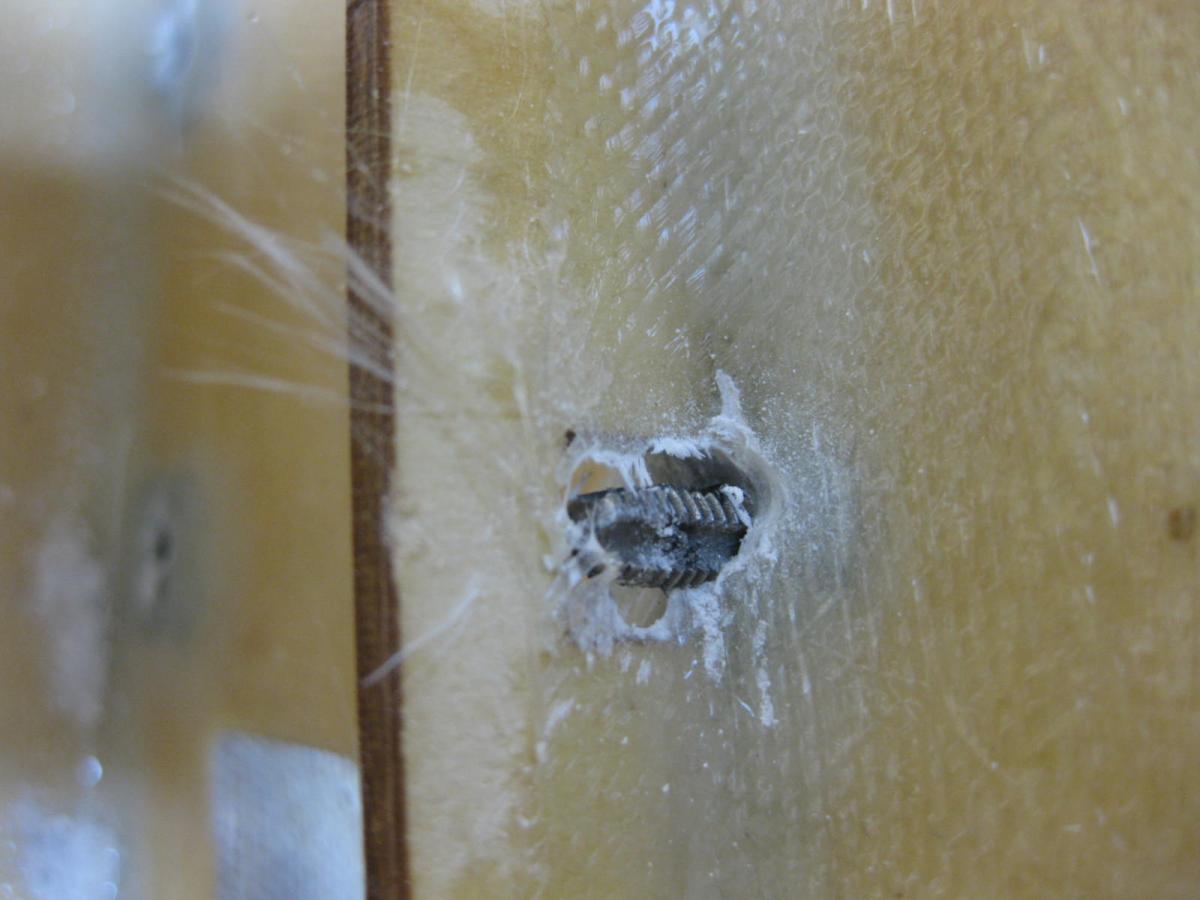

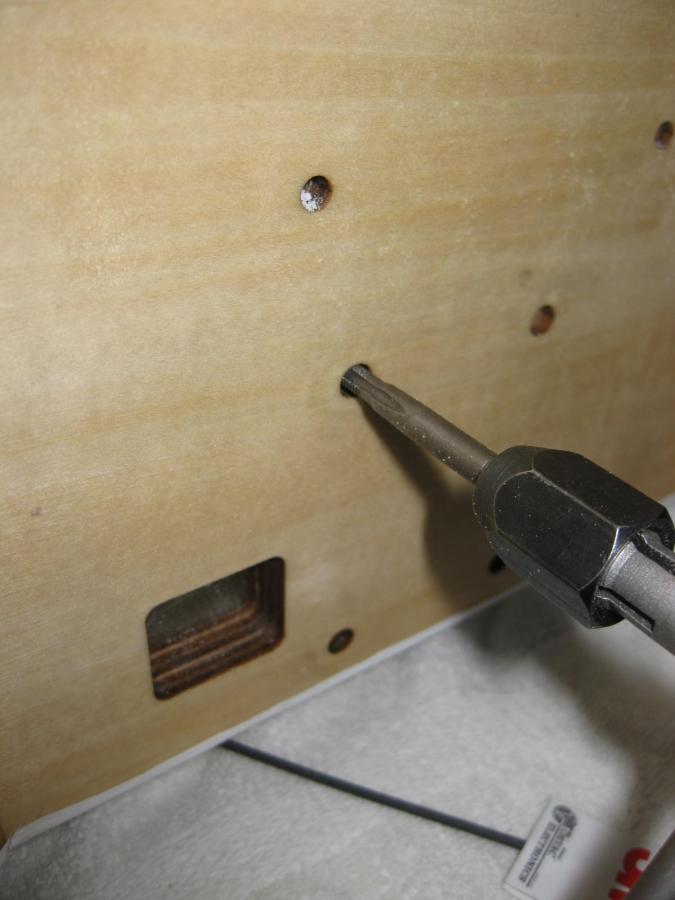

      Sealed off the existing T-nuts with Vaseline coated screws, then ran a Tap threw the threads after cleaning out the fiberglass.off the back side

      Scott

      Click image for larger version

Name:	IMG_3094.JPG
Views:	224
Size:	94.5 KB
ID:	4996 Click image for larger version

Name:	IMG_3096.JPG
Views:	281
Size:	108.2 KB
ID:	4997
      Click image for larger version

Name:	IMG_3099.JPG
Views:	213
Size:	42.6 KB
ID:	4998 Click image for larger version

Name:	IMG_3100.JPG
Views:	224
Size:	49.4 KB
ID:	4999 Click image for larger version

Name:	IMG_3104.JPG
Views:	215
Size:	80.1 KB
ID:	5000

      Click image for larger version

Name:	IMG_3106.JPG
Views:	230
Size:	64.4 KB
ID:	5001 Click image for larger version

Name:	IMG_3162.JPG
Views:	248
Size:	72.1 KB
ID:	13595

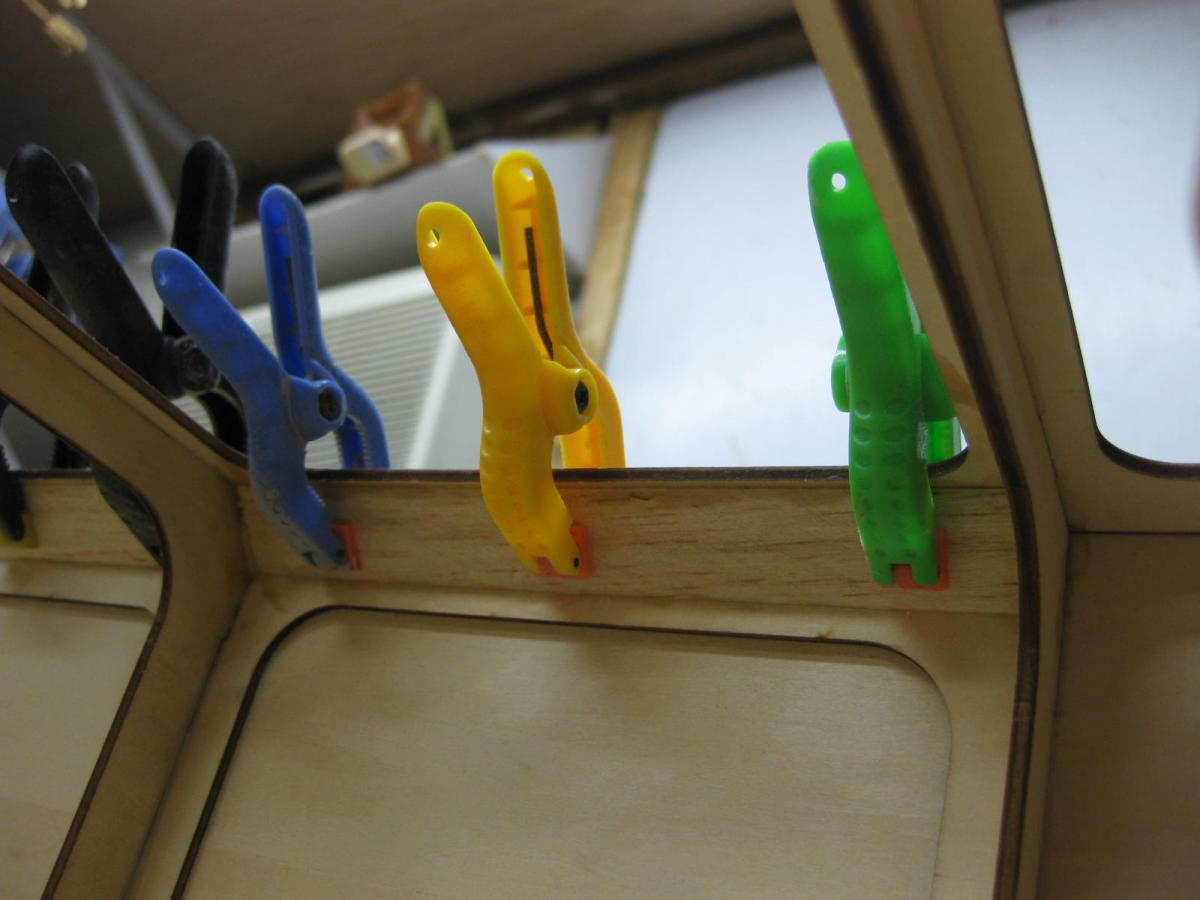

      Ran a bead of epoxy / colloidal silica (406) filler along all the forward glue joints as there were some holes...
      Used a 10cc syringe (application) and a Popsicle stick (smoothing).

      Click image for larger version

Name:	IMG_3175.JPG
Views:	194
Size:	82.3 KB
ID:	13596
      Last edited by MarnochS; 10-27-2016, 02:44 PM.

      Comment


      • #4
        Hi Scott,
        Are you planning on a servo saver setup for the nose gear?
        Len Buffinton
        Team Horizon Hobby

        Comment


        • #5
          Hi Len,

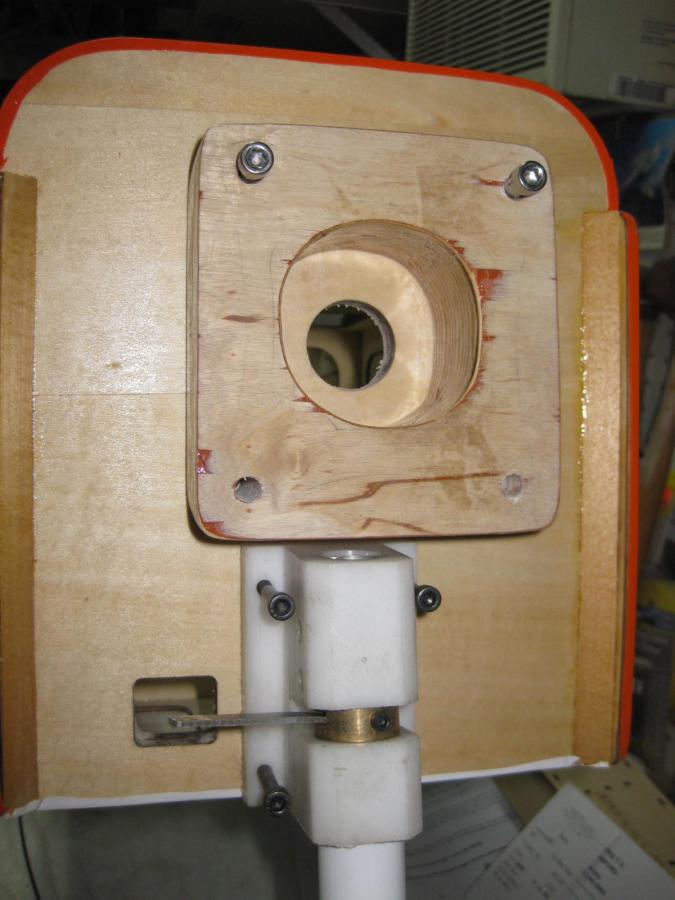

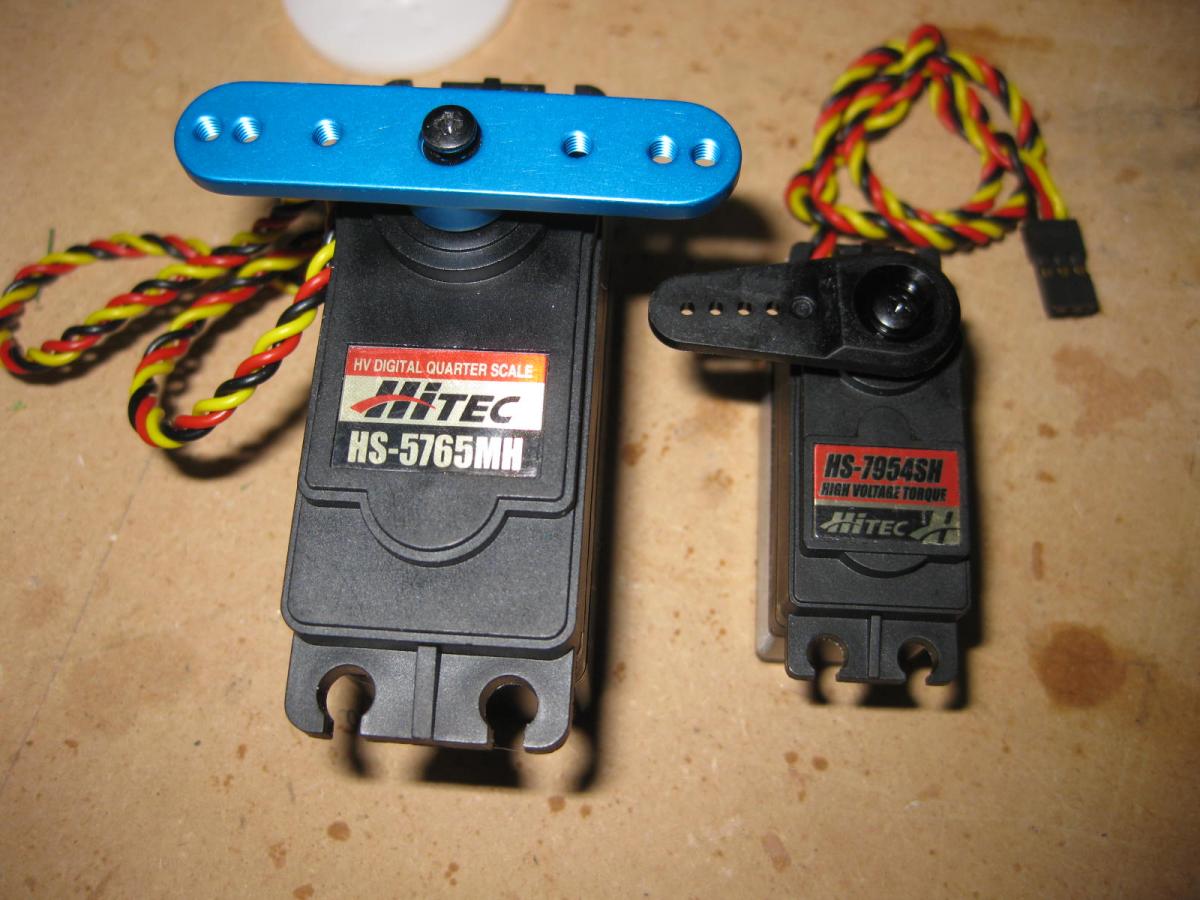

          Using the old tag line "bigger is better"....a HS-5765 MH HV is tasked for steering duties.

          Click image for larger version

Name:	IMG_3117.JPG
Views:	230
Size:	116.9 KB
ID:	5010

          Comment


          • #6
            Exhaust System

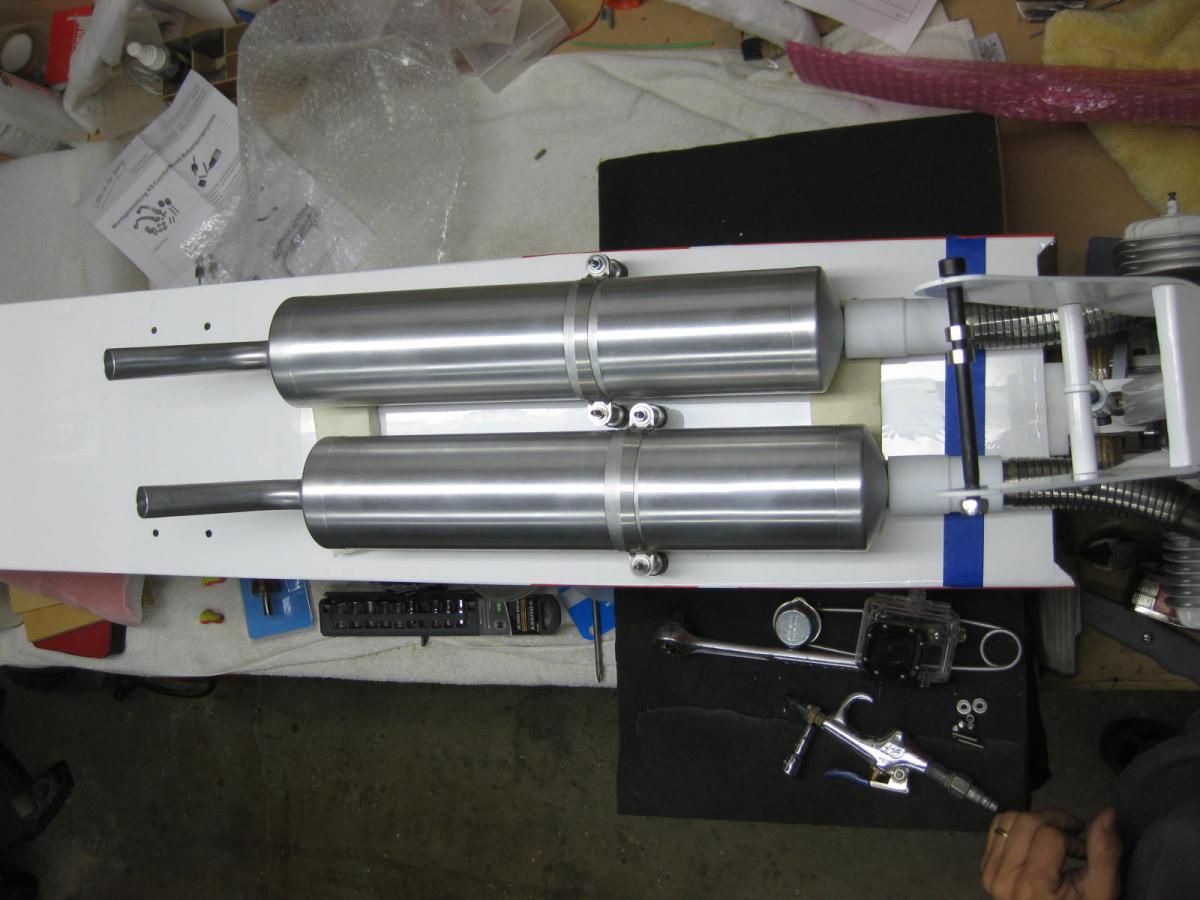

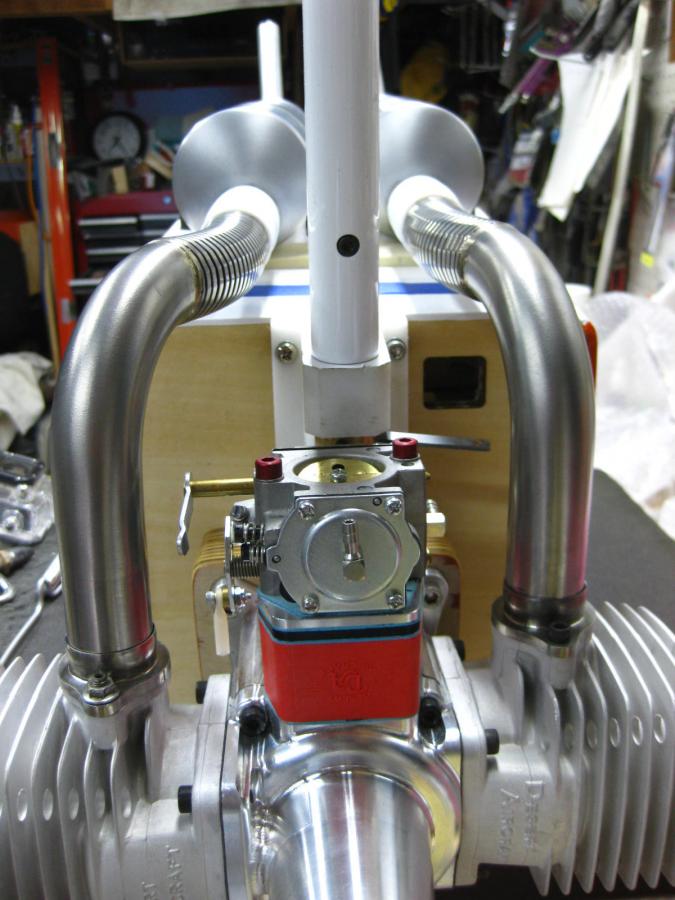

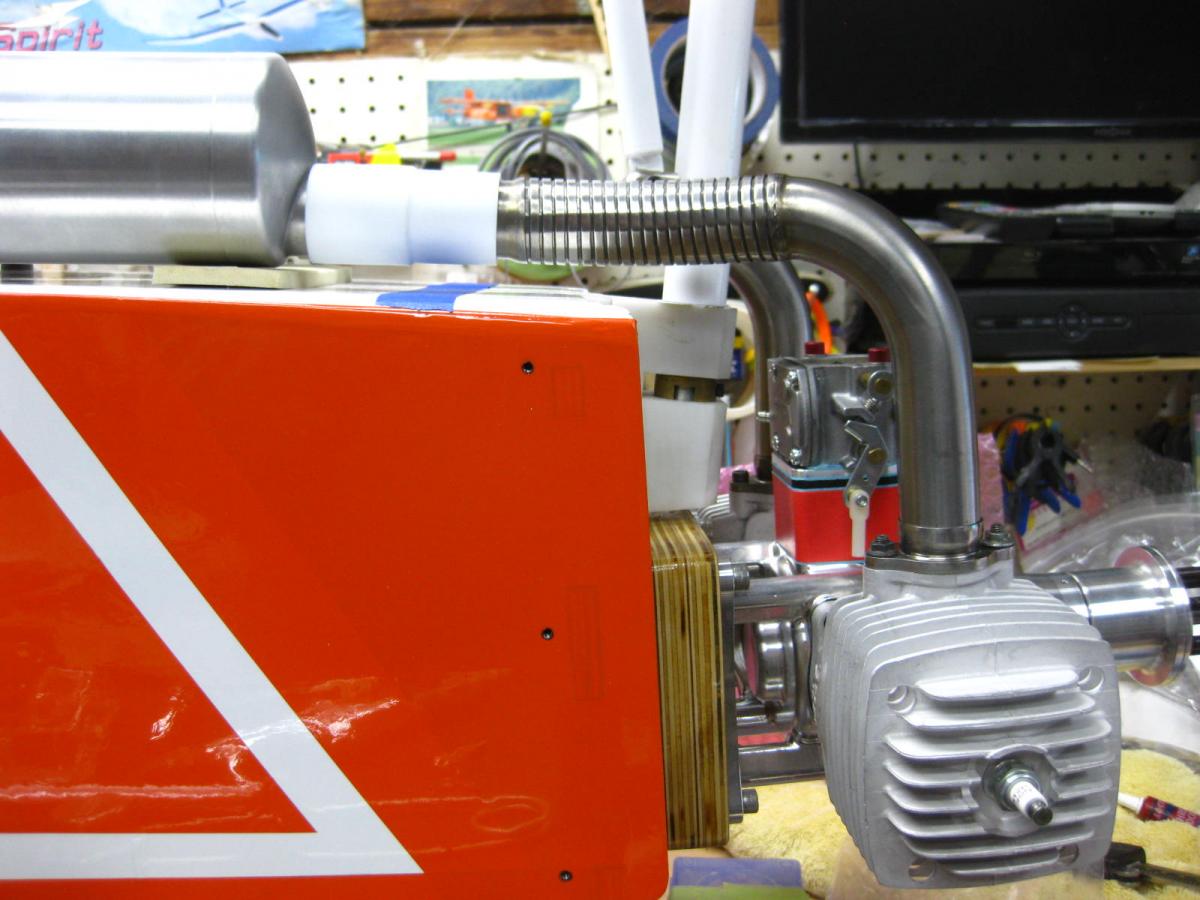

            Playing with the K&S 3095-6 Canisters and headers before breaking out the torch.

            Click image for larger version

Name:	IMG_3151.JPG
Views:	224
Size:	101.6 KB
ID:	5076 Click image for larger version

Name:	IMG_3147.JPG
Views:	184
Size:	107.1 KB
ID:	5077
            Click image for larger version

Name:	IMG_3144.JPG
Views:	222
Size:	77.8 KB
ID:	5079
            Attached Files

            Comment


            • #7
              LitePilot Bob .....starting to chomp at the bit.....kinda looks like Elvis.....well 42% sized....

              Click image for larger version

Name:	IMG_3177.JPG
Views:	221
Size:	84.8 KB
ID:	5232

              Comment


              • #8
                Fun with Wheels

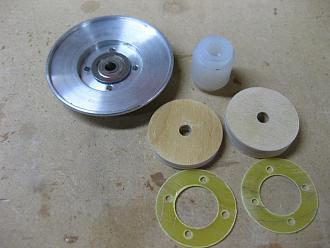

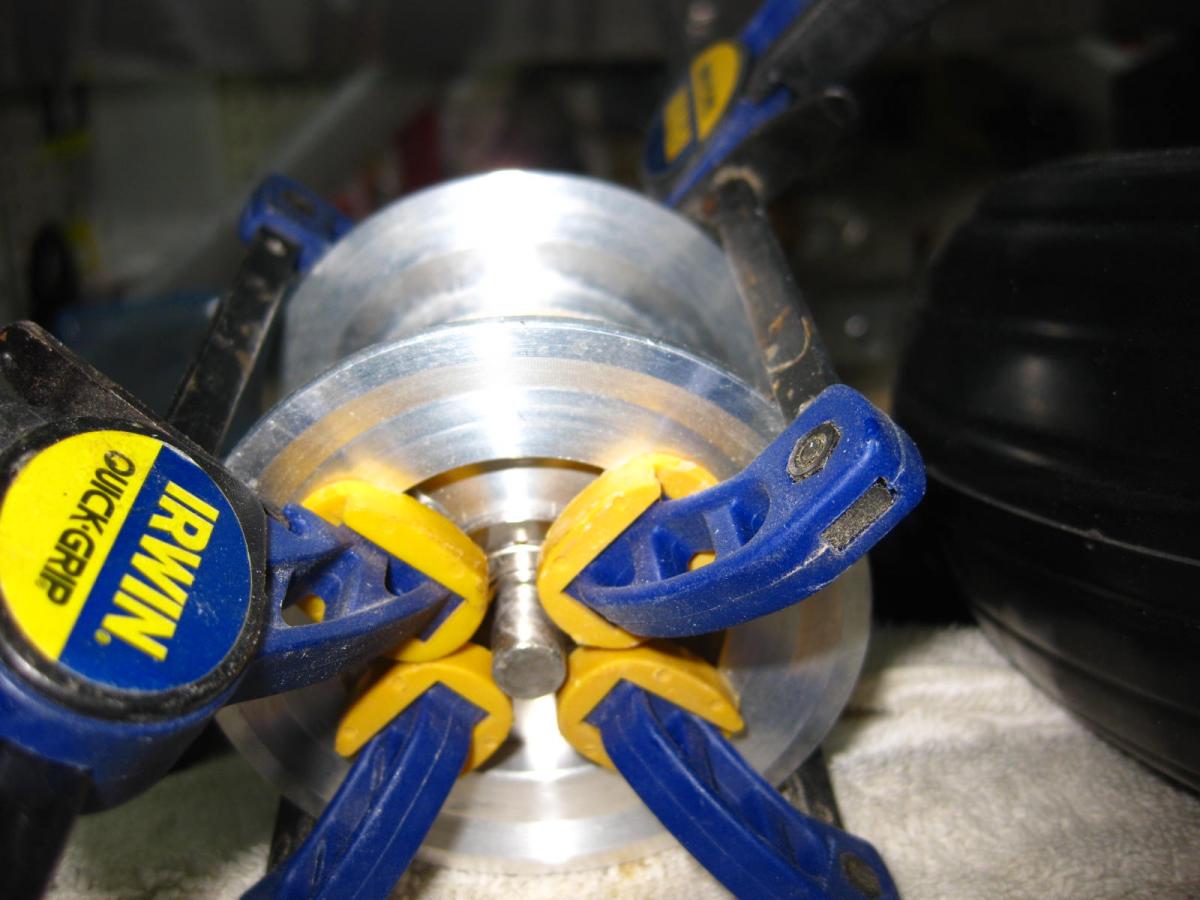

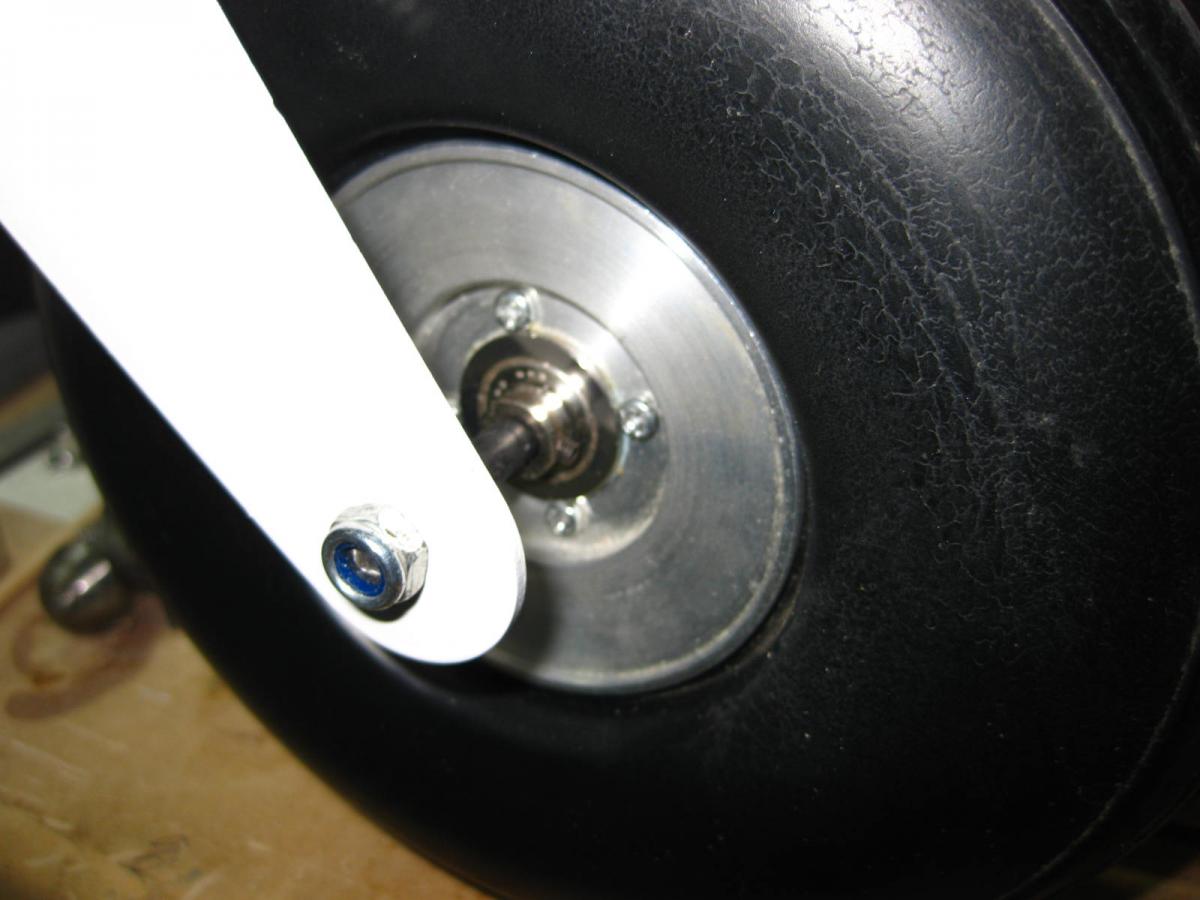

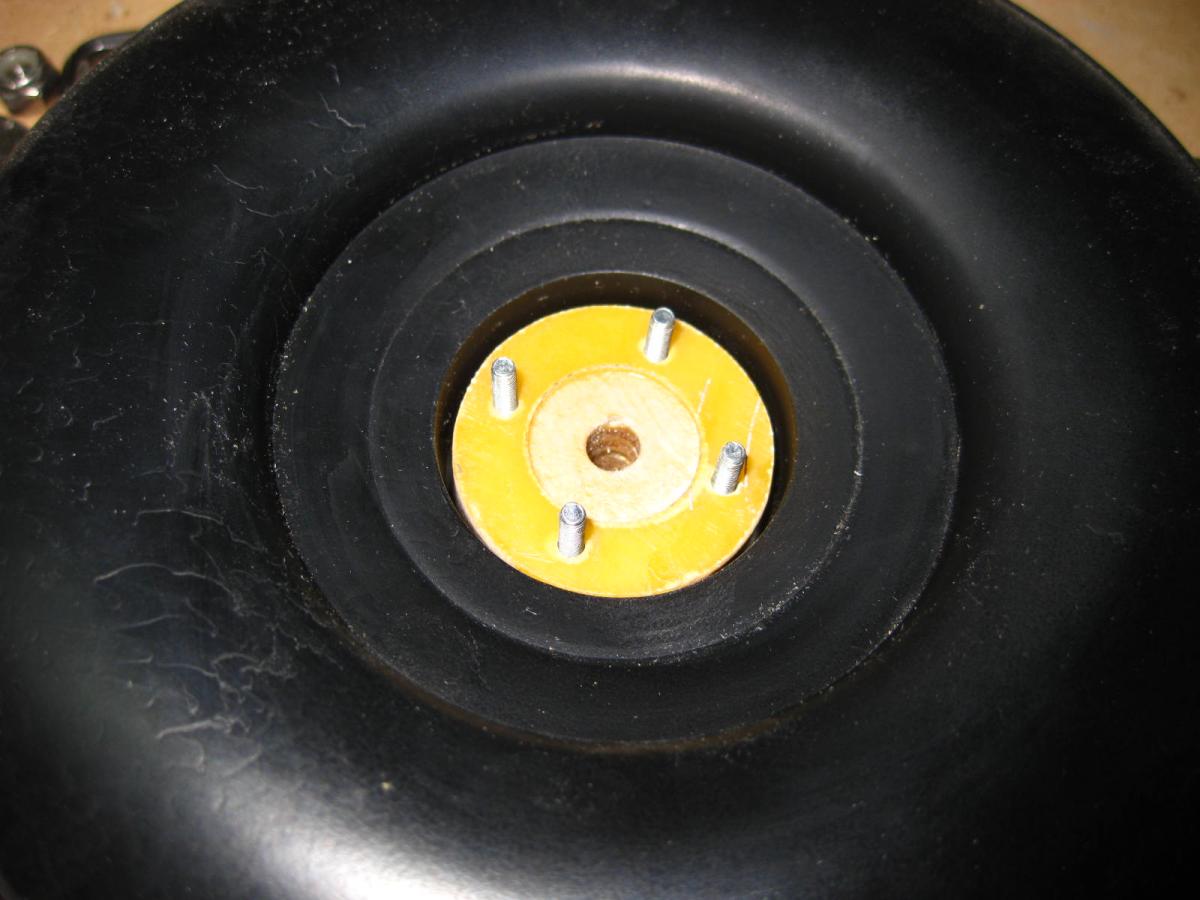

                Decided to upgrade the wheels with ball bearings(flanged), after taking a few measurements, turns out I needed F608ZZ for the main wheels and F626ZZ for the nose wheel.

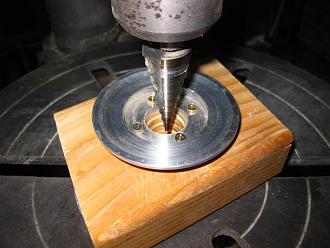

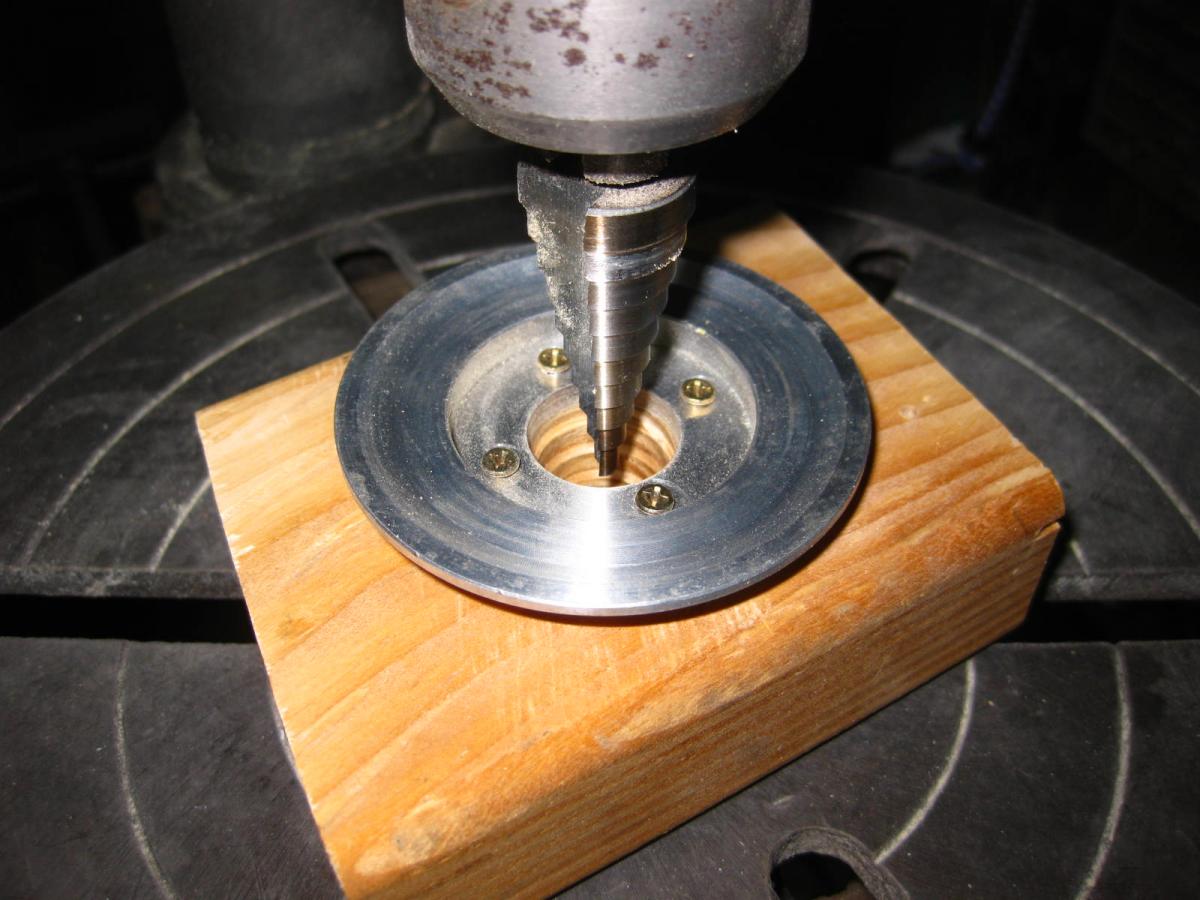

                Also for the upgrade I need metric step drills, one with a 22mm step and one with a 19mm step (which is a little more difficult to find).

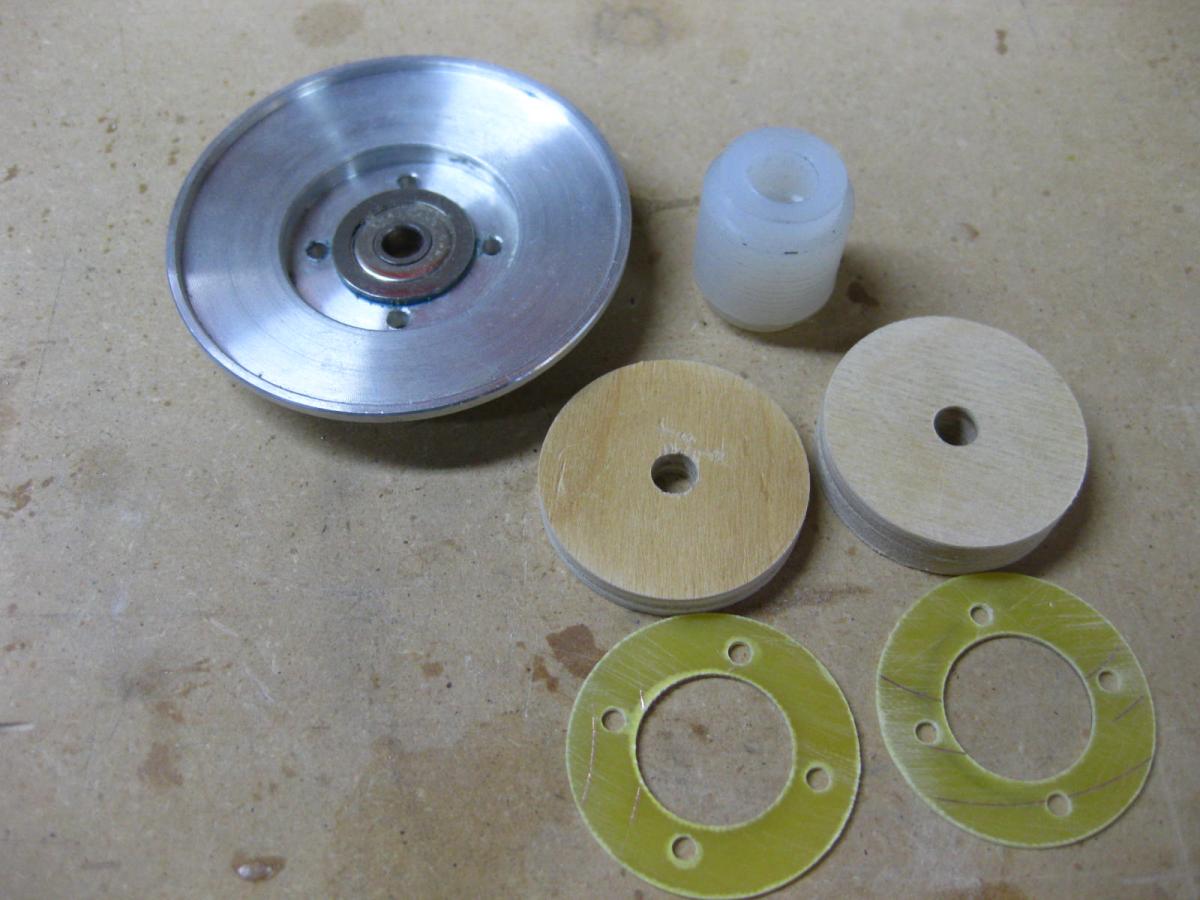

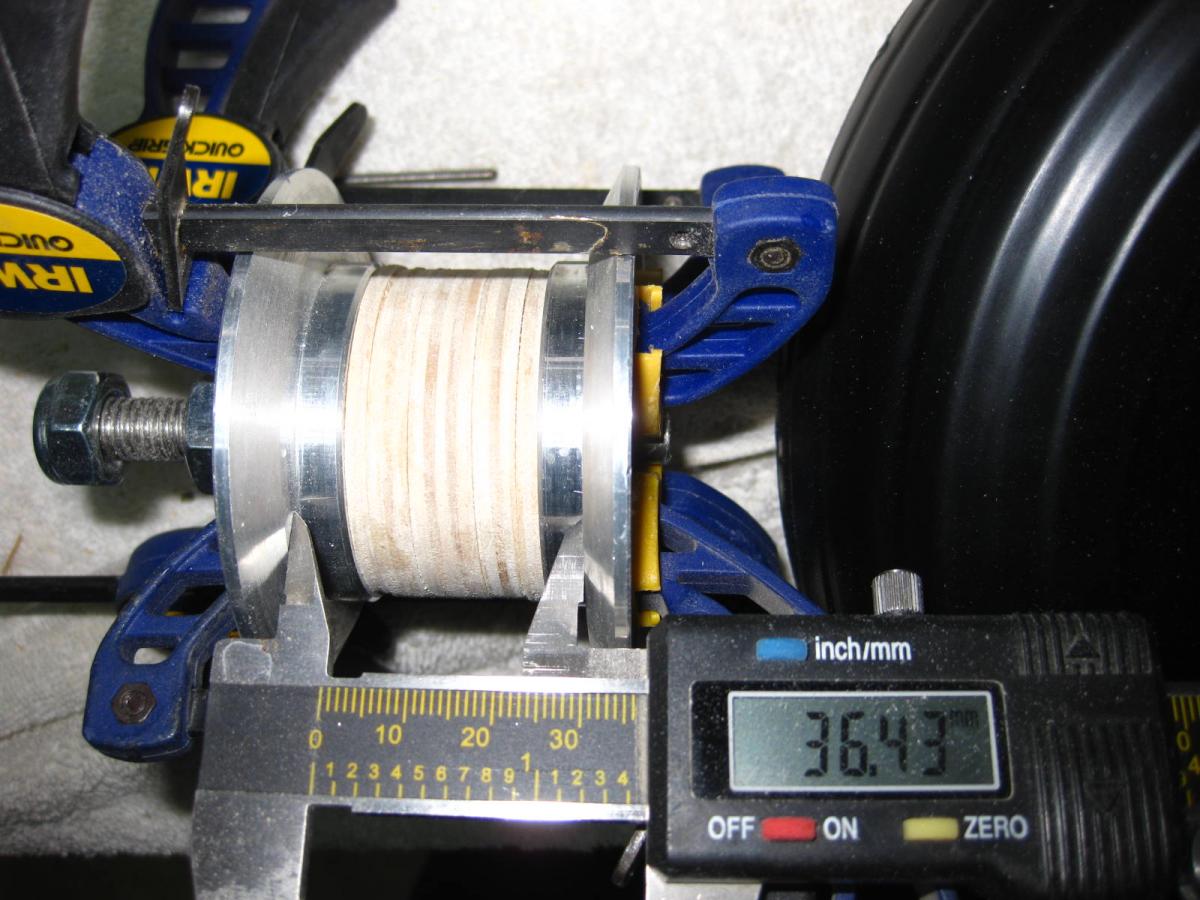

                Instead of using a PVC pipe spacer, I cut plywood plugs and glued them together to get the proper spacing, and 0.080 G10 for the bearing spacer

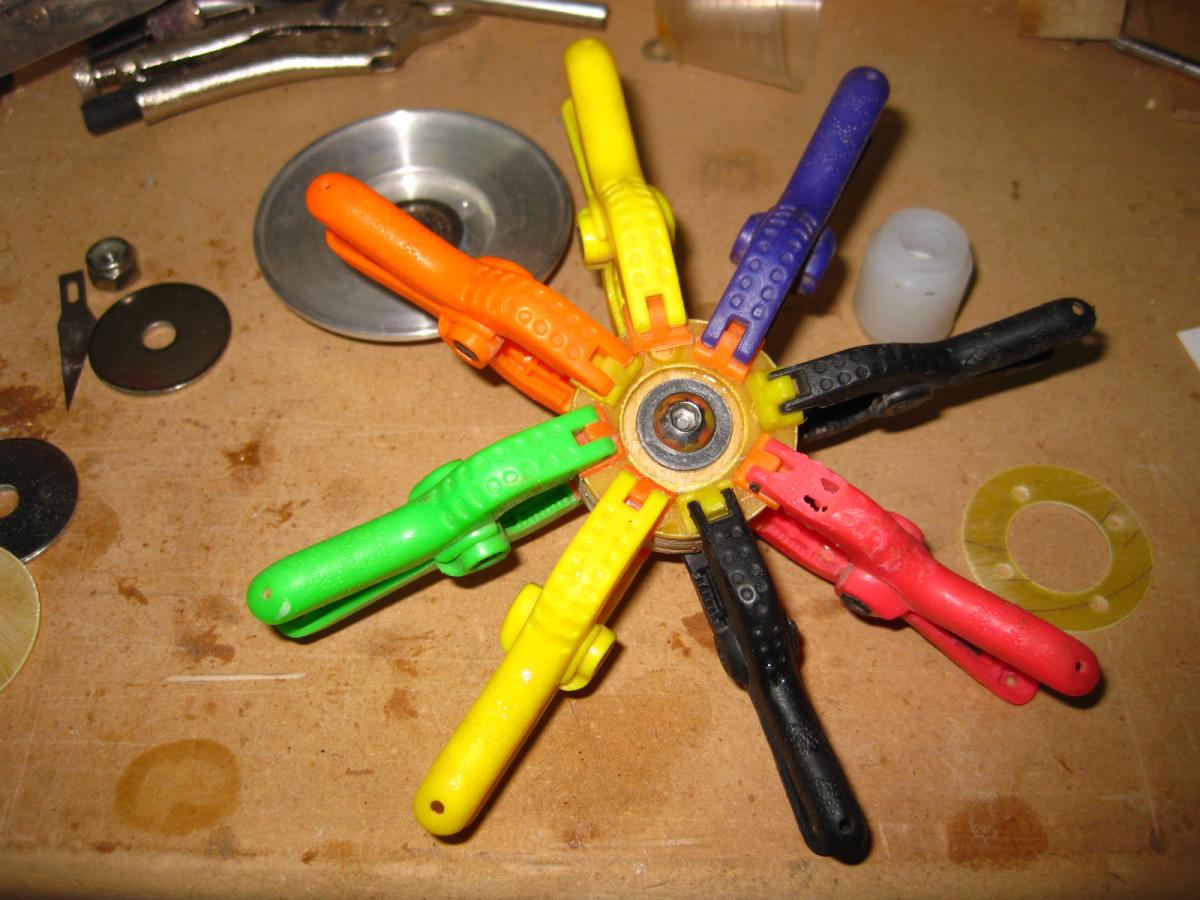

                Found I made the spacer a little too wide as the tire was rotating on the rim, so off to the band saw to cut the spacer in half......now the rim is griping the tire properly.
                Click image for larger version

Name:	IMG_3216.JPG
Views:	231
Size:	112.0 KB
ID:	5507 Click image for larger version

Name:	IMG_3206.JPG
Views:	216
Size:	103.6 KB
ID:	5508
                Click image for larger version

Name:	IMG_3209.JPG
Views:	237
Size:	123.5 KB
ID:	5509 Click image for larger version

Name:	IMG_3213.JPG
Views:	218
Size:	87.7 KB
ID:	5510

                Click image for larger version

Name:	IMG_3221.JPG
Views:	215
Size:	80.9 KB
ID:	5511

                Main wheels in progress - checking the width......
                Click image for larger version

Name:	IMG_3218.JPG
Views:	226
Size:	96.0 KB
ID:	5512 Click image for larger version

Name:	IMG_3220.JPG
Views:	209
Size:	126.7 KB
ID:	5513

                Comment


                • #9
                  Love the pilot Scott.

                  The downside to the bearings on the wheels is stopping this big plane from rolling. Some consideration needs to be how to put breaks on these things without strapping servos to the landing gear legs.

                  Len Buffinton
                  Team Horizon Hobby

                  Comment


                  • #10
                    I have a baby one coming, the 111.

                    Brian

                    Comment


                    • #11
                      Congrats Brian.
                      We had the opportunity to fly the 111 in Cumberland last month. Stephane has installed a DA 100 on his and the performance was stunning. It flies just like the big one and pulls like a Stallion

                      LEN
                      Len Buffinton
                      Team Horizon Hobby

                      Comment


                      • #12
                        Super Cool Brian....welcome to Bidule-palooza.......of course, since this is California..."All Bidule's are Created Equal".....


                        Some sundry items...

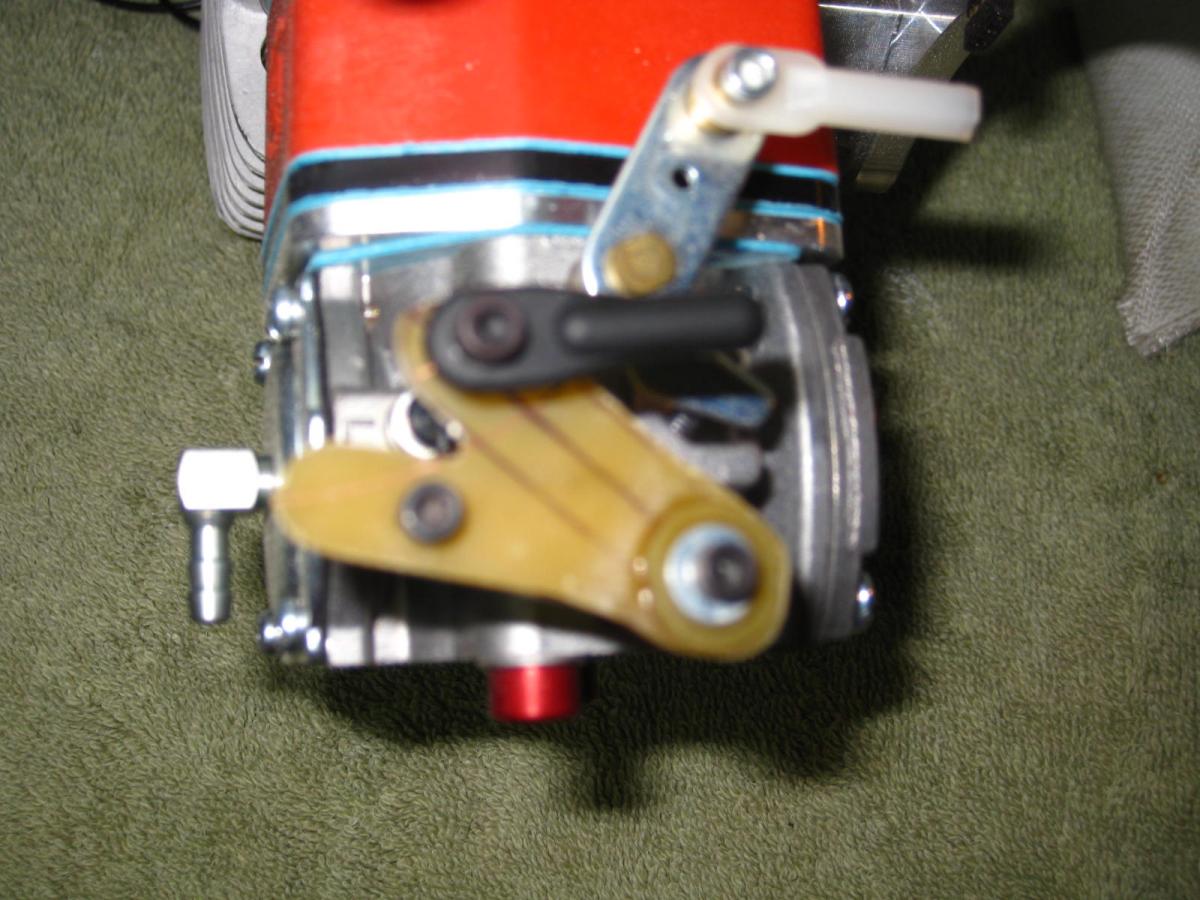

                        Added a G10 off-set arm to the choke so the servo will actually be able to open it.

                        Click image for larger version

Name:	IMG_3203.JPG
Views:	217
Size:	129.2 KB
ID:	5680

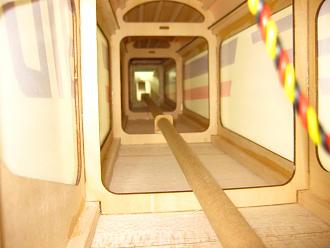

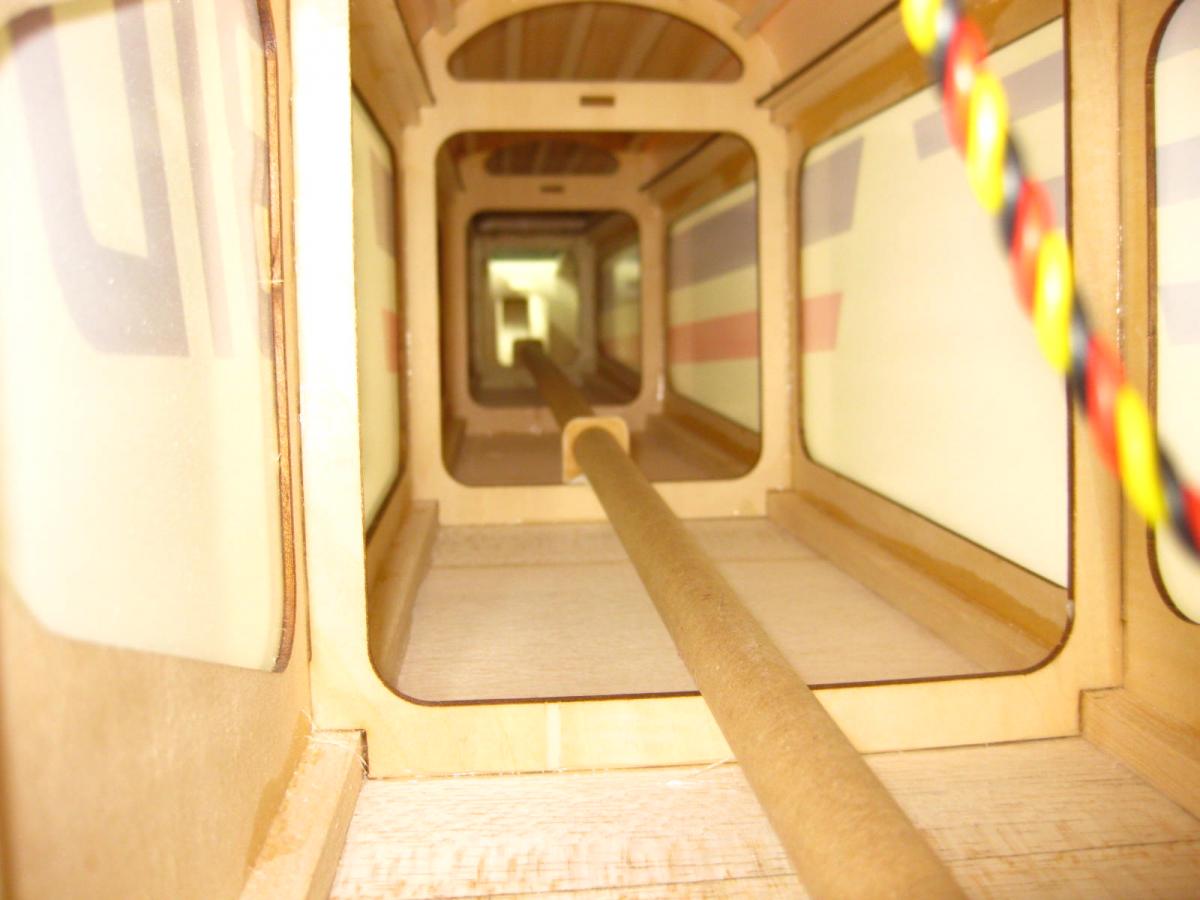

                        Added a tube to the rear air frame to keep the servo wires under control

                        Click image for larger version

Name:	IMG_3224.JPG
Views:	227
Size:	79.7 KB
ID:	5681

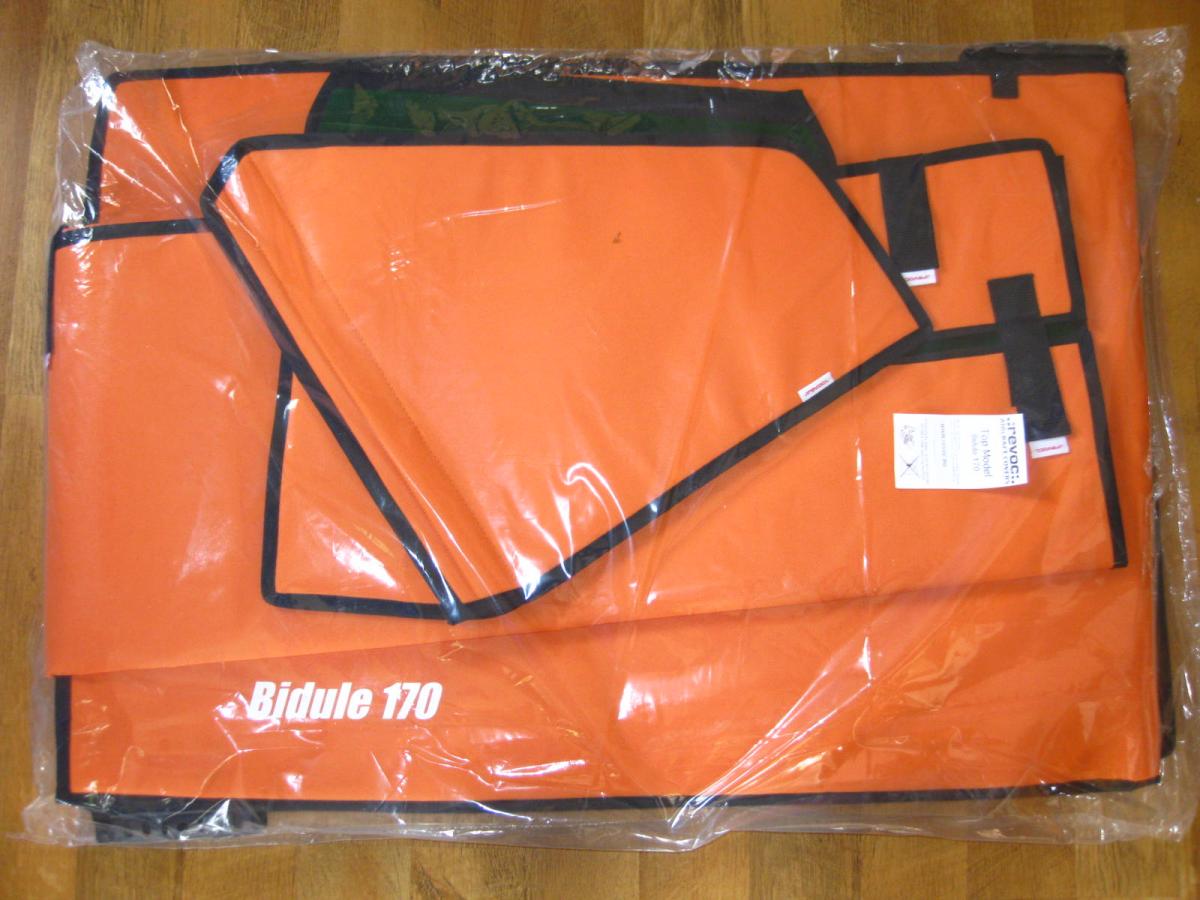

                        got my REVOC wing and tail bags - very nice and ORANGE to boot

                        Click image for larger version

Name:	IMG_3225.JPG
Views:	217
Size:	111.3 KB
ID:	5682

                        Comment


                        • #13

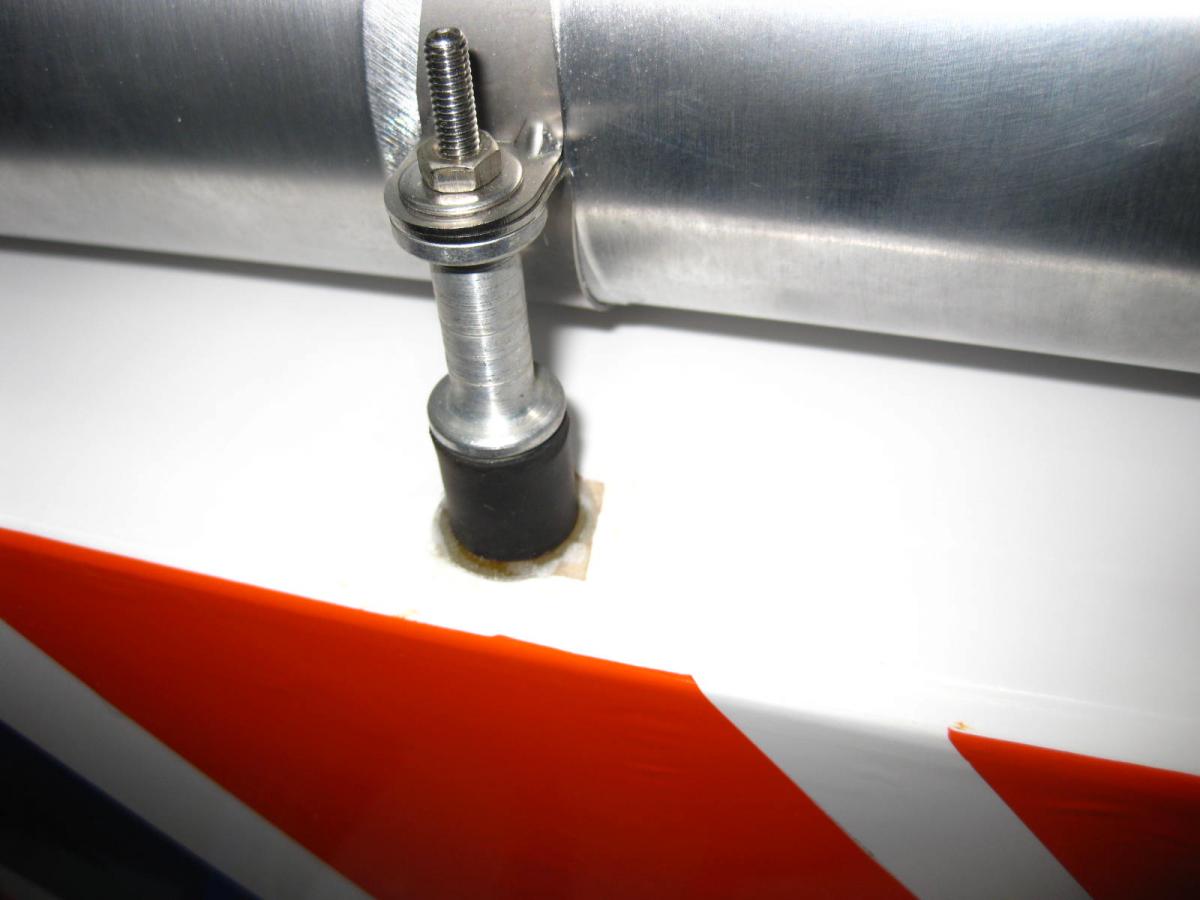

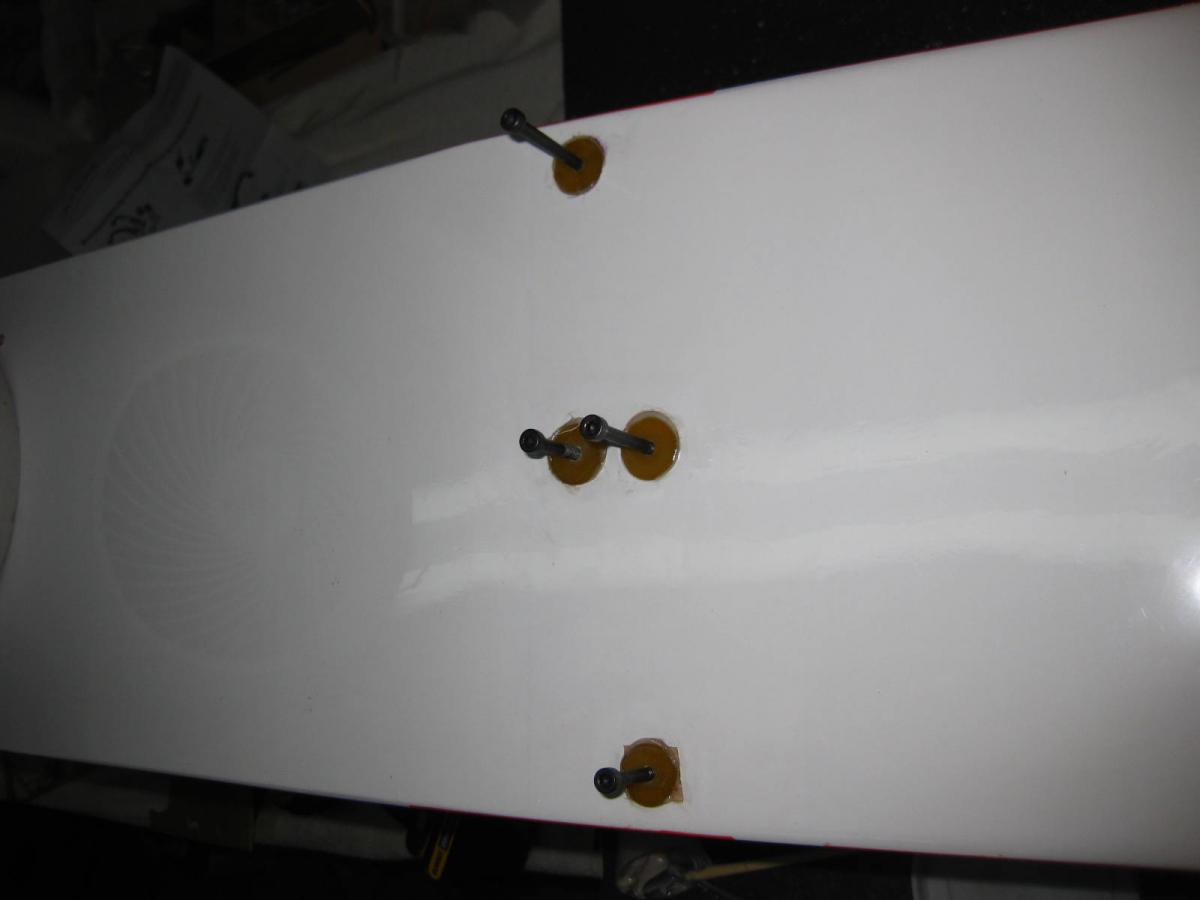

                          Hard points for the canister muffler mounts

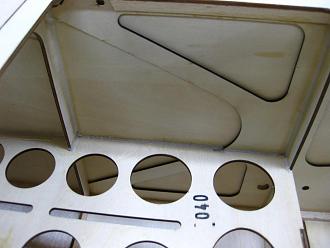

                          Since the bottom skin of the Bidule is just balsa and will crush when I install the Comfort mount standoffs I figured I'd just install some 0.080 G10 fiberglass hard points.

                          Click image for larger version

Name:	IMG_3184.JPG
Views:	196
Size:	40.2 KB
ID:	5807 Click image for larger version

Name:	IMG_3185.JPG
Views:	184
Size:	67.5 KB
ID:	5808

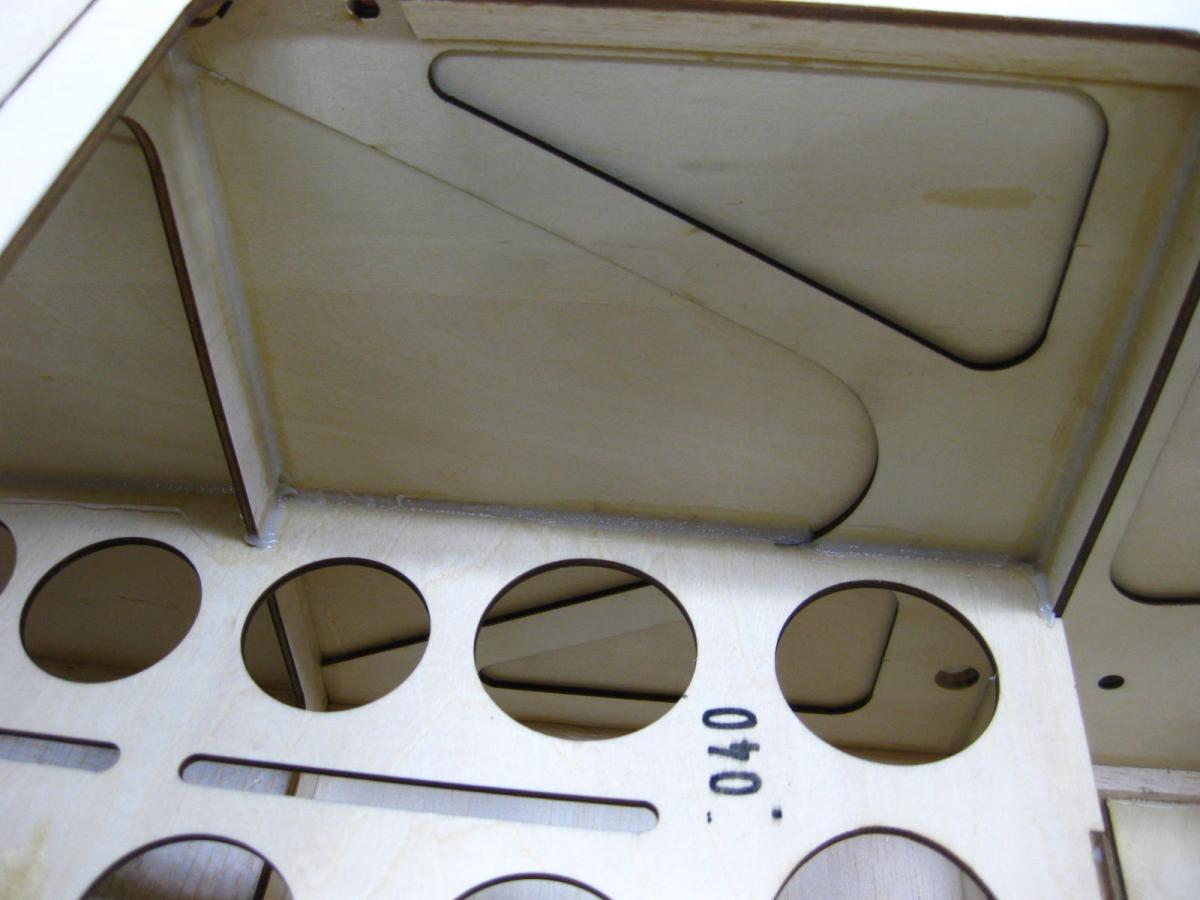

                          The inside of the fuselage has been reinforced with 1/8" aircraft ply across the bottom

                          Click image for larger version

Name:	IMG_3180.JPG
Views:	222
Size:	75.6 KB
ID:	5809

                          Scott

                          Comment


                          • #14
                            Scott,

                            Have you noticed the rake of the main gear...and have you thought about which why to mount it (forward or rearward rake)?

                            Jim

                            FWIW, Len has his mounted with rearward rake.
                            A Site for Soar Eyes

                            Comment


                            • MarnochS
                              MarnochS commented
                              Editing a comment
                              Hi Jim,
                              I don't think it matters too much as it would only be about 1/2" difference in the main wheel position. Kinda boils down to Pilot Preference.... Classic Cessna look or RV8 look. I went with the Classic Cessna look.

                          • #15
                            Where do you guys get G10?

                            Steve K
                            Steve K

                            Kremer Aerotowing Team

                            Comment


                            • MarnochS
                              MarnochS commented
                              Editing a comment
                              Hi Steve,
                              Ebay is probably the easiest way to go, just do a search for G10 Phenolic or fiberglass Sheet
                              On occasion I've laminated fiberglass cloth together between freezer paper to get what I needed.
