Carbon Cub FX-3......

[MarnochS]

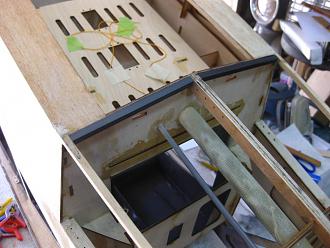

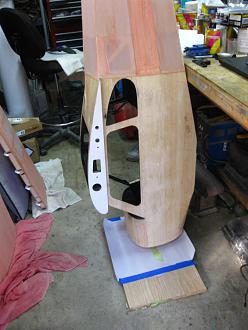

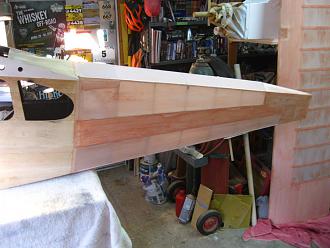

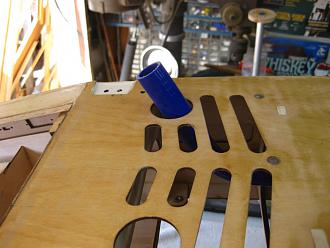

Added some reinforcing to the lower rear hatch with some carbon square "rod" that I had on hand. Then added fabric.

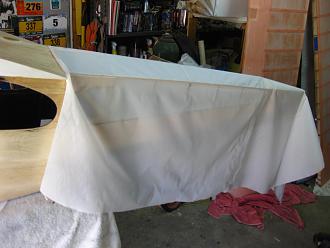

Poly-Brush to seal the fabric. Pre-coated the center section to seal the balsa

[MarnochS]

DLE-222 installation / conversion

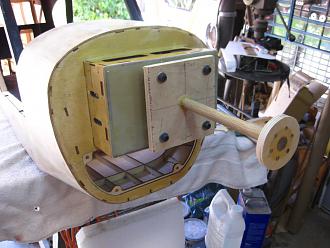

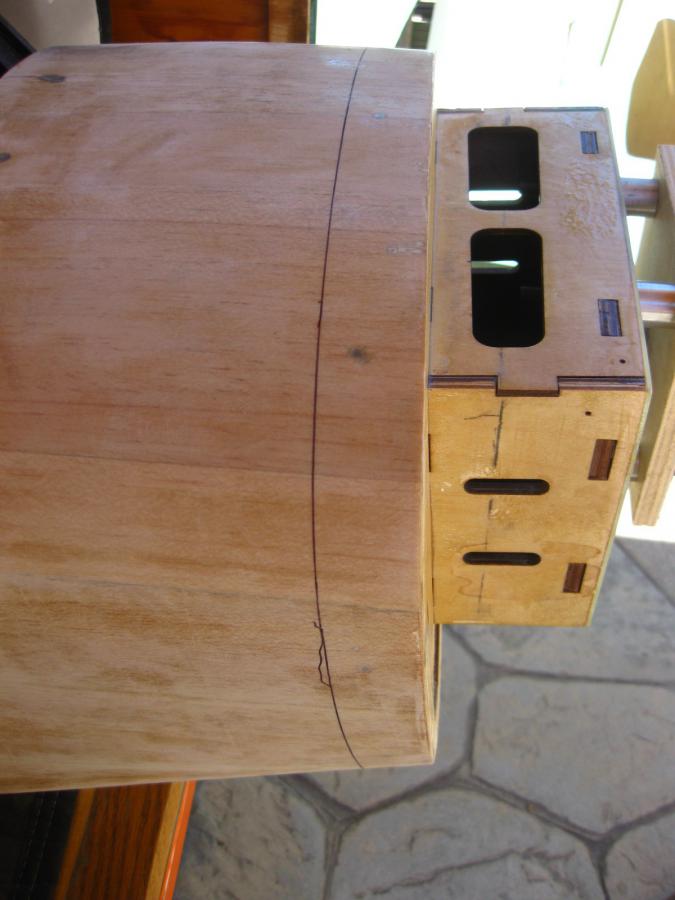

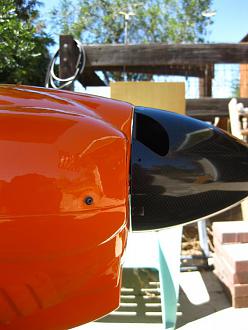

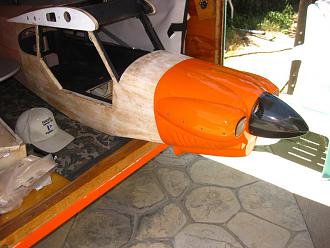

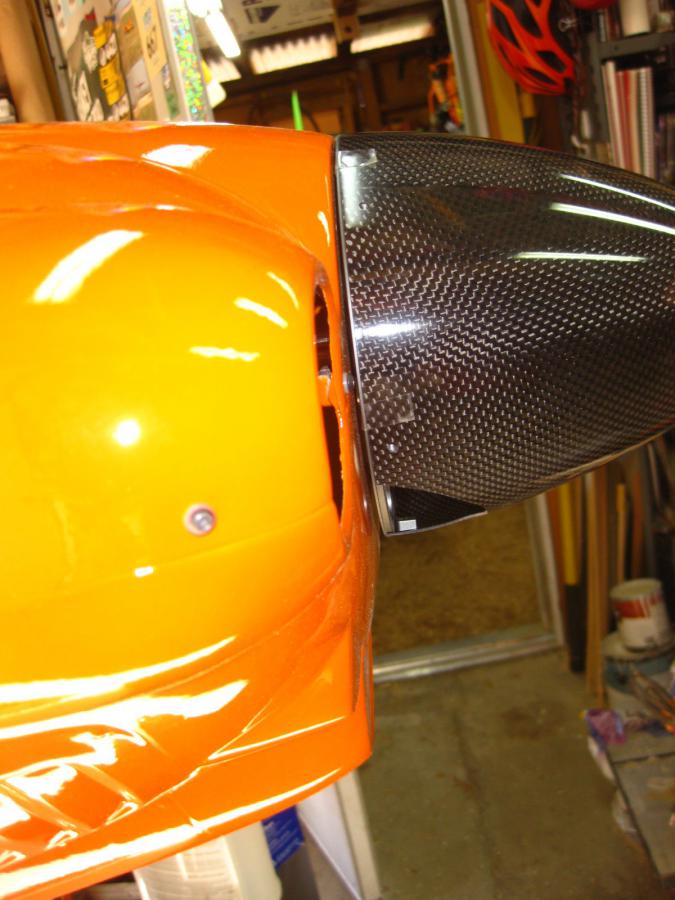

Mounting a "dummy" 170 template to get the prop hub position and check the cowl alignment.





Starting on the JIG using "tounge depressors" popsicle sticks. Hopefully it will just slide on and off.

[MarnochS]

DLE-222 installation / conversion

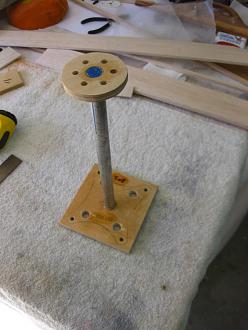

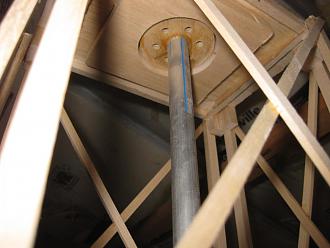

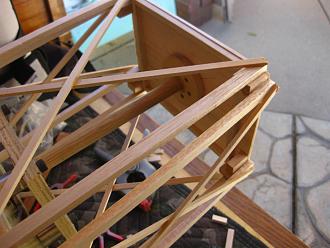

JIG to capture the prop hub location using the engine box / firewall as a reference.

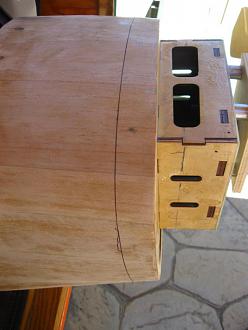

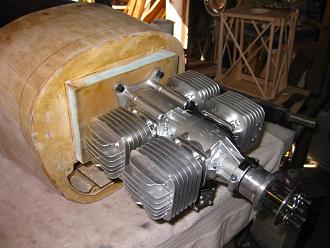

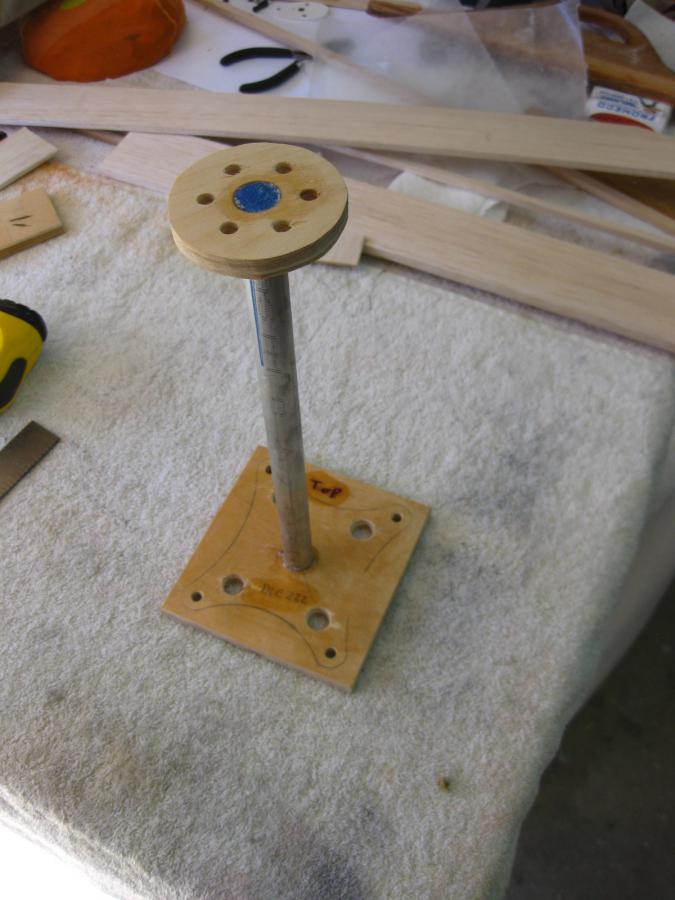

The DLE-222 "Dummy" engine ( 261mm long )



49 mm removed

[Steve P]

Love the simple, smart dummy engine idea. This is going to be another beautiful bird!

[MarnochS]

DLE-222 installation / conversion

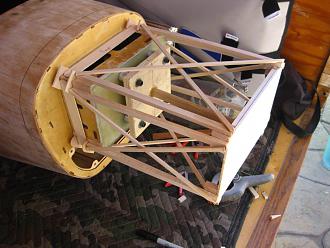

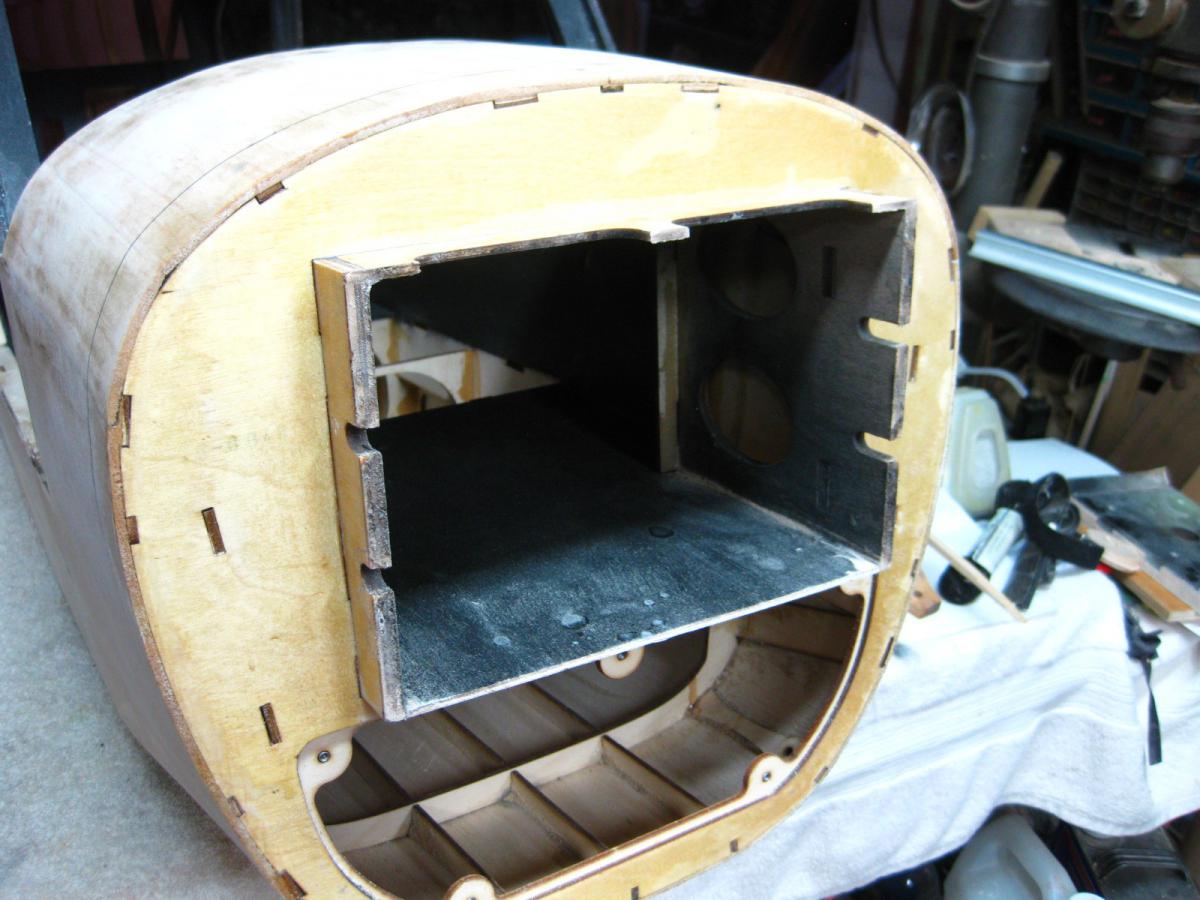

Firewall installation

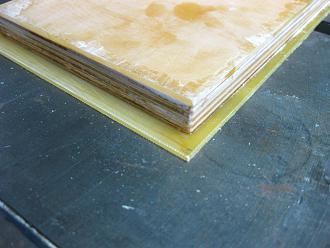

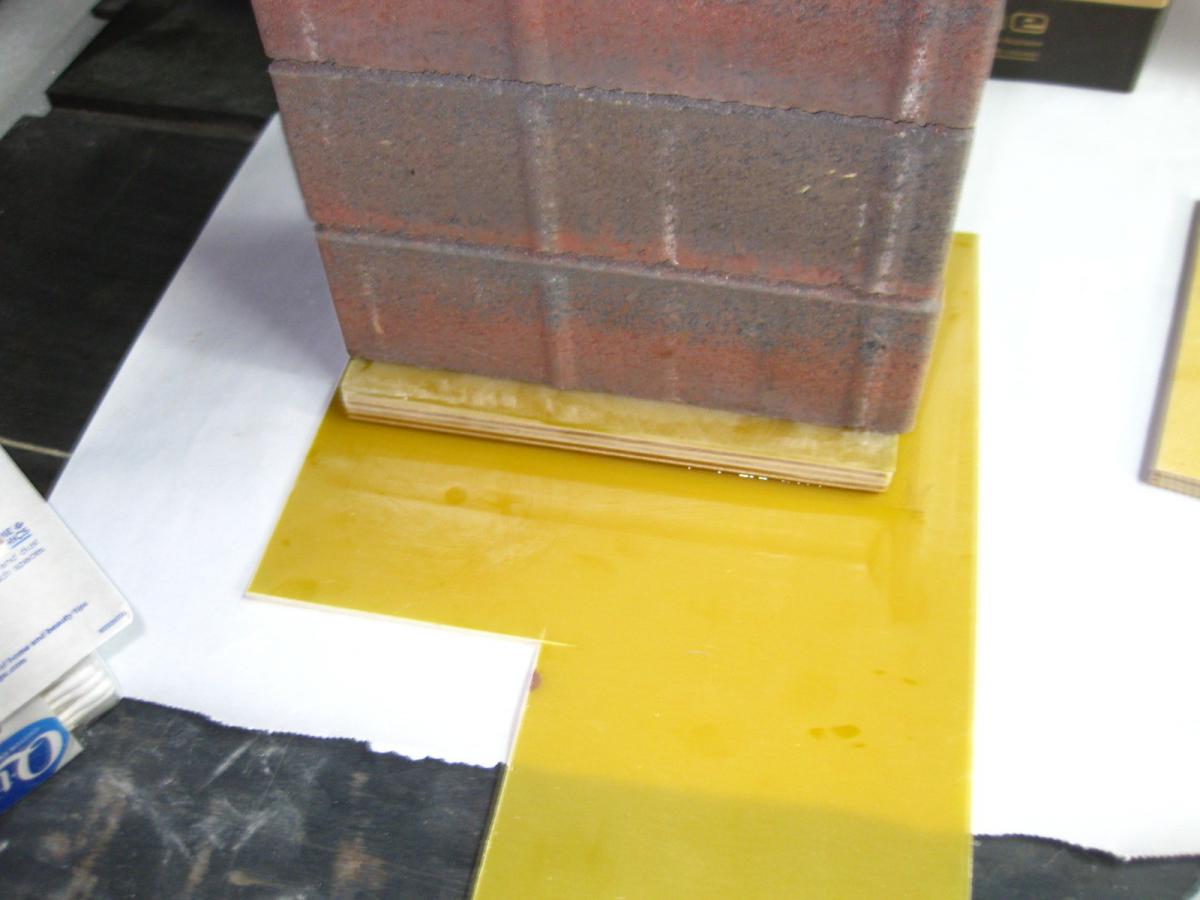

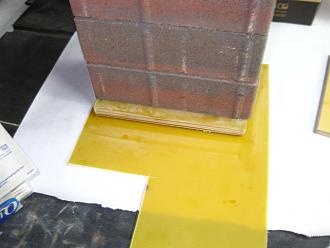

4 layers of 1/8" Baltic birch glued together with Gorilla wood glue
Outer layers are 0.90 G10 material - on the original firewall was 0.60 G10.

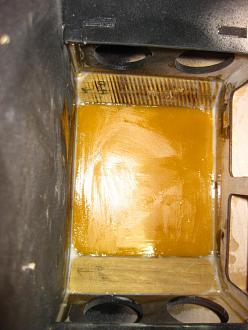

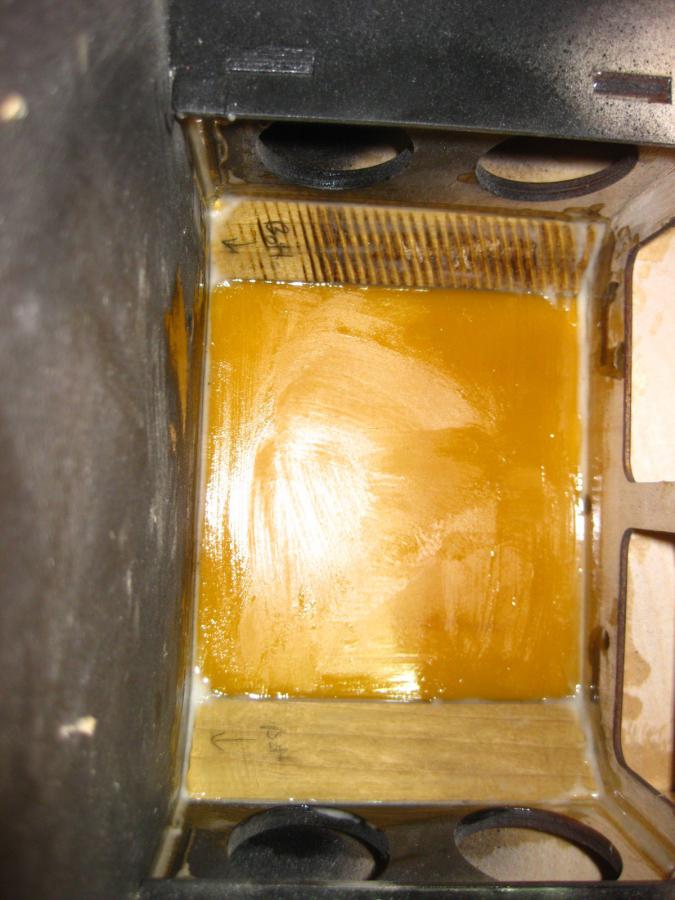

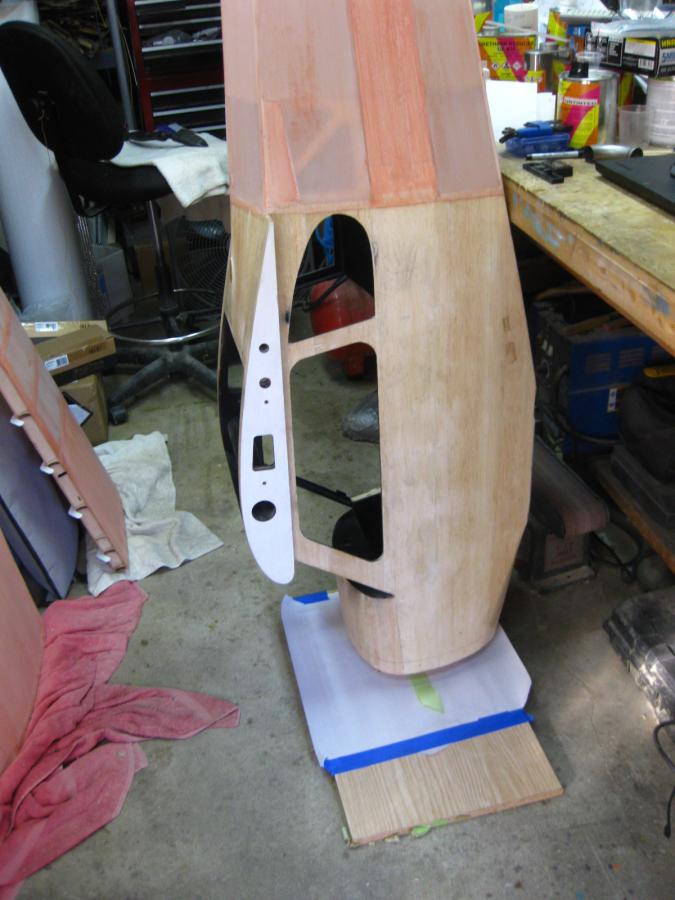

West Systems and 404 high strength additive for attachment. 1" triangle stock on the rear side of the firewall.
Gravity method.

[MarnochS]

DLE-222 installation / conversion

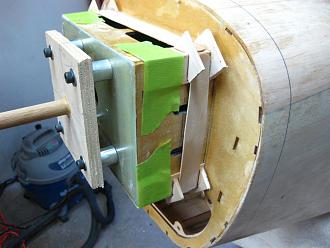

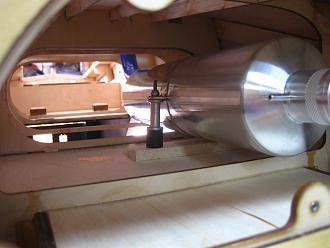

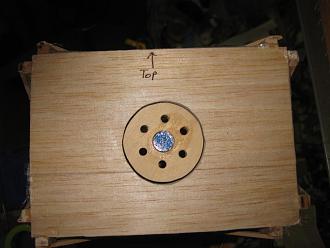

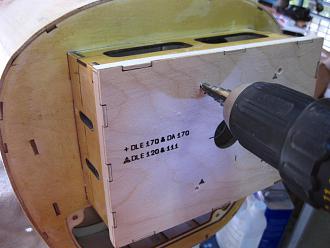

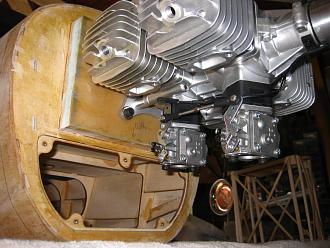

Vertical Gravity method again for Positioning the DLE-222 "dummy"



Checking to make sure things are lined up before taping it down and marking the holes.

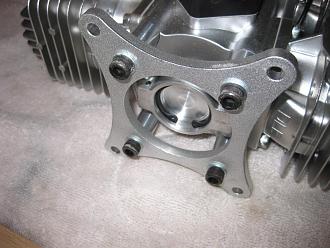

The rear of the DLE-222 has some Socket heads sticking out so extra holes are required - with a little fine tuning required.....aka ...Dremel tool.



Success.........





Now I can install the rotisserie mount on the front and paint the fuselage.

[MarnochS]

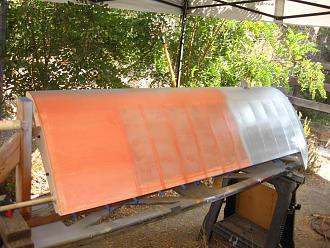

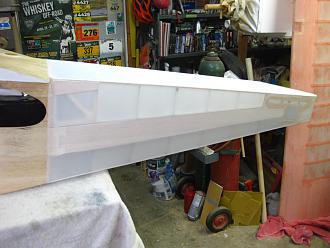

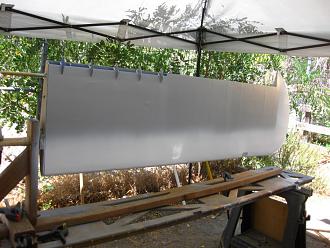

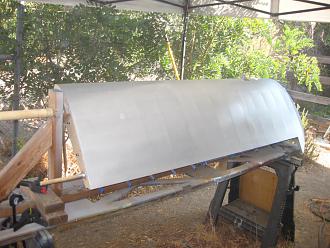

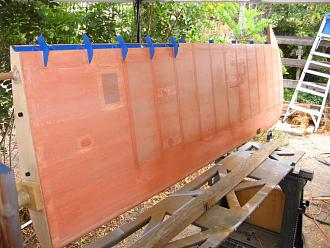

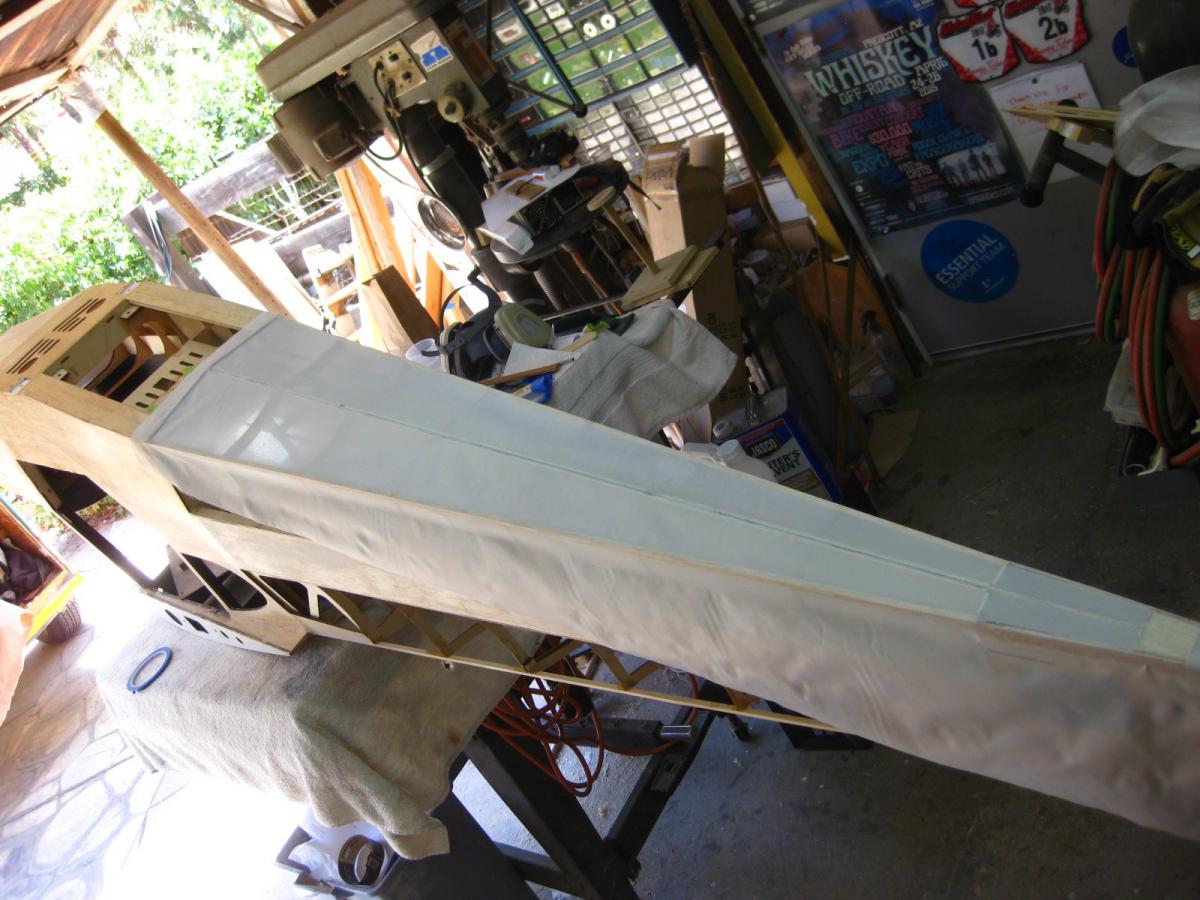

Back to the wings, ...two spray coats of Poly-Brush to seal the fabric.



And then the fun part , Poly-Spray UV protection and anti-model "see-thru" look.

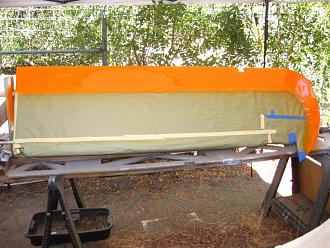

I have to wait 4 days for the solvents to boil off before I can spray the Aero-Thane, I put two coats of Insignia White 105 Poly-Tone to where the Omaha Orange is going to be applied.



Scott

[MarnochS]

Saw Steve P post about the DLE canisters and figured "what the heck" .......I got the DLE-170 tuned exhaust system since I'm going to be dumping two cylinders into one ( at different times thou ) I figured a little more volume would be helpful. I stuck my borescope inside to see what there and its pretty simple 2 chamber design - exhaust goes all the way to the back , exit tube goes all the way to the front with 4 rectangular punched holes partially pushed open ( one side still attached ). Kit comes the a 45 degree exit silicone line that makes positioning easy ( and anti-chaffing )
Getting the general layout while I wait for the exhaust stubs and other items from K & S in Germany.
K&S #506 comfort mounts as the Canisters are 75mm in diameter.

[Steve P]

FWIW, I used Evolution cannisters. For all I know, they came from the same factory? ;-)

[MarnochS]

Oops, my confusion on canisters.....

[MarnochS]

Exhaust headers....in component format...."some assembly required"

[Steve P]

Happy brazing! The part I like least.

[MarnochS]

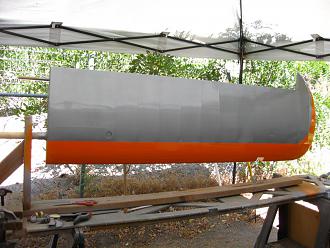

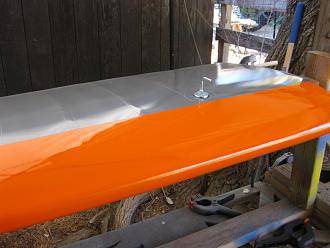

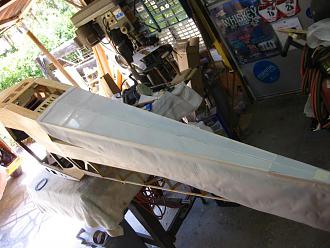

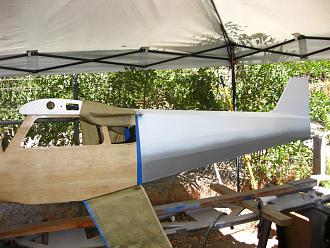

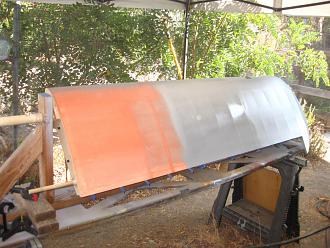

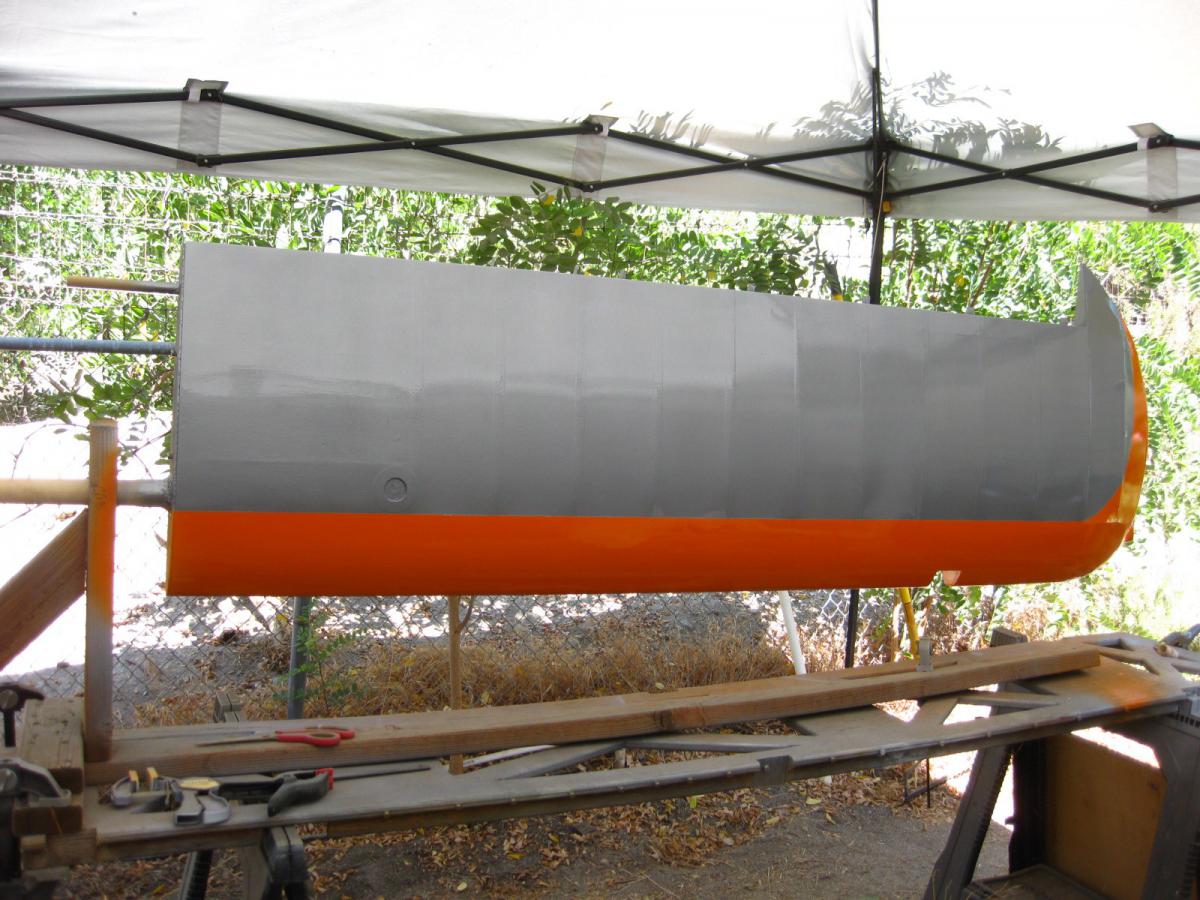

2 spray coats of Poly-Brush on the fabric area then 2 spray coats of Poly-Spray........followed by a little bit of sanding to smooth things out.

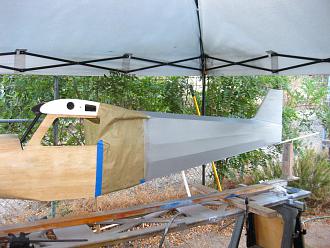

Then 1 coat of Insignia White Poly-Tone ( where the Omaha Orange is going ).

Now on to the front half with Primer.......

[MarnochS]

Productive Labor Day

[MarnochS]

As Jim Mckay use to say - the thrill of victory and the agony of defeat

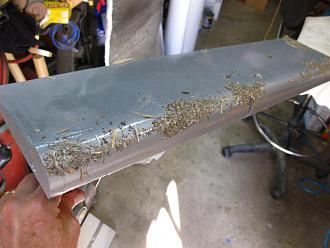

Oops...........poor clamping technique........where did I put that buffing compound.....it's around here somewhere

[MarnochS]

some minor sundry stuff while sanding out all that gravel......

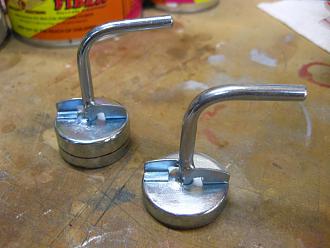

Thought the Gas Caps looked a little thick so Mr Dremel and 4 cut-off wheels thinned things out.

[MarnochS]

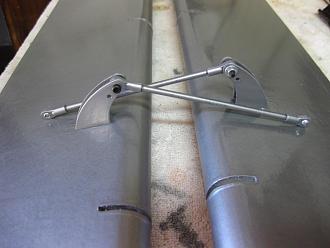

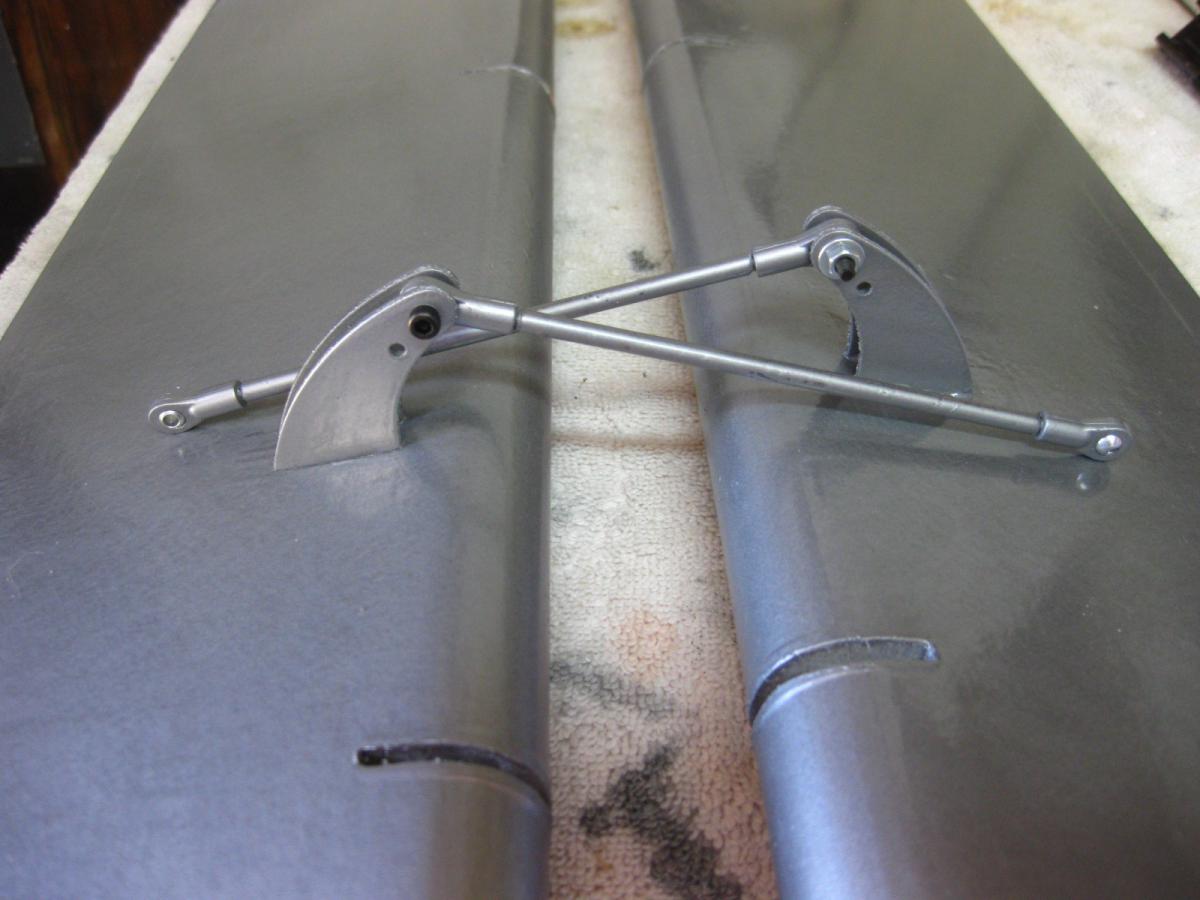

Things are starting to get serious.....gluing the control horns in the Aileron.
Painted every thing to try to hide it as much as possible.

[MarnochS]

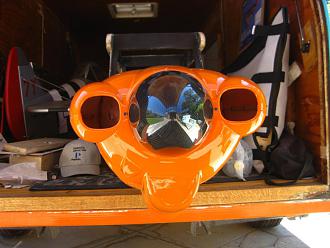

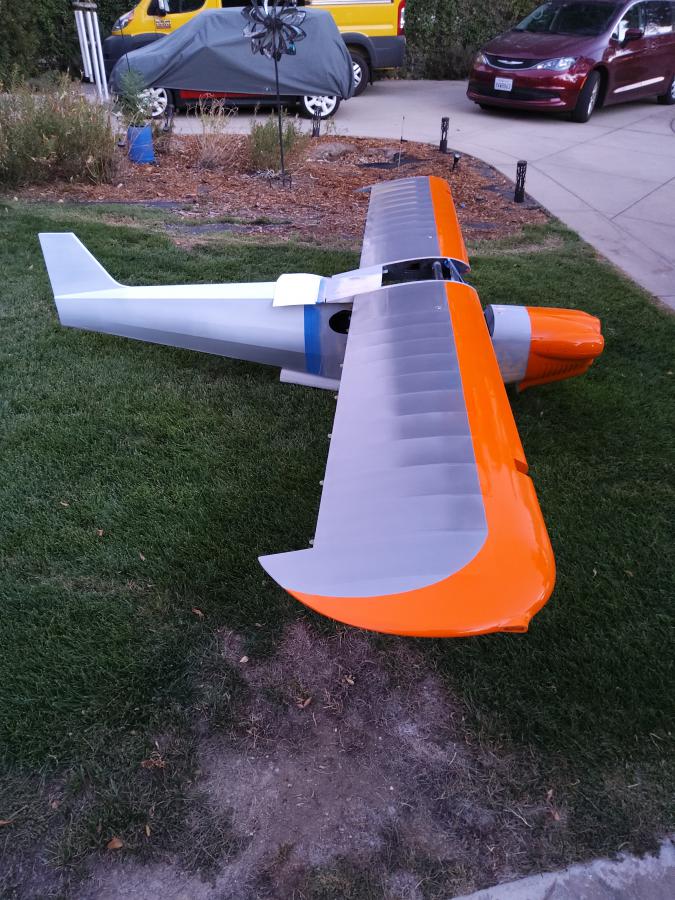

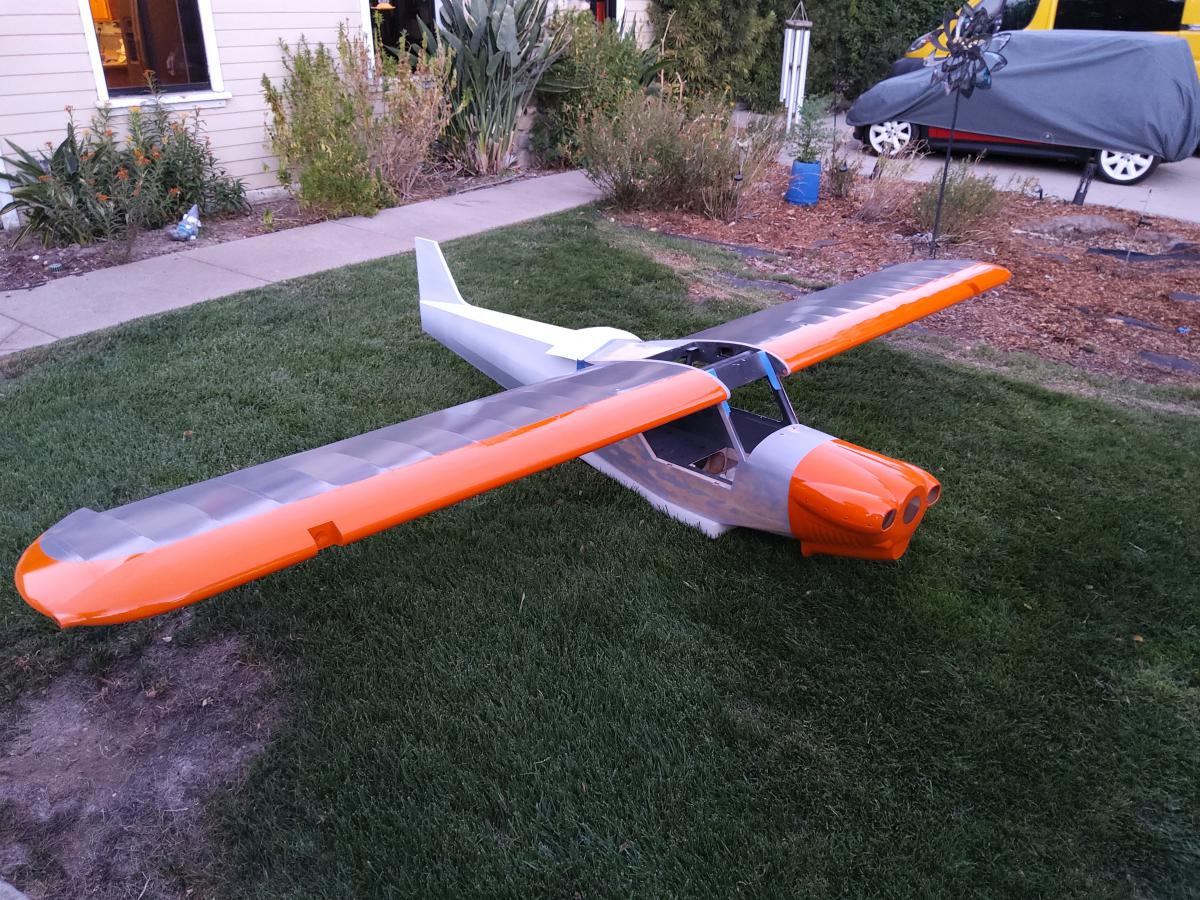

Some Motivational Assembly

[stevekremer]

That is looking sweet!

[Swiss1]

Nice Job Scott
