1/3-Scale Cessna 185 ~ by Gunny Bumburs at Aviation Concepts

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • sorry for not posting in a while... Been building the other wing.

    starting to look like an airplane!

    Click image for larger version

Name:	image.jpeg
Views:	284
Size:	207.8 KB
ID:	35911
    Gunny
    Aviation Concepts rc

    Comment


    • Gene C
      Gene C commented
      Editing a comment
      Looking good! Love the tundra tires, very practical for a tug.

    • MarnochS
      MarnochS commented
      Editing a comment
      Excellent !

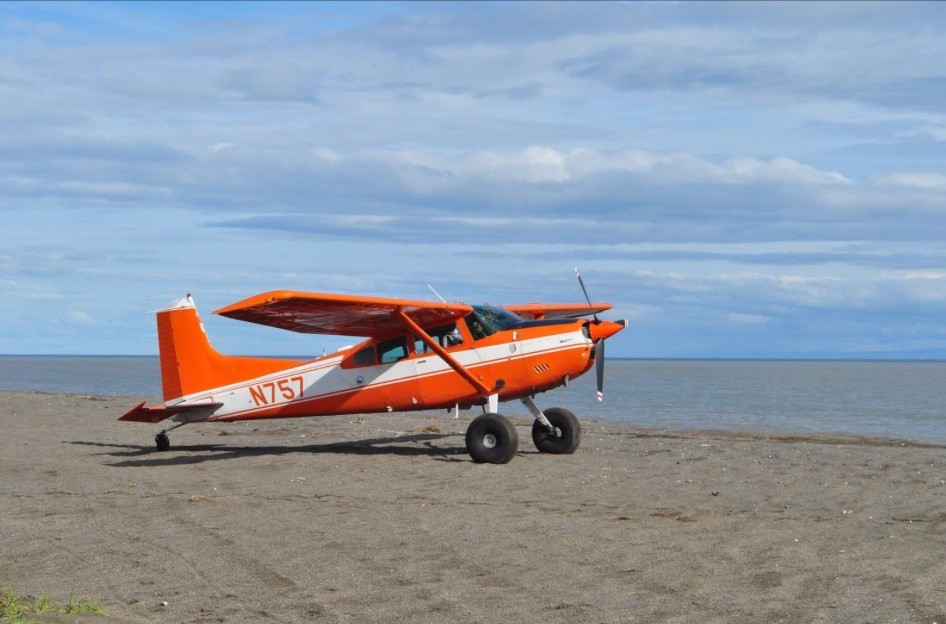

  • Beach aerotowing lol....
    Click image for larger version

Name:	image.jpeg
Views:	303
Size:	117.4 KB
ID:	35943
    Gunny
    Aviation Concepts rc

    Comment


    • FAA Registry - N757
      Serial Number 18504306 Status Valid
      Manufacturer Name CESSNA Certificate Issue Date 12/11/1981
      Model A185F Expiration Date 02/28/2022
      Type Aircraft Fixed Wing Single-Engine Type Engine Reciprocating
      Pending Number Change None Dealer No
      Date Change Authorized None Mode S Code (base 8 / oct) 52432011
      MFR Year 1981 Mode S Code (base 16 / hex) AA3409
      Type Registration Government Fractional Owner NO
      Registered Owner

      Name UNITED STATES DEPARTMENT OF INTERIOR
      Street OFFICE OF AVIATION SERVICES
      300 E MALLARD DR STE 200
      City BOISE State IDAHO
      County ADA Zip Code 83706-3991
      Country UNITED STATES
      Airworthiness

      Engine Manufacturer CONT MOTOR Classification Standard
      Engine Model IO 520 SERIES Category Normal
      A/W Date 07/20/1981 Exception Code No

      Comment


      • Sorry guys - my OCD kicks in every time I see an N-number I have to look it up.

        Comment


        • gunny11
          gunny11 commented
          Editing a comment
          Neat info...

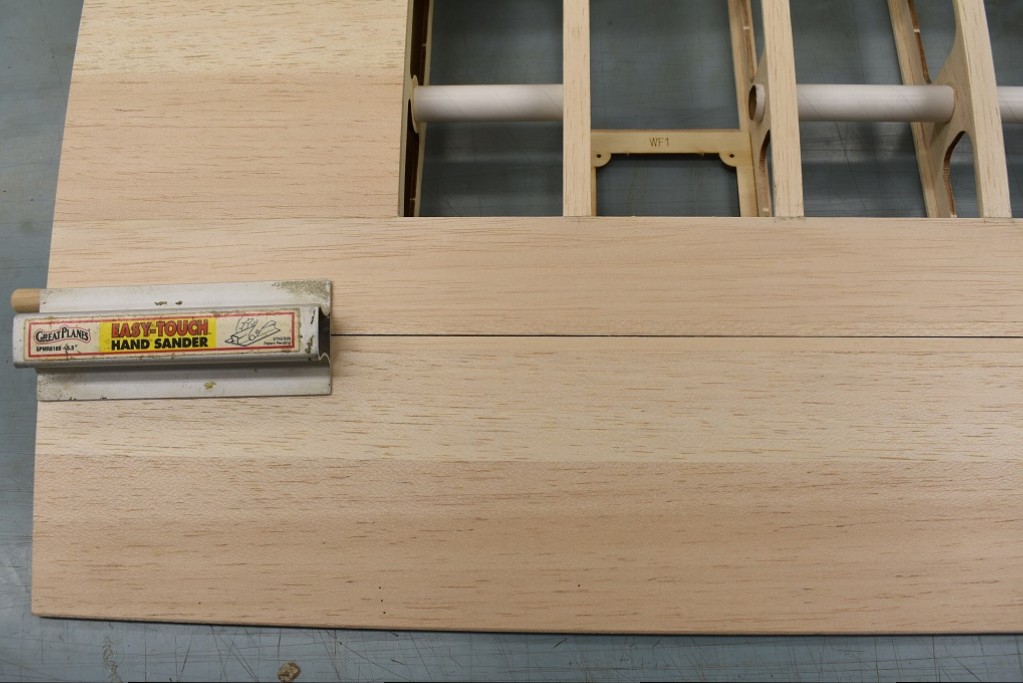

      • Hello everyone, Back to the regular schedule... Watching resin dry on the cowl plug can get boring, so I'll post instead.

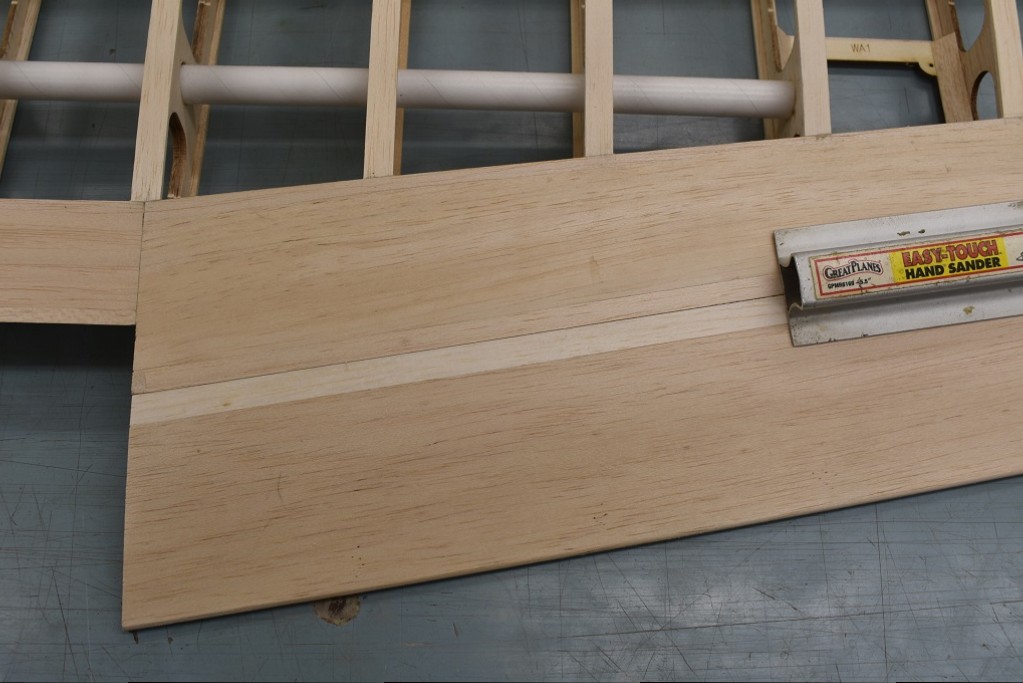

        Sanding the LE and TE caps on the ail. & flaps. Easy peazy! What else is easy is the included flap drill jig. It's a hit on my PT-19.
        Check it out how it's done.

        Click image for larger version

Name:	DSC_1882.JPG
Views:	212
Size:	133.4 KB
ID:	36045

        Click image for larger version

Name:	DSC_1883.JPG
Views:	236
Size:	123.9 KB
ID:	36046

        Click image for larger version

Name:	DSC_1884.JPG
Views:	205
Size:	129.0 KB
ID:	36047

        Click image for larger version

Name:	DSC_1893.JPG
Views:	225
Size:	96.4 KB
ID:	36044

        Click image for larger version

Name:	DSC_1895.JPG
Views:	248
Size:	89.2 KB
ID:	36048
        Gunny
        Aviation Concepts rc

        Comment

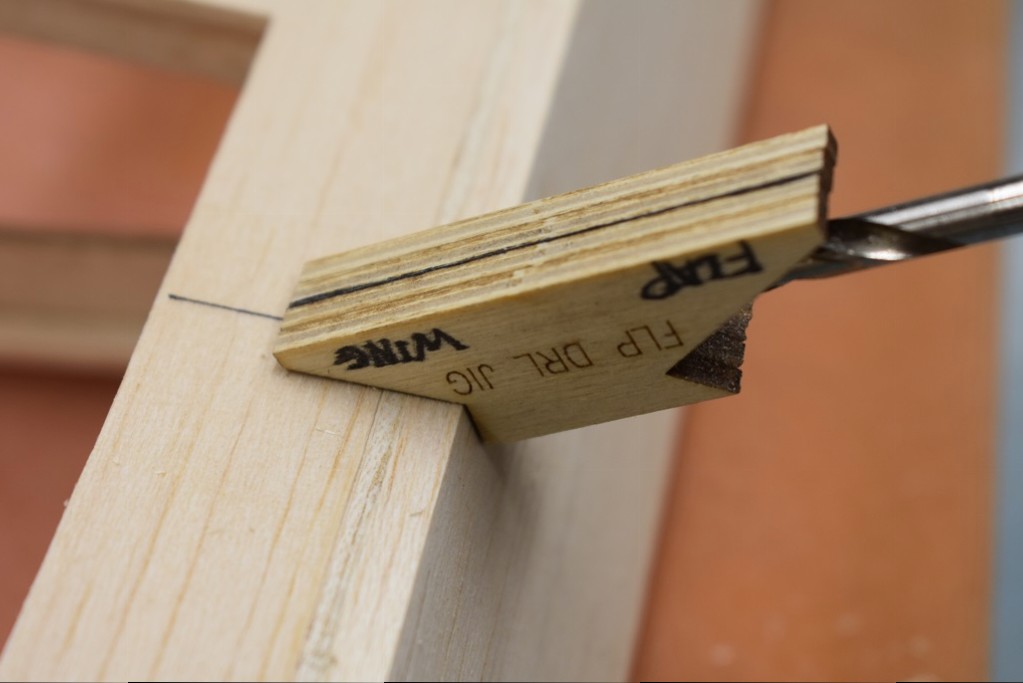

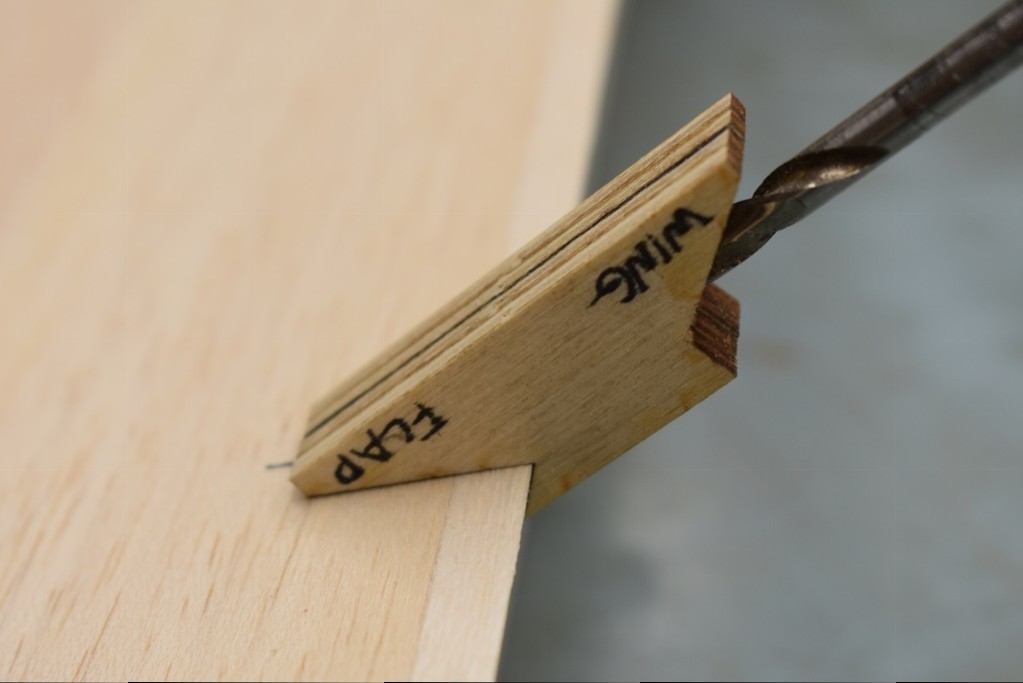

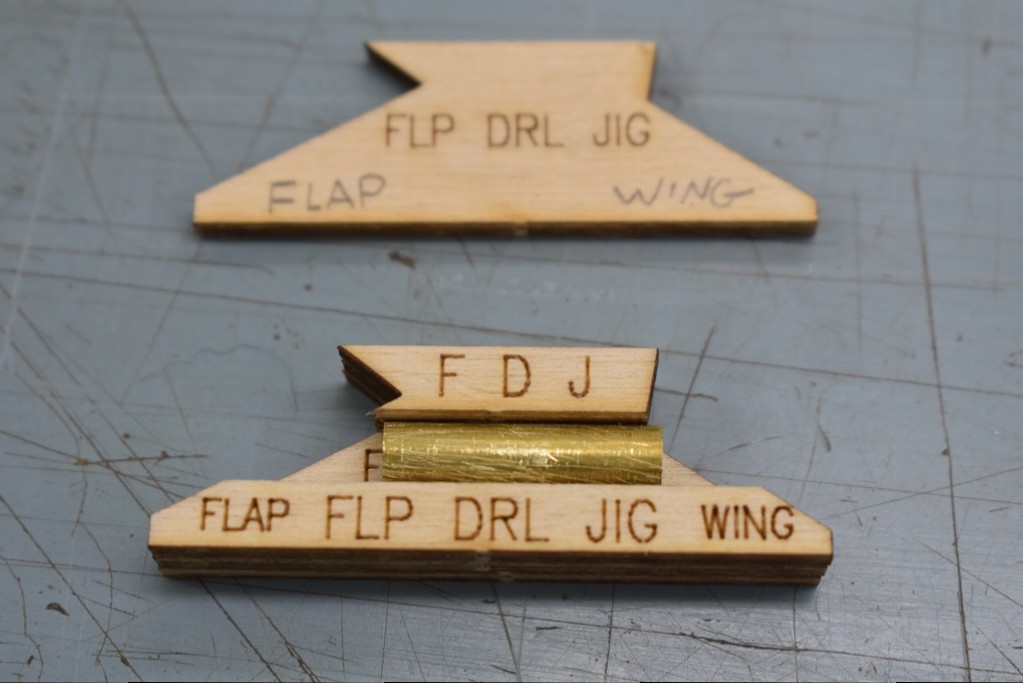

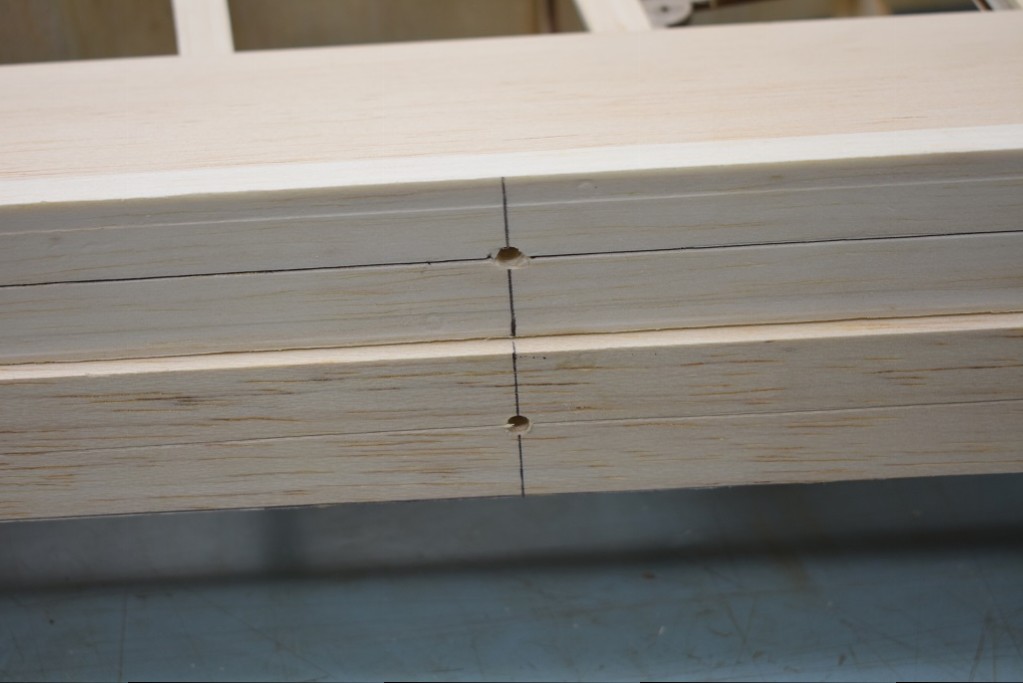

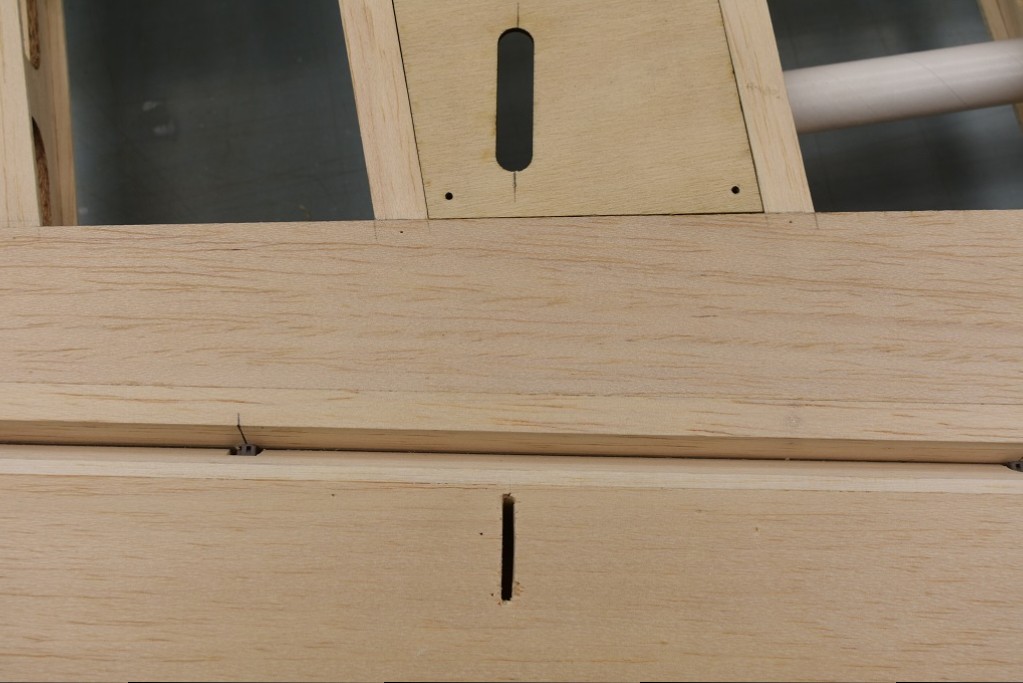

        • There is a center line drawn down the middle of the jig. Line it up on your hinge lines and hold it to the wing side or flap side.

          Click image for larger version

Name:	DSC_1901.JPG
Views:	245
Size:	64.1 KB
ID:	36052

          Click image for larger version

Name:	DSC_1902.JPG
Views:	208
Size:	75.4 KB
ID:	36050

          Click image for larger version

Name:	DSC_1904.JPG
Views:	228
Size:	86.4 KB
ID:	36053

          Click image for larger version

Name:	DSC_1905.JPG
Views:	239
Size:	82.1 KB
ID:	36051

          Click image for larger version

Name:	DSC_1906.JPG
Views:	205
Size:	131.0 KB
ID:	36054
          Gunny
          Aviation Concepts rc

          Comment

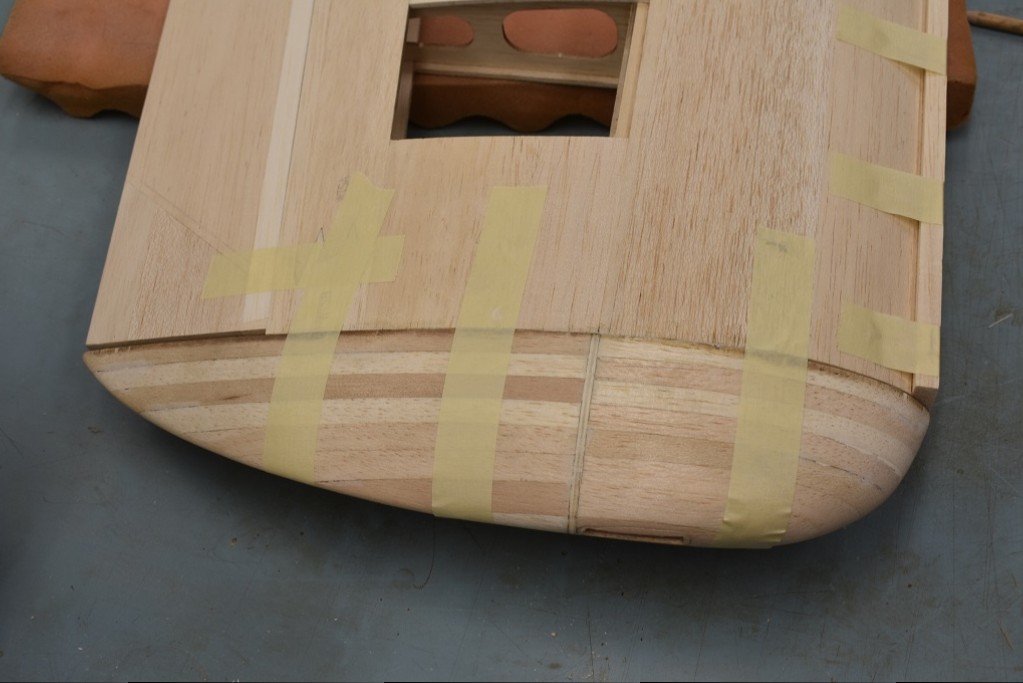

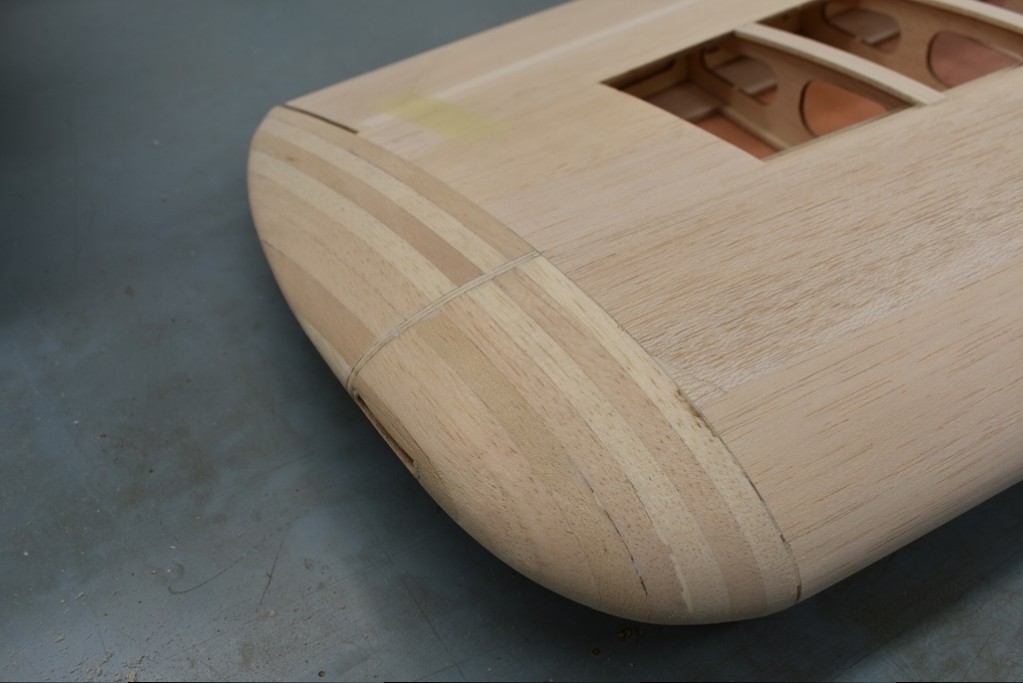

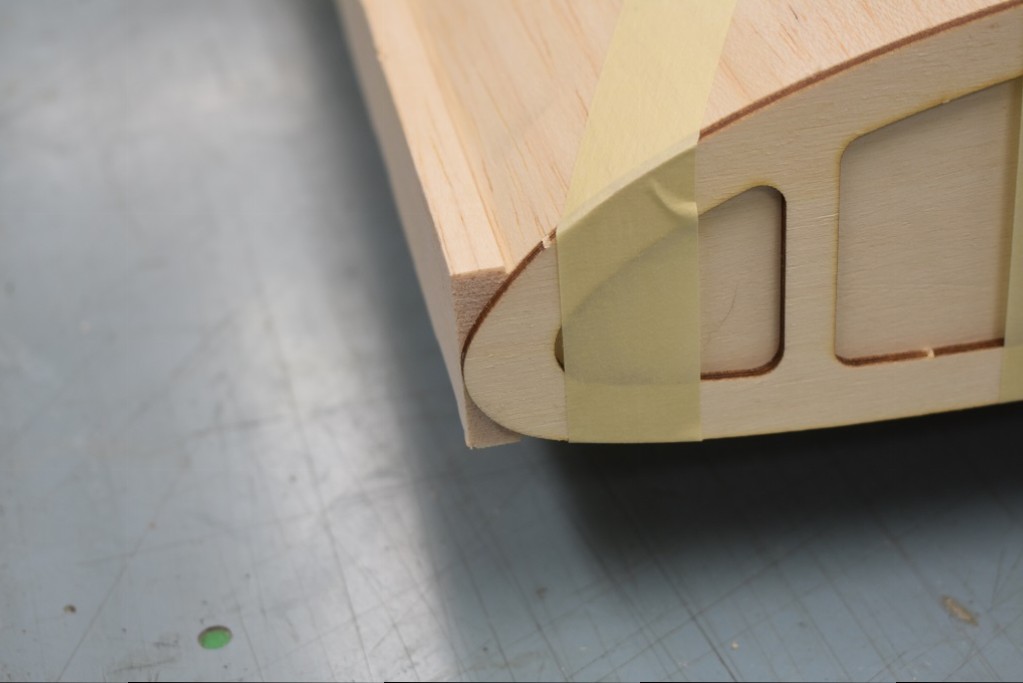

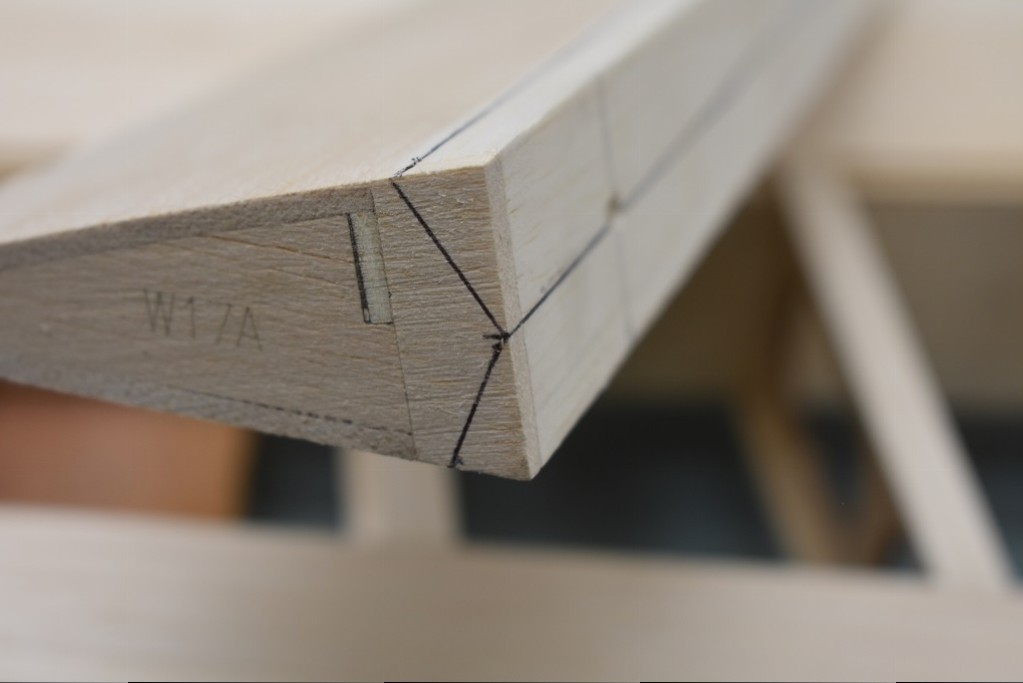

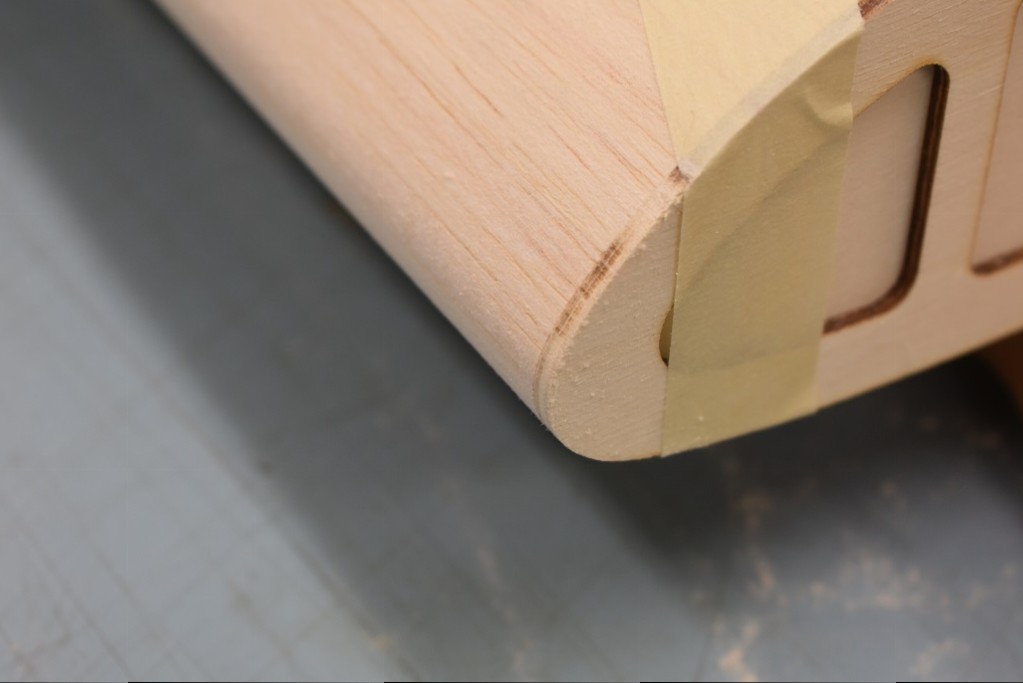

          • To shape the LE, glue on the wing tip and tape on the wing root cap. Carve and sand to shape.

            Click image for larger version

Name:	DSC_1907.JPG
Views:	245
Size:	80.0 KB
ID:	36056

            Click image for larger version

Name:	DSC_1908.JPG
Views:	207
Size:	101.8 KB
ID:	36058

            Click image for larger version

Name:	DSC_1909.JPG
Views:	231
Size:	70.1 KB
ID:	36057

            Click image for larger version

Name:	DSC_1914.JPG
Views:	228
Size:	100.0 KB
ID:	36059

            Click image for larger version

Name:	DSC_1916.JPG
Views:	206
Size:	63.1 KB
ID:	36060
            Gunny
            Aviation Concepts rc

            Comment

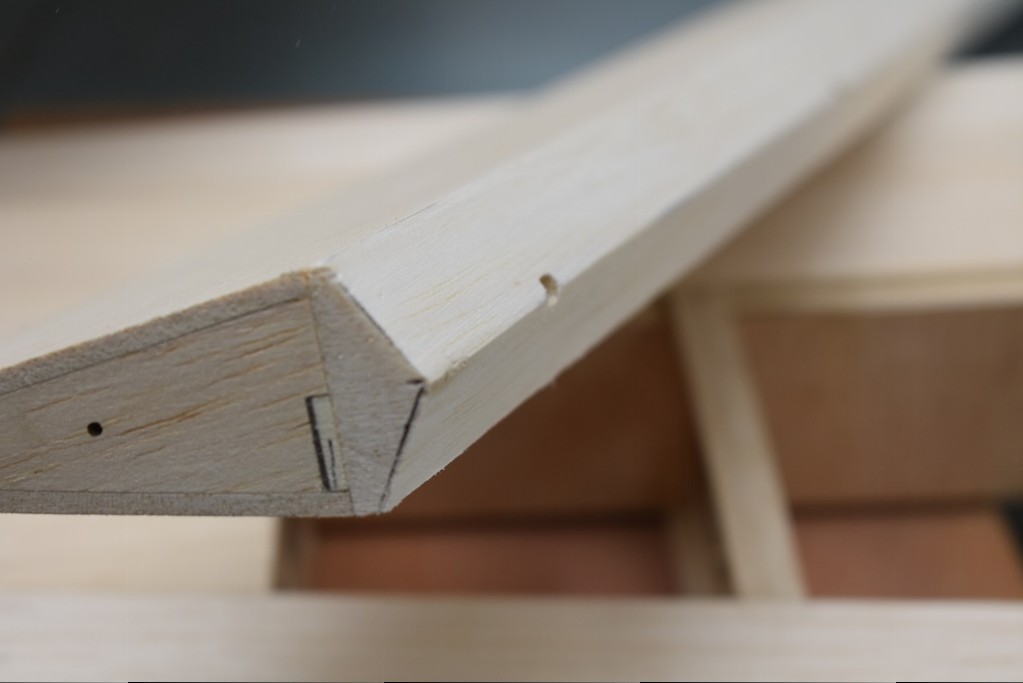

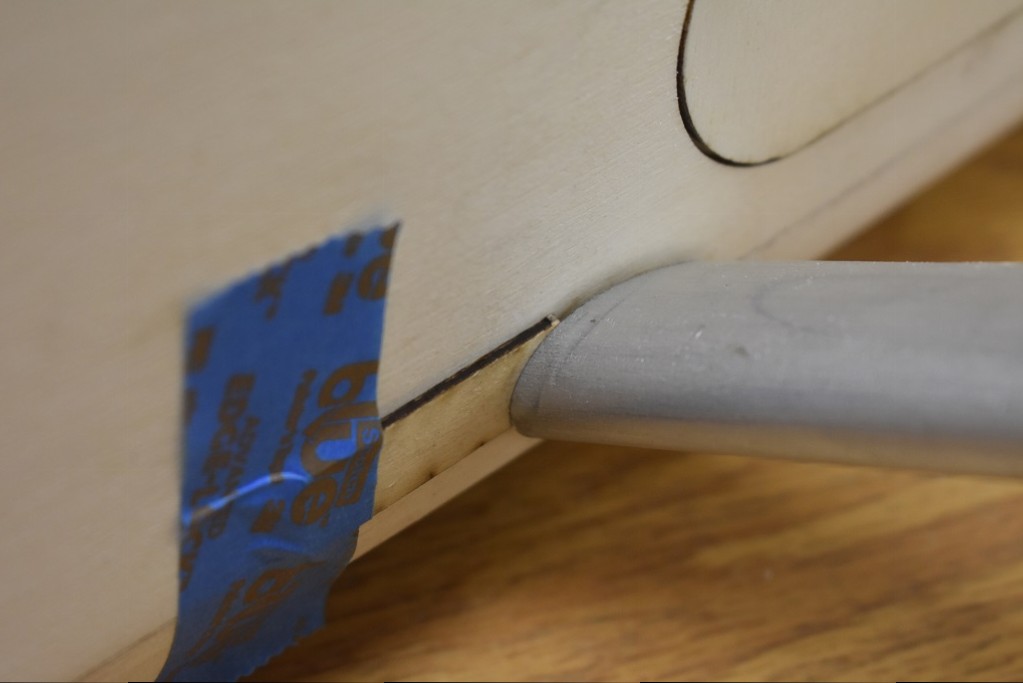

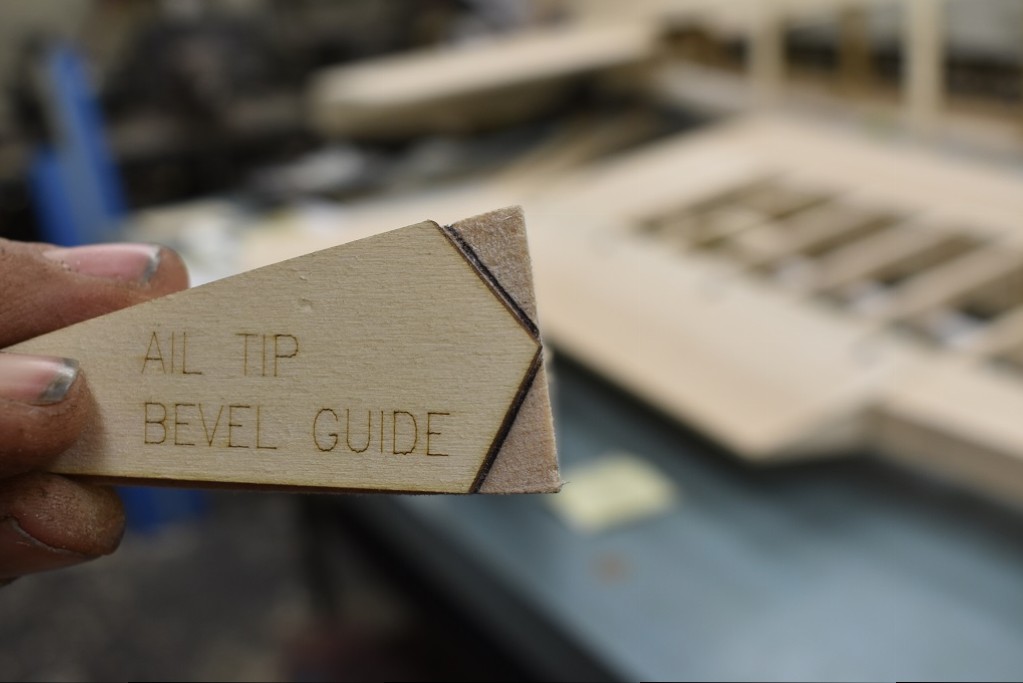

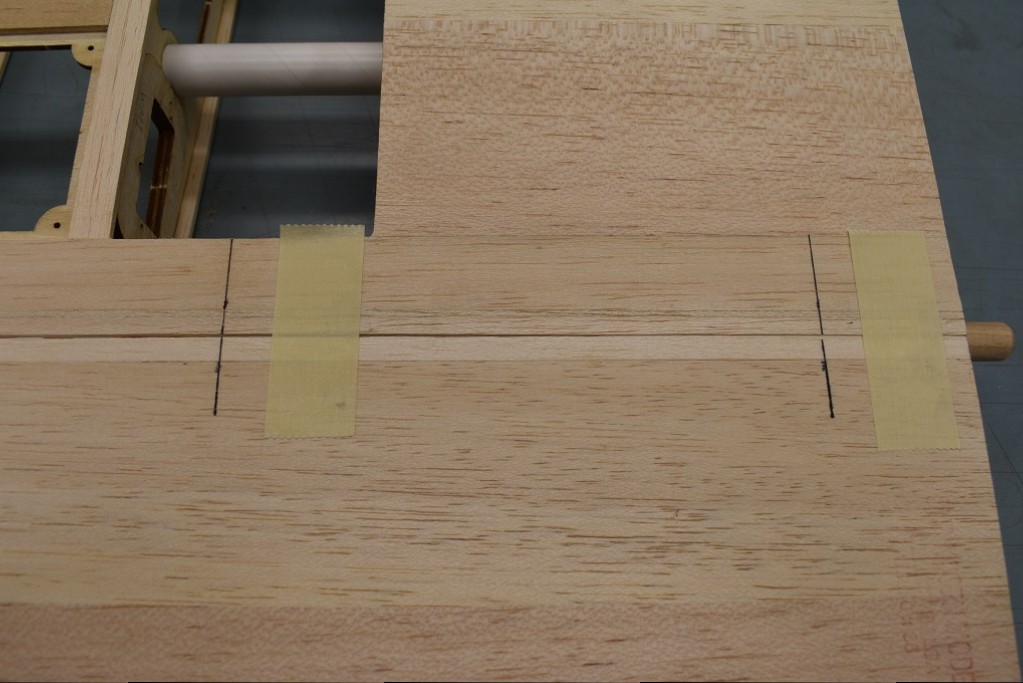

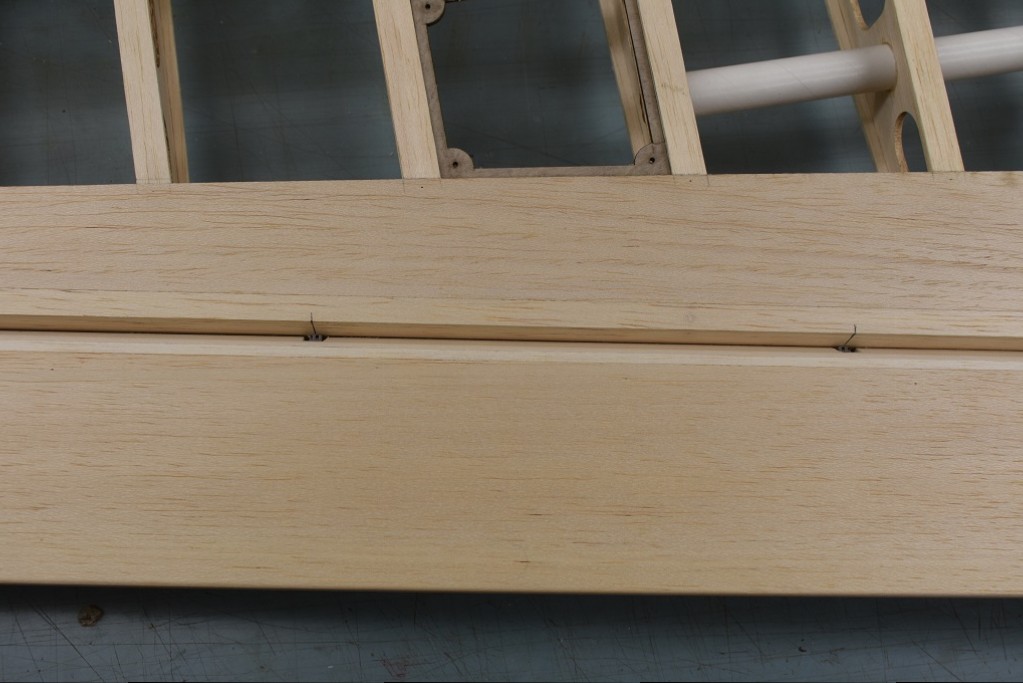

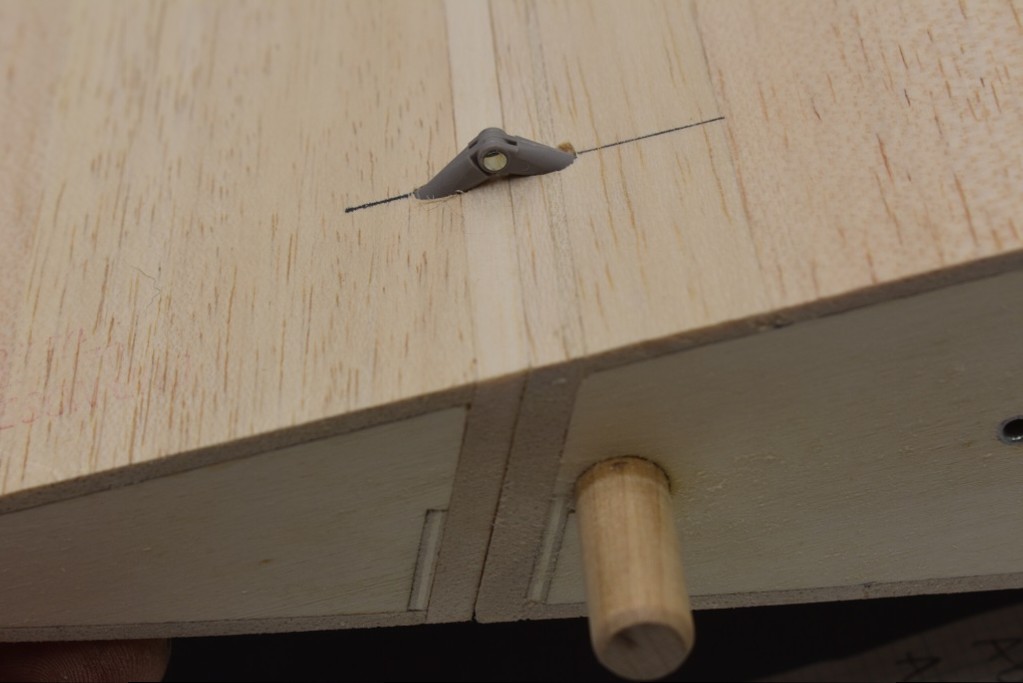

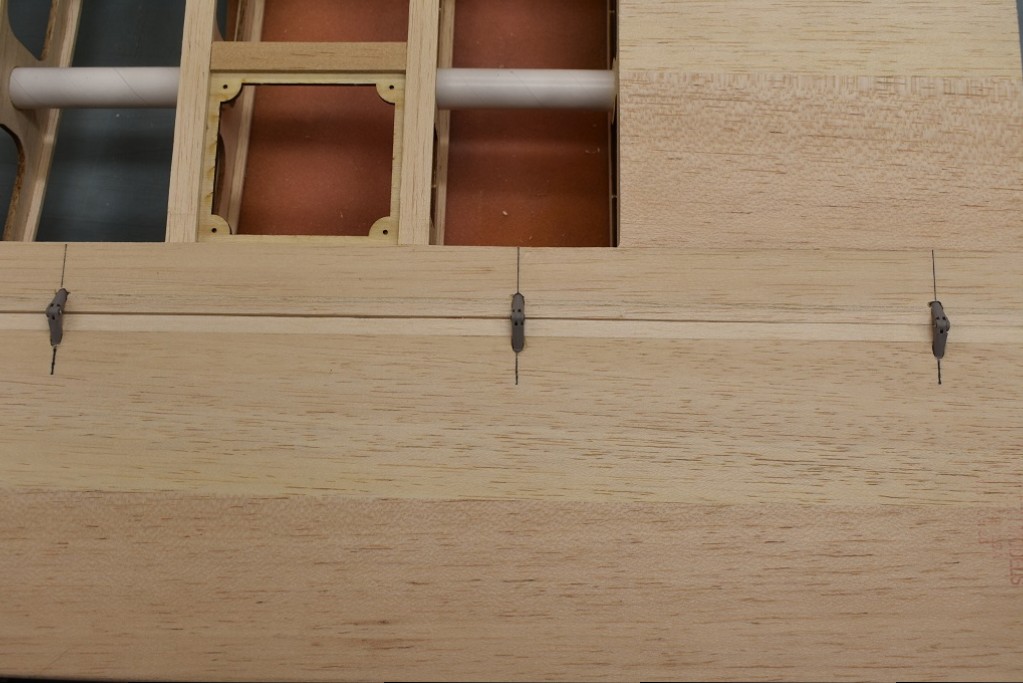

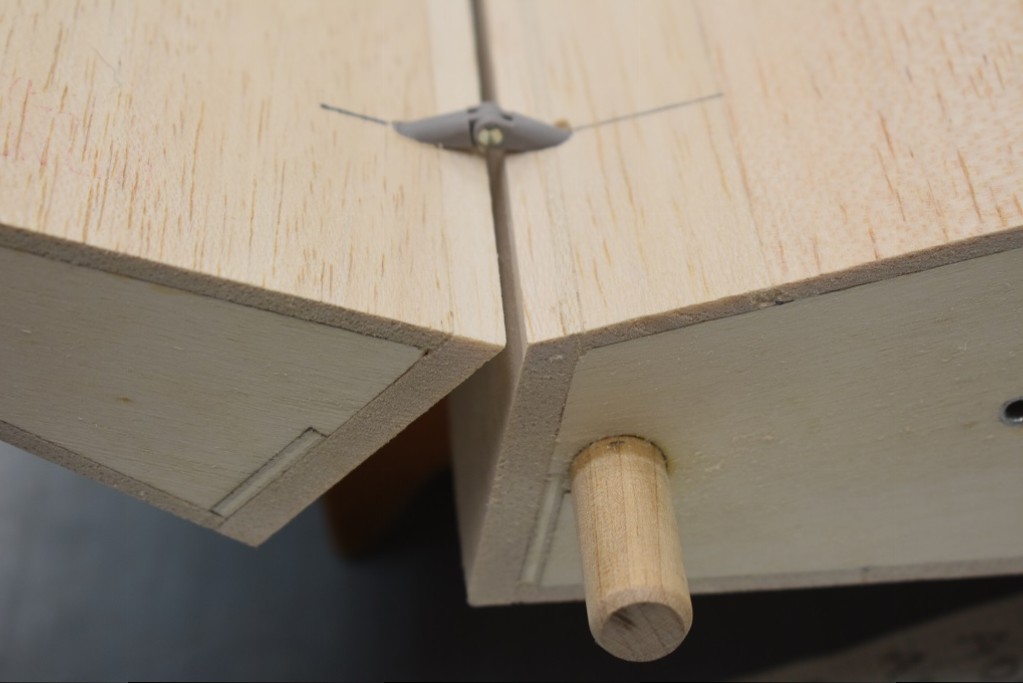

            • Hinging the ailerons. There are marking templates included for the bevels.

              Click image for larger version

Name:	DSC_1919.JPG
Views:	204
Size:	84.6 KB
ID:	36062

              Click image for larger version

Name:	DSC_1921.JPG
Views:	207
Size:	60.1 KB
ID:	36065

              Click image for larger version

Name:	DSC_1924.JPG
Views:	212
Size:	57.1 KB
ID:	36063

              Click image for larger version

Name:	DSC_1925.JPG
Views:	199
Size:	114.8 KB
ID:	36064
              Gunny
              Aviation Concepts rc

              Comment

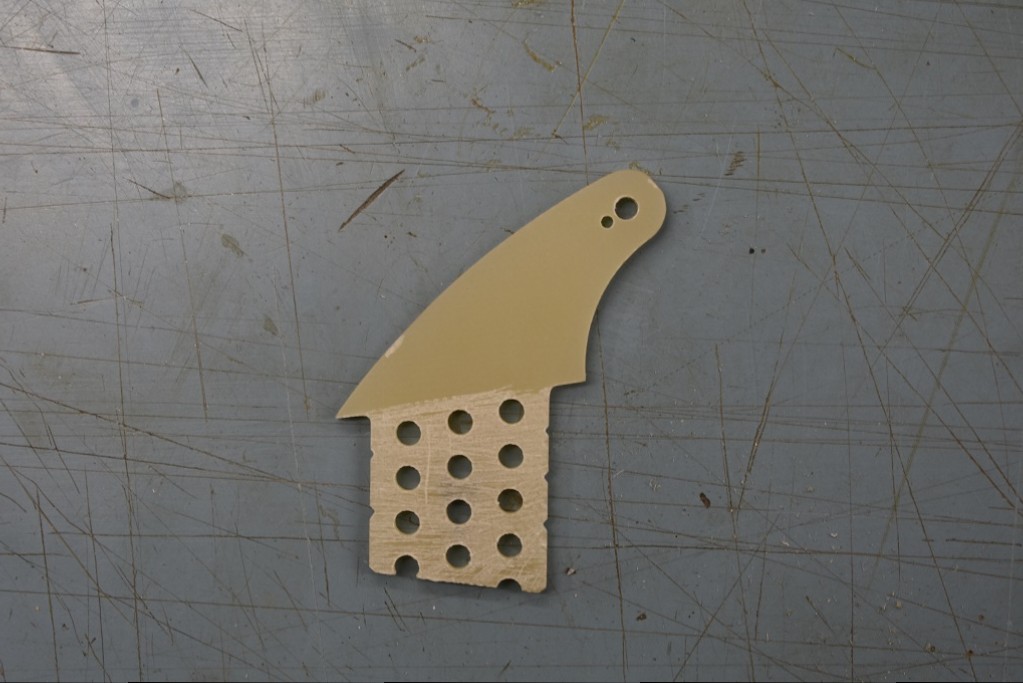

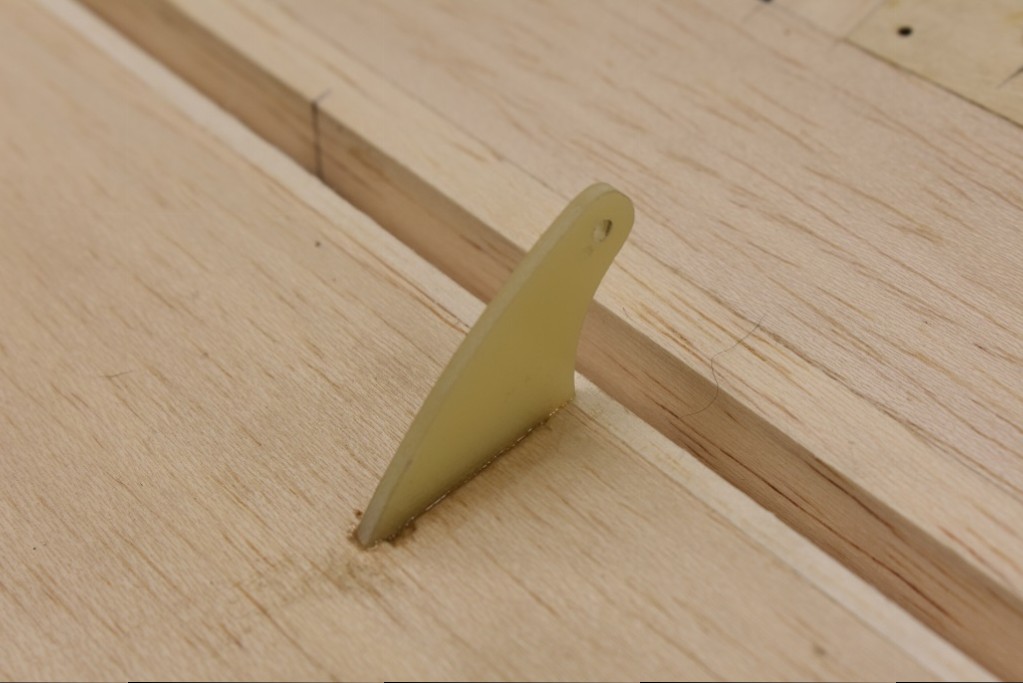

              • And installing the horn.

                Click image for larger version

Name:	DSC_1932.JPG
Views:	201
Size:	117.0 KB
ID:	36068

                Click image for larger version

Name:	DSC_1933.JPG
Views:	244
Size:	115.6 KB
ID:	36069

                Click image for larger version

Name:	DSC_1934.JPG
Views:	233
Size:	101.6 KB
ID:	36067
                Gunny
                Aviation Concepts rc

                Comment

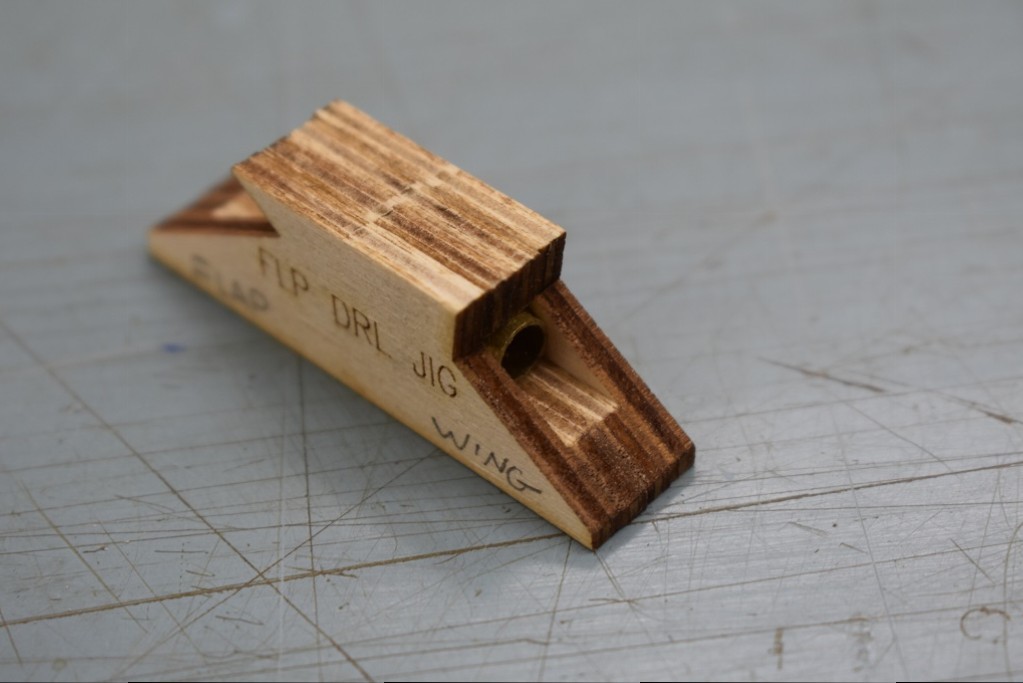

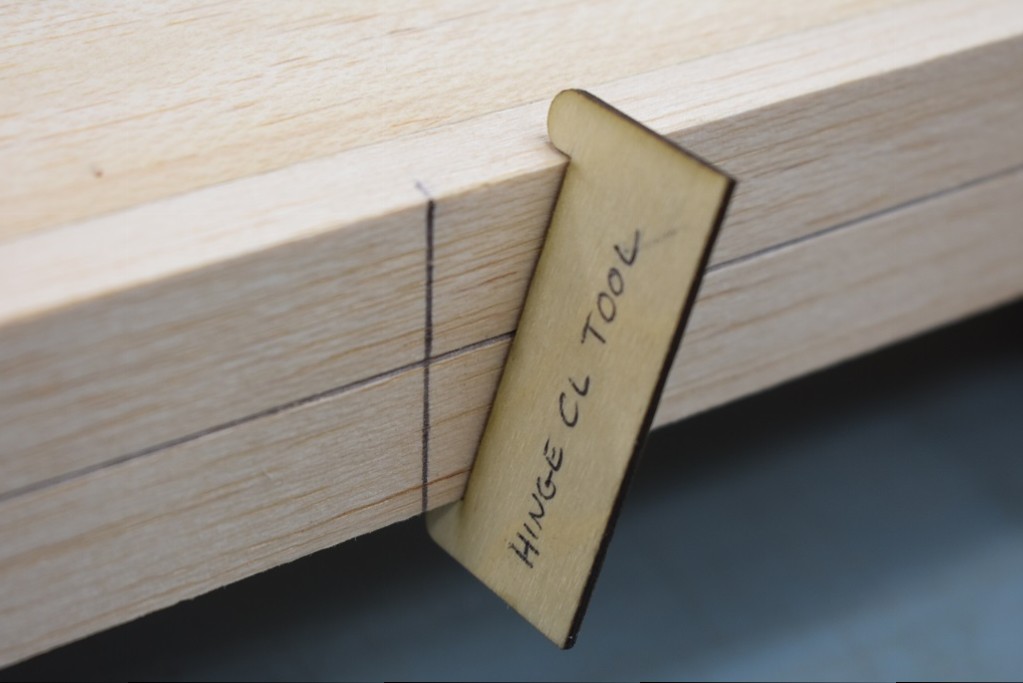

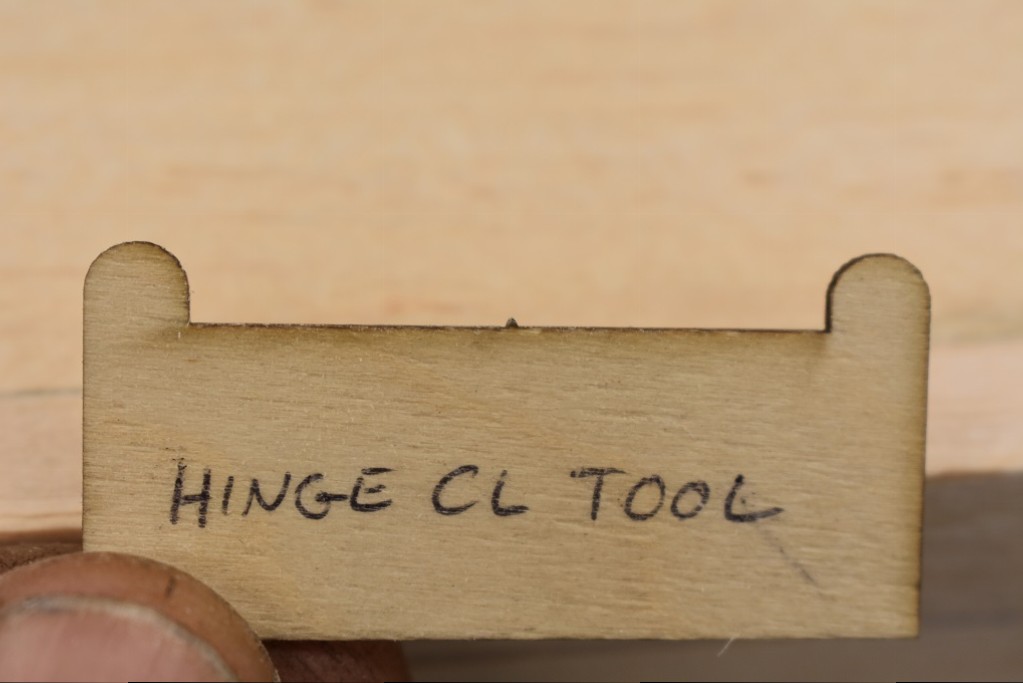

                • Back to the ailerons for a moment. I created this hinge center line tool because the Robart Drill Guide doesn't line up from the wing to the aileron do to the wide tabs. This misalignment is about a 1/16". The top skin of the wing climbs steeply while the ail. drops. also a picture of the bevel template.
                  Click image for larger version

Name:	DSC_1957.JPG
Views:	195
Size:	81.2 KB
ID:	36087

                  Click image for larger version

Name:	DSC_1958.JPG
Views:	234
Size:	73.5 KB
ID:	36086

                  Click image for larger version

Name:	DSC_1968.JPG
Views:	225
Size:	79.6 KB
ID:	36088
                  Gunny
                  Aviation Concepts rc

                  Comment


                  • Well designed parts, attention to detail, and that special Gunny quality. What else is there to say than WOWZA!!! 😃
                    A Site for Soar Eyes

                    Comment


                    • gunny11
                      gunny11 commented
                      Editing a comment
                      Thank you Jim.

                    • Swiss1
                      Swiss1 commented
                      Editing a comment
                      Triple that, WOWZA WOWZA WOWZA

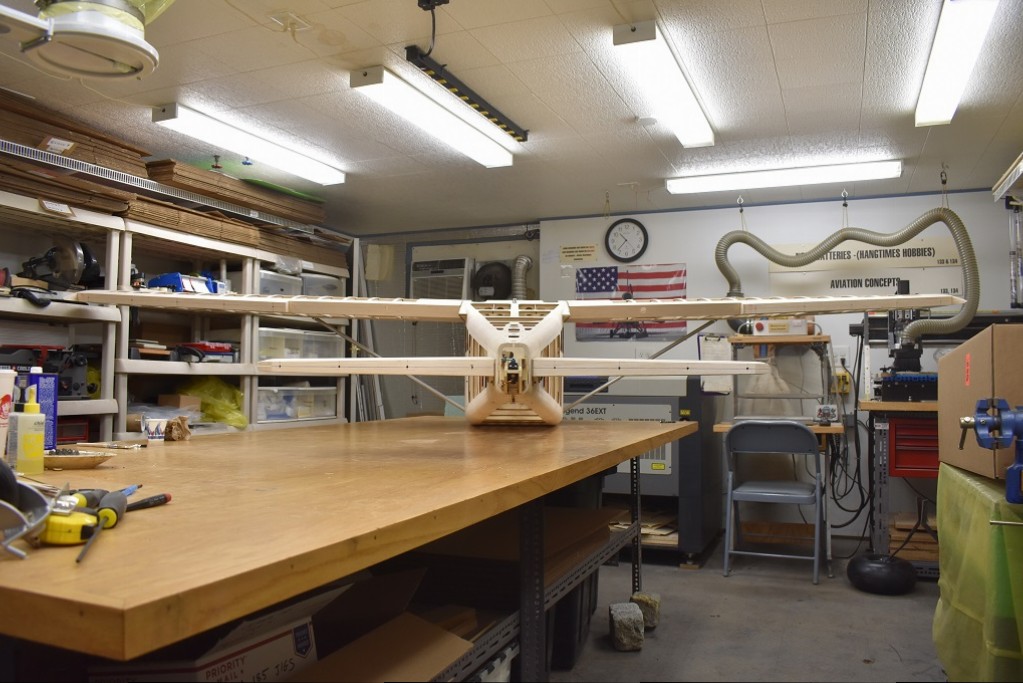

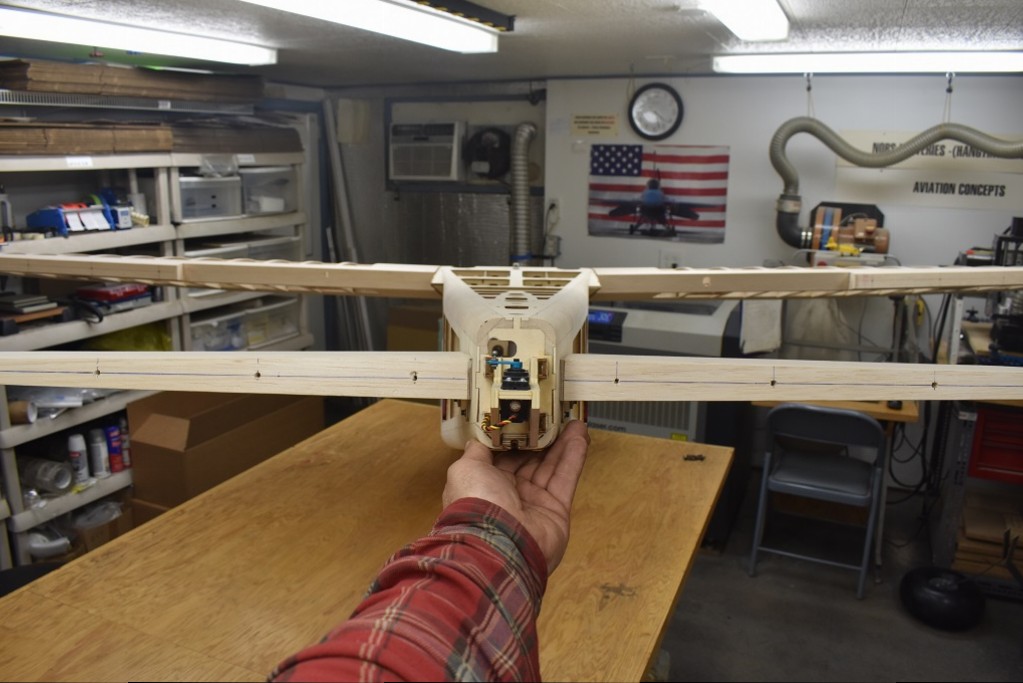

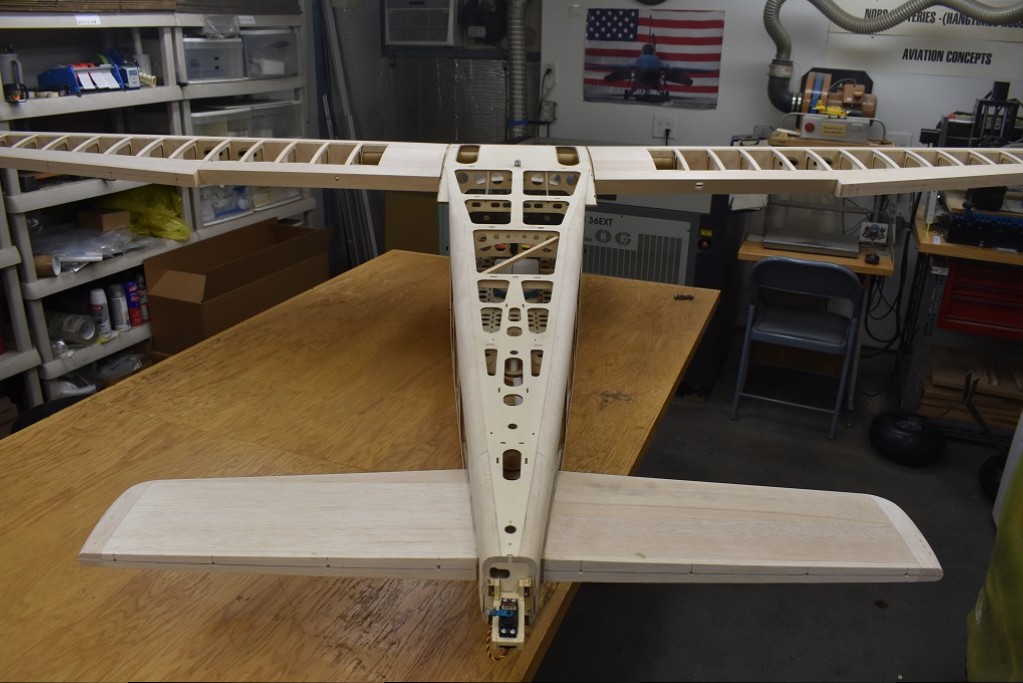

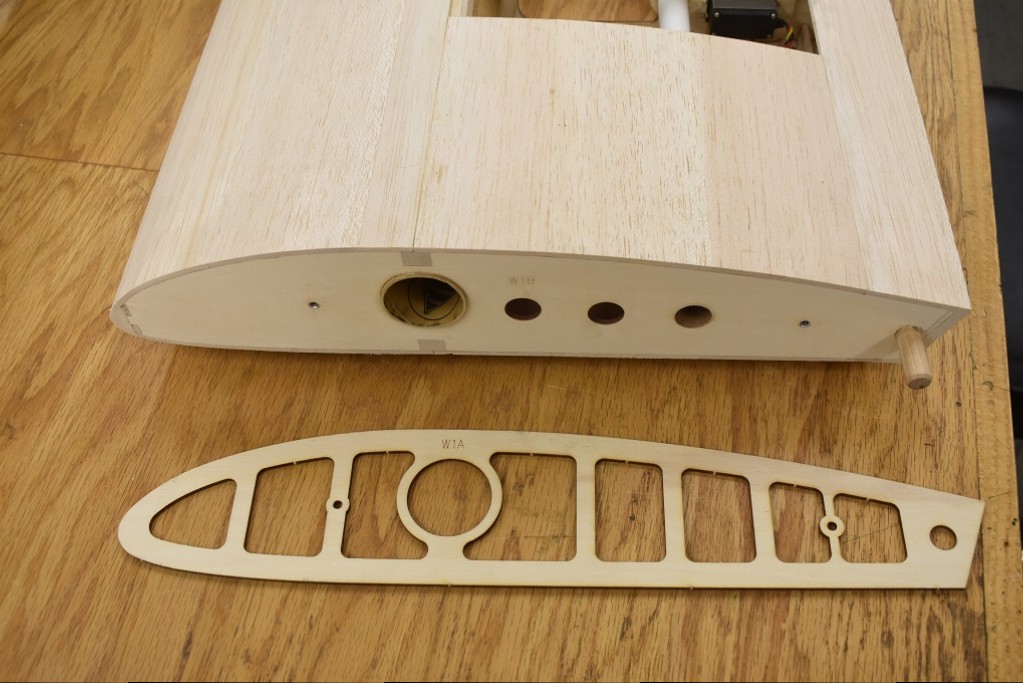

                  • Well, the wings are done and now lets mount them onto the fuselage. The root end cap for now is just slipped into place.

                    Click image for larger version

Name:	DSC_1991.JPG
Views:	230
Size:	156.0 KB
ID:	36149

                    Click image for larger version

Name:	DSC_1994.JPG
Views:	192
Size:	86.8 KB
ID:	36146

                    Click image for larger version

Name:	DSC_1995.JPG
Views:	194
Size:	139.5 KB
ID:	36147

                    Click image for larger version

Name:	DSC_1997.JPG
Views:	218
Size:	129.3 KB
ID:	36148
                    Gunny
                    Aviation Concepts rc

                    Comment

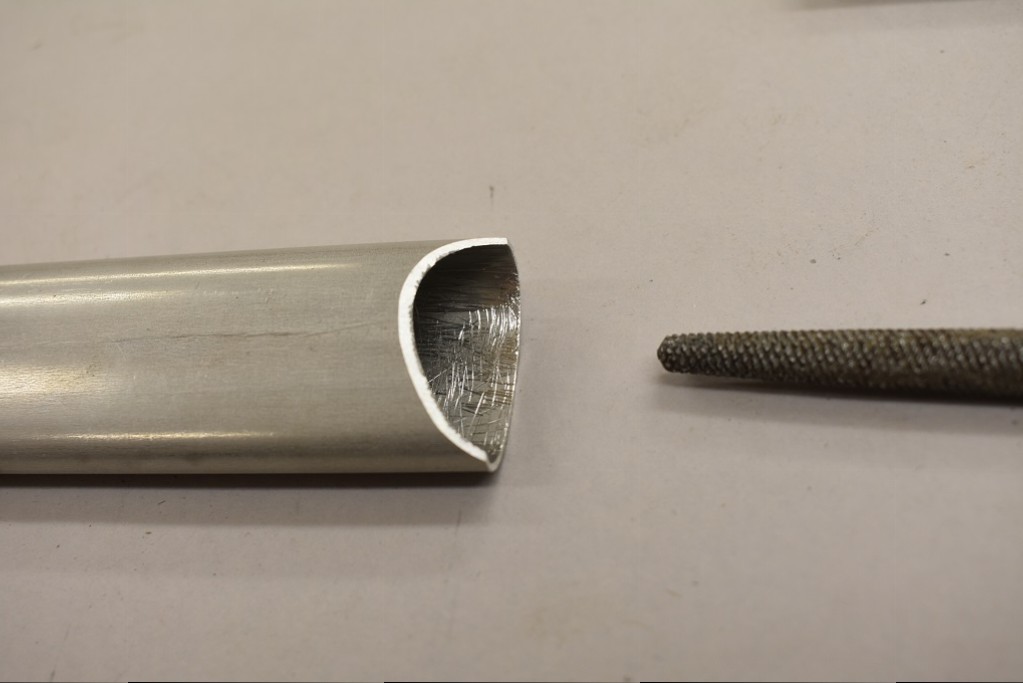

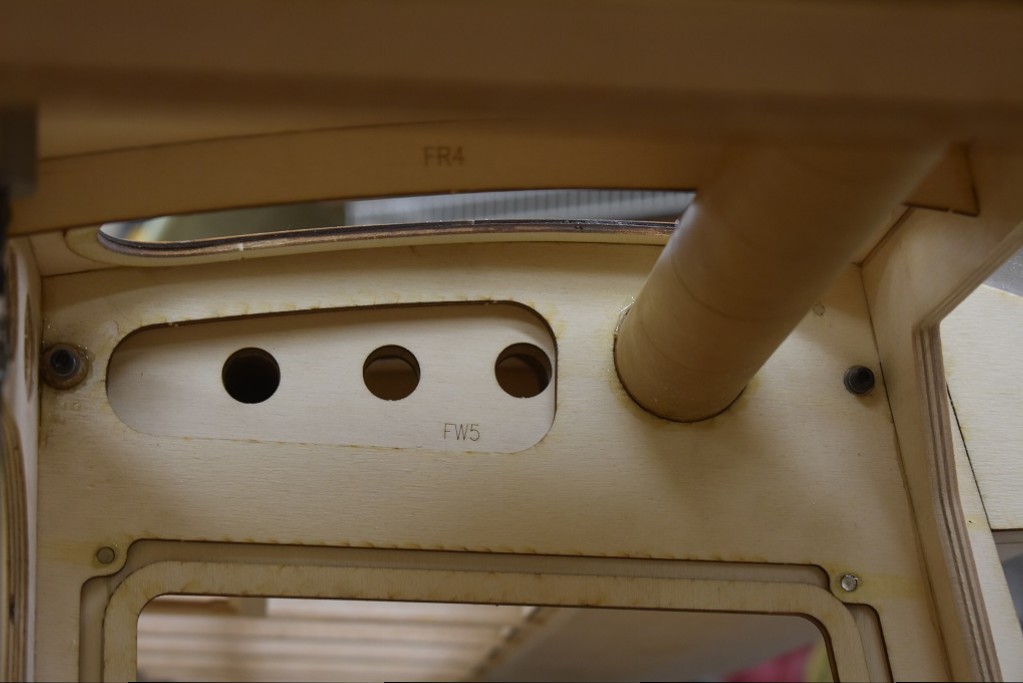

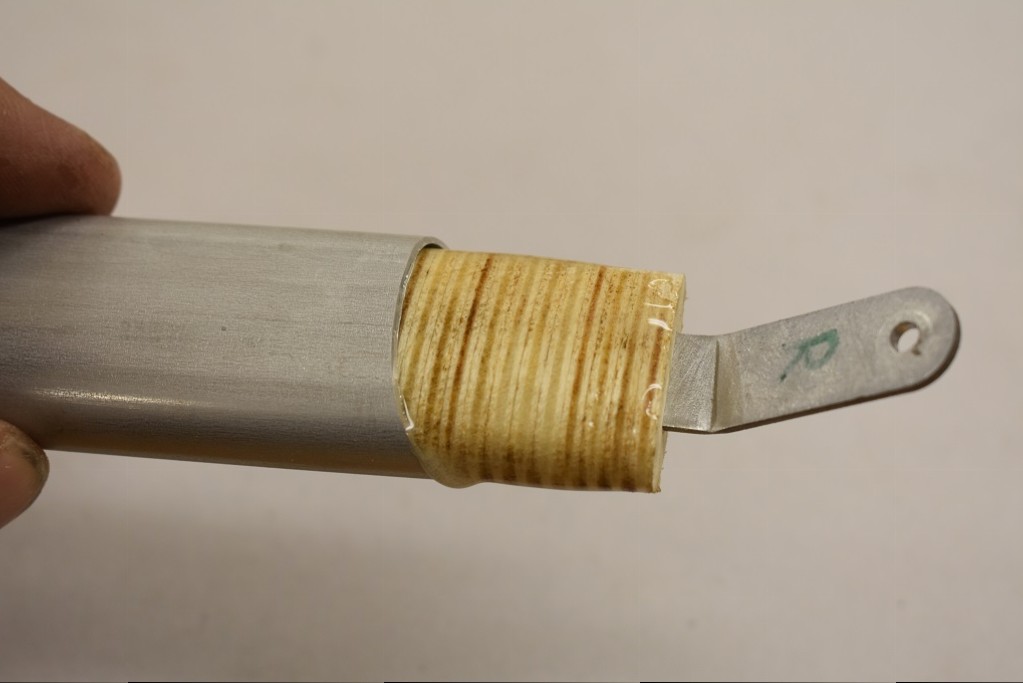

                    • Now that the wings are mounted... My favorite part of the build which is fun is mounting the struts.
                      The original plan was to square cut them but I did not like the way they looked. The full scale was cut on an angle. So, I spent a couple of days to make cutting jigs for the aluminum struts.
                      Well, like Jim said "Attention to detail" does make it look a lot nicer. The struts are cut to length and on there respective angles in the kit.

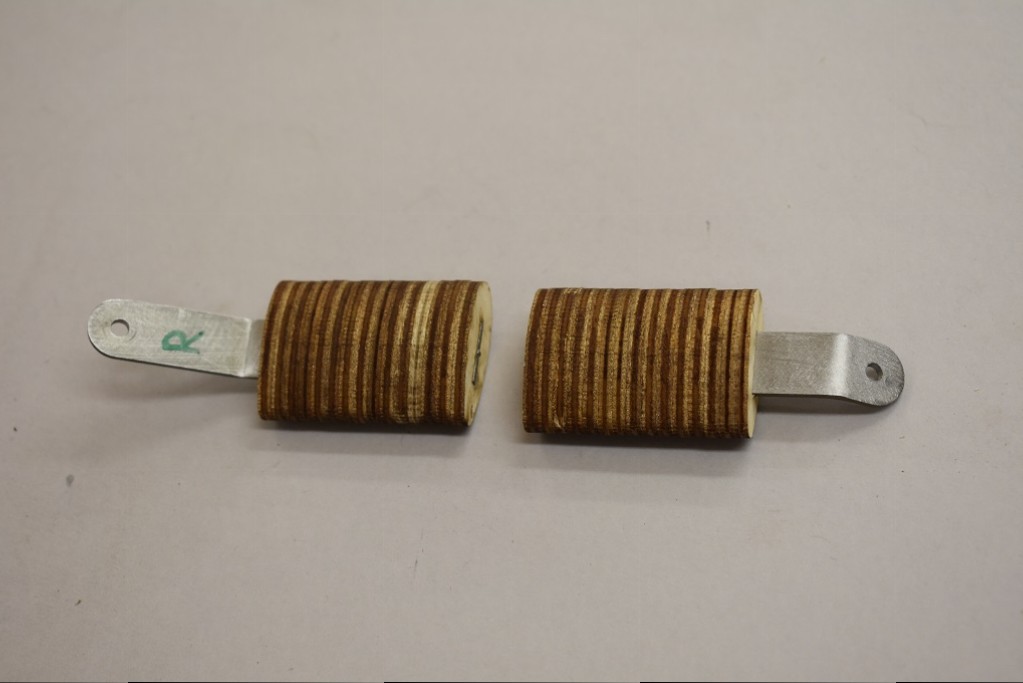

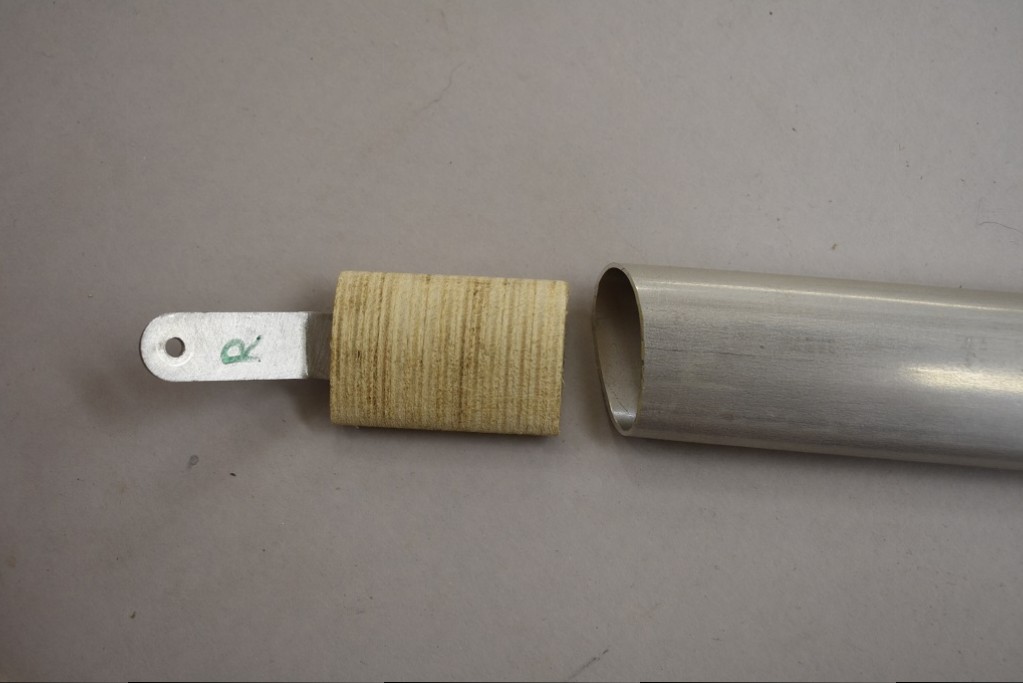

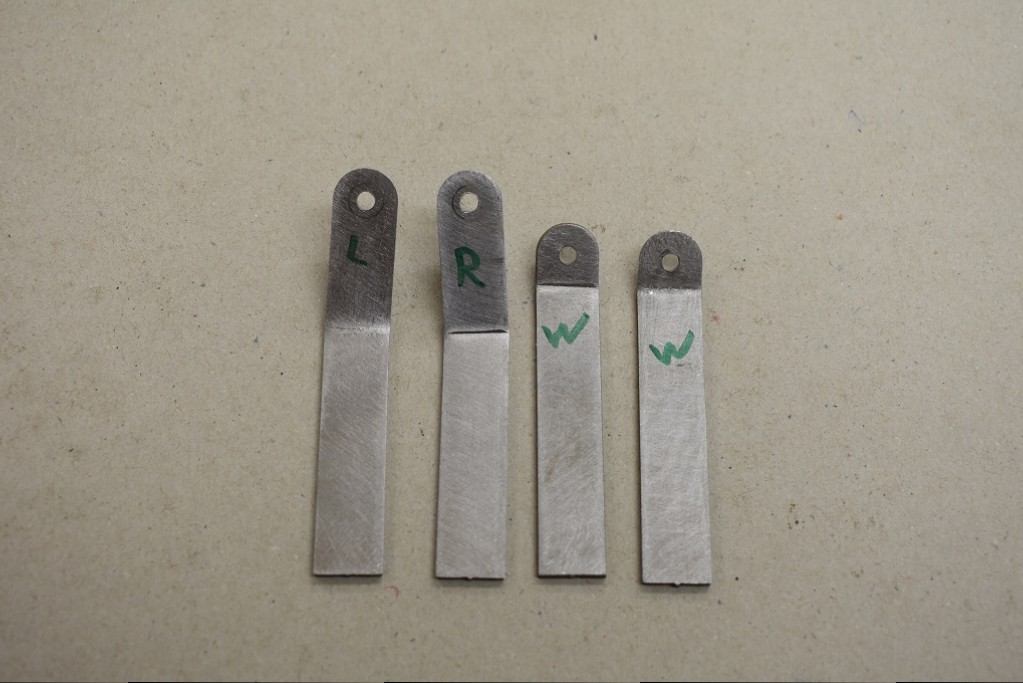

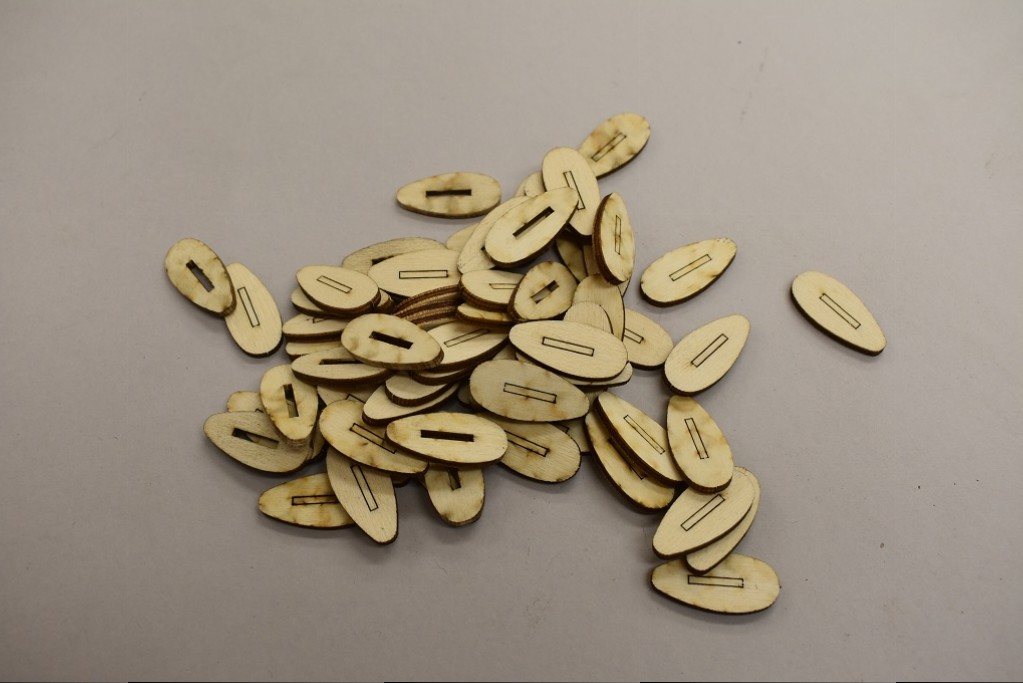

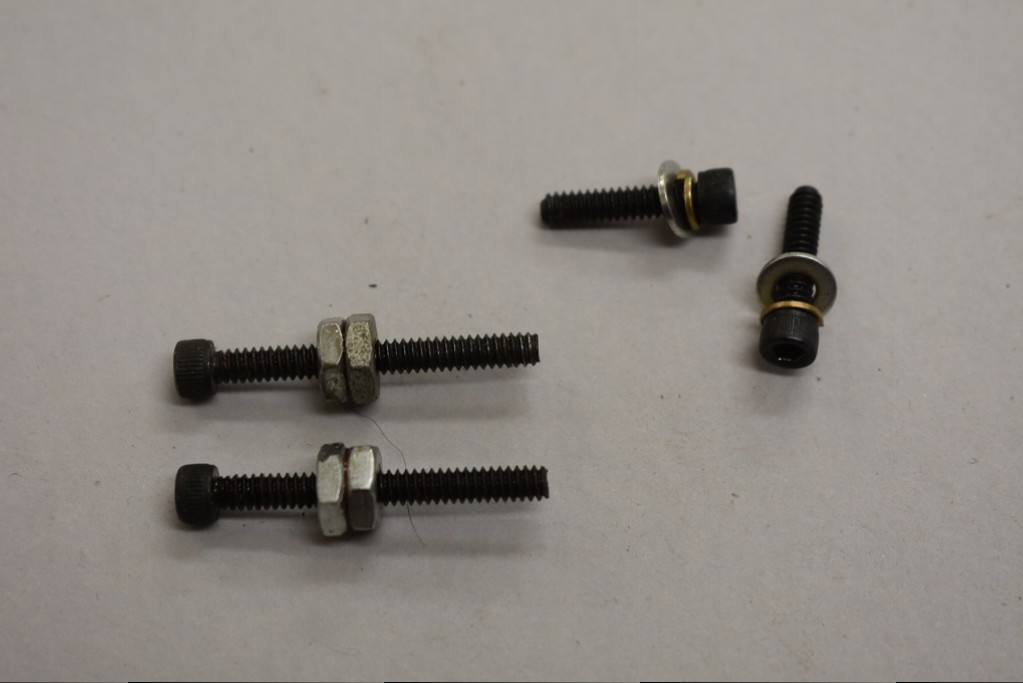

                      The long bolts need to be double "lock tited" nutted together. These are in the fuselage end of the mounting. The reason for the long head is so you can grab them and remove them out of their recessed spot. the shorter ones are up at the wings. Water jet cut and pre bent steel fittings along with a bag of little airfoil spacers. These spacers get glued on the fittings and sanded to fit inside the strut tubes.

                      Click image for larger version

Name:	DSC_2006.JPG
Views:	238
Size:	74.2 KB
ID:	36155Click image for larger version

Name:	DSC_2009.JPG
Views:	231
Size:	125.1 KB
ID:	36158

                      Click image for larger version

Name:	DSC_2015.JPG
Views:	228
Size:	100.9 KB
ID:	36157

                      Click image for larger version

Name:	DSC_2023.JPG
Views:	205
Size:	72.2 KB
ID:	36156

                      Click image for larger version

Name:	DSC_2027.JPG
Views:	239
Size:	84.0 KB
ID:	36159
                      Gunny
                      Aviation Concepts rc

                      Comment

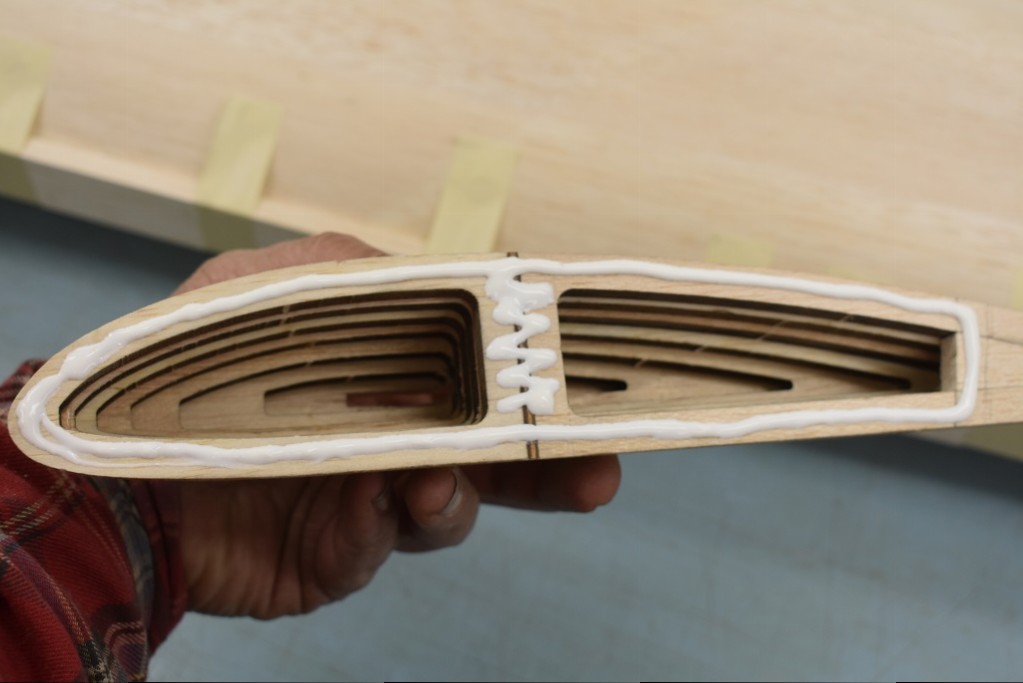

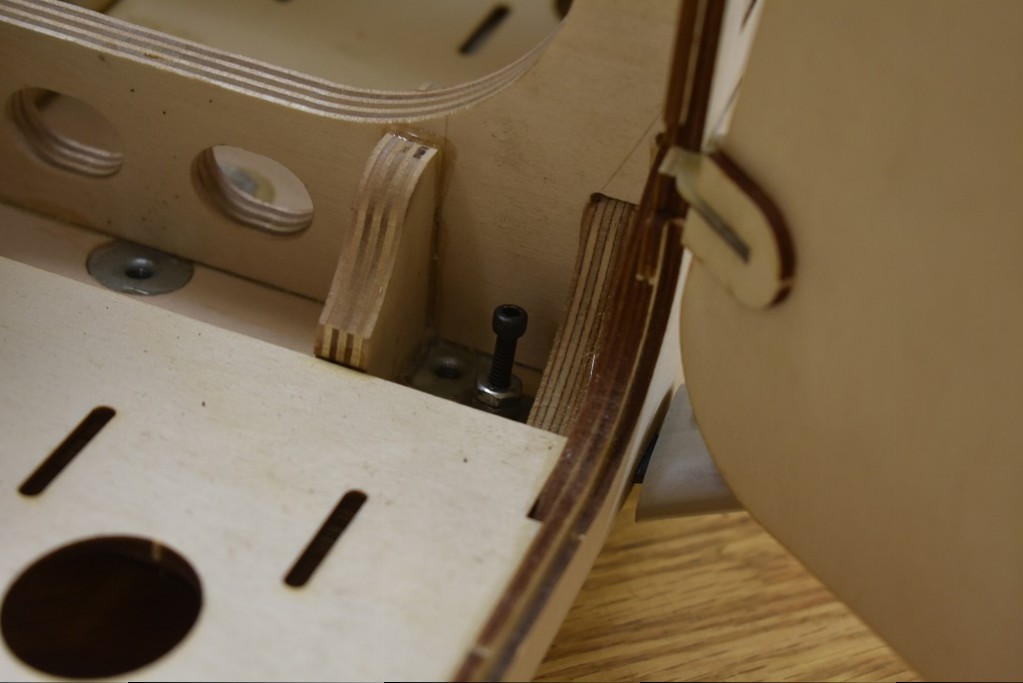

                      • Roughen up, epoxy and shim it away from the fuselage with 1/16" ply spacer and check alignment.

                        Click image for larger version

Name:	DSC_2040.JPG
Views:	227
Size:	71.7 KB
ID:	36161

                        Click image for larger version

Name:	DSC_2043.JPG
Views:	235
Size:	67.5 KB
ID:	36162

                        Click image for larger version

Name:	DSC_2045.JPG
Views:	191
Size:	67.2 KB
ID:	36163

                        Click image for larger version

Name:	DSC_2051.JPG
Views:	195
Size:	161.0 KB
ID:	36164

                        Click image for larger version

Name:	DSC_2079.JPG
Views:	216
Size:	83.1 KB
ID:	36165
                        Gunny
                        Aviation Concepts rc

                        Comment

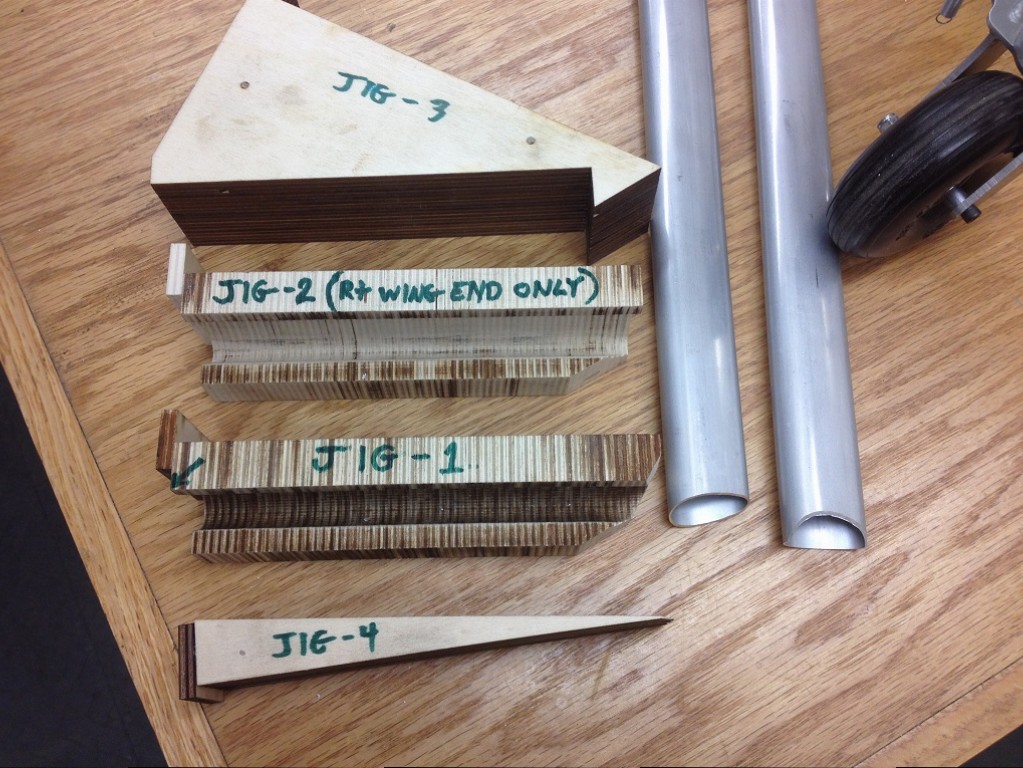

                        • Here are the jigs used to cut the struts at their respective angles.

                          Click image for larger version

Name:	IMG_0468.JPG
Views:	205
Size:	213.9 KB
ID:	36194
                          Gunny
                          Aviation Concepts rc

                          Comment


                          • gunny11
                            gunny11 commented
                            Editing a comment
                            Have to clarify about these jigs. These are for the shop to cut and produce all the angles and ends of the struts.
