  • #61
    That gear is totally sweet!
    Gunny
    Aviation Concepts rc

    Comment


    • MarnochS
      MarnochS commented
      Editing a comment
      It's super plush on the initial part of the stroke too.......going to be like landing on a couch.

    • ARUP
      ARUP commented
      Editing a comment
      Where's that beer?

  • #62

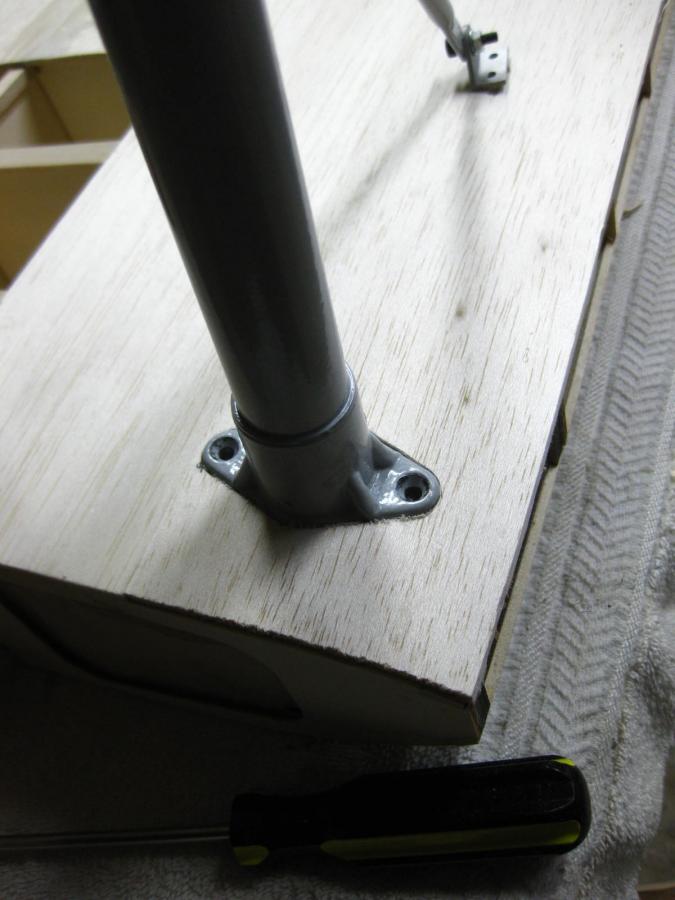

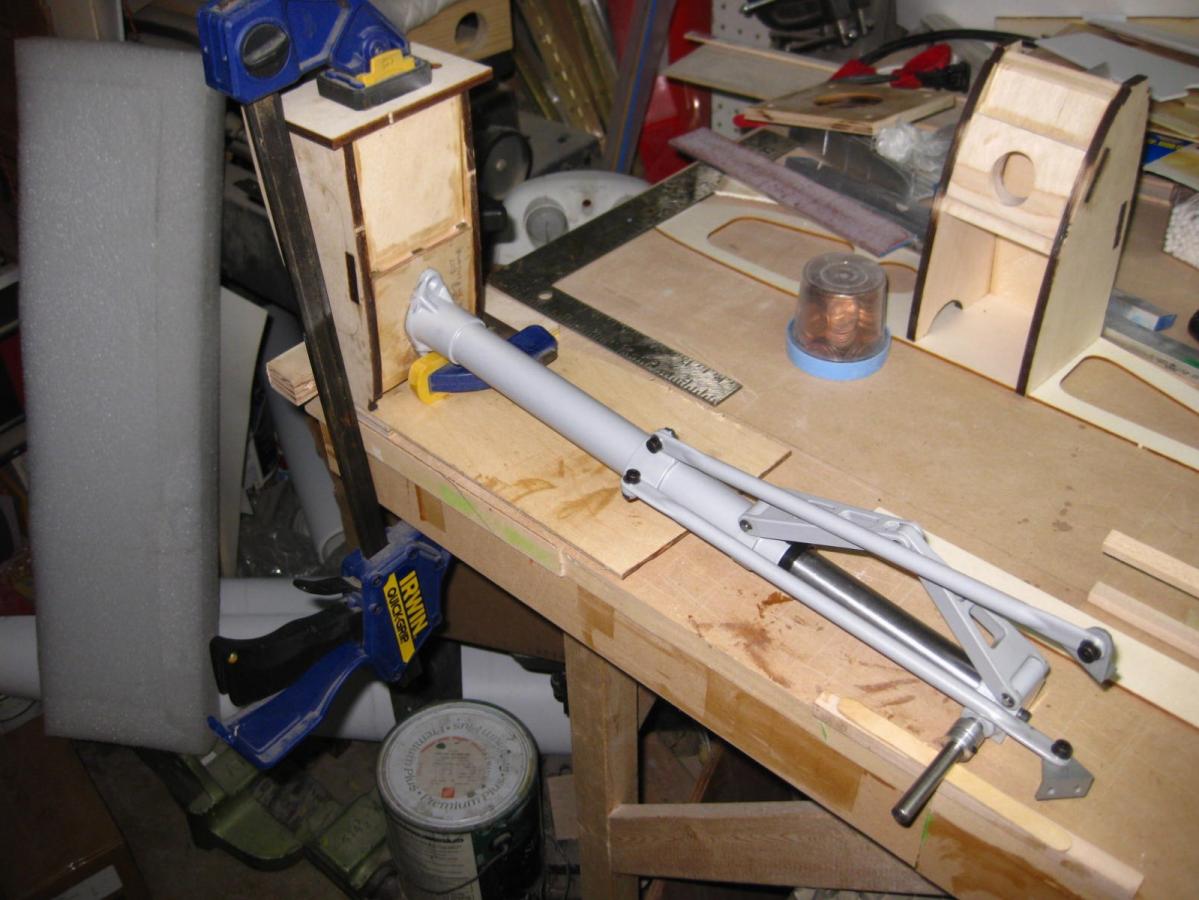

    Mounting the Gear leg sockets......

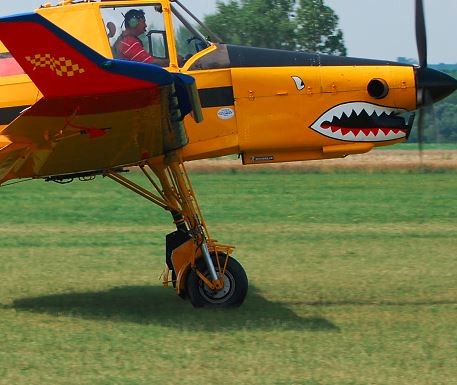

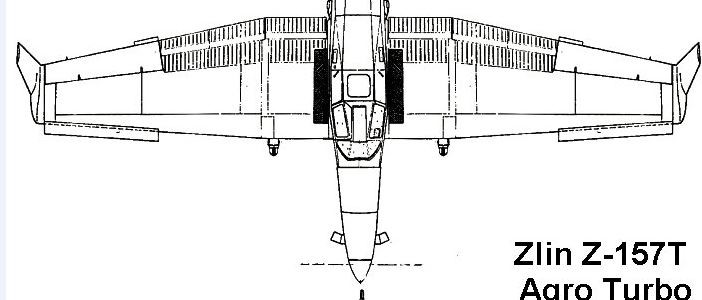

    Looking at the 3-view and pictures, the wheel axle looks to be even with the leading edge of the wing.

    Click image for larger version  Name:	GearAxels.JPG Views:	1 Size:	45.0 KB ID:	34254Click image for larger version  Name:	GearAxels2.JPG Views:	1 Size:	49.4 KB ID:	34255

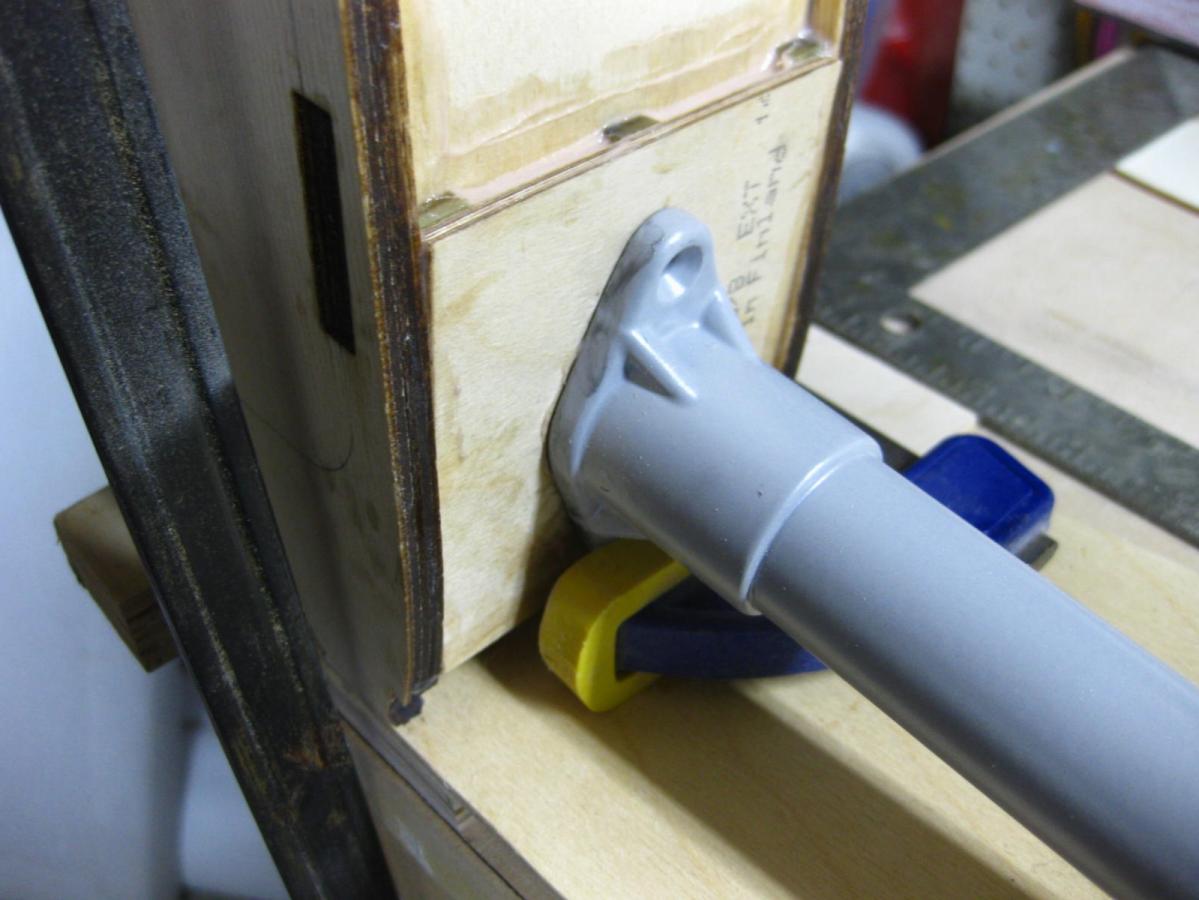

    Finally settled on the gravity method to hold the gear leg in place, also since the leg has about 7 degrees of forward sweep, I opted to angle the bottom mounting plate and back-fill with WestSystem epoxy/404 filler. I placed three 0.130 shims on the back of the mounting plate to get the correct angle

    Click image for larger version  Name:	IMG_4867.JPG Views:	1 Size:	119.0 KB ID:	34256 Click image for larger version  Name:	image_13318.jpg Views:	1 Size:	91.2 KB ID:	34260

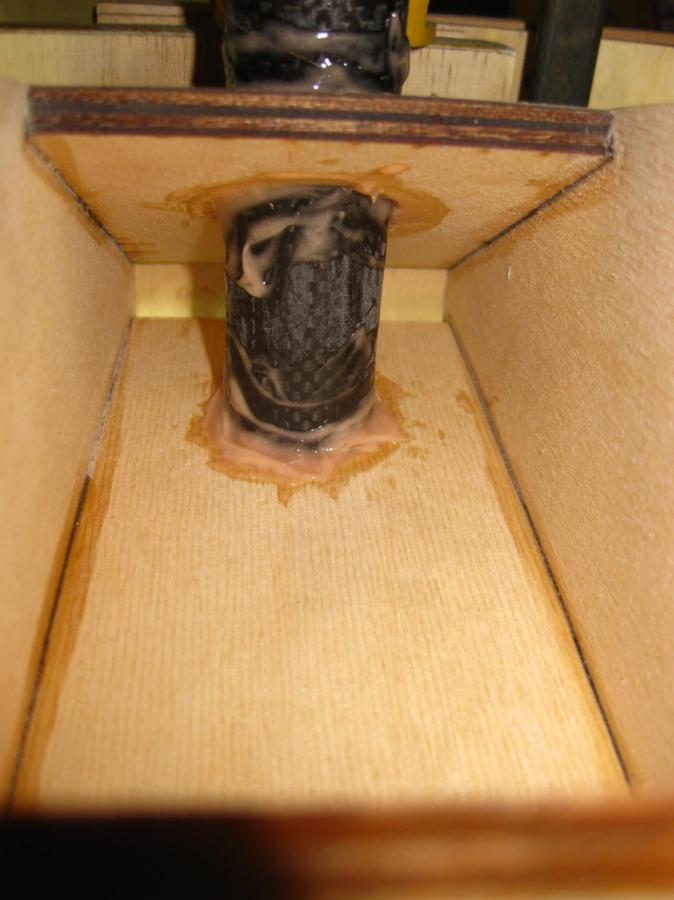

    ....the inside is never pretty .....

    Click image for larger version  Name:	IMG_4872.JPG Views:	1 Size:	58.8 KB ID:	34262

    Click image for larger version  Name:	26431785798_f534177040_b.jpg Views:	1 Size:	126.4 KB ID:	34263
    Last edited by MarnochS; 02-22-2019, 02:38 PM.

    Comment


    • #63

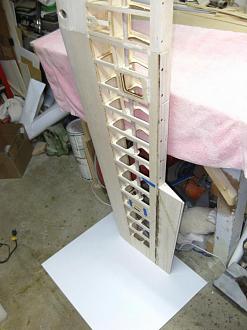

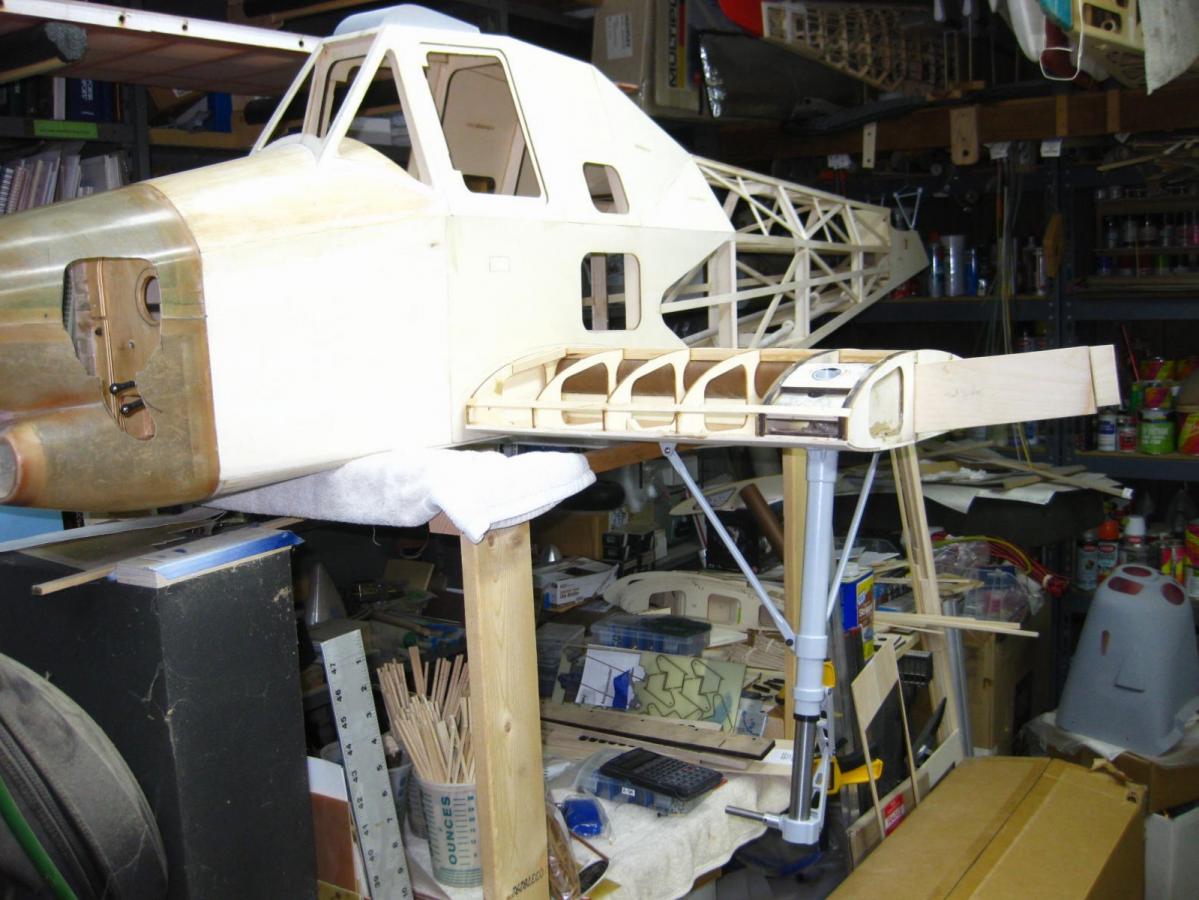

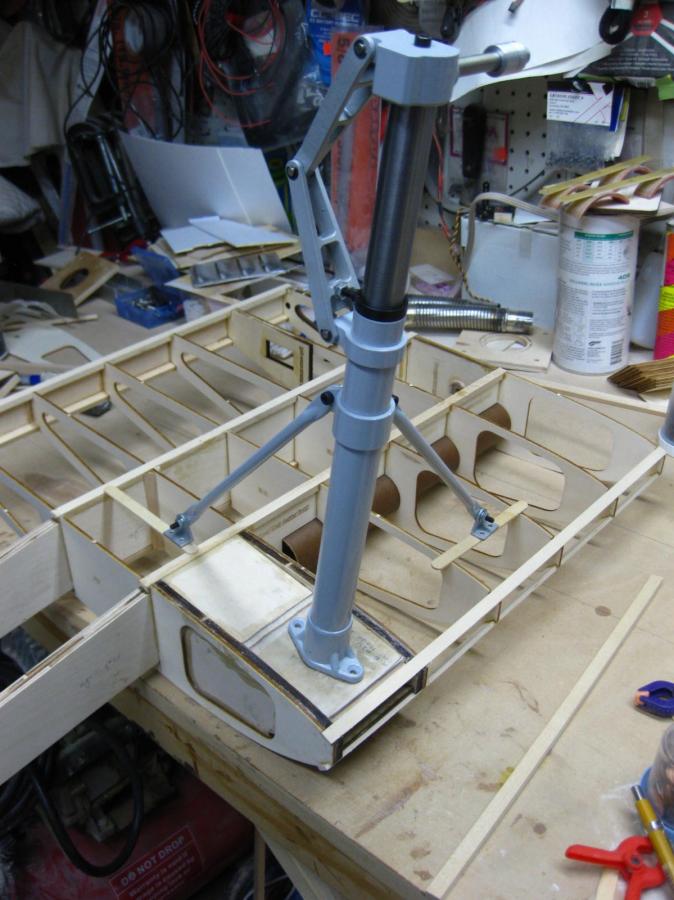

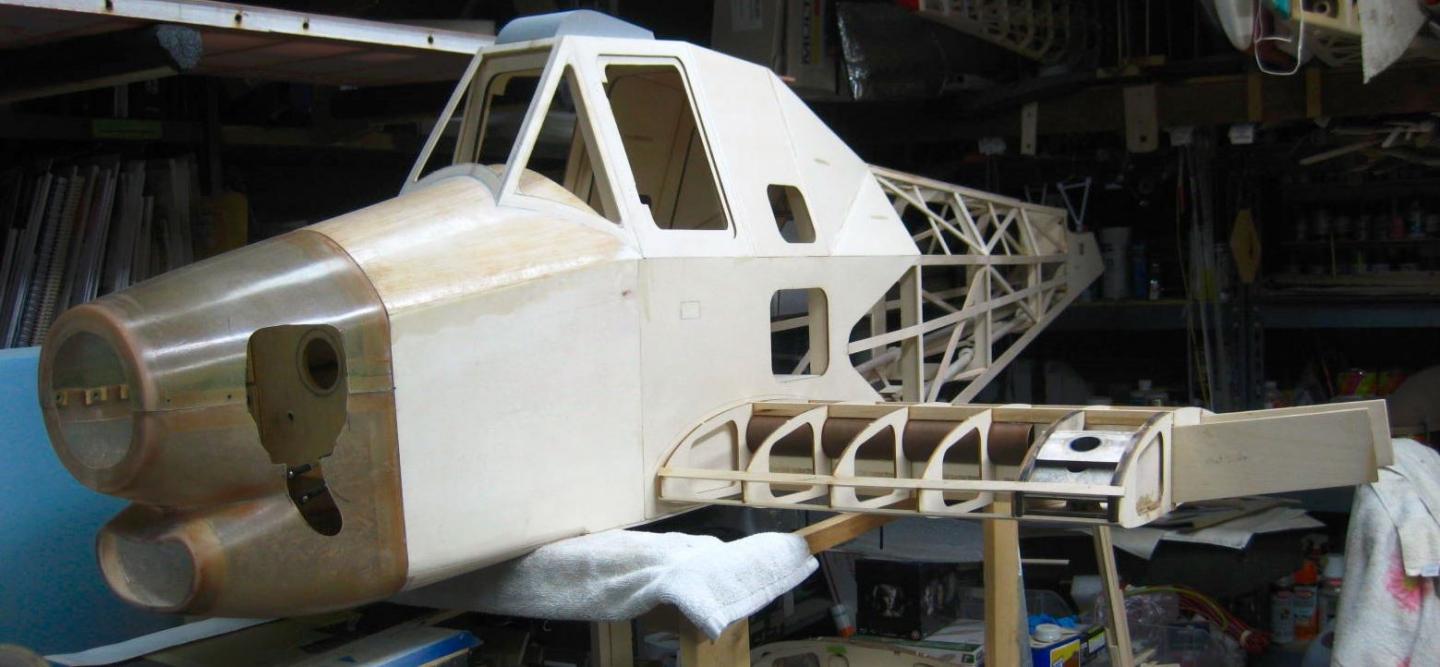

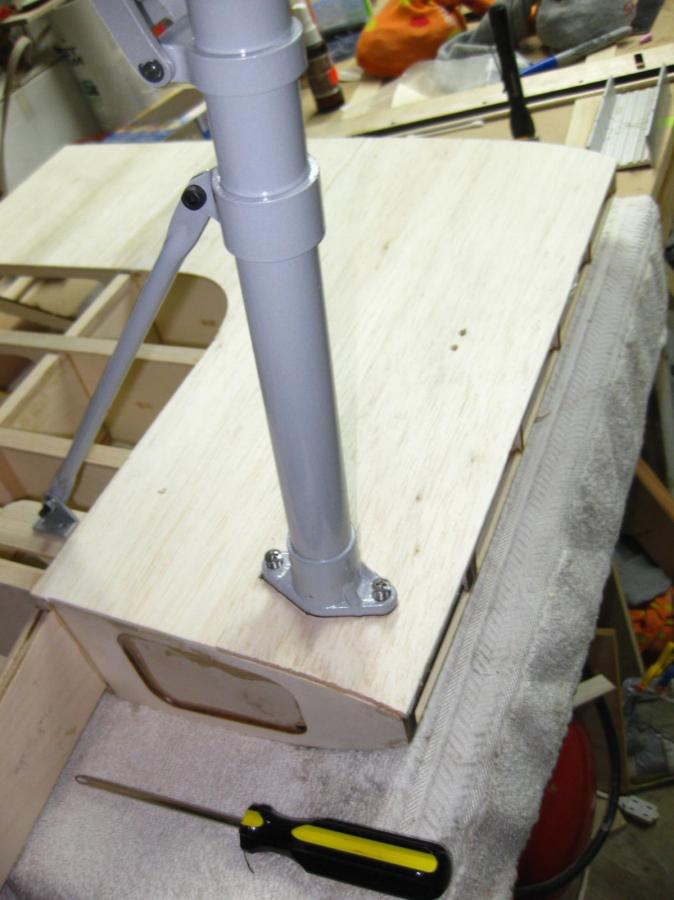

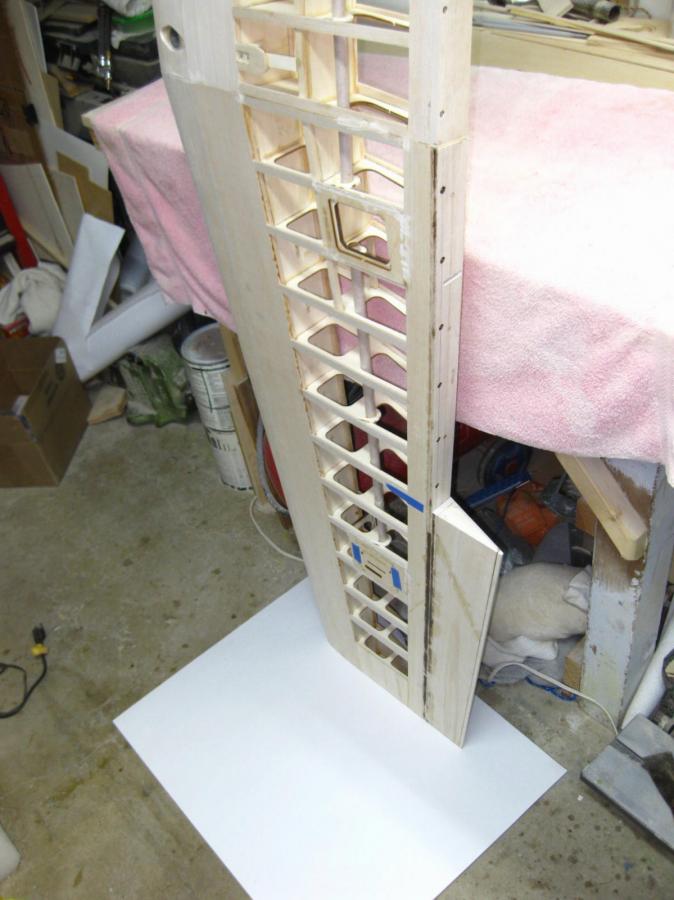

      Long legs....and some hanger flying.....

      Click image for larger version  Name:	IMG_4873.JPG Views:	1 Size:	84.3 KB ID:	34299 Click image for larger version

Name:	on the stand.JPG
Views:	390
Size:	96.6 KB
ID:	34335
      Last edited by MarnochS; 02-24-2019, 01:11 AM.

      Comment


      • #64

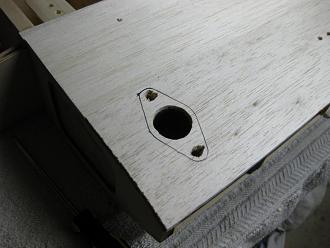

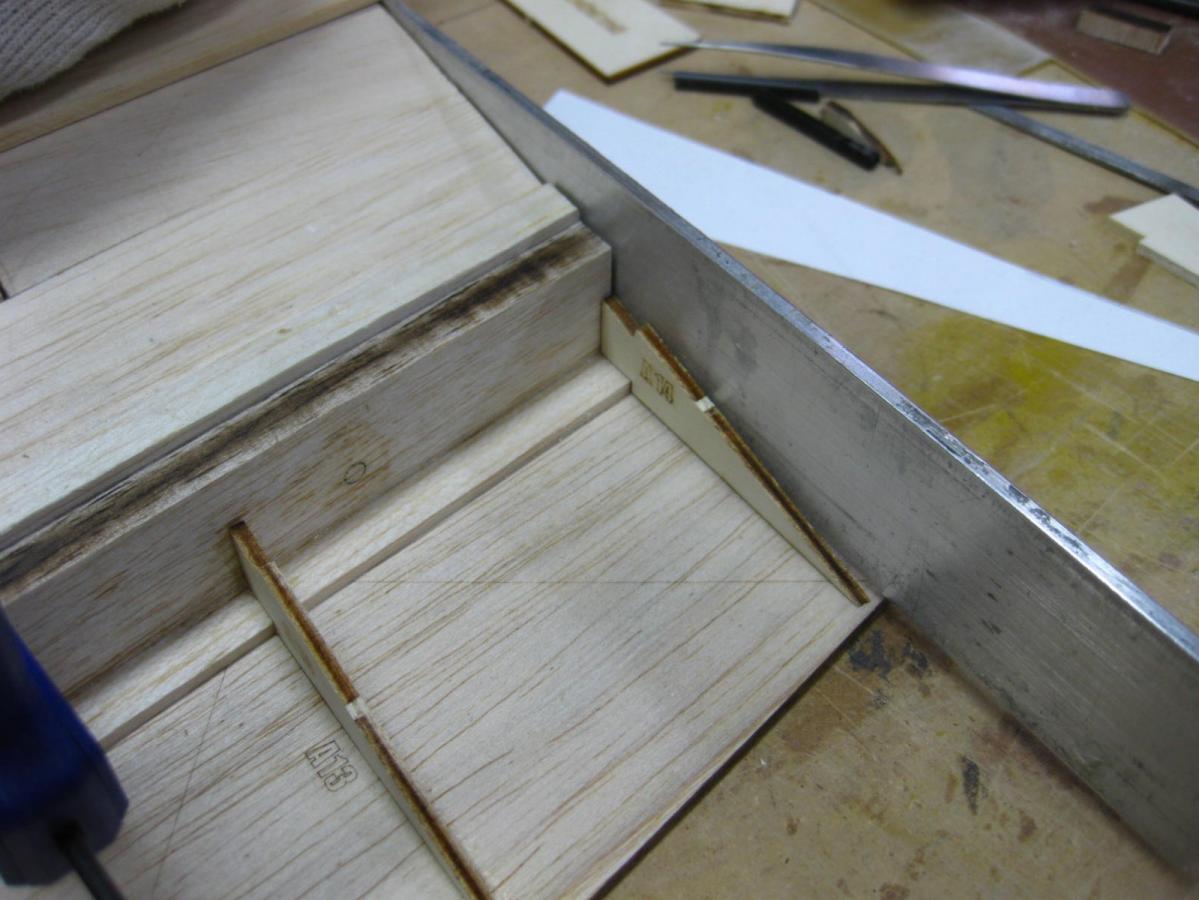

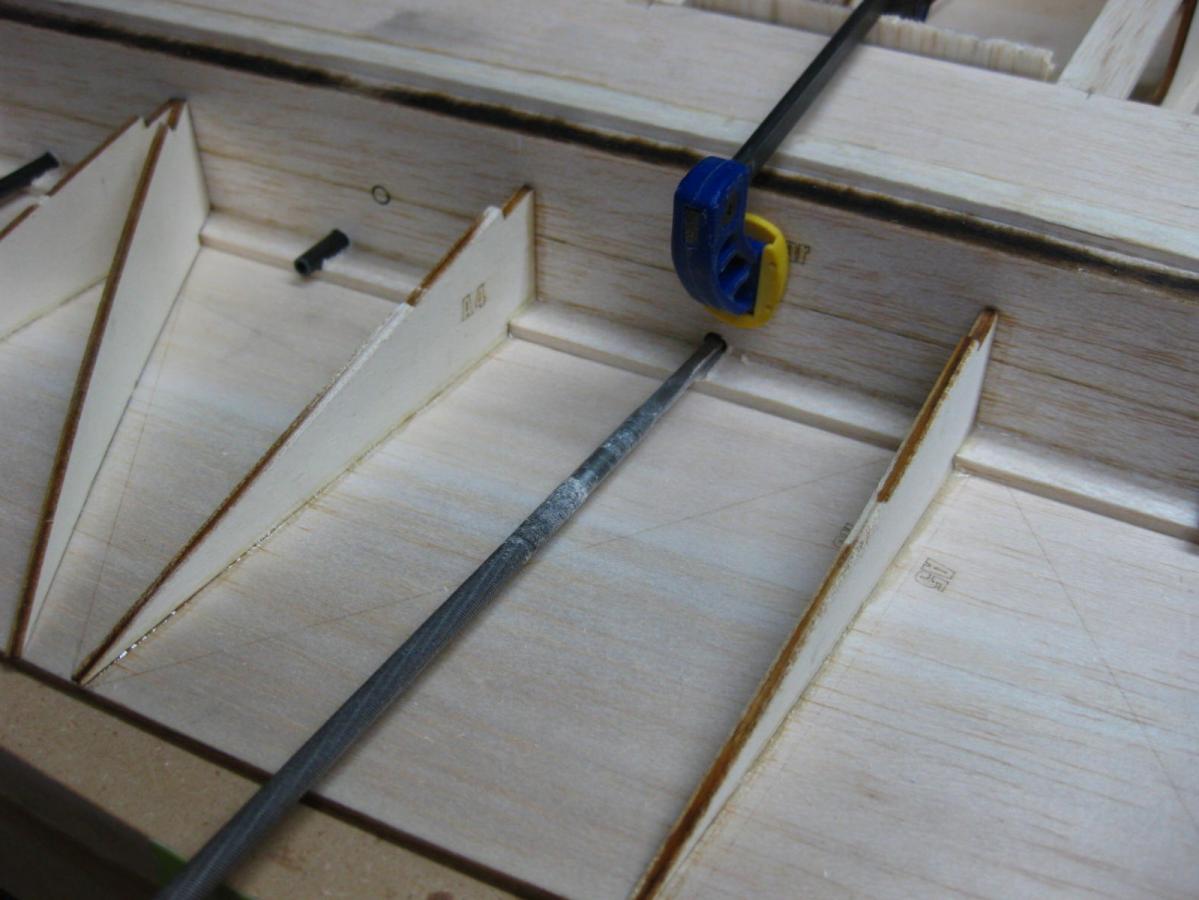

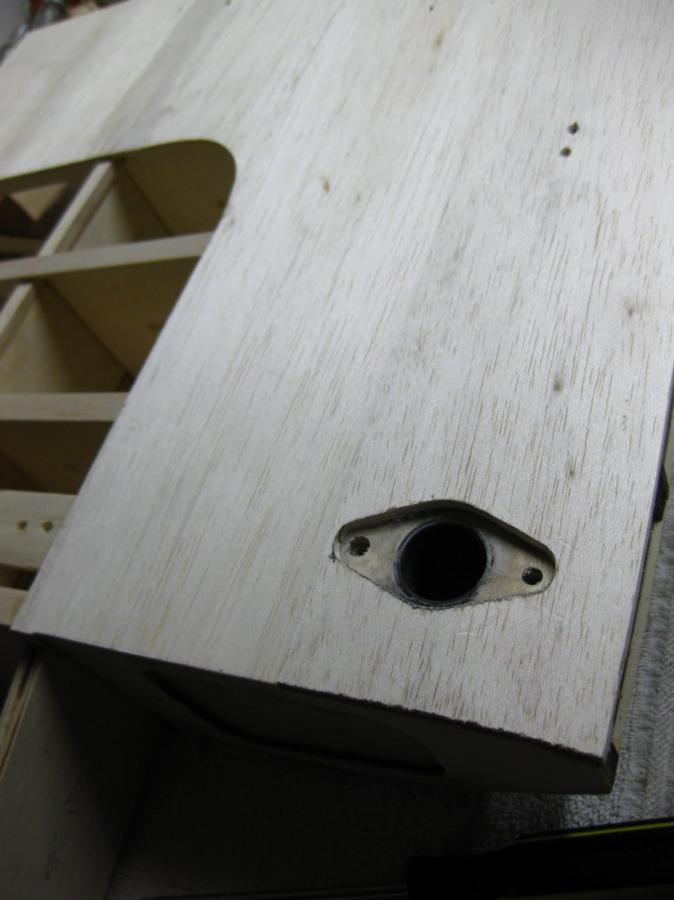

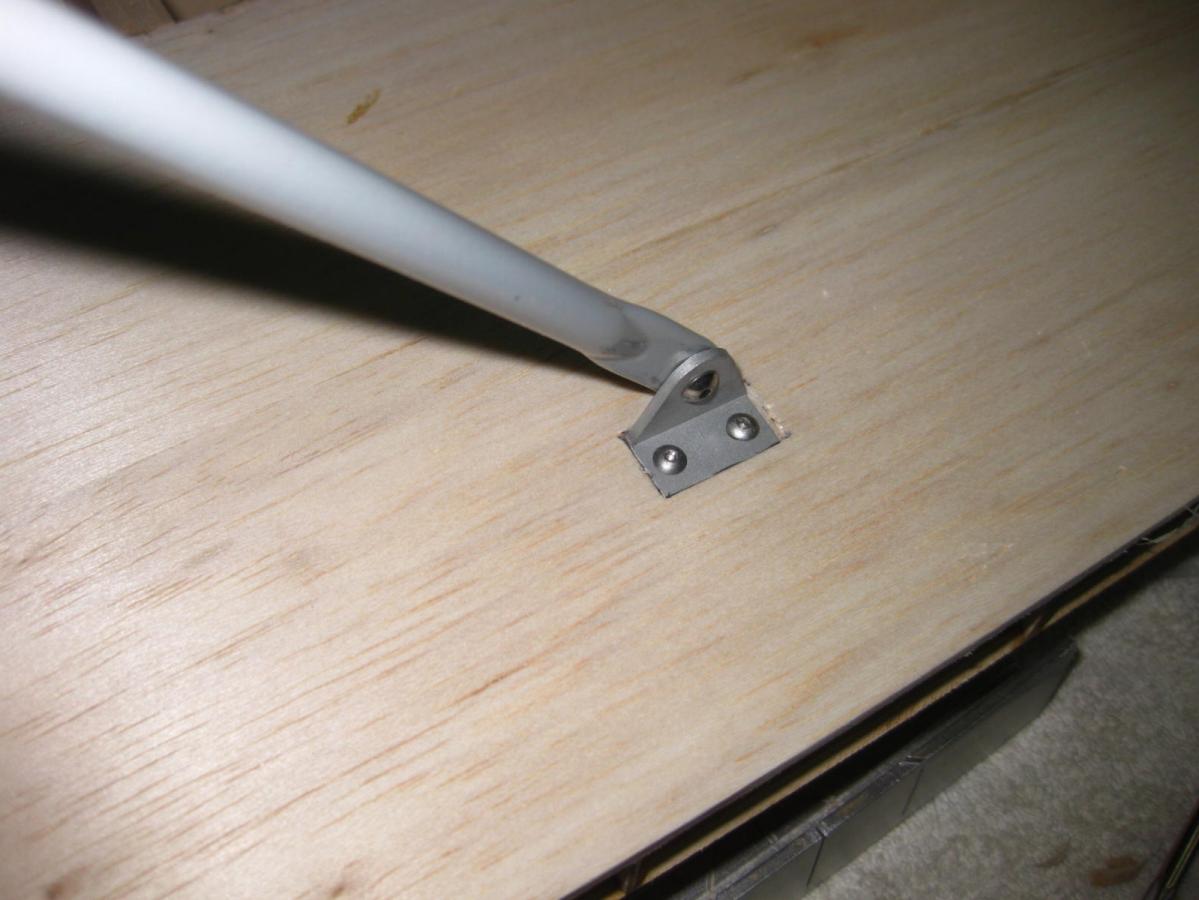

        continuing on with the gear leg installation. Recessing the pieces into the balsa.
        Click image for larger version

Name:	IMG_4882.JPG
Views:	370
Size:	64.9 KB
ID:	34615Click image for larger version

Name:	IMG_4883.JPG
Views:	401
Size:	103.9 KB
ID:	34619Click image for larger version

Name:	IMG_4884.JPG
Views:	352
Size:	49.8 KB
ID:	34614
        Click image for larger version

Name:	IMG_4885.JPG
Views:	377
Size:	59.3 KB
ID:	34616Click image for larger version

Name:	IMG_4888.JPG
Views:	348
Size:	89.6 KB
ID:	34617Click image for larger version

Name:	IMG_4887.JPG
Views:	350
Size:	128.3 KB
ID:	34618

        Comment


        • #65
          Do you have a way to adjust the gear in case it wants to nose-over too readily?

          Comment


          • #66
            No Adjustments,.....in for a penny ... in for a pound ....as the saying goes. the wheels should be just behind the leading edge of the the wing ....which should be pretty stable

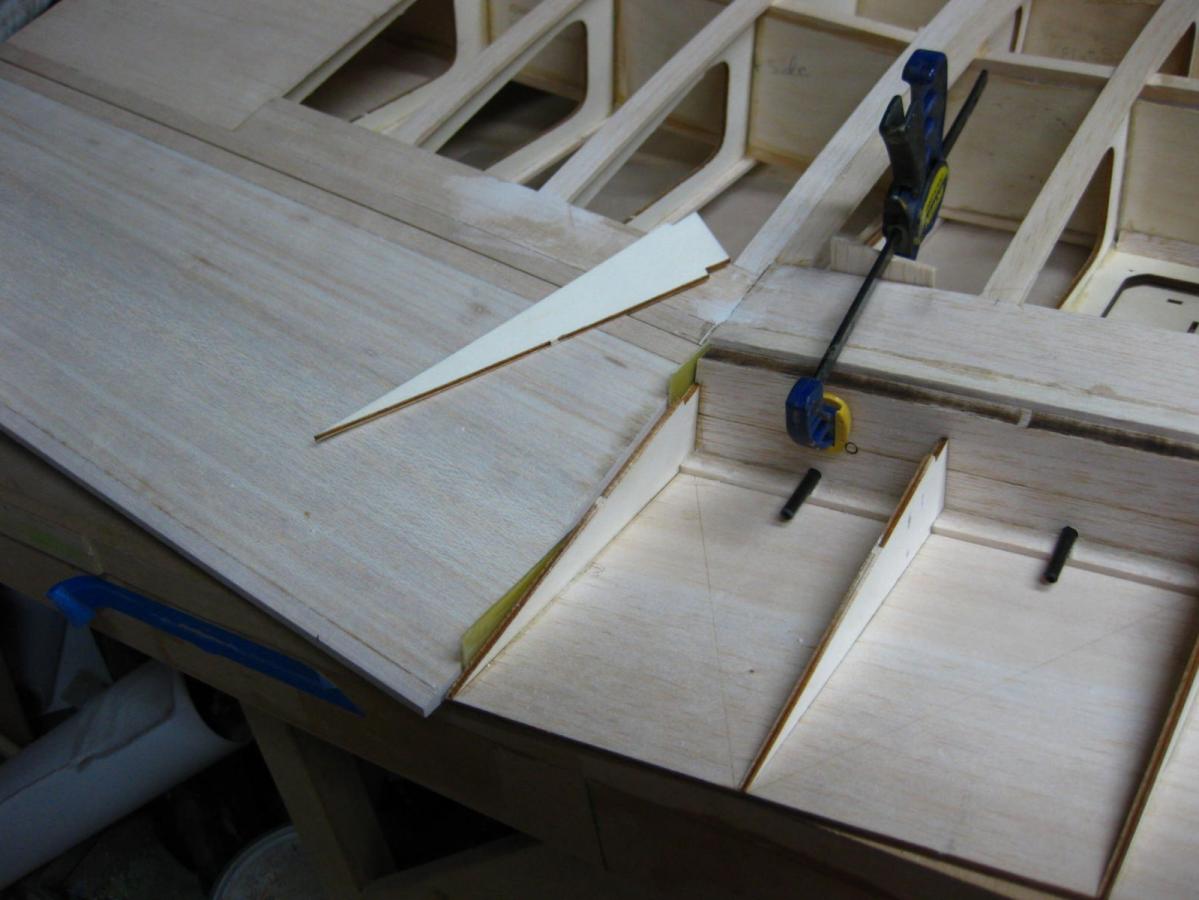

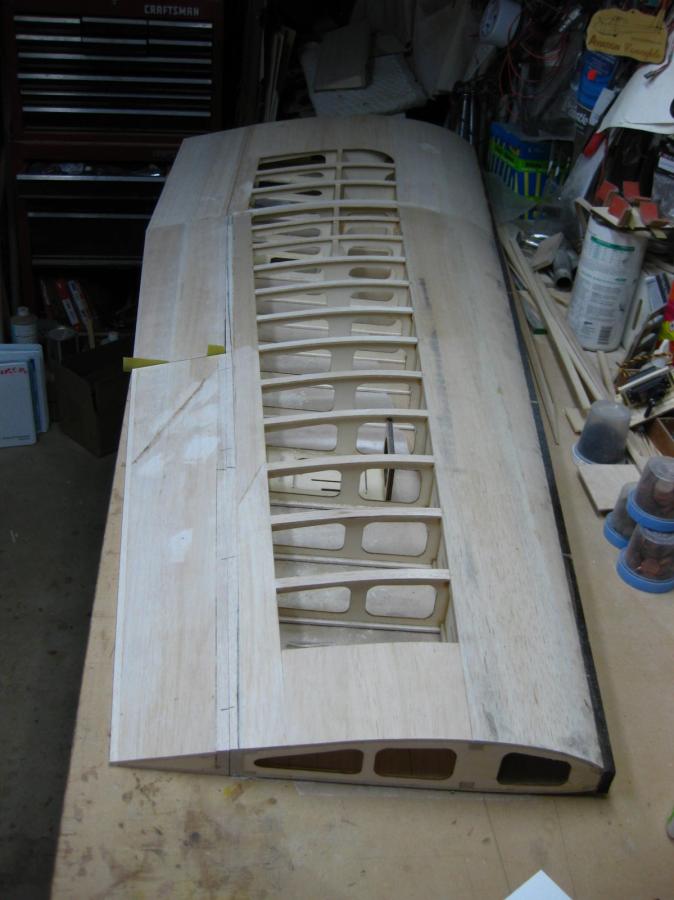

            Finishing up on the right center section.

            Click image for larger version

Name:	IMG_4894.JPG
Views:	368
Size:	133.1 KB
ID:	34778
            Last edited by MarnochS; 03-12-2019, 01:26 PM.

            Comment


            • #67

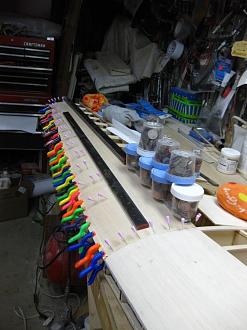

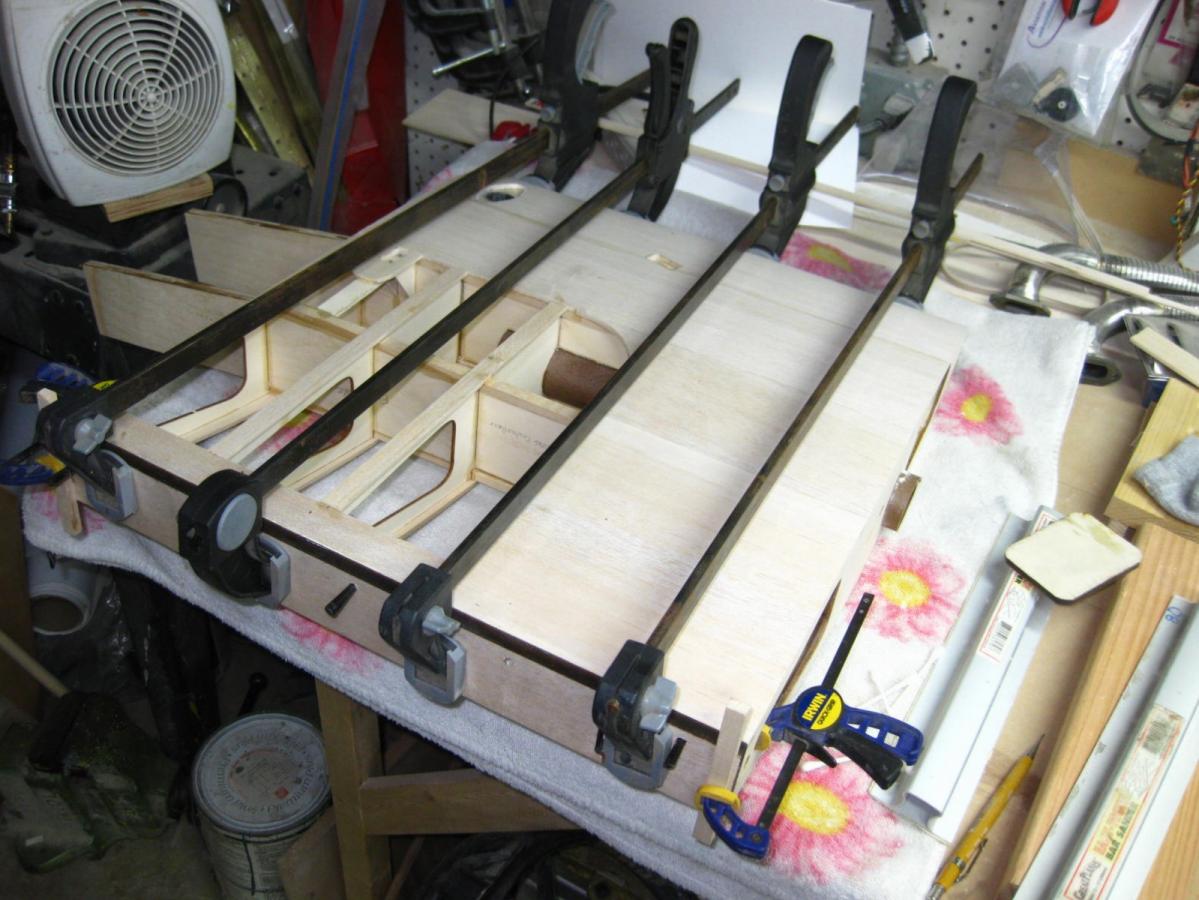

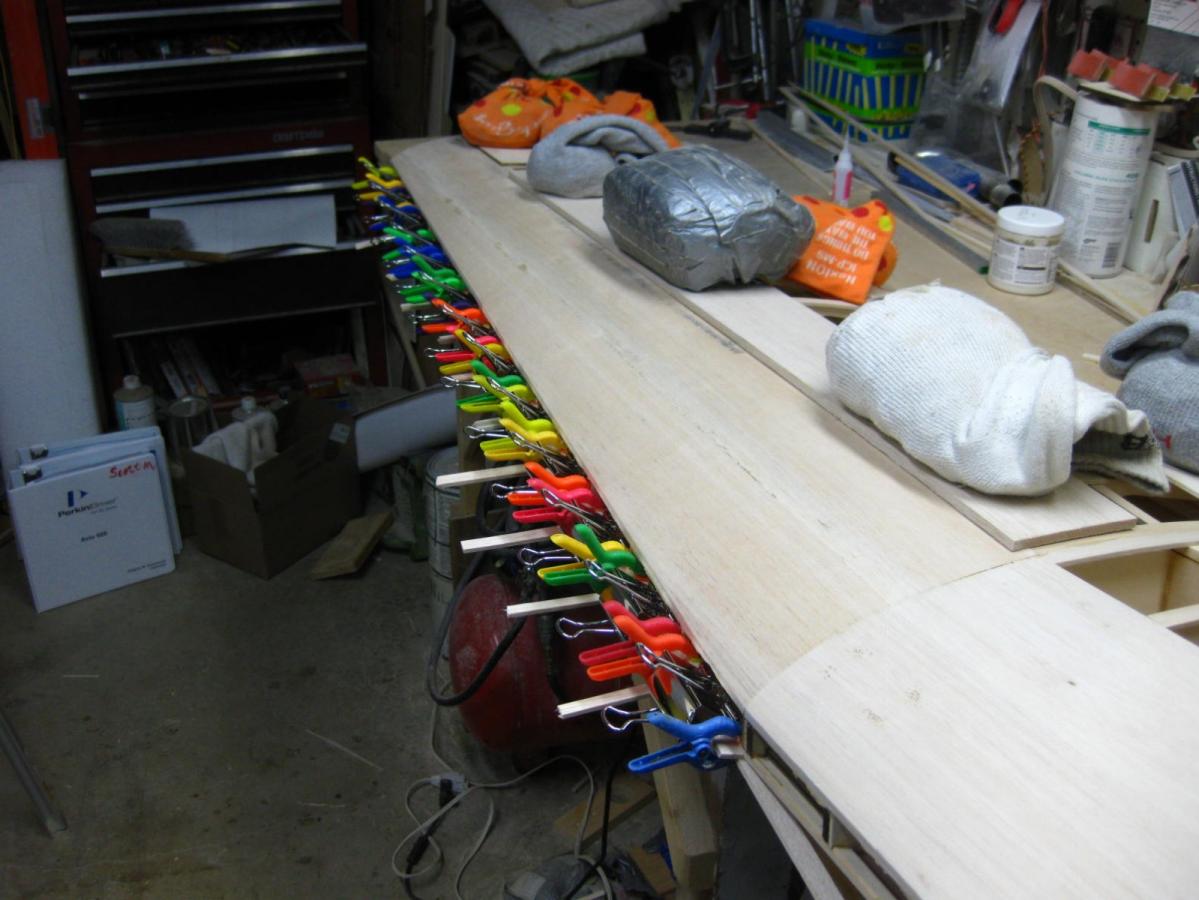

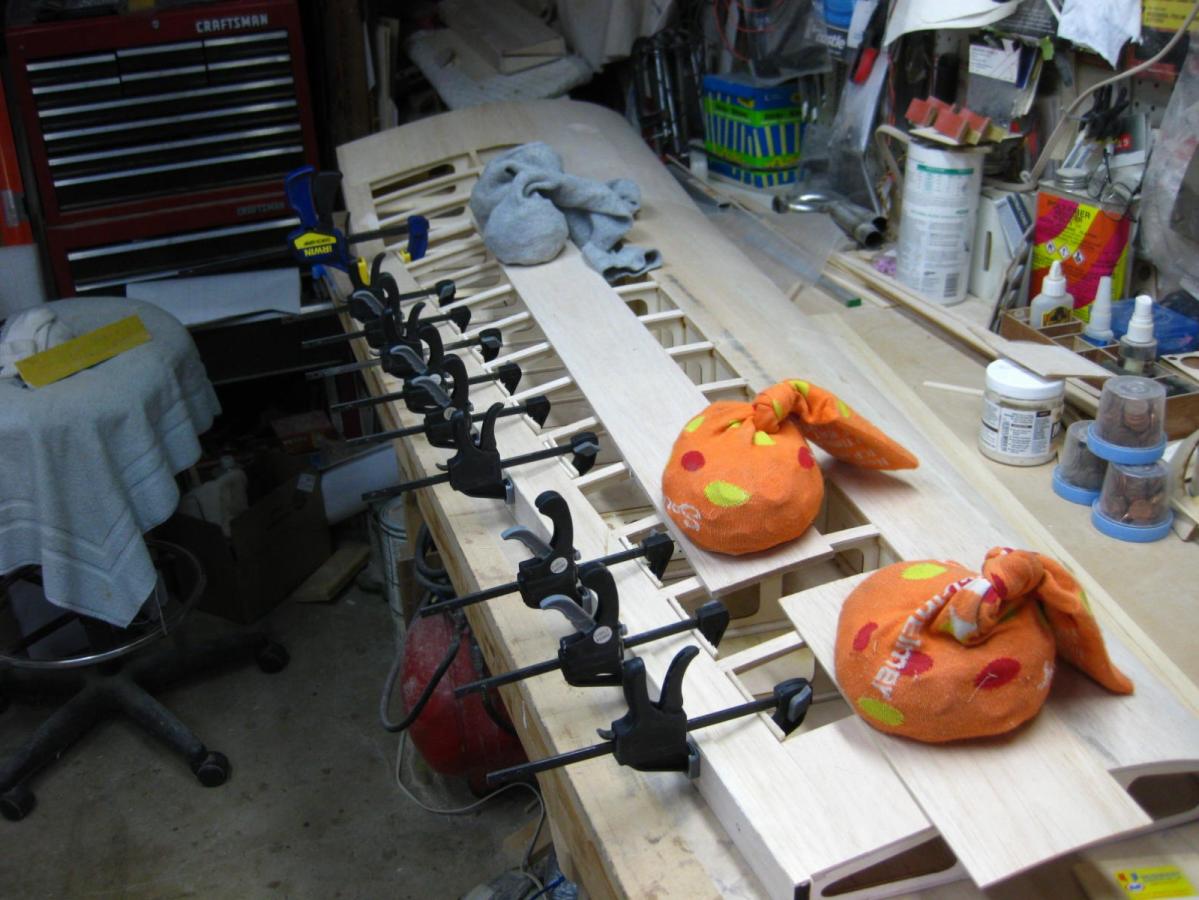

              Getting closer to the wing tips.....clamp-O-rama

              Click image for larger version

Name:	IMG_4895.JPG
Views:	354
Size:	125.1 KB
ID:	34933Click image for larger version

Name:	IMG_4899.JPG
Views:	351
Size:	74.2 KB
ID:	34934

              Comment


              • #68

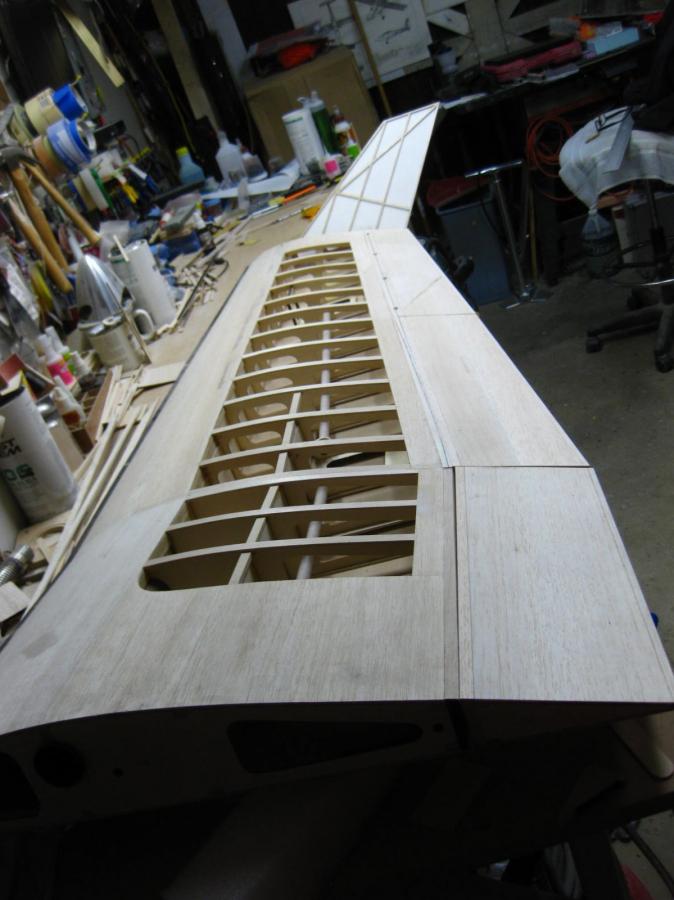

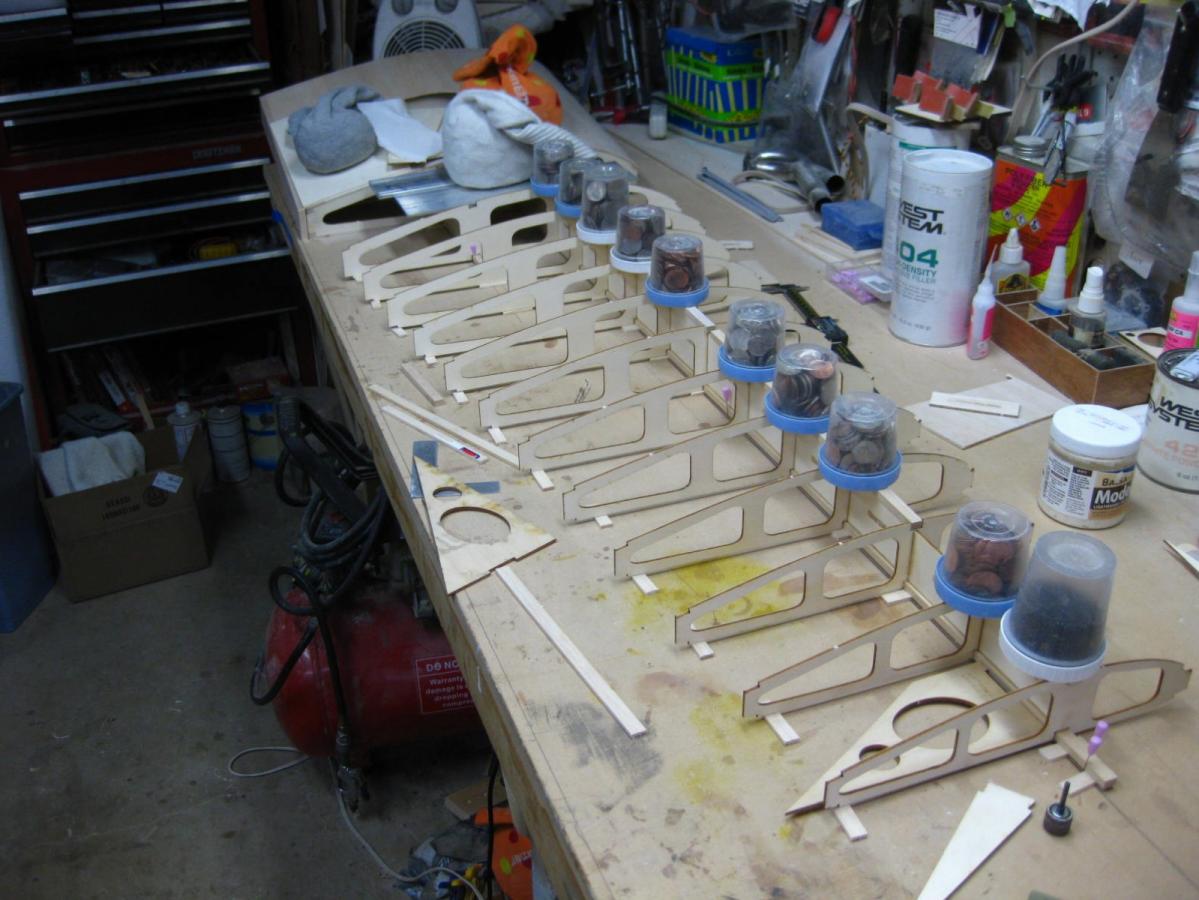

                And more clamps.......Was a bit paranoid about inducing any twist into the wing while attaching the lower D-box skin so I decided on the "gravity method again.......small wedges on each rib to push the skin up.
                Click image for larger version  Name:	IMG_4900.JPG Views:	1 Size:	107.5 KB ID:	35098

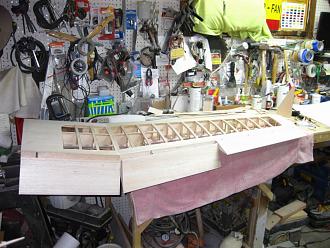

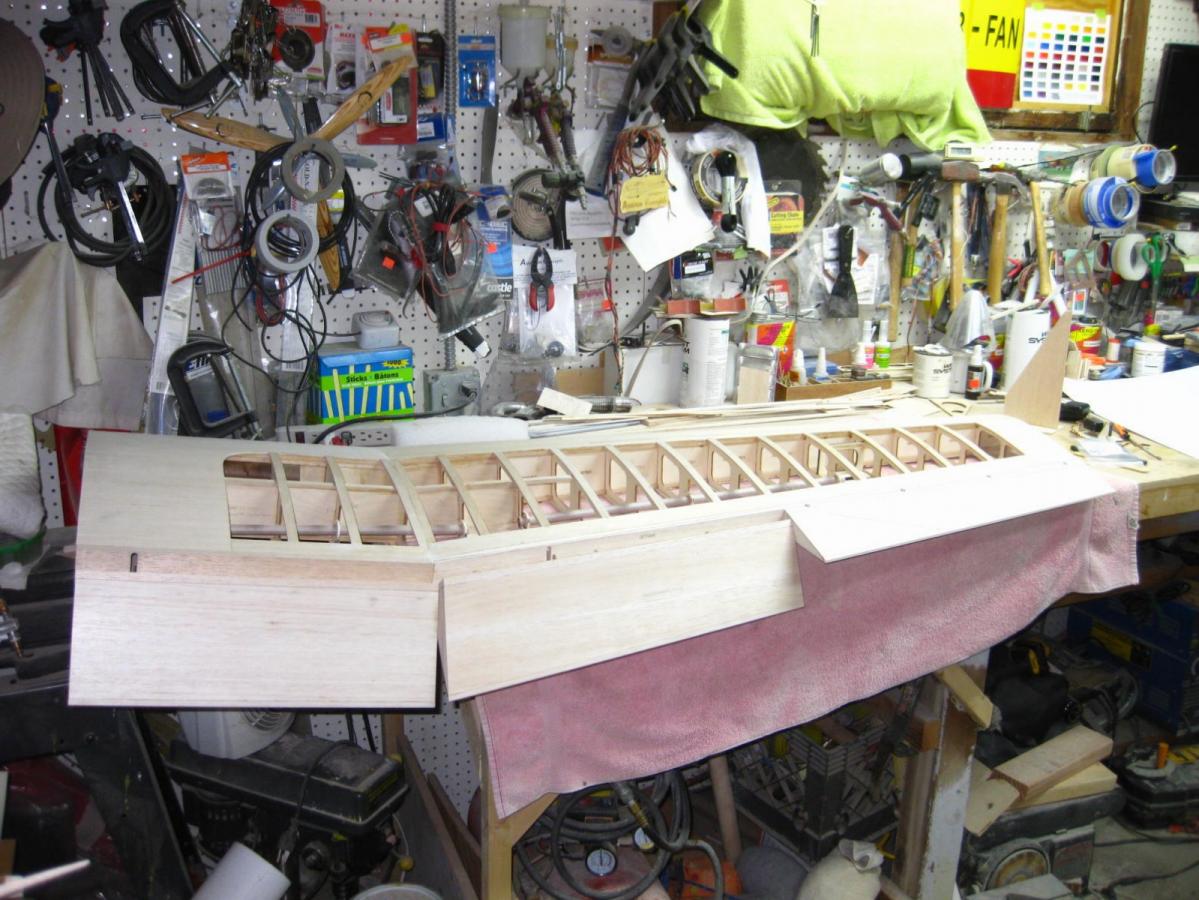

                Attaching the Trailing edge stock.....I'm running the flaps to Rib#7 ( 2 more bays ) to give the wing a 60/40 split ( flap/aileron ) and since I'm going to have winglets the ailerons will be more effective at the tip ( at least that's what I'm telling myself )
                Click image for larger version  Name:	IMG_4901.JPG Views:	2 Size:	128.1 KB ID:	35100
                Last edited by MarnochS; 03-25-2019, 02:38 PM.

                Comment


                • #69

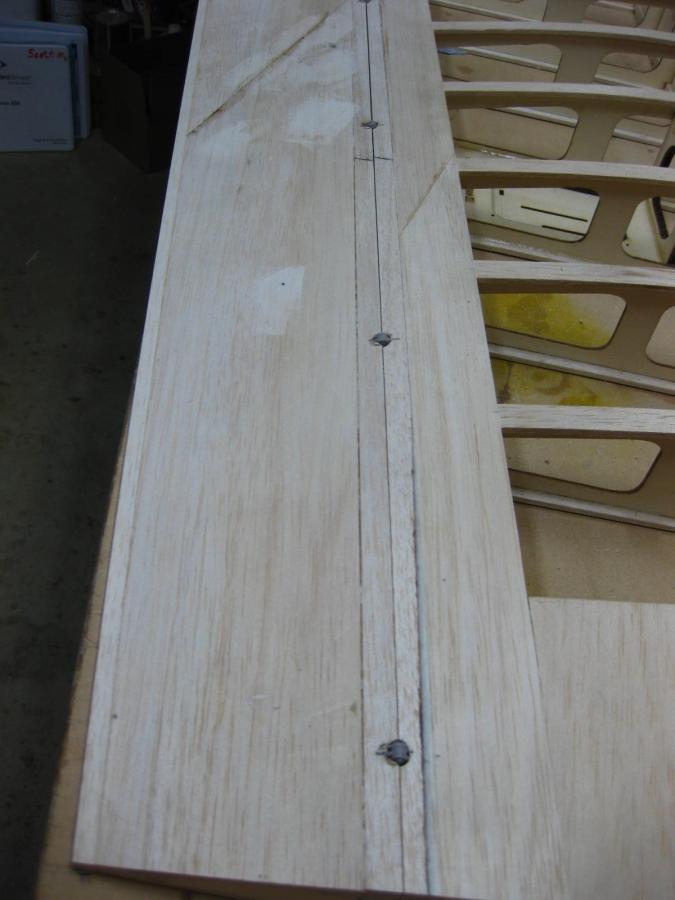

                  Outer Flaps and Aileron. Staying with the bottom hinge setup on the outter flap . Drilling the hinge holes I thought was going to be a bit challenging , but turned out not to be a big deal.
                  Using the handle end of the 3/16 round file ( sharpened up a little ) does a great job of drilling matched holes.

                  Click image for larger version  Name:	IMG_4905.JPG Views:	1 Size:	94.8 KB ID:	35222

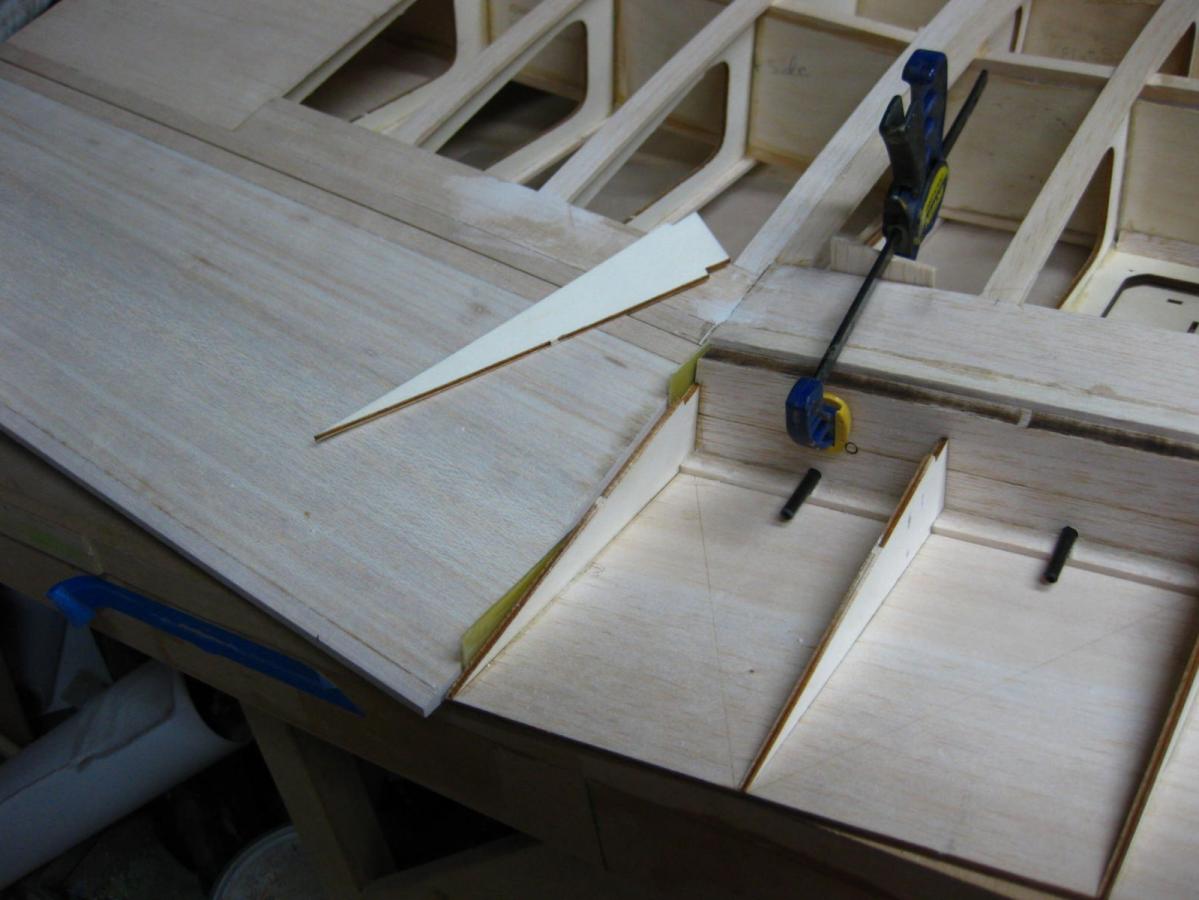

                  Built the flap and aileron against trailing edge of the wing for a better match, using 0.060 shims in between the surfaces for spacers. And a jig at the wing tip for a matched aileron tip for minimal sanding.

                  Click image for larger version  Name:	IMG_4906.JPG Views:	2 Size:	94.0 KB ID:	35226Click image for larger version  Name:	IMG_4908.JPG Views:	1 Size:	107.5 KB ID:	35227

                  Top hinging the aileron for a smoother look

                  Click image for larger version  Name:	IMG_4909.JPG Views:	1 Size:	63.8 KB ID:	35224Click image for larger version  Name:	IMG_4910.JPG Views:	1 Size:	52.8 KB ID:	35225

                  Time to work on the Winglets........
                  Attached Files
                  Last edited by MarnochS; 04-18-2019, 01:36 AM.

                  Comment


                  • #70

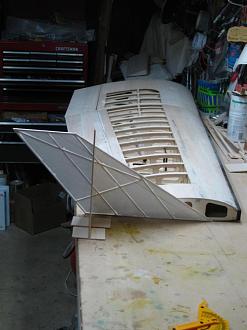

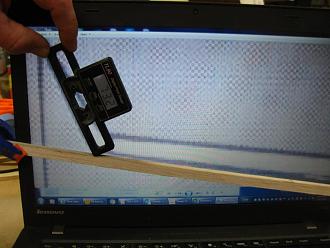

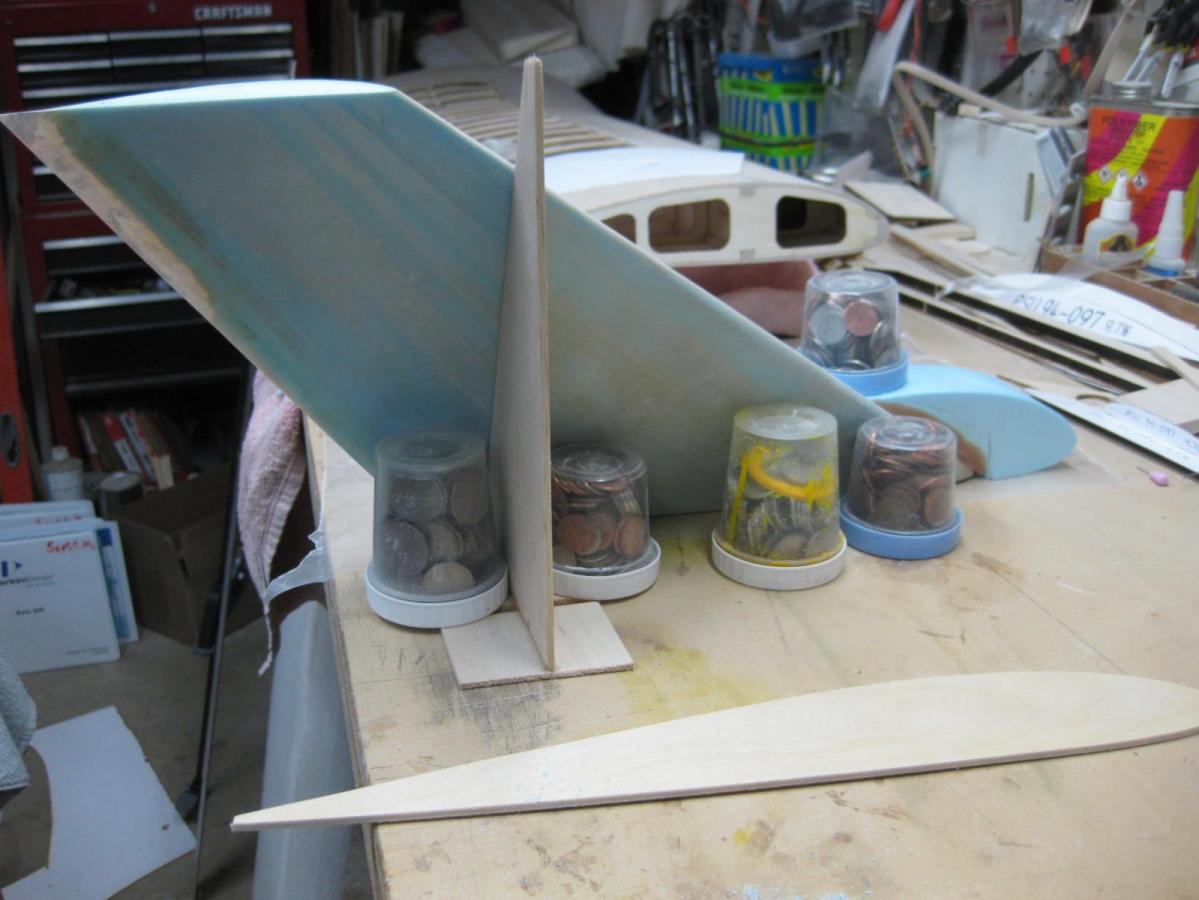

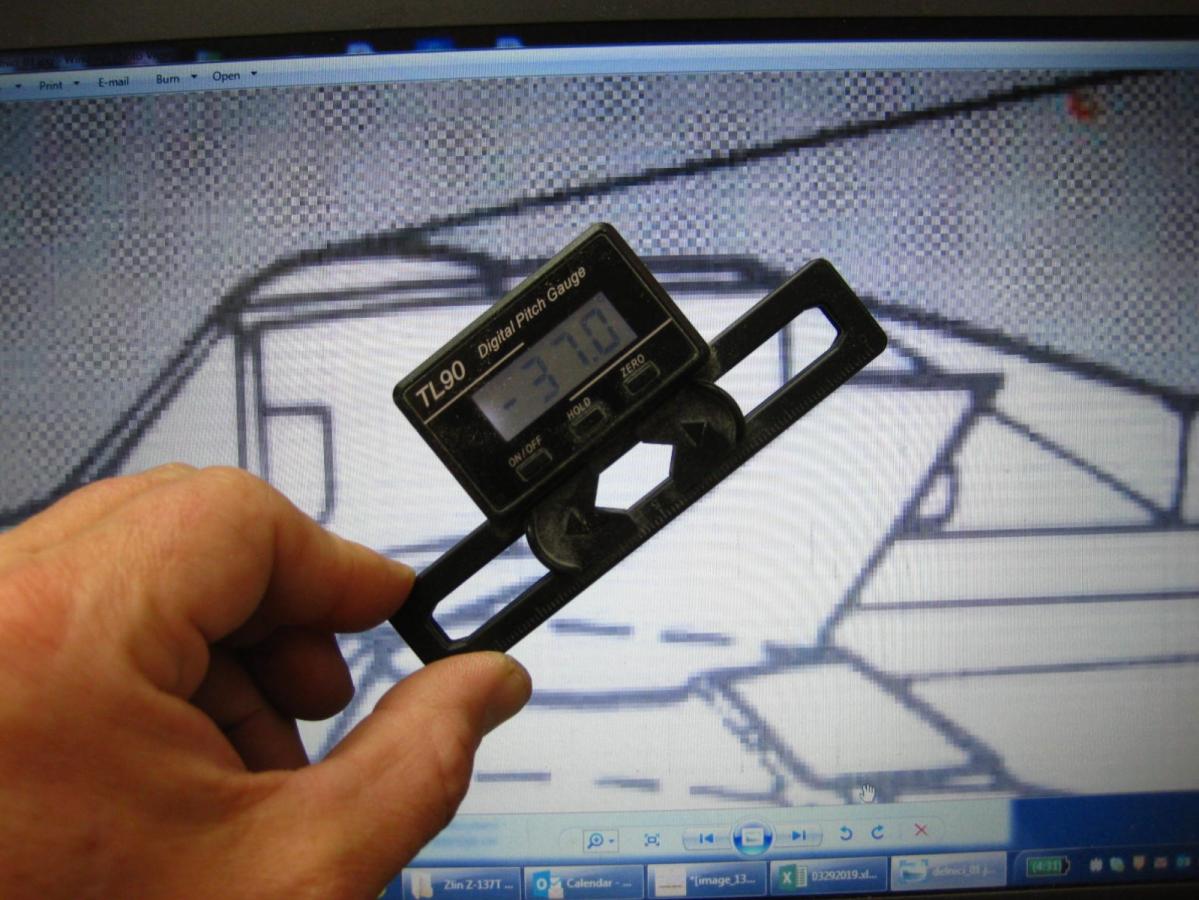

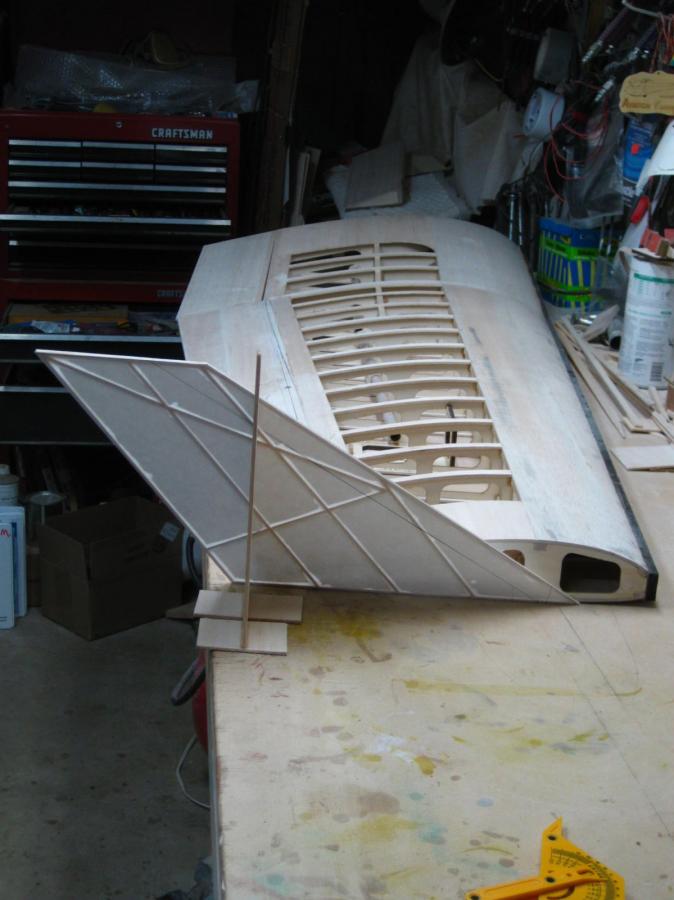

                    Mockup Winglet to check sizing and shape. The TL90 digital pitch gauge makes it easy to get the right angles.

                    Click image for larger version

Name:	IMG_4911.JPG
Views:	377
Size:	129.6 KB
ID:	35234Click image for larger version

Name:	IMG_4912.JPG
Views:	358
Size:	97.3 KB
ID:	35232

                    Using construction paper and 1/8" sq balsa to reinforce.

                    Click image for larger version

Name:	IMG_4914.JPG
Views:	322
Size:	62.4 KB
ID:	35233Click image for larger version

Name:	IMG_4913.JPG
Views:	312
Size:	67.3 KB
ID:	35231

                    Comment


                    • #71
                      Looking awesome Obi Wan!

                      Comment


                      • ARUP
                        ARUP commented
                        Editing a comment
                        +1 I hope it is ready for Horizon!

                    • #72
                      Plugging away .....Horizon....definitely a... maybe.....

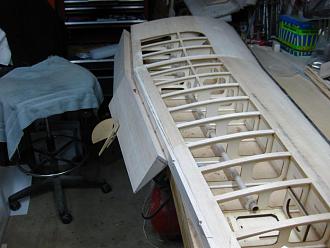

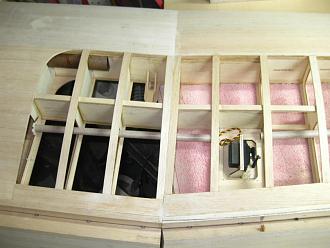

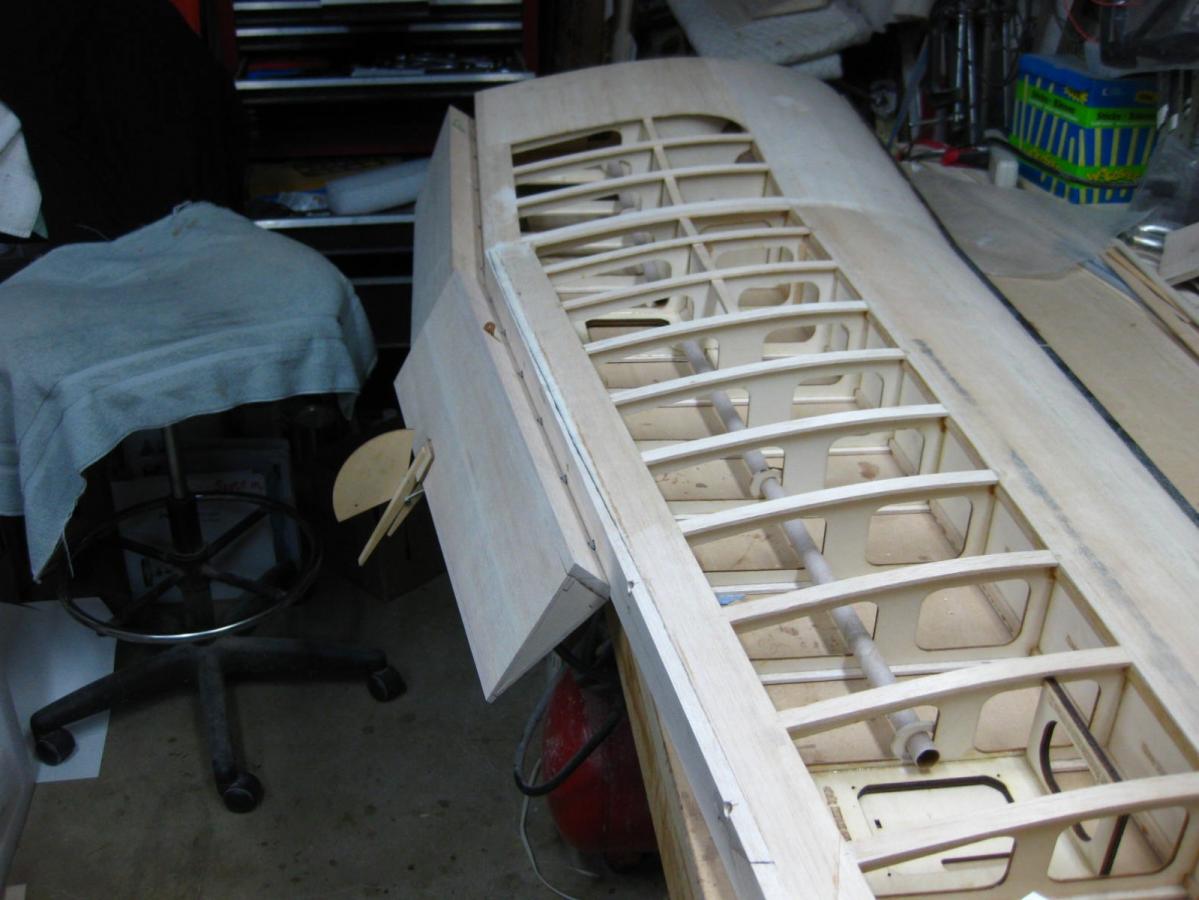

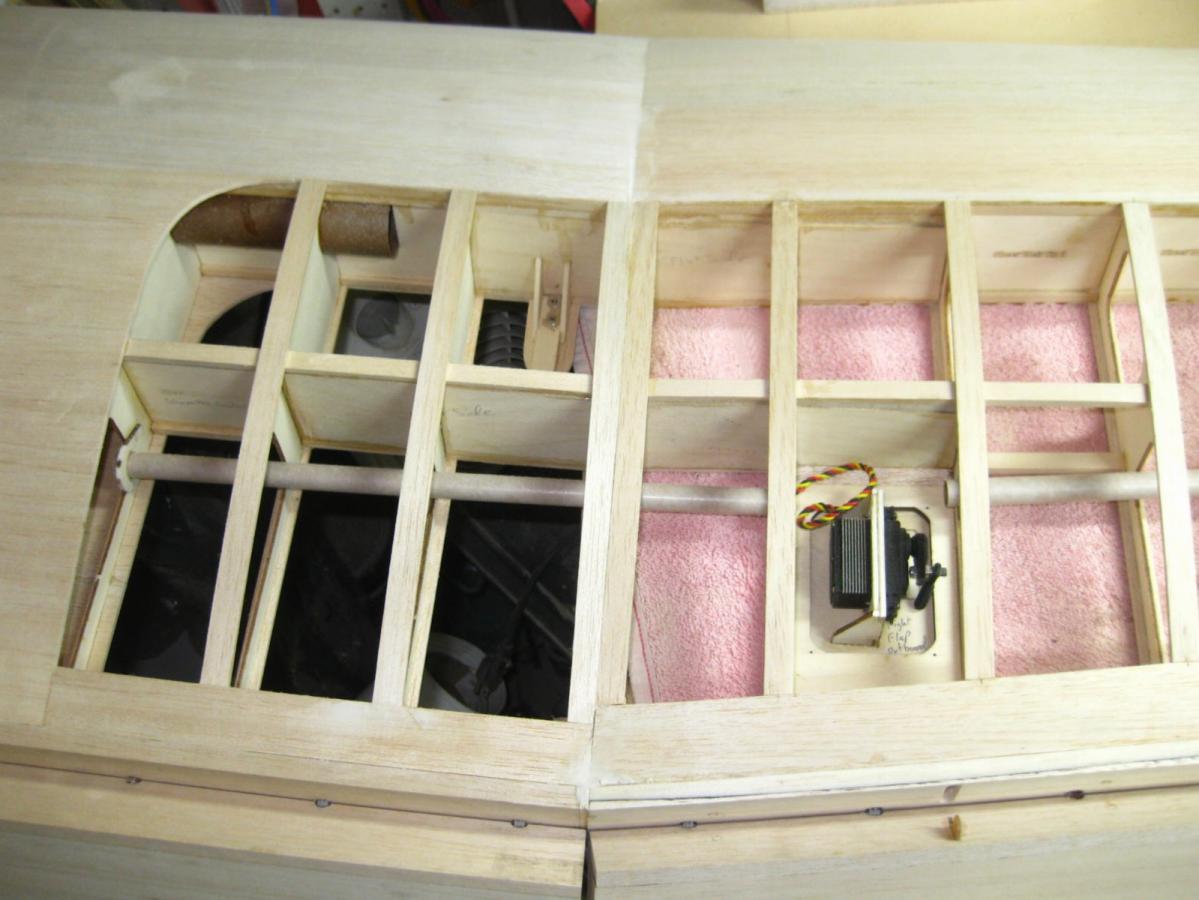

                      Flaps - bottom hinged, top actuated and 55 degrees. Outer flap goes to Rib 7. Estes 1/2" rocket tubes for servo wire containers.

                      Click image for larger version

Name:	IMG_4916.JPG
Views:	310
Size:	102.7 KB
ID:	35766Click image for larger version

Name:	IMG_4918.JPG
Views:	284
Size:	160.1 KB
ID:	35767
                      Click image for larger version

Name:	IMG_4919.JPG
Views:	303
Size:	102.3 KB
ID:	35768

                      Comment


                      • gunny11
                        gunny11 commented
                        Editing a comment
                        Whoo that's a nice looking wing. Love the flap extension.

                    • #73
                      Thanks Gunny,

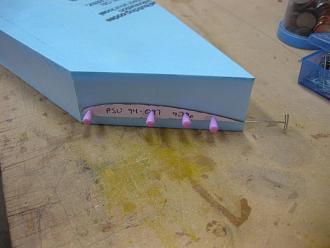

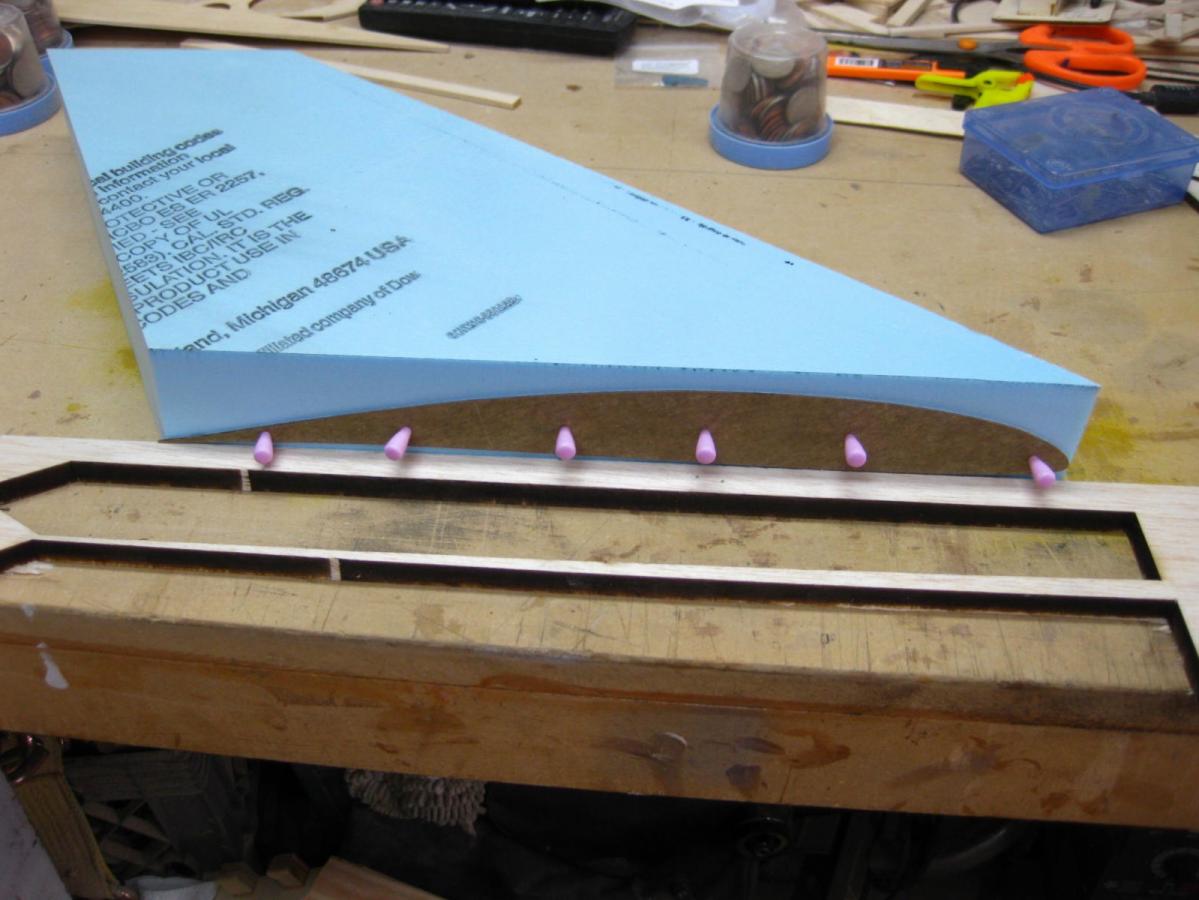

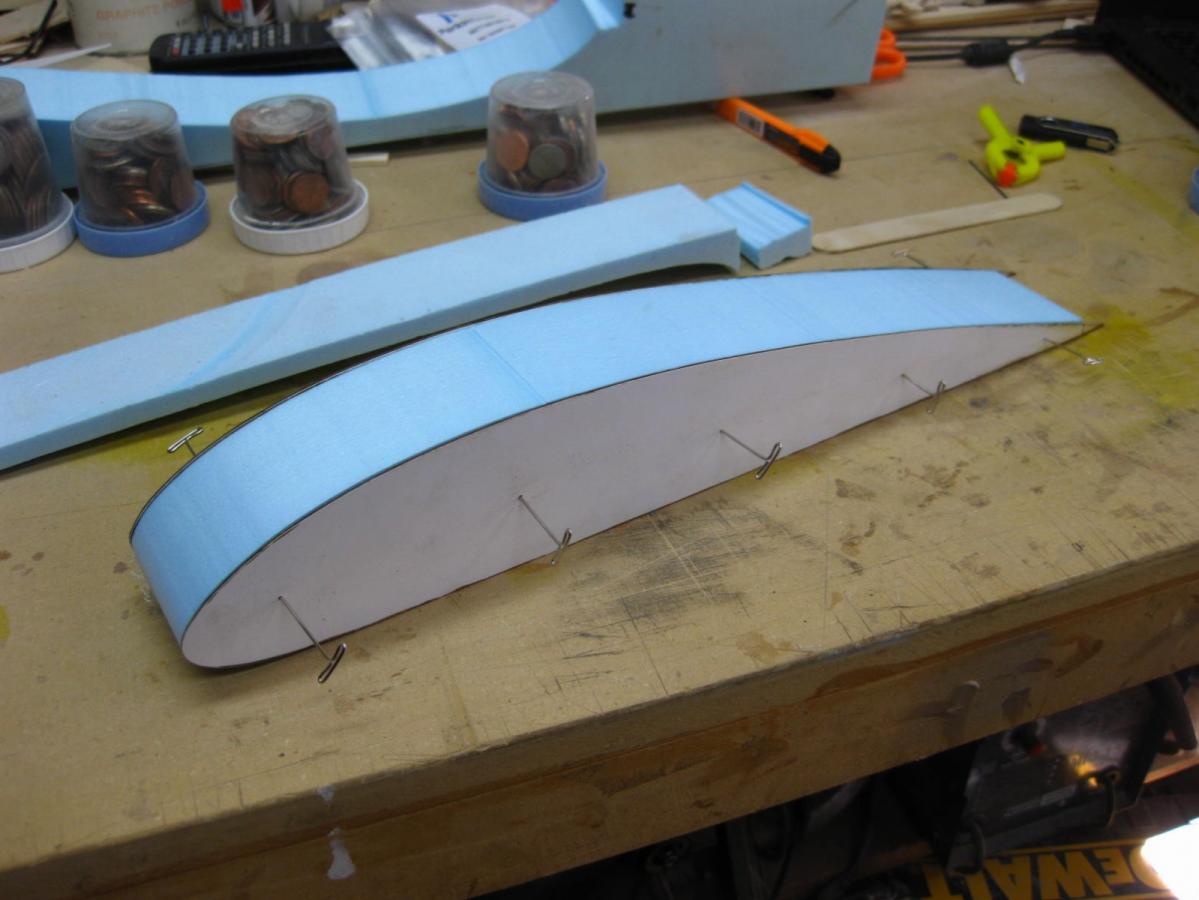

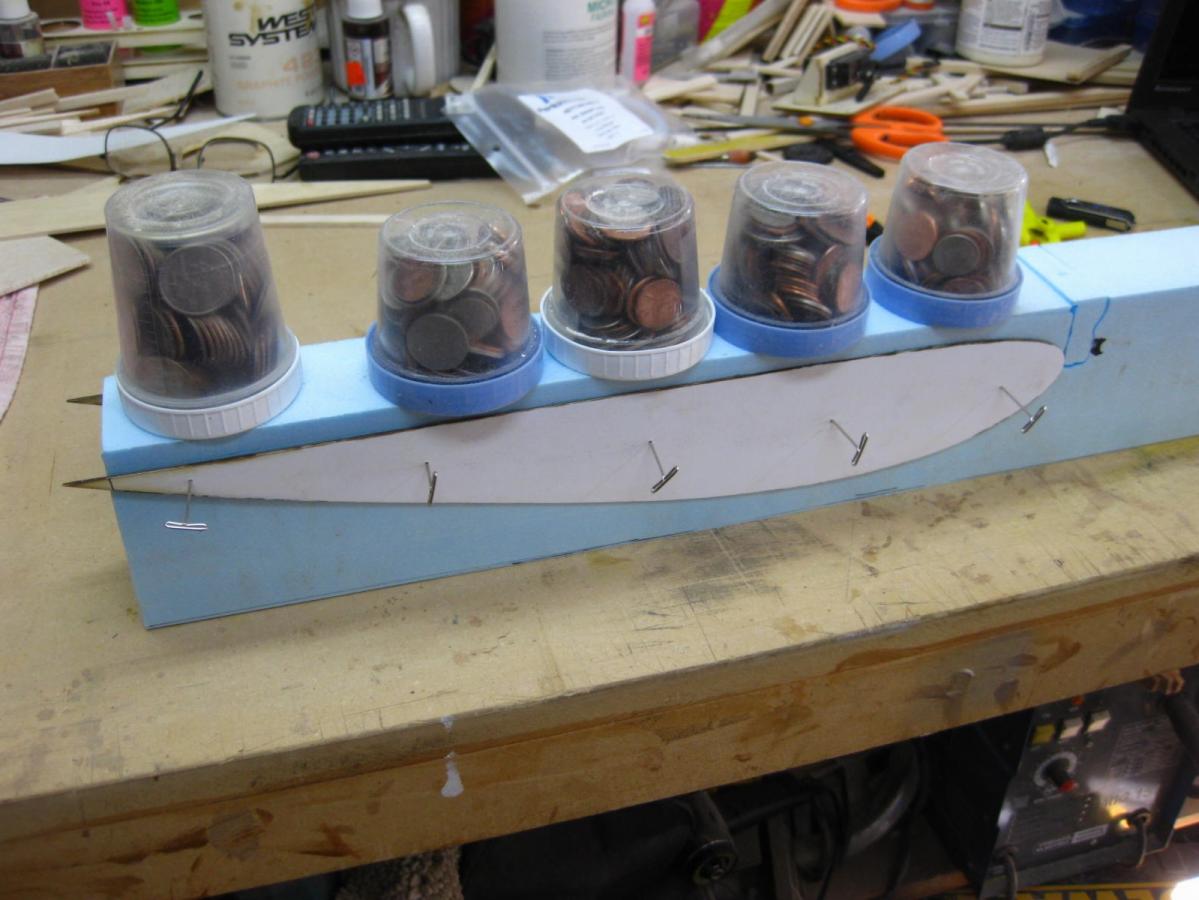

                      Winglet fun....going to make a plug/mold for the winglets from blue foam so Hotwire templates ( Formica ) were made and stuff was cut.

                      Click image for larger version

Name:	IMG_4920.JPG
Views:	275
Size:	67.5 KB
ID:	35772Click image for larger version

Name:	IMG_4923.JPG
Views:	298
Size:	88.7 KB
ID:	35773Click image for larger version

Name:	IMG_4924.JPG
Views:	263
Size:	107.4 KB
ID:	35775

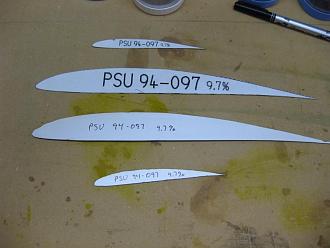

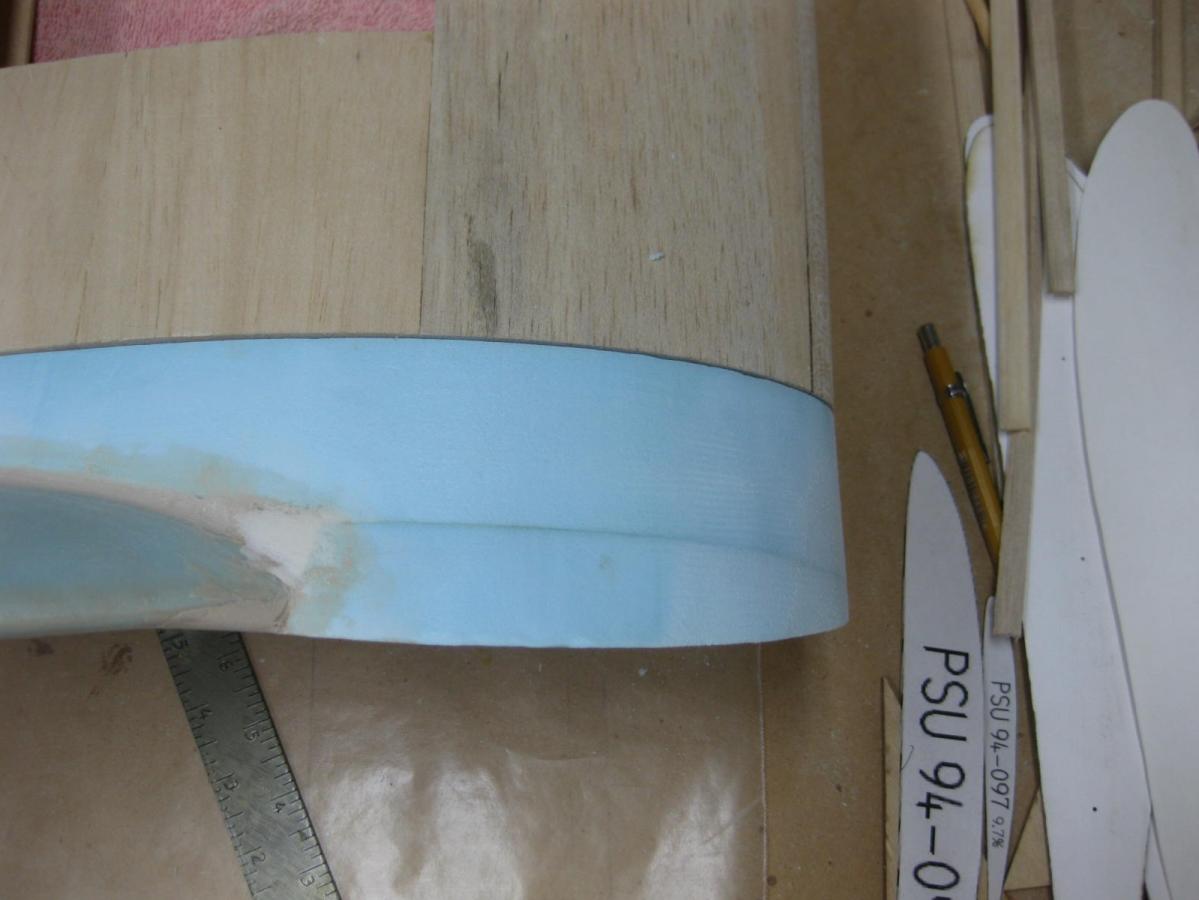

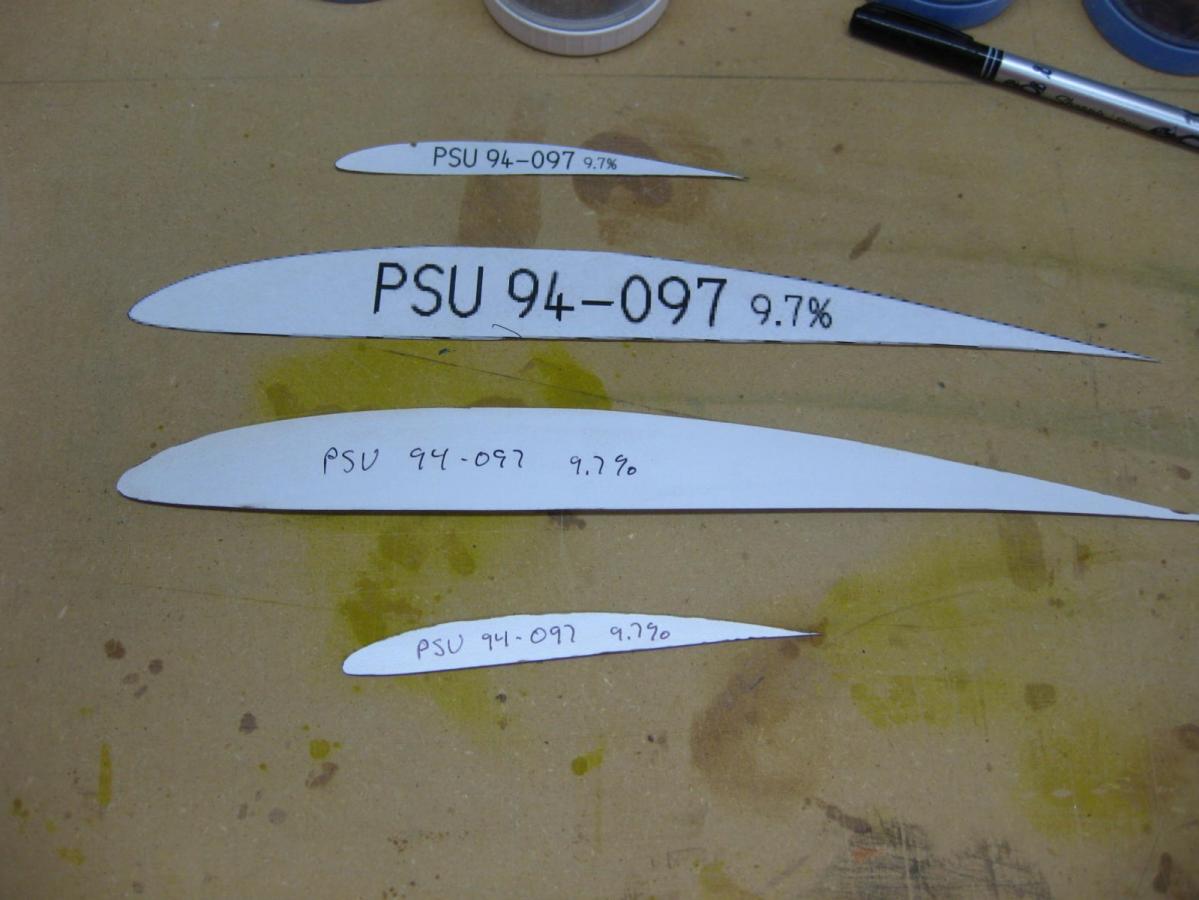

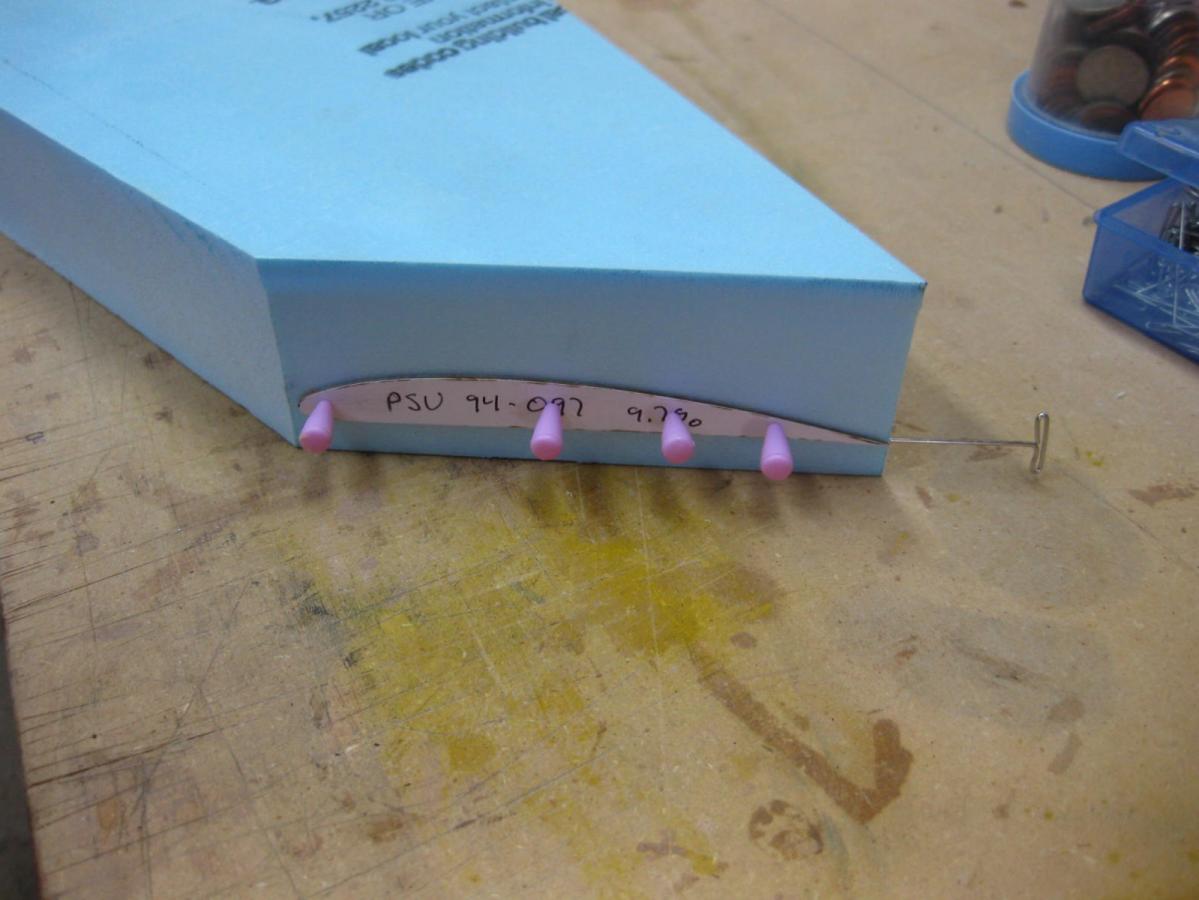

                      Using PSU 94-097 winglet airfoil

                      Click image for larger version

Name:	IMG_4927.JPG
Views:	292
Size:	89.3 KB
ID:	35779Click image for larger version

Name:	IMG_4928.JPG
Views:	265
Size:	101.3 KB
ID:	35780

                      Click image for larger version

Name:	IMG_4929.JPG
Views:	262
Size:	86.8 KB
ID:	35777Click image for larger version

Name:	IMG_4930.JPG
Views:	259
Size:	73.6 KB
ID:	35776

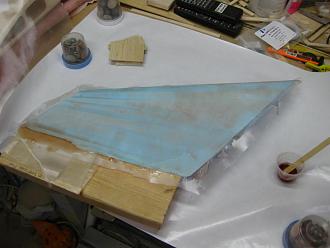

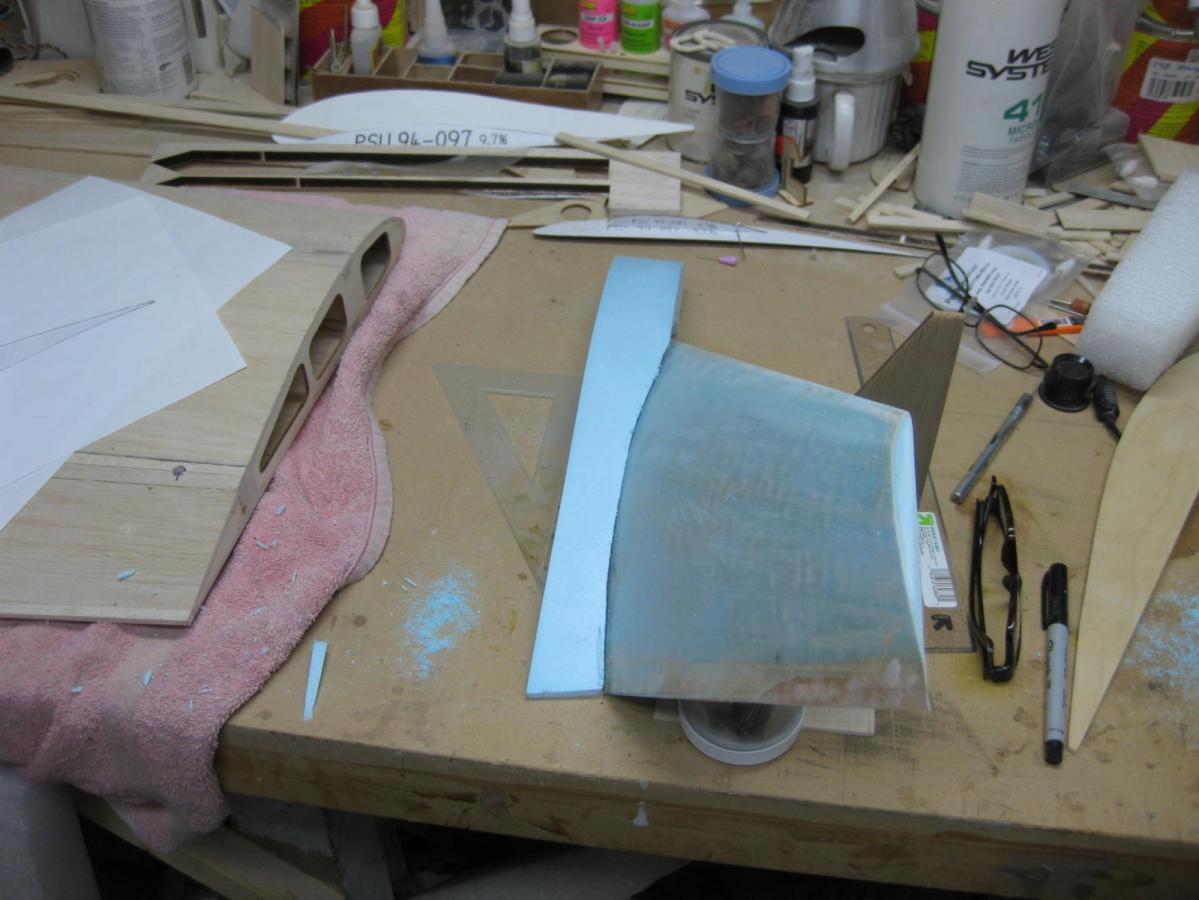

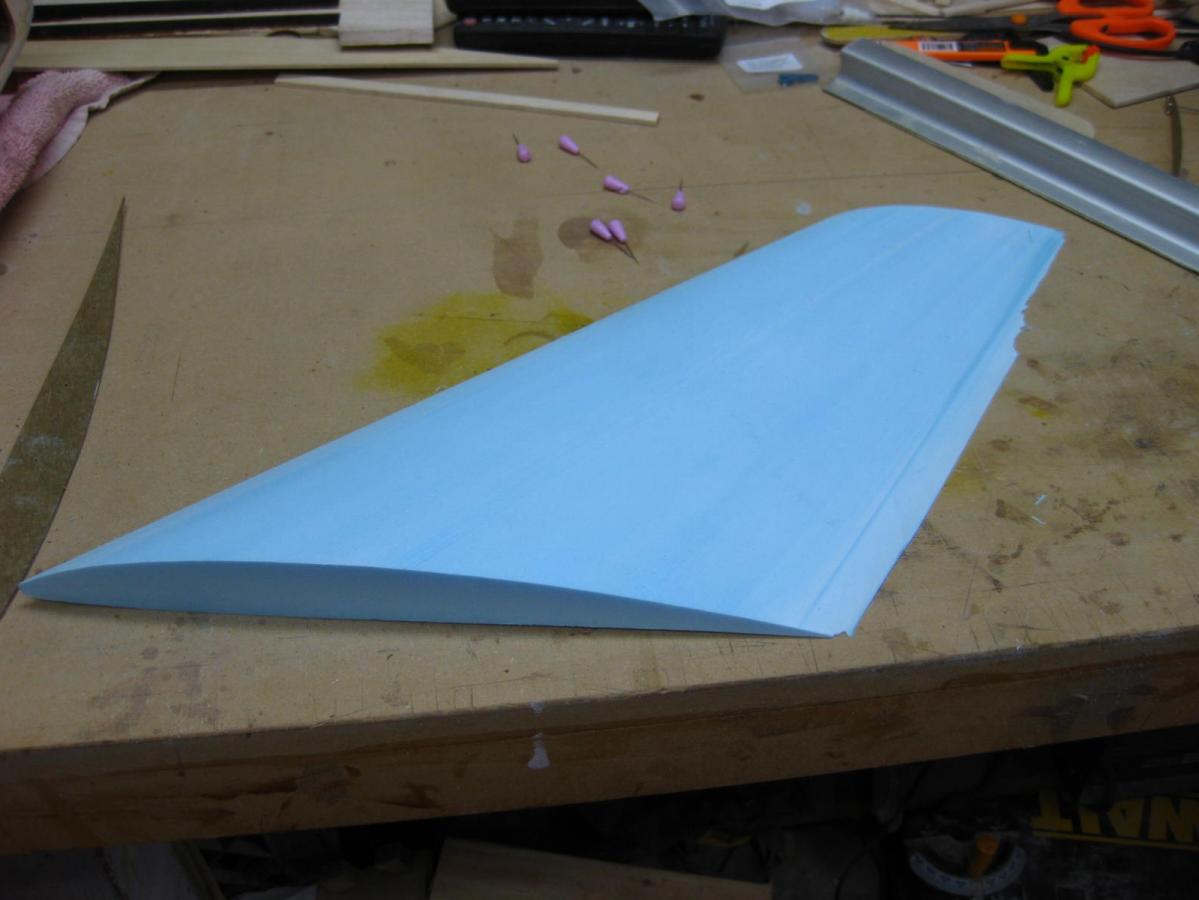

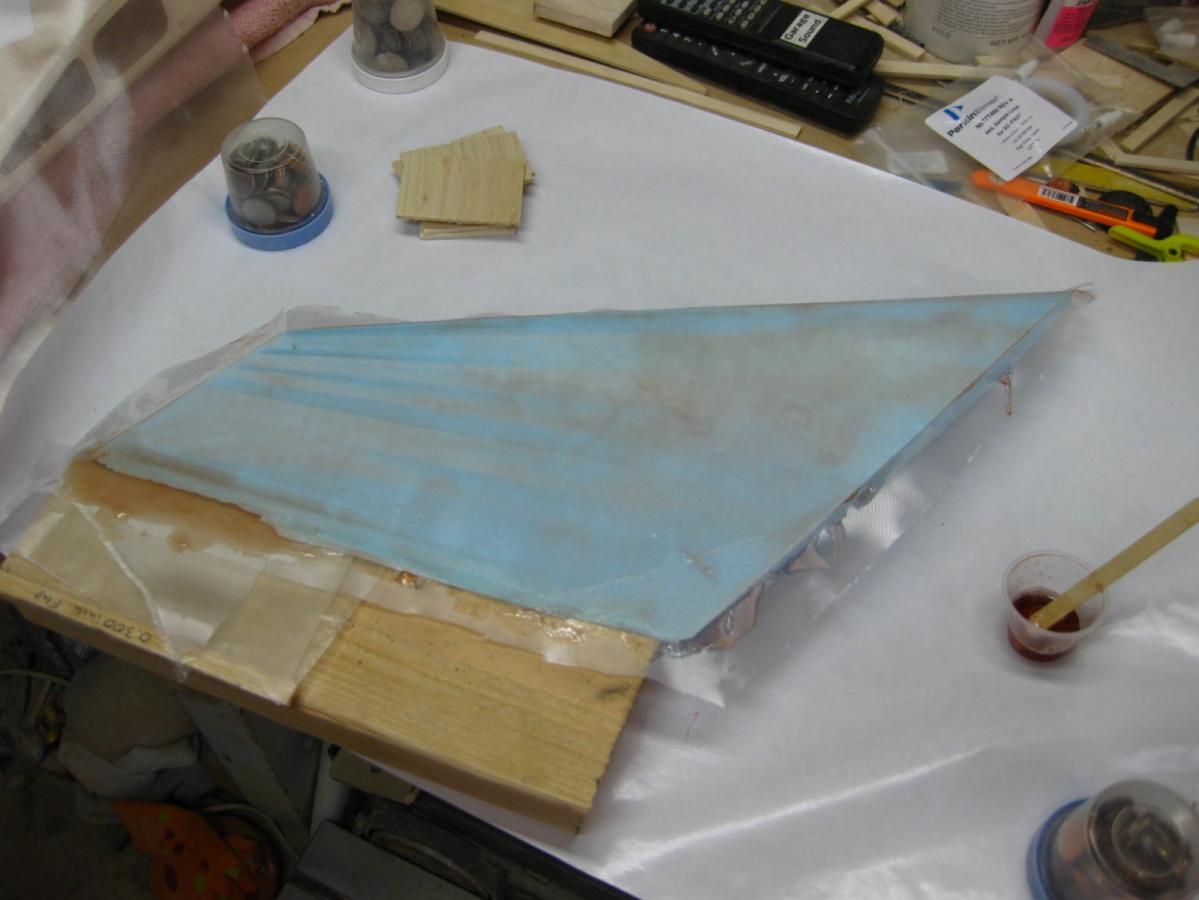

                      Since I was over zealous sanding the cut ridges and sanded off the top trailing edge, fiberglassing it so I won't put too many dents in it.

                      Click image for larger version

Name:	IMG_4931.JPG
Views:	264
Size:	77.2 KB
ID:	35778
                      Attached Files

                      Comment


                      • #74

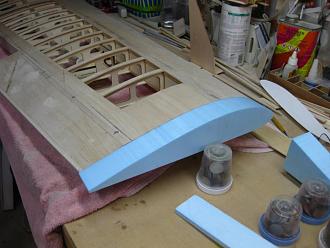

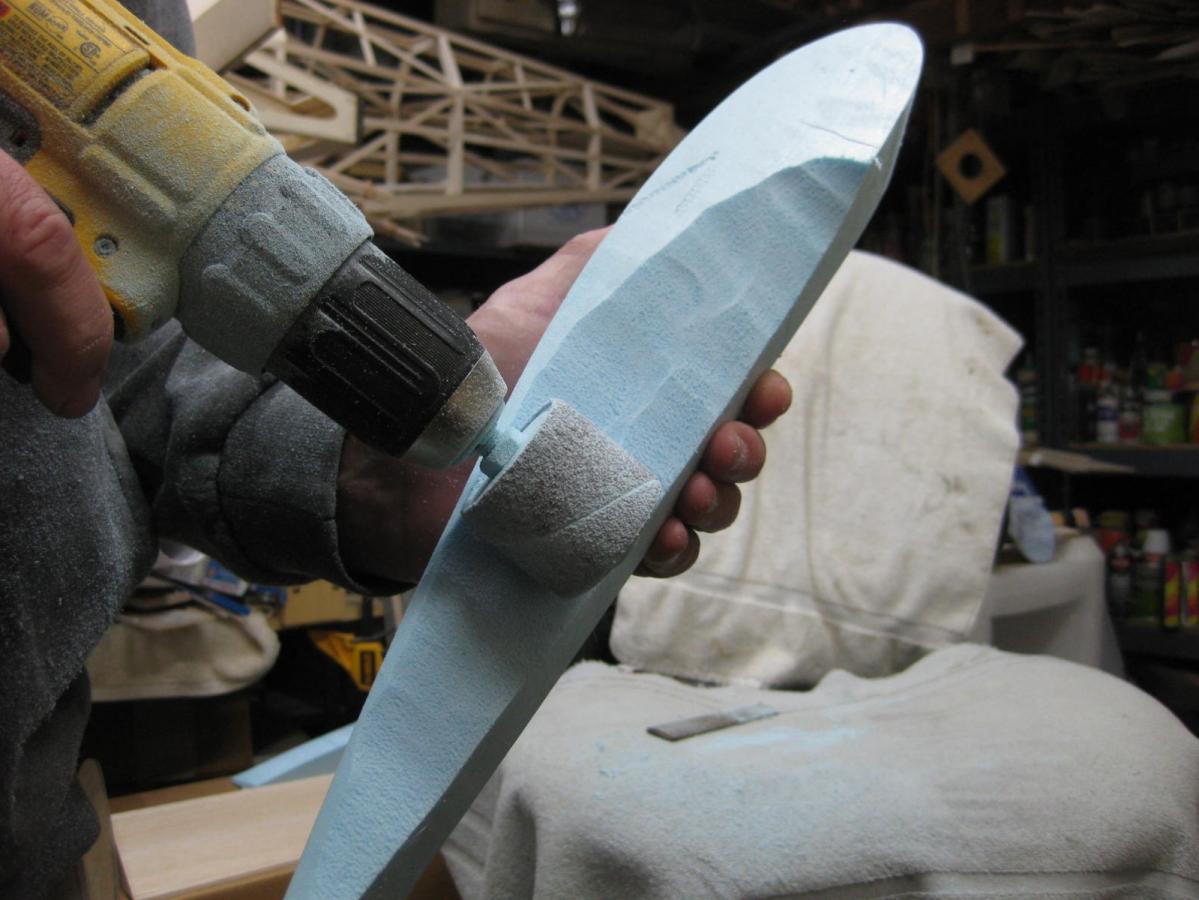

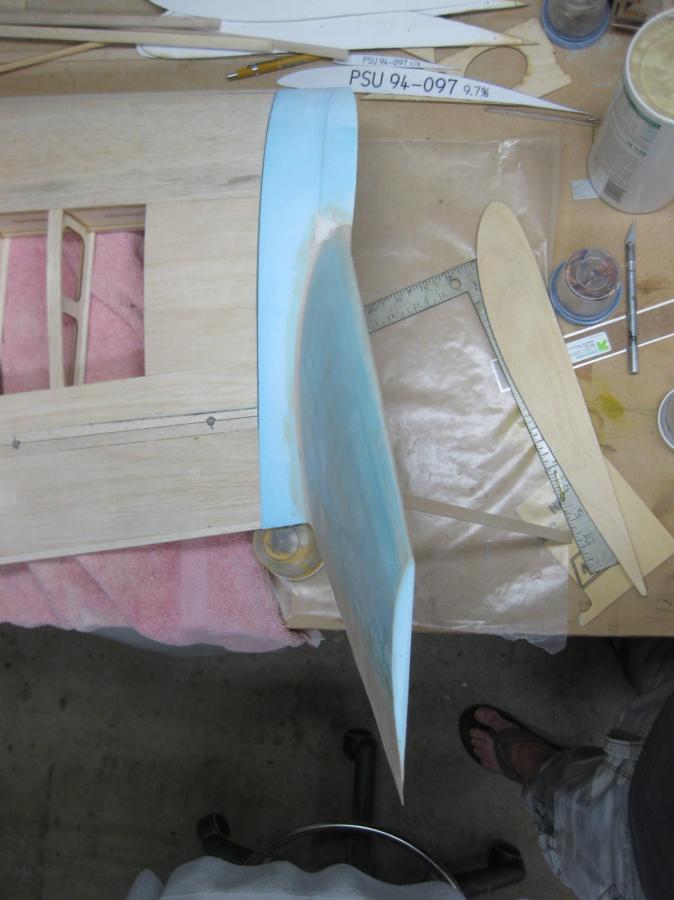

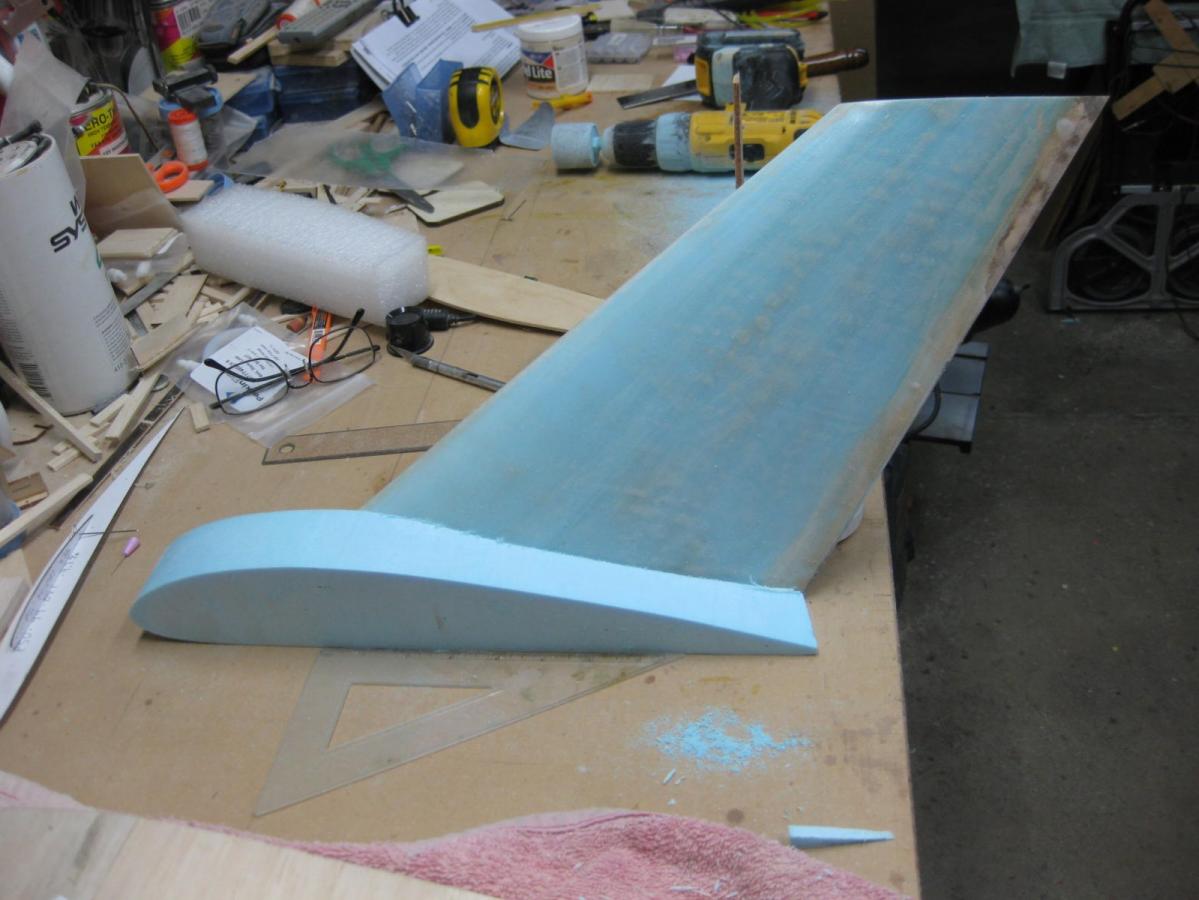

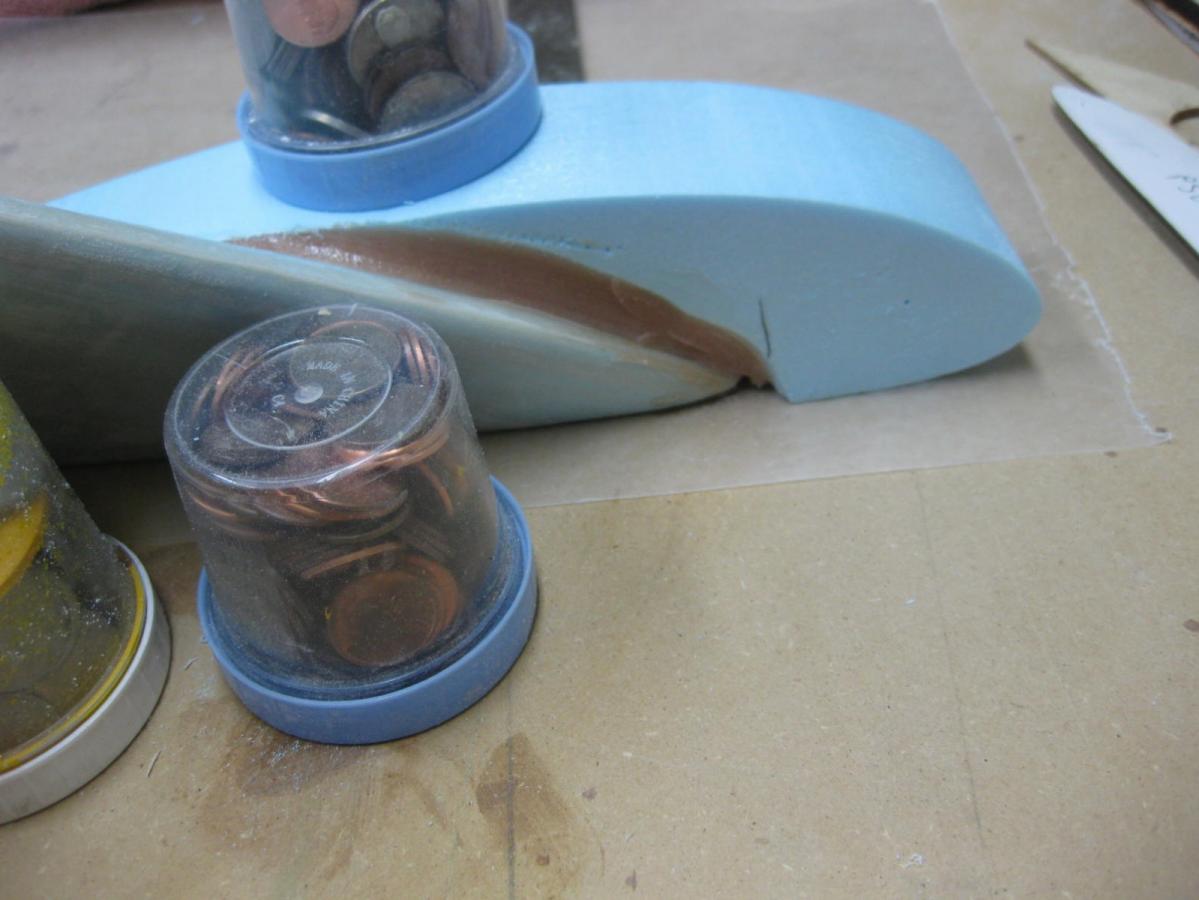

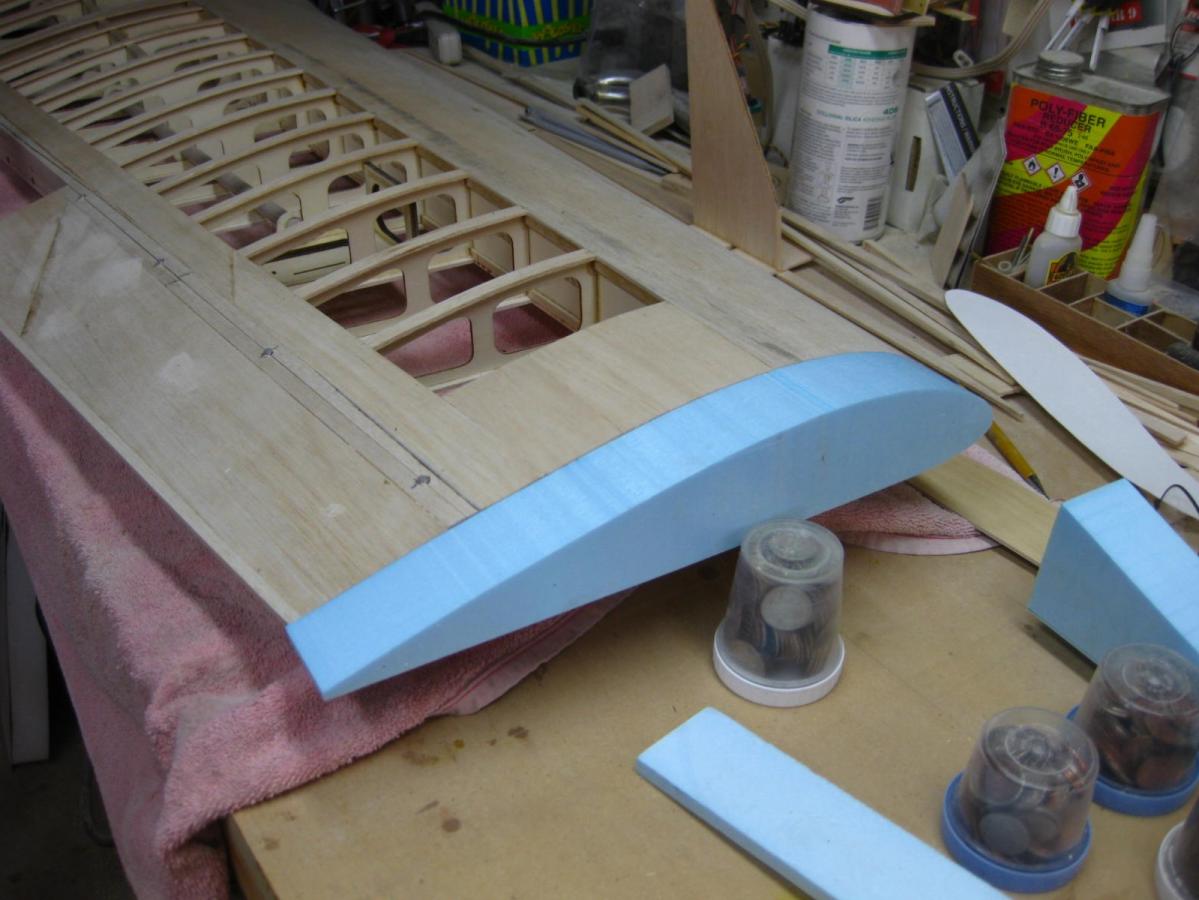

                        Foam shaping to fit the winglet.....

                        Click image for larger version

Name:	IMG_4932.JPG
Views:	261
Size:	105.5 KB
ID:	35787Click image for larger version

Name:	IMG_4934.JPG
Views:	242
Size:	100.7 KB
ID:	35789
                        Click image for larger version

Name:	IMG_4936.JPG
Views:	251
Size:	97.7 KB
ID:	35788Click image for larger version

Name:	IMG_4937.JPG
Views:	259
Size:	98.3 KB
ID:	35785
                        Click image for larger version

Name:	IMG_4939.JPG
Views:	277
Size:	84.9 KB
ID:	35786

                        Comment


                        • #75

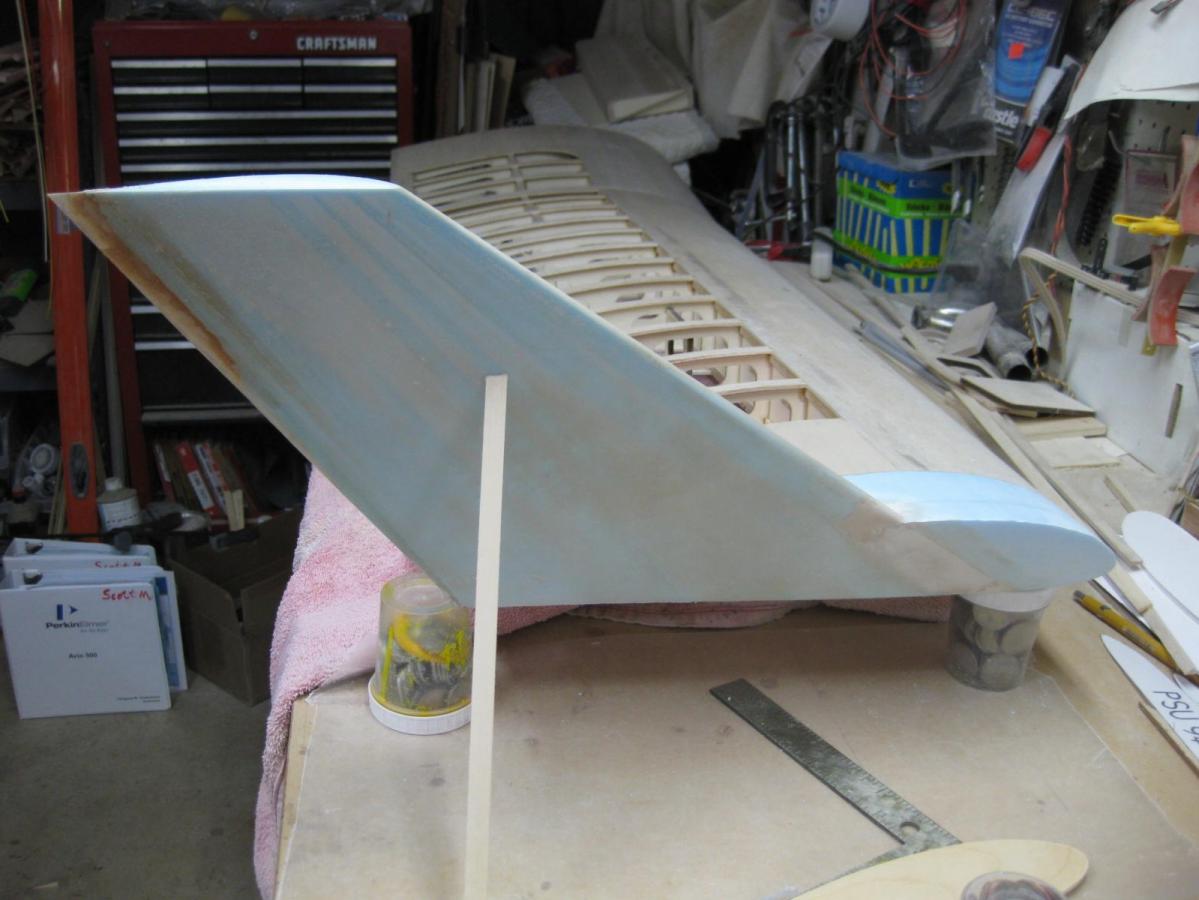

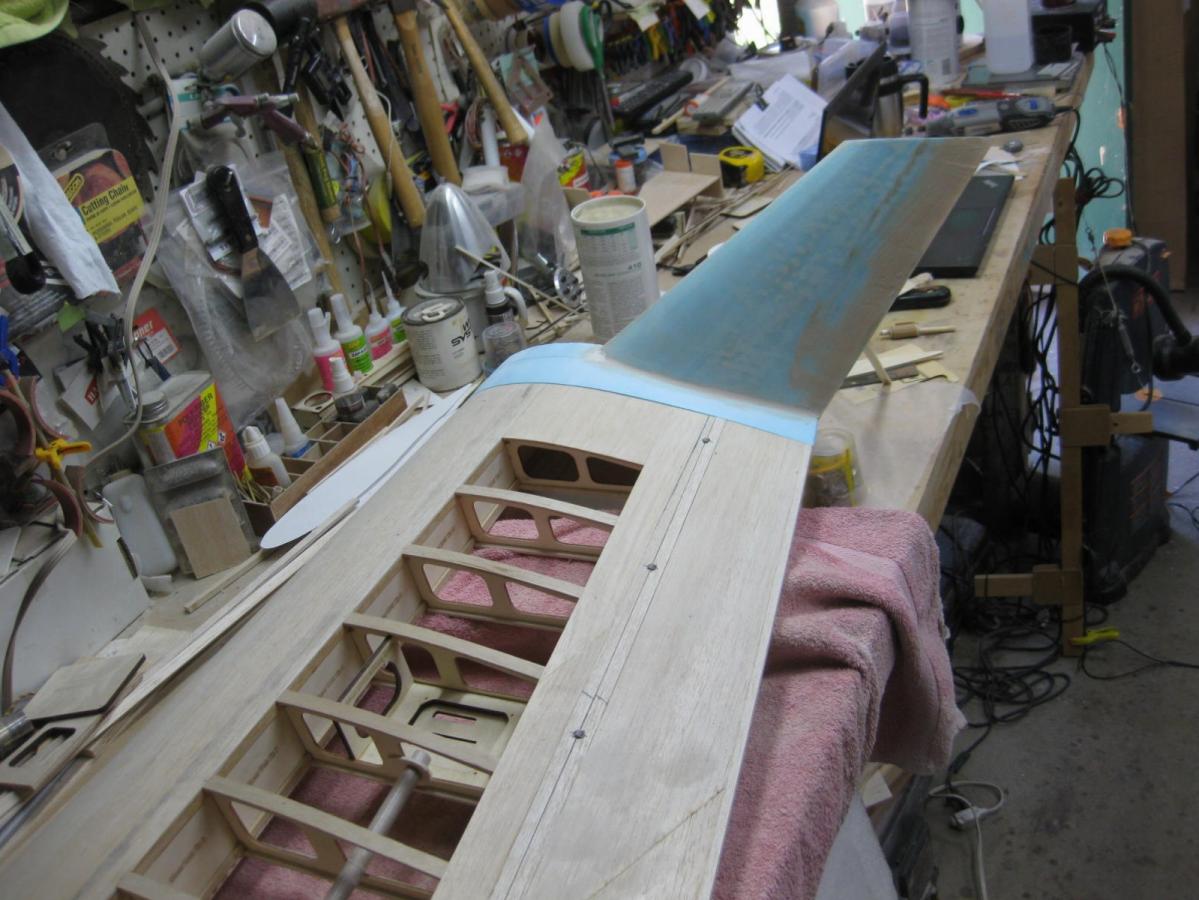

                          Starting to look presentable.....

                          Click image for larger version

Name:	IMG_4944.JPG
Views:	257
Size:	74.1 KB
ID:	35800Click image for larger version

Name:	IMG_4943.JPG
Views:	253
Size:	55.7 KB
ID:	35802
                          Click image for larger version

Name:	IMG_4941.JPG
Views:	271
Size:	97.1 KB
ID:	35799Click image for larger version

Name:	IMG_4946.JPG
Views:	240
Size:	132.4 KB
ID:	35801

                          Comment


                          • ARUP
                            ARUP commented
                            Editing a comment
                            Oh yeah...baby!

                          • Mosquito
                            Mosquito commented
                            Editing a comment
                            Settle down Michael.......
