  • #16

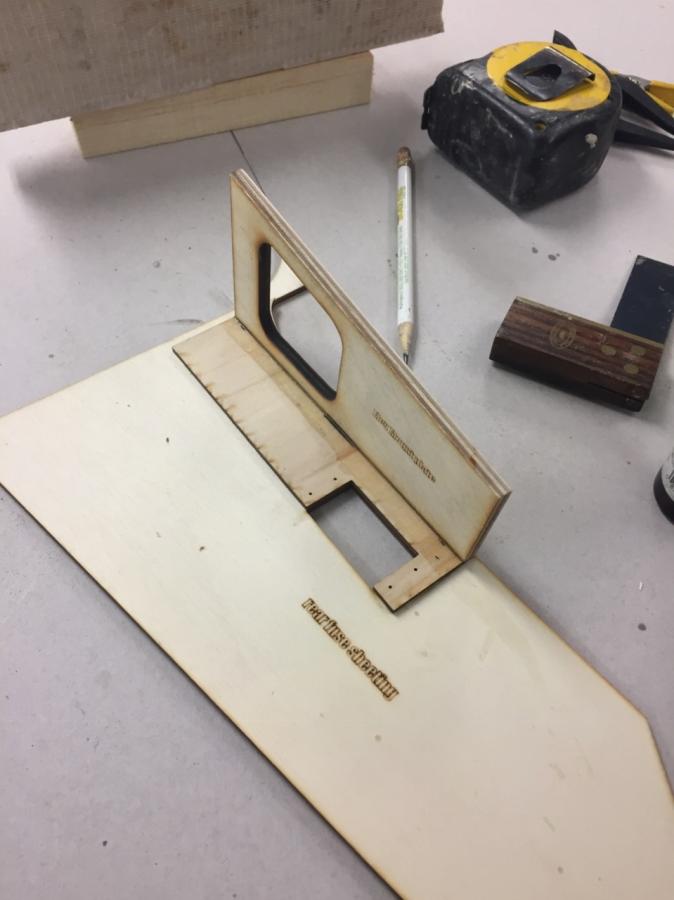

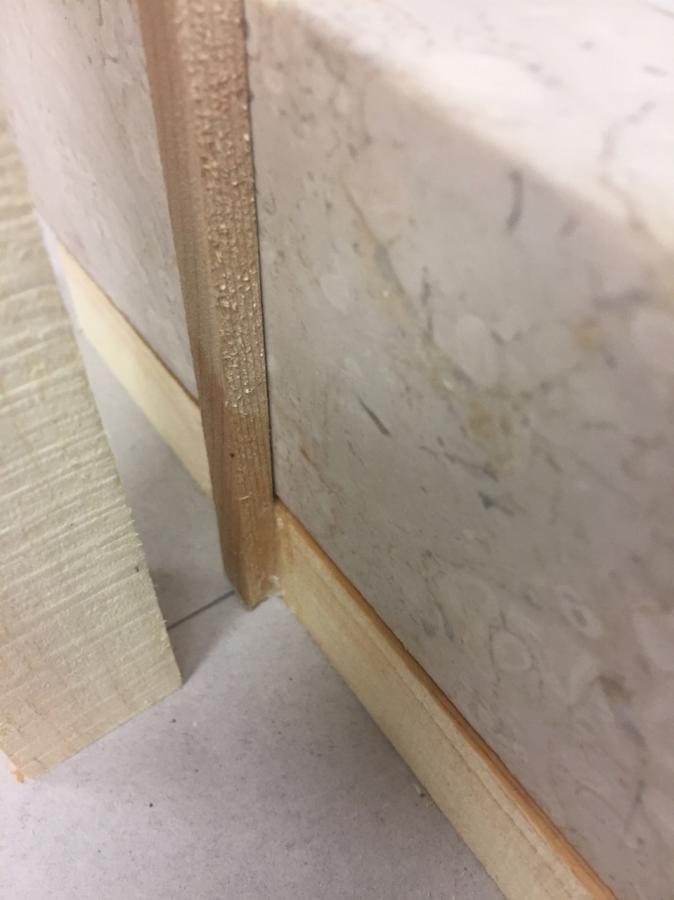

    When laying out the sides, use all the pieces you have to your advantage. Spacing the formers relies on the next piece that butts to it or interlocks between them.
    For example, there is a bottom RC GEAR panel that will install later in the build, this panel will space the two formers perfectly. Use caution and be certain the formers are square and 90 degrees to the table. Click image for larger version  Name:	1 - 18.jpg Views:	1 Size:	57.4 KB ID:	21738

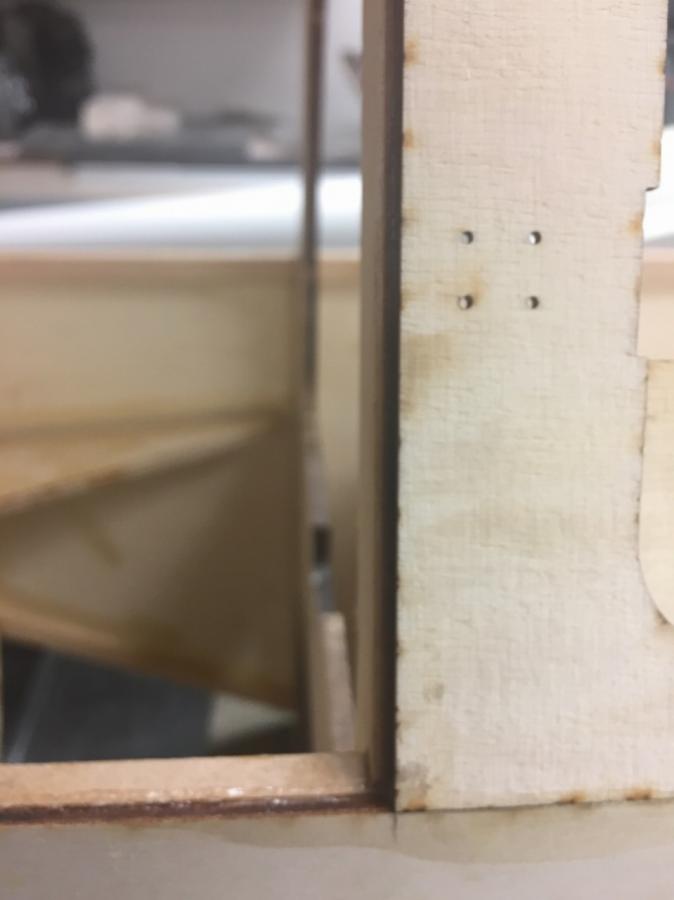

    Also be sure the position of the rear former does not cross the window.

    Click image for larger version  Name:	1 - 19.jpg Views:	1 Size:	87.7 KB ID:	21739
    Len Buffinton
    Team Horizon Hobby

    Comment


    • #17
      This is the section I've been waiting for. Looking great Len.
      Gunny
      Aviation Concepts rc

      Comment


      • #18
        Tell us more about that lightweight sheet rock.
        Gunny
        Aviation Concepts rc

        Comment


        • #19
          Works excellent for a building surface, its cheap, easy to work with, and a hard surface.

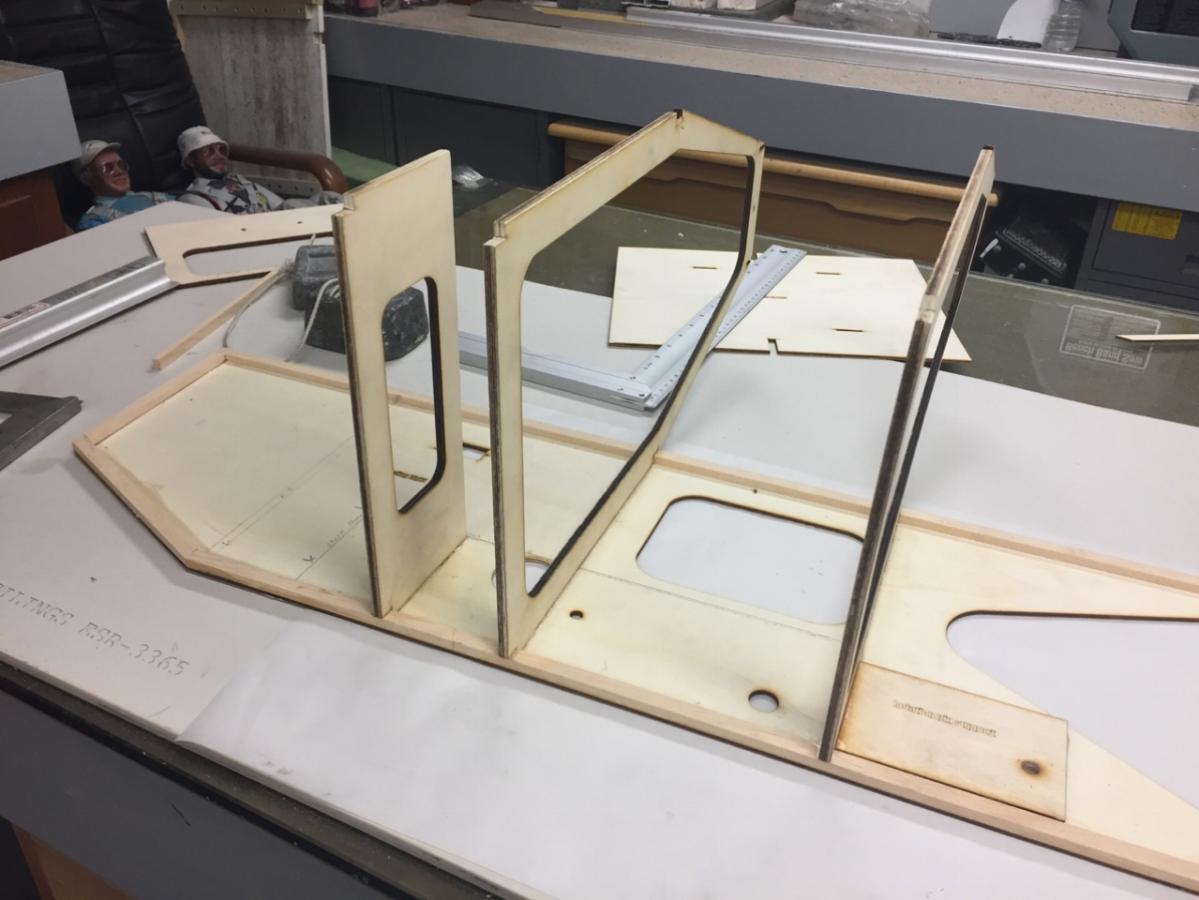

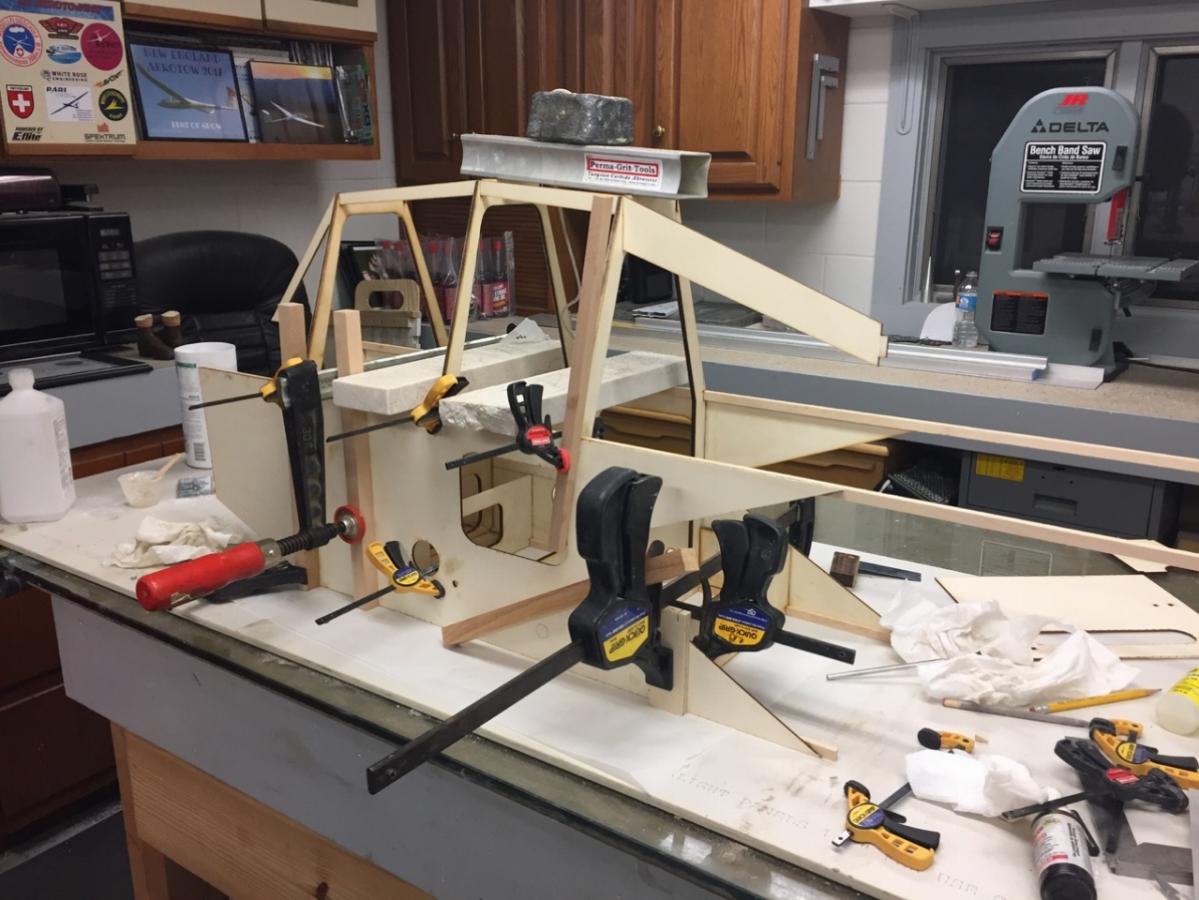

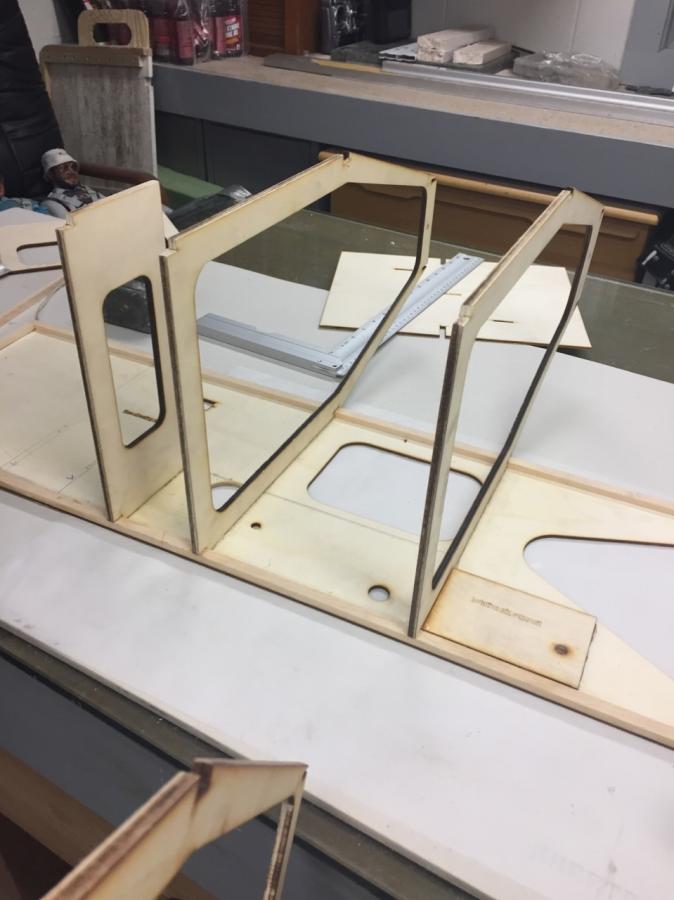

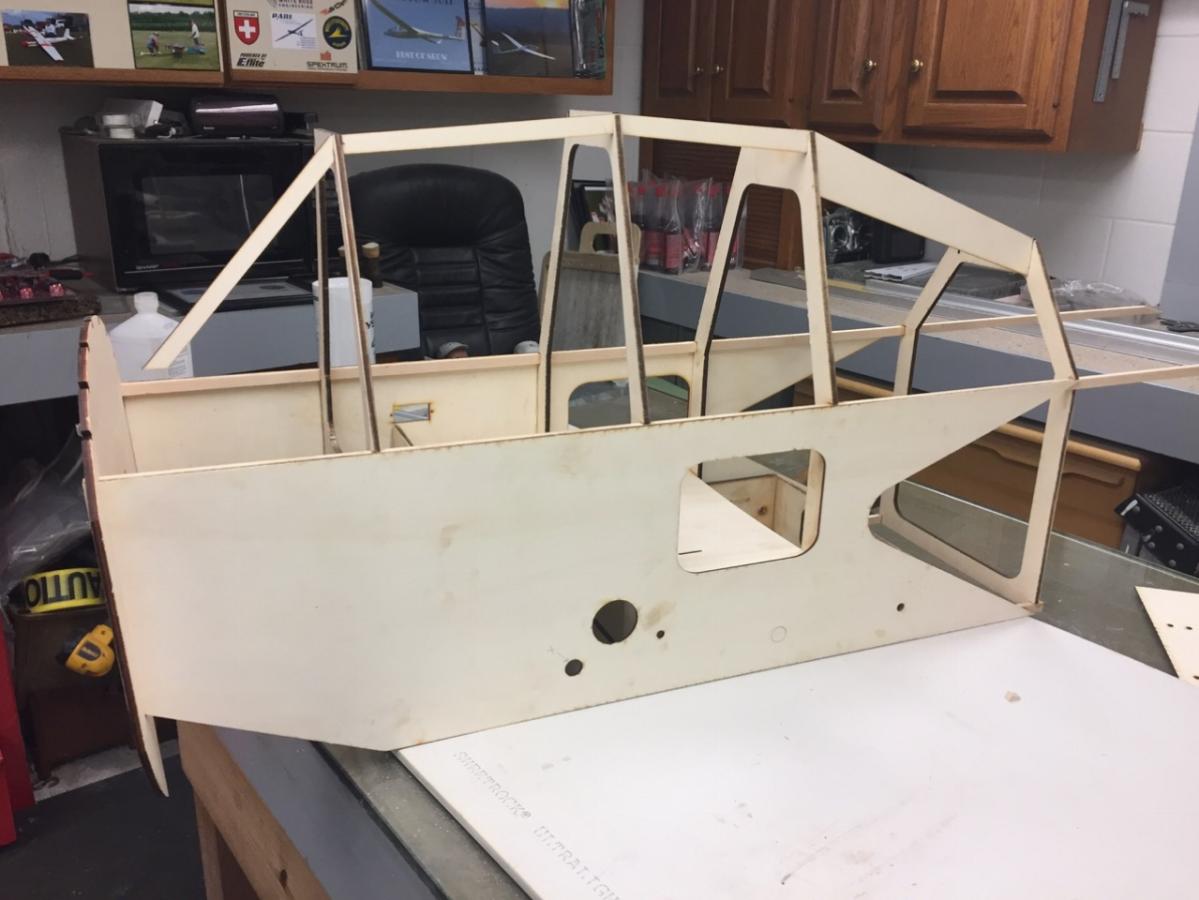

          Once you've completed the initial former layout, stand the side up, square the formers across and glue the other side on.

          Click image for larger version

Name:	1 - 20.jpg
Views:	91
Size:	123.3 KB
ID:	21807

          Click image for larger version

Name:	1 - 21.jpg
Views:	95
Size:	116.5 KB
ID:	21806



          Click image for larger version

Name:	1 - 23.jpg
Views:	105
Size:	70.3 KB
ID:	21808
          Len Buffinton
          Team Horizon Hobby

          Comment


          • #20

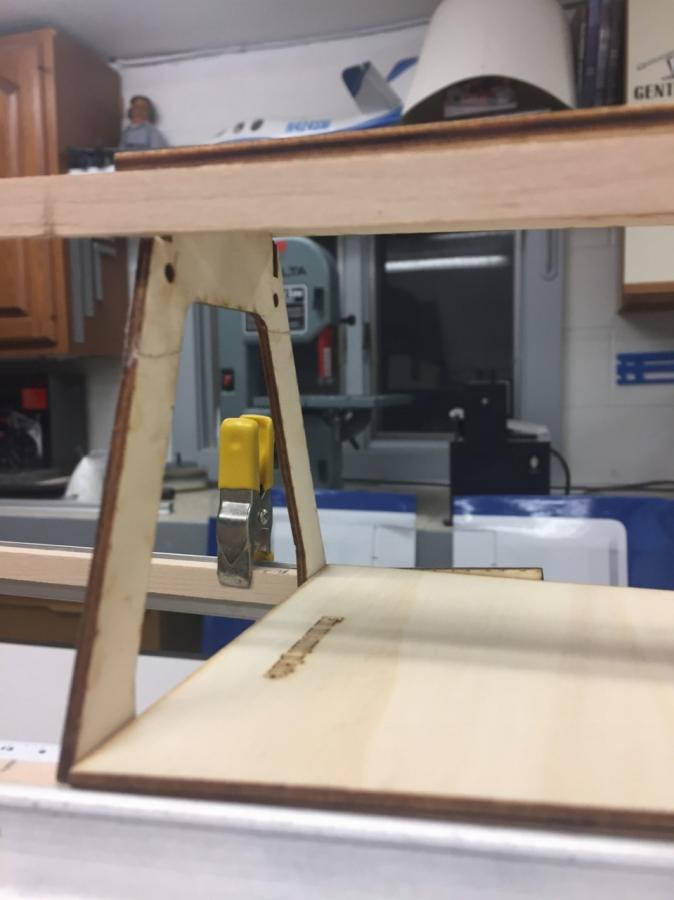

            The upper cabin supports are used as a guide in the previous photos.

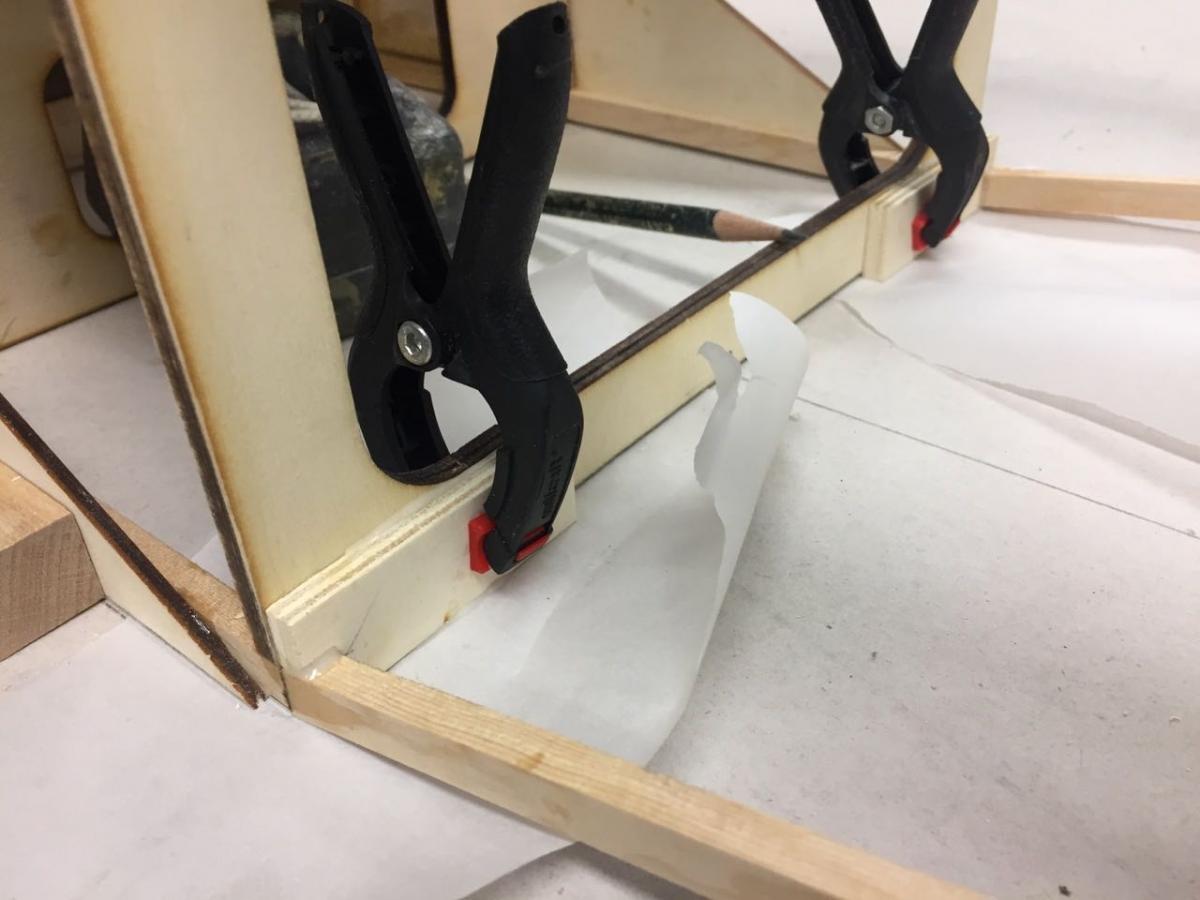

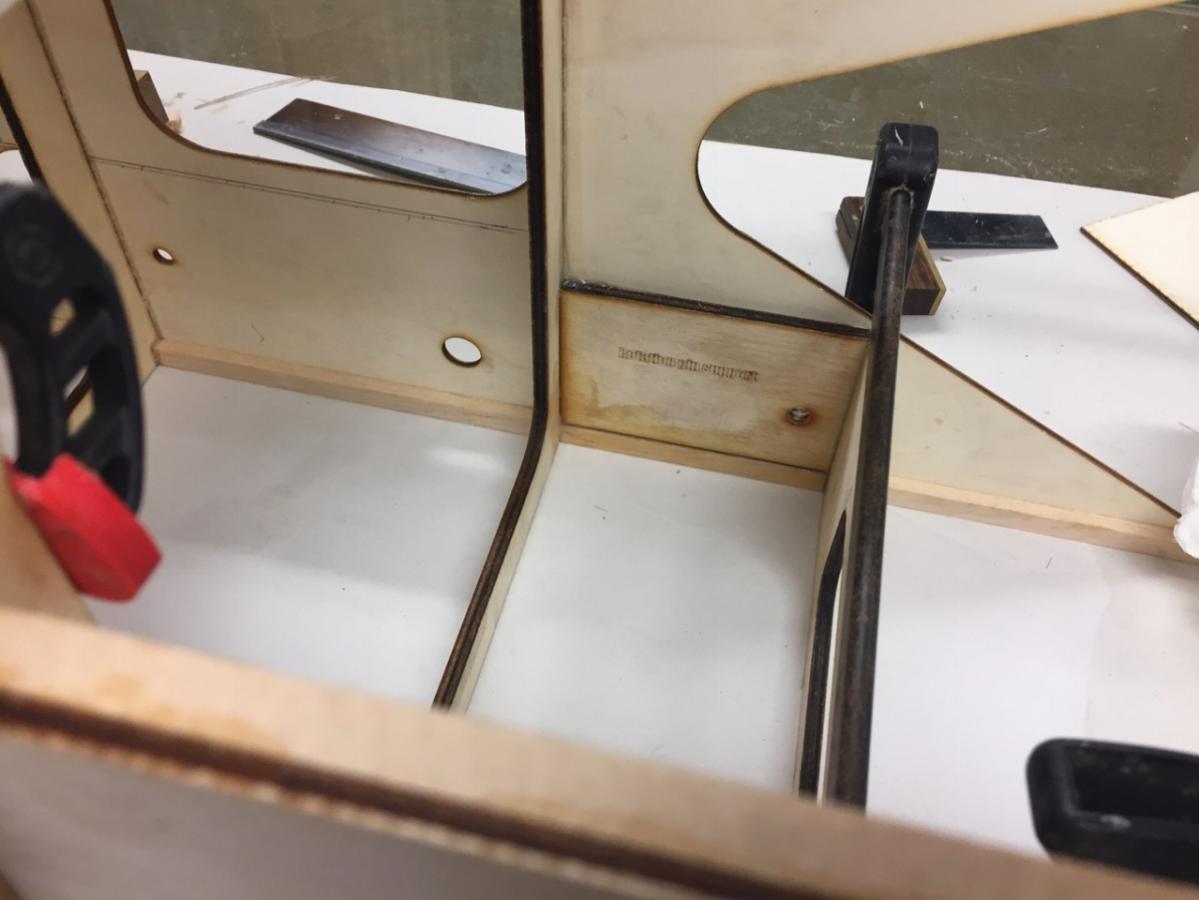

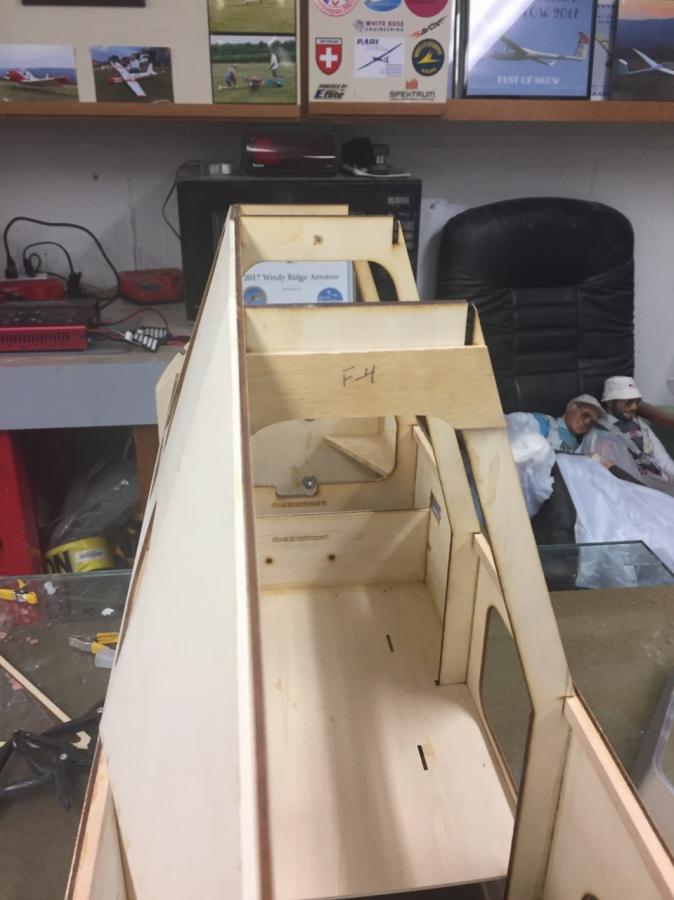

            Next is the fuel tank floor. I needed to chamfer the edges due to glue fillets, it made the piece slide in without chipping the ply apart.

            Click image for larger version

Name:	1 - 24.jpg
Views:	100
Size:	30.1 KB
ID:	21810

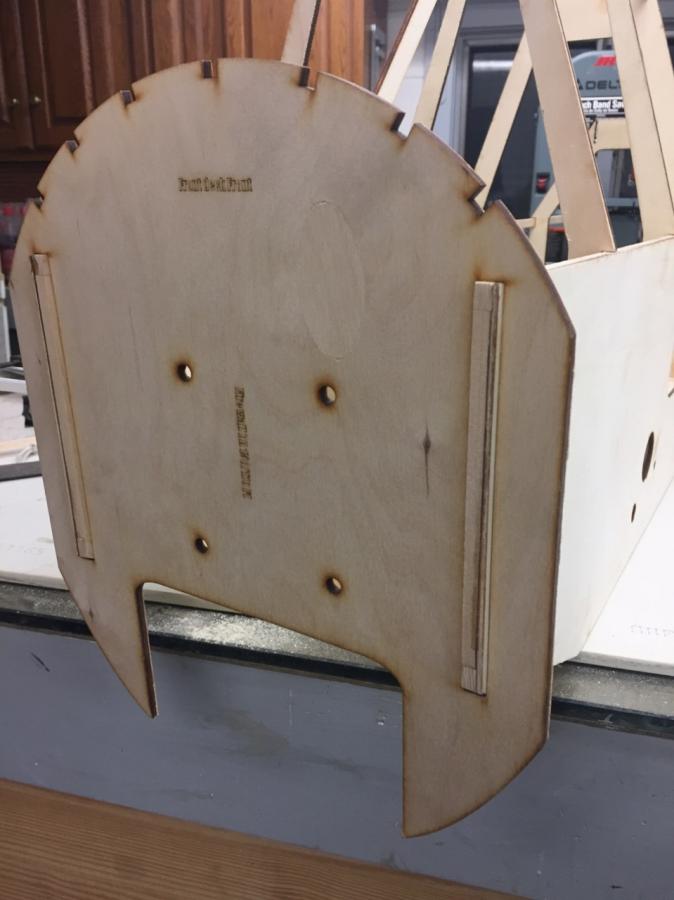

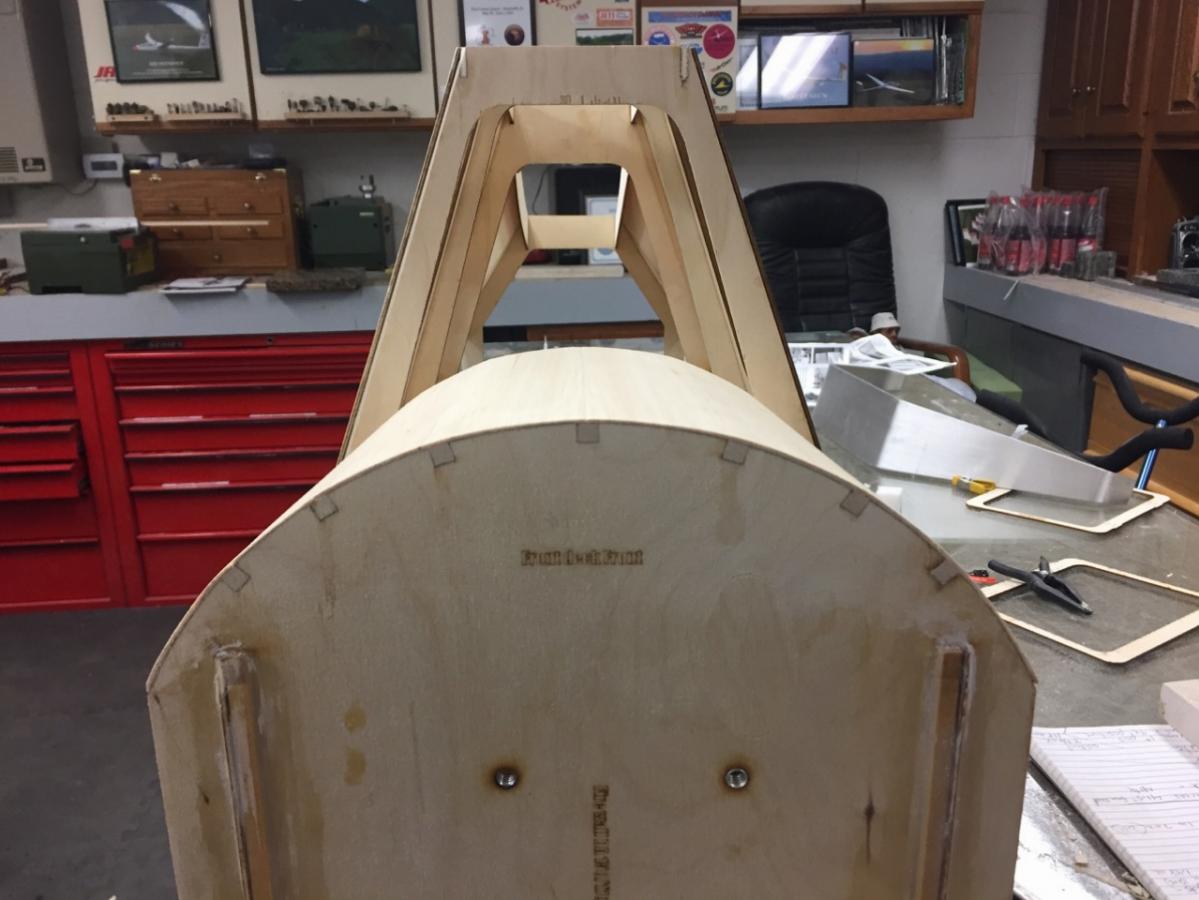

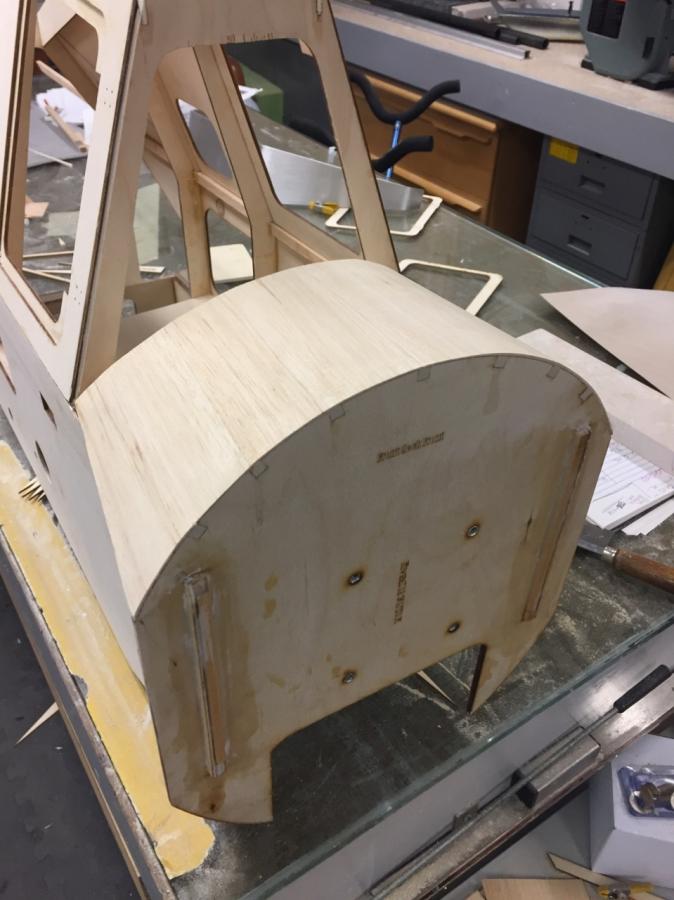

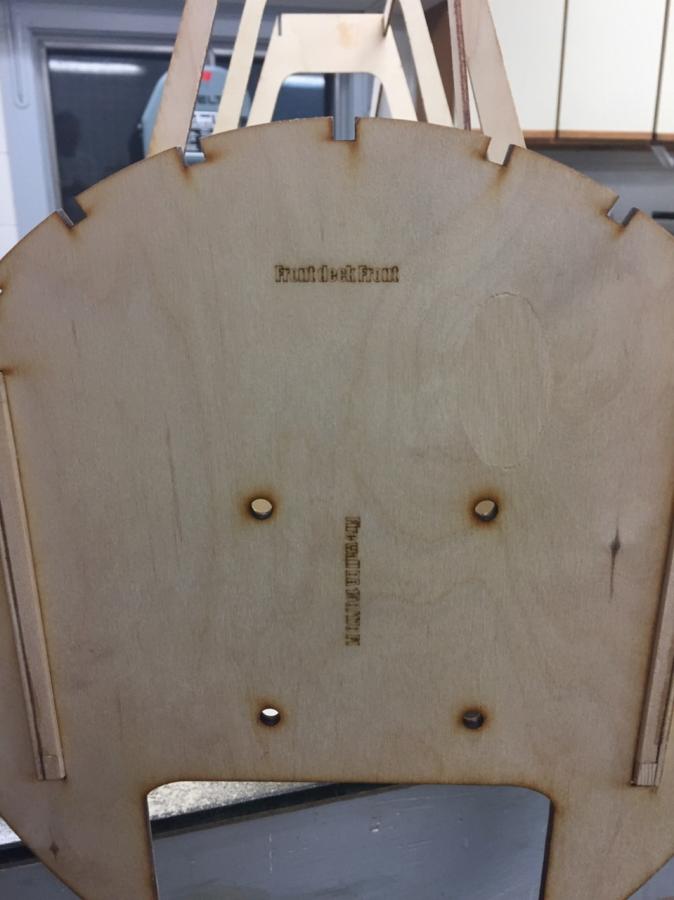

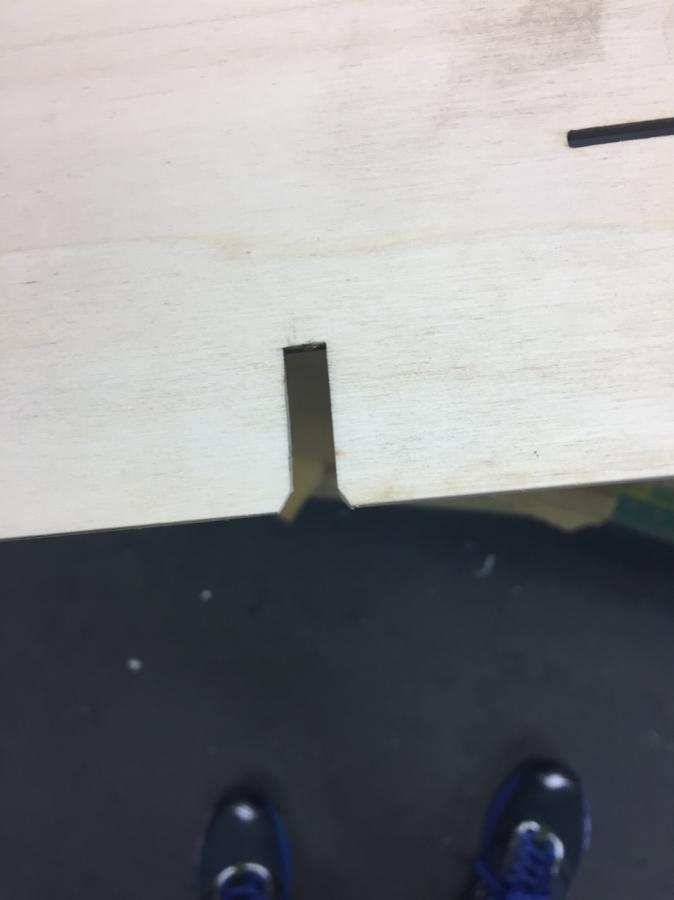

            The firewall is a piece of cake to install.. Pete cut the slots already, so slide it on until its lined up and snug. Epoxy it on.

            Click image for larger version

Name:	1 - 28.jpg
Views:	107
Size:	48.5 KB
ID:	21812

            Click image for larger version

Name:	1 - 26.jpg
Views:	83
Size:	87.9 KB
ID:	21813

            Click image for larger version

Name:	1 - 27.jpg
Views:	90
Size:	48.9 KB
ID:	21811




            Len Buffinton
            Team Horizon Hobby

            Comment


            • #21
              Now we're rolling along..

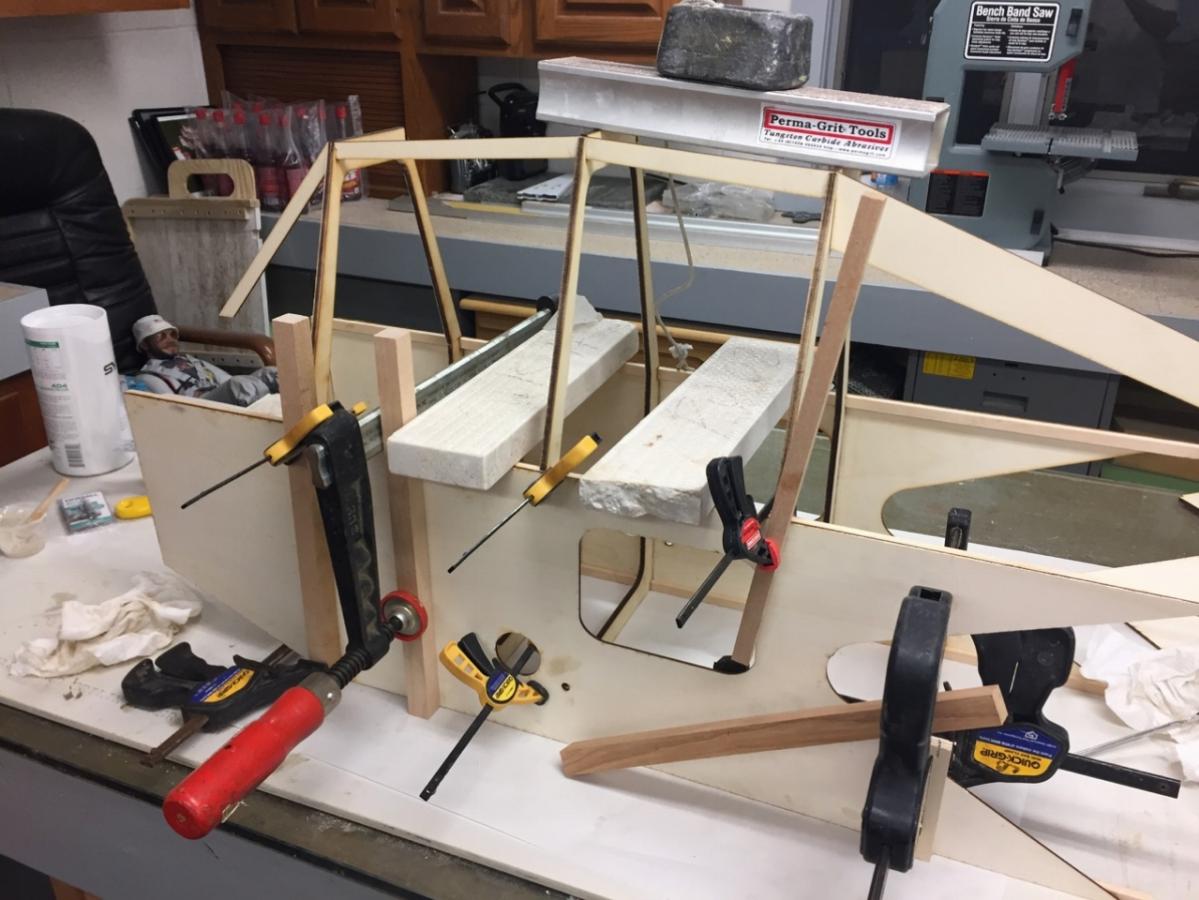

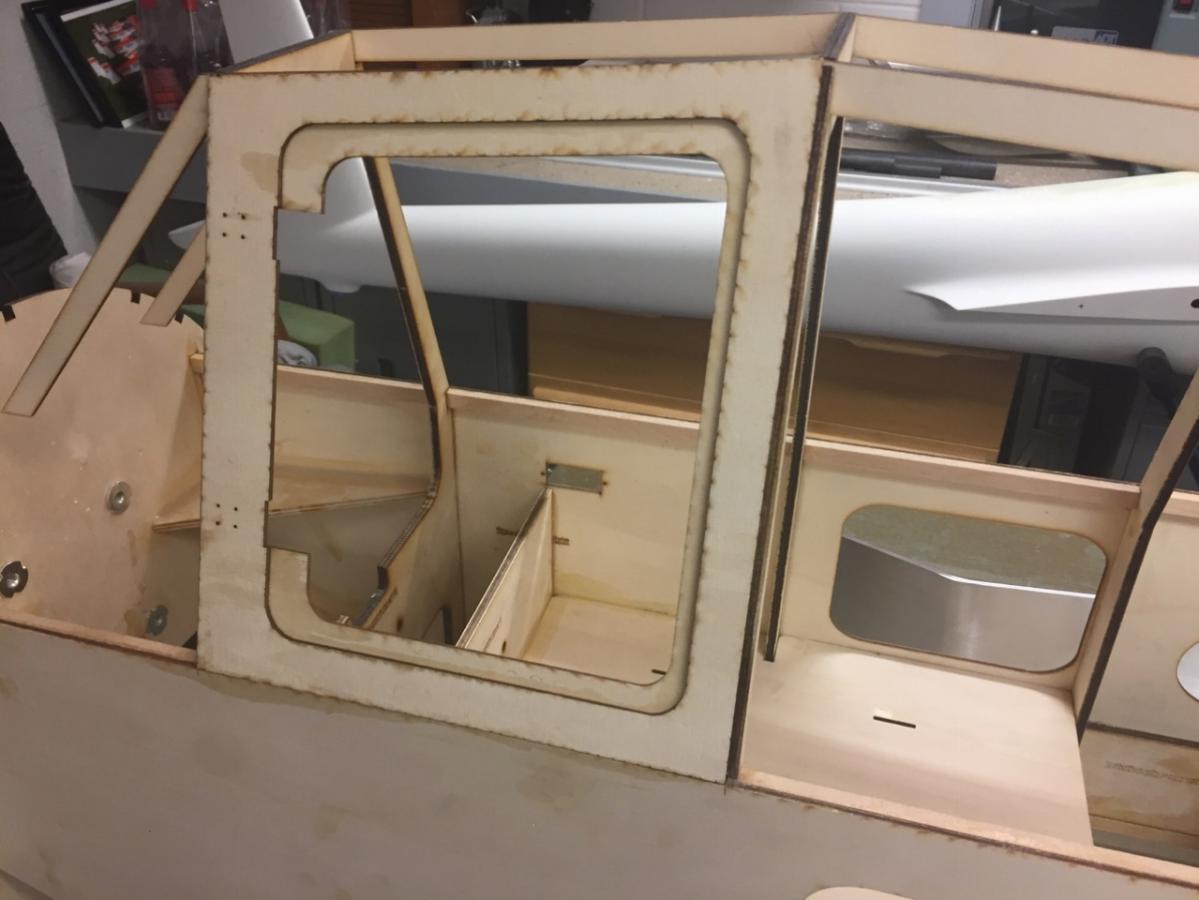

              The cabin supports are glued into place once you're certain of the location. The doors are the first pieces. You need to Laminate the outer skin with an inner frame to create a lip for the door to close against. Pete calls for the doors to be hinged at this point, but being impatient I didn't feel like it and will wait until later for that. While dry fitting the panels, I found my door sides fell just short of the former. No big deal, just a some 1/4 square and keep moving onto the next piece.


              Click image for larger version

Name:	1 - 29.jpg
Views:	79
Size:	79.2 KB
ID:	21818

              Click image for larger version

Name:	1 - 30.jpg
Views:	84
Size:	34.5 KB
ID:	21817

              Click image for larger version

Name:	1 - 31.jpg
Views:	100
Size:	51.7 KB
ID:	21815

              Click image for larger version

Name:	1 - 32.jpg
Views:	88
Size:	40.9 KB
ID:	21816


              Click image for larger version

Name:	1 - 33.jpg
Views:	91
Size:	87.6 KB
ID:	21819


              ​​​​​​​
              Len Buffinton
              Team Horizon Hobby

              Comment


              • ARUP
                ARUP commented
                Editing a comment
                Do you clean the charred edges or just put glue on it without worries? All three of my brain cells wanna know!

              • lenb
                lenb commented
                Editing a comment
                Hi Michael.

                Truth is...................... Sometimes.

            • #22
              ....she's coming along great Len! What type of finish are planning for this bird? Can't wait to see her fly in the spring.


              Matt

              Comment


              • #23
                Simple Ultracote, keep it light.
                Len Buffinton
                Team Horizon Hobby

                Comment


                • #24

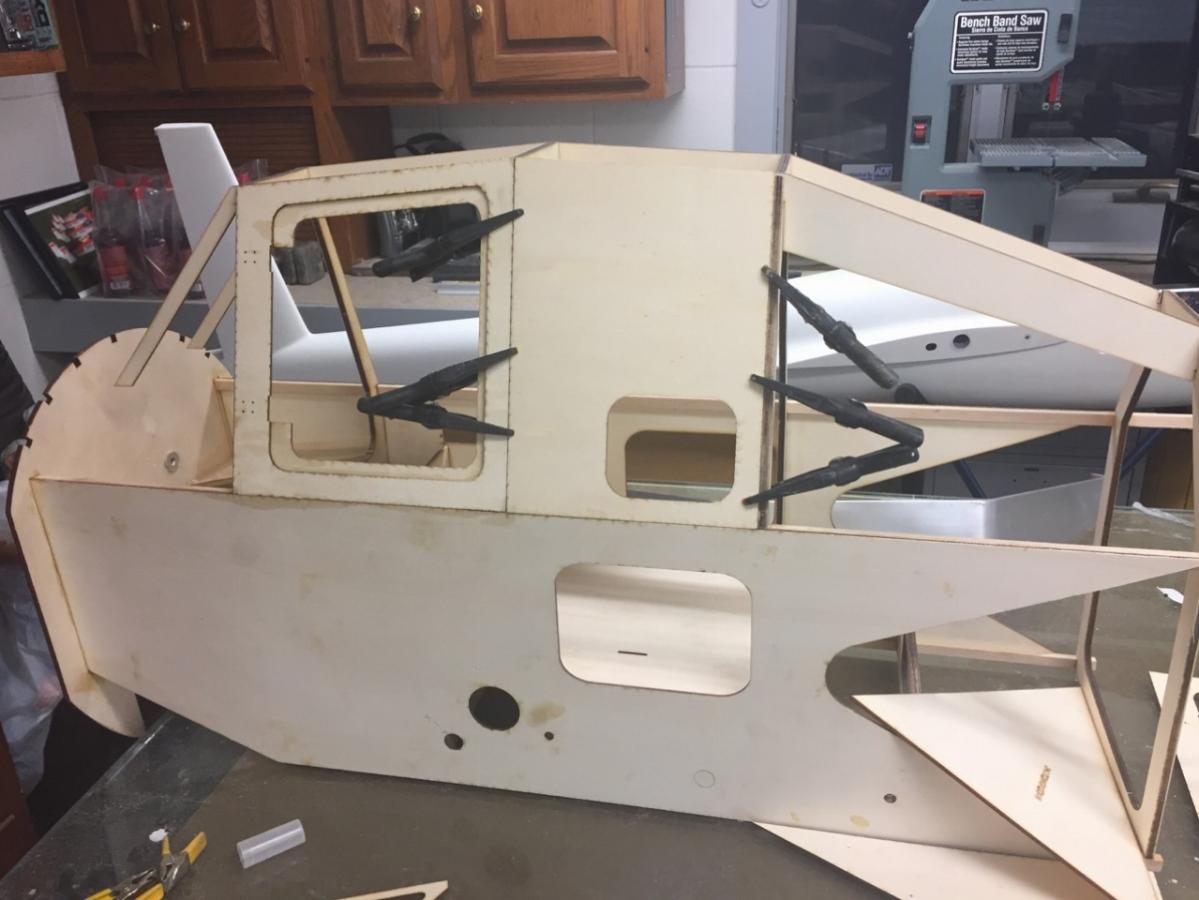

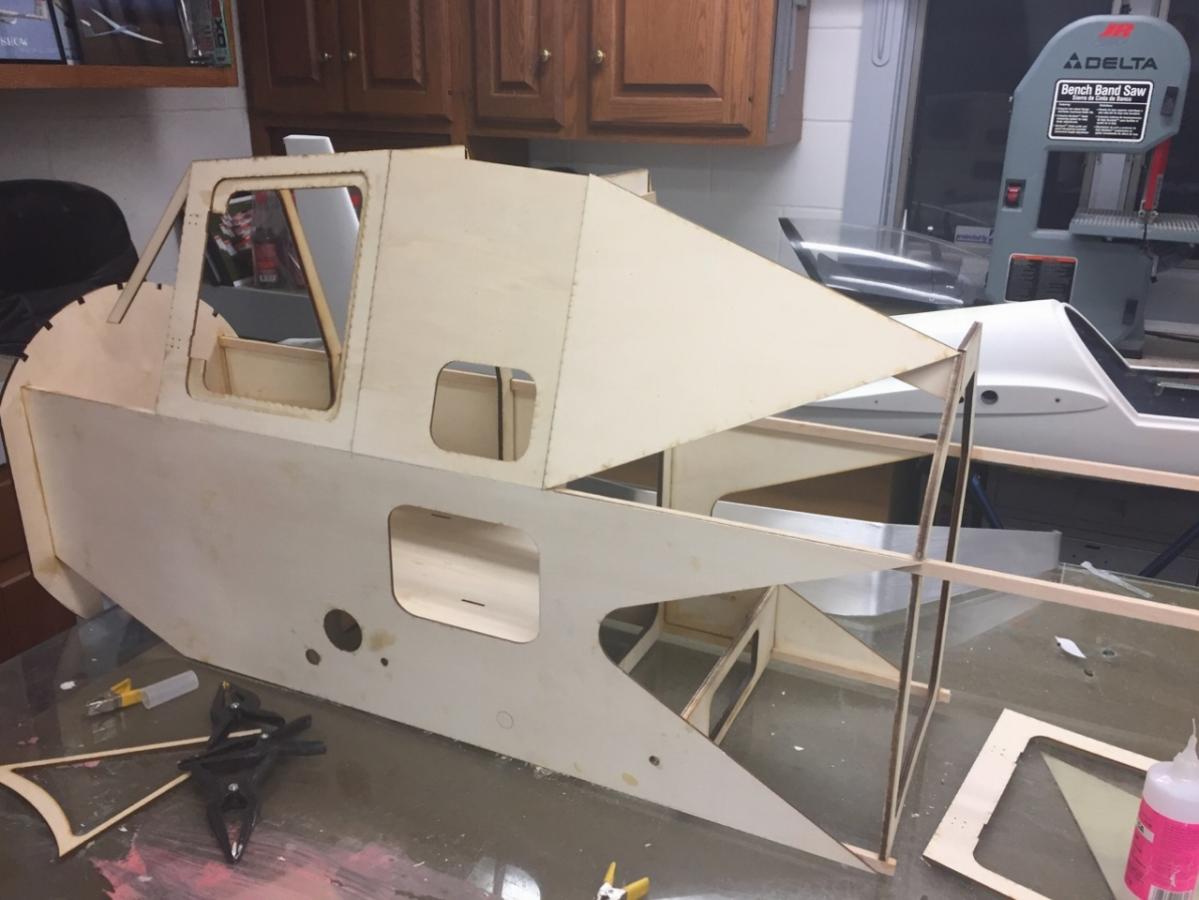

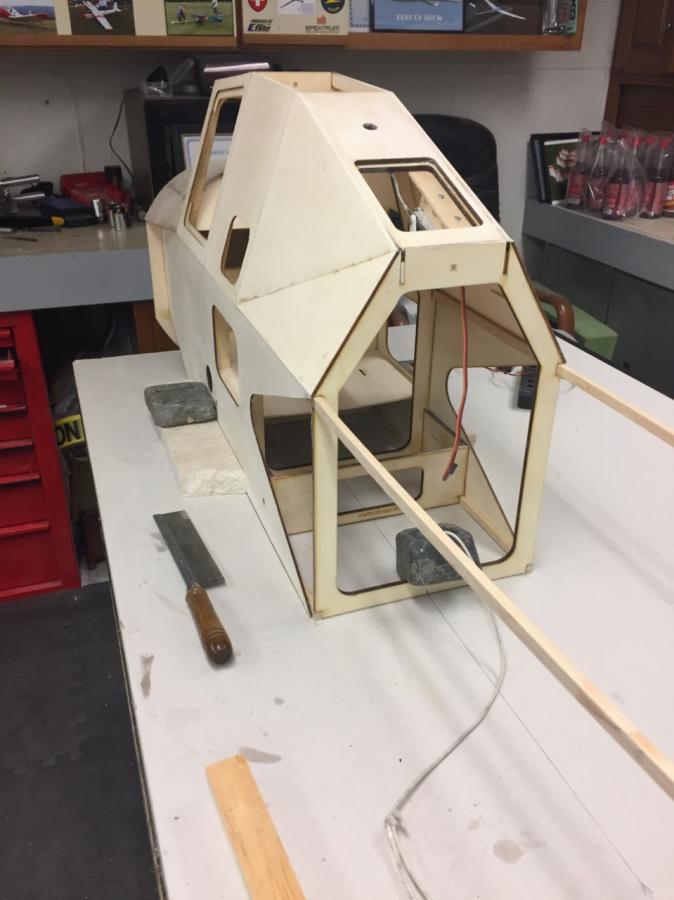

                  Continue with the fuse panels, I did one side at a time.
                  Click image for larger version  Name:	1 - 34.jpg Views:	1 Size:	89.7 KB ID:	21863
                  Click image for larger version  Name:	1 - 35.jpg Views:	1 Size:	58.0 KB ID:	21862
                  Click image for larger version  Name:	1 - 36.jpg Views:	1 Size:	43.5 KB ID:	21861

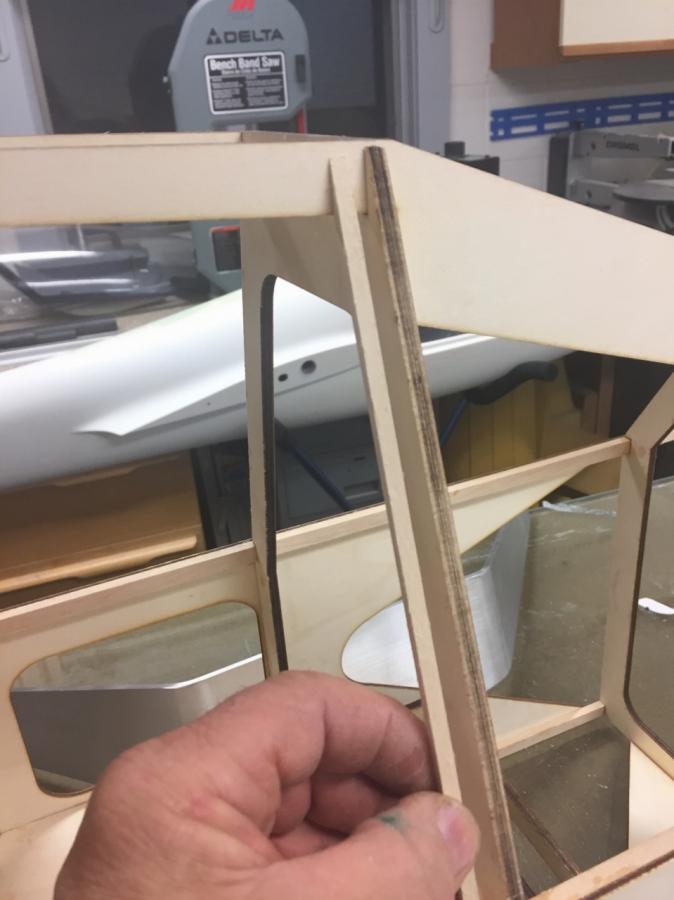

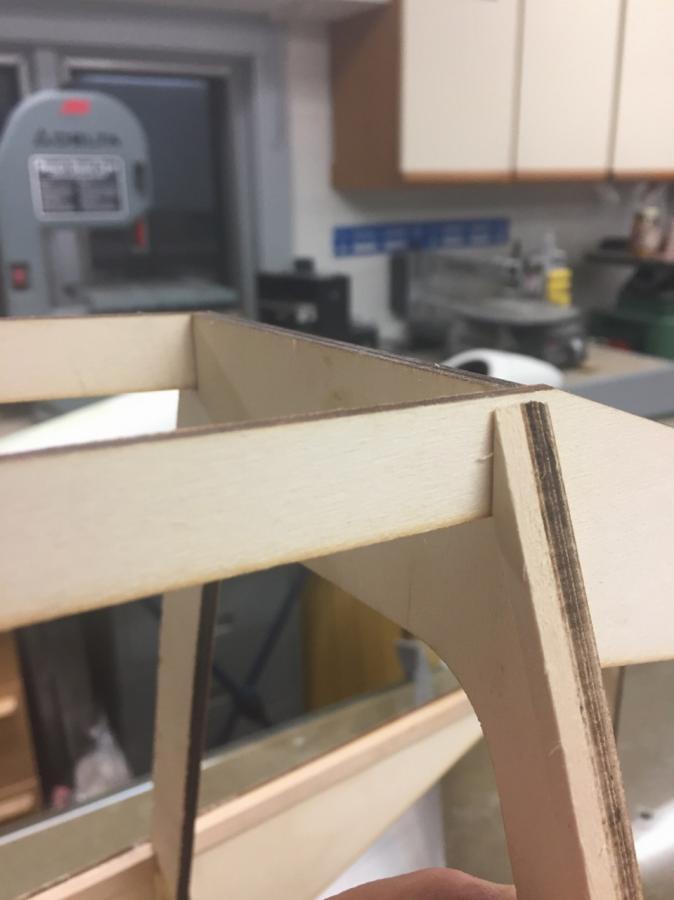

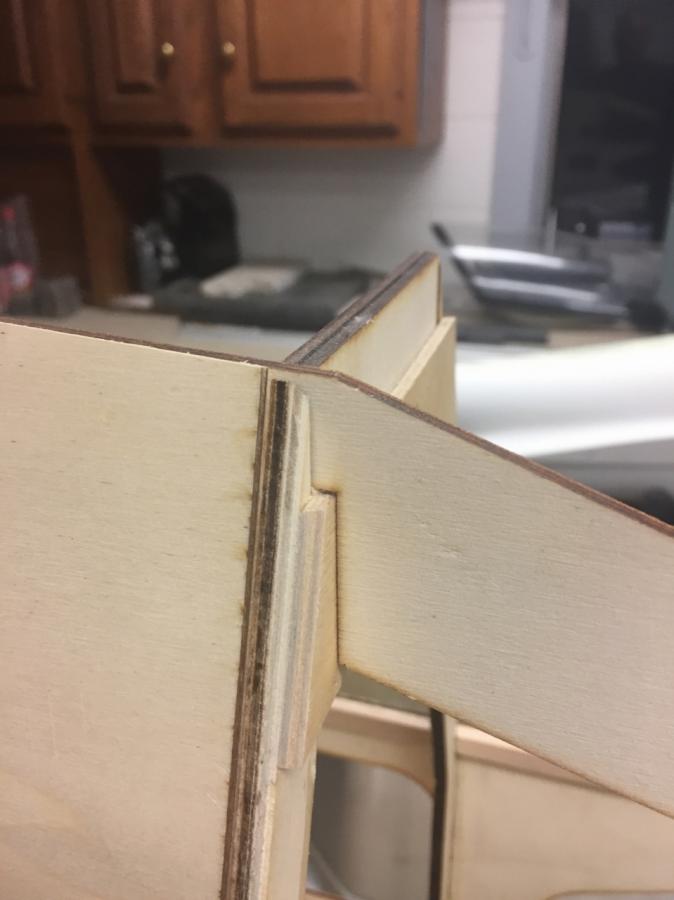

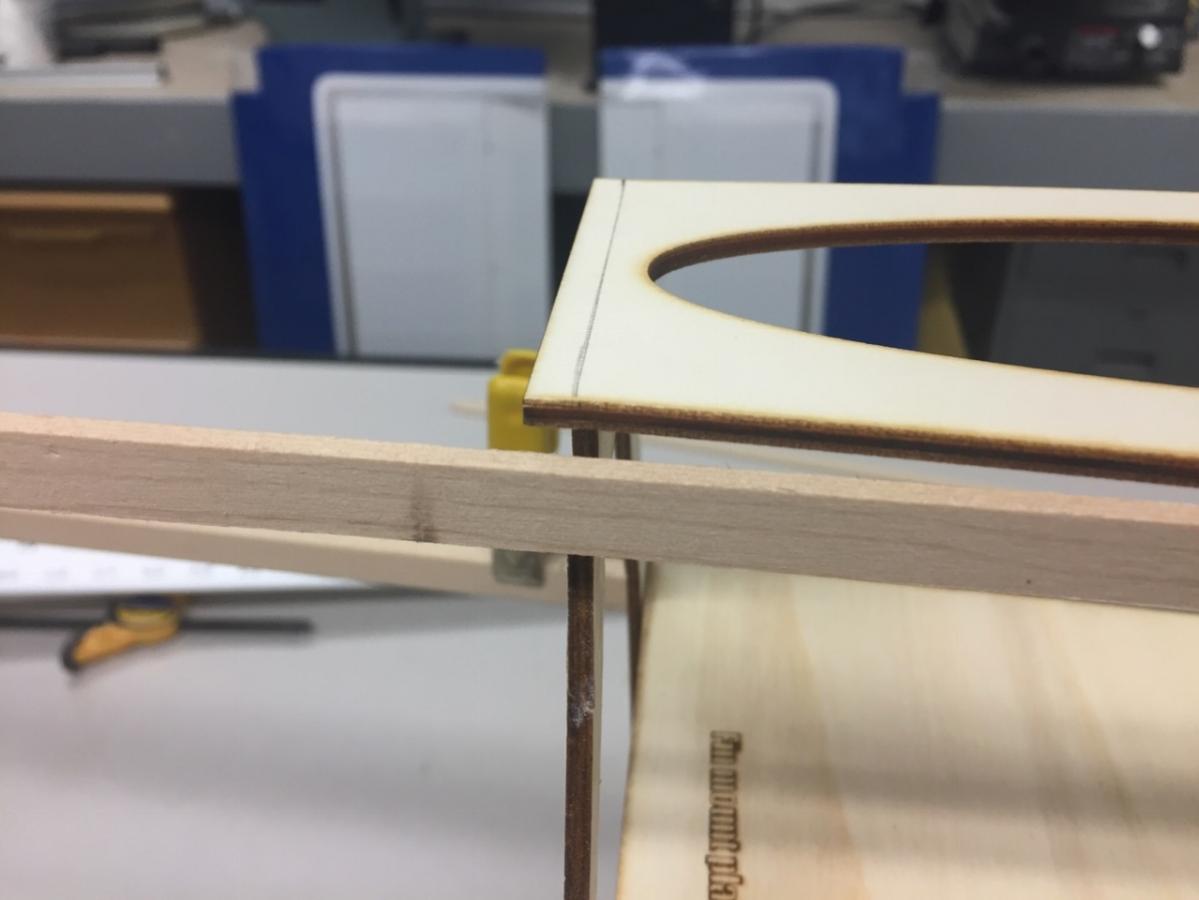

                  When fitting the top stringers I found I needed to add a shim after the rear former, at the bend,to make them fit snug. Worked for me.


                  Len Buffinton
                  Team Horizon Hobby

                  Comment


                  • #25

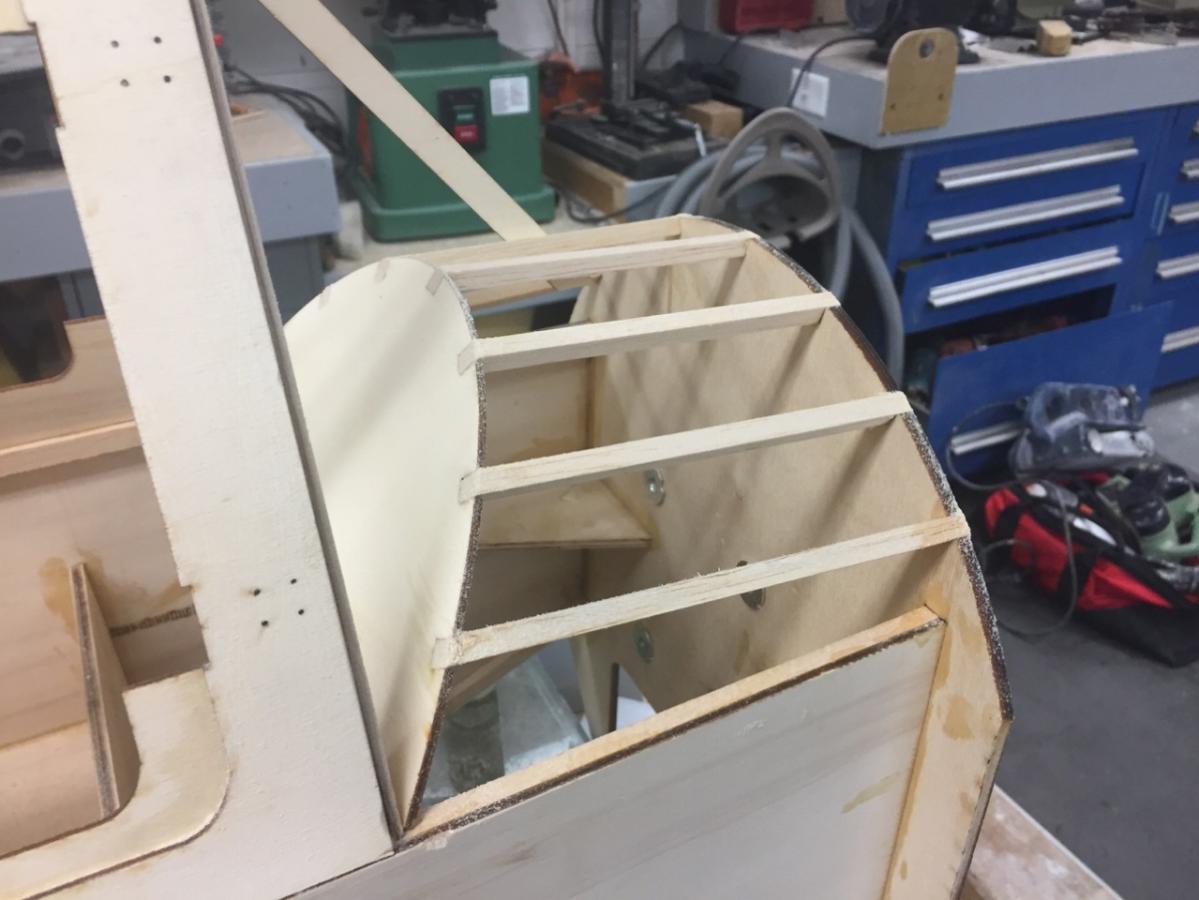

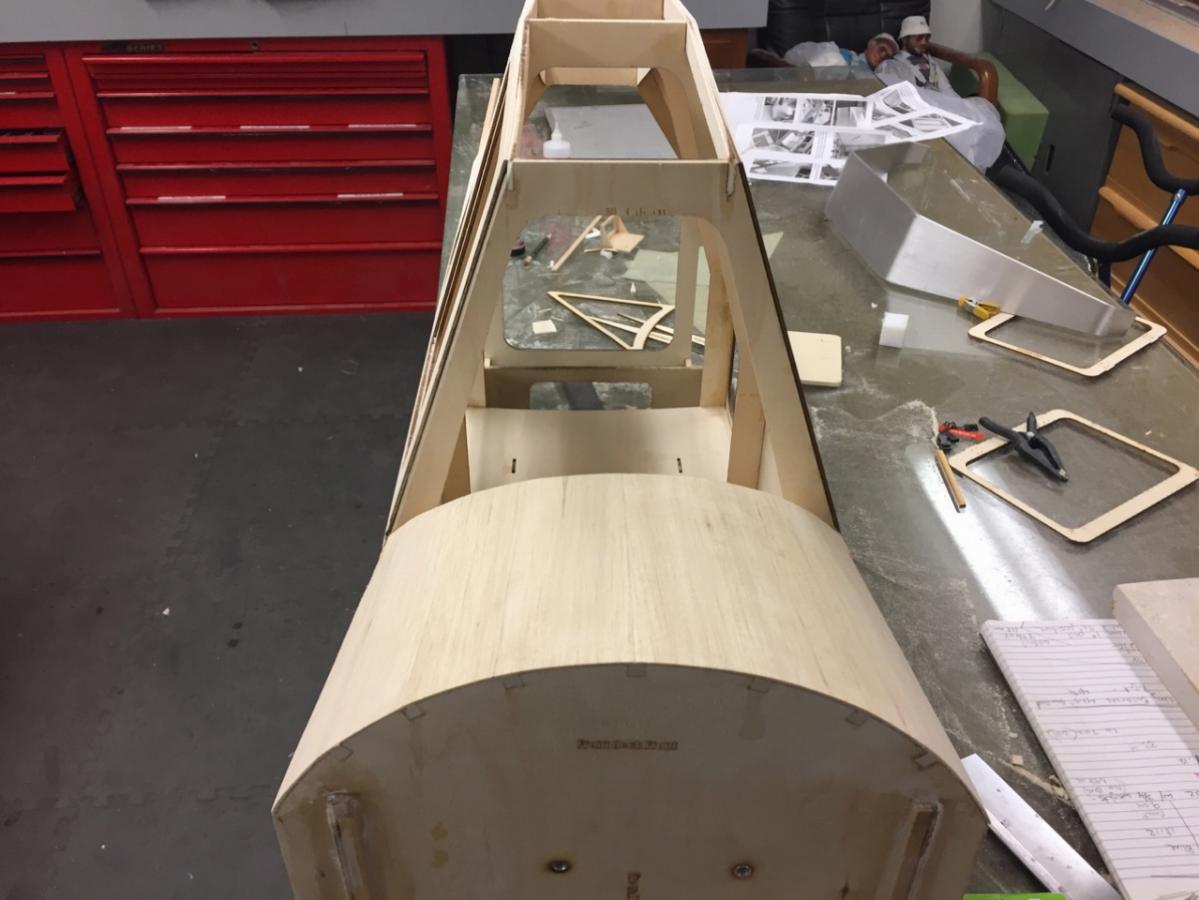

                    Both side are completed and moving onto the forward deck. After a lot of consideration and fitting, I decided to set the front deck 90 degrees off the firewall.

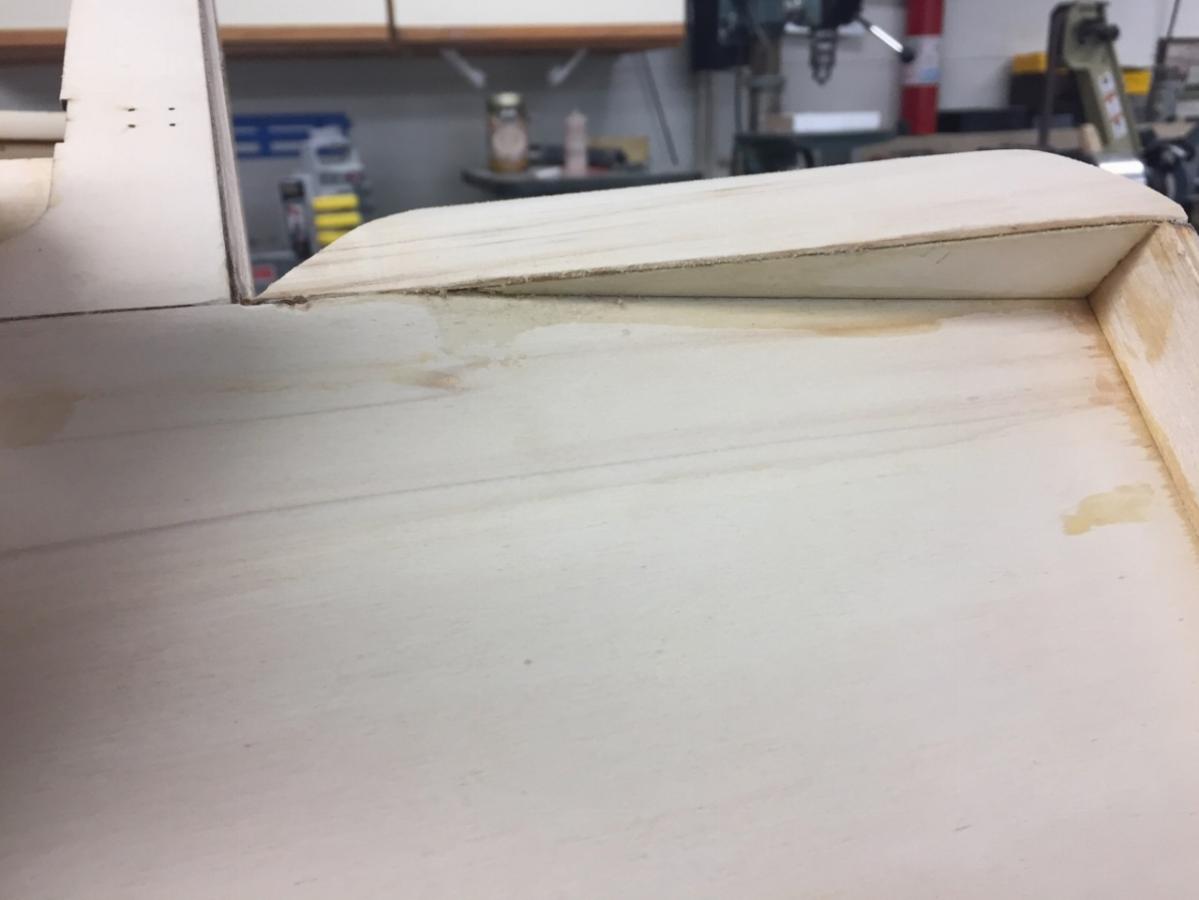

                    Glue in the stringers and sheet the top. Pete has us sheeting the top with very thin plywood, but it seemed to ripple a lot when I applies it, so I first sheeted it with 1/16 balsa, then the ply over the top. The result was a still straight forward deck.

                    Click image for larger version

Name:	1 - 47.jpg
Views:	99
Size:	88.3 KB
ID:	21869Click image for larger version

Name:	1 - 45.jpg
Views:	82
Size:	90.1 KB
ID:	21867
                    Click image for larger version

Name:	1 - 46.jpg
Views:	102
Size:	87.0 KB
ID:	21868
                    Click image for larger version

Name:	1 - 48.jpg
Views:	91
Size:	67.2 KB
ID:	21865Click image for larger version

Name:	1 - 49.jpg
Views:	83
Size:	56.6 KB
ID:	21866Click image for larger version

Name:	1 - 52.jpg
Views:	89
Size:	95.2 KB
ID:	21870Click image for larger version

Name:	1 - 51.jpg
Views:	85
Size:	93.3 KB
ID:	21871Click image for larger version

Name:	1 - 50.jpg
Views:	90
Size:	88.6 KB
ID:	21872
                    Len Buffinton
                    Team Horizon Hobby

                    Comment


                    • #26
                      At this point I wanted to get the top decking installed, but you need to build and install the tow release and install the servo setup.

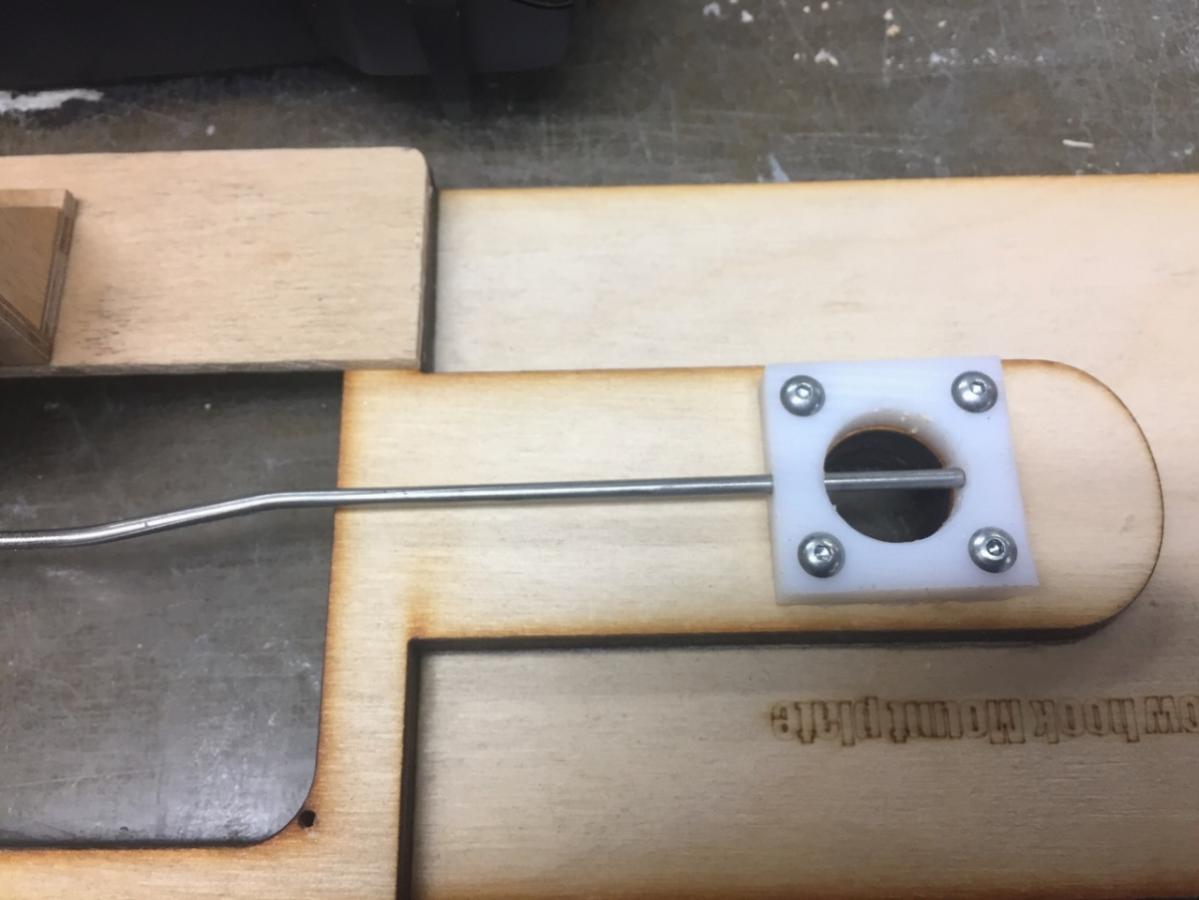

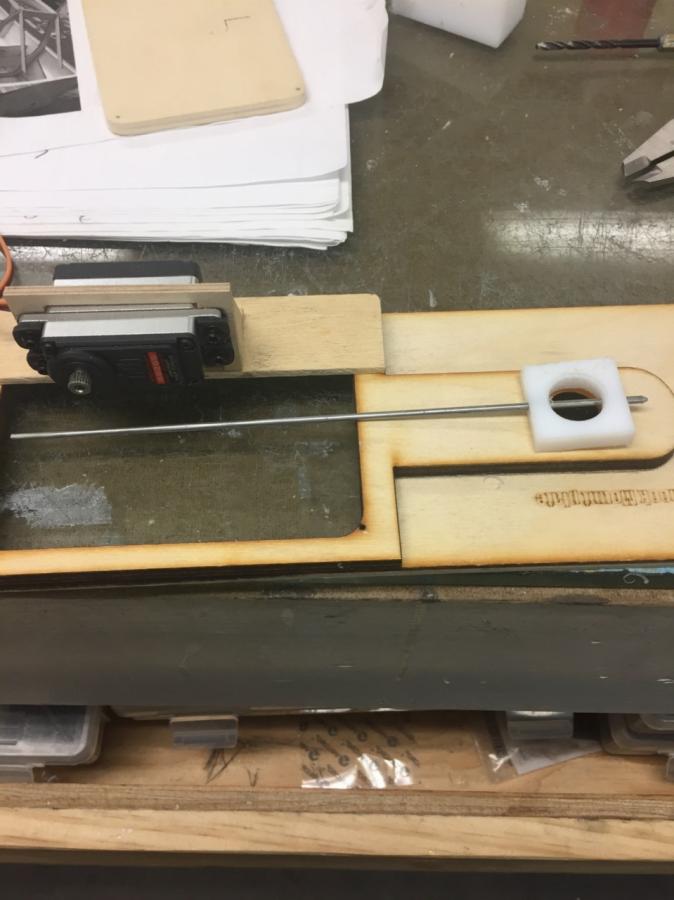

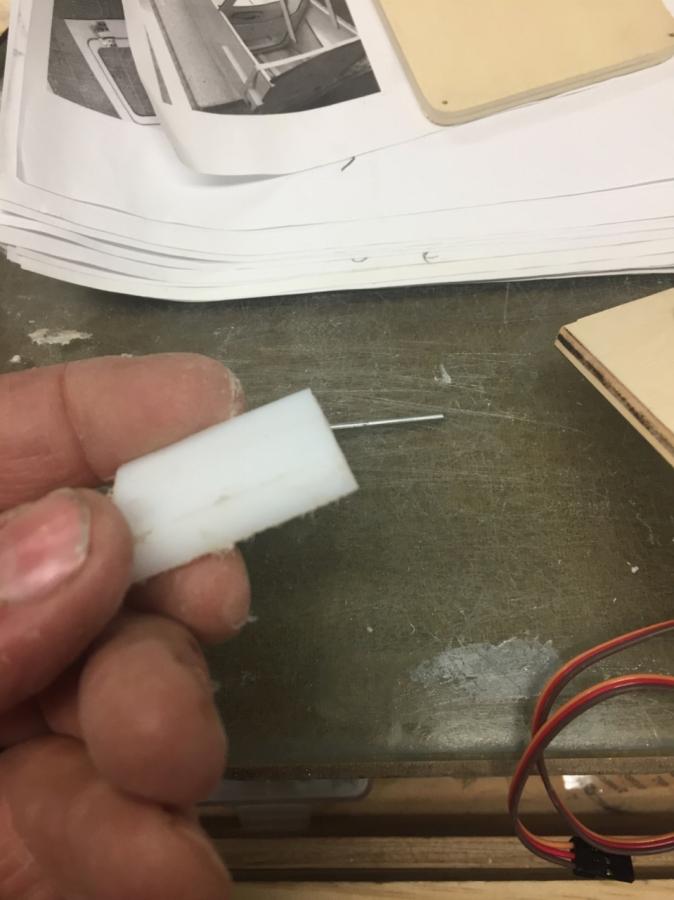

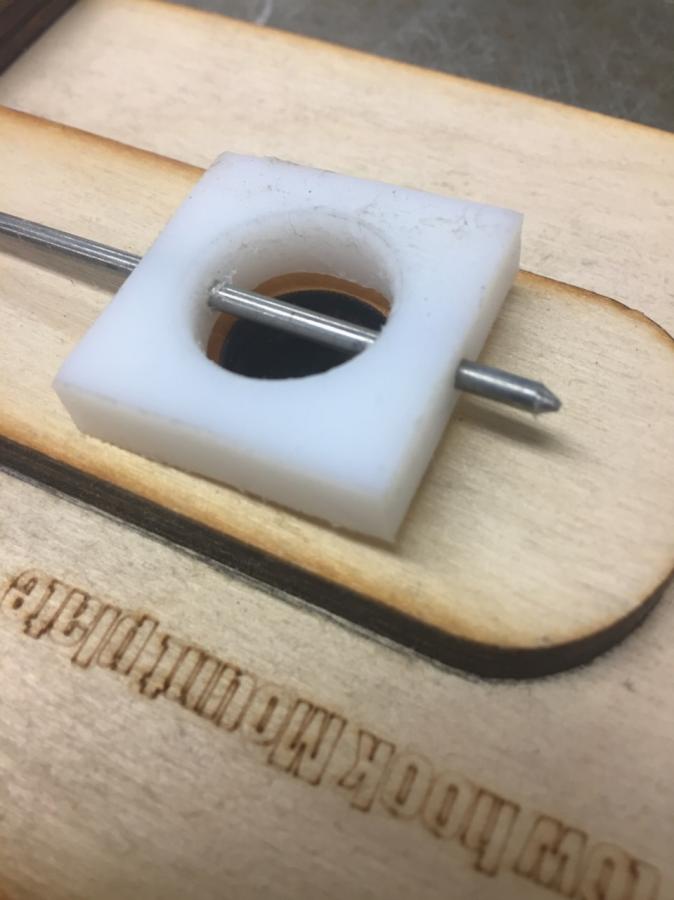

                      I chose to make a simple mod and construct the release out of a block of nylon.

                      Click image for larger version

Name:	1 - 37.jpg
Views:	81
Size:	53.2 KB
ID:	21876Click image for larger version

Name:	1 - 38.jpg
Views:	92
Size:	57.6 KB
ID:	21874Click image for larger version

Name:	1 - 39.jpg
Views:	92
Size:	50.4 KB
ID:	21875Click image for larger version

Name:	1 - 40.jpg
Views:	89
Size:	106.0 KB
ID:	21877Click image for larger version

Name:	1 - 41.jpg
Views:	94
Size:	78.4 KB
ID:	21878
                      Len Buffinton
                      Team Horizon Hobby

                      Comment


                      • #27

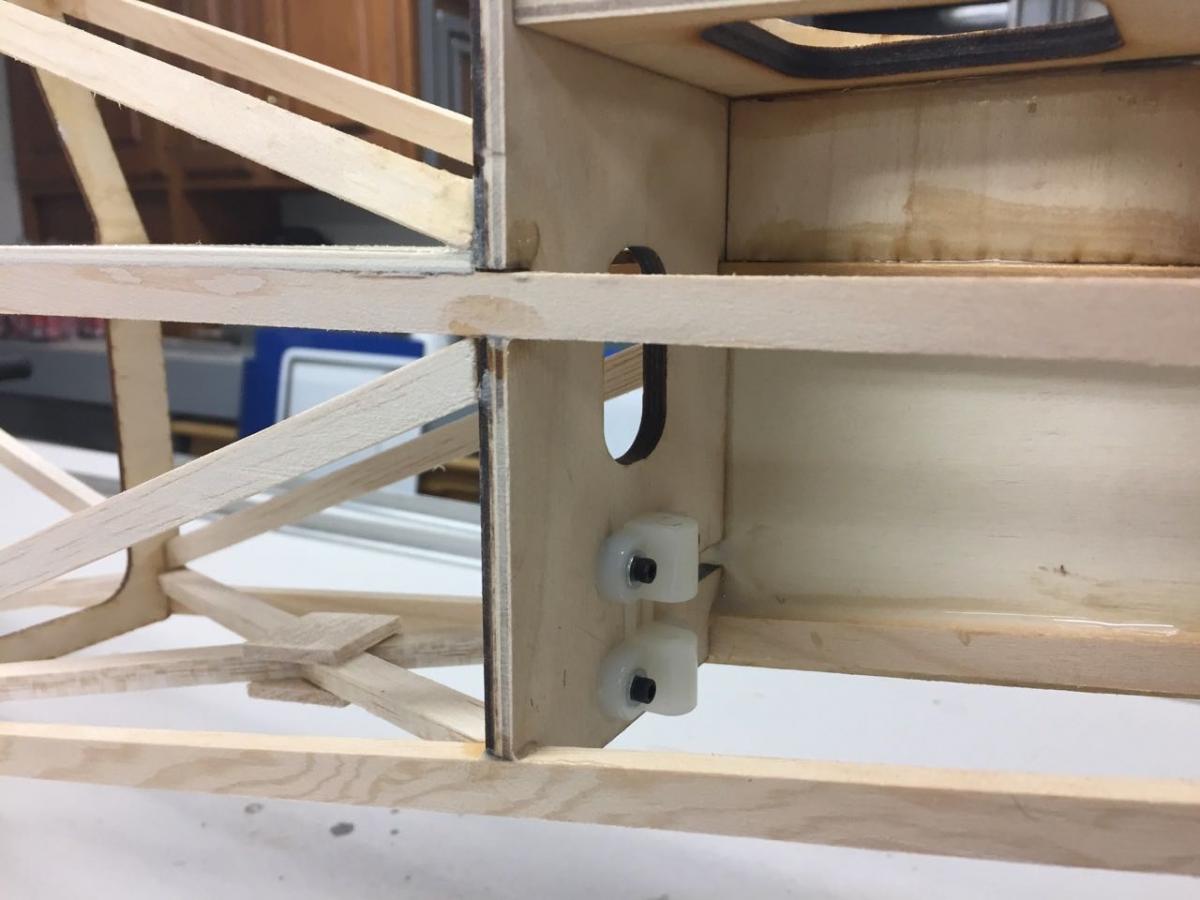

                        Install the tow release system into the top of the cabin.

                        Click image for larger version

Name:	1 - 55.jpg
Views:	107
Size:	55.8 KB
ID:	21887

                        Len Buffinton
                        Team Horizon Hobby

                        Comment


                        • #28
                          Now the fun begins.

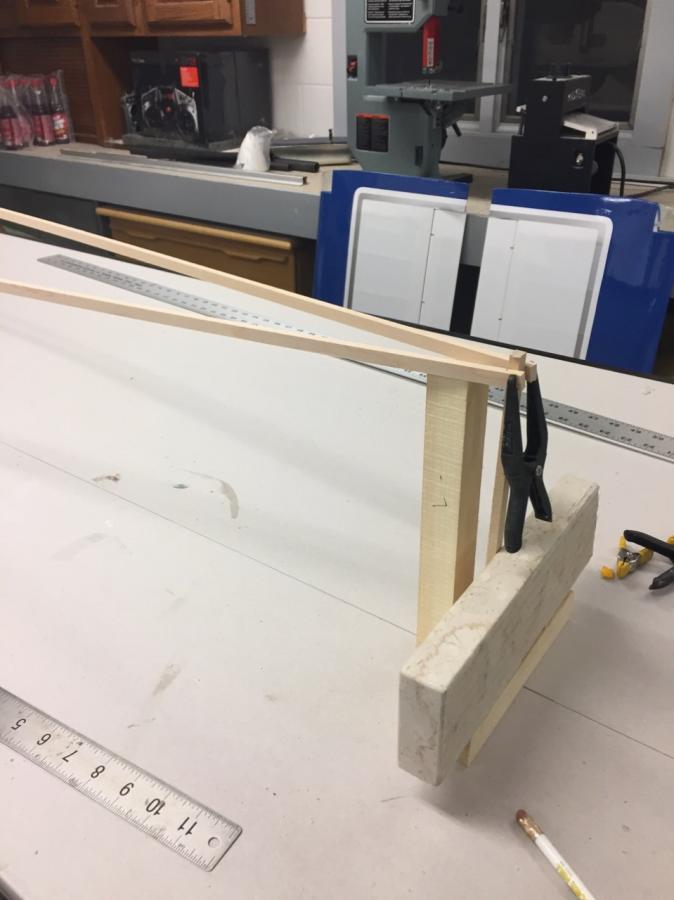

                          Join the longerons with the pieces set aside earlier in the build.

                          Mark a centerline on the building board with a 90 degree line across the board at the fuse former locations or reference. These lines will indicate the fuse location during construction of the tail boom. Be sure to make a center mark on the rear and front former.

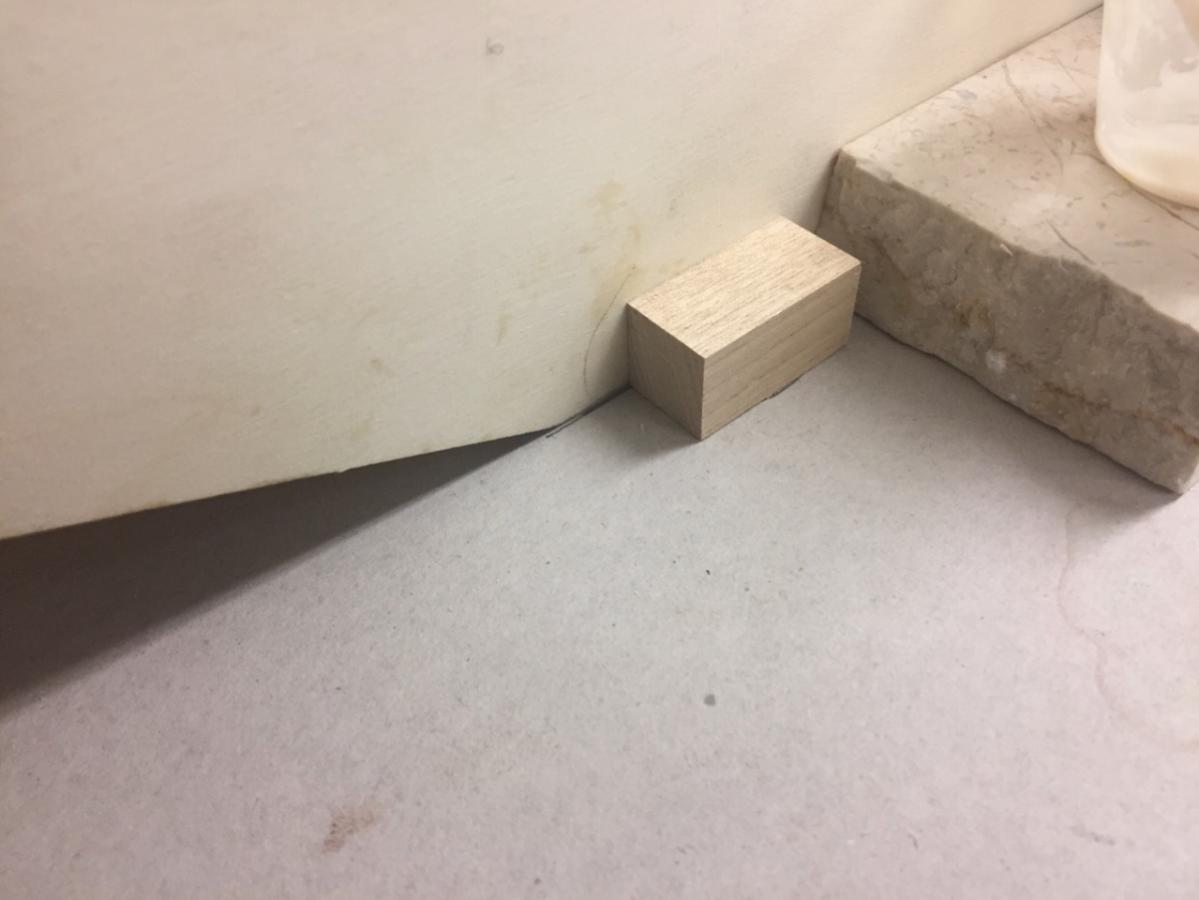

                          With the fuse in place, hot glue some blocks to the board and lock in the fuse cabin so it will not move, it should sit flat on the table.

                          Click image for larger version

Name:	1 - 71.jpg
Views:	90
Size:	63.4 KB
ID:	21897


                          With this setup as indicated, the longerons will be parallel to the table. Its VERY important they stay parallel. Block the rear longerons up so they stay this way. Its worth taking the time to build a good station that holds everything in place. Check measurements at the fuse and then the end of the longerons.

                          Click image for larger version

Name:	1 - 54.jpg
Views:	96
Size:	50.4 KB
ID:	21896

                          Click image for larger version

Name:	1 - 56.jpg
Views:	101
Size:	45.2 KB
ID:	21895

                          Len Buffinton
                          Team Horizon Hobby

                          Comment


                          • ARUP
                            ARUP commented
                            Editing a comment
                            Gettin' jiggy with it are we?

                        • #29

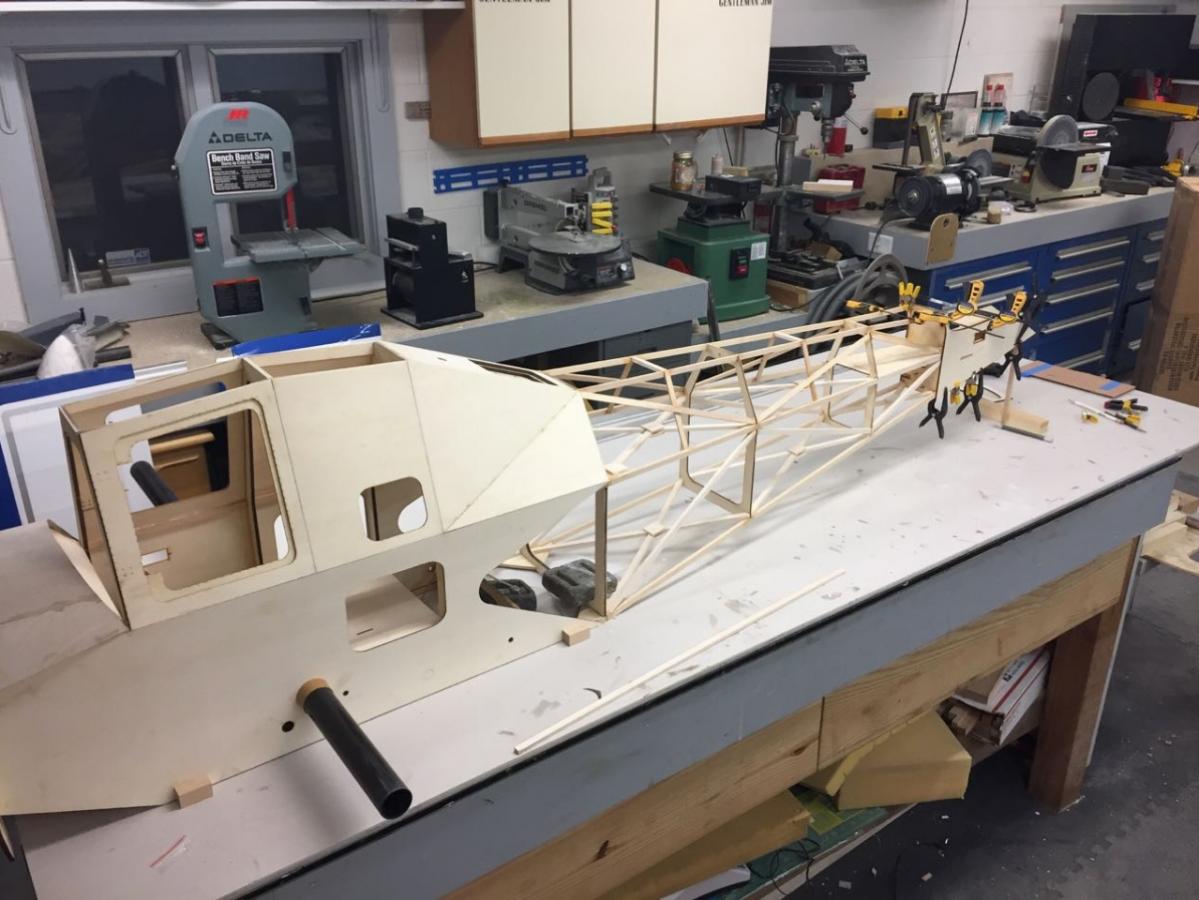

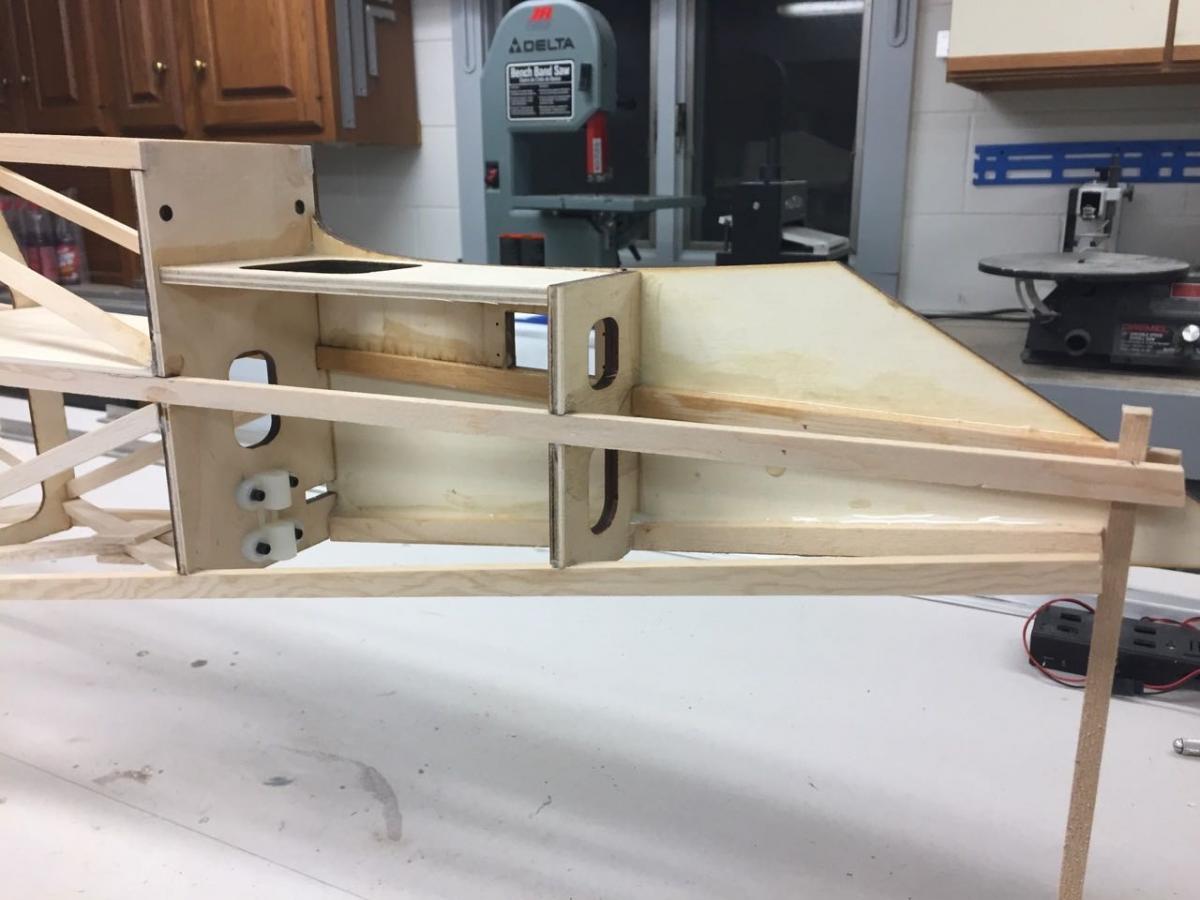

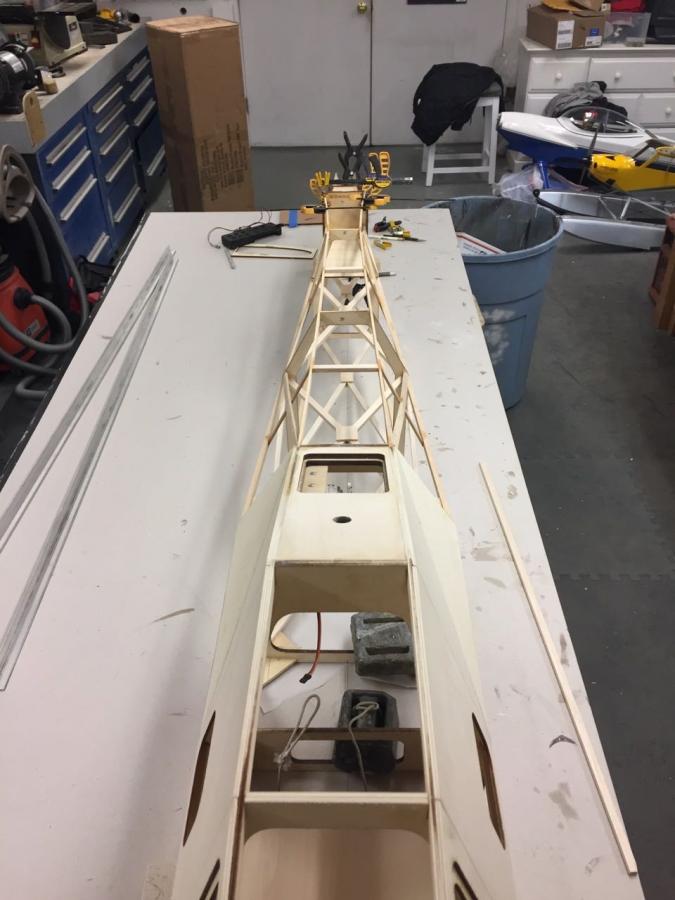

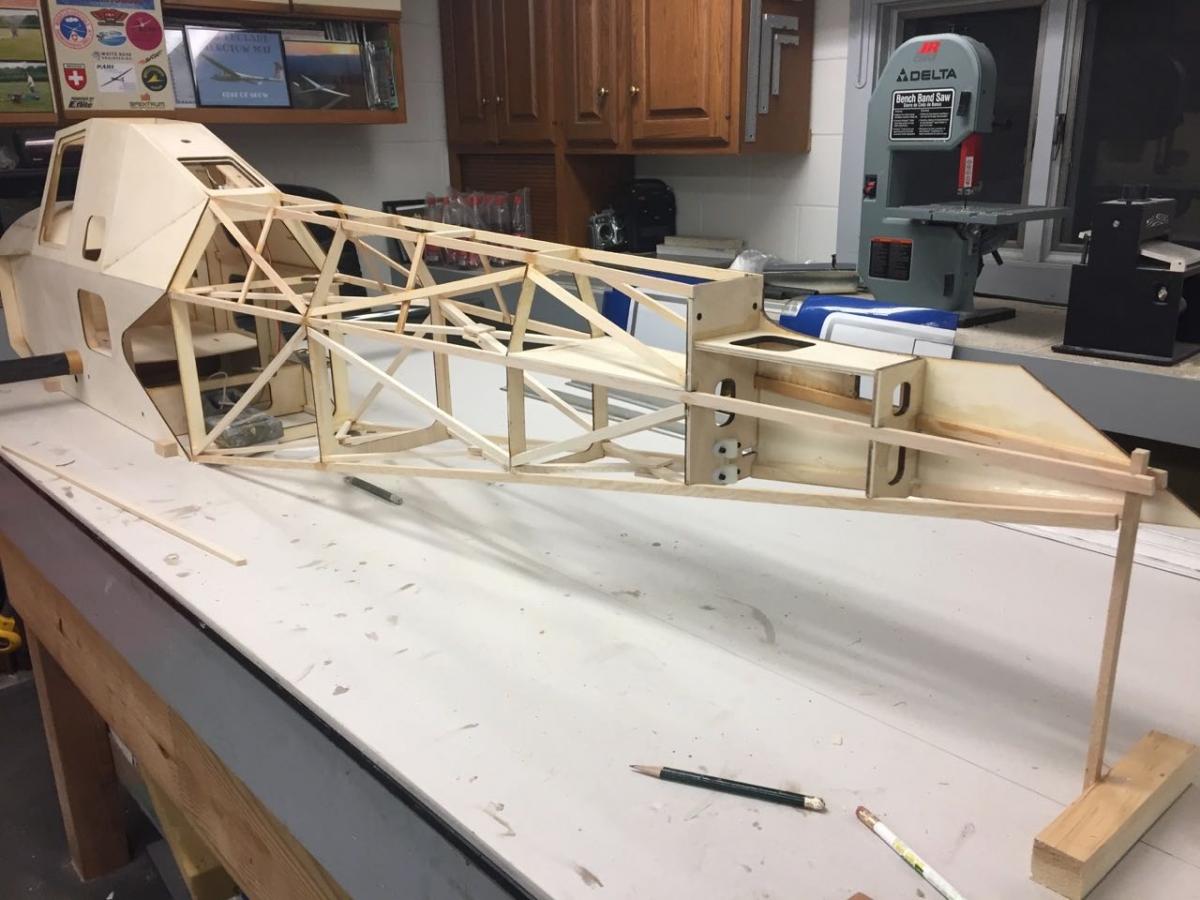

                          Continuing on with the tail section of the fuse.

                          Since this section is basically built "in space", I needed to figure out where the stab support box would be located. I measured off the plans, which gave me a rough idea, but being a cross checker ( not dresser) I decided to assemble as much of this dry before committing to glue.

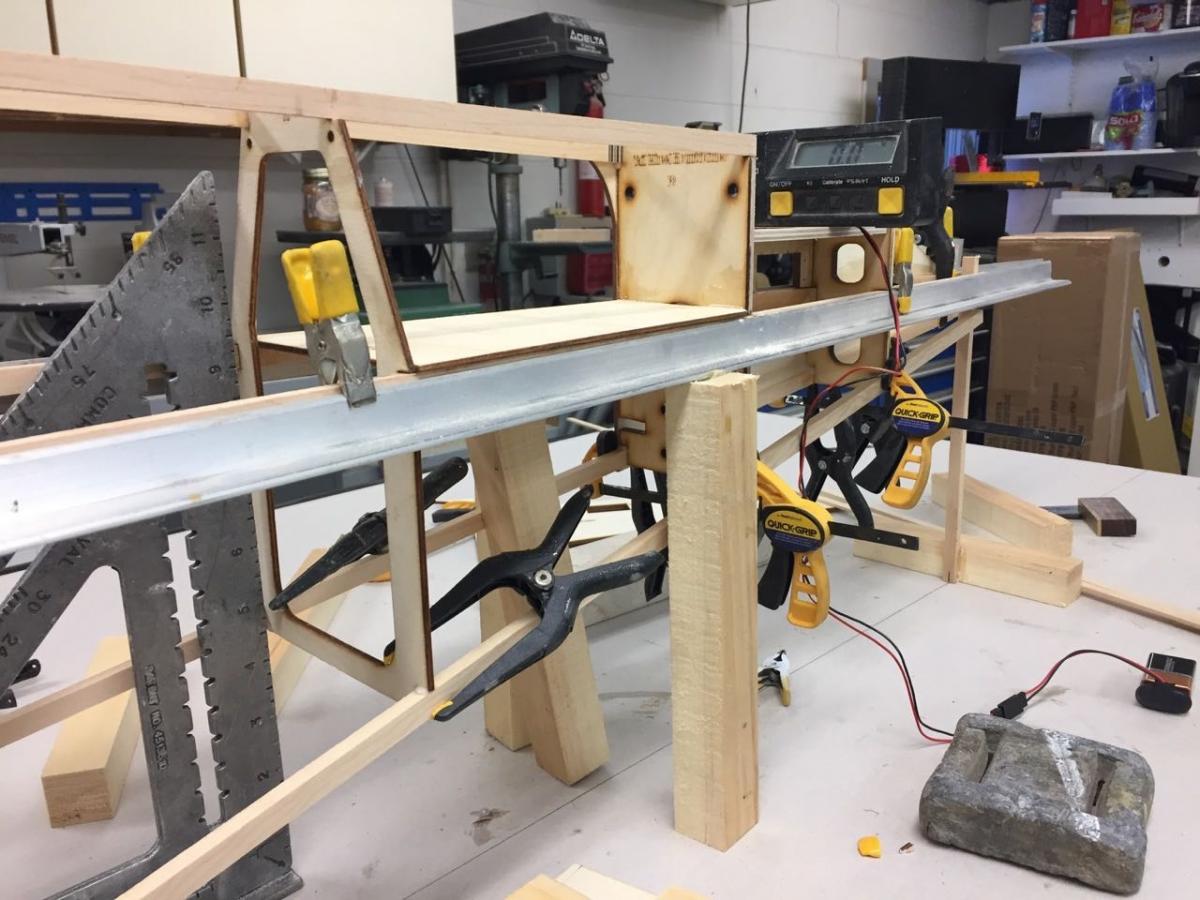

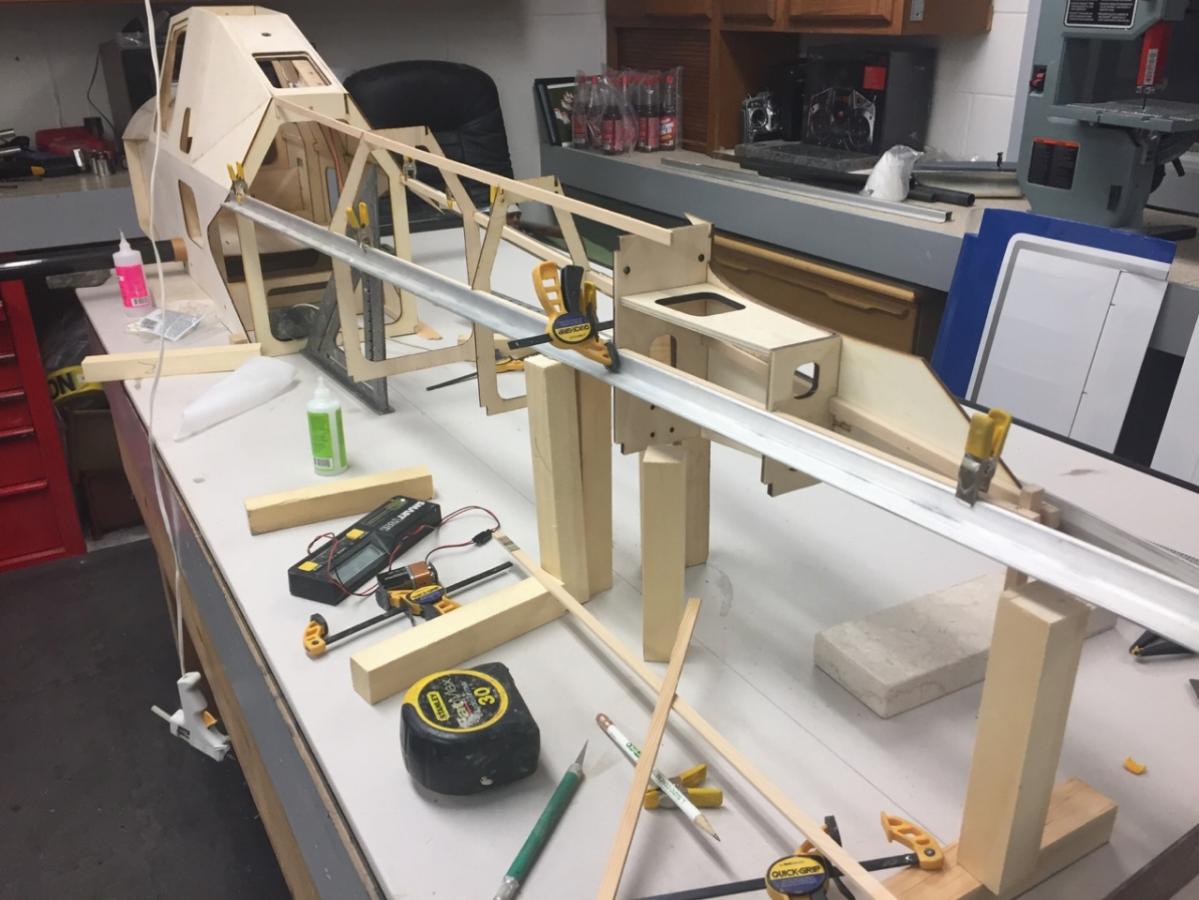

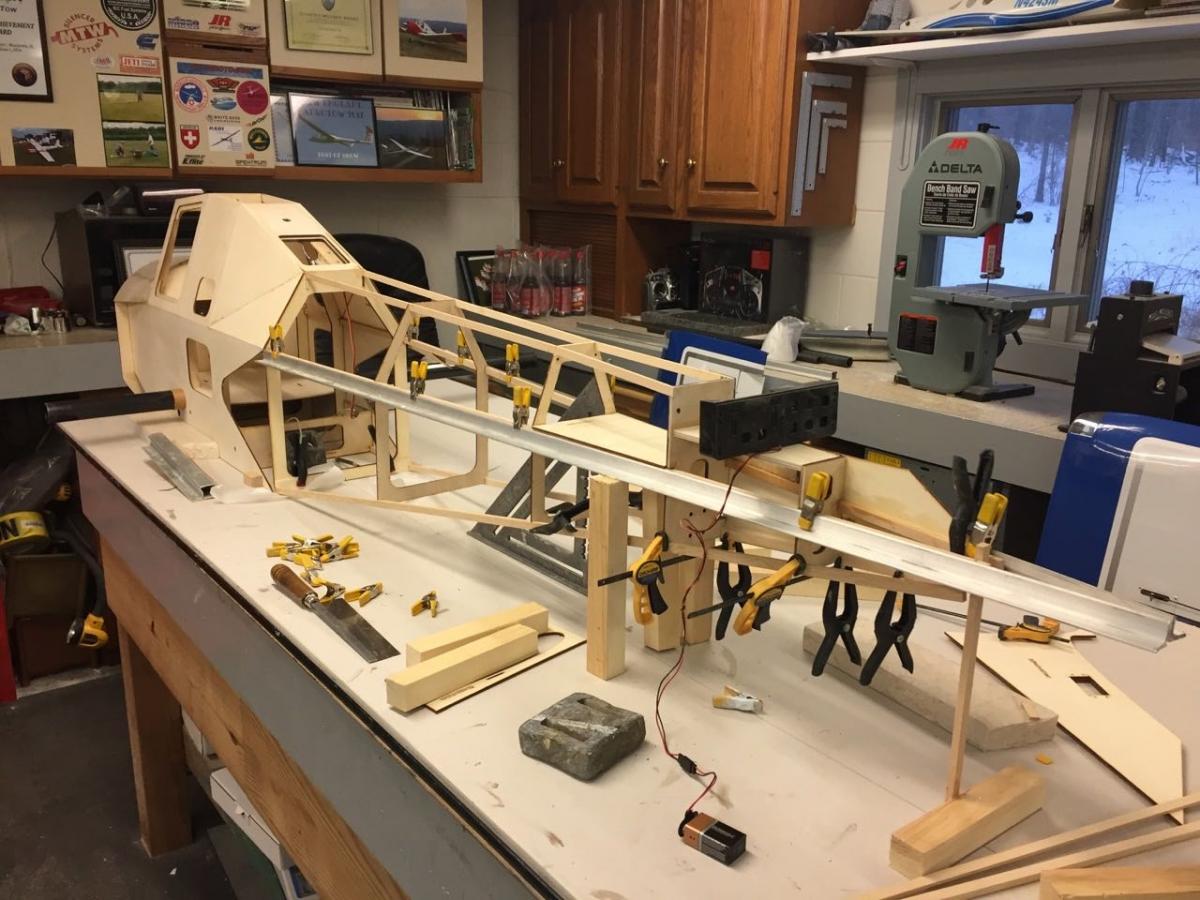

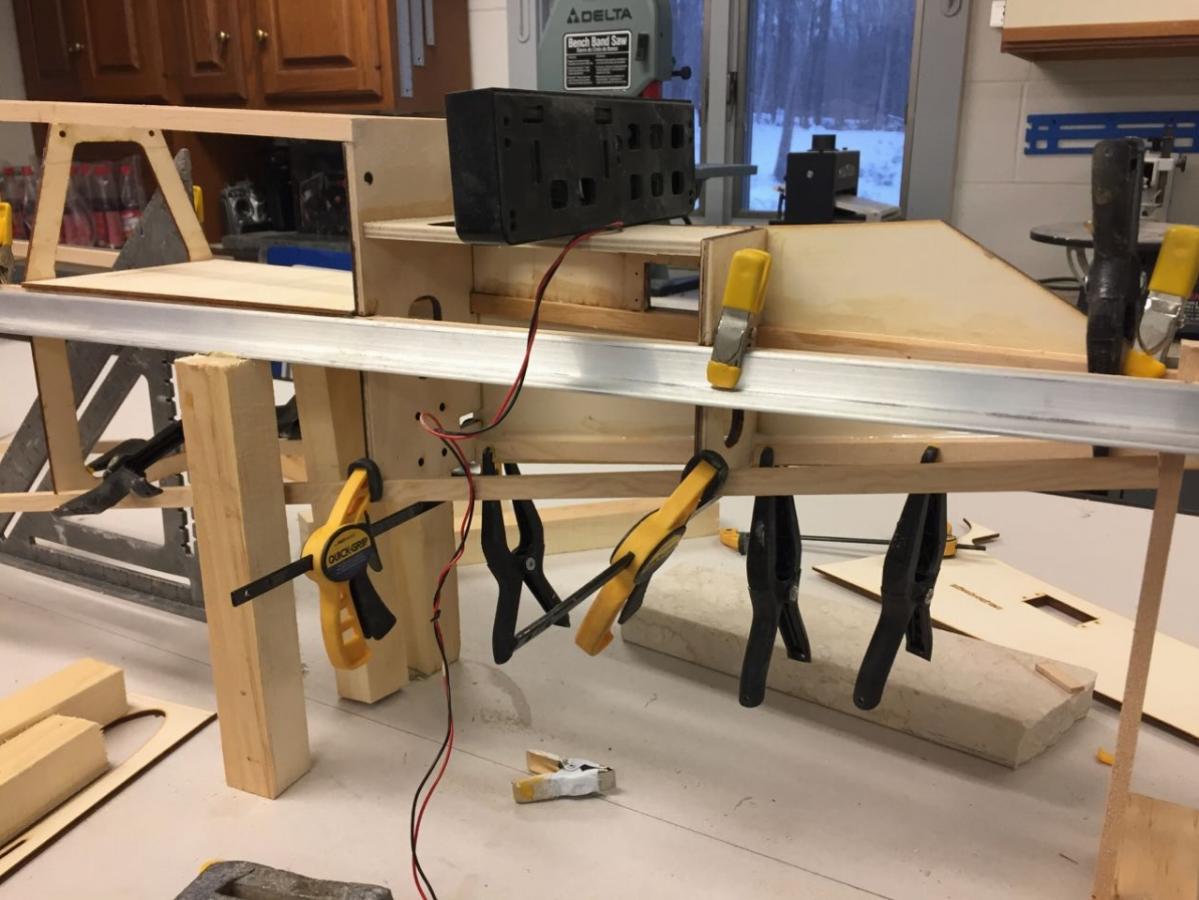

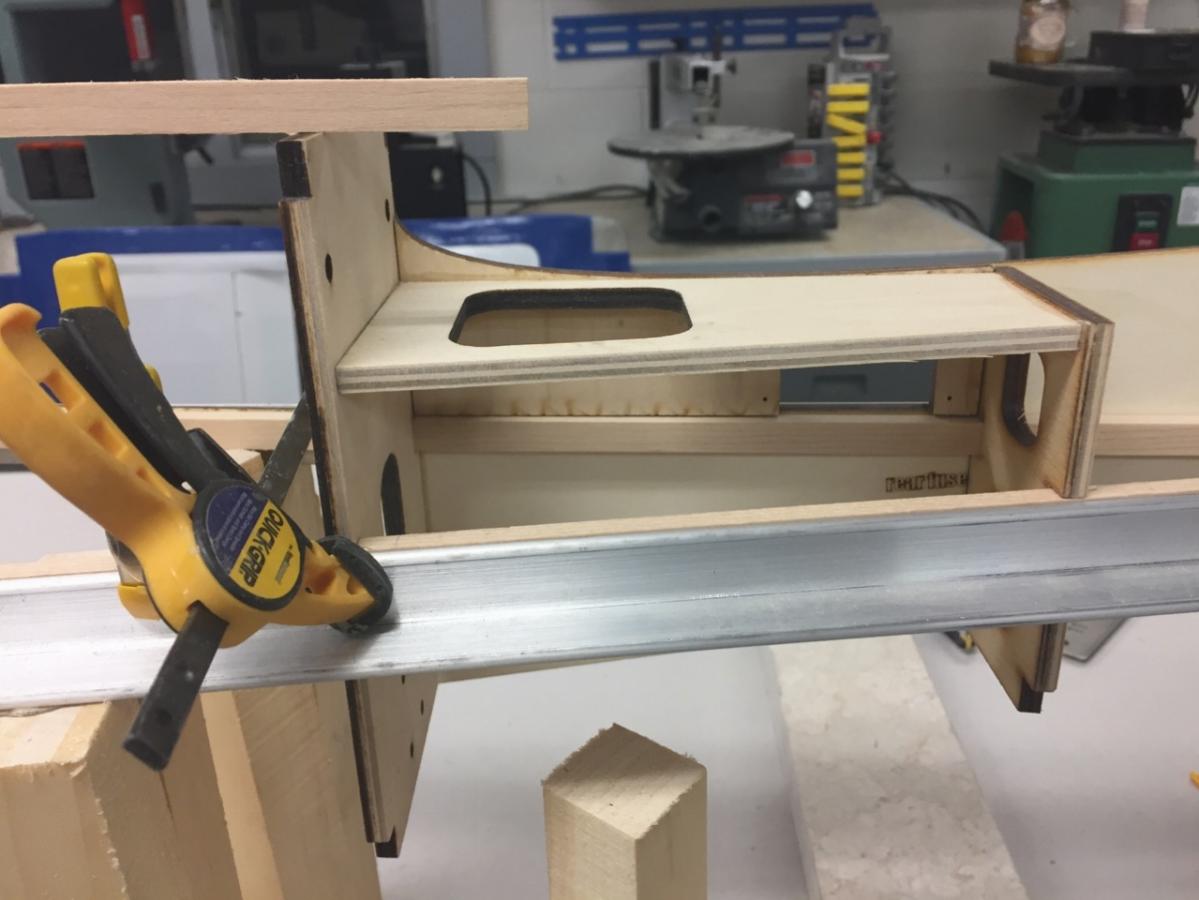

                          First I clamped and aluminum angle to each main longeron, this kept the sides straight and level with the bench. Of course I needed to block the aluminum up at the rear, which was done with 2x2 blocks and hot melt glue. Also, temporary install the formers at the measured locations to check for proper alignment. These were NOT glued in at this time. Click image for larger version  Name:	1 - 59.jpg Views:	1 Size:	101.9 KB ID:	22065
                          Click image for larger version  Name:	1 - 57.jpg Views:	1 Size:	45.9 KB ID:	22061

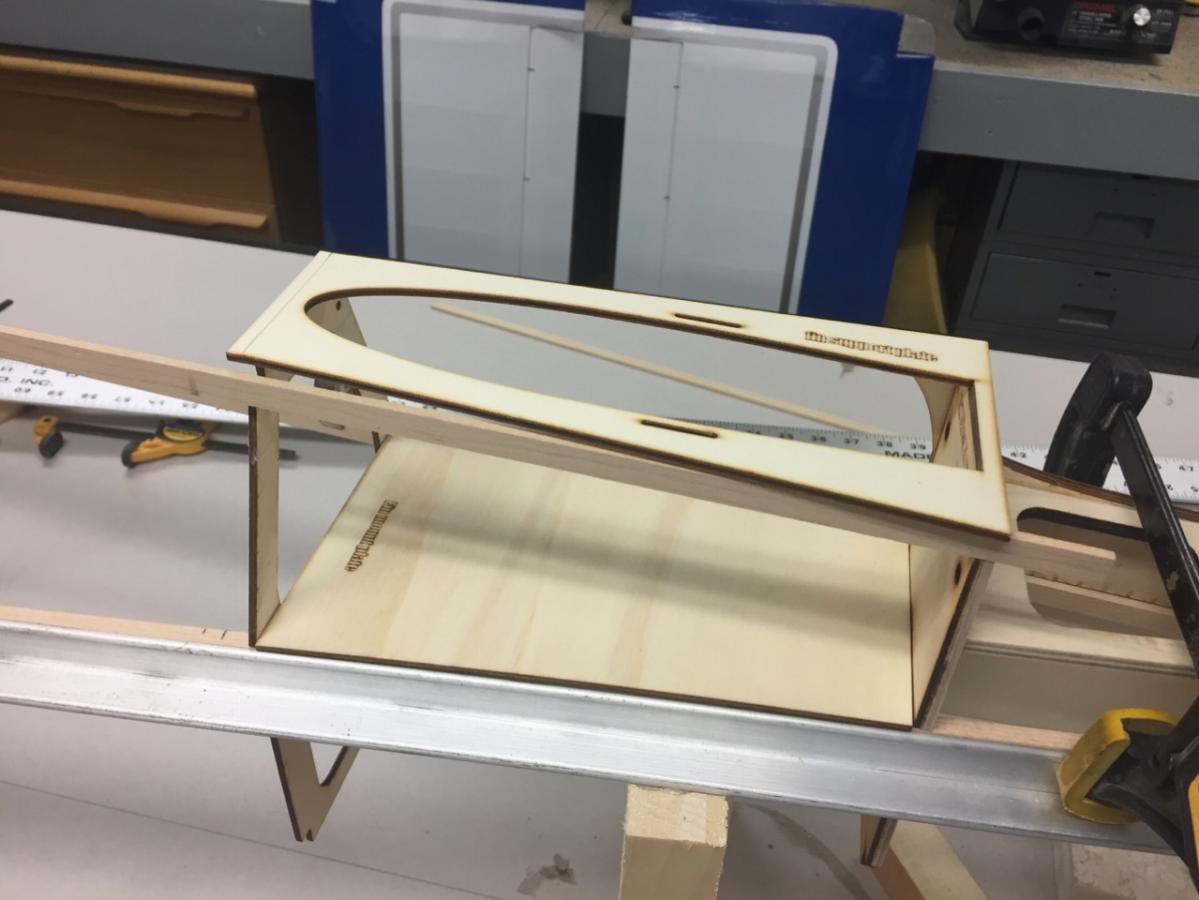

                          Build one half of the stab support plateform, then slide it on the two side longerons, checking the straightness of the sides as you slide it forward and back.
                          Once happy, glue it in place
                          Add the top stringers.
                          Click image for larger version  Name:	1 - 58.jpg Views:	1 Size:	110.4 KB ID:	22064

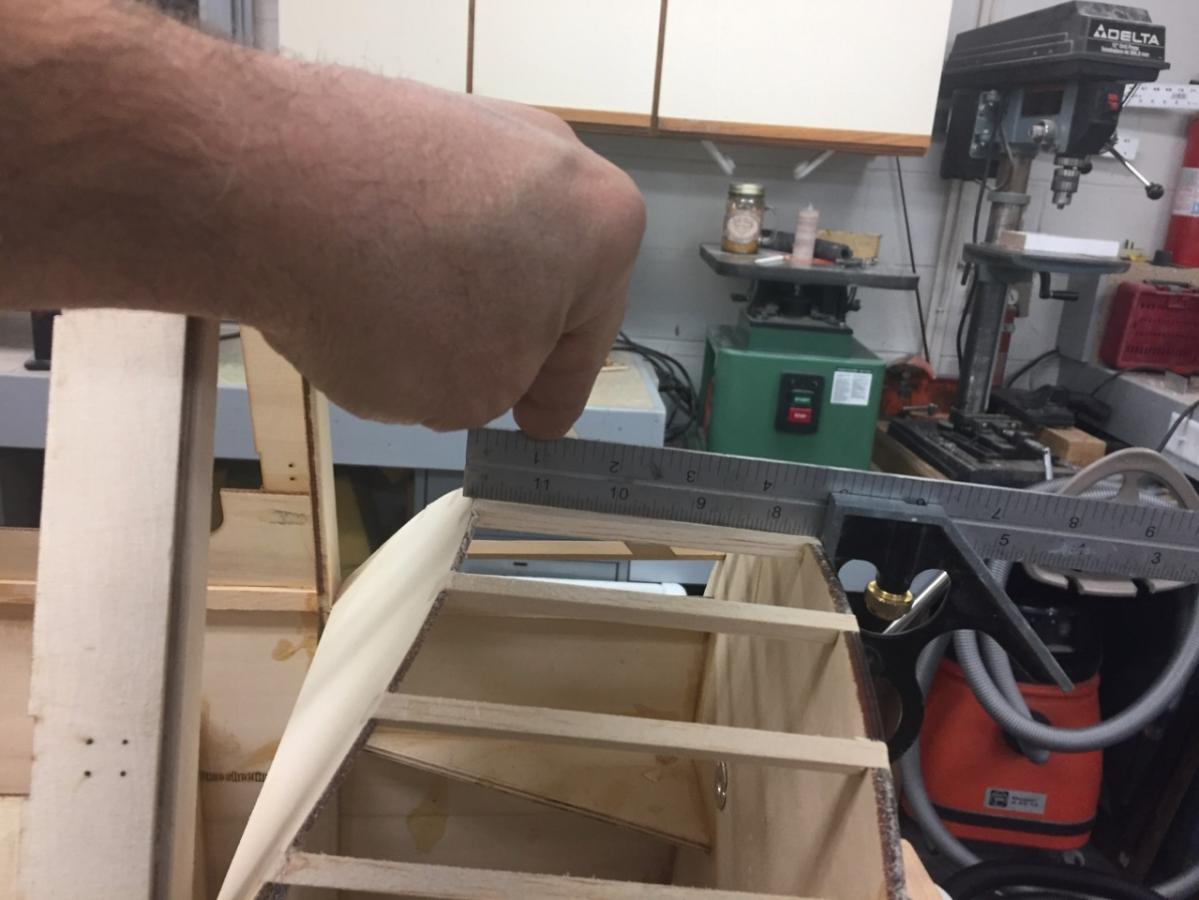

                          Once happy, install the formers but make sure the the sides are STRAIGHT.

                          Click image for larger versionName:	1 - 61.jpgViews:	1Size:	79.7 KBID:	22062


                          Click image for larger version  Name:	image_8135.jpg Views:	1 Size:	60.3 KB ID:	22060
                          Click image for larger version  Name:	image_8141.jpg Views:	1 Size:	45.4 KB ID:	22066

                          Attached Files
                          Len Buffinton
                          Team Horizon Hobby

                          Comment


                          • #30

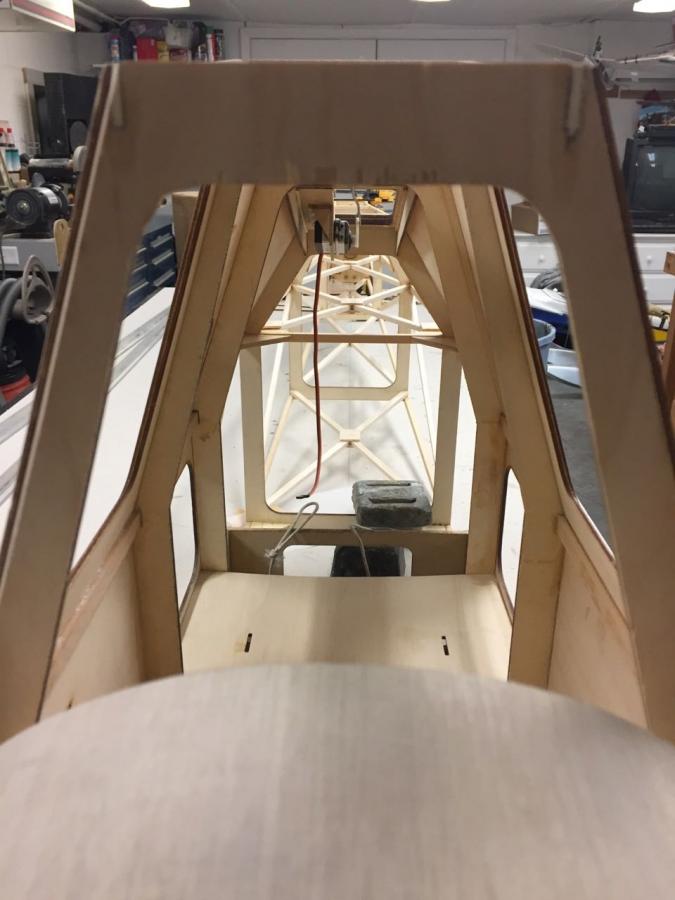

                            Photo dump Click image for larger version

Name:	1 - 3.jpg
Views:	75
Size:	76.7 KB
ID:	22250

                            Click image for larger version

Name:	1 - 6.jpg
Views:	73
Size:	85.7 KB
ID:	22251

                            Click image for larger version

Name:	1 - 2.jpg
Views:	73
Size:	109.4 KB
ID:	22252

                            Click image for larger version

Name:	1 - 1.jpg
Views:	73
Size:	140.5 KB
ID:	22253

                            Click image for larger version

Name:	1 - 4.jpg
Views:	74
Size:	125.1 KB
ID:	22254

                            Click image for larger version

Name:	1 - 5.jpg
Views:	73
Size:	82.9 KB
ID:	22255

                            Click image for larger version

Name:	1 - 7.jpg
Views:	72
Size:	109.9 KB
ID:	22256

                            Click image for larger version

Name:	1 - 9.jpg
Views:	72
Size:	64.5 KB
ID:	22257

                            Click image for larger version

Name:	1 - 10.jpg
Views:	72
Size:	55.3 KB
ID:	22258

                            Click image for larger version

Name:	1 - 8.jpg
Views:	70
Size:	113.7 KB
ID:	22259

                            Len Buffinton
                            Team Horizon Hobby

                            Comment
