    Len's Czmelak "Smellyak" build

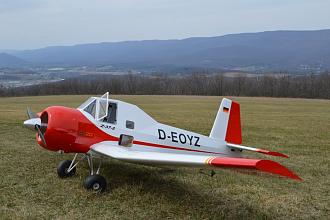

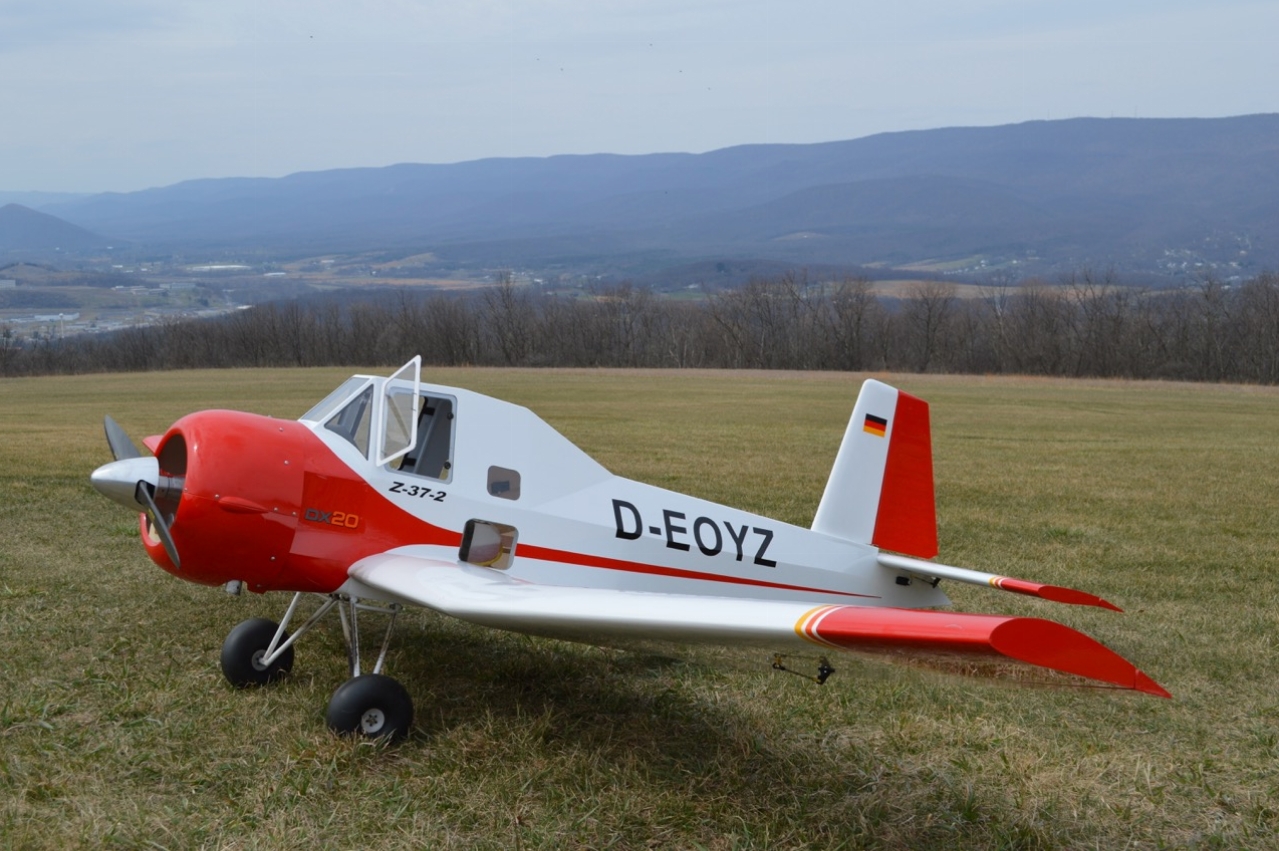

    Pete Goldsmith designed this airplane primarily as a tow plane for aerotowing of both large and small scale sailplanes. The prototype is powered with a DA 150 on standard mufflers. The prototype was constructed in about 6 weeks, from drawing to test flight and since then, the Czmelak, which we all affectionally call the "Smellyak", has performed flawlessly

    Click image for larger version

Name:	1.jpg
Views:	1390
Size:	637.5 KB
ID:	21066

    My Smellyak build

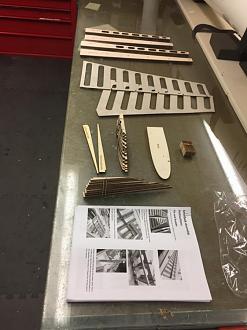

    This build started back in the middle of the summer, this large cardboard box contains all the wood, gear and cowl to build the plane.

    Click image for larger version

Name:	2.jpg
Views:	1303
Size:	54.3 KB
ID:	21067 ​

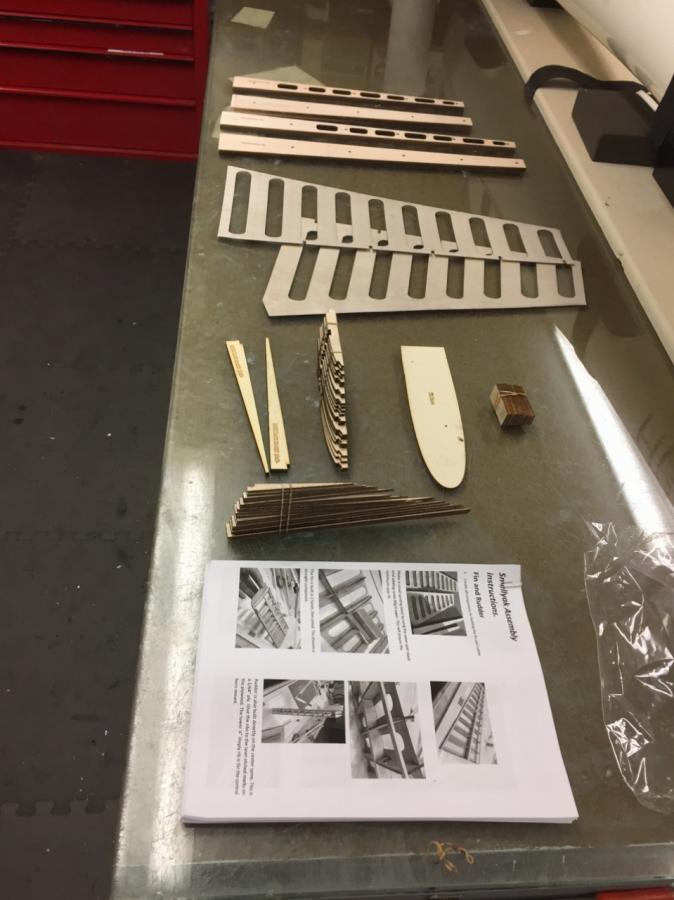

    Start by gathering all the part for that particular task. Here the rudder template, ribs ( for both sides), the tailpost and caps are all ready to go.
    ​ Click image for larger version

Name:	3.jpg
Views:	1313
Size:	65.5 KB
ID:	21062

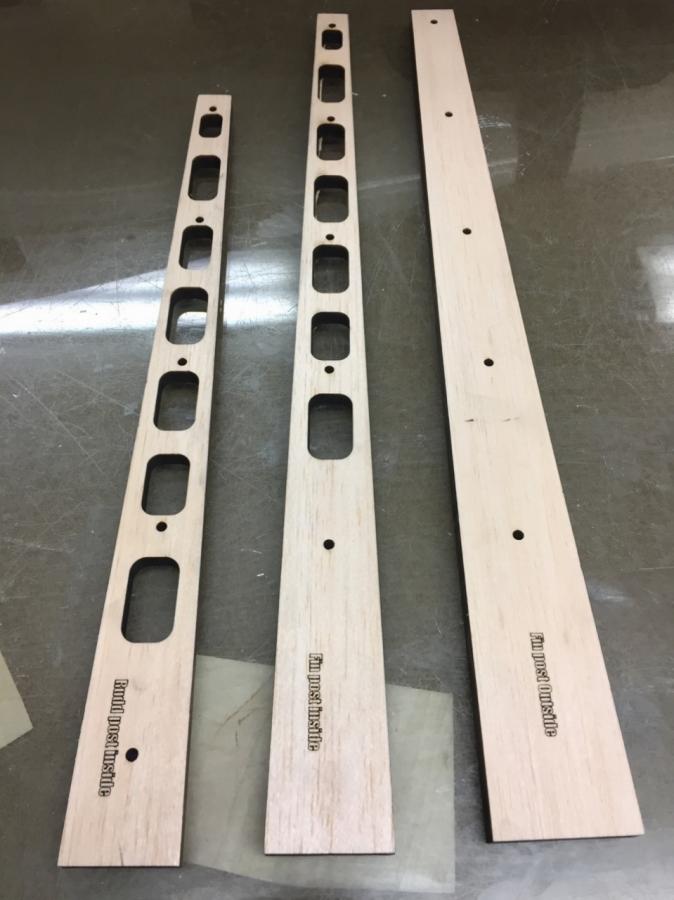

    Fin posts are thick balsa, well designed to help eliminate excess weight

    ​
    Click image for larger version

Name:	5.jpg
Views:	1341
Size:	57.8 KB
ID:	21063

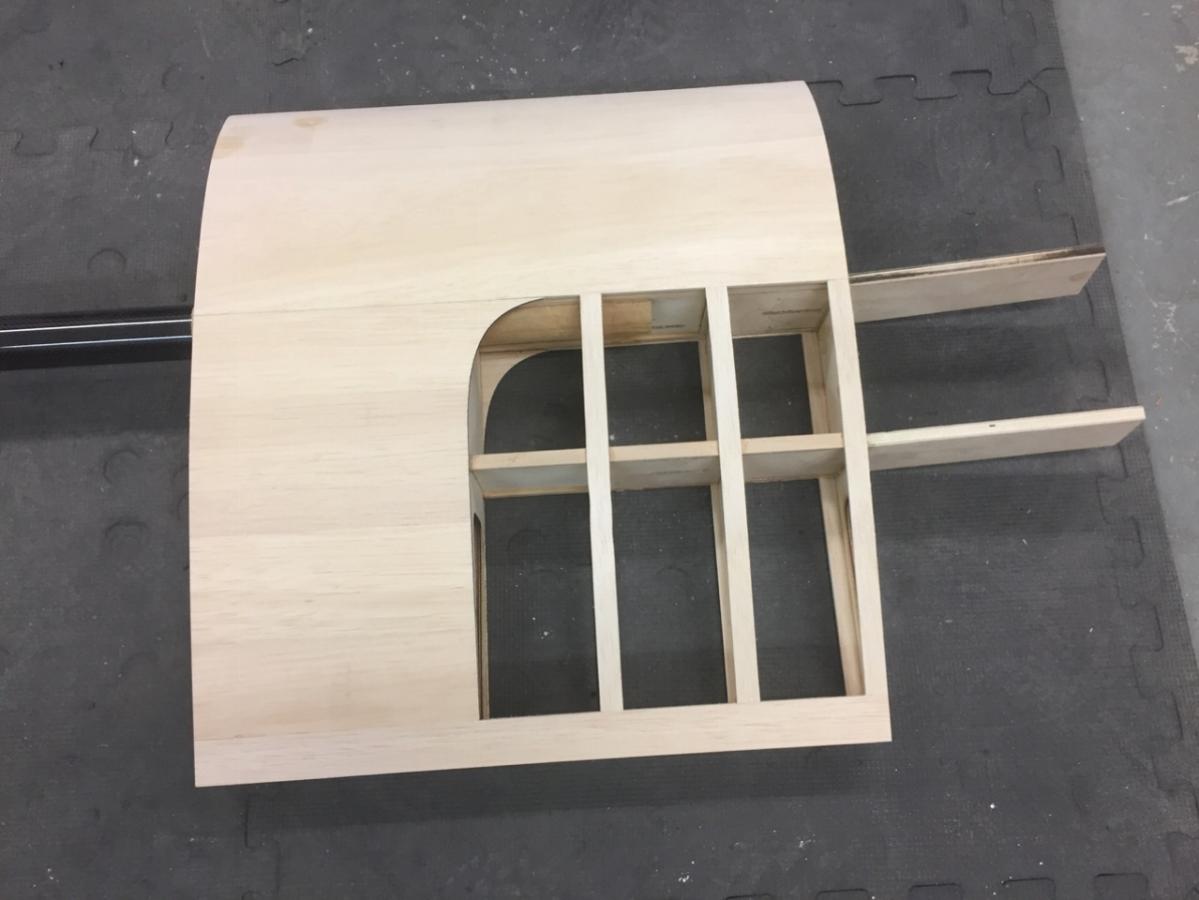

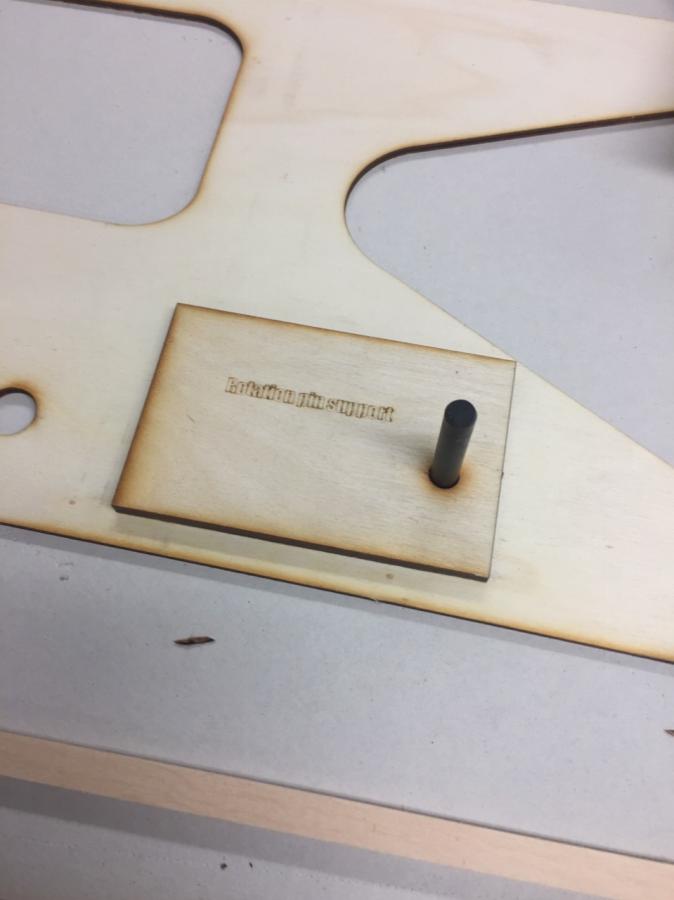

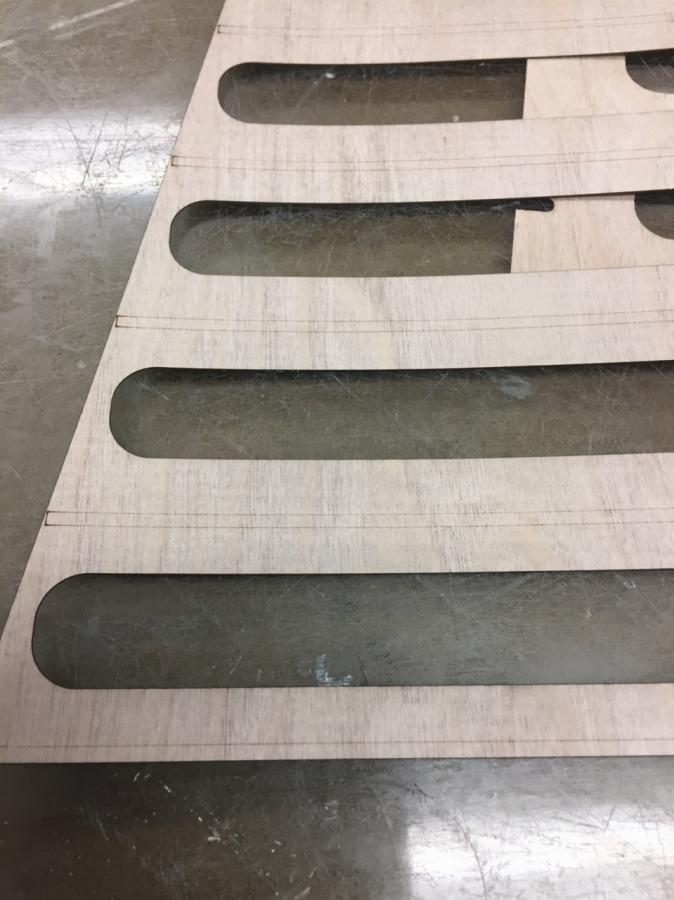

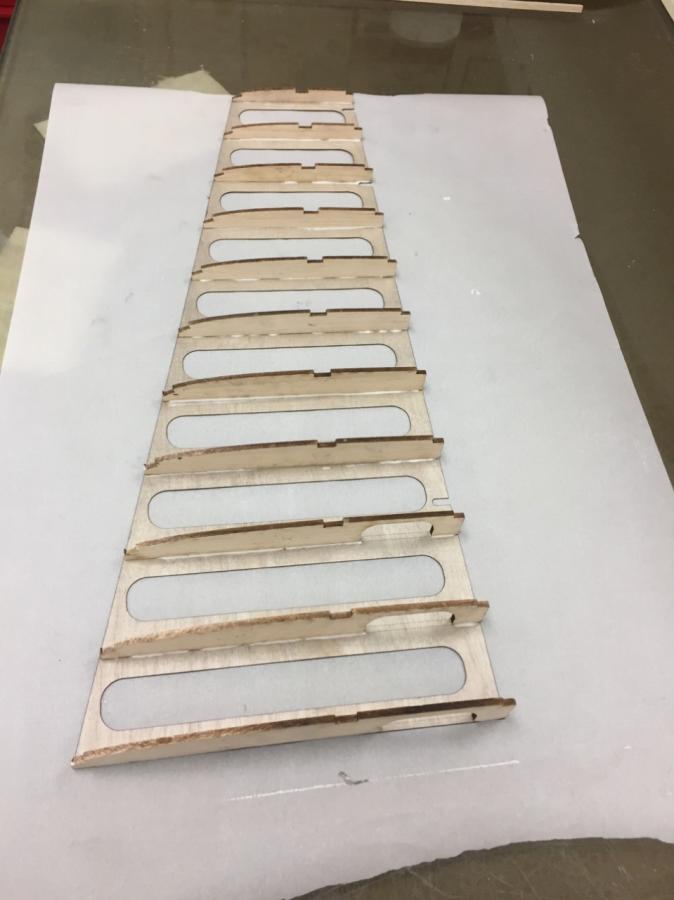

    Peter designed the control surfaces to be build over a pre-cut 1/64 ply template. You frame over each side of the template and the result is a strong stiff control surface or in this case the vertical fin

    ​ Click image for larger version

Name:	4.jpg
Views:	1341
Size:	65.9 KB
ID:	21060

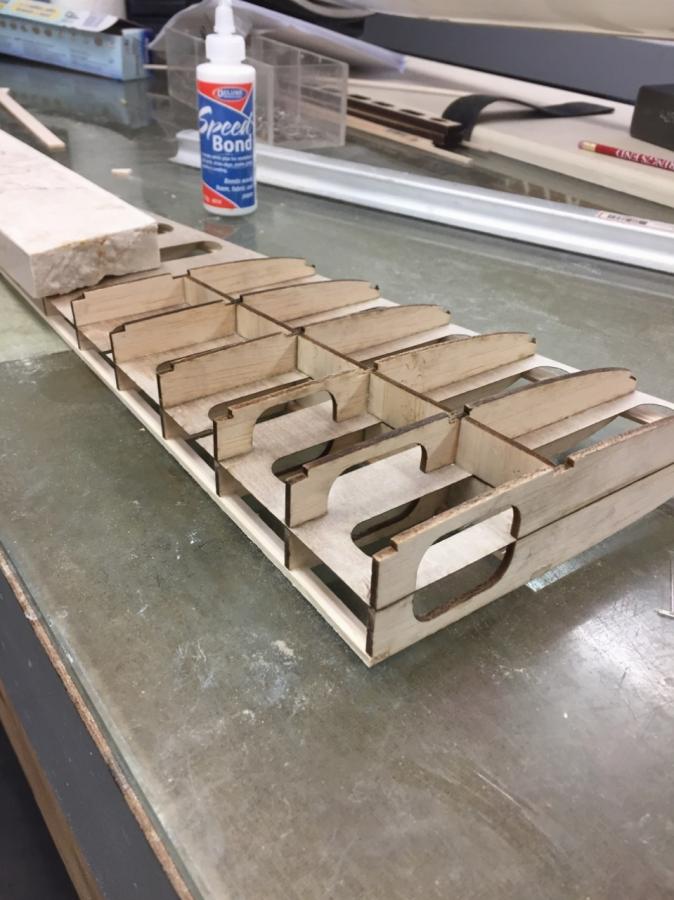

    In this photo you can see how the 1/2 ribs are glued right to the ply template.

    ​
    Click image for larger version

Name:	6.jpg
Views:	1348
Size:	46.0 KB
ID:	21068

    Flip it over and do the same on the other side


    Click image for larger version

Name:	9.jpg
Views:	1347
Size:	76.1 KB
ID:	21061 ​


    Here we are installing sheer webs to help support the vertical fin spar

    ​ Click image for larger version

Name:	7.jpg
Views:	1328
Size:	59.6 KB
ID:	21065

    Sub LE and TE are installed


    ​ Click image for larger version

Name:	8.jpg
Views:	1349
Size:	72.9 KB
ID:	21064
    Last edited by lenb; 11-29-2017, 12:27 PM.
    Len Buffinton
    Team Horizon Hobby

  • #2
    How do you like the "Speed Bond"? I haven't used any of the fast drying alphatic glues, yet.... Waiting for a CA allergy to develop apparently.

    Comment


    • JimD
      JimD commented
      Editing a comment
      Len bought two lifetime supplies of Speed Bond adhesive, so he sold some of his stock to me. Having used it now for a substantial amount of structural work, I can say that I am impressed...probably going to be a fanboy!

  • #3
    Looks good now that we can see all the photos Len! Looking forward to Steve K starting his!
    Kevin K

    Kremer Aerotowing Team

    Comment


    • #4
      Like the Ply skin method. Hope the 1-26 will be like this.

      Comment


      • #5
        Im sure it will, the Swallow is the same way,
        Len Buffinton
        Team Horizon Hobby

        Comment


        • #6
          I cleaned up the thread a bit, thanks for the help with the photos guys.


          Onto the Stab and Elevator.

          Non of the building I have done is over the plans, its all done with using the pre-cut parts and making the spar straight on a piece of sheetrock or just the table.

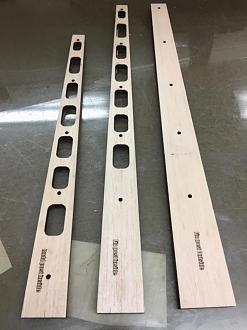

          The Stab is assembled over the lower spar. Use the sheer webs for rib spacing and make up the center section using all the ply ribs Peter has in the kit.
          Pay attention to the sheer webs, keep the pieces held tight to the ribs and the ribs 90 degrees to the table. Its pretty simple construction.



          Click image for larger version  Name:	20.jpg Views:	1 Size:	53.2 KB ID:	21186


          Click image for larger version  Name:	18.jpg Views:	1 Size:	66.0 KB ID:	21187


          Click image for larger version  Name:	1.jpg Views:	1 Size:	66.3 KB ID:	21188






          Click image for larger version  Name:	2.jpg Views:	1 Size:	58.6 KB ID:	21189


          Click image for larger versionName:	3.jpgViews:	1Size:	75.3 KBID:	21190





          Last edited by lenb; 12-03-2017, 09:13 PM.
          Len Buffinton
          Team Horizon Hobby

          Comment


          • #7

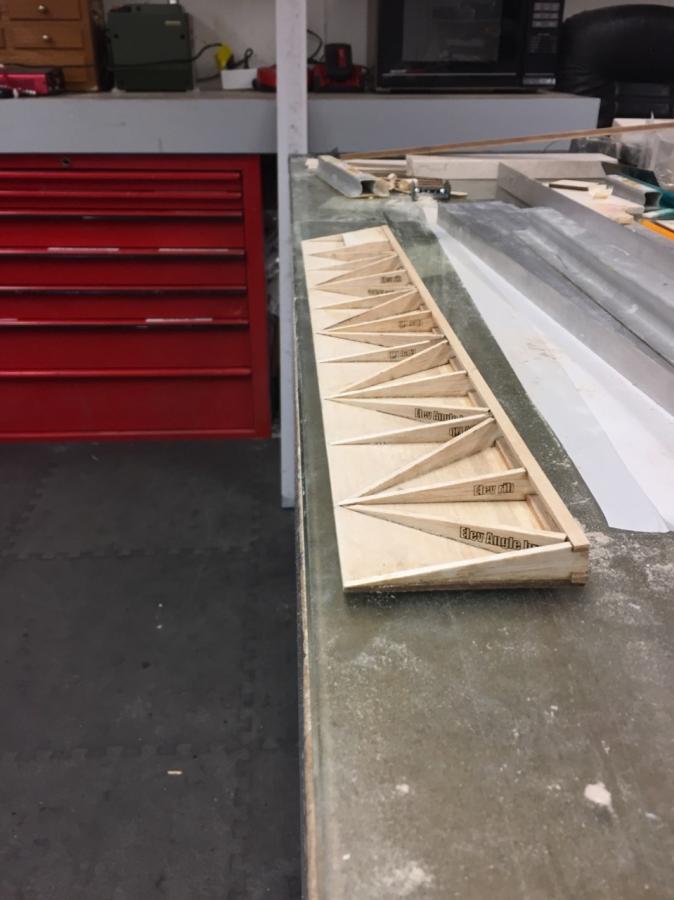

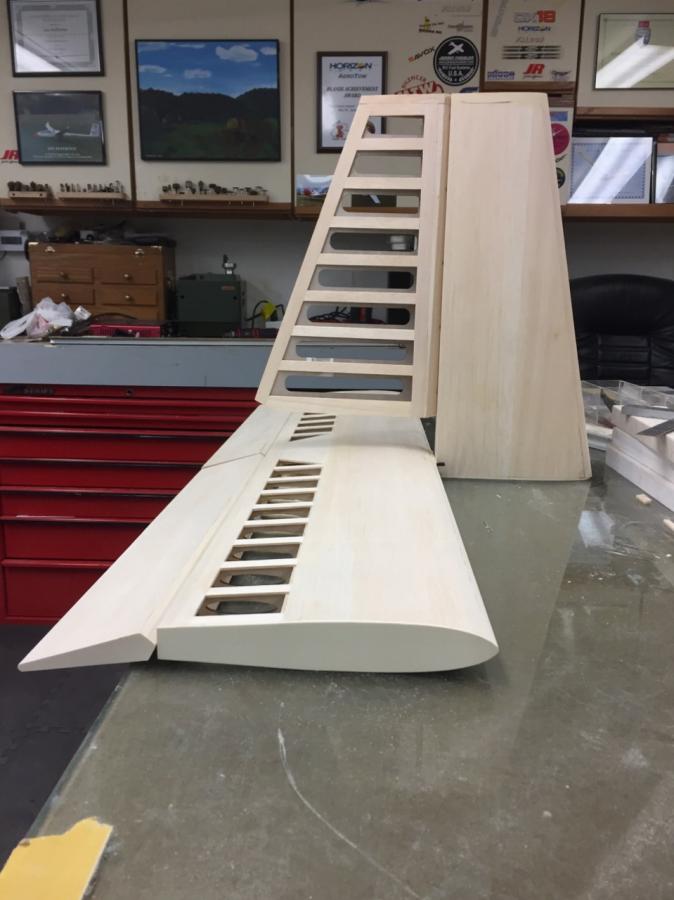

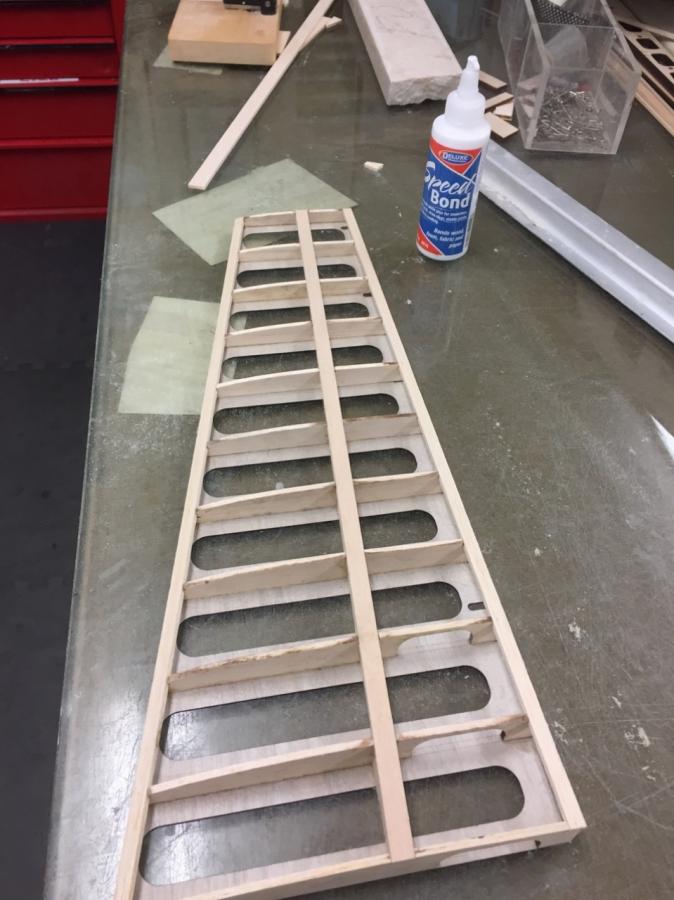

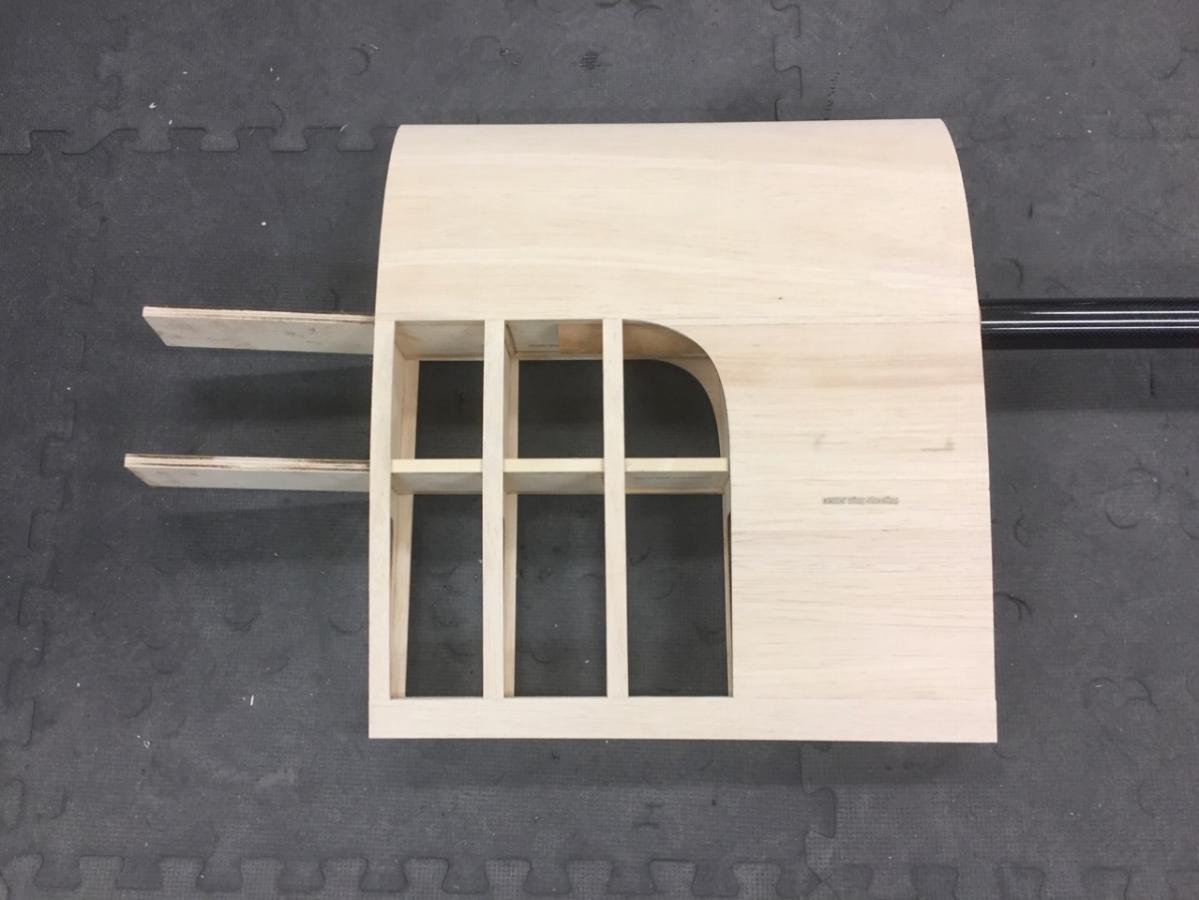

            The elevators were built on a pre-etched skin also, again-very clever.

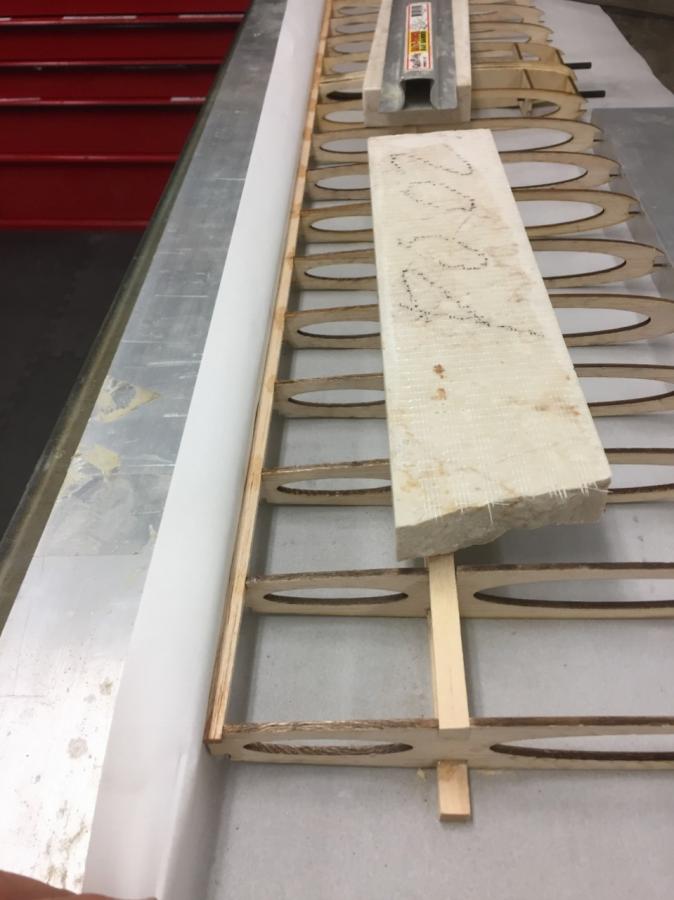

            Nothing magical here, pretty straight forward. You'll need to sand the LE off the angled ribs to get everything to fit perfectly.


            Click image for larger version

Name:	5.jpg
Views:	904
Size:	36.6 KB
ID:	21193

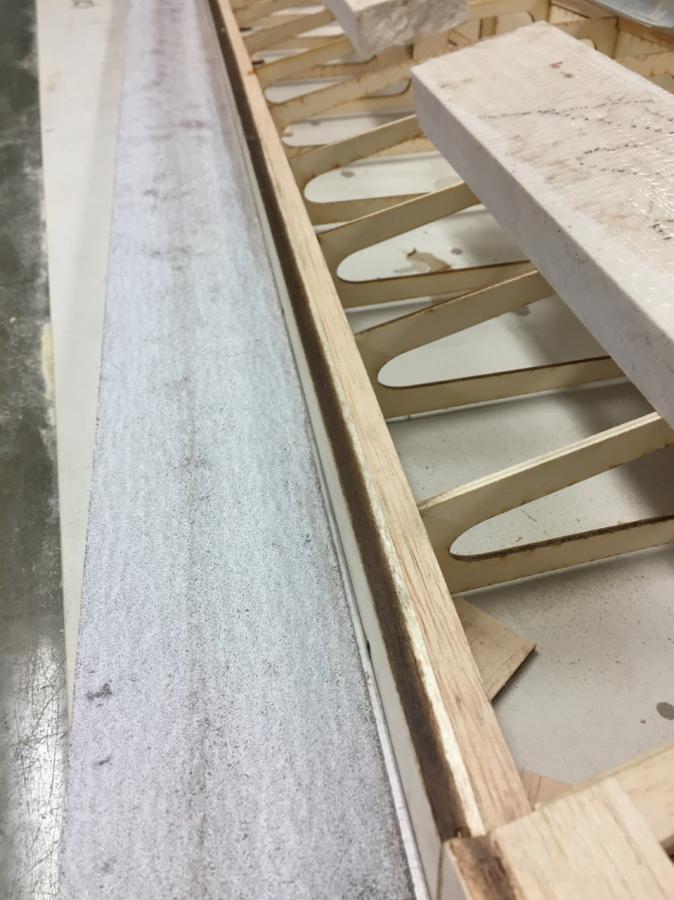

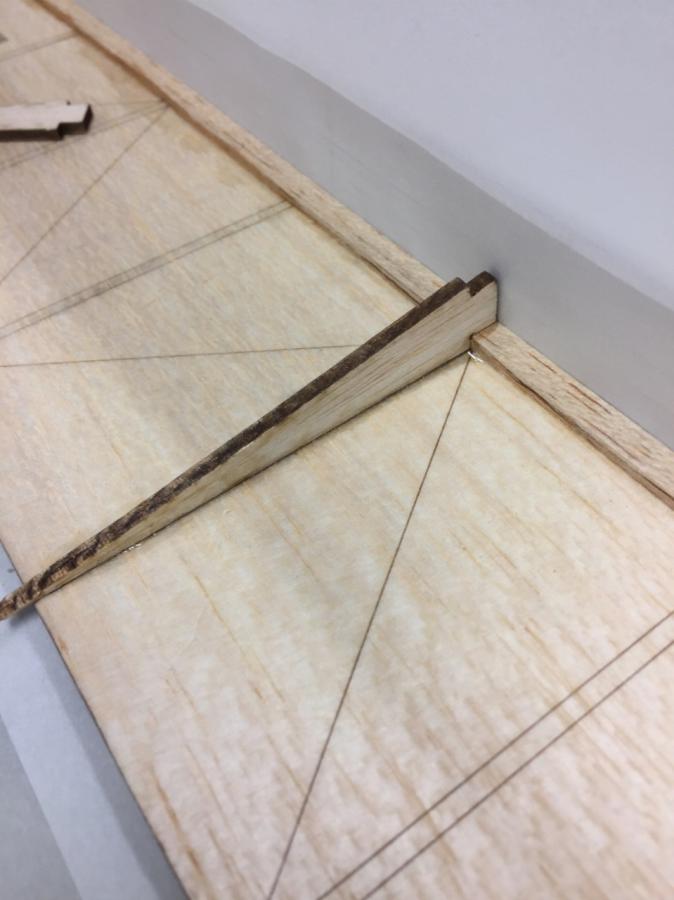

            Glue on the LE sub spar, use a straight edge to make it perfectly straight from the start.

            Click image for larger version

Name:	4.jpg
Views:	945
Size:	56.8 KB
ID:	21192

            Click image for larger version

Name:	6.jpg
Views:	931
Size:	49.8 KB
ID:	21194

            They appeared a bit long, no big deal, I'll sand them down before adding the top sheeting. It's balsa, sand and trim until its the way you want it.


            Click image for larger version

Name:	7.jpg
Views:	913
Size:	58.8 KB
ID:	21195





            Click image for larger version

Name:	8.jpg
Views:	933
Size:	61.0 KB
ID:	21196

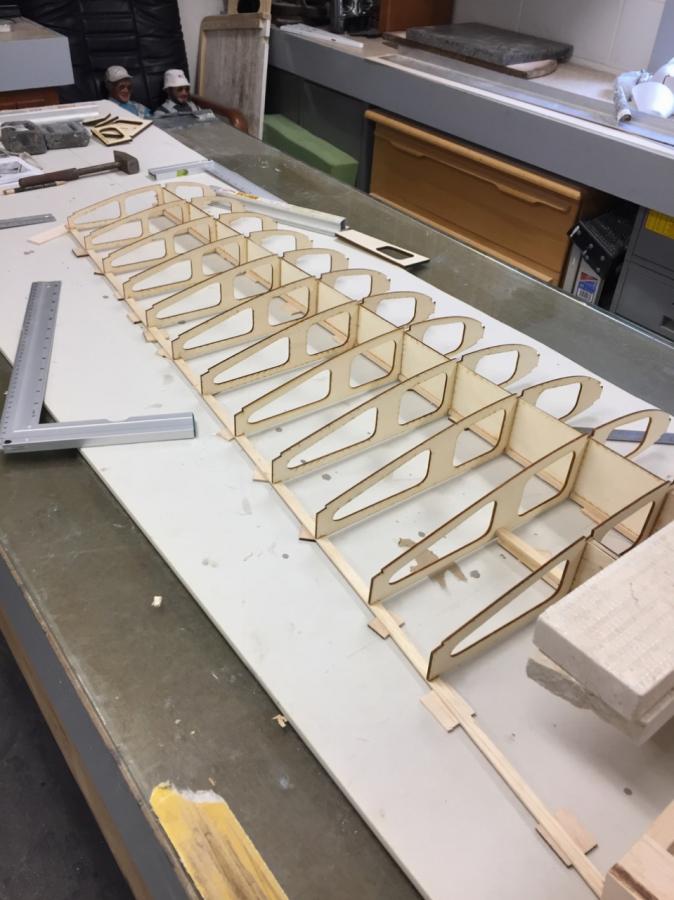

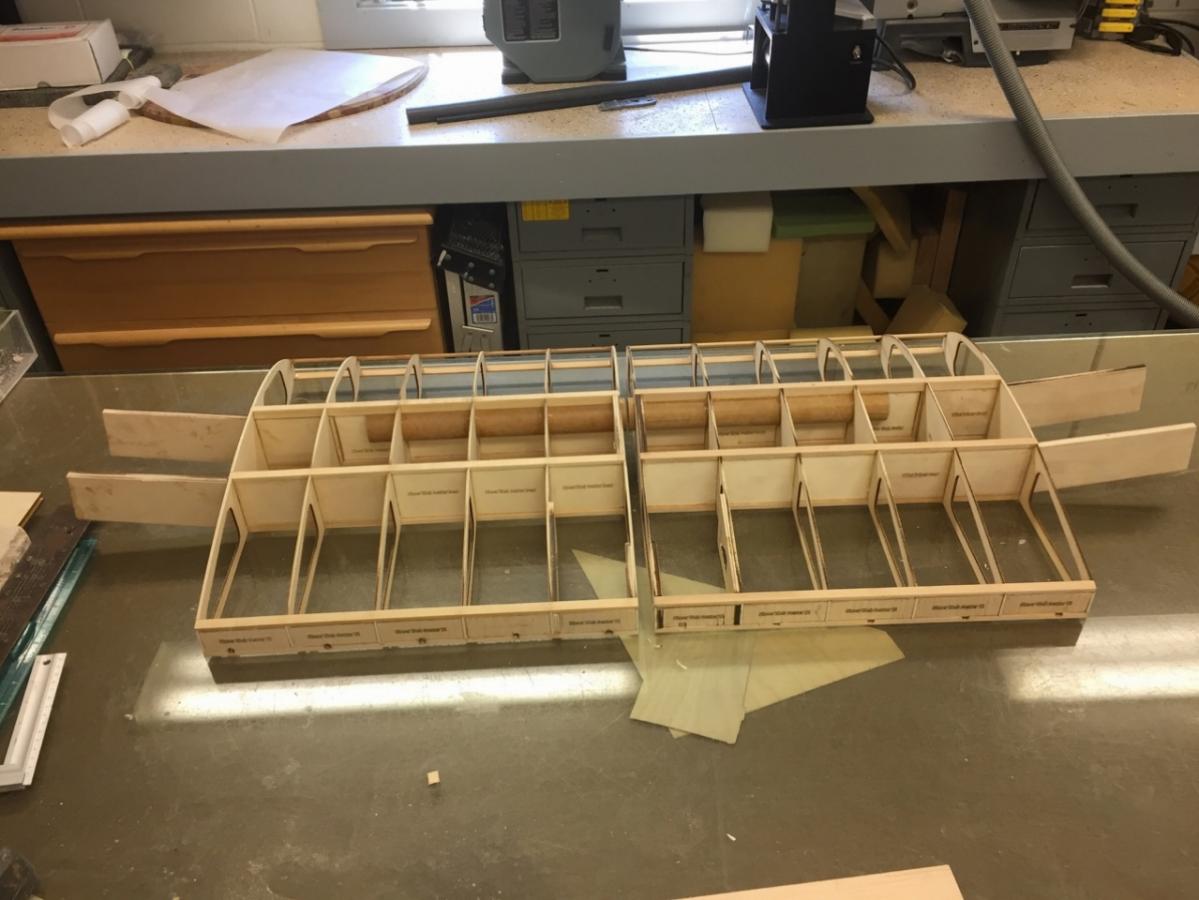

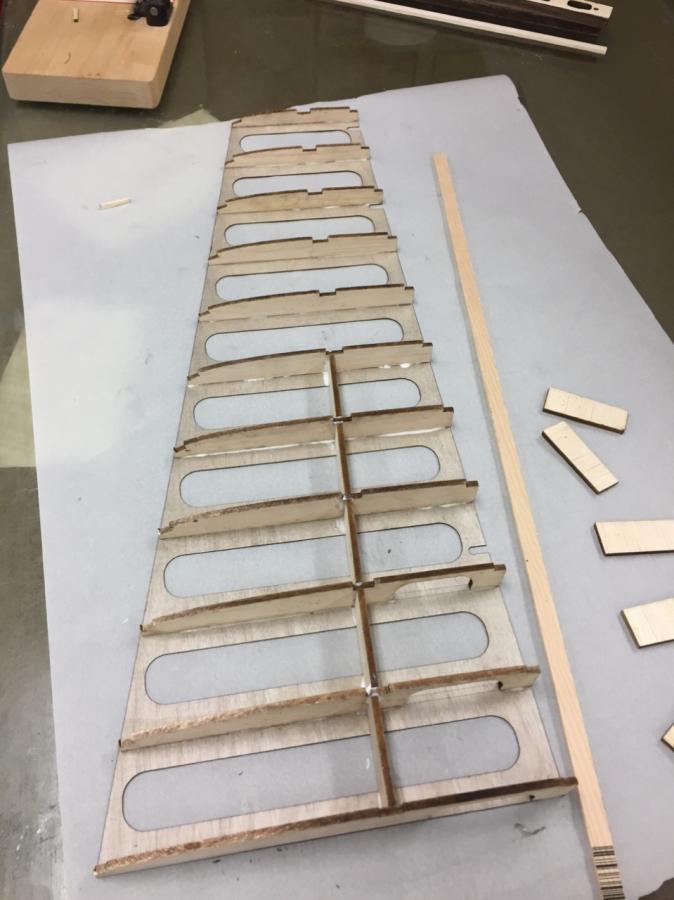

            Here are the parts roughly sanded. I'll put these aside now and start the wing. Final sanding will be done at the end.

            Len Buffinton
            Team Horizon Hobby

            Comment


            • #8
              Noyce! Fast building, too!

              Comment


              • #9
                Thanks Mike,
                This build started a while ago, I'm just now getting to post the progress.

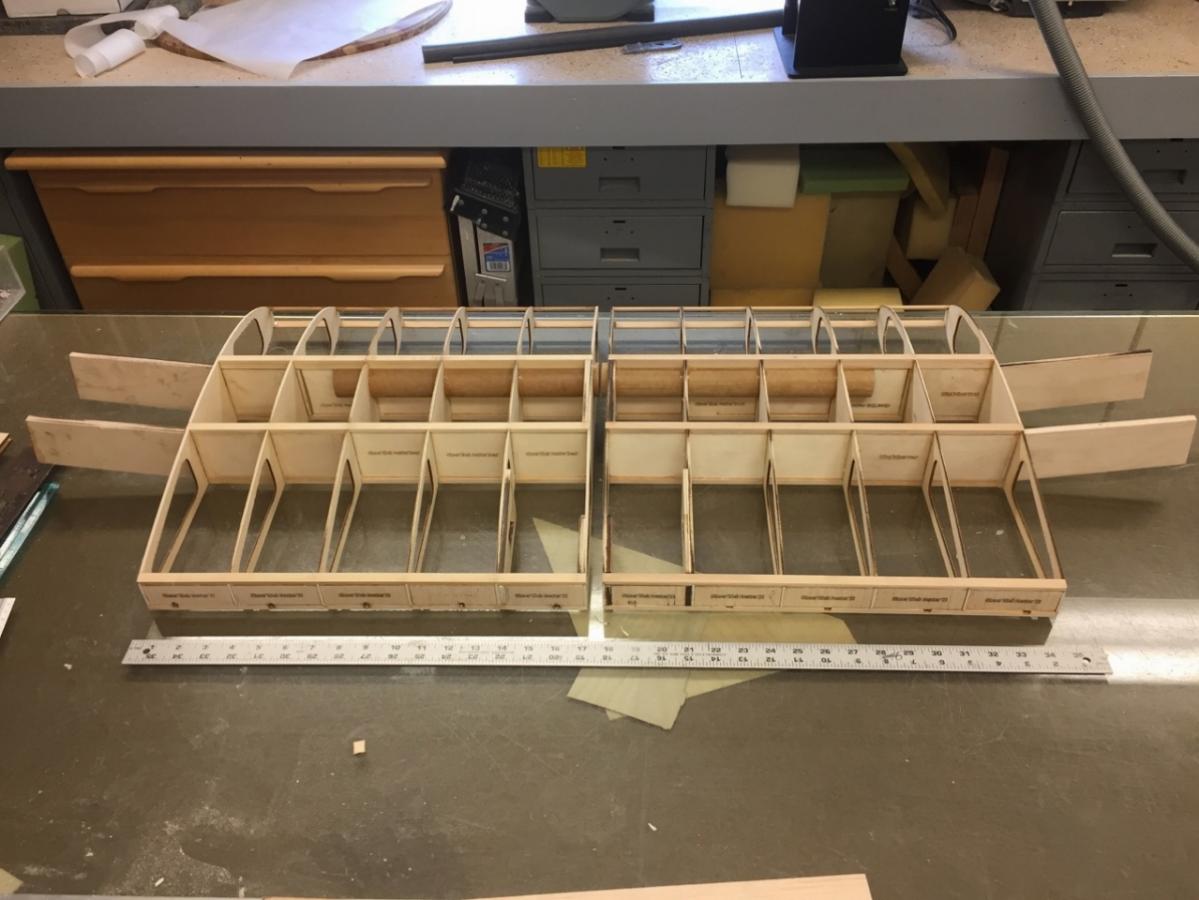

                The wing center sections are next.

                Again, I did not build any parts over the plans, just using the pre-cut parts as the guide.

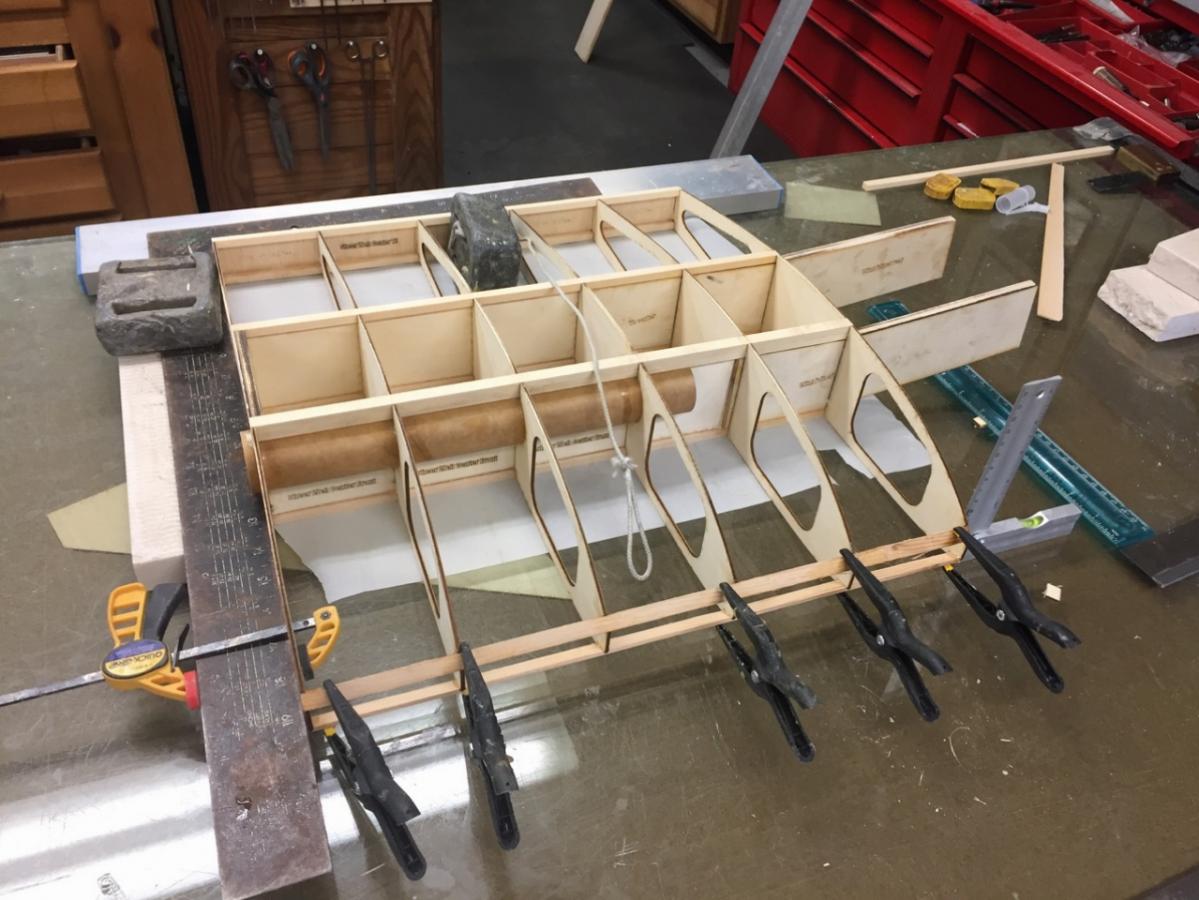

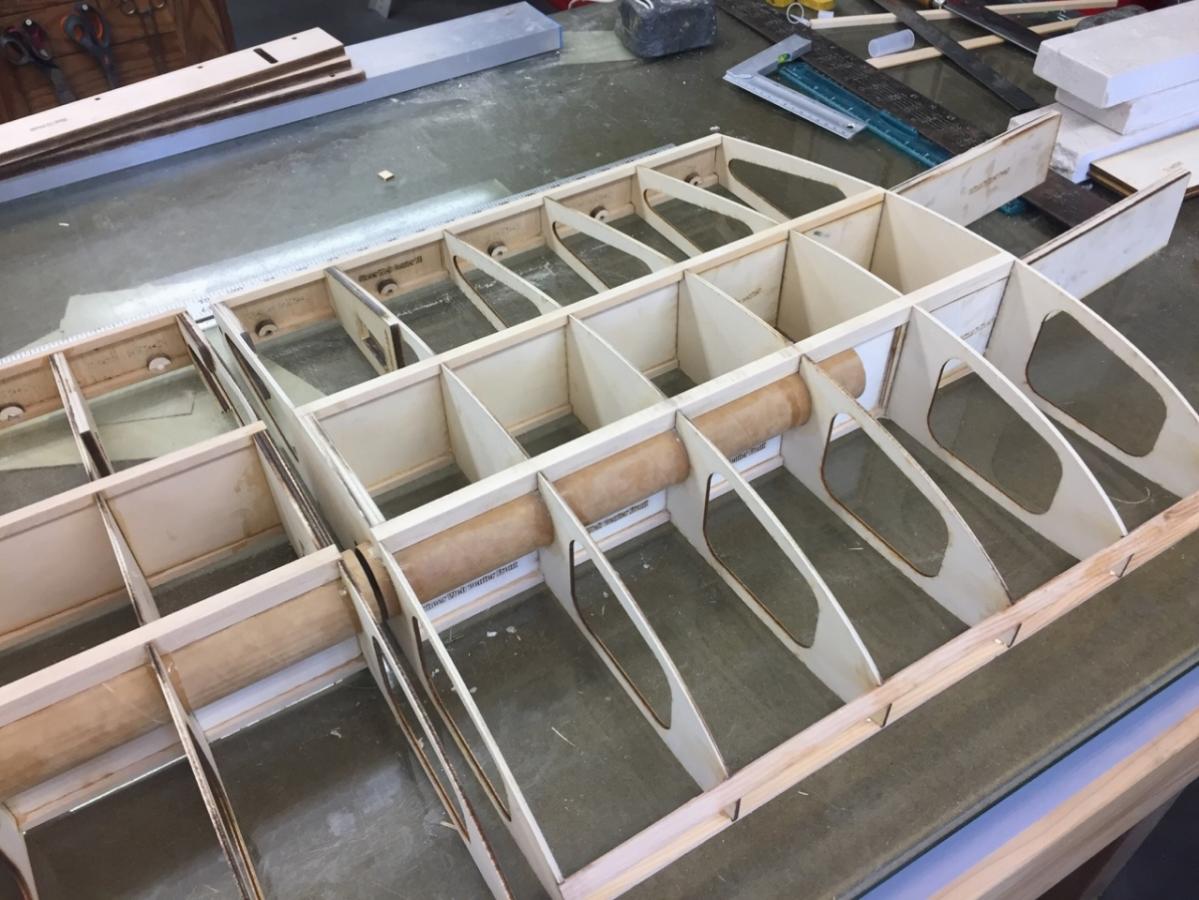

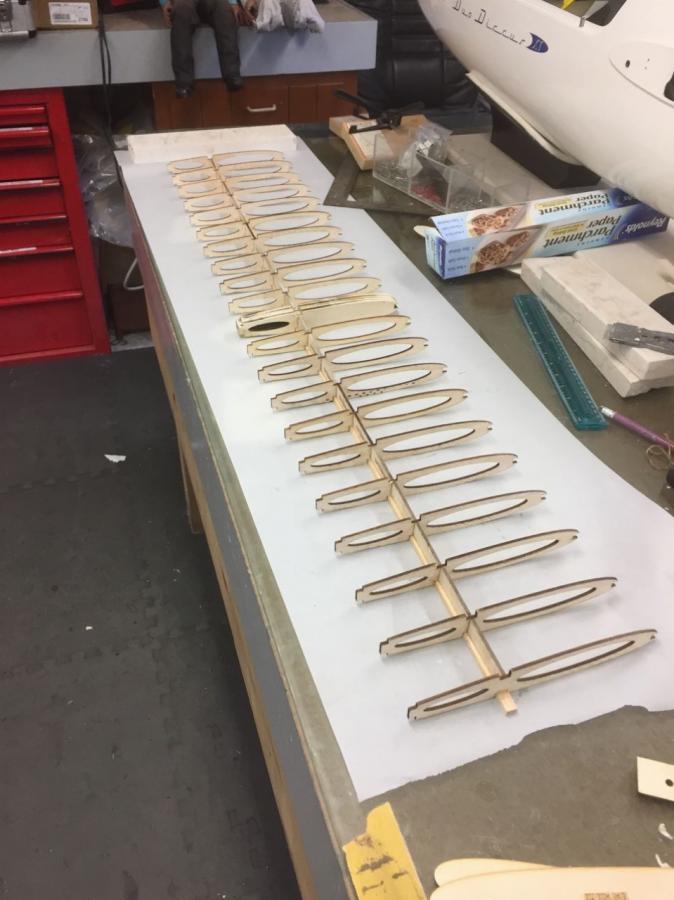

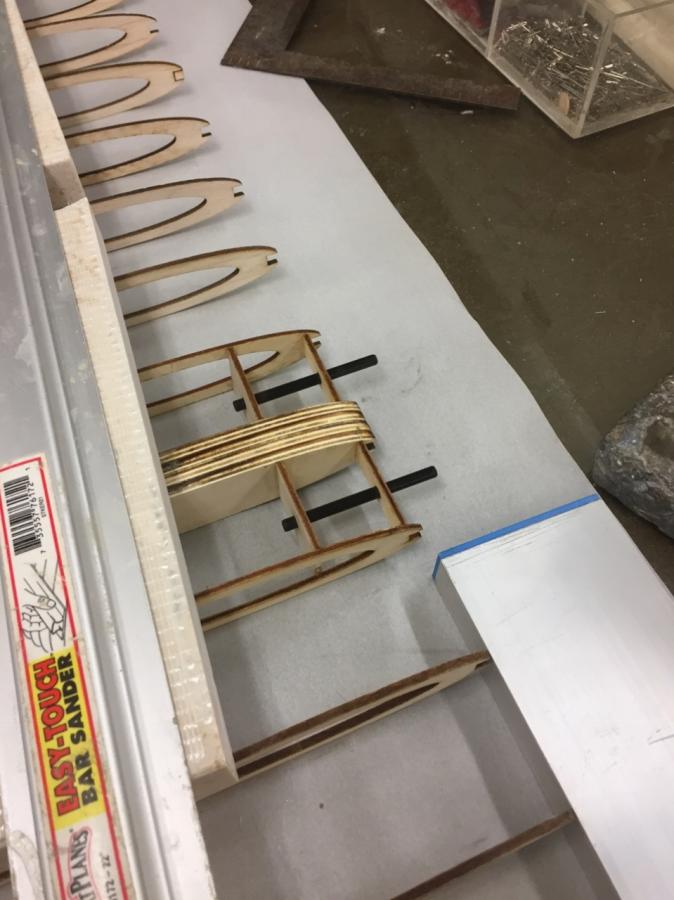

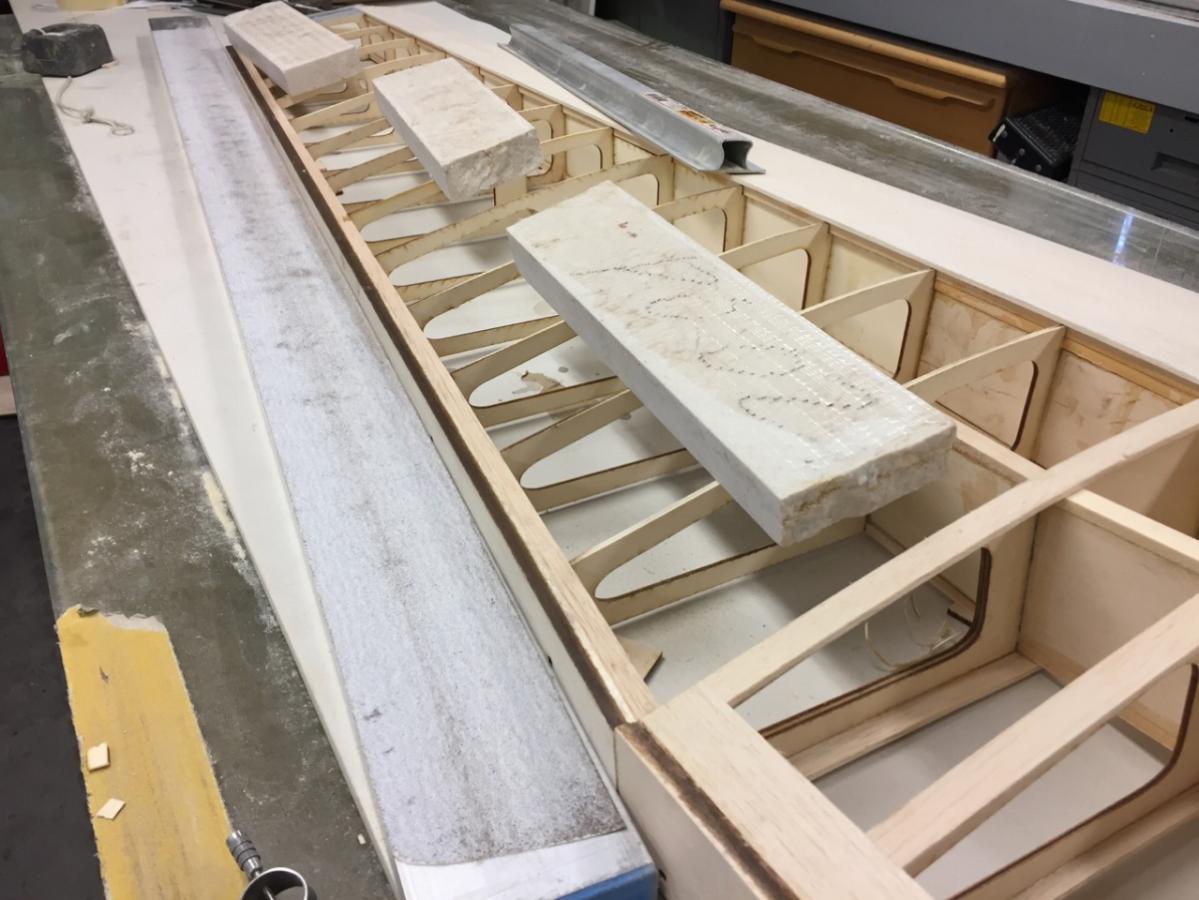

                The center starts with gluing up the joiners. Take time fitting and testing the parts together as there is always a logical reason and process for the way it's designed.
                When in doubt, walk away and come back later for a fresh look.

                Click image for larger version

Name:	1.jpg
Views:	916
Size:	70.2 KB
ID:	21216

                Click image for larger version

Name:	4.jpg
Views:	920
Size:	93.8 KB
ID:	21221


                Click image for larger version

Name:	3.jpg
Views:	915
Size:	114.2 KB
ID:	21215


                Click image for larger version

Name:	5.jpg
Views:	926
Size:	125.0 KB
ID:	21218


                Click image for larger version

Name:	9.jpg
Views:	925
Size:	132.5 KB
ID:	21213Click image for larger version

Name:	8.jpg
Views:	920
Size:	93.4 KB
ID:	21220

                Click image for larger version

Name:	10.jpg
Views:	910
Size:	118.3 KB
ID:	21225

                Click image for larger version

Name:	12.jpg
Views:	928
Size:	73.5 KB
ID:	21217

                Click image for larger version

Name:	11.jpg
Views:	923
Size:	71.5 KB
ID:	21223

                Attached Files
                Len Buffinton
                Team Horizon Hobby

                Comment


                • #10
                  Thanks Len for posting these pictures as they are timely as I am at this point now...there are no side views on the plans so I was very confused as to where the spruce spars went and where to cut them, but now with your photos I get what needs to happen next...
                  kevin

                  Comment


                  • #11
                    Len, what's the status of your build? Your followers need a fix!

                    Comment


                    • #12
                      Hi Tim.

                      My computer had to go in for a new screen, luckily apple's warrantee covered it, but I didn't have my photos for a while.

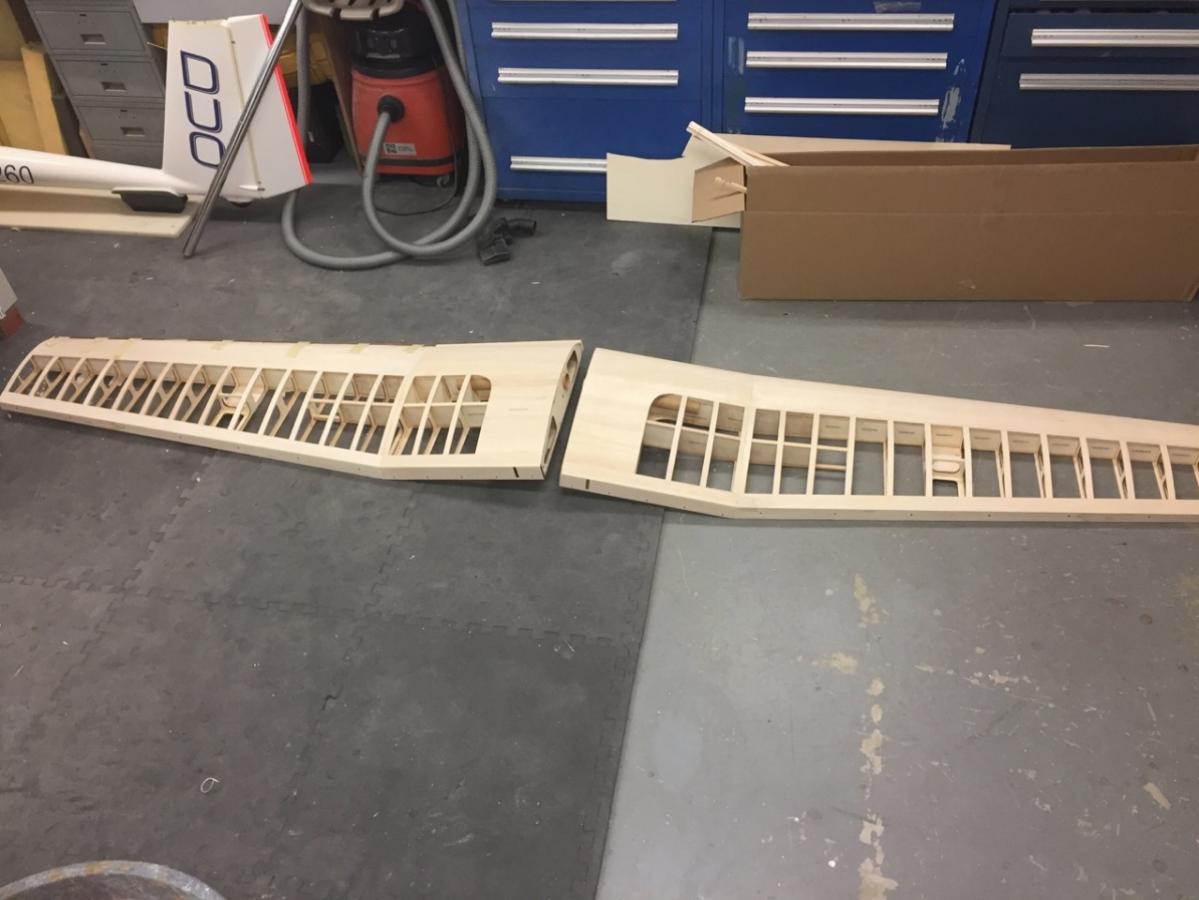

                      The plane is much further along than this thread indicates, but I'll post photos in sequence.

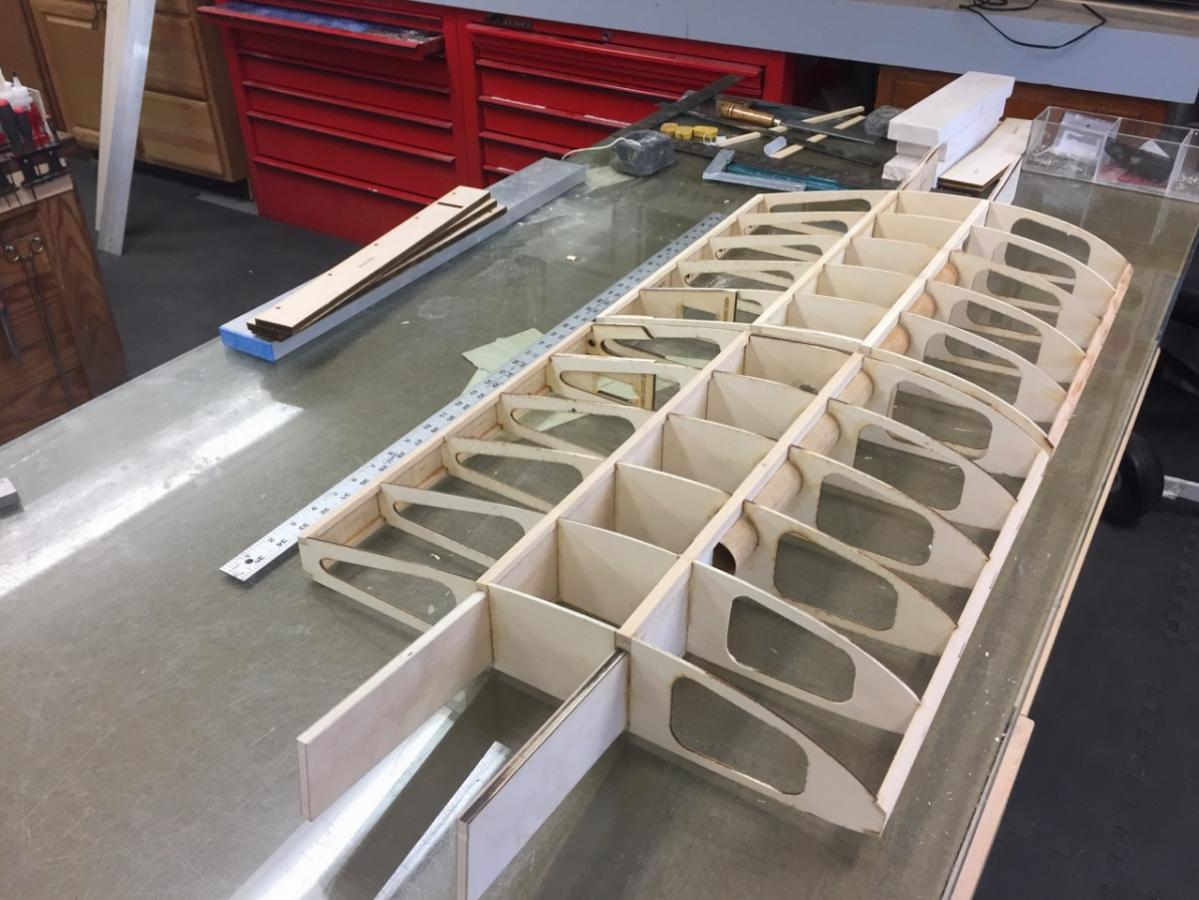

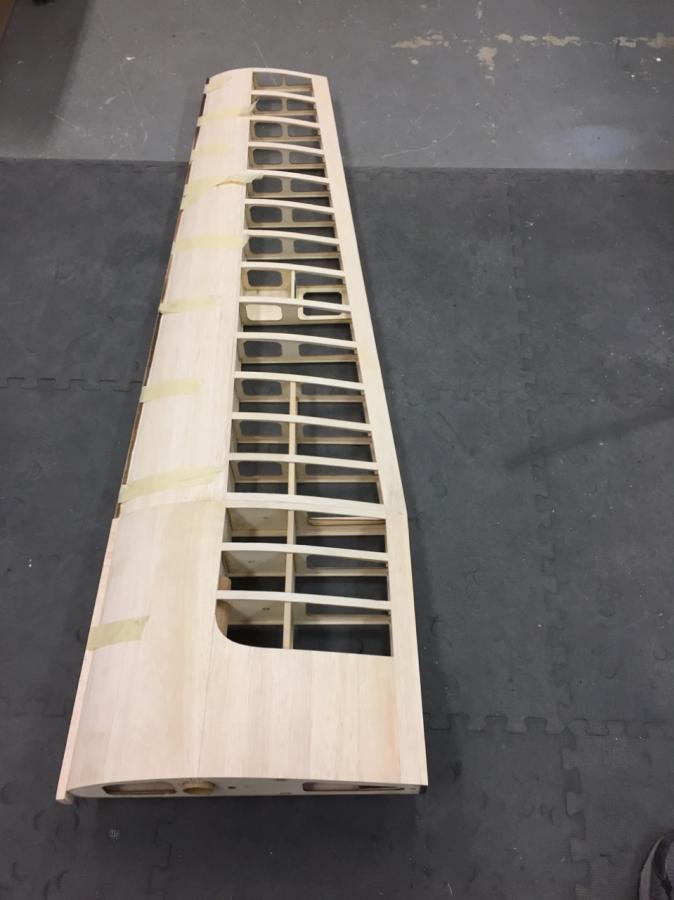

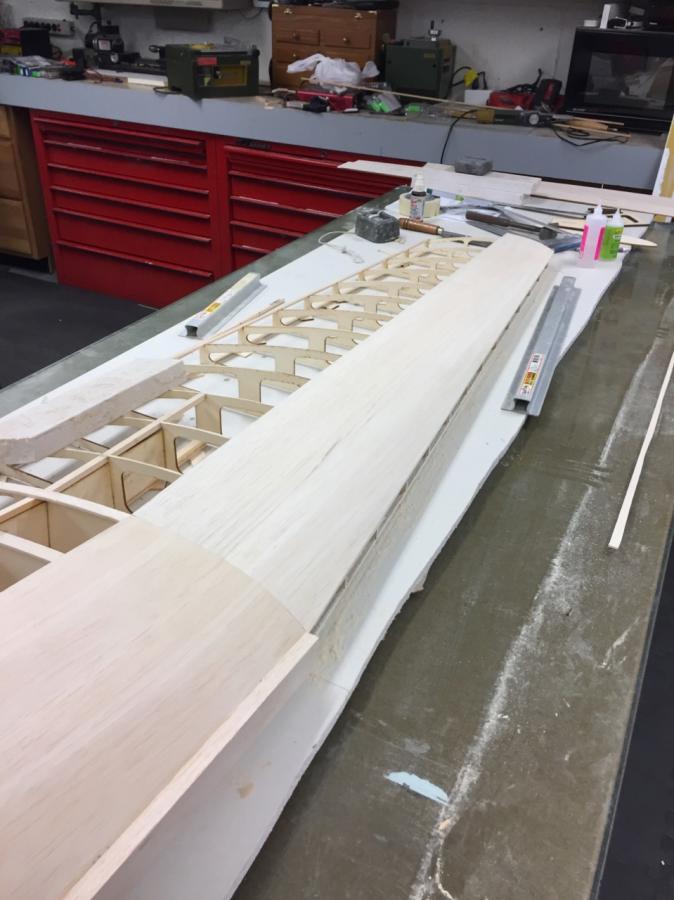

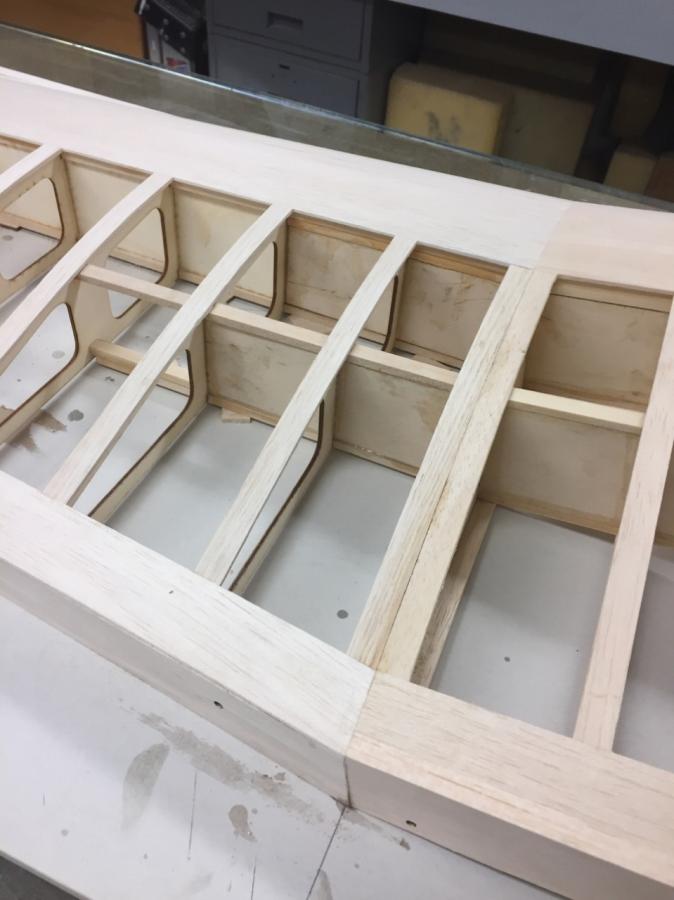

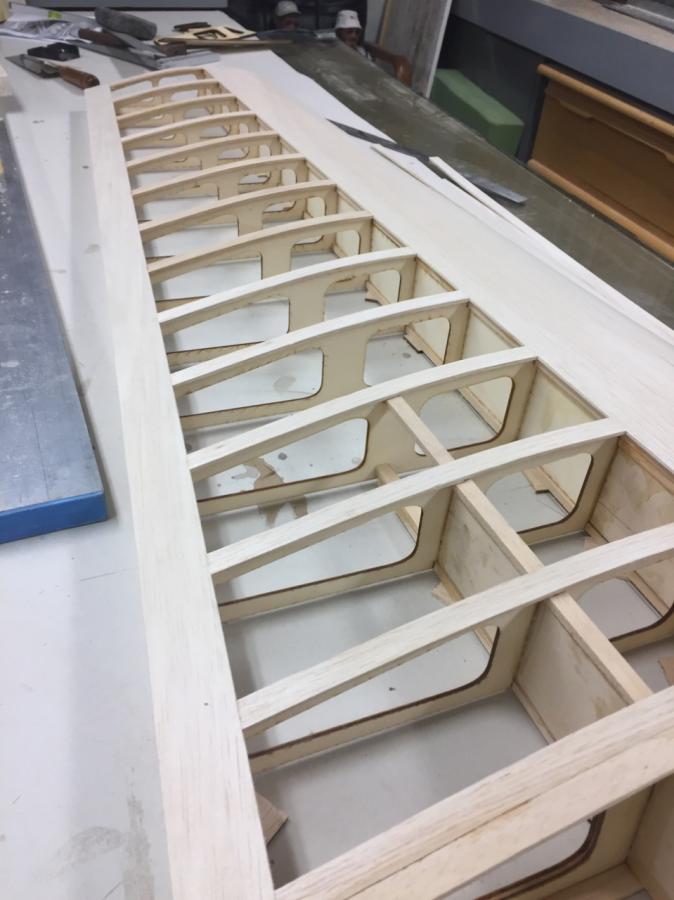

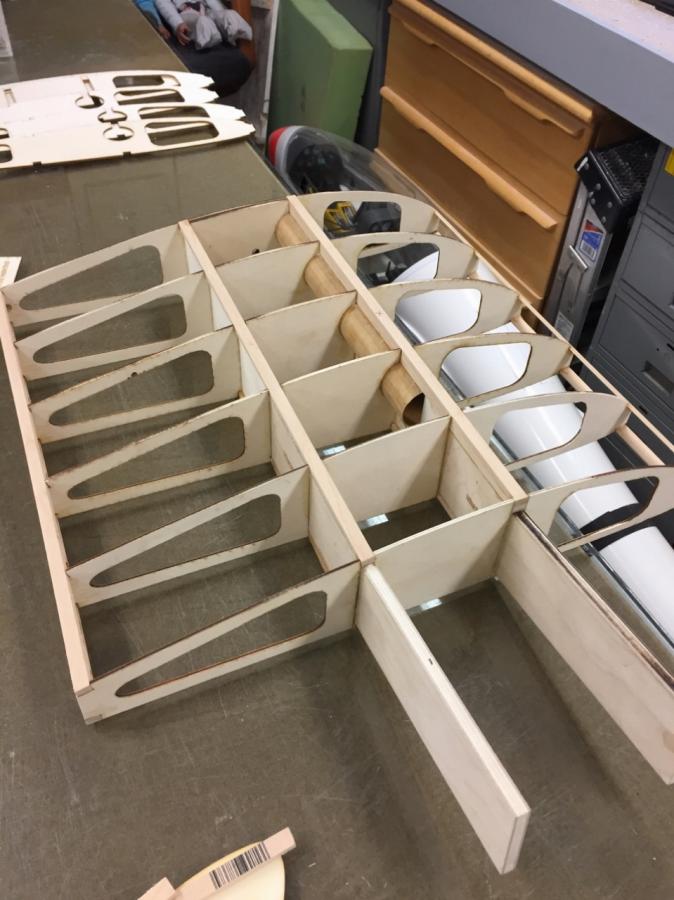

                      The main wing panels were next

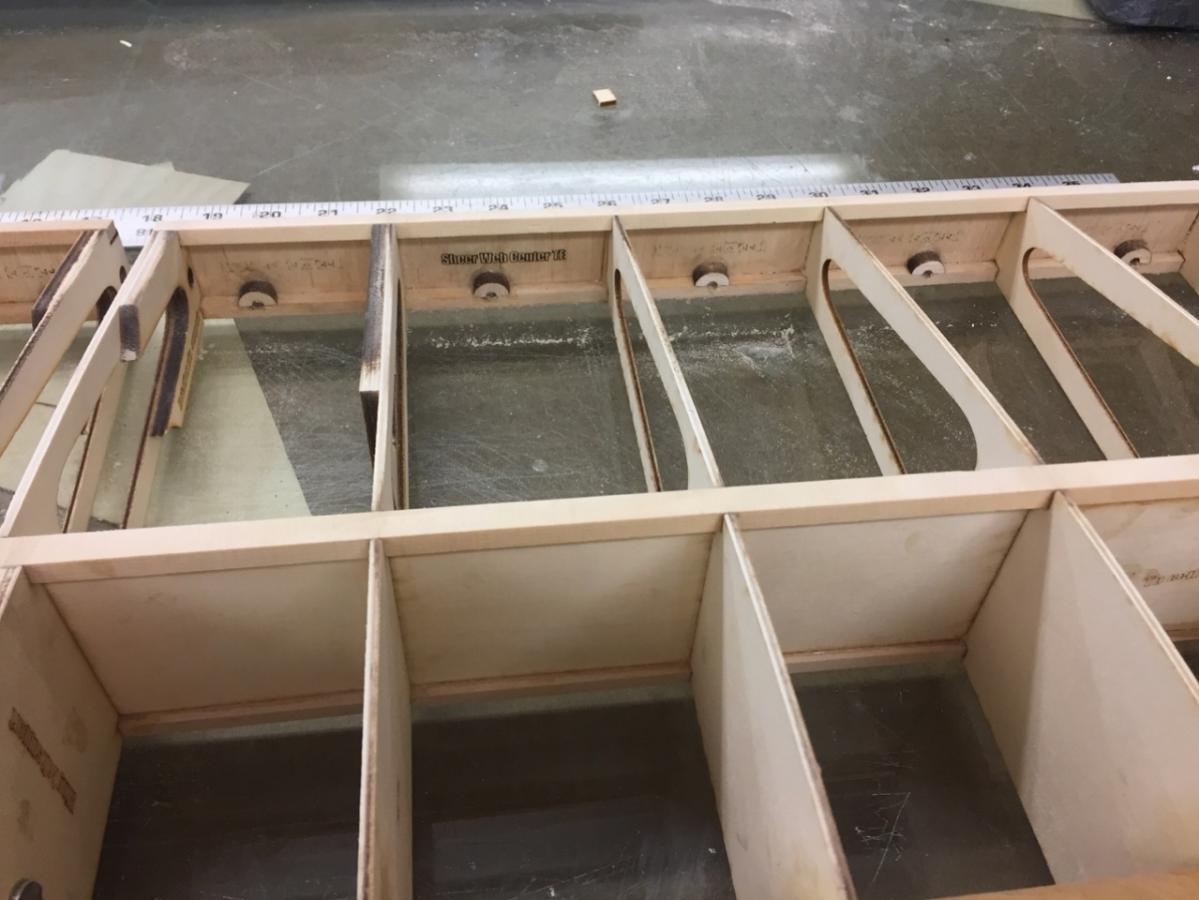

                      Click image for larger version  Name:	6.jpg Views:	1 Size:	28.0 KB ID:	21622
                      Click image for larger version  Name:	2.jpg Views:	1 Size:	106.3 KB ID:	21621
                      Click image for larger version  Name:	1.jpg Views:	1 Size:	102.0 KB ID:	21623




                      Click image for larger version  Name:	12.jpg Views:	1 Size:	74.6 KB ID:	21629
                      Click image for larger version  Name:	13.jpg Views:	1 Size:	77.4 KB ID:	21630
                      Click image for larger version  Name:	16.jpg Views:	1 Size:	67.4 KB ID:	21632



                      Click image for larger version  Name:	14.jpg Views:	1 Size:	56.5 KB ID:	21624
                      Click image for larger version  Name:	22.jpg Views:	1 Size:	63.3 KB ID:	21625
                      Click image for larger version  Name:	21.jpg Views:	1 Size:	53.5 KB ID:	21626
                      Click image for larger version  Name:	5.jpg Views:	1 Size:	49.5 KB ID:	21631
                      Click image for larger version  Name:	17.jpg Views:	1 Size:	76.7 KB ID:	21634
                      Click image for larger version  Name:	23.jpg Views:	1 Size:	92.3 KB ID:	21633



                      Click image for larger version

Name:	image_7888.jpg
Views:	899
Size:	73.8 KB
ID:	21628



                      Attached Files
                      Len Buffinton
                      Team Horizon Hobby

                      Comment


                      • ARUP
                        ARUP commented
                        Editing a comment
                        I see two pilots guys in the background, waiting!

                    • #13
                      Len, your pictures are timely as I am about to start work on the outer wing panels and your photos are worth ten thousand words...I can finally "see" what I could not see before...
                      I frequently feel over my head on my build but am glad you are there to rescue me when I am almost out of air...
                      kevin

                      Comment


                      • #14

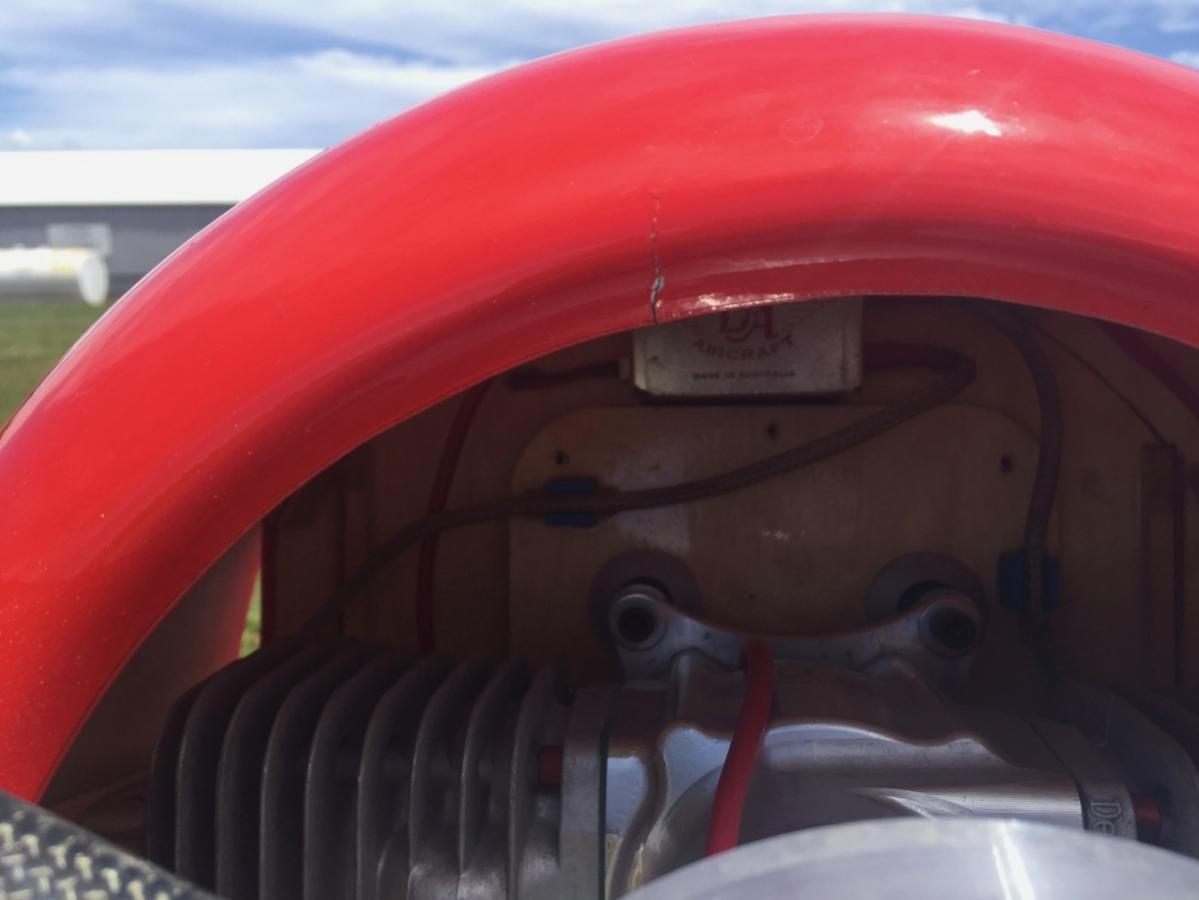

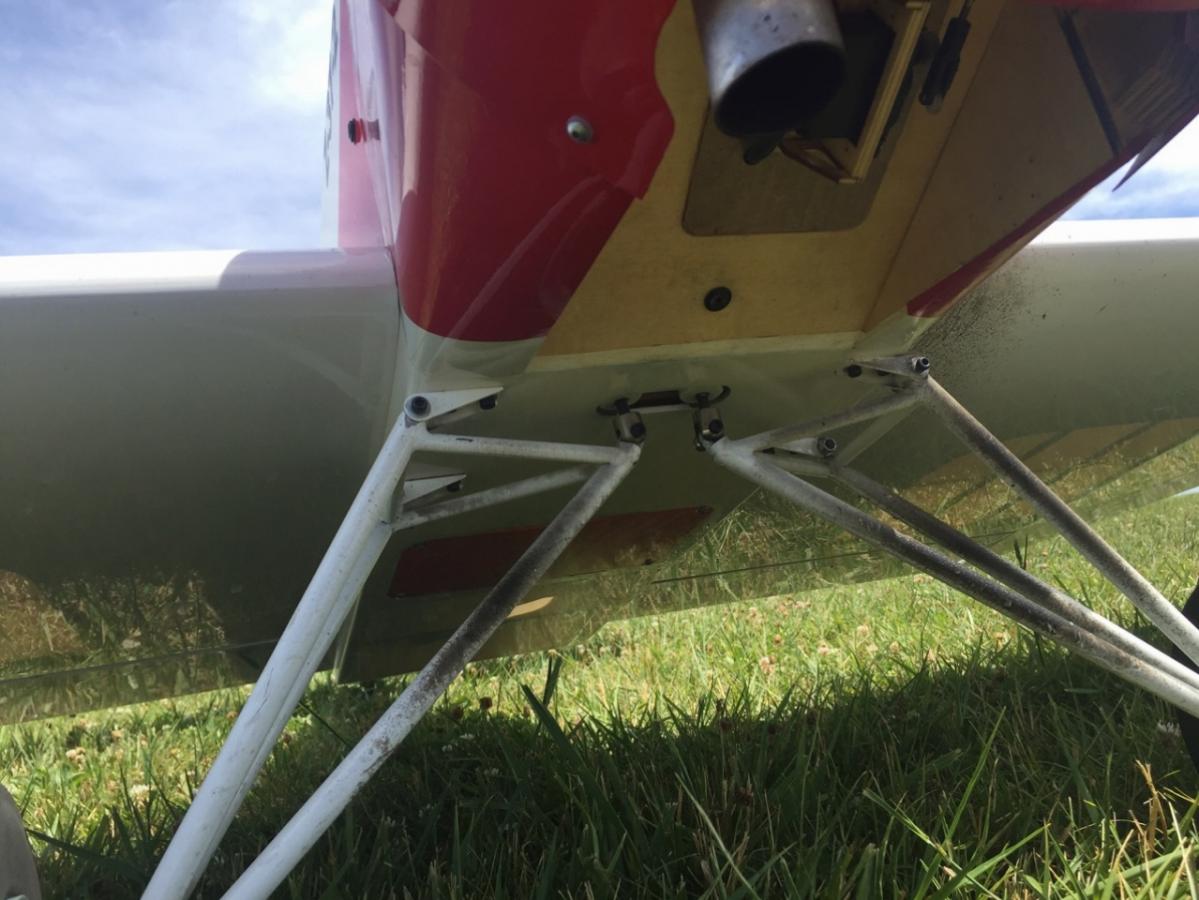

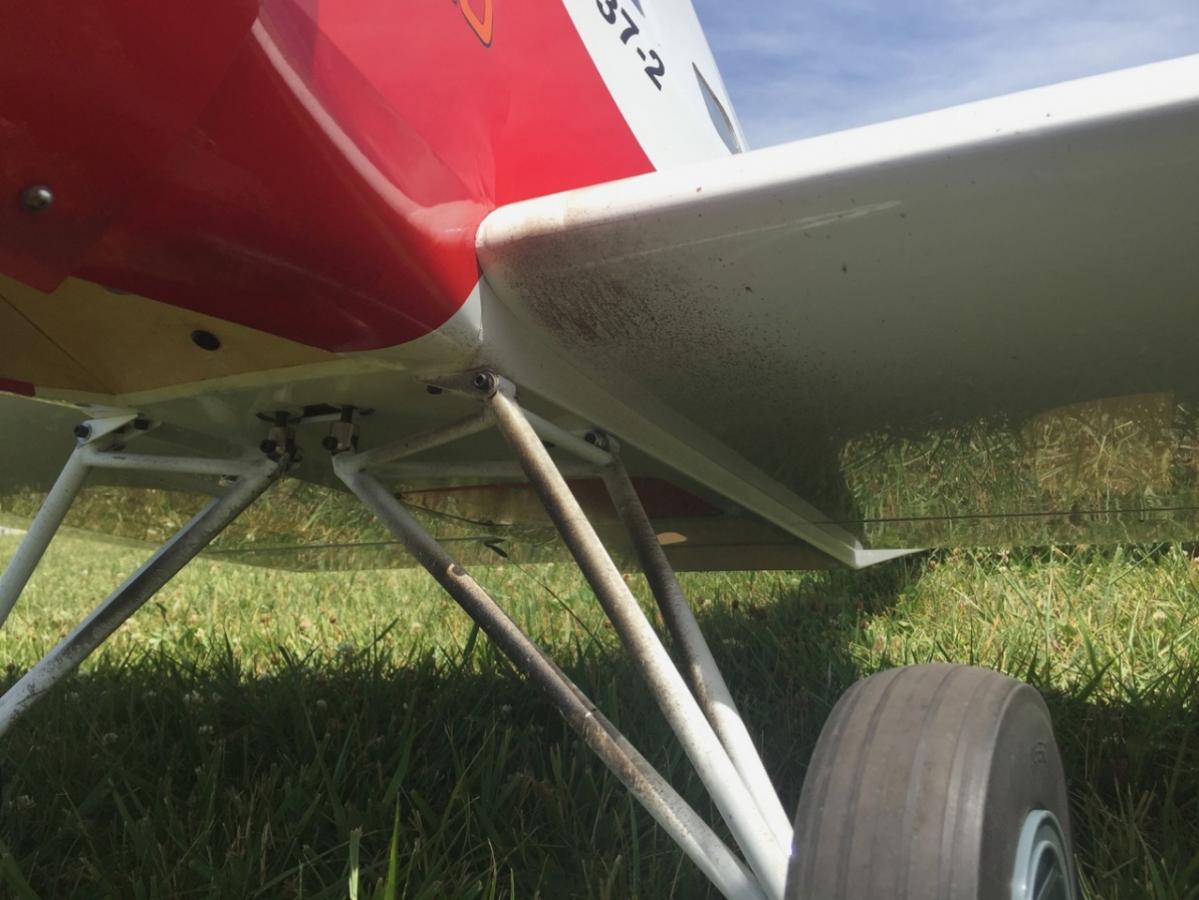

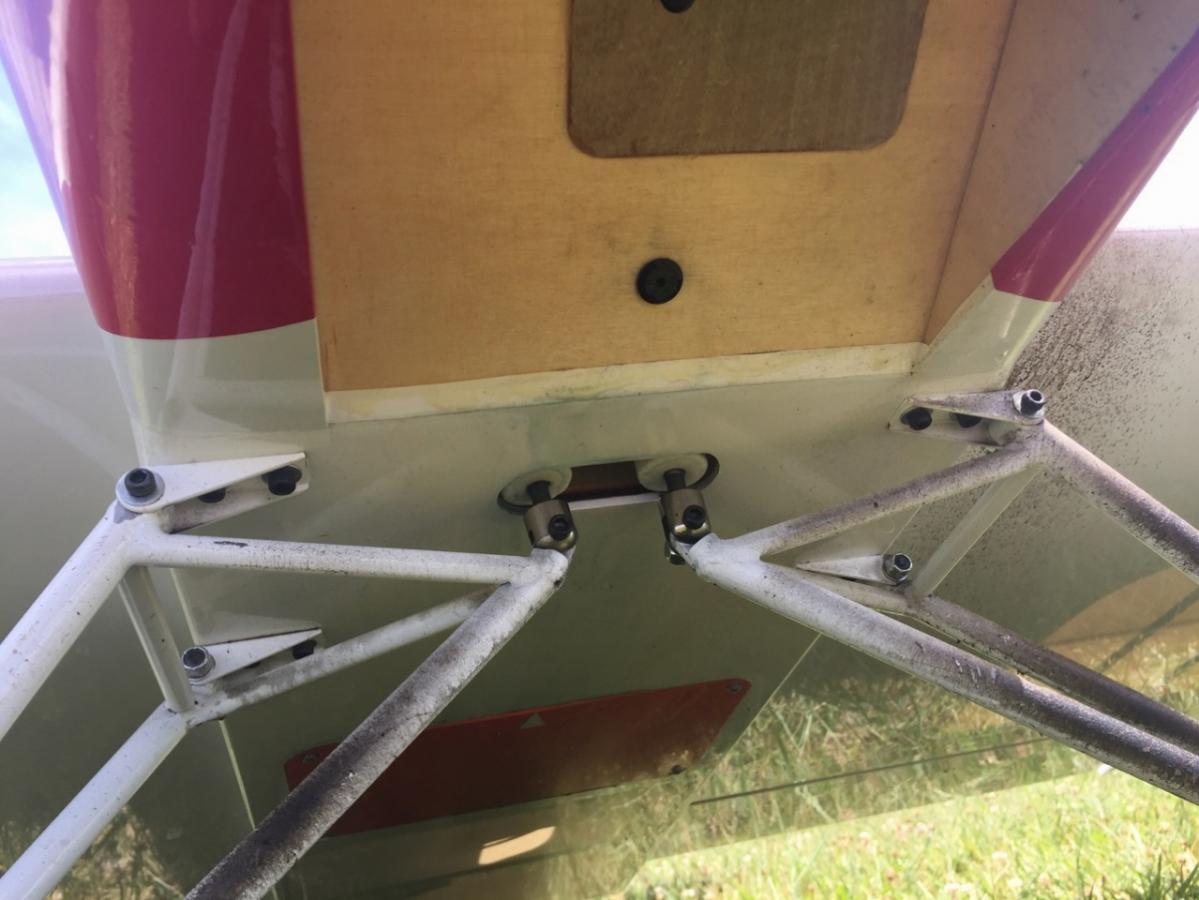

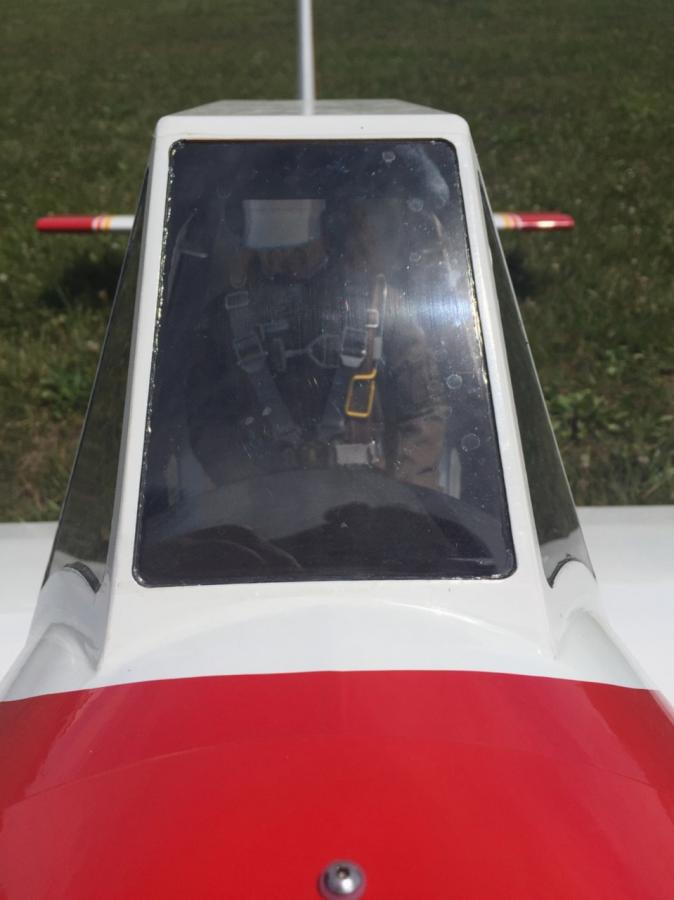

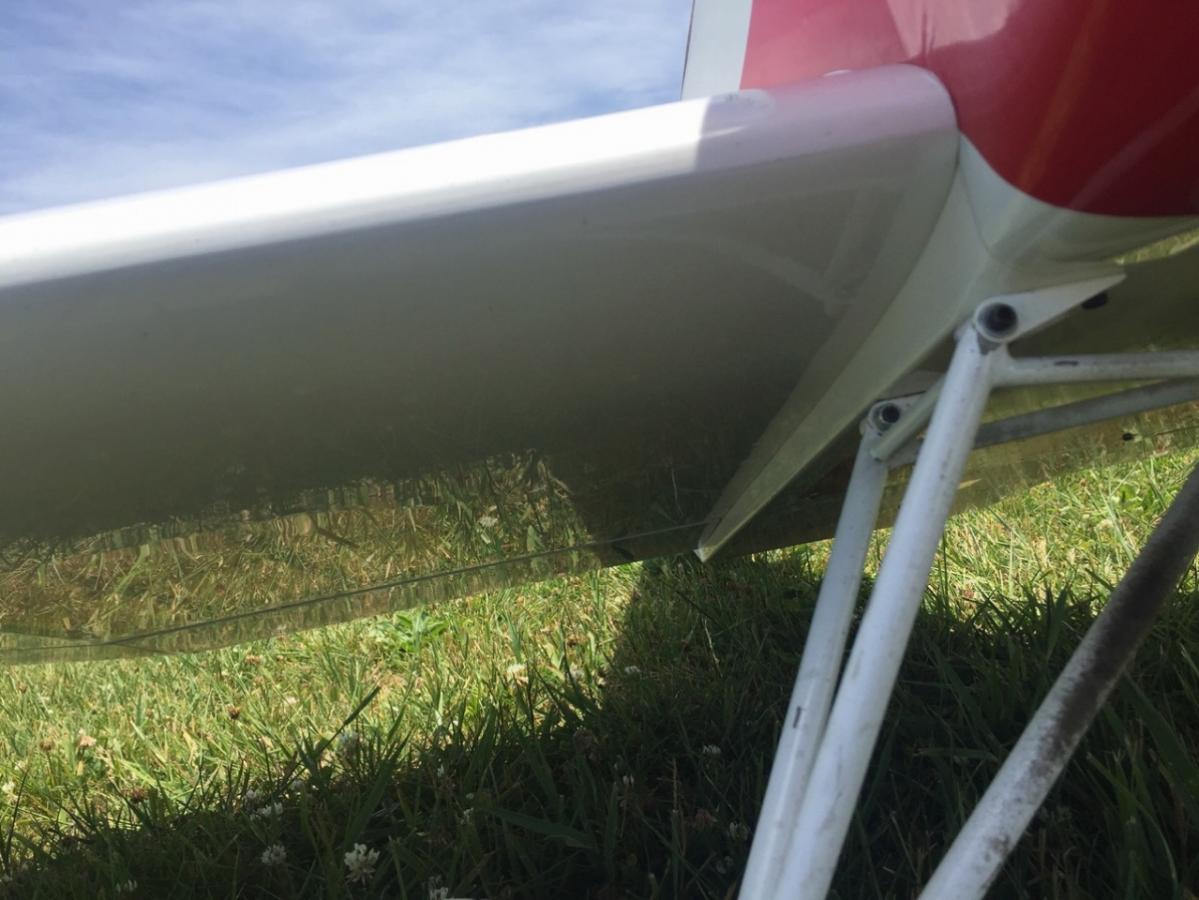

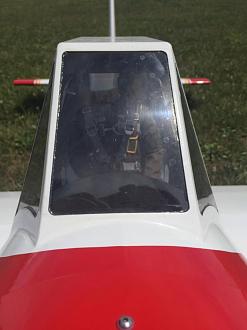

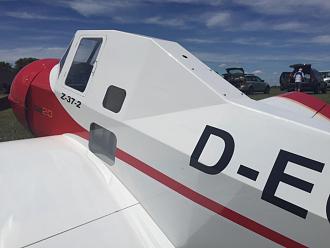

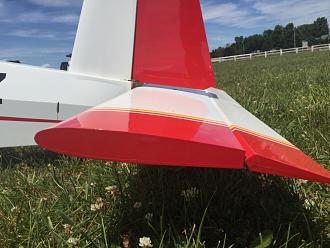

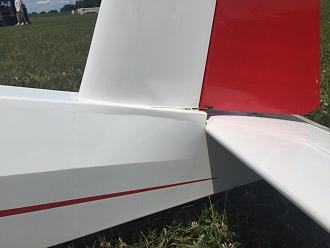

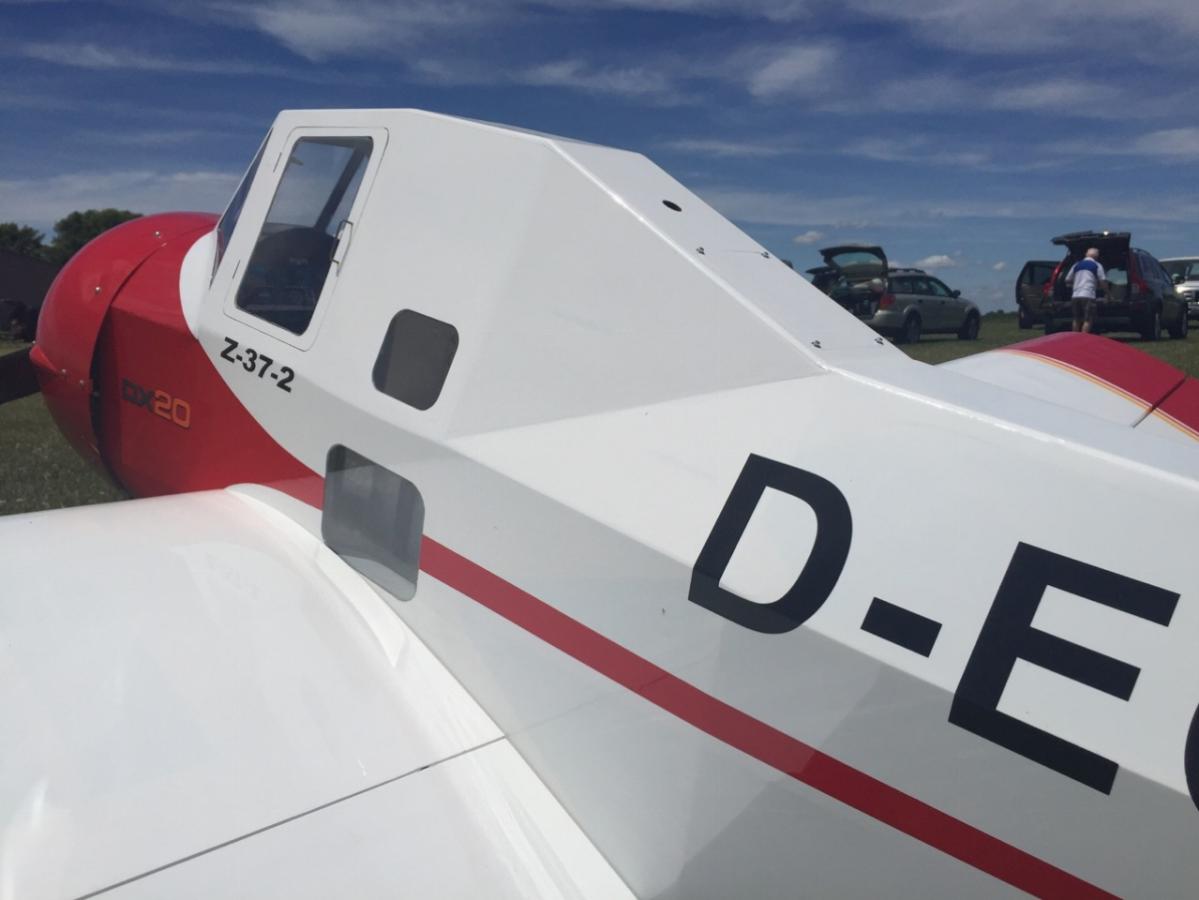

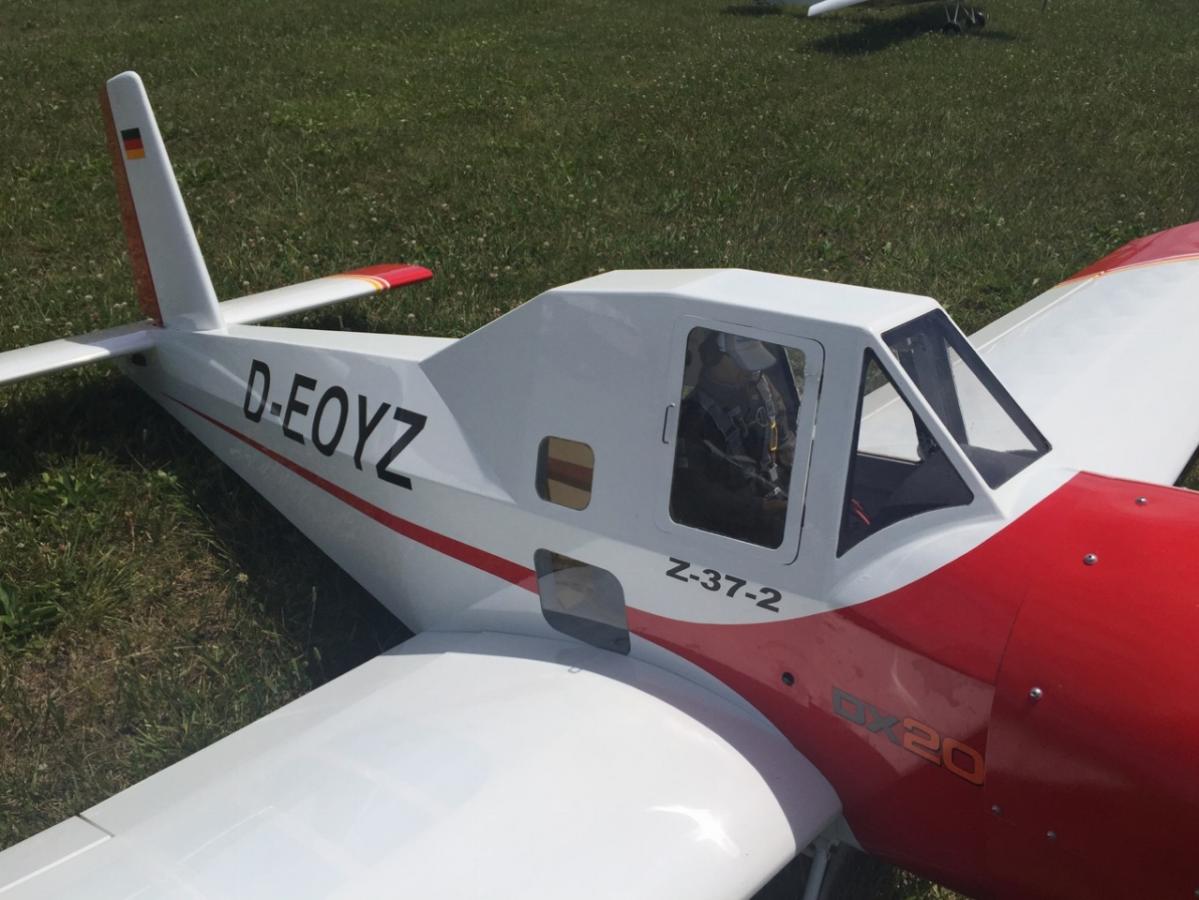

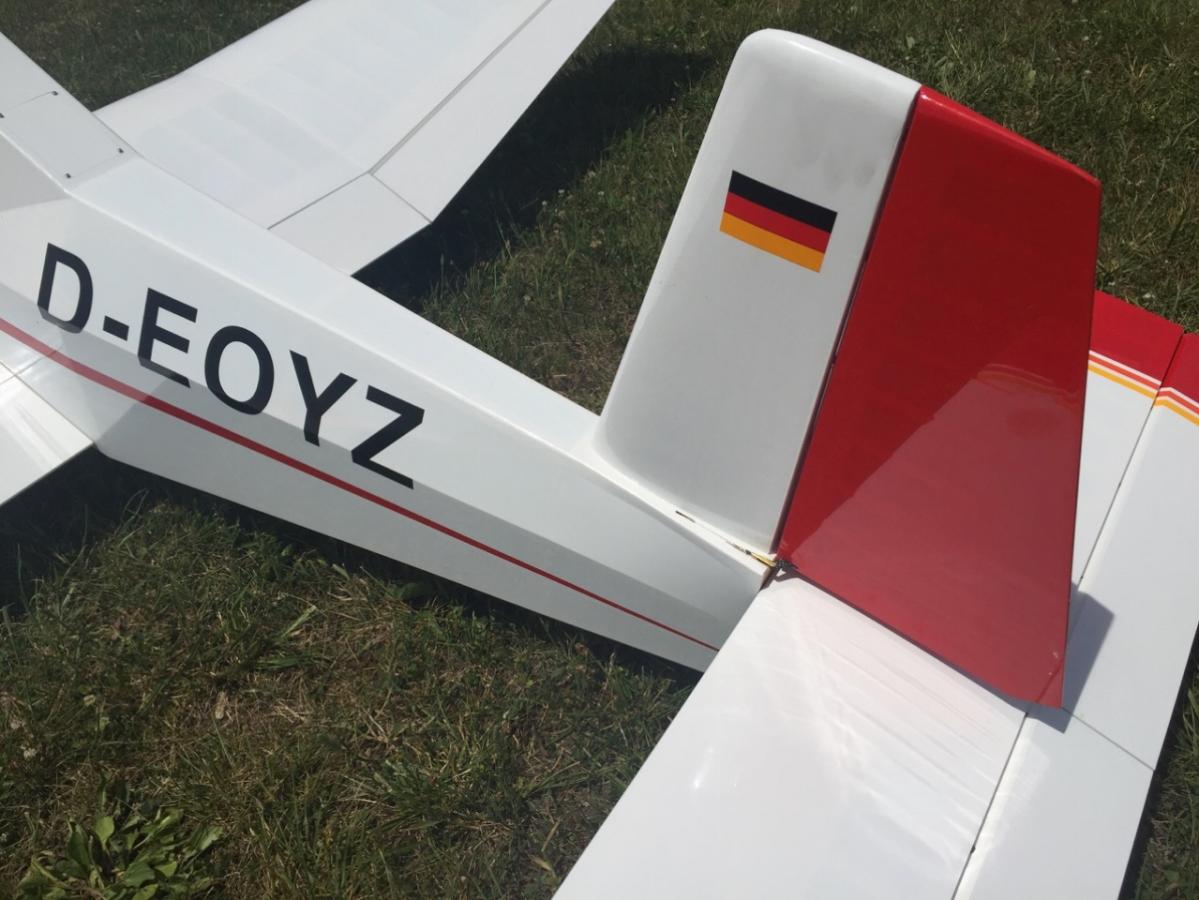

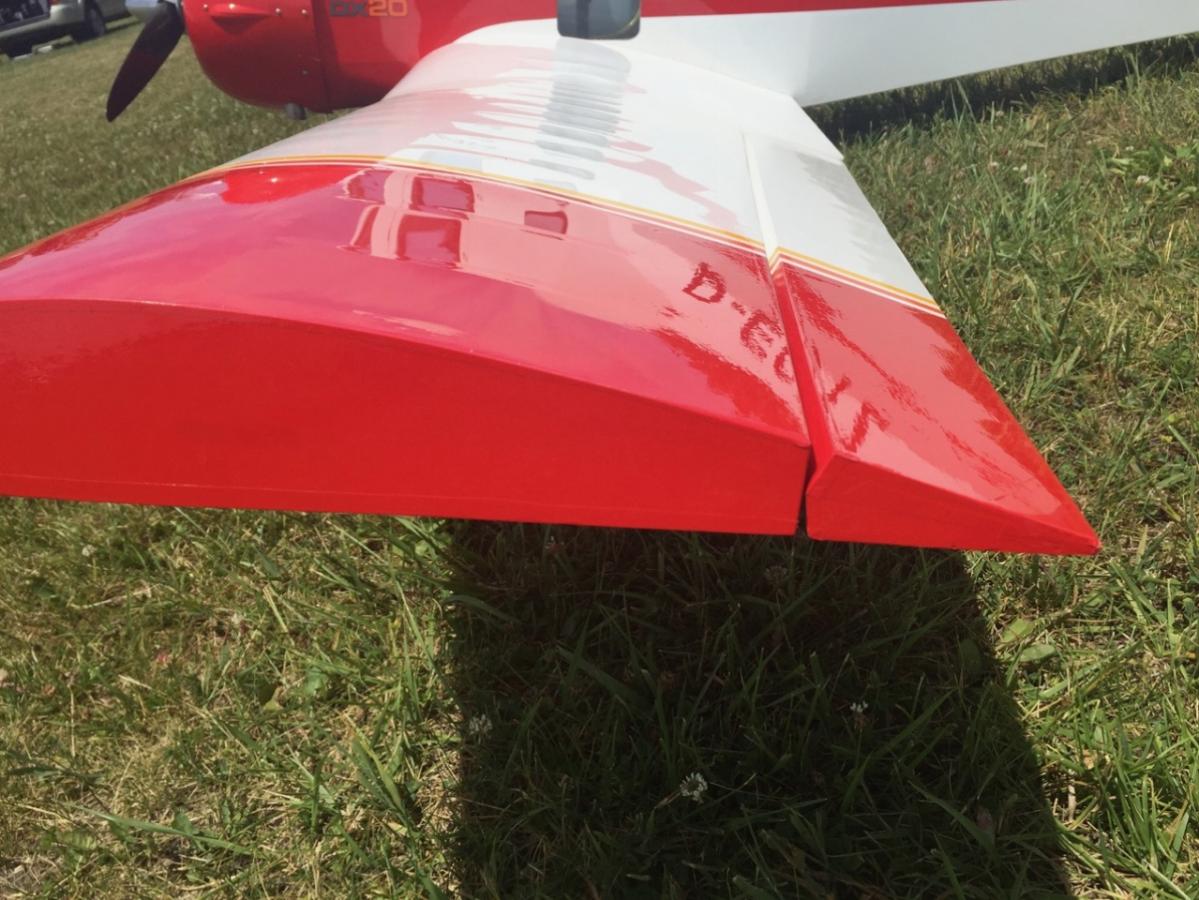

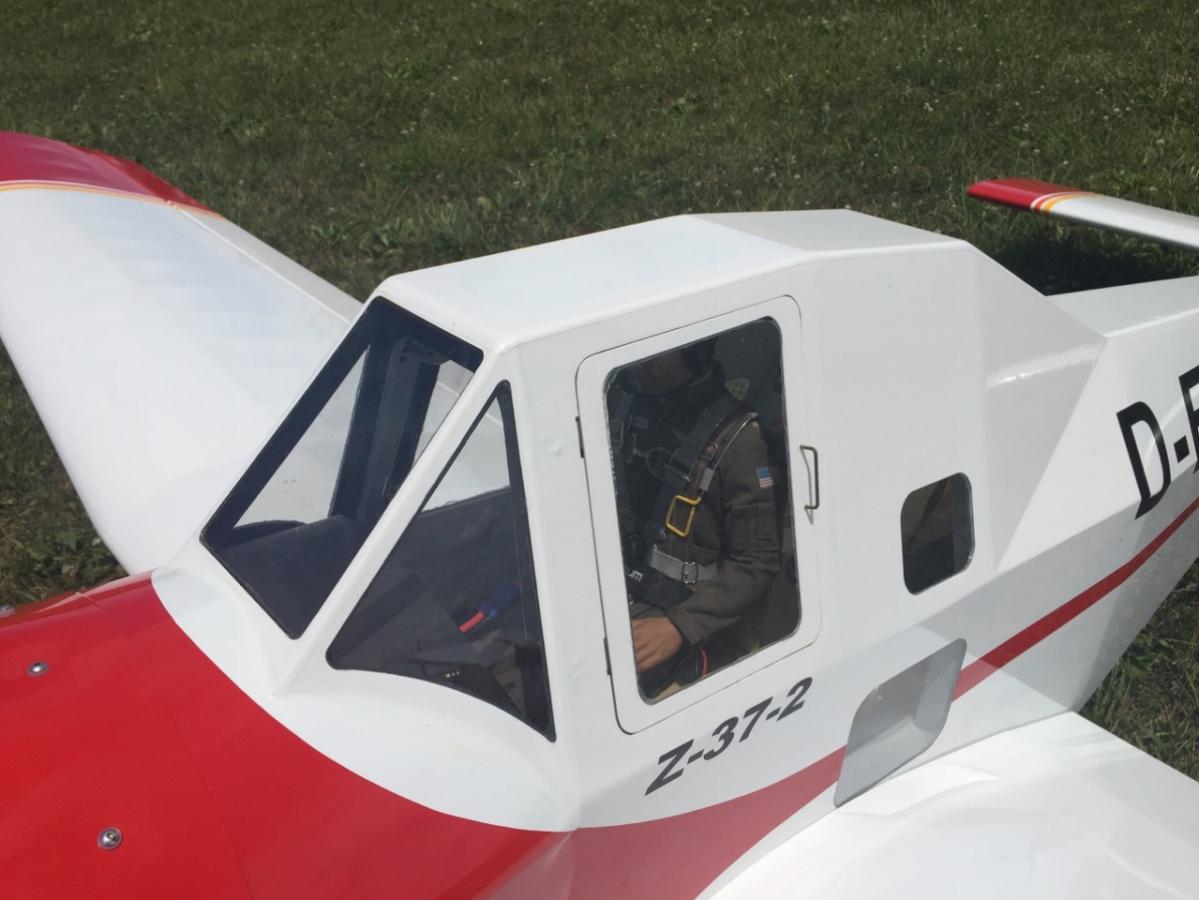

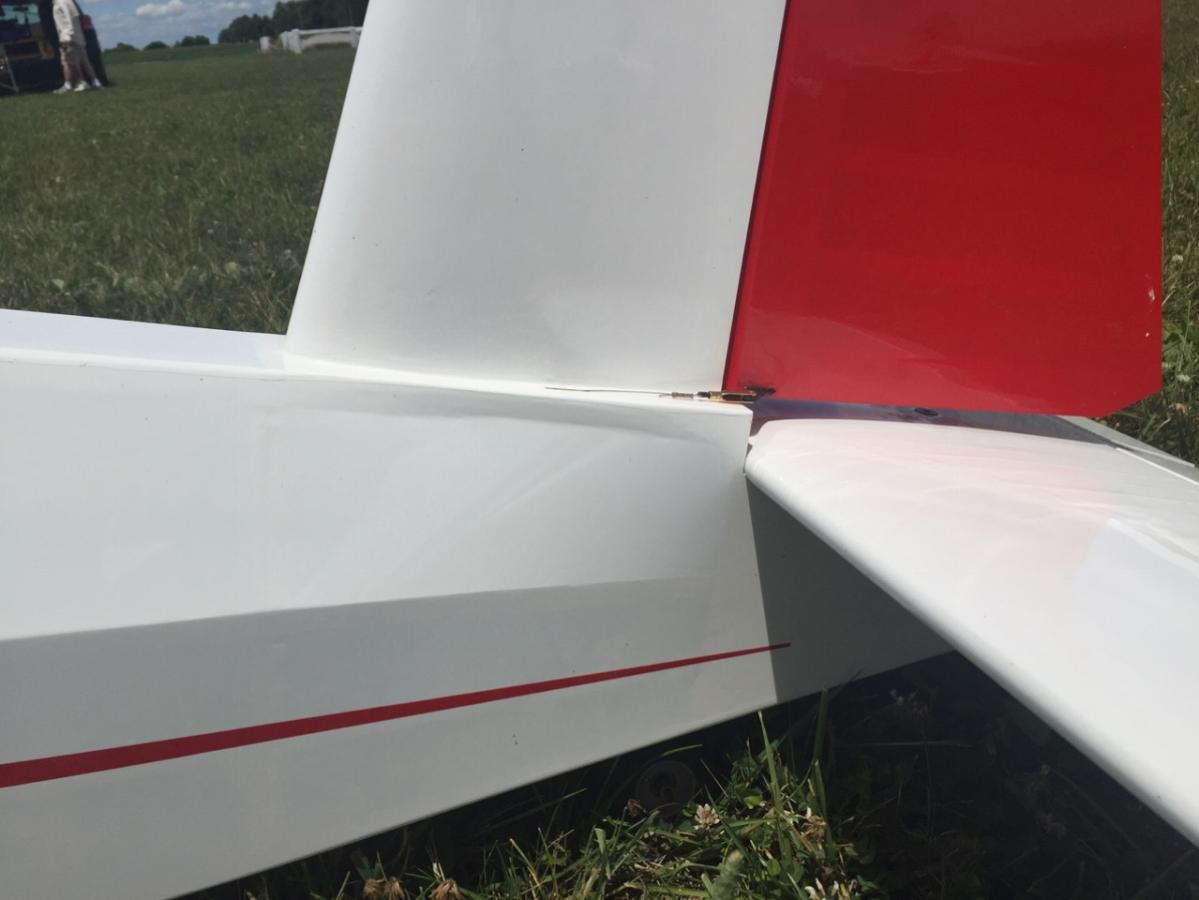

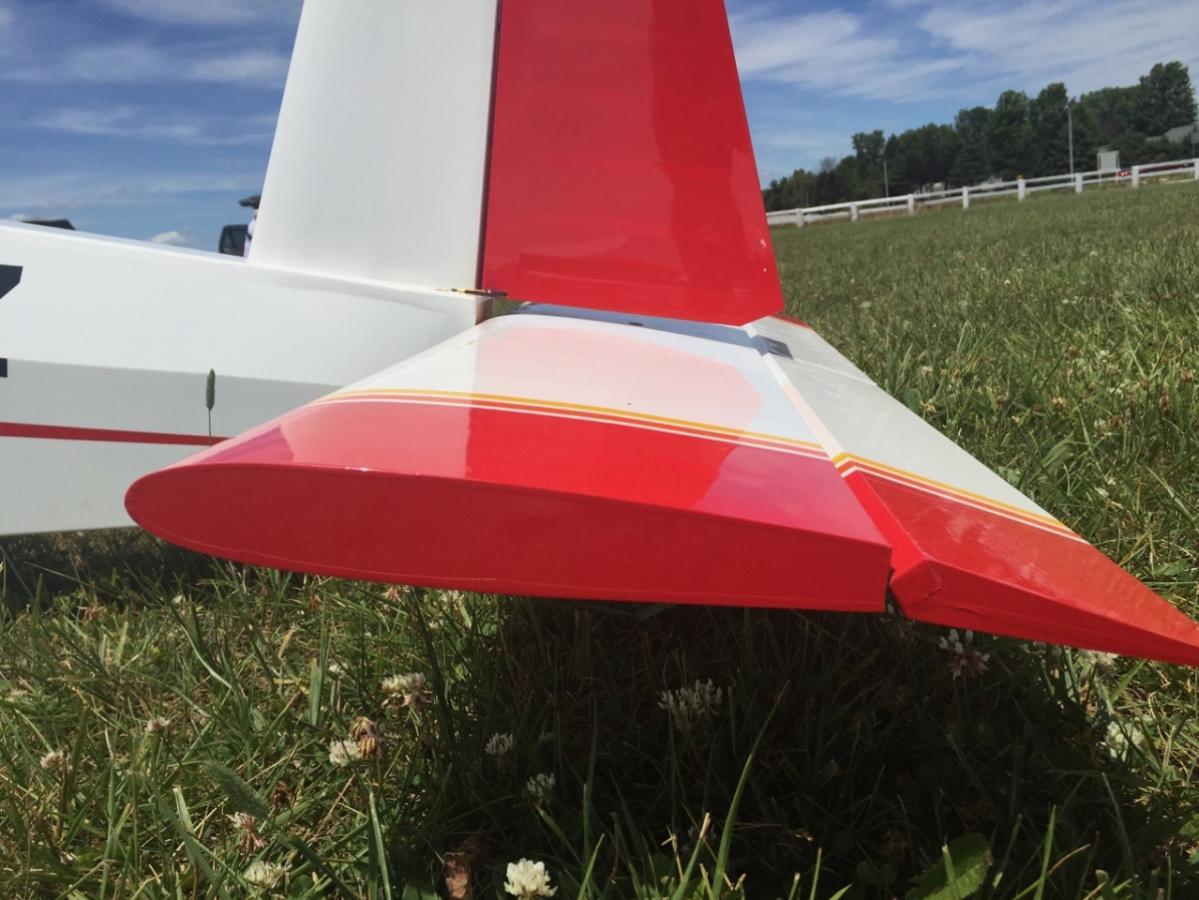

                        Random Photos of Peters Prototype​​​​​​​



                        Click image for larger version

Name:	image_7922.jpg
Views:	1203
Size:	93.7 KB
ID:	21728

                        Click image for larger version  Name:	1 - 5.jpg Views:	1 Size:	63.7 KB ID:	21716Click image for larger version  Name:	1 - 6.jpg Views:	1 Size:	63.1 KB ID:	21717Click image for larger version  Name:	1 - 10.jpg Views:	1 Size:	57.9 KB ID:	21718Click image for larger version  Name:	1 - 13.jpg Views:	1 Size:	108.2 KB ID:	21719Click image for larger version  Name:	1 - 11.jpg Views:	1 Size:	113.3 KB ID:	21720Click image for larger version  Name:	1 - 4.jpg Views:	1 Size:	108.7 KB ID:	21721Click image for larger version  Name:	1 - 7.jpg Views:	1 Size:	120.8 KB ID:	21722Click image for larger version  Name:	1 - 9.jpg Views:	1 Size:	105.9 KB ID:	21723Click image for larger version  Name:	1 - 2.jpg Views:	1 Size:	45.1 KB ID:	21724Click image for larger version  Name:	1 - 3.jpg Views:	1 Size:	89.9 KB ID:	21725Click image for larger version  Name:	1 - 1.jpg Views:	1 Size:	109.8 KB ID:	21726Click image for larger version  Name:	1 - 8.jpg Views:	1 Size:	146.5 KB ID:	21727
                        Len Buffinton
                        Team Horizon Hobby

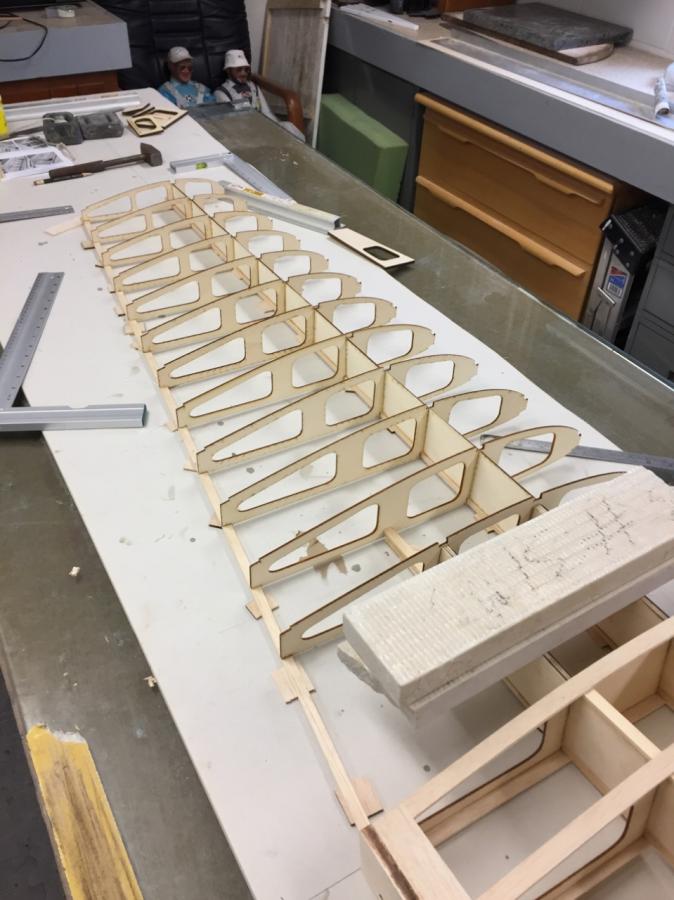

                        Comment


                        • #15

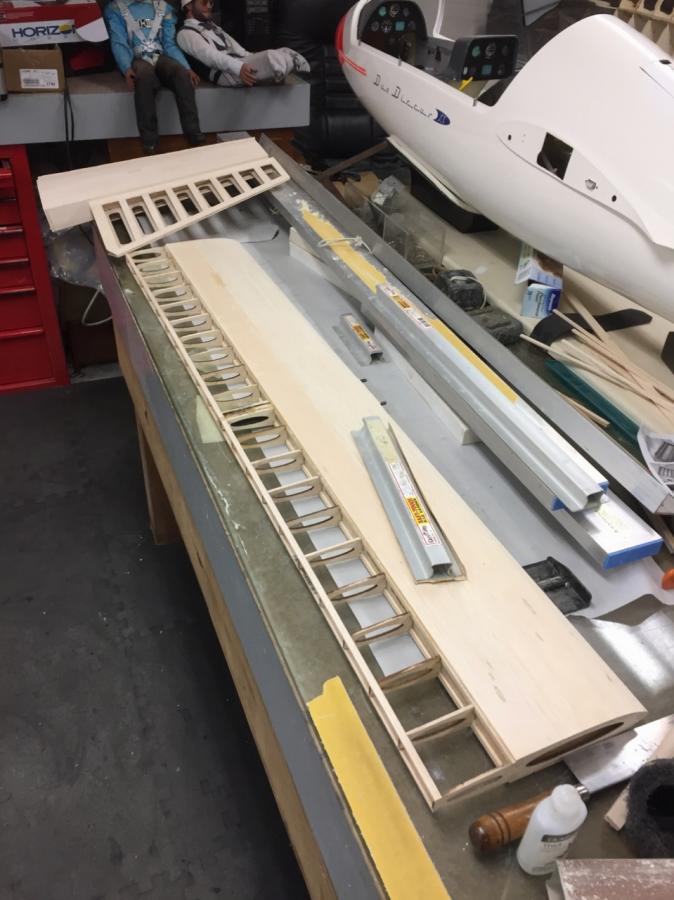

                          At this point I have set the wings and tail aside, I still need to build the ailerons and finish the flaps, but since Kevin is moving along on his build and time may become and issue for me shortly, I wanted to build the fuse and get the photos posted.

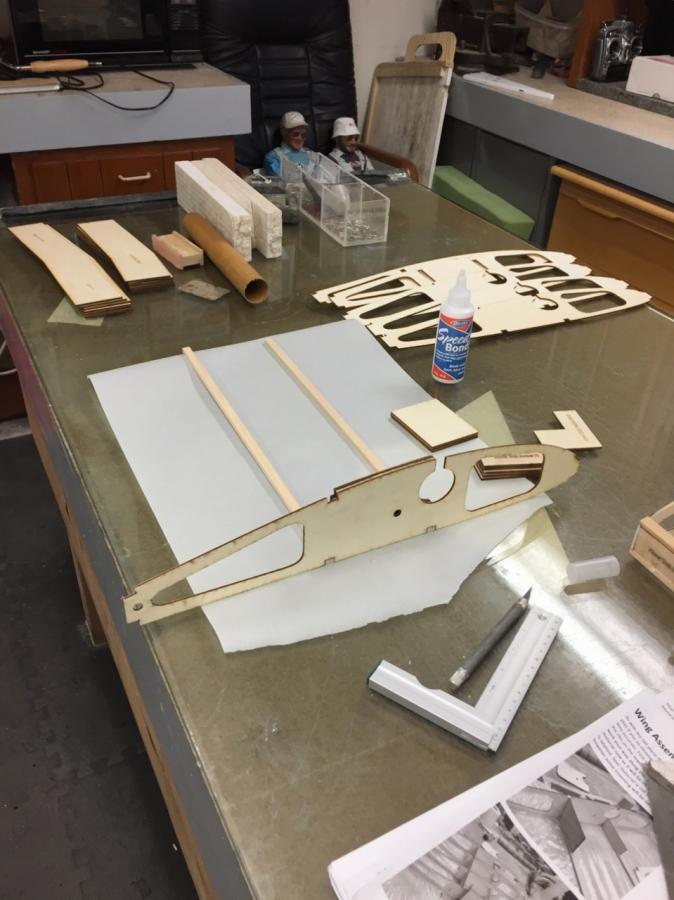

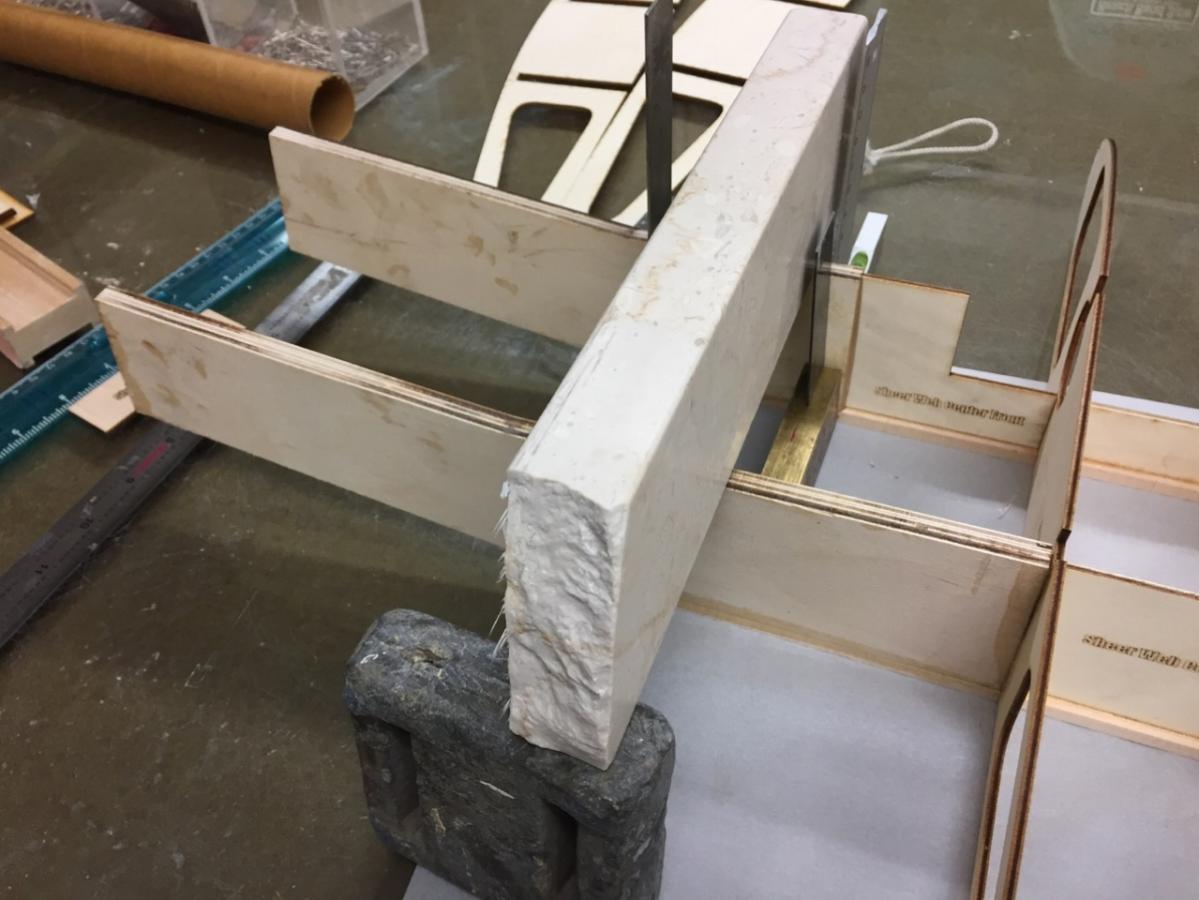

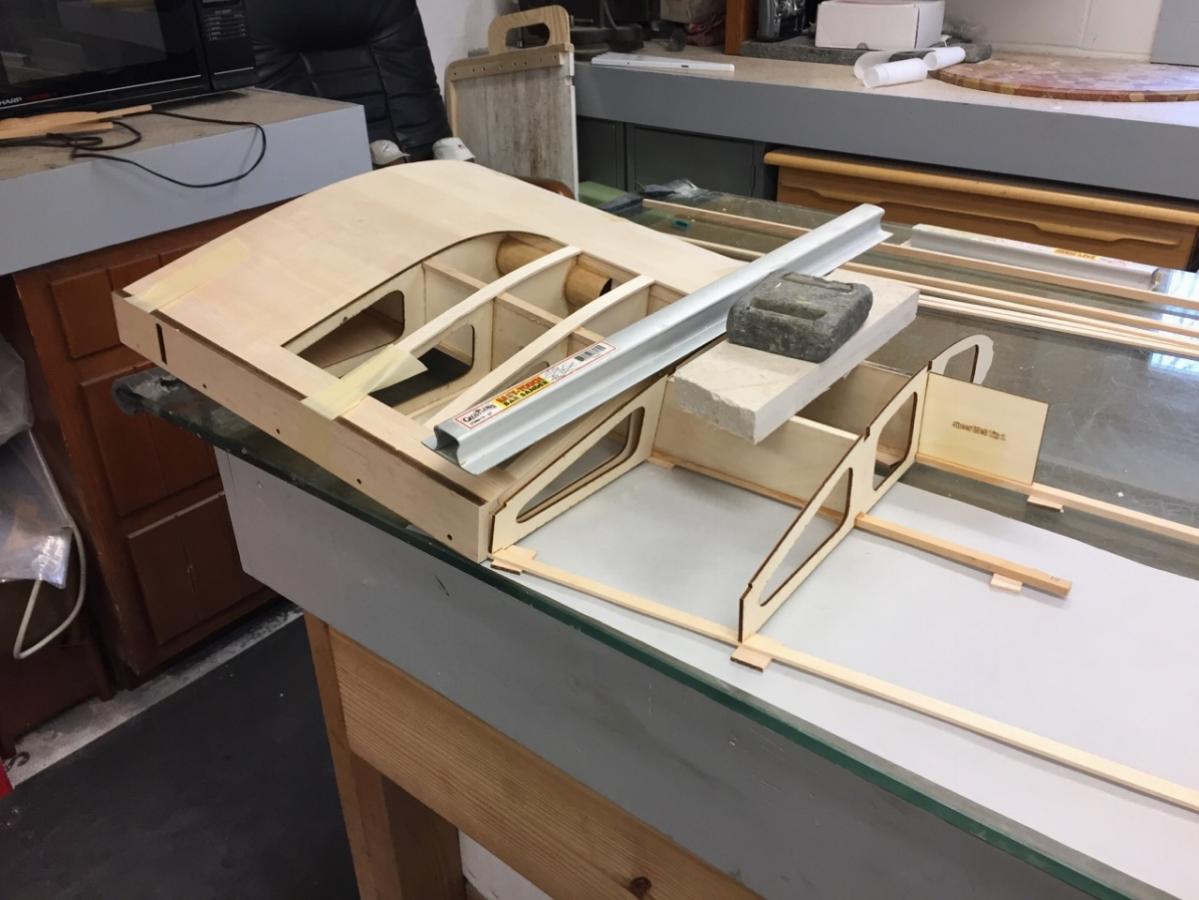

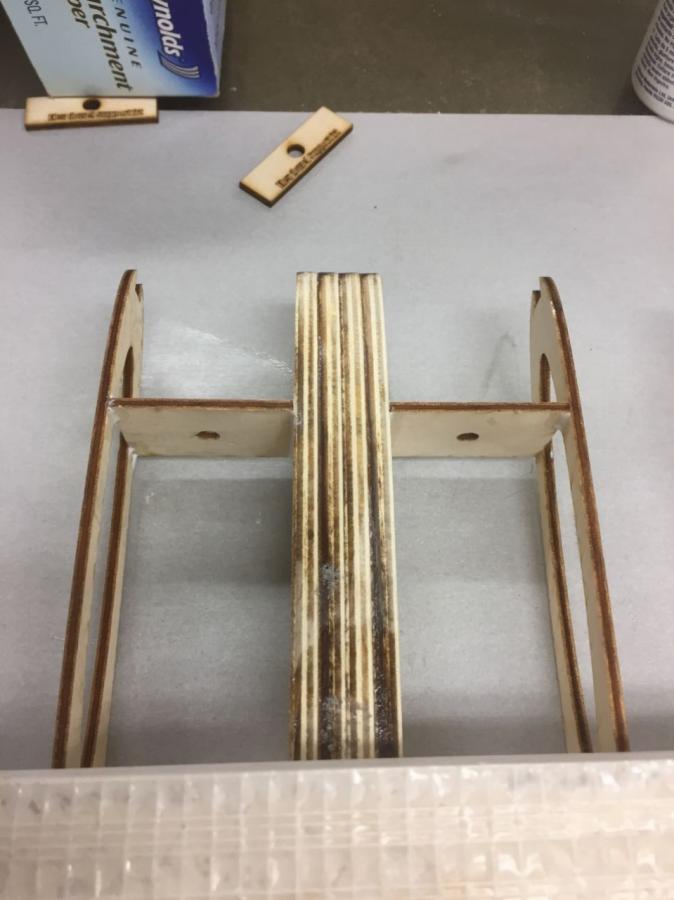

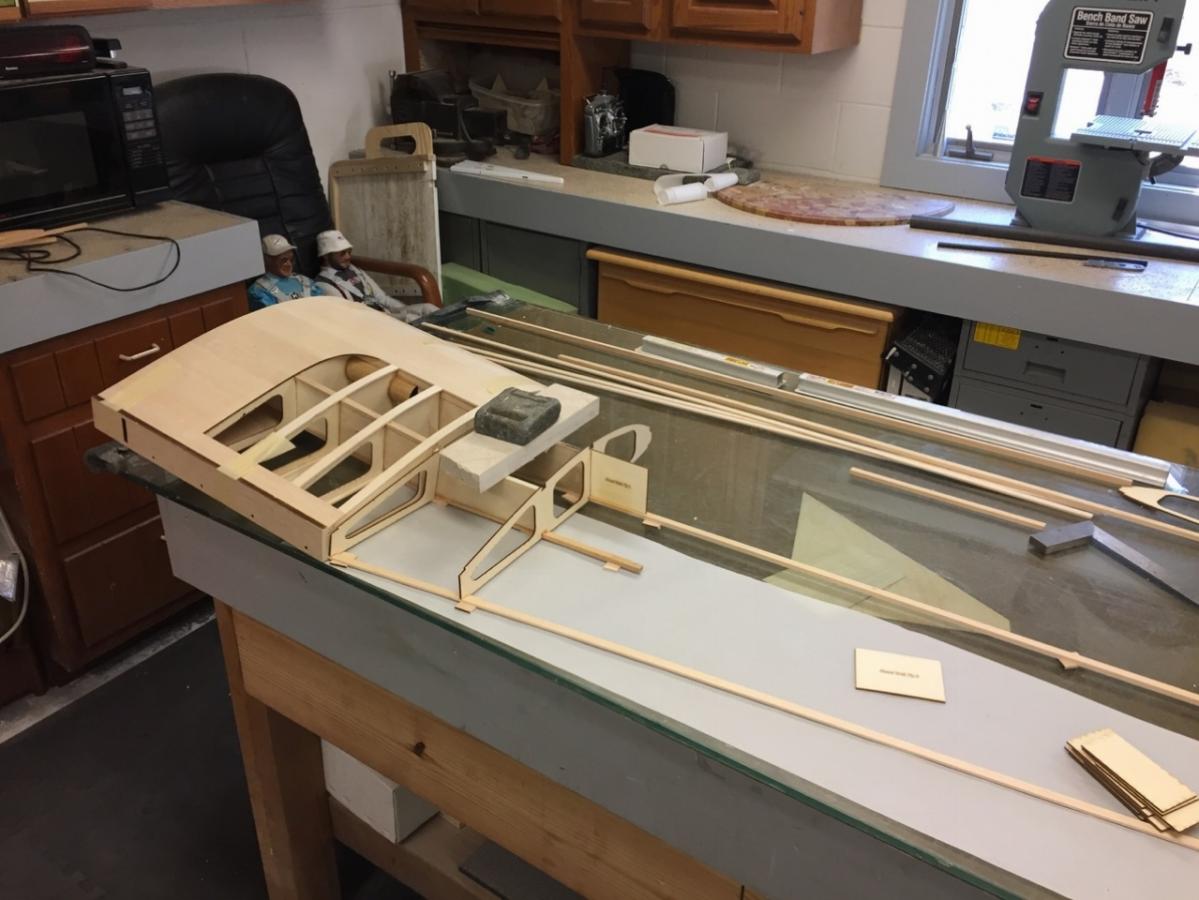

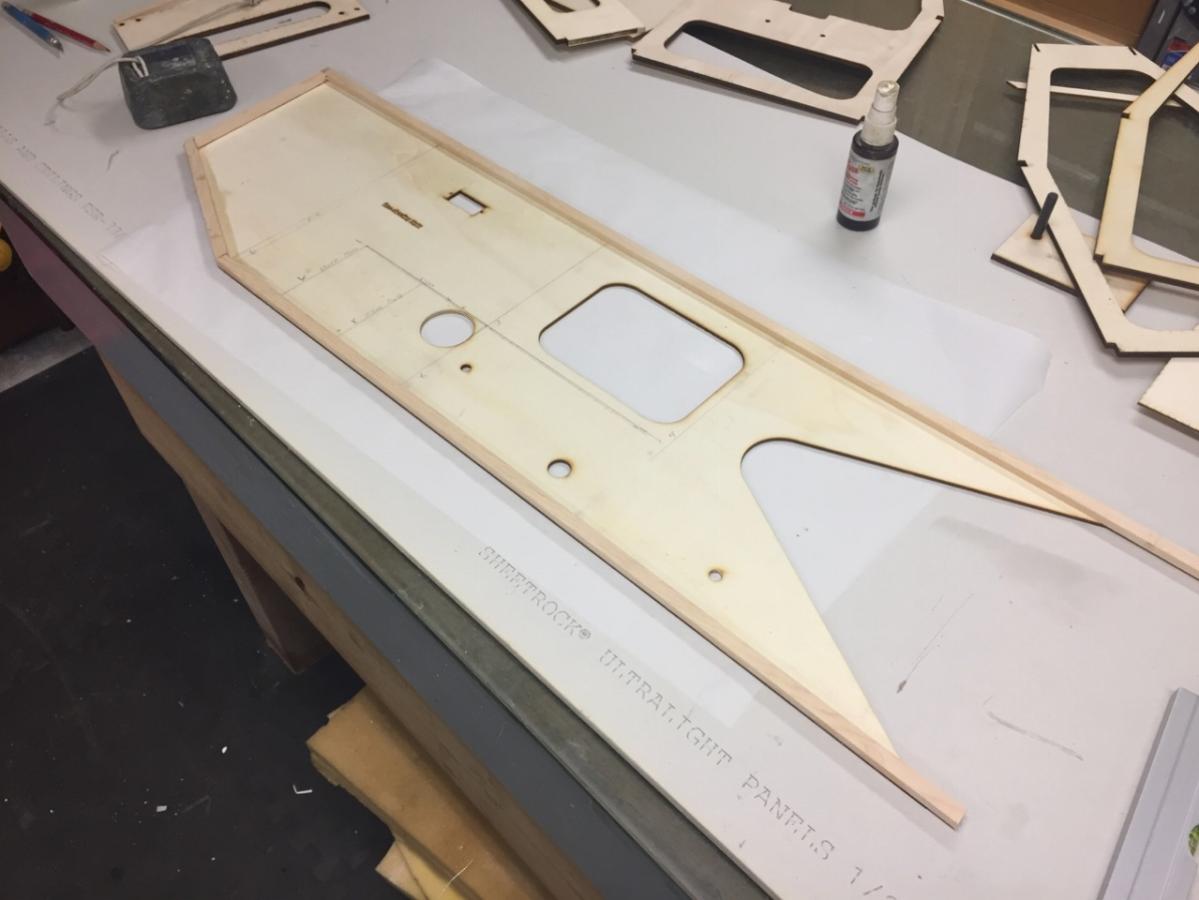

                          The fuse is built by starting with the cabin area. Lay out the side pieces and start fitting the parts.

                          Advice:
                          Take your time and pull out all the fuse formers and parts you can identify. Lay out the side panels and dry fit everything. Once you've marked locations with a pencil and your sure of the location and fit, then start cementing thing in place.

                          I started with the rear anti-rotation double. Since all the pieces seemed to be based on that doubler, I started there and worked forward.

                          You will be framing the edges with spruce, so once you're happy with the location of the anti-rotation double, fit the spruce around the perimeter and glue all those pieces in.

                          Click image for larger version

Name:	1 - 14.jpg
Views:	888
Size:	37.4 KB
ID:	21733

                          Click image for larger version

Name:	1 - 15.jpg
Views:	868
Size:	73.3 KB
ID:	21734



                          Thinking ahead.

                          You will be joining together the main spruce spar that runs all the way to the tail, instead of fighting with it now sticking out there and waiting to get broken, I went ahead and made the scarf joint cut now on the pieces that will join, numbered them and set the two rear strips aside until later. The BOTTOM stringer will be joined later and can be just left a little long at this point.


                          Click image for larger version

Name:	1 - 16.jpg
Views:	833
Size:	45.3 KB
ID:	21735


                          Click image for larger version

Name:	1 - 17.jpg
Views:	844
Size:	68.5 KB
ID:	21736

                          Len Buffinton
                          Team Horizon Hobby

                          Comment
