    The brake system is hydraulic and needs to be refilled from time to time, doing this can get messy if the hose pops off ( experience talking here )

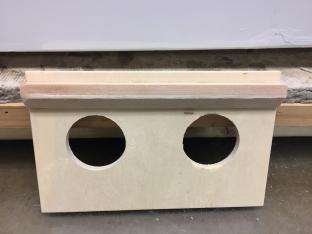

    So this time I made a little tray for the brake systems master cylinder and servo to live in, then coated it with West Systems epoxy which was thinned out.

    This was mounted to a couple blocks I installed to the bulkheads.
    Click image for larger version  Name:	IMG_4318.JPG Views:	1 Size:	8.3 KB ID:	14217
    Click image for larger version  Name:	IMG_4310.JPG Views:	1 Size:	12.2 KB ID:	14214
    Click image for larger version  Name:	IMG_4326.JPG Views:	1 Size:	10.4 KB ID:	14216
    Click image for larger version  Name:	IMG_4328.JPG Views:	1 Size:	9.7 KB ID:	14218


    Onto the tow release.

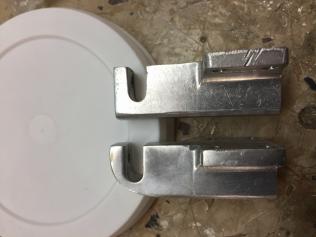

    On the previous Bidule, there would be times when the tow line would get wrapped around the front side of the tow release and when released it would stay hung up on the front side. Luckily this never happened in flight, but we're not taking any chances.






    Click image for larger version

Name:	image_5360.jpg
Views:	334
Size:	10.6 KB
ID:	14219



    Click image for larger version  Name:	IMG_4311.JPG Views:	1 Size:	10.0 KB ID:	14215


    Len Buffinton
    Team Horizon Hobby

    Comment


    • #32


      Tank mount.

      We need to make our own tank mount for this plane. Top Models wants you to mount it up on the forward platform, but we carry 114 oz and it would be really nose heavy at full fuel with a constant CG change throughout the flight. I made a new tank platform and positioned the center of the tank just about over the CG. I held it slightly forward so I can get my hand down to the rear wing bolt.

      Click image for larger version

Name:	IMG_4356.JPG
Views:	328
Size:	13.5 KB
ID:	14224

      A simple upright support epoxied to the LG plate will hold the aft end up and the front side is bolted to the servo saver frame. I pre planned this out, so the servo saver height is correct for supporting this platform.

      Click image for larger version

Name:	IMG_4348.JPG
Views:	364
Size:	8.8 KB
ID:	14223

      Click image for larger version

Name:	IMG_4349.JPG
Views:	315
Size:	10.5 KB
ID:	14221

      Click image for larger version

Name:	IMG_4360.JPG
Views:	314
Size:	9.5 KB
ID:	14225

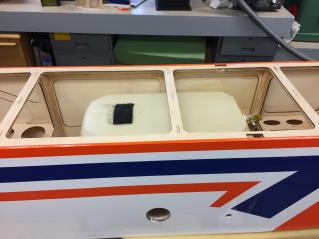

      Our header tank is nestled in nicely just aft of the CG, on top of the LG plate.



      Click image for larger version

Name:	IMG_4365.JPG
Views:	321
Size:	8.3 KB
ID:	14226


      Click image for larger version

Name:	IMG_4357.JPG
Views:	316
Size:	11.1 KB
ID:	14222

      Len Buffinton
      Team Horizon Hobby

      Comment


      • #33

        Backing up a bit, I neglected to cover how I fit the brake cylinder into the fuse.
        As in the previous plane, an easy modification to the rear platform will yield all sorts of room AFT of the CG for the brake system

        Click image for larger version

Name:	IMG_4307.JPG
Views:	328
Size:	9.9 KB
ID:	14228

        This shows the quick hardwood frame I'm going to glue UNDER the edges of the cut out platform


        Click image for larger version

Name:	IMG_4308.JPG
Views:	340
Size:	9.8 KB
ID:	14229

        Click image for larger version

Name:	IMG_4328.JPG
Views:	317
Size:	9.7 KB
ID:	14230




        Len Buffinton
        Team Horizon Hobby

        Comment


        • #34
          WOW...THis thread is so much better than any build manual ever...This is so incredibly helpful for those of us who are a just getting going on our Bidule build...your foresights on things really save the day...Thank everyone of you so much...especially Len for so many revealing pictures along with text...
          Kevin

          Comment


          • #35
            Hi Kevin
            Glad you are getting some ideas out of this. If you have anything specific you need help with, please feel free to ask.

            Len
            Len Buffinton
            Team Horizon Hobby

            Comment


            • #36
              Hi Len,

              Thanks for posting this. I have 2 Bidules (Bidule 55 and 111) sitting in my spare bedroom right this second. The Bidule 55 will be electrified. I'm glad I didn't start on them sooner..

              Aurele
              Last edited by AureleAlain; 11-29-2016, 03:43 AM.

              Comment


              • #37
                HI Aurele,
                That should be a fun little tug with an electric setup.
                Be sure to check out Jim's Bidule 111 build thread too. http://forum.scalesoaring.com/forum/tugs-and-stuff/tow-planes/13964-bidule-111-v2-0


                Since the cold has arrived, it's time to get those boxes out and start building!!

                Len Buffinton
                Team Horizon Hobby

                Comment


                • #38
                  Our tasks are winding down in the fuse, so its time to figure out the radio installation. The receiver will sit just in front of the tow release, with the batteries to the left and right of the brake master cylinder setup. To hold the batteries in nice and secure, I make up a lite ply plate which has a channel under it for velcro to pass under. There are three batteries, two flight pack and one for ignition.

                  Click image for larger version

Name:	IMG_4375.jpg
Views:	318
Size:	6.4 KB
ID:	14297

                  Click image for larger version

Name:	IMG_4378.jpg
Views:	542
Size:	4.3 KB
ID:	14300
                  Click image for larger version

Name:	IMG_4379.jpg
Views:	325
Size:	7.3 KB
ID:	14298

                  Click image for larger version

Name:	IMG_4376.jpg
Views:	319
Size:	7.8 KB
ID:	14301

                  My servo extension leads for the dual rudders are joined together in the tail in one simple positive lock connector. These are available from Hansen Hobbies.http://www.hansenhobbies.com/product...nlpconnectors/

                  Since they come in many different combinations which will take 3-6-9-12or even 15 wires, you can make all your connections with one simple click. The beauty of these connectors is there is no soldering.

                  Click image for larger version

Name:	IMG_4372.jpg
Views:	320
Size:	7.5 KB
ID:	14302


                  Attached Files
                  Len Buffinton
                  Team Horizon Hobby

                  Comment


                  • #39
                    Landing Gear Modification

                    The carbon main landing gear on this plane is excellent, so this modification has nothing to do with strength, instead its about appearance. With the addition of brakes on a Bidule you have to have tubing running down to the brake caliper. Unfortunately, its pretty unsightly since you need to tape it to the landing gear leg, which then gets greasy and starts to come off. Yuk. I'm tired of it.
                    My solution was to add a carbon fiber tube down the trailing edge of the gear.

                    Step one was to sand the paint off the gear TE, this took about 2 minutes. The paint is fairly brittle and sands easily and to my surprise, there's a lot of filler under the paint.
                    Click image for larger version

Name:	IMG_4386.jpg
Views:	315
Size:	5.7 KB
ID:	14304

                    The carbon tubes were cut and left a bit long on the top side. The tube I used was a Dave Brown carbon fiber pushrod. The pushrod is abut 1/4" so its important to hold the the top of the pushrot to the top of the gear down by the wheel and to the bottom edge of the gear up by the fuse. This will allow the tube to contact the fuse underneath and look really nice.
                    My go to epoxy for superior strength and ease of working is West Systems Epoxy. I mix it with 404, which is high density adhesive filler. Mix it to a past consistency and glue the tub on, taping it for the night.
                    Click image for larger version

Name:	IMG_4396.jpg
Views:	313
Size:	5.4 KB
ID:	14308

                    Click image for larger version

Name:	IMG_4397.jpg
Views:	311
Size:	6.8 KB
ID:	14305

                    Click image for larger version

Name:	IMG_4395.jpg
Views:	314
Size:	5.0 KB
ID:	14306

                    Click image for larger version

Name:	IMG_4398.jpg
Views:	315
Size:	6.2 KB
ID:	14307

                    Click image for larger version

Name:	IMG_4399.jpg
Views:	315
Size:	3.8 KB
ID:	14309

                    After the initial gluing, it took three sessions to get the epoxy filled the way I wanted it, then one more tonight where I applied a layer of fiberglass cloth to the gear and around the tube.
                    Next I will spread some epoxy with 410 lightweight fill on the entire gear and sand it all smooth.

                    Click image for larger version

Name:	IMG_4408.jpg
Views:	308
Size:	5.7 KB
ID:	14310Click image for larger version

Name:	IMG_4412.jpg
Views:	310
Size:	4.3 KB
ID:	14311Click image for larger version

Name:	IMG_4411.jpg
Views:	337
Size:	4.5 KB
ID:	14312Click image for larger version

Name:	IMG_4410.jpg
Views:	323
Size:	3.9 KB
ID:	14313


                    Len Buffinton
                    Team Horizon Hobby

                    Comment


                    • #40
                      While waiting for epoxy to cure it was time to hinge the ailerons, flaps and elevators.

                      I took every hinge point out of the surfaces and threw them into the garbage, replacing them with Robart 3/16 Hinge points. Ask ANYONE who has used the stock hinges, they WILL fail. Simple as that.

                      I take the needed hinge points and lay them on a paper towel, them apply a drop of machine oil to the pivot point. This is all you need to keep them from sticking if epoxy gets on the joint.

                      Using G-flex epoxy, once again from West Systems, I mix up enough to install all the hinge points in the surfaces only.

                      Click image for larger version

Name:	IMG_4404.jpg
Views:	318
Size:	10.9 KB
ID:	14316
                      Here's how I do it

                      Mix the epoxy,


                      Pour it into a small zip lock bag.

                      Click image for larger version

Name:	IMG_4405.jpg
Views:	308
Size:	6.2 KB
ID:	14318

                      Clip a very small hole into the corner, making a frosting dispenser.

                      Click image for larger version

Name:	IMG_4406.jpg
Views:	303
Size:	4.3 KB
ID:	14319



                      Use the dispenser to squirt the epoxy into the hole, no mess, no fuss.

                      Once in the hole, use a piece of wire to swirl it around inside the hole

                      Insert the hing points, making certain they are lined up and operating properly.

                      Click image for larger version

Name:	IMG_4403.jpg
Views:	312
Size:	9.4 KB
ID:	14315

                      Set them so the epoxy will flow down over the hinge point on the inside.


                      Click image for larger version

Name:	IMG_4403.jpg
Views:	301
Size:	9.4 KB
ID:	14320

                      Let them cure for the night and we'll install them into the wings tomorrow.




                      Attached Files
                      Len Buffinton
                      Team Horizon Hobby

                      Comment


                      • lenb
                        lenb commented
                        Editing a comment
                        Hi Tim,
                        I did not add additional hinge points. After looking at he older Bidule control surfaces, there was no sign of fatigue or failure with the ROBART hinge points we used.
                        I elected to stay with the stock amount of hinge points, however its CRITICAL you change them over to ROBART Brand and then throw the other ones away.

                      • Steve P
                        Steve P commented
                        Editing a comment
                        I think you mean Robart Hinge Points, not Sulivan... http://robart.com/collections/contro...inge-points-15

                      • lenb
                        lenb commented
                        Editing a comment
                        Yes, thanks Steve, I made the change. I did mean Robart Hinge Points.

                    • #41
                      Work has continued on the Bidule, but at a slower pace due to some work issues getting in the way of fun. The landing gear is finally finished, and it came out great. Getting the gear ready to paint was a long process because you fill a little, wait for it to cure, sand, fill, prime, sand, fill, prime, ...... I know its not a scale airplane, but its my nature to do the best I can on each piece.... It sometimes makes me crazy.

                      Click image for larger version

Name:	IMG_4463.jpg
Views:	308
Size:	3.8 KB
ID:	14395

                      Click image for larger version

Name:	IMG_4464.jpg
Views:	291
Size:	5.6 KB
ID:	14396

                      Before the final paint, I wanted to address the "flat spot" where the axle goes through. I stress " flat spot" because it's anything but flat... The axle area is rounded a bit and the thickness varies from top to bottom, which is fine when not using brakes, but when you want to install brakes there are attachment brackets which need to attach to the gear. A flat area would be so much better.



                      Grind off the paint and primer on both the inside and outside of this area, Fit the axle spacer Gunny provides in his Bidule Brake Kit http://www.aviationconceptsrc.com/hydraulic-disc-brakes

                      Make 4 flat plates out of G-10, 1/4" aircraft ply, aluminum, whatever you have but make sure its strong and smooth. Drill a hole in the middle the same size as a bolt that will pass through the axle bushing you have just installed. Cover one side of the plates with duct tape, this acts as a release tape and epoxy will not stick to it. ( trust me )

                      Mix up some high quality epoxy, I use WEST SYSTEMS , along with micro fibers. ( West Systems 403 ) The fibers act as a filler and thicken the batch while adding strength.

                      Click image for larger version

Name:	IMG_4428.jpg
Views:	292
Size:	7.8 KB
ID:	14397


                      Apply the mix to the bearing provided in the brake kit and insert that as instructed

                      Apply the mix to both sides of the gear bottoms

                      Click image for larger version

Name:	IMG_4433.jpg
Views:	293
Size:	6.5 KB
ID:	14401

                      The bolt you use to hold this all together must be lubricated so it does not glue in. I used some Vaseline liberally applied to the bolt. You do not want it to glue in!!!!

                      Once all the glue is applies, bolt the two plates on the gear and tighten the bolt GENTLY. Dont squeeze out all the filler. I brought the bolt tight enough to firm up, but found I needed to add a shim to the bottom outside plate. A small piece of hardwood will do the trick.

                      Click image for larger version

Name:	IMG_4431.jpg
Views:	285
Size:	6.8 KB
ID:	14402

                      Click image for larger version

Name:	IMG_4430.jpg
Views:	292
Size:	6.0 KB
ID:	14400


                      Wipe off any access and repeat for the other wheel.

                      Once cured (next day) Pop off the parts and check it out. The edged can all be sanded straight at this point. You will most likely need to apply one more coat of filler around the edges to make it perfect and fill in the area where the shim was.

                      Click image for larger version

Name:	IMG_4450.jpg
Views:	291
Size:	4.0 KB
ID:	14399

                      Click image for larger version

Name:	IMG_4449.jpg
Views:	289
Size:	4.2 KB
ID:	14398

                      You can see how much correction was made.
                      Len Buffinton
                      Team Horizon Hobby

                      Comment


                      • #42
                        Install the brakes EXACTLY as instructed in the Aviation Concepts Bidule Brake Kit and you'll have no problems at all. Everything will fit perfectly.



                        Click image for larger version

Name:	IMG_4479.jpg
Views:	297
Size:	5.8 KB
ID:	14404

                        Click image for larger version

Name:	IMG_4480.jpg
Views:	291
Size:	6.1 KB
ID:	14405



                        Click image for larger version

Name:	IMG_4487.jpg
Views:	294
Size:	6.5 KB
ID:	14407
                        Click image for larger version

Name:	IMG_4481.jpg
Views:	296
Size:	5.1 KB
ID:	14406

                        Len Buffinton
                        Team Horizon Hobby

                        Comment


                        • #43
                          With all the problems you guys have with the Nose gear, why not make it a tail draggers? Jim G

                          Comment


                          • #44
                            Jim,

                            Let me chime in here...EVERY tow plane has landing gear issues because of the number of takeoffs and landings they make. On the whole (and after 60 hours of personal experience with this aircraft) the landing gear has not been that much of a problem. If we can make it better and even more reliable, that is a good thing...and that is the point of this thread.

                            Aside from personal preference for tricycle gear vs. a taildragger, there is another point to consider...WIND. The plane sits level on its gear with the tricycle configuration whereas a taildragger sits nose high. Because of this, the wind has a much great chance of flipping the plane over...and again, I know this from personal experience.

                            Just my $0.02
                            A Site for Soar Eyes

                            Comment


                            • #45
                              Hi Jim, and Jim..

                              After figuring out the nose wheel servo saver issue, I would venture to say this plane is the has the least issue of any tugs I've ever owned. As stated above, the hours put on a tow plane far far far exceeds the normal sport flyer's use.
                              With the Bidules becoming so popular and so dependable, this is an attempt to make it bullet proof. The main gear is very good, but because is a carbon gear and we add brakes to it, I decided to "square things up" a bit.
                              I know, you can never leave good enough alone!!!
                              Straight out of the box, this tug will last a long time and do a fantastic job, but we'd have nothing to talk about if we all did that. ha ha

                              The tail wheel vs nose wheel thing has been hashed around, I was not a believer in the nose wheel and went into this with a bias toward tail draggers. I was wrong.
                              When towing for hours and hours in a day, the nose wheel setup requires a little less pilot attention and in the end eliminates some pilot fatigue. Plus as Jim D points out, it sure is nice in windy weather.
                              It's a bit like many things that once you try it you love it.

                              Have a nice holiday season

                              Len
                              Len Buffinton
                              Team Horizon Hobby

                              Comment
