Dave Smith/Tom Martin 1/4 Scale Hall Cherokee Build

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #76
    Update continued:

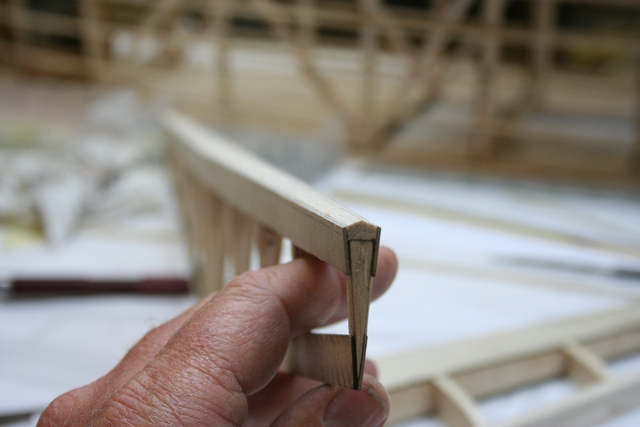

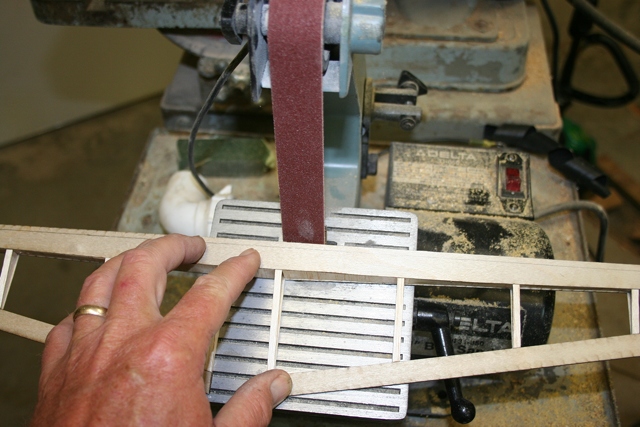

    Beveling the elevator leading edge.
    Click image for larger version

Name:	640IMG_3780resize.jpg
Views:	178
Size:	147.4 KB
ID:	1998

    Click image for larger version

Name:	640IMG_3784resize.jpg
Views:	168
Size:	84.9 KB
ID:	1999

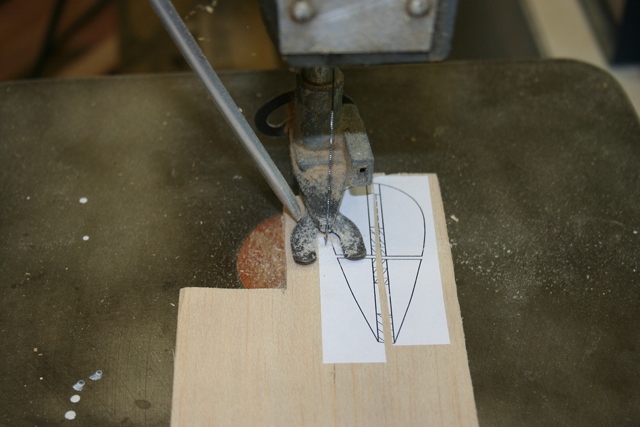

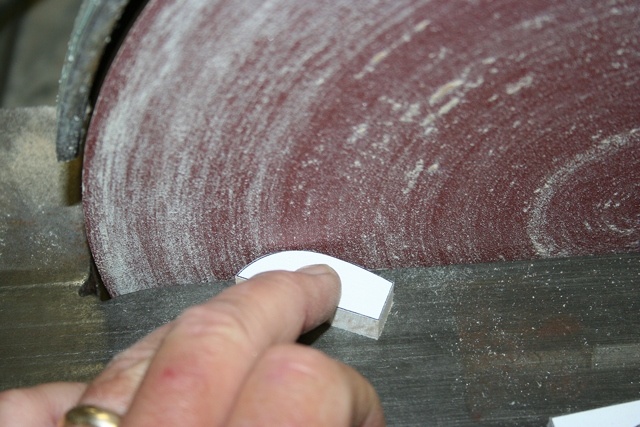

    Cutting the solid balsa tips.
    Click image for larger version

Name:	640IMG_3787resize.jpg
Views:	184
Size:	118.4 KB
ID:	2000

    Click image for larger version

Name:	640IMG_3788resize.jpg
Views:	153
Size:	167.6 KB
ID:	2001

    Continued...

    Comment


    • #77
      Update continued:

      Ready for sanding.
      Click image for larger version

Name:	640IMG_3790resize.jpg
Views:	192
Size:	117.5 KB
ID:	2003

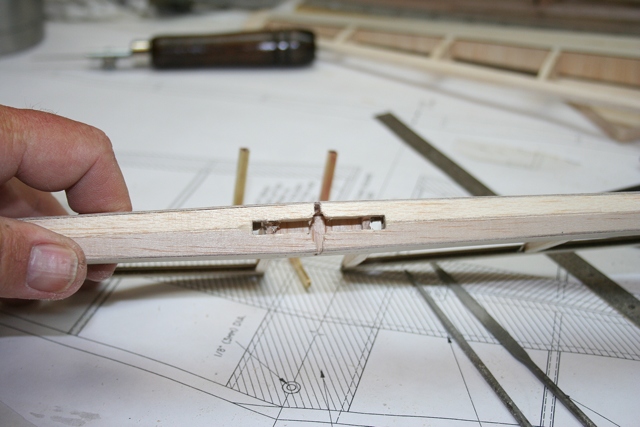

      Installing the control horn.
      Click image for larger version

Name:	640IMG_3792resize.jpg
Views:	179
Size:	113.5 KB
ID:	2004

      Click image for larger version

Name:	640IMG_3798resize.jpg
Views:	159
Size:	95.8 KB
ID:	2005

      Ready for covering.
      Click image for larger version

Name:	640IMG_3801resize.jpg
Views:	167
Size:	134.3 KB
ID:	2006

      Oops! Forgot the holes for the mounting screws. That and the stabilizer saddle is next.

      Comment


      • #78
        Art,

        Really glad you are using the elevator horn method as drawn on the plans. People tend to shy away from it because it is viewed as difficult or sloppy in service, but if you spend a bit of time getting the slot in the sliding square tube right, you will be rewarded with a nicely functioning setup. The trick is to get the top hole just the size of the horn width, and the bottom hole slightly bigger to allow the horn to angle forward or backwards as the elevator is moved. Start with the top and bottom holes just big enough to let the horn pass through, then elongate the bottom hole to allow movement. You may have to bevel the top hole ever so slightly to allow the horn to "swing", but not much. It's not complicated; just needs a bit pf patience, and you will be rewarded with a slop-free quick-mount elevator with no need to access clevises with attendant access holes in the fuselage.

        I assume it's coming, but the front part of the stab middle section gets filled with a block of balsa (grain vertical) to house the front mounting screw.

        Looking great!

        DS

        Comment


        • ingrahal
          ingrahal commented
          Editing a comment
          Hello Dave, thanks for checking in on me. I understand the deal with the mechanism. The top hole is all that is critical. Yes the filler for the stab is what the oops was for. I meant to do that before the update.

      • #79
        excellent build. Following with great interest and hope to see it in Huntsville.

        Dion

        Comment


        • ingrahal
          ingrahal commented
          Editing a comment
          Thanks Dion!!! Our high temps are at or near 100 deg. F so should have plenty of shop time.

      • #80
        I'm out of town this weekend so no progress to be made but I though I'd share one little detail that Dave Smith brought to my attention. The tail has squared off tips. It's an easy fix but I hadn't noticed it. Thanks Dave!!!

        Comment


        • #81
          Update:

          Got back in town in time to work on the Cherokee a little this evening.

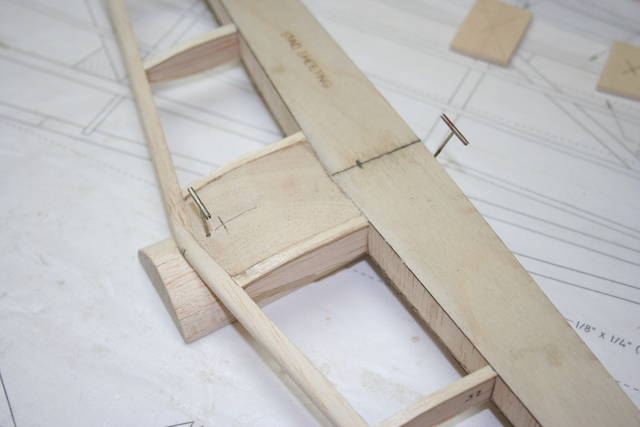

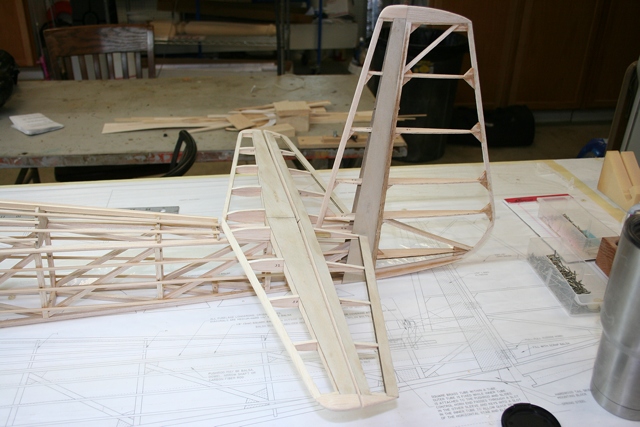

          I cut and shaped the saddle and pinned it to the stab.
          Click image for larger version

Name:	640IMG_3803resize.jpg
Views:	170
Size:	96.7 KB
ID:	2094

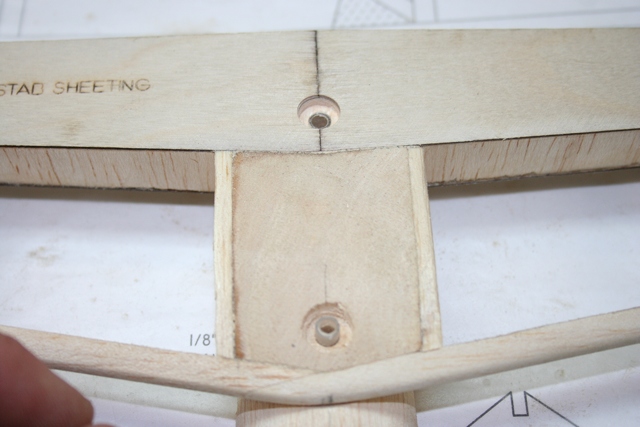

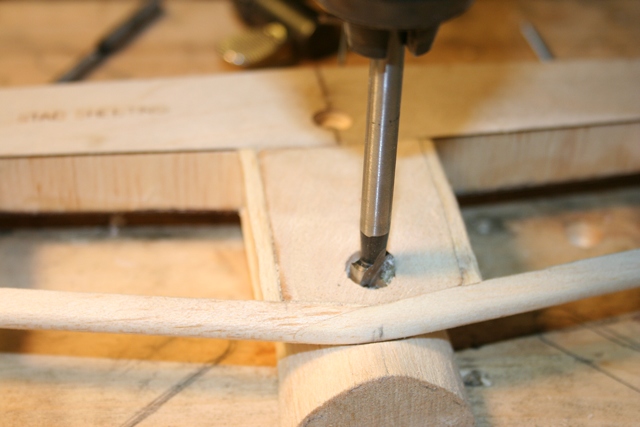

          Then I counter bored and drilled thru for the plastic sleeves, 6-32 screws and neoprene washers.
          Click image for larger version

Name:	640IMG_3804resize.jpg
Views:	160
Size:	95.2 KB
ID:	2095

          The plastic tubing will act as locating pins and a hard shoulder for the screws to tighten against.
          Click image for larger version

Name:	640IMG_3805resize.jpg
Views:	178
Size:	102.7 KB
ID:	2096

          Test fitting and leveling the stab by sanding the bottom of the saddle.
          Click image for larger version

Name:	640IMG_3807resize.jpg
Views:	171
Size:	126.3 KB
ID:	2097

          Continued on next post.

          Comment


          • #82
            Update continued:

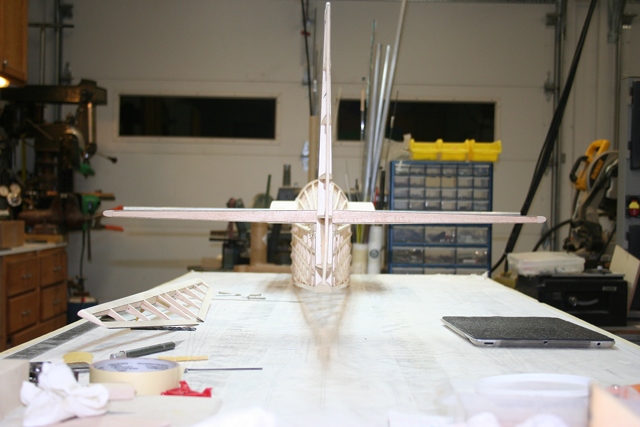

            Then I epoxied everything in place and aligned to the wing rod before the epoxy set.
            Click image for larger version

Name:	640IMG_3808resize.jpg
Views:	152
Size:	115.9 KB
ID:	2099

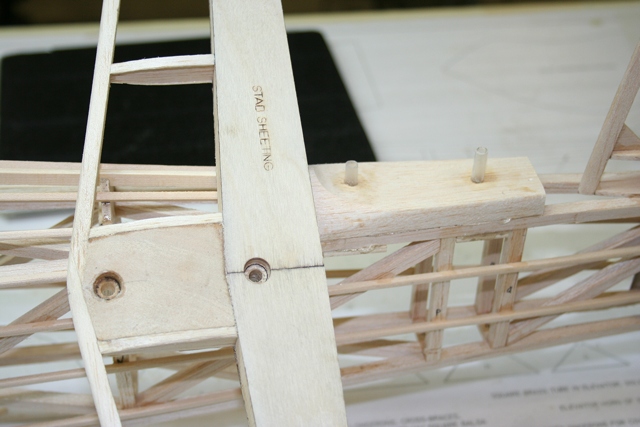

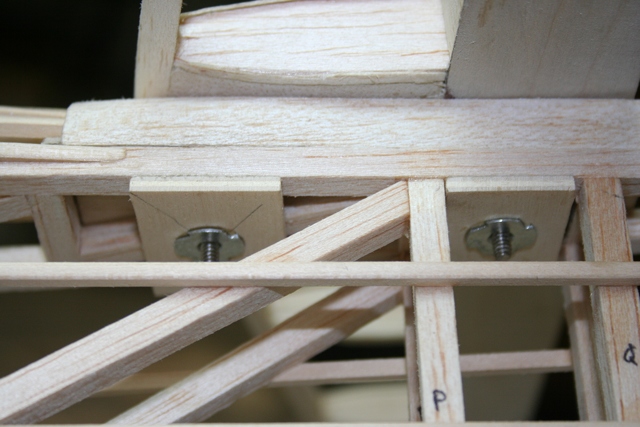

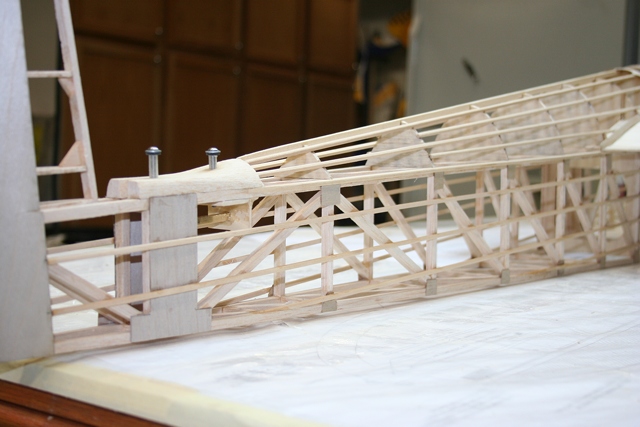

            The plastic tubes are epoxied to the saddle. The holes in the stab are hardened with thin CA.
            Click image for larger version

Name:	640IMG_3809resize.jpg
Views:	161
Size:	110.5 KB
ID:	2100

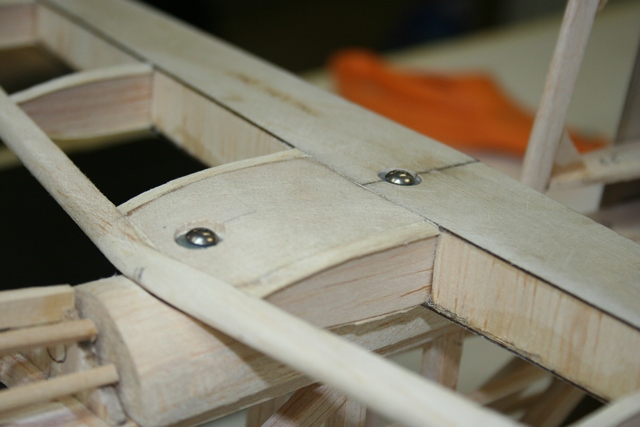

            Feels nice and solid.
            Click image for larger version

Name:	640IMG_3806resize.jpg
Views:	149
Size:	100.4 KB
ID:	2101

            That's it for now. Next will be the elevator control rod and quick connect mechanism.

            Comment


            • #83
              Update:

              I have the elevator control mechanism done.

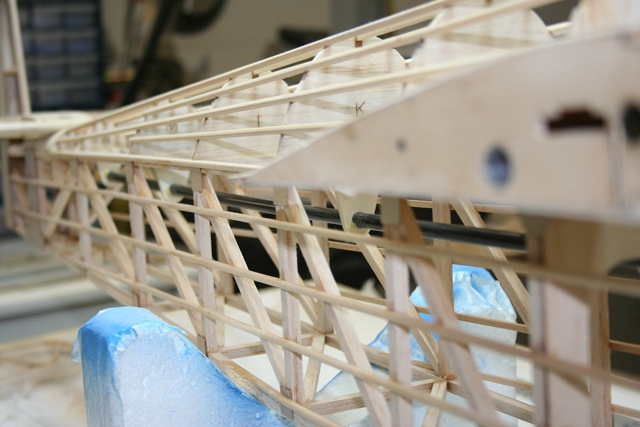

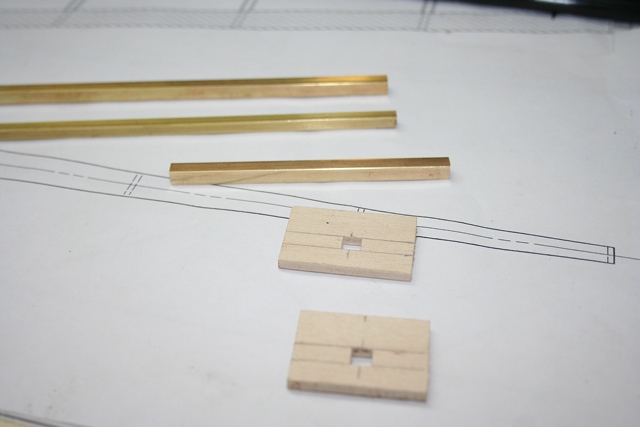

              Here is the carrier sleeve and mounts.
              Click image for larger version

Name:	640IMG_3811resize.jpg
Views:	165
Size:	73.9 KB
ID:	2284

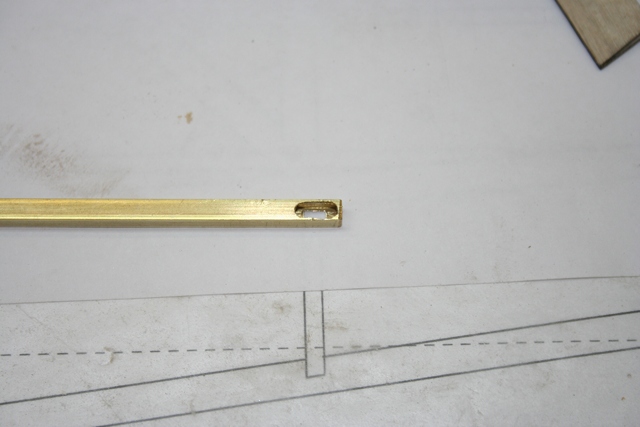

              This is the top of the inner tube which the control horn fits into. The size of this hole is very critical. It needs to be a perfect slop free fit when the elevator is at neutral.
              Click image for larger version

Name:	640IMG_3824resize.jpg
Views:	166
Size:	67.7 KB
ID:	2285

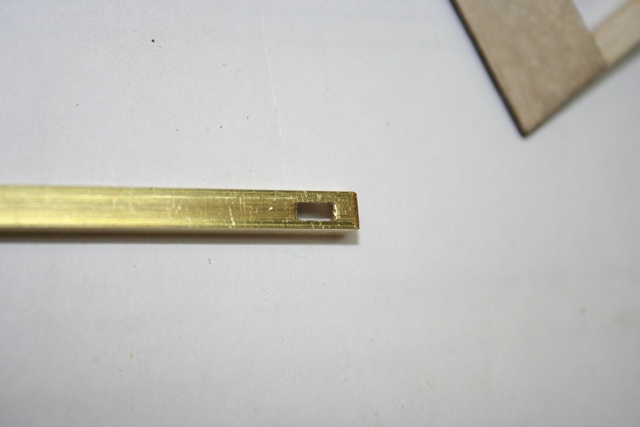

              This is the bottom of the inner tube. Nothing critical here, the hole just needs to be large enough not to interfere with the control horn.
              Click image for larger version

Name:	640IMG_3827resize.jpg
Views:	145
Size:	84.7 KB
ID:	2286

              This is the control horn. The tang is tapered to allow full throw of the elevator with no slop throughout the movement.
              Click image for larger version

Name:	640IMG_3819resize.jpg
Views:	169
Size:	77.9 KB
ID:	2287

              Continued on next post.

              Comment


              • #84
                Update continued:

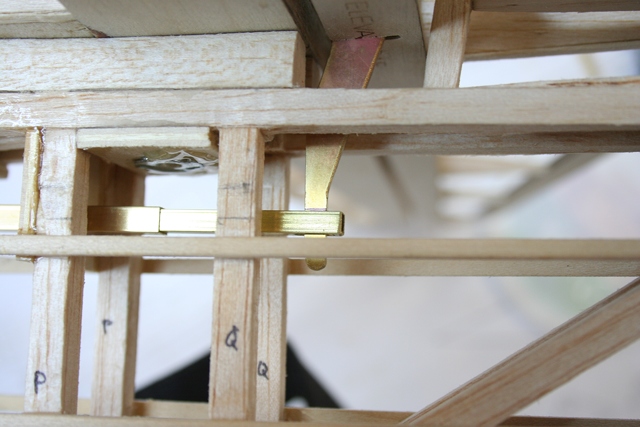

                Here the stab and elevator are mounted and the control horn is through the inner connecting tube. You should have a slop free fit at this point.
                Click image for larger version

Name:	640IMG_3812resize.jpg
Views:	145
Size:	116.2 KB
ID:	2289

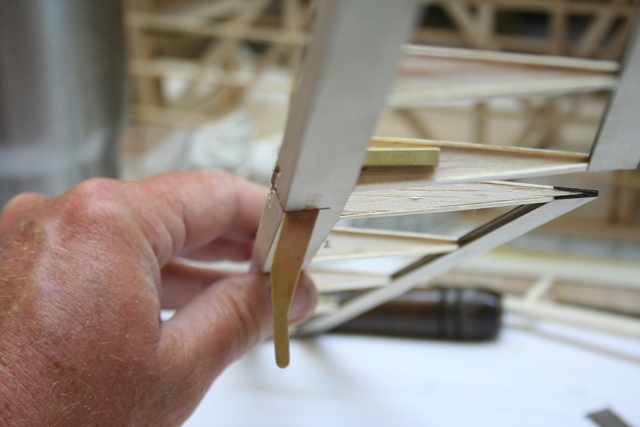

                Here the elevator is deflected full up. The control horn has to be tapered very carefully to allow this movement without any slop.
                Click image for larger version

Name:	640IMG_3816resize.jpg
Views:	145
Size:	119.9 KB
ID:	2290

                Here it is deflected full down. It takes a lot of trial and error fitting to achieve this movement without any slop.
                Click image for larger version

Name:	640IMG_3817resize.jpg
Views:	167
Size:	121.7 KB
ID:	2291

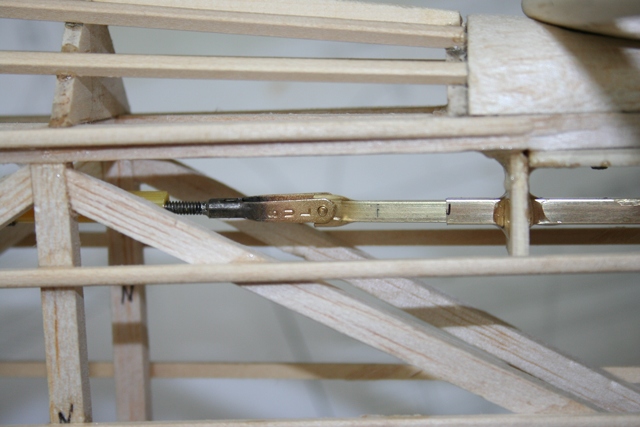

                I mashed the end of the inner tube and drilled it to fit a 4-40 clevis. Then I soldered the clevis to a piece of all-thread and screwed it to the Sullivan control rod.
                Click image for larger version

Name:	640IMG_3829resize.jpg
Views:	154
Size:	110.9 KB
ID:	2292

                That's it for now. I guess I'll go ahead and do the elevator and rudder servos next.

                Comment


                • ingrahal
                  ingrahal commented
                  Editing a comment
                  I was explaining the procedure for getting this mechanism to work properly to my son who is a machinist and mechanical whiz. The first thing he said was "you should have just used a fork and pin". In other words the control horn would be forked with an exact sized slot and a pin would be fitted in the slider to engage the fork. I didn't try it but I think it would work great and not require all the trial and error fitting.

              • #85
                Art,

                Before you cover the plane, just put a puff of lock graphite in the sliding tubes (or fine sandpaper a bit of pencil lead), and it will keep it slippery for an eon.

                DS

                Comment


                • ingrahal
                  ingrahal commented
                  Editing a comment
                  That's a good suggestion. I have some moly powder that will work good.

              • #86
                Update:

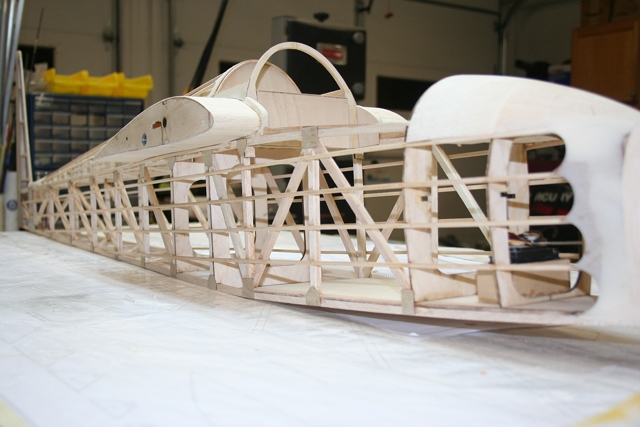

                Not much today but I did get all the gussets done. I would recommend doing the gussets before the stringers and doing the stingers after all the interior work is done.
                Click image for larger version

Name:	640IMG_3840resize.jpg
Views:	155
Size:	121.1 KB
ID:	2342

                Click image for larger version

Name:	640IMG_3839resize.jpg
Views:	147
Size:	114.8 KB
ID:	2343

                All right the elevator and rudder servos are next.

                Comment


                • #87
                  Great thread! I put the 'pin and fork' idea on paper and put the info in my kit! Tell your son.... Thanks!

                  Comment


                  • Dave Smith
                    Dave Smith commented
                    Editing a comment
                    I missed that on first read, but that's a great idea. Love it and will use it on something for sure.

                    DS

                  • ingrahal
                    ingrahal commented
                    Editing a comment
                    Thanks Michael! Dang smart elic kids anyway, always showing me up. Which of course makes me proud. I'll tell him you said thanks.

                  • ingrahal
                    ingrahal commented
                    Editing a comment
                    Hi Dave, yeah if I wasn't so lazy I would have made another one and tried it.

                • #88
                  Update:

                  The rudder and elevator servos and the control linkages are done.

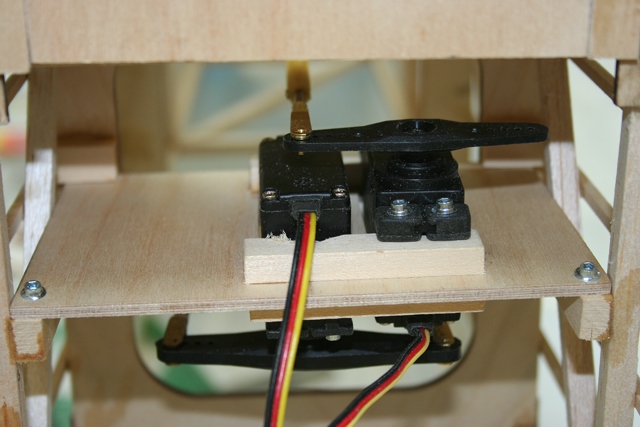

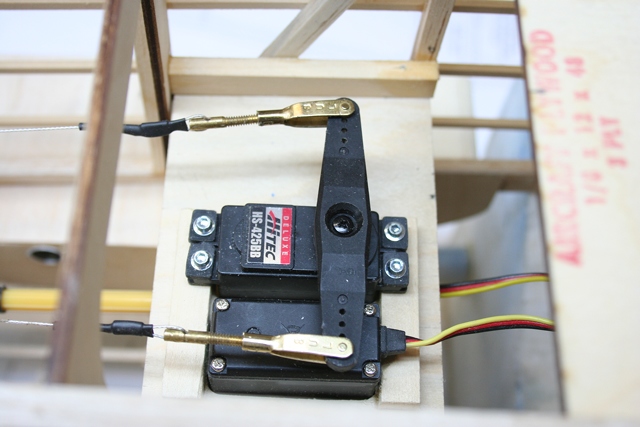

                  I mounted the servos per the plans with the elevator upright and the rudder inverted. I made the servo tray removable so they can be accessed by removing two screws and sliding the tray out.
                  Click image for larger version

Name:	640IMG_3851resize.jpg
Views:	148
Size:	117.7 KB
ID:	2550

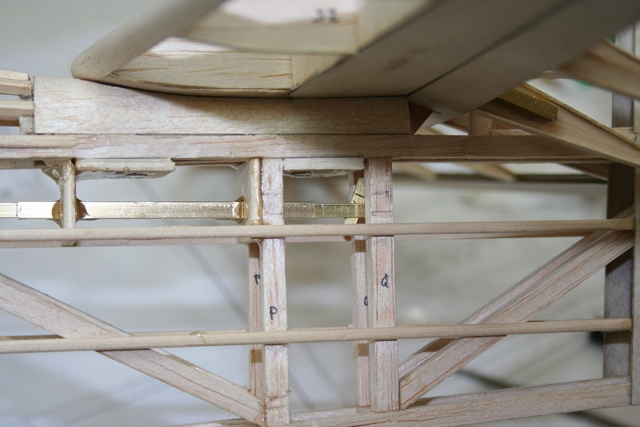

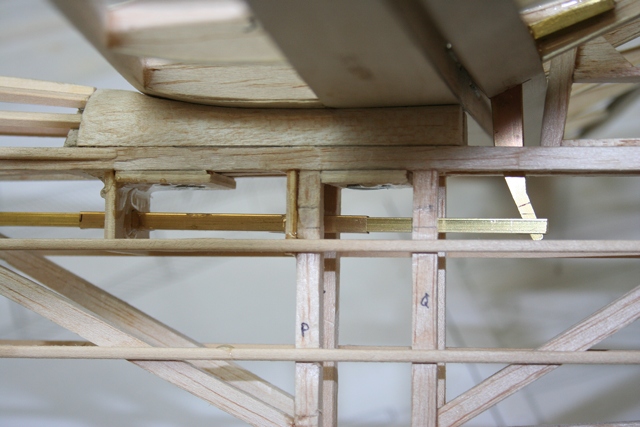

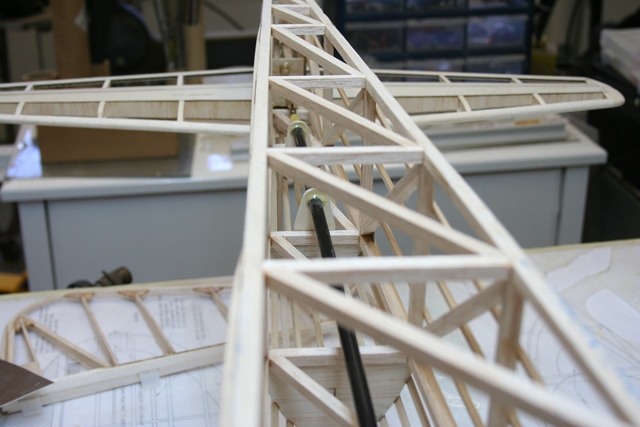

                  Mounted the control rod sleeve using plywood standoffs and Gorilla glue.
                  Click image for larger version

Name:	640IMG_3847resize.jpg
Views:	135
Size:	130.7 KB
ID:	2551

                  Click image for larger version

Name:	640IMG_3848resize.jpg
Views:	144
Size:	115.4 KB
ID:	2552

                  Click image for larger version

Name:	640IMG_3855resize.jpg
Views:	136
Size:	122.9 KB
ID:	2553

                  Continued on next post.

                  Comment


                  • #89
                    Update continued:

                    Added balsa filler to mount the rudder control horn.
                    Click image for larger version

Name:	640IMG_3841resize.jpg
Views:	172
Size:	114.7 KB
ID:	2555

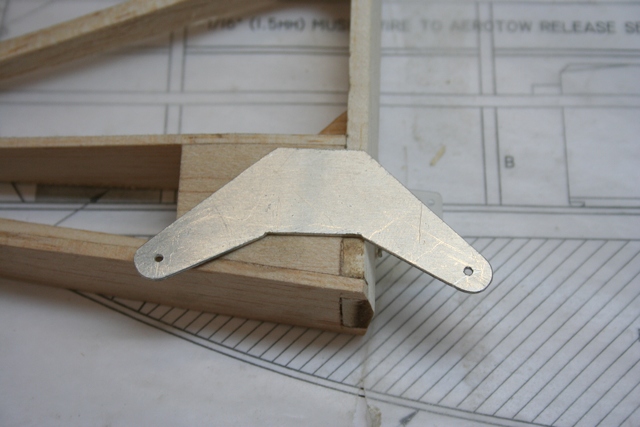

                    I made the control horn out of some scrap aluminum.
                    Click image for larger version

Name:	640IMG_3856resize.jpg
Views:	133
Size:	103.7 KB
ID:	2556

                    This is the rudder servo looking from the bottom. I used crossing pull-pull cables in order to get a clear shot through the fuselage sides.
                    Click image for larger version

Name:	640IMG_3857resize.jpg
Views:	149
Size:	106.5 KB
ID:	2557

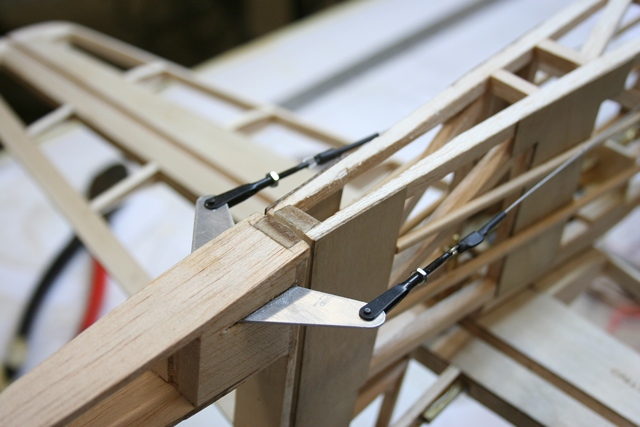

                    The control horn is mounted through a slot cut in the balsa filler. Does anyone know what the control throws are supposed to be? I want to make sure I have enough bevel on the rudder.
                    Click image for larger version

Name:	640IMG_3858resize.jpg
Views:	132
Size:	115.6 KB
ID:	2558

                    That's all for now. I'll start working on the bottom next.

                    Comment


                    • Dave Smith
                      Dave Smith commented
                      Editing a comment
                      You can't have too much rudder. 45 degrees would be the right target, but not the end of the world if you fall slightly short. The Cherokee is pretty forgiving; if you have the ailerons set up right there is very little adverse yaw. The 1/3 Cherokee flies pretty well on just ailerons or just rudder :-)
                      Last edited by Dave Smith; 08-01-2015, 06:16 PM.

                    • ingrahal
                      ingrahal commented
                      Editing a comment
                      Ok I'll need to bevel it a bit more. Thanks Dave.

                  • #90
                    I like the slide out tray idea. Very nice work!

                    Comment


                    • ingrahal
                      ingrahal commented
                      Editing a comment
                      Thanks Dion! I would have done it that way regardless but in my case it was really the only way. With the canopy mods there is no access to the top of the tray.
