  • #46

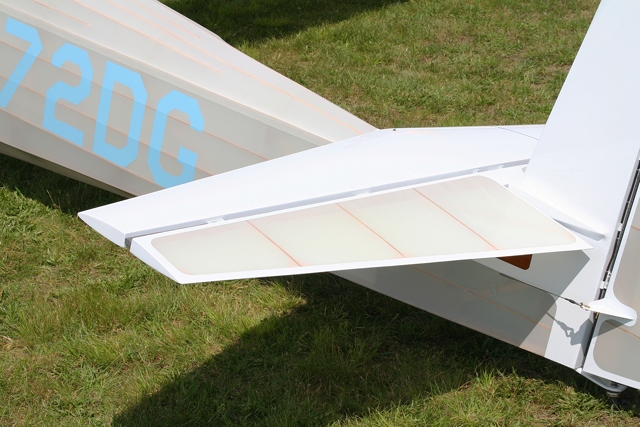

    Jeremy, To me it looks like the trim is bright white, the fabric has a clear coat with some sheen and the lettering is baby blue.

    Dean, please feel free to chime in here.

    Click image for larger version

Name:	640N72DG_09resize.jpg
Views:	367
Size:	109.6 KB
ID:	1084

    Click image for larger version

Name:	640N72DG_35resize.jpg
Views:	290
Size:	160.6 KB
ID:	1085

    Comment


    • #47
      It definitely looks bright white in the outdoor pictures!

      Jeremy and Ben
      SCC AAA TT

      Comment


      • #48
        It is indeed a bright white. The light blue has a slight grey look to it. Delfleet Single Stage Polyurethane Enamel for booth the white and blue. Stitts fabric has one coat untinted Polybrush brushed on with the part overhead. This was done so you could brush out any drips or sags. So imagine the wings on saw horses and brushing the first coat while on a creeper. The fuselage was suspended from the ceiling and rotated so each facet was doped when it was level with the floor. This was somewhat scary. The one coat of Polybrush sealed the fabric enough that it was OK to spray clear Polytone (3 coats).
        My goal was to have the look of a stick model covered in tissue or silkspan like the old days.
        Regards Dean

        Comment


        • #49
          I defy anyone to not like a build thread where a box of shotgun shells is used to hold the parts in place while the glue dries!

          Great job!

          Comment


          • ingrahal
            ingrahal commented
            Editing a comment
            Thanks yyz!!! I don't hunt as much as I used to but the shells do come in handy.

        • #50

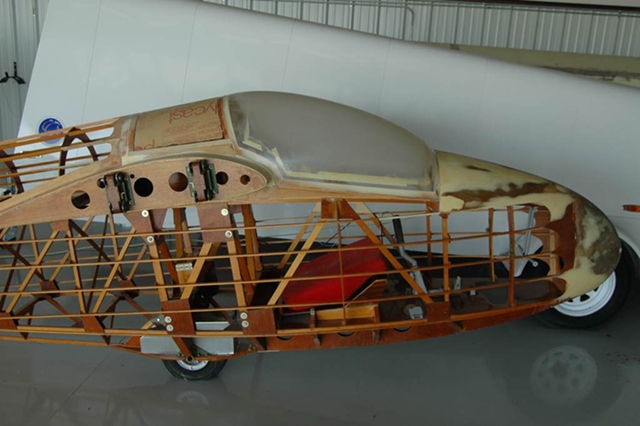

          Dean, thanks for the input. You absolutely got the effect you were looking for. I'm concerned about prepping the wood to get the same effect. I'm sanding the formers to remove the laser charred edges and will be experimenting with various finishes to get the airframe the right color before covering. Should be interesting to say the least.

          The natural Solartex will be very revealing of the framework so I will try to stain the wood to look like this before covering.
          Click image for larger version

Name:	640Cherokee II 022resize.jpg
Views:	316
Size:	115.3 KB
ID:	1114


          Comment


          • #51
            My goal was to have the look of a stick model covered in tissue or silkspan like the old days.
            Regards Dean

            You definitely got the effect you wanted Dean.

            Jeremy and Ben
            SCC AAA TT

            Comment


            • #52

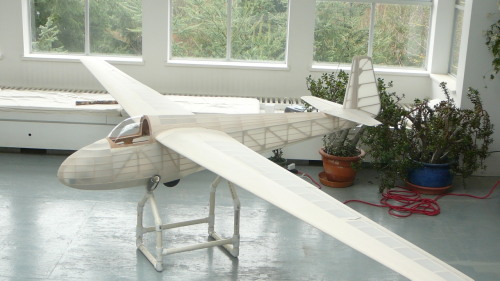

              Before I painted mine.....should'a left it! Natural Solartex.

              Click image for larger version

Name:	Unpainted.jpg
Views:	249
Size:	53.9 KB
ID:	1132

              Comment


              • ingrahal
                ingrahal commented
                Editing a comment
                That looks great. If I can stain the wood a little reddish brown I think I'll have it.

            • #53
              Update:

              I've been bouncing around a little. I got to a point where I was waiting on some pieces to cook for steam bending so I started on the side stringers. I quickly realized that the tail fin and it's sheeting needed to be done for the stringers to terminate into. So I framed up the tail fin and got it glued in.

              I removed more of the wing LE until flush with the inside of the longerons. Then traced the profile to make a pattern.

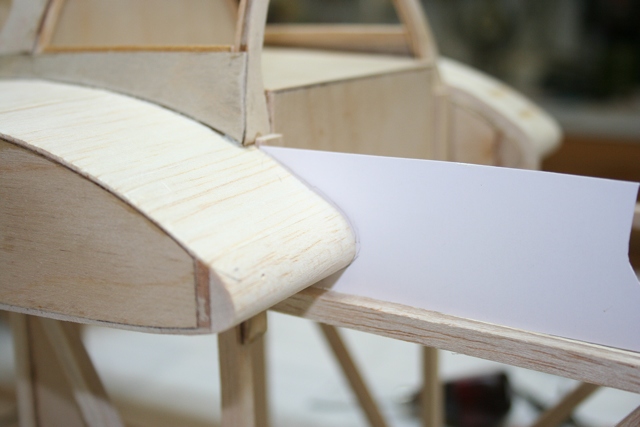

              Click image for larger version

Name:	640IMG_3654resize.jpg
Views:	225
Size:	88.2 KB
ID:	1161

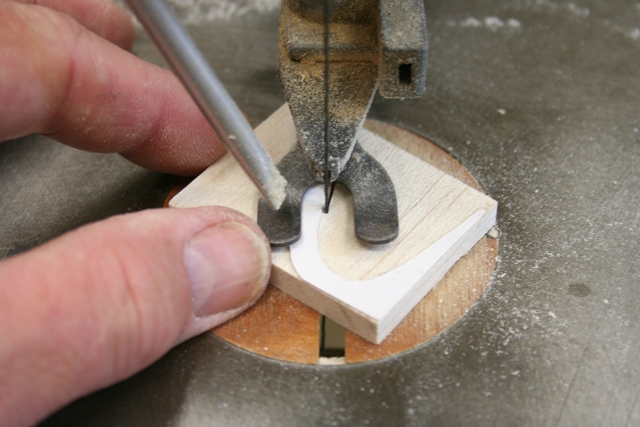

              Then cut the 1/4" balsa filler pieces.
              Click image for larger version

Name:	640IMG_3656resize.jpg
Views:	251
Size:	128.2 KB
ID:	1162

              Glued the filler pieces in and faced them with 1/32" ply.
              Click image for larger version

Name:	640IMG_3658resize.jpg
Views:	239
Size:	92.7 KB
ID:	1163

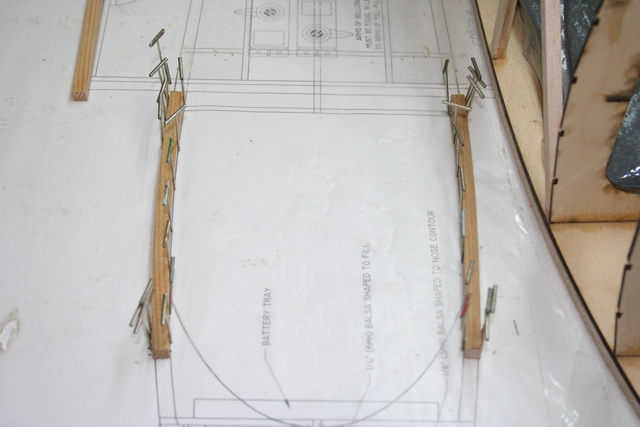

              I wanted to use spruce for the next pieces to add strength and to help maintain the curvature of the fuselage sides. They had to be steamed and then held to shape overnight.
              Click image for larger version

Name:	640IMG_3690resize.jpg
Views:	233
Size:	100.5 KB
ID:	1164

              Continued on next post due to the 4 photo limit.

              Comment


              • #54
                Update continued due to the 4 photo rule.

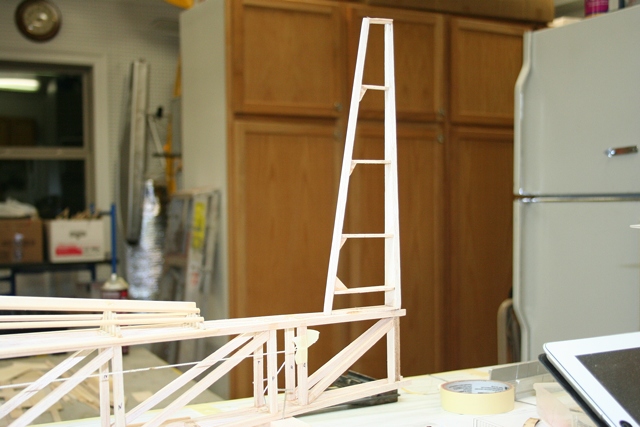

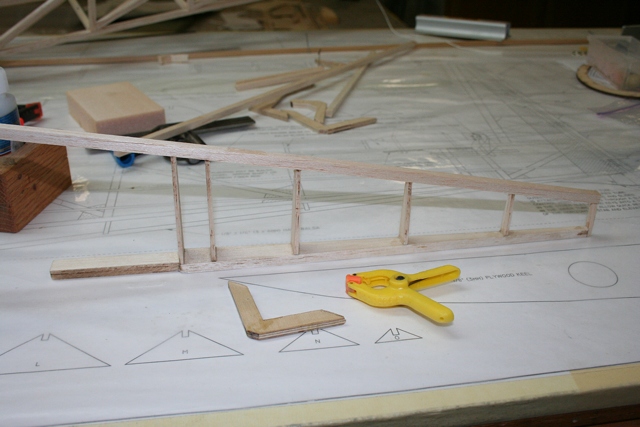

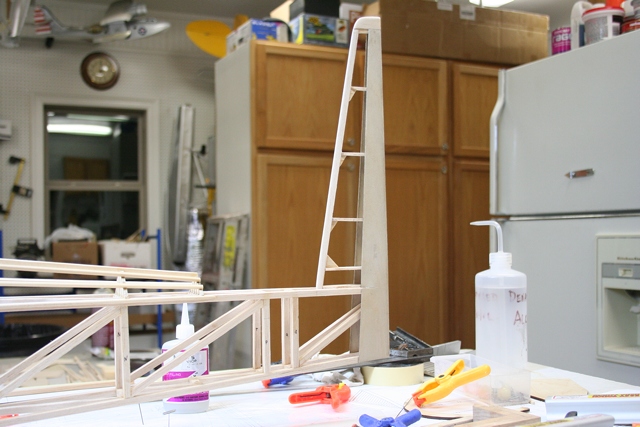

                While waiting for the spruce pieces to dry I framed up the tail fin and glued it in. The F1 rib did not fit. It was too small to be used so I cut my own as per the plans. Click image for larger version

Name:	640IMG_3686resize.jpg
Views:	251
Size:	115.5 KB
ID:	1166
                Click image for larger version

Name:	640IMG_3689resize.jpg
Views:	232
Size:	120.2 KB
ID:	1167
                Click image for larger version

Name:	640IMG_3692resize.jpg
Views:	226
Size:	133.4 KB
ID:	1168

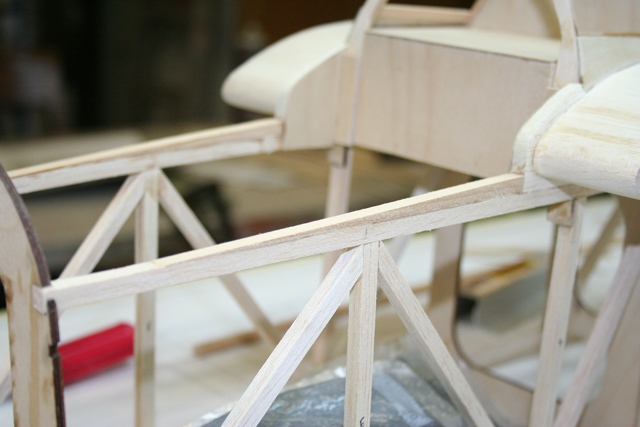

                Here are the spruce pieces after being tapered and glued in. The fuselage is now ready for the canopy. Click image for larger version

Name:	640IMG_3691resize.jpg
Views:	251
Size:	104.6 KB
ID:	1169

                That's it for now. Next will be the side stringers and the nose sheeting.
                Last edited by ingrahal; 06-07-2015, 07:24 AM.

                Comment


                • #55
                  You really owe it to yourself to fly out and see Dean's glider. It's a museum piece and it looks like you're really doing it justice here.

                  Comment


                  • ingrahal
                    ingrahal commented
                    Editing a comment
                    Thanks yyz!!! I would love to see it in person.

                • #56
                  Update:

                  The stringers are done and I have started on the tow release.

                  (Note added 7/25/2015: I probably should have done the tail surfaces first, including the internal workings then move to stringers and the nose.)

                  I ended the stringers at former 1 instead of going all the way forward. Since the nose of N72DG is sheeted I decided to use block balsa to fill those areas. Click image for larger version

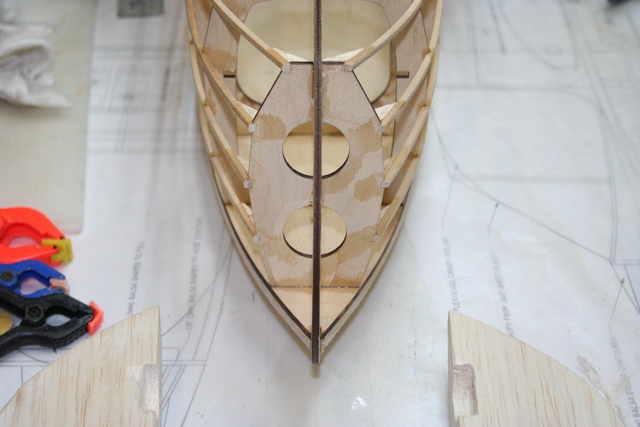

Name:	640IMG_3697resize.jpg
Views:	233
Size:	108.2 KB
ID:	1226

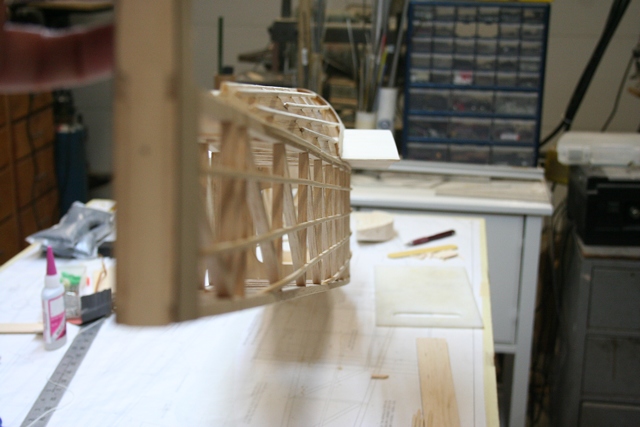

                  Side stringers are done. Click image for larger version

Name:	640IMG_3703resize.jpg
Views:	226
Size:	108.4 KB
ID:	1227


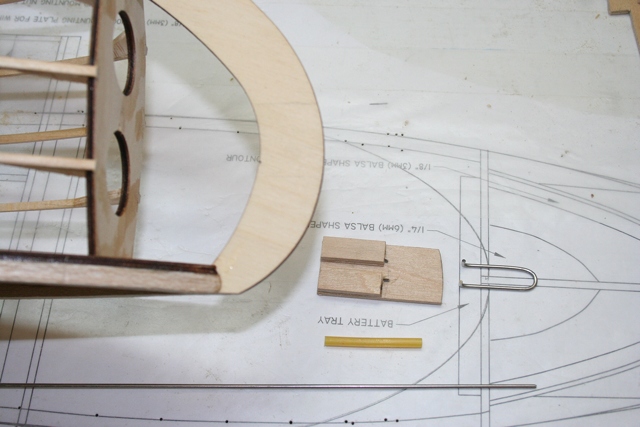

                  Started on the tow release. Click image for larger version

Name:	640IMG_3706resize.jpg
Views:	218
Size:	110.7 KB
ID:	1229


                  Attached Files
                  Last edited by ingrahal; 07-26-2015, 03:56 AM.

                  Comment


                  • #57
                    Stringers can be tough. Many times I use a substantial music wire laid onto fuse then glide a piece of sandpaper down the wire to help set the stringers' locations.

                    Comment


                    • ingrahal
                      ingrahal commented
                      Editing a comment
                      Yes it seems the eye can detect a straight line or the lack thereof much better than the hand can make one. I'll give your method a try next time.

                  • #58
                    Art, this is another beautiful job of building. Looking forward to seeing it's maiden flight - hopefully at Huntsville this Fall.

                    Comment


                    • ingrahal
                      ingrahal commented
                      Editing a comment
                      Thanks Larry!!! Huntsville it is.

                  • #59
                    I'd like to share some comments by Dave Smith made via email. I'm sure glad he's keeping an eye on me.

                    "Art,

                    Without the stringers at the nose, (which I agree you need to remove), it just looks a little light from a strength perspective, especially when you give a good jerk on the towline when towing. I know you will have your balsa block to shape out the nose. Are you planning on glassing it? Pretty sure that would add the insurance strength that you may never need.

                    DS"

                    My reply:

                    Dave, thanks for keeping an eye on me, I appreciate your input. My thinking was that instead of just stringers I will now have solid balsa tying everything together. Which I intend to epoxy in. The cabin floor, former A and former D will all be epoxied together. Granted, once shaped the solid balsa will be much less substantial than it is now. I tell you what, let’s see how it looks once the balsa is shaped and I’ll glass it in if you think it needs it.


                    Dave's reply:

                    Art, it's just that "D" by itself is a little flimsy when you apply force in the direction of the tow line. Anything you can do to beef it up would be good insurance, and it's only nose weight anyway.

                    Given that the full size nose is glassed (over pink foam), I'd consider glass on the outside which will tie it all together.

                    Your call....you'll know how it feels once you get the blocks in place.

                    DS

                    My reply:

                    Gotcha. I see what you mean concerning D. The tie in at the floor is not well reinforced.

                    Dave's reply:

                    Right, the stringers actually provide some tie-in to the rest of the fuselage. Without them, a bit of additional reinforcement might be advised. On the model, the "yank" is on "D". In the full size, the Tost hook is below floor level and tied to the keel.

                    DS




                    Update:

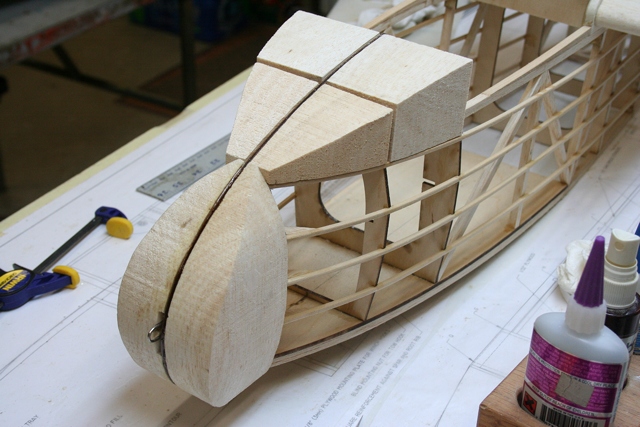

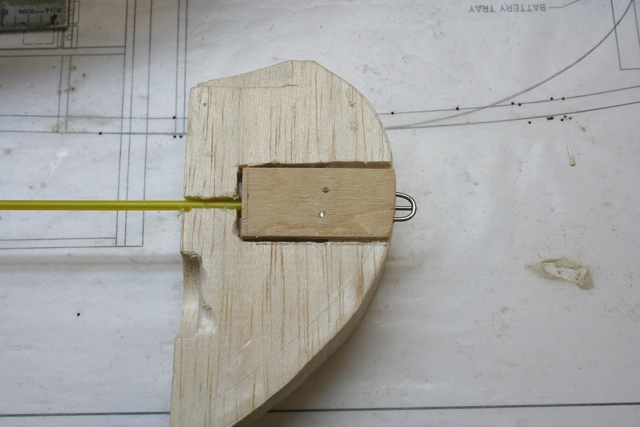

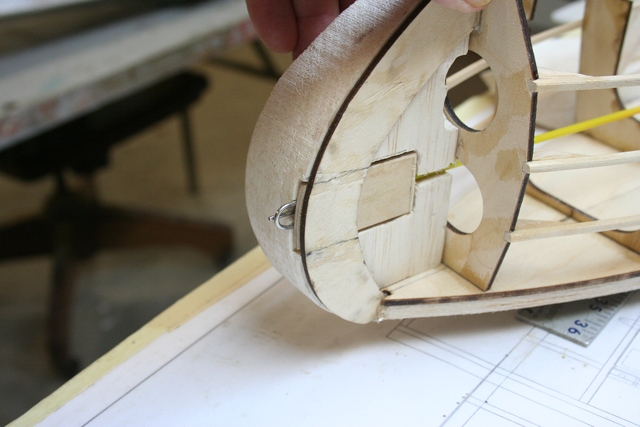

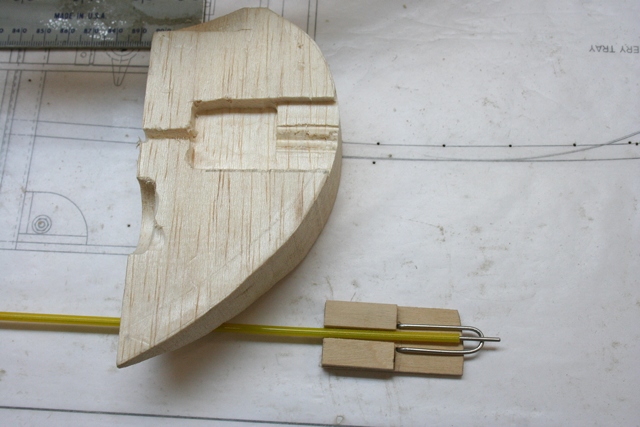

                    Got the tow release installed and the balsa blocks epoxied in. Click image for larger version

Name:	640IMG_3707resize.jpg
Views:	230
Size:	119.8 KB
ID:	1285
                    Click image for larger version

Name:	640IMG_3708resize.jpg
Views:	203
Size:	118.1 KB
ID:	1286
                    Click image for larger version

Name:	640IMG_3709resize.jpg
Views:	217
Size:	116.4 KB
ID:	1287
                    Click image for larger version

Name:	640IMG_3710resize.jpg
Views:	206
Size:	147.9 KB
ID:	1288


                    That's it for now, time to do some whittling.
                    Last edited by ingrahal; 06-11-2015, 04:59 PM.

                    Comment


                    • #60
                      Question for Dave Smith:
                      What was the recommended amount of nose weight to be added to the cabin floor for balance?

                      Update:

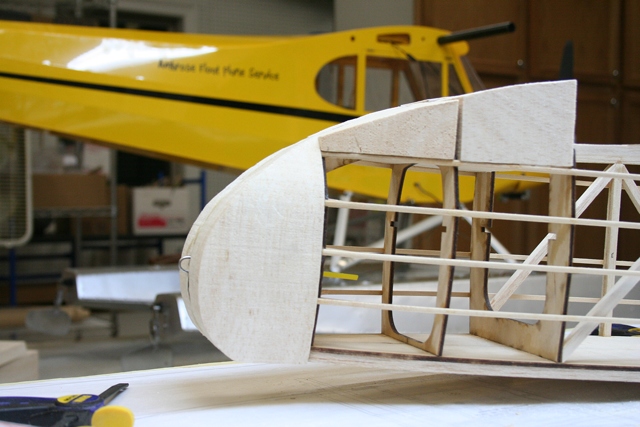

                      Ok a lot of whittling and sanding and the nose is pretty much done. I made a mistake, can anyone catch it?

                      From this...
                      Click image for larger version

Name:	640IMG_3711resize.jpg
Views:	212
Size:	130.4 KB
ID:	1294

                      to this...
                      Click image for larger version

Name:	640IMG_3712resize.jpg
Views:	202
Size:	146.2 KB
ID:	1295

                      to this

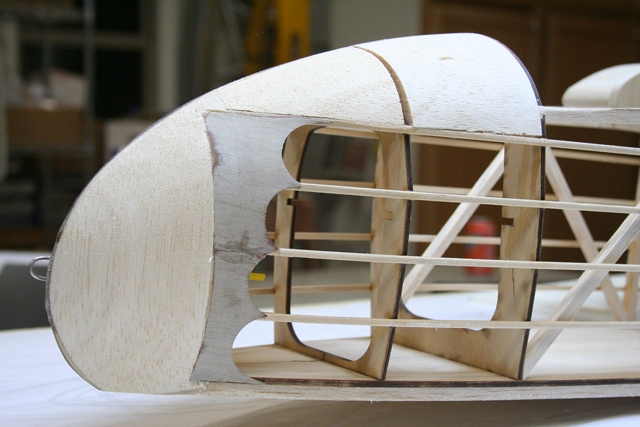

                      Click image for larger version

Name:	640IMG_3713resize.jpg
Views:	201
Size:	134.1 KB
ID:	1296

                      You can see the mistake in this photo.

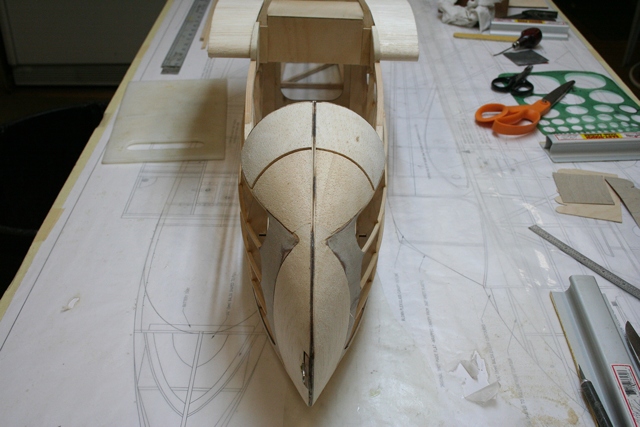

                      Click image for larger version

Name:	640IMG_3714resize.jpg
Views:	227
Size:	128.1 KB
ID:	1297

                      I will add filler and final sand the nose, install the tow release servo mount and then move on to the horizontal stabilizer mount.

                      Comment


                      • JimD
                        JimD commented
                        Editing a comment
                        I'm looking...I'm looking...nothing seems to jump out at me!

                        BTW, really enjoying watching your build!

                      • Stew
                        Stew commented
                        Editing a comment
                        Maybe the tow release not being on the fuse center-line? Great build and inspiring job!

                      • ingrahal
                        ingrahal commented
                        Editing a comment
                        Thanks for the encouragement fellas!!! Stew got it right.
