Schweizer 1-26E ~ 1/2.5-scale Kit by Peter Goldsmith (Build thread by JimD)

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #31

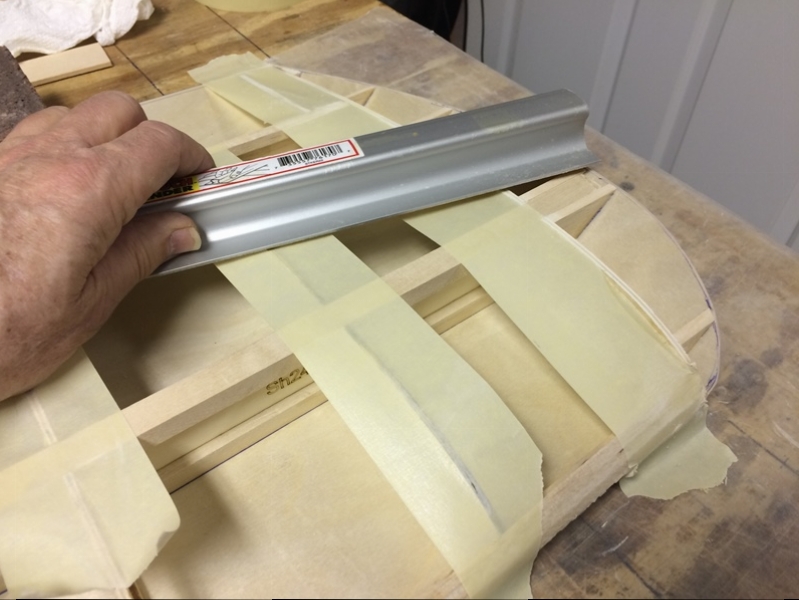

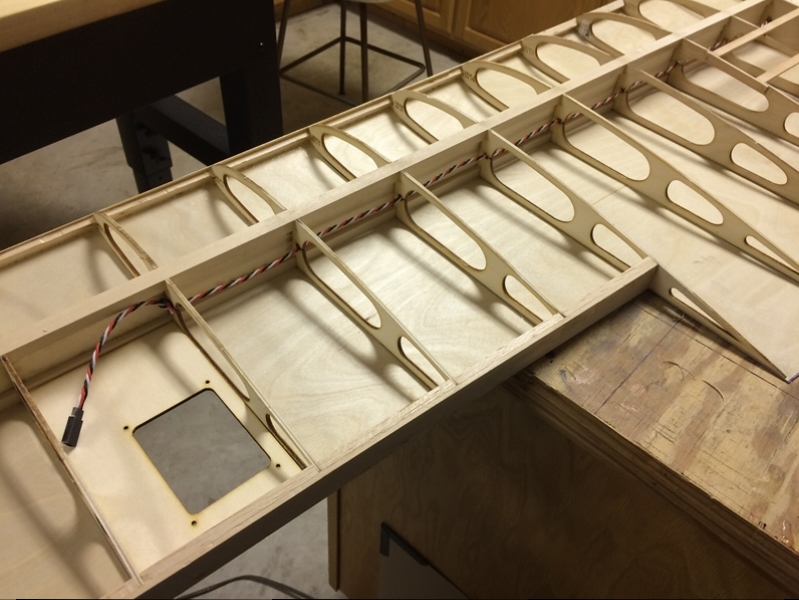

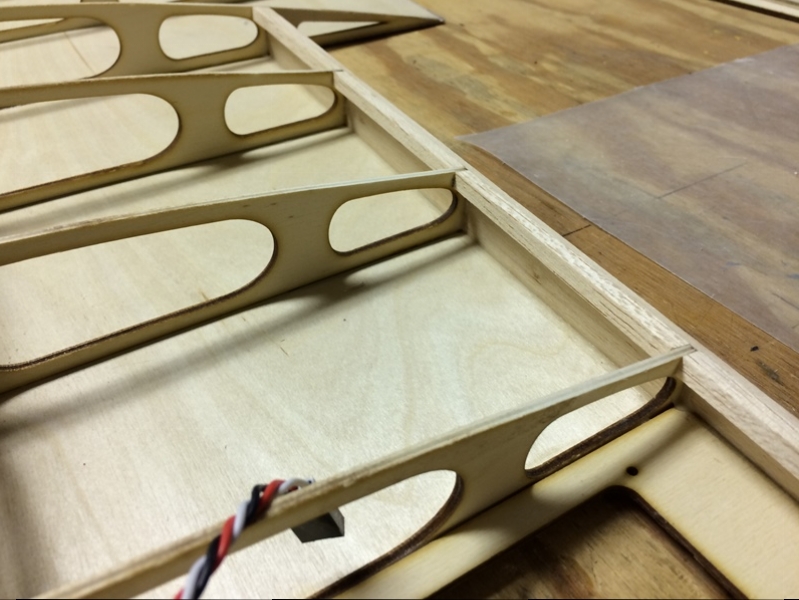

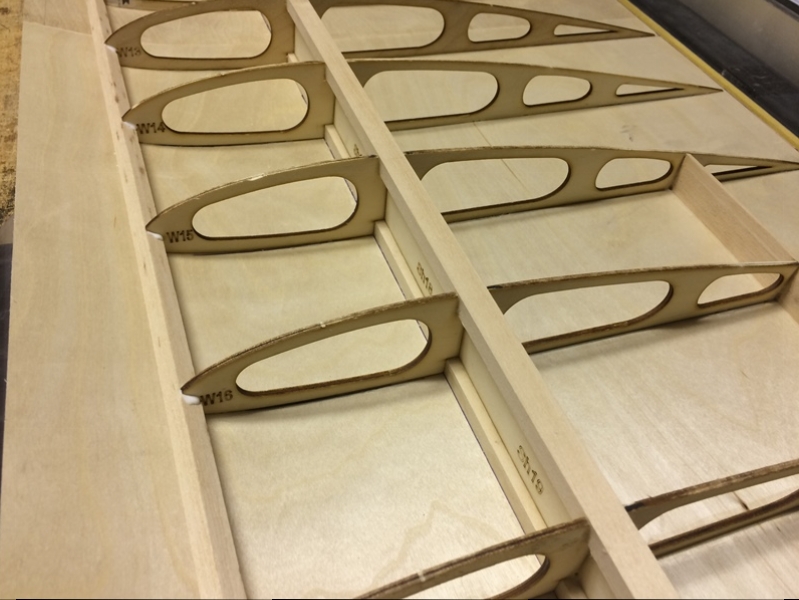

    Several more things have to be done before the top wing skin is added. The excess 1/32" plywood needs to be trimmed off and we started with the trailing edge. Measure back about a strong 1/8" behind each rib and use a long straight edge to draw a straight reference line. Using a nice sharp blade, cut along this line (need about 4-5 passes to cut through) and remove the excess.

    Click image for larger version

Name:	086 1-26.JPG
Views:	468
Size:	309.3 KB
ID:	22886

    Click image for larger version

Name:	087 1-26.JPG
Views:	491
Size:	333.7 KB
ID:	22884

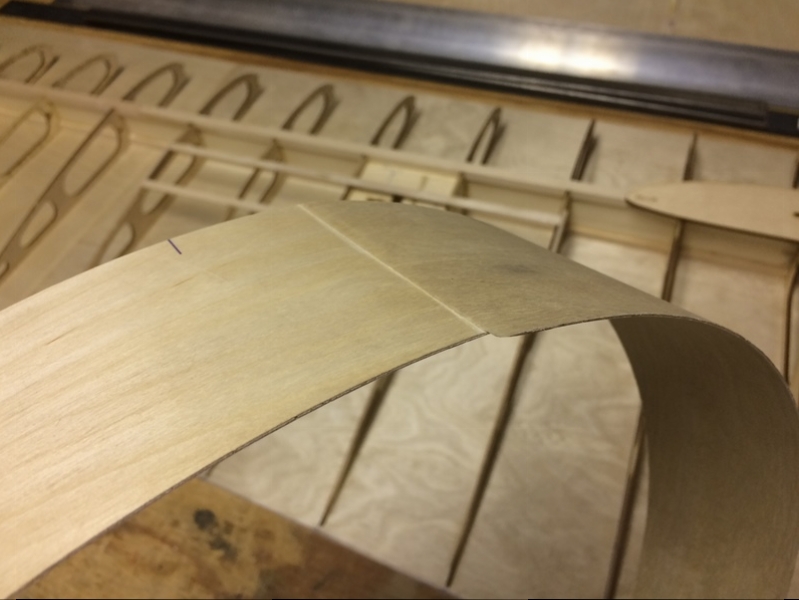

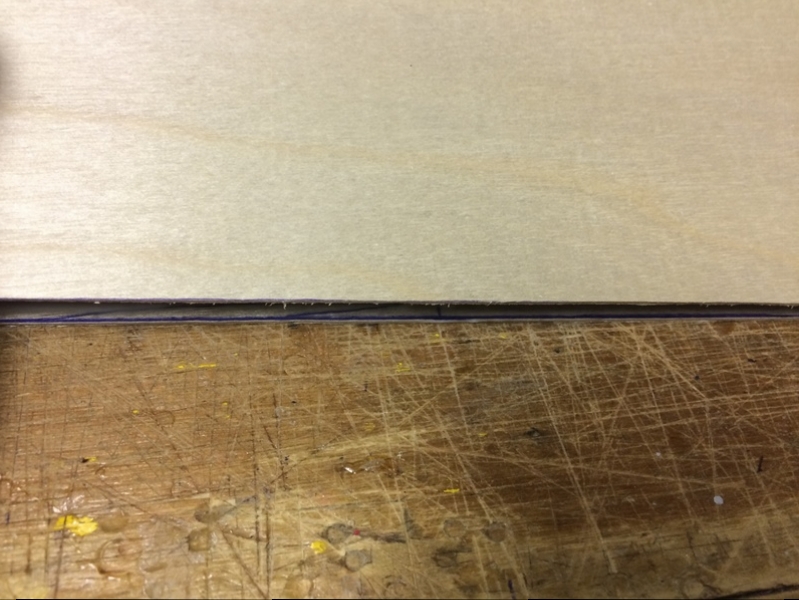

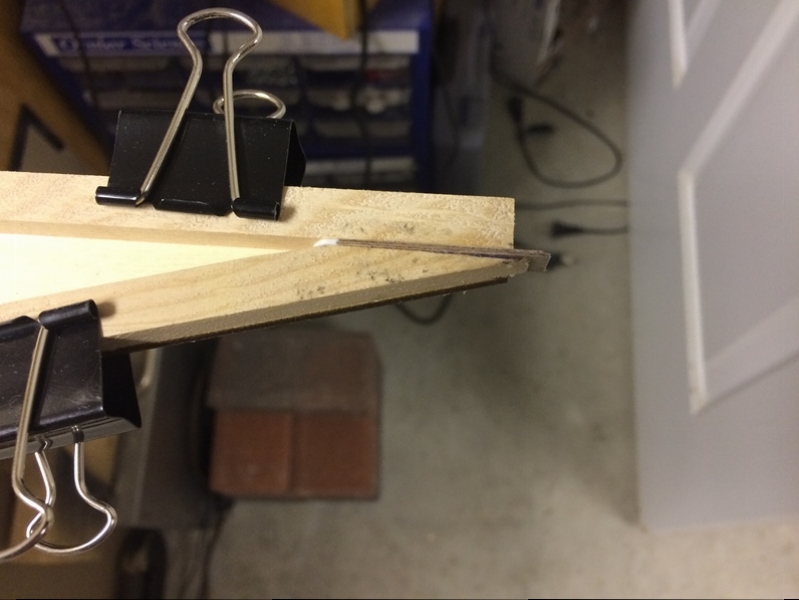

    We just had to test the sheeting joint...made a nice tight bend and it acted like one continuous piece. I'm impressed!!

    Click image for larger version

Name:	088 1-26.JPG
Views:	496
Size:	218.0 KB
ID:	22885

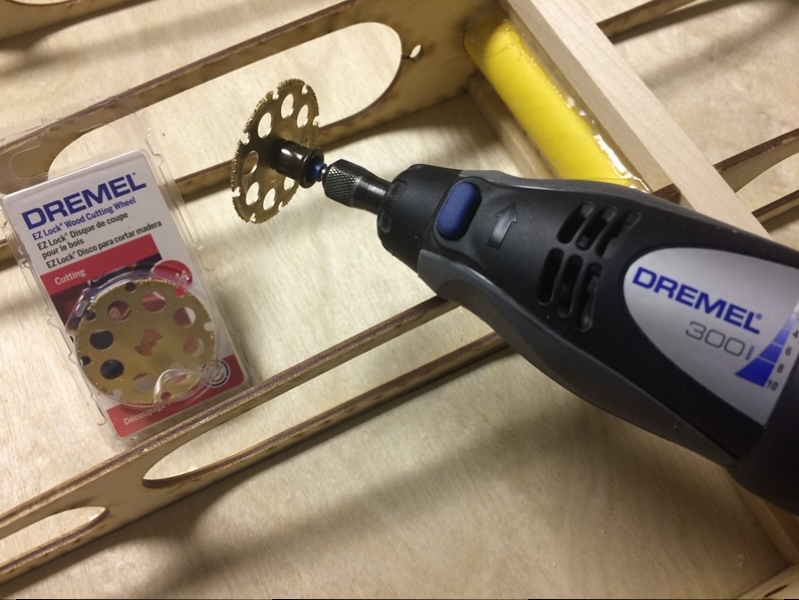

    We used a rotary saw blade on our Dremel tool to cut the root tip sheeting away and then sanded the raw edge flush with rib W1.

    Click image for larger version

Name:	089 1-26.JPG
Views:	513
Size:	289.8 KB
ID:	22887

    Click image for larger version

Name:	090 1-26.JPG
Views:	533
Size:	265.4 KB
ID:	22888




    A Site for Soar Eyes

    Comment


    • #32

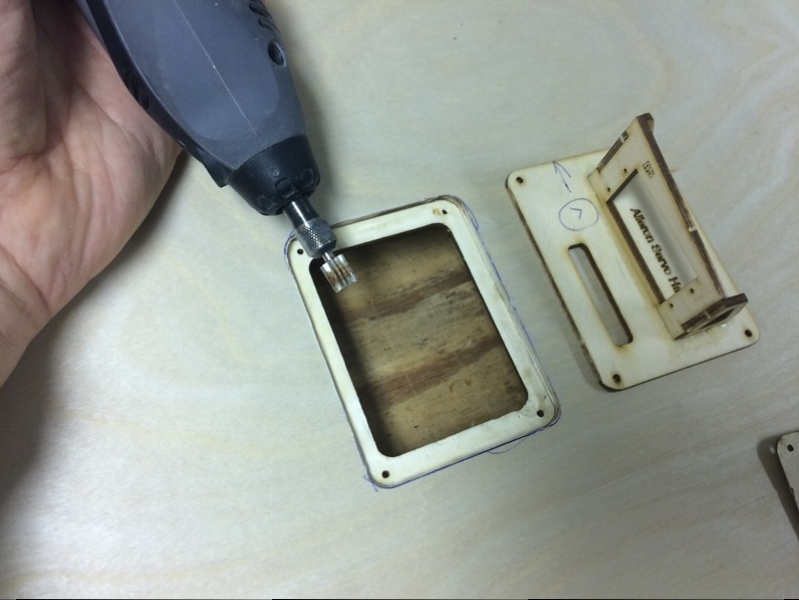

      Next, we cut out the skin over the aileron servo mount. A rough cut was made from the inside of the wing skin (to locate the opening) and then the servo tray/cover was used to draw the outline for the opening. Again, the Dremel tool was used to trim the 1/32" sheeting back to the reference.line drawn.

      Click image for larger version

Name:	091 1-26.JPG
Views:	505
Size:	244.4 KB
ID:	22891

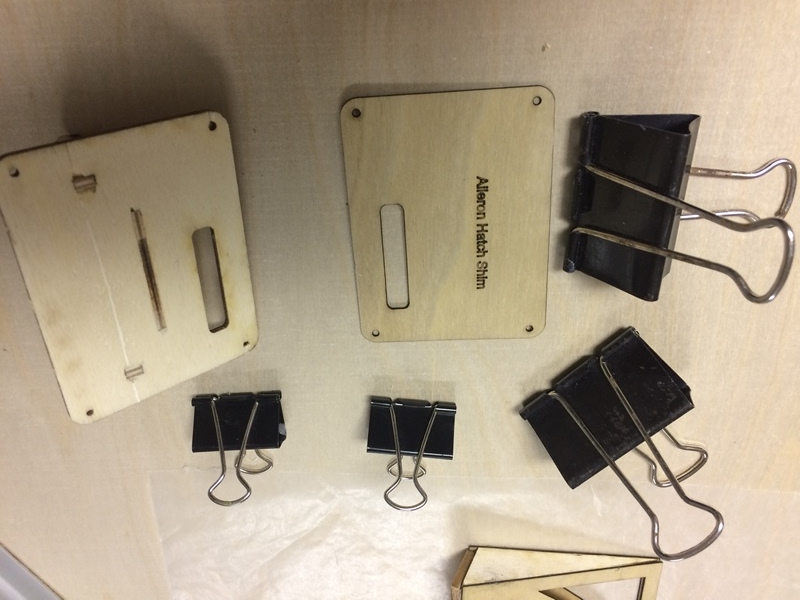

      Parts were test fit for accuracy.

      Click image for larger version

Name:	092 1-26.JPG
Views:	498
Size:	227.4 KB
ID:	22892

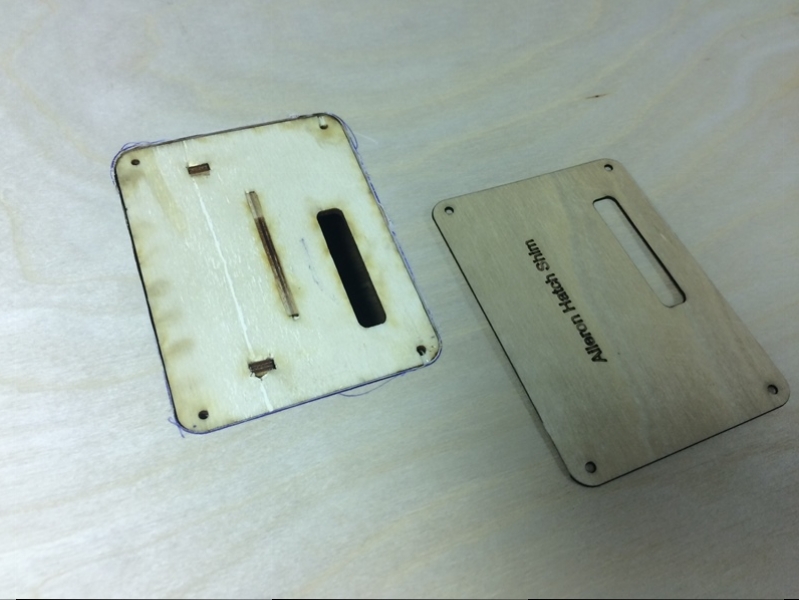

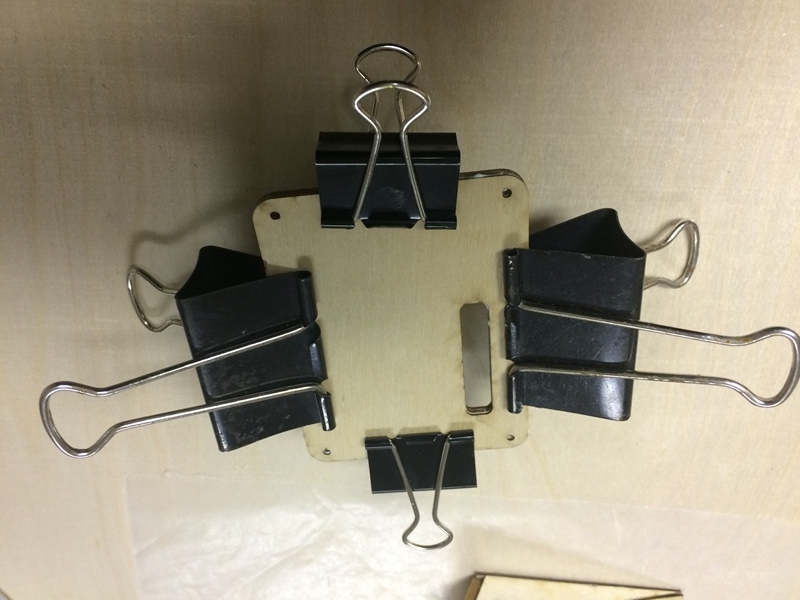

      The servo cover/mount is recessed by the thickness of the 1/32" wing sheeting. A 1/32" plywood piece is supplied to bring this cover/mount up flush. Laminate the parts together and now you have a nice flush assembly. Binder clips make great tools for this kind of job.

      Click image for larger version

Name:	093 1-26.JPG
Views:	508
Size:	229.5 KB
ID:	22890

      Click image for larger version

Name:	094 1-26.JPG
Views:	465
Size:	222.5 KB
ID:	22894

      Click image for larger version

Name:	095 1-26.JPG
Views:	480
Size:	217.3 KB
ID:	22893

      A Site for Soar Eyes

      Comment


      • #33

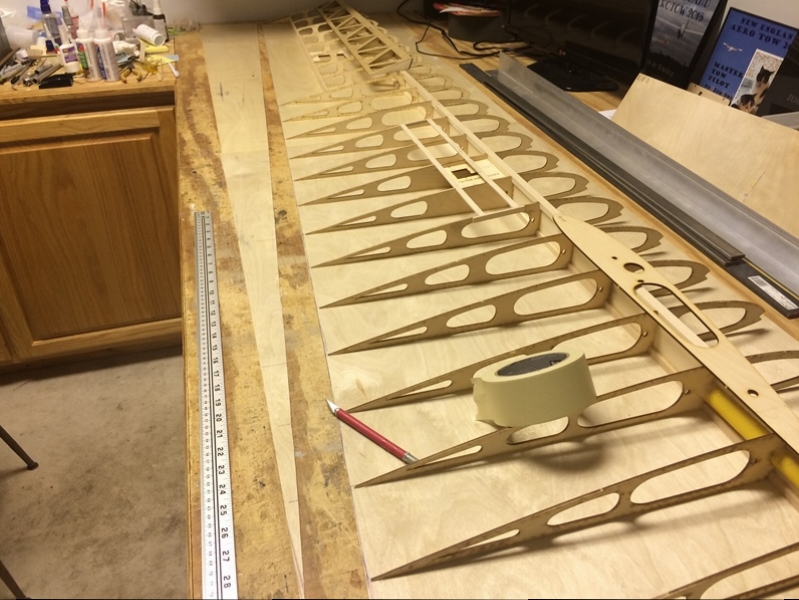

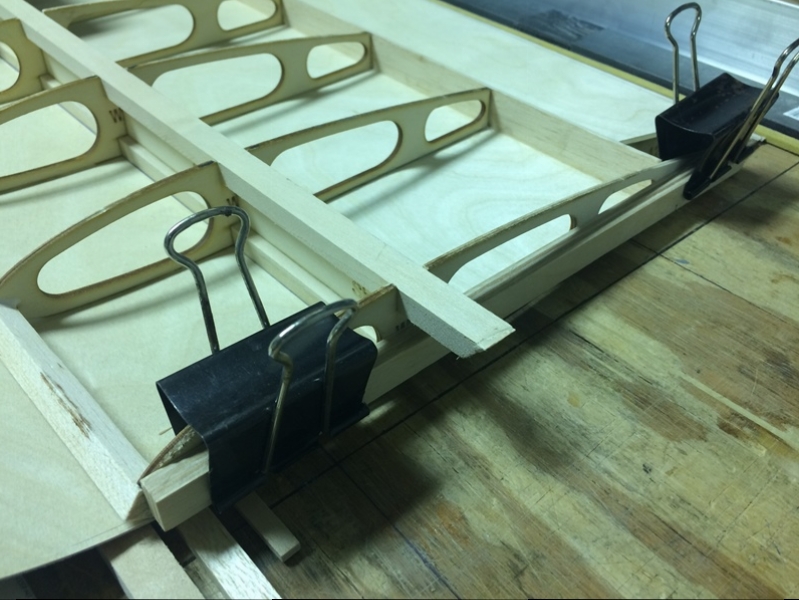

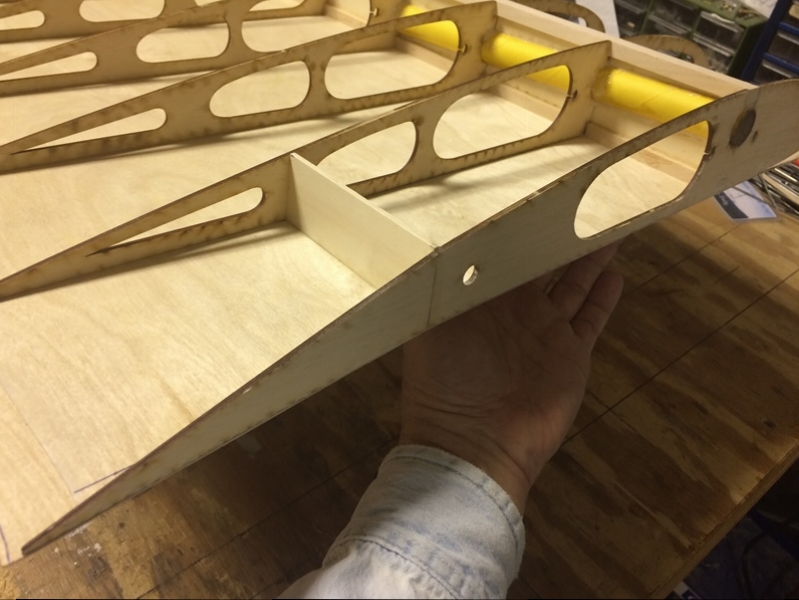

        The bottom of the wing is flat from just in front of the spar all the way to the trailing edge. Up to this point, the sheeting has not been attached to the forward section of the ribs. The wing was weighted down (to keep it flat on the building surface) and various sizes of sticks were used to shim up the sheeting against the ribs,
        Click image for larger version  Name:	096 1-26.JPG Views:	1 Size:	292.0 KB ID:	22896

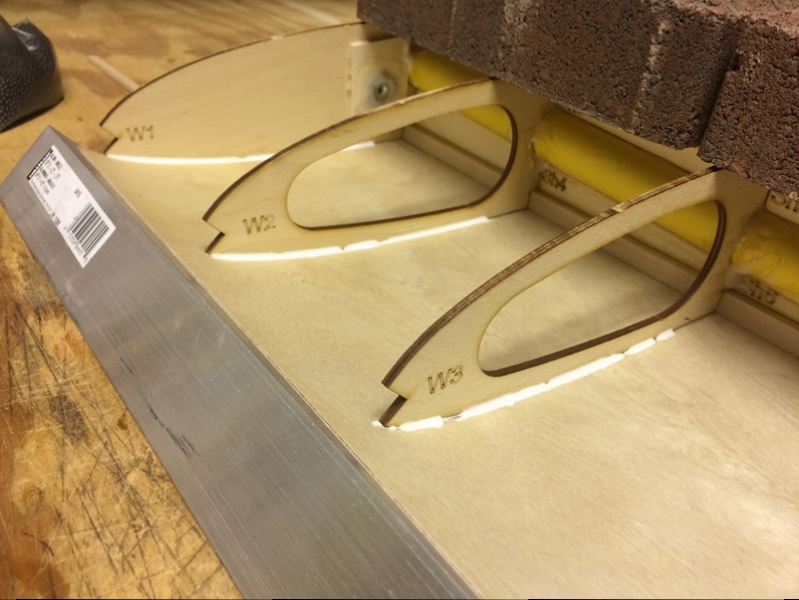

        Aluminum angle was use to shim up the very front of the sheeting against the ribs.
        Click image for larger version  Name:	097 1-26.JPG Views:	1 Size:	286.4 KB ID:	22897
        Click image for larger version  Name:	098 1-26.JPG Views:	1 Size:	316.0 KB ID:	22901

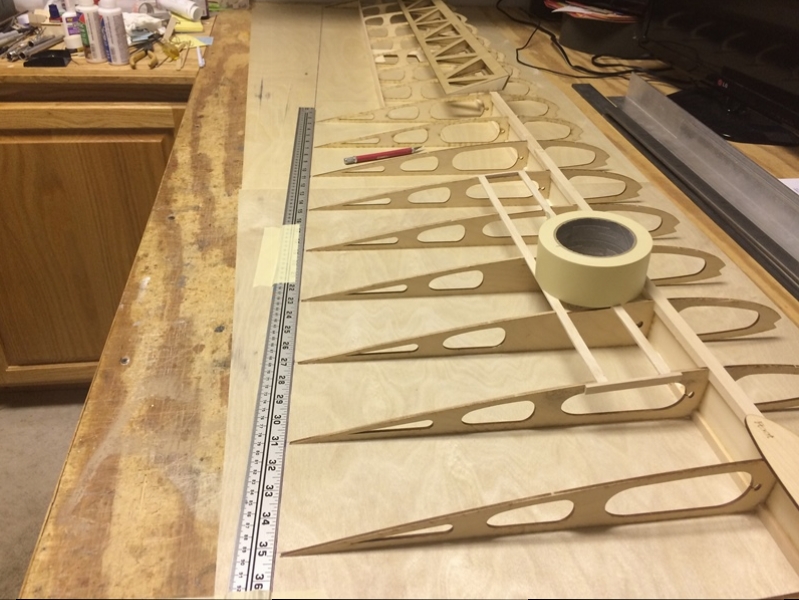

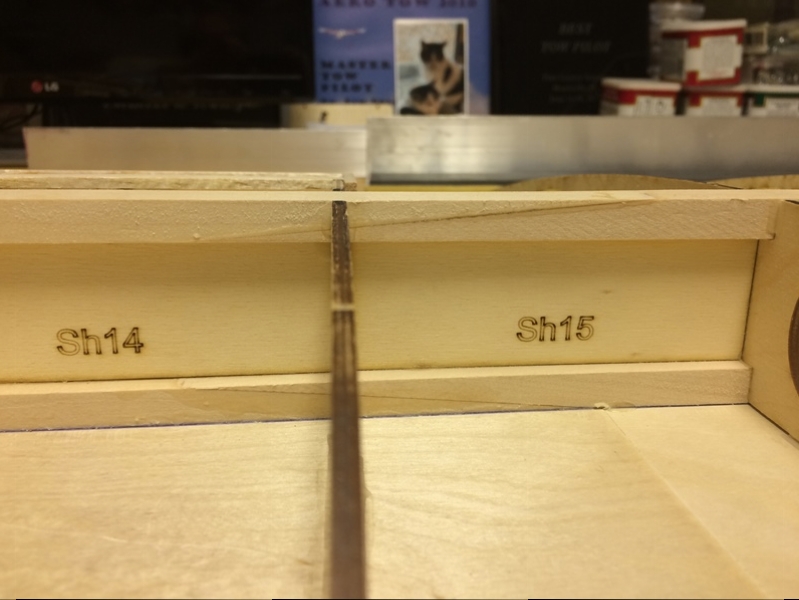

        Here is a look at the orientation of our spar scarf joints. Wing tip is to the right and root is to the left.
        Click image for larger version  Name:	099 1-26.JPG Views:	1 Size:	227.9 KB ID:	22899

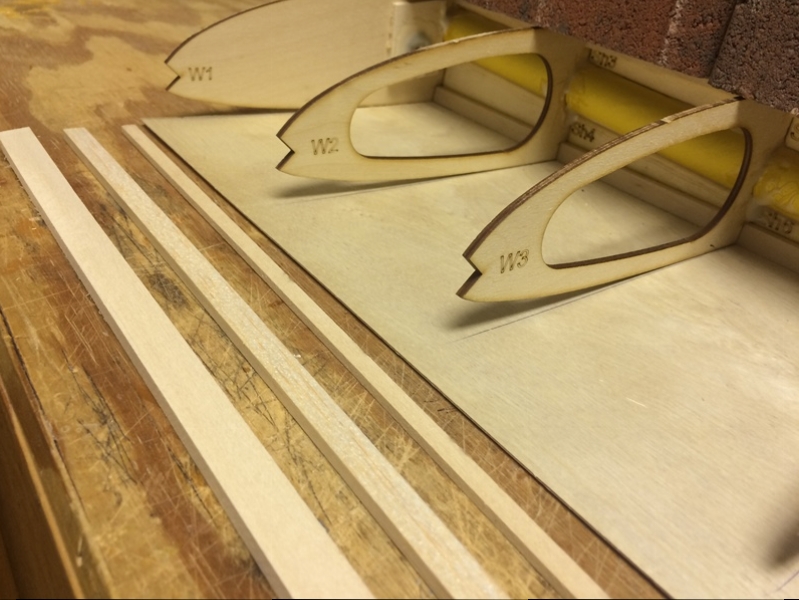

        Once the glue has dried, the 3/8" square balsa leading edge can be added. We used a scrap piece of thick plywood stick to keep the tip rib straight while gluing the tip rib to the sheeting and as a stop for the leading edge. Again, binder clips make great tools for holding parts together.
        Click image for larger version  Name:	100 1-26.JPG Views:	1 Size:	299.6 KB ID:	22902

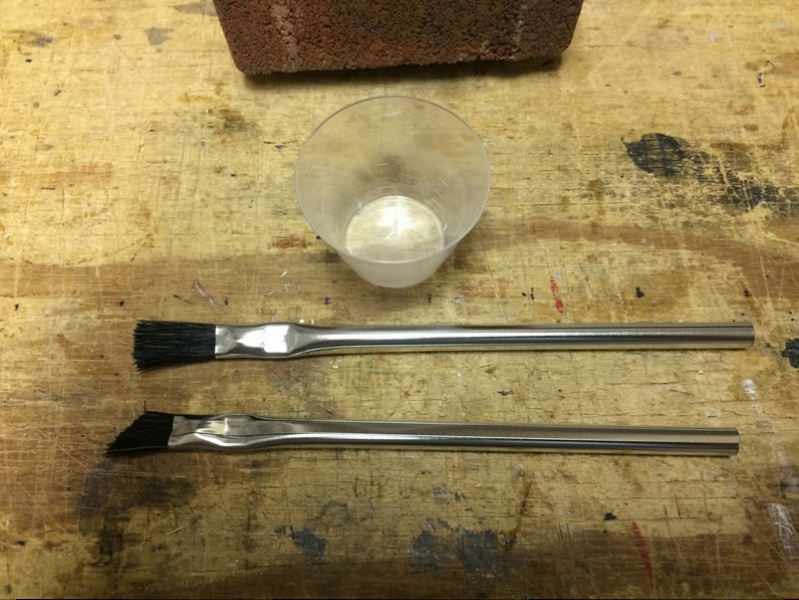

        Speed Bond glue was painted onto the sheeting and leading edge balsa and allowed to dry. Flipping the wing over, the forward sheeting was dampened with water and a hot iron used to bond the sheeting to the leading edge.

        Click image for larger version

Name:	image_8541.jpg
Views:	485
Size:	266.8 KB
ID:	22900


        Click image for larger version  Name:	102 1-26.JPG Views:	1 Size:	260.8 KB ID:	22898
        Click image for larger version  Name:	103 1-26.JPG Views:	1 Size:	283.1 KB ID:	22903
        Last edited by JimD; 02-05-2018, 02:09 PM.
        A Site for Soar Eyes

        Comment


        • BryanB
          BryanB commented
          Editing a comment
          I noticed you didn't trim the bottom sheet leading edge until after gluing up and adding leading edge stock.

        • JimD
          JimD commented
          Editing a comment
          Bryan, that is correct. Thought it made bending the sheeting over the leading edge easier. Sort of like having excess covering hanging over your structure that enables a better grip holding onto the covering while sealing down edges.

      • #34
        Using the Dremel with the rotary wood cutting blade, the aileron section of training edge sheeting was cut out and edges sanded flush. Using scrap pieces of balsa, 45 degree angle braces were fabricated and attached to the wing tip. A cardboard template was made for the wingtip bottom panel.

        Click image for larger version

Name:	104 1-26.JPG
Views:	488
Size:	283.3 KB
ID:	22905

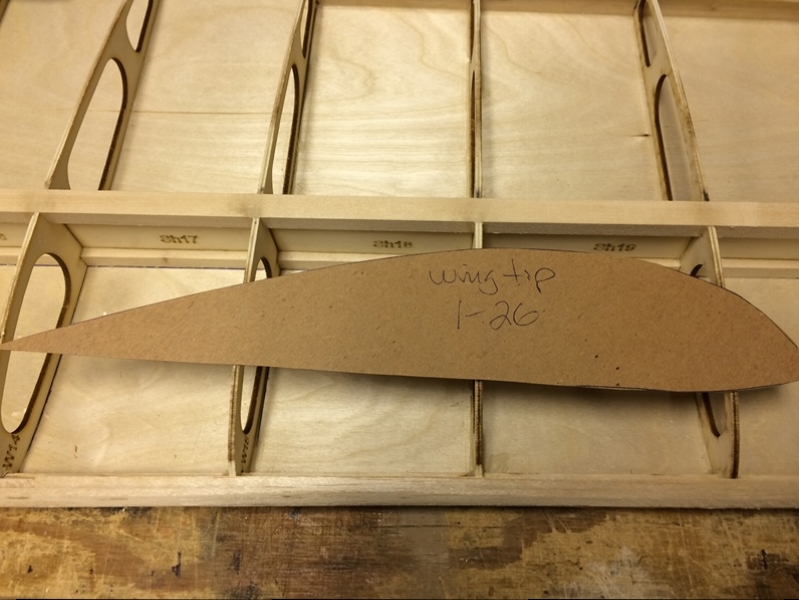

        Using scrap 1/32" wing skin, the template was used to make two wing tip panels. Once glued in place, this panel was sanded level with the top of the wing.

        Click image for larger version

Name:	105 1-26.JPG
Views:	461
Size:	244.5 KB
ID:	22906

        Then the underside was sanded smooth.

        Click image for larger version

Name:	106 1-26.JPG
Views:	485
Size:	253.8 KB
ID:	22908

        Click image for larger version

Name:	107 1-26.JPG
Views:	465
Size:	294.0 KB
ID:	22907

        Looking at the top edge of the balsa training edge in the aileron cutout, we decided to add a little extra "meat" using 3/16' square stick. Finally, internal wiring was added using the wiring nice holes provided in the ribs. We like to make our own extensions and our standard procedure is to use twisted white/red/black for the aileron servo and twisted yellow/red/black for the spoiler servo (flap on airplanes). Okay, I know your serious sailplane guys have multiple servos in each wing...so this would not work for you. Remember, I am a tow pilot at heart so humor me!

        Click image for larger version

Name:	108 1-26.JPG
Views:	508
Size:	297.9 KB
ID:	22909

        Click image for larger version

Name:	109 1-26.JPG
Views:	463
Size:	292.6 KB
ID:	22910

        Click image for larger version

Name:	110 1-26.JPG
Views:	453
Size:	276.2 KB
ID:	22911

        Okay, I think we are ready to cover it all up with the top sheeting now.
        A Site for Soar Eyes

        Comment


        • BryanB
          BryanB commented
          Editing a comment
          Have you mentioned hinging plan for ailerons? I guess I missed that.

        • BryanB
          BryanB commented
          Editing a comment
          Excellent work by the way!

      • #35
        Jim,

        Excellent work as usual. Do you find a #11 X-acto blade a bit flexible when trimming the 1/32 ply? I have and moved over to using the small box knife/snap blade knives for trimming it. The much more rigid blade gives me a cleaner and truer cut. Looking forward to the maiden in March!!

        Scot

        Comment


        • JimD
          JimD commented
          Editing a comment
          Bryan, thanks for following 🙂 The hinge plan is to use a covering hinge on the top of the aileron. Will produce a sealed hinge and clean profile. This is a technique that Peter also uses on the Swallow on both ailerons and elevators.

          Scot, maybe I am not using as much pressure on the #11 blade. Typically make about 4-5 passes to cut through. Thanks for the suggestion of the utility knife, I will try that technique when we do the other wing. Guess my mind thinks X-acto knife for models and utility knife for heavy construction.

      • #36
        Thanks for sharing this build, Jim. Great craftsmanship, information and insight as usual.

        Comment


        • #37
          DeWalt makes a nice small snap off blade knife with a 9mm wide blade, a little under 3/8"(.353) that I find very helpful in the shop. Check it out the next time you are at Home Depot or Lowes. It is not the big clunky 25mm wide one nor any where as big as a sheet rock knife either. The project that turned me onto it, was the 1/32 cap strips and sheeting on the Ton Elliott Petrel. I needed a knife that I could pierce through the plywood because I was making rectangular cutouts. For trim cuts where you can start off the sheet and bring the knife in the edge of the sheet to start the cut an X-acto will work fine. Here is an Amazon link to the knife.



          Last edited by Stew2; 02-05-2018, 10:26 PM.

          Comment


          • #38
            Originally posted by JimD View Post
            Bryan, thanks for following 🙂 The hinge plan is to use a covering hinge on the top of the aileron. Will produce a sealed hinge and clean profile. This is a technique that Peter also uses on the Swallow on both ailerons and elevators.
            Jim......covering hinges are all well and fine for small airframes but a 40% airplane needs a proper hinge! I find over time the covering hinge will begin to fail and you will end up using tape to cover the failure. My EPP 3 meter Ka6 has them and they are failing......Plastic hinges work well as an “under layment” to a covering hinge......they will keep the hinge line in “line” so to speak and will help at the control horn location where the first signs of failure will appear.
            TEAM GORGEOUS

            Comment


            • JimD
              JimD commented
              Editing a comment
              I am reporting what Peter has suggested for his design. Ultimately, the builder must decided how they wish to do this.

          • #39

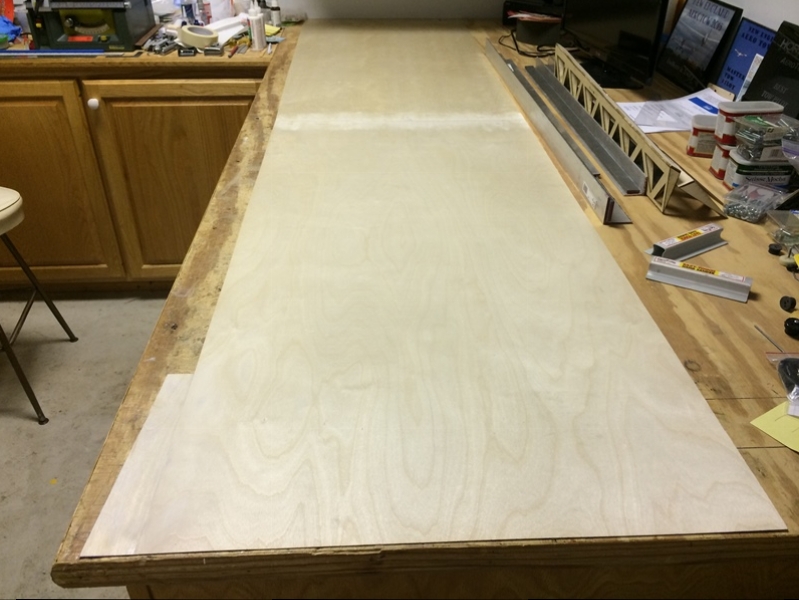

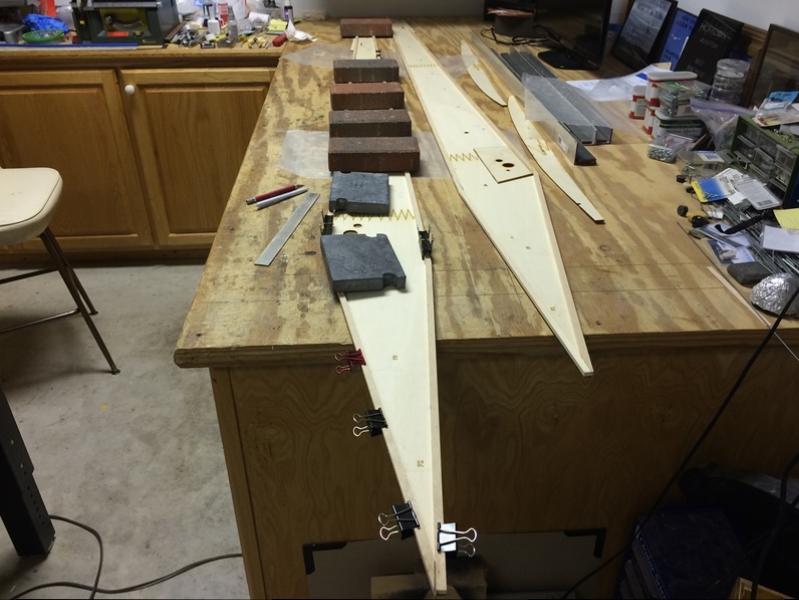

            Two sheets of 24" x 48" x 1/32" Plywood were joined per the method used on the bottom sheeting. A 12" x 2" piece of scrap 1/32" plywood was added to the trailing edge at the root. With the outside of the top wing skin facing up, the wing was placed on top of the skin and positioned. The trailing edge was marked so that the top and bottom would match.

            Click image for larger version

Name:	113 1-26.JPG
Views:	458
Size:	268.5 KB
ID:	22947

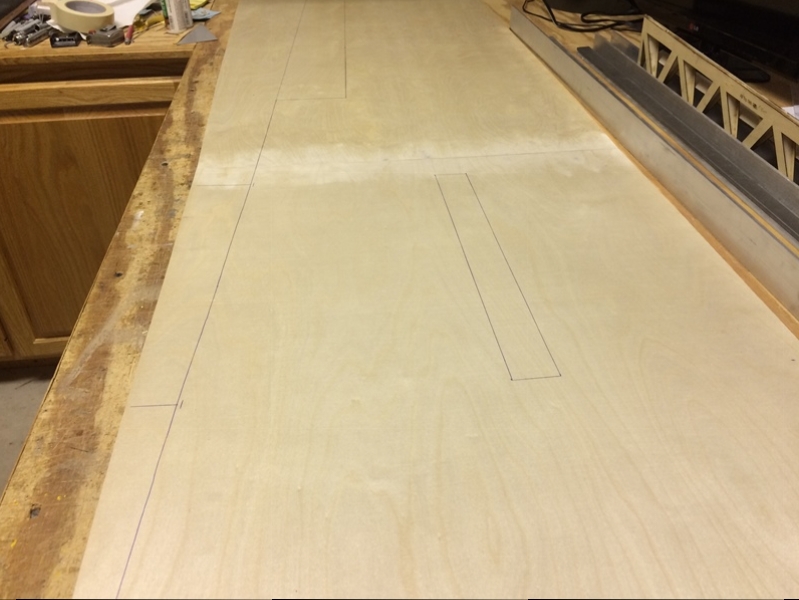

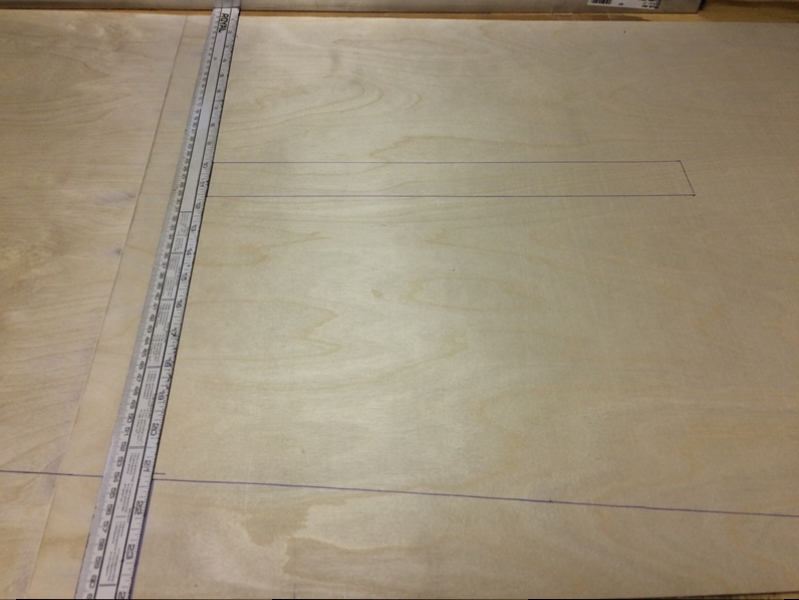

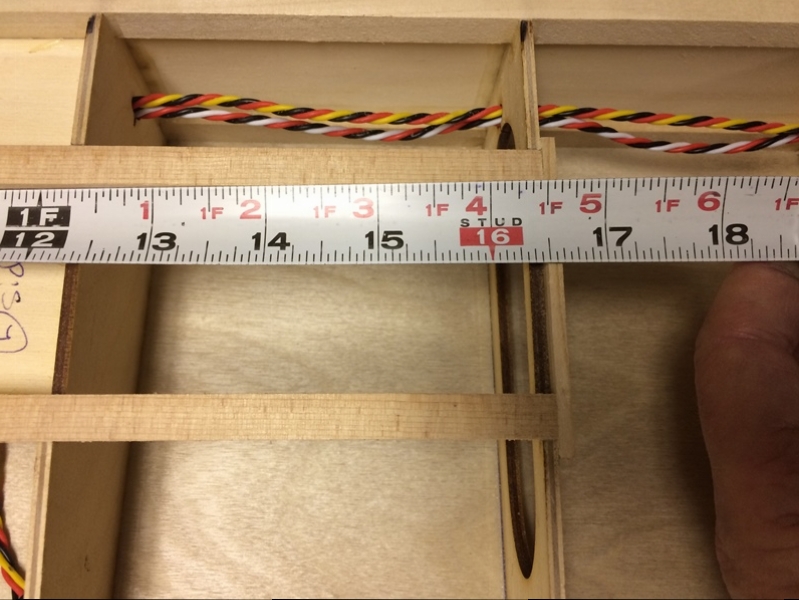

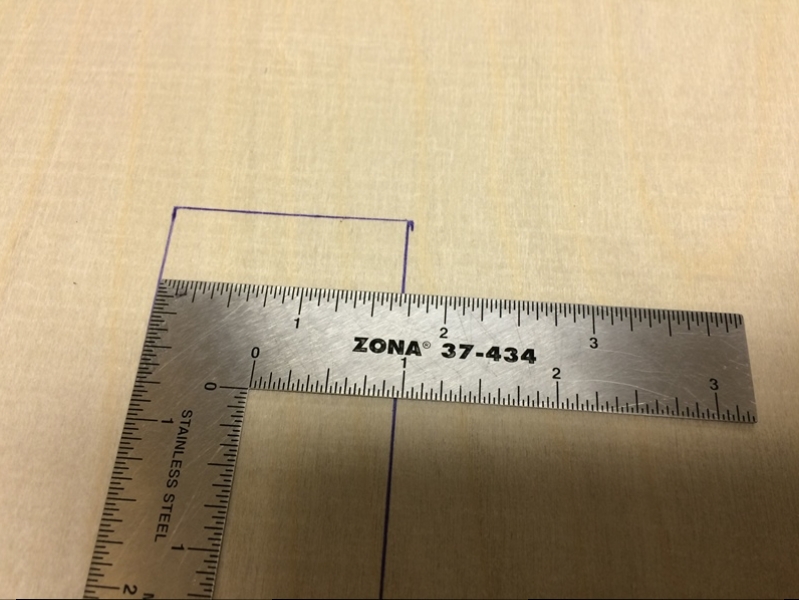

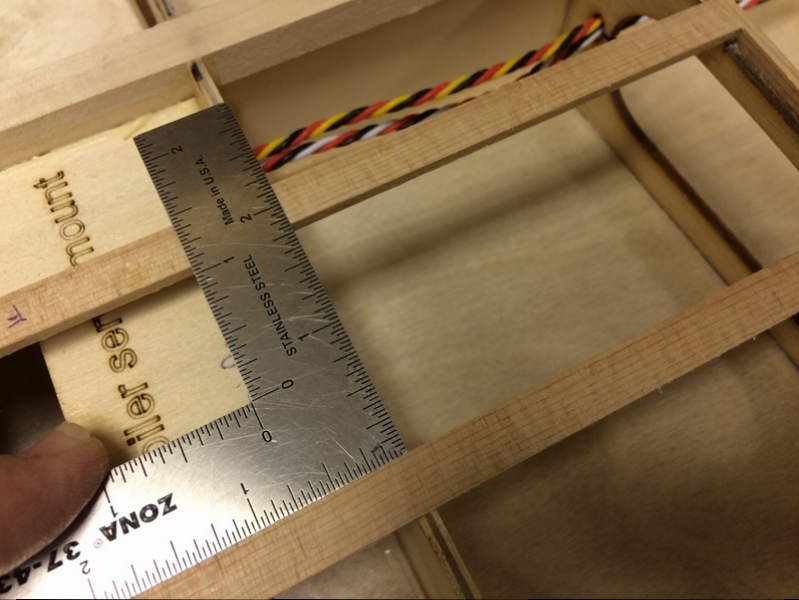

            The ribs at each end of the spoiler box were marked and distance from trailing edge to edge of spoiler box was noted.

            Click image for larger version

Name:	114 1-26.JPG
Views:	463
Size:	286.2 KB
ID:	22945

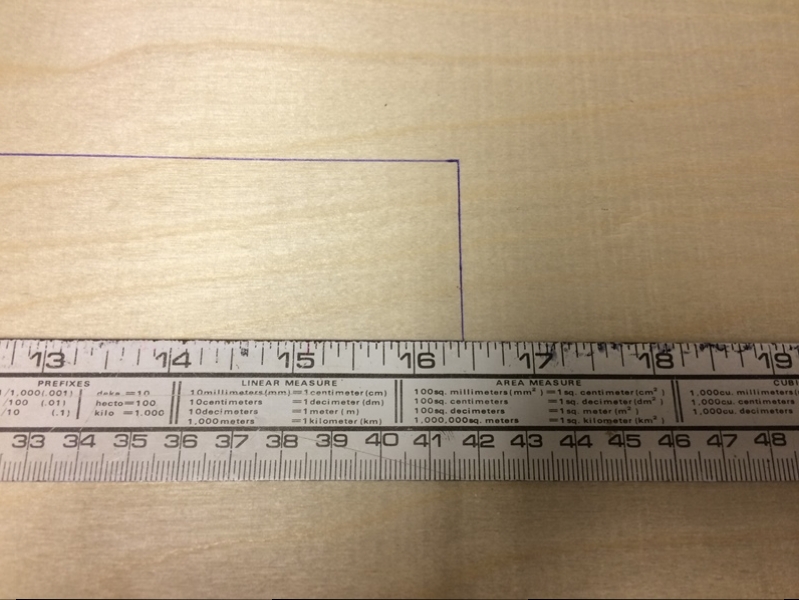

            The dimensions of the spoiler box are roughly 16-1/2" x 1-3/4"

            Click image for larger version

Name:	115 1-26.JPG
Views:	430
Size:	266.1 KB
ID:	22939

            Click image for larger version

Name:	116 1-26.JPG
Views:	438
Size:	280.3 KB
ID:	22944

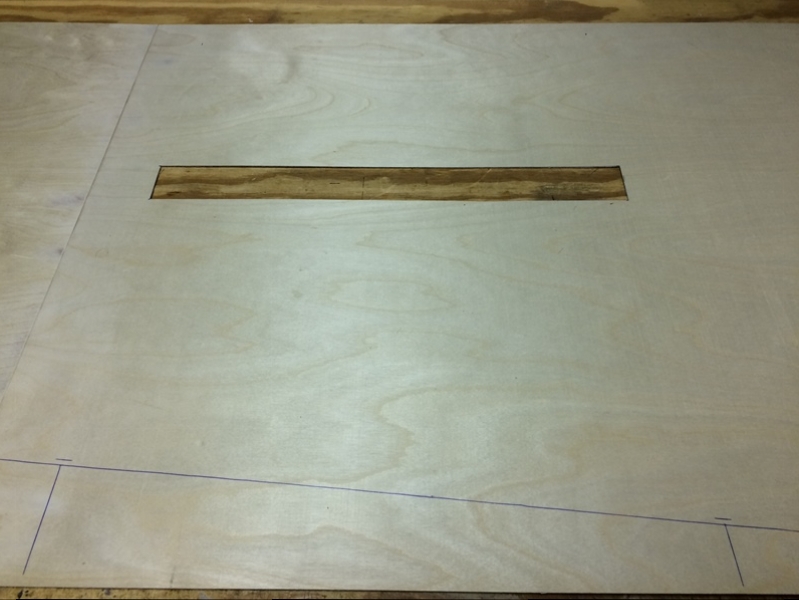

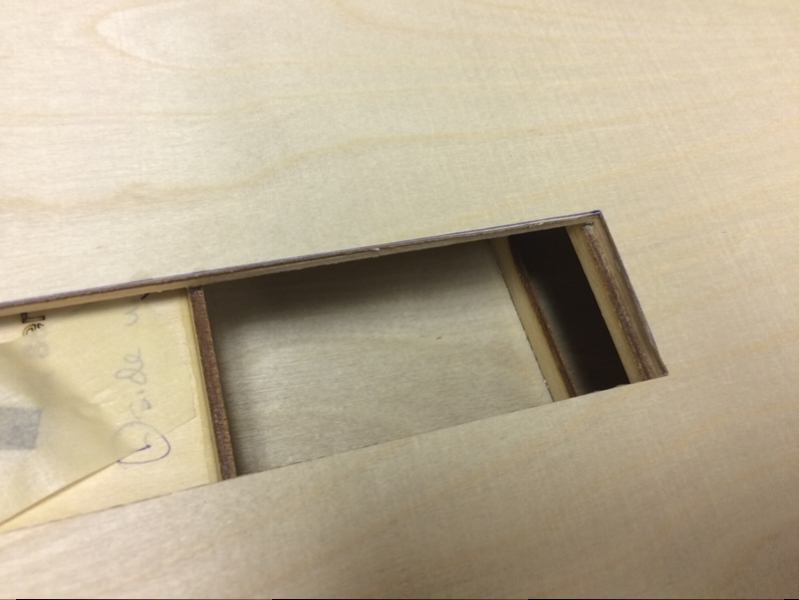

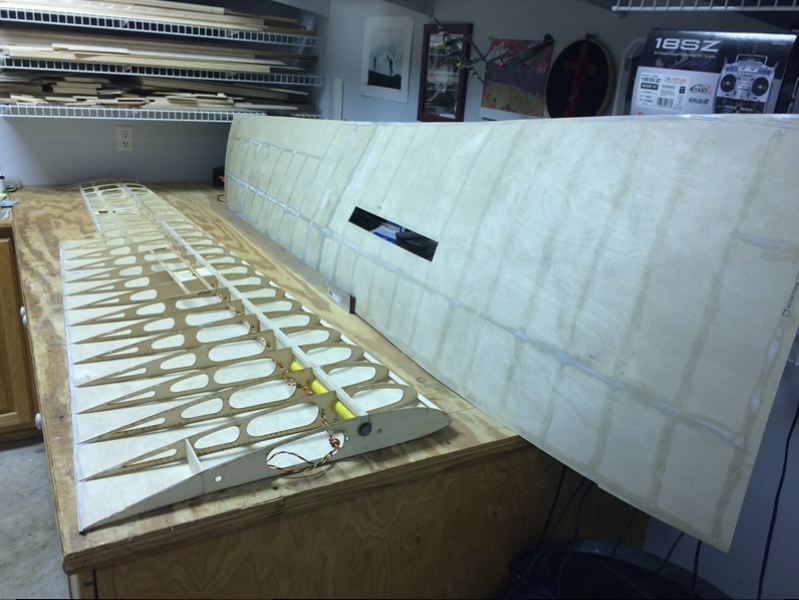

            After removing the wing from the top skin, the spoiler box cutout was marked off and cut out (we made this slightly undersize).

            Click image for larger version

Name:	117 1-26.JPG
Views:	444
Size:	236.1 KB
ID:	22940

            Click image for larger version

Name:	118 1-26.JPG
Views:	447
Size:	245.3 KB
ID:	22942

            Click image for larger version

Name:	119 1-26.JPG
Views:	461
Size:	277.0 KB
ID:	22941

            Click image for larger version

Name:	120 1-26.JPG
Views:	449
Size:	261.0 KB
ID:	22943

            Click image for larger version

Name:	121 1-26.JPG
Views:	431
Size:	219.2 KB
ID:	22946

            A Site for Soar Eyes

            Comment


            • #40

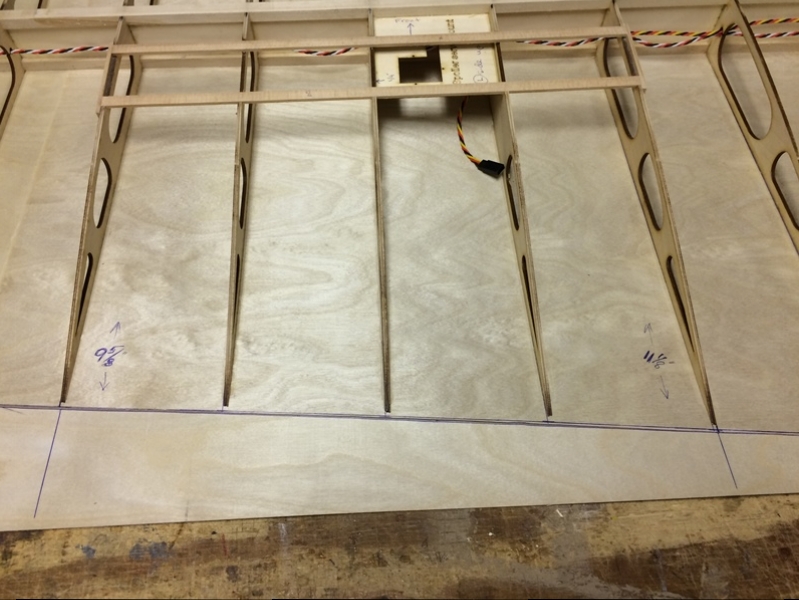

              The trailing edge was cut to its exact alignment and 3" of the excess length was cot off at the tip end. The leading edge was cut slightly over size. The spoiler box and the trailing edge was used to align the sheeting before gluing in place. Speed Bond glue was painted on all of the ribs, spar, leading and trailing edges, and around the spoiler box.

              Click image for larger version

Name:	122 1-26.JPG
Views:	407
Size:	295.3 KB
ID:	22951

              Click image for larger version

Name:	123 1-26.JPG
Views:	411
Size:	296.0 KB
ID:	22952

              Click image for larger version

Name:	124 1-26.JPG
Views:	439
Size:	218.2 KB
ID:	22950

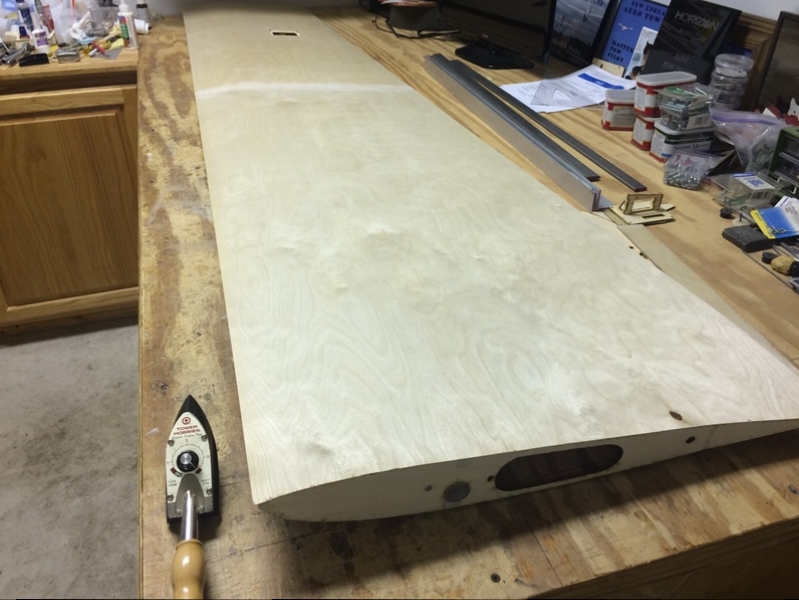

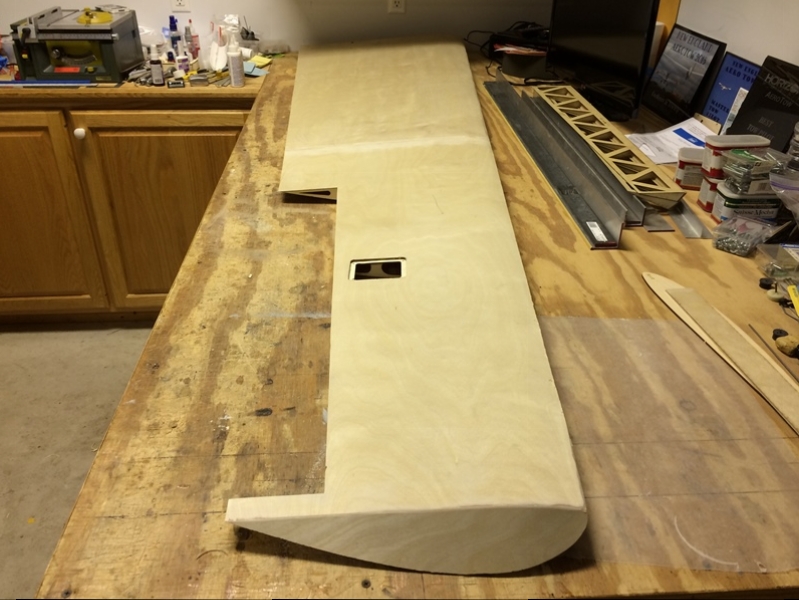

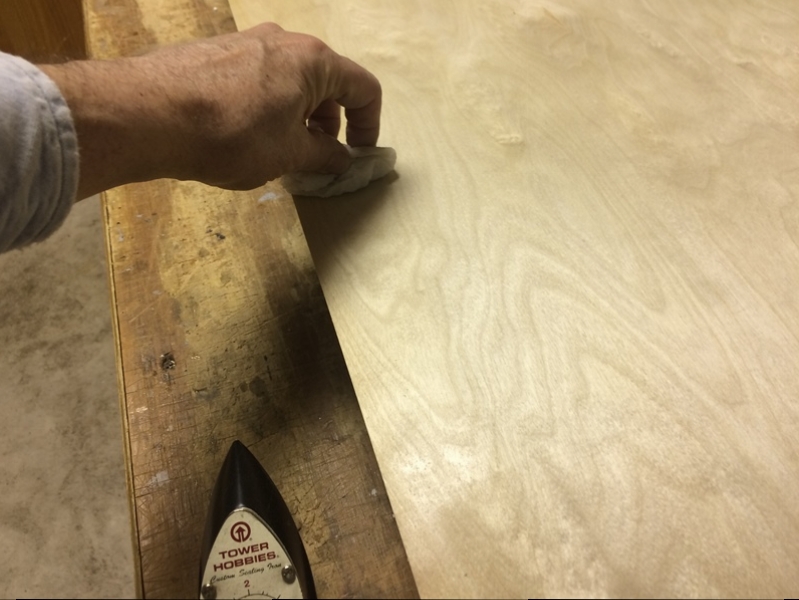

              Once alignment was verified, the hot iron technique was used to seal the top skin to the underlying framework.

              Click image for larger version

Name:	125 1-26.JPG
Views:	419
Size:	271.9 KB
ID:	22953

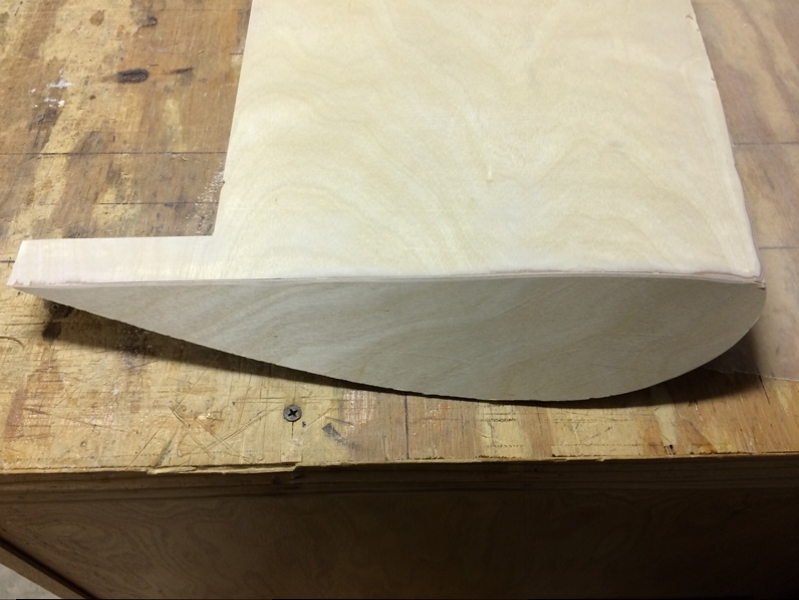

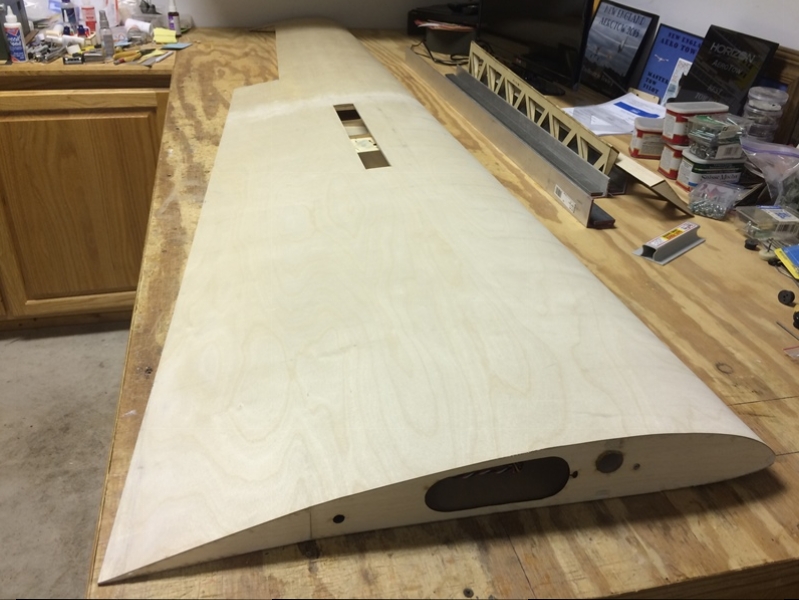

              Now the excess sheeting needs to be trimmed away and all sides sanded to proper contour.
              A Site for Soar Eyes

              Comment


              • #41
                Stab/Elevator

                With the wings completed, we move on to construction of the stab and elevator.

                The "spine" of both the stab and elevator are the parts that also make the hinge line. Click image for larger version  Name:	1001 1-26.JPG Views:	1 Size:	227.5 KB ID:	22959
                Click image for larger version  Name:	1002 1-26.JPG Views:	1 Size:	255.6 KB ID:	22963

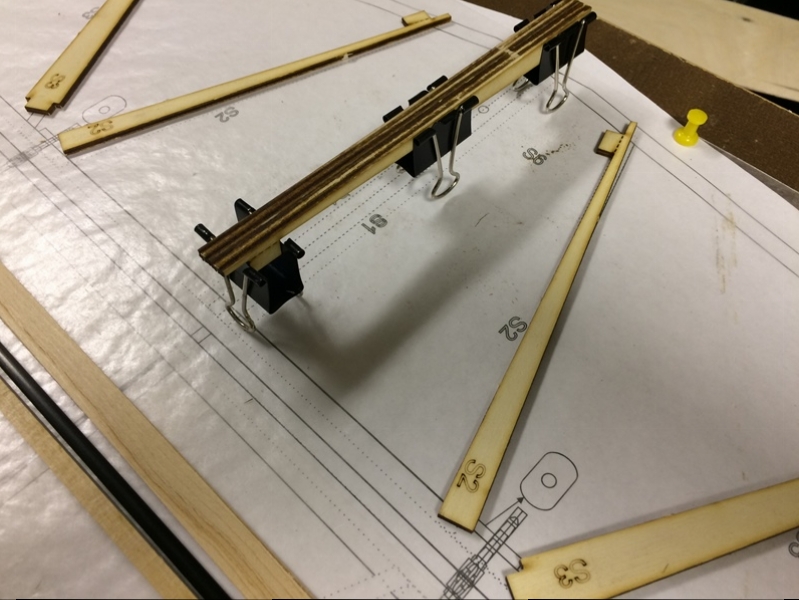

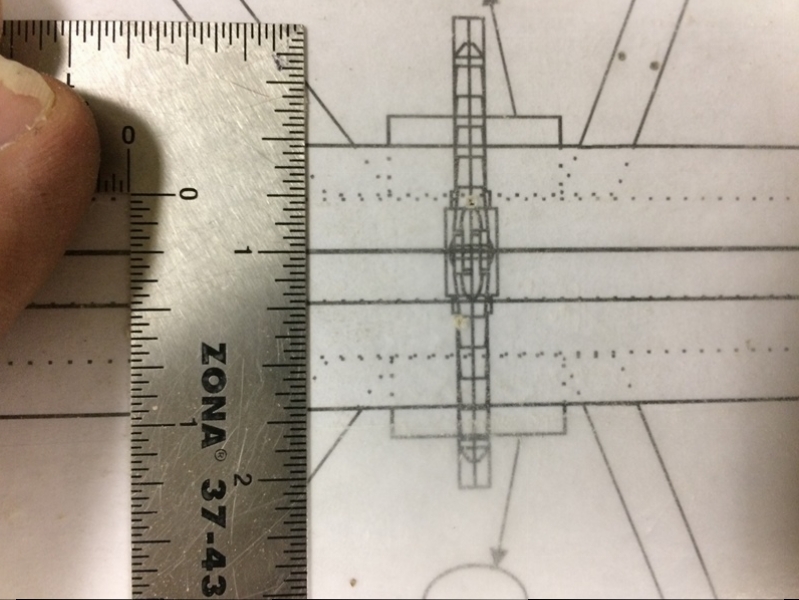

                These spines are made of 1/8" x 1/2" spruce and 1/4" x 1/2" spruce or basswood. Hinge points have balsa "donuts" for added gluing surface. The position of these donuts was transferred for the plan to the spruce and once the spine assemblies were glued together, the donut holes were used as a drill guide to make the hinge point holes through the hardwood. We drilled these hole through using a drill press to keep them as straight as possible. Click image for larger version  Name:	1003 1-26.JPG Views:	1 Size:	279.2 KB ID:	22964



                This recess gives the ribs a slot to tab into. (Note S3) Click image for larger version  Name:	1004 1-26.JPG Views:	1 Size:	269.9 KB ID:	22965

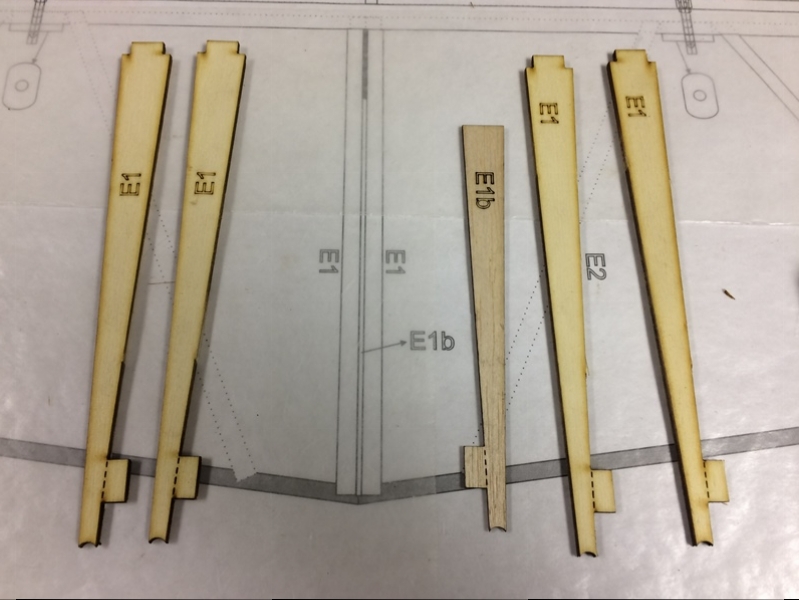

                At the center line of both the stab and the elevator, there are ribs that get laminated together and then glued to the spine as a sub-assembly.

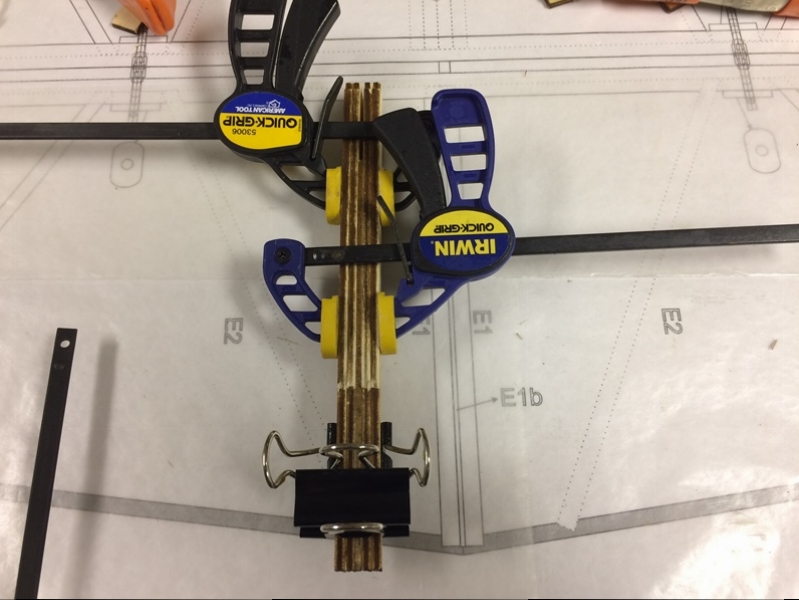

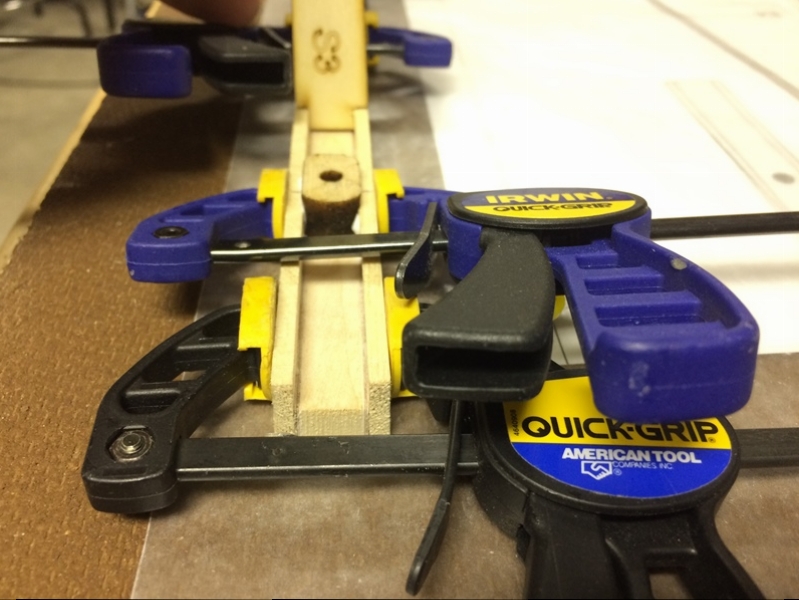

                Center elevator rib assembly is made of 5 parts. The middle balsa rib is a spacer and the forward space forms the slot for the G10 elevator horn. Click image for larger version  Name:	1005 1-26.JPG Views:	1 Size:	224.3 KB ID:	22960


                Click image for larger version  Name:	1006 1-26.JPG Views:	1 Size:	236.9 KB ID:	22961



                The center stab rib assembly is made of 4 pieces of 1/8" plywood. Click image for larger version  Name:	1007 1-26.JPG Views:	1 Size:	273.0 KB ID:	22962

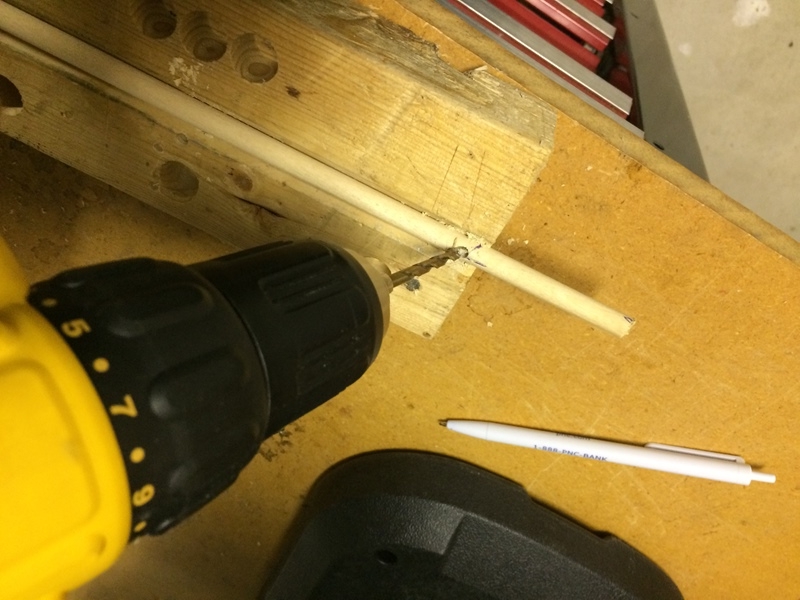

                The leading edge of the elevator is made of 3/8" diameter wooden dowel rod. The S1 center rib assembly and the S2 ribs get sandwiched between a top and bottom layer of 1/8" lite ply (part S6). Note the S2 ribs in the picture above come to a narrow point. In order to make a good joint between S2 and the dowel leading edge, drill a hole in the dowel for the point of rib S2 to fit into. Click image for larger version  Name:	1008 1-26.JPG Views:	1 Size:	269.2 KB ID:	22966





                Last edited by JimD; 02-06-2018, 12:42 PM.
                A Site for Soar Eyes

                Comment


                • #42

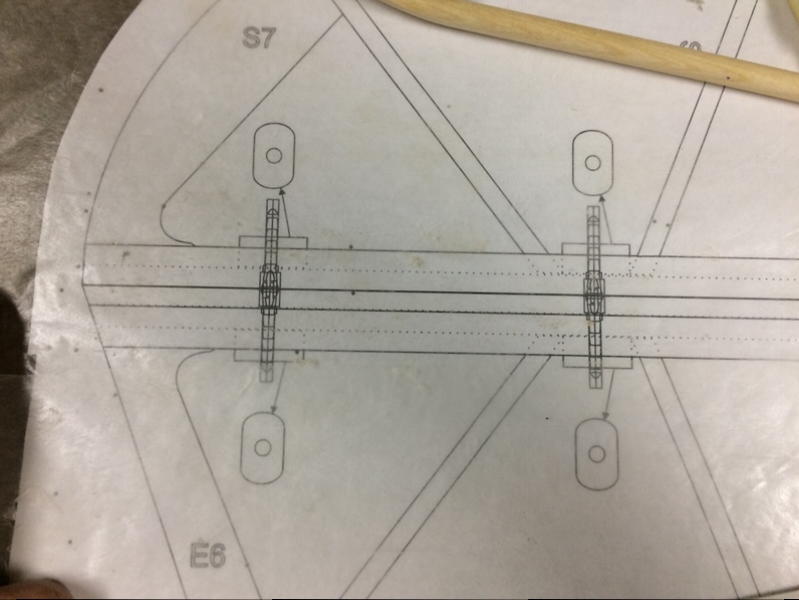

                  The 1/2" balsa parts E6 and S7 fit into the 1/2" slot in the spines. The 3/8" wooden dowel that makes the leading edge is added to complete the outline of the stab. Use scrap pieces to shim S7 and the dowel. !/8" thick shim under S7 and 1/16" shim under the dowel. This keeps all of the pieces centered.

                  Click image for larger version

Name:	1009 1-26.JPG
Views:	468
Size:	271.3 KB
ID:	22968

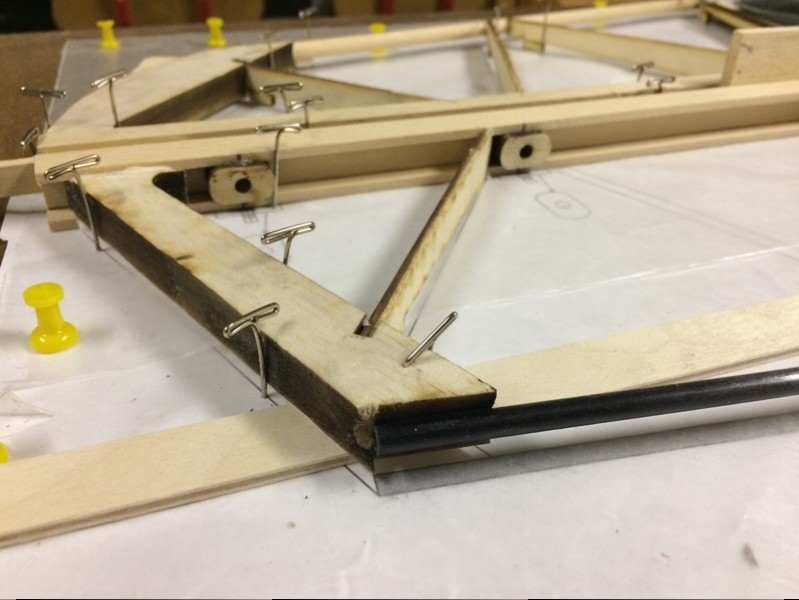

                  The trailing edge is made of carbon fiber rod. We used a 1" piece of plumbing solder inserted into the joint between the two pieces of carbon rod to reinforce the butt joint and to keep the two sides aligned while gluing.

                  Click image for larger version

Name:	1010 1-26.JPG
Views:	427
Size:	255.9 KB
ID:	22972

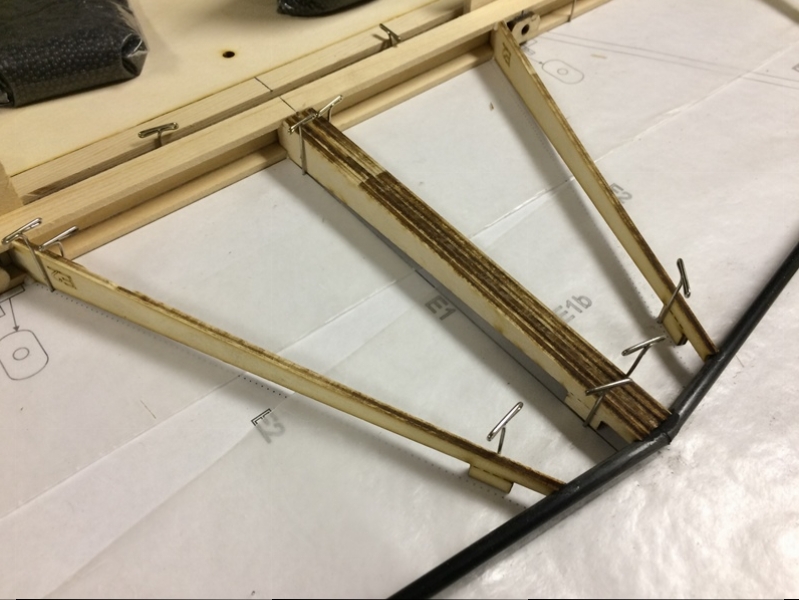

                  1/8" shims were added under the 1/2" balsa E6 parts and a round file was used to make a rounded slot in the back surface of E6 for the carbon rod to nest in. CA glue was used to attach the carbon rod to these balsa and plywood parts.

                  Click image for larger version

Name:	1011 1-26.JPG
Views:	434
Size:	239.4 KB
ID:	22971

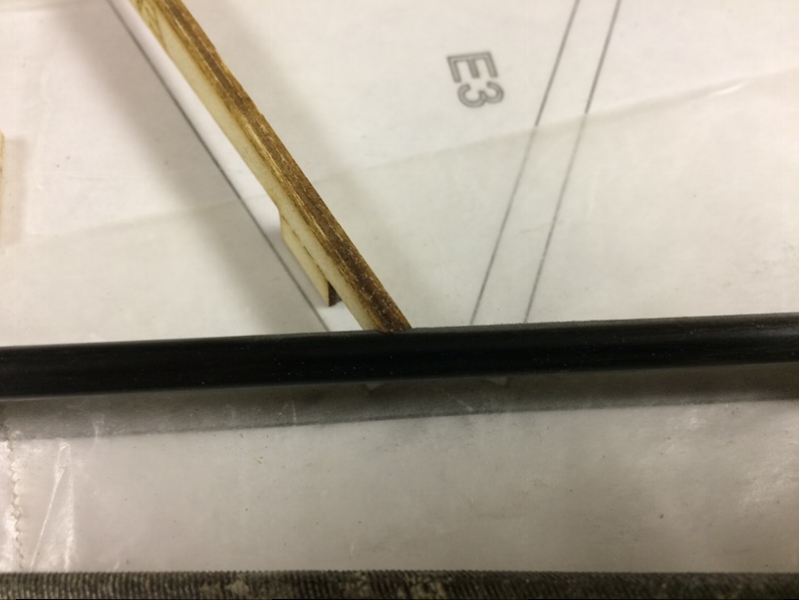

                  The ribs were sanded to match the angle of insertion into the spines.

                  Click image for larger version

Name:	1012 1-26.JPG
Views:	425
Size:	209.4 KB
ID:	22969

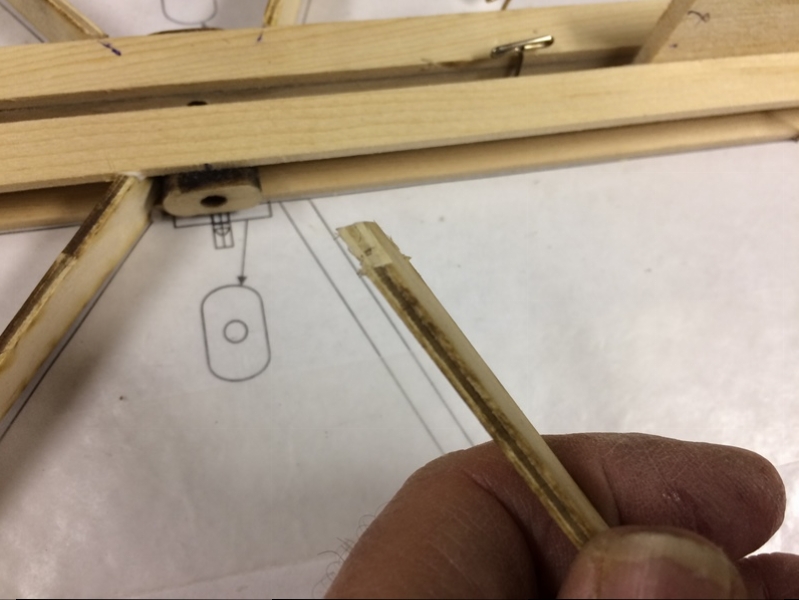

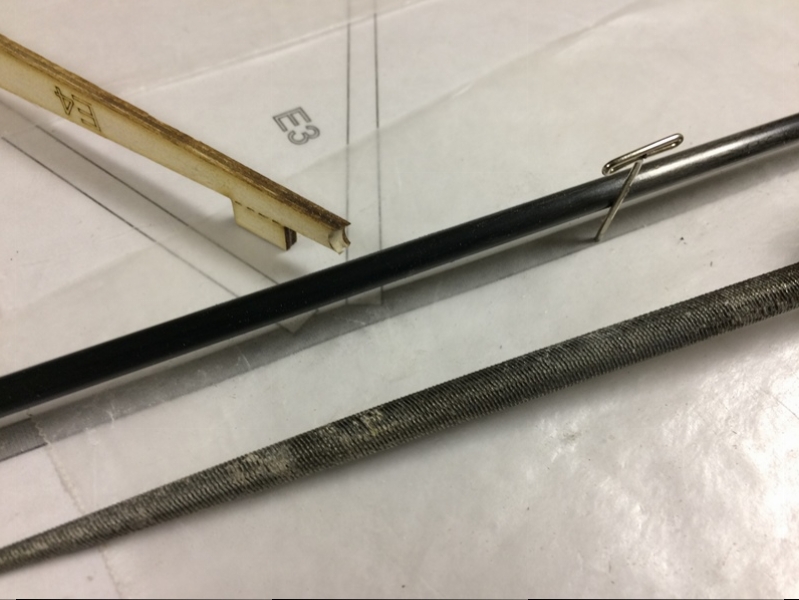

                  A round file was used to angle the ribs as they attach to the leading and trailing edges.

                  Click image for larger version

Name:	1013 1-26.JPG
Views:	417
Size:	226.3 KB
ID:	22974

                  Click image for larger version

Name:	1014 1-26.JPG
Views:	429
Size:	192.7 KB
ID:	22970

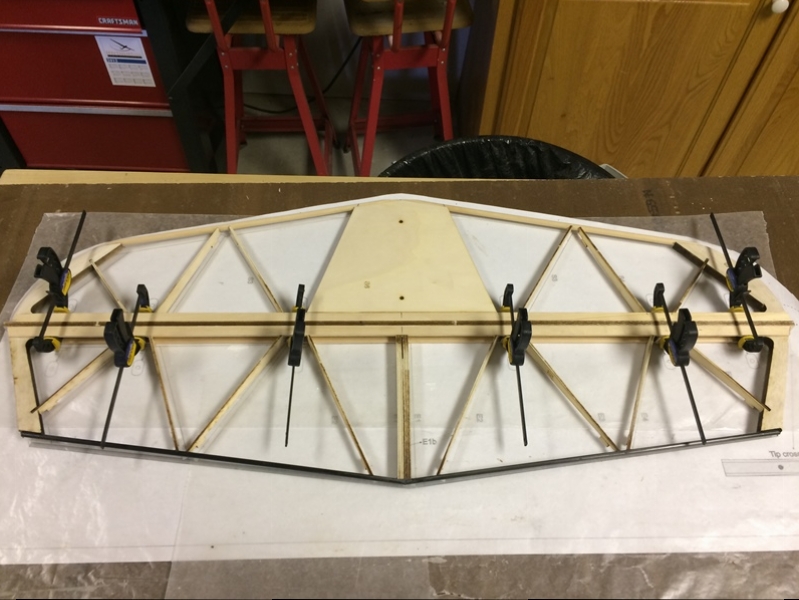

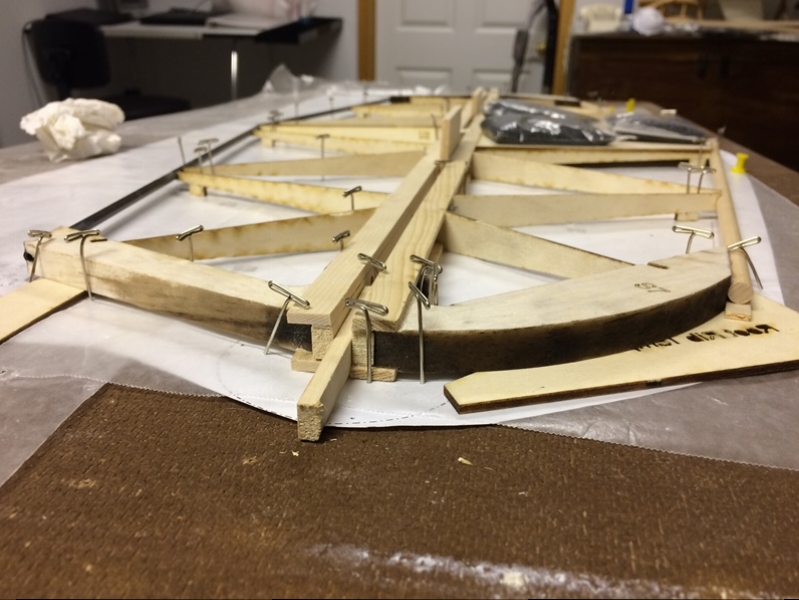

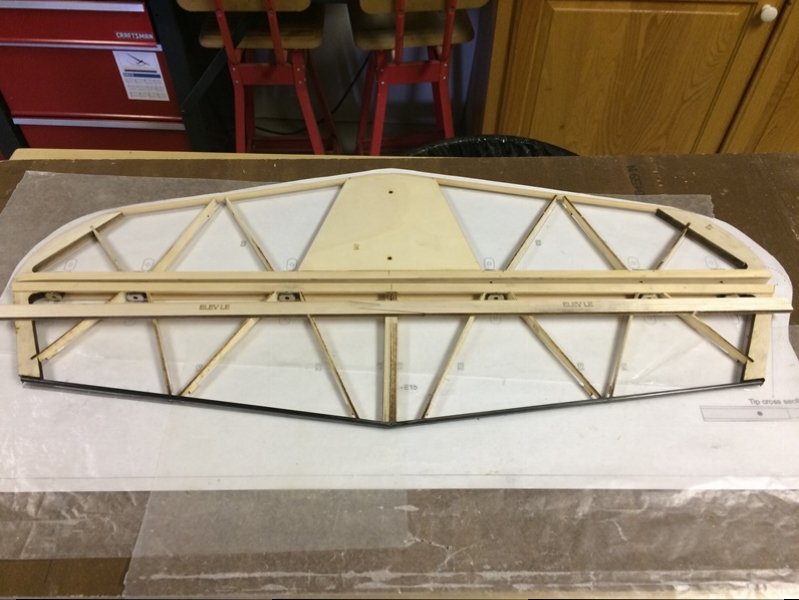

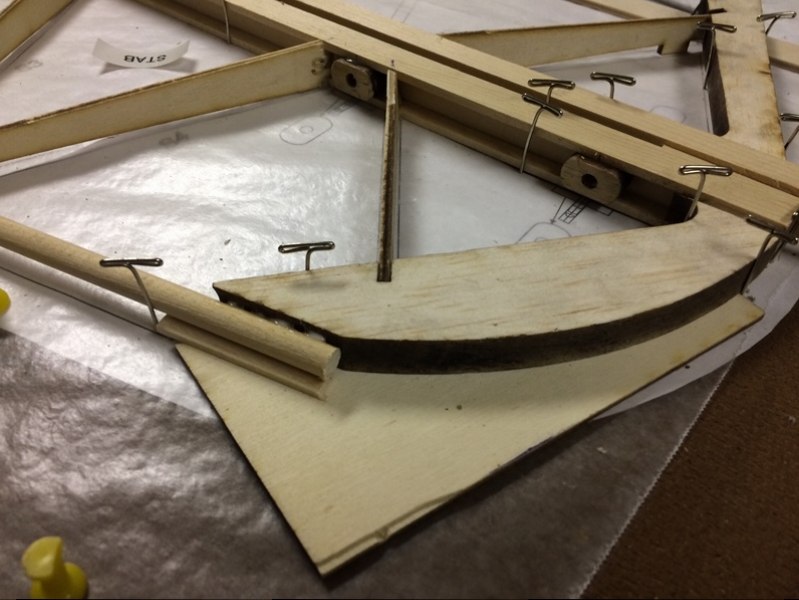

                  Once all of the ribs are in place, the top 1/8" plate is added to the top of the center stab area. It works best if the stab and elevator are built over the plans. 1/4" spaces were usded to keep alignment between the stab and elevator.

                  Click image for larger version

Name:	1015 1-26.JPG
Views:	419
Size:	292.3 KB
ID:	22973

                  Click image for larger version

Name:	1016 1-26.JPG
Views:	448
Size:	285.9 KB
ID:	22976

                  Once all of the glue joints were secure, the parts were removed for the building board and the 1/4" thick balsa leading edge was added to the elevator. This will get sanded to a V to allow movement of the elevator. The trailing edge of the stab remains flat with square corners top and bottom.

                  Click image for larger version

Name:	1017 1-26.JPG
Views:	433
Size:	276.2 KB
ID:	22975

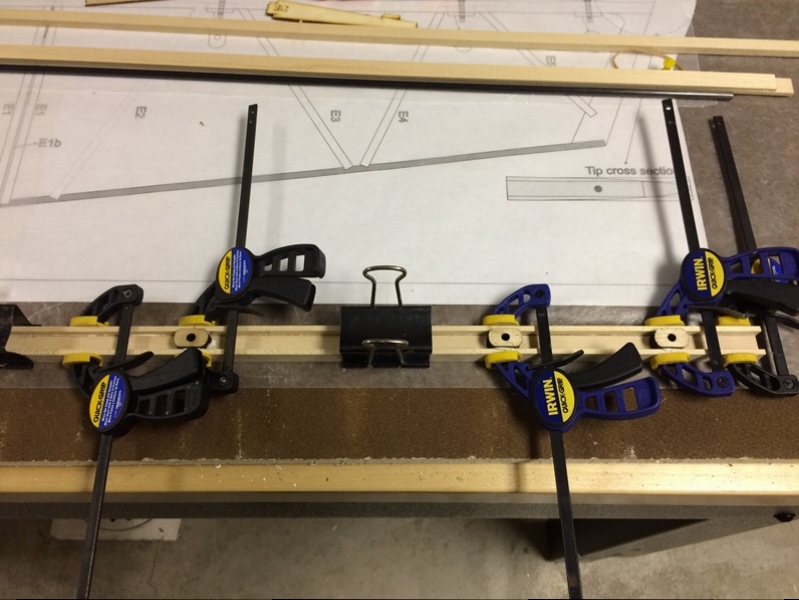

                  We glued the elevator trailing edge to the elevator spine and then clamped the stab and elevator together to maintain a nice straight assembly.

                  Click image for larger version

Name:	1018 1-26.JPG
Views:	407
Size:	275.3 KB
ID:	22977

                  The hinge point holes were drilled through the balsa after the glue cured.


                  A Site for Soar Eyes

                  Comment


                  • #43
                    Excellent build Jim. With all the little extra tips this will be an great manual.

                    Comment


                    • JimD
                      JimD commented
                      Editing a comment
                      Thanks! That is our hope.

                  • #44
                    Fuselage

                    Final sanding of wings, stab/elevator, etc. will be done when we have weather so I can go outside. Way better than making a bunch of dust in the shop.

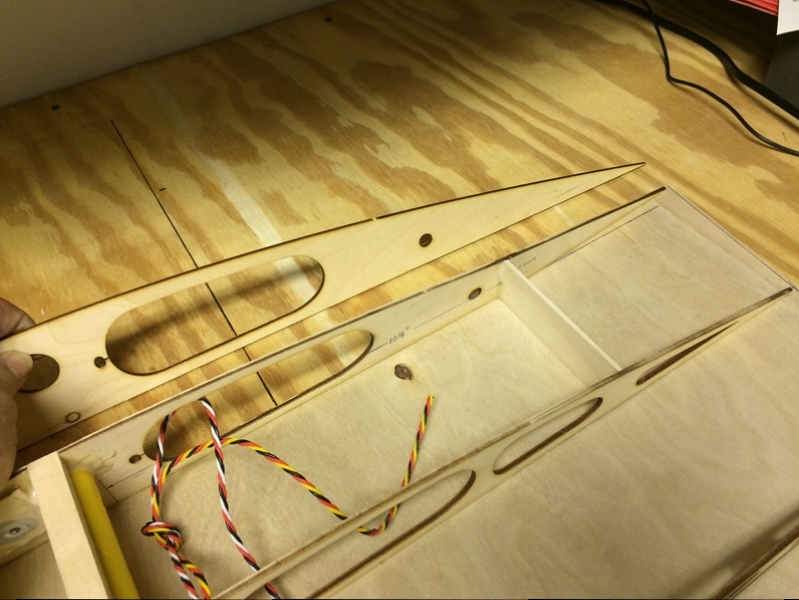

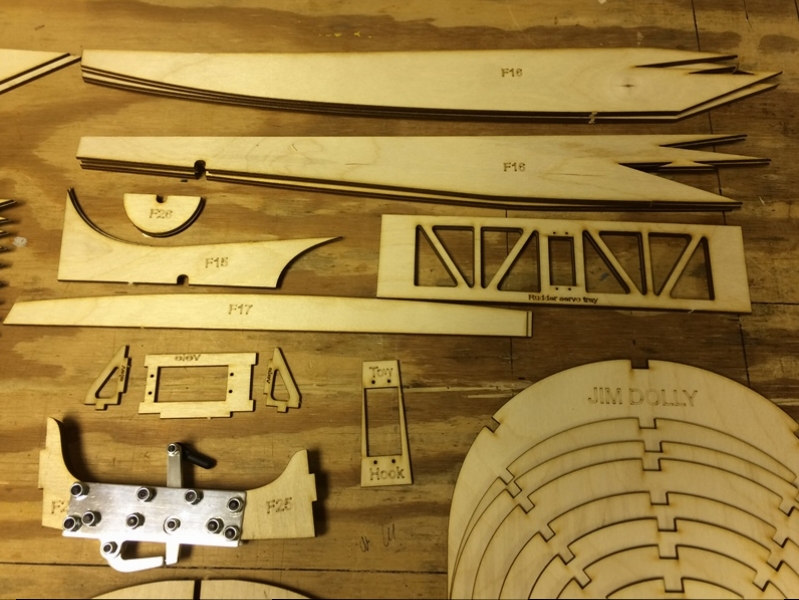

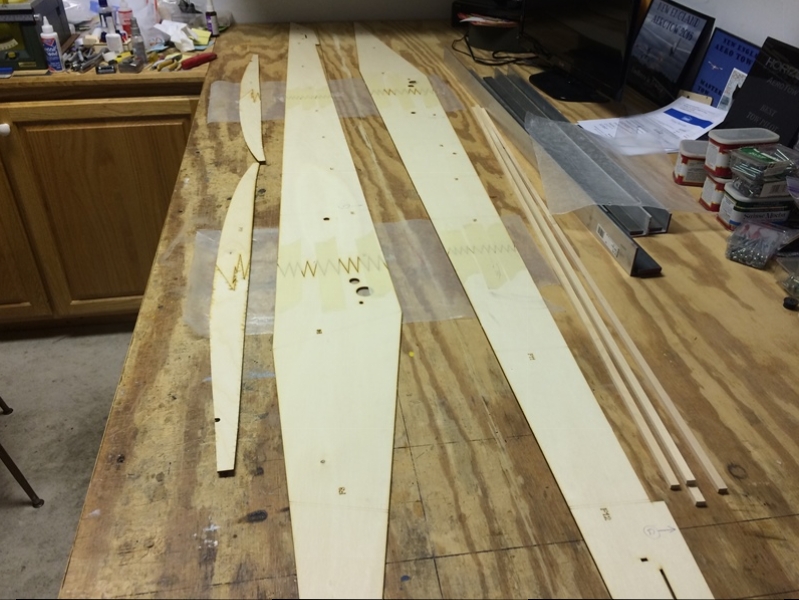

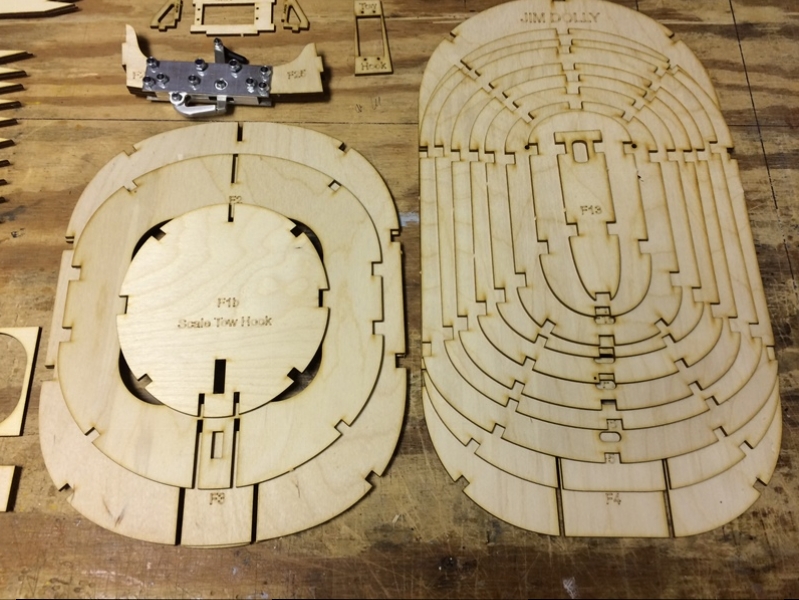

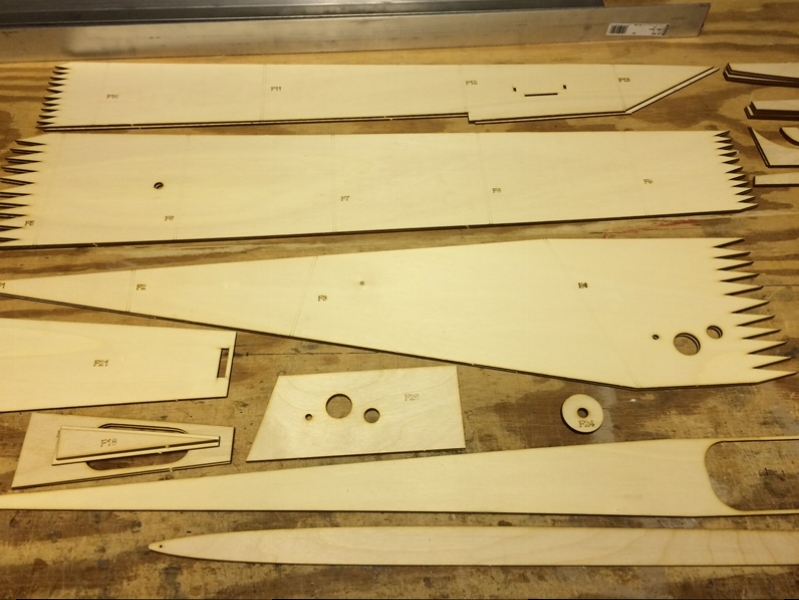

                    Step one is to locate all of the fuselage parts. Spend a little time and punch out all of the parts now so they will be ready to use as the build progresses.


                    Click image for larger version

Name:	2001 1-26.JPG
Views:	429
Size:	337.2 KB
ID:	22994

                    Click image for larger version

Name:	2002 1-26.JPG
Views:	404
Size:	318.4 KB
ID:	22992

                    Click image for larger version

Name:	2003 1-26.JPG
Views:	412
Size:	271.7 KB
ID:	22995

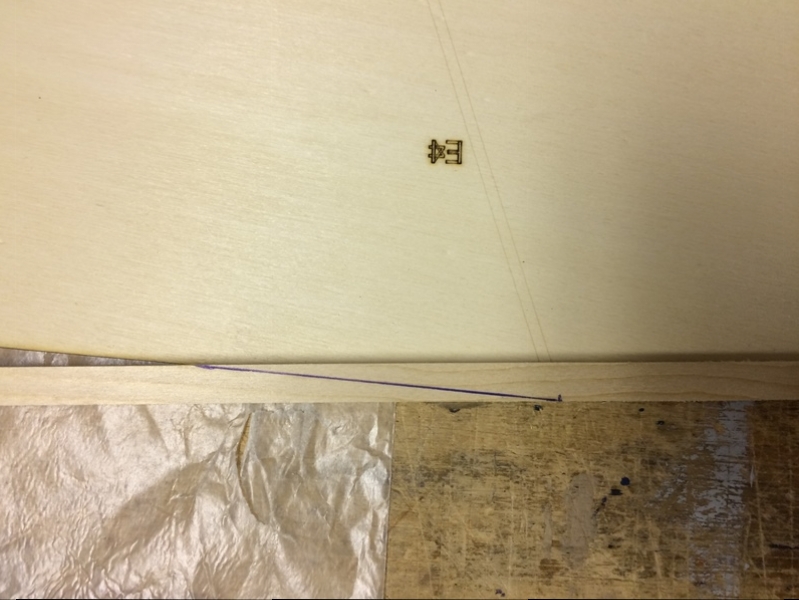

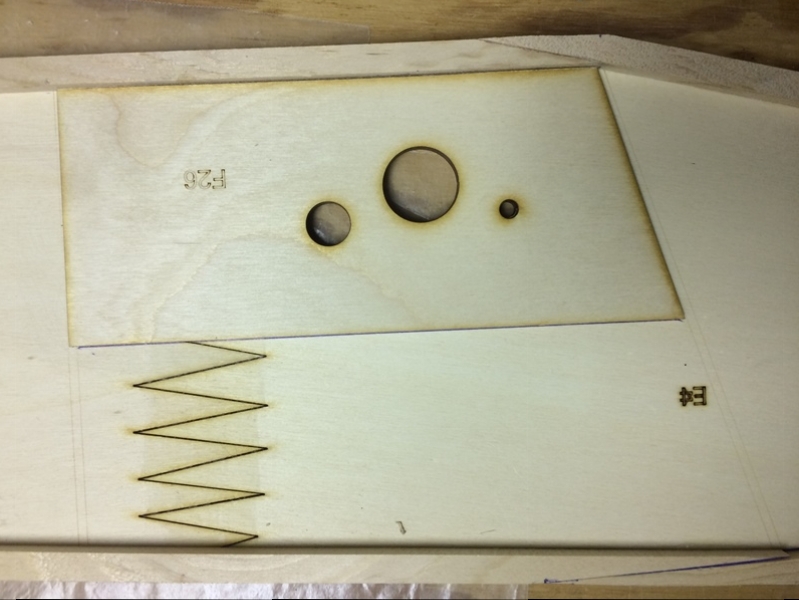

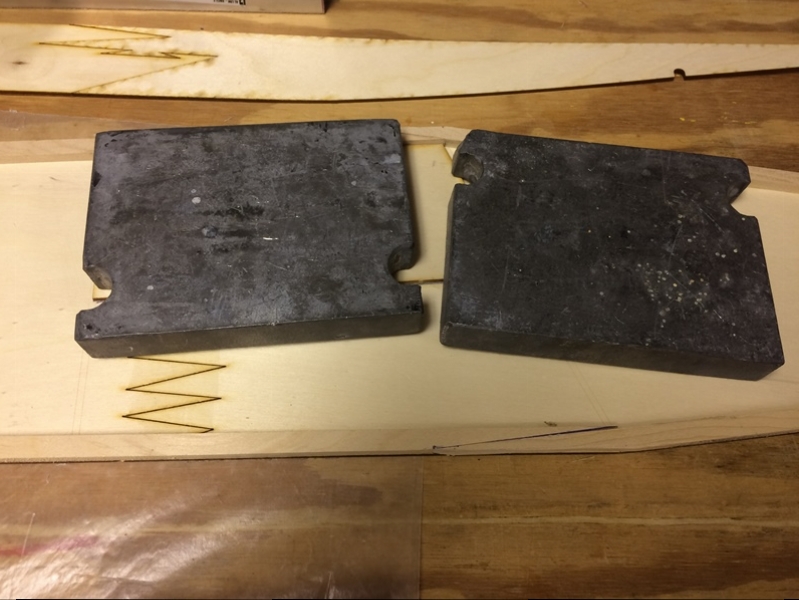

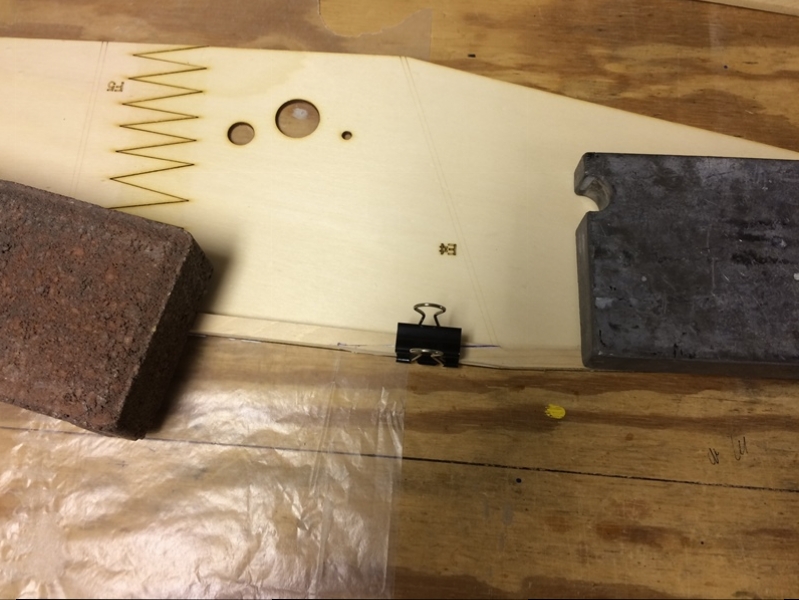

                    Start by gluing the side pieces together. Note that the position for the formers is scribed onto the sides so as to make a left and right side.

                    Click image for larger version

Name:	2004 1-26.JPG
Views:	446
Size:	304.7 KB
ID:	22996

                    Basically, these side panels get outlined with 1/4" x 3/8" spruce. You will need to make a number of angled cuts and scarf joints in this process.

                    Click image for larger version

Name:	2005 1-26.JPG
Views:	392
Size:	252.6 KB
ID:	22997

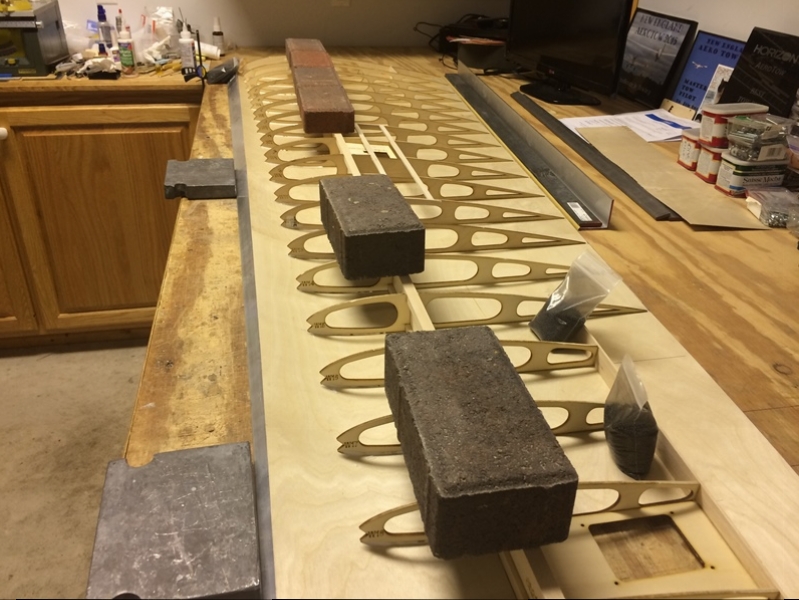

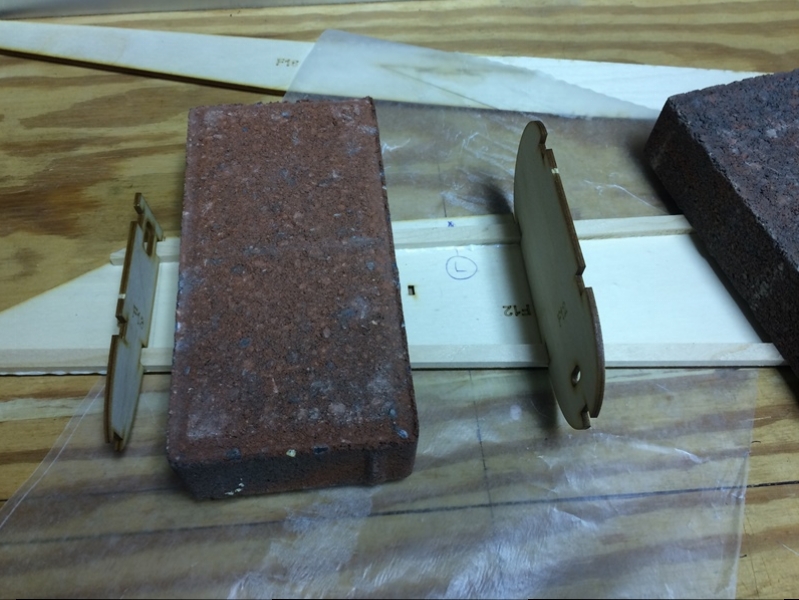

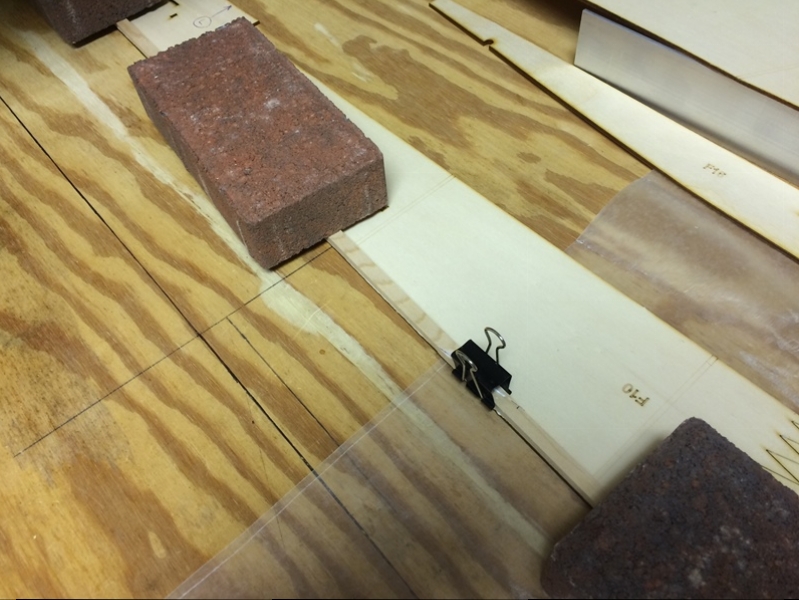

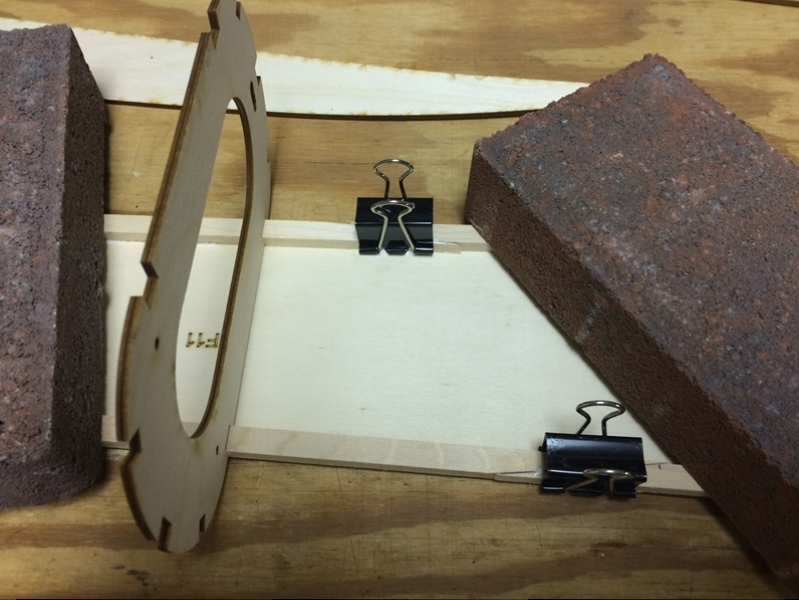

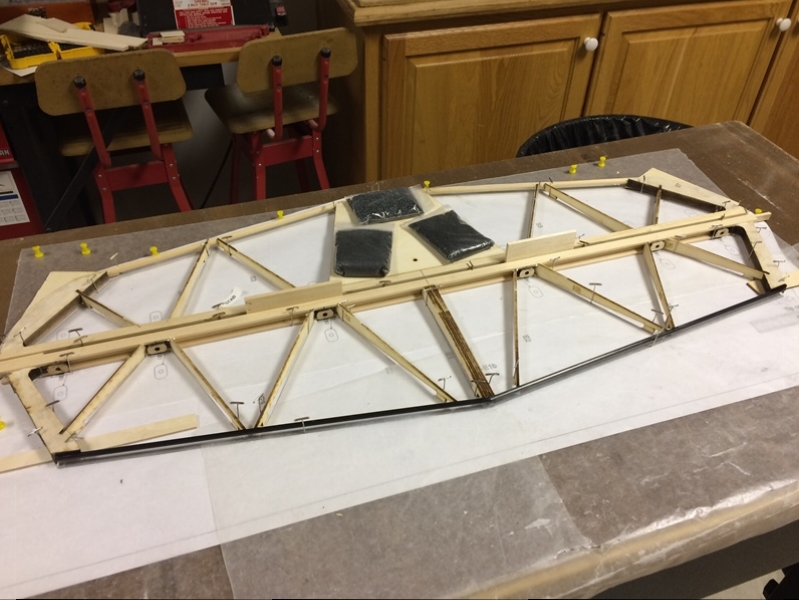

                    We used weights (bricks and metal) and binder clips to hold things together.

                    Click image for larger version

Name:	2006 1-26.JPG
Views:	414
Size:	272.0 KB
ID:	22993

                    Click image for larger version

Name:	2007 1-26.JPG
Views:	411
Size:	301.0 KB
ID:	23000

                    The exception to this outlining process is under the stab area. You can use the formers F12 & F13 to set the proper spacing of the spruce sticks.

                    Click image for larger version

Name:	2008 1-26.JPG
Views:	395
Size:	296.4 KB
ID:	22998

                    Click image for larger version

Name:	2009 1-26.JPG
Views:	420
Size:	289.0 KB
ID:	22999
                    A Site for Soar Eyes

                    Comment


                    • BryanB
                      BryanB commented
                      Editing a comment
                      Ack! I could never wait to sand those tail feathers and fare those round parts with the square parts. That would drive me nuts..

                    • Tango Juliet
                      Tango Juliet commented
                      Editing a comment
                      Heck, I wish I could sand outside. But with the kind of humidity we have on the Gulf Coast it would turn into "wet sanding" and that doesn't work so well with balsa wood!

                  • #45
                    Progress and a couple of tips & tricks

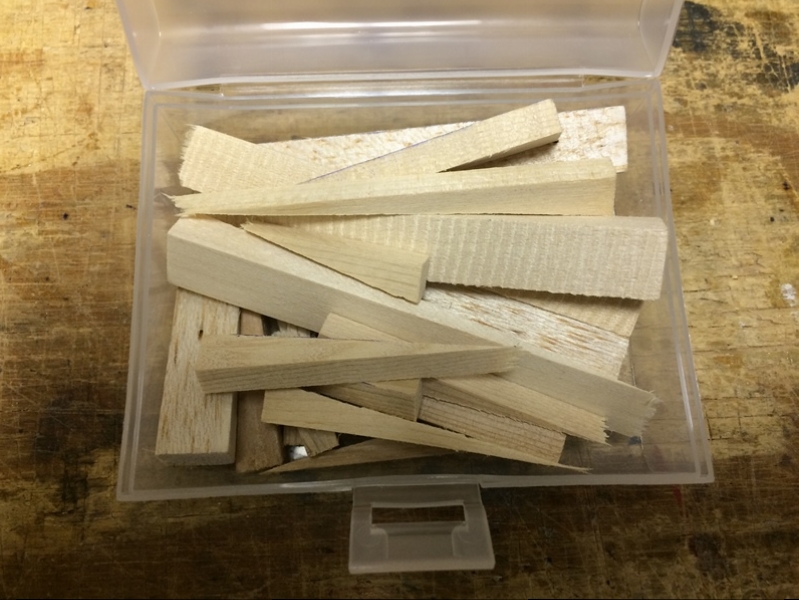

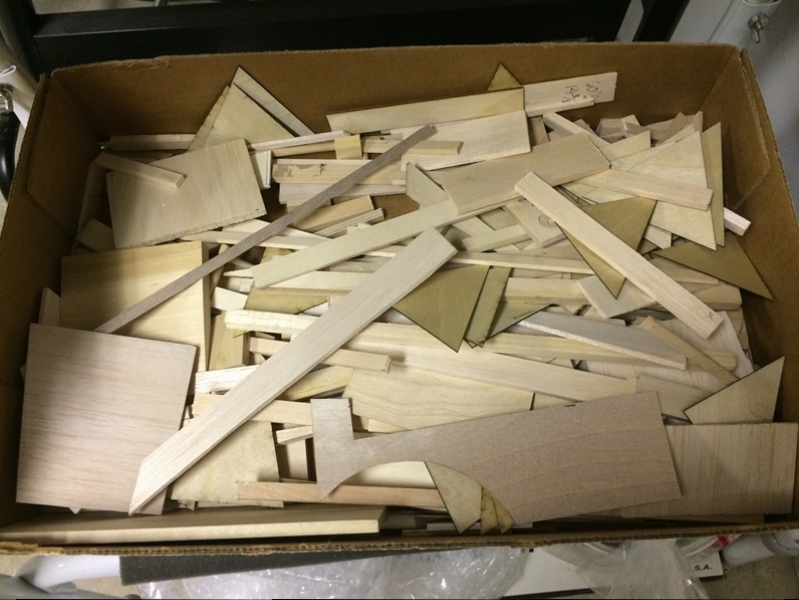

                    I keep a box of small scrap pieces and often find just what I need for making small parts or doing repairs.
                    Click image for larger version  Name:	2010 1-26.JPG Views:	1 Size:	291.2 KB ID:	23006

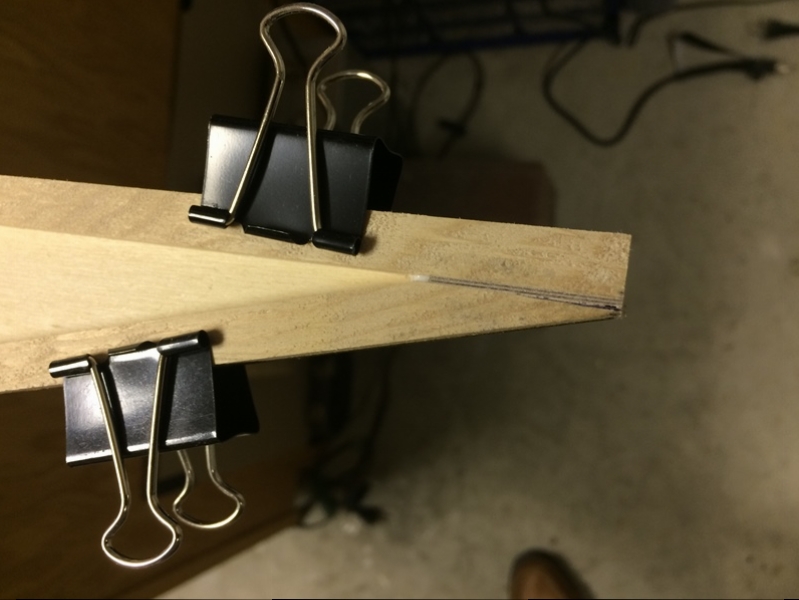

                    While making the scarf joints to complete the fuselage sides, I got a little too aggressive with sanding a joint and came up slightly short. Wasn't a critical place but it still bothered me to leave it...what to do??? Over to my scrap box and found some 1/64" plywood that was about a 1/4" wide strip. Cut a two lengths and glued them into the gap.
                    Click image for larger version  Name:	2011 1-26.JPG Views:	1 Size:	228.4 KB ID:	23009


                    Sanded a bit and perfect!
                    Click image for larger version  Name:	2012 1-26.JPG Views:	1 Size:	213.3 KB ID:	23008

                    All of the spruce stringer added and held in place with weights and binder clips.

                    Click image for larger version

Name:	image_8613.jpg
Views:	392
Size:	291.1 KB
ID:	23012

                    Also, I save the tapered pieces that were cut away for the scarf joints. Make great shims to hold things in place while glue dries...and a servo box makes a great storage container!
                    Click image for larger version  Name:	2014 1-26.JPG Views:	1 Size:	301.0 KB ID:	23010


                    I typically use flux brushes to "paint" on epoxy, but I don't like the flex in the standard bristles. Cut them off at an angle and they work much better.
                    Click image for larger version  Name:	2015 1-26.JPG Views:	1 Size:	345.7 KB ID:	23013


                    Decided that the F26 plywood doubler that fits around the wing tube area should be glued on with epoxy. We mixed up a batch and painted it on and then added weights on to keeps things nice and flat and glue joint tight. Make sure that the holes all line up (Peter's laser cutting is very accurate, but the location of the spruce stringer can vary slightly). I had to sand the bottom side of F26 slightly to get the best alignment.
                    Click image for larger version  Name:	2016 1-26.JPG Views:	1 Size:	237.1 KB ID:	23007
                    Click image for larger version  Name:	2017 1-26.JPG Views:	1 Size:	267.7 KB ID:	23011

                    A Site for Soar Eyes

                    Comment


                    • Tango Juliet
                      Tango Juliet commented
                      Editing a comment
                      To help maintain the alignment of the F26 Doubler, I would have used the wing tube or other similarly sized dowel to ensure nothing shifts while I'm adding weights/clamps, then remove it before the epoxy sets. Just a suggestion from my own experience.

                    • JimD
                      JimD commented
                      Editing a comment
                      Yes, I used the wing tube to align and that is why I sanded slightly. The spruce stringer keeps F26 from moving that direction. An ink line was drawn around the part onto the fuselage side as a further reference.
                  Working...
                  X
