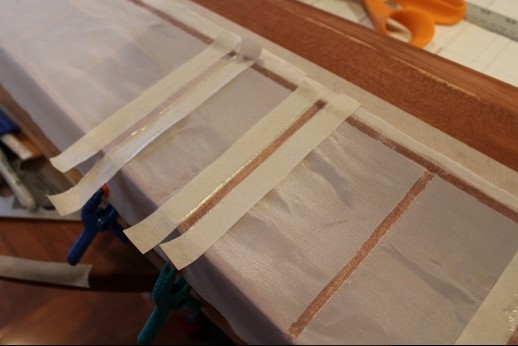

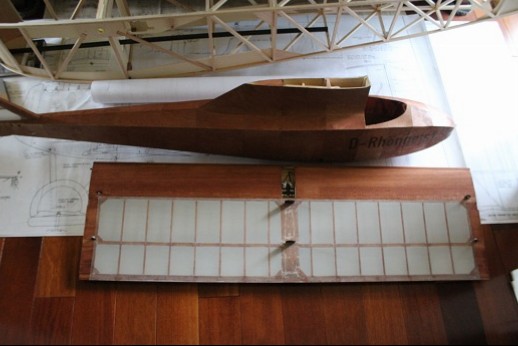

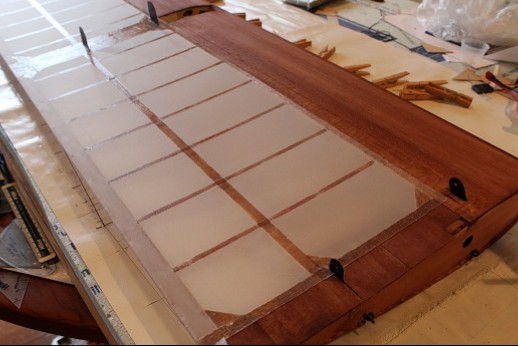

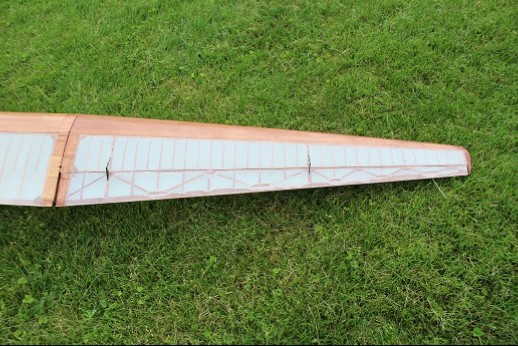

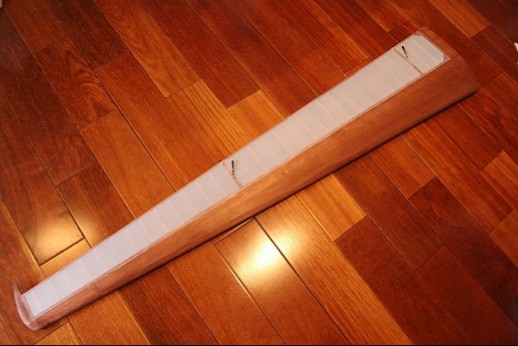

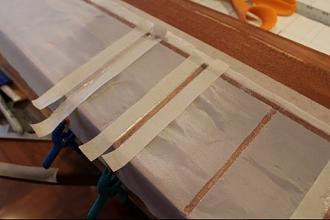

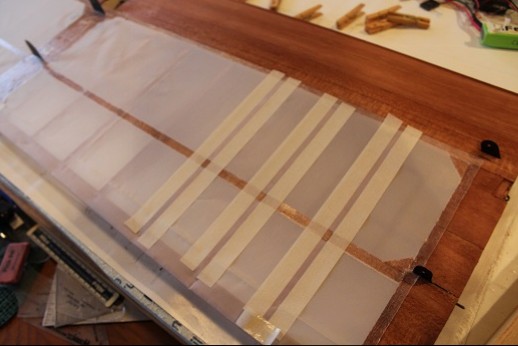

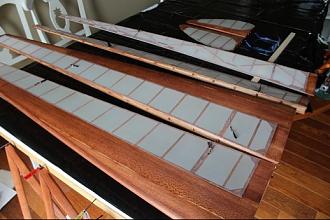

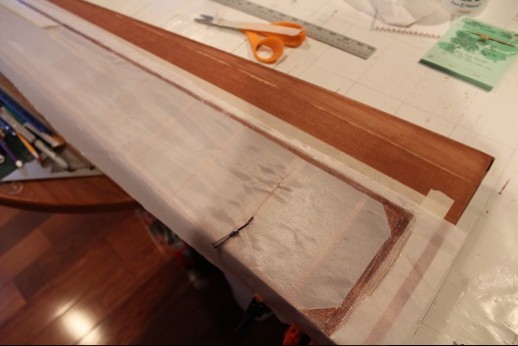

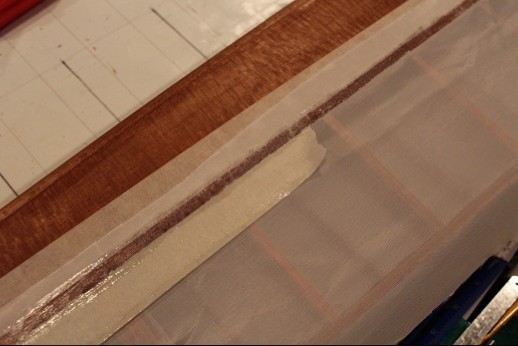

More covering pictures. This is the center section. Again, masking tape put down then Stix-It put onto structure. Covering put onto this and tacked down with an iron at 200 degrees. More masking tape put on it to keep the Stix-It tidy on the fabric. The lower surface has undercamber so the ribs received adhesive and tape, too. After the Stix-It dried a sharp X-acto blade was used along the outer perimeter edges of the masking tape. Then the fabric was tightened with the iron. Once the other wing panels and ailerons are covered, nitrate dope then varnish will be applied.
Good day!Comment
-

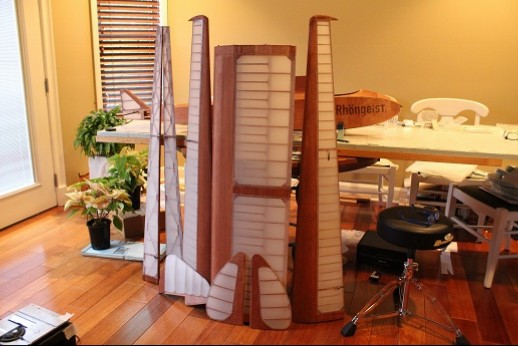

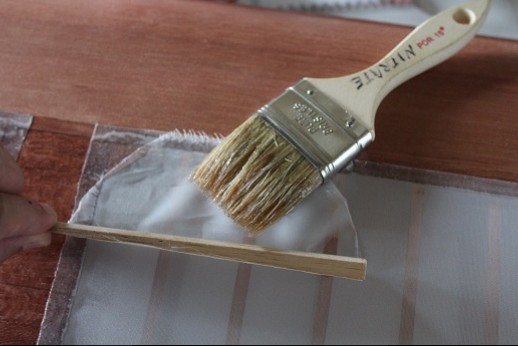

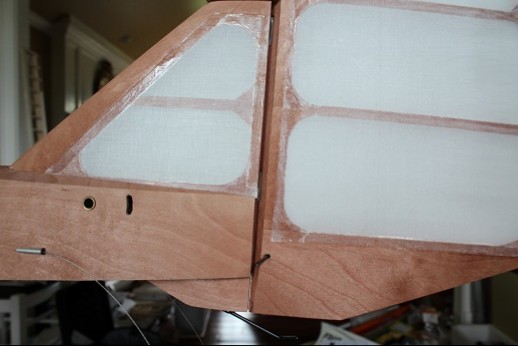

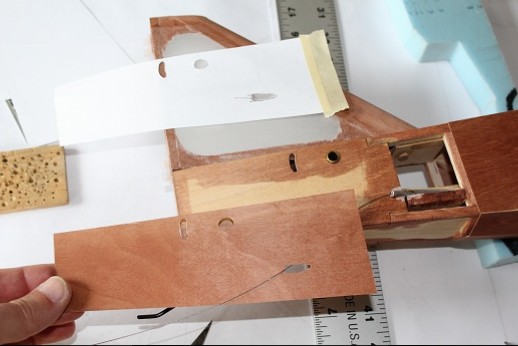

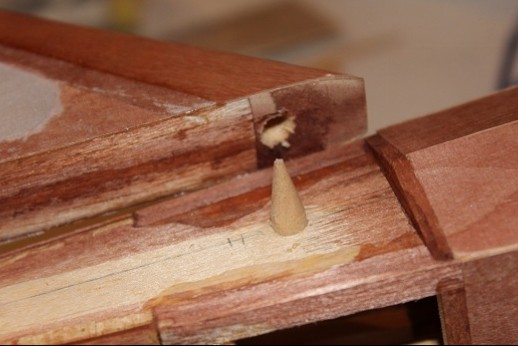

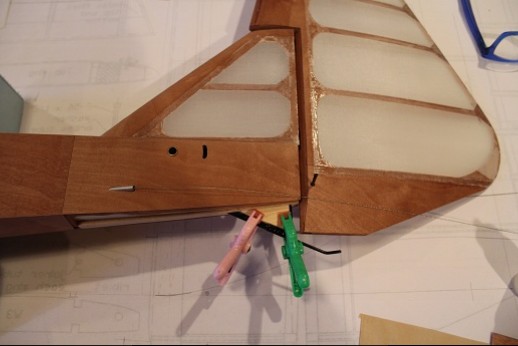

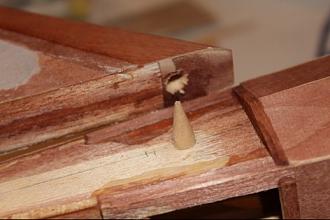

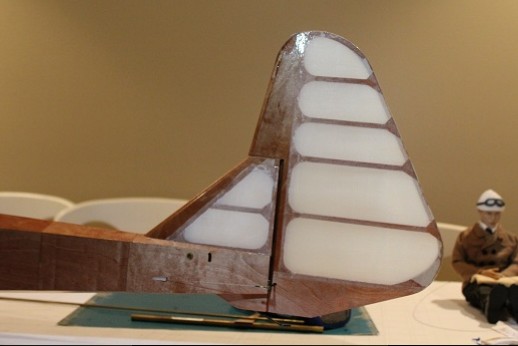

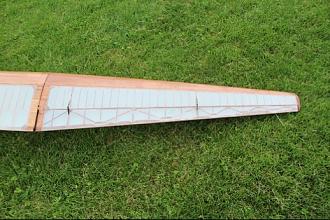

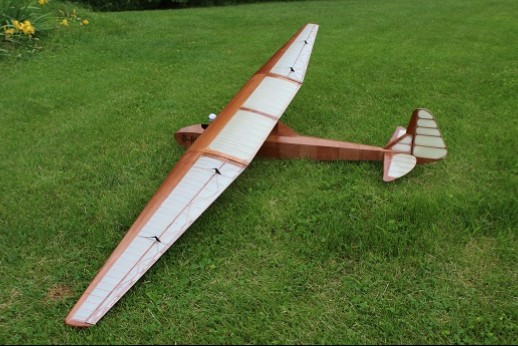

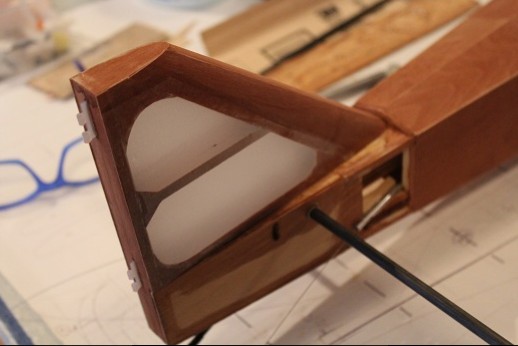

All the covering and nitrate doping is done! The fin was epoxied in place. A temporarily installed dowel segment sharpened in a pencil sharpener was used to locate where to drill for the peg that will secure the fin to the fuselage this end. Masking tape was used to delineate where Stix-It adhesive was applied. The bottom surface is concave so it is very important to get the fabric properly attached. The 'Dope Spreader Tool' is shown. Put a little dope onto the structure to 'prime', lay down the dope spreader tool then slather dope onto the tool as it is dragged across the fabric. The dope gets put onto the fabric really fast and none gets pushed through the fabric to pool. I put three coats of nitrate dope onto the model this way. Next to do is finishe the ply sheeting around the fin. Stay tuned!
Comment
-
Nice work Mike! Finish is looking great.Gunny
Aviation Concepts rcComment
-

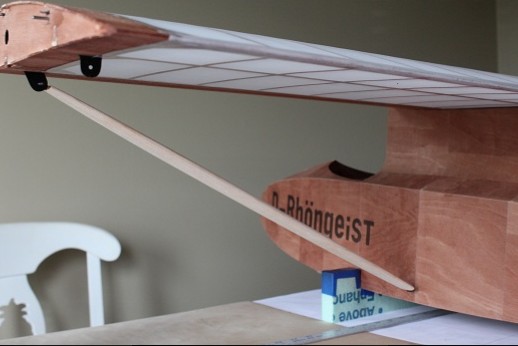

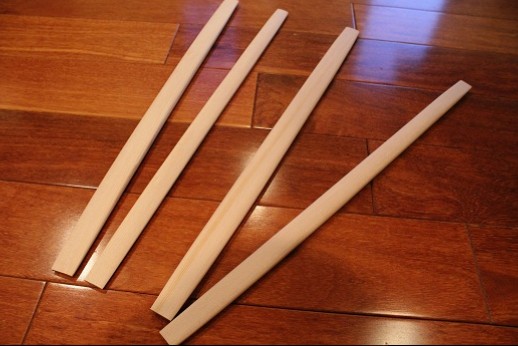

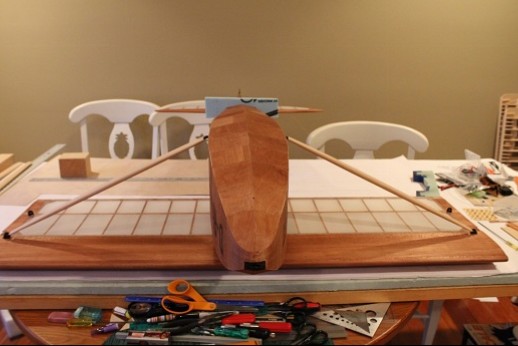

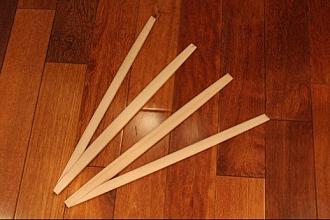

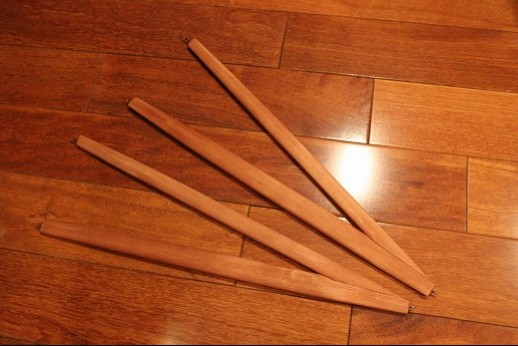

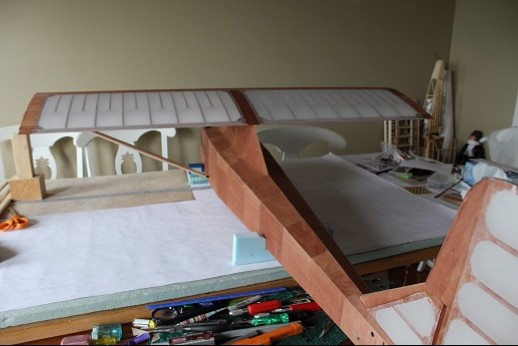

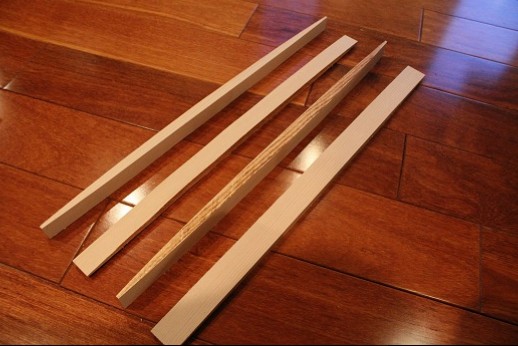

Wow! This build is coming on a year since started. How 'tempus fugit'! The struts were sawn from spruce stock obtained from Aircraft Spruce and Specialty. Before sawing the board was clamped to the bench and a belt sander was run across each end each side to taper the ends properly. Before sanding, a line was penciled onto the ends dividing the upper side from the lower side equally. After cutting struts from the board they were roughly carved to an airfoil shape using a sharp knife. The belt sander was clamped to the bench this time then the struts were sanded to a finer shape free hand. Then they were hand sanded to 'finish grade'. I'm 'pooped' after all of this sanding work. Next, the wing will be offered to the fuselage so that the struts and their fittings can be set.
Good night!Comment
-

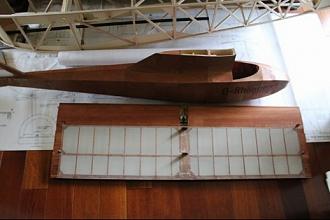

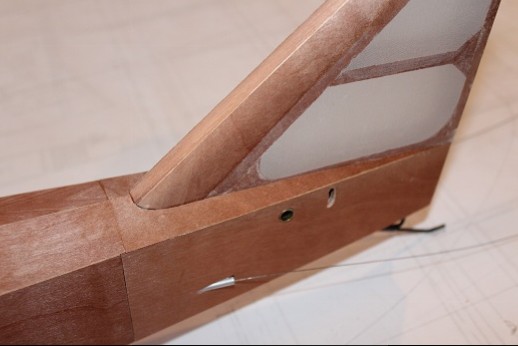

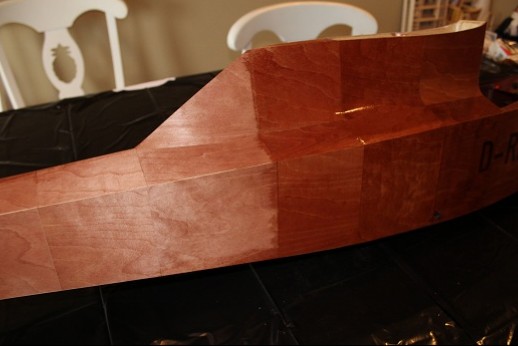

After some set backs with the Motyl build I thought I'd give that one a rest and work on the Professor. The last bits 1/64" of ply are being put onto the fuselage. Lot of cutting, trial fittings and sanding going on here. I do the sanding out doors so am glad the weather is nice! Some filler is let into the open are where the skid is so that 1/64" ply can be glued in place here as a fairing.
After the glue dries on the filler pieces in last pic the rest of the ply gets put in place and the skinning will be done! The struts will get finish sanded then their end fittings will get fabricated and inserted.Comment
-
Good evening! All the ply has been put onto the model. Whoopee! The struts got more planing and sanding to shape. Their ends are getting drilled starting with small diameter bits and working up to 1/8". It is very tedious drilling end grain wood! Images will get uploaded whenever the website allows it. I hate frickin' computers and related computer crap!
Attached FilesComment
-
-

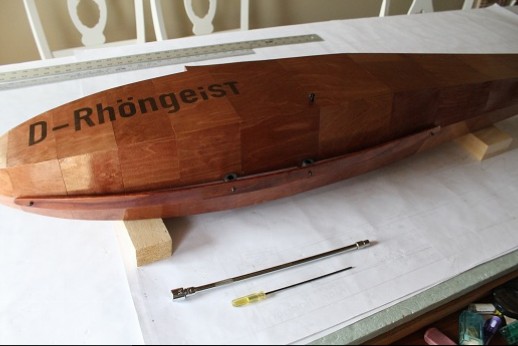

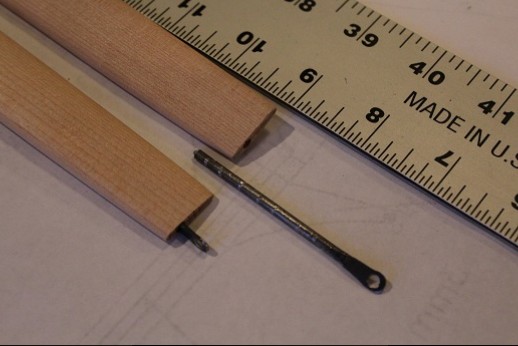

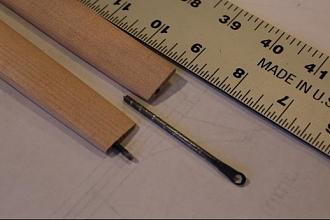

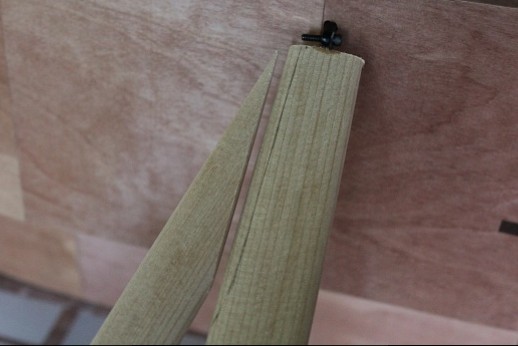

Here is the skid clad in ply. The strut end fittings were made and epoxied into the struts after getting the struts cut to length. First one main strut was done so the epoxy could cure then the other was finished. The rear struts get scarfed onto the main struts so that will be the project for tomorrow.
Gute nacht!Comment
-

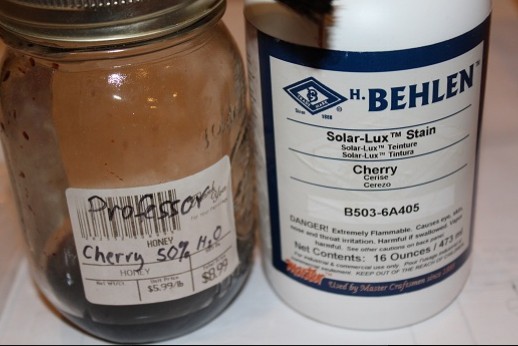

The main struts were joined up with the aft struts in situ after much trial and error sanding. The first pic shows the start of the process... marking, sanding, sanding then sanding more and more... Once the epoxy cured they were removed for finish sanding and staining. A picture of the stain used is shown. It gets thinned 50% with water and being a water based stain doesn't affect glue joints. I stain joints before gluing so that after sanding the joint the wood isn't 'white' where the glue has been absorbed. Everything will get polyurethane varnish tomorrow. This bird is almost done! Some detail items like a venturi and cockpit coaming are needed then the rudder cables can get set up. Whoopee!
Gute nacht!Comment
-

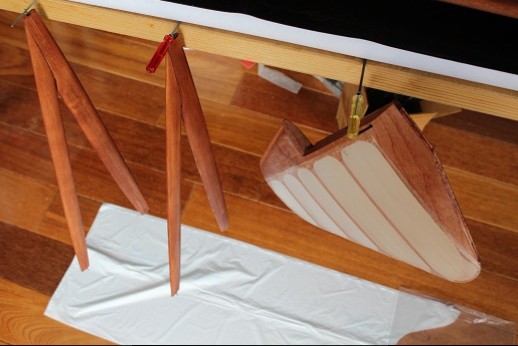

Hallo! Here are some pics of structures with semi-gloss polyurethane varnish applied with a brush. Tweezers were kept handy to remove debris and loose brush hairs. The color change is very noticeable after varnish applied. Beauty! When these dry the other sides can get done then a second coat will get put in place.
Auf Wiedersehen!Comment
-

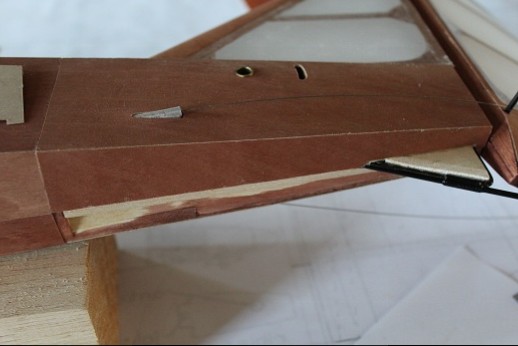

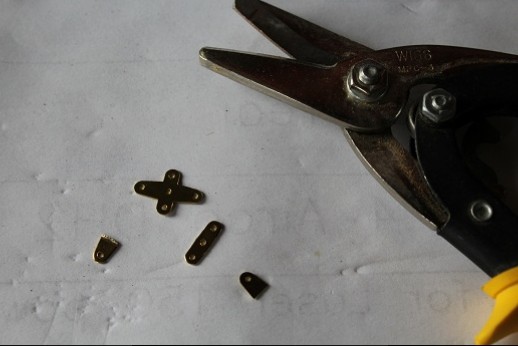

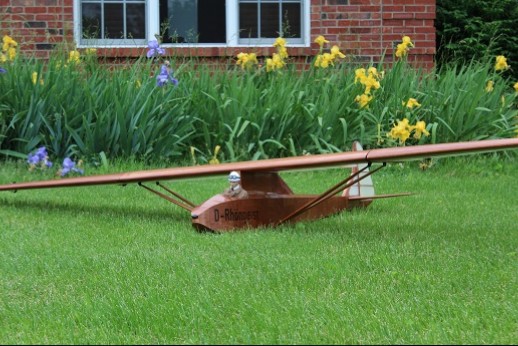

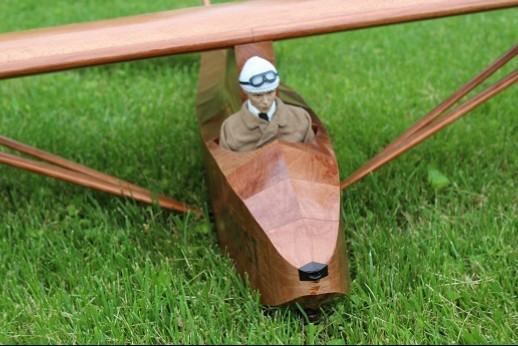

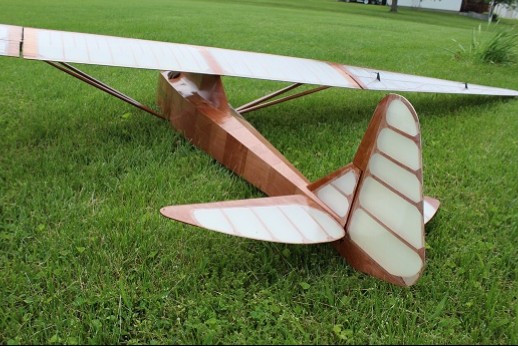

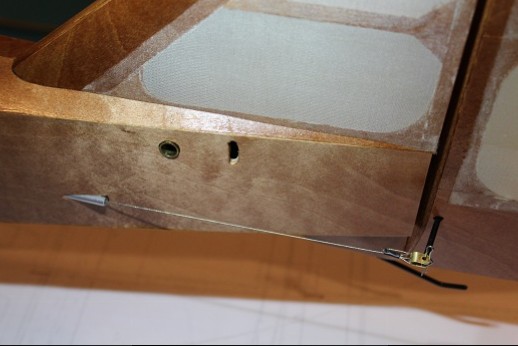

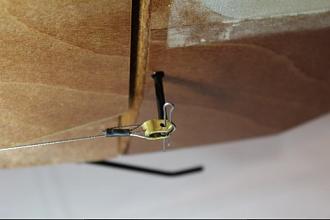

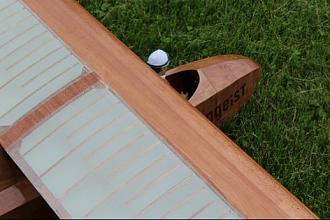

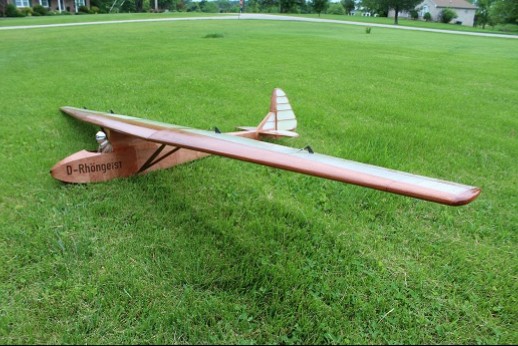

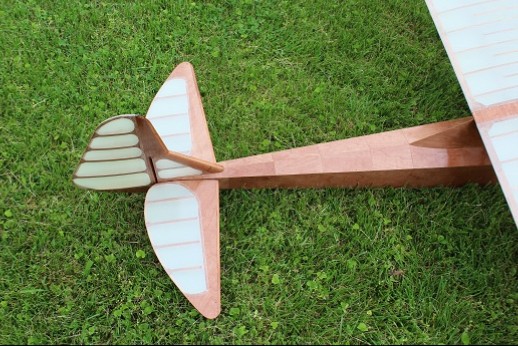

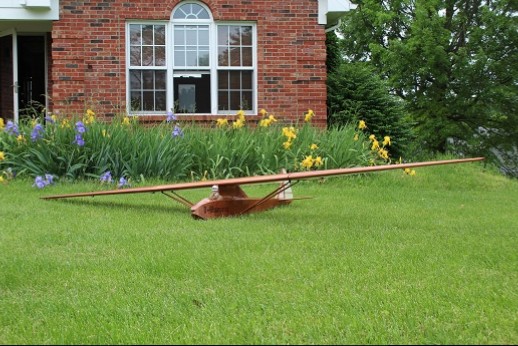

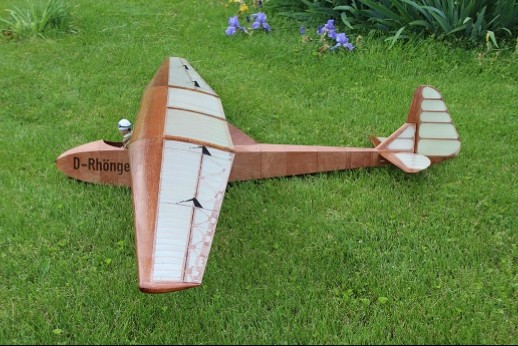

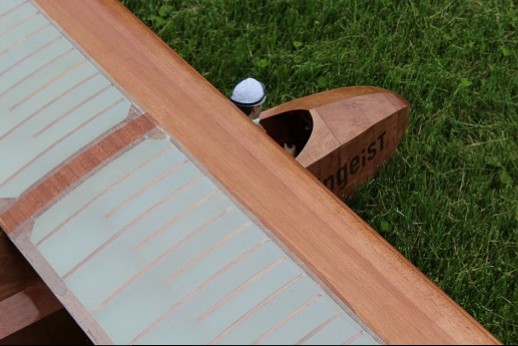

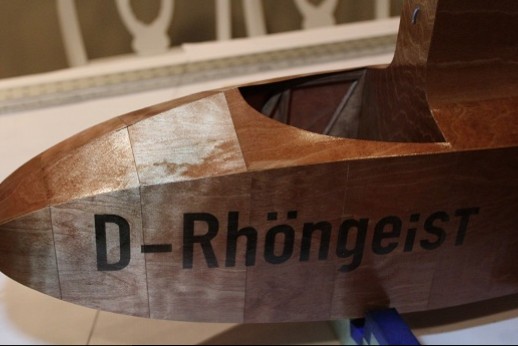

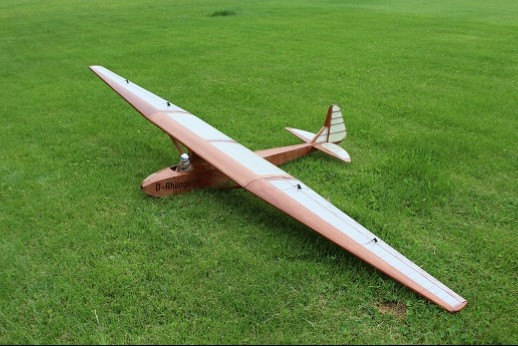

Mehr... The skid was attached to the fuselage. The guide tube for the nut driver tool works flawlessly! Proctor Enterprises brass fittings were modified to make the connection from the pull-pull cables to the rudder horns. A split pin facilitates removal of the rudder from the fin. Beauty shots follow. The venturi is getting fabricated. Seat belts are needed. Gap covers for the wings are needed. Cockpit coaming is needed. A storage box is needed. Flying will commence after receiver installed.
