    Since the original build thread was on the previous version of the forum, I thought I would put together a brief assembly thread on my Bidule 170/180
    She's been in service for since late July of this past season (2015) and has acquired right around 85hrs of flight time since.


    Click image for larger version

Name:	21687759740_7716a4c2c0_o.jpg
Views:	134
Size:	55.5 KB
ID:	7864
    Len Buffinton
    Team Horizon Hobby

  • #2
    Assembly was very straight forward, one of the easiest ever actually. Very few modification were needed to get this tug ready for front line service. A few simple changes were made initially, and some supports added.

    The power setup for my Bidule is the ZDZ 180 motor, with JMB canisters and thick aluminum headers. Prop choice is a three blade Mejzlik carbon fiber with a Dave Brown spinner.
    Fuel tank is Dubro 100oz and an 8oz header tank. This allows for aggressive down lines without fuel starving the motor and dead stick landings!


    Click image for larger version

Name:	IMG_1110 (1).jpg
Views:	180
Size:	78.9 KB
ID:	7868Click image for larger version

Name:	IMG_1111.jpg
Views:	195
Size:	82.0 KB
ID:	7866 Click image for larger version

Name:	IMG_1122.jpg
Views:	211
Size:	92.5 KB
ID:	7867Click image for larger version

Name:	IMG_1121 (1).jpg
Views:	208
Size:	85.8 KB
ID:	7869

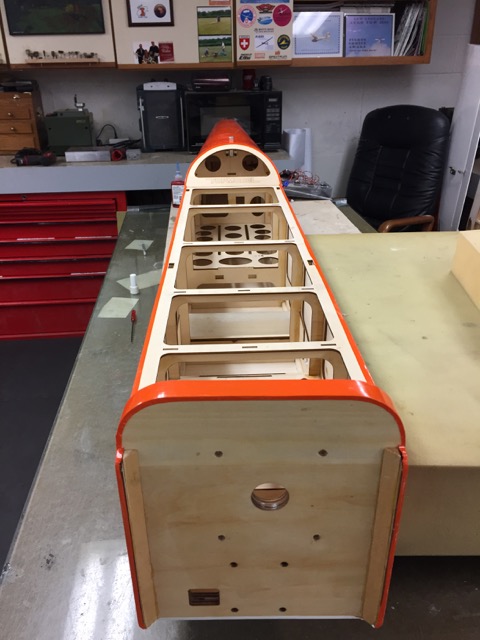

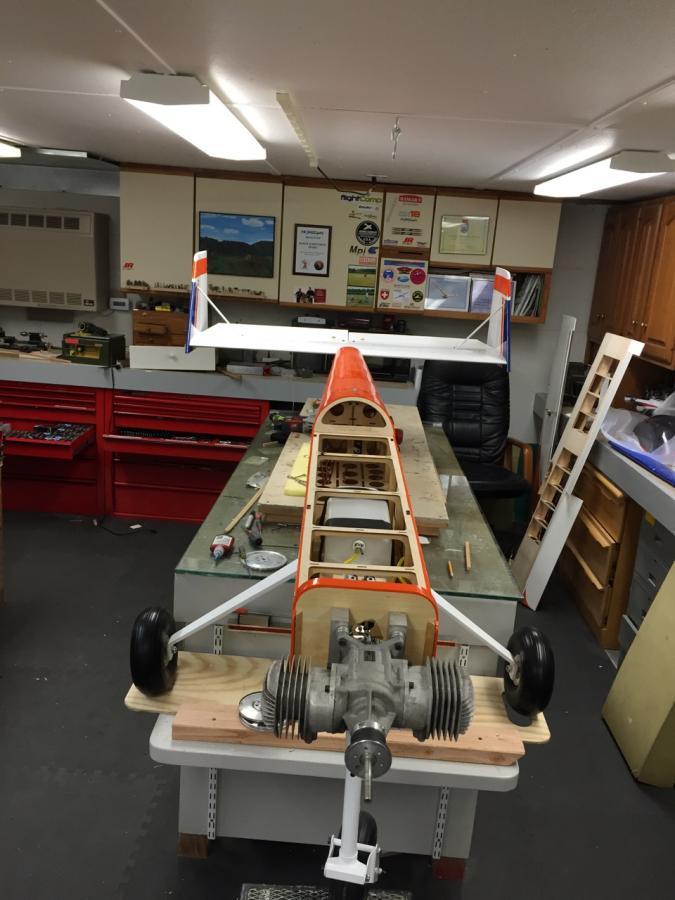

    ~ Added tri-stock around the cockpit edges and anywhere I could reach to increase the glue surface where the structure comes together.

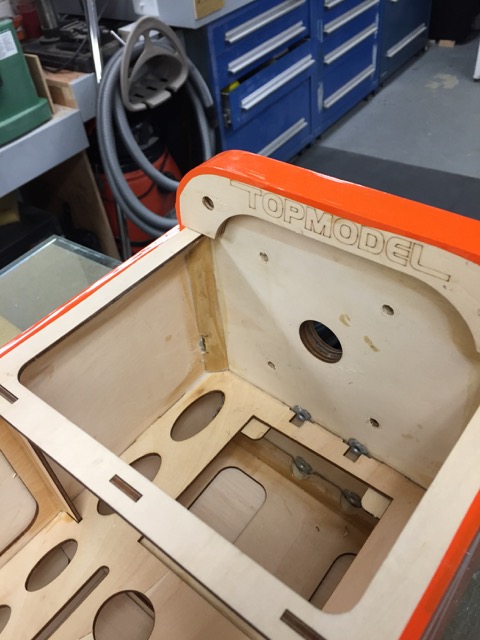

    ~Tri-stock was added to the firewall too.

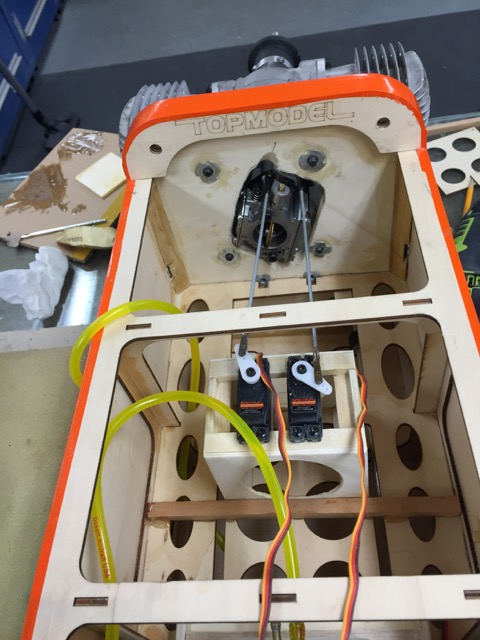

    ~Throttle and choke servos were installed up front

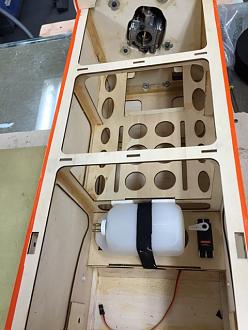

    ~A header fuel tank was installed under where the main tank would sit. The servo next to the tank is the steering servo, which later gets replaced.


    Len Buffinton
    Team Horizon Hobby

    Comment


    • #3
      Typical approach Click image for larger version

Name:	21875953935_43ede775d1_o.jpg
Views:	138
Size:	50.0 KB
ID:	7872
      Len Buffinton
      Team Horizon Hobby

      Comment


      • #4
        Click image for larger version

Name:	IMG_1149.jpg
Views:	181
Size:	83.9 KB
ID:	7874 Click image for larger version

Name:	IMG_1150.jpg
Views:	211
Size:	71.2 KB
ID:	7875 Click image for larger version

Name:	IMG_1123.jpg
Views:	193
Size:	72.6 KB
ID:	7876

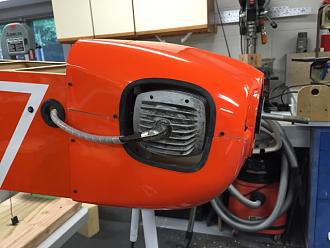

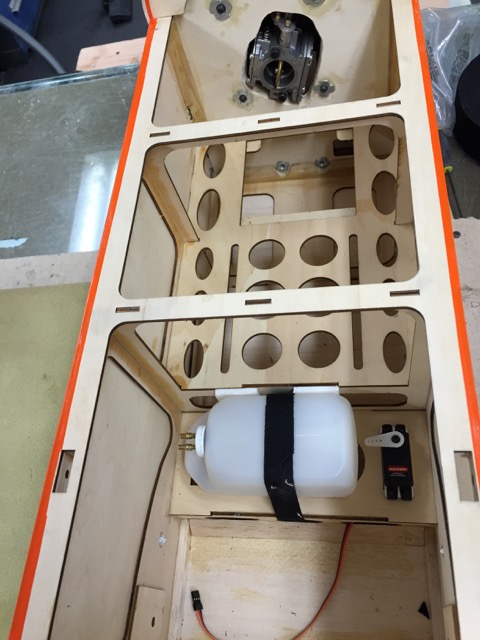

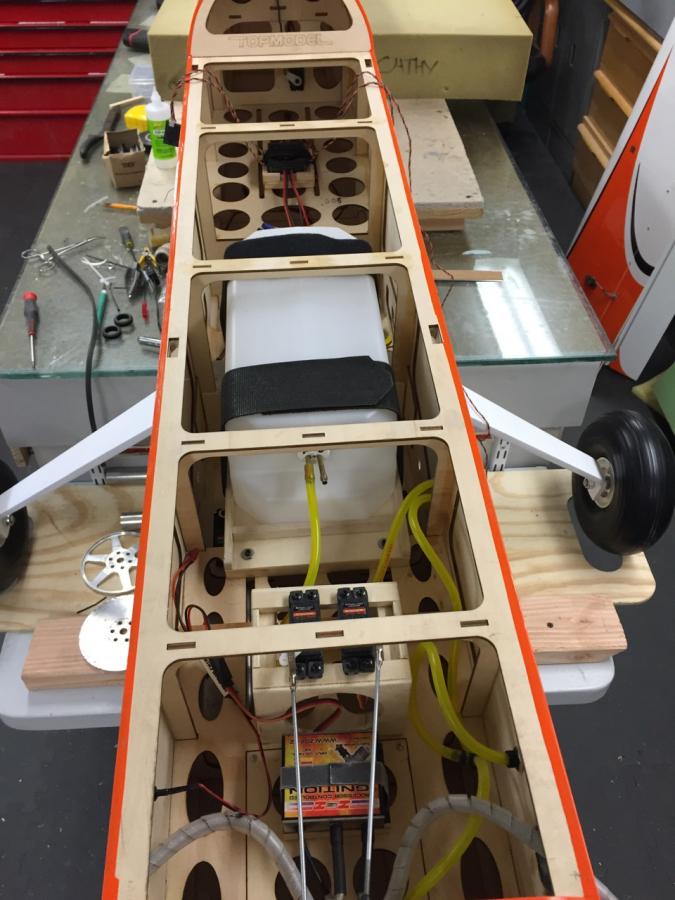

        Fuel tank setup, I also made holes for the ignition wires to exit the fuse, then installed a grommet for looks and protection against chaffing.
        Len Buffinton
        Team Horizon Hobby

        Comment


        • #5
          Returning to baseClick image for larger version

Name:	21688156438_ed0e62aa18_o.jpg
Views:	143
Size:	88.0 KB
ID:	7878
          Len Buffinton
          Team Horizon Hobby

          Comment


          • #6
            Click image for larger version

Name:	IMG_1088.jpg
Views:	226
Size:	78.5 KB
ID:	7880 Click image for larger version

Name:	IMG_1151.jpg
Views:	182
Size:	79.3 KB
ID:	7881Click image for larger version

Name:	IMG_1119.jpg
Views:	188
Size:	82.9 KB
ID:	7882

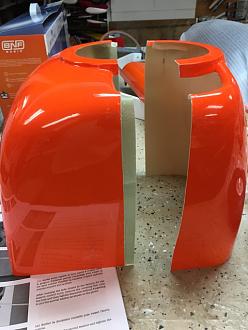

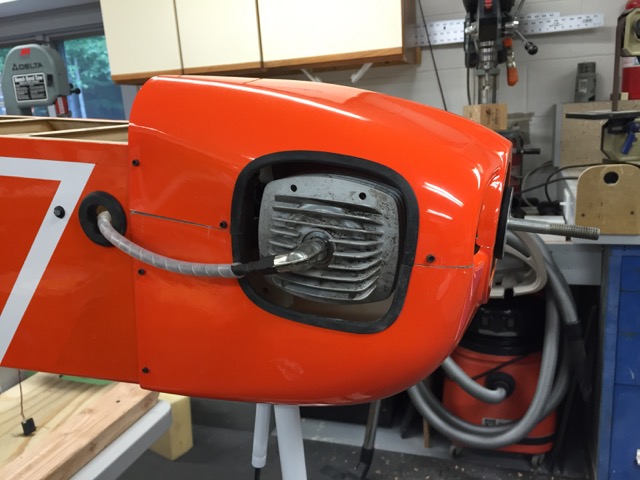

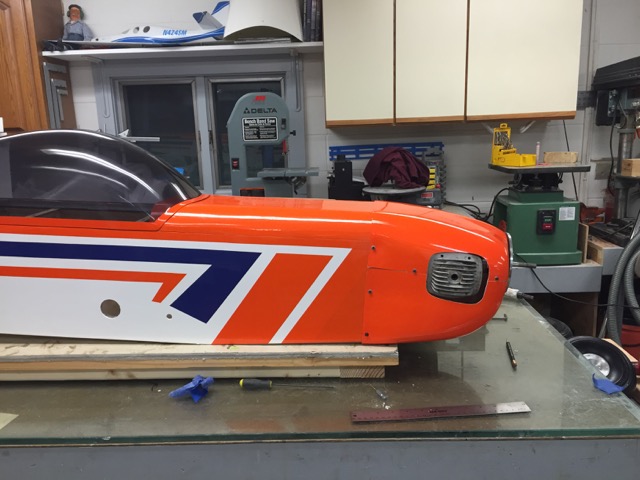

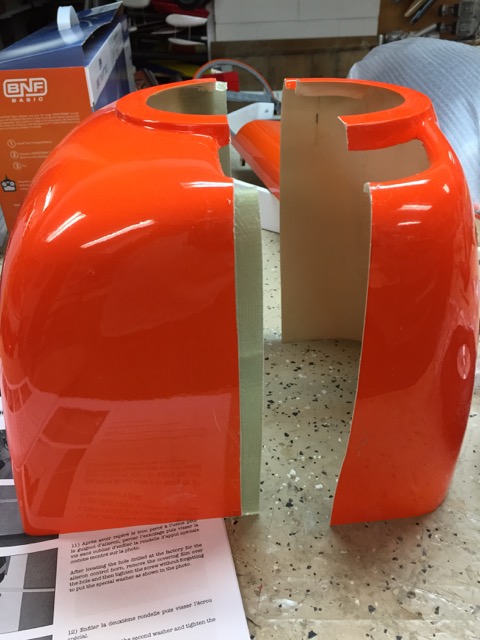

            Fitting the cowl was pretty easy, although it did require making a flange on the inside of the cowl after splitting it. This was accomplished by using duct tape on the side I didn't want the fiberglass to stick to ( it acts as a release tape) and then carefully clamping and taping the cowl together, add the fiberglass flange, after it cured, pull the pieces apart and you have a split cowl.
            For an EXCELLENT way to do this, look at Scott's thread, "California Bidule's" post 32 http://forum.scalesoaring.com/forum/...bidule-s/page3
            Len Buffinton
            Team Horizon Hobby

            Comment


            • #7
              Bob's on landingClick image for larger version

Name:	21849711256_ed98d041b7_o.jpg
Views:	157
Size:	138.6 KB
ID:	7884
              Len Buffinton
              Team Horizon Hobby

              Comment


              • #8
                Click image for larger version

Name:	IMG_1383.jpg
Views:	182
Size:	95.7 KB
ID:	7886

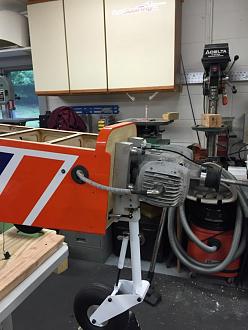

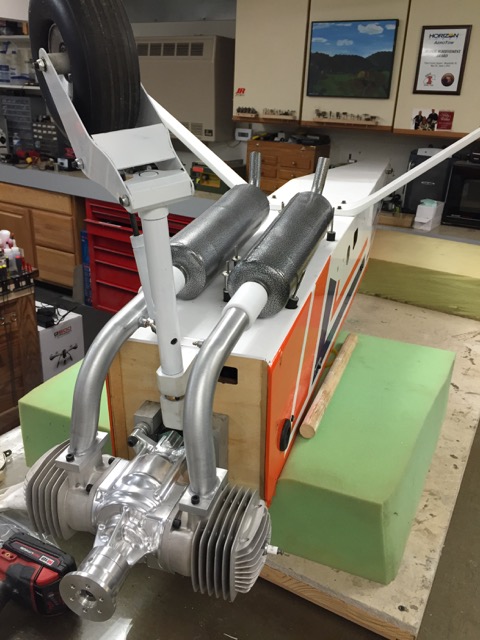

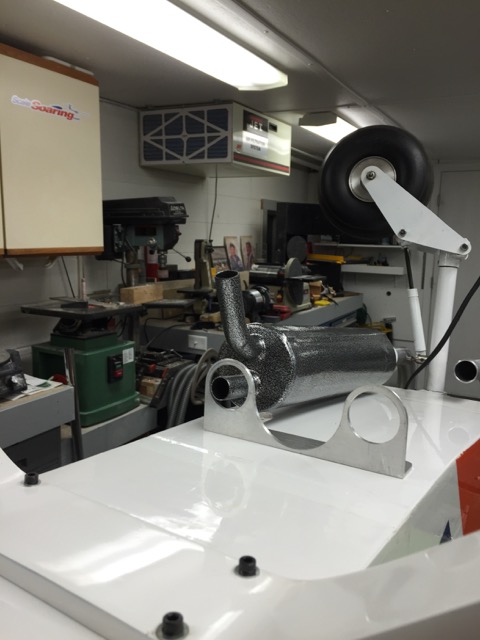

                The headers and canisters were added, but the mounts in the pictures were abandoned for a rear only mount which has worked out very well.

                Click image for larger version

Name:	IMG_1393 (1).jpg
Views:	180
Size:	66.7 KB
ID:	7887
                Len Buffinton
                Team Horizon Hobby

                Comment


                • #9
                  This plane LOVES to flairClick image for larger version

Name:	21253223764_59b4fb6e72_o.jpg
Views:	148
Size:	149.5 KB
ID:	7889
                  Len Buffinton
                  Team Horizon Hobby

                  Comment


                  • #10
                    Click image for larger version

Name:	IMG_1271.jpg
Views:	179
Size:	35.5 KB
ID:	7891 Click image for larger version

Name:	IMG_1623.jpg
Views:	177
Size:	54.2 KB
ID:	7892 Click image for larger version

Name:	IMG_1269.jpg
Views:	218
Size:	64.1 KB
ID:	7893 Click image for larger version

Name:	IMG_1272.jpg
Views:	200
Size:	63.8 KB
ID:	7894

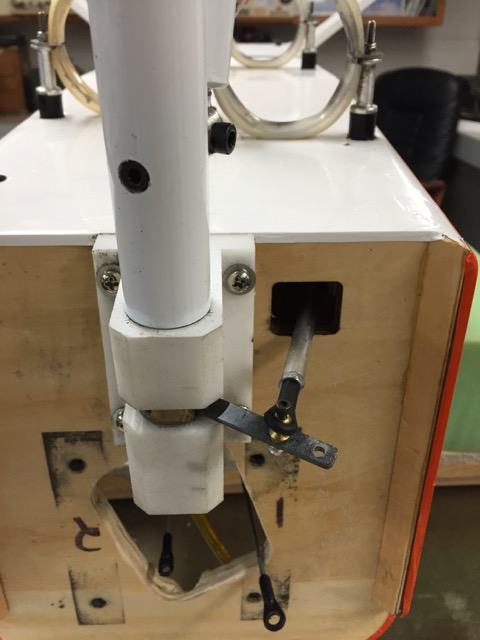

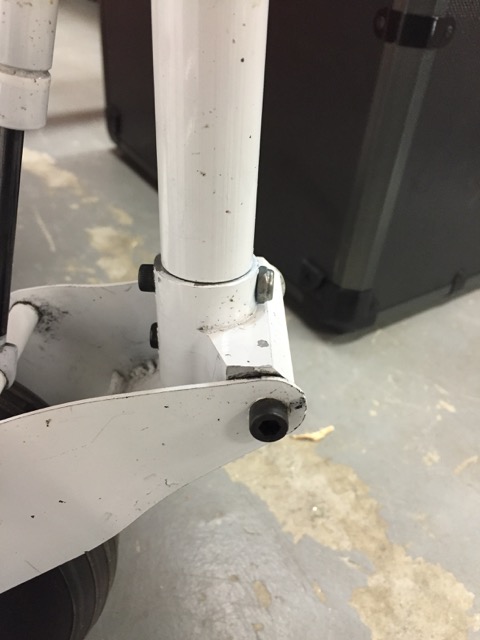

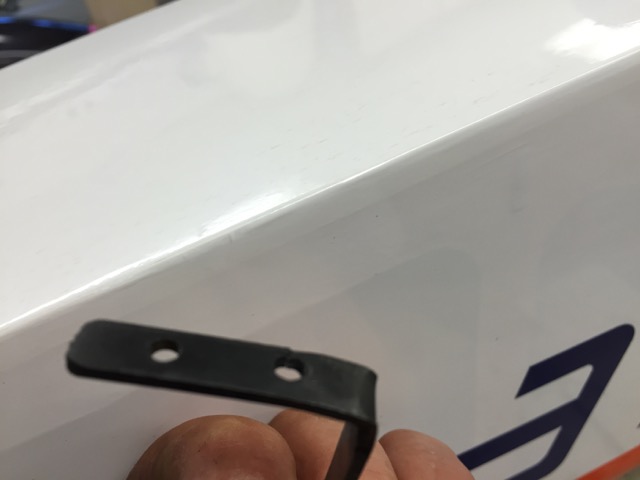

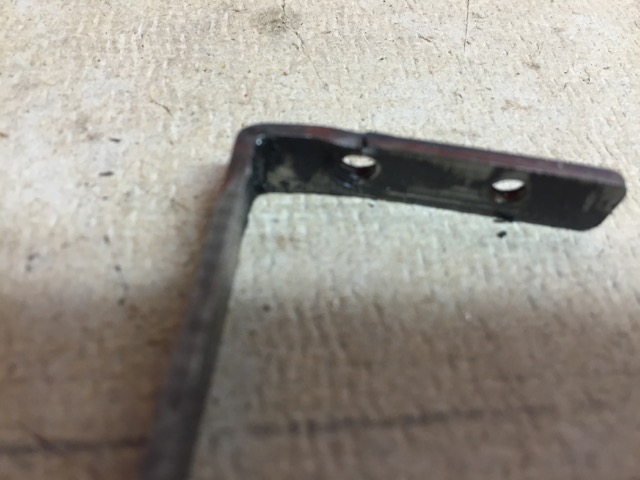

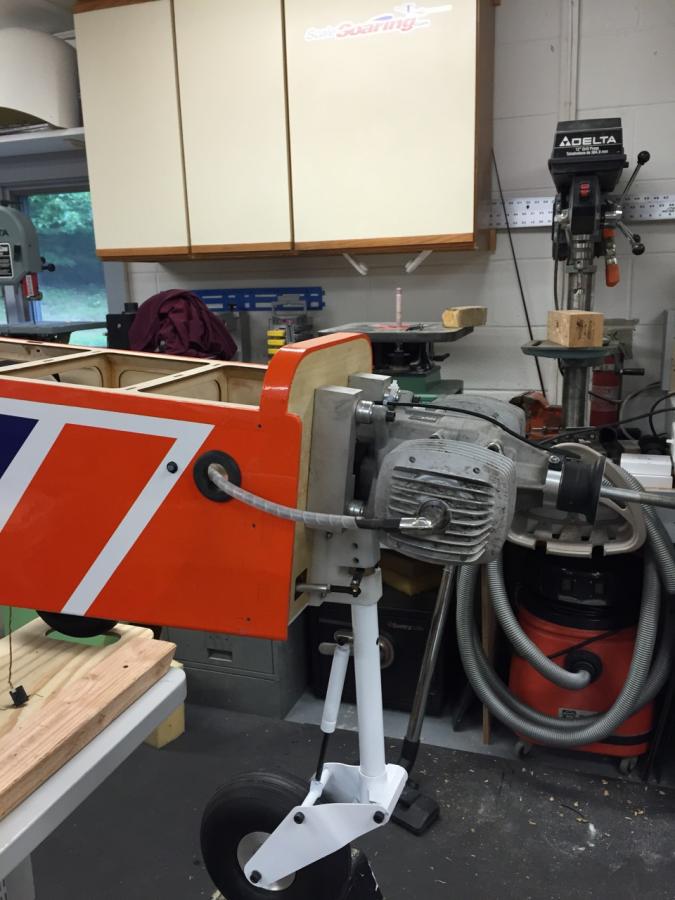

                    The nose wheel steering was a problem initially. The steel (thats being polite) angle arm attached to the nose wheel for steering bent every time out. Finally it was time to replace it. BobM was luckily just putting his together and sent me a nice custom cut 1/8" thick piece of angle. With minor effort, the new steering arm was installed and has never bent since.

                    Check out Bob's comments on this at post 34 http://forum.scalesoaring.com/forum/...dule-170/page3
                    Len Buffinton
                    Team Horizon Hobby

                    Comment


                    • #11
                      Up Up and AWAYYYYYYYYYYYClick image for larger version

Name:	21886376323_903ab457cd_o.jpg
Views:	141
Size:	63.8 KB
ID:	7897
                      Len Buffinton
                      Team Horizon Hobby

                      Comment


                      • #12
                        Click image for larger version

Name:	IMG_1087.jpg
Views:	217
Size:	54.7 KB
ID:	7900 Click image for larger version

Name:	IMG_1112.jpg
Views:	199
Size:	60.8 KB
ID:	7901 Click image for larger version

Name:	IMG_1109.jpg
Views:	182
Size:	83.4 KB
ID:	7902 Click image for larger version

Name:	IMG_1623.jpg
Views:	174
Size:	54.2 KB
ID:	7903 Click image for larger version

Name:	IMG_1663.jpg
Views:	182
Size:	75.6 KB
ID:	7904

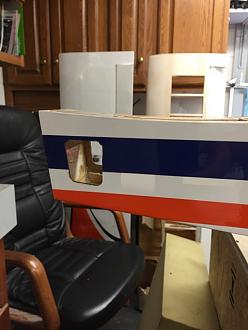

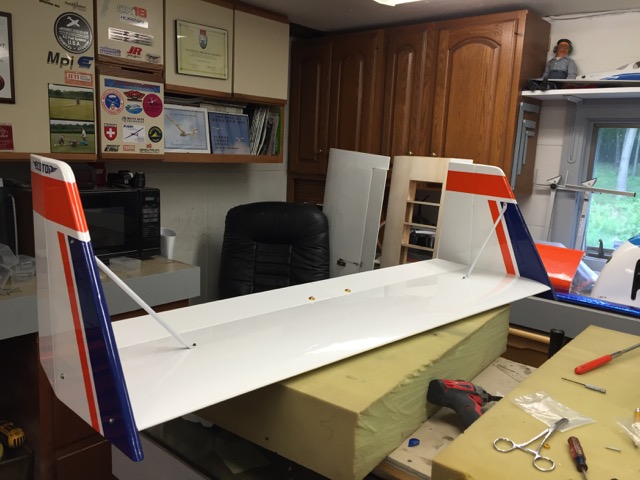

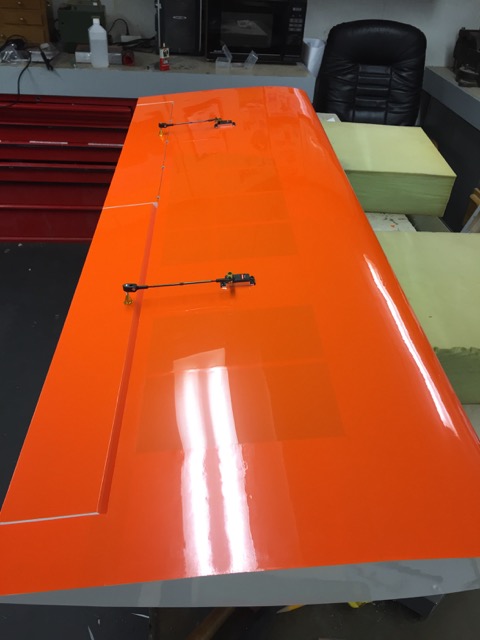

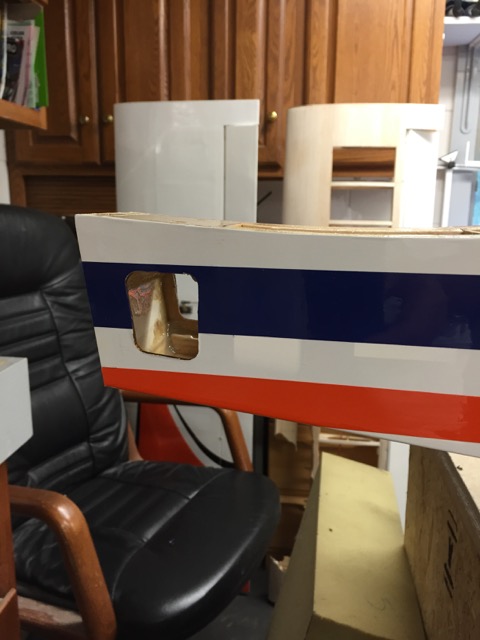

                        After completing the wing servo installation, cutting a hole in the rear covering to get inside and make darn sure the bolt pad is secured and finding a spot for the tail weight to go ( more on that later) competing the tail group and bolting the front lower gear attachment all the way through, it was time to balance and run the plane.

                        I ended up adding about 16oz to the tail, mostly because the motor is pretty heavy.
                        I did some tail strengthening too at the front attach point. Check out Jims thread for more on that too. http://forum.scalesoaring.com/forum/...thread-by-jimd

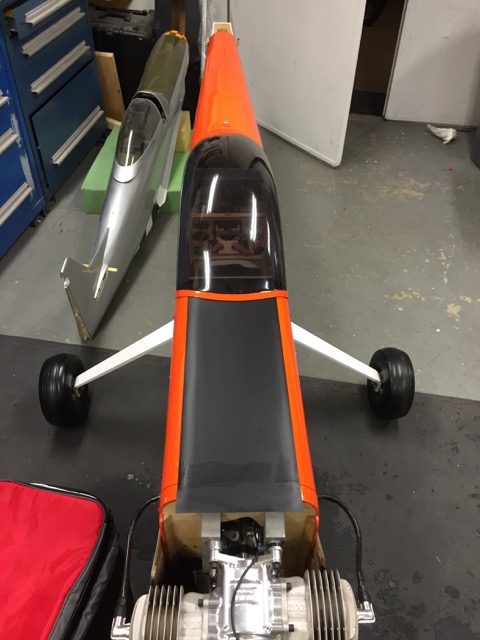

                        Later, after a few hours of towing, I was decided to add another set of bolts to the front hatch system, so while I was at it, I added flat black vinyl to the top. I love the look.

                        Also, the instructions call for mounting the rudder servos to the rudder servo covers, BAD IDEA.... The plastic cover is so brittle it fell off the bench and shattered into pieces. Instead, I made a plywood plate and attached the servo to it, then glued the cover to the plate. Worked perfect. Another way to do it is outlined in Jims thread.
                        Len Buffinton
                        Team Horizon Hobby

                        Comment


                        • #13
                          We not scared of no Stinkin storm!!!!

                          Click image for larger version

Name:	22319639368_c0be89d293_o.jpg
Views:	127
Size:	40.3 KB
ID:	7906
                          Len Buffinton
                          Team Horizon Hobby

                          Comment


                          • #14

                            Next up,
                            The nose wheel steering servo saver development
                            Len Buffinton
                            Team Horizon Hobby
