  • Slingsby T-45 Swallow ~ 1/3-scale Kit by Peter Goldsmith (Build thread by JimD)

    Link to Peter Goldsmith Designs Web Page:

    Wingspan 176"Length 96"Weight: 17-19lbsAirfoil: SD30214 Channel: R,E SP, AIL. The Slingsby Swallow is a wonderful scale Sailplane that can be flown in most conditions. It’s 1/3 scale accurate outline provides a wonderful canvas for those looking to do a super scale build. Although nothing has been compromised to maintain scale fidelity, the Swallow is extremely easy to build. If you have just basic balsa building skills, this kit will propose no challenges. The Swallows flight characteristics are what we would call relaxing. Although it’s more than capable of flying in strong winds, it really comes into its own in light thermal conditions. If your new to scale aero towing this would be a great choice. Kit includes all laser cut wood parts, all wood stock and 1/32” plywood skins for wings and tail group. Also included is a full size plan and instruction manual, crystal clear canopy, incorporated tow release, and basic hardware for completion. Completion Items:Tow release SPMSA7040Rudder SPMSA5060Spoiler/Elev 4 x SPMSA7020Aileron 2 x SPMSA7050 Receiver SPMAR9030T Flight pack SPMB4000LFRX Support: Slingsby T-45 Swallow Manual


    Peter and Caroline Goldsmith attended the 2017 Cumberland Spring Soar for Fun and we were introduced to the new planes that Peter had just completed. The Czmelak tow plane and the Slingsby Swallow sailplane. We got to see these models in action again at the June Horizon Hobby Aerotow in Monticello, IL and again at the August Winamac Aerotow in Winamc, IN.

    Since getting involved with giant scale soaring in 2010, I had been looking for a kit built model that would fill the role that my Airtronics Olympic II had provided back in the 1980's. A simple and reliable sailplane that be would my "go to" sailplane for general soaring enjoyment.

    Shortly after the Spring Soar for Fun, Len told me that Peter was going to do a limited kit run of the Swallow... I knew that I had finally found my ideal giant scale sailplane!

    Click image for larger version  Name:	IMG_4016.JPG Views:	1 Size:	153.6 KB ID:	21247

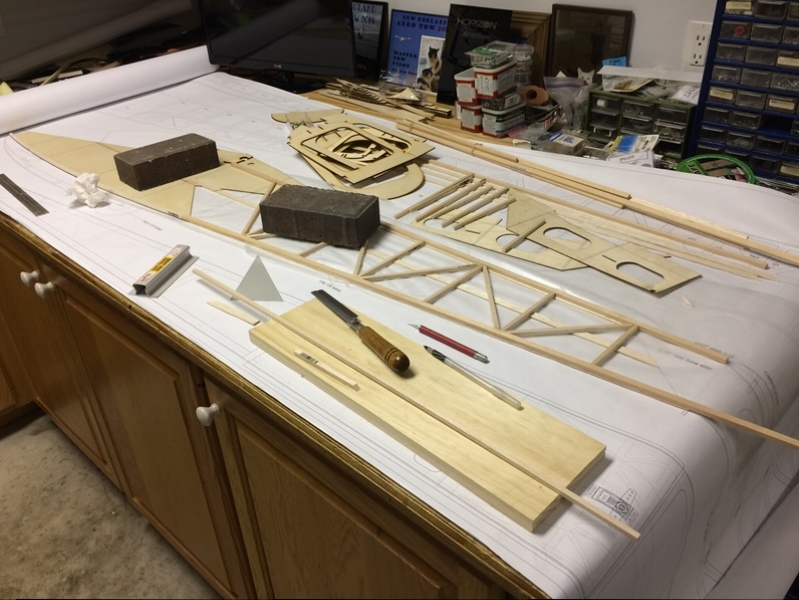

    Building season finally arrived and the first thing that I did was build the cockpit interior for my Aviation Concepts 1/3-scale Schwiezer 2-33. The plan was to finish the 2-33 and then start on the Swallow, but first I needed to order wing sheeting. Rather than losing momentum, I decided to just take a look at the Swallow kit and maybe just build the rudder to get a feel for how Peter designed the model. Things went so well that I moved on to the elevators...and then the stab...and then the fuselage...and then the wings!!! Oh my, this is addictive...and it builds very quick!

    Not to worry Gunny, I will be moving back to the 2-33 well before Christmas!

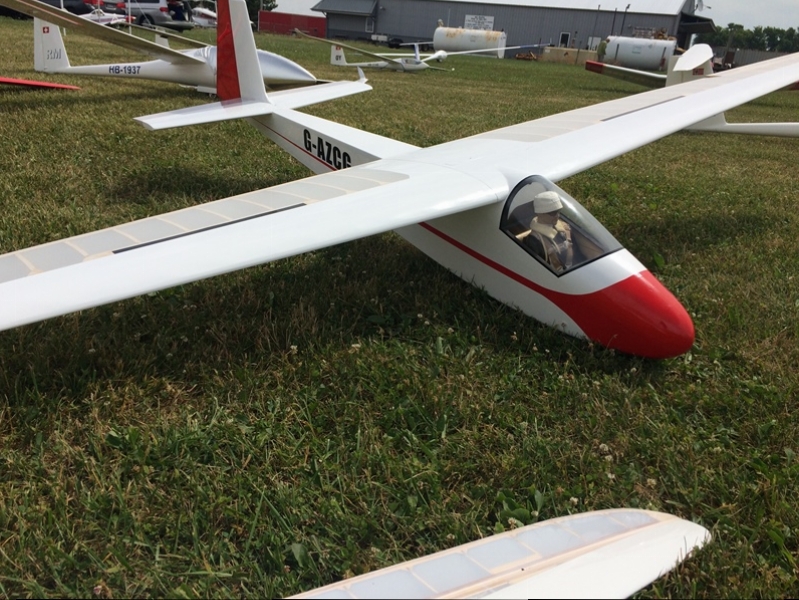

    Here is Caroline's Slingsby T-45 Swallow at the Horizon Hobby event in June:

    Click image for larger version  Name:	IMG_3601.JPG Views:	1 Size:	412.6 KB ID:	21248
    Last edited by JimD; 10-16-2018, 07:48 PM.
    A Site for Soar Eyes

  • #2

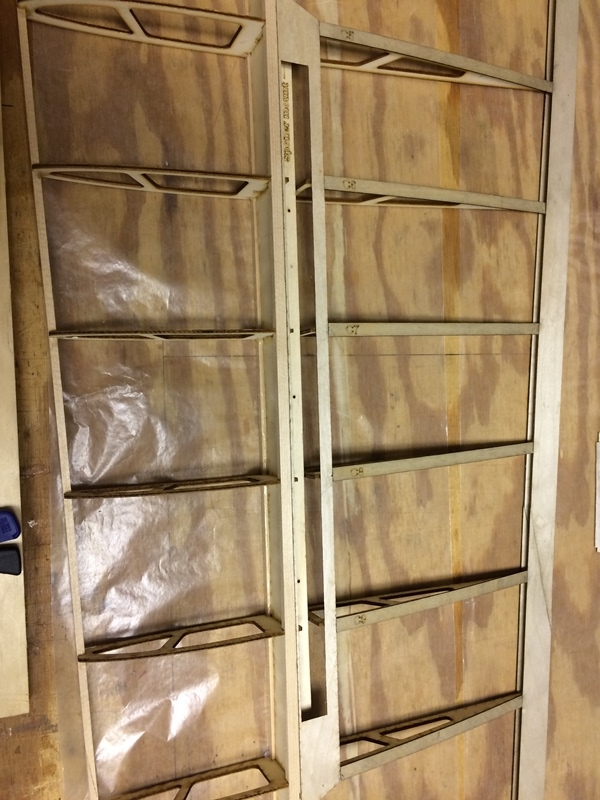

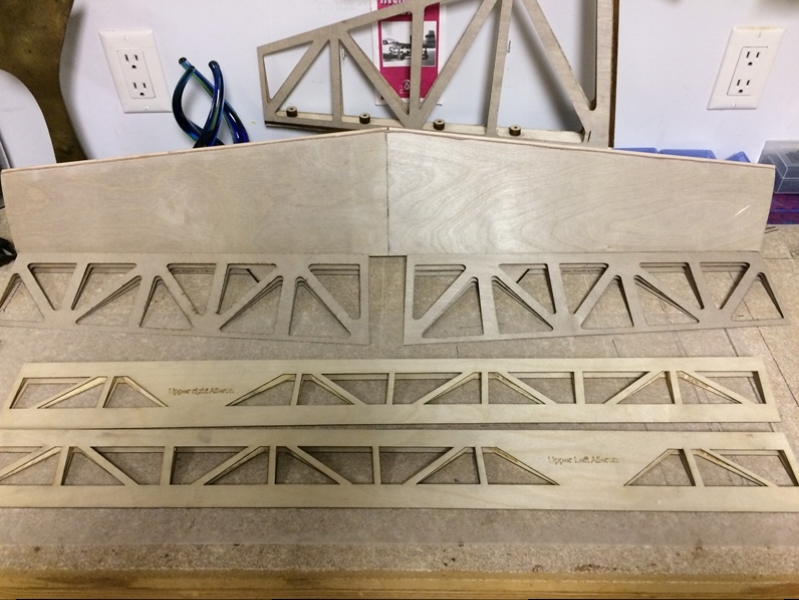

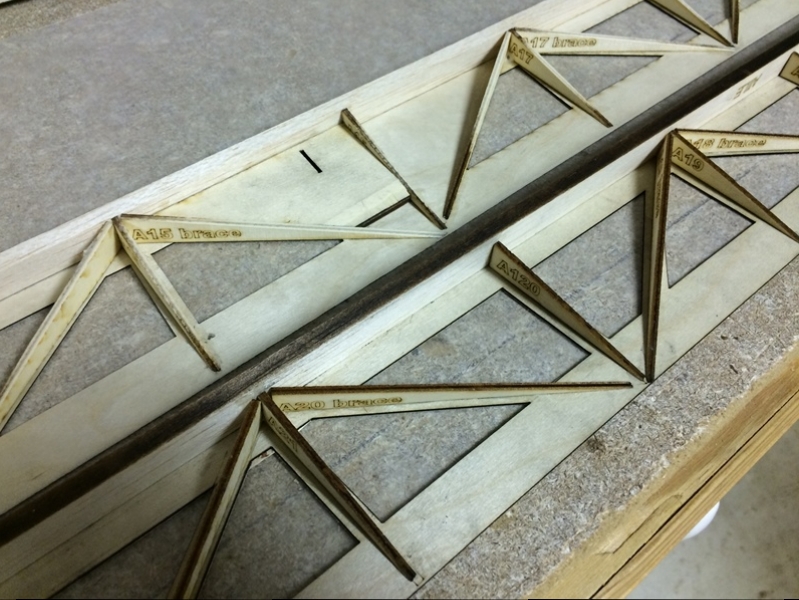

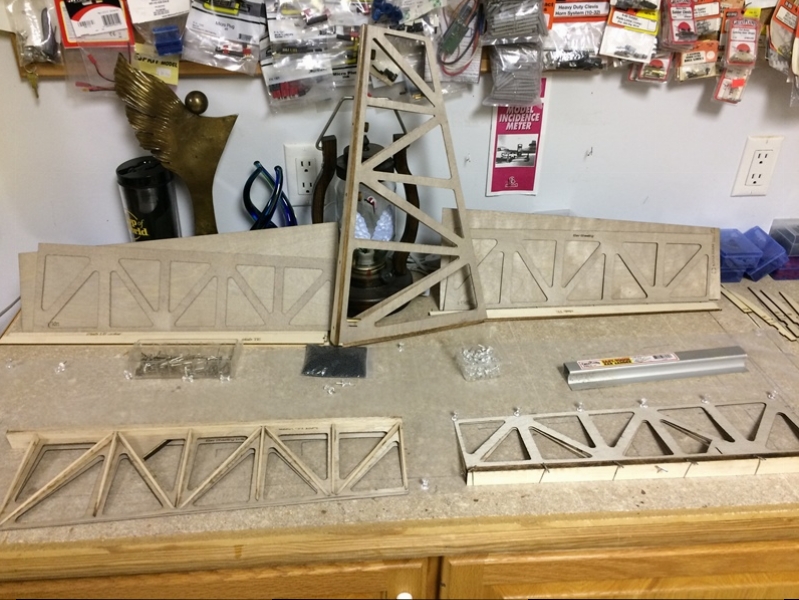

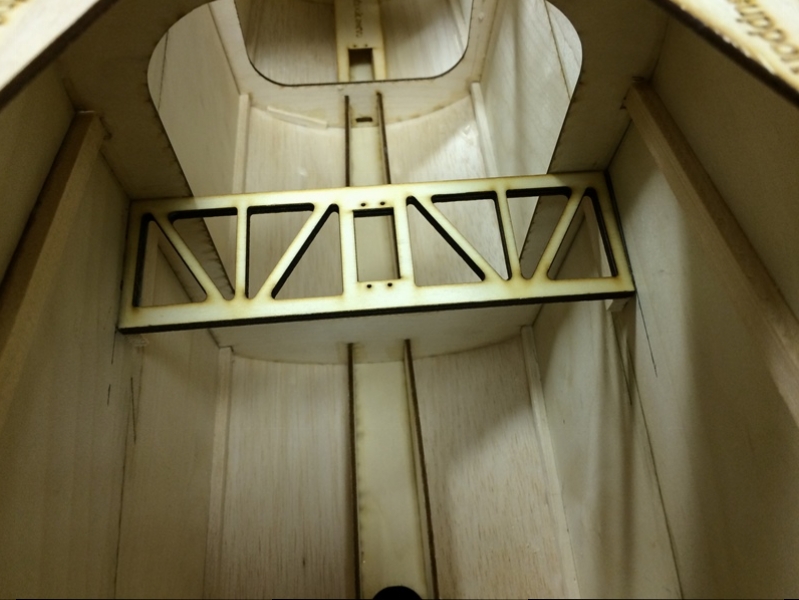

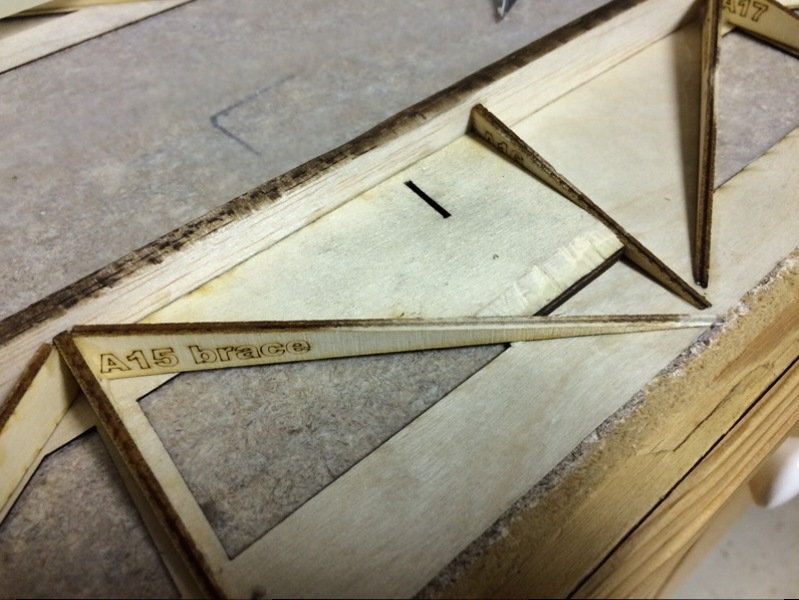

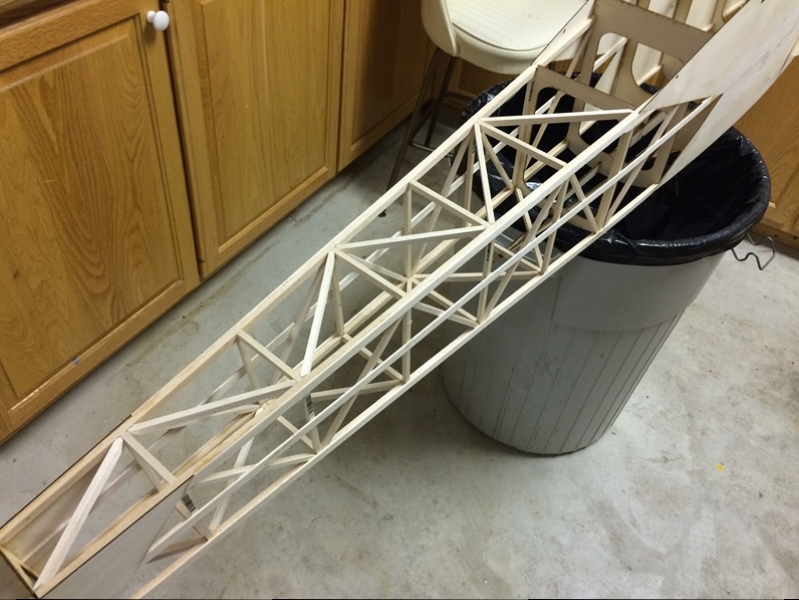

    Here are a couple of progress photos:

    Click image for larger version  Name:	IMG_3944.JPG Views:	1 Size:	339.2 KB ID:	21251



    Click image for larger version  Name:	IMG_3943.JPG Views:	1 Size:	370.6 KB ID:	21254

    Click image for larger version  Name:	IMG_3951.JPG Views:	1 Size:	334.9 KB ID:	21253

    Click image for larger version  Name:	IMG_3970.JPG Views:	1 Size:	315.6 KB ID:	21255



    Click image for larger version  Name:	IMG_3995.JPG Views:	1 Size:	309.8 KB ID:	21250


    ***PLEASE NOTE THAT THE ROOT RIB IS NOT PERPENDICUAR TO THE SPAR LIKE ALL OF THE OTHER RIBS***


    Click image for larger version  Name:	IMG_4020.JPG Views:	1 Size:	345.7 KB ID:	21252


    Last edited by JimD; 03-08-2018, 05:38 PM. Reason: Added note about the root rib angle.
    A Site for Soar Eyes

    Comment


    • #3

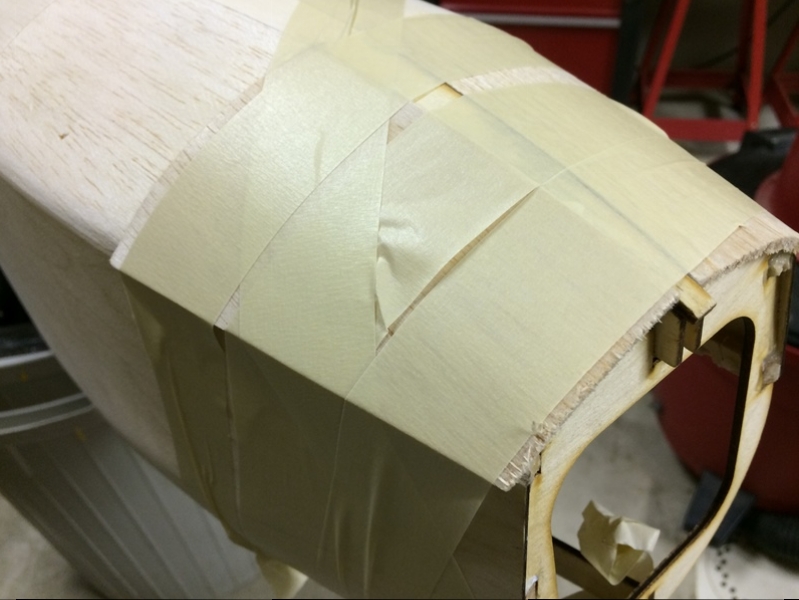

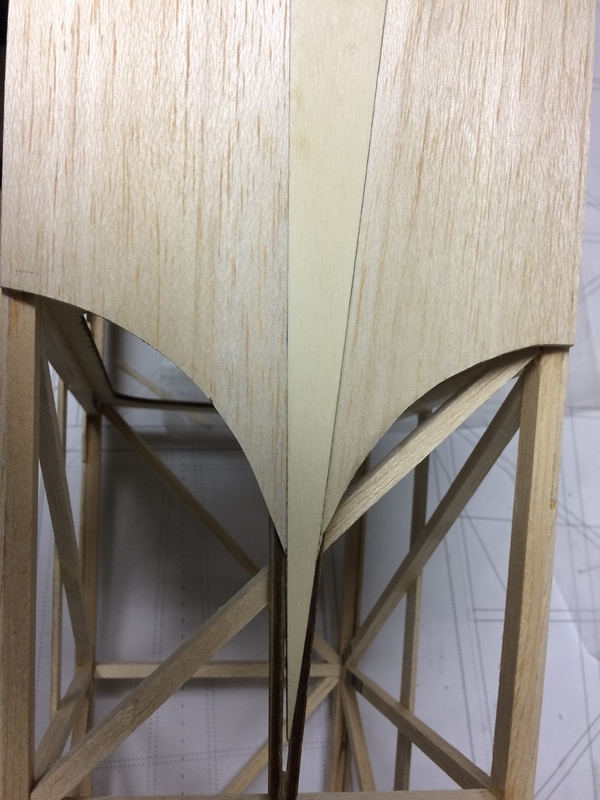

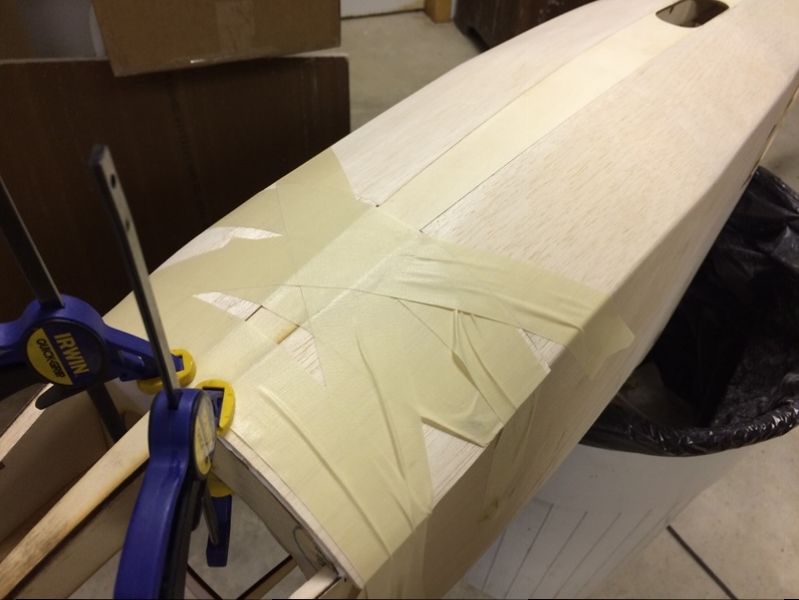

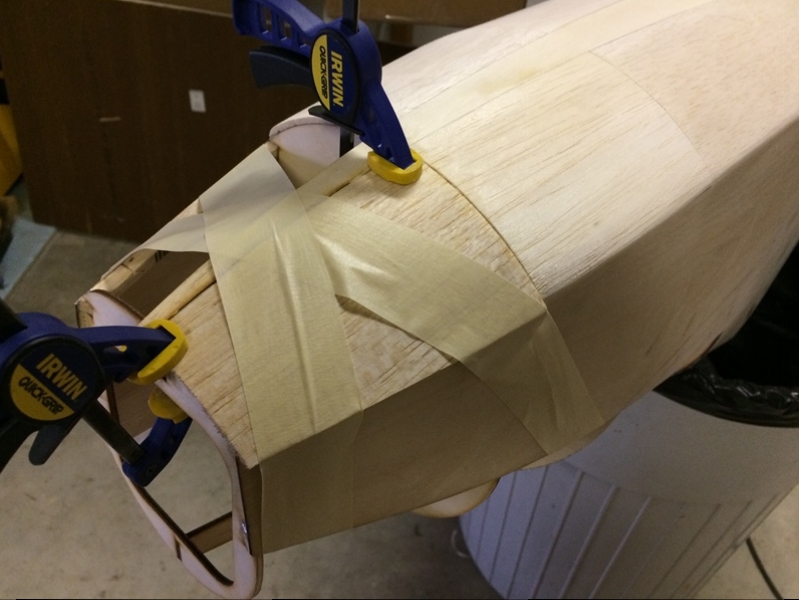

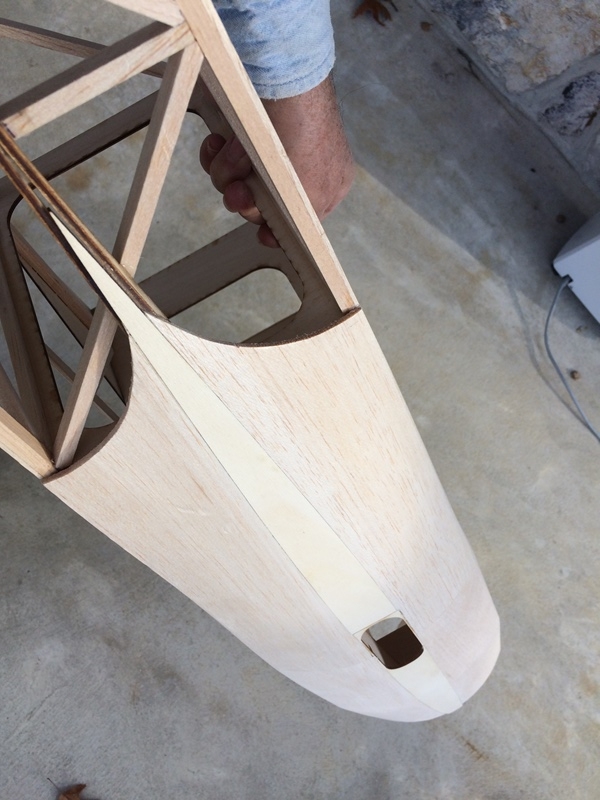

      Having fun with the sheeting, a little patience, masking tape, and sandpaper does wonders.

      Click image for larger version

Name:	IMG_4010.JPG
Views:	999
Size:	300.4 KB
ID:	21257

      Click image for larger version

Name:	IMG_4015.JPG
Views:	942
Size:	247.4 KB
ID:	21260

      Click image for larger version

Name:	IMG_4022.JPG
Views:	941
Size:	232.7 KB
ID:	21258

      Click image for larger version

Name:	IMG_4013.JPG
Views:	997
Size:	258.9 KB
ID:	21259

      Click image for larger version

Name:	IMG_4012.JPG
Views:	923
Size:	215.4 KB
ID:	21261

      Click image for larger version

Name:	IMG_4018.JPG
Views:	943
Size:	269.8 KB
ID:	21263

      Click image for larger version

Name:	IMG_4021.JPG
Views:	933
Size:	232.1 KB
ID:	21262



      A Site for Soar Eyes

      Comment


      • #4
        Christmas of what year? 🙄
        Gunny
        Aviation Concepts rc

        Comment


        • #5
          Alright, JimmyD! I have built my T 45 rudder! The construction looks familiar!

          Comment


          • #6
            Good Work Jim......looks like I better get a move on catching up to you and Mike.

            Comment


            • #7
              HI JIM,
              Nice looking wood joints.
              Len Buffinton
              Team Horizon Hobby

              Comment


              • #8

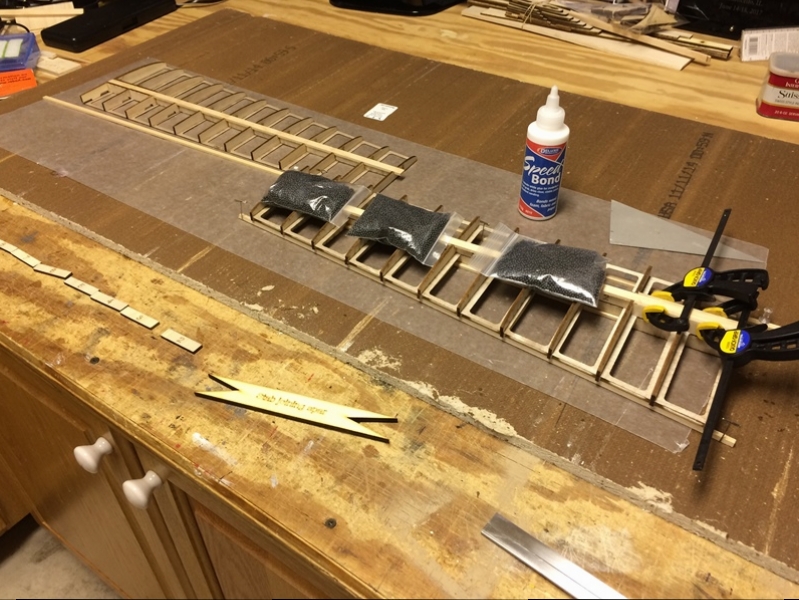

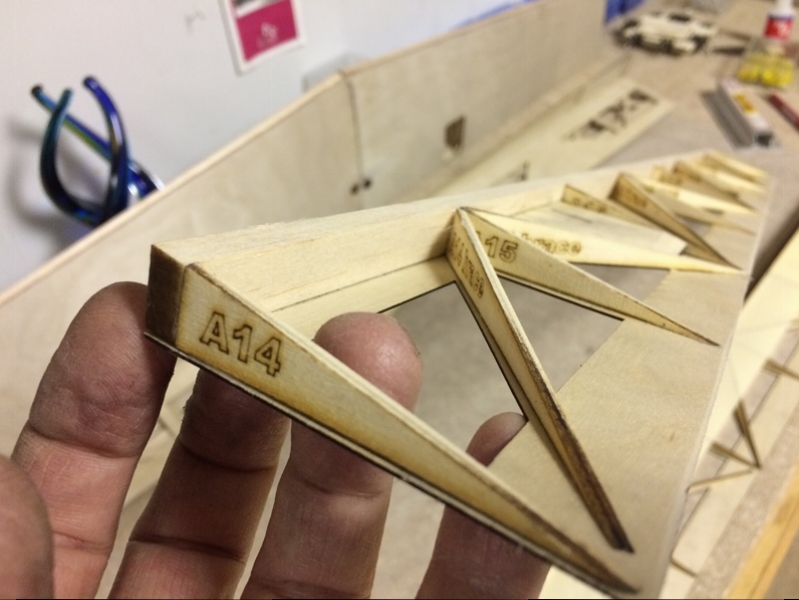

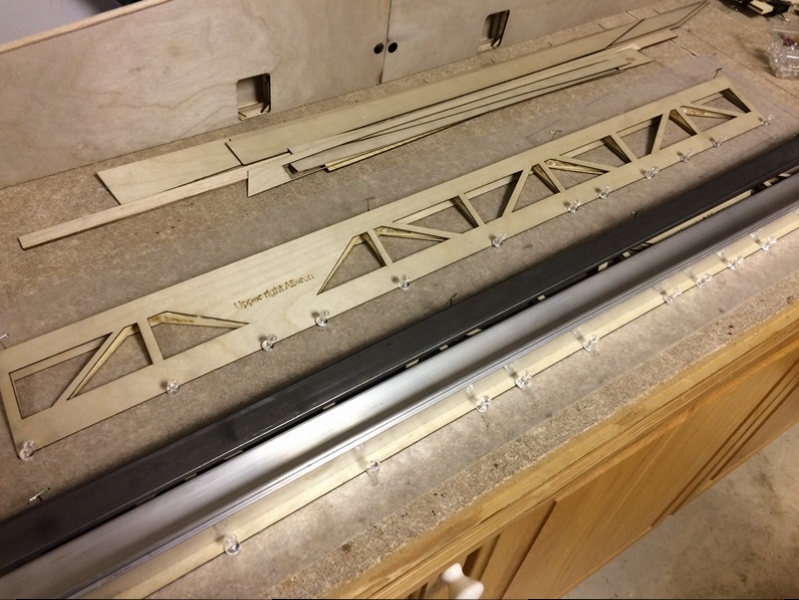

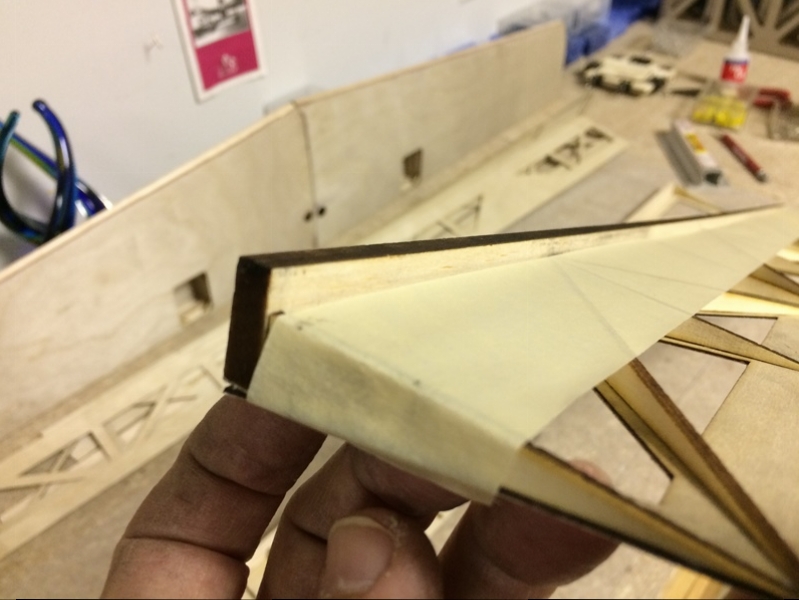

                Time to build the ailerons and they follow a similar design to the rudder and elevators. A thin plywood skin (with laser etched rib pattern on it) has a leading edge balsa stick and ribs that glue onto it. Once the glue is set, these parts get sanded to the proper taper and then the top skin is added. Here is how I build these structures.

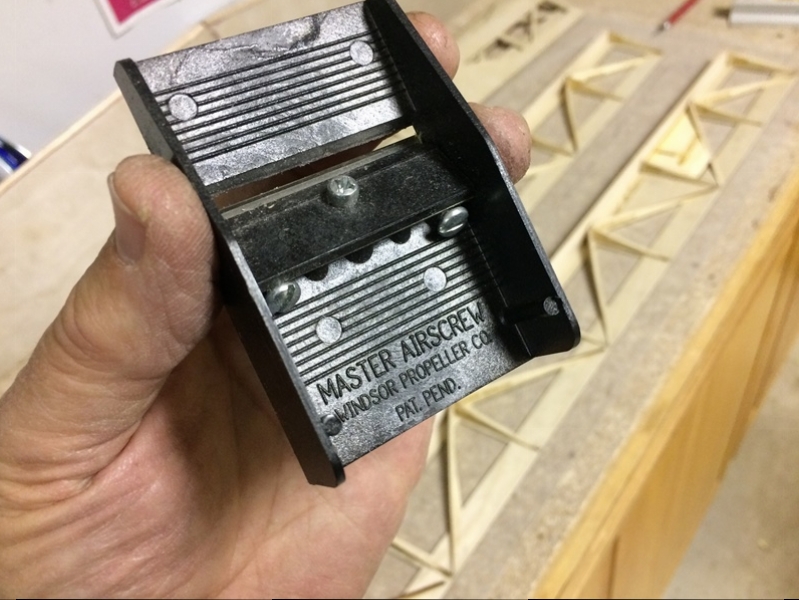

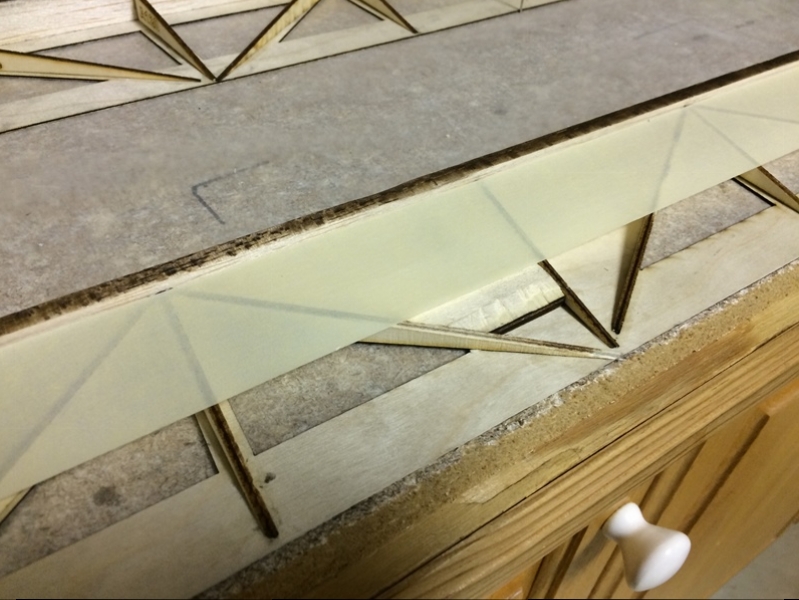

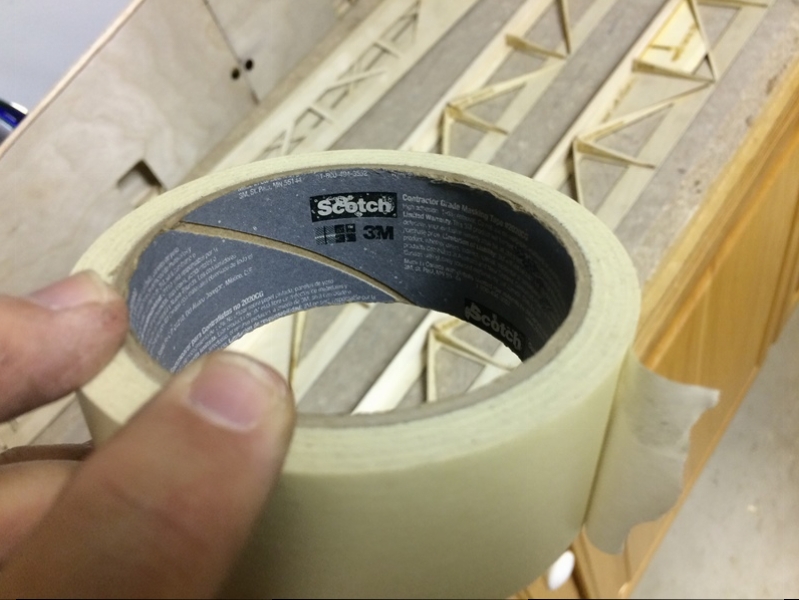

                First, my two must have tools, Scotch 1-1/2" masking tape and a Master Airscrew Razor Plane.

                Click image for larger version

Name:	IMG_4051.JPG
Views:	924
Size:	247.0 KB
ID:	21313

                Click image for larger version

Name:	IMG_4050.JPG
Views:	914
Size:	295.7 KB
ID:	21312
                A Site for Soar Eyes

                Comment


                • #9

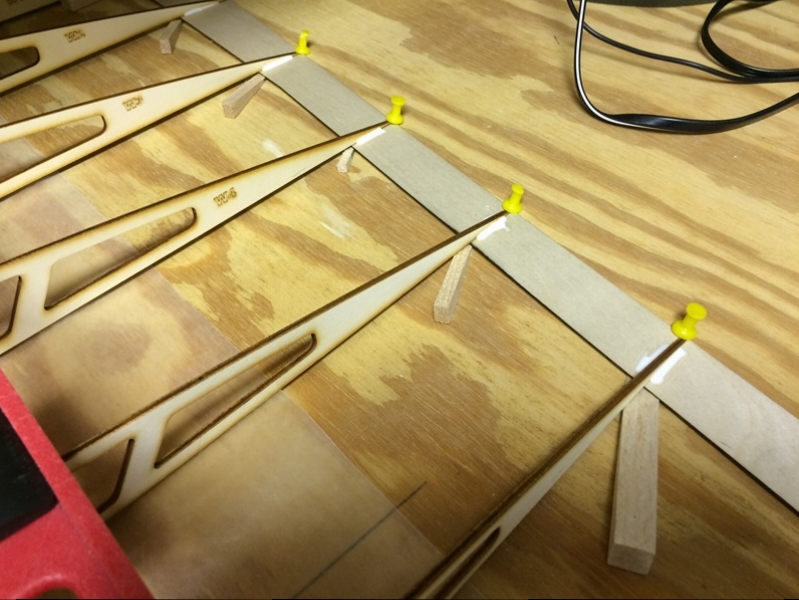

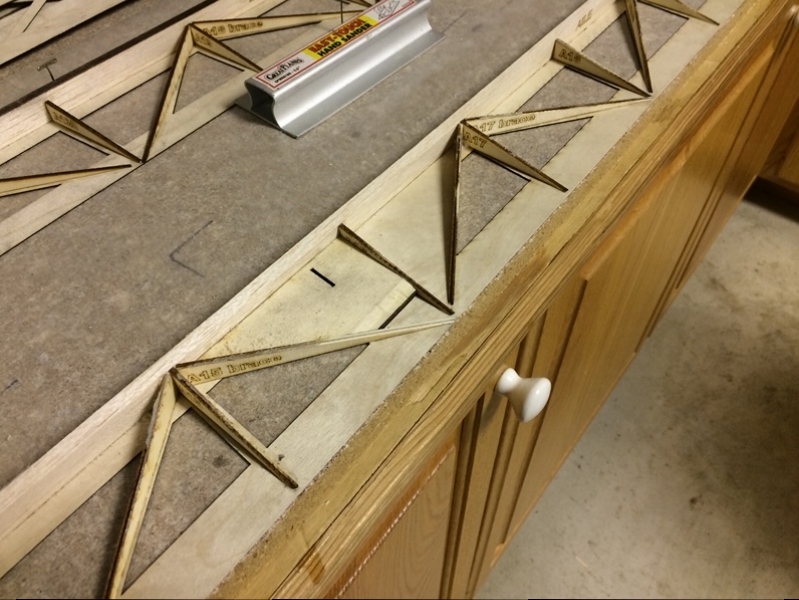

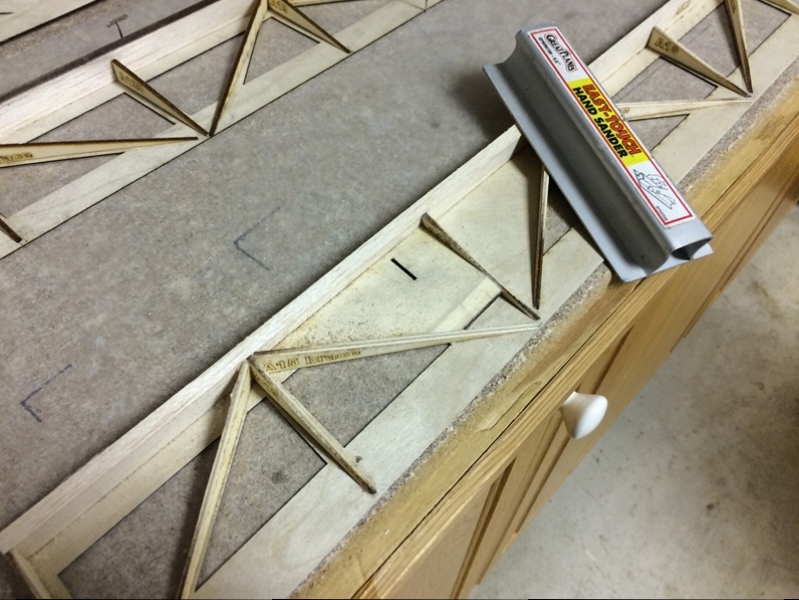

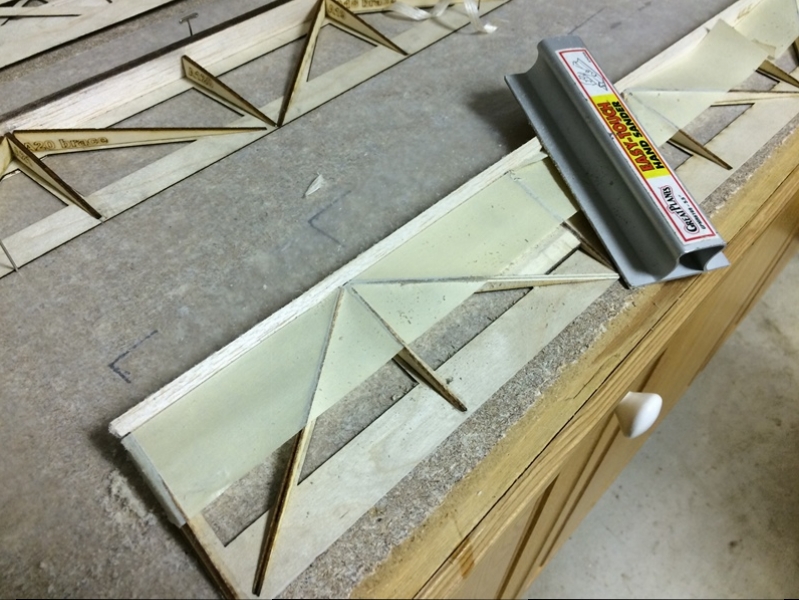

                  Step-by-step

                  Click image for larger version

Name:	IMG_4041.JPG
Views:	911
Size:	306.6 KB
ID:	21315

                  Click image for larger version

Name:	IMG_4042.JPG
Views:	913
Size:	285.1 KB
ID:	21318

                  Click image for larger version

Name:	IMG_4043.JPG
Views:	921
Size:	323.5 KB
ID:	21316

                  Click image for larger version

Name:	IMG_4044.JPG
Views:	915
Size:	328.7 KB
ID:	21317

                  Click image for larger version

Name:	IMG_4045.JPG
Views:	914
Size:	322.7 KB
ID:	21323

                  Click image for larger version

Name:	IMG_4046.JPG
Views:	930
Size:	323.7 KB
ID:	21322

                  Click image for larger version

Name:	IMG_4047.JPG
Views:	923
Size:	342.3 KB
ID:	21321

                  Click image for larger version

Name:	IMG_4048.JPG
Views:	918
Size:	235.6 KB
ID:	21319

                  Click image for larger version

Name:	IMG_4049.JPG
Views:	905
Size:	251.6 KB
ID:	21320
                  A Site for Soar Eyes

                  Comment


                  • #10
                    awesome thread and an awesome sailplane...saw it in Illinois and again in Indiana this past season...Caroline flies this one so well..
                    kevin

                    Comment


                    • #11
                      Thanks Kevin!

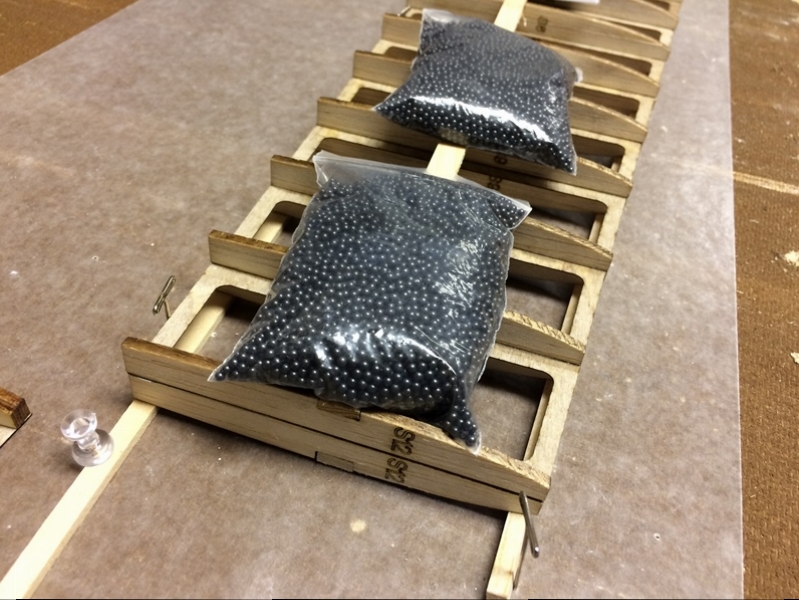

                      Once the top skin is glued on, I hold it in place with pins and weights.

                      Click image for larger version

Name:	IMG_4054.JPG
Views:	916
Size:	322.9 KB
ID:	21326

                      Click image for larger version

Name:	IMG_4052.JPG
Views:	907
Size:	338.2 KB
ID:	21328

                      Meantime back at the wing, the spoiler pocket was added.

                      Click image for larger version

Name:	IMG_4053.JPG
Views:	896
Size:	292.7 KB
ID:	21327
                      A Site for Soar Eyes

                      Comment


                      • #12

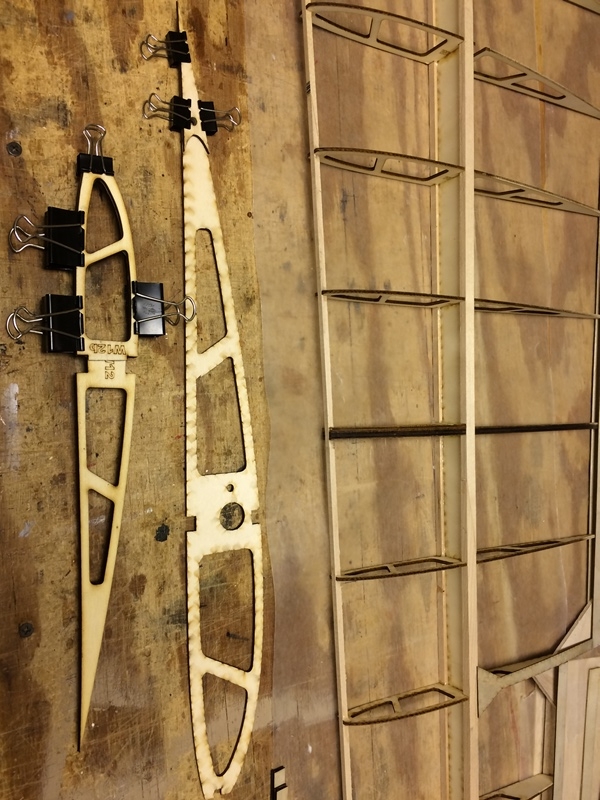

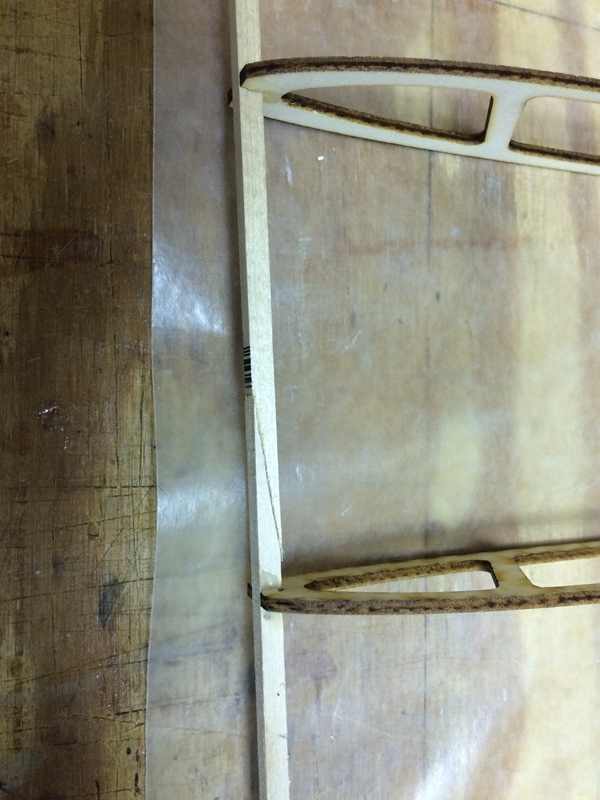

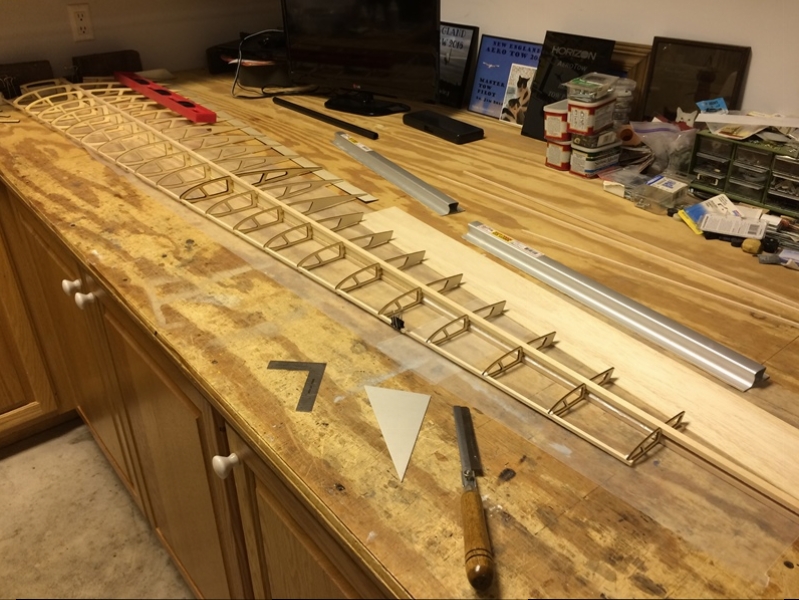

                        Several things about the wing that may be helpful. These ribs have doublers that should be added before building the wing panels.

                        Click image for larger version

Name:	IMG_4038.JPG
Views:	888
Size:	340.1 KB
ID:	21339

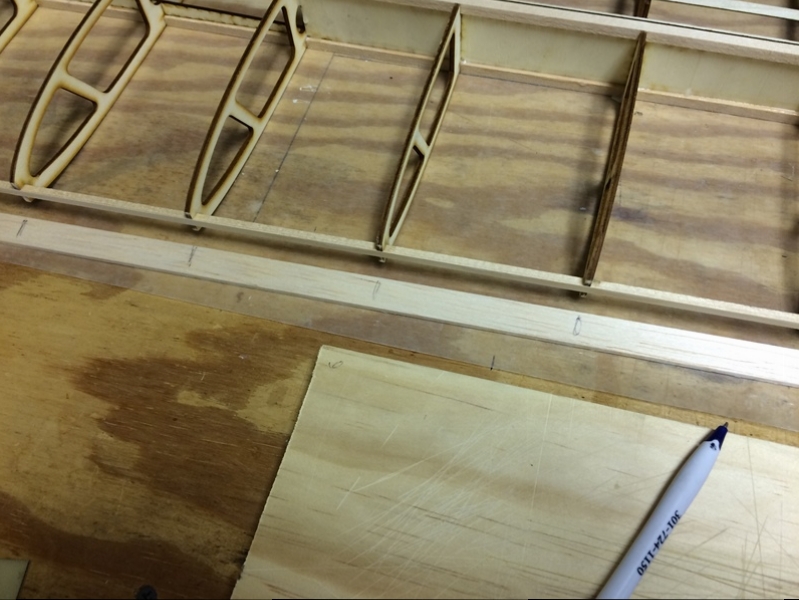

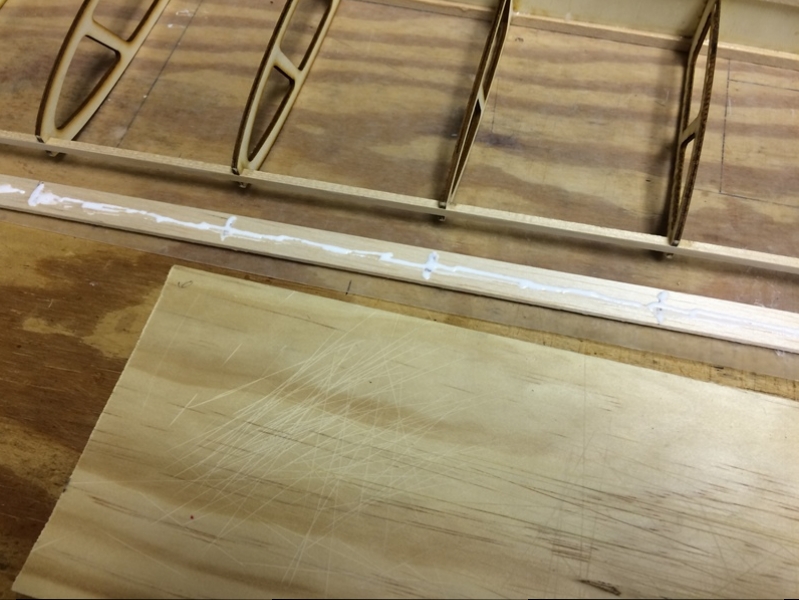

                        The bottom trailing edge sheeting needs to be shimmed up to keep it in contact with the bottom of the ribs. We used stick pins to hold the aft edge flat on the building board.

                        Click image for larger version

Name:	IMG_4030.JPG
Views:	863
Size:	309.3 KB
ID:	21337

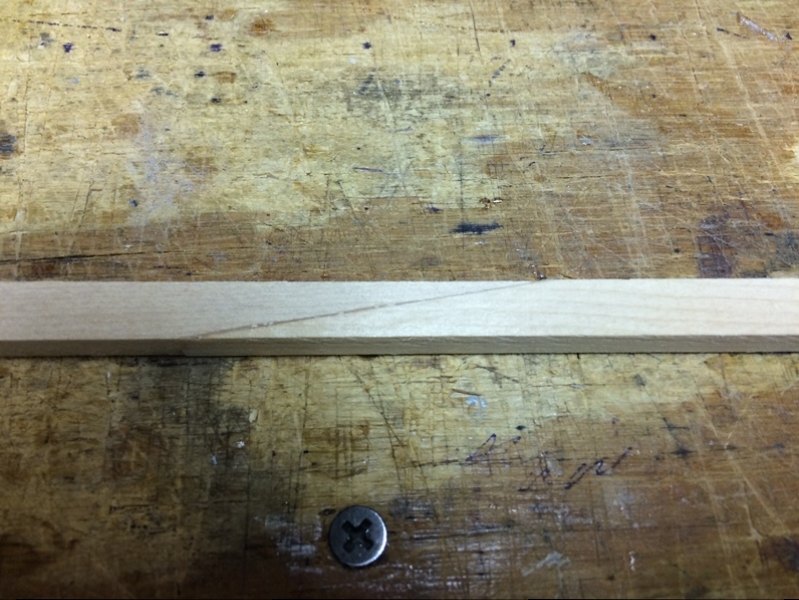

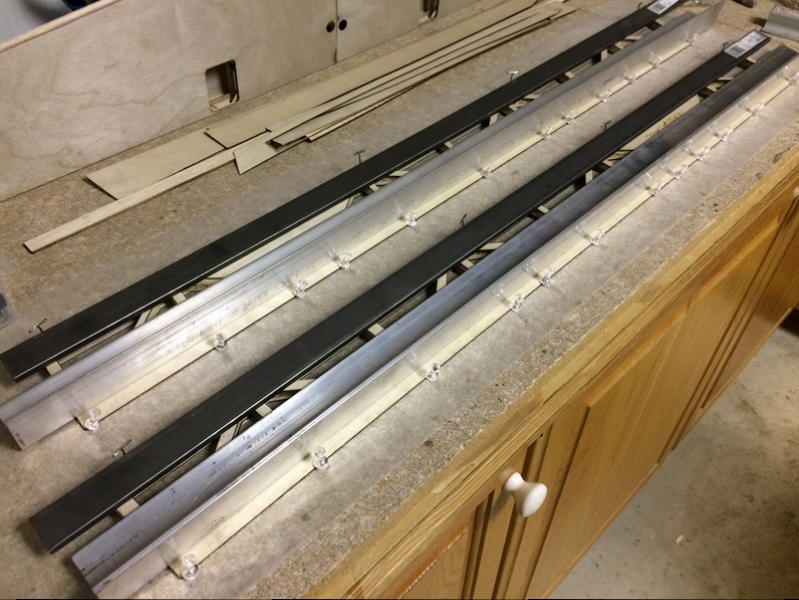

                        The spruce spars and the spruce leading edge alignment stick need to be joined to extend out the full length of the wing panel. Making a nice long scarf joint is helpful.

                        Click image for larger version

Name:	IMG_4024.JPG
Views:	862
Size:	270.7 KB
ID:	21335

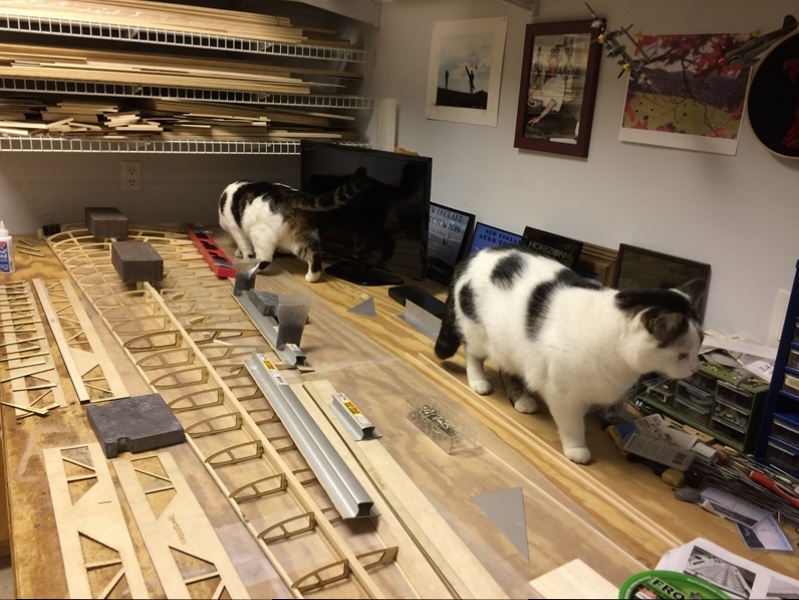

                        Then we got hit with a surprise airframe inspection!!!

                        Click image for larger version

Name:	IMG_4032.JPG
Views:	910
Size:	336.8 KB
ID:	21338

                        We distracted the inspectors by turning on the "world" TV.

                        Click image for larger version

Name:	IMG_4025.JPG
Views:	854
Size:	203.7 KB
ID:	21336

                        A Site for Soar Eyes

                        Comment


                        • #13
                          Wing leading edge is in two parts. First piece is glued onto the leading edge, then it is sanded to the contour of the ribs, then the wing sheeting is applied, then sheeting is sanded flat with the sub-leading edge, then second part of leading edge is glued on. We lightly sanded the fronts of the ribs (using the scorched edge color as a reference) to true things up before adding the first piece of leading edge balsa. The balsa strip was marked and glue applied and then clamped onto the front of the ribs.

                          Click image for larger version

Name:	IMG_4055.JPG
Views:	873
Size:	285.6 KB
ID:	21367

                          Click image for larger version

Name:	IMG_4056.JPG
Views:	894
Size:	282.2 KB
ID:	21366

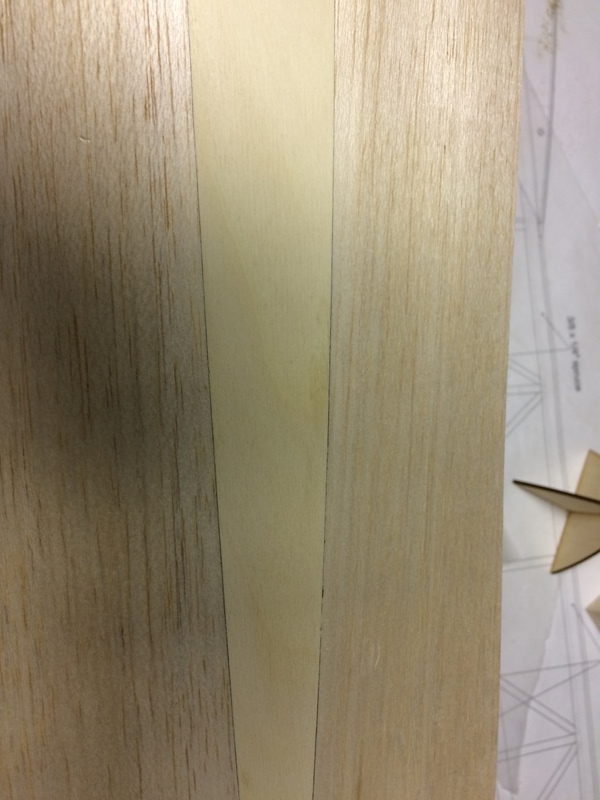

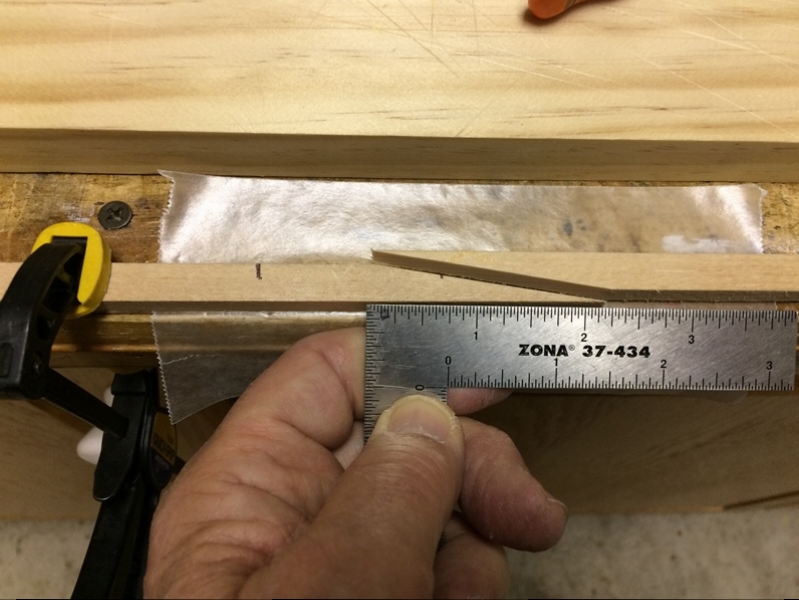

                          Time to start getting ready to build the other wing panel, first thing is splicing the top and bottom wing spars...we used a 2-1/4" scarf joint, clamps, and slow set epoxy to join the spars. As a way of making sure that the spars are straight, the pieces are clamped to the straight edge of our bench while the scarf joint is clamped and epoxy cures.

                          Click image for larger version

Name:	IMG_4057.JPG
Views:	863
Size:	275.5 KB
ID:	21364

                          Click image for larger version

Name:	IMG_4058.JPG
Views:	883
Size:	257.8 KB
ID:	21365

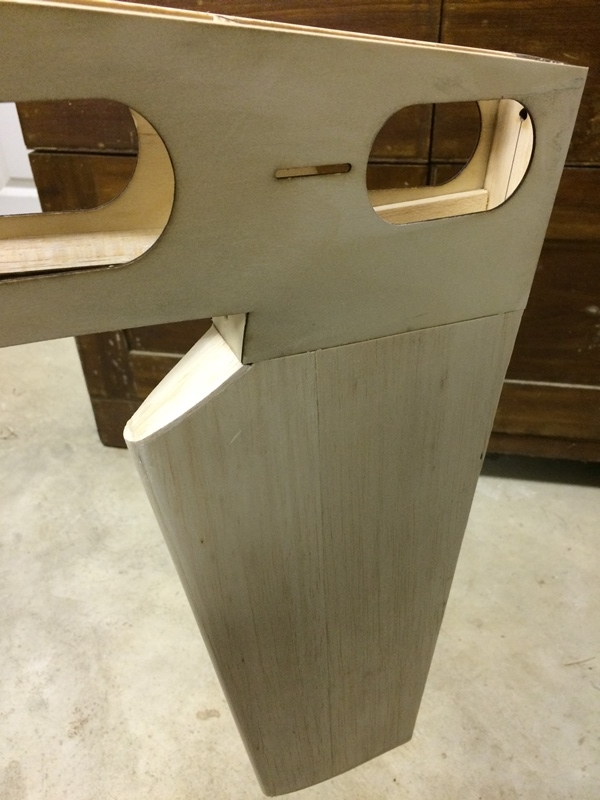

                          Tail feathers and ailerons are all done except for some final sanding.

                          Click image for larger version

Name:	IMG_4060.JPG
Views:	920
Size:	302.7 KB
ID:	21369

                          Last section of fuselage bottom sheeting is nearing completion.

                          Click image for larger version

Name:	IMG_4059.JPG
Views:	878
Size:	254.3 KB
ID:	21368

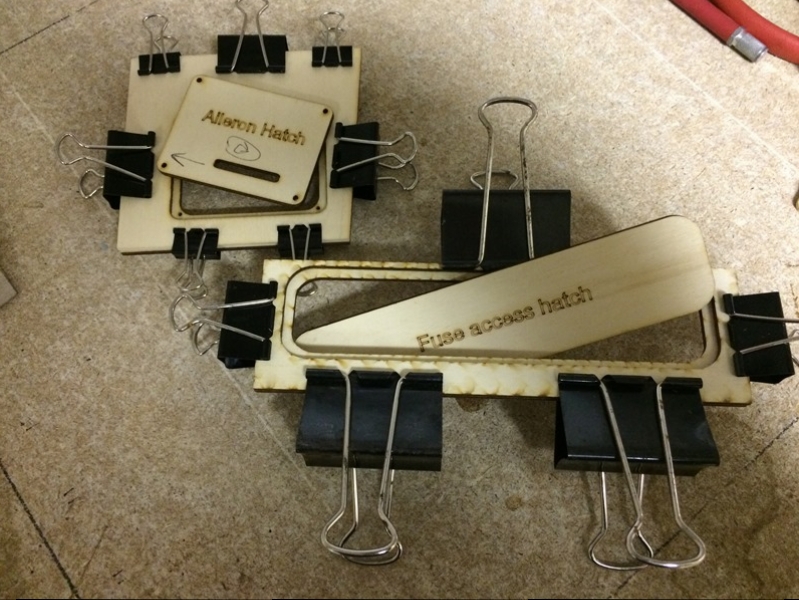

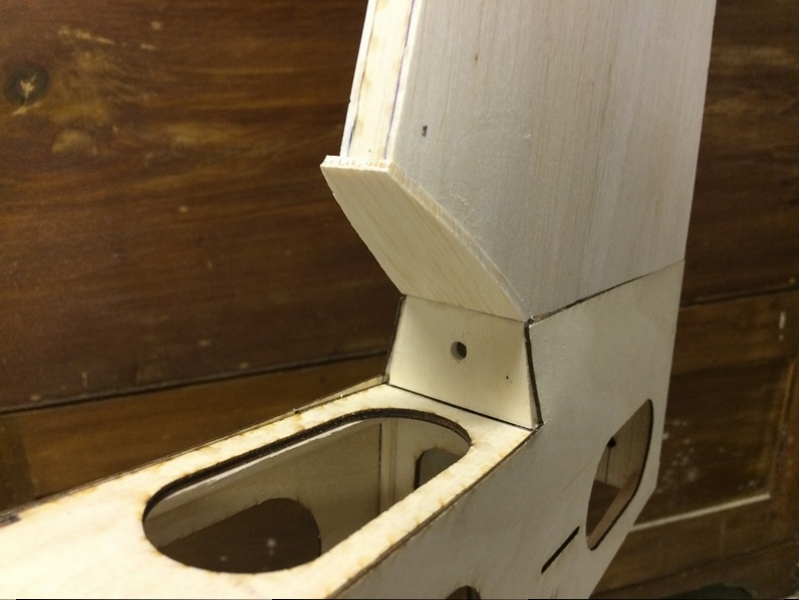

                          Aileron servo trays and fuselage top access hatch parts were laminated using these handy clips from the office supply store.

                          Click image for larger version

Name:	IMG_4061.JPG
Views:	872
Size:	346.1 KB
ID:	21370
                          A Site for Soar Eyes

                          Comment


                          • #14

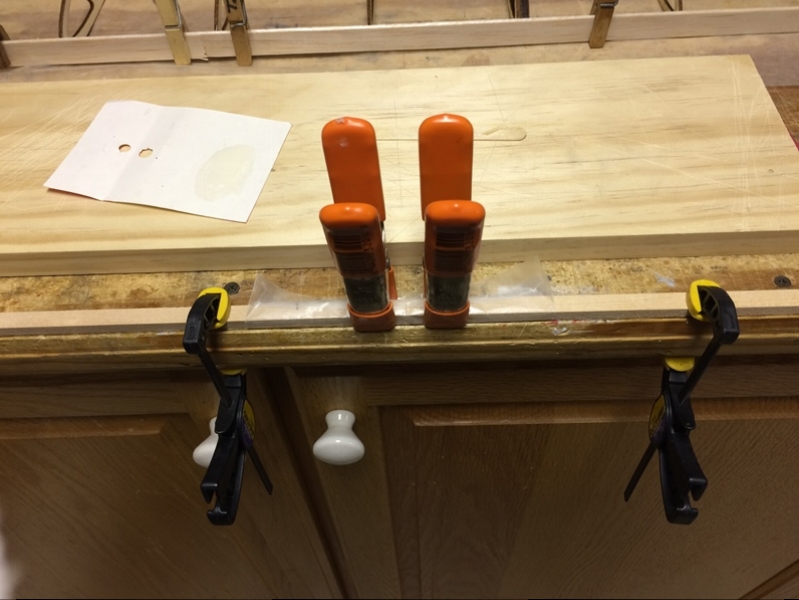

                            After the epoxy had cured, the spar was unclamped and lightly sanded to remove excess epoxy on the outside of the joint.

                            Click image for larger version

Name:	IMG_4062.JPG
Views:	877
Size:	344.6 KB
ID:	21375

                            The rudder tray was added to the inside of the fuselage.

                            Click image for larger version

Name:	IMG_4063.JPG
Views:	876
Size:	242.9 KB
ID:	21374

                            And the final piece of sheeting was added to the bottom of the fuselage.

                            Click image for larger version

Name:	IMG_4064.JPG
Views:	870
Size:	236.3 KB
ID:	21373
                            A Site for Soar Eyes

                            Comment


                            • #15
                              I'm coming in a little late to this party. Very nice build so far Jim. Seeing this, I've decided my next build will be a kit! I love your inspectors.
                              [B]"I have not yet begun to procrastinate!"[/B] -- [B][I]Geoff Painter[/I][/B]
