Aviation Concepts 1/3-scale Schweizer 2-33 ~ Build Thread by JimD

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #61

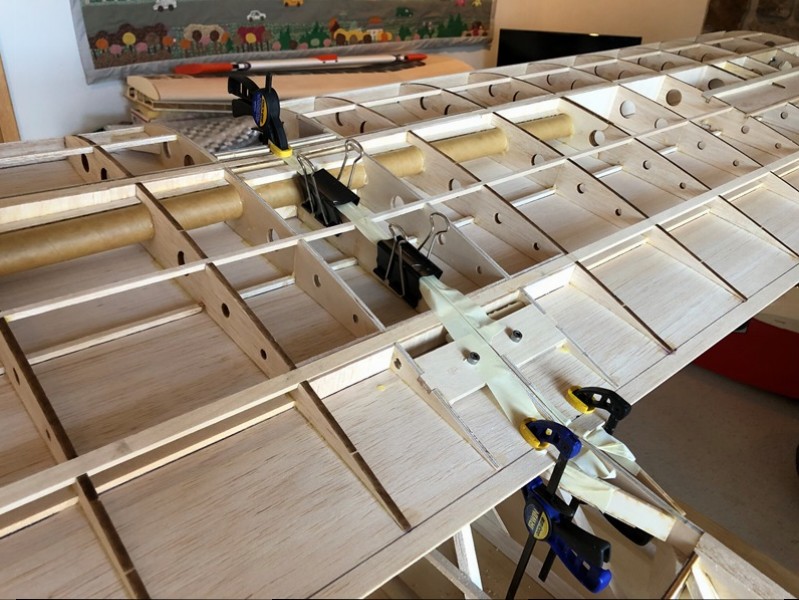

    Before going forward with joining the inner and outer wing panels, the inner panels were joined with the wing rod and mated to the fuselage to check fit.
    Masking tape was added to the wing root ribs and the wing saddle to account for the thickness of the wing covering material.


    Click image for larger version

Name:	IMG_0130.JPG
Views:	175
Size:	125.9 KB
ID:	33846

    Careful measurements were taken to check alignment of wings and then a 3/16" hole was drilled down through one of the wing bolt plates. Bolt plate has a 3/16" laser cut hole and it was used as a guide. A 3/16" diameter bolt was dropped down through this first hole, and then the other side was drilled and a second bolt was dropped in. Alignment measurements were rechecked before going forward.

    Click image for larger version

Name:	IMG_0131.JPG
Views:	190
Size:	131.6 KB
ID:	33845

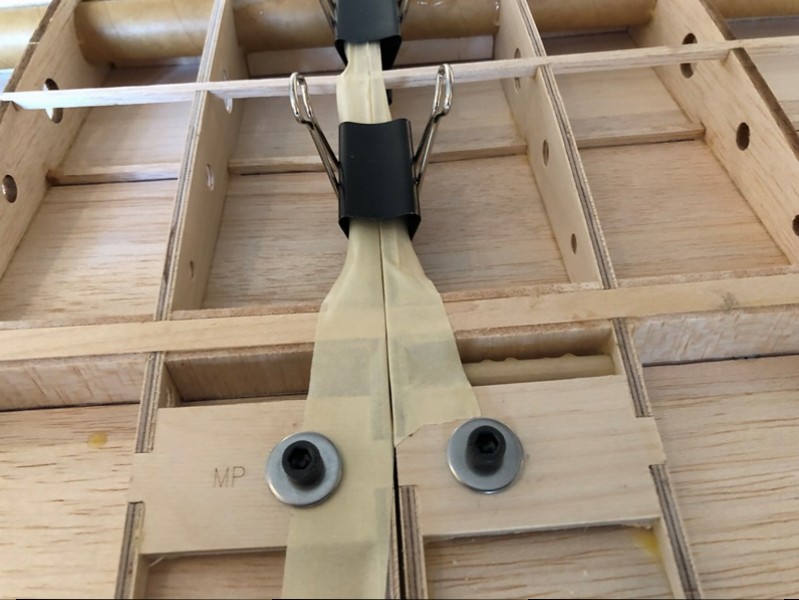

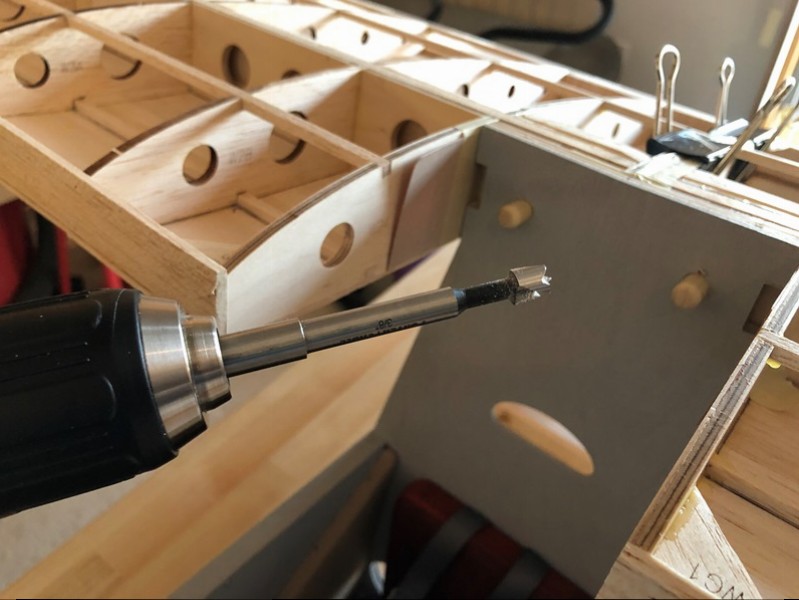

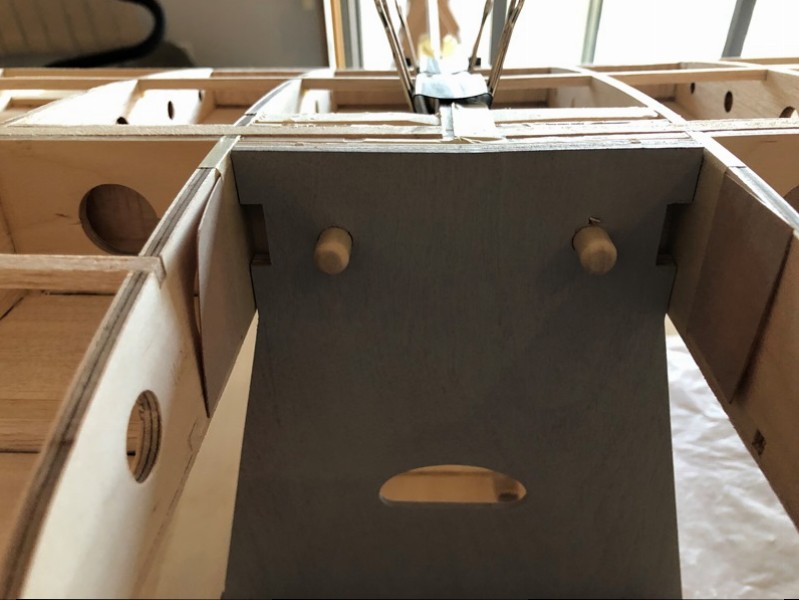

    One side was now drilled out for the tape size of a 1/4-20 size bolt. Threads were cut and a 1/4-20 bolt screwed in. Alignment measurements were rechecked and then the second bolt hole was drilled out and tap used to cut threads. Second 1/4-20 bolts screwed in. Bolts were then removed and clearance holes drilled into the wing. Threads in wings hold-down block were hardened with thin CA and, once CA cured, tap run through again.

    Click image for larger version

Name:	IMG_0134.JPG
Views:	182
Size:	90.4 KB
ID:	33849

    Scrap plywood shims were used to center the forward section of the wings. With the rear wing bolts installed, holes for the wing dowels were drilled using a Fostner bit. Be careful about the depth, don't want to drill into the wing rod.

    Click image for larger version

Name:	IMG_0135.JPG
Views:	181
Size:	83.4 KB
ID:	33850

    Wing was removed, depth of wing bolt holes were deepened as much as possible and then dowels were glued into the holes. Once glue cured, wing was again mated to the fuselage and alignment checked.

    Click image for larger version

Name:	IMG_0133.JPG
Views:	182
Size:	74.5 KB
ID:	33848

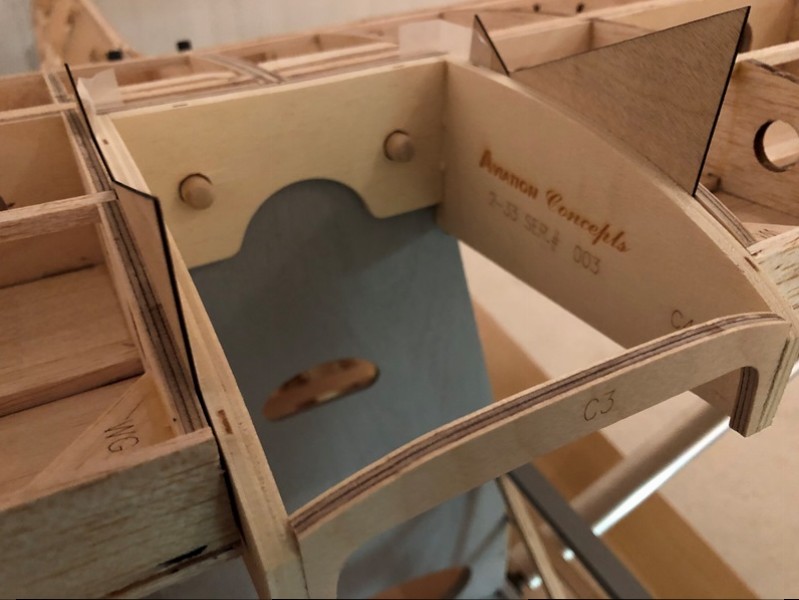

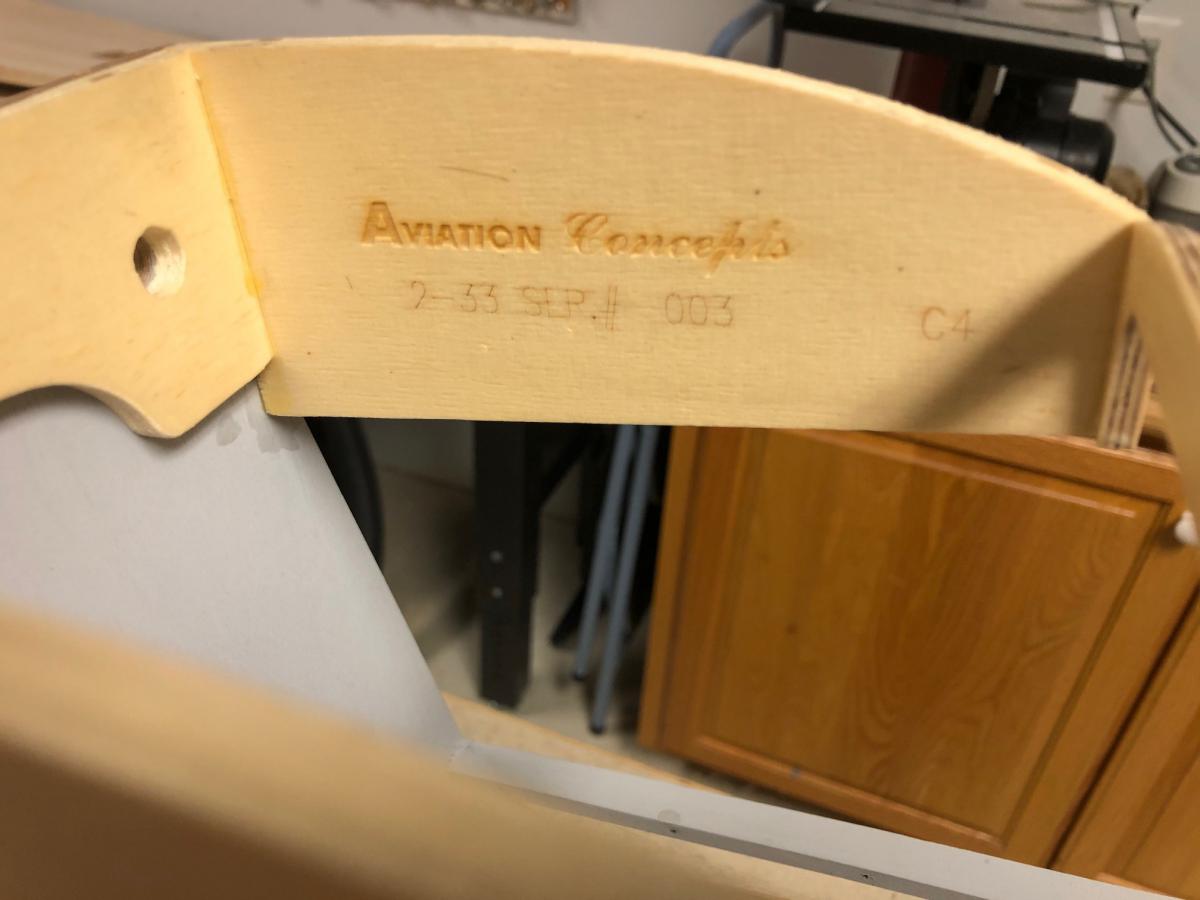

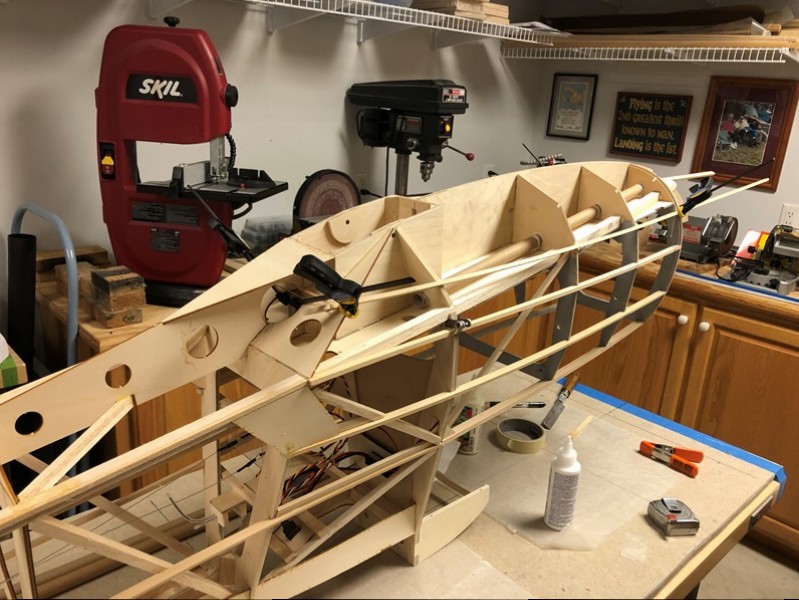

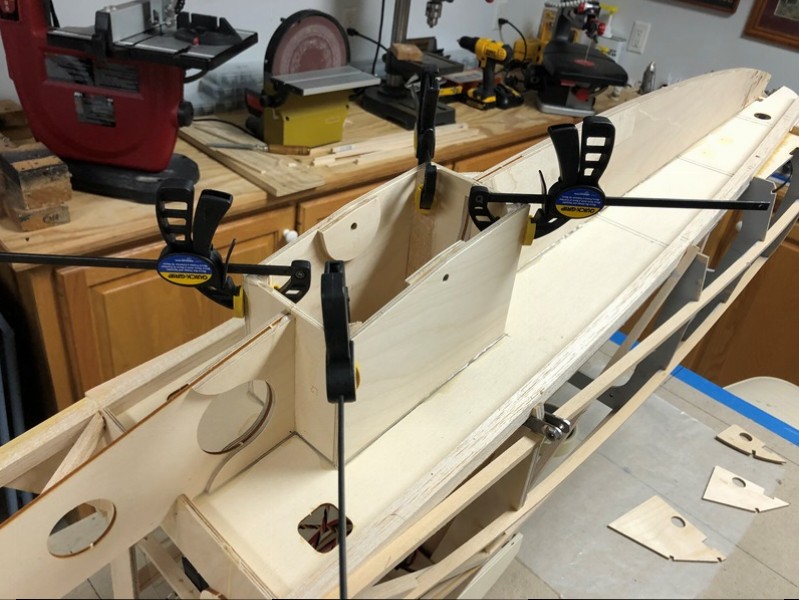

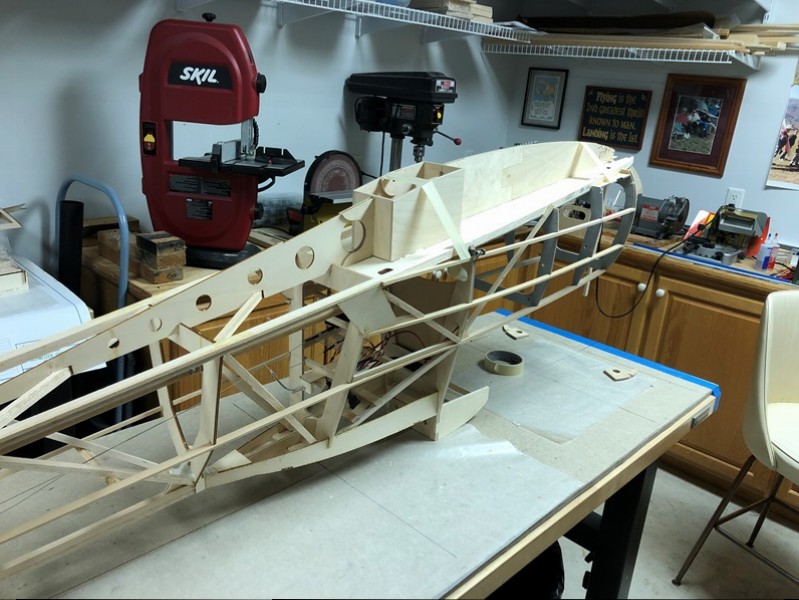

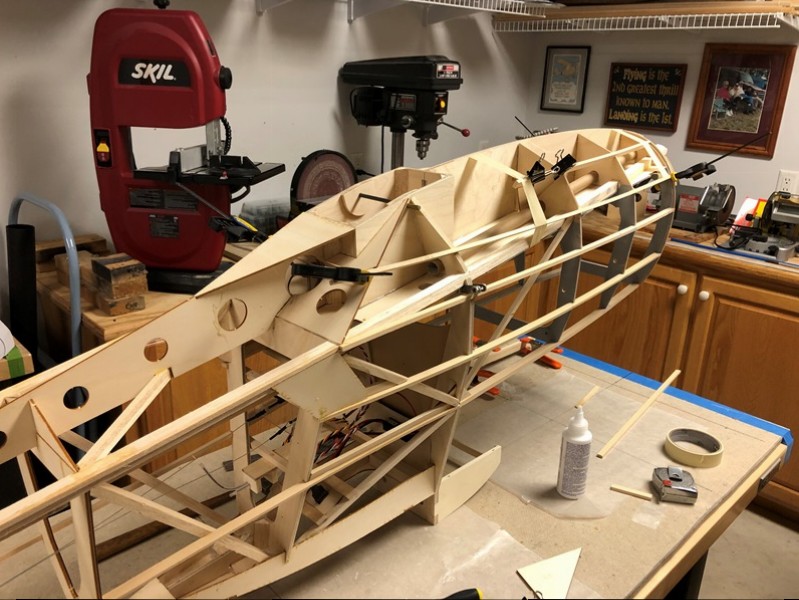

    Now the structure for the upper cabin area was added using scrap plywood as spacers.

    Click image for larger version

Name:	IMG_0160.JPG
Views:	183
Size:	76.2 KB
ID:	33847
    A Site for Soar Eyes

    Comment


    • #62

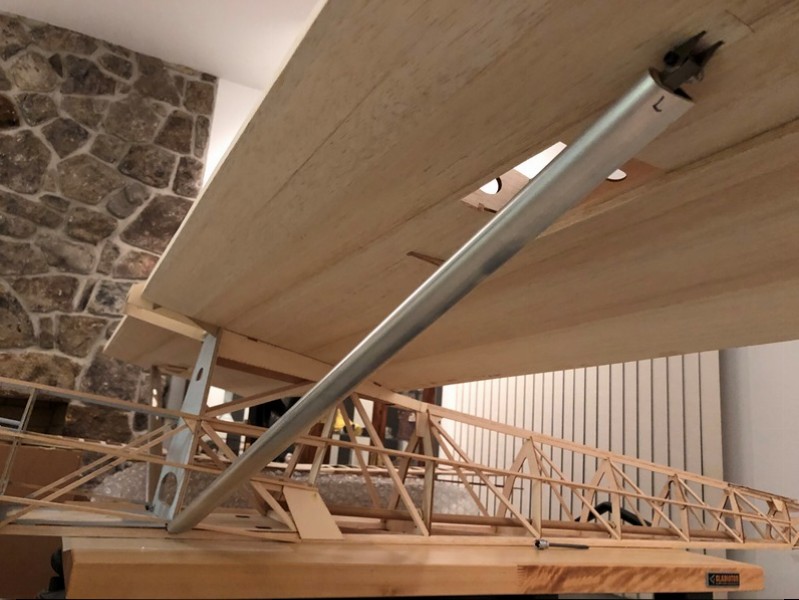

      With the wings in place, time to make the struts. Gunny supplies these cool little spacers to assist with inserting the steel end pieces into the aluminum wing struts. 16 of them get are glued onto the steel ends using thin CA. These then fit snuggly into the ends of the aluminum wing tubing. Once you are sure about the length, these parts get epoxied into the wing struts and then they are drilled through and retaining bolts installed.

      Click image for larger version

Name:	IMG_0140.JPG
Views:	185
Size:	108.3 KB
ID:	33853

      Click image for larger version

Name:	IMG_0161.JPG
Views:	184
Size:	95.1 KB
ID:	33852

      A Site for Soar Eyes

      Comment


      • #63

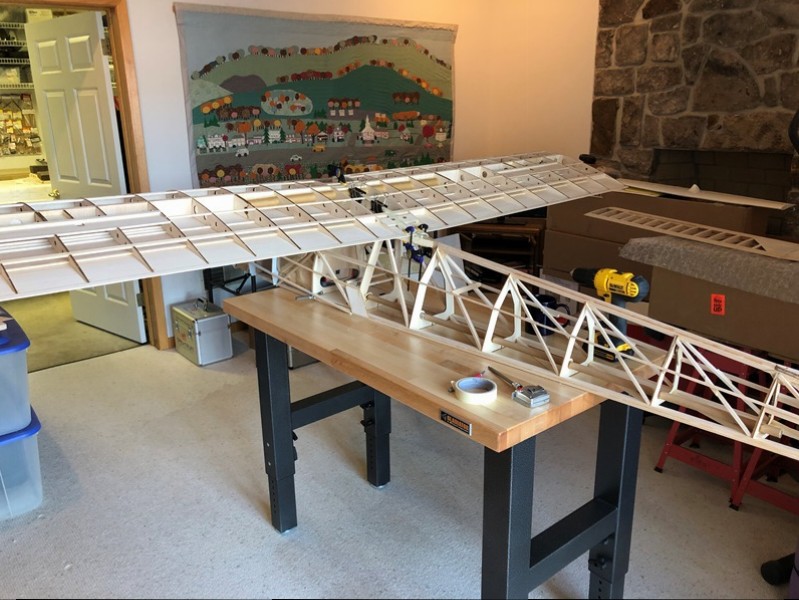

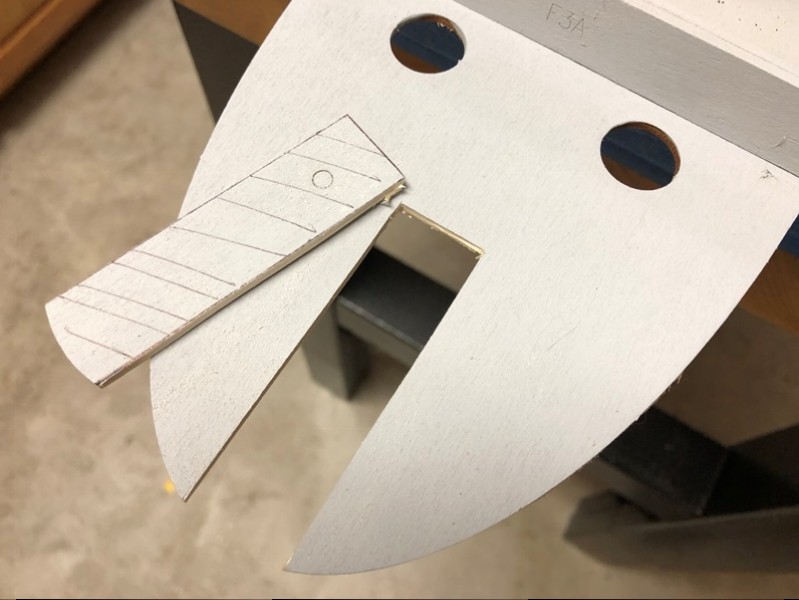

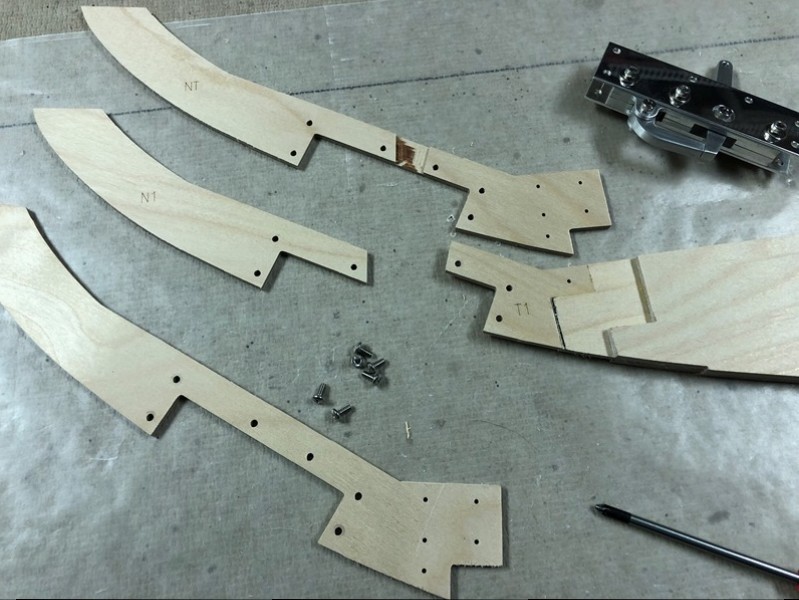

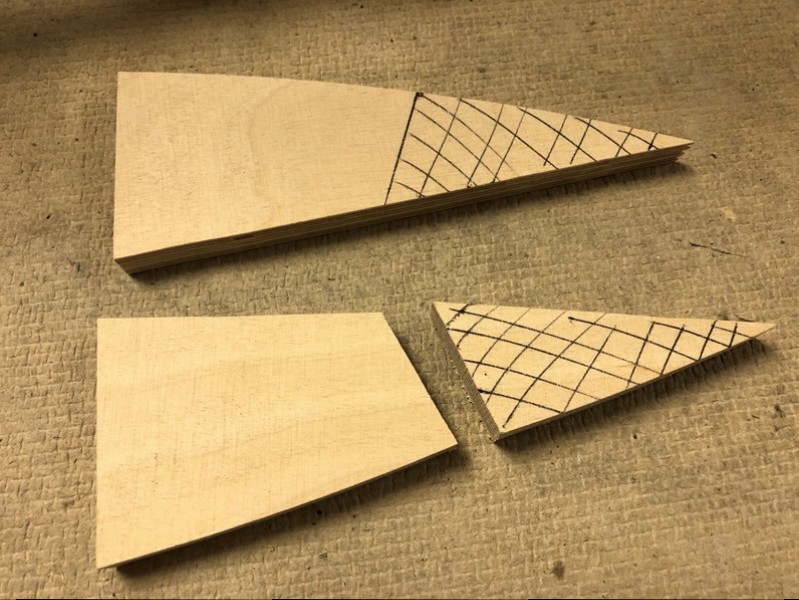

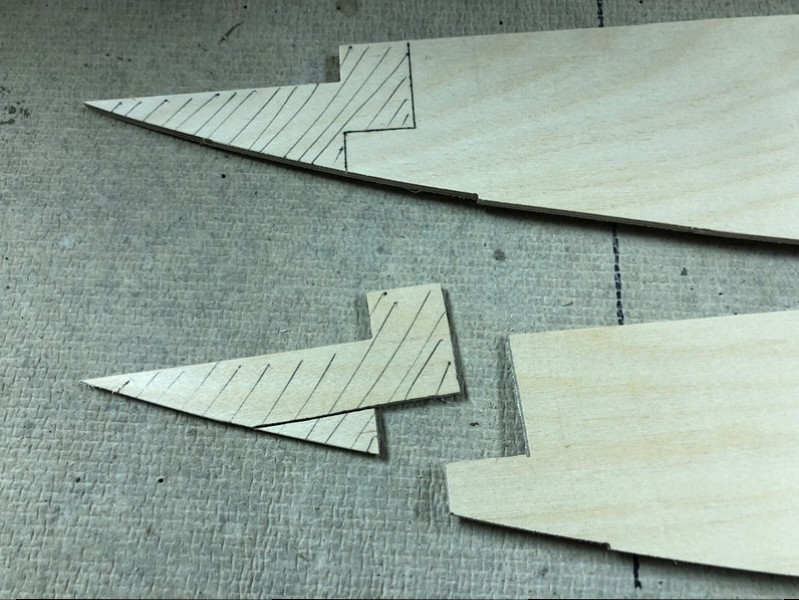

        Now that the wings are mated up and the struts made, we can move on to joining the wing inner and outer panels and to adding the keel parts to the fuselage. We are using the scale tow releases, so the keel parts need to be modified. Gunny supplies templates for use as a cutting guide. We used some scrap basswood stick inserted into the notches of the keel parts to keep things aligned as they were laminated together.

        Click image for larger version

Name:	IMG_0162.JPG
Views:	183
Size:	94.1 KB
ID:	33861

        Click image for larger version

Name:	IMG_0155.JPG
Views:	186
Size:	78.6 KB
ID:	33855

        Click image for larger version

Name:	IMG_0156.JPG
Views:	183
Size:	74.9 KB
ID:	33857

        Click image for larger version

Name:	IMG_0157.JPG
Views:	186
Size:	130.1 KB
ID:	33859

        Click image for larger version

Name:	IMG_0158.JPG
Views:	184
Size:	128.7 KB
ID:	33860

        Click image for larger version

Name:	IMG_0167.JPG
Views:	183
Size:	110.2 KB
ID:	33856

        Click image for larger version

Name:	IMG_0166.JPG
Views:	188
Size:	98.1 KB
ID:	33858

        A Site for Soar Eyes

        Comment


        • ARUP
          ARUP commented
          Editing a comment
          Nice work and I like that quilt in the background!

        • gunny11
          gunny11 commented
          Editing a comment
          Looking good Jim. Keep on going! I noticed the quilt also, reminds me of the valley down below the field.

        • JimD
          JimD commented
          Editing a comment
          My mother in law made the quilt, it is a scene of the valley below my house (I seem to like mountain tops).

      • #64

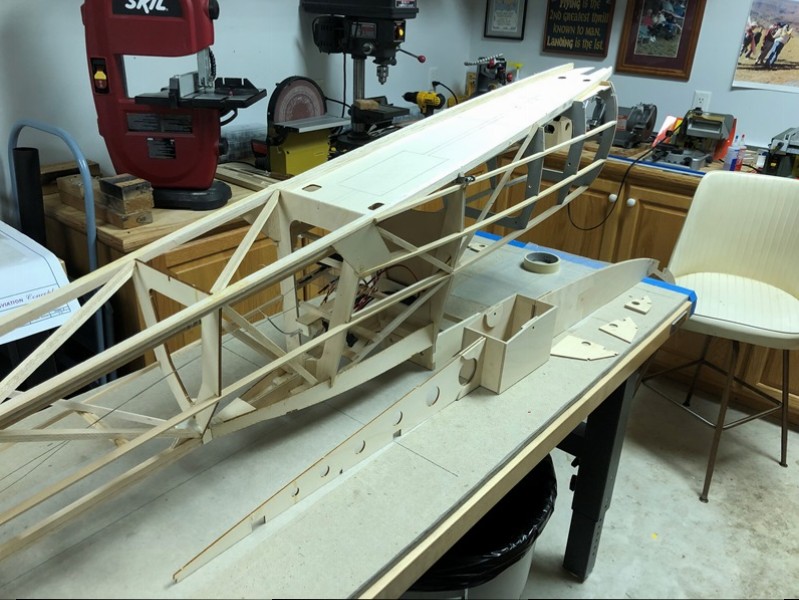

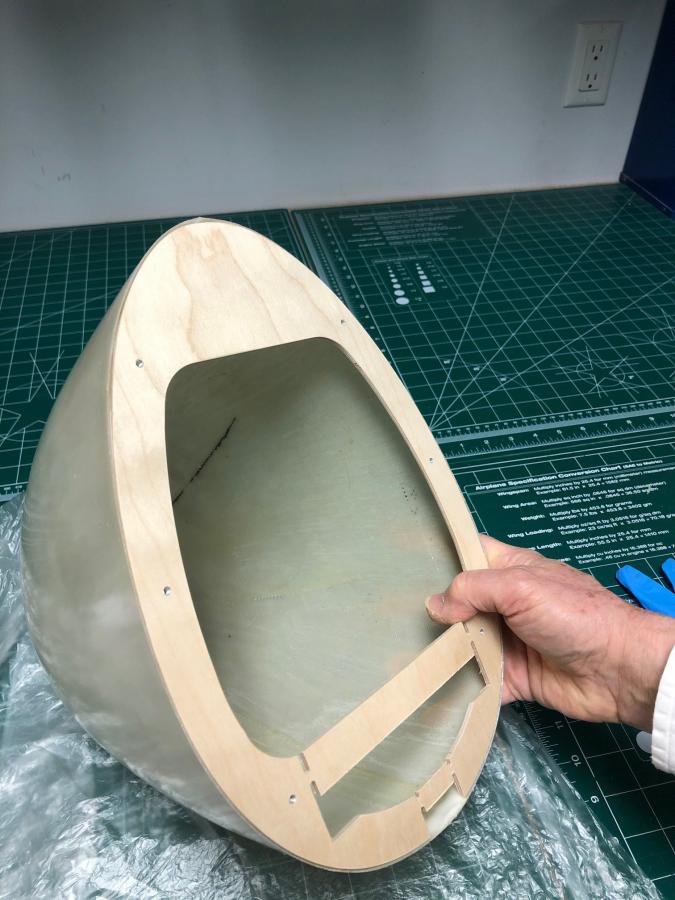

        Everything on the upper part of the fuselage has been completed while the fuselage can sit flat on the worksurface. Now it is time to flip the fuselage over and add the keel structure.

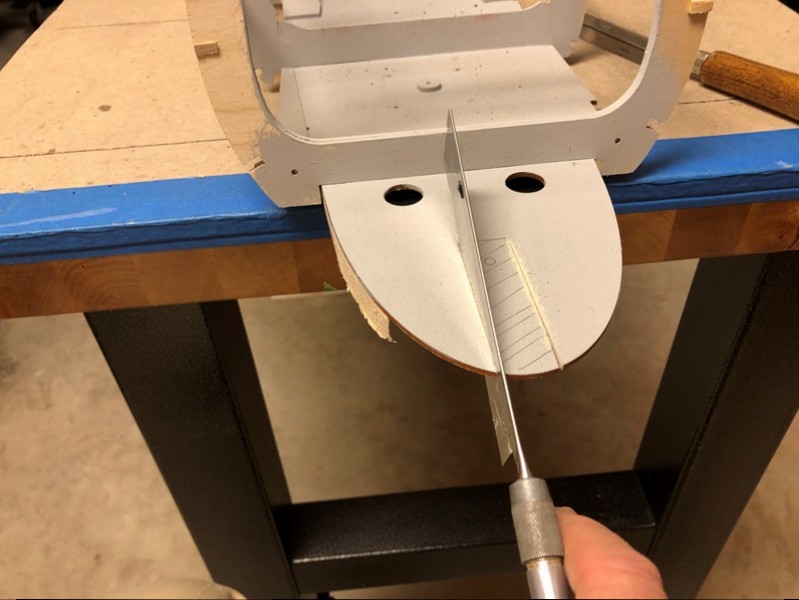

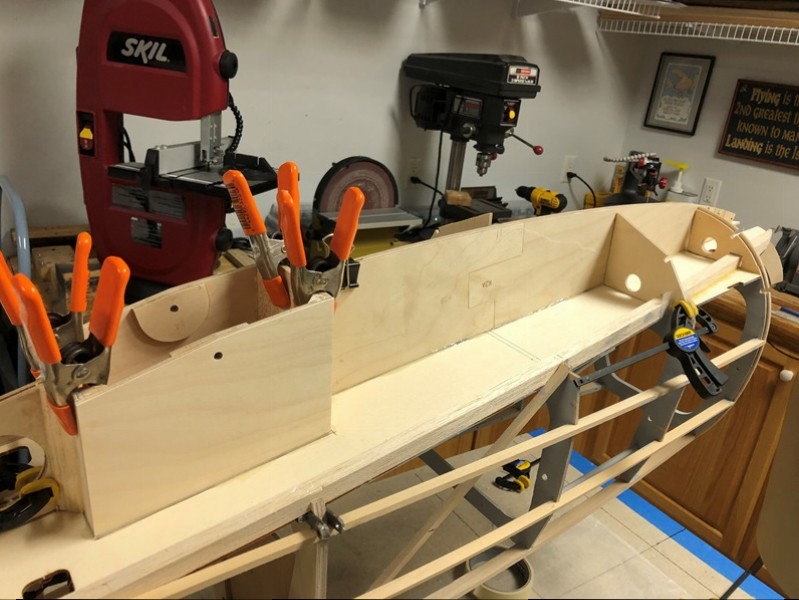

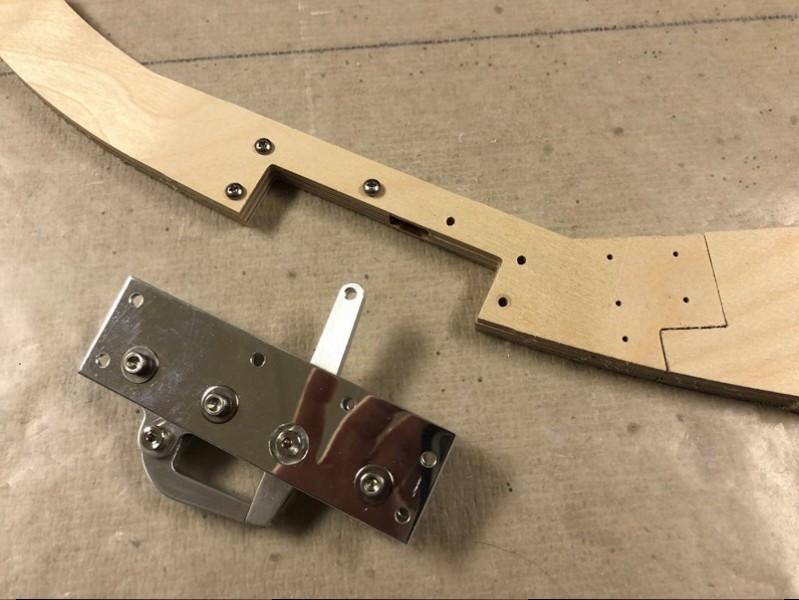

        Started by sitting the keel onto the lower fuselage and tracing the outline (make sure it is properly centered).


        Click image for larger version

Name:	IMG_0194.JPG
Views:	181
Size:	126.1 KB
ID:	34241

        Click image for larger version

Name:	IMG_0195.JPG
Views:	181
Size:	123.4 KB
ID:	34242

        Click image for larger version

Name:	IMG_0196.JPG
Views:	192
Size:	115.7 KB
ID:	34244

        Click image for larger version

Name:	IMG_0197.JPG
Views:	182
Size:	106.7 KB
ID:	34246

        Click image for larger version

Name:	IMG_0198.JPG
Views:	180
Size:	116.7 KB
ID:	34243

        Click image for larger version

Name:	IMG_0199.JPG
Views:	173
Size:	128.8 KB
ID:	34245

        Click image for larger version

Name:	IMG_0200.JPG
Views:	179
Size:	131.1 KB
ID:	34240

        A Site for Soar Eyes

        Comment


        • #65
          I'm liking what I see! Progress, means you are on the home stretch?
          Better finish it before the corona virus that is coming in a year!
          Last edited by gunny11; 05-05-2020, 12:03 AM.
          Gunny
          Aviation Concepts rc

          Comment


          • #66
            Will we see a Maiden at the Spring event?

            Jeremy
            SCCAAA TT TN

            Comment


            • JimD
              JimD commented
              Editing a comment
              Not that soon, hope for maiden at Windy Ridge...depends on my summons for jury duty. Got called for 8-week trial in Federal Grand Jury in Baltimore, Maryland. Will know on March 18th, the day I must appear for jury selection. If I am not picked, then my service is completed and there is no further time required. If I am picked to serve on the jury, then it will be for up to 8-weeks. Just trying to not stress about it too much, but this may alter my entire spring.

          • #67
            Originally posted by JimD View Post
            Not that soon, hope for maiden at Windy Ridge...depends on my summons for jury duty. Got called for 8-week trial in Federal Grand Jury in Baltimore, Maryland. Will know on March 18th, the day I must appear for jury selection. If I am not picked, then my service is completed and there is no further time required. If I am picked to serve on the jury, then it will be for up to 8-weeks. Just trying to not stress about it too much, but this may alter my entire spring.
            Not to mention that you have a TG-3 to build some where in between all that!!! 😃
            TEAM GORGEOUS

            Comment


            • #68

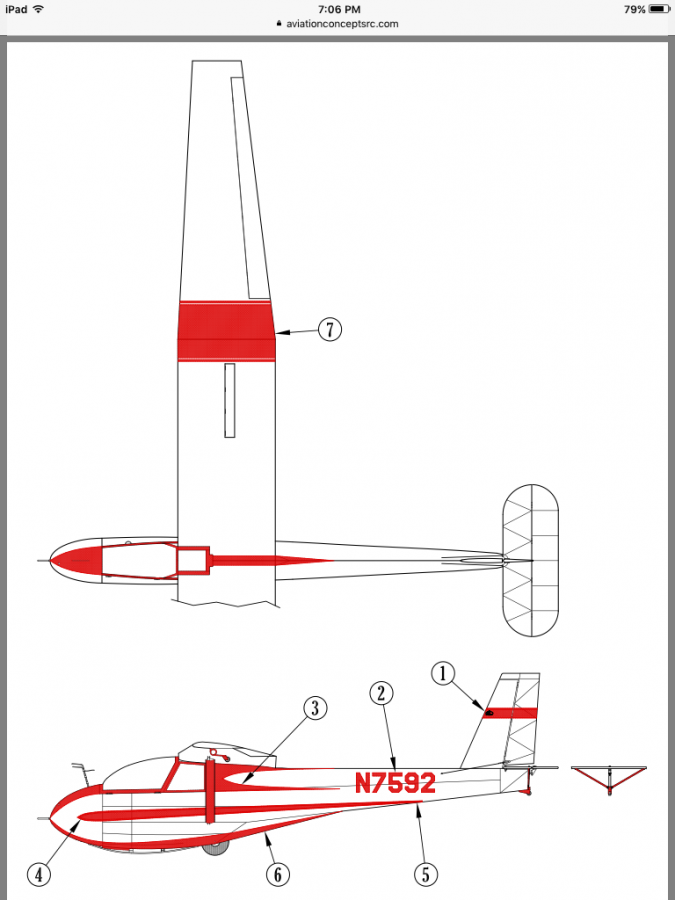

              My color scheme wasn't easy but since I was the first one to do it, it is now a lot easier. Click on the link below and it will bring you into the website. Then go to the Products menu and down to 1/3 scale 2-33. It's near the bottom after the cockpit kit. Pictures, layout dimensions and paint masks.
              Sorry about not having the PDF on this site... File size is too large. And cant get the link to go directly into the article.
              Last edited by gunny11; 04-03-2019, 11:15 PM.
              Gunny
              Aviation Concepts rc

              Comment


              • #69

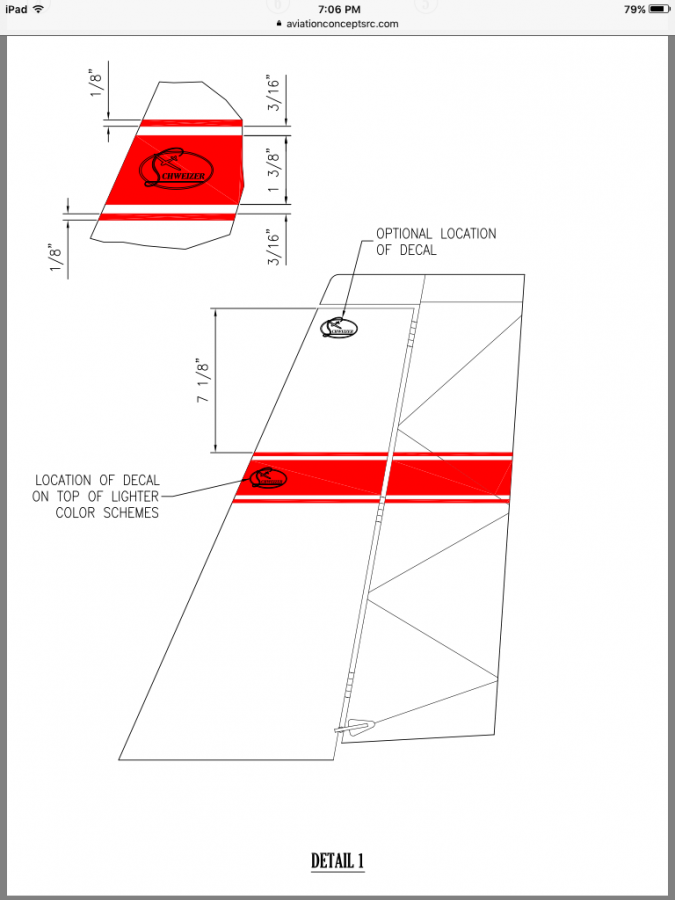

                Just a couple of samples.
                Click image for larger version

Name:	image.png
Views:	181
Size:	282.3 KB
ID:	35407
                Attached Files
                Gunny
                Aviation Concepts rc

                Comment


                • #70

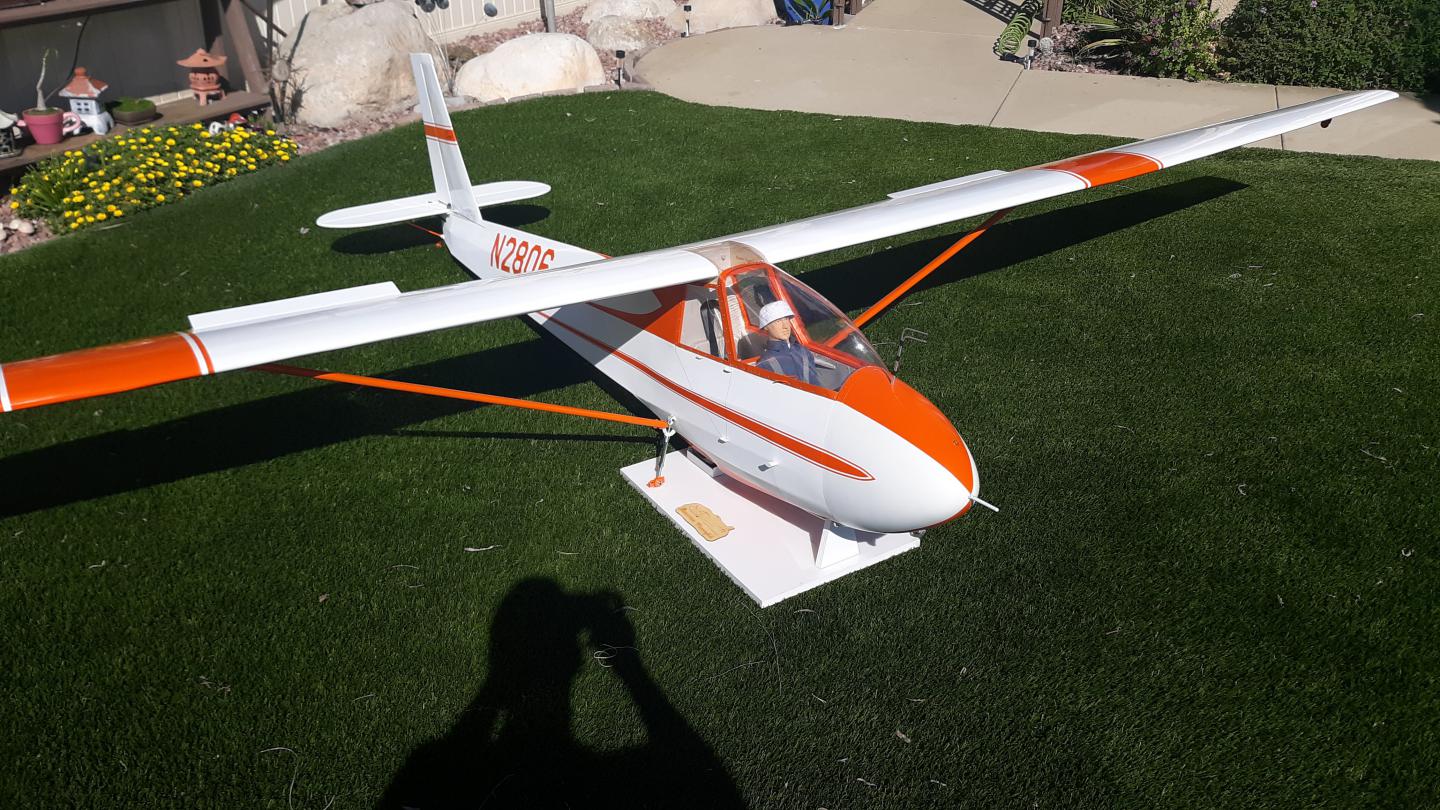

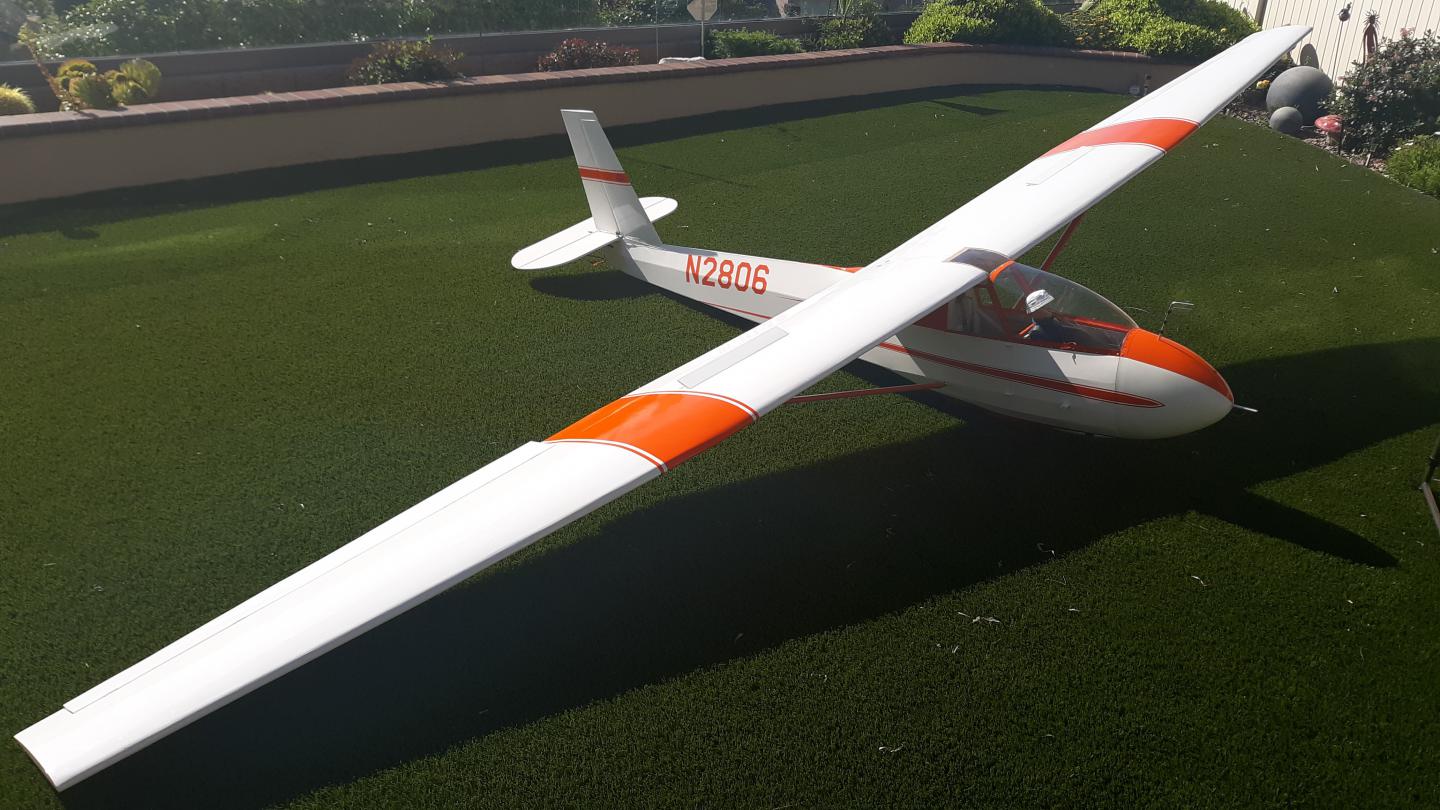

                  I got a nice e mail from Mr. S. Jones from CA. He bought the paint masks earlier this year and finished his beautiful 1/3 scale 2-33. Looks just like mine! I told him to use a different N number LOL.

                  Outstanding Job and he even has an Aviation Concepts cockpit kit in there!

                  Click image for larger version

Name:	IMG_1561.JPG
Views:	160
Size:	159.0 KB
ID:	40946
                  Click image for larger version

Name:	IMG_1562.JPG
Views:	156
Size:	234.1 KB
ID:	40947

                  Gunny
                  Aviation Concepts rc

                  Comment


                  • #71
                    Originally posted by Tom View Post

                    Not to mention that you have a TG-3 to build some where in between all that!!! 😃
                    Yes Tom...

                    And my last post in this thread was 2/21/2019...

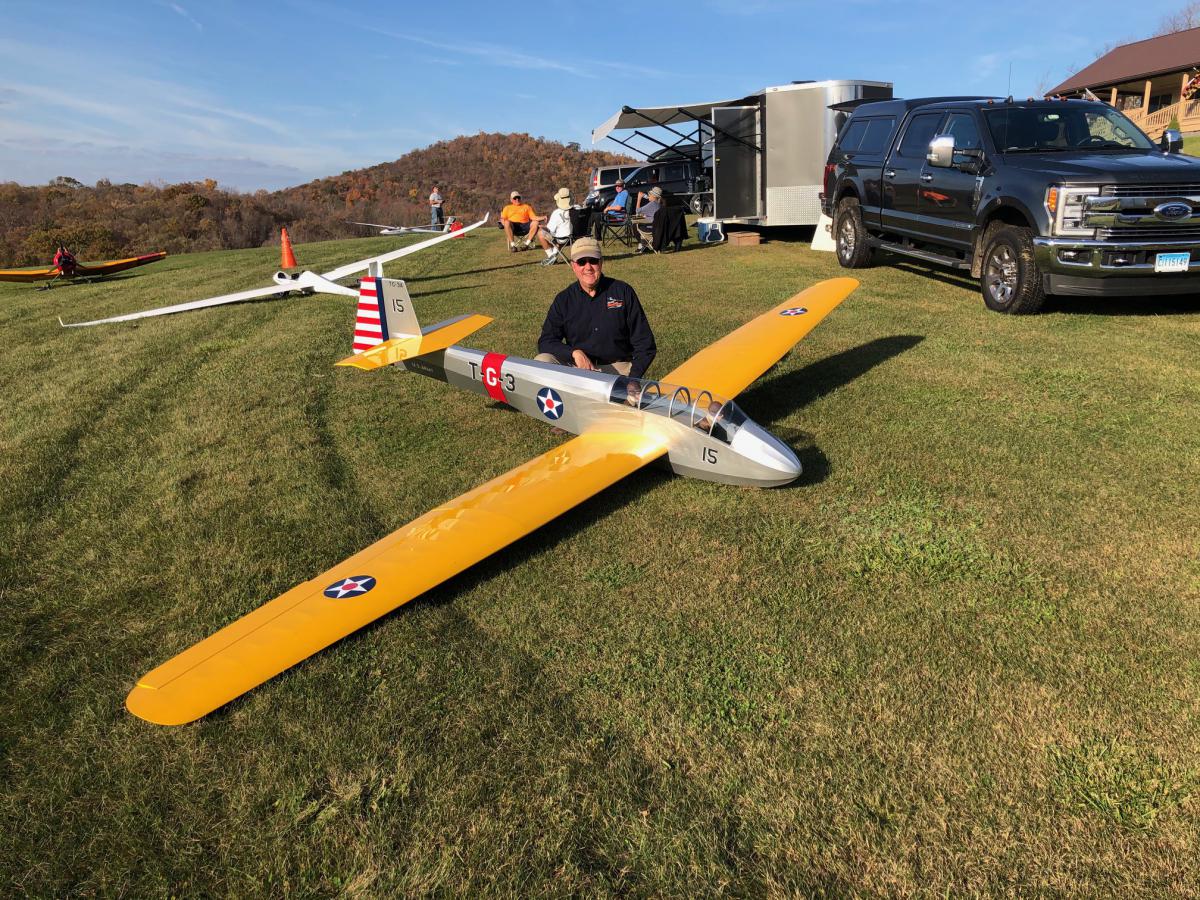

                    Just to get everyone up to speed, I did build and fly the TG-3 since then.

                    Click image for larger version

Name:	IMG_2056[4118].jpg
Views:	118
Size:	279.5 KB
ID:	41018

                    And before that, I built a Cmelak and towed most of the 2019 season with it.

                    Click image for larger version

Name:	IMG_1095[4120].JPG
Views:	126
Size:	263.3 KB
ID:	41016

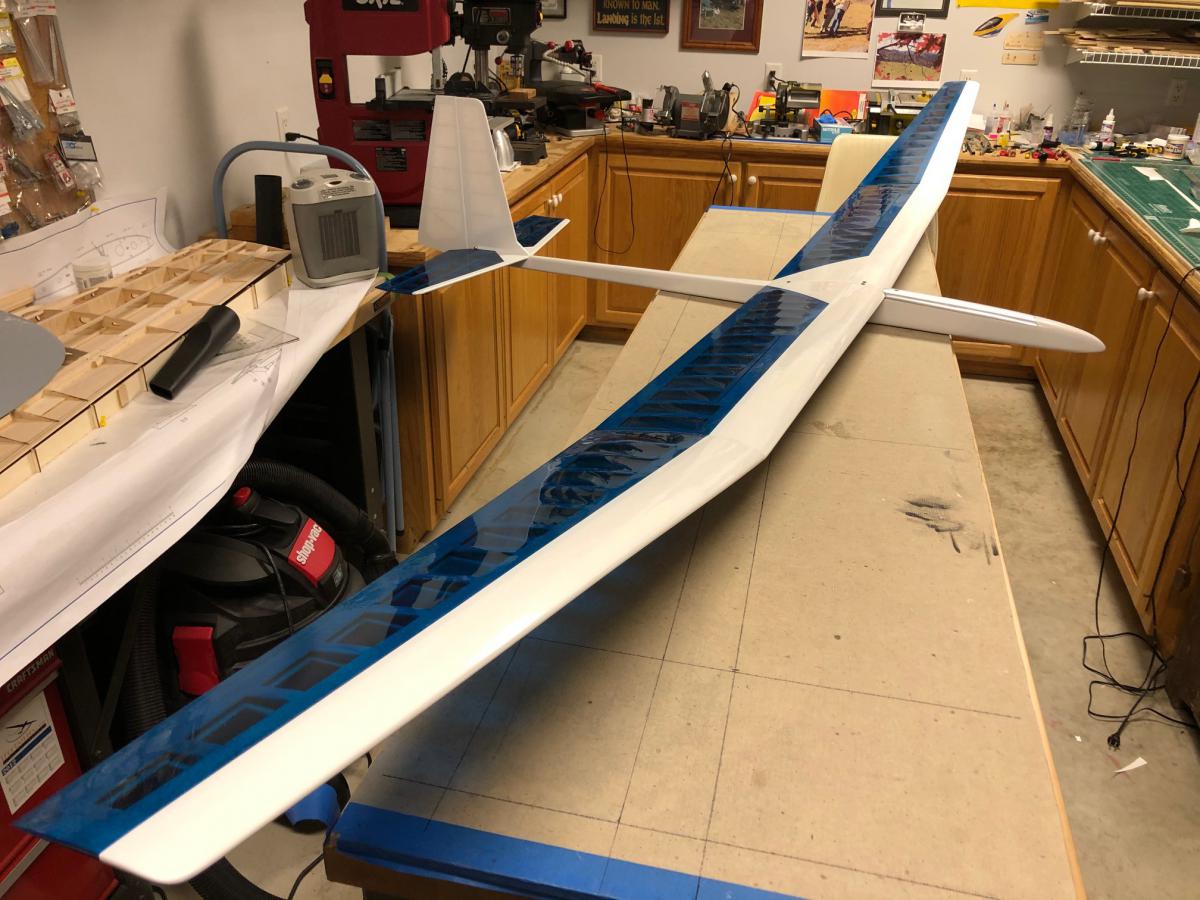

                    And then I built the Peter Goldsmith Foxbat Nostalgia Class sailplane (have not flown it yet).

                    Click image for larger version

Name:	IMG_3092[4128].jpg
Views:	119
Size:	139.2 KB
ID:	41014

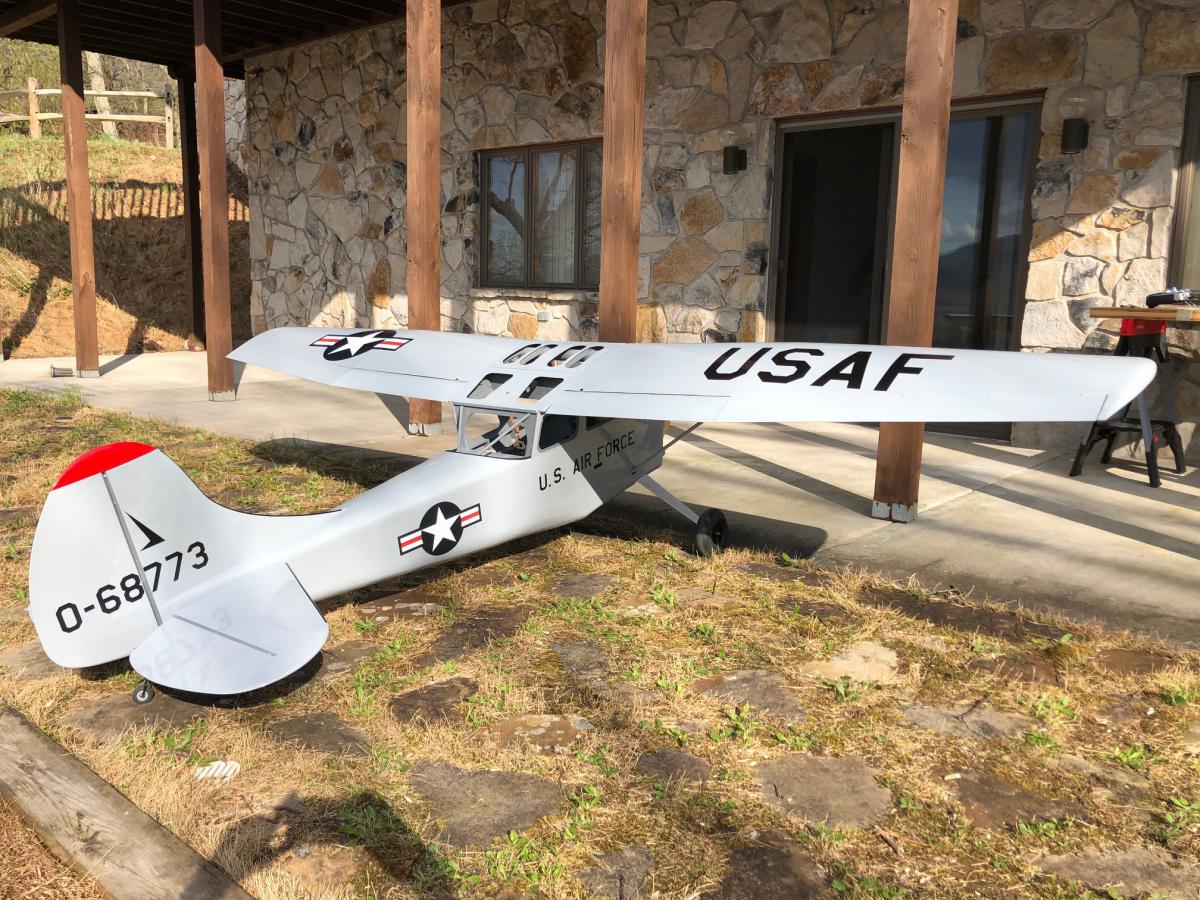

                    And I built the newest of Peter's Kits, the Cessna L-19, very nearly completed now.

                    Click image for larger version

Name:	IMG_3038[4126].jpg
Views:	123
Size:	230.4 KB
ID:	41017

                    Needed to break-in the engine for the L-19, so I rebuilt my Bidule 170 and have gotten 30 minutes on the engine so far.

                    Click image for larger version

Name:	Bidule 004.jpg
Views:	121
Size:	326.6 KB
ID:	41019

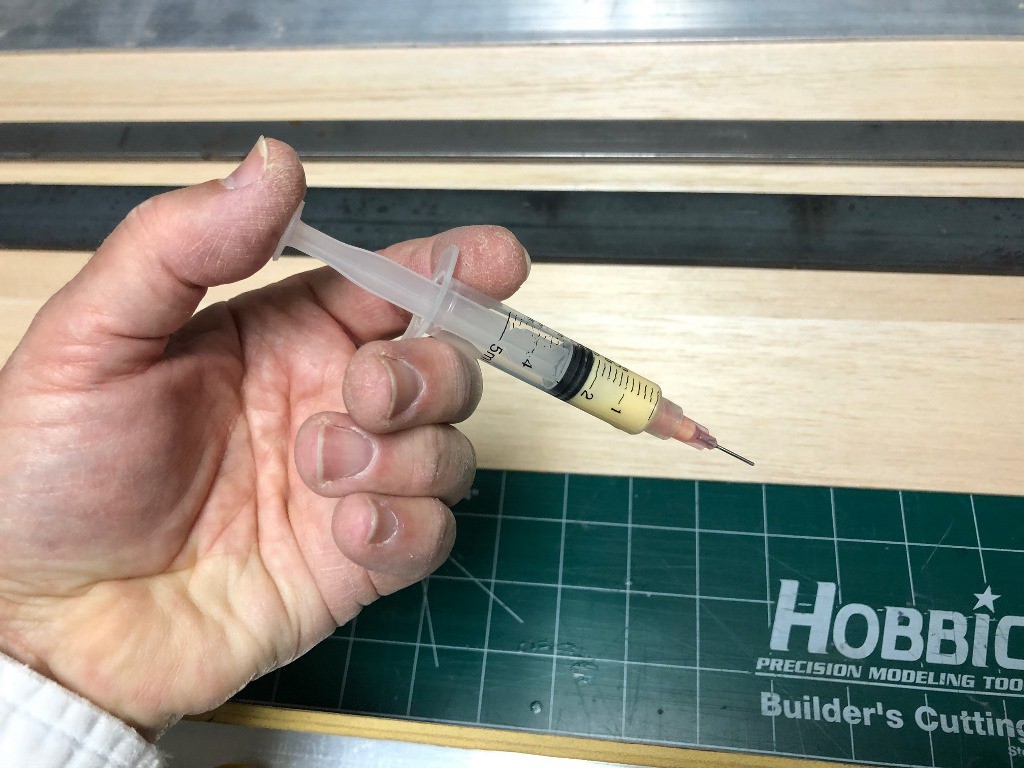

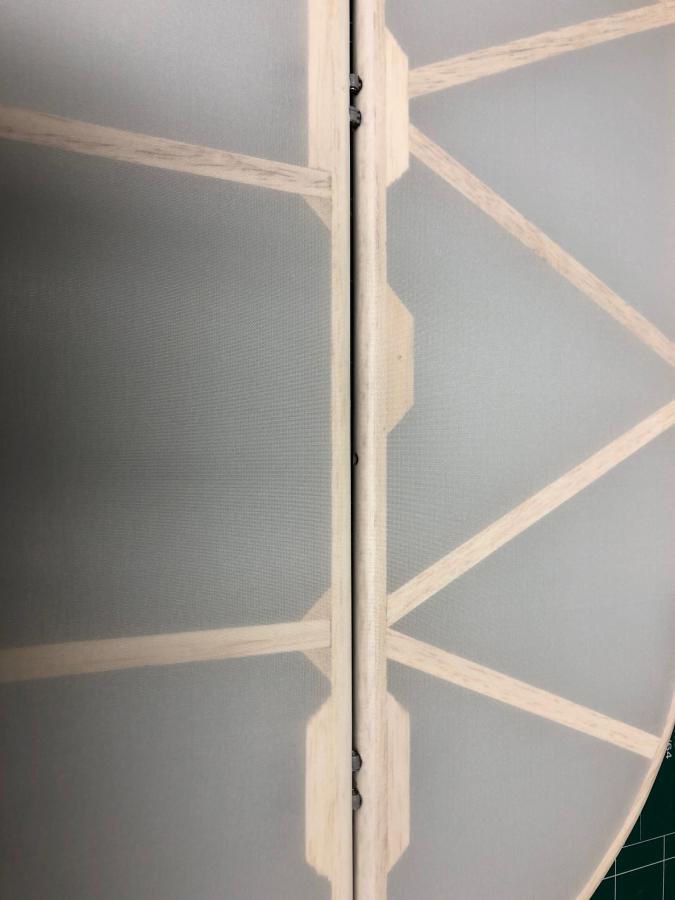

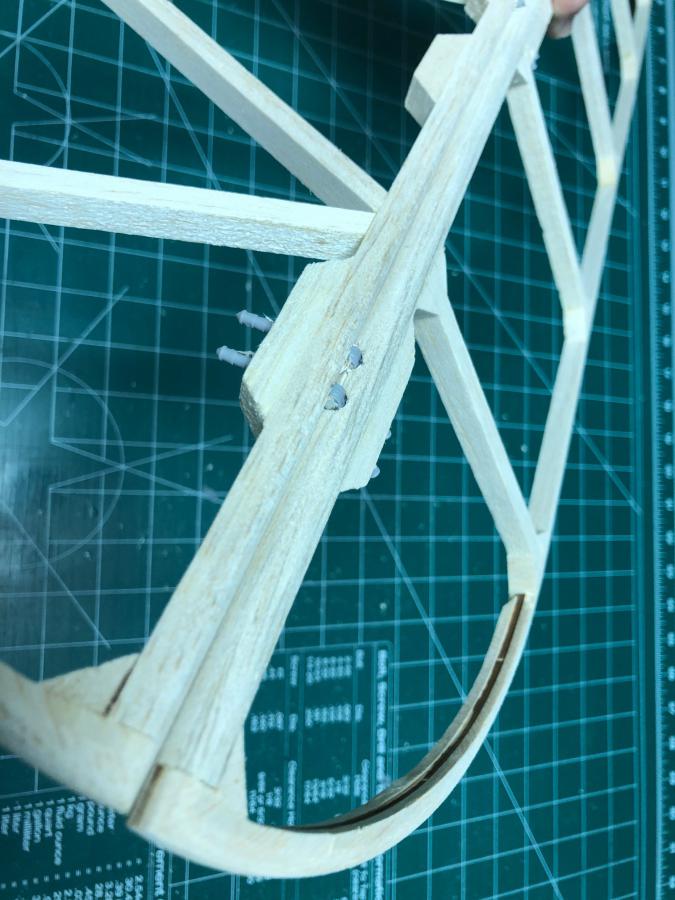

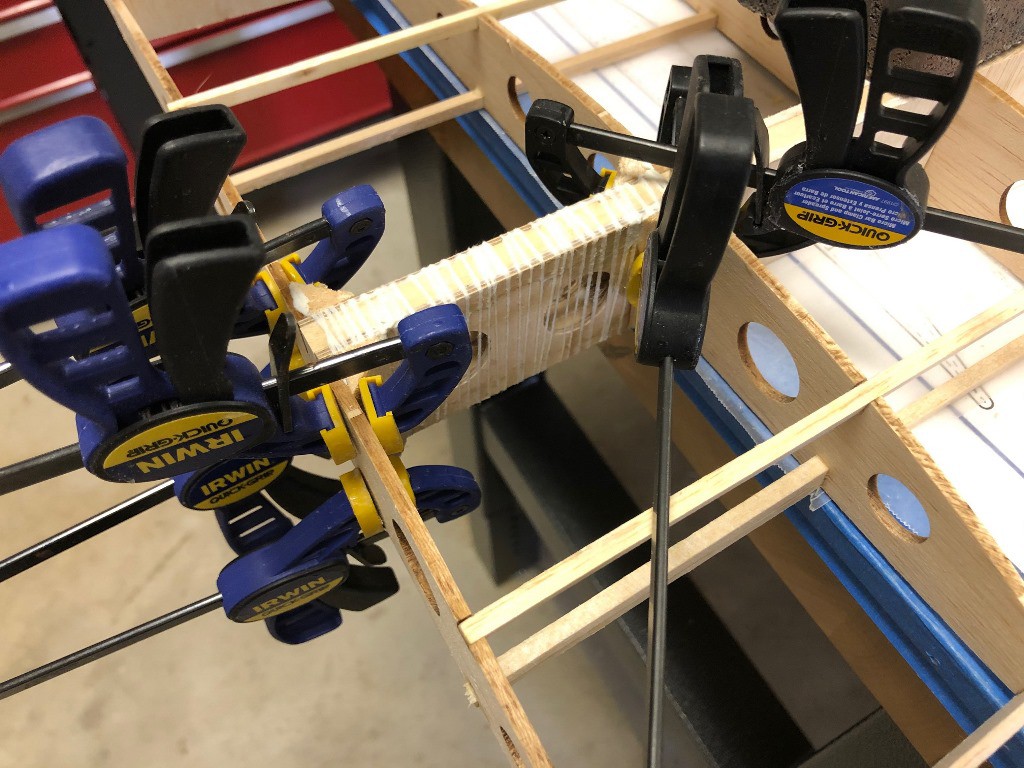

                    Anyway...finally got back to the 2-33. Decided to use Robart hinge points instead of the DuBro flat hinges Gunny shows on his plans.

                    Click image for larger version

Name:	61022918182__754E573D-1547-4156-BA7A-E49F3696E048[4110].JPG
Views:	143
Size:	82.2 KB
ID:	41008

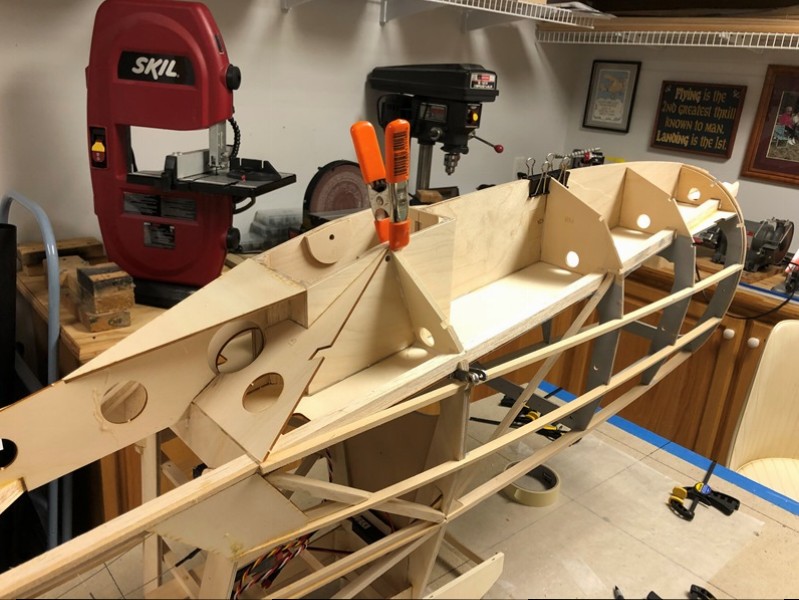

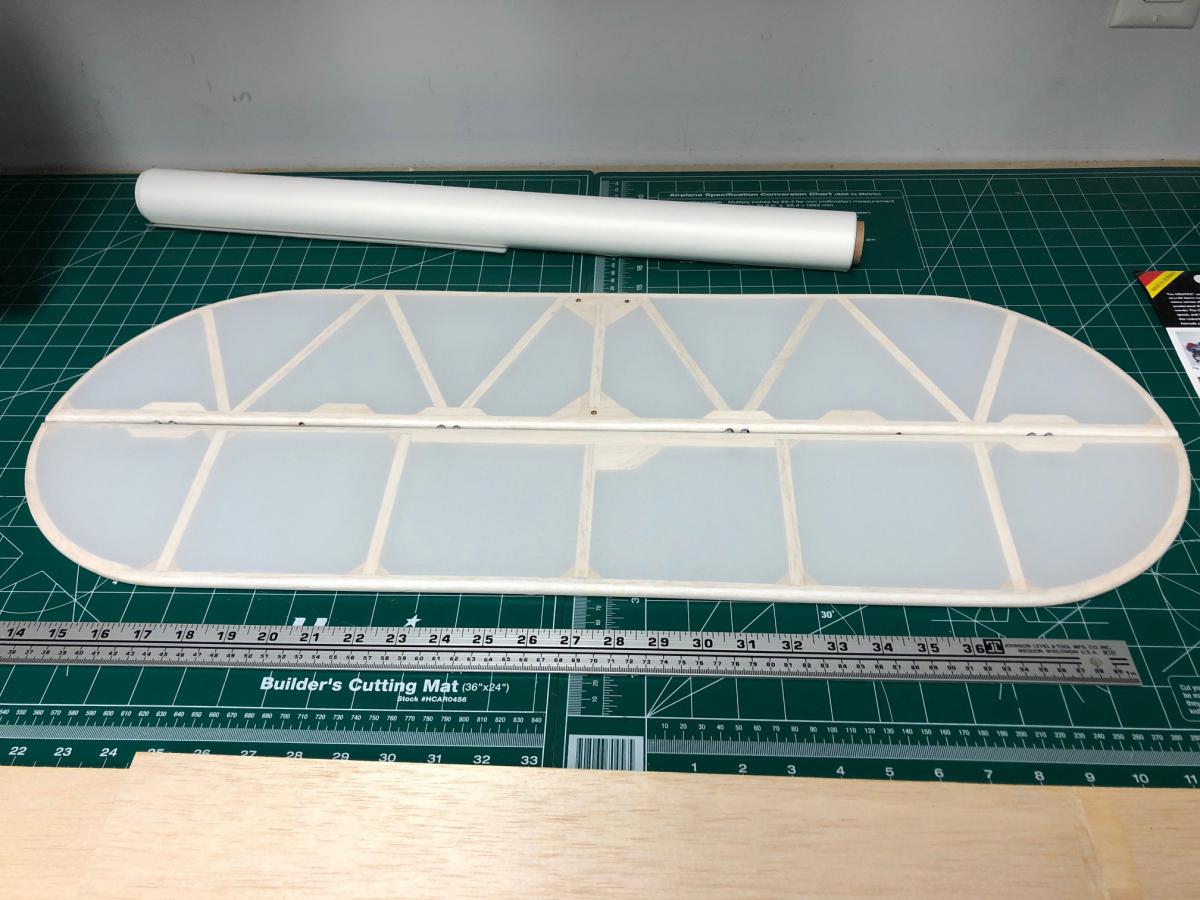

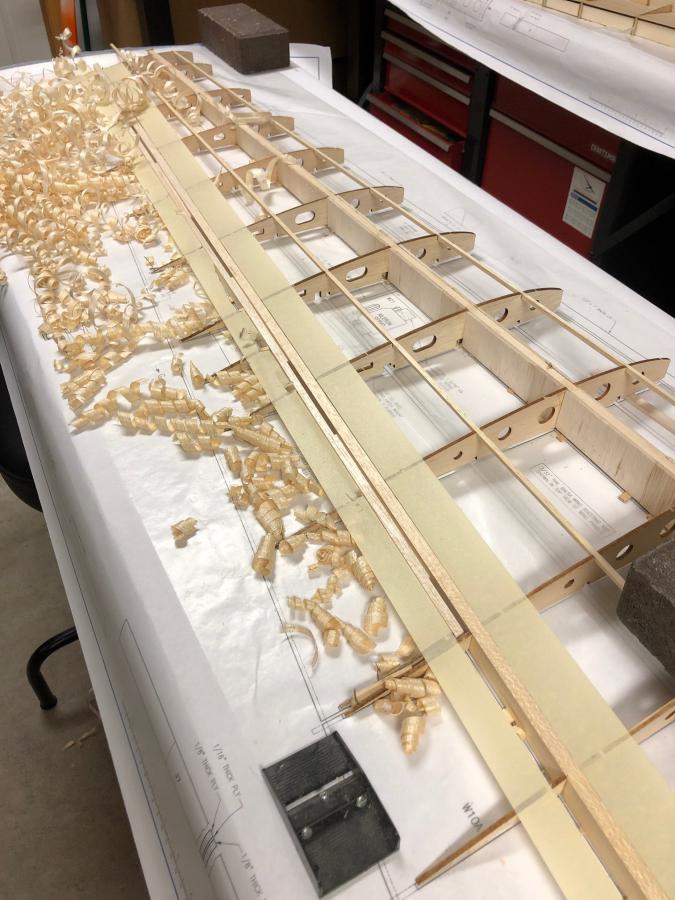

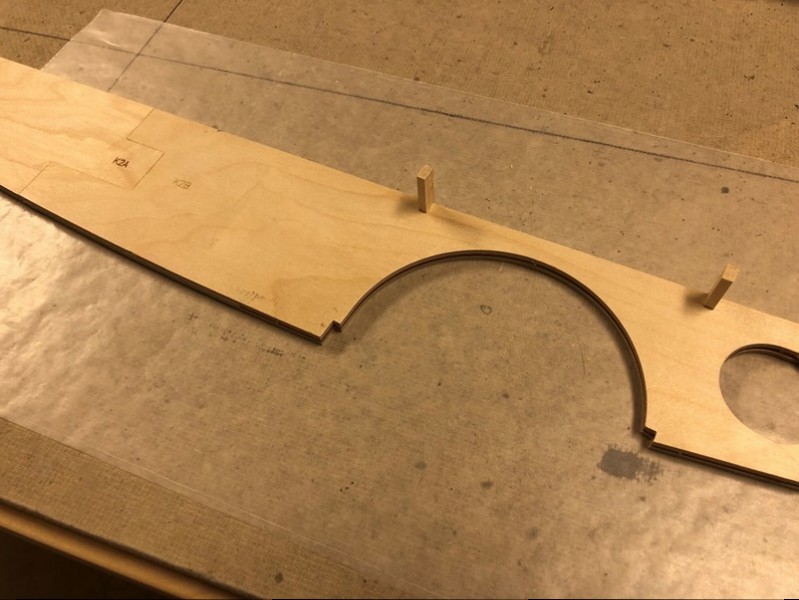

                    One of the things that had me stuck was the fabric covering for the fuselage. Well, the wait paid off...Oratex came to the USA market and we obtained a roll in "natural" from Swiss1 at The Model Box. Absolutely love this stuff!!!

                    Click image for larger version

Name:	61046583002__1542E6EB-86F7-40AF-94AC-D4860D34EB2D[4112].JPG
Views:	121
Size:	46.7 KB
ID:	41010

                    Click image for larger version

Name:	61048273192__B6D457C0-8C87-4A88-A436-75940BDF98A2[4114].JPG
Views:	126
Size:	126.9 KB
ID:	41009

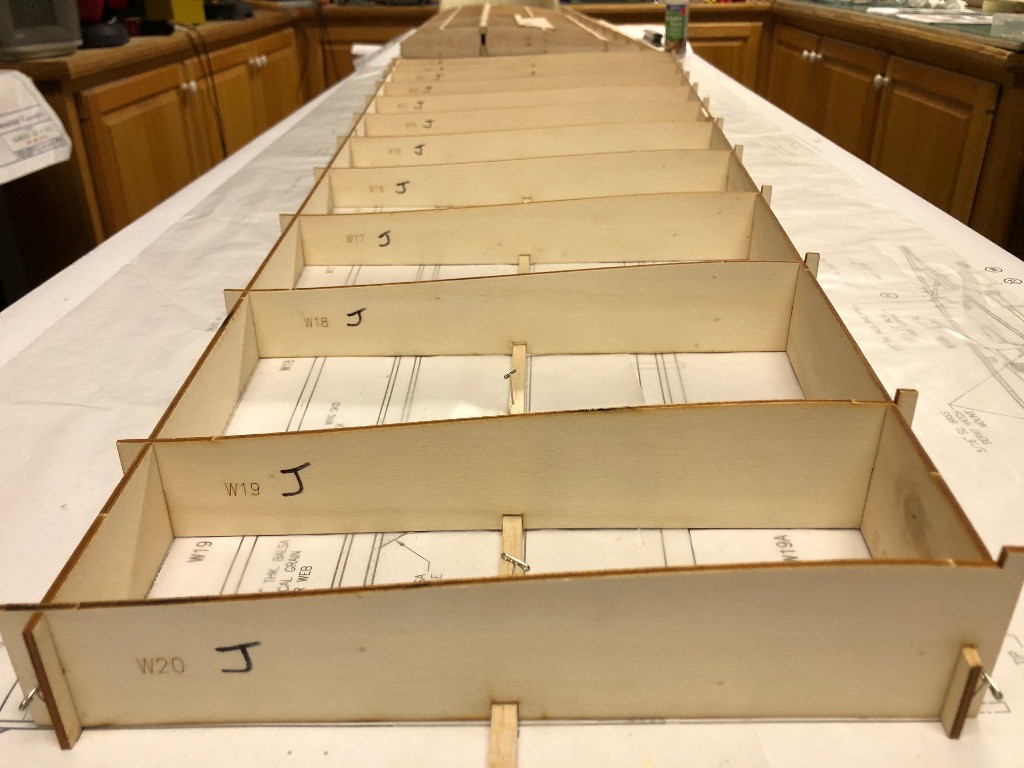

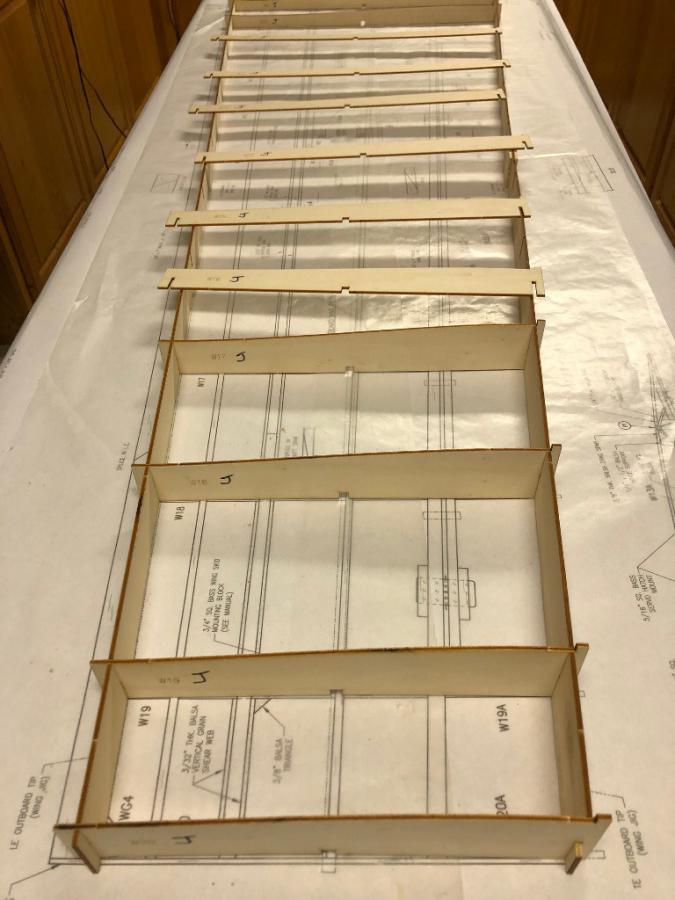

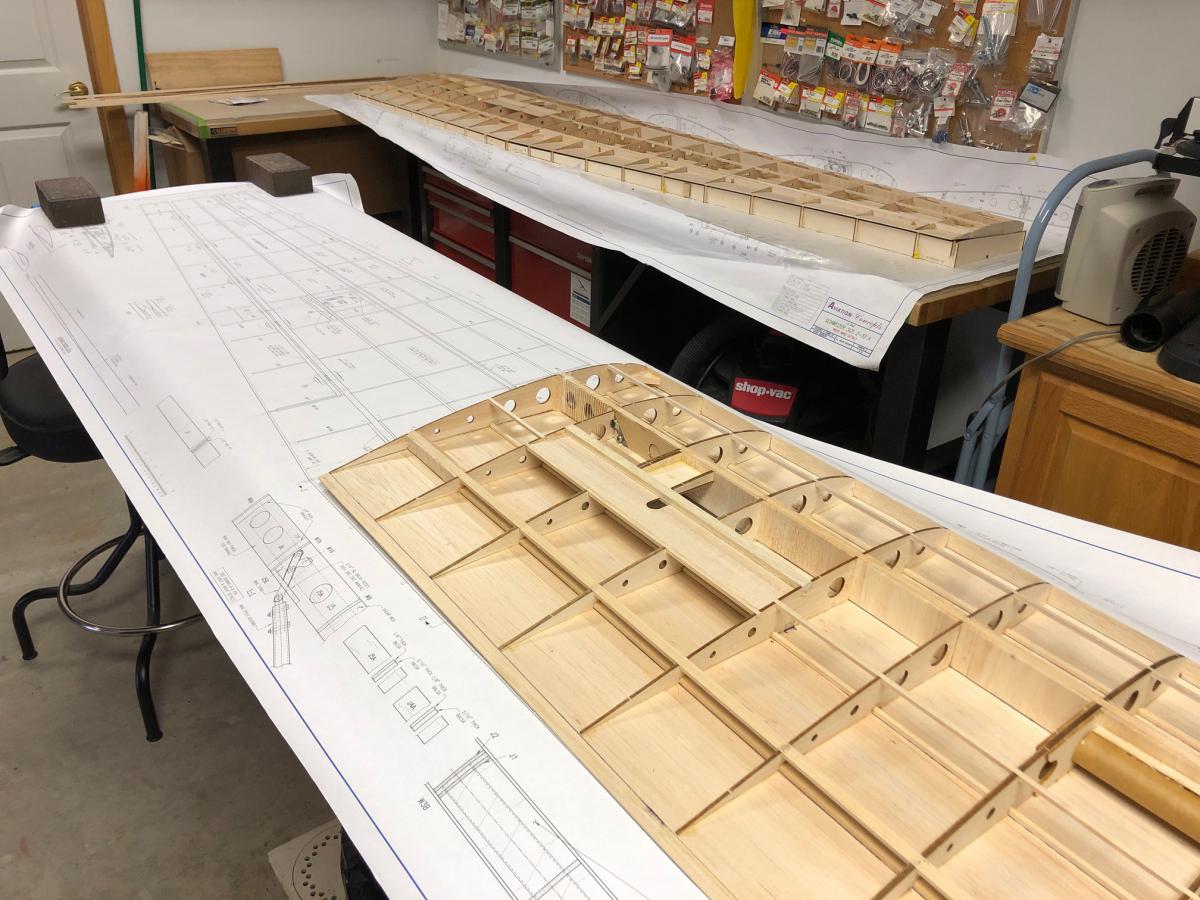

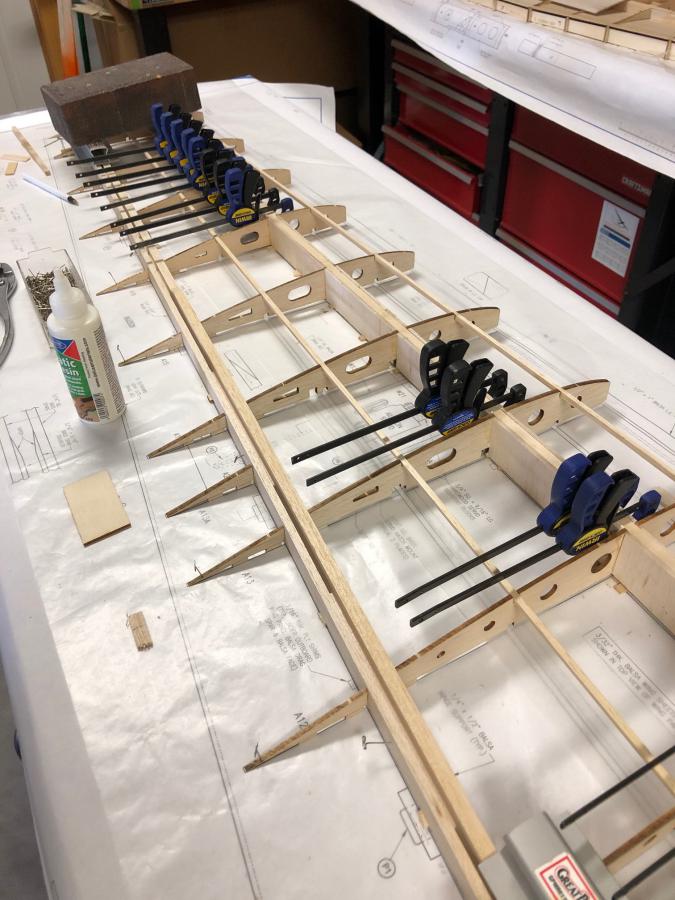

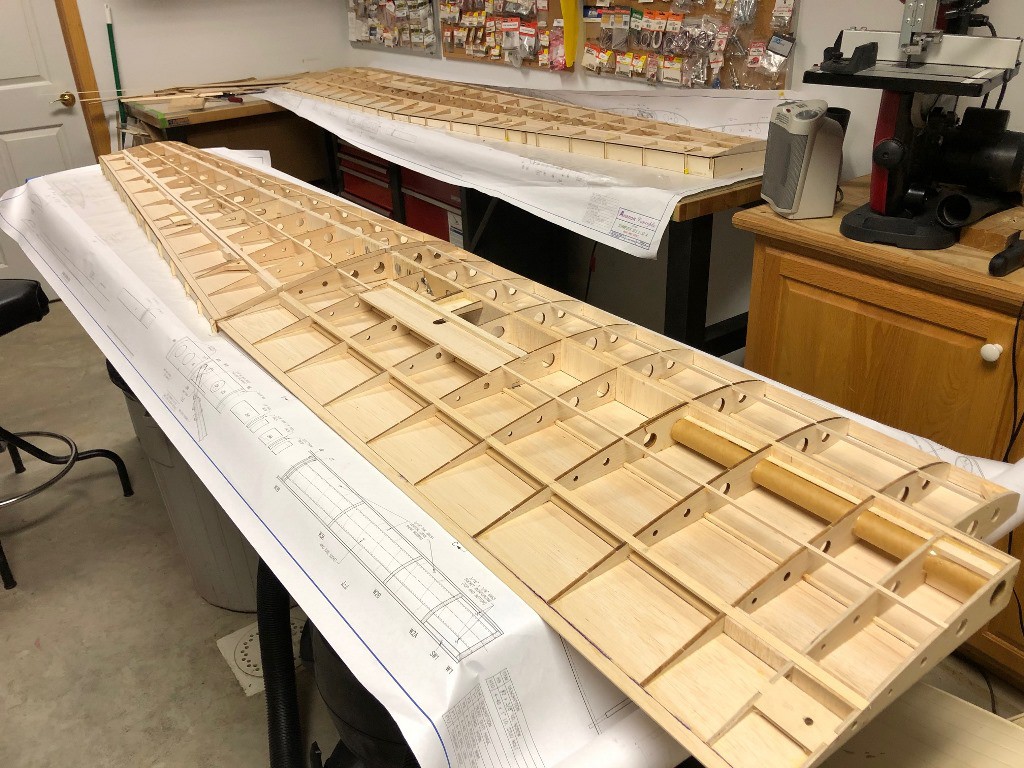

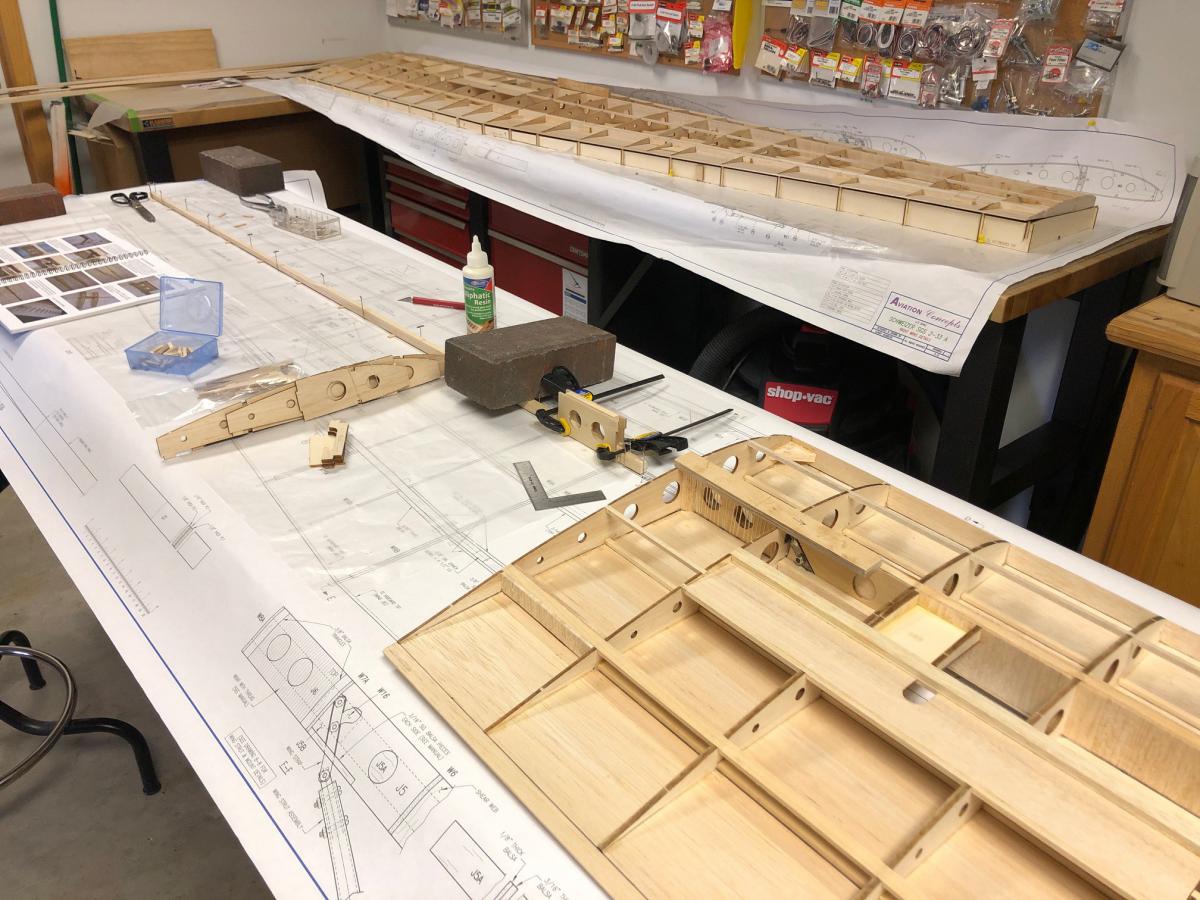

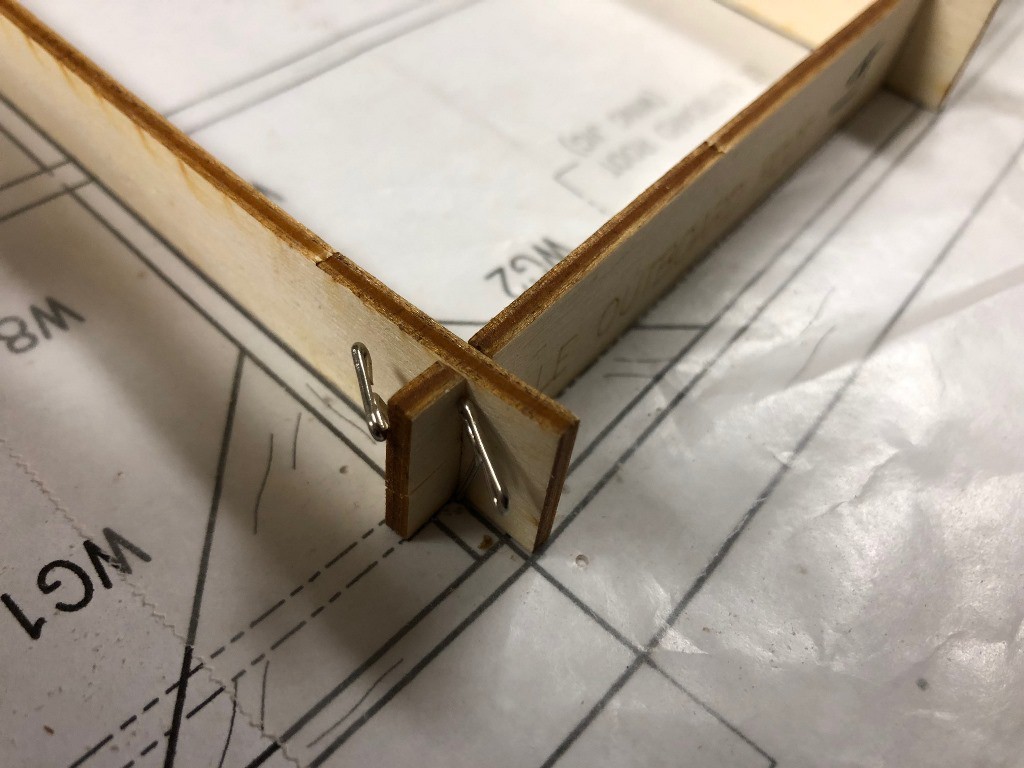

                    I had three of the four wing panels well underway when I got stopped. Had to clear the workbench and sort things out to get setup to finish the last outer panel.

                    Click image for larger version

Name:	61046611868__399B7D45-B272-4D53-AA92-3B300743EC59[4134].JPG
Views:	124
Size:	153.2 KB
ID:	41011

                    Click image for larger version

Name:	61048267631__C1D313CD-E027-471B-9F43-6B263D4D8D25[4136].JPG
Views:	121
Size:	157.8 KB
ID:	41012
                    Click image for larger version

Name:	IMG_3214[4138].jpg
Views:	118
Size:	90.9 KB
ID:	41015



                    Click image for larger version

Name:	61059541702__24E9A7E1-571D-4880-9A39-DB7514C4779E[4116].JPG
Views:	121
Size:	90.8 KB
ID:	41013


                    Okay...back to the workshop!!!!!

                    A Site for Soar Eyes

                    Comment


                    • #72
                      Wow! He's back on it! Love the idea of the dual smaller hinge points. The coving job on that stab looks super!
                      I noticed one thing... How did you manage not to get any balsa curly Q's on the floor? Lol.
                      Gunny
                      Aviation Concepts rc

                      Comment


                      • #73

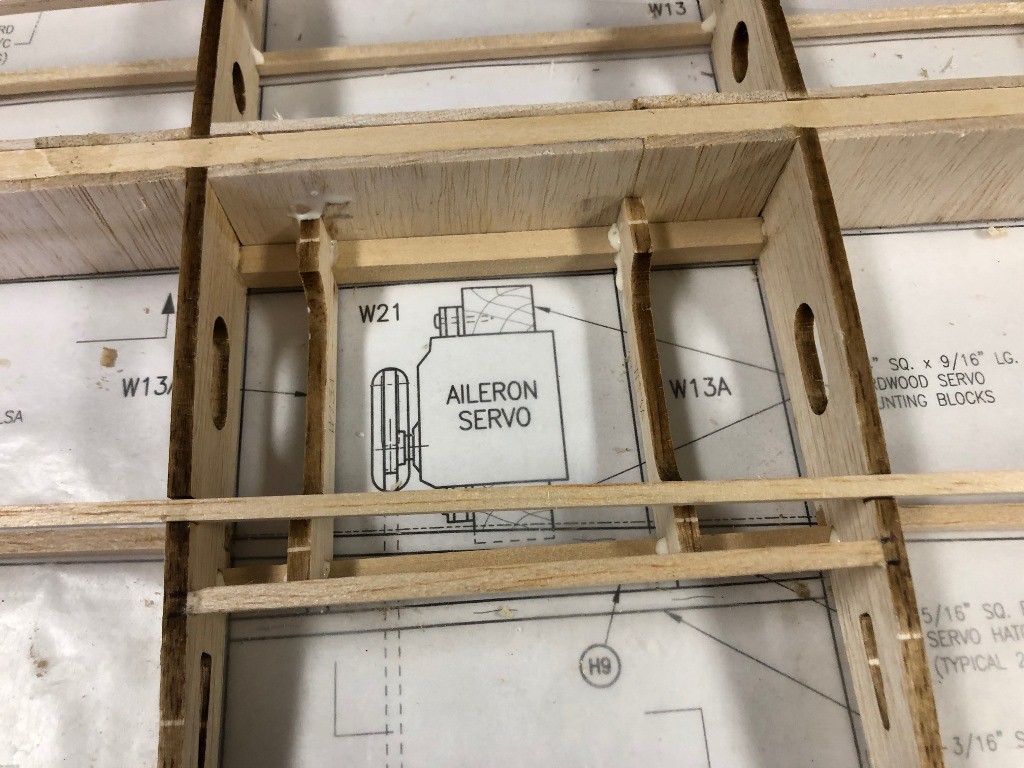

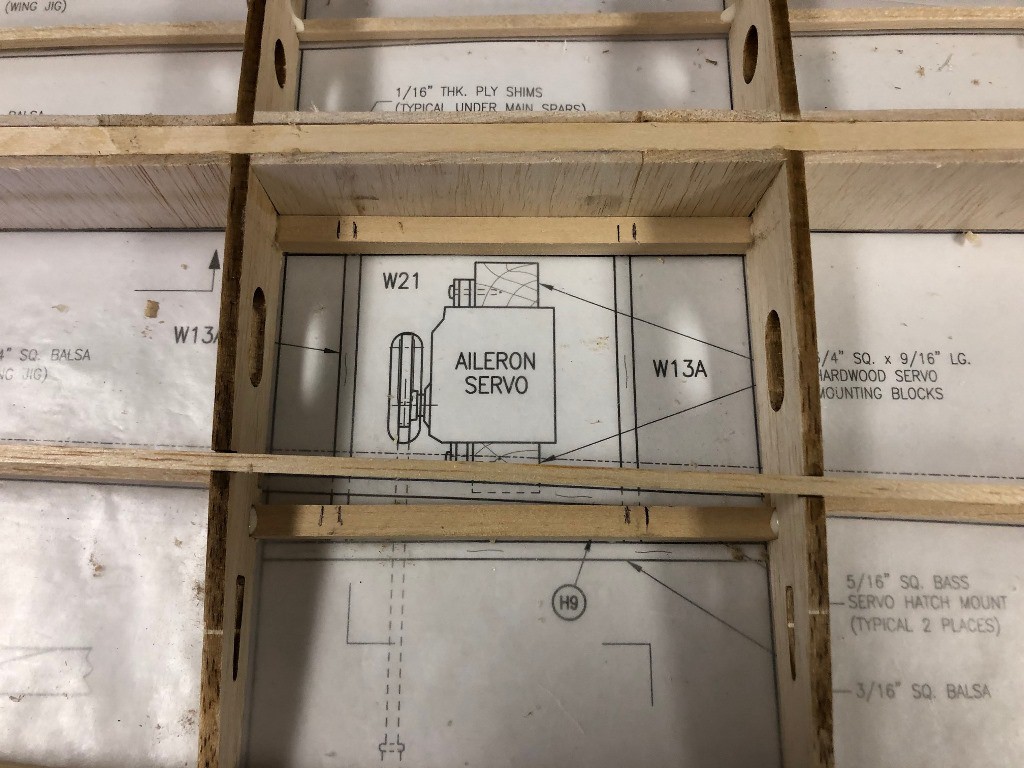

                        Finished up some details on the rib and spar structure...aileron servo mount area and wrap for spar box joiner area.

                        Click image for larger version  Name:	IMG_3228.jpg Views:	0 Size:	176.8 KB ID:	41060

                        Click image for larger version

Name:	image_16405.jpg
Views:	89
Size:	188.6 KB
ID:	41066



                        Click image for larger version  Name:	IMG_3230.jpg Views:	0 Size:	201.3 KB ID:	41065

                        Next thing is getting the sheeting jig assembled.

                        Click image for larger version  Name:	IMG_3235.jpg Views:	0 Size:	69.3 KB ID:	41062

                        Click image for larger version  Name:	IMG_3236.jpg Views:	0 Size:	136.9 KB ID:	41063

                        Click image for larger version  Name:	IMG_3237.jpg Views:	0 Size:	131.4 KB ID:	41061

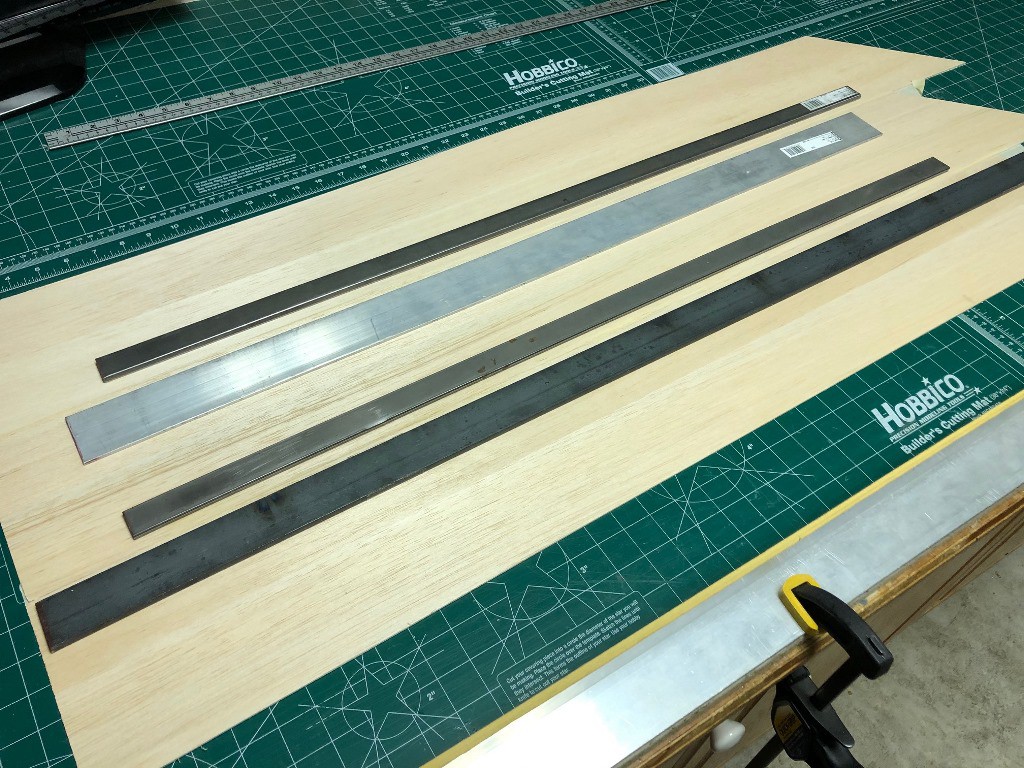

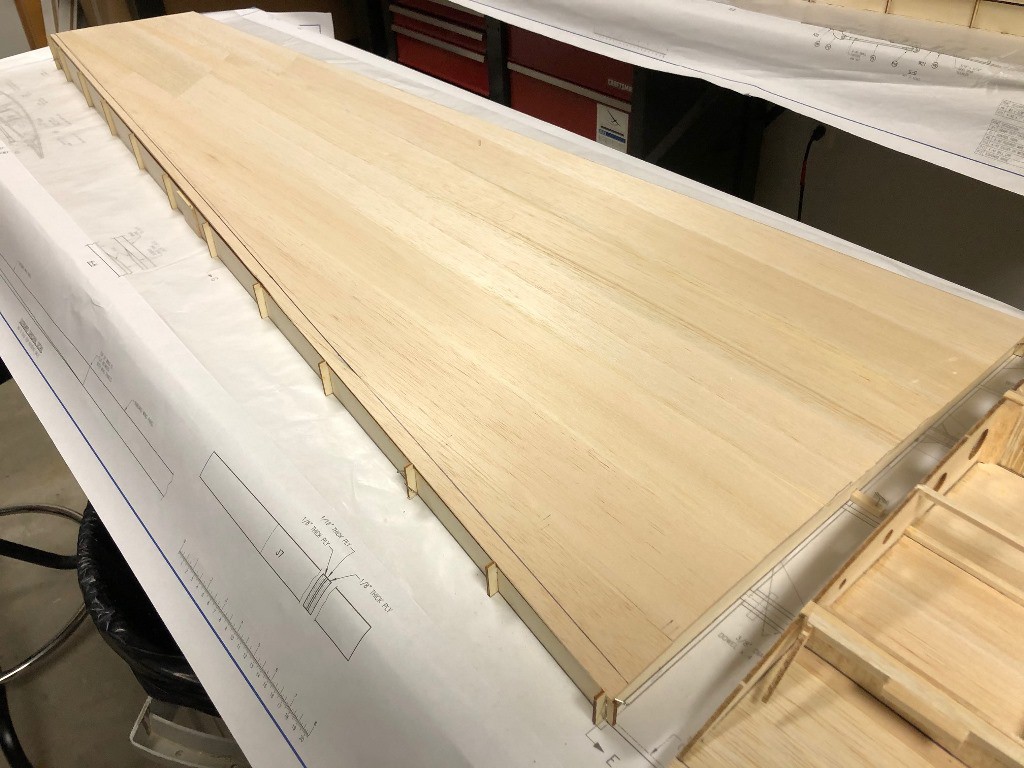

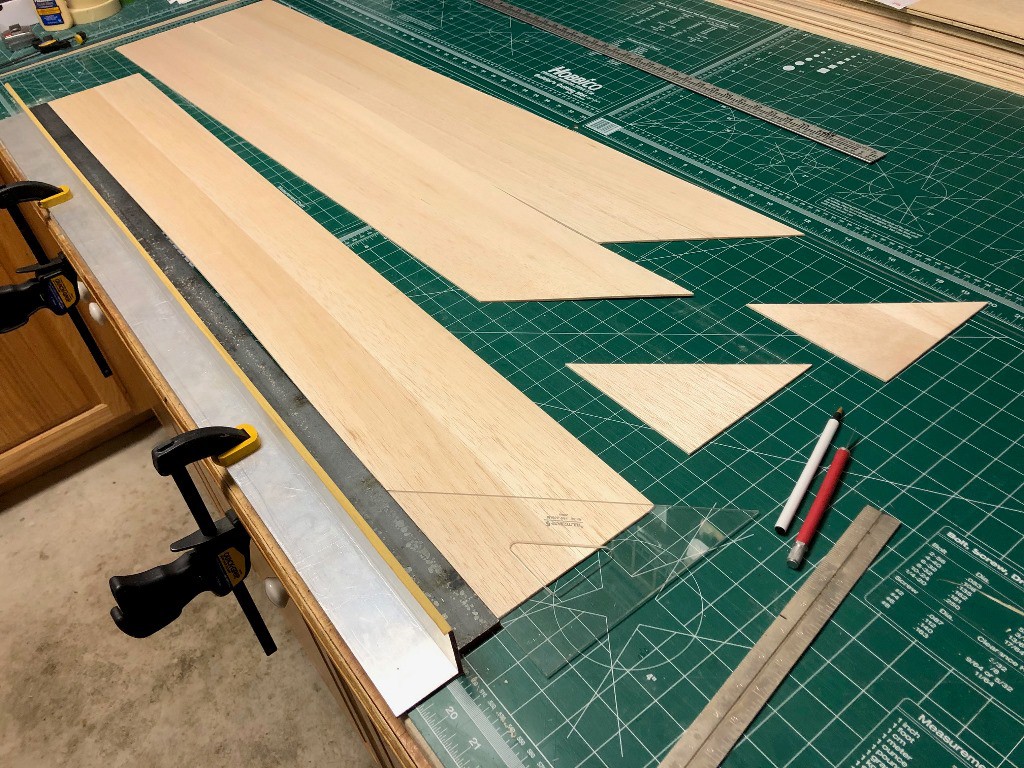

                        Then we started truing the edges and gluing up the sections of 3/32" balsa boards to make the wing skins. Note the 4' aluminum L with sandpaper attached. edge of balsa board is run along the sandpaper to true the edge. Boards are taped together with masking tape, then the joint is bent open and a needle nose glue dispenser used to apply a small amount of glue to the joint. Boards are then held down flat to the workbench with lengths of steel weight bars while glue dries.

                        Click image for larger version  Name:	IMG_3239.jpg Views:	0 Size:	296.4 KB ID:	41069

                        Click image for larger version  Name:	IMG_3240.jpg Views:	0 Size:	163.7 KB ID:	41064

                        Click image for larger version  Name:	IMG_3241.jpg Views:	0 Size:	275.1 KB ID:	41068
                        Attached Files
                        A Site for Soar Eyes

                        Comment


                        • #74

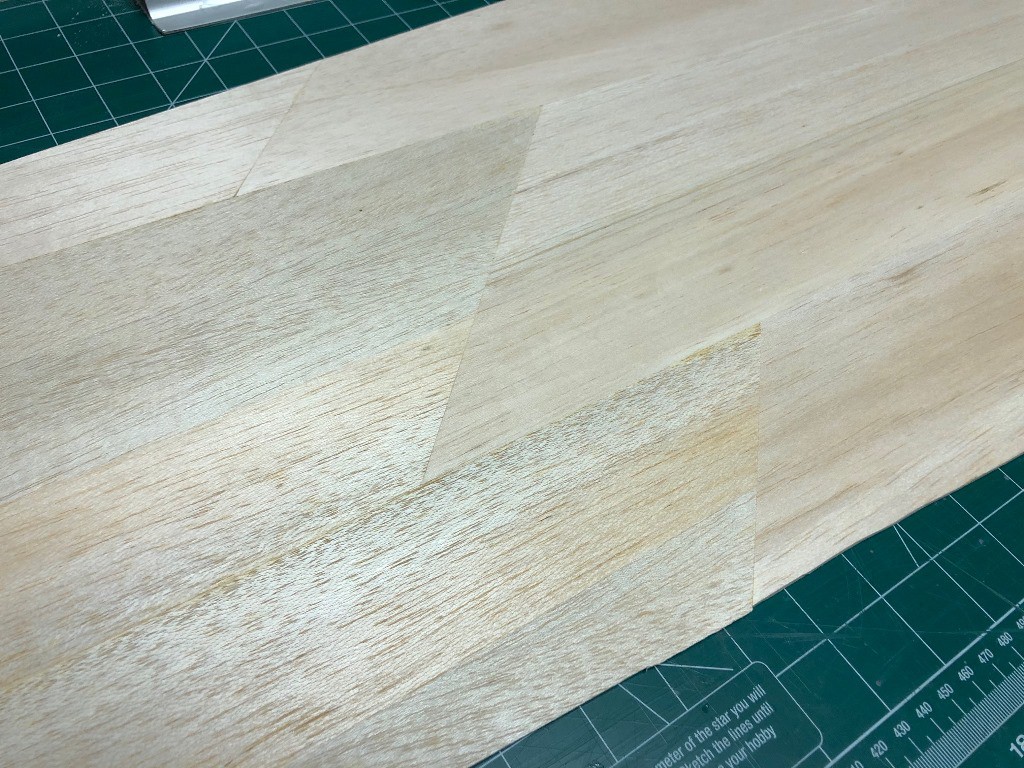

                          Masking tape pealed away and joints sanded.

                          Click image for larger version

Name:	IMG_3258.jpg
Views:	74
Size:	254.0 KB
ID:	41079

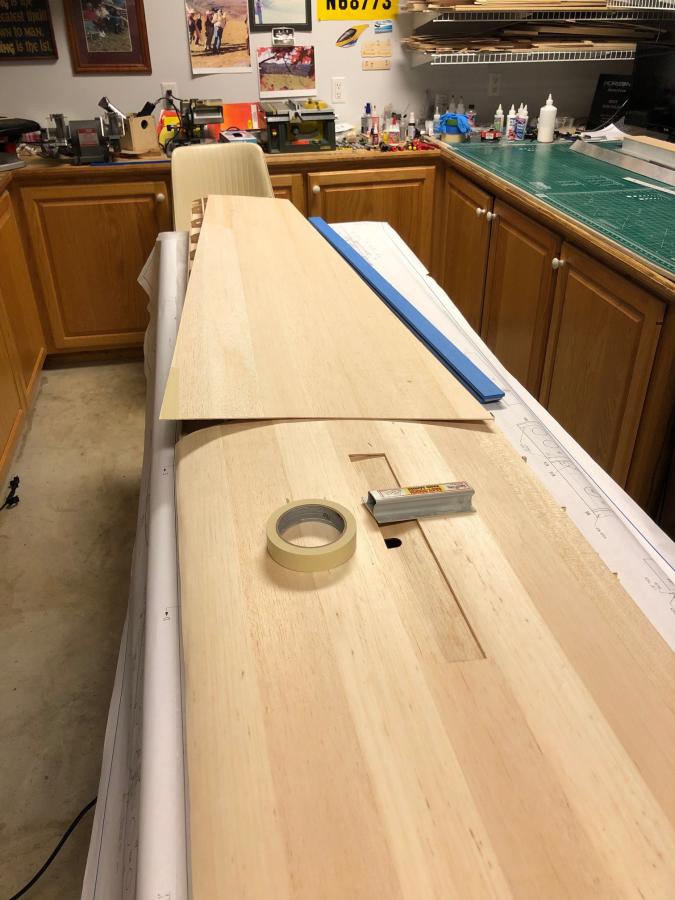

                          Skin trimmed to size and placed on jig.

                          Click image for larger version

Name:	IMG_3259.jpg
Views:	82
Size:	166.9 KB
ID:	41078

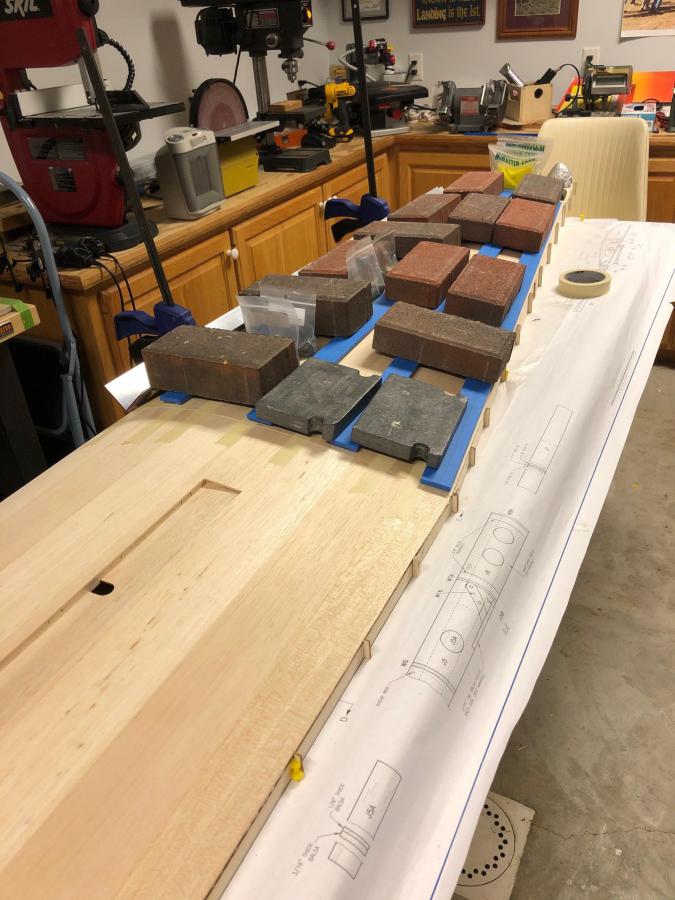

                          Rib and spar assembly placed on top of skin in jig.

                          Click image for larger version

Name:	IMG_3260.jpg
Views:	69
Size:	76.5 KB
ID:	41080

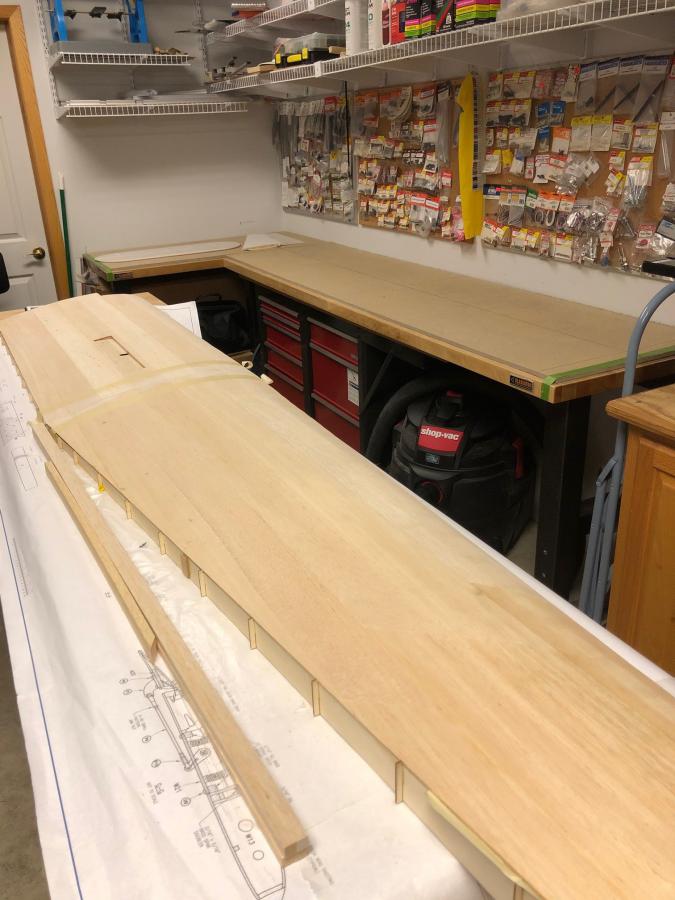

                          Both right and left wings are now at a similar point of construction.

                          Click image for larger version

Name:	IMG_3261.jpg
Views:	69
Size:	239.1 KB
ID:	41082

                          Time for an inspection by the governing authorities!

                          Click image for larger version

Name:	IMG_3262.jpg
Views:	69
Size:	233.5 KB
ID:	41081

                          A Site for Soar Eyes
