  • #46
    These 1/3 scale kits are back in stock! Building season is upon us now!

    Gunny
    Aviation Concepts rc

    Comment


    • #47
      Please keep designing great Schweizers ...

      Comment


      • gunny11
        gunny11 commented
        Editing a comment
        Ps, I love the scale grass clippings on the nose..

    • #48
      Thanks David, welcome to the forum! Nice shot of your #5.
      I really enjoy flying mine a lot....

      p.s. David's 1/3 scale was the first one to take flight in Canada. 😀
      Gunny
      Aviation Concepts rc

      Comment


      • #49
        Before completing the bottom section of the fuselage (and while it will still flat on the bench), we are moving on to the wings. Once the wings are completed to the point that they can be set on top of the fuselage, the holes for the wing bolts can be drilled. This process is a lot easier with the fuselage sitting flat on the work surface.

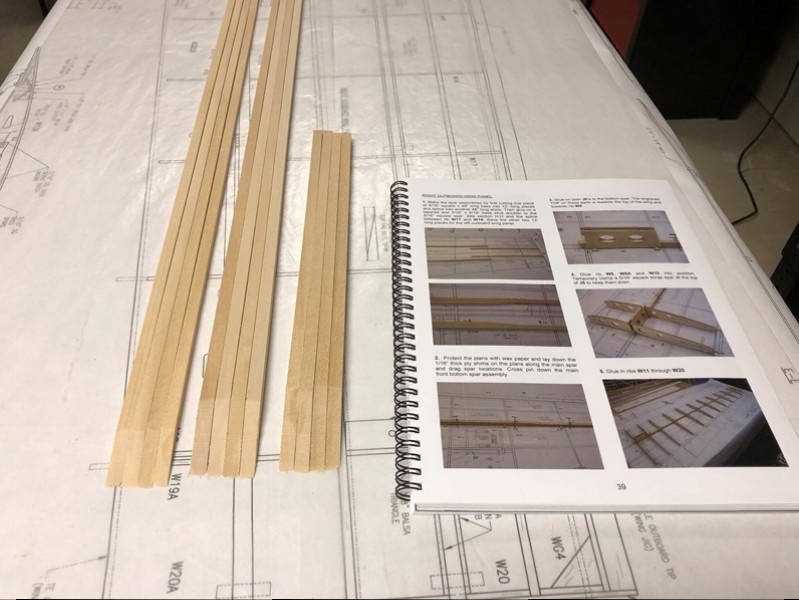

        Plans were attached to the work surface and covered with wax paper. Next, we located the parts necessary to start the wing build.

        Click image for larger version

Name:	IMG_6627.JPG
Views:	337
Size:	85.0 KB
ID:	32821

        A Site for Soar Eyes

        Comment


        • #50

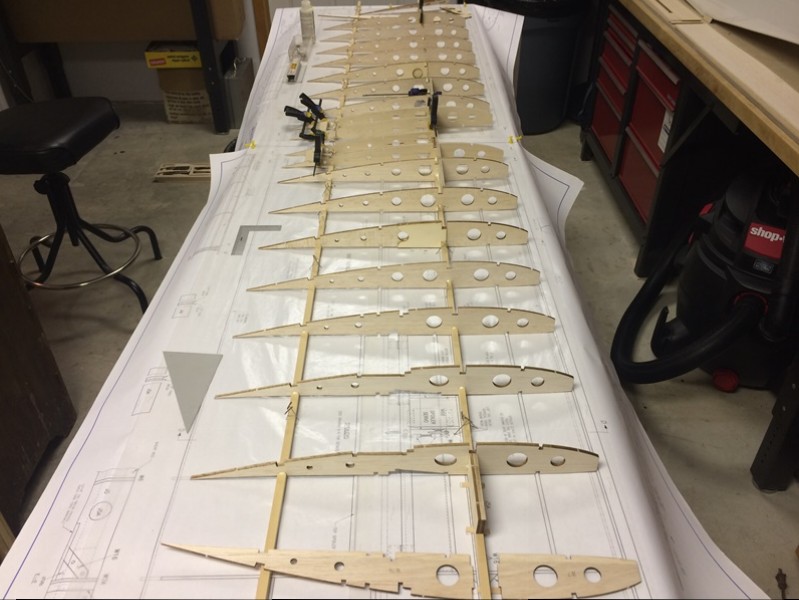

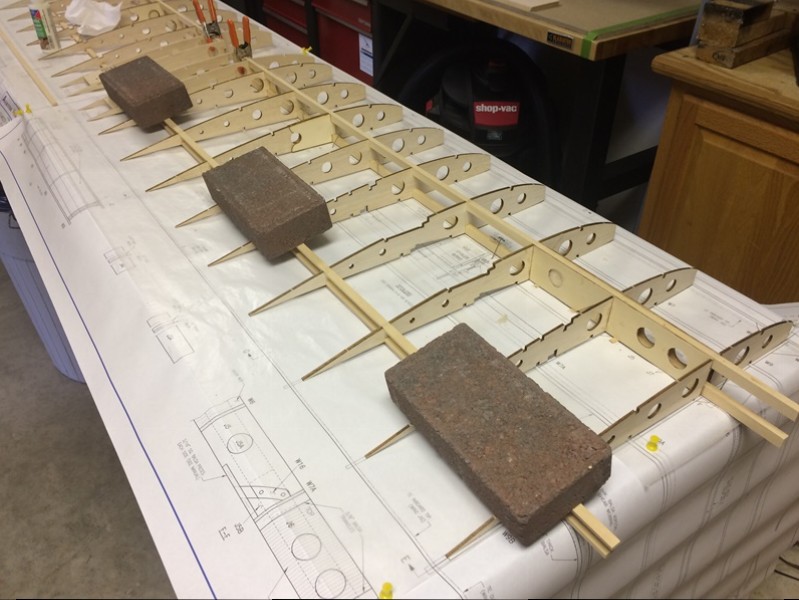

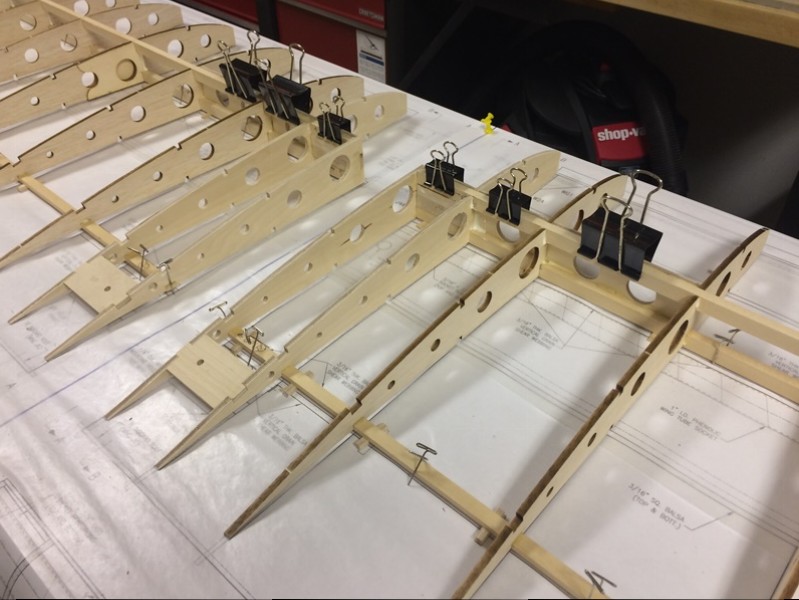

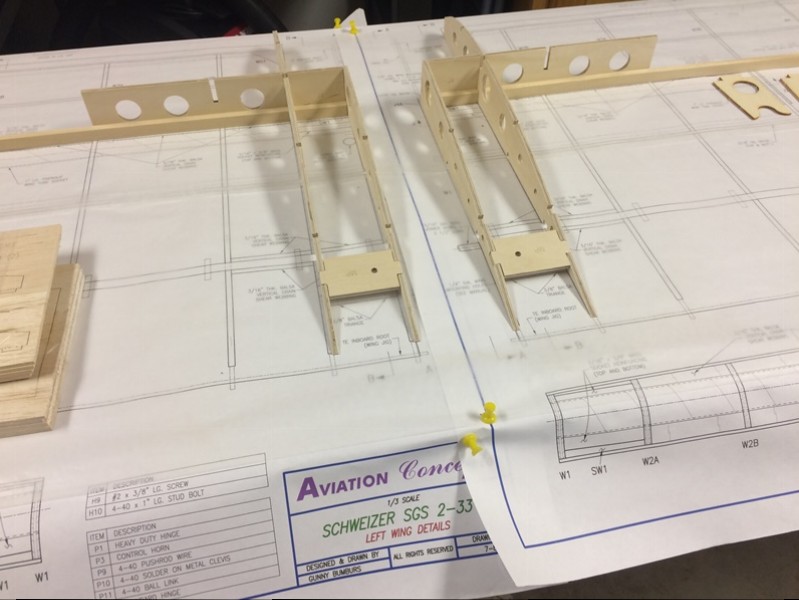

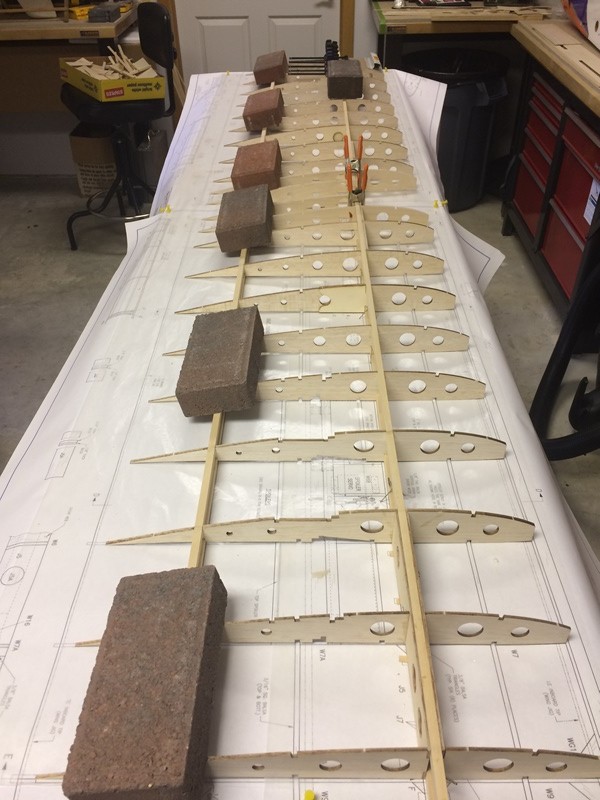

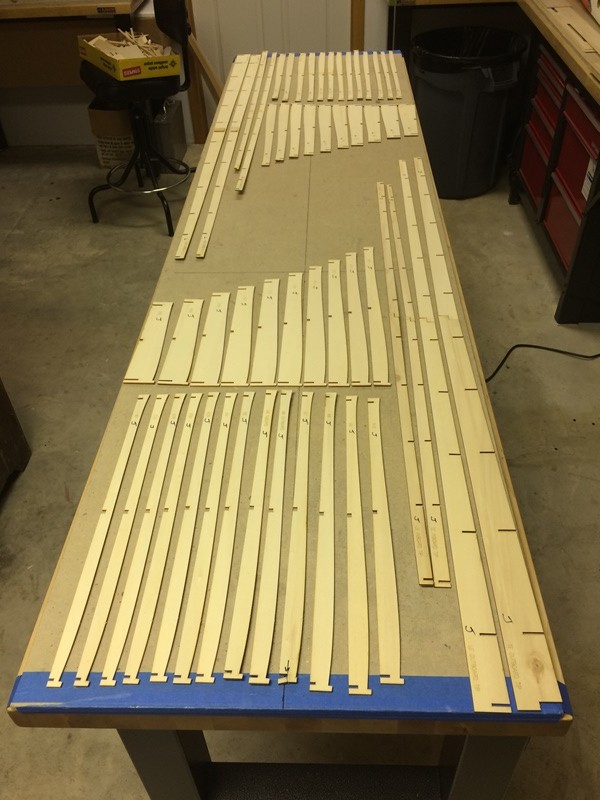

          Got all of the ribs and other wing parts separated from the carrier sheets and organized. Shimmed the spars over the plan as Gunny suggests and we were off to the races! Excellent laser cutting and perfect parts fit on this kit, having a great time watching the wings come together.

          Click image for larger version

Name:	IMG_6628.JPG
Views:	311
Size:	85.9 KB
ID:	32840

          Click image for larger version

Name:	IMG_6629.JPG
Views:	290
Size:	83.5 KB
ID:	32841

          Click image for larger version

Name:	IMG_6630.JPG
Views:	309
Size:	86.7 KB
ID:	32842

          Click image for larger version

Name:	IMG_6631.JPG
Views:	331
Size:	82.5 KB
ID:	32843

          Click image for larger version

Name:	IMG_6633.JPG
Views:	284
Size:	96.2 KB
ID:	32844

          A Site for Soar Eyes

          Comment


          • #51

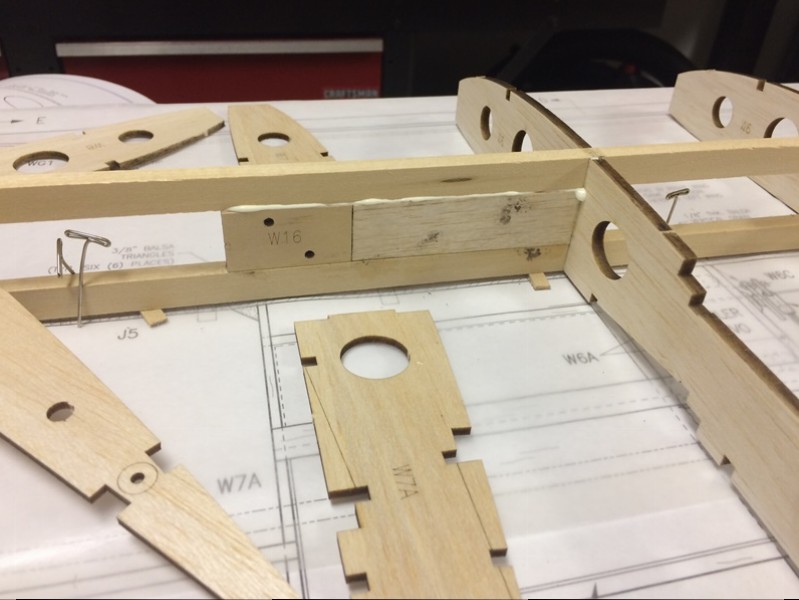

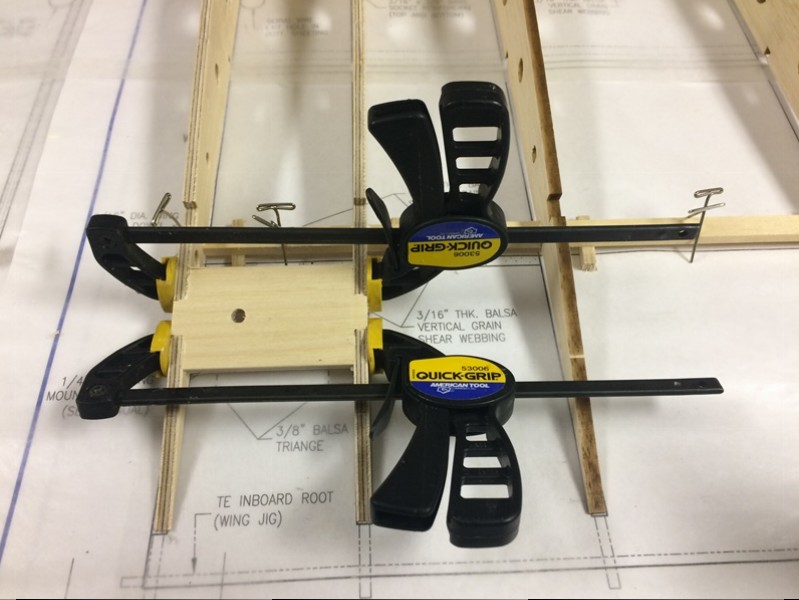

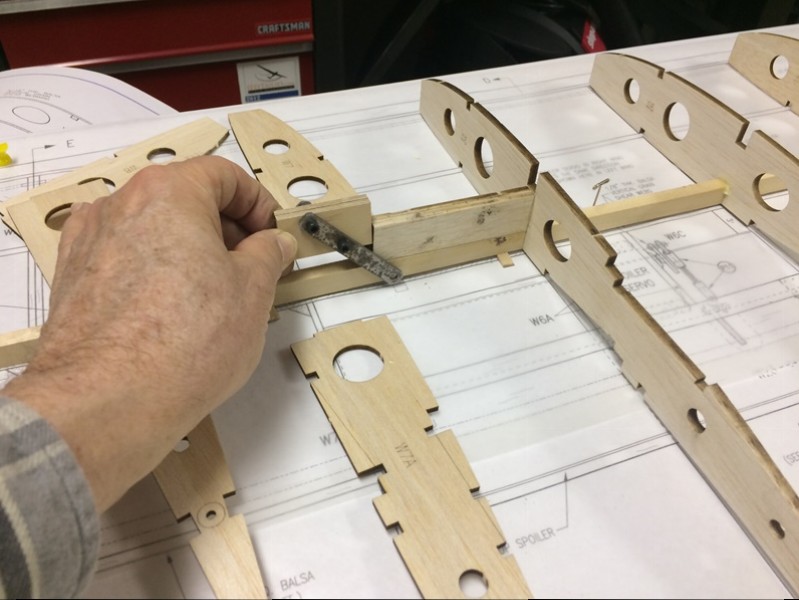

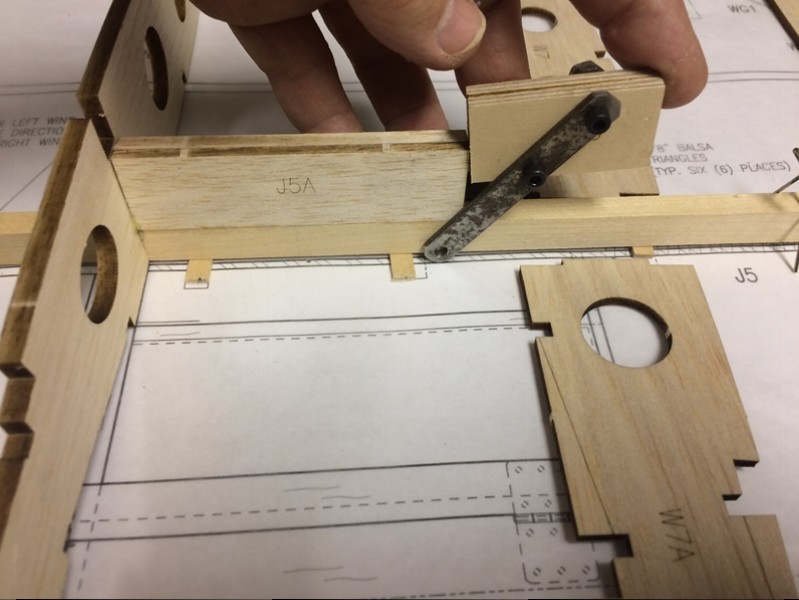

            Wing strut mounts need to be angled correctly.

            Click image for larger version  Name:	IMG_6637.JPG Views:	1 Size:	80.8 KB ID:	32874

            Click image for larger version  Name:	IMG_6638.JPG Views:	1 Size:	88.5 KB ID:	32875

            Click image for larger version  Name:	IMG_6640.JPG Views:	1 Size:	78.3 KB ID:	32876

            Click image for larger version  Name:	IMG_6641.JPG Views:	1 Size:	78.5 KB ID:	32878

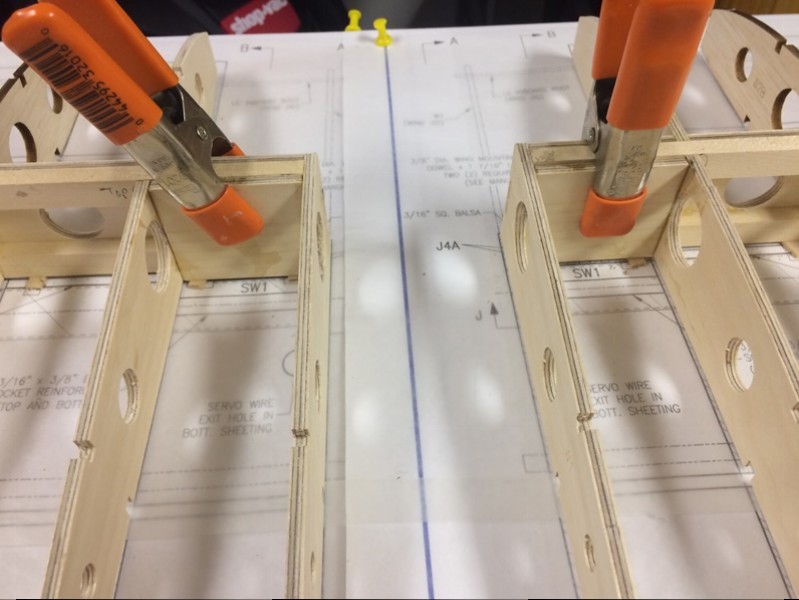

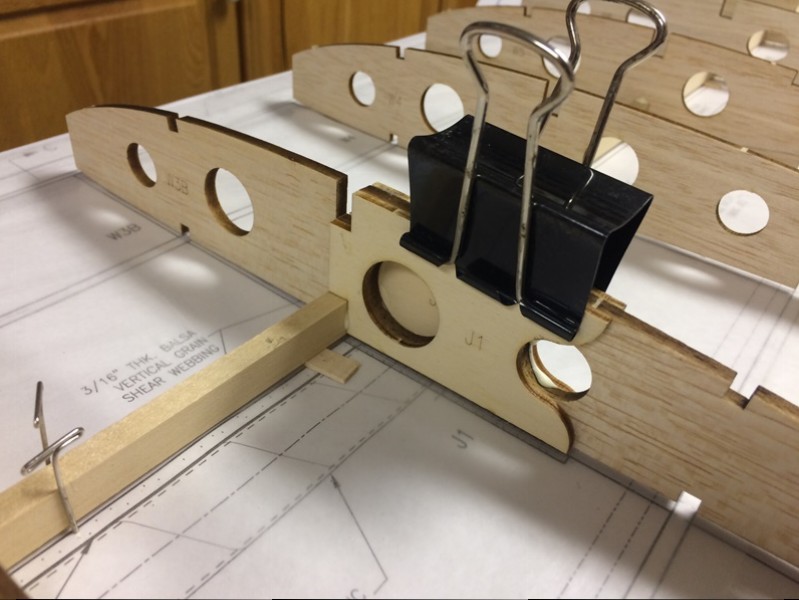

            Top Spar clamped in place at root.

            Click image for larger version  Name:	IMG_6639.JPG Views:	1 Size:	99.7 KB ID:	32877

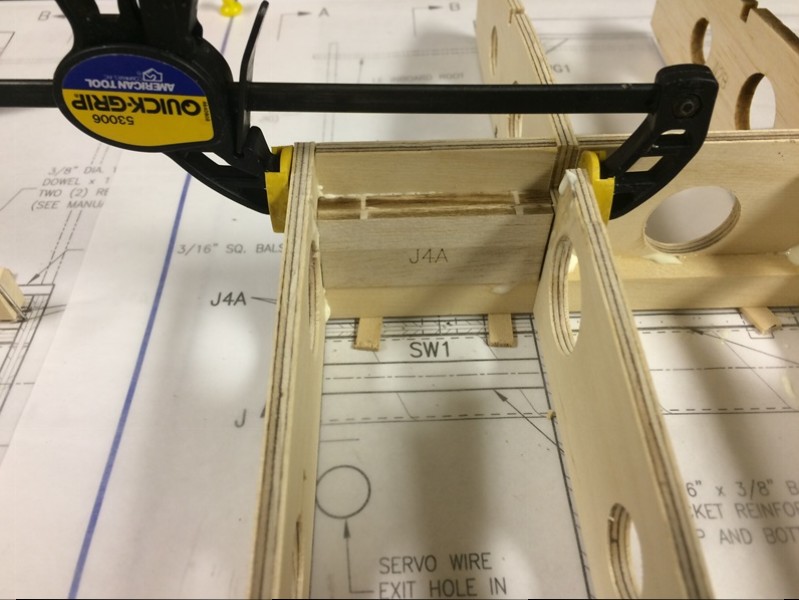

            Time to mix epoxy!

            Click image for larger version  Name:	IMG_6646.JPG Views:	1 Size:	89.7 KB ID:	32881

            Click image for larger version  Name:	IMG_6647.JPG Views:	1 Size:	81.1 KB ID:	32879

            Click image for larger version  Name:	IMG_6648.JPG Views:	1 Size:	102.1 KB ID:	32873

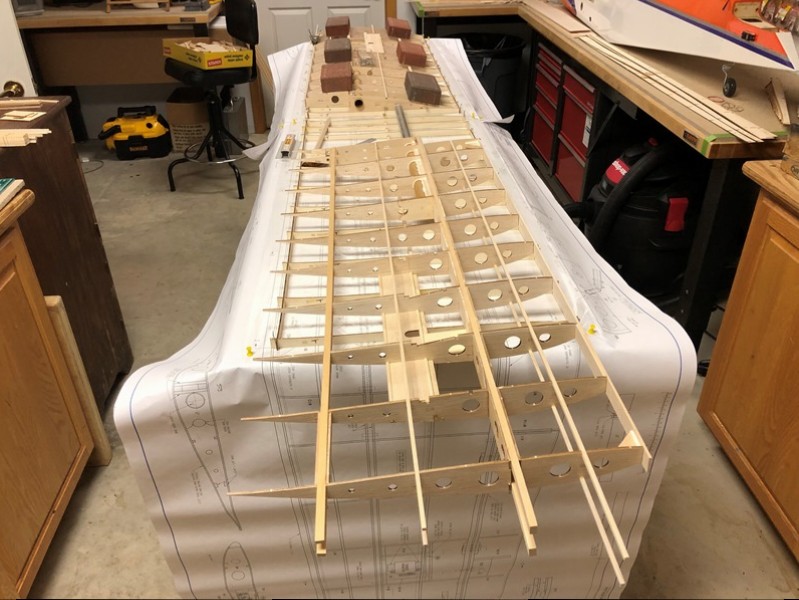

            Then add the last two ribs to the main wing panels and then the top drag spar.

            Click image for larger version  Name:	IMG_6651.JPG Views:	1 Size:	105.2 KB ID:	32882

            Click image for larger version  Name:	IMG_6652.JPG Views:	1 Size:	112.0 KB ID:	32880


            A Site for Soar Eyes

            Comment


            • #52

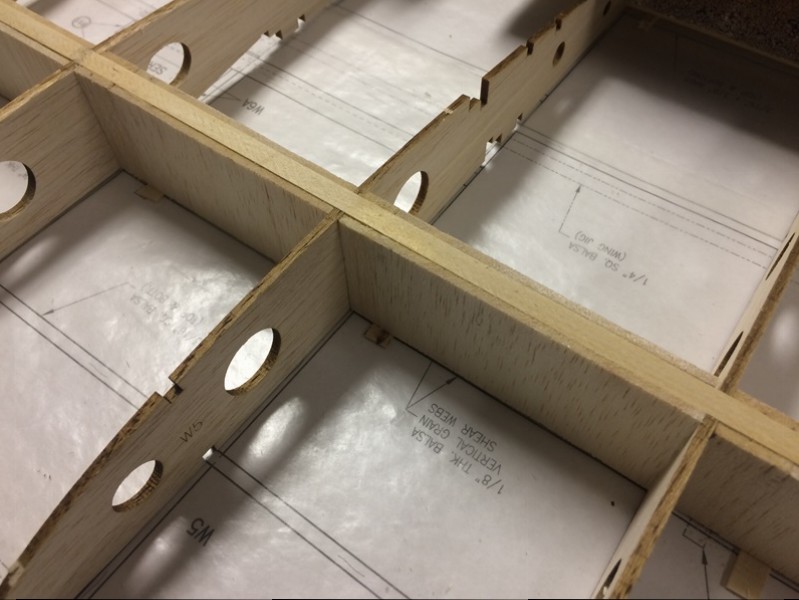

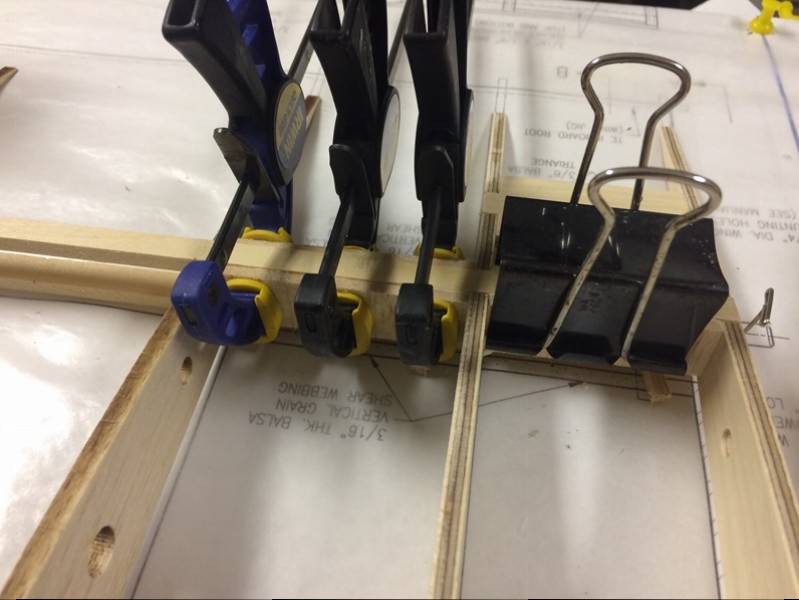

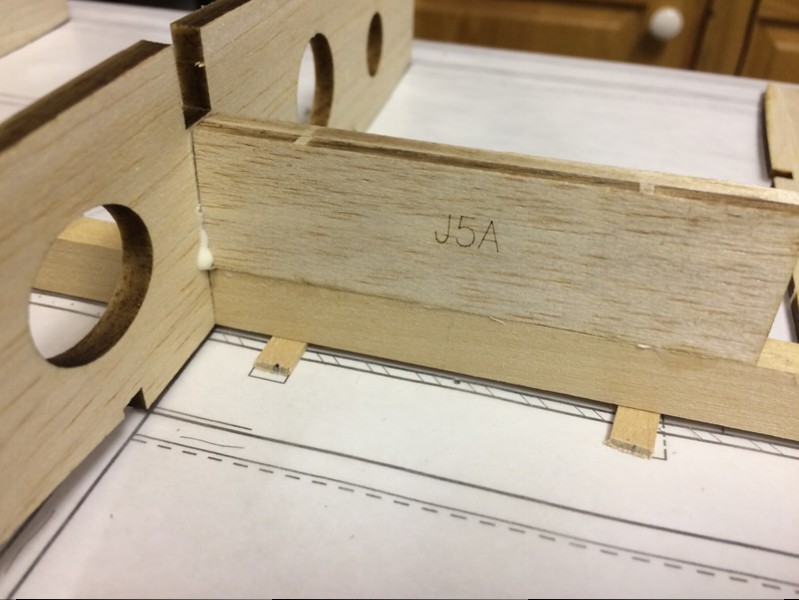

              1/8" Balsa shear webs are added to both sides of the main spar and at the inboard 2 bays and last outboard bay of the drag spar.

              Click image for larger version

Name:	IMG_6660.JPG
Views:	306
Size:	84.5 KB
ID:	32917

              Click image for larger version

Name:	IMG_6658.JPG
Views:	285
Size:	94.2 KB
ID:	32915

              Click image for larger version

Name:	IMG_6659.JPG
Views:	291
Size:	80.8 KB
ID:	32916

              A Site for Soar Eyes

              Comment


              • #53

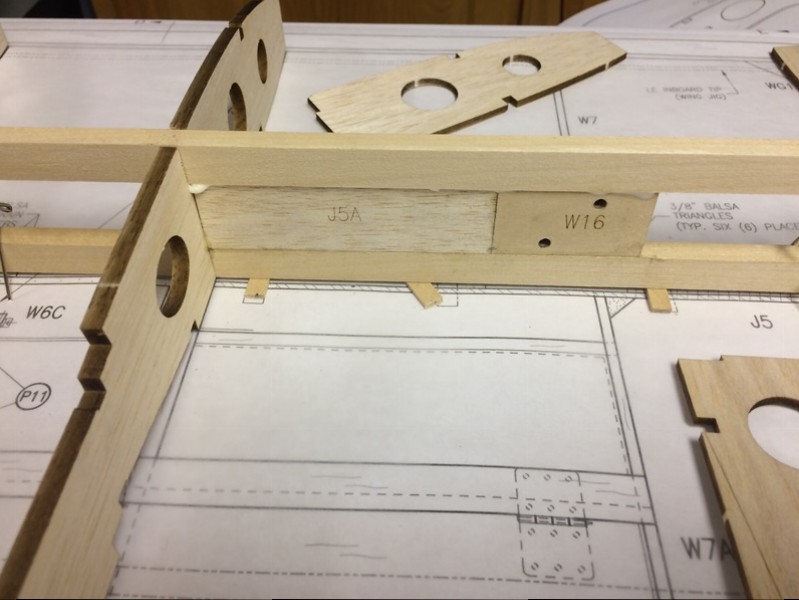

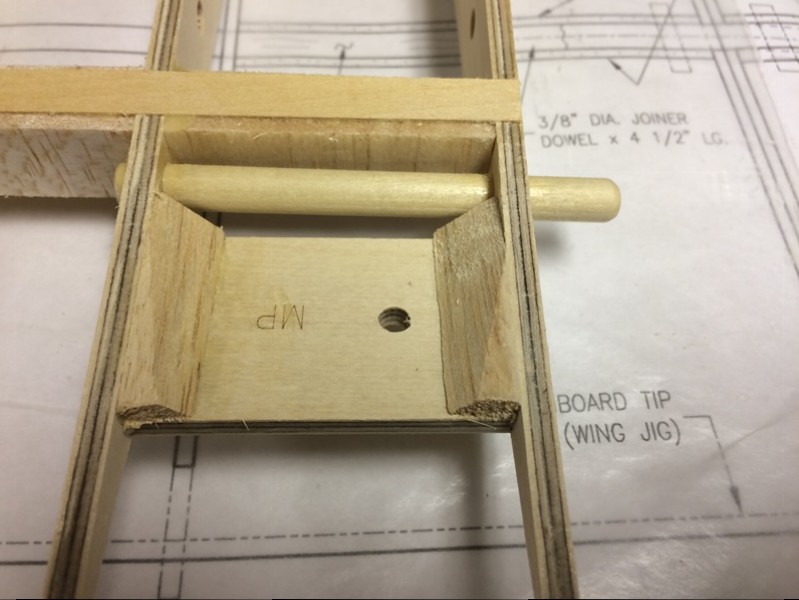

                Last step in this phase of the inner wing panel build is to install the wing joiner dowel and add triangle under the wing bolt plates.

                Click image for larger version

Name:	IMG_6663.JPG
Views:	307
Size:	78.8 KB
ID:	32942

                At this point, Gunny instructs the builder to assemble his wing jig (included in the kit). This jig can be configured for building either a right or left wing. Thanks to Tom M, I have a second set of jig parts. He kindly gave me his set after completing his model.

                Click image for larger version

Name:	IMG_6664.JPG
Views:	287
Size:	108.4 KB
ID:	32943

                A Site for Soar Eyes

                Comment


                • #54
                  Go Jim, Go! Your going to love the jiggy Mc-Thingy...
                  Gunny
                  Aviation Concepts rc

                  Comment


                  • #55

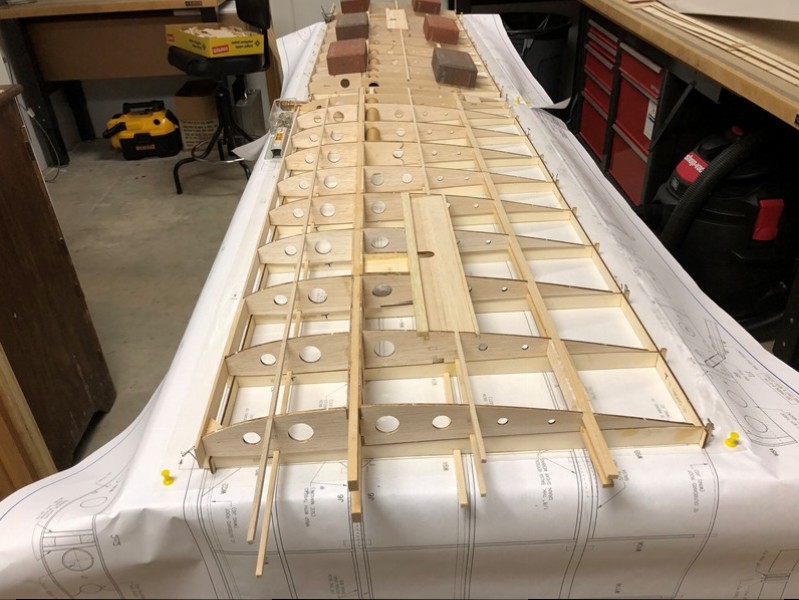

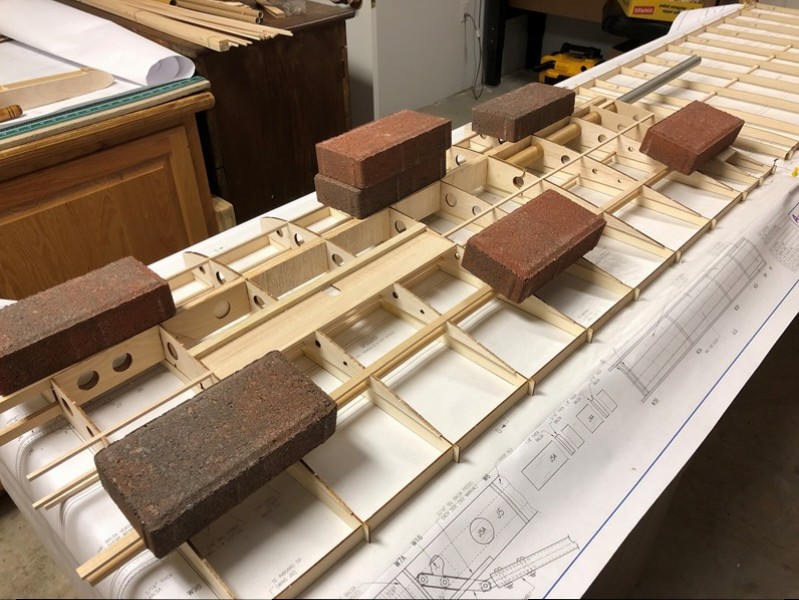

                    More progress...using jig to support wings as additional stringers and leading edge are added.

                    Click image for larger version

Name:	IMG_0003.JPG
Views:	302
Size:	128.6 KB
ID:	33206

                    Click image for larger version

Name:	IMG_0014.JPG
Views:	275
Size:	110.5 KB
ID:	33207

                    Once everything on top side was completed, wings were flipped over to finish out spoiler bays.

                    Click image for larger version

Name:	IMG_0007.JPG
Views:	290
Size:	117.4 KB
ID:	33205

                    Click image for larger version

Name:	IMG_0015.JPG
Views:	284
Size:	117.0 KB
ID:	33208

                    A Site for Soar Eyes

                    Comment


                    • #56
                      The structure can now be removed from the jig.

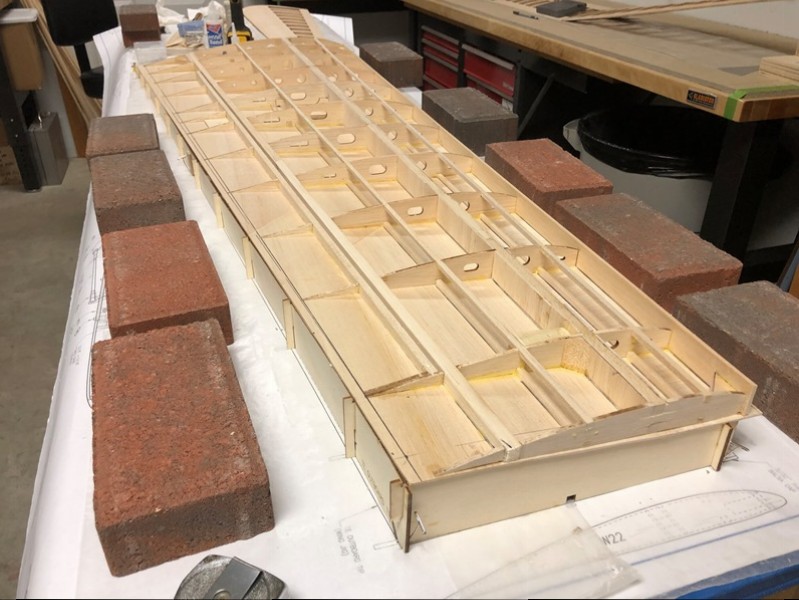

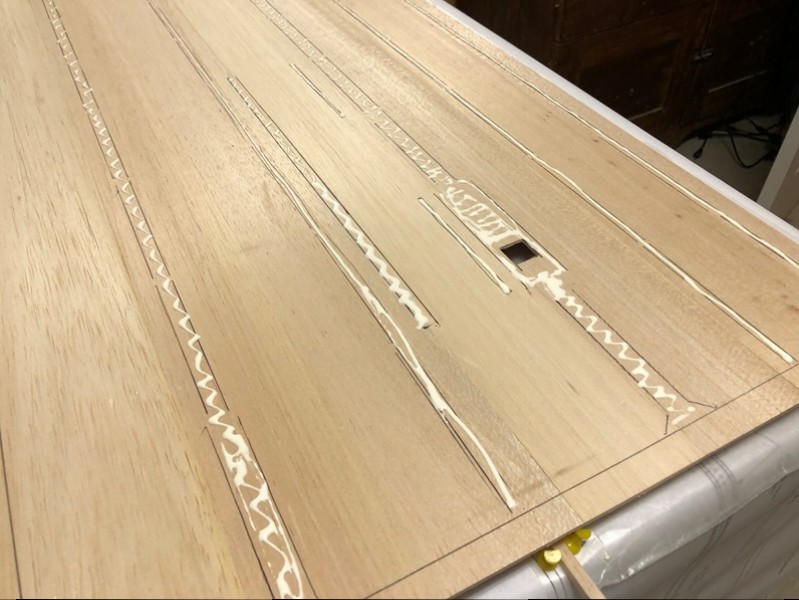

                      Sheeting for the bottom of the wing can now be glued together and placed onto the jig.


                      Click image for larger version

Name:	IMG_0028.JPG
Views:	331
Size:	113.9 KB
ID:	33258

                      Click image for larger version

Name:	IMG_0037.JPG
Views:	296
Size:	94.4 KB
ID:	33259

                      Click image for larger version

Name:	IMG_0039.JPG
Views:	291
Size:	101.6 KB
ID:	33260

                      Click image for larger version

Name:	IMG_0040.JPG
Views:	281
Size:	114.3 KB
ID:	33261

                      Click image for larger version

Name:	IMG_0041.JPG
Views:	281
Size:	117.1 KB
ID:	33262


                      A Site for Soar Eyes

                      Comment


                      • #57

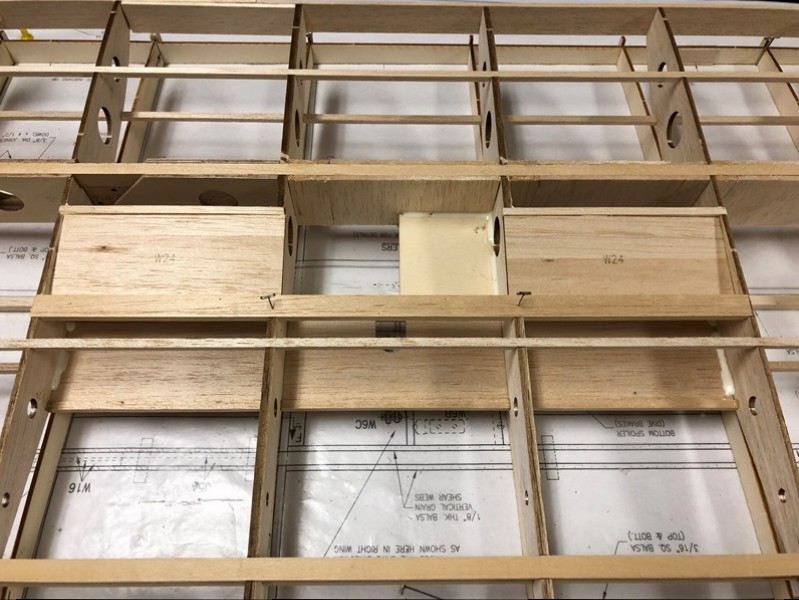

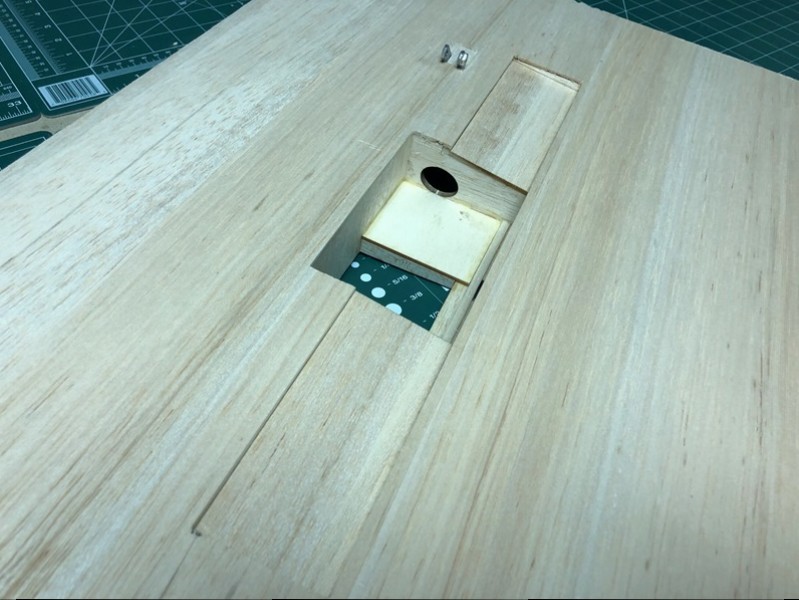

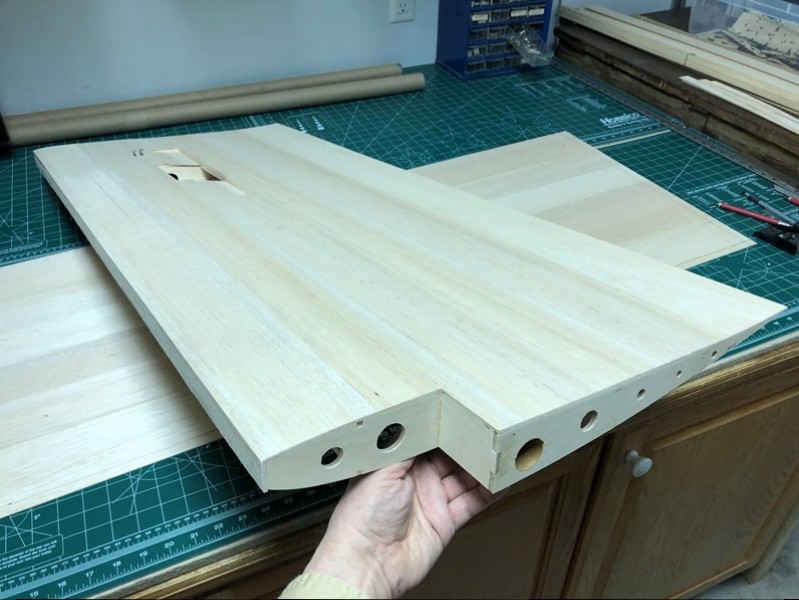

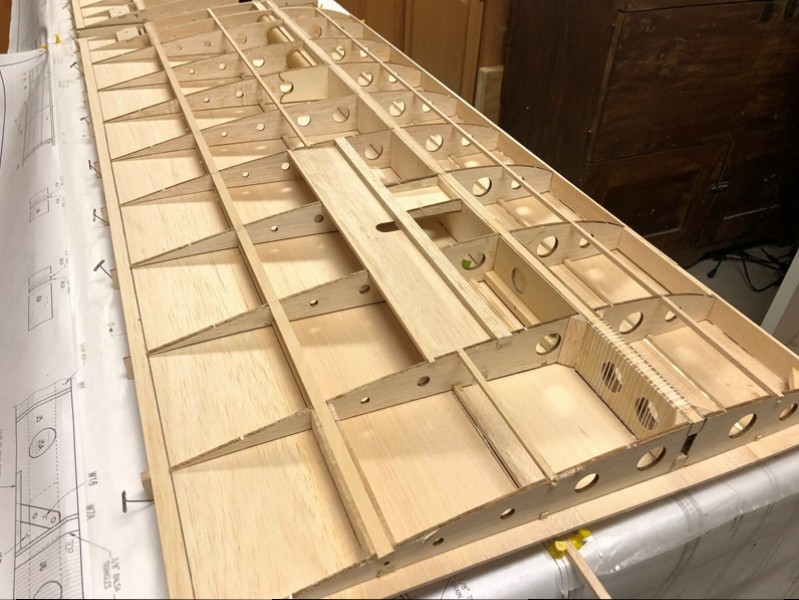

                        Finished product after trimming off excess sheeting and cutting out spoiler and servo pocket.

                        Click image for larger version

Name:	IMG_0031.JPG
Views:	289
Size:	99.1 KB
ID:	33265

                        Click image for larger version

Name:	IMG_0036.JPG
Views:	307
Size:	99.5 KB
ID:	33264

                        A Site for Soar Eyes

                        Comment


                        • #58
                          That looks great Jim, the jig for sheeting the underside seems to really speed up the process and make the job more accurate and enjoyable.
                          Kudos Gunny for doing that.

                          Len Buffinton
                          Team Horizon Hobby

                          Comment


                          • #59

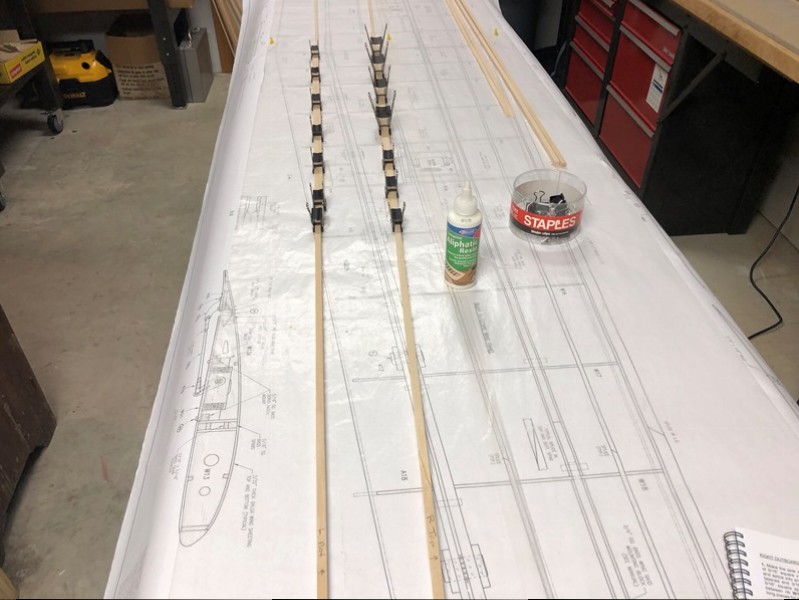

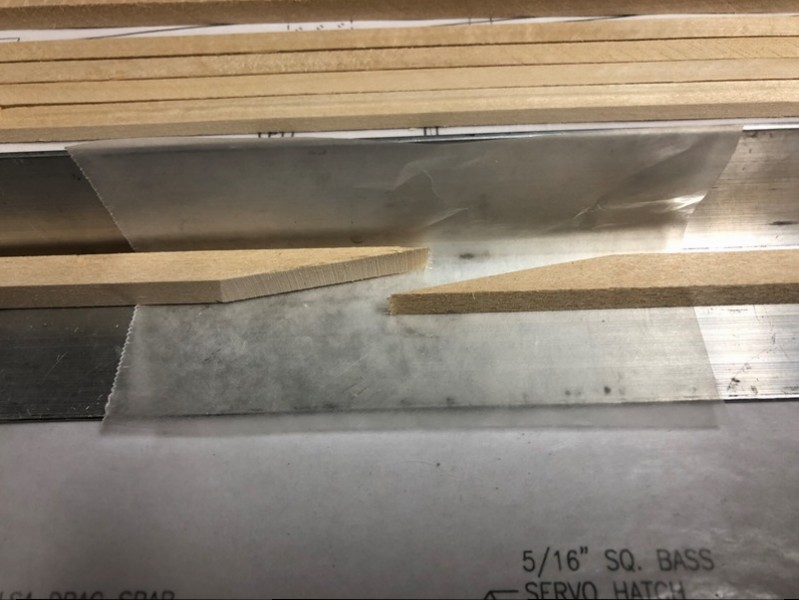

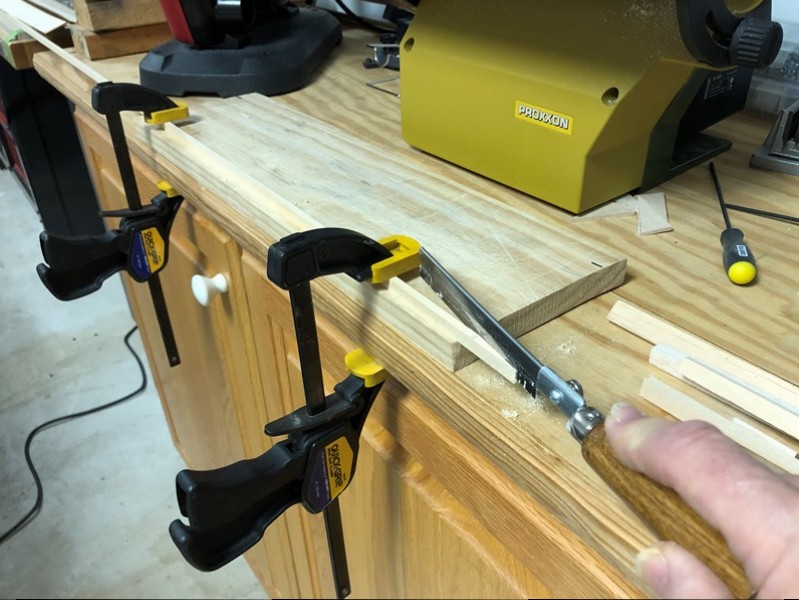

                            Time to move to the outboard panels. These panels are longer than 4', so the spars must be spliced to get the necessary length. The top and bottom main spars are also laminated to get the necessary thickness. We started by making the cuts for the splices and laminations.

                            Click image for larger version

Name:	IMG_0073.JPG
Views:	301
Size:	111.9 KB
ID:	33573

                            Click image for larger version

Name:	IMG_0074.JPG
Views:	293
Size:	96.9 KB
ID:	33575

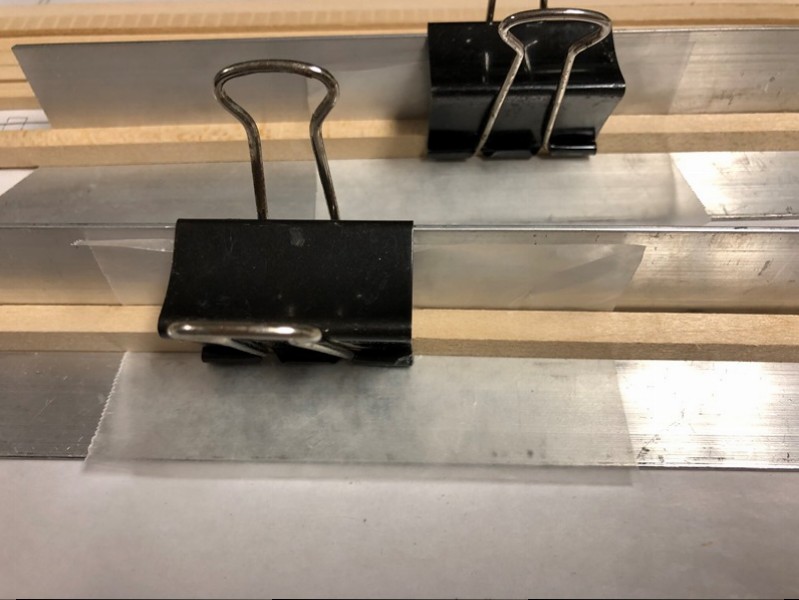

                            We like to use pieces of aluminum angle as clamping supports.

                            Click image for larger version

Name:	IMG_0075.JPG
Views:	285
Size:	80.6 KB
ID:	33577

                            Click image for larger version

Name:	IMG_0076.JPG
Views:	316
Size:	76.8 KB
ID:	33576


                            Laminated section added.

                            Click image for larger version

Name:	IMG_0084.JPG
Views:	269
Size:	91.9 KB
ID:	33579

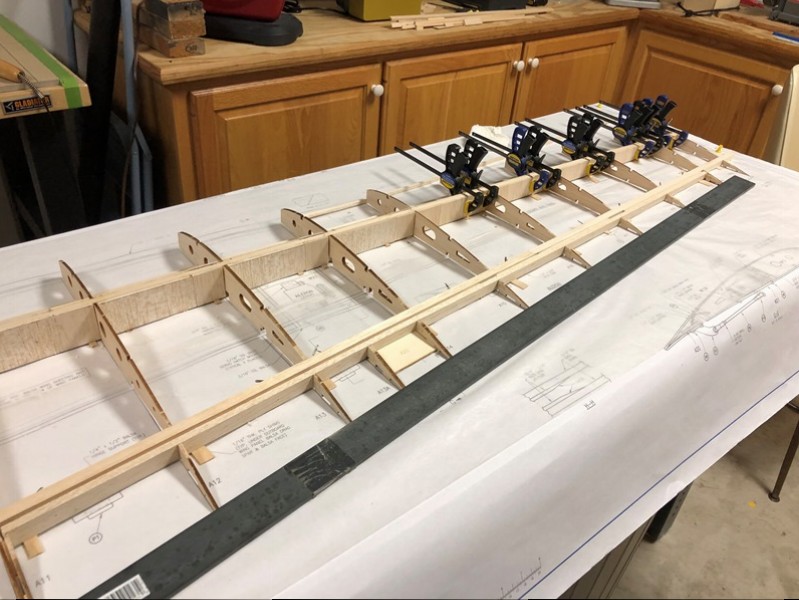

                            Ribs and drag spars added.

                            Click image for larger version

Name:	IMG_0086.JPG
Views:	269
Size:	115.5 KB
ID:	33578

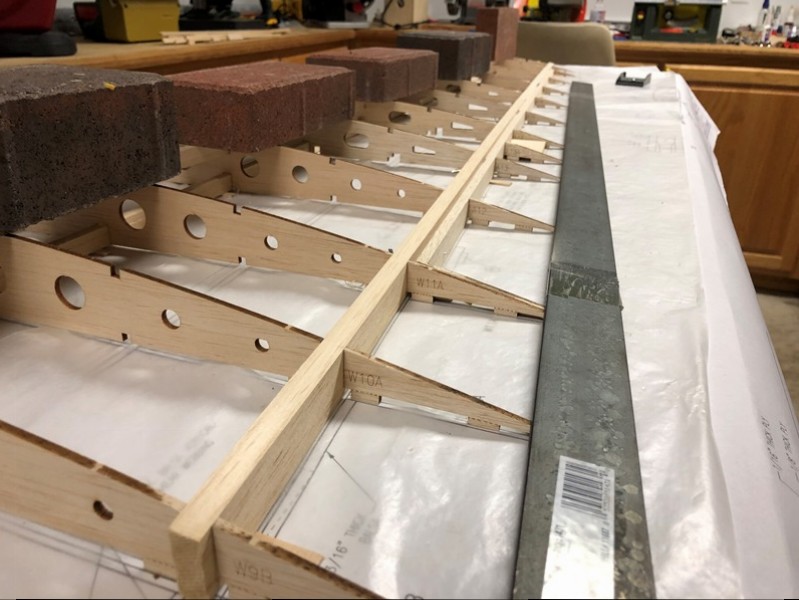

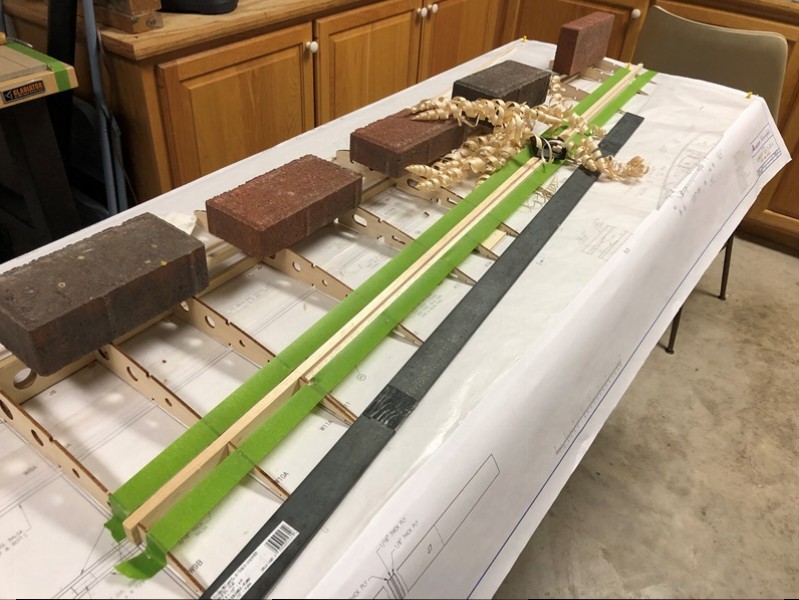

                            Drag spar planed and sanded to rib contour.

                            Click image for larger version

Name:	IMG_0087.JPG
Views:	280
Size:	96.3 KB
ID:	33574



                            A Site for Soar Eyes

                            Comment


                            • #60

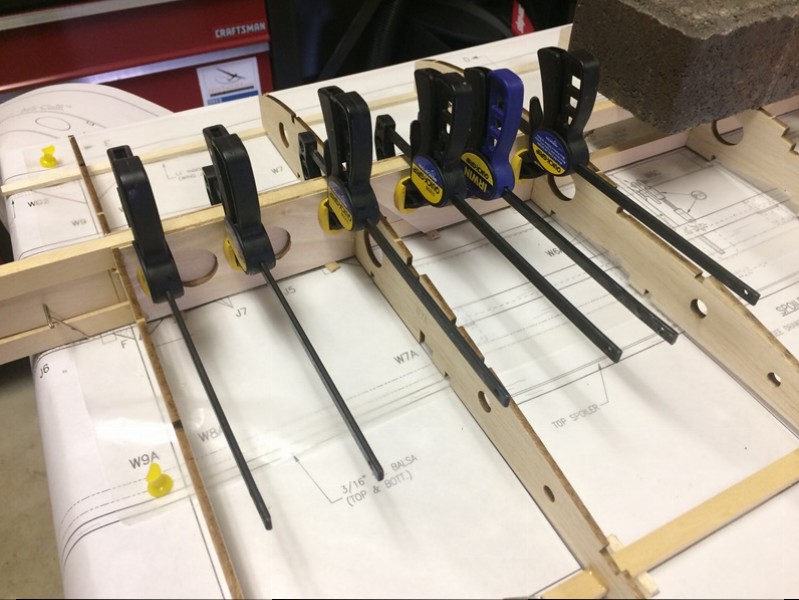

                              Shear webbing added along main spars

                              Click image for larger version

Name:	IMG_0089.JPG
Views:	277
Size:	111.5 KB
ID:	33839

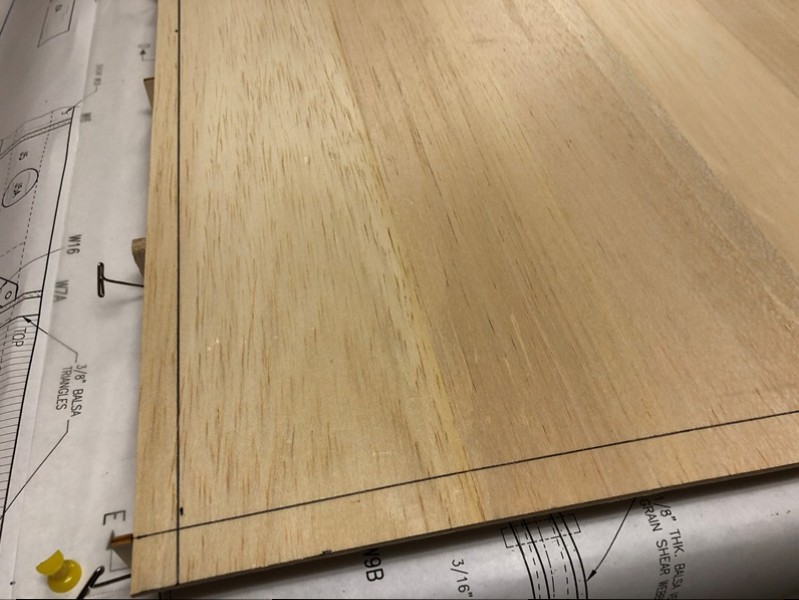

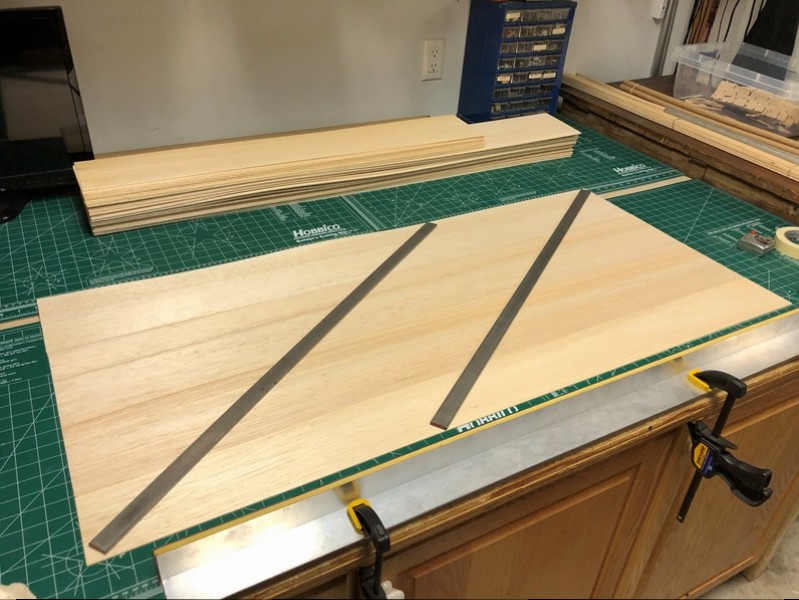

                              3/32" balsa wing sheeting prepared. The length of the outer panels requires joints to add cord and span. Careful cutting and sanding will yield excellent results.

                              Click image for larger version

Name:	IMG_0101.JPG
Views:	281
Size:	108.6 KB
ID:	33838

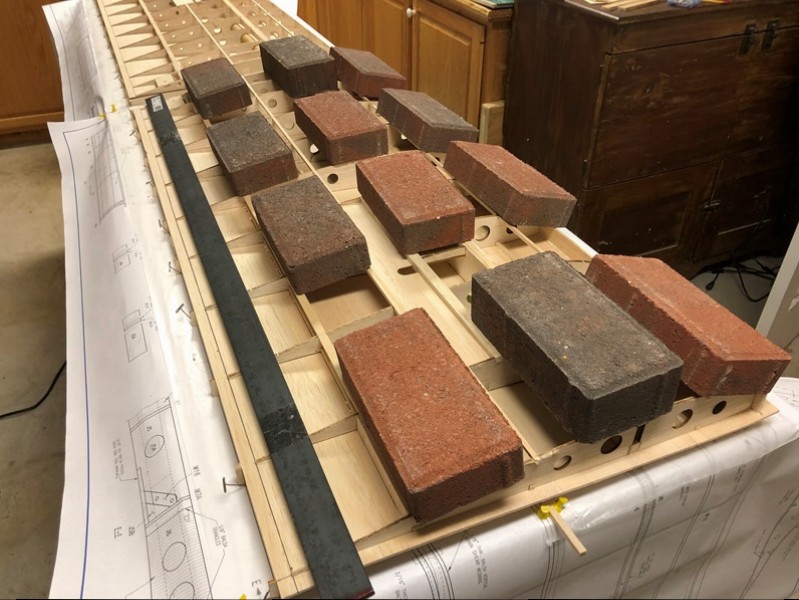

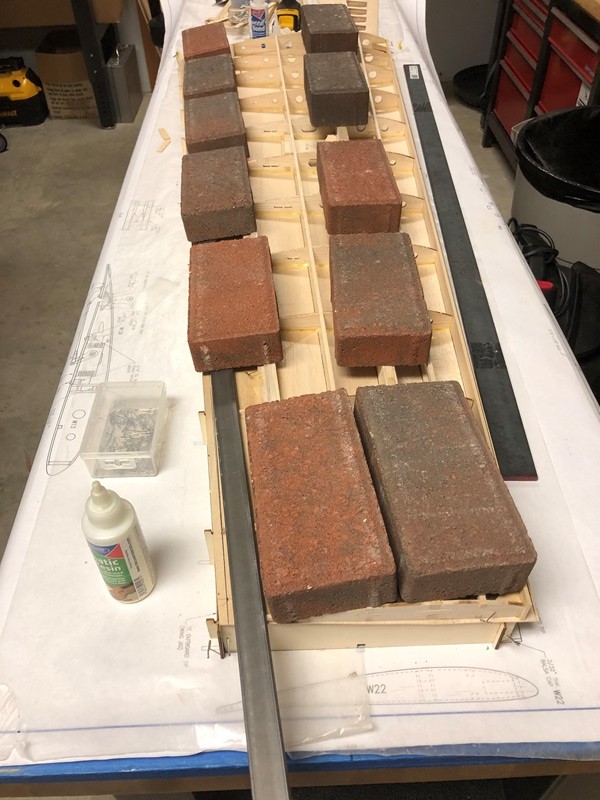

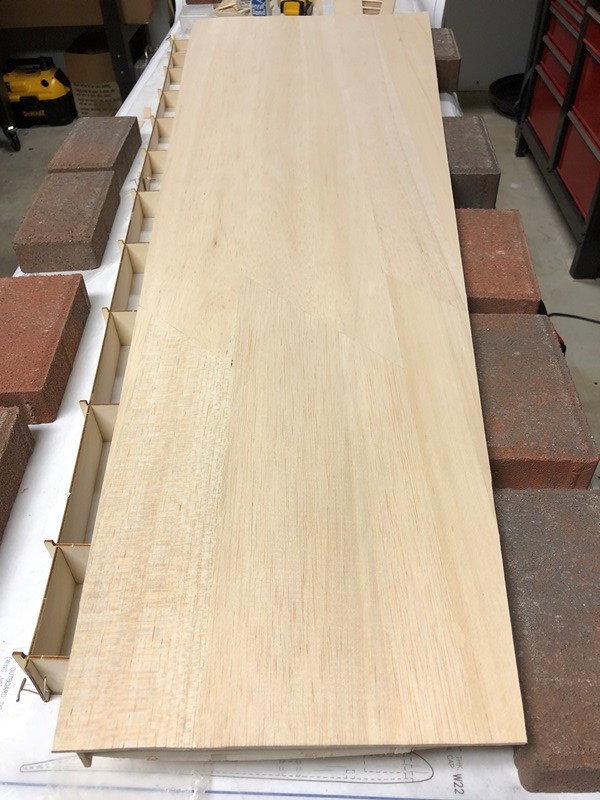

                              Sheeting placed on outer wing panel jig and wing rib structure is glued onto it with weighs added to keep ribs, spars, LE and TE in contact with the sheeting.

                              Click image for larger version

Name:	IMG_0116.JPG
Views:	252
Size:	122.5 KB
ID:	33841

                              Once glue sets, weighs are removed.

                              Click image for larger version

Name:	IMG_0121.JPG
Views:	260
Size:	110.6 KB
ID:	33842

                              Outer panel can now be lifted out of jig to inspect the underside. Nice smooth sheeting...jig is a great idea Gunny, I love it!!!!

                              Click image for larger version

Name:	IMG_0123.JPG
Views:	249
Size:	106.6 KB
ID:	33843

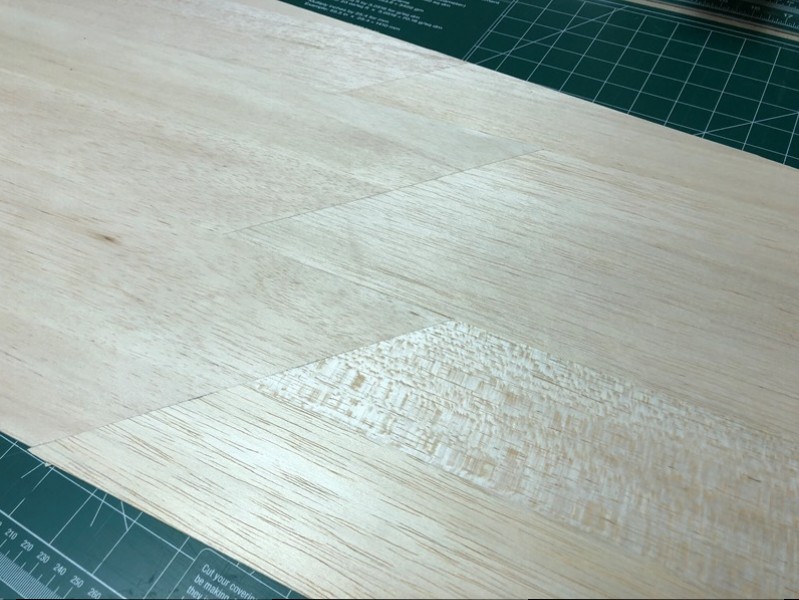

                              Here is a closer look at the wing skin joints, very happy with results.

                              Click image for larger version

Name:	IMG_0124.JPG
Views:	248
Size:	114.2 KB
ID:	33840

                              A Site for Soar Eyes

                              Comment
