Aviation Concepts 1/3-scale Schweizer 2-33 ~ Build Thread by JimD

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    Hey Scott, thanks for keeping the home fires burning while I was away! We made a little 3,286 mile trip over the last eleven days.Covered eleven states along the way and got to see a lot of Texas!

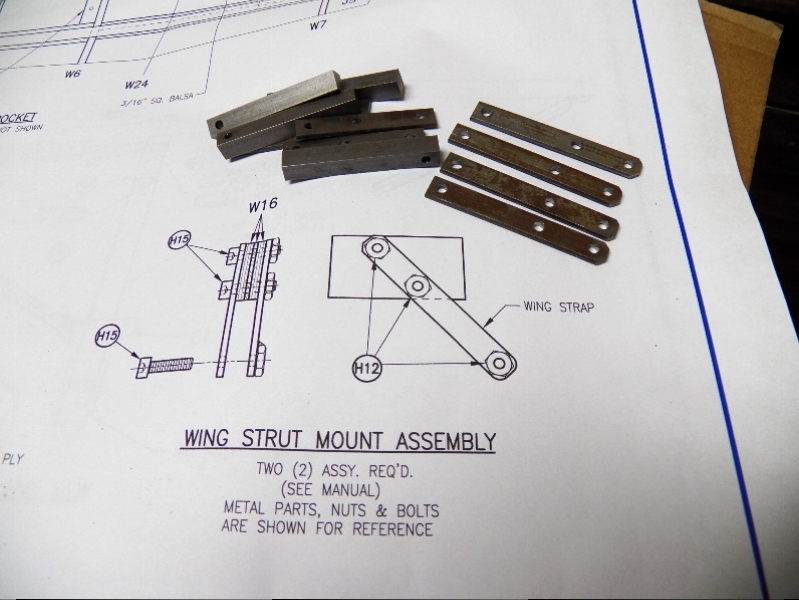

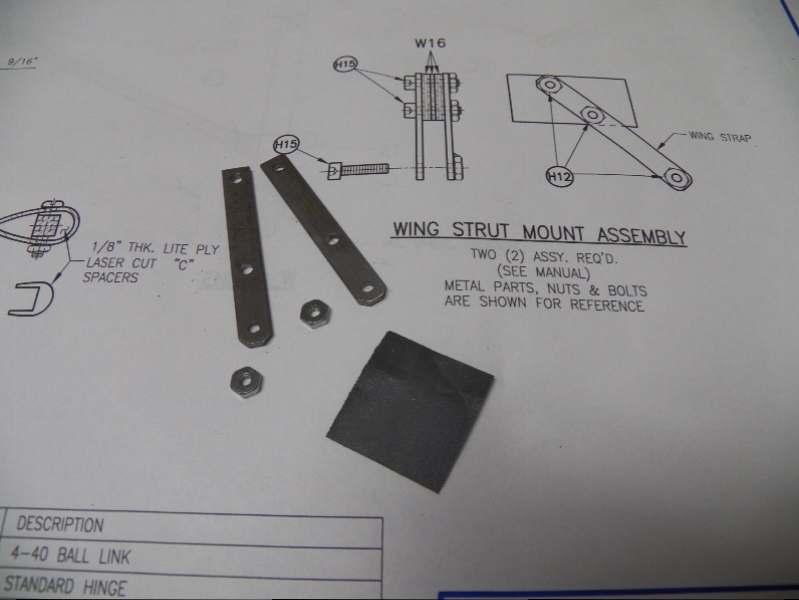

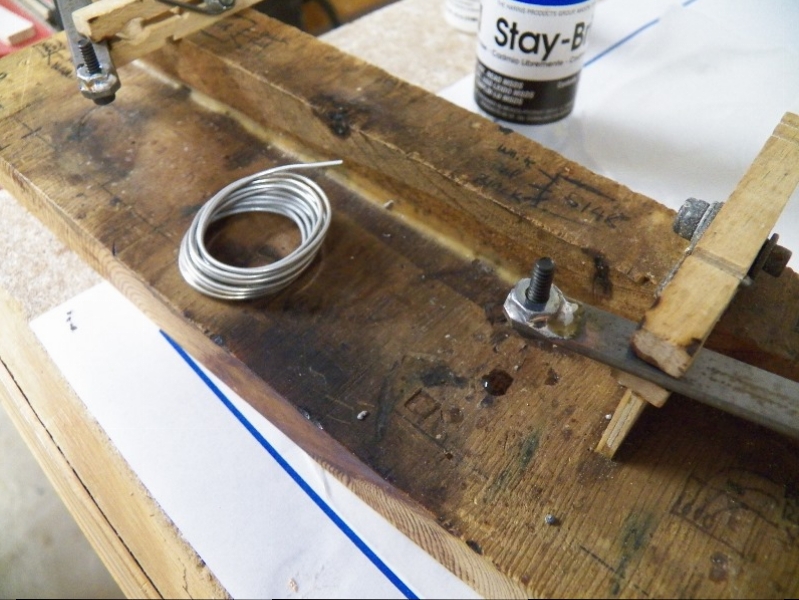

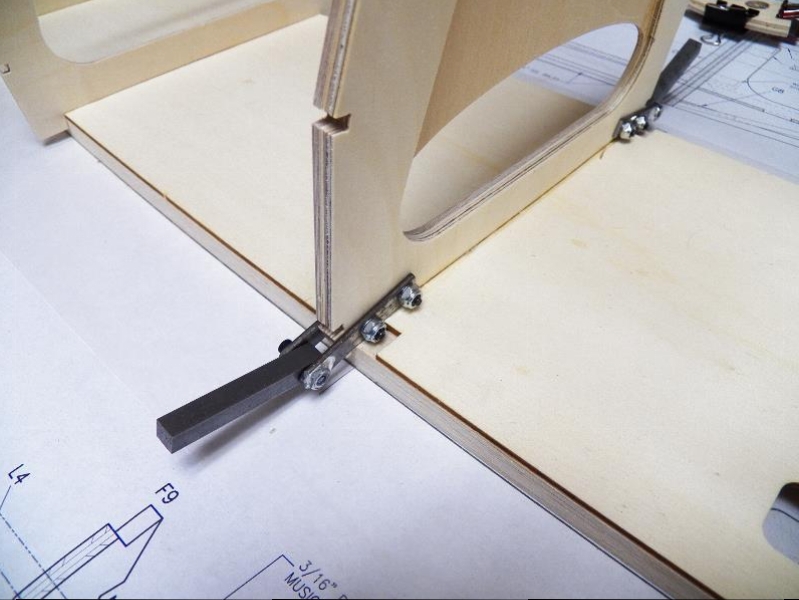

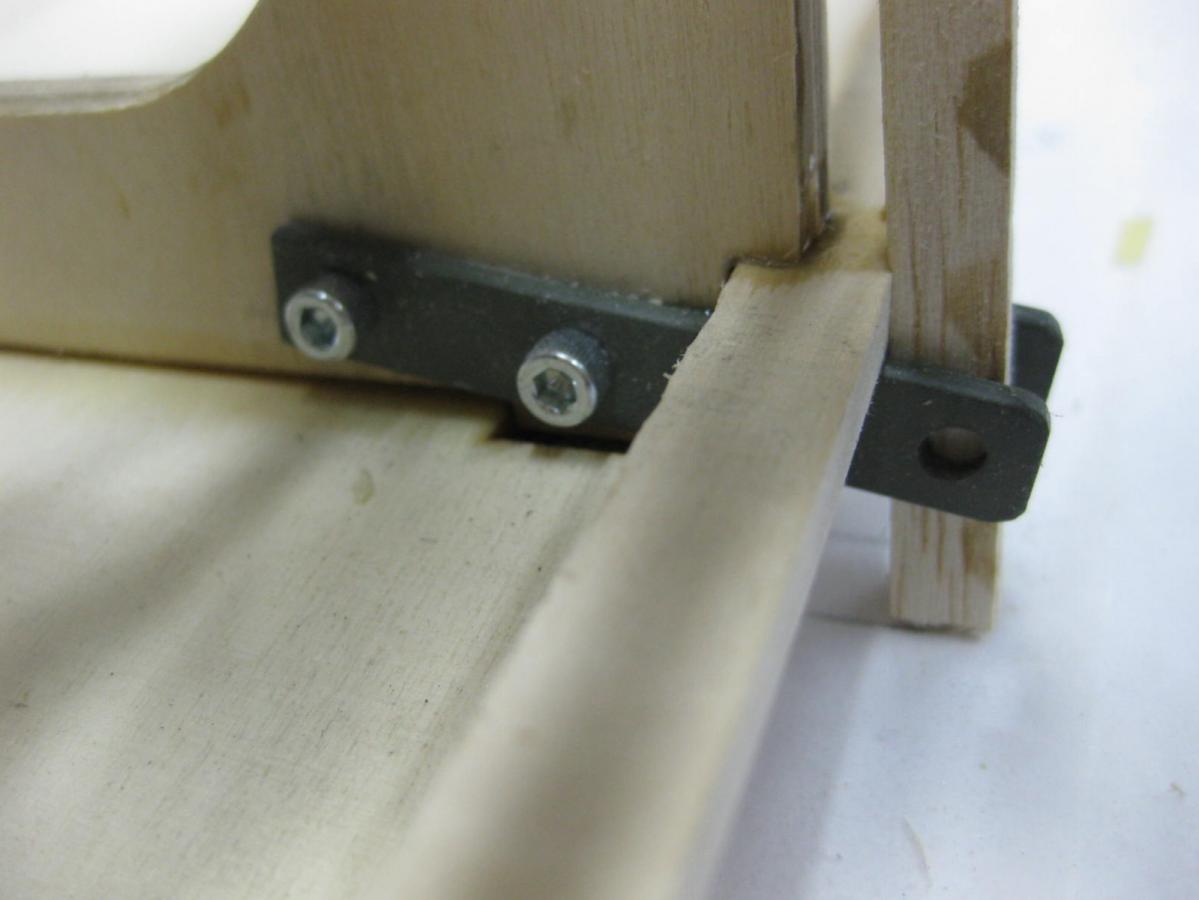

    One of the fun things you get to do when building the 2-33 (both sizes) is to silver solder metal parts together for the strut attachments. The metal straps have three holes and do make note that the center hole is closer to one side than the other!
    Click image for larger version  Name:	144.JPG Views:	1 Size:	260.4 KB ID:	15003
    Click image for larger version  Name:	145.JPG Views:	1 Size:	214.8 KB ID:	15000
    Click image for larger version  Name:	146.JPG Views:	1 Size:	301.6 KB ID:	15001
    Click image for larger version  Name:	147.JPG Views:	1 Size:	326.4 KB ID:	15002


    Now...if you were paying attention, you noted that I soldered the nut to the wrong end of the metal strap...like I said, note that the center hole is closer to one side than the other! Oh well, just solder a nut to the other end and then removed the incorrectly attached one.
    Click image for larger version  Name:	148.JPG Views:	1 Size:	340.9 KB ID:	14998
    Click image for larger version  Name:	149.JPG Views:	1 Size:	239.7 KB ID:	14999


    A Site for Soar Eyes

    Comment


    • #17
      Fuselage taking shape - quality and detail of the plywood cut parts is outstanding.

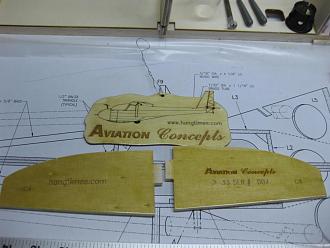

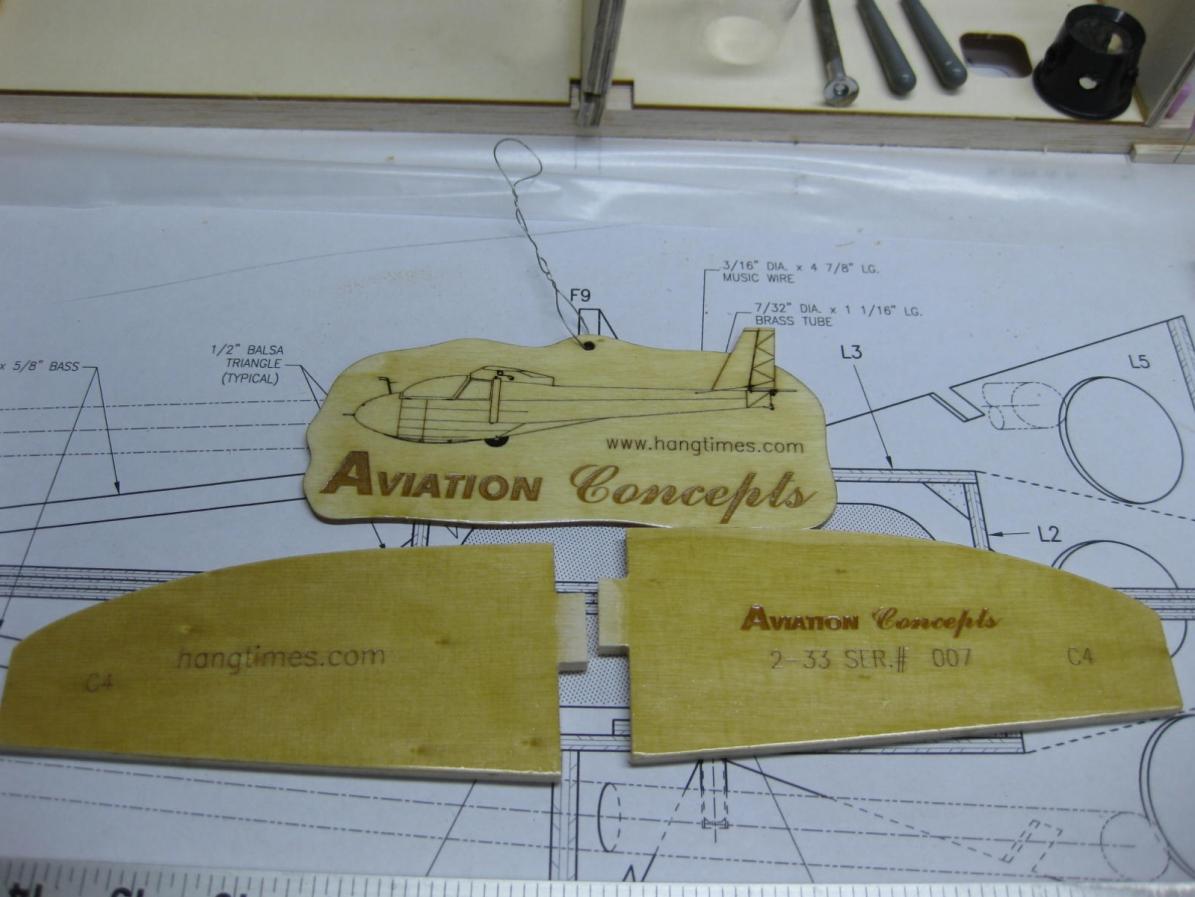

      I Spar Varnished the top cabin pieces and ornament first thing before I got "finger prints' all over them

      Click image for larger version

Name:	IMG_3928.JPG
Views:	578
Size:	63.1 KB
ID:	15070Click image for larger version

Name:	IMG_3931.JPG
Views:	574
Size:	96.9 KB
ID:	15071

      Comment


      • #18
        Great Scot........

        Had to do that. You're cruising now, keep the foot on the pedal as the Horizon event is on the Horizon..... Oh man, I'm on a roll

        Are you going to Visalia or Coachella?

        Len
        Len Buffinton
        Team Horizon Hobby

        Comment


        • MarnochS
          MarnochS commented
          Editing a comment
          Hi Len,
          I going to both Coachella and Visalia. Coachella has a paved runway and I'm itching to test my Bidule and its brakes ......

      • #19

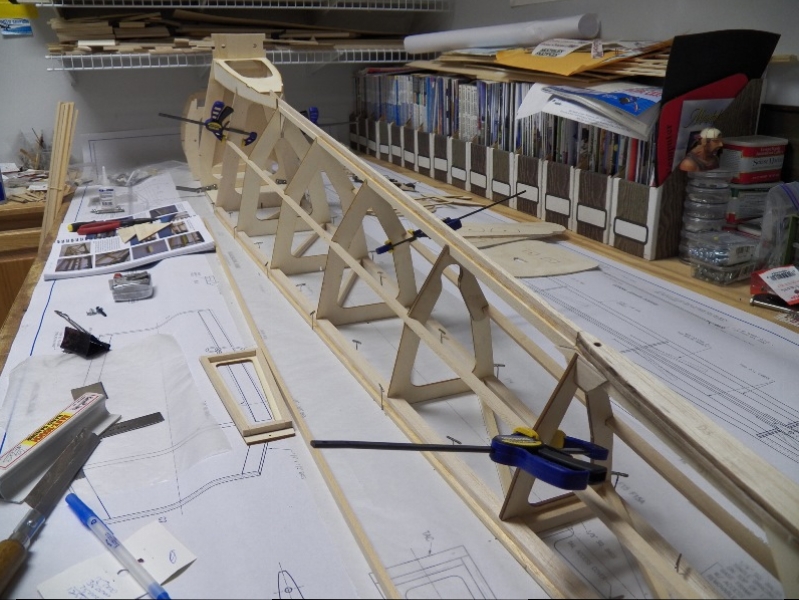

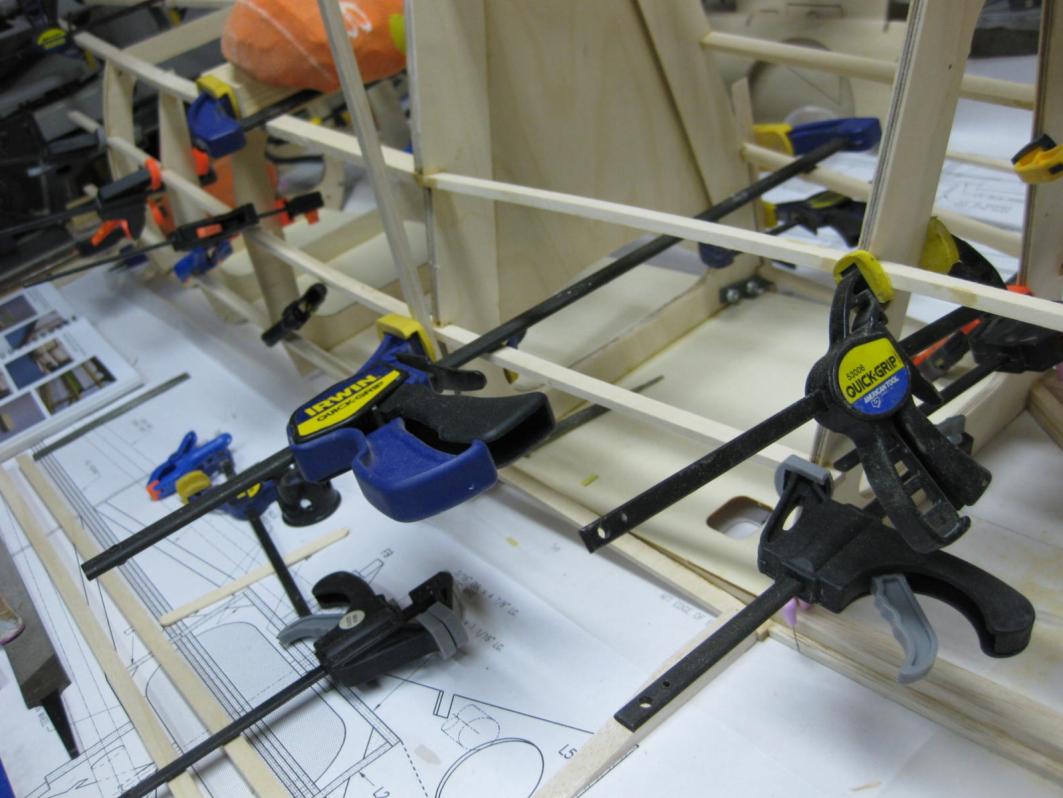

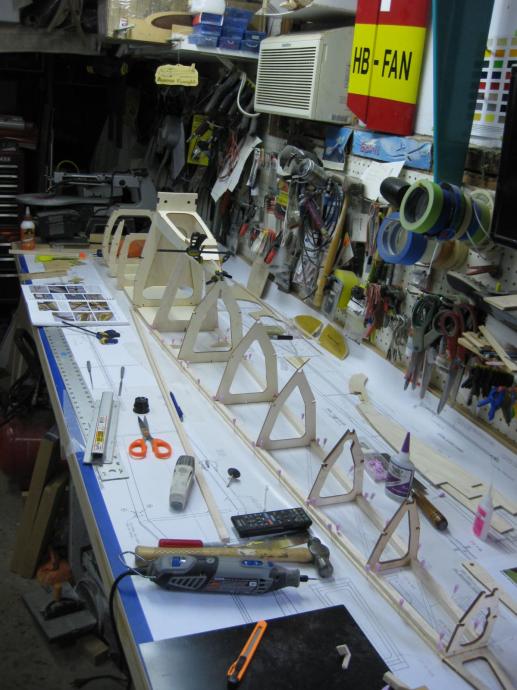

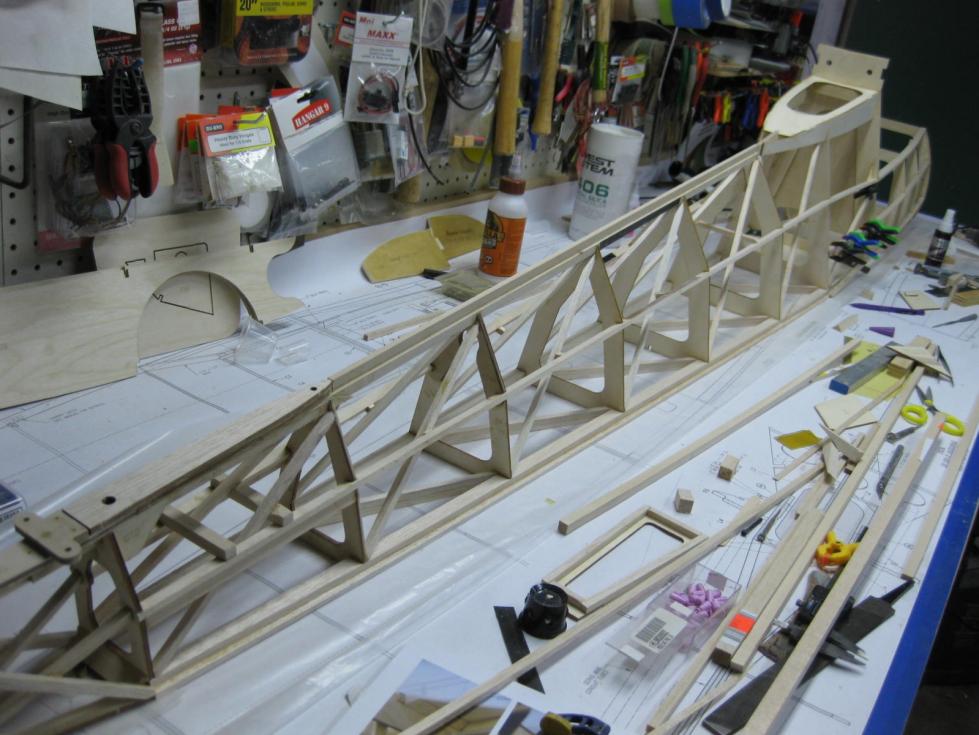

        Clamps....and more clamps.....stringers

        Click image for larger version

Name:	IMG_3932.JPG
Views:	617
Size:	96.7 KB
ID:	15105

        My wing strut hardware was looking a little sad (oxidization) so a little clean up and some primer

        Click image for larger version

Name:	IMG_3934.JPG
Views:	604
Size:	59.7 KB
ID:	15106

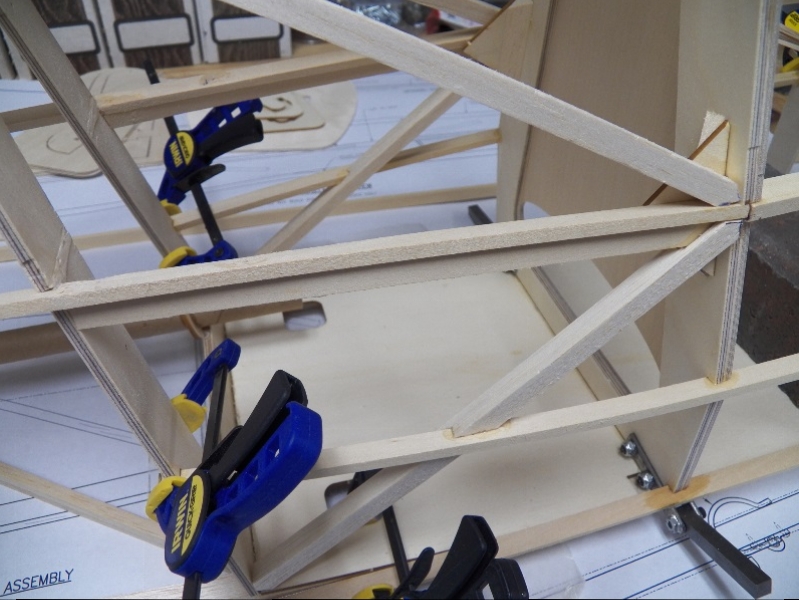

        And cross member installation

        Click image for larger version

Name:	IMG_3936.JPG
Views:	605
Size:	99.8 KB
ID:	15107

        Comment


        • #20
          Okay Scot, now you're pushing me!

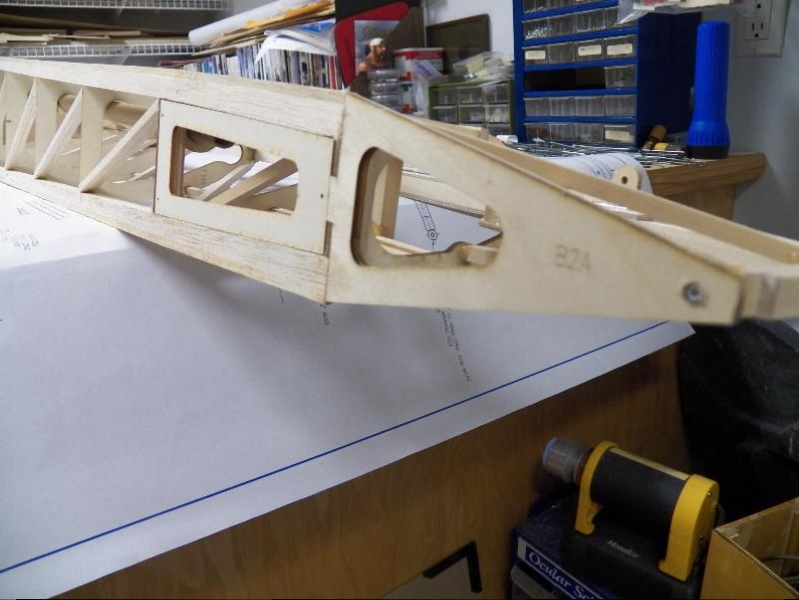

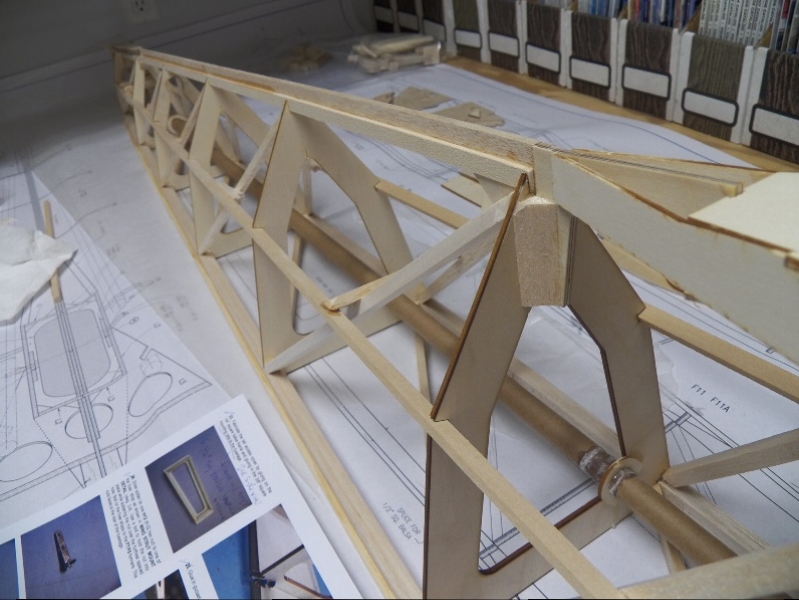

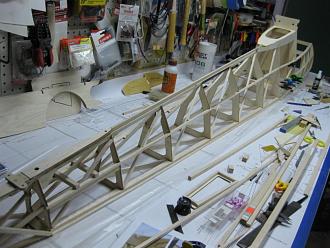

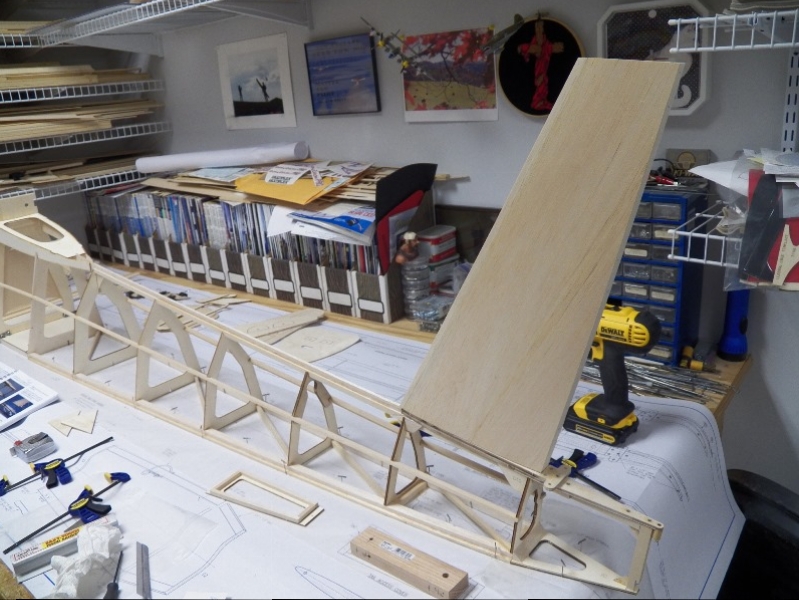

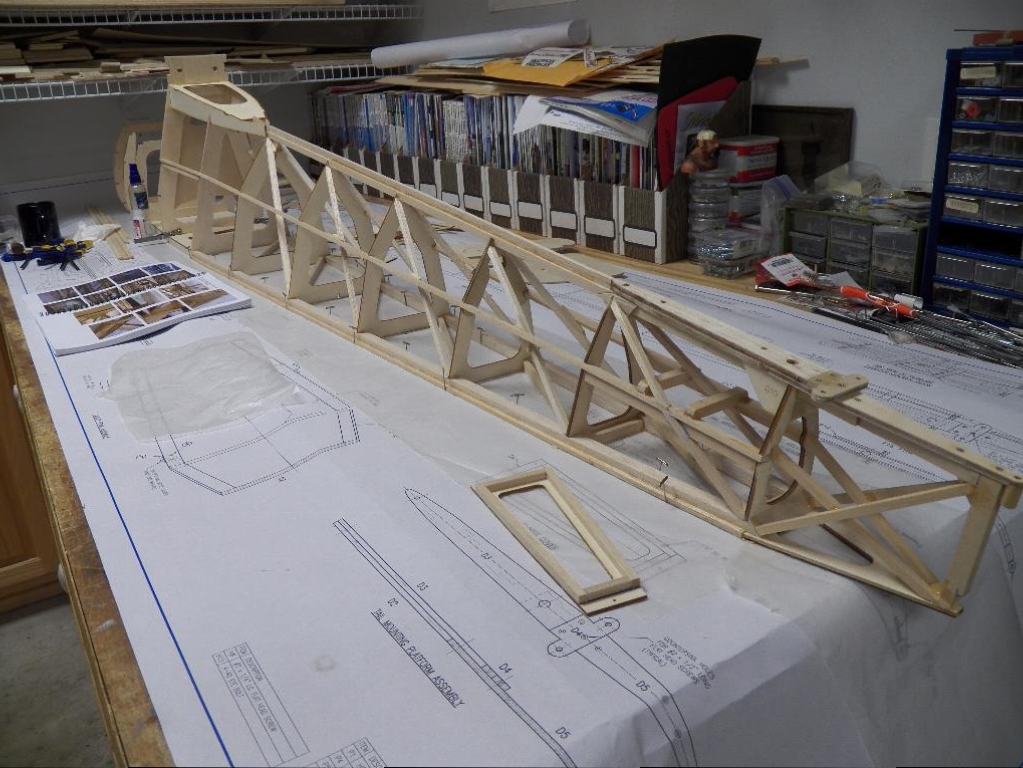

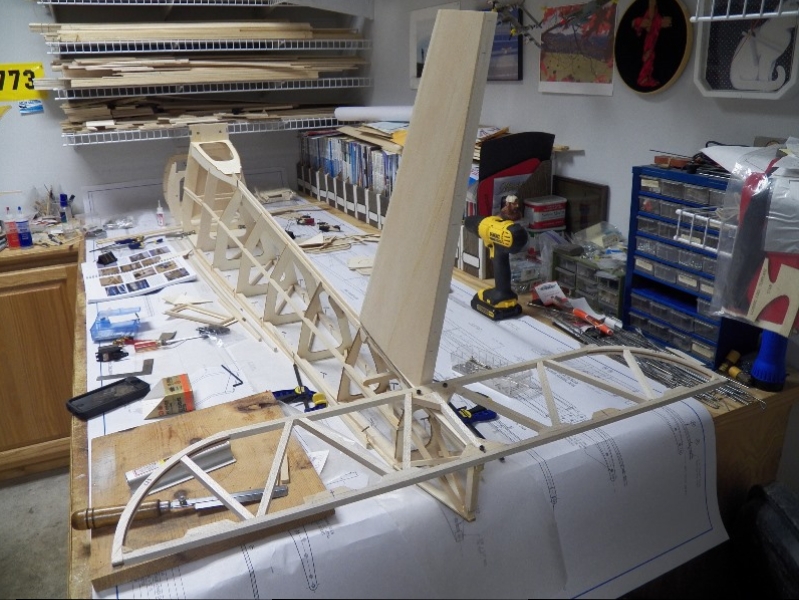

          Added stringers to the aft fuselage so we could do more work on the fin and stab mount.

          Click image for larger version

Name:	150.JPG
Views:	363
Size:	335.3 KB
ID:	15111

          Click image for larger version

Name:	151.JPG
Views:	346
Size:	285.0 KB
ID:	15110

          Click image for larger version

Name:	152.JPG
Views:	406
Size:	310.1 KB
ID:	15115

          Click image for larger version

Name:	153.JPG
Views:	359
Size:	331.9 KB
ID:	15113

          Click image for larger version

Name:	154.JPG
Views:	361
Size:	258.6 KB
ID:	15109

          Click image for larger version

Name:	155.JPG
Views:	339
Size:	302.9 KB
ID:	15112

          Click image for larger version

Name:	156.JPG
Views:	352
Size:	357.6 KB
ID:	15116

          Click image for larger version

Name:	157.JPG
Views:	360
Size:	464.0 KB
ID:	15114

          Click image for larger version

Name:	158.JPG
Views:	358
Size:	495.0 KB
ID:	15117


          A Site for Soar Eyes

          Comment


          • #21

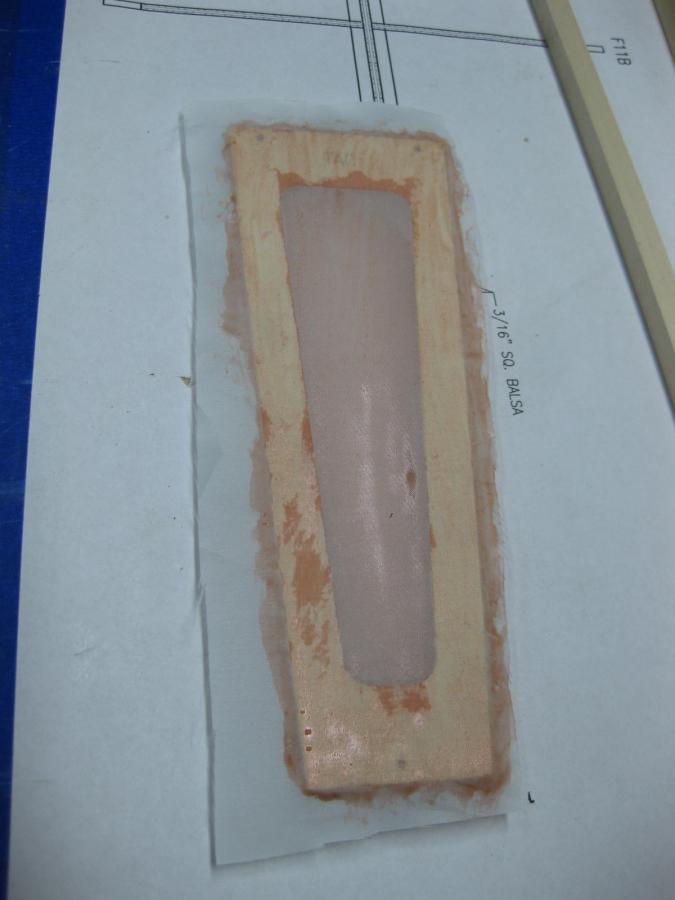

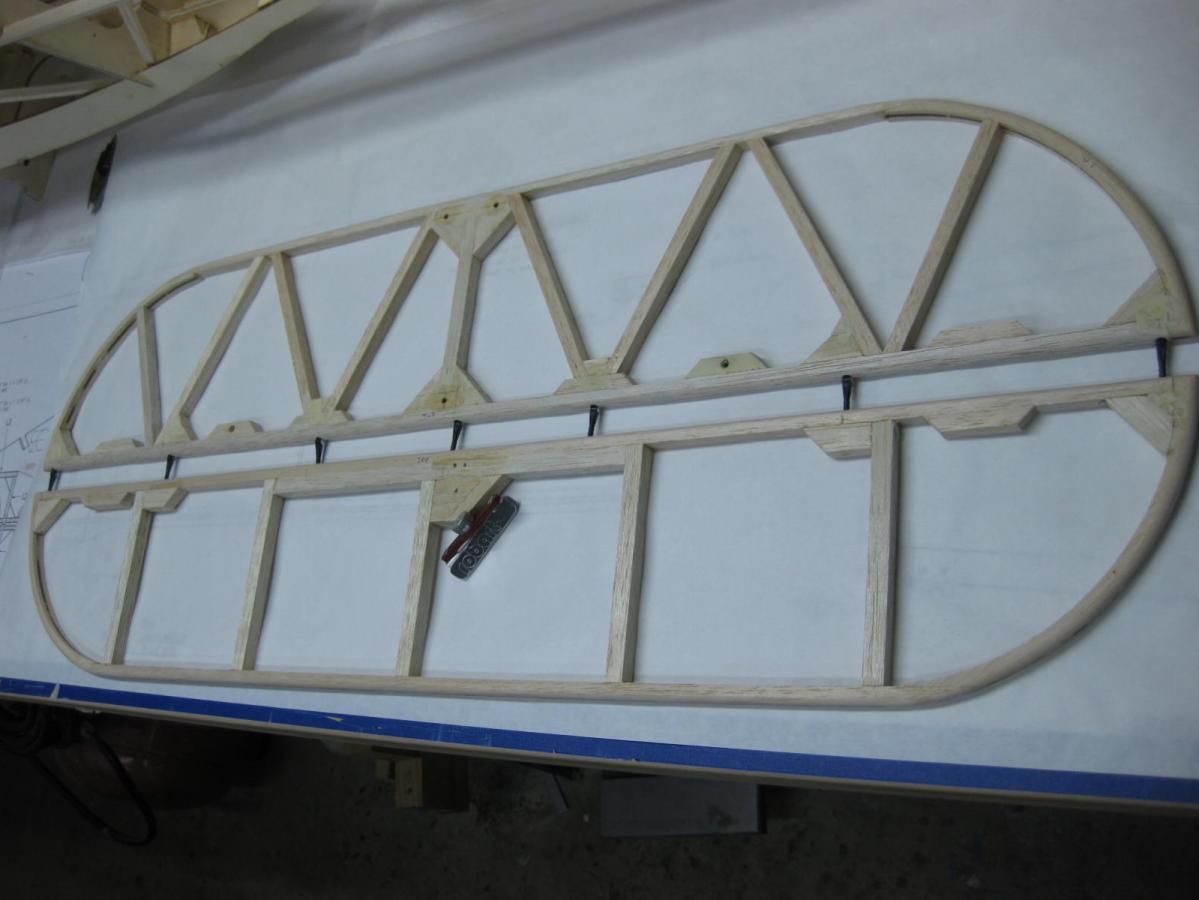

            Decided to go with 1/8" pin hinges across the tail ......surfaces rounded and ready to cover.....which I covered the elevator servo access cover ..Stits lite.

            Click image for larger version  Name:	IMG_3938.JPG Views:	1 Size:	74.5 KB ID:	15183Click image for larger version  Name:	IMG_3937.JPG Views:	1 Size:	40.2 KB ID:	15182

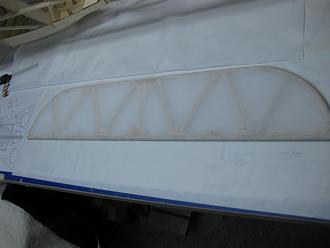

            And a little more covering

            Click image for larger version

Name:	IMG_3939.JPG
Views:	612
Size:	50.4 KB
ID:	15187
            Last edited by MarnochS; 02-03-2017, 03:43 PM.

            Comment


            • #22

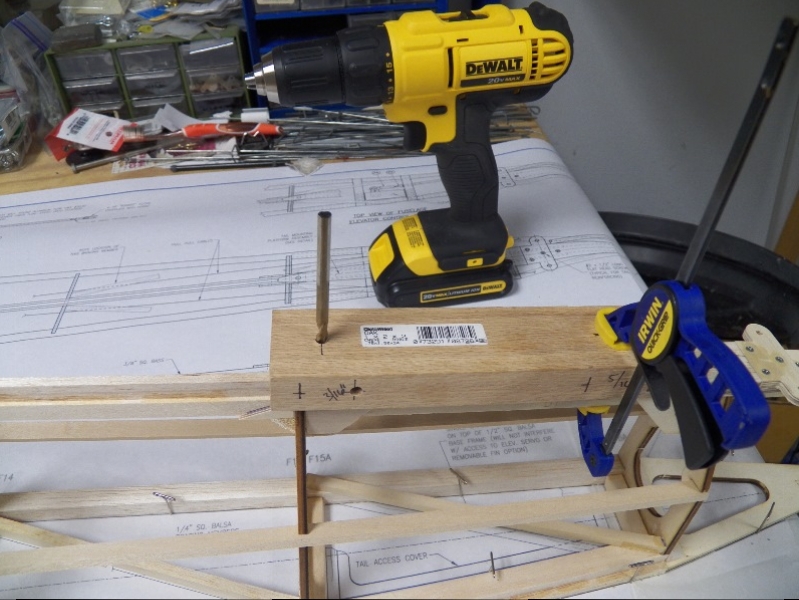

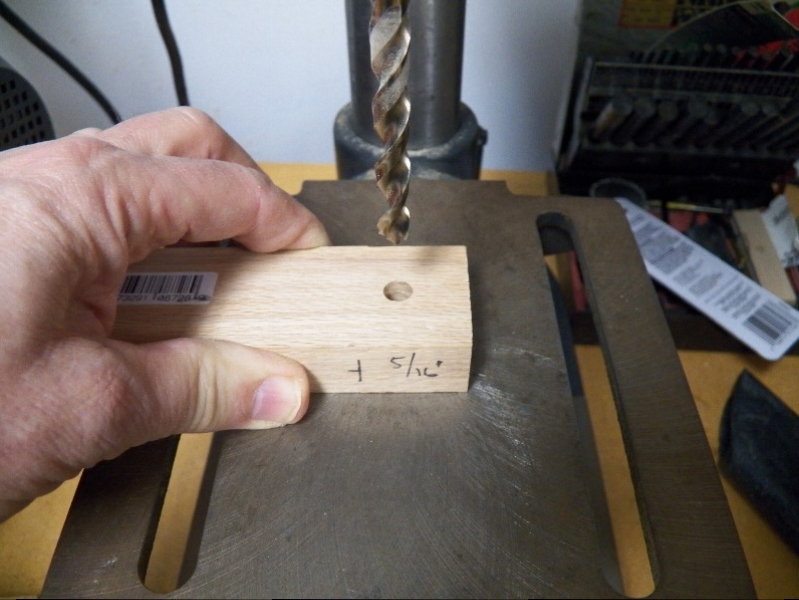

              We are going to use the Ohio Super Star tail wheel option, so we added a hardwood block as per the plans Gunny provides for this.

              Click image for larger version

Name:	159.JPG
Views:	342
Size:	244.5 KB
ID:	15208

              Checking fit of bottom access hatch.

              Click image for larger version

Name:	160.JPG
Views:	361
Size:	260.5 KB
ID:	15209
              A Site for Soar Eyes

              Comment


              • #23

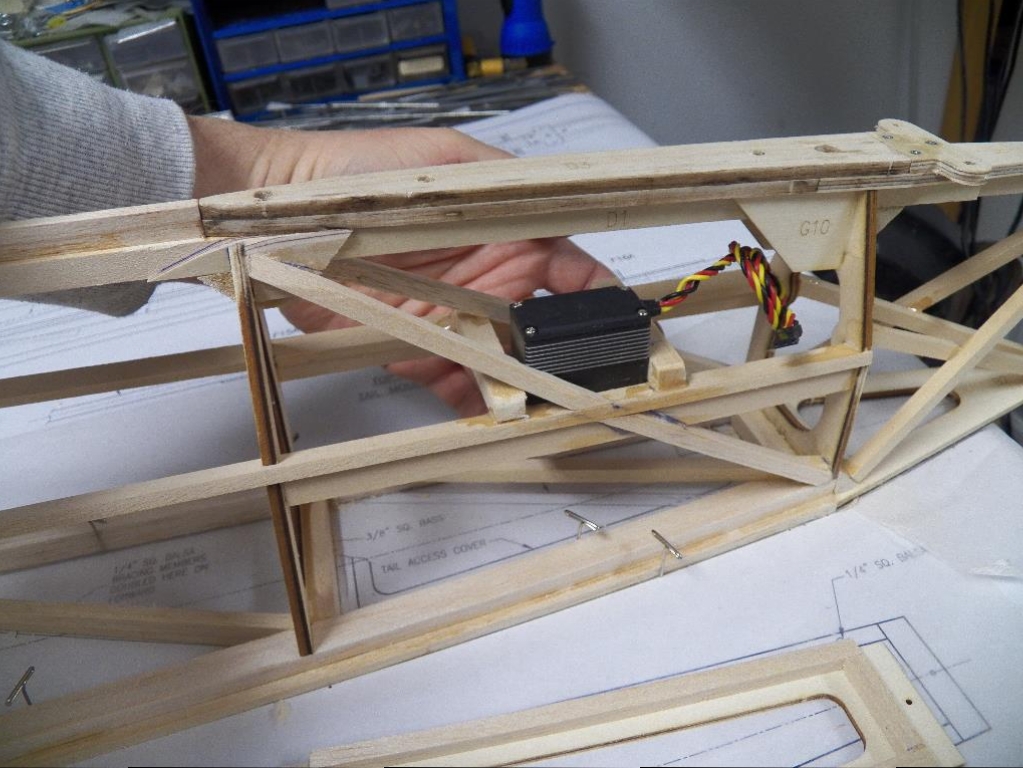

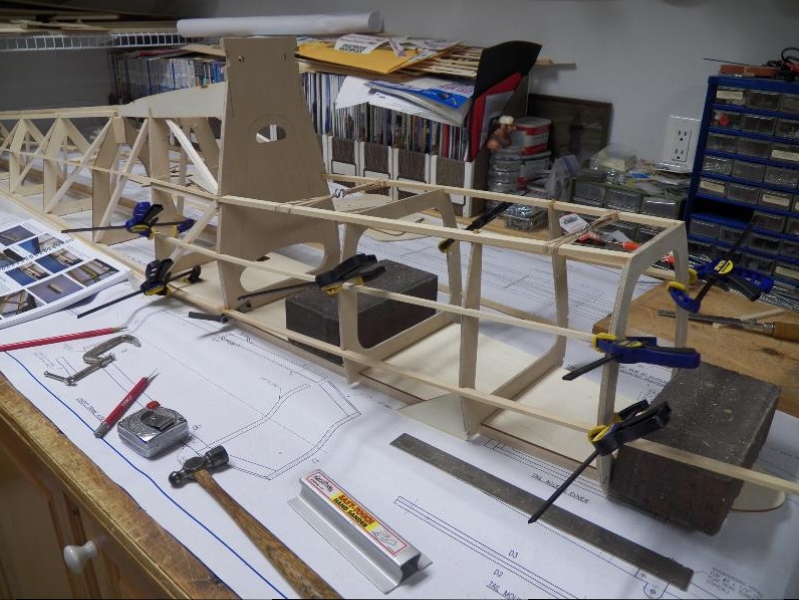

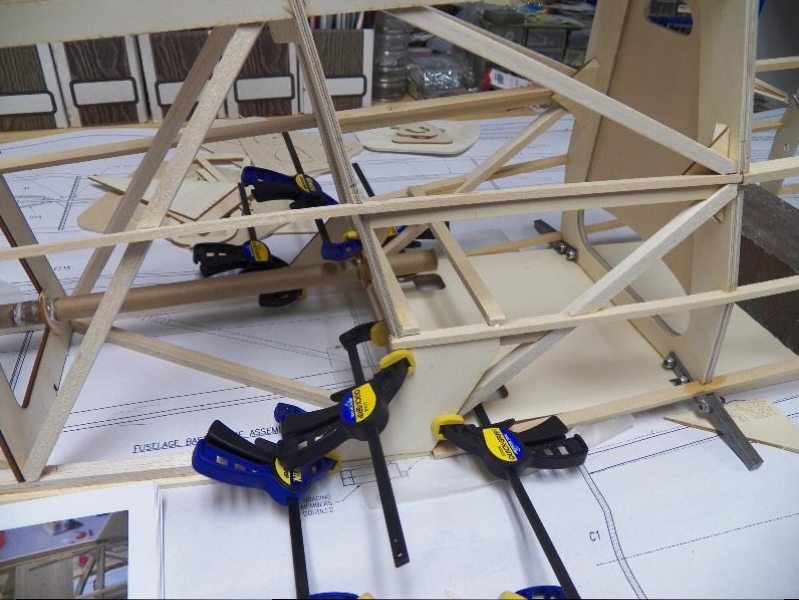

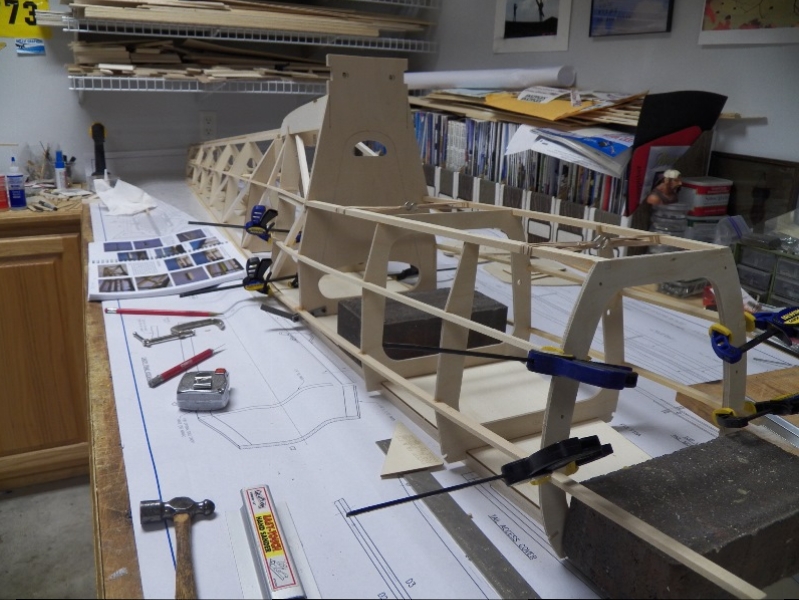

                Now it's time to go back up front and work on the stringers and rudder servo mount. Bricks and clamps plus rubber bands all come in handy!

                Click image for larger version

Name:	161.JPG
Views:	355
Size:	335.5 KB
ID:	15211

                Click image for larger version

Name:	162.JPG
Views:	340
Size:	300.5 KB
ID:	15212

                Click image for larger version

Name:	163.JPG
Views:	345
Size:	292.3 KB
ID:	15213

                Click image for larger version

Name:	164.JPG
Views:	365
Size:	322.3 KB
ID:	15215

                Click image for larger version

Name:	165.JPG
Views:	368
Size:	314.8 KB
ID:	15214
                A Site for Soar Eyes

                Comment


                • #24
                  Looking Good Jim.....I've gotten side tracked into covering my Stab/Elevator
                  I think I'll mount the haigh style tail wheel so we can match.....

                  Click image for larger version  Name:	IMG_3943.JPG Views:	1 Size:	87.4 KB ID:	15217 Click image for larger version

Name:	IMG_3944.JPG
Views:	560
Size:	71.3 KB
ID:	15220
                  Last edited by MarnochS; 02-08-2017, 04:13 AM.

                  Comment


                  • #25
                    I sure am enjoying watching you and Scott building almost stereo Schweizers!

                    Comment


                    • #26
                      Thanks Mike, this is pretty fun.....

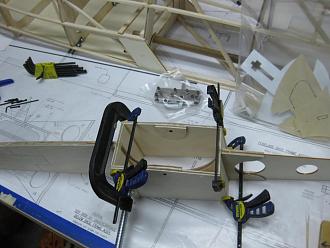

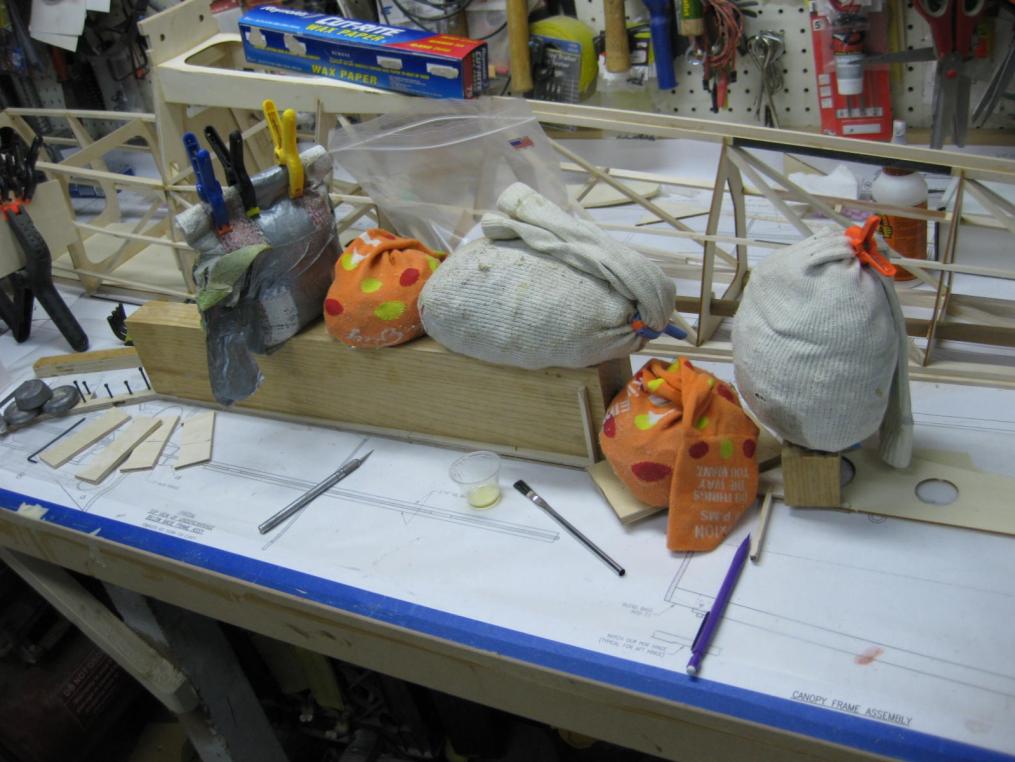

                      Moving on to the Keel ....

                      Click image for larger version

Name:	IMG_3945.JPG
Views:	594
Size:	96.6 KB
ID:	15324Click image for larger version

Name:	IMG_3947.JPG
Views:	595
Size:	100.0 KB
ID:	15325

                      Comment


                      • #27

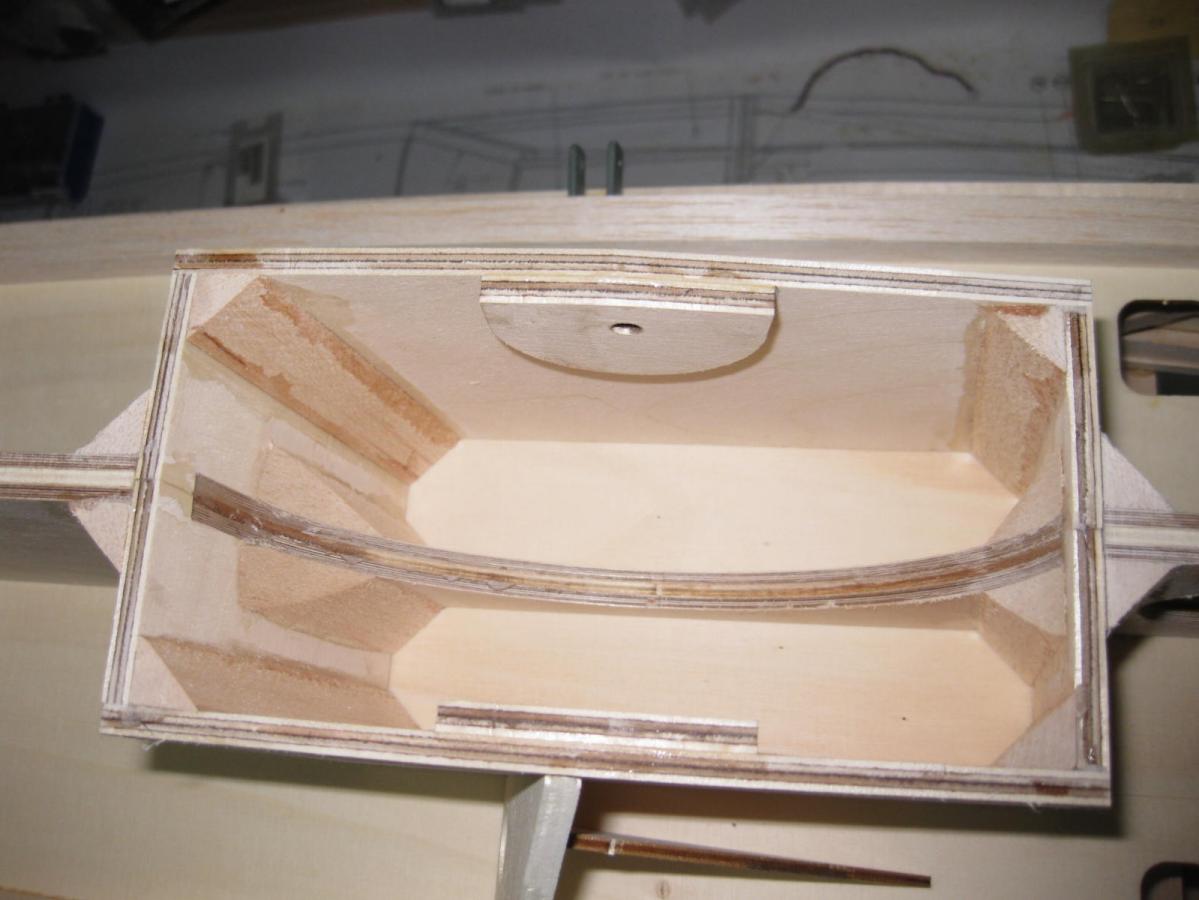

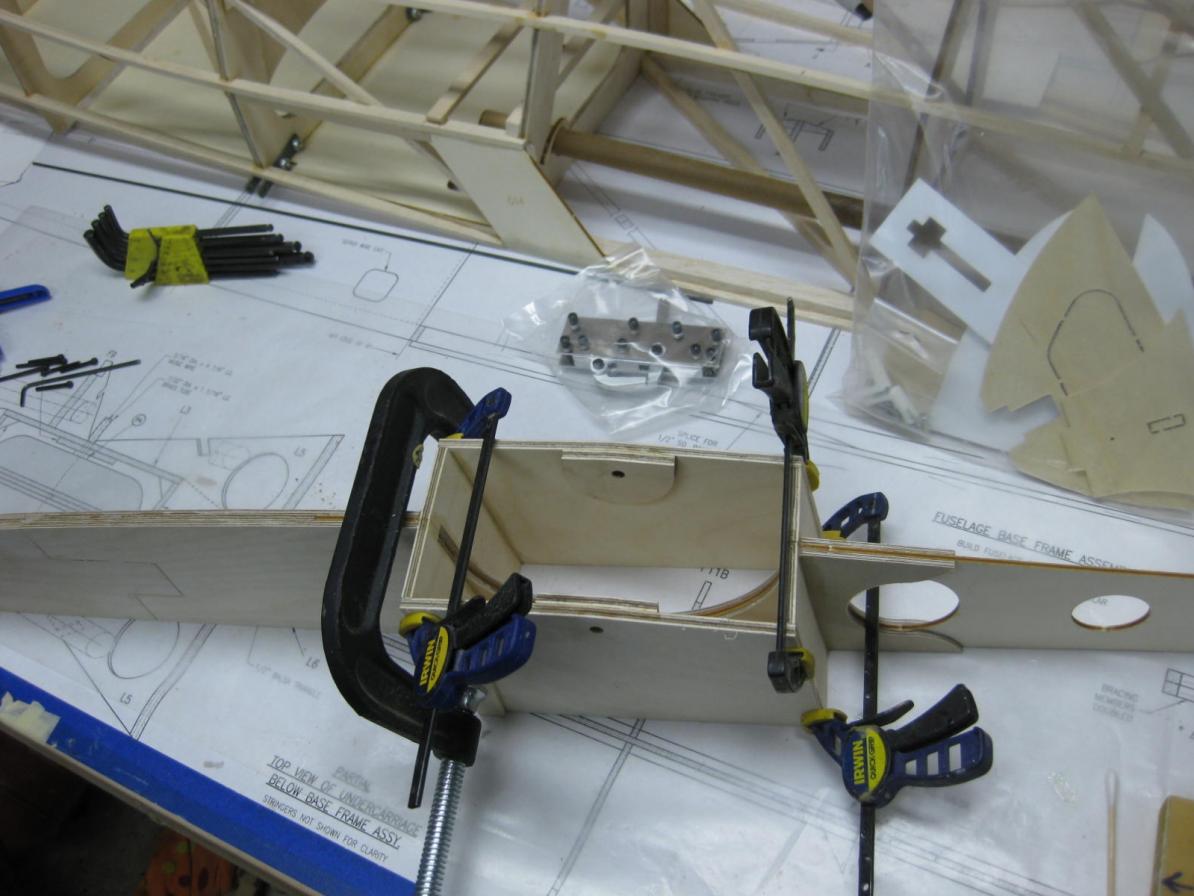

                        1/2" triangles around the wheel box
                        Click image for larger version

Name:	IMG_3950.JPG
Views:	552
Size:	85.3 KB
ID:	15330

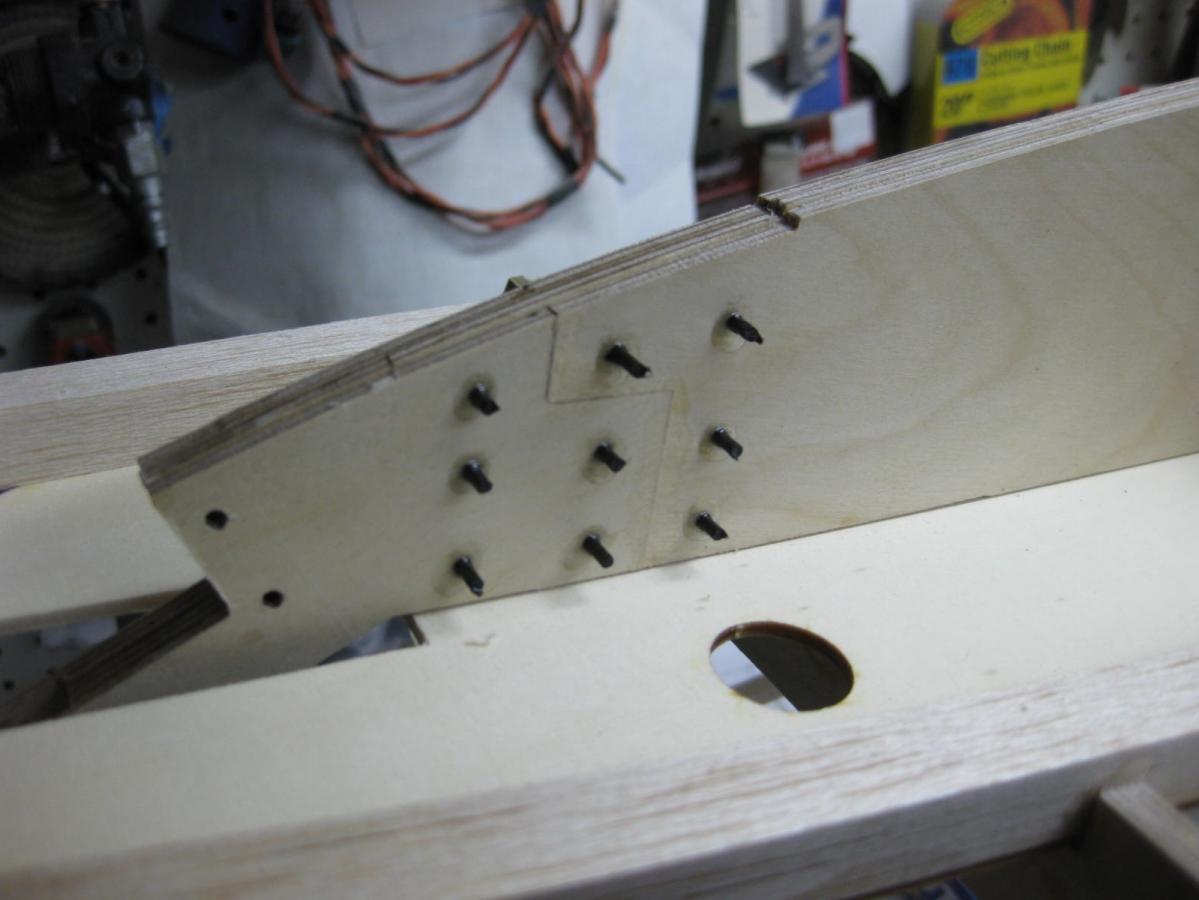

                        Plans call for #2 counter-sunk screws to reinforce the lamination for the scale tow release retrofit ...I opted for 0.080 carbon rod epoxied in place (sanded flush)
                        Click image for larger version

Name:	IMG_3948.JPG
Views:	596
Size:	70.8 KB
ID:	15328

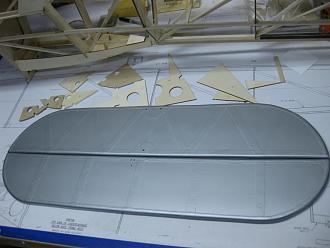

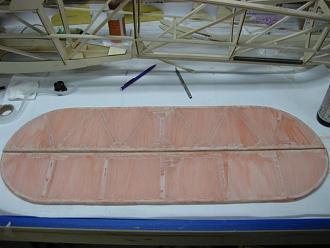

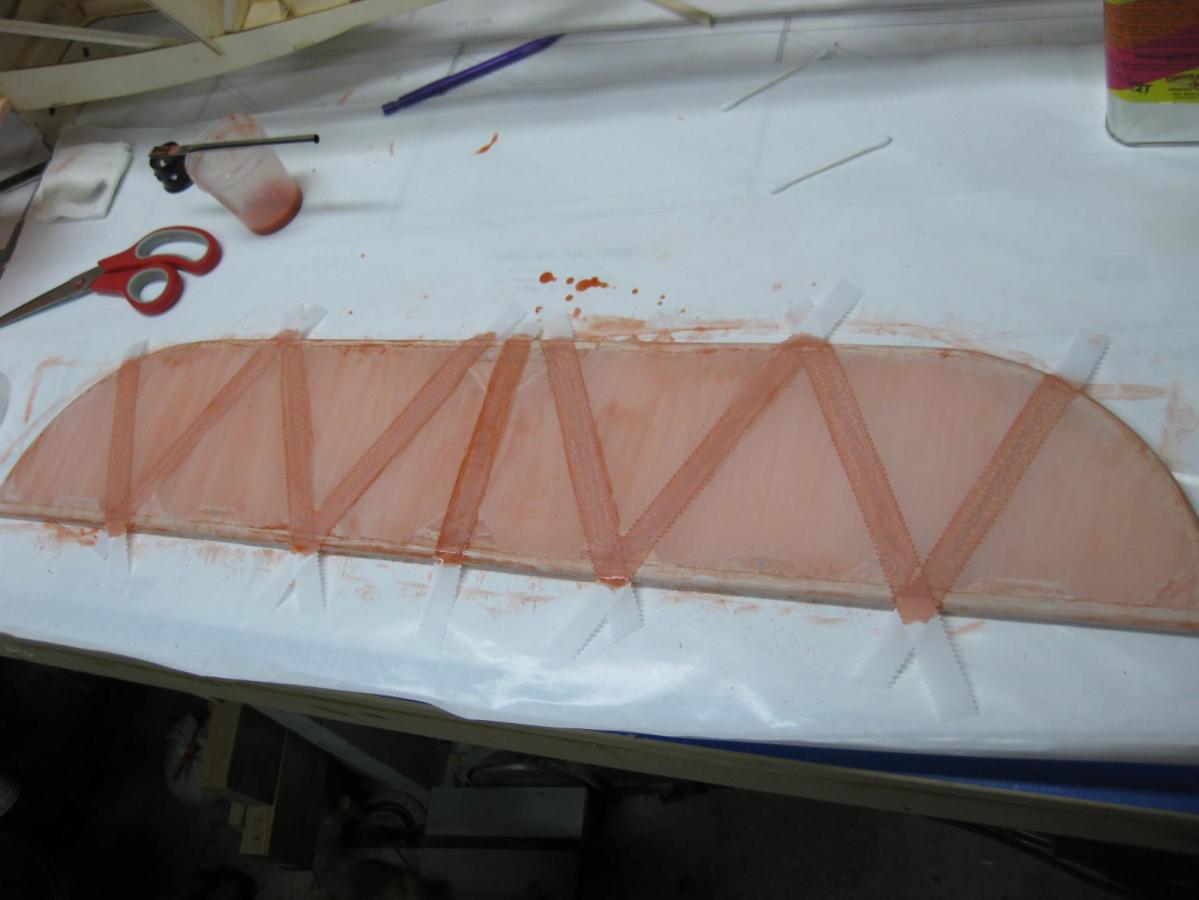

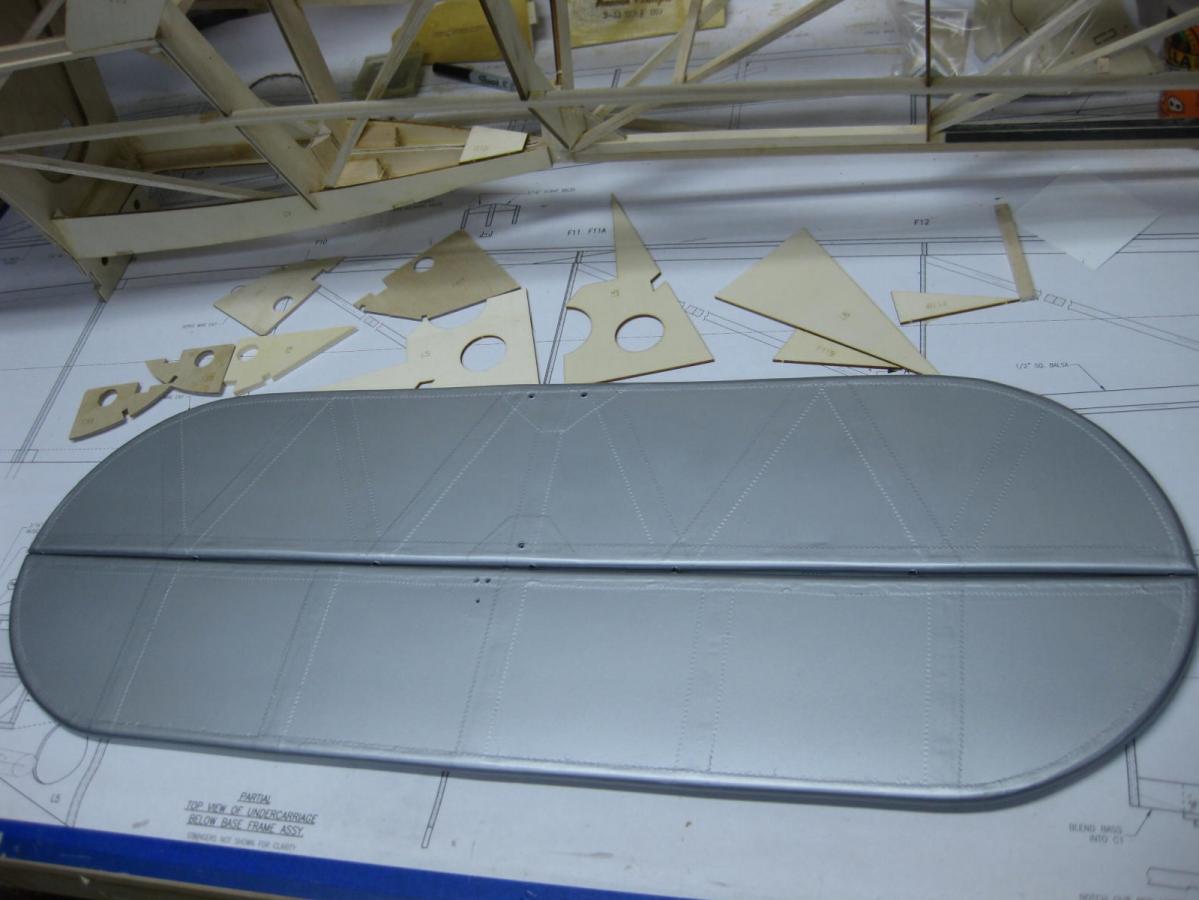

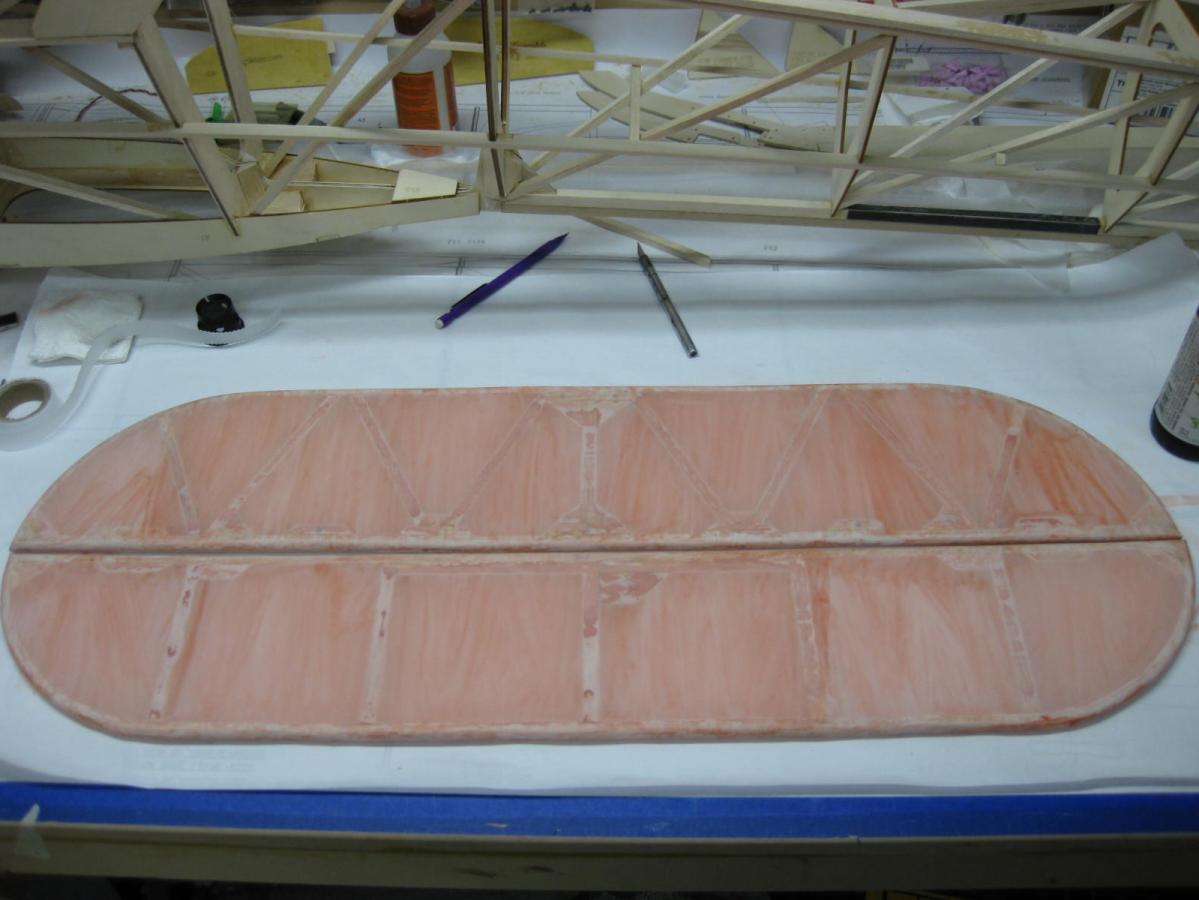

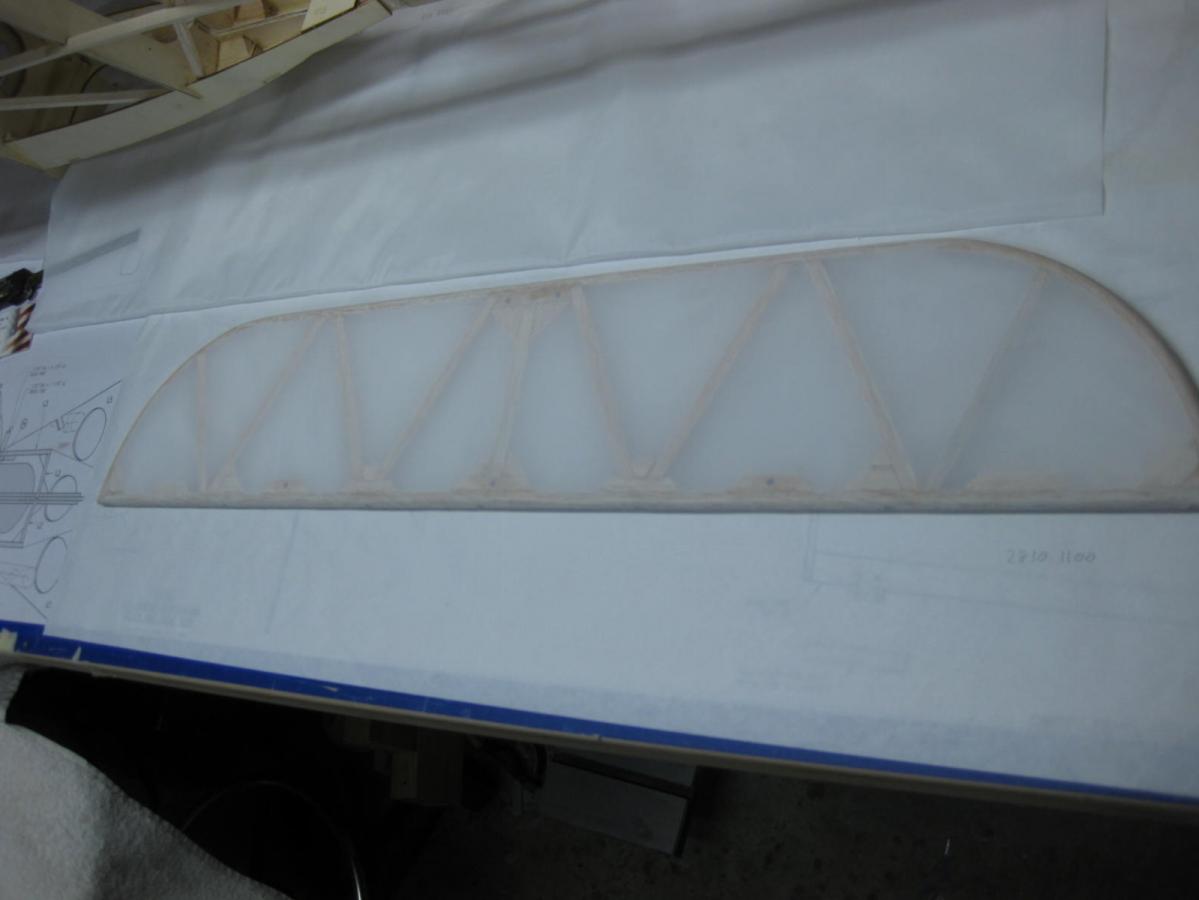

                        Poly-Spray on the Stab/Elevator
                        Click image for larger version

Name:	IMG_3951.JPG
Views:	545
Size:	85.9 KB
ID:	15329

                        Comment


                        • #28

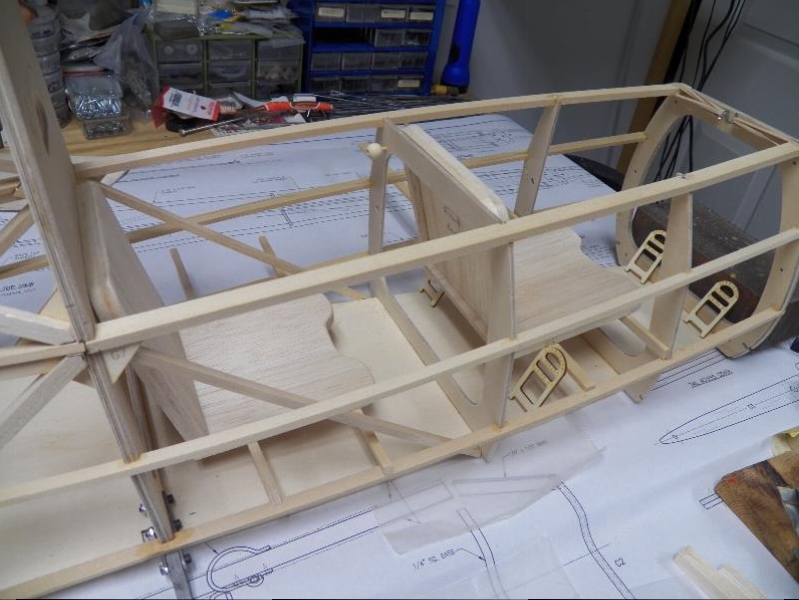

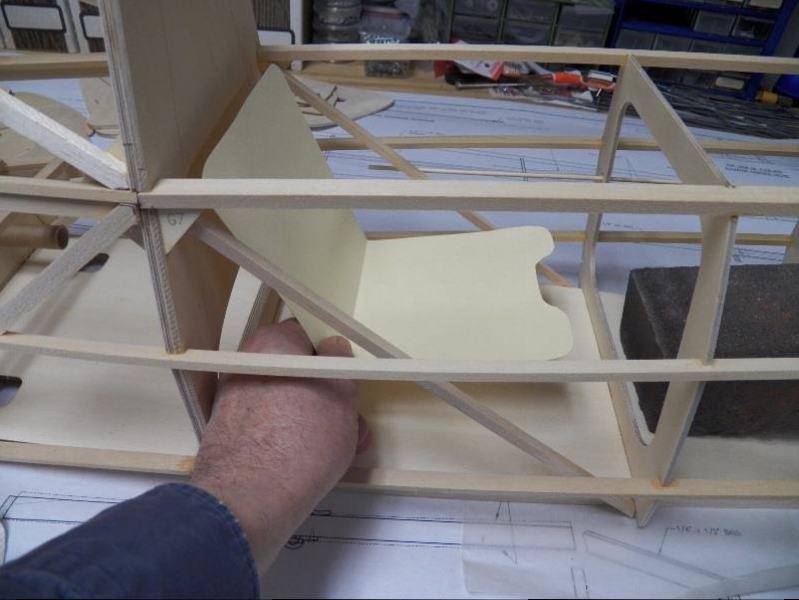

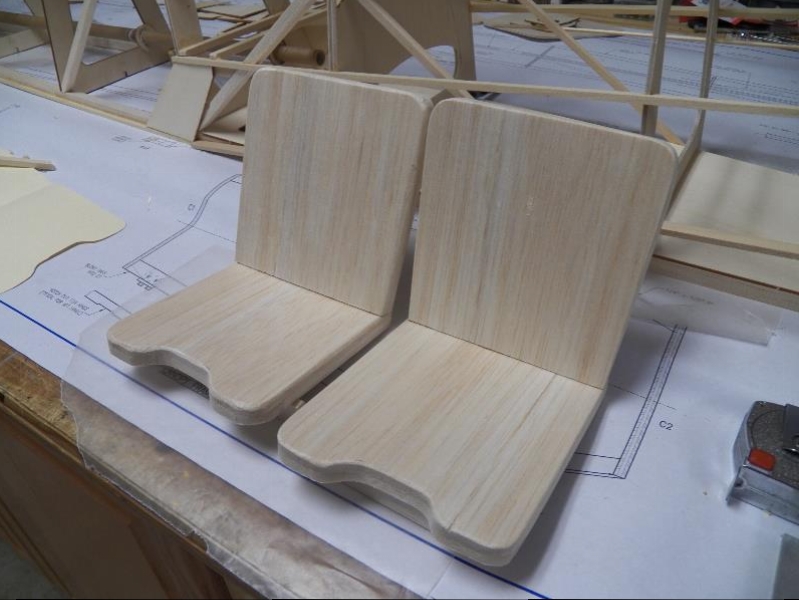

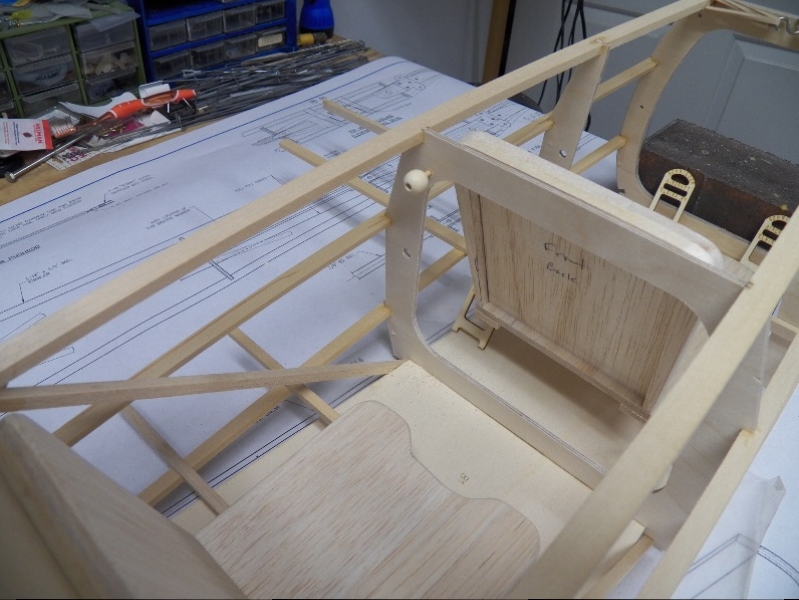

                          While the fuselage is still sitting flat on the bench, I thought it would be a good time to work on some interior details like seats and side panels. Click image for larger version  Name:	167.JPG Views:	1 Size:	249.8 KB ID:	15353
                          Click image for larger version  Name:	168.JPG Views:	1 Size:	250.6 KB ID:	15354
                          Click image for larger version  Name:	169.JPG Views:	1 Size:	286.9 KB ID:	15357
                          Click image for larger version  Name:	172.JPG Views:	1 Size:	306.3 KB ID:	15358



                          A Site for Soar Eyes

                          Comment


                          • #29

                            Wow Scott! That tail assembly looks AWSOME!
                            Keep up the great work.....

                            Jim, your slacking behind, LOL

                            Somthing to get you guys inspired....
                            I'm Back.......... lol
                            Last edited by gunny11; 02-17-2017, 09:43 PM.
                            Gunny
                            Aviation Concepts rc

                            Comment


                            • #30
                              Jim, can I borrow your seat templates.....very nice

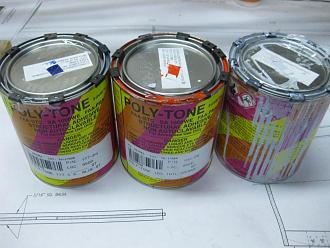

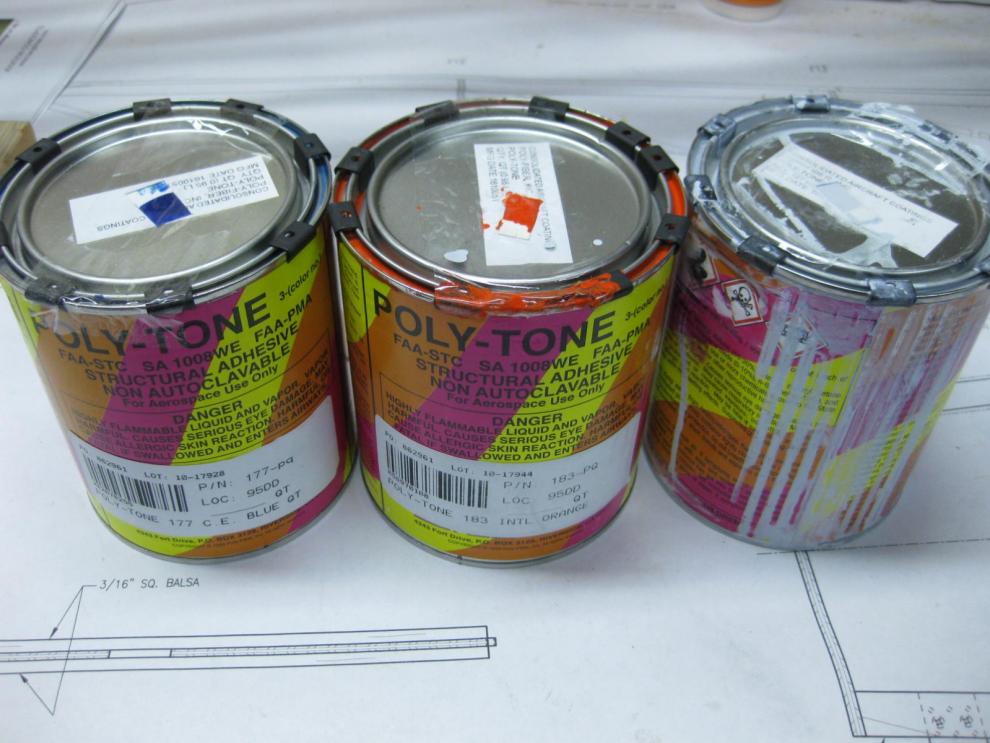

                              Box of Paint arrived ....At least I know what color is in each can...........now if it would just stop raining......

                              Click image for larger version

Name:	IMG_3954.JPG
Views:	534
Size:	92.4 KB
ID:	15384

                              Comment


                              • JimD
                                JimD commented
                                Editing a comment
                                Hi Scot, just PM your mailing address and I will send the templates.
