1/3-Scale Cessna L-19 "Bird Dog" Kit by Peter Goldsmith Designs

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #46

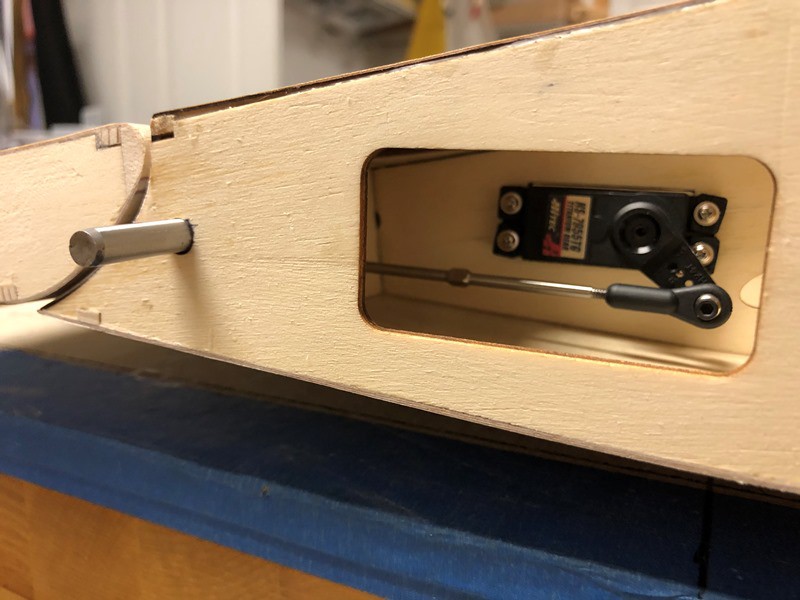

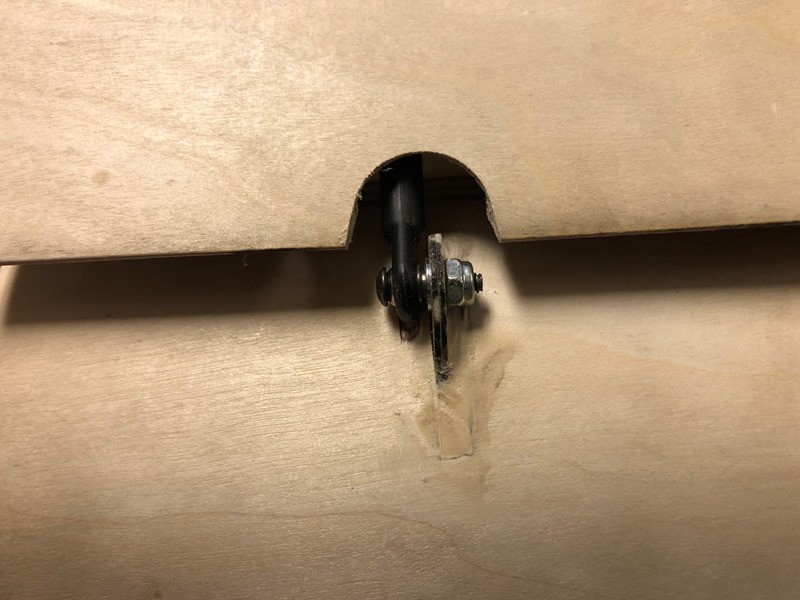

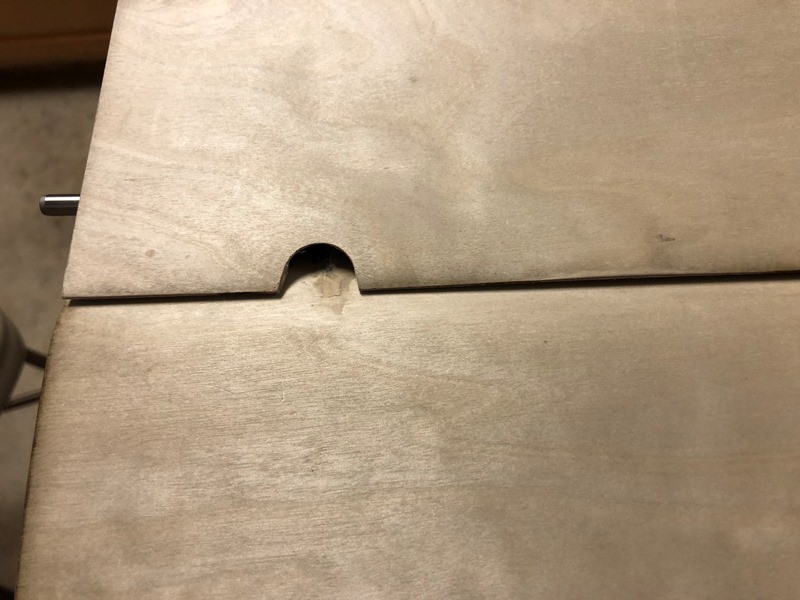

    With the flap hinge assemblies in place, the flap travel and pushrod clearance can be checked and adjustments made as needed. We found it necessary to relieve the top wing skin sheeting along the trailing edge for smooth operation of the flaps.

    Click image for larger version

Name:	W080.JPG
Views:	214
Size:	89.6 KB
ID:	39640

    Click image for larger version

Name:	W081.JPG
Views:	212
Size:	74.2 KB
ID:	39639

    Click image for larger version

Name:	W082.JPG
Views:	213
Size:	103.1 KB
ID:	39642

    Click image for larger version

Name:	W083.JPG
Views:	243
Size:	100.8 KB
ID:	39637

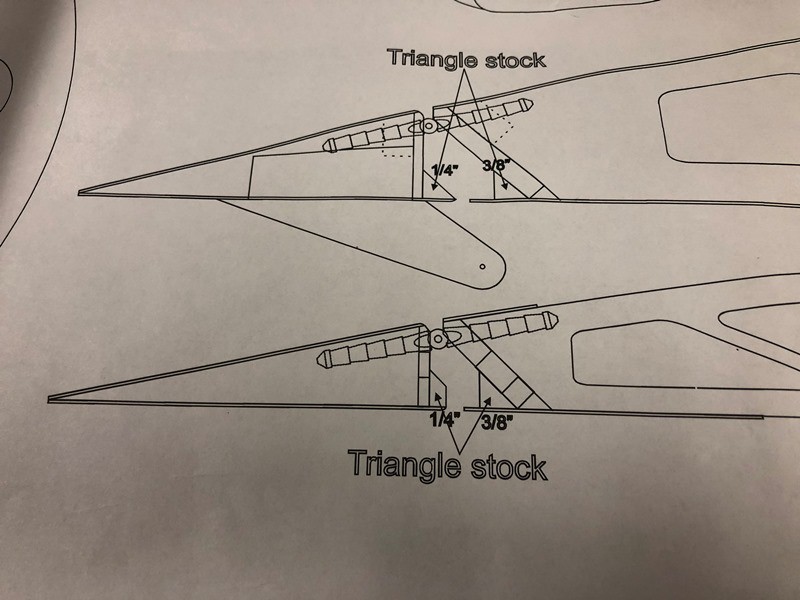

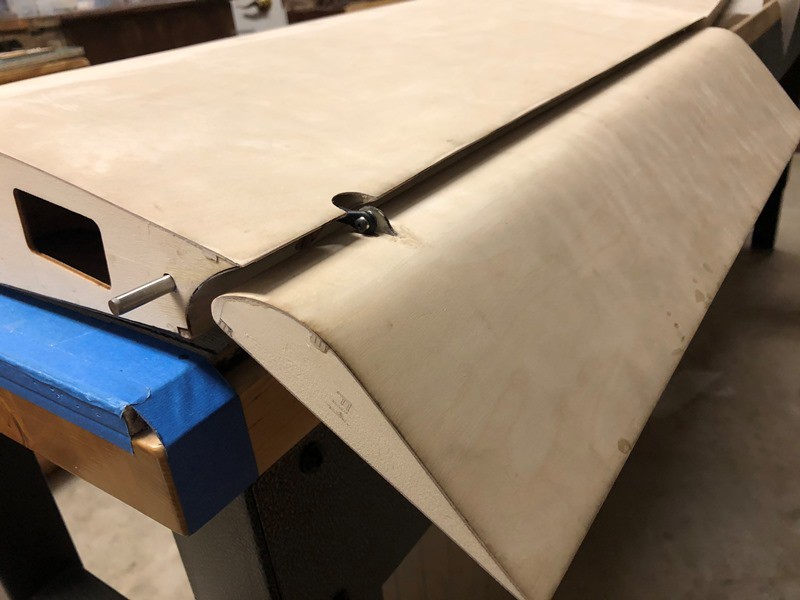

    Both the wing TE along the aileron hinge line and the aileron LE need to be sanded slighly. Refer to the plan cross section for how this should look.

    Click image for larger version

Name:	W087.JPG
Views:	213
Size:	85.9 KB
ID:	39644

    Wing TE view

    Click image for larger version

Name:	W084.JPG
Views:	212
Size:	70.3 KB
ID:	39643

    Aileron LE view.

    Click image for larger version

Name:	W085.JPG
Views:	213
Size:	66.1 KB
ID:	39641

    Hingeline view.

    Click image for larger version

Name:	W086.JPG
Views:	213
Size:	97.9 KB
ID:	39638

    A Site for Soar Eyes

    Comment


    • MarnochS
      MarnochS commented
      Editing a comment
      Excellent Stuff

  • #47
    Are kits being cut or are some details still being worked out?

    Comment


    • #48
      Kits were cut and are available, you would need to check with Peter for delivery availablilty. We flew Peters in Cumberland last fall.
      Len Buffinton
      Team Horizon Hobby

      Comment


      • #49
        Typically ships within 7 days once the order is received.
        Www.petergoldsmithdesigns.com

        Comment


        • #50
          A plywood root rib "cap" goes between the wing and the fuselage. This rib is held tight to the fuselage while epoxy with filler fills any void between the two. Peter uses this same technique to mate wings to fuselage sides on his other kits that have plug on wings.

          1/32" sheeting is trimmed flush with the wR1 rib, but note that the wing tube socket extends the width of the "cap" rib beyond rib wR1.


          Click image for larger version

Name:	W088.JPG
Views:	120
Size:	100.1 KB
ID:	39885

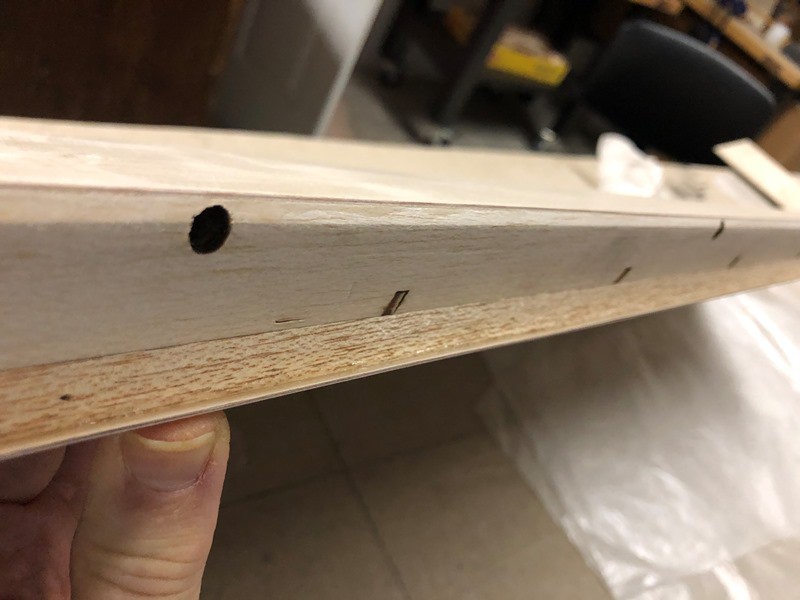

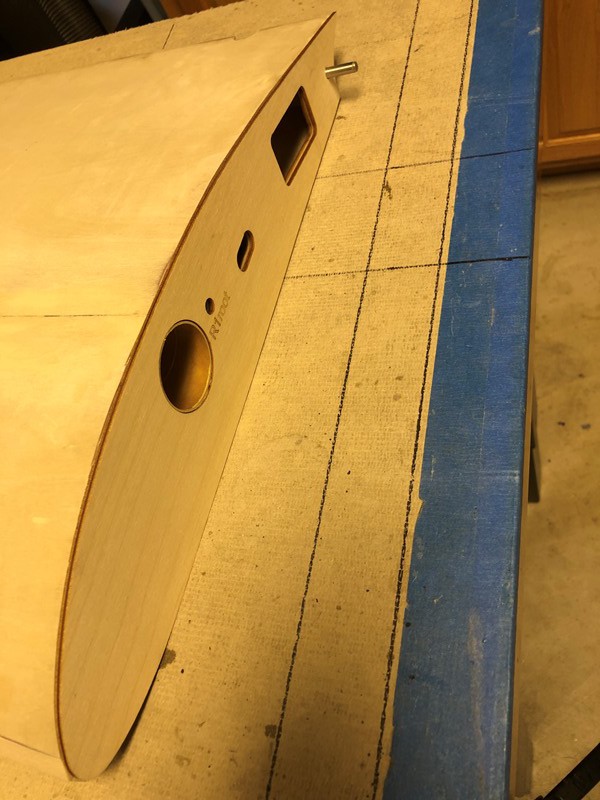

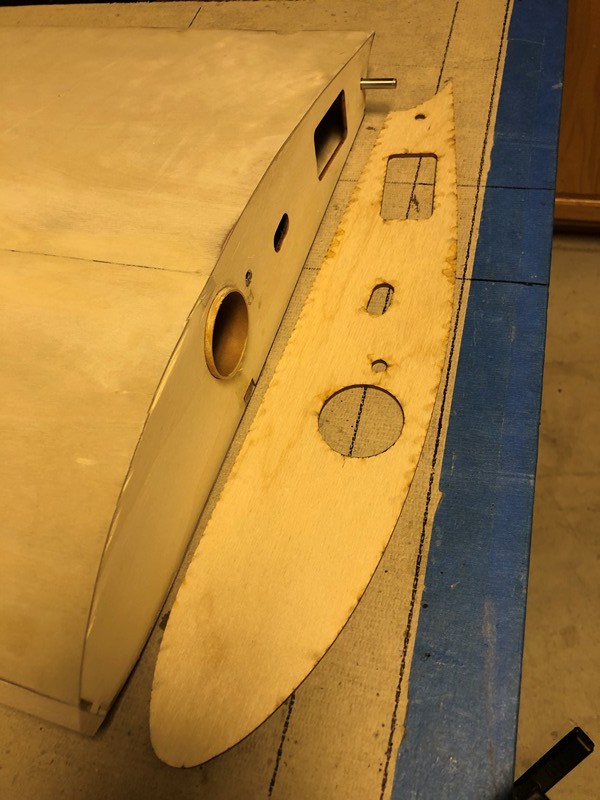

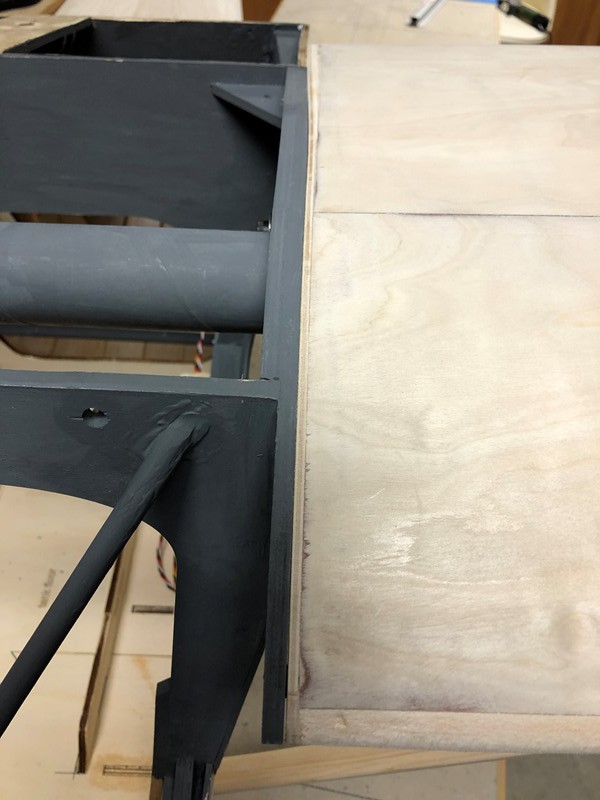

          Note that the wing tube socket is flush with the outside of the cap rib. fNote also that the cap rib is slightly oversize compared to wR1 so that it covers the exposed ends of the 1/32" plywood wing skin sheeting.

          Click image for larger version

Name:	W089.JPG
Views:	105
Size:	105.6 KB
ID:	39887

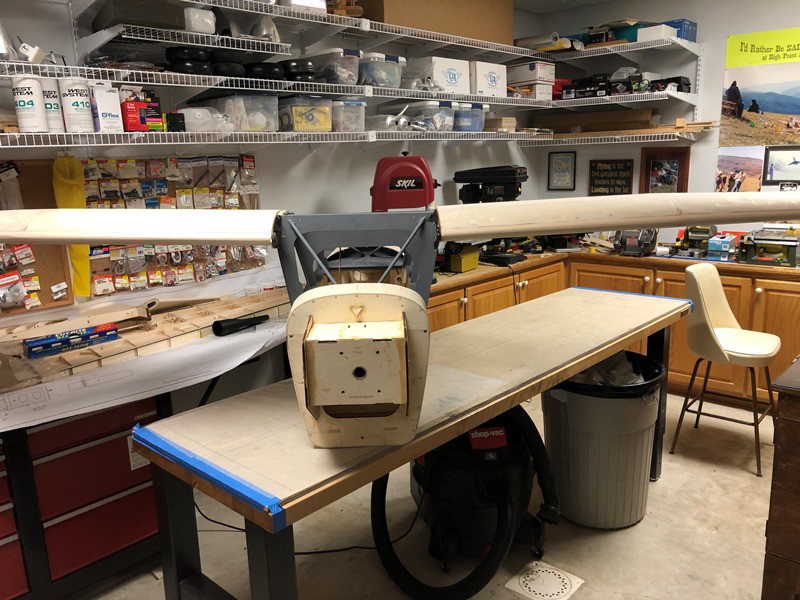

          Make sure that the wings mate to the fuselage properly. We had to trim the top of the outer window frames slightly to clear the bottom edge of the wings.

          Click image for larger version

Name:	W090.JPG
Views:	105
Size:	56.4 KB
ID:	39886

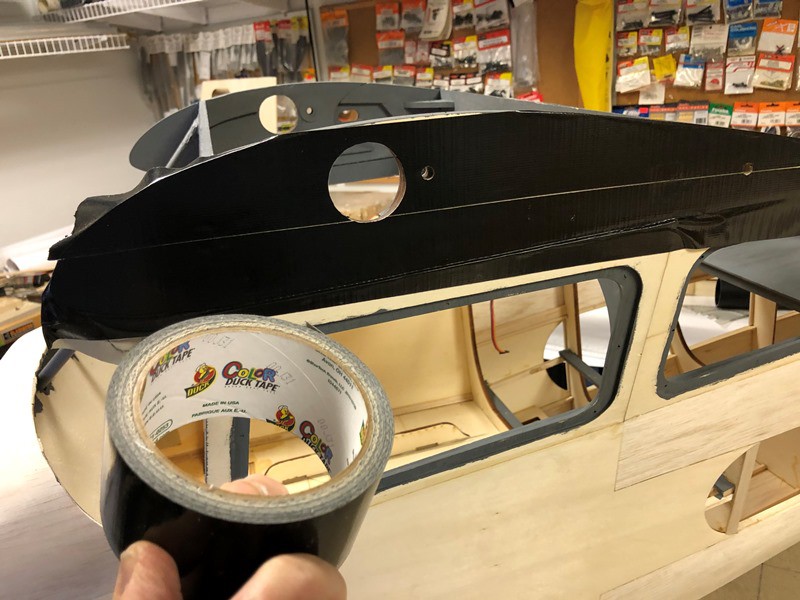

          When gluing the cap ribs to the wings, use some type of non-stick material to avoid inadvertently gluing the sings to the fuselage. Duct tape works well and is easier to keep in place than wax paper.

          Click image for larger version

Name:	W091.JPG
Views:	104
Size:	114.6 KB
ID:	39890

          Mix epoxy with filler, slide the cap ribs on over the wing tube, spread a generous amount of epoxy mix onto the wing root ribs and slide the wings onto the wing tube and bolt into place.

          Click image for larger version

Name:	W092.JPG
Views:	108
Size:	150.4 KB
ID:	39891

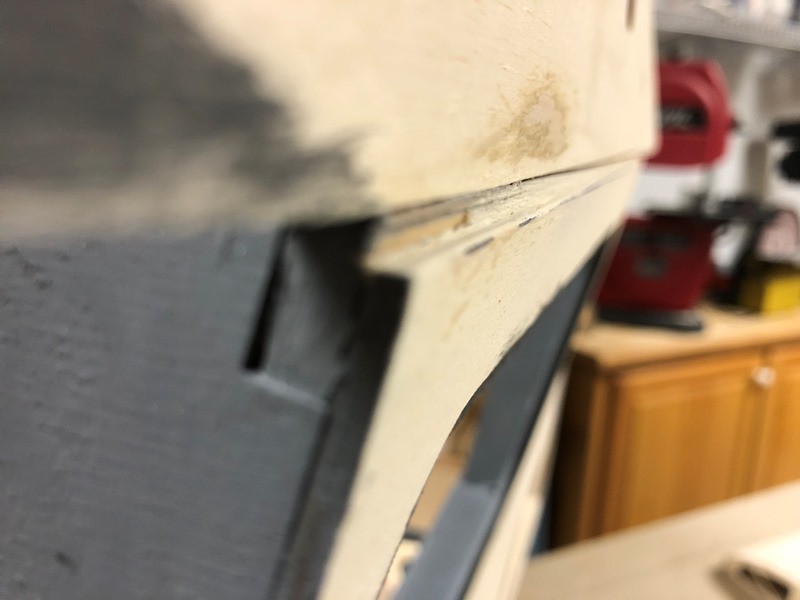

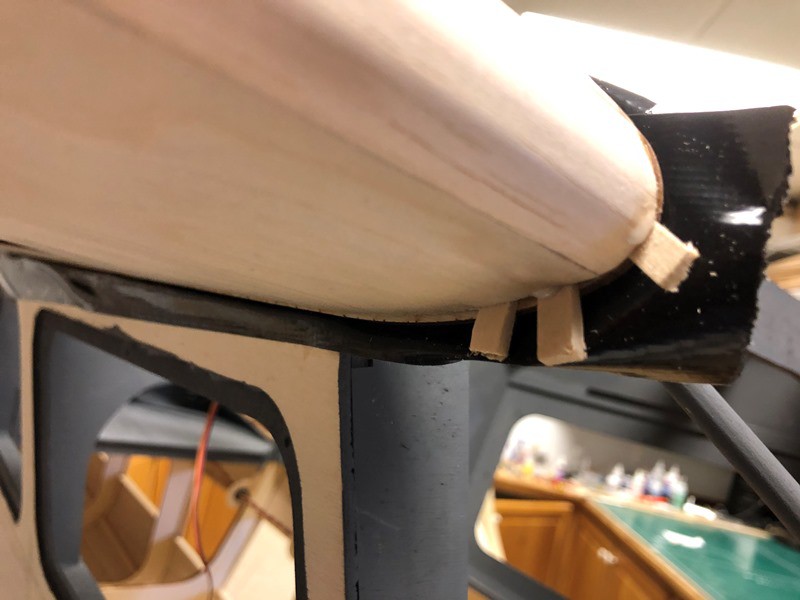

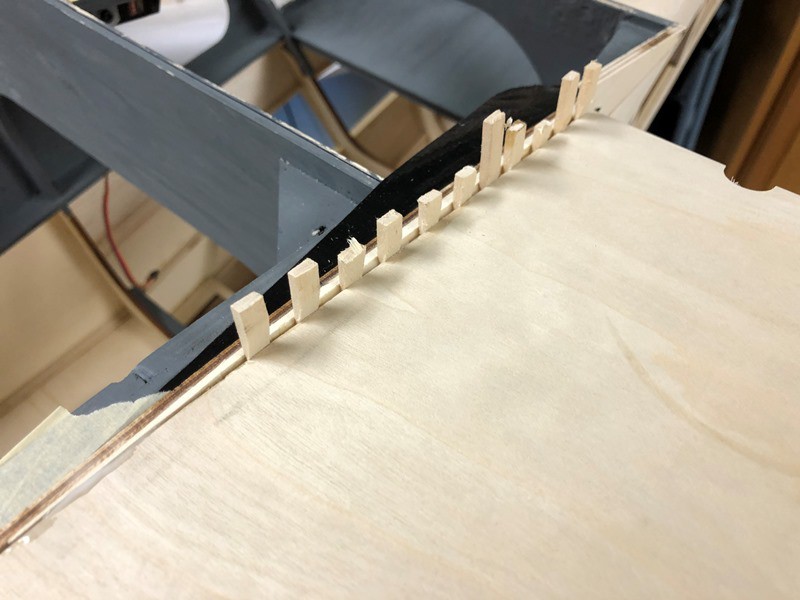

          Check for gaps and if there is a large gap, use small pieces of scrap basswood to wedge between the cap rib and the wing root rib.

          Click image for larger version

Name:	W093.JPG
Views:	106
Size:	70.0 KB
ID:	39888

          Click image for larger version

Name:	W094.JPG
Views:	104
Size:	80.5 KB
ID:	39892

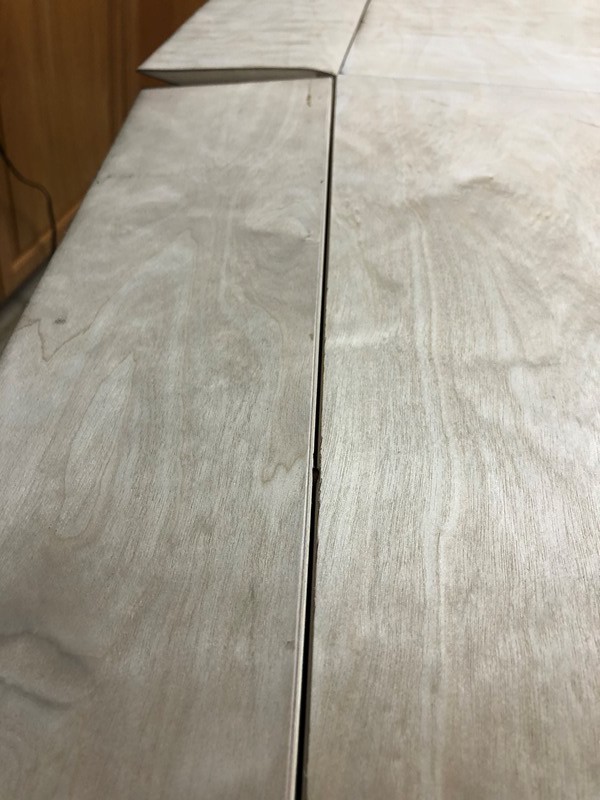

          Once epoxy sets, trim the wedges flush and add filler as needed to remaining gaps. finally, sand the cap rib flush with the wing skins and result is a nice gapless fit between wing and fuselage.

          Click image for larger version

Name:	W095.JPG
Views:	106
Size:	75.6 KB
ID:	39889
          A Site for Soar Eyes

          Comment


          • #51

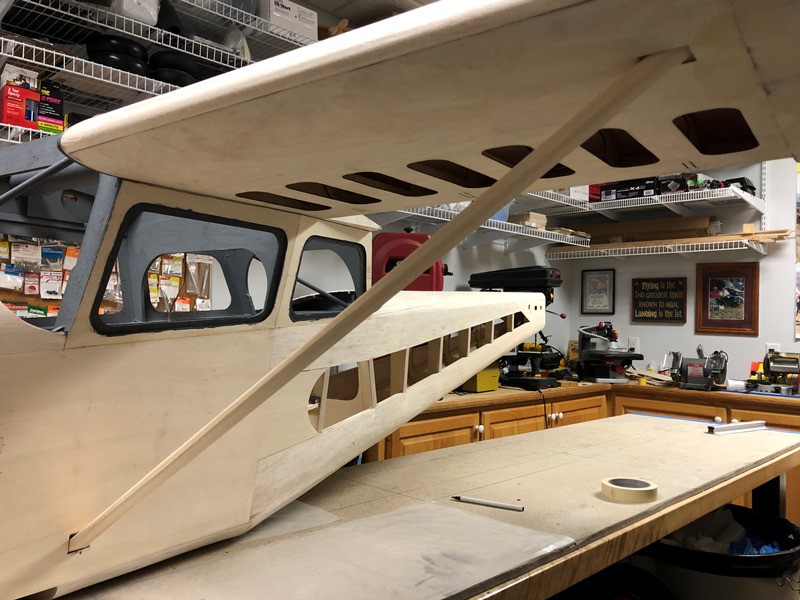

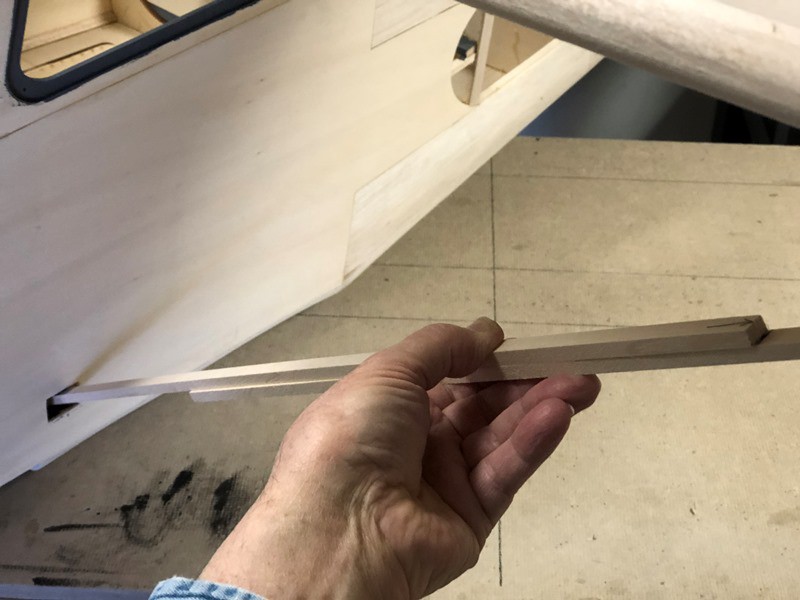

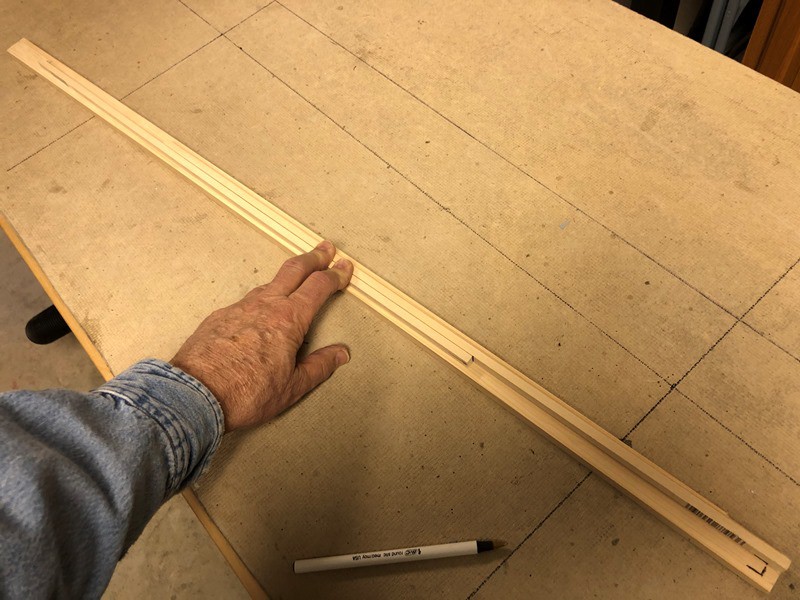

            Struts and fabricated from five pieces of 1/4"x1/2" basswood laminated together the produce a cross section 1/2"x1-1/4". With the wings fitted to the fuselage, use two sticks that can slide into the strut sockets in the fuselage and wing. Measure the length and transfer this to the struts and cut them to length.

            Click image for larger version

Name:	W096.JPG
Views:	104
Size:	78.5 KB
ID:	39895

            Click image for larger version

Name:	W097.JPG
Views:	105
Size:	126.2 KB
ID:	39899

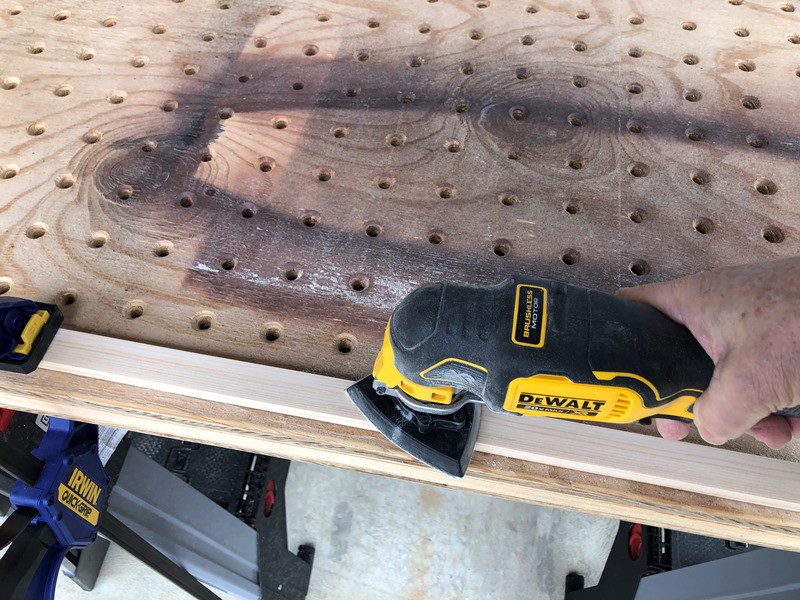

            Sand the struts smooth and round the edges.

            Click image for larger version

Name:	W098.JPG
Views:	106
Size:	158.6 KB
ID:	39900
            Check the fit and trim slightly as needed for an exact fit. Peter lined the strut sockets with the fuzzy side of sticky back Velcro to cushion the ends of the struts and prevent them from rattling in the sockets. Struts are NOT screwed to either end, just a friction fit.
            Click image for larger version

Name:	W099.JPG
Views:	104
Size:	126.4 KB
ID:	39898

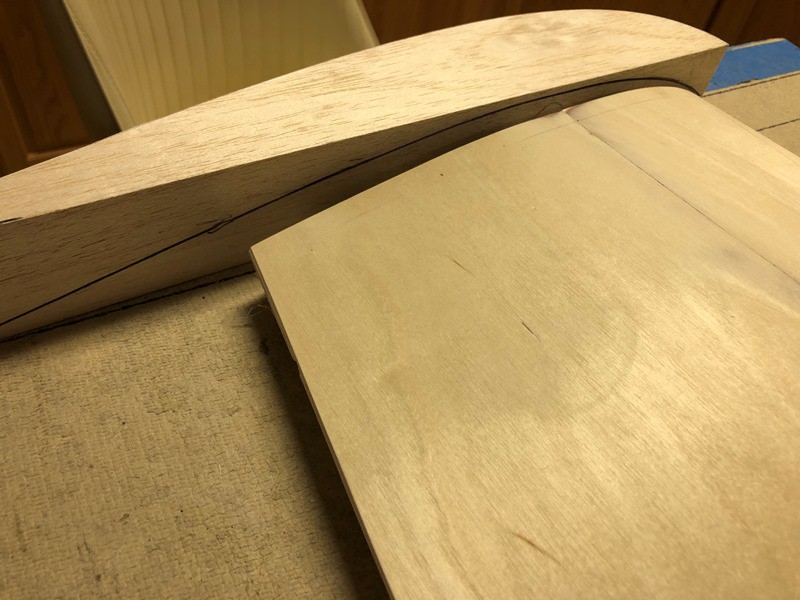

            Hold balsa wing tip blocks against the wing tips and trace the airfoil onto the blocks.
            Click image for larger version

Name:	W100.JPG
Views:	106
Size:	107.9 KB
ID:	39897

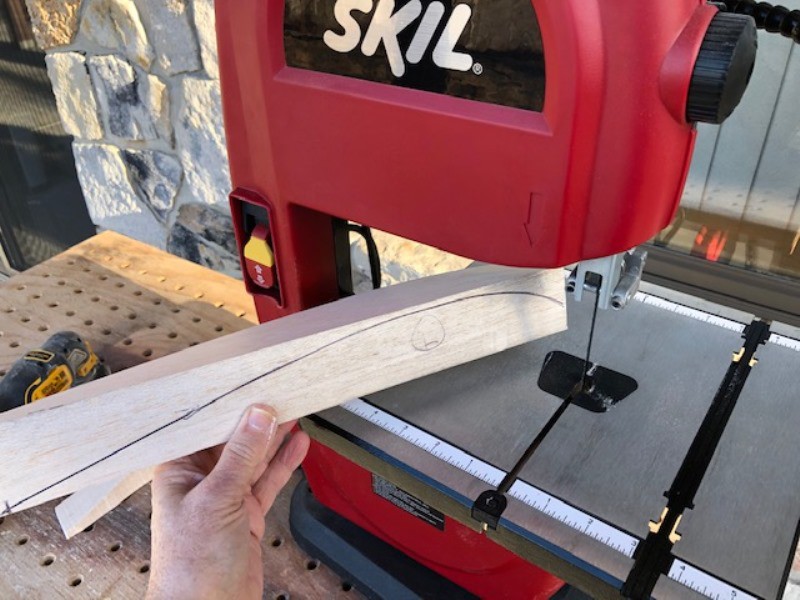

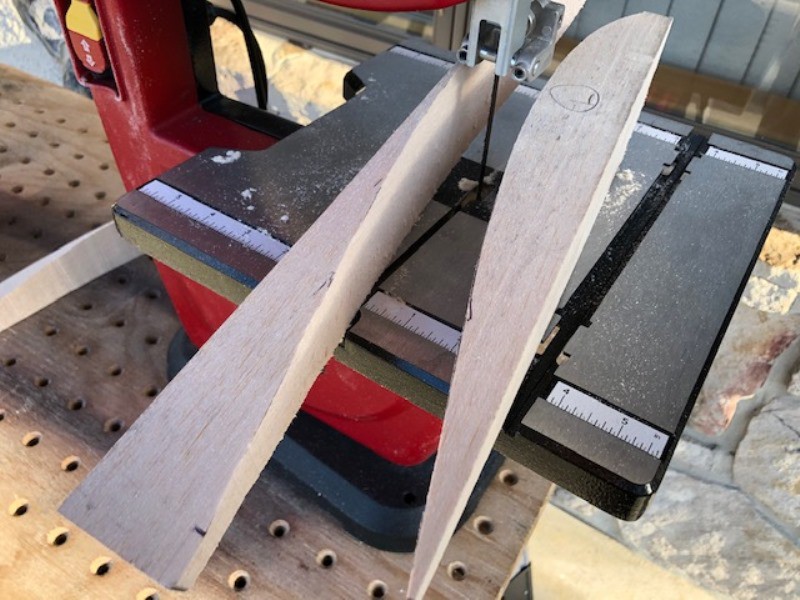

            Cut the excess off with a band saw.
            Click image for larger version

Name:	W101.jpg
Views:	104
Size:	114.7 KB
ID:	39901

            Click image for larger version

Name:	W102.jpg
Views:	106
Size:	122.5 KB
ID:	39896

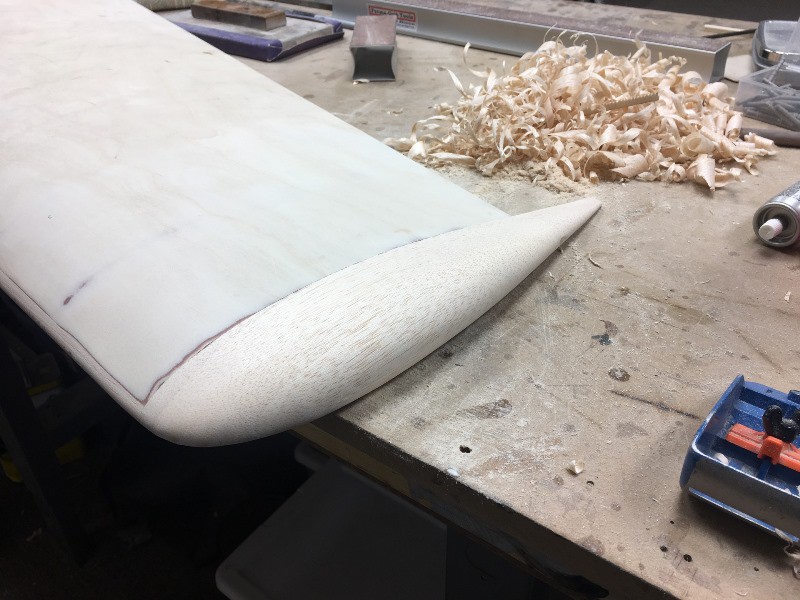

            Glue block to tip and carve to a rounded shape.

            Click image for larger version

Name:	W103.jpeg
Views:	118
Size:	120.1 KB
ID:	39894

            Wings are now ready to cover!

            A Site for Soar Eyes

            Comment


            • #52

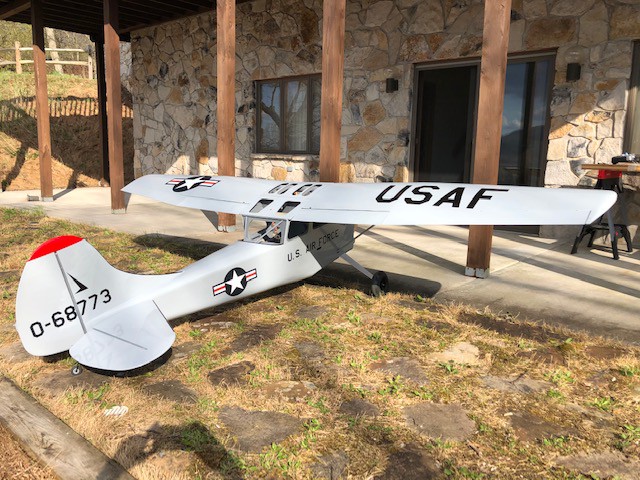

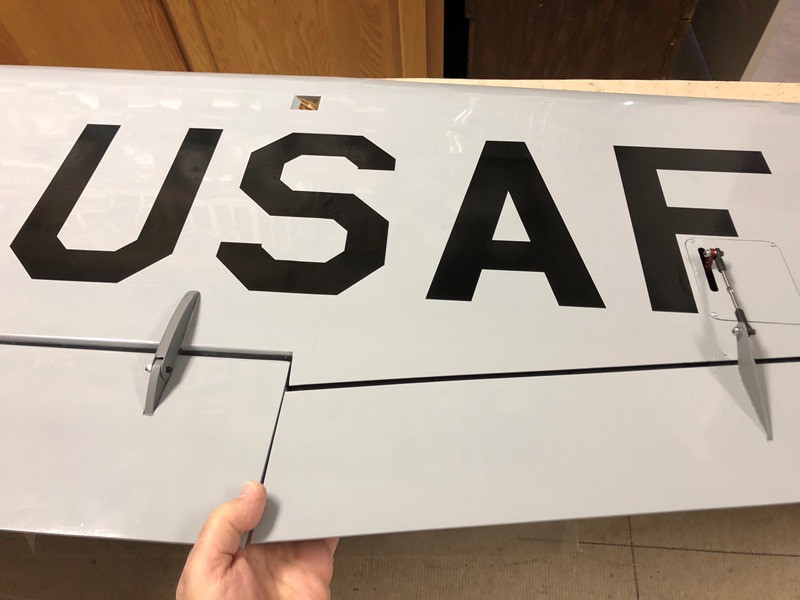

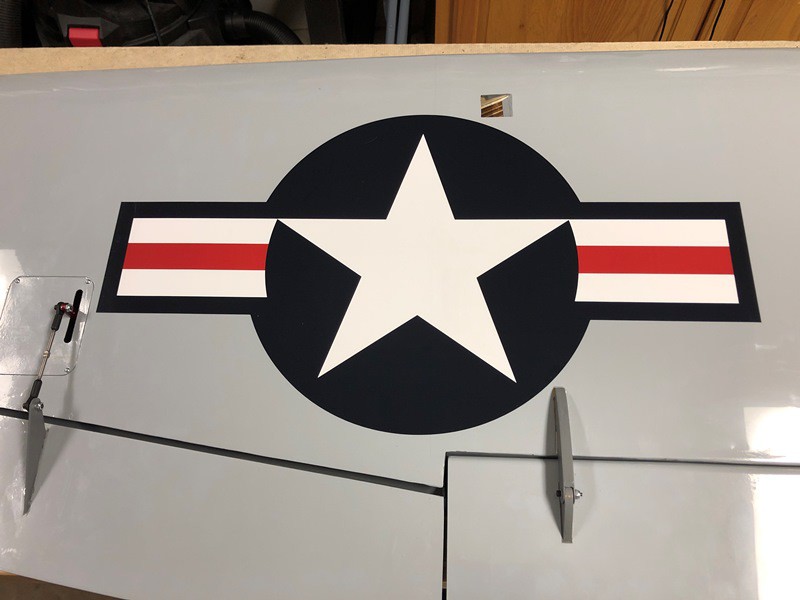

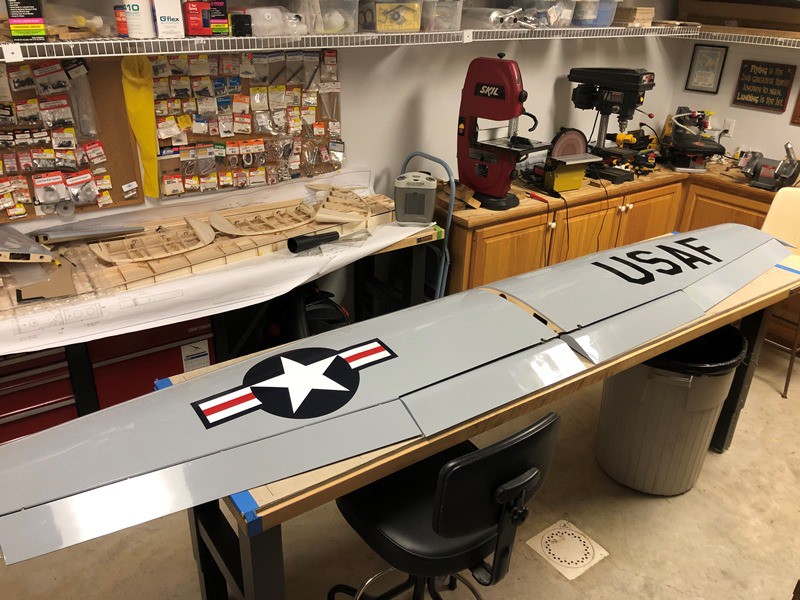

              Wings are covered and flaps & ailerons are installed and linkages completed. Graphics from Callie Graphics applied. Best of all, the graphics avoided all of the obstacles on the bottom of the wings!

              Click image for larger version

Name:	Graphics 001.JPG
Views:	47
Size:	147.0 KB
ID:	40055

              Click image for larger version

Name:	Graphics 002.JPG
Views:	46
Size:	67.7 KB
ID:	40056

              Click image for larger version

Name:	Graphics 003.JPG
Views:	46
Size:	64.4 KB
ID:	40057



              A Site for Soar Eyes

              Comment


              • #53

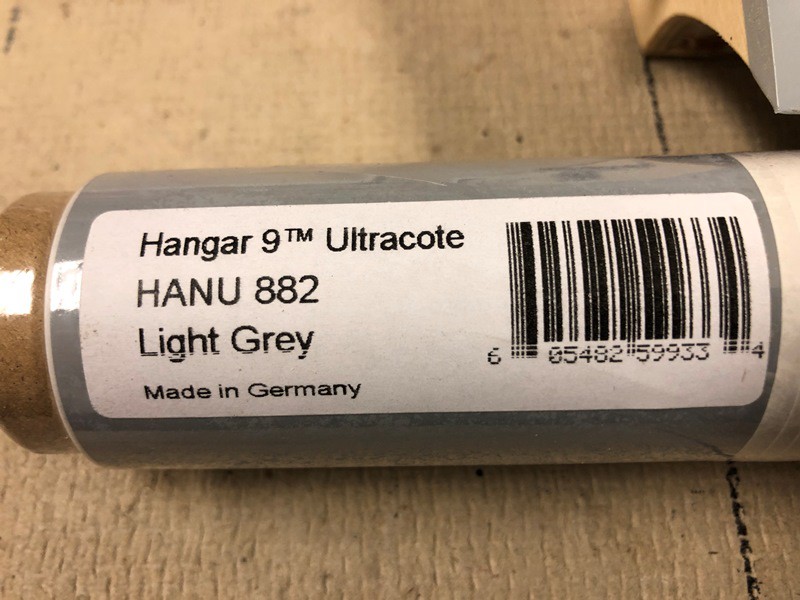

                Looks great!! What color covering is that? I'm thinking of a Grumman Albatross project that would use that. All ready to maiden next month?

                Comment


                • #54
                  Click image for larger version

Name:	Ultracote.JPG
Views:	34
Size:	106.1 KB
ID:	40063

                  A Site for Soar Eyes
