  • AMR Payload Master 100 / Icarus2

    Finally getting "back in the saddle: on the AMR Payload Master construction after an extended pause.......

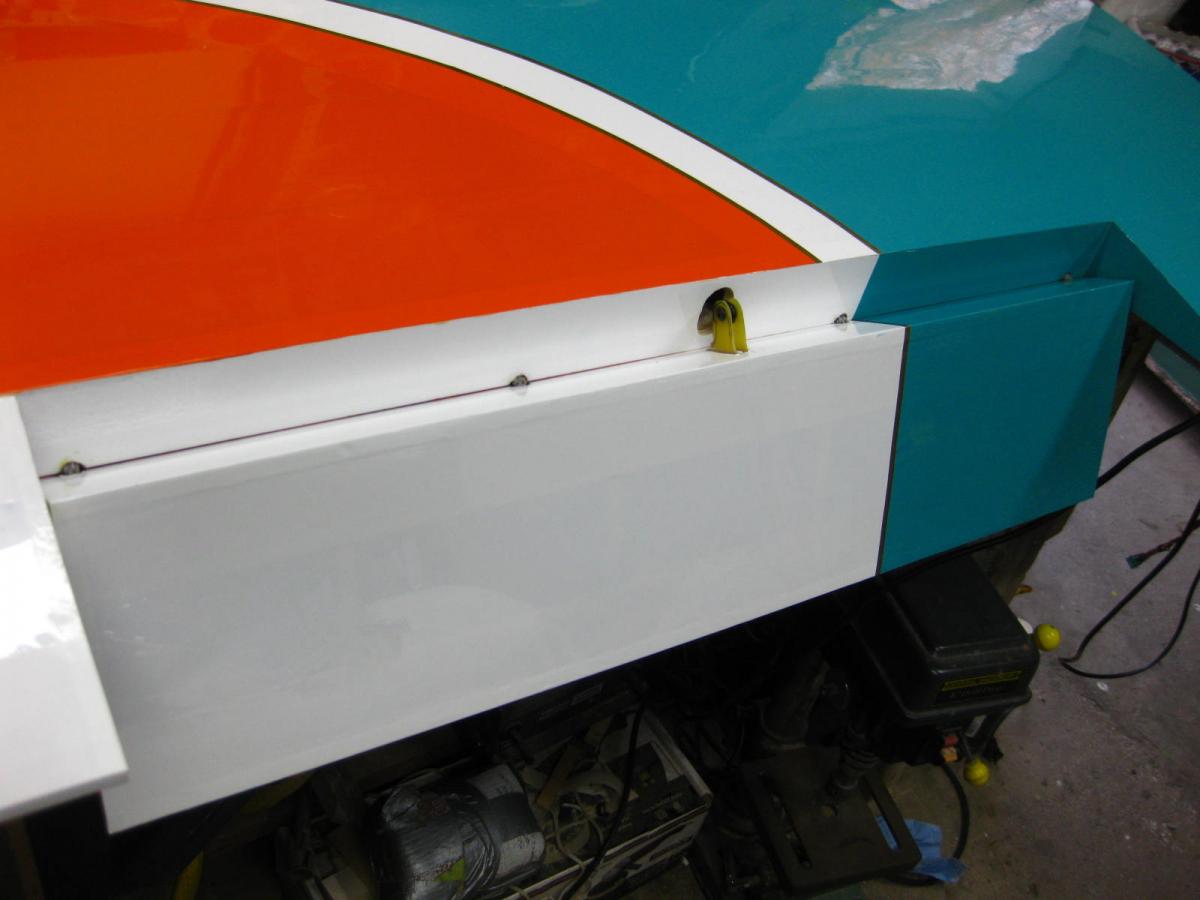

    Progress so far......converted the flaps to top driven 180 degree servo movement .... an effort to keep the flaps up when the power is off and lower current requirements when down
    Click image for larger version

Name:	IMG_2915.JPG
Views:	702
Size:	102.7 KB
ID:	11674 Click image for larger version

Name:	IMG_2921.JPG
Views:	702
Size:	67.6 KB
ID:	11673
    Click image for larger version

Name:	IMG_2916.JPG
Views:	725
Size:	133.7 KB
ID:	11675 Click image for larger version

Name:	IMG_2924.JPG
Views:	726
Size:	80.3 KB
ID:	11676

    Got stuck on the firewall forward section - was going to put a DA150 ....but found out the size of the engine was incompatible with my cowl.
    So I opted for a DA120 that was smaller than the MVVS 116 that was in my old one.......Then, because of the Bidule170 build, I found a DA170 would fit in the cowl (with some minor adjustment)

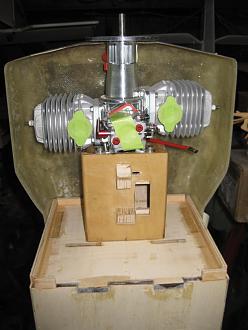

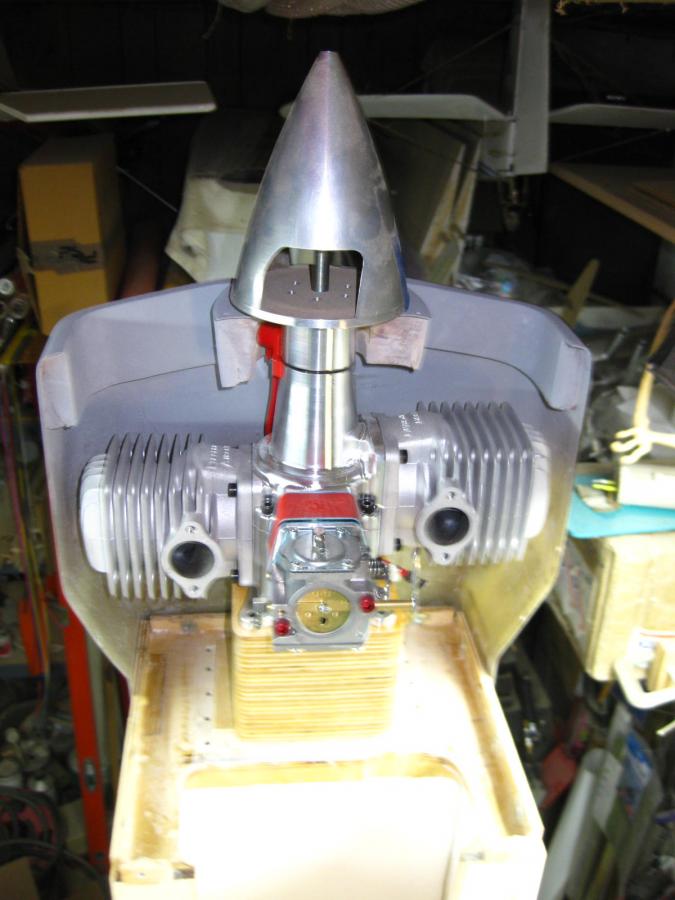

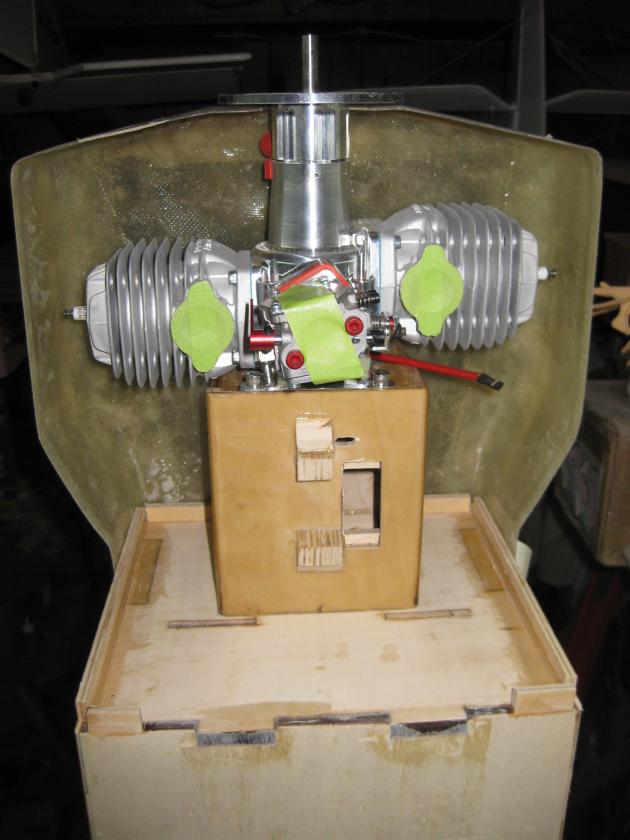

    Here is the DA 120 vs DA170 in the Cowl

    Click image for larger version

Name:	IMG_2719.JPG
Views:	670
Size:	56.6 KB
ID:	11677 Click image for larger version

Name:	IMG_3693.JPG
Views:	677
Size:	64.2 KB
ID:	11678

    And of course some sundry Items.

    Click image for larger version

Name:	IMG_2953.JPG
Views:	706
Size:	51.8 KB
ID:	11679 Click image for larger version

Name:	IMG_2955.JPG
Views:	702
Size:	82.6 KB
ID:	11680

  • #2
    Super Cool Scott....look forward to more build details as it happens...

    Comment


    • #3
      WOW ....it's been a while......

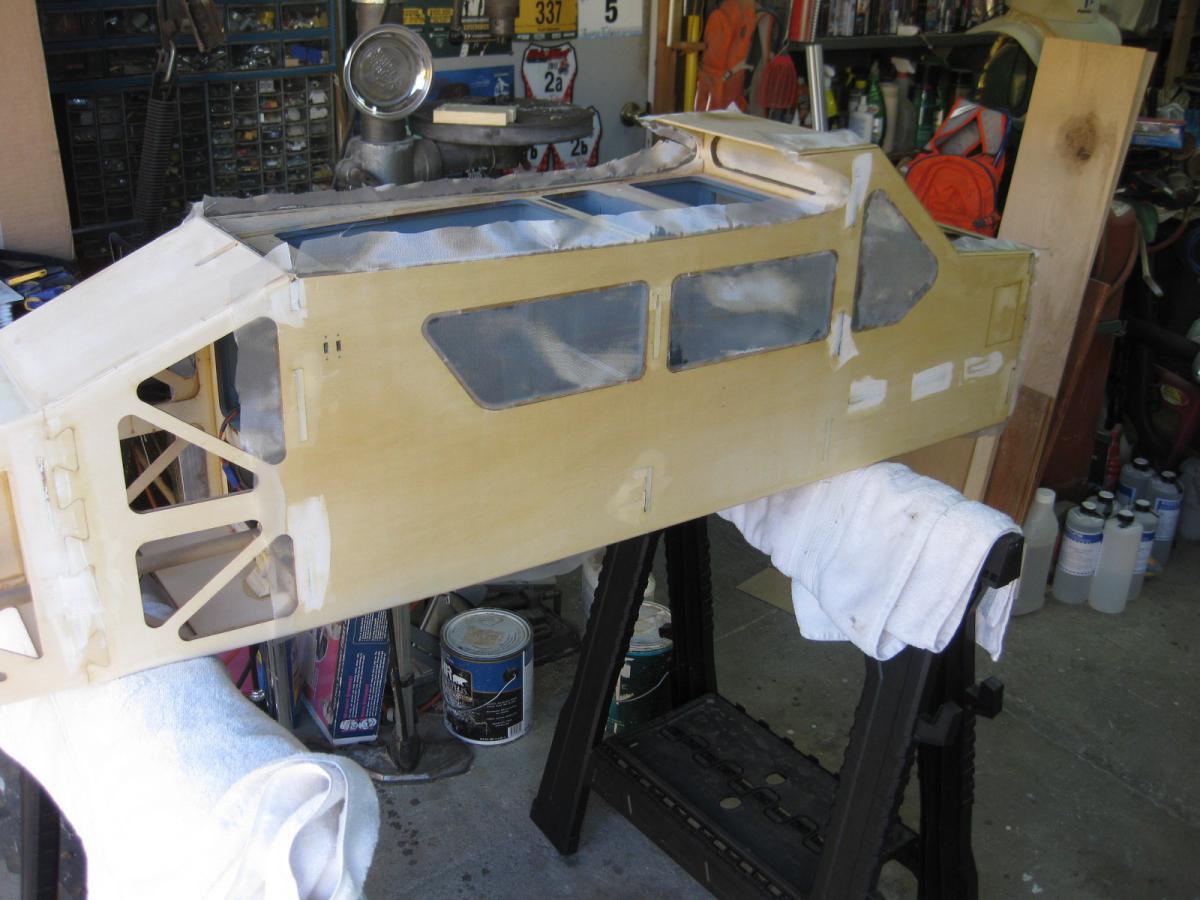

      Fiberglassing the front half and then Stits lite on the back half.

      Click image for larger version

Name:	IMG_5858.JPG
Views:	443
Size:	113.5 KB
ID:	44243

      Comment


      • #4

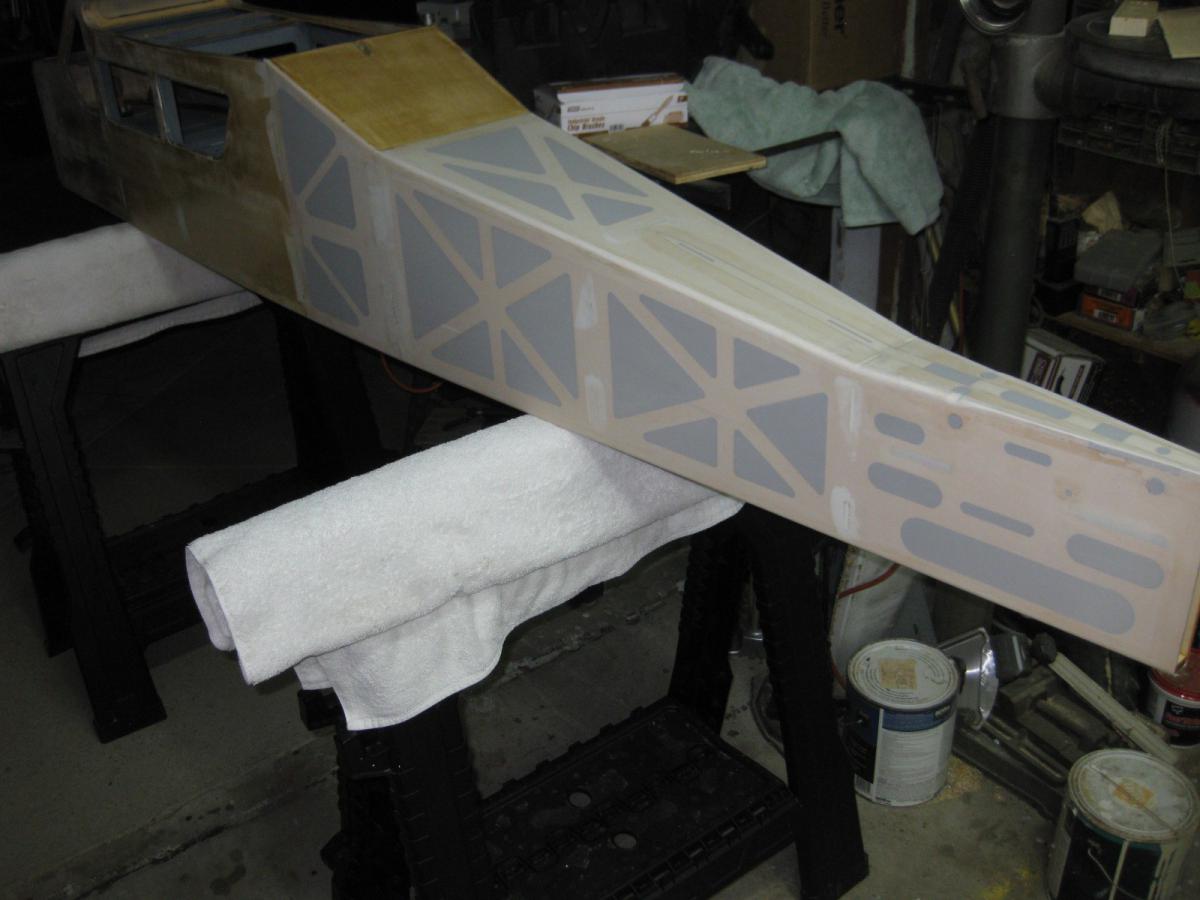

        I like the smell of Poly-Brush in the morning........

        Click image for larger version

Name:	IMG_5861.JPG
Views:	415
Size:	86.5 KB
ID:	44269

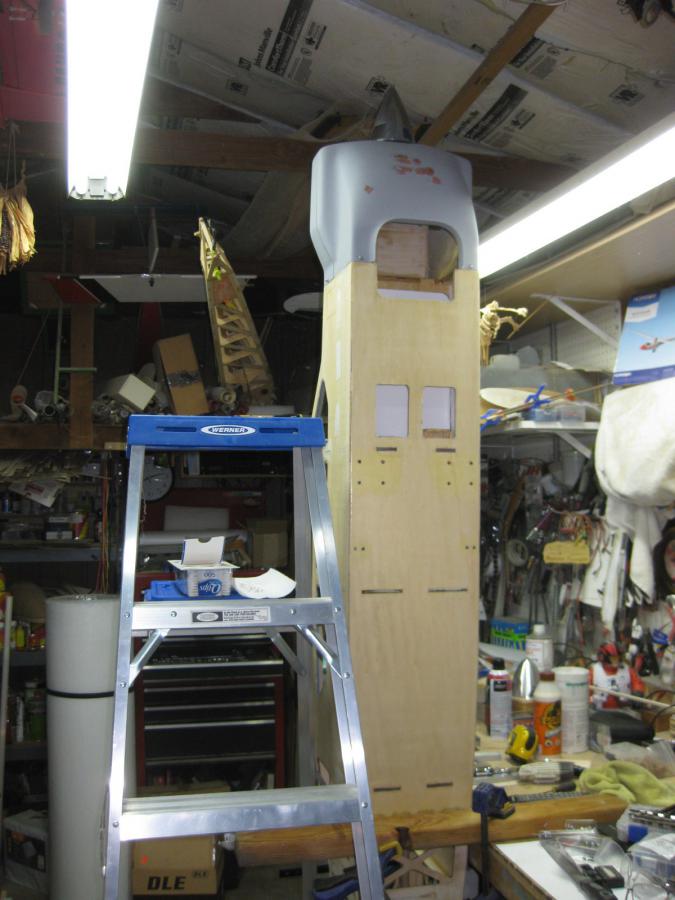

        Mounting the DLE-130 in the front

        Click image for larger version

Name:	IMG_5859.JPG
Views:	514
Size:	72.8 KB
ID:	44268

        Comment


        • #5

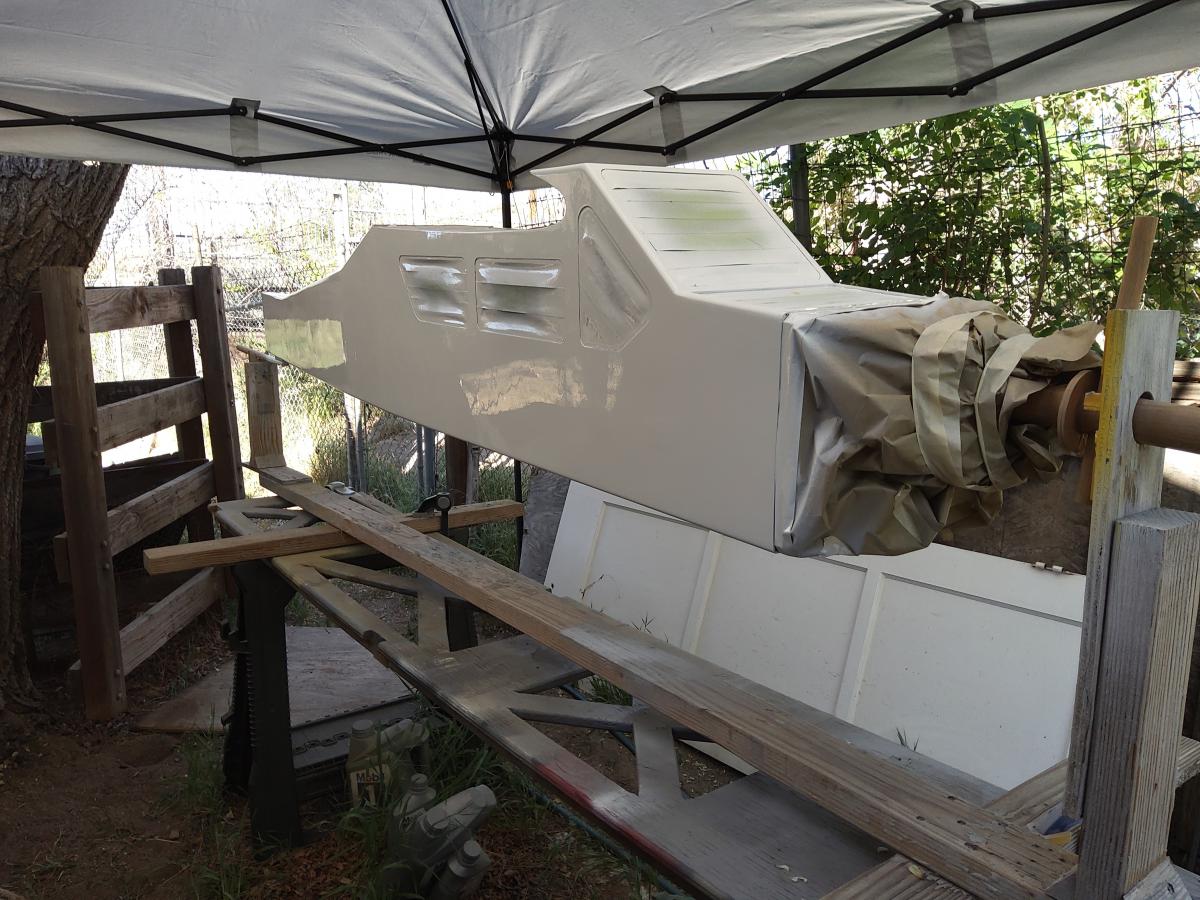

          After the standard Poly-Spray application ( so the covering won't be see thru ) it's on to the base white

          Click image for larger version

Name:	20210418_083620.jpg
Views:	373
Size:	171.4 KB
ID:	44419

          Comment


          • #6
            Hi Scot,
            I'm so happy to see you back on this build. Reading the engine post above leave me wondering, are you going 120 or 170?
            Its been a while since I have seen the Payload Master, what are the parts in the forth picture of post 1?
            Len Buffinton
            Team Horizon Hobby

            Comment


            • #7
              Hi Len,

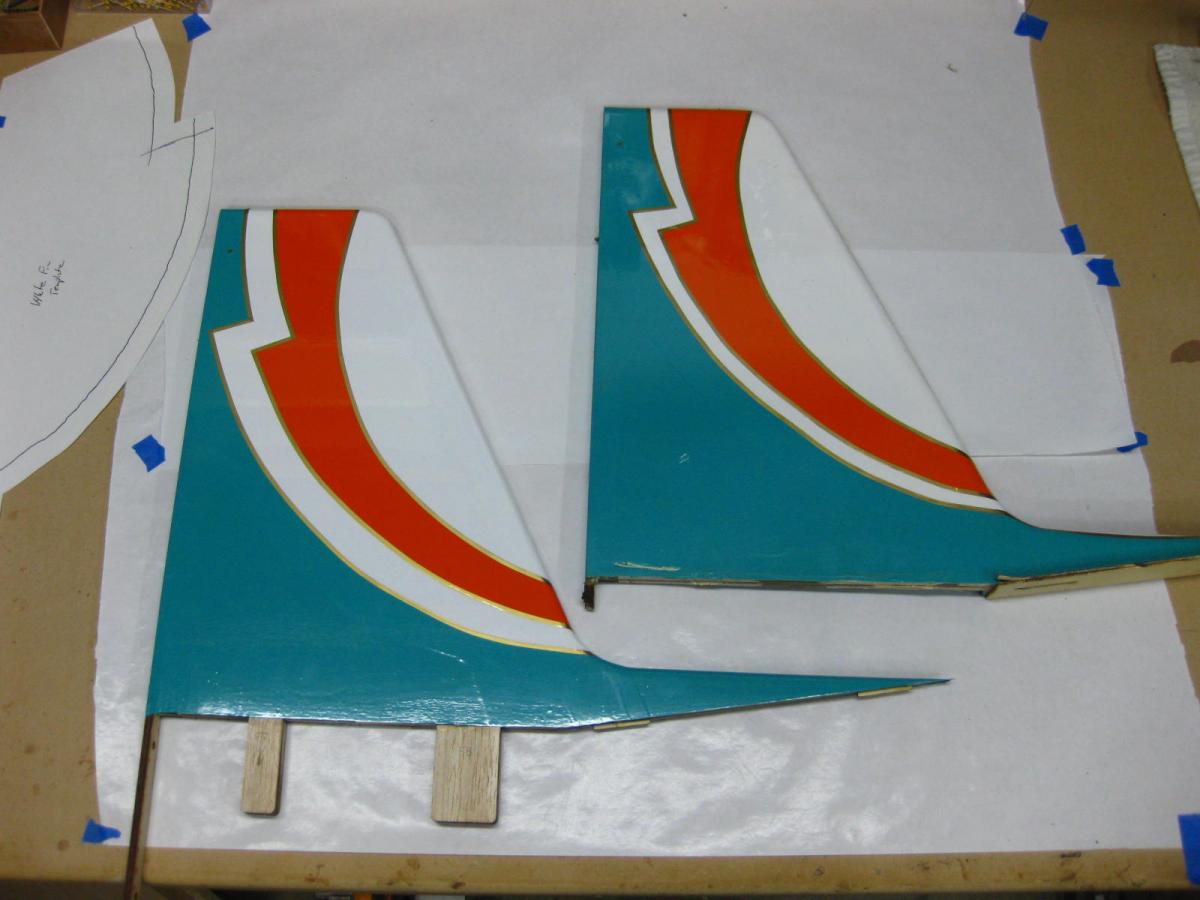

              Fourth picture in post 1 is current fin/ rudder vs. old version

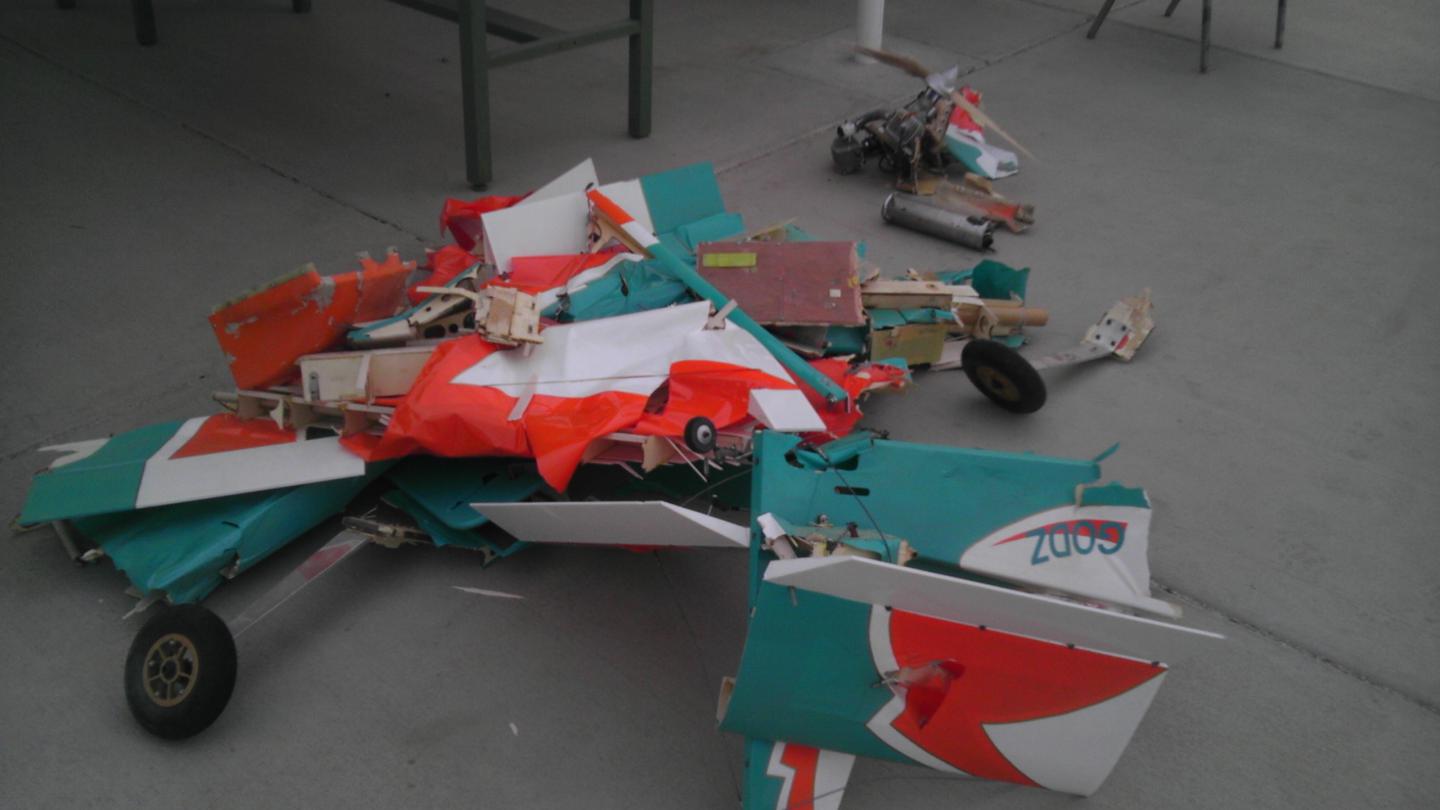

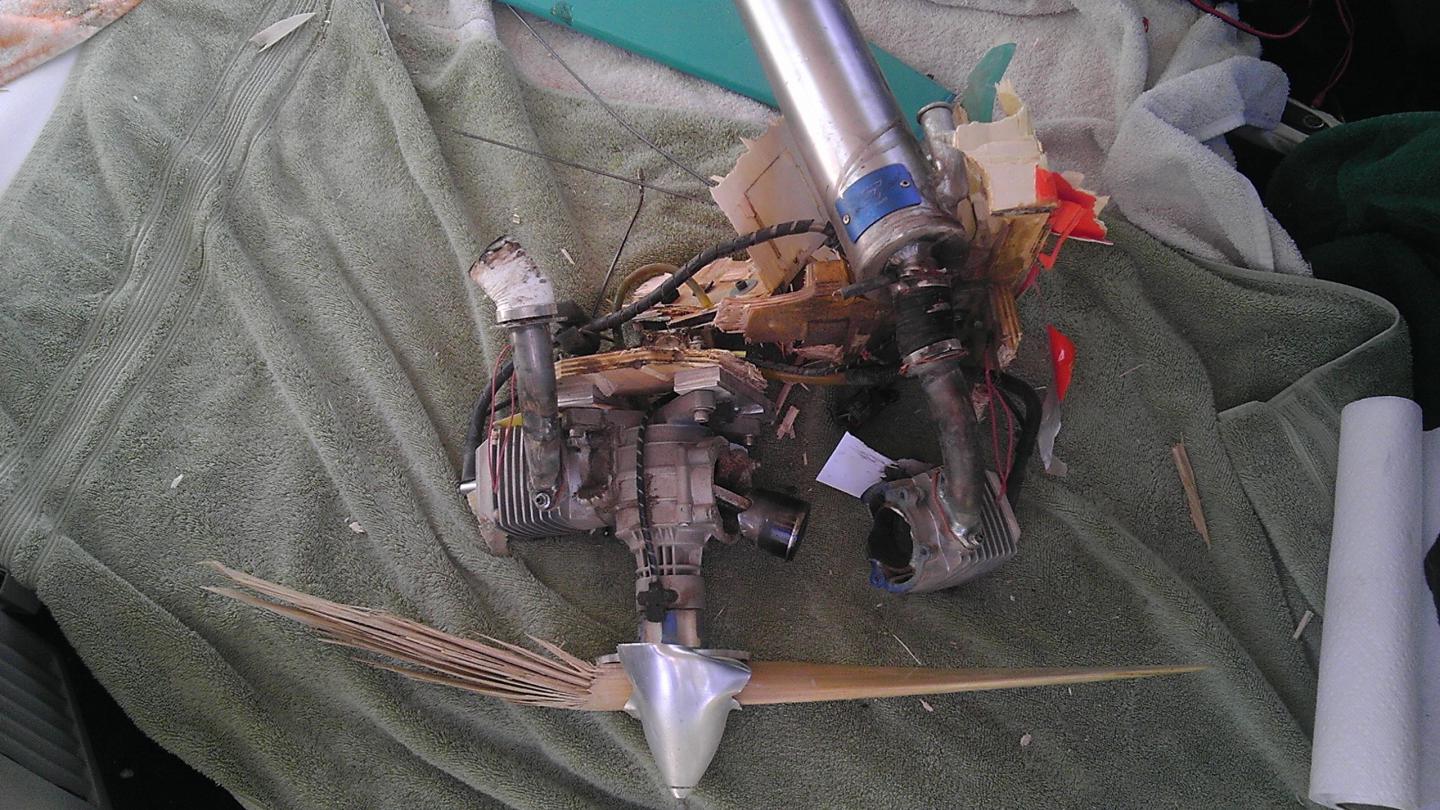

              Original PayLoad Master 100 suffered from depleted electron resources and "surface contact"

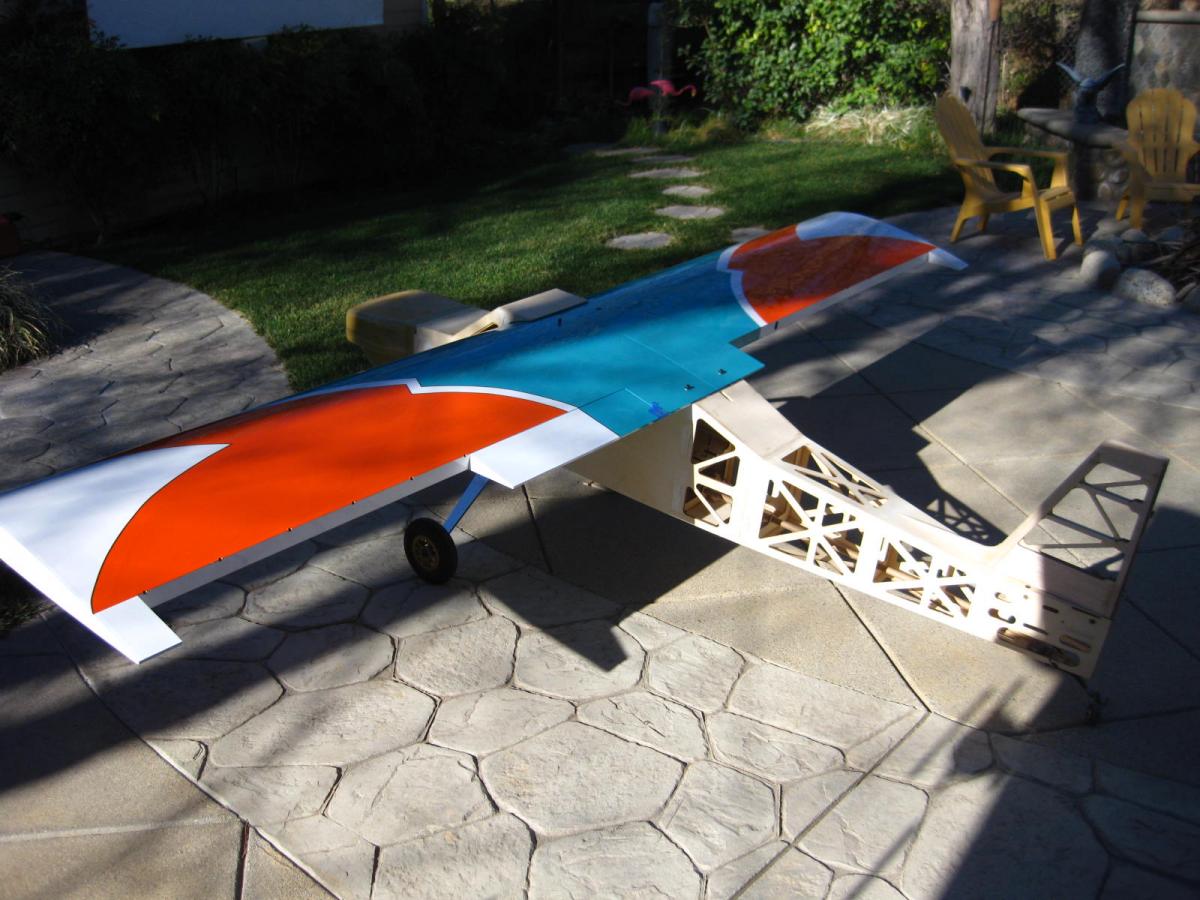

              the following "compact" photos are circa 2013

              Click image for larger version  Name:	IMAG0230.jpg Views:	0 Size:	82.1 KB ID:	44515 Click image for larger version  Name:	IMAG0231.jpg Views:	0 Size:	228.2 KB ID:	44514

              Decided to re-re-re-engine with the new DLE-130 so as to avoid making a new cowl ( didn't want the spark plug caps sticking out of the Icarus wing graphic on the front of the cowl )

              In looking over the Falcon Propeller chart, I won't be loosing that much performance from the 170/150 ( 32.5 kg thrust vs 38 Kg. )
              Attached Files
              Last edited by MarnochS; 04-26-2021, 10:34 PM.

              Comment


              • #8
                Now I remember why I've been procrastinating on this ......

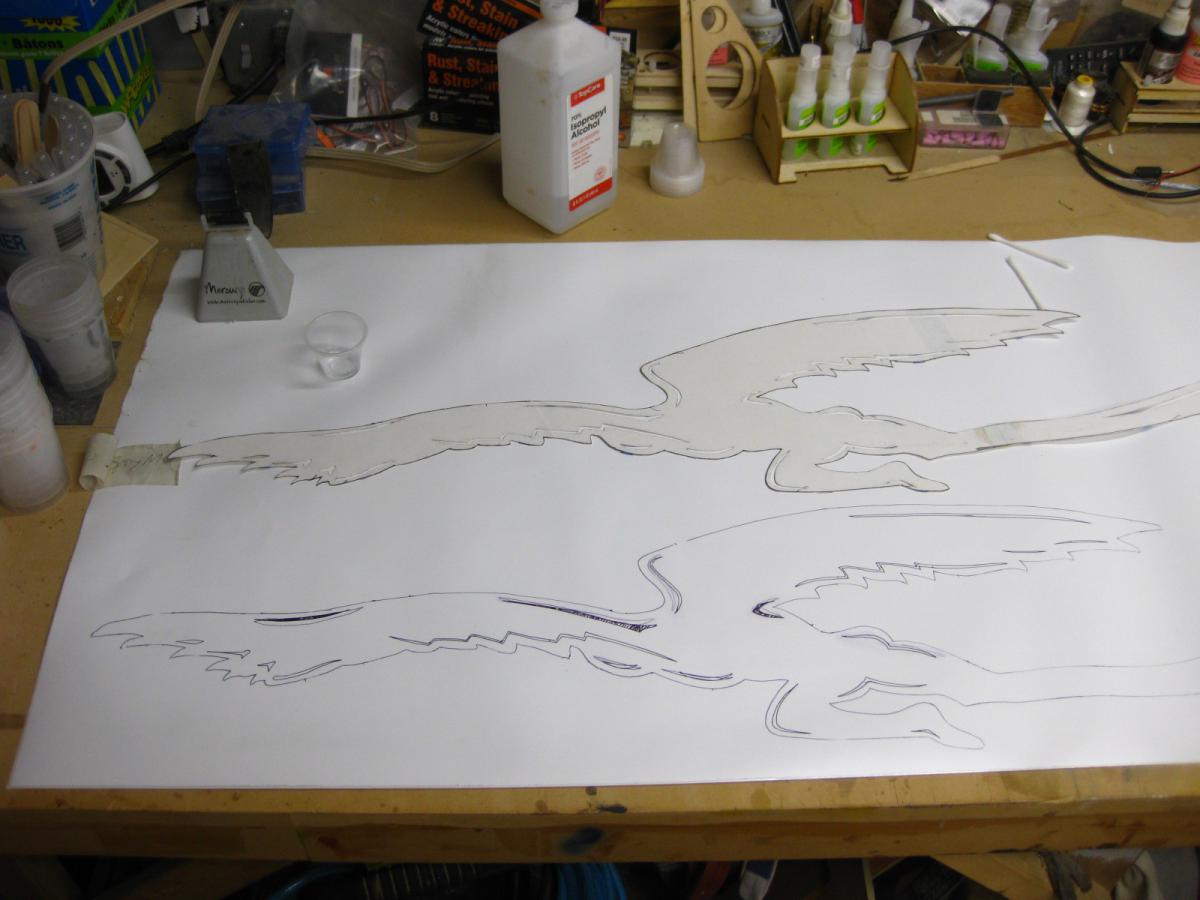

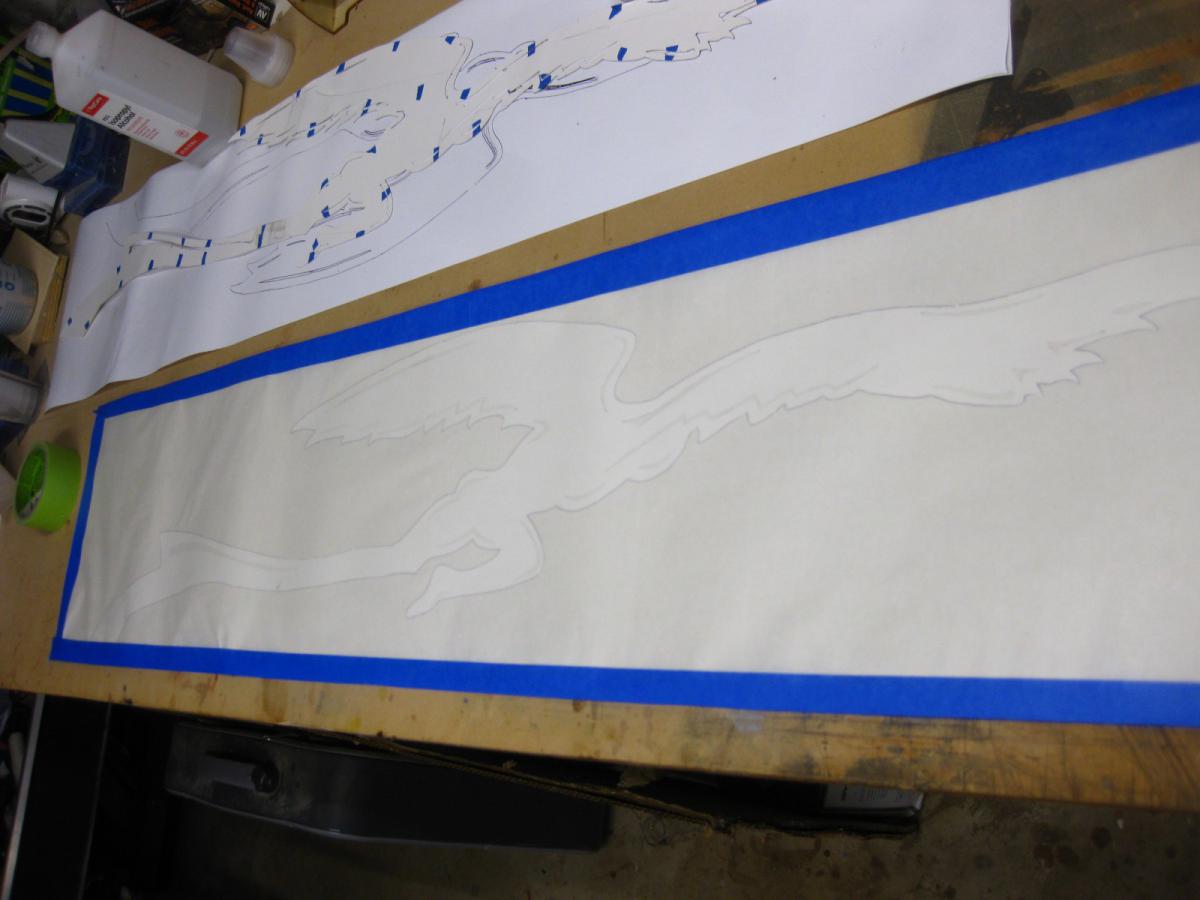

                Icarus image paint masks - cutout all the Accent details for this one.....then transferred to the paint masks .....and then cut them out .

                Click image for larger version

Name:	IMG_6410.jpg
Views:	205
Size:	85.7 KB
ID:	48432 Click image for larger version

Name:	IMG_6411.jpg
Views:	211
Size:	72.4 KB
ID:	48431

                Now I just have to find the big swoopy masks I used on the sides to cut out the ultracote.......

                Comment


                • #9
                  Had to cut out the left side Icarus graphic again as I placed it too high on the fuselage and there was no wing image below the window. Referenced some old pictures and got it a little lower so the accent lines will show up this time.

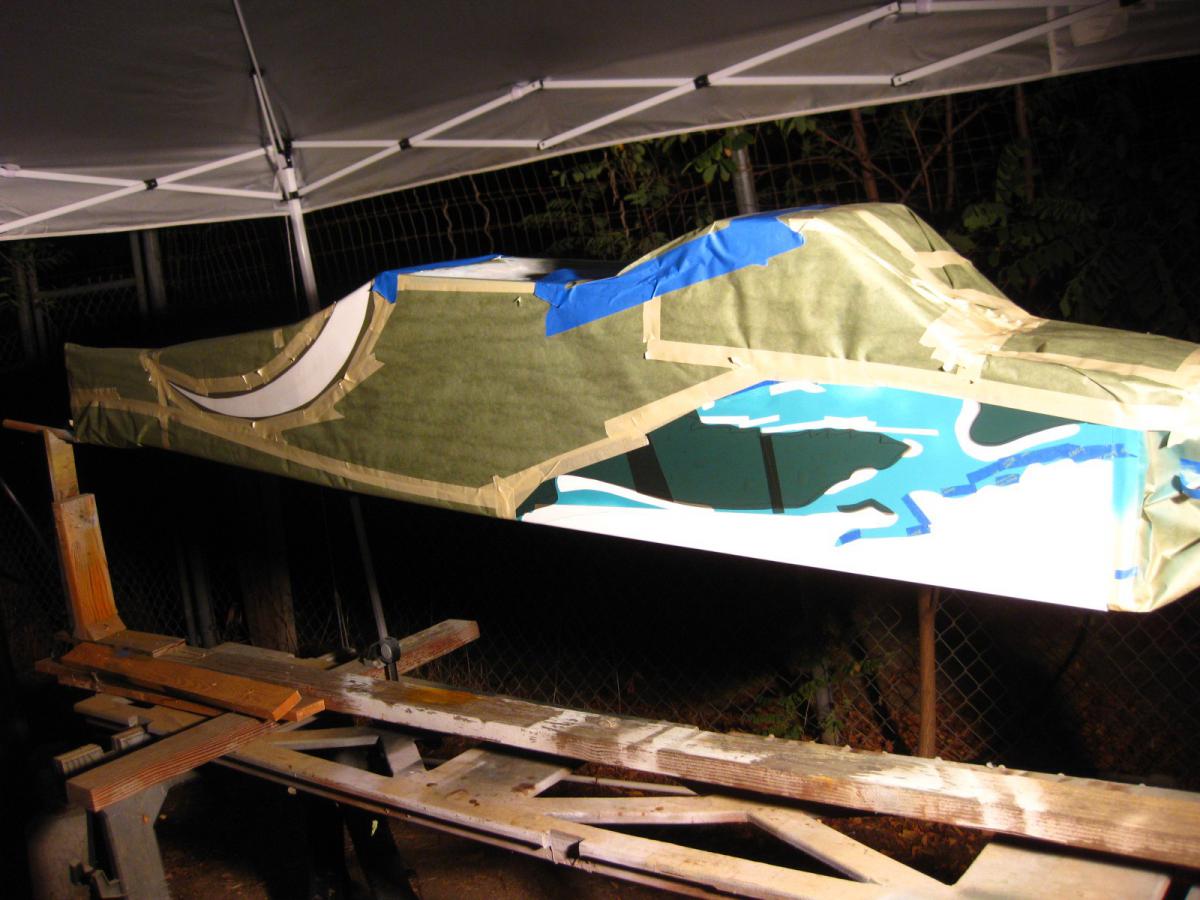

                  Now just waiting for paint to dry so I can mask off the Turquoise area and get some Omaha Orange.

                  Click image for larger version

Name:	IMG_6435.jpg
Views:	183
Size:	182.0 KB
ID:	48439

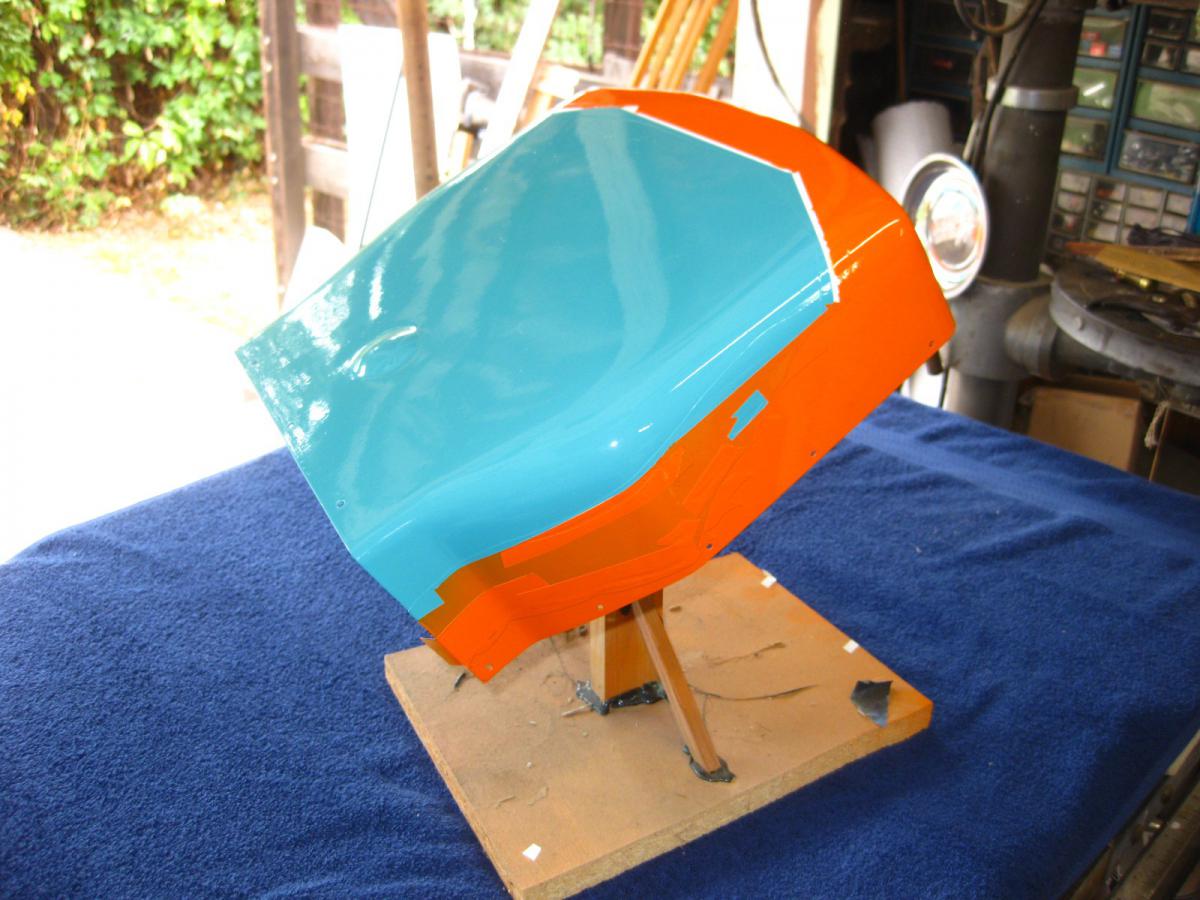

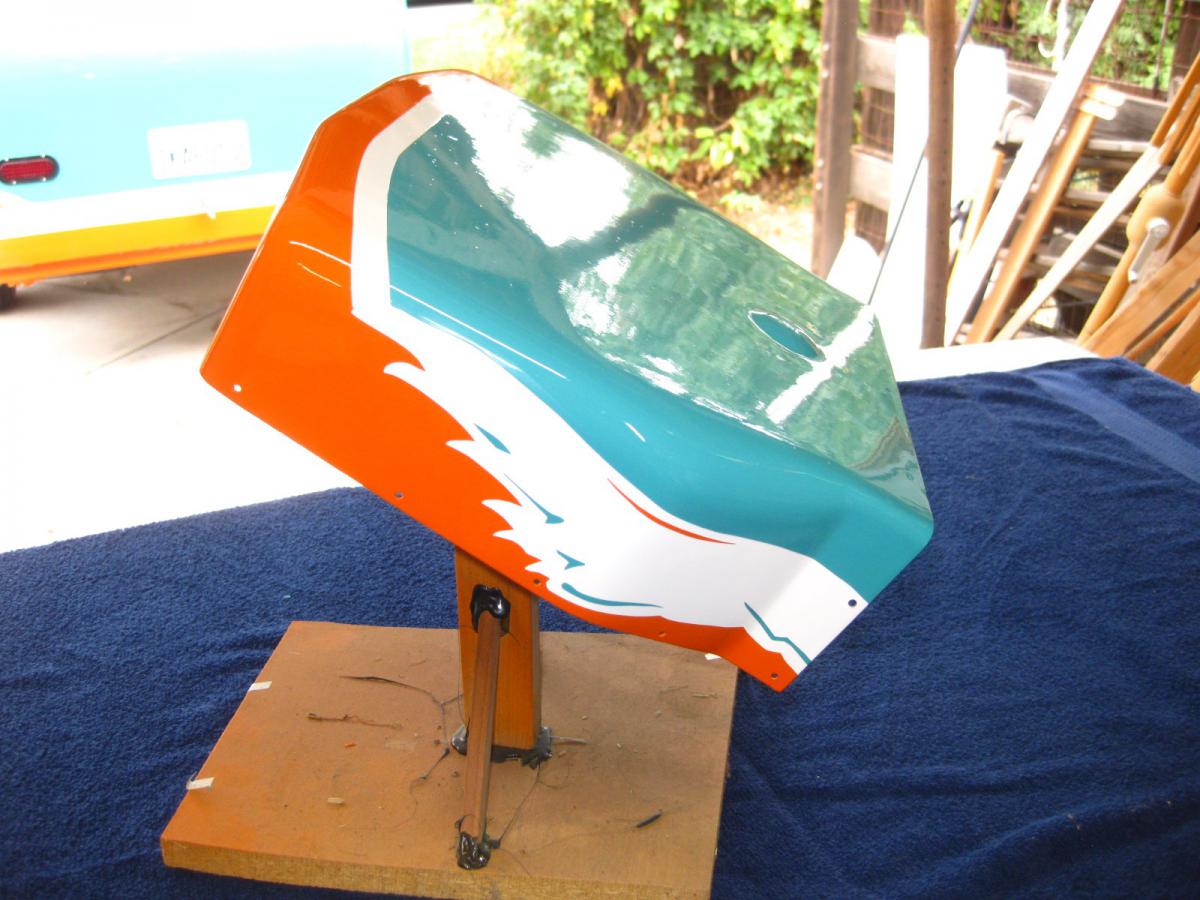

                  Upper Cowl waiting too for paint mask removal

                  Click image for larger version

Name:	IMG_6442.jpg
Views:	191
Size:	126.9 KB
ID:	48438

                  Comment


                  • #10

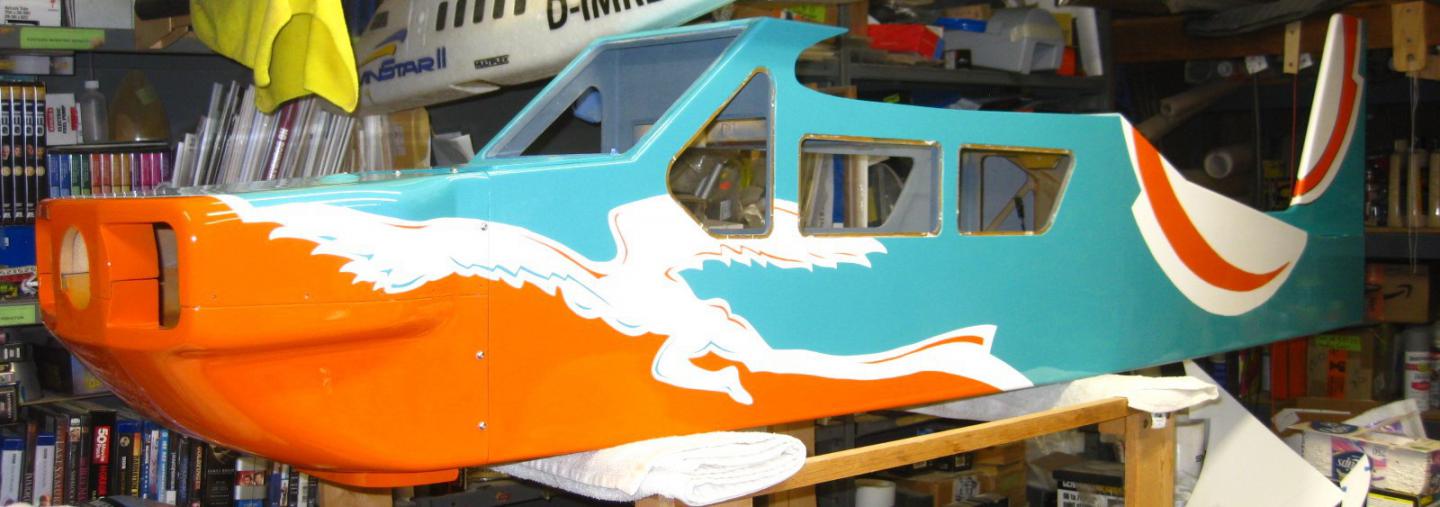

                    i like it with the accent colors

                    Click image for larger version

Name:	IMG_6443.jpg
Views:	175
Size:	128.9 KB
ID:	48441

                    Comment


                    • #11
                      Originally posted by MarnochS View Post
                      i like it with the accent colors

                      Click image for larger version  Name:	IMG_6443.jpg Views:	2 Size:	128.9 KB ID:	48441
                      really like that scheme, plus it is matching your trailer


                      stephane
                      Stéphane
                      Horizon Hobby Team Member

                      Comment


                      • #12
                        Thanks Stephane,

                        I should be a Fun airplane......I've been watching an old video from the Coachella AeroTow 2013 that has it flying around ( and making a lot of prop noise)

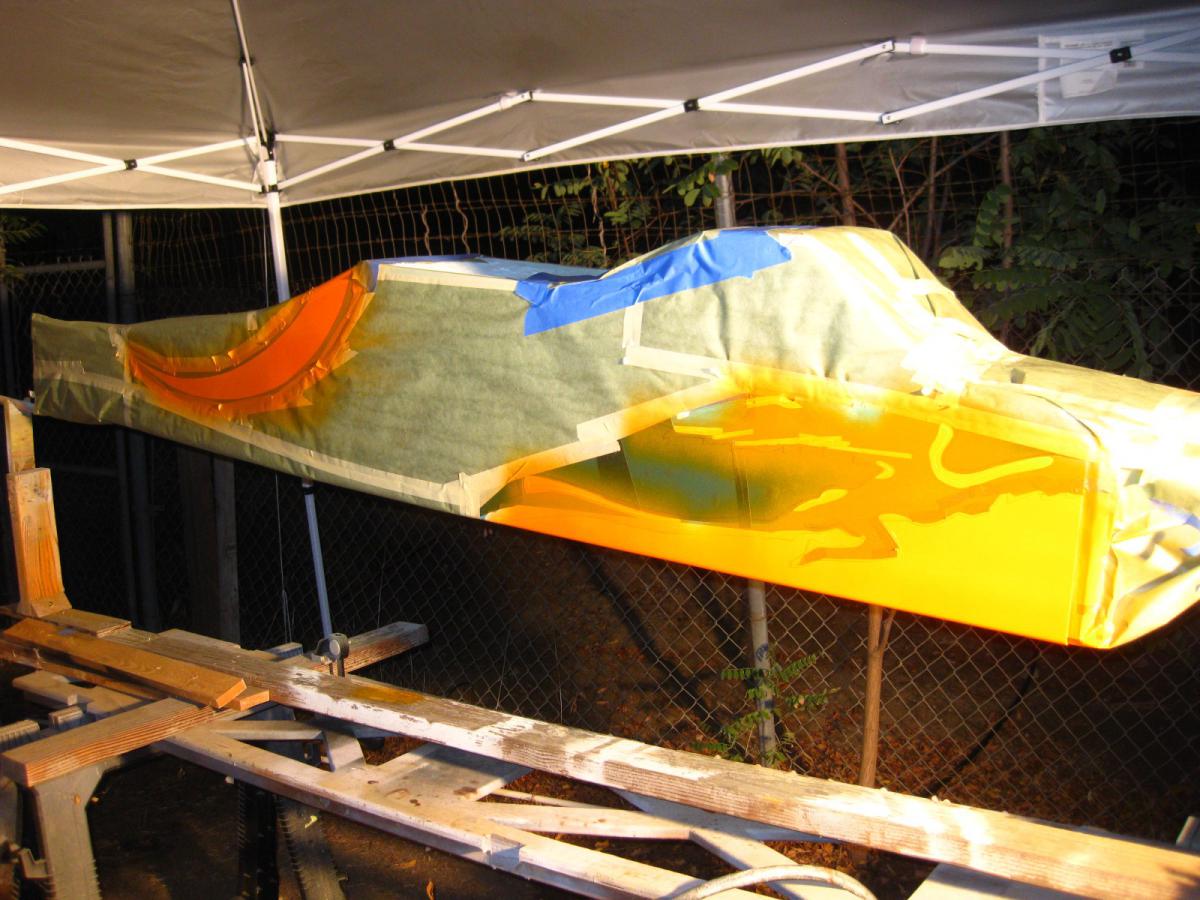

                        Meanwhile, ....back at the Masking / Painting Ranch.......it's going to be an Omaha Orange Sunrise ( first spray coat anyway ).

                        Click image for larger version

Name:	IMG_6446.jpg
Views:	166
Size:	119.6 KB
ID:	48447 Click image for larger version

Name:	IMG_6449.jpg
Views:	157
Size:	144.6 KB
ID:	48448

                        Comment


                        • #13

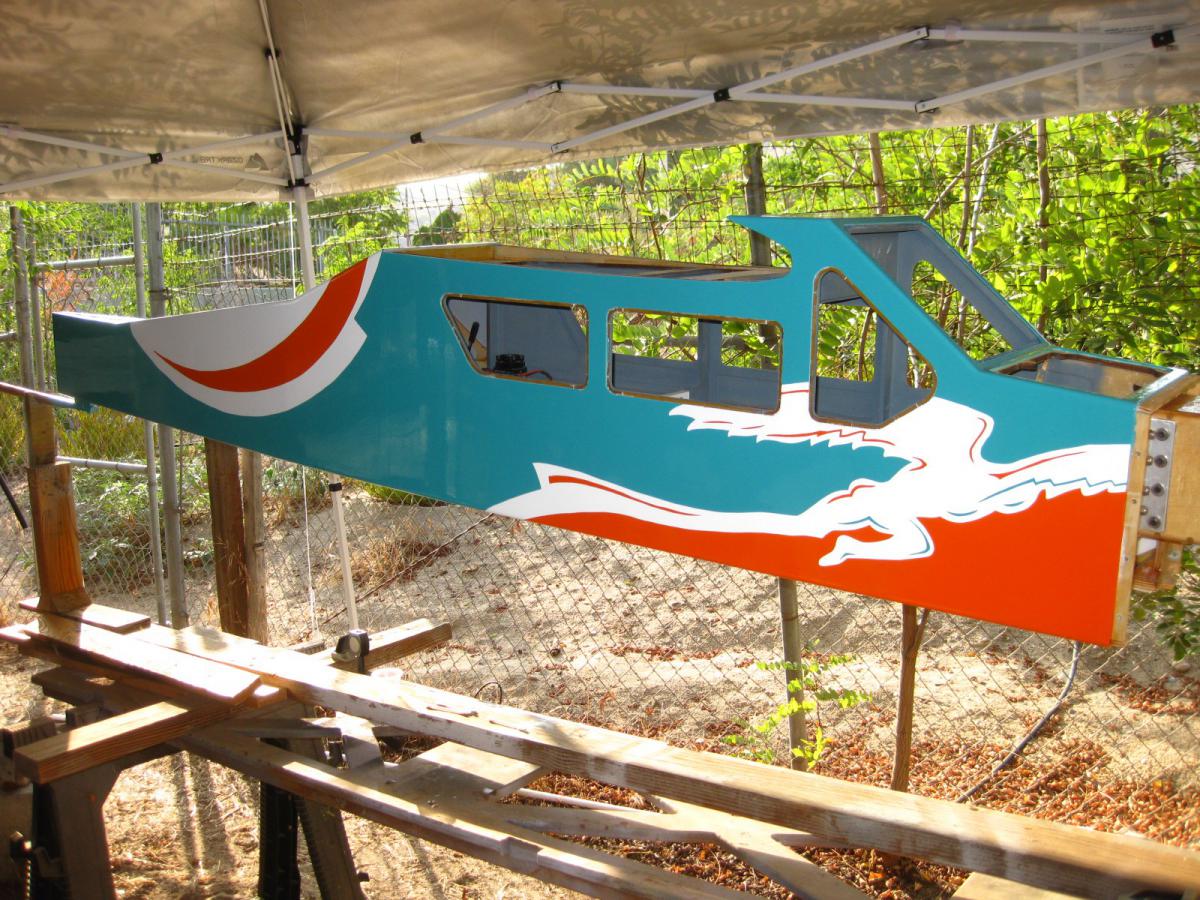

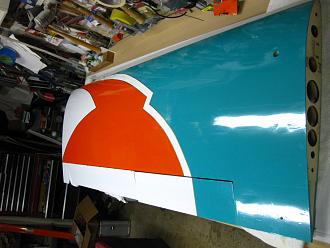

                          Delicately removed paint masks........ I like it....

                          Click image for larger version

Name:	IMG_6451.jpg
Views:	157
Size:	217.4 KB
ID:	48453

                          Comment


                          • #14

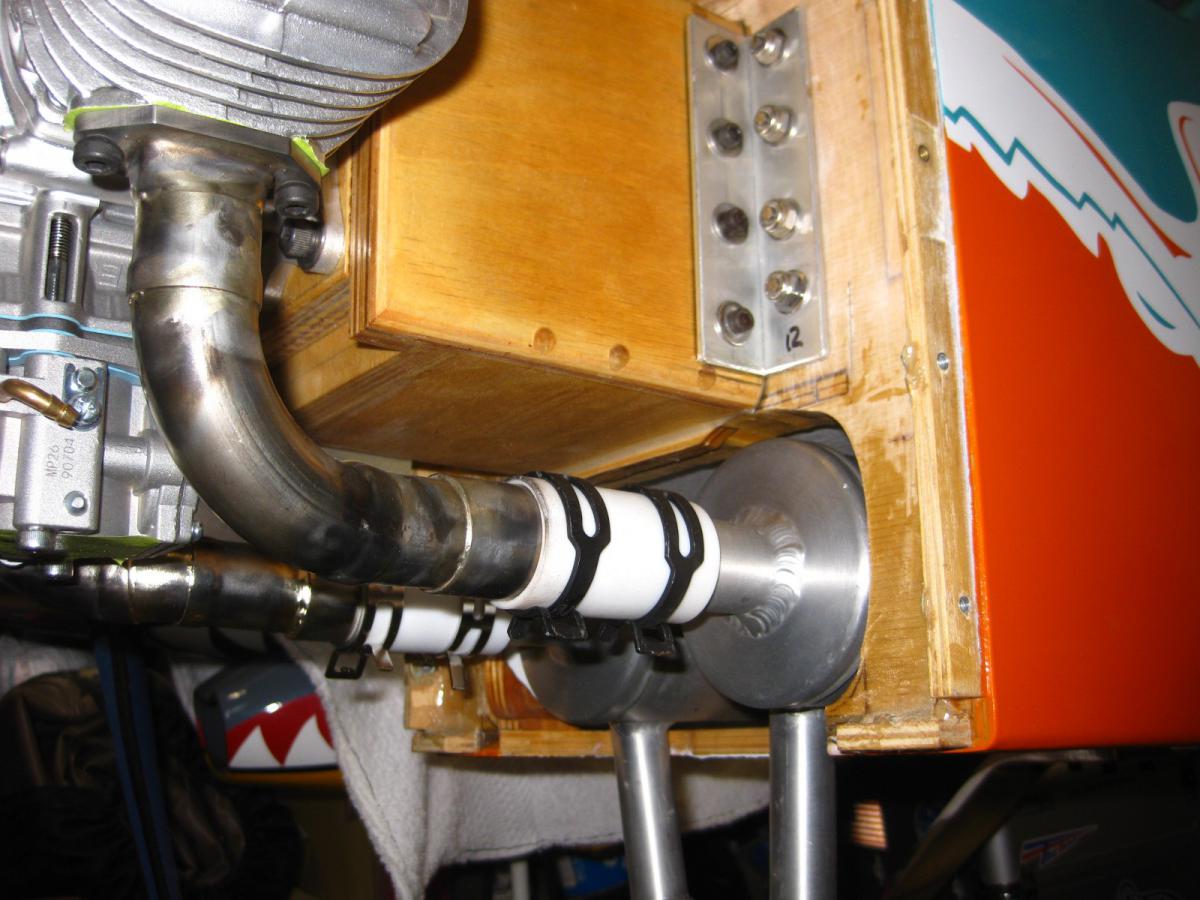

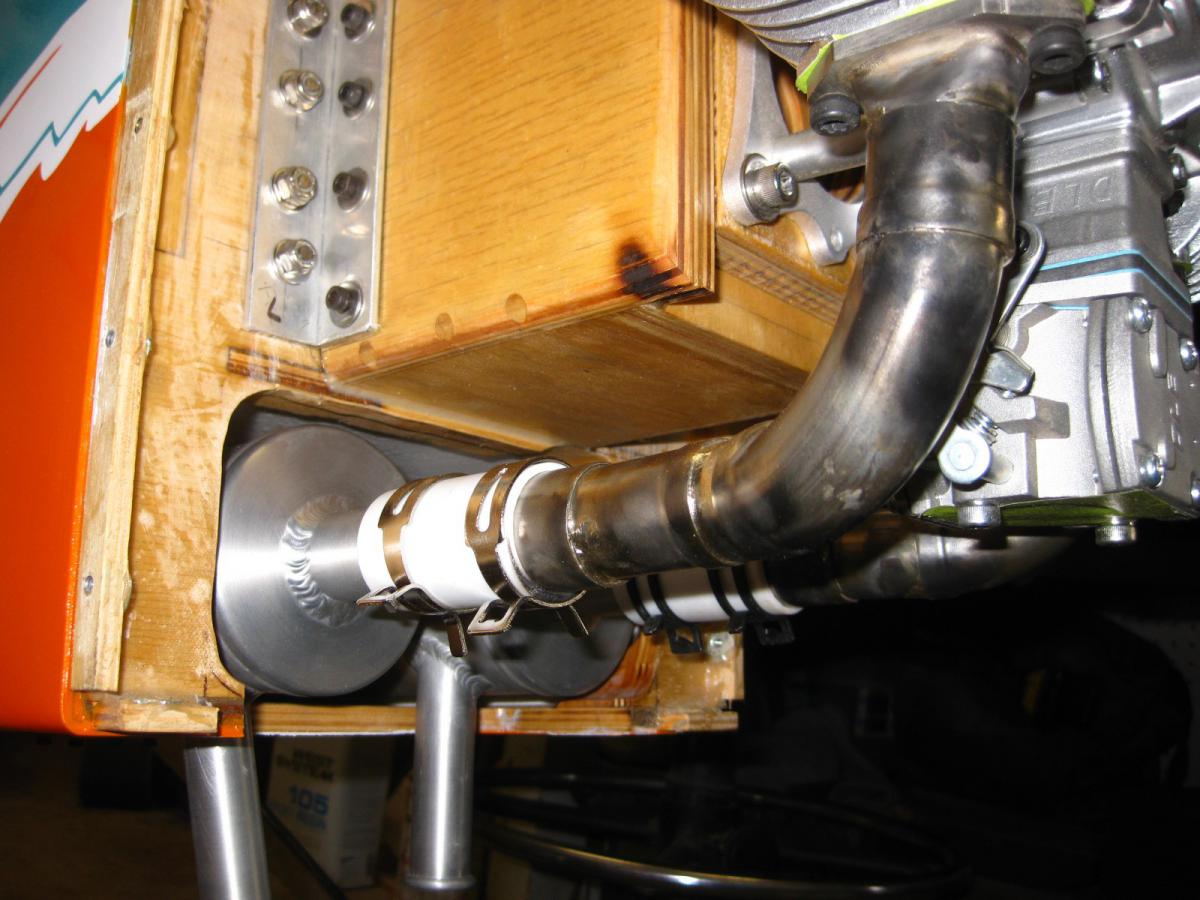

                            Exhaust headers completed, K&S exhaust stubs, 25mm elbows and 28mm connector tubes brazed together Using MVVS Canisters that are made for short header lengths.

                            Click image for larger version  Name:	IMG_6456.jpg Views:	0 Size:	122.6 KB ID:	48459 Click image for larger version  Name:	IMG_6455.jpg Views:	0 Size:	123.4 KB ID:	48461

                            Insulated the canister tunnel on this version

                            Click image for larger version  Name:	IMG_6453.jpg Views:	0 Size:	84.4 KB ID:	48460

                            Click image for larger version

Name:	IMG_6452-1.jpg
Views:	125
Size:	91.4 KB
ID:	48462

                            Comment


                            • #15
                              Looks amazing Scott!
                              Steve K

                              Kremer Aerotowing Team
