  • 1932 BS2 'Balestruccio' in 1:6 Scale

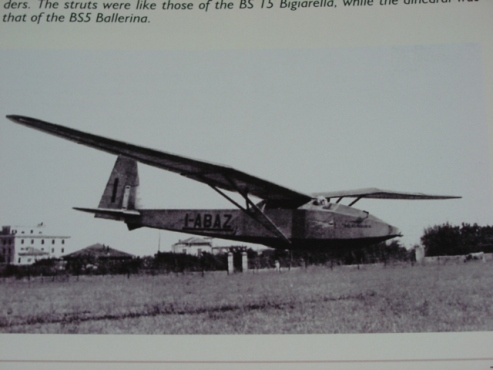

    I bought the very nice book 'Italian Vintage Sailplanes' by Vincenzo Pedrielli with three views by Francesco Camastra. There are some very beautiful and unusual sailplanes shown in this book. The 'Balestruccio' immediately caught my eye. It is certainly a 'bella donna'! Camilla Silva designed this to be a record breaker which it did. To me, a strut braced gull wing sailplane with a skid, covered in plywood is the most beautiful thing! The 'Balestruccio' has those bases covered in Spades!!! It has a large aspect ratio which will only help with performance. It is a flapped wing so that is helpful trimming for duration and in landing. The full scale had an 18 meter span so that puts the model at 3 meter span or just over 118". It is my second scale sailplane built. I used three views in Vincenzo's book to draw the plans. I met Vincenzo at the Soaring Museum at Elmira, NY. I brought the 'bones' of the 'Balestruccio' for him to see. He was very gracious with his compliments.He signed my book and we had a nice friendly conversation on the museum's front porch. He told me that my model was going to be the first built using information from his book! That was pretty neat to know, too! I used the airfoil on the drawings. It is slightly undercambered on the bottom surface. The airfoil from the strut attach point of the wing to the tip was modified by me as I had it progressively change until it was fully symmetrical at the tips.

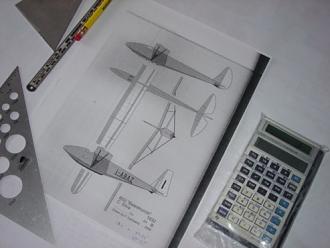

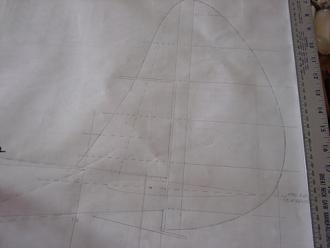

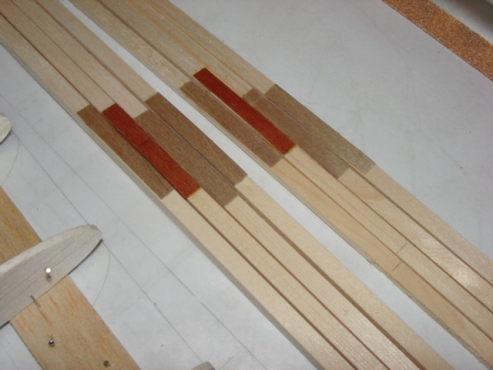

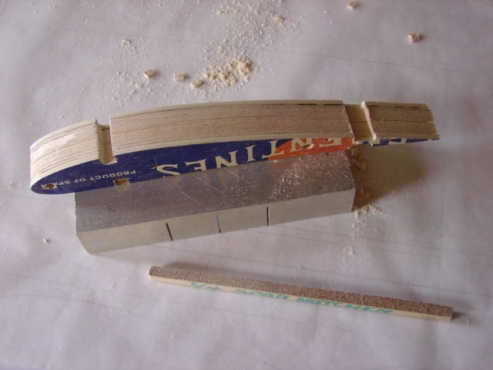

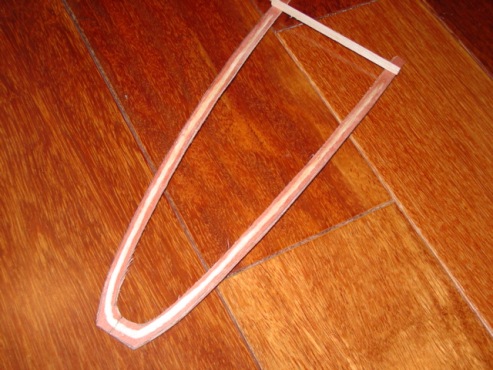

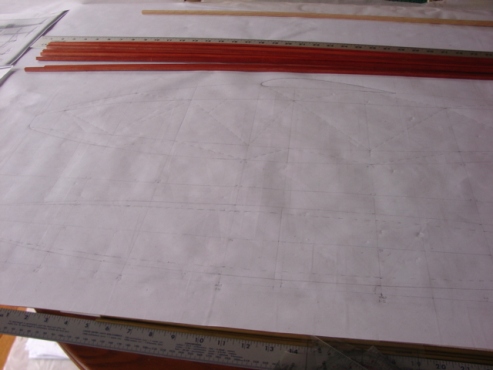

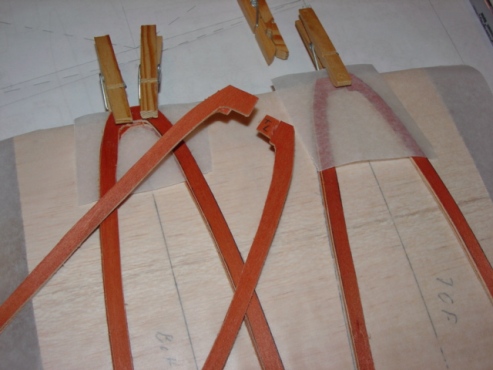

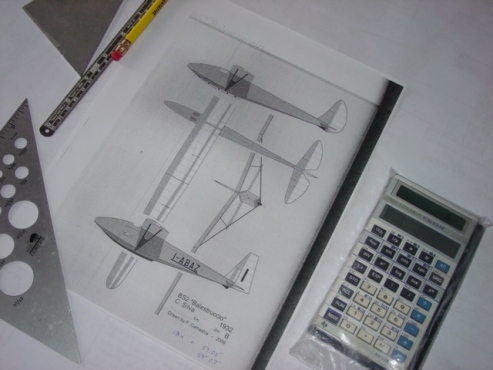

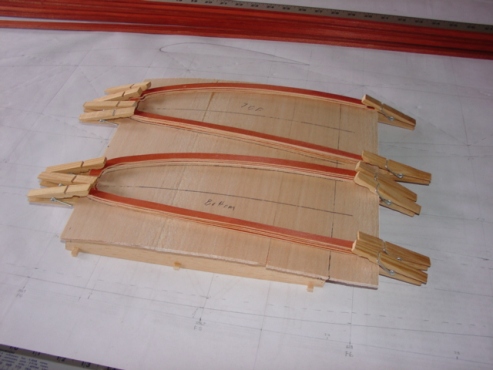

    I hand drew the plans then made a form in order to fabricate the curved upper and lower nose bows. I stained the wood before using it to avoid 'the pox', i.e., glue not allowing stain to penetrate glue joints. I used H. Behlen water based stain so that the gluing of joints won't be compromised like they would be if using oil based stains. The fuselage side 'ladder' crutches built over the plans. All wood parts put in scale locations as much as could be determined. Why re-invent the wheel?

    Click image for larger version

Name:	DSC03198.JPG
Views:	210
Size:	88.6 KB
ID:	7206 Click image for larger version

Name:	DSC03199.JPG
Views:	213
Size:	76.7 KB
ID:	7207

    Click image for larger version

Name:	DSC03201.JPG
Views:	228
Size:	78.0 KB
ID:	7208 Click image for larger version

Name:	DSC03221.JPG
Views:	218
Size:	81.5 KB
ID:	7209

    Click image for larger version

Name:	DSC03222.JPG
Views:	212
Size:	72.5 KB
ID:	7210 Click image for larger version

Name:	DSC03223.JPG
Views:	207
Size:	77.0 KB
ID:	7211

    Click image for larger version

Name:	DSC03224.JPG
Views:	220
Size:	83.1 KB
ID:	7212 Click image for larger version

Name:	DSC03225.JPG
Views:	210
Size:	84.2 KB
ID:	7213


  • #2

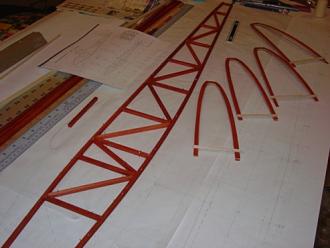

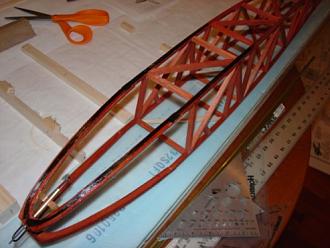

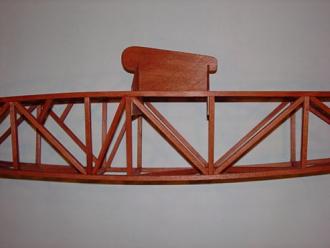

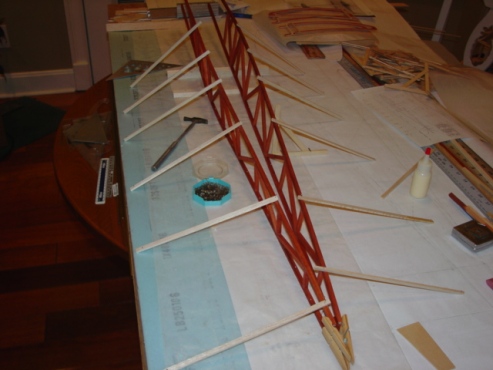

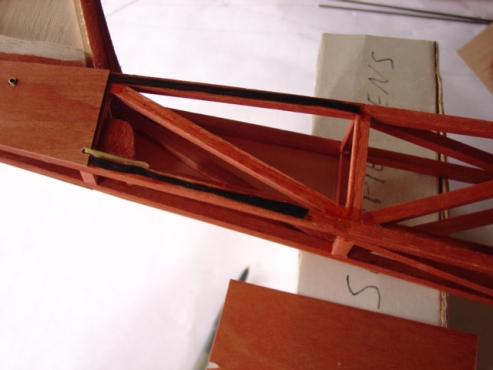

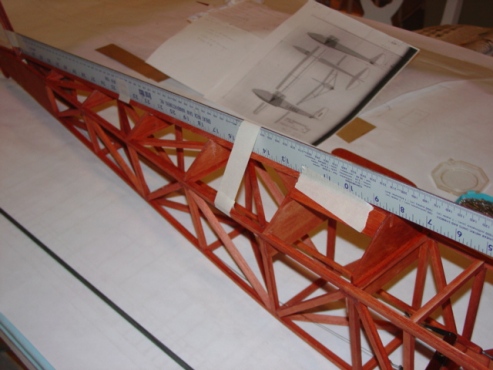

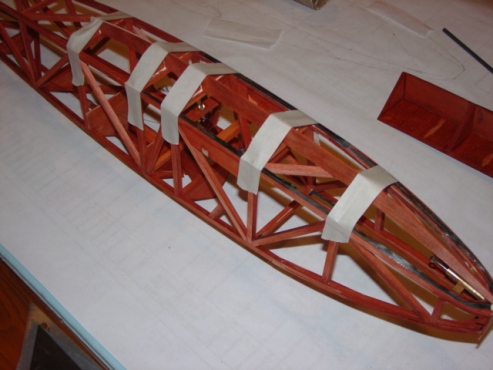

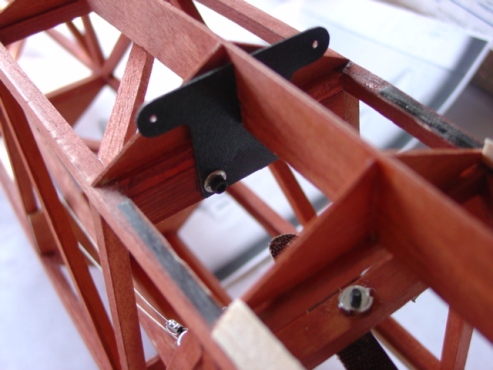

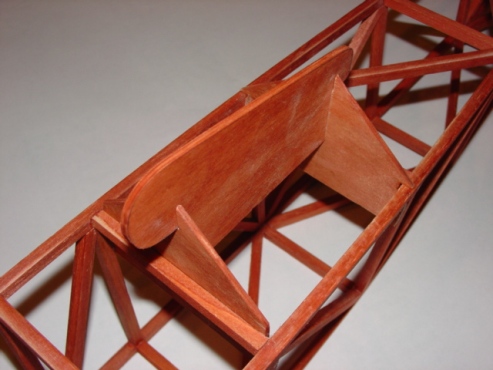

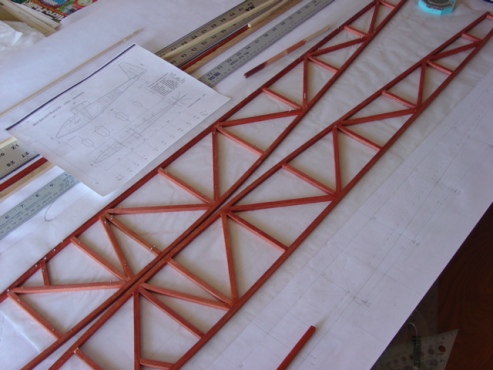

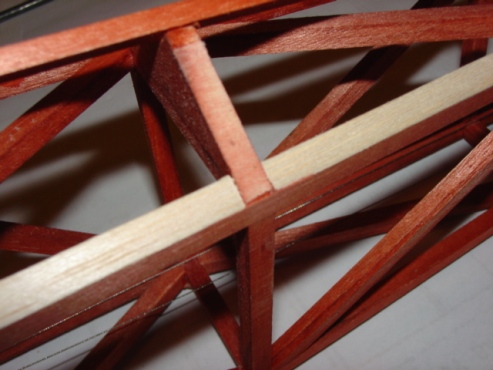

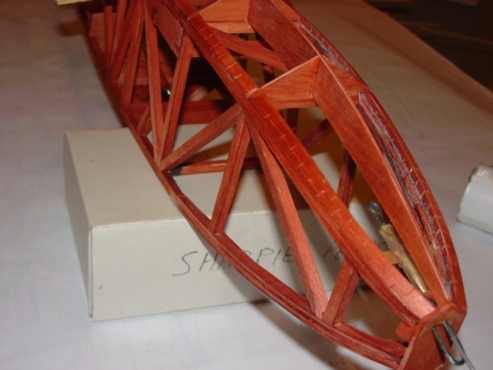

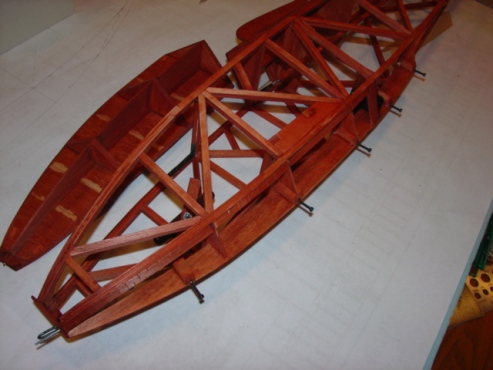

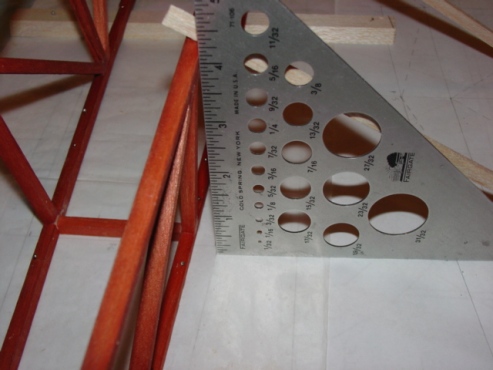

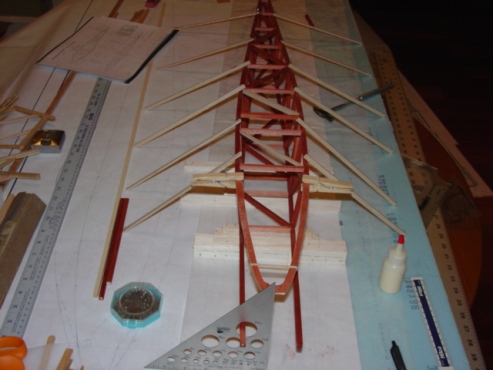

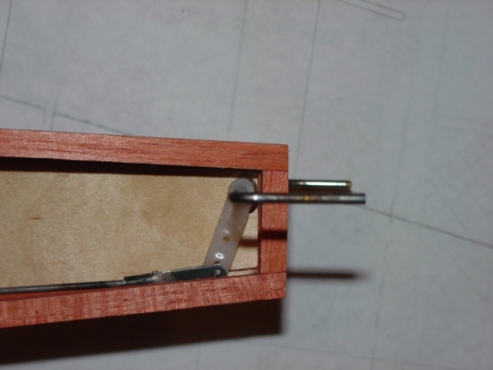

    The fuselage side crutches were placed over the plan. The fuselage has a trapezoidal section with the lower portion being more narrowed than the top so the crutches were jigged at the appropriate angle with the aid of the triangle. The bow laminations were grooved so that CF tow could be epoxied in place as reinforcement for the tow release. The release was made from wire, brass tube and sheet and a pen spring. Looks like ship building from days of yore!

    Click image for larger version

Name:	DSC03227.JPG
Views:	196
Size:	78.1 KB
ID:	7215 Click image for larger version

Name:	DSC03228.JPG
Views:	181
Size:	75.7 KB
ID:	7216

    Click image for larger version

Name:	DSC03229.JPG
Views:	187
Size:	81.8 KB
ID:	7217 Click image for larger version

Name:	DSC03230.JPG
Views:	217
Size:	83.2 KB
ID:	7218

    Click image for larger version

Name:	DSC03231.JPG
Views:	183
Size:	82.1 KB
ID:	7219 Click image for larger version

Name:	DSC03232.JPG
Views:	206
Size:	75.2 KB
ID:	7220

    Click image for larger version

Name:	DSC03233.JPG
Views:	206
Size:	77.4 KB
ID:	7221 Click image for larger version

Name:	DSC03234.JPG
Views:	205
Size:	68.0 KB
ID:	7222

    Comment


    • #3

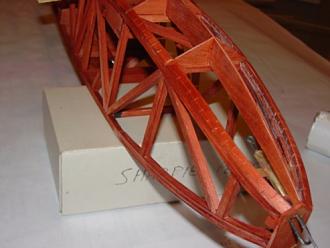

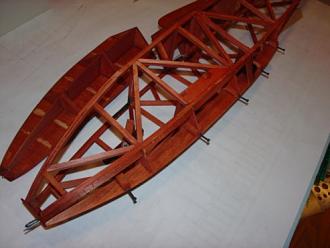

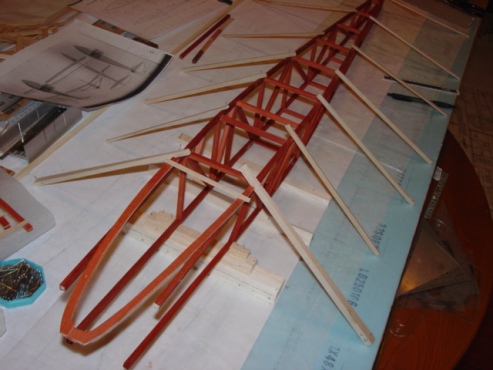

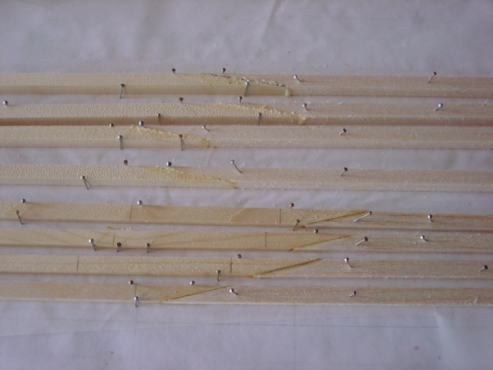

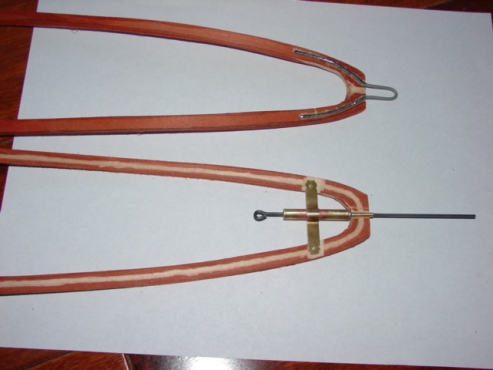

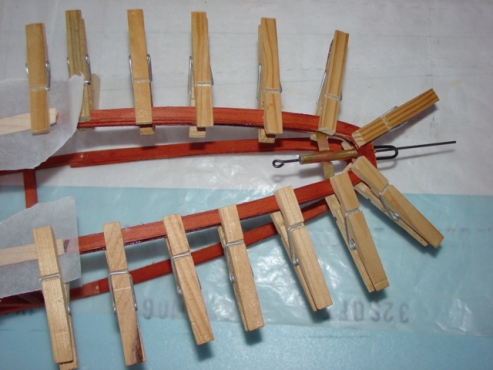

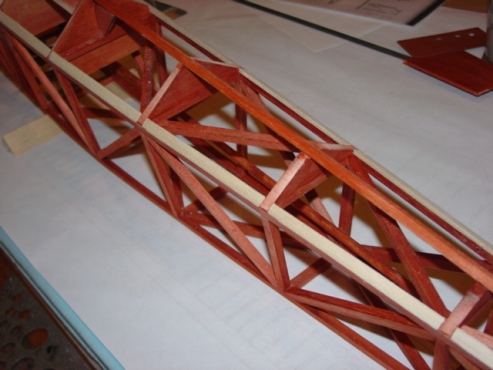

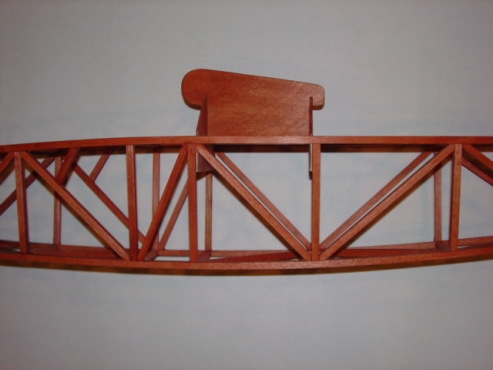

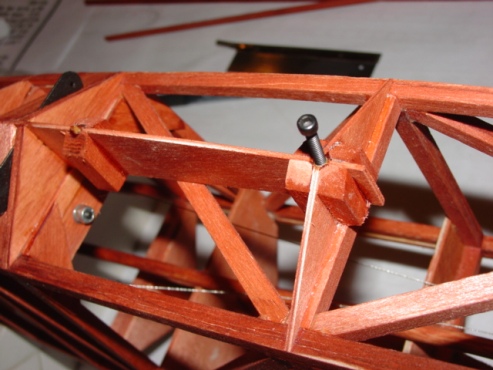

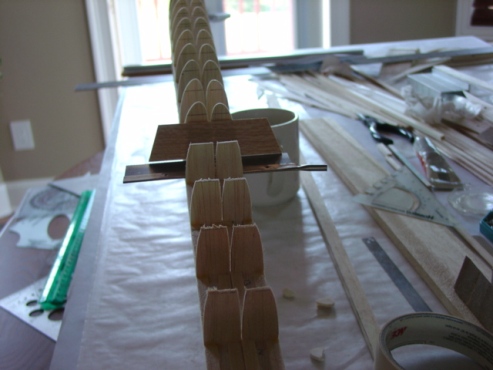

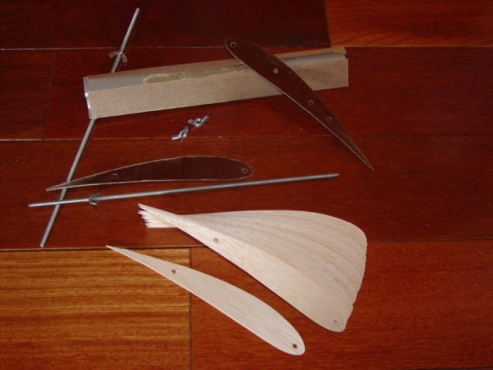

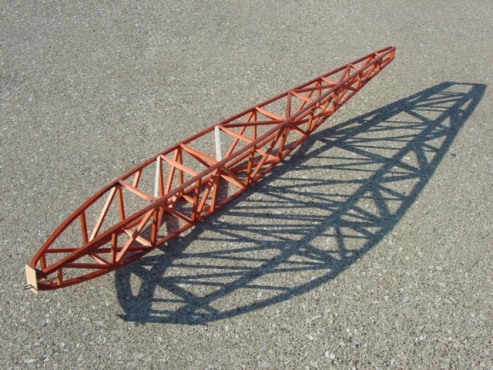

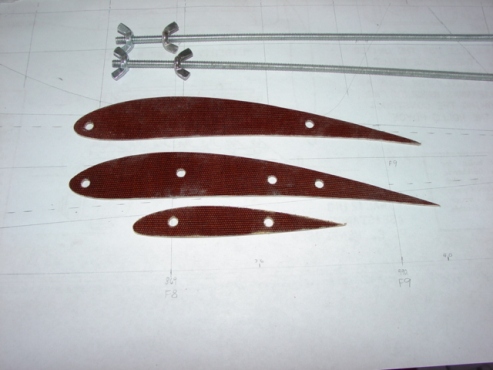

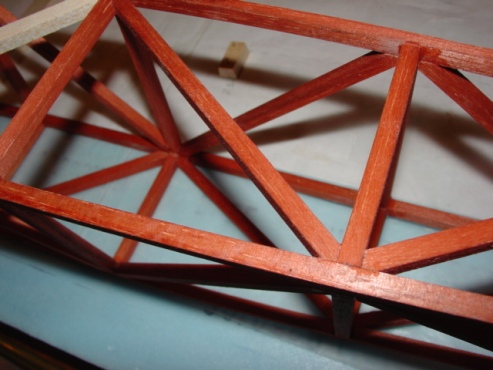

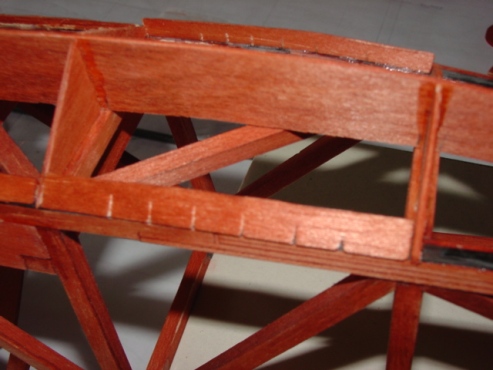

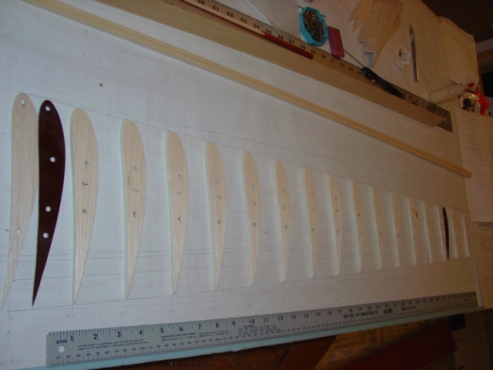

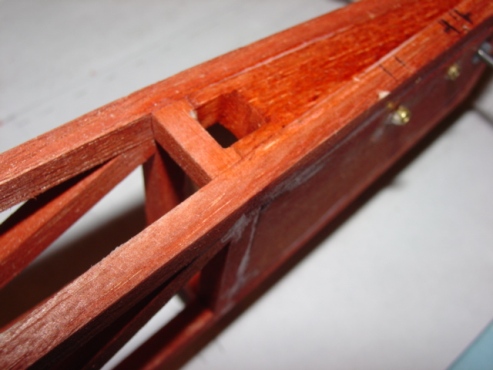

      The bows were scarfed onto the fuselage frame then more CF tow epoxied to tie it all together. Close up of joinery. I love this stuff! Everything gets attached to the basic fuselage 'box'. The center pylon and its supports cut into the frame. Rib templates from micarta to make center section and outer panel ribs.

      Click image for larger version

Name:	DSC03235.JPG
Views:	204
Size:	85.3 KB
ID:	7224 Click image for larger version

Name:	DSC03236.JPG
Views:	208
Size:	88.2 KB
ID:	7225

      Click image for larger version

Name:	DSC03237.JPG
Views:	214
Size:	81.8 KB
ID:	7226 Click image for larger version

Name:	DSC03242.JPG
Views:	178
Size:	88.1 KB
ID:	7227

      Click image for larger version

Name:	DSC03243.JPG
Views:	184
Size:	82.3 KB
ID:	7228 Click image for larger version

Name:	DSC03244.JPG
Views:	207
Size:	75.7 KB
ID:	7229

      Click image for larger version

Name:	DSC03245.JPG
Views:	214
Size:	80.5 KB
ID:	7230 Click image for larger version

Name:	DSC03252.JPG
Views:	205
Size:	79.0 KB
ID:	7231



      Comment


      • #4

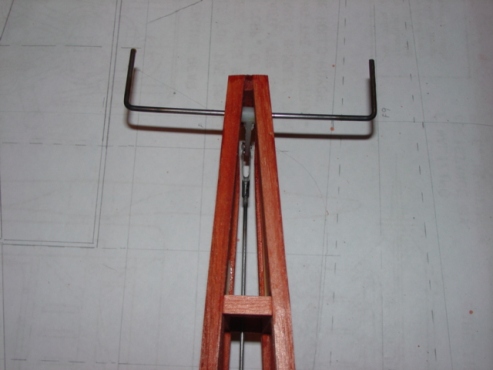

        The photos of the build might meander a bit from one portion of the build to the next but that is how I do it. Sometimes parts have glue drying so I do something else instead of standing around. Here are tail feather plan pictures. The pink eraser is a very well used tool! The ribs were set up in incidence meter so a jig could be made. The elevator push rod had to be fabricated 'bullet proof' since access would be impossible. The 'Balestruccio' has an elegantly narrow fuselage which makes for some very tight fittments. To clear the fin post the horns of the SIG control horn were bent as shown in the side view picture.

        Click image for larger version

Name:	DSC03246.JPG
Views:	174
Size:	67.6 KB
ID:	7233 Click image for larger version

Name:	DSC03247.JPG
Views:	201
Size:	66.4 KB
ID:	7234

        Click image for larger version

Name:	DSC03250.JPG
Views:	199
Size:	85.3 KB
ID:	7235 Click image for larger version

Name:	DSC03257.JPG
Views:	207
Size:	76.1 KB
ID:	7236

        Click image for larger version

Name:	DSC03251.JPG
Views:	175
Size:	79.2 KB
ID:	7237 Click image for larger version

Name:	DSC03253.JPG
Views:	214
Size:	68.0 KB
ID:	7238

        Click image for larger version

Name:	DSC03255.JPG
Views:	181
Size:	68.6 KB
ID:	7239 Click image for larger version

Name:	DSC03256.JPG
Views:	212
Size:	76.4 KB
ID:	7240

        Comment


        • #5

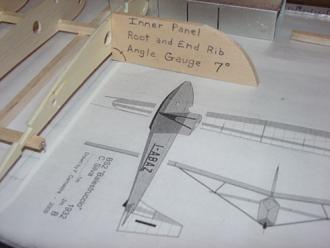

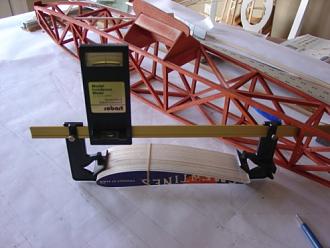

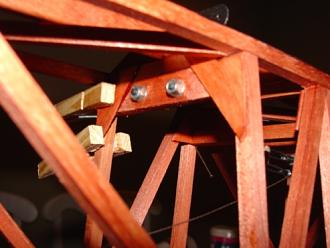

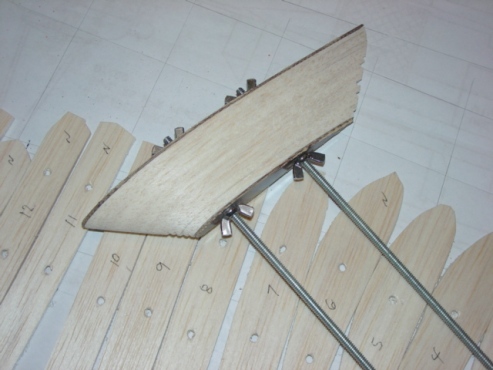

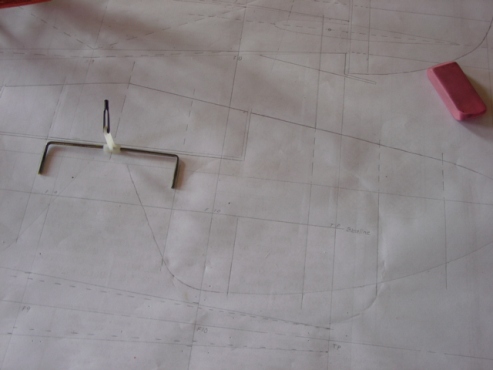

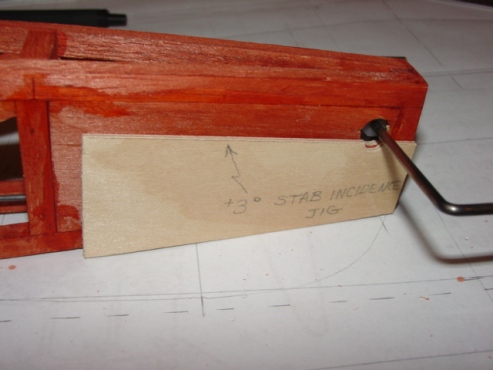

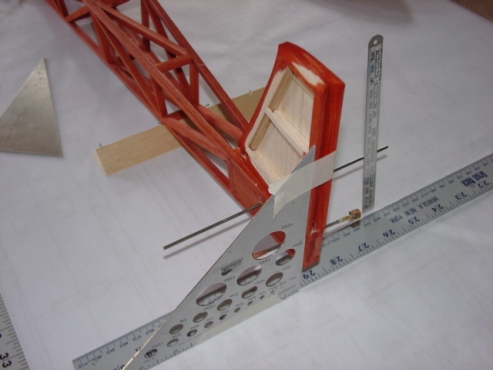

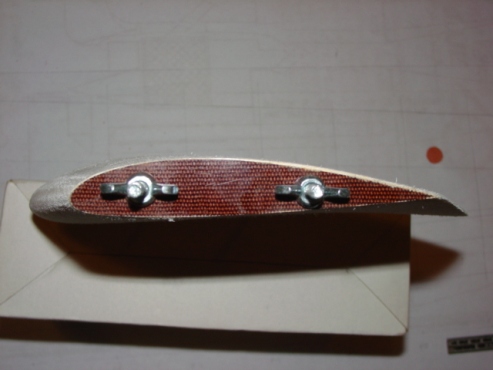

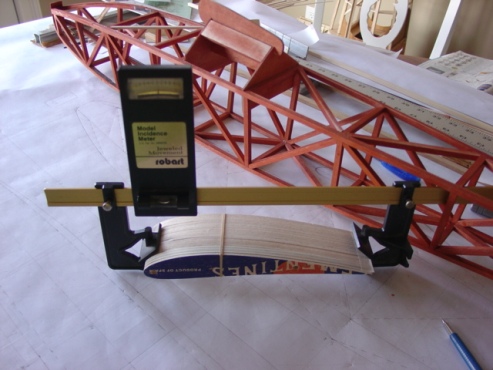

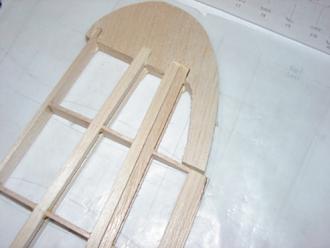

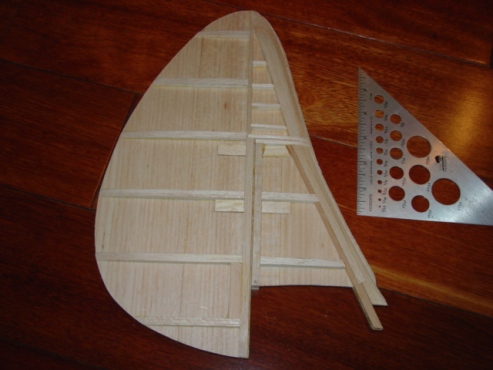

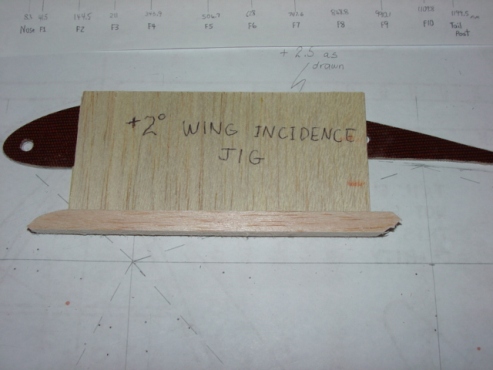

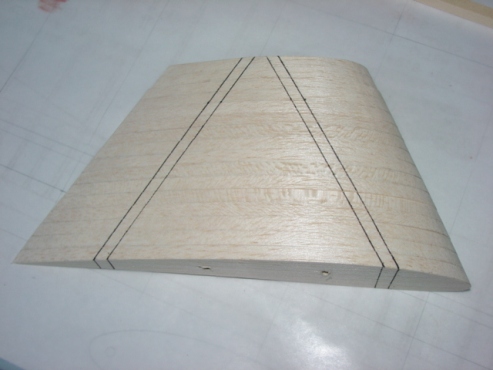

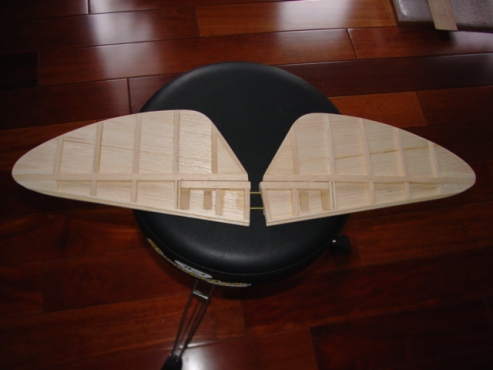

          A stab incidence jig was made. I wanted to make sure the model didn't fly 'tail low'. The completed model flies great but the stab incidence could use to be adjusted to +2 degrees. The reason for that is the stab and elevators don't align at best trim settings thus creating drag. I'm a little picky! The 1:4 version will get the correction. The 'stub' stabs were glued in place maintaining alignment until glue dried. I decided to make the stab-elevator assembly removable from the airframe. The SIG horn got modified. Square drives were soldered to it and receivers glued into the elevators. Fin rudder built.

          Click image for larger version

Name:	DSC03258.JPG
Views:	202
Size:	71.6 KB
ID:	7242 Click image for larger version

Name:	DSC03261.JPG
Views:	184
Size:	75.0 KB
ID:	7243

          Click image for larger version

Name:	DSC03262.JPG
Views:	202
Size:	79.4 KB
ID:	7244 Click image for larger version

Name:	DSC03263.JPG
Views:	205
Size:	78.9 KB
ID:	7245

          Click image for larger version

Name:	DSC03264.JPG
Views:	202
Size:	77.7 KB
ID:	7246 Click image for larger version

Name:	DSC03266.JPG
Views:	197
Size:	77.5 KB
ID:	7247

          Click image for larger version

Name:	DSC03267.JPG
Views:	181
Size:	69.9 KB
ID:	7248 Click image for larger version

Name:	DSC03268.JPG
Views:	177
Size:	66.9 KB
ID:	7249

          Comment


          • #6

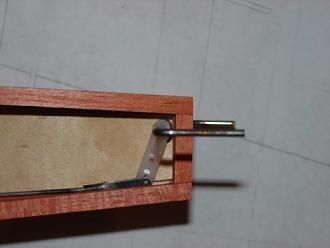

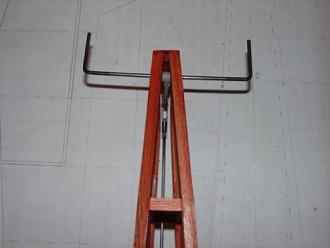

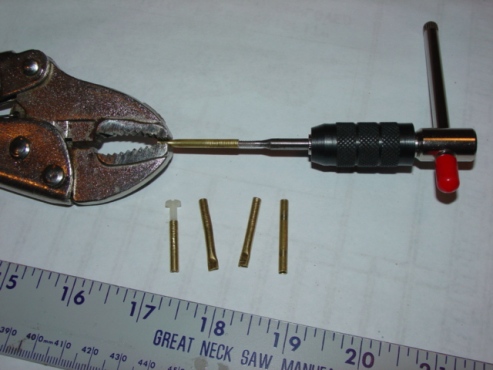

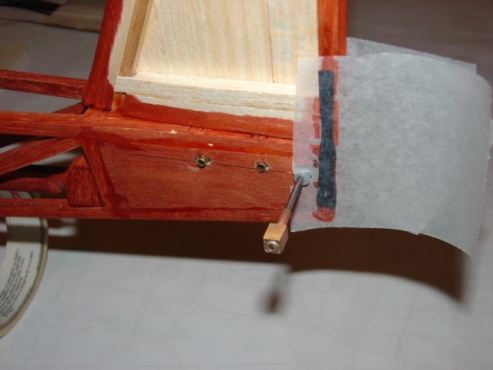

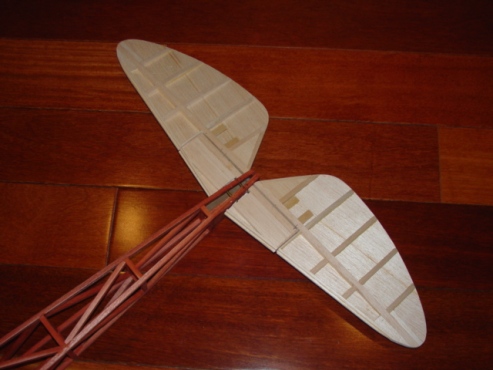

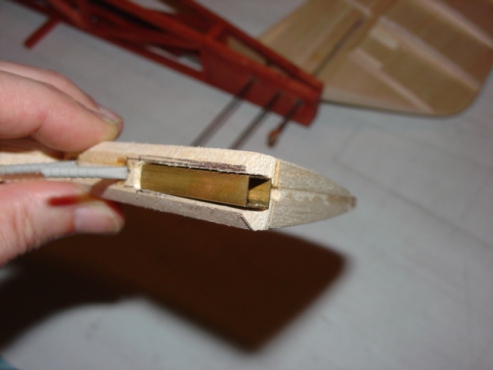

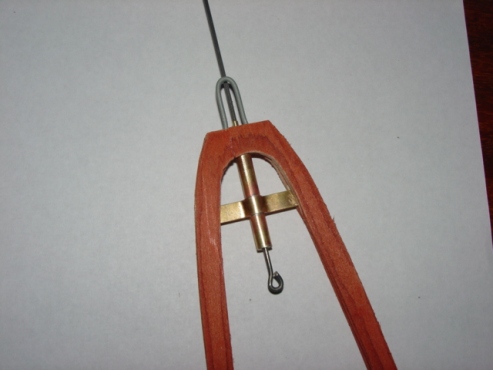

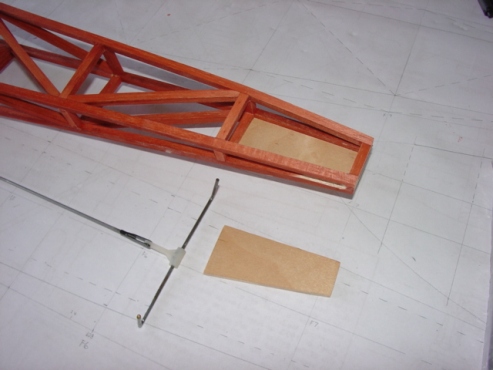

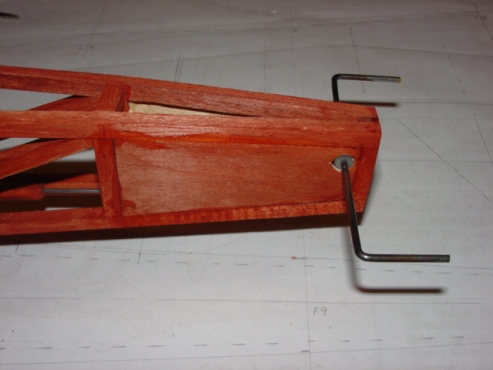

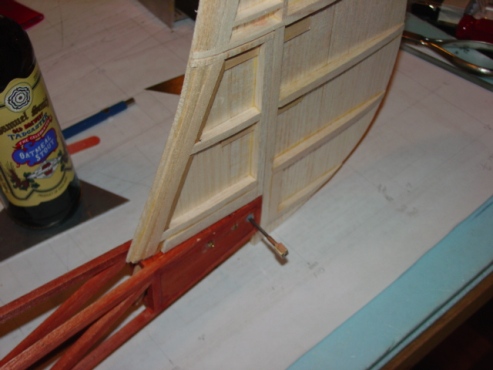

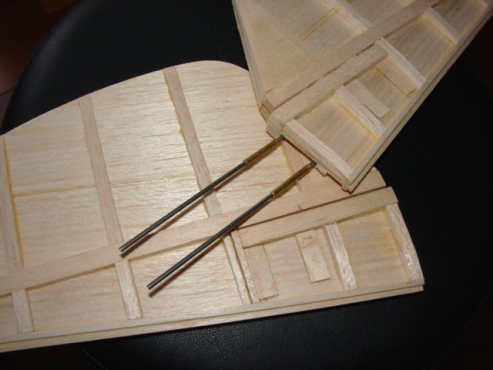

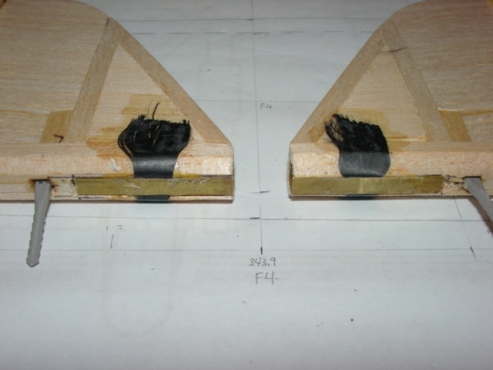

            Gluing square drive receivers into elevators with epoxy and CF tow for strength. The temporary brass tube between them maintains alignment while the epoxy cures. Checking fin fit relative to stab and elevators. The fuselage was jigged so the fin could be glued squarely in place. CF tow added to rear of fuselage before adding the 1/64" skins.

            Click image for larger version

Name:	DSC03270.JPG
Views:	168
Size:	69.9 KB
ID:	7251 Click image for larger version

Name:	DSC03271.JPG
Views:	170
Size:	76.9 KB
ID:	7252

            Click image for larger version

Name:	DSC03273.JPG
Views:	174
Size:	75.8 KB
ID:	7253 Click image for larger version

Name:	DSC03274.JPG
Views:	144
Size:	75.5 KB
ID:	7254

            Click image for larger version

Name:	DSC03275.JPG
Views:	164
Size:	82.4 KB
ID:	7255 Click image for larger version

Name:	DSC03276.JPG
Views:	172
Size:	79.9 KB
ID:	7256

            Click image for larger version

Name:	DSC03277.JPG
Views:	175
Size:	79.5 KB
ID:	7257 Click image for larger version

Name:	DSC03278.JPG
Views:	167
Size:	73.1 KB
ID:	7258

            Comment


            • #7

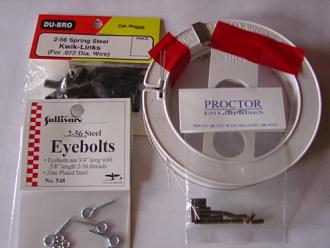

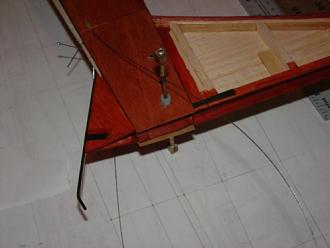

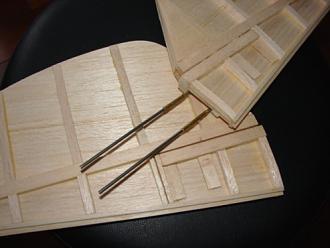

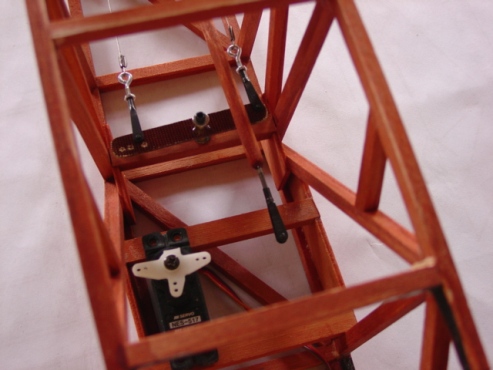

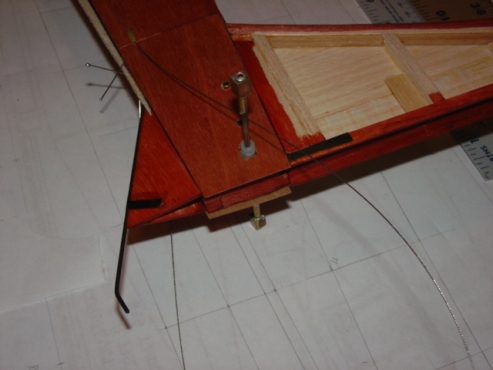

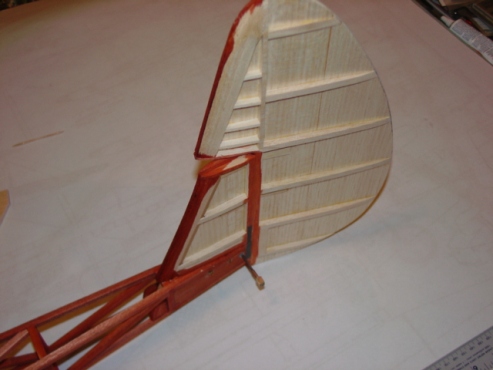

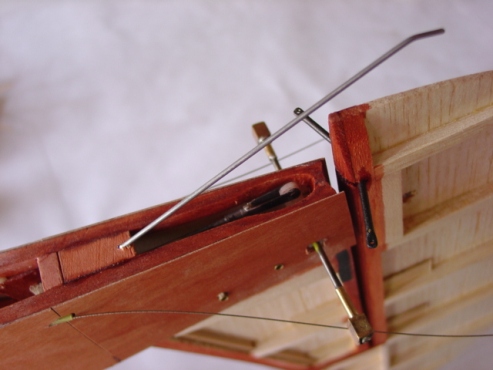

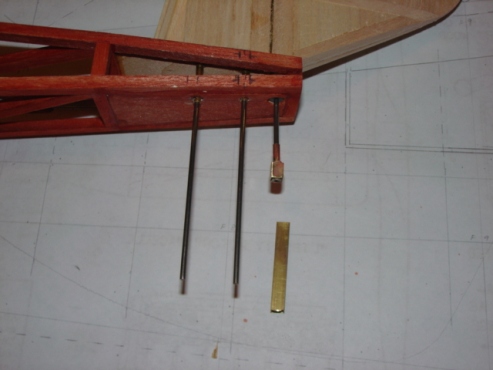

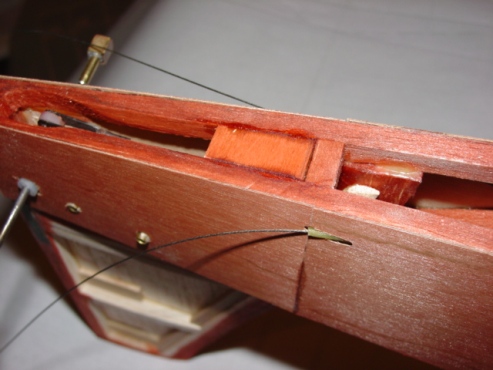

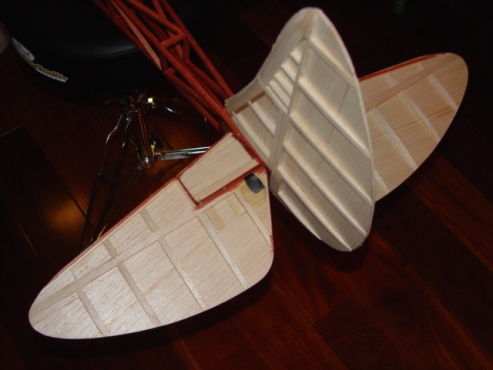

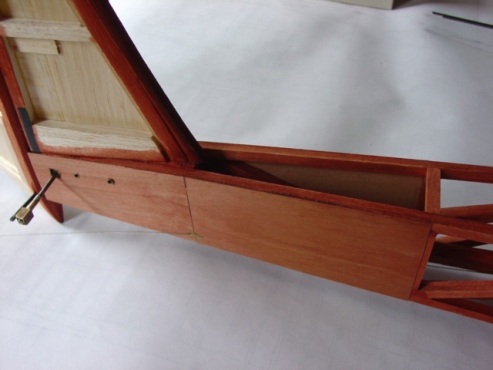

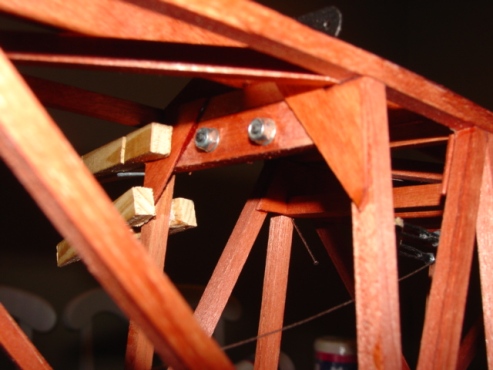

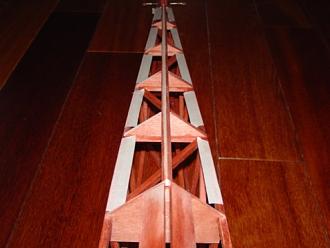

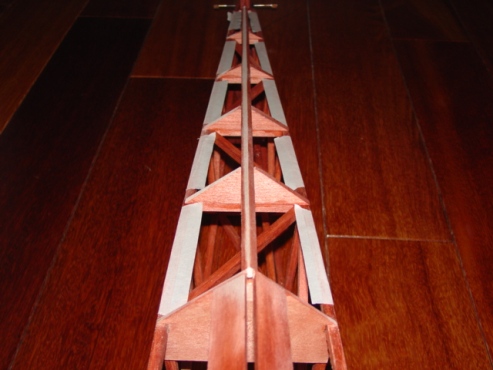

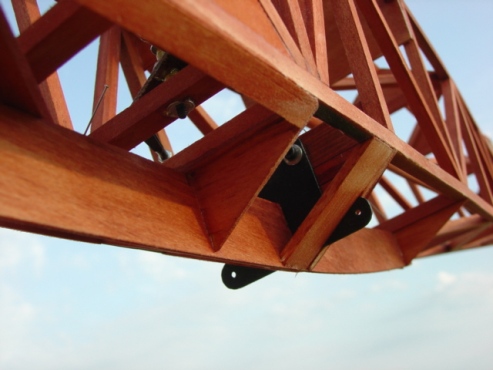

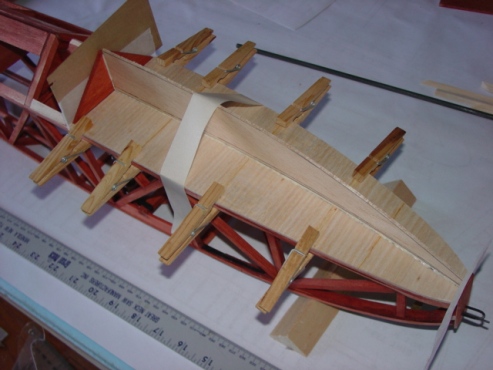

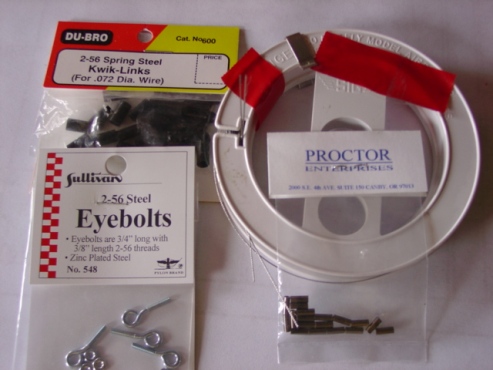

              CF epoxied onto tail end before putting on 1/64" ply skins. Pull-pull parts for rudder. Here they are in place and the elevator push rod can be seen, too! More 1/64" ply added. The top longeron has to be straight. Balsa added along the top side of upper longerons and lower side of lower longerons to be sanded fair. The 1/64" ply needs something to which it can attach.

              Click image for larger version

Name:	DSC03280.JPG
Views:	168
Size:	83.5 KB
ID:	7260 Click image for larger version

Name:	DSC03281.JPG
Views:	171
Size:	80.3 KB
ID:	7261

              Click image for larger version

Name:	DSC03282.JPG
Views:	166
Size:	82.1 KB
ID:	7262 Click image for larger version

Name:	DSC03283.JPG
Views:	144
Size:	75.2 KB
ID:	7263

              Click image for larger version

Name:	DSC03285.JPG
Views:	163
Size:	80.1 KB
ID:	7265 Click image for larger version

Name:	DSC03286.JPG
Views:	167
Size:	86.0 KB
ID:	7266

              Click image for larger version

Name:	DSC03284.JPG
Views:	159
Size:	87.8 KB
ID:	7264 Click image for larger version

Name:	DSC03287.JPG
Views:	159
Size:	89.4 KB
ID:	7267

              Comment


              • #8

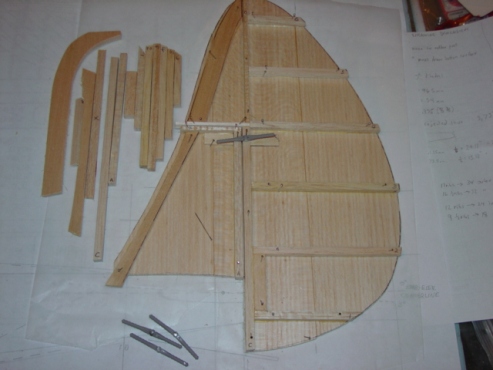

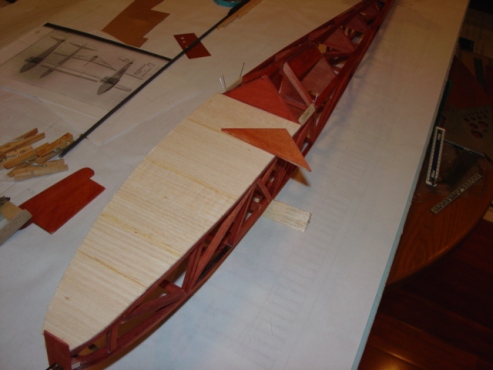

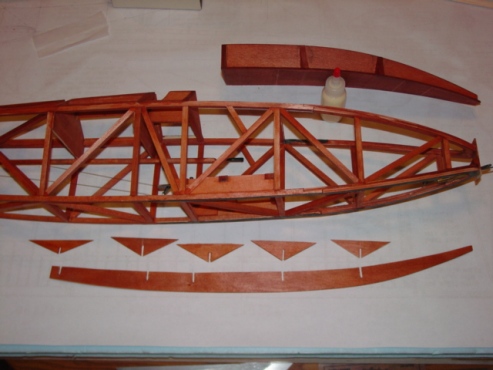

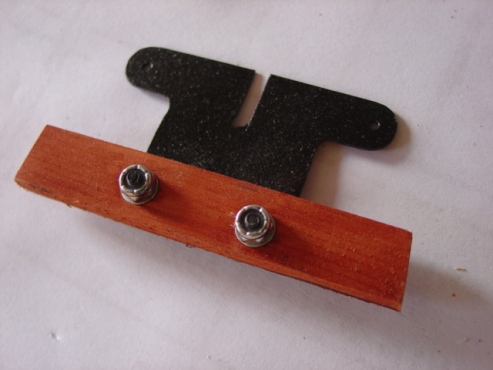

                Constructing the canopy/ hatch. Basic hatch shown along with 1/8" marine ply keel parts. Strut attach fitting from sheet steel mounted to block. What is that last picture?

                Click image for larger version

Name:	DSC03288.JPG
Views:	172
Size:	82.7 KB
ID:	7269 Click image for larger version

Name:	DSC03289.JPG
Views:	168
Size:	83.6 KB
ID:	7270

                Click image for larger version

Name:	DSC03290.JPG
Views:	133
Size:	82.7 KB
ID:	7271 Click image for larger version

Name:	DSC03291.JPG
Views:	186
Size:	85.2 KB
ID:	7272

                Click image for larger version

Name:	DSC03292.JPG
Views:	164
Size:	72.0 KB
ID:	7273 Click image for larger version

Name:	DSC03293.JPG
Views:	137
Size:	87.2 KB
ID:	7274

                Click image for larger version

Name:	DSC03294.JPG
Views:	155
Size:	78.7 KB
ID:	7275 Click image for larger version

Name:	DSC03295.JPG
Views:	157
Size:	70.1 KB
ID:	7276

                Comment


                • #9

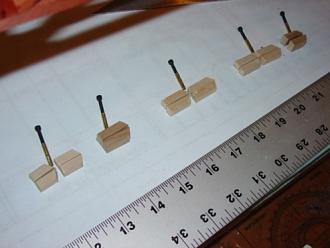

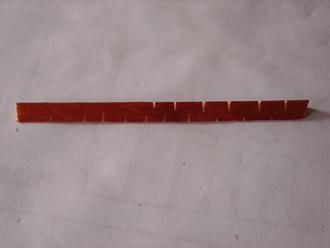

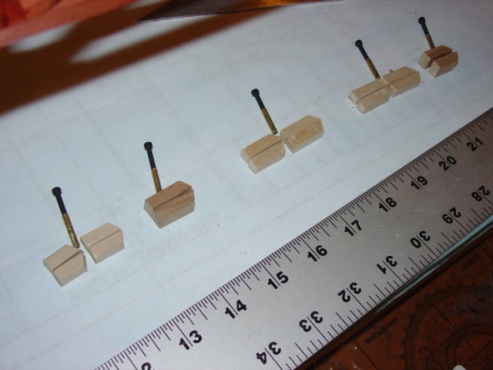

                  The part in last picture above is just balsa filler. Relief cuts allow it to conform to the curves on the forward longerons. The ply won't stick to an edge very well so these filler pieces get added and sanded fair to the longerons and formers. More ply skins added. Use 'manila folder' card stock to make patterns. The strut attach fittings got 'gussetted'. Is that a proper word? Brass tubes were threaded 4-40 for skid mounting.landing. Bass blocks support the tubes on the keel.

                  Click image for larger version

Name:	DSC03296.JPG
Views:	135
Size:	79.1 KB
ID:	7278 Click image for larger version

Name:	DSC03297.JPG
Views:	136
Size:	79.1 KB
ID:	7279

                  Click image for larger version

Name:	DSC03298.JPG
Views:	133
Size:	82.0 KB
ID:	7280 Click image for larger version

Name:	DSC03299.JPG
Views:	164
Size:	83.2 KB
ID:	7281

                  Click image for larger version

Name:	DSC03300.JPG
Views:	130
Size:	75.2 KB
ID:	7282 Click image for larger version

Name:	DSC03301.JPG
Views:	134
Size:	74.6 KB
ID:	7283

                  Click image for larger version

Name:	DSC03302.JPG
Views:	166
Size:	86.5 KB
ID:	7284 Click image for larger version

Name:	DSC03303.JPG
Views:	140
Size:	82.4 KB
ID:	7285

                  Comment


                  • #10

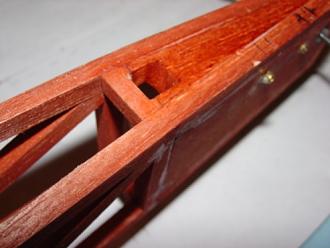

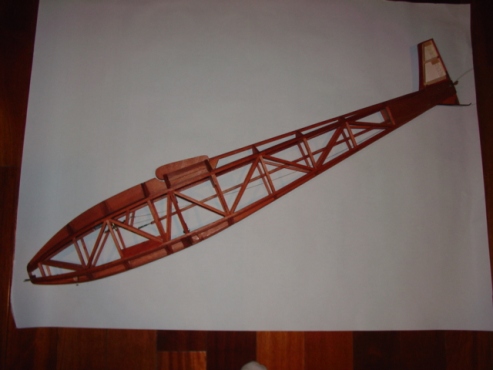

                    The skid is mounted in a bass block. You can see the tight fit of the elevator push rod clevis. The rudder horn is my old stand by of bent music wires soldered together. Their ends have brass tubes soldered onto them. The tubes are flattened on one end then drilled for the cables to attach. All cable adjustment is inside the fuselage to keep everything 'clean' outside. The basic fuselage is shown. The wings are started. The outer panel ribs were made after these 1/4" balsa templates were sanded fair. You can see how the washout is 'induced' by the shape of the ribs.

                    Click image for larger version

Name:	DSC03304.JPG
Views:	155
Size:	79.5 KB
ID:	7287 Click image for larger version

Name:	DSC03305.JPG
Views:	164
Size:	77.5 KB
ID:	7288

                    Click image for larger version

Name:	DSC03308.JPG
Views:	167
Size:	71.3 KB
ID:	7289 Click image for larger version

Name:	DSC03306.JPG
Views:	137
Size:	75.5 KB
ID:	7290

                    Click image for larger version

Name:	DSC03309.JPG
Views:	156
Size:	77.4 KB
ID:	7291 Click image for larger version

Name:	DSC03311.JPG
Views:	162
Size:	65.8 KB
ID:	7292

                    Click image for larger version

Name:	DSC03313.JPG
Views:	166
Size:	79.5 KB
ID:	7293 Click image for larger version

Name:	DSC03314.JPG
Views:	135
Size:	81.2 KB
ID:	7294

                    Comment

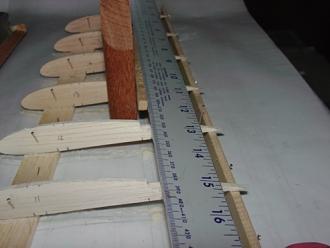

                    • #11

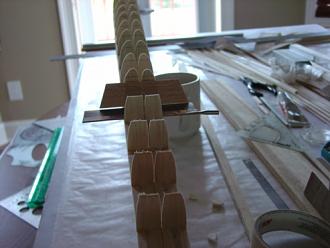

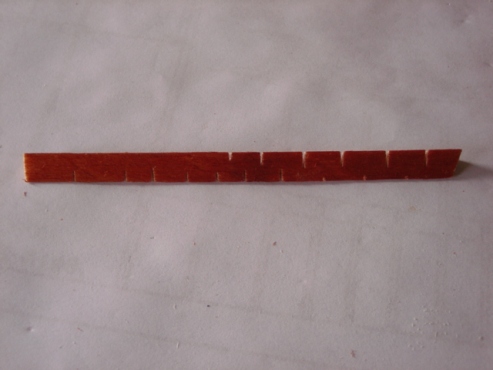

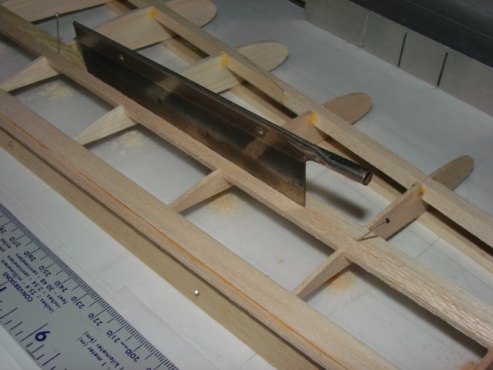

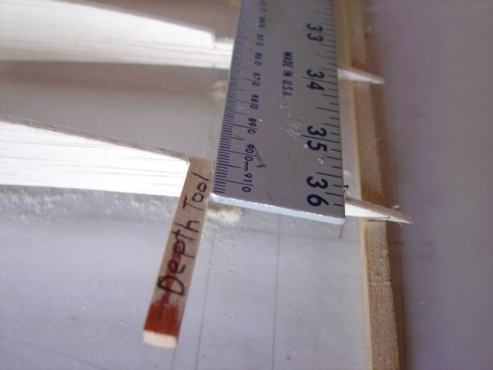

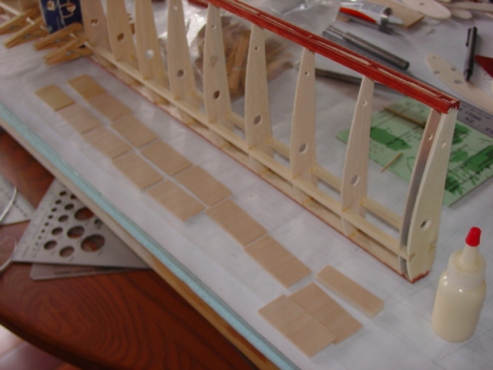

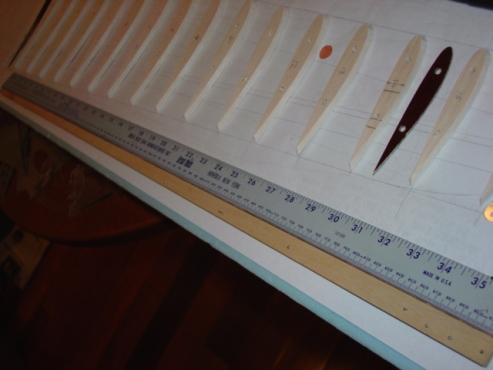

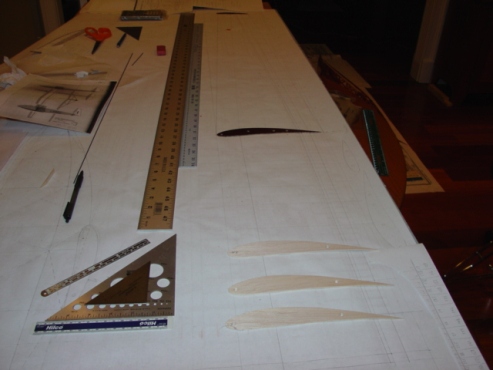

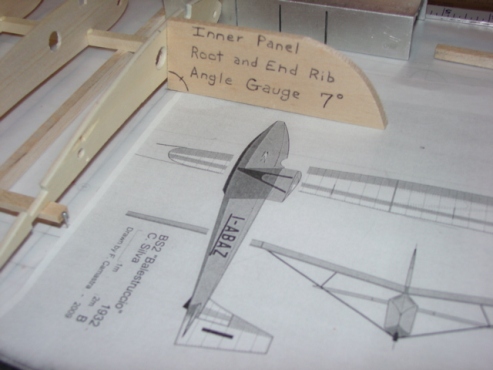

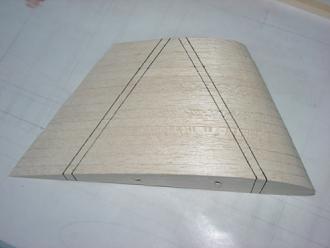

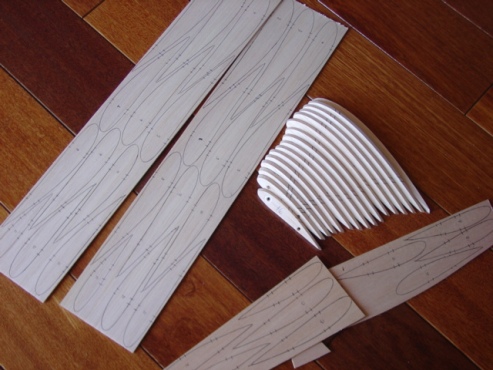

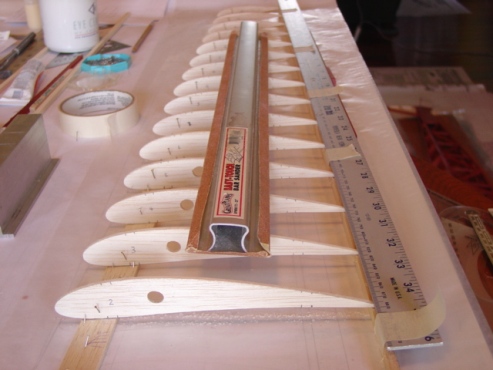

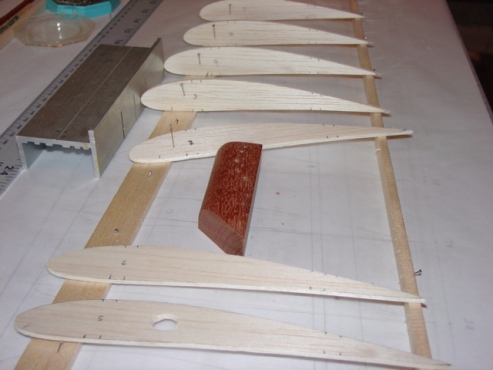

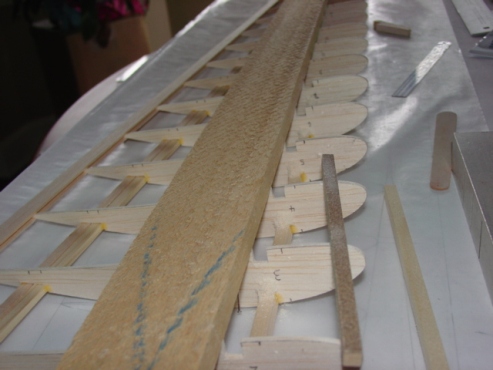

                      Marking patterns for the locations of the spar slots. Tracing around the patterns and marking the spar slots for the outer, tapered, panel ribs. The ribs were pinned onto a jig then the ribs were gently sanded fair. This was a delicate process since pins were the only thing holding the ribs in place. A straight edge was laid down to the markings to guide the 'spar slotting tool' which was made just shy of the proper width for the spars. You can see the 'spar slotting tool' captured between the straight edge and the Mahogany block. A 'Depth Tool' is just a piece of spar stock used to check sanding progress. The outer panel spars were scarfed together from spruce and hard balsa. The scarf joint was overlaid with 1/64" ply both sides. The stronger spruce portion of spar goes inboard.

                      Click image for larger version

Name:	DSC03315.JPG
Views:	168
Size:	72.6 KB
ID:	7296 Click image for larger version

Name:	DSC03316.JPG
Views:	149
Size:	90.8 KB
ID:	7297

                      Click image for larger version

Name:	DSC03318.JPG
Views:	162
Size:	80.8 KB
ID:	7298 Click image for larger version

Name:	DSC03319.JPG
Views:	152
Size:	79.6 KB
ID:	7299

                      Click image for larger version

Name:	DSC03320.JPG
Views:	163
Size:	73.0 KB
ID:	7300 Click image for larger version

Name:	DSC03321.JPG
Views:	158
Size:	79.2 KB
ID:	7301

                      Click image for larger version

Name:	DSC03322.JPG
Views:	136
Size:	77.9 KB
ID:	7302 Click image for larger version

Name:	DSC03323.JPG
Views:	132
Size:	78.8 KB
ID:	7303

                      Comment

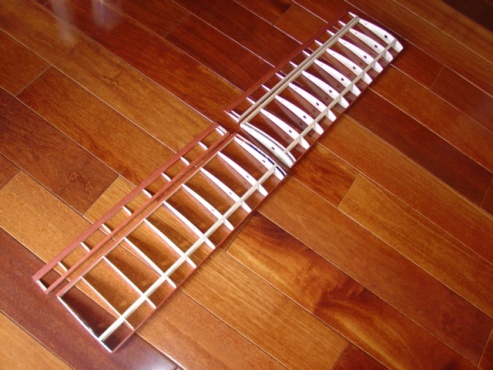

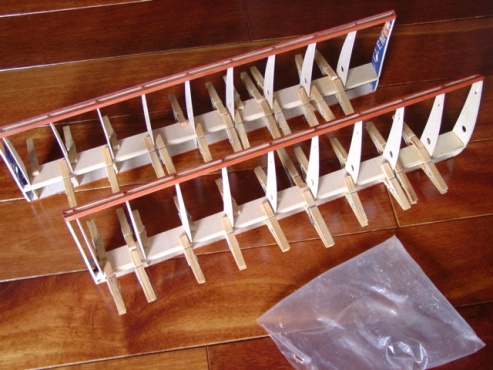

                      • #12

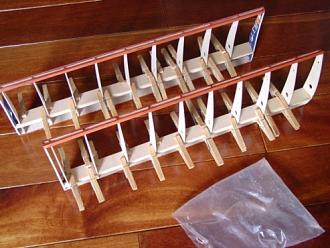

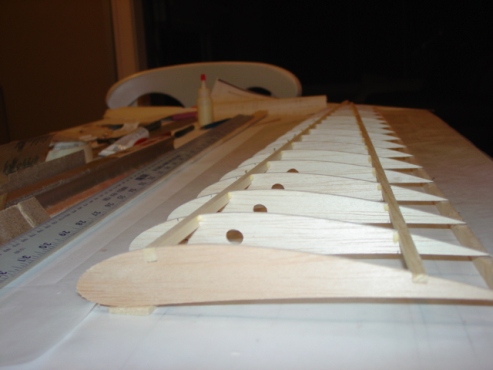

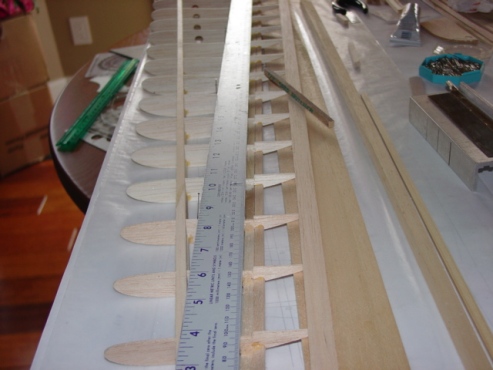

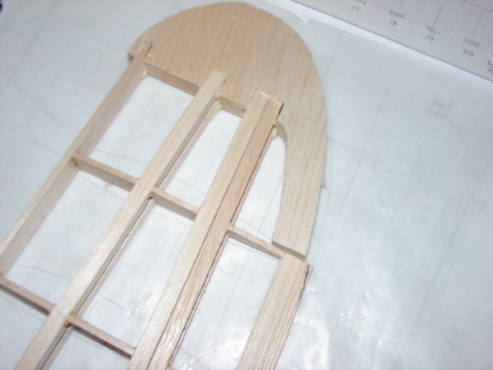

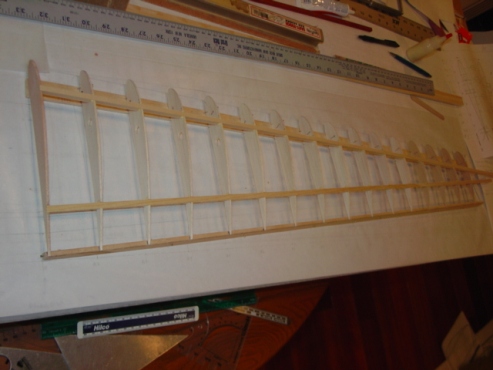

                        It's starting to look like a wing! There's a train a-comin'! The wing has movable surfaces along its whole TE so the rear spar was strategically located. The second rear spar was let into the wing using the Zona saw as a spacer since the saw will be used to cut the flap and aileron free anyway. The wing flipped over and the whole process from gebtly sanding ribs fair to setting spars was repeated. The LE was marked using a straight edge then the outer panels were placed bottom surface to bottom surface so the rib noses could be cut away. The LE will get added. The wing tips were added. Slotting ribs for spars was easy for the center section panels!

                        Click image for larger version

Name:	DSC03324.JPG
Views:	123
Size:	81.4 KB
ID:	7305 Click image for larger version

Name:	DSC03325.JPG
Views:	144
Size:	71.2 KB
ID:	7306

                        Click image for larger version

Name:	DSC03326.JPG
Views:	153
Size:	82.0 KB
ID:	7307 Click image for larger version

Name:	DSC03327.JPG
Views:	122
Size:	82.9 KB
ID:	7308

                        Click image for larger version

Name:	DSC03328.JPG
Views:	121
Size:	77.4 KB
ID:	7309 Click image for larger version

Name:	DSC03329.JPG
Views:	144
Size:	78.3 KB
ID:	7310

                        Click image for larger version

Name:	DSC03330.JPG
Views:	141
Size:	73.7 KB
ID:	7311 Click image for larger version

Name:	DSC03331.JPG
Views:	134
Size:	71.7 KB
ID:	7312

                        Comment


                        • #13
                          What a wonderful thing to see there are still superb craftsmen willing to take on vintage projects like this. Fred China would be very proud. Vincenzo's book is fantastic, I have picked a few that would make great subjects.

                          Comment


                          • #14
                            DennisB, that is a very nice compliment! Thanks! I've always liked antique types of aircraft. Sailplanes have always been a fascination and when I obtained various books their content and my imagination really took hold. Aerotowing seemed like a lot of fun and the low key non-competition aspect of it really had an appeal. Reality bore it out. What a fun bunch of folks! Then, seeing some of Fred China's models really lit my fire so here I am! Thanks again... I really appreciate it!

                            Comment


                            • #15

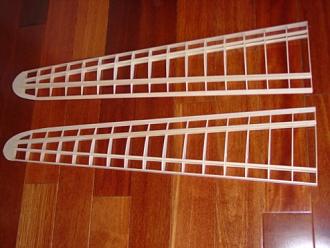

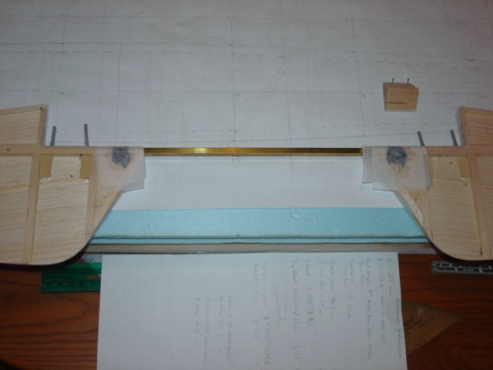

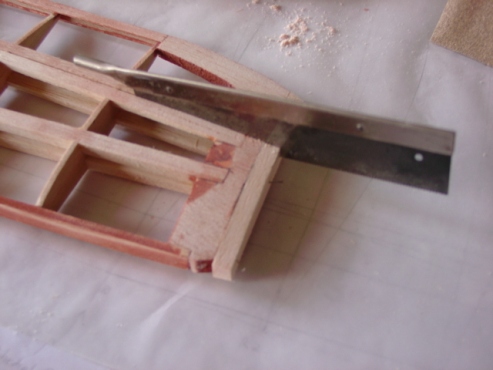

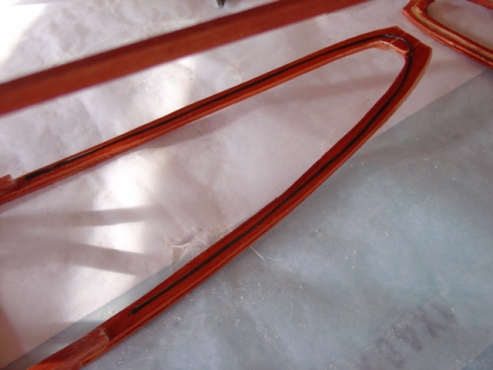

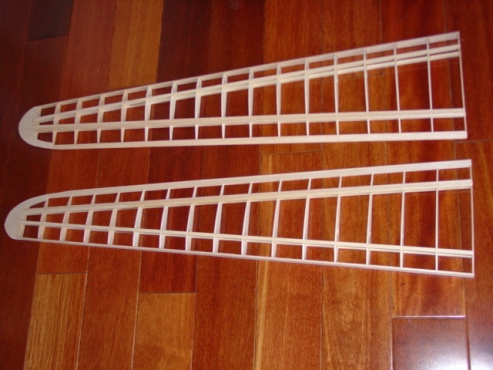

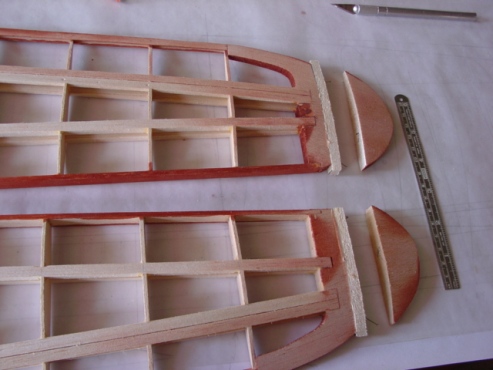

                              Outer panels framed. The tips were cut off and an 'extension' piece of balsa was glued and sanded fair. The tips will get put back on after the 1/64" ply glued to wing. Inner panels were easy! I made this neat little dihedral angle gauge. Flaps and ailerons cut free so that shear webs and filler blocks could be glued in place. The filler blocks receive, wing joiner tubes,alignment pin, its tube and hinges.

                              Click image for larger version

Name:	DSC03332.JPG
Views:	126
Size:	88.6 KB
ID:	7342 Click image for larger version

Name:	DSC03333.JPG
Views:	120
Size:	78.4 KB
ID:	7343

                              Click image for larger version

Name:	DSC03334.JPG
Views:	149
Size:	77.9 KB
ID:	7344 Click image for larger version

Name:	DSC03335.JPG
Views:	123
Size:	91.0 KB
ID:	7345

                              Click image for larger version

Name:	DSC03336.JPG
Views:	126
Size:	73.2 KB
ID:	7346 Click image for larger version

Name:	DSC03337.JPG
Views:	153
Size:	86.5 KB
ID:	7347

                              Click image for larger version

Name:	DSC03338.JPG
Views:	150
Size:	92.0 KB
ID:	7348 Click image for larger version

Name:	DSC03335.JPG
Views:	149
Size:	91.0 KB
ID:	7349

                              Comment

                              Working...
                              X
