Jim G's Aviation Concepts 2-33A Build(Sort of)

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Jim G's Aviation Concepts 2-33A Build(Sort of)

    I ordered the 1/3 scale 2-33A deluxe short kit shortly after it was released from Aviation Concepts in 2014. Along with the short kit I also ordered the scale tow release and interior kit. First of all, Gunny Bumburs has put together a kit that is of superior quality that includes the most detailed instruction manual I have every seen! His attention to detail comes across in every aspect of the kit. Fortunately, I ordered all the needed wood about that time as I don't have a clue what it would cost now, except much...much more!!

    The project finally rose to the top of my build backlog in 2020 and it was time to get started. This post is not a detailed build log, but rather to hopefully spark some renewed interest in the kit that other fliers may have sitting on their workshop shelf.

    From September 2020 to March 2021 I was able to complete the basic airframe including the tail surfaces, four wing panels and basic fuselage structure. The inner and outer wing panels remained separated after sheeting for ease of finishing out the ailerons and spoilers. Some photos of the construction during this time are posted below to get the build juices going. I'll add to this post again in the next couple of days describing the next build phase.

    Enjoy!
    Jim

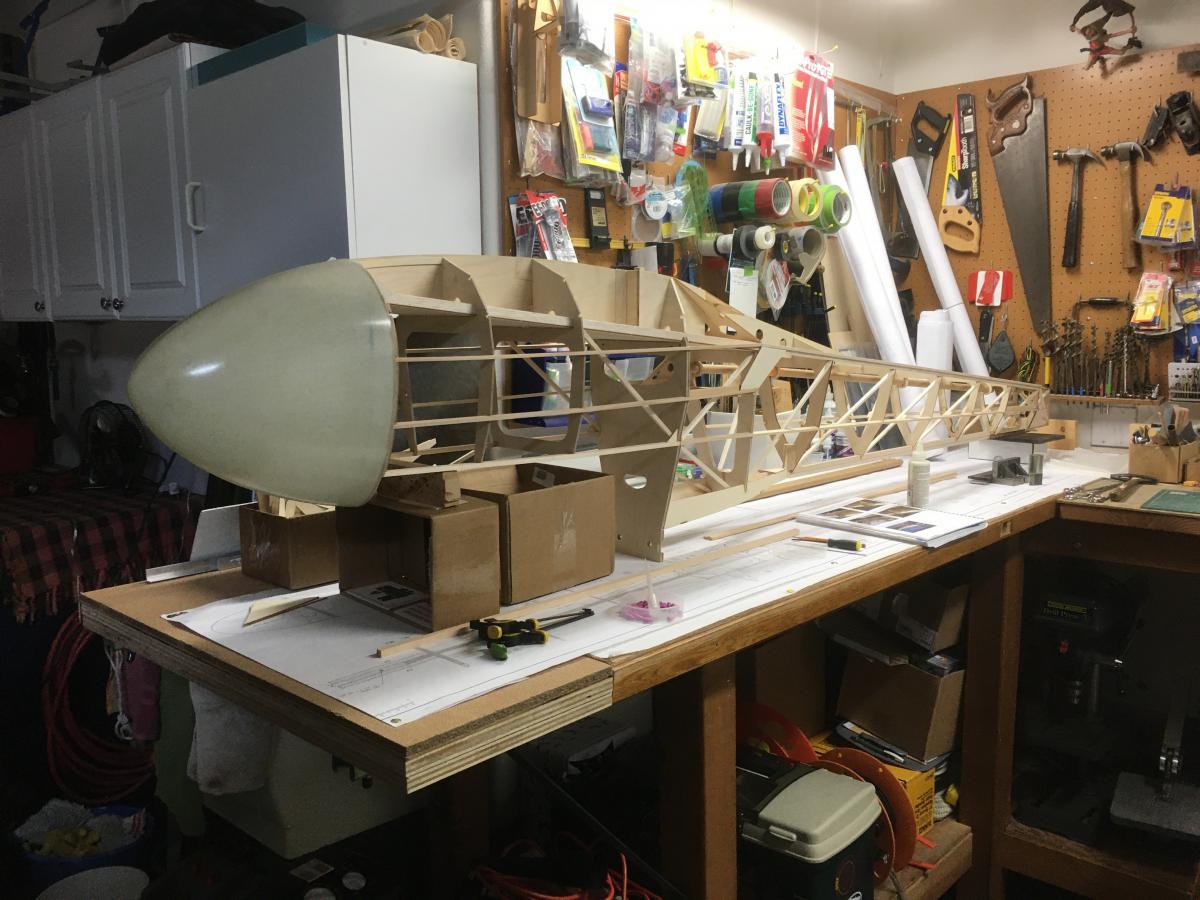

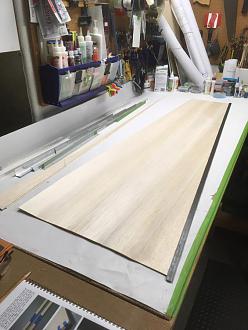

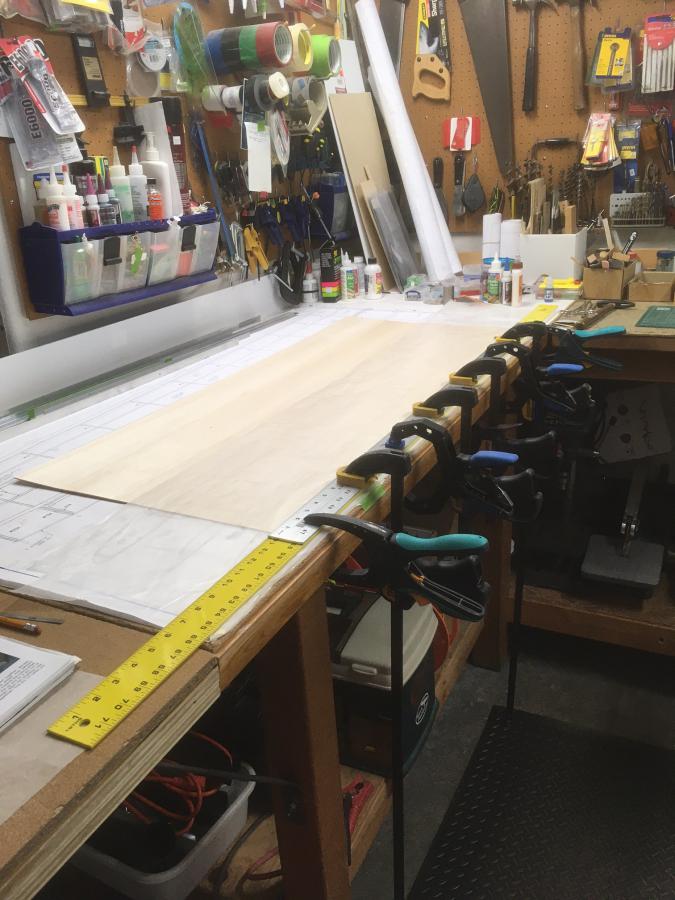

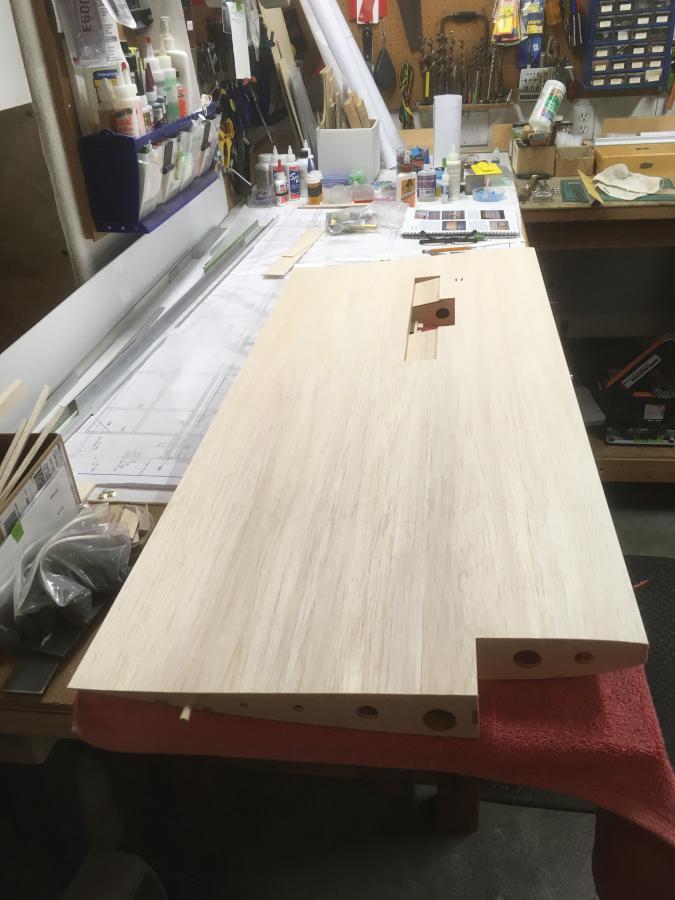

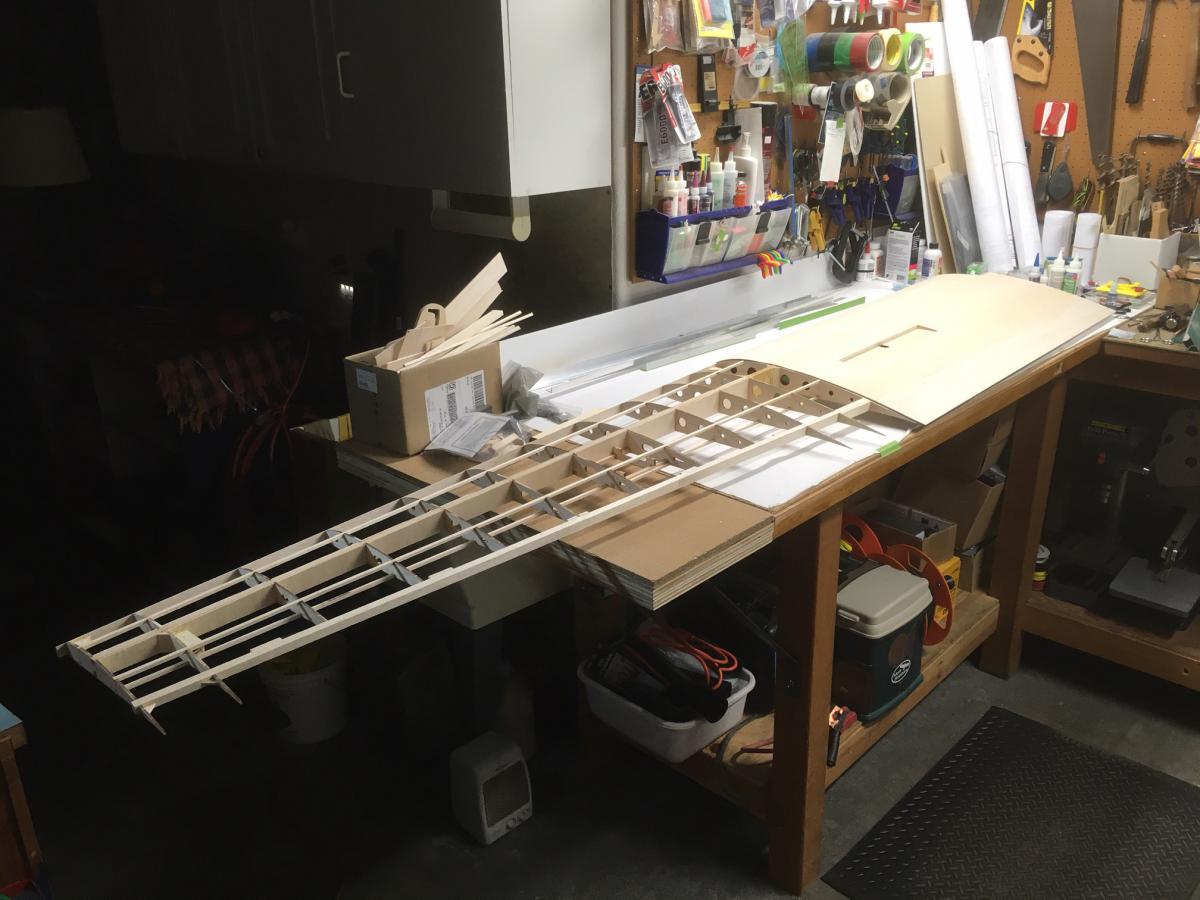

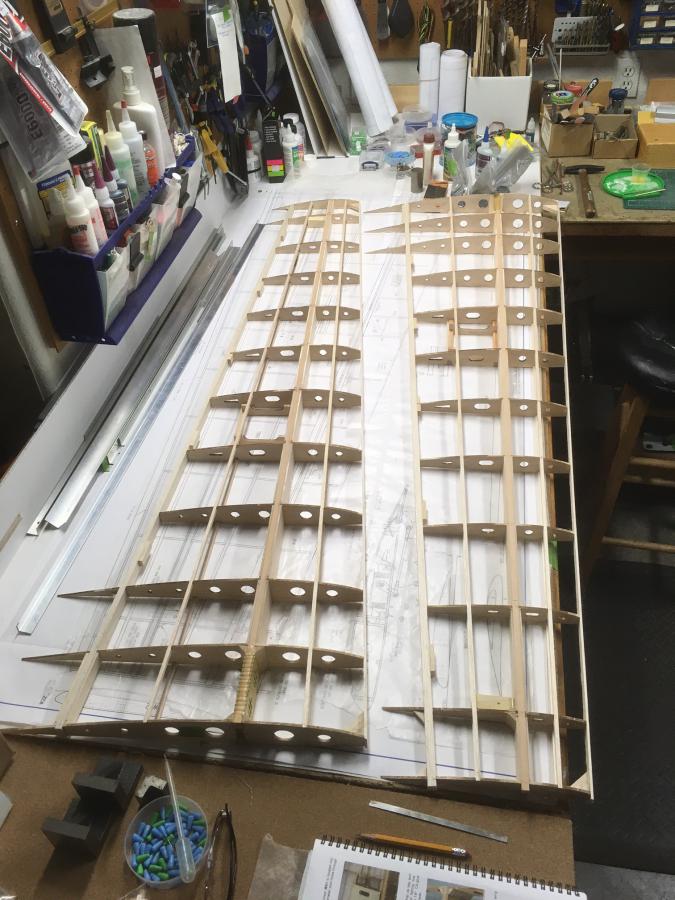

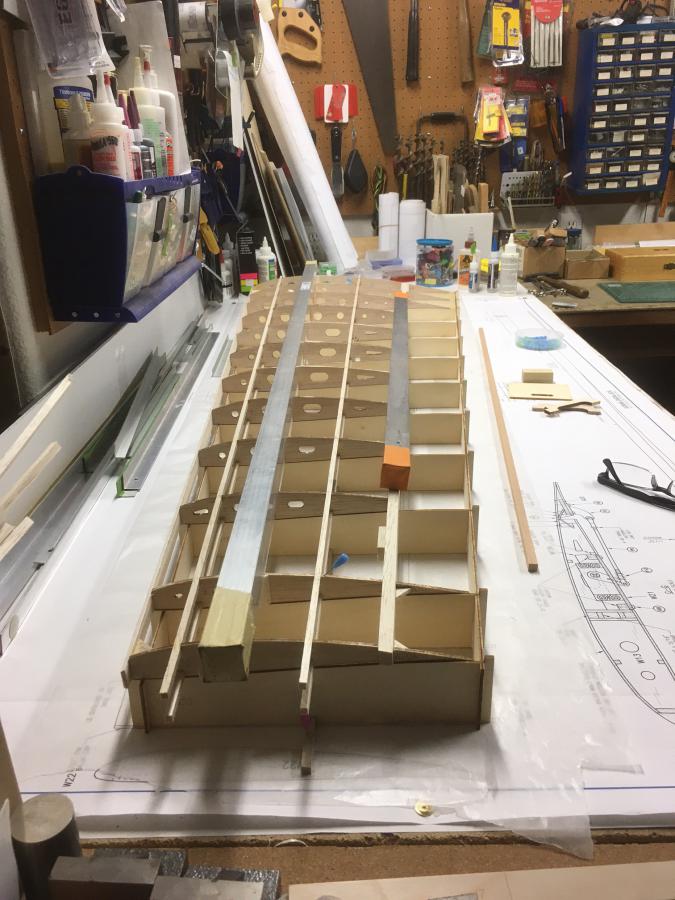

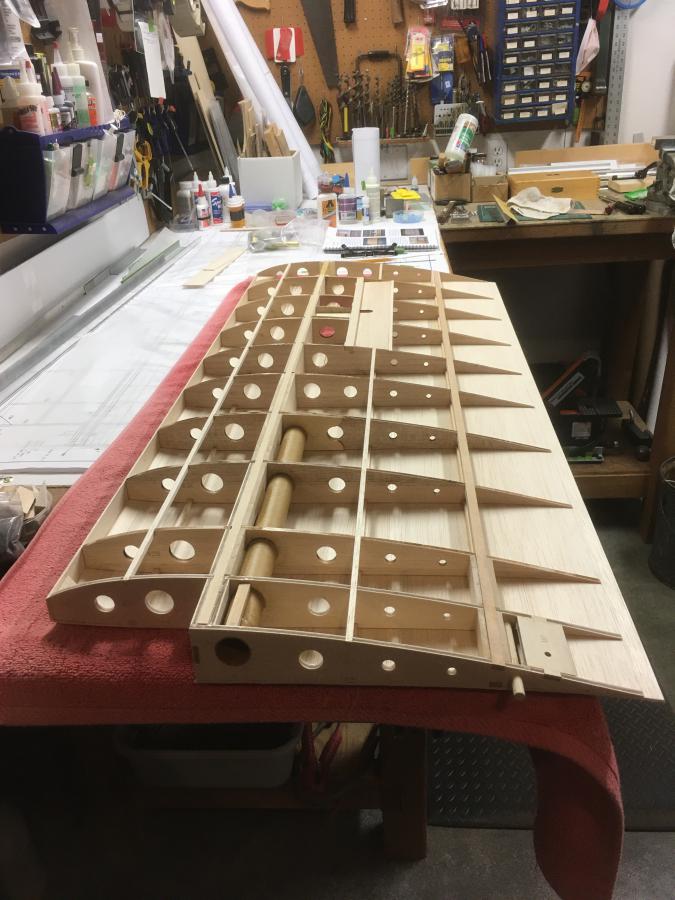

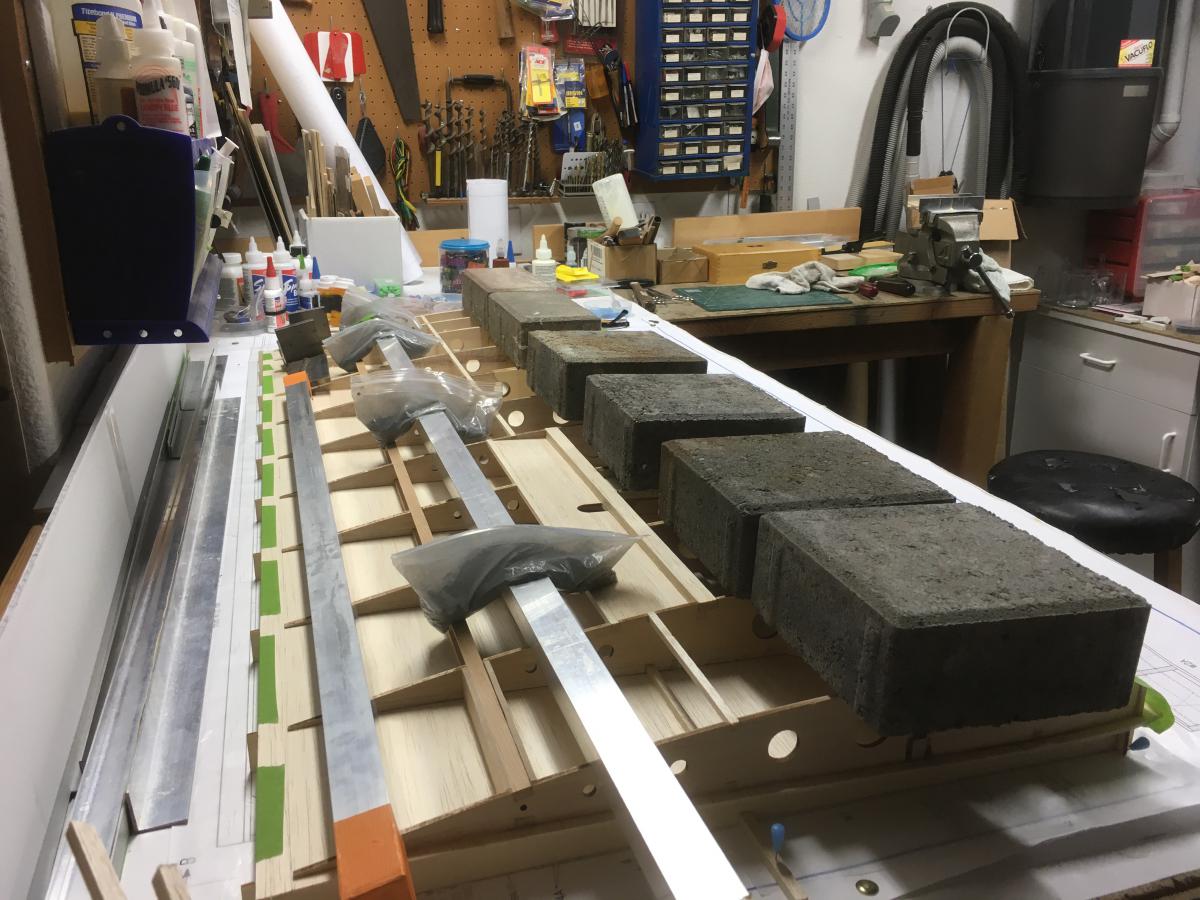

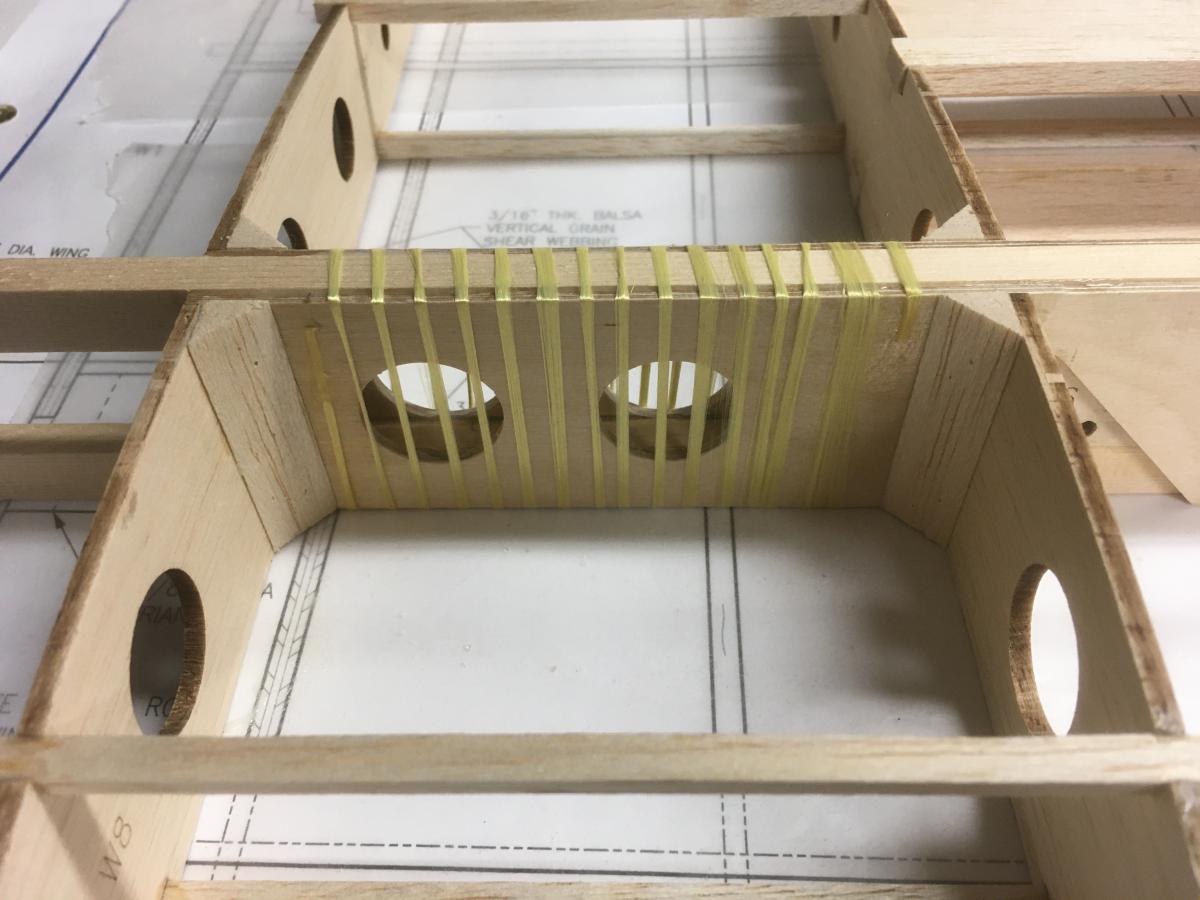

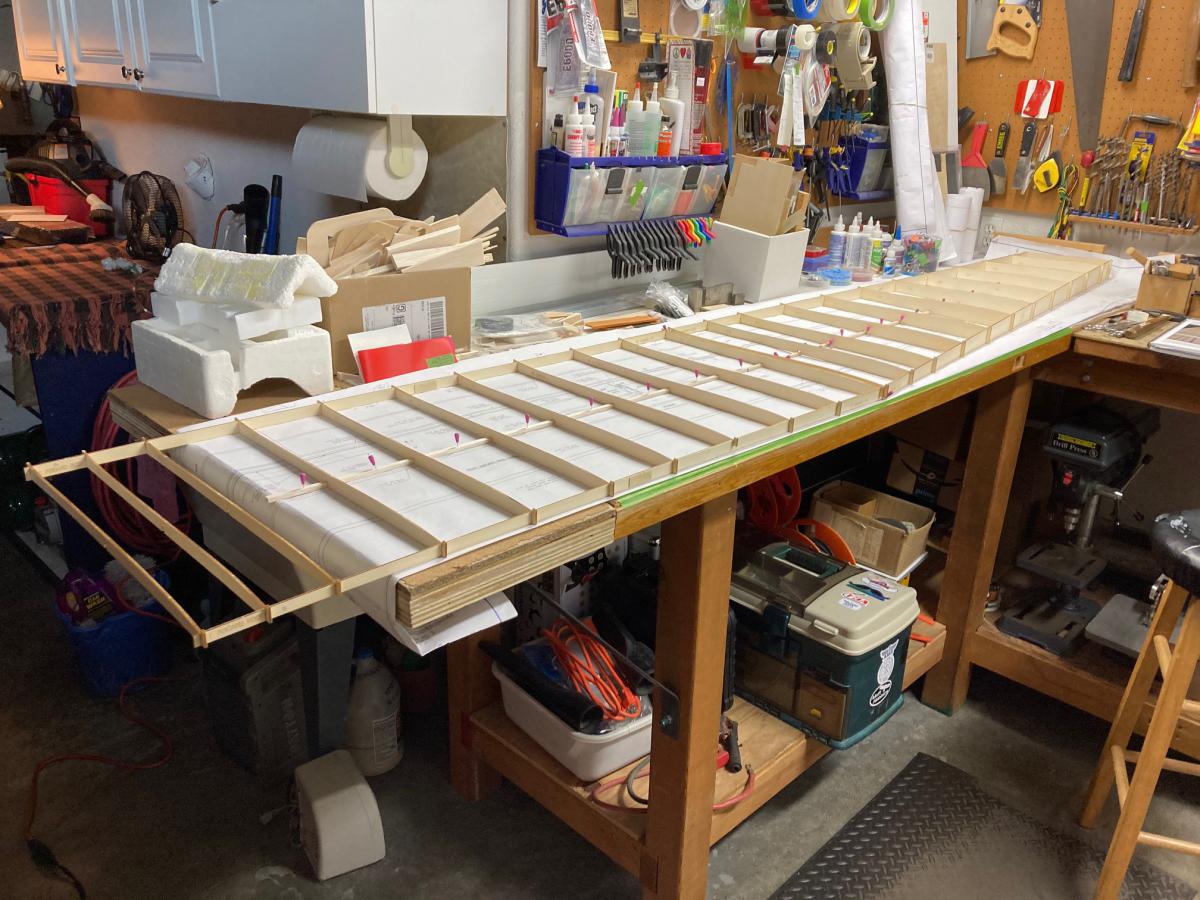

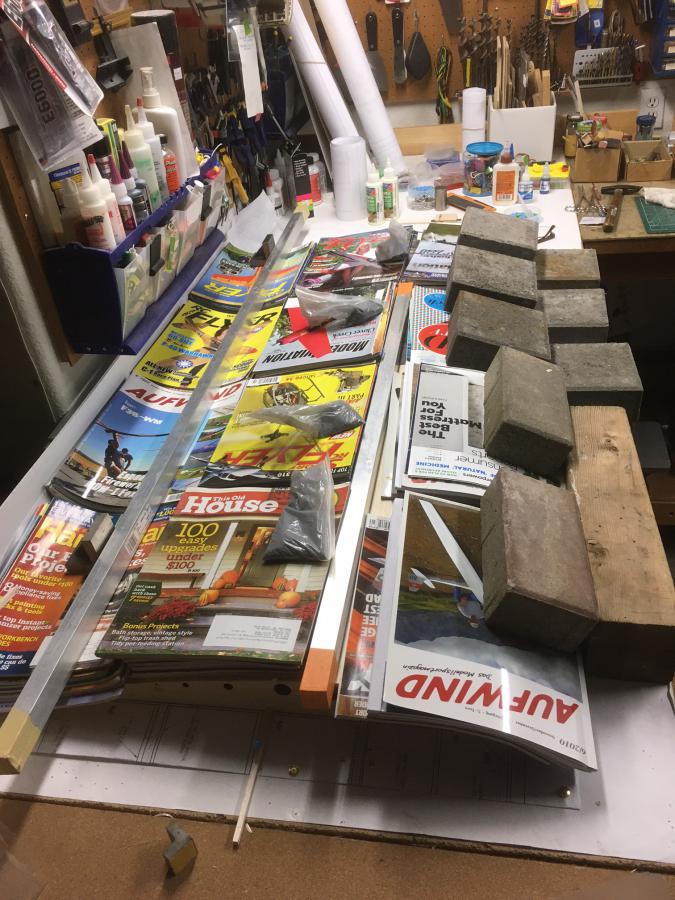

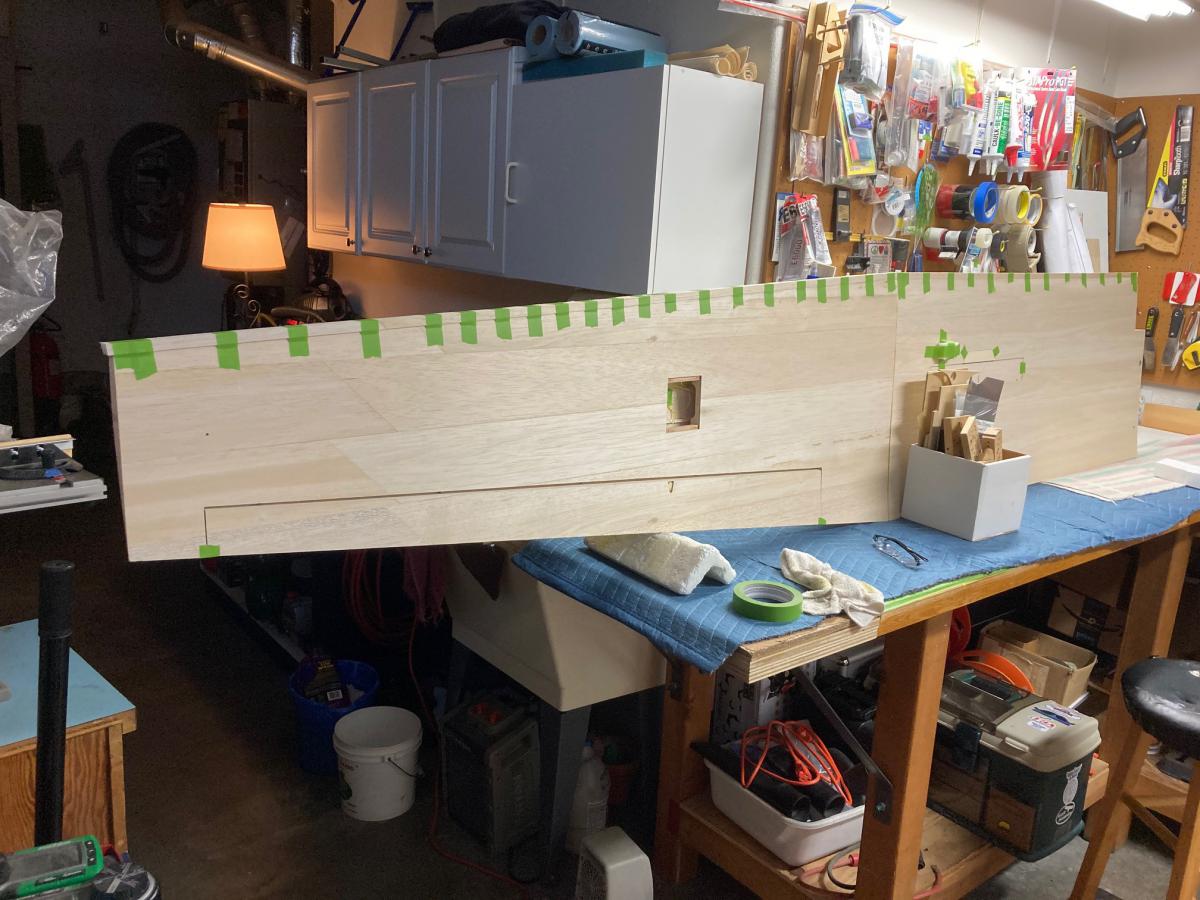

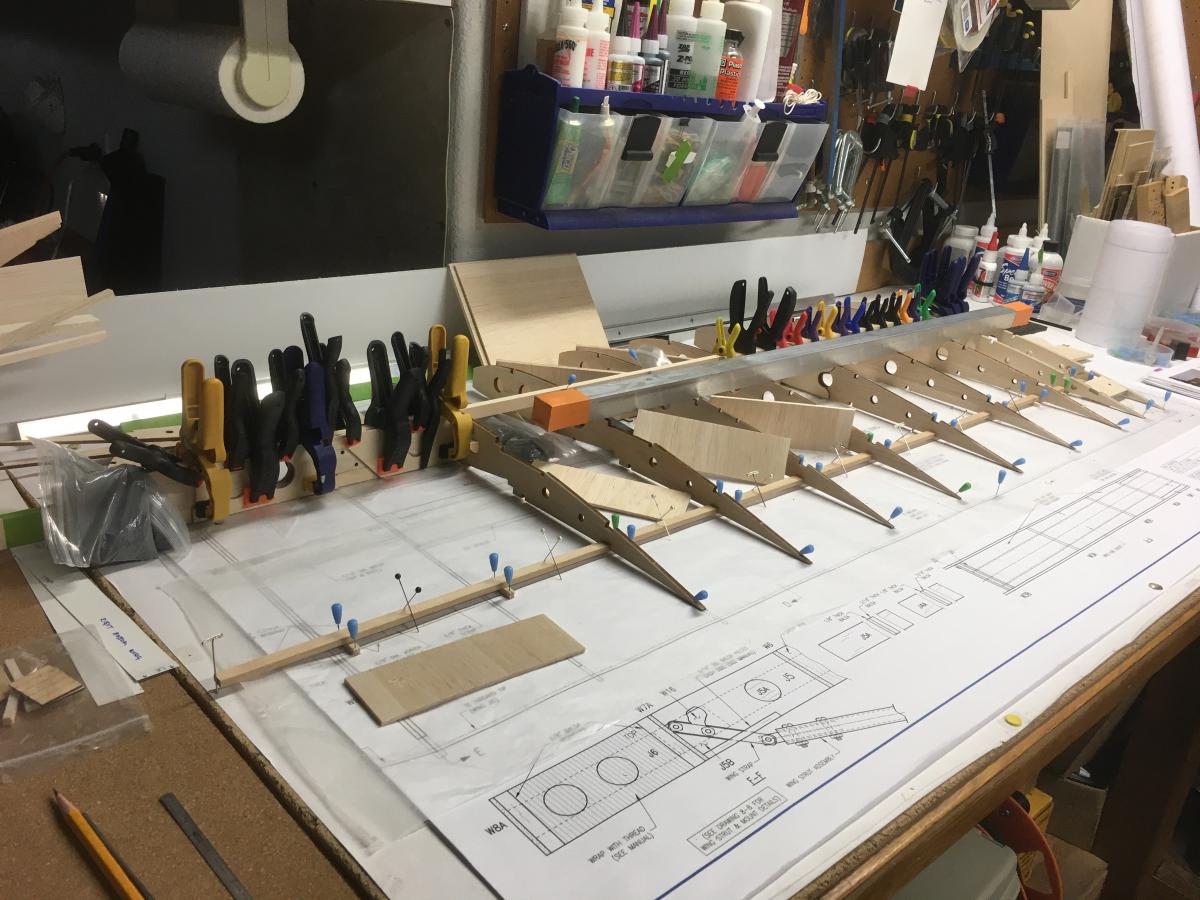

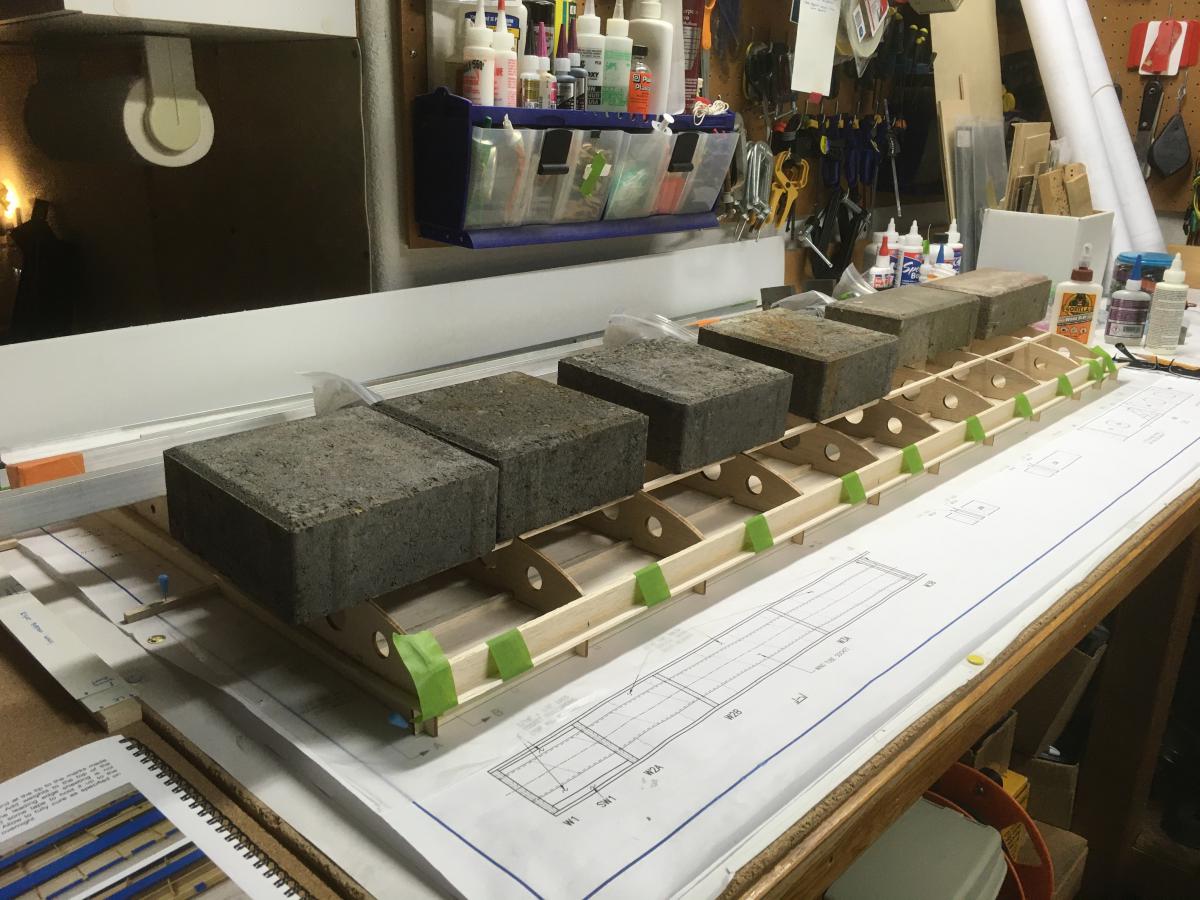

    INNER WING PANELS

    Click image for larger version

Name:	IMG_1853.jpg
Views:	883
Size:	109.2 KB
ID:	46603 Click image for larger version

Name:	Panel Joiner Box Kevlar Wrap.jpg
Views:	892
Size:	94.0 KB
ID:	46592
    Click image for larger version

Name:	IMG_1798.jpg
Views:	897
Size:	143.7 KB
ID:	46596 Click image for larger version

Name:	IMG_1791.jpg
Views:	896
Size:	145.0 KB
ID:	46595
    Click image for larger version

Name:	IMG_1844.jpg
Views:	892
Size:	91.9 KB
ID:	46604 Click image for larger version

Name:	IMG_1851.jpg
Views:	890
Size:	85.1 KB
ID:	46586
    Click image for larger version

Name:	IMG_1852.jpg
Views:	895
Size:	114.6 KB
ID:	46591 Click image for larger version

Name:	Inner Panel-1.jpg
Views:	883
Size:	143.0 KB
ID:	46599
    Click image for larger version

Name:	Inner Panel-2.jpg
Views:	891
Size:	87.7 KB
ID:	46597 Click image for larger version

Name:	Inner Panel-4.jpg
Views:	882
Size:	68.2 KB
ID:	46593
    Click image for larger version

Name:	Inner Panel-5.jpg
Views:	887
Size:	76.1 KB
ID:	46594


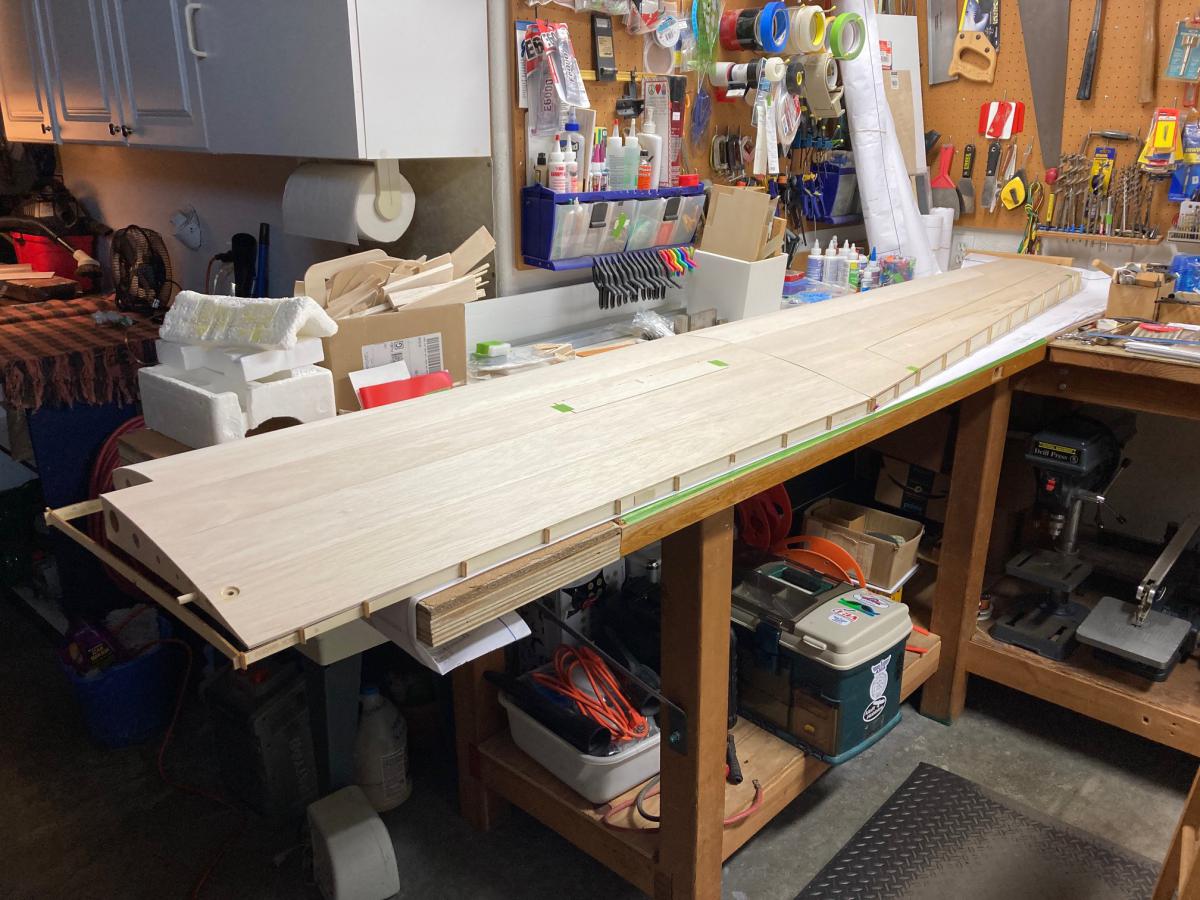

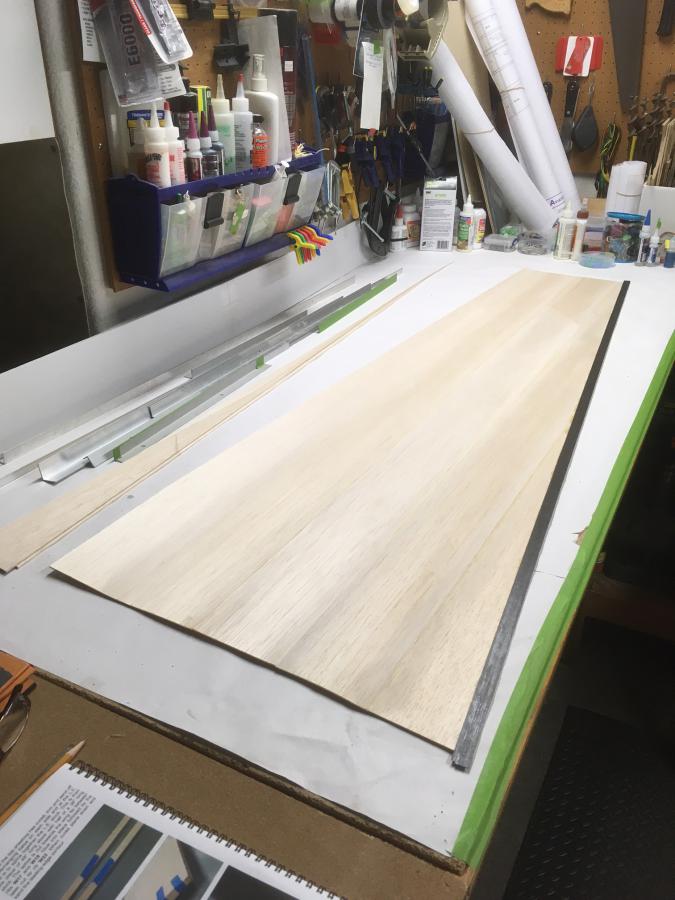

    OUTER WING PANELS

    Click image for larger version

Name:	IMG_1850.jpg
Views:	893
Size:	100.5 KB
ID:	46590 Click image for larger version

Name:	IMG_1857.jpg
Views:	888
Size:	91.9 KB
ID:	46587


    Click image for larger version

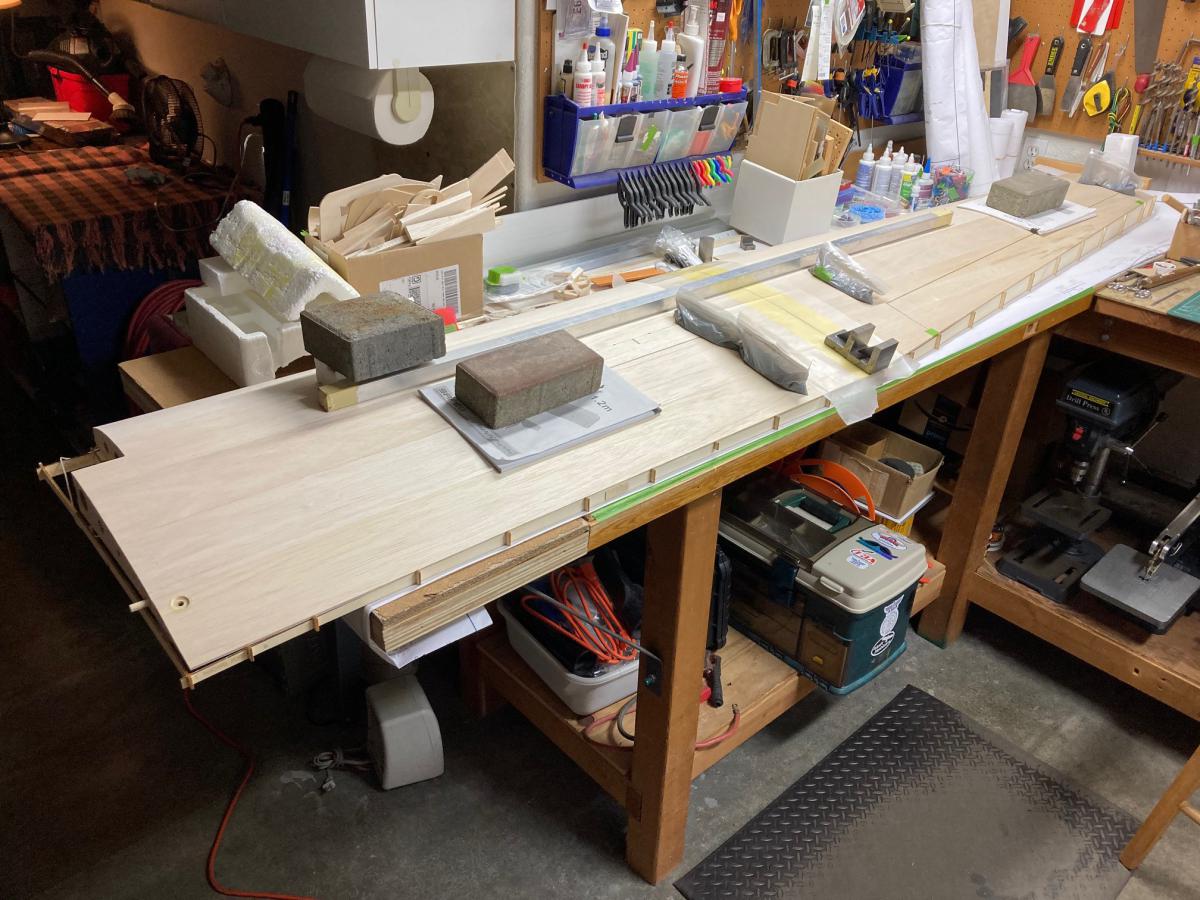

Name:	Left Outer Panel Top Sheeting.jpg
Views:	900
Size:	73.9 KB
ID:	46605 Click image for larger version

Name:	Left Wing.jpg
Views:	878
Size:	111.1 KB
ID:	46606

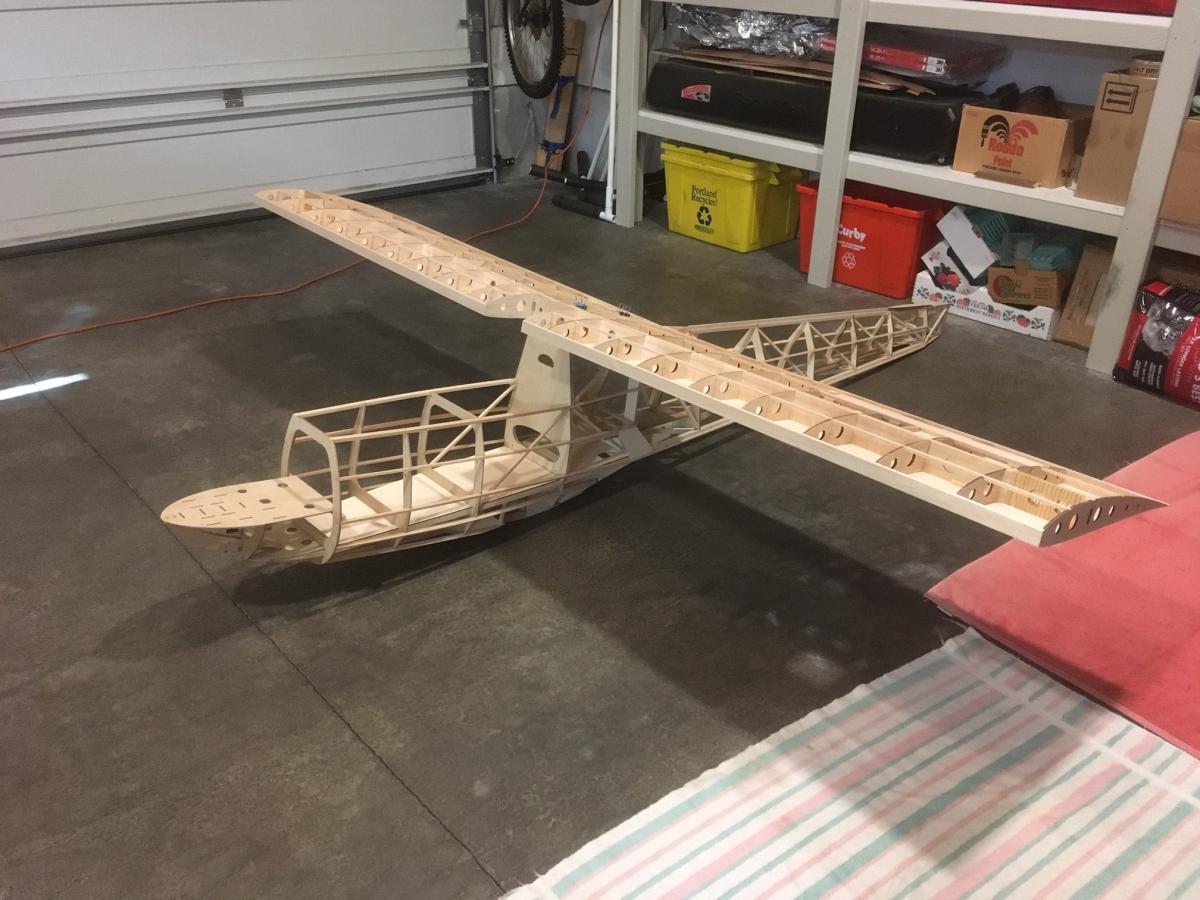

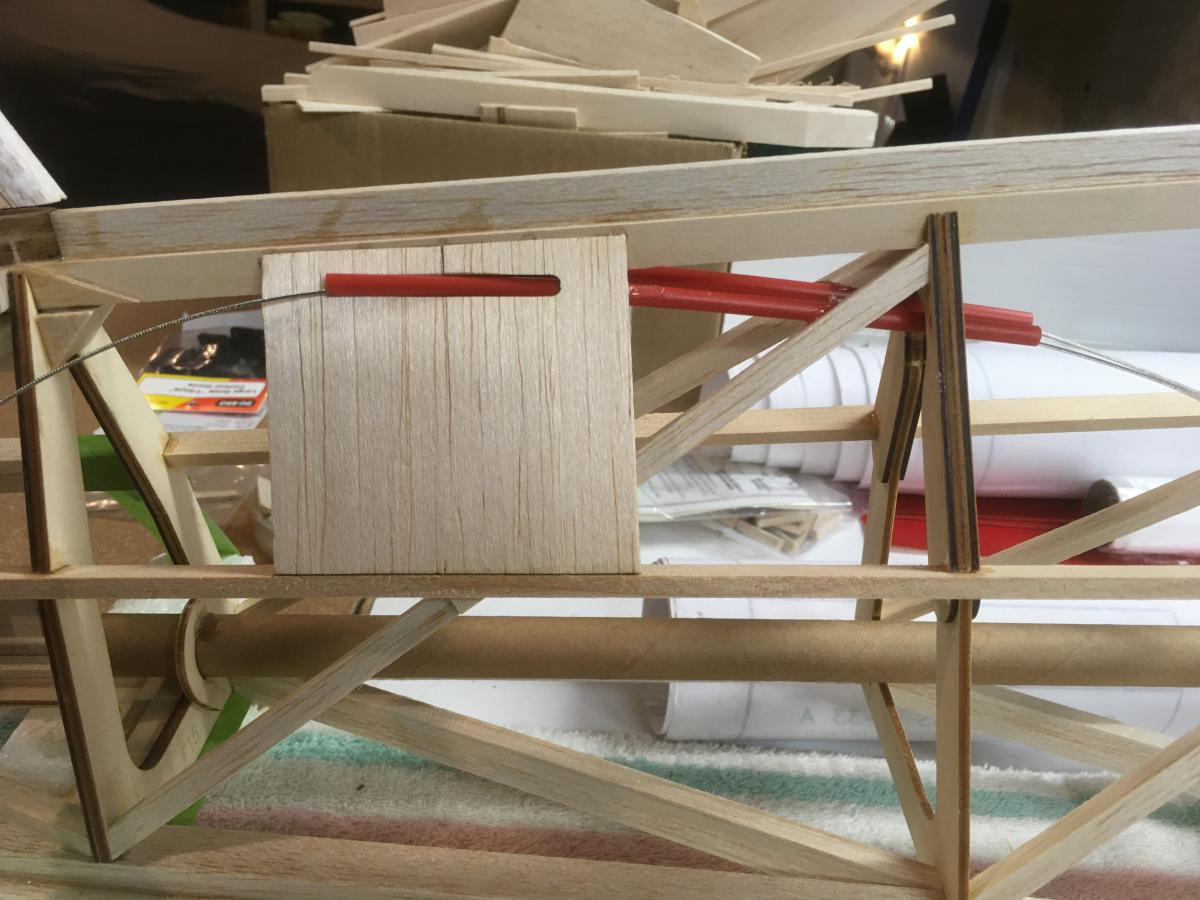

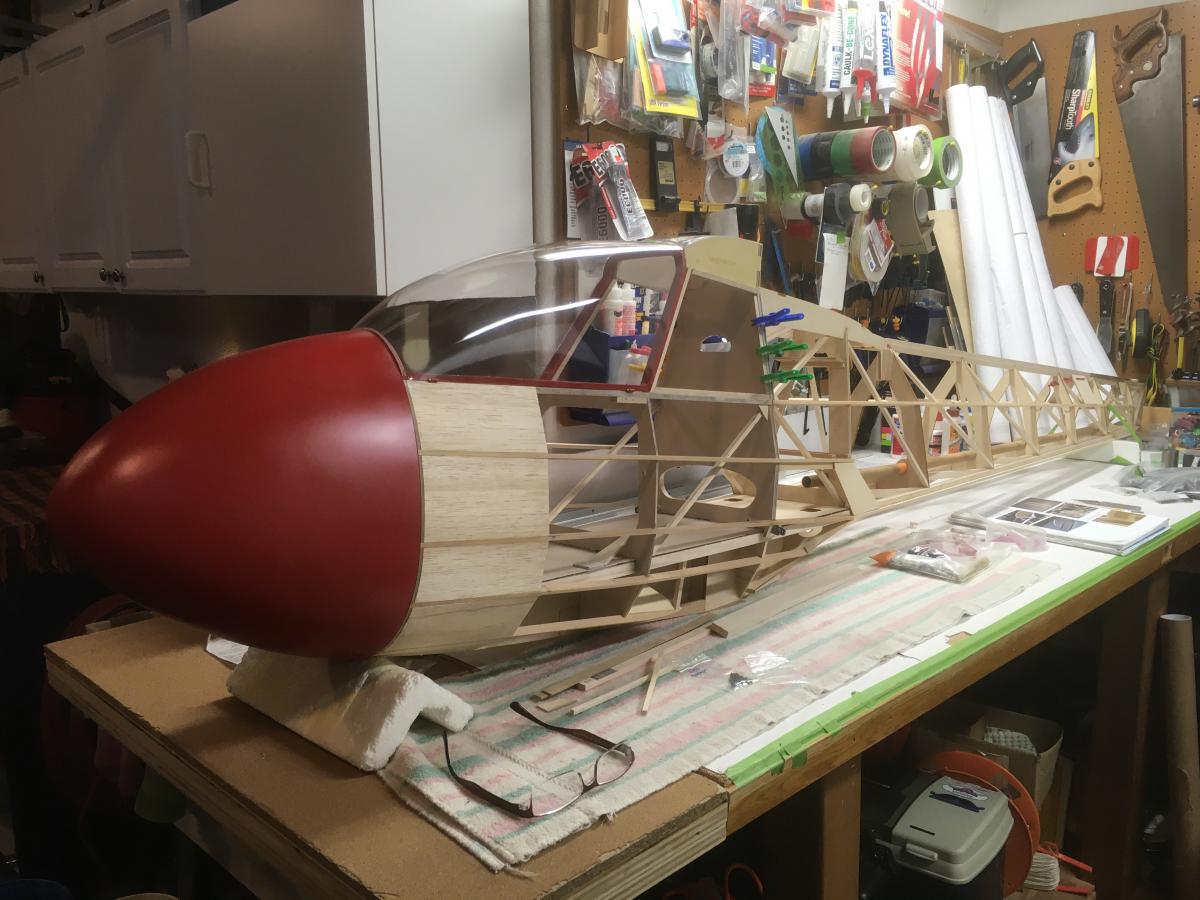

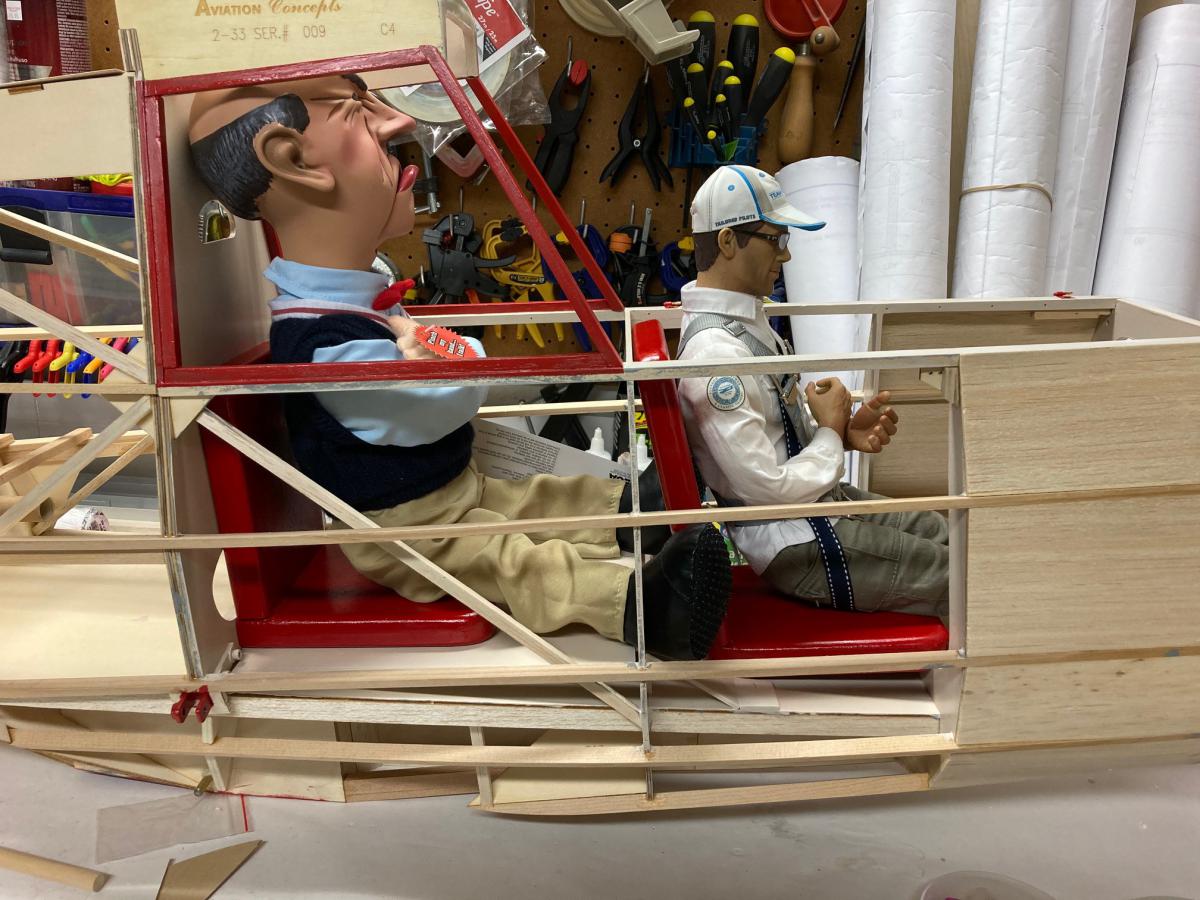

    FUSELAGE

    Click image for larger version

Name:	Fuselage-2.jpg
Views:	682
Size:	137.7 KB
ID:	46598 Click image for larger version

Name:	2-33A with Inner Wing Panels-2.jpg
Views:	680
Size:	126.1 KB
ID:	46607 Click image for larger version

Name:	IMG_2035.jpg
Views:	891
Size:	119.7 KB
ID:	46608











    ​​​
    ​​
    ​​​​​
    Attached Files

  • #2
    Looks awesome! Can't wait to see more progress.
    Kevin K

    Kremer Aerotowing Team

    Comment


    • #3

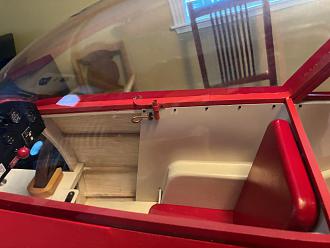

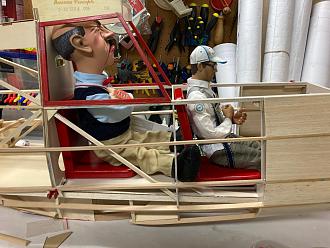

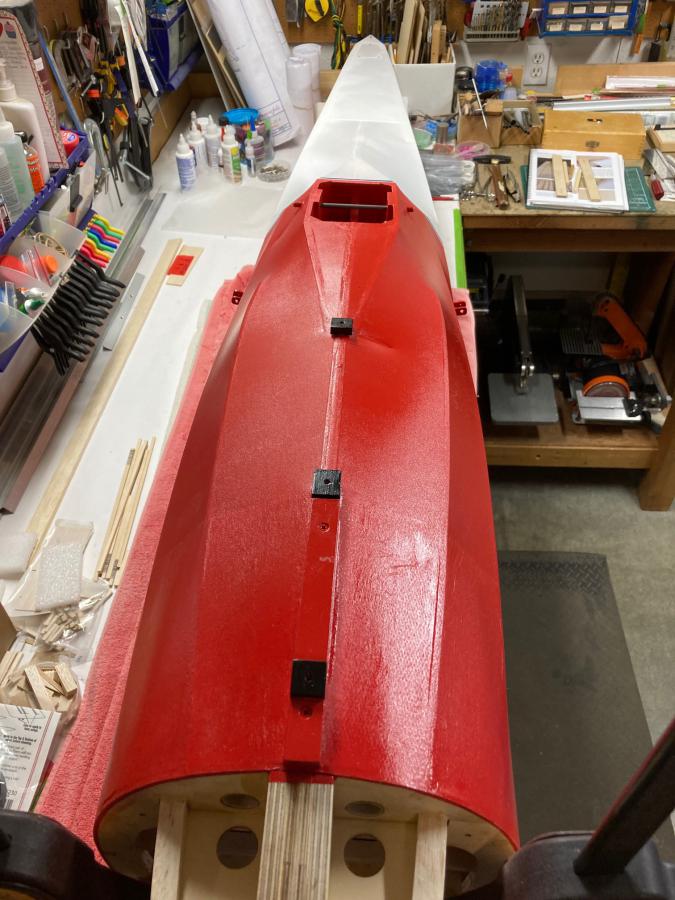

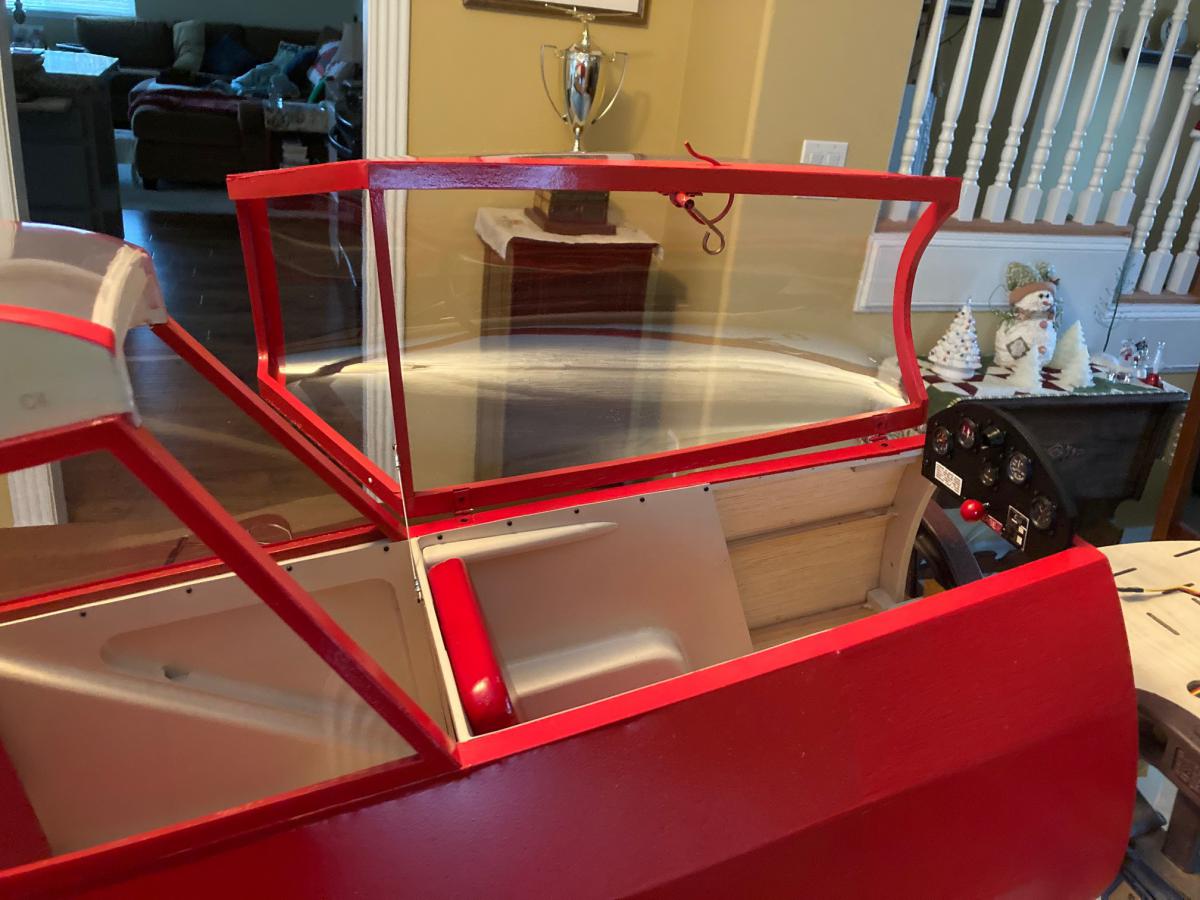

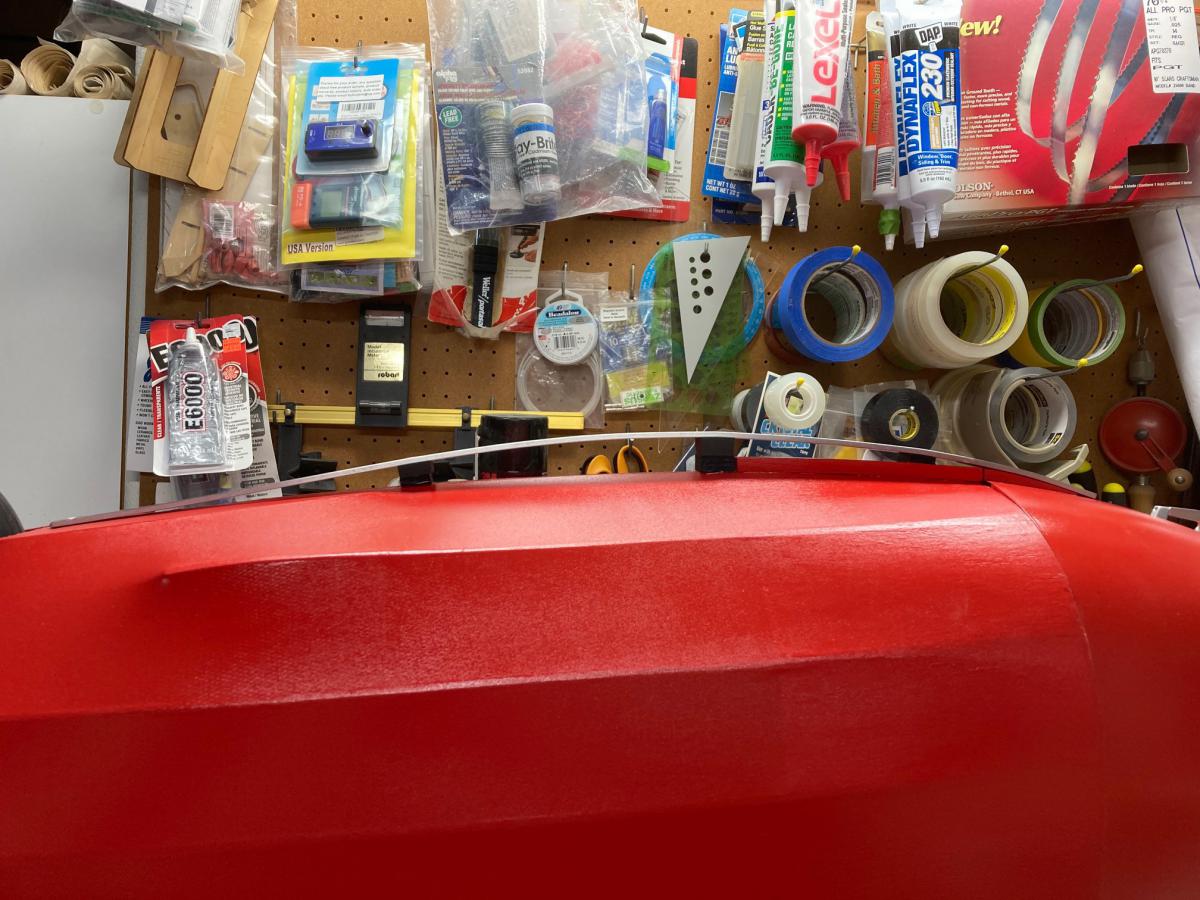

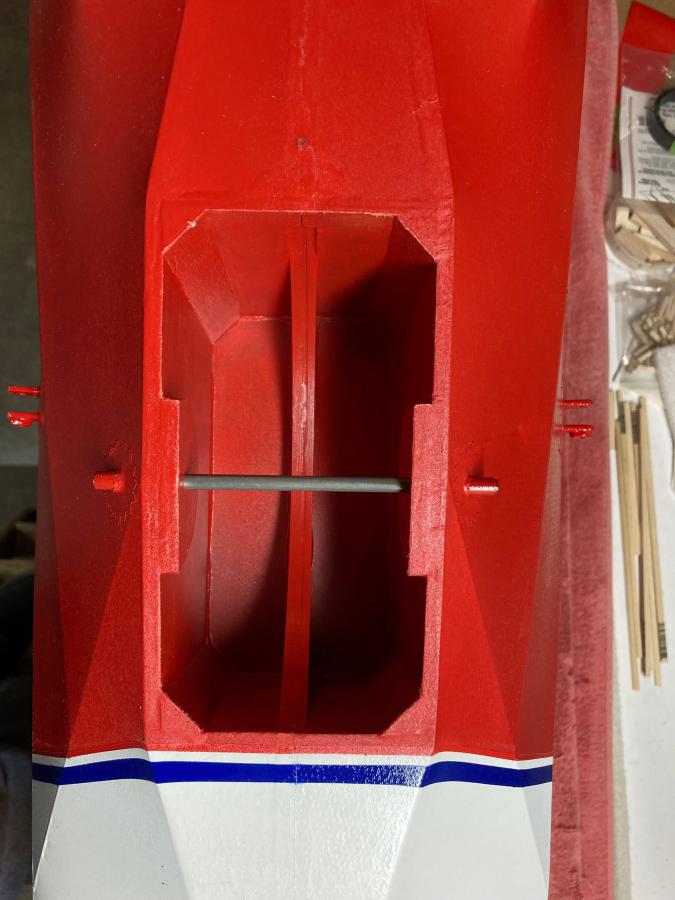

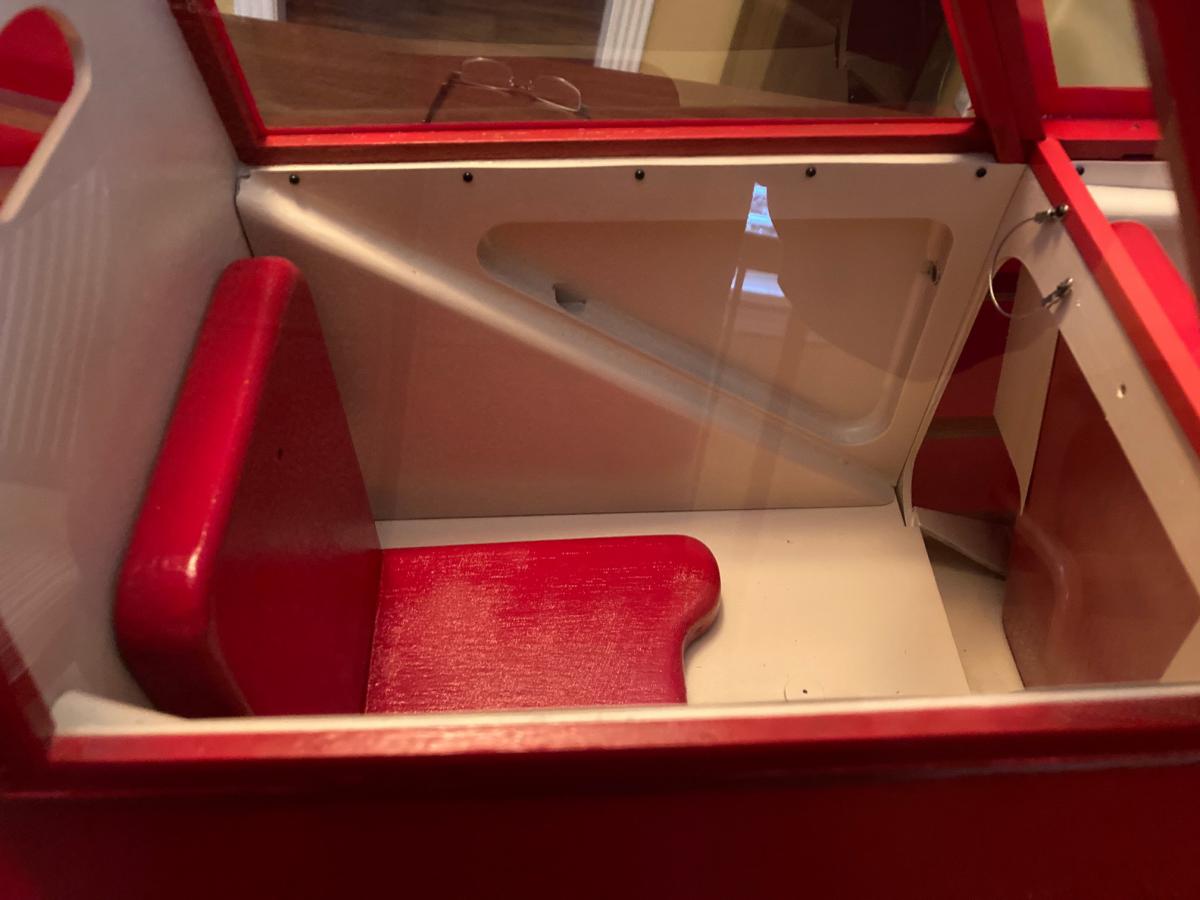

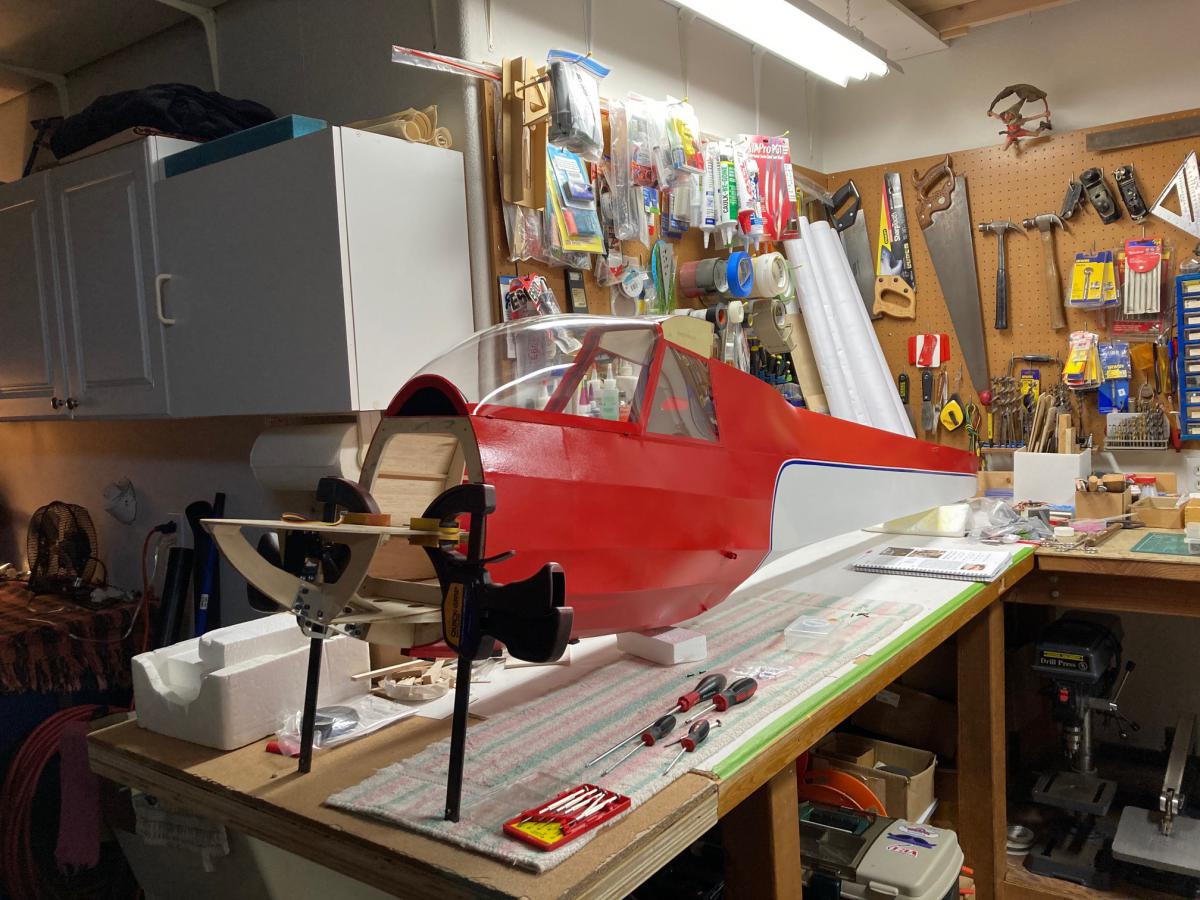

      The next phase from April to October of this year involved finishing out the tail surfaces and fuselage in order to complete painting while the weather here in the Pacific NW cooperated for me to paint outside. The cockpit interior kit supplied by Gunny is very complete but does take some time to assemble and finish. The seats are balsa wood and were covered in 0.5oz fiberglass to stiffen them up prior to painting. I deviated little from plans and instructions other than using Robart hinge points on the tail surfaces and the addition of 6-32 blind nuts for attachment of the stab.

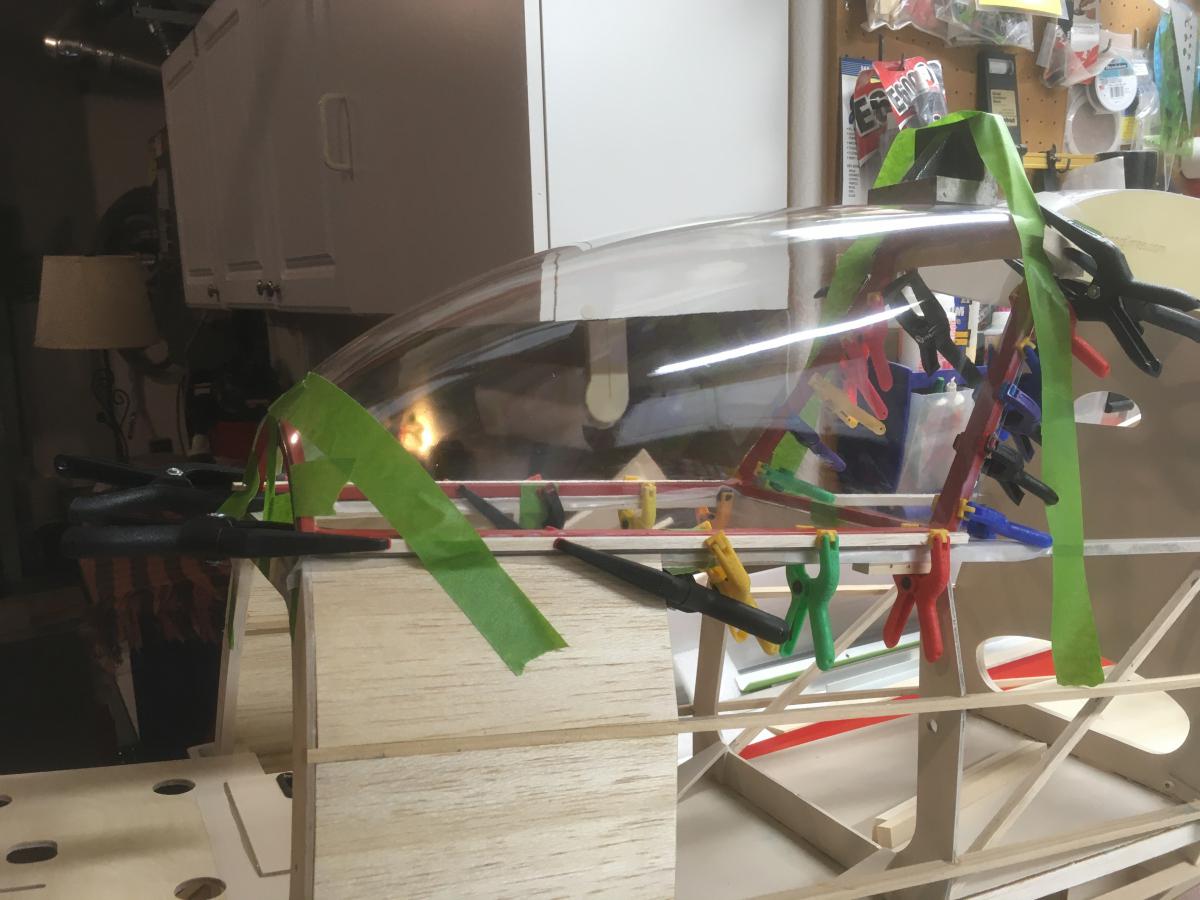

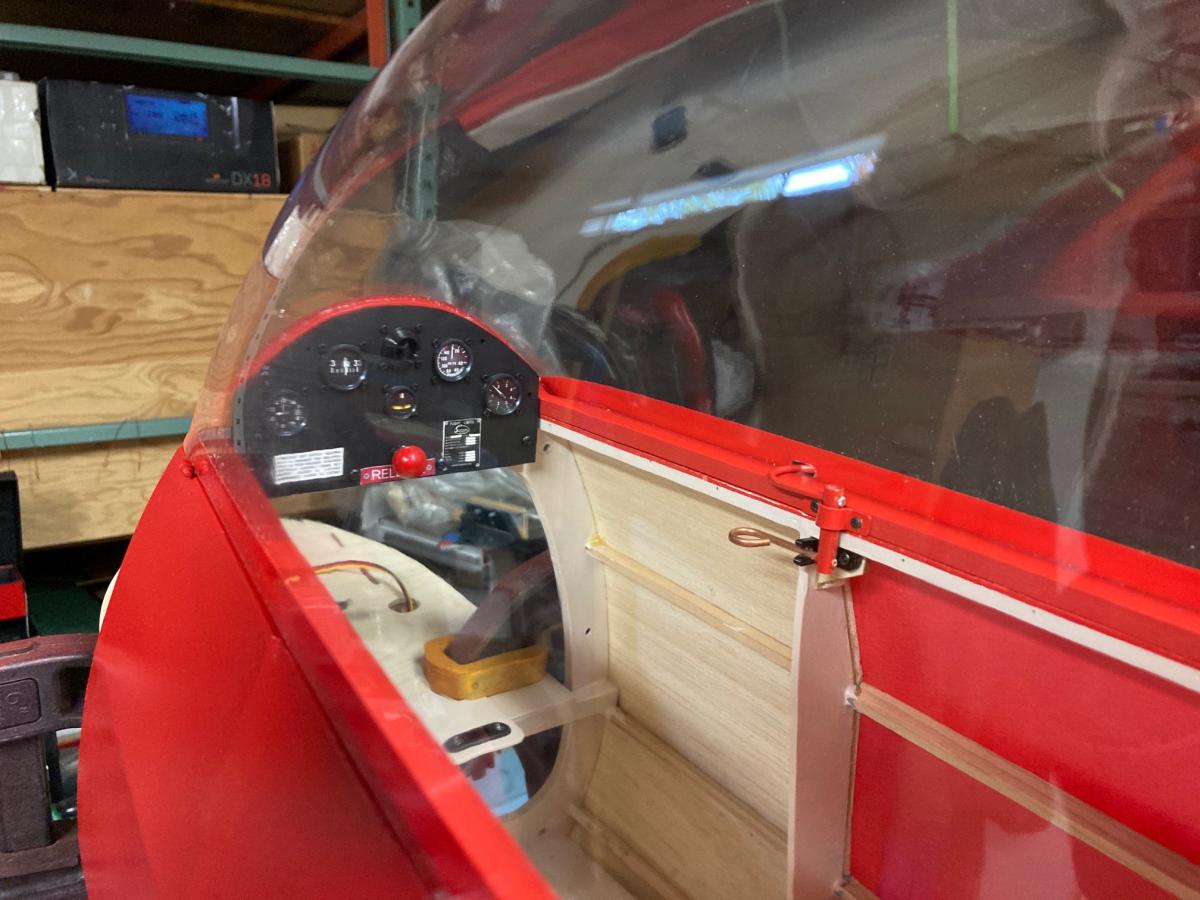

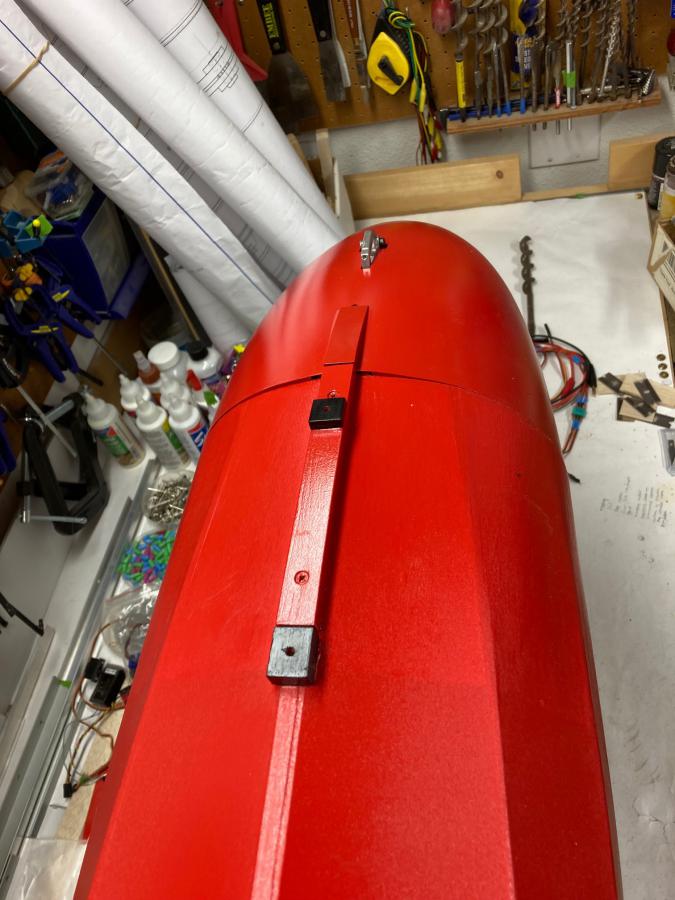

      I originally was going to hinge the canopy using the non-scale hinges but I found that too hard to get lined up and went with the scale hinge option instead. The supplied sketch in the manual worked out great for the hinge construction and turned out easy to install. I also went with the scale canopy latch as all the parts were supplied in the deluxe kit. I found the supplied latch restraint and latch clip quickly failed. It was easy to fabricate a new restraint out of brass strip and a friend with a 3D printer made up some new clips for me.

      I elected to cover the fuselage and tail surfaces using DIACOV 1000 that is being supplied by Sarik Hobbies out of the UK. It has a 0.74 meter(29 inches) width and can be supplied in running lengths as long as 50 meters. It is supplied with a heat activated adhesive that does not need any additional adhesive applied to the covering surface for increased adhesion. I found it very easy to work with but does require a sharp knife to get clean cut edges. This material without the adhesive is called DIATEX and is commonly used for covering full size light aircraft. I wanted to use a fabric covering and decided to give it a try. It is cost comparable to Oratex, about 5" wider in width, and can be purchased in long lengths. I used Klass Kote epoxy paint for the finished color.

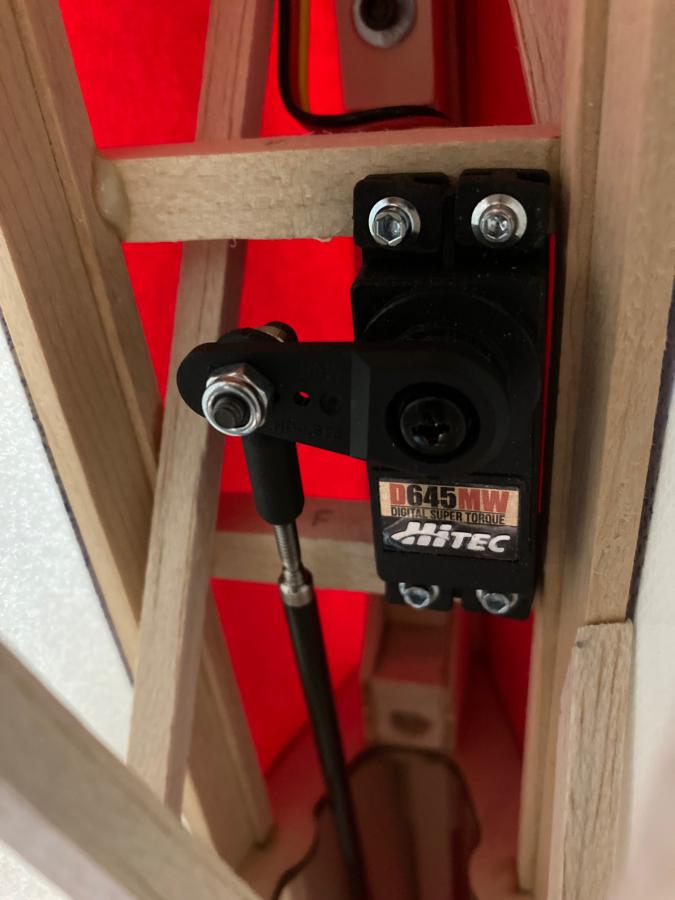

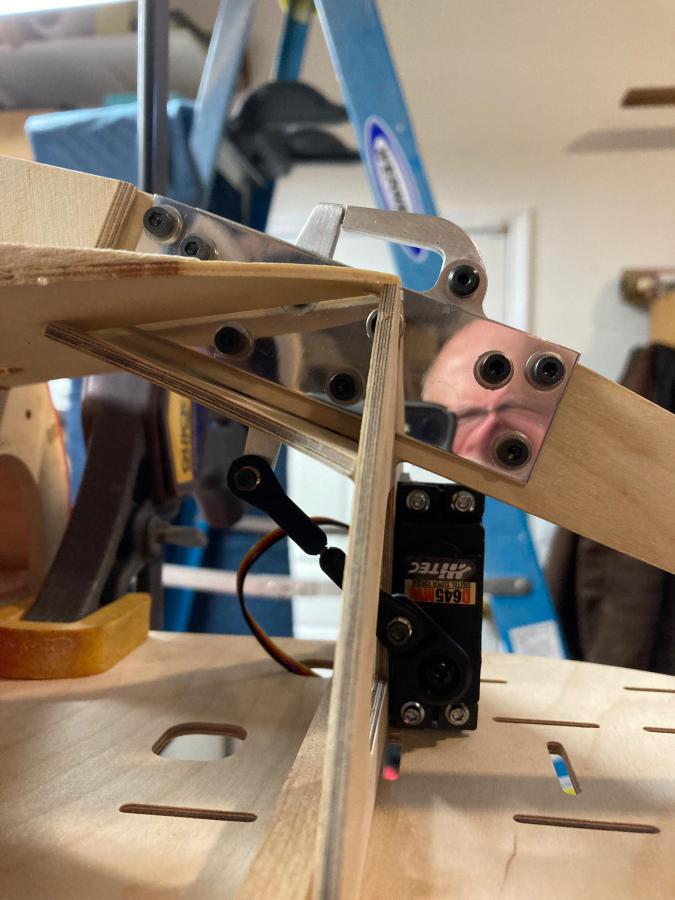

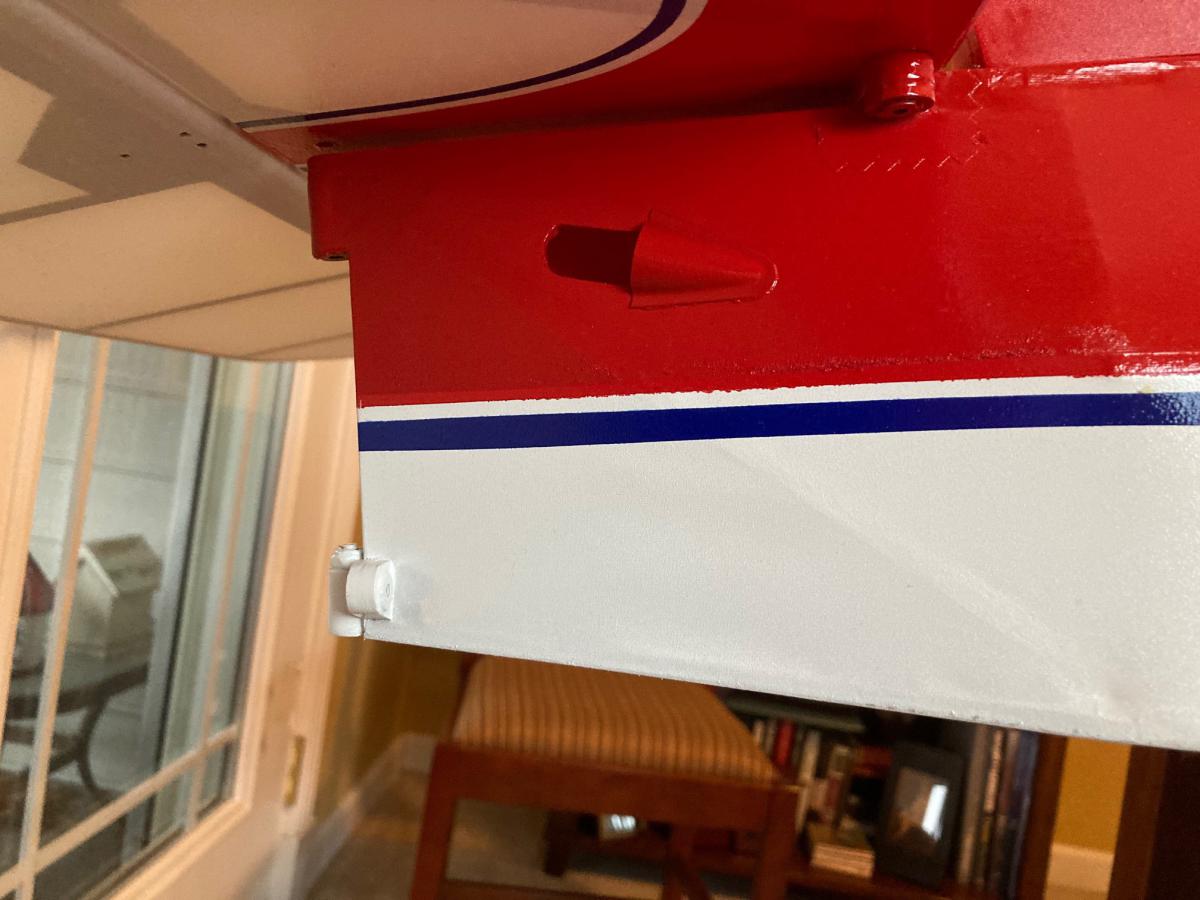

      The scale tow release and servo were installed at this time. The fuselage modifications were done during the build of the fuselage with some new fuselage keel parts that were supplied with the tow release kit......all with no issues(thanks again Gunny!).

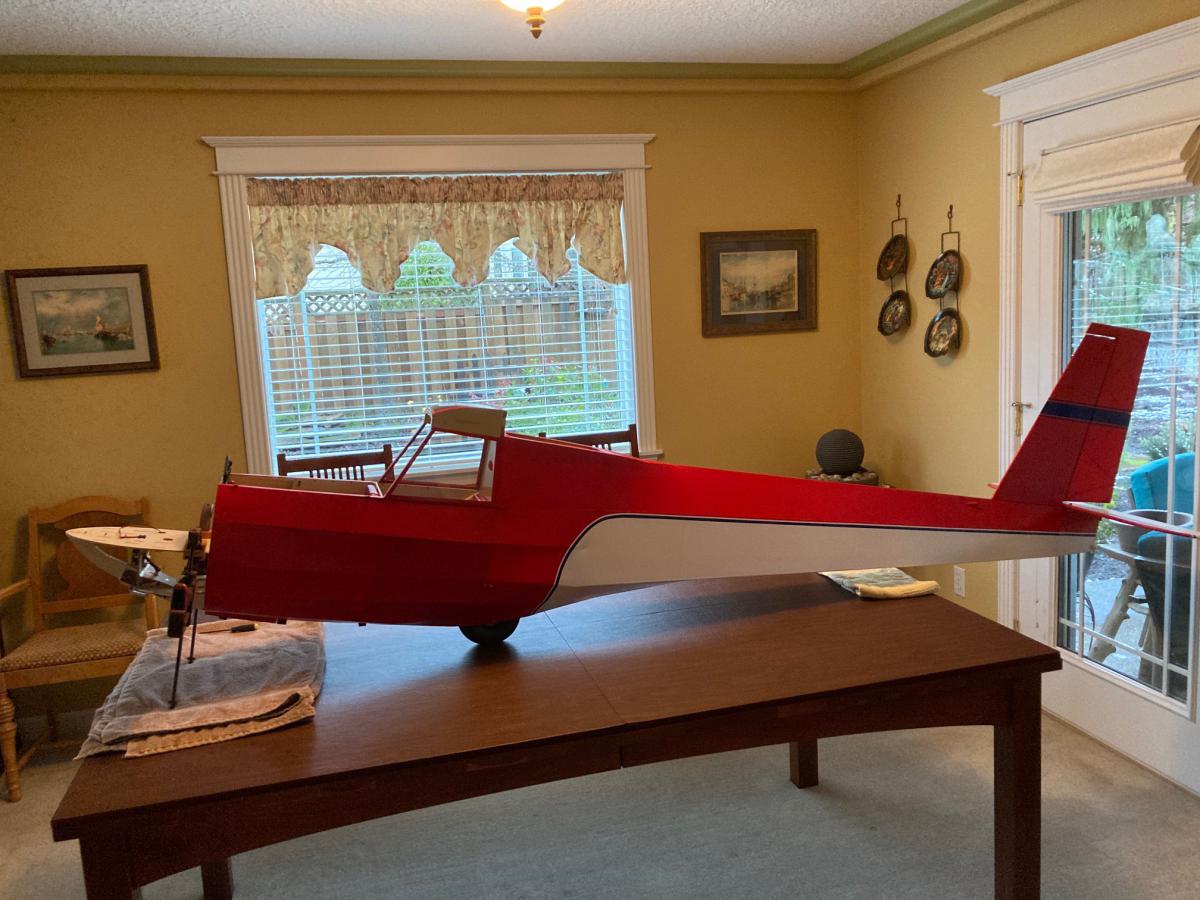

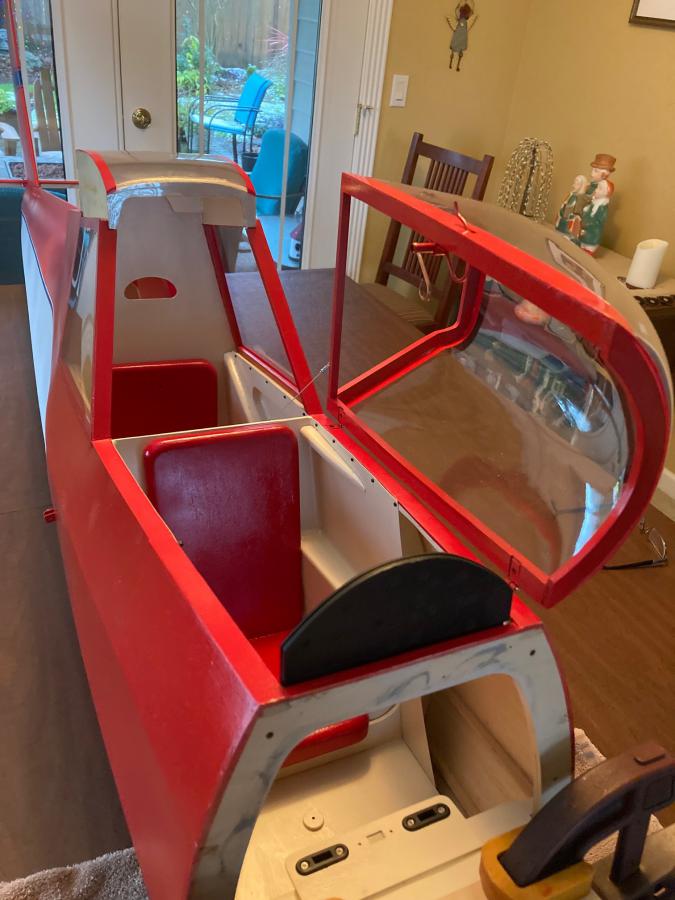

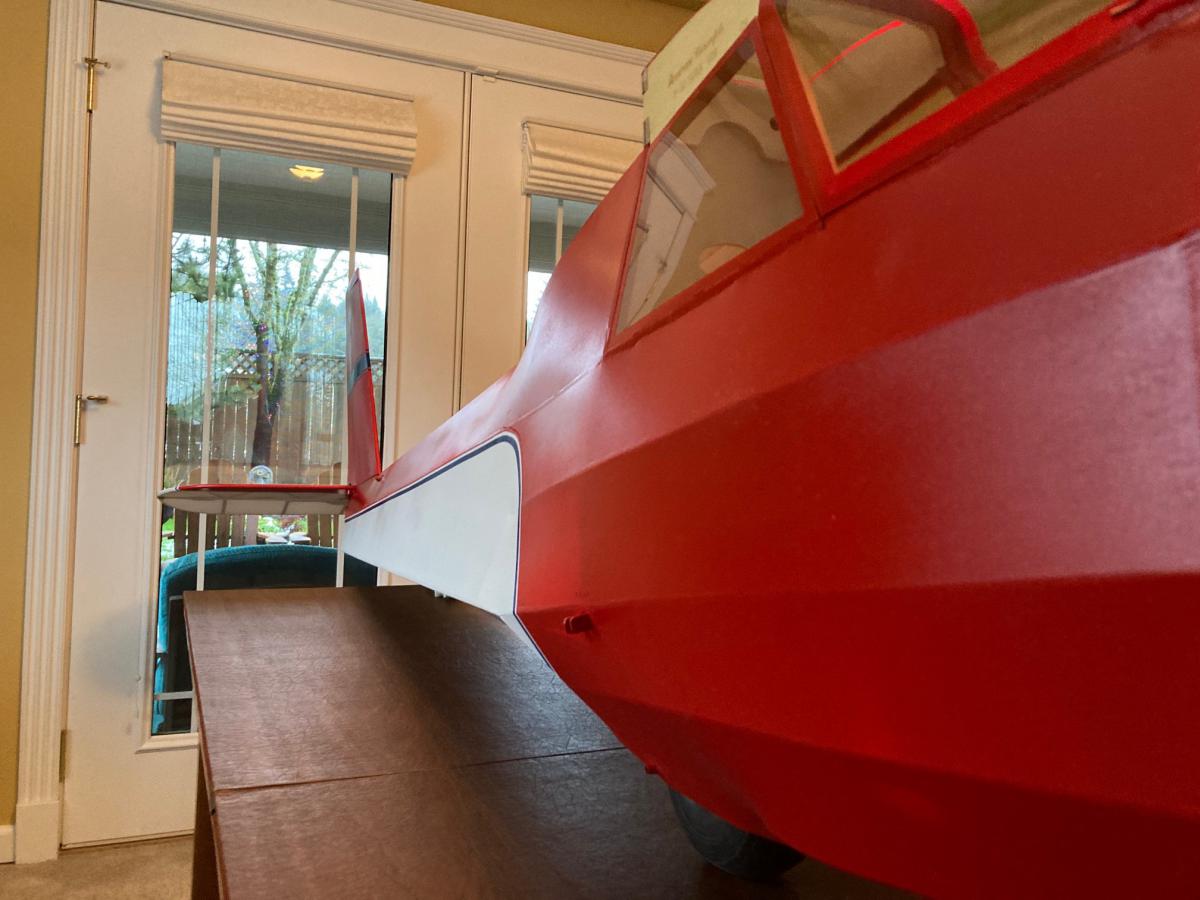

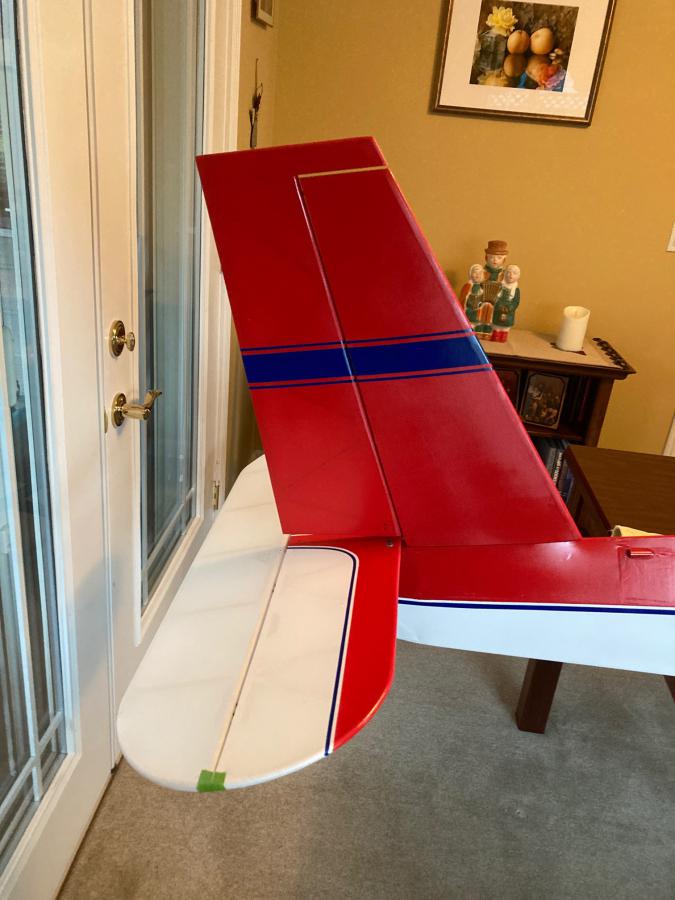

      Below are some photos to keep those build juices flowing(don't tell my wife I used the dining room table to take photos of the completed fuselage with the tail surfaces)...............

      Enjoy,
      Jim

      Click image for larger version

Name:	IMG_2045.jpg
Views:	834
Size:	107.3 KB
ID:	46653 Click image for larger version

Name:	IMG_2054.jpg
Views:	835
Size:	127.0 KB
ID:	46652

      Click image for larger version

Name:	IMG_2095.jpg
Views:	841
Size:	153.9 KB
ID:	46649 Click image for larger version

Name:	IMG_2098.jpg
Views:	837
Size:	238.9 KB
ID:	46651

      Click image for larger version

Name:	IMG_2287.jpg
Views:	841
Size:	155.9 KB
ID:	46648 Click image for larger version

Name:	IMG_2288.jpg
Views:	825
Size:	111.6 KB
ID:	46643
      Click image for larger version

Name:	IMG_2333.jpg
Views:	828
Size:	60.9 KB
ID:	46639 Click image for larger version

Name:	IMG_2334.jpg
Views:	835
Size:	92.8 KB
ID:	46647
      Click image for larger version

Name:	IMG_2336.jpg
Views:	839
Size:	68.1 KB
ID:	46641

      Click image for larger version

Name:	IMG_2343.jpg
Views:	849
Size:	71.9 KB
ID:	46637 Click image for larger version

Name:	IMG_2344.jpg
Views:	835
Size:	112.9 KB
ID:	46650

      Click image for larger version

Name:	IMG_2347.jpg
Views:	843
Size:	68.6 KB
ID:	46645 Click image for larger version

Name:	IMG_2348.jpg
Views:	822
Size:	94.2 KB
ID:	46642

      Click image for larger version

Name:	IMG_2351.jpg
Views:	849
Size:	73.4 KB
ID:	46636 Click image for larger version

Name:	IMG_2354.jpg
Views:	839
Size:	82.6 KB
ID:	46646

      Click image for larger version

Name:	IMG_2355.jpg
Views:	822
Size:	64.9 KB
ID:	46640 Click image for larger version

Name:	IMG_2356.jpg
Views:	826
Size:	97.8 KB
ID:	46644

      Click image for larger version

Name:	IMG_2361.jpg
Views:	821
Size:	83.9 KB
ID:	46638
      Click image for larger version

Name:	IMG_2342.jpg
Views:	631
Size:	135.7 KB
ID:	46655
      Attached Files

      Comment


      • #4
        wow great build and details

        where did you get that canopy latch system...

        Comment


        • #5
          The canopy latch hardware is included in the deluxe short kit and is detailed out in the manual as well for the builder.

          Comment


          • #6

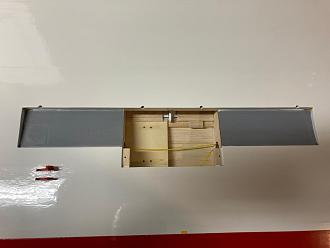

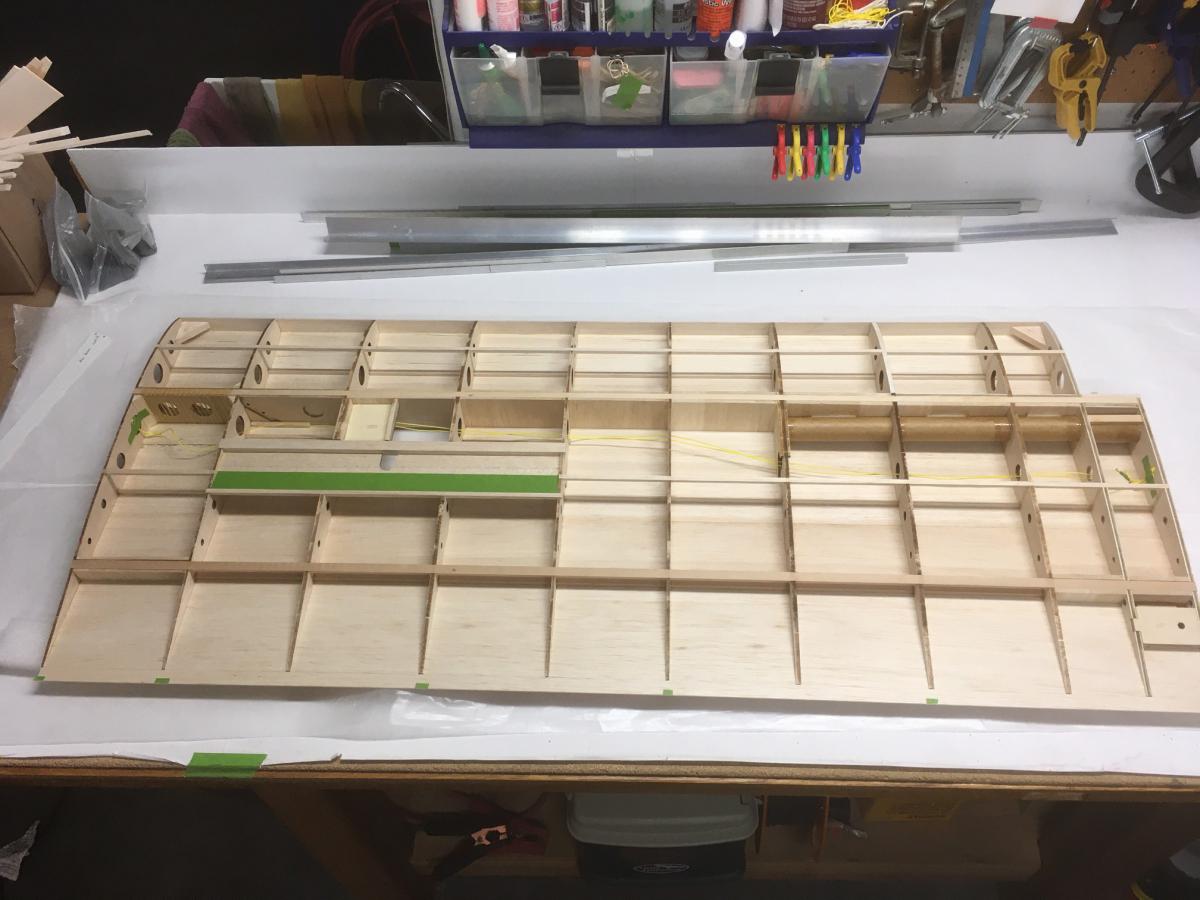

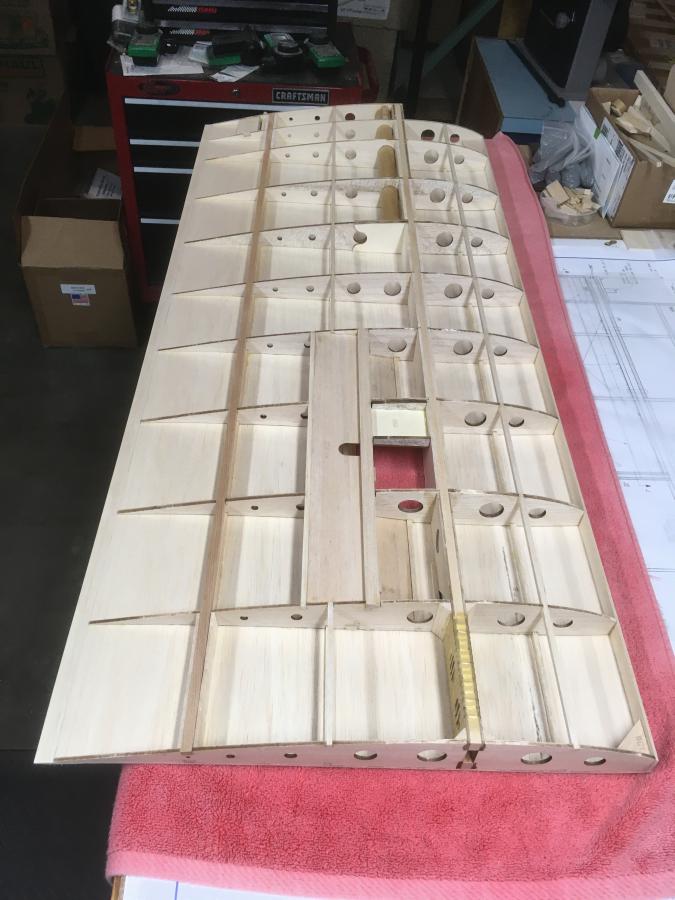

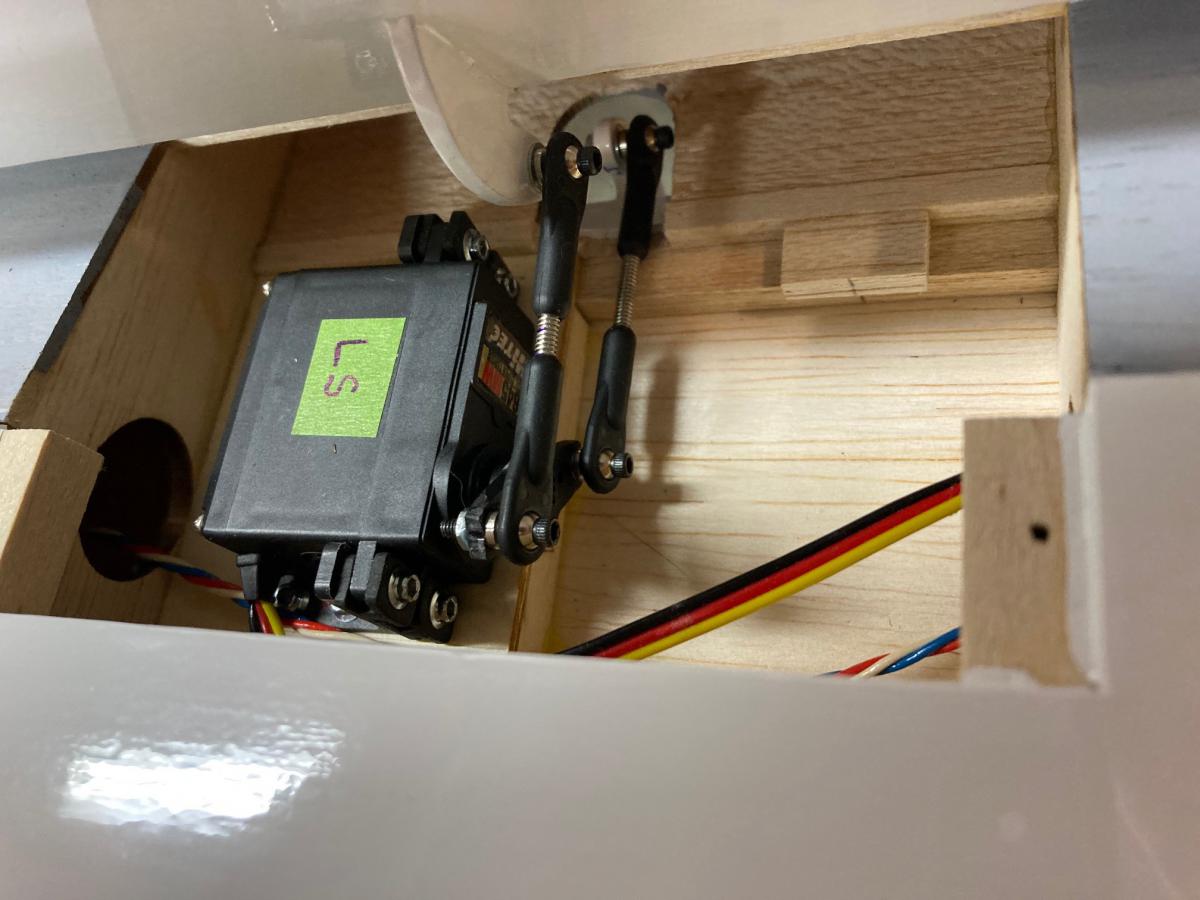

            It was time to give the wing panels some attention now that the fuselage is complete. The ailerons have been cut out and hinged using Robart hinge points. The aileron servo has been dry fitted along with the control horn and associated linkage. The manual for the spoiler installation details make completing the top and bottom spoilers without issue. I did use Great Planes small hinge points for the hinges.

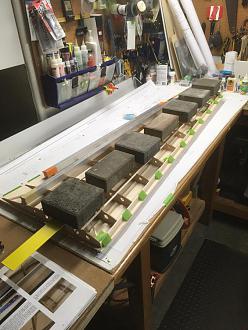

            It's finally time to glue the inner and outer wing panels together using the supplied wing jigs. I had added 12" to my seven foot long building table in order to construct the fuselage, but I did not take into account that my table is still too short for the 102" wing panel. Fortunately, there was enough of the jig on the table to hold the panels in alignment during the gluing operation.

            After each panel dried, today I was able to glue the leading edge and balsa tip on each panel. These wings are huge! The biggest problem now is hangar rash. Whenever I move a panel a wall, ceiling or other object jumps out to bump the panel. Now it's time to plane and sand the leading edge to shape and final sanding to get ready for covering.

            Here's a few photos to keep those building juices flowing......
            Jim

            Click image for larger version  Name:	IMG_2363.jpg Views:	0 Size:	165.3 KB ID:	46682 Click image for larger version  Name:	IMG_2364.jpg Views:	0 Size:	154.2 KB ID:	46685

            Click image for larger version  Name:	IMG_2365.jpg Views:	0 Size:	158.1 KB ID:	46684 Click image for larger version  Name:	IMG_2366.jpg Views:	0 Size:	140.1 KB ID:	46683
            Last edited by Jim Gibson; 12-27-2021, 02:33 AM.

            Comment


            • #7

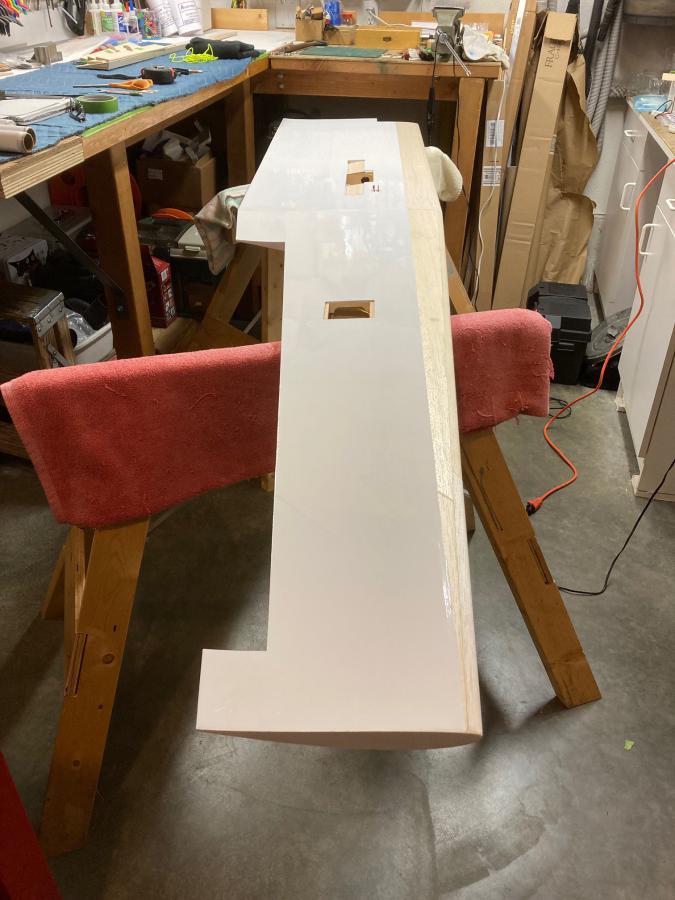

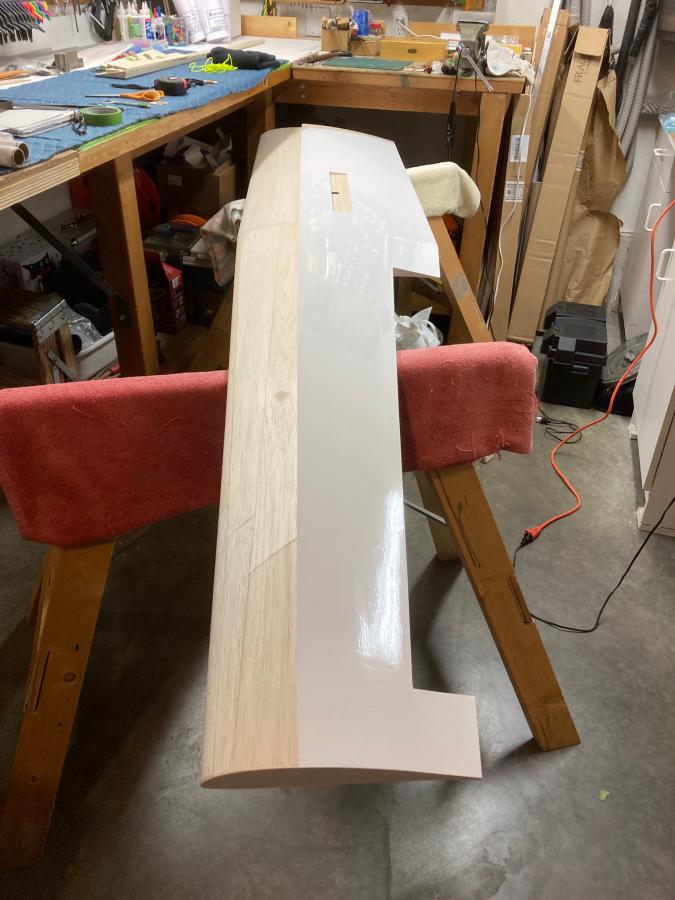

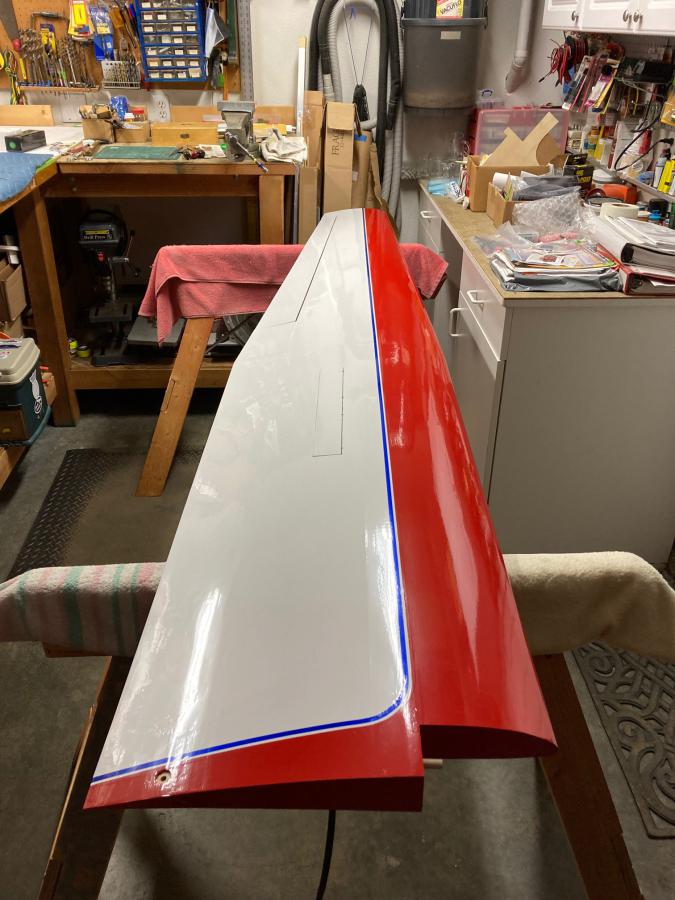

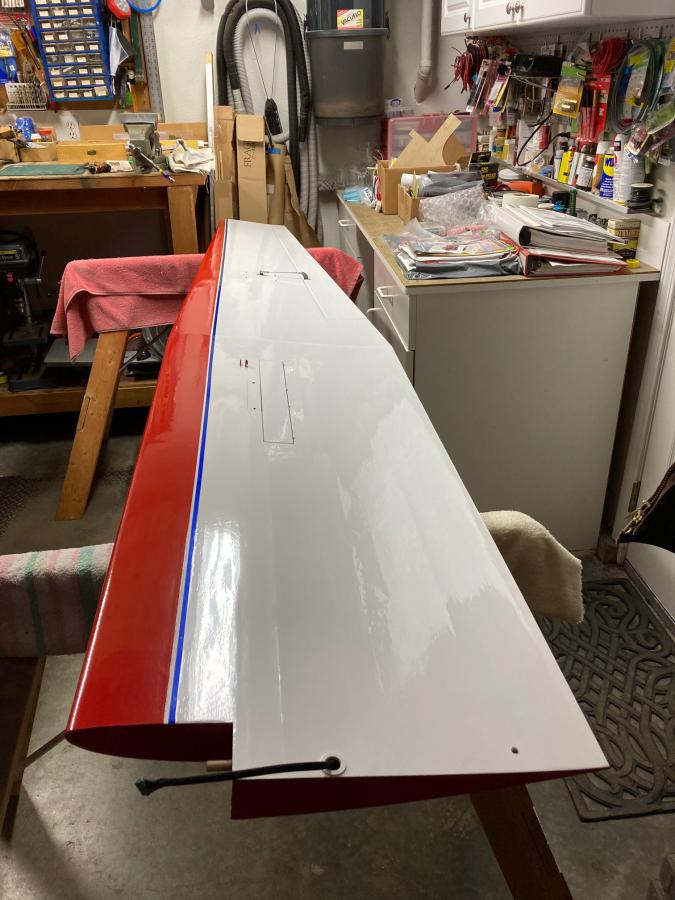

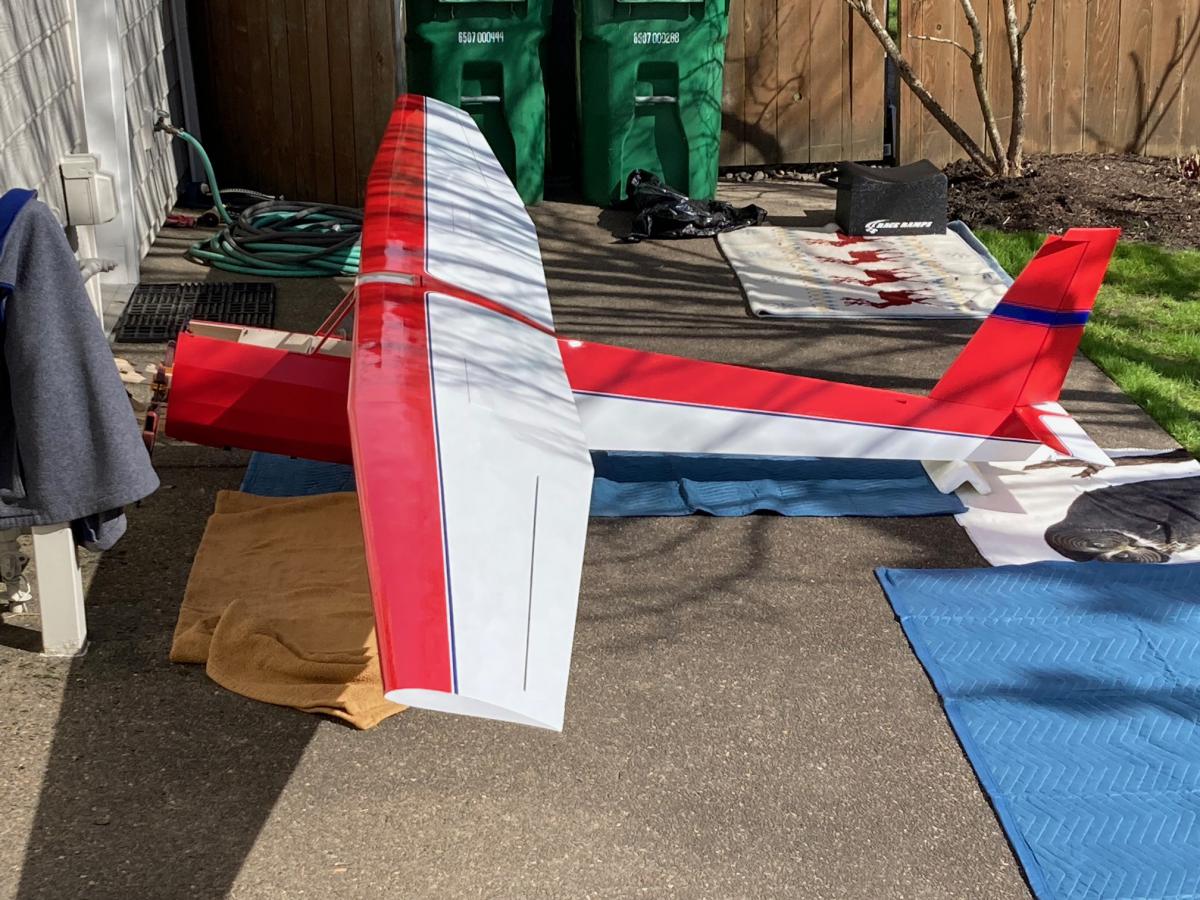

              Work on the 2-33A has been continuing with the covering of the wings. I elected to cover the wings with one of the iron on film coverings in order to best simulate the painted metal skin on the full size. I decided to go with Monokote for a couple of reasons. One, white is available in 25 foot rolls which would enable me to cover one wing panel without a seam. Two, a member of our club has covered his power planes with it for years and they have stood the test of time looking brand new. His covering procedure is first to get all the balsa dust off the surface to be covered by vacuuming to start. The secret for preventing the covering from relaxing in the heat and temperature variations is to wipe the surface with a dark cotton tshirt. Go over it as many times as necessary until the tshirt no longer picks up any dust. I was amazed how much dust remains on the balsa skins after a good vacuuming. I bet I went over the wing surface 12-15 times with a clean portion of the tshirt until I was satisfied that I wasn't picking up any dust. The use of a heat gun to shrink the covering and following immediately with a cool cloth really bonds the covering to the balsa surface. I gave up on Monokote years ago when they changed the formulation as it was so difficult to work with. This project has not changed that opinion, but it sure looks great when complete.

              Covering the bottom of a 102" wing panel with undercamber and a transitioning airfoil thickness out to the tip proved to be a real challenge. I found the best temperatures with Monokote are 150C for my trim iron, 170C for my sealing iron w/sock, and ~500F for my heat gun. I tacked the covering at the leading edge and used the heat gun to shrink and bond the covering to the surface. My helper(very understanding wife) followed me with the cool cloth to press the covering down. I ending up covering the bottom in two pieces with a splice at the joint between the main and tip panels. I was able to cover the top with the white Monokote in one piece for each wing panel. See the photos below.

              I'm now applying Missile Red Monokote to the leading edges and a blue pin stripe will get laid down after the panels are covered. It has surprised me how much time it takes to cover a 3500 in2 wing! I'll post an update of the wing panels when covering is complete. Also, I am very happy to have purchased wing bags from Revoc as they have been handy to store the wing panels in and avoid hangar rash as I have to move the panels around in my limited space shop. Stay tuned.

              Jim


              Click image for larger version

Name:	IMG_2386.jpg
Views:	613
Size:	76.8 KB
ID:	46955
              Bottom of left panel sitting on saw horses. Red yet to be applied to the leading edge.

              Click image for larger version

Name:	IMG_2385.jpg
Views:	625
Size:	77.5 KB
ID:	46956
              Top of left wing panel. Red yet to be applied to the leading edge.






              Attached Files

              Comment


              • #8
                Looking nice!
                Been loving my 2-33 for the past couple years. One upgrade that I just made this past fall was the addition of Gap Tap to the Ailerons. It has improved the L/D and it is now able to thermal turn on a wing tip with the CG moved back 1/4 inch.

                Comment


                • #9
                  Erich,
                  Thanks for the comments. I was wondering how that aileron gap I'm building in would affect performance. This will be an easy addition. I'm assuming the CG shown on the plans is a good starting point & how much lead weight did you add to the nose for balance?
                  Jim

                  Comment


                  • #10

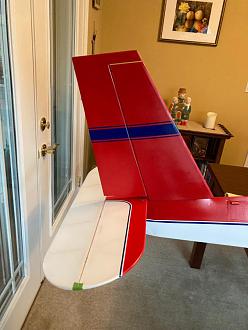

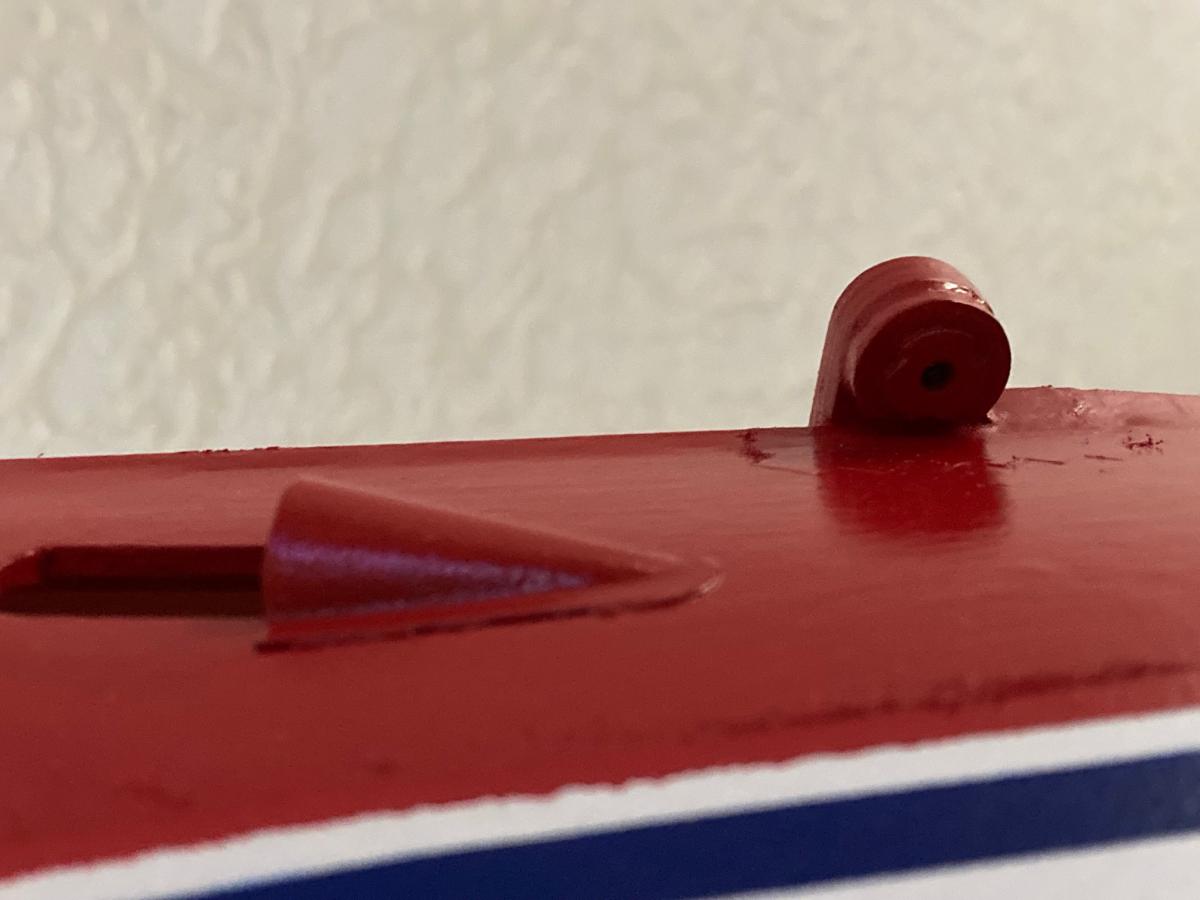

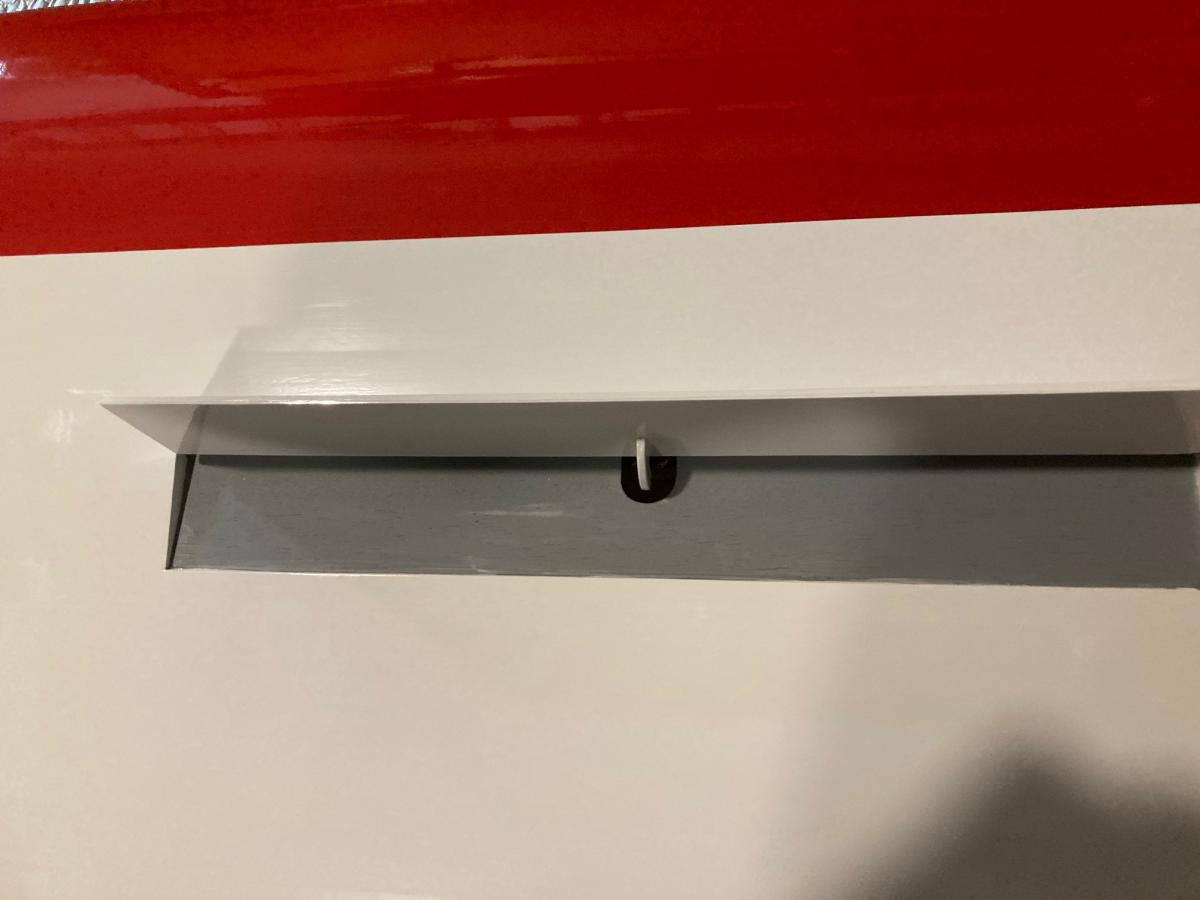

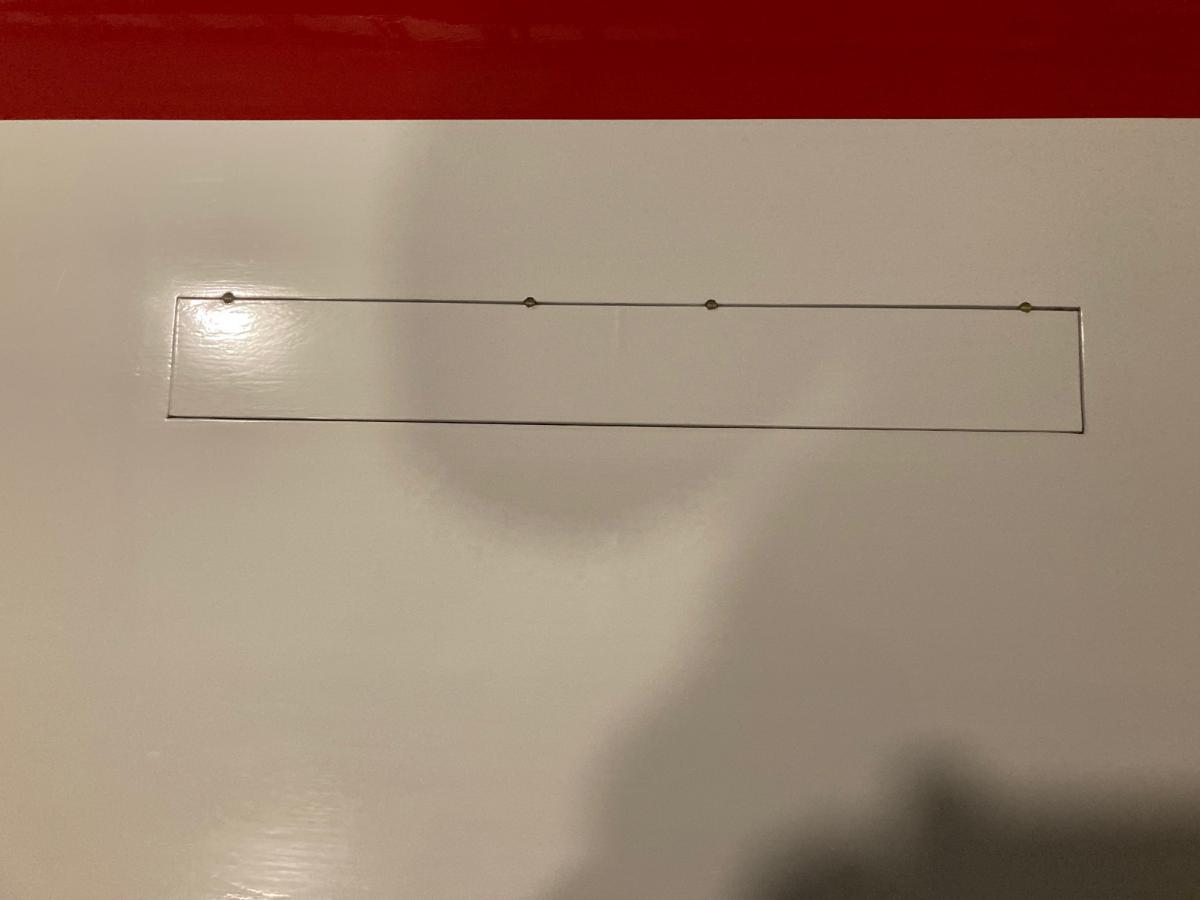

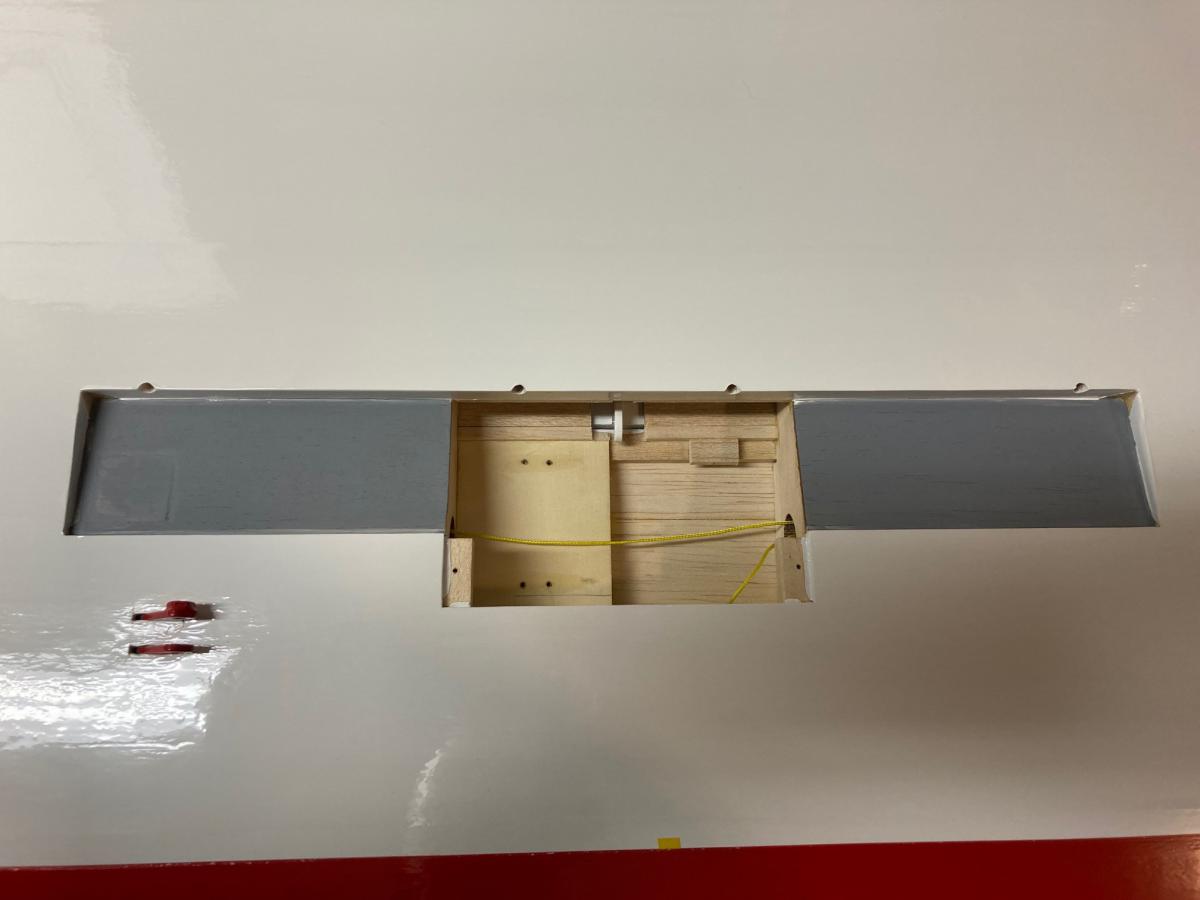

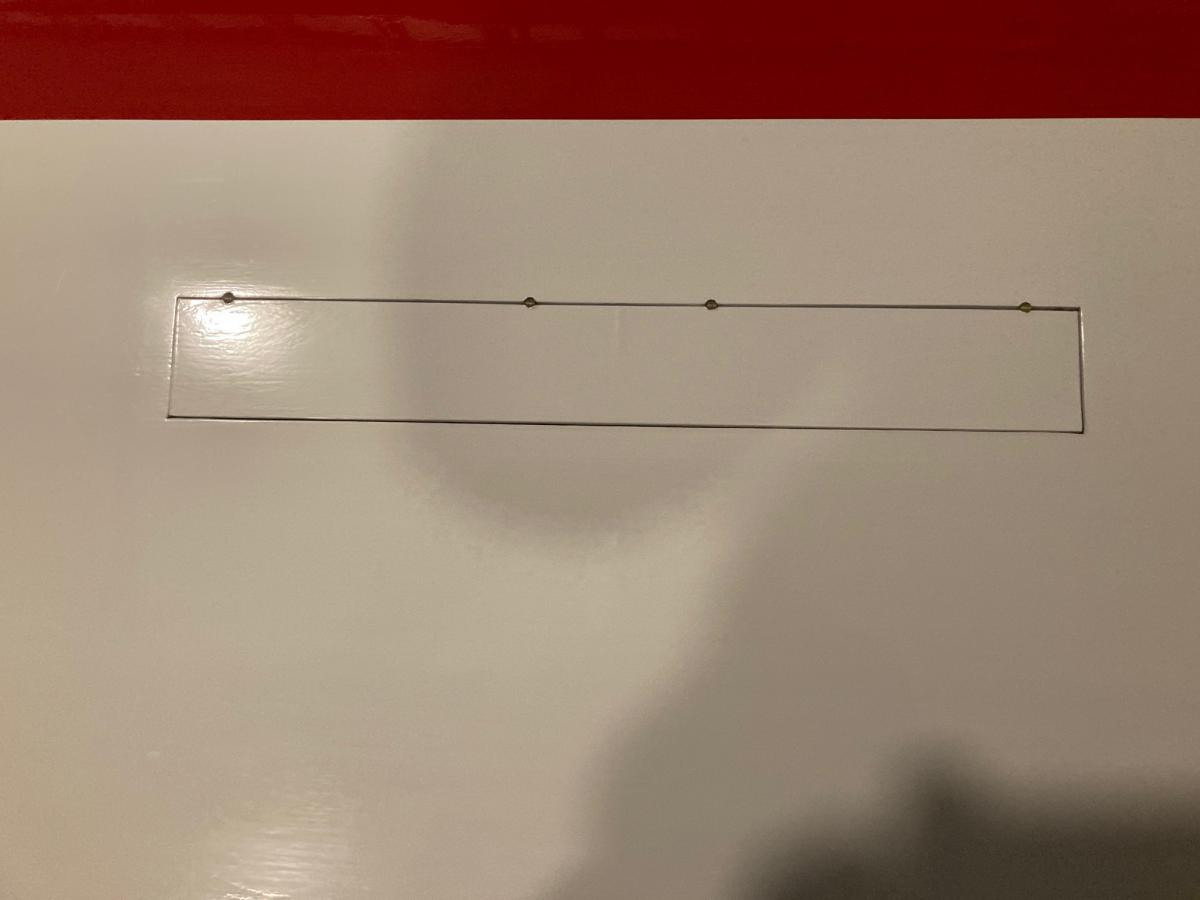

                    The wings are done! After covering, the ailerons were installed using Robart 1/8" hinge points and the spoilers used GP small pivot hinges. I like the more 'scale like' appearance of hinge points and installation is simple once drilled. This time around I made up jigs for drilling the hinge points which made for accurate hinge locations. All the servos in the 2-33 are Hitec D-645MW(metal gear, high torque, HV) as my receiver power will be redundant 2S lipos. I was concerned about getting the top and bottom spoilers to work properly with two linkages. My worries were unfounded, as Gunny again did a great job working this out for the builder. I just cannot say enough good things about the product Aviation Concepts puts out. Below are some photos of my efforts.

                    Next up is final alignment of the stab to the wing so I can complete the struts for the stab, rudder & stab hinging, rudder & stab servo installation, fuselage wiring and can't forget balancing. I guess I still have plenty to do, but I feel like I'm getting close to completion!

                    Jim

                    Click image for larger version

Name:	IMG_2412.jpg
Views:	548
Size:	85.8 KB
ID:	47124 Click image for larger version

Name:	IMG_2413.jpg
Views:	519
Size:	84.3 KB
ID:	47125
                    Click image for larger version

Name:	IMG_2405.jpg
Views:	538
Size:	47.3 KB
ID:	47121 Click image for larger version

Name:	IMG_2406.jpg
Views:	547
Size:	50.8 KB
ID:	47123

                    Click image for larger version

Name:	IMG_2407.jpg
Views:	537
Size:	49.9 KB
ID:	47120 Click image for larger version

Name:	IMG_2409.jpg
Views:	524
Size:	91.7 KB
ID:	47122

                    Attached Files
                    Last edited by Jim Gibson; 03-11-2022, 02:10 AM.

                    Comment


                    • #11

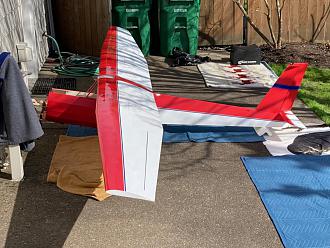

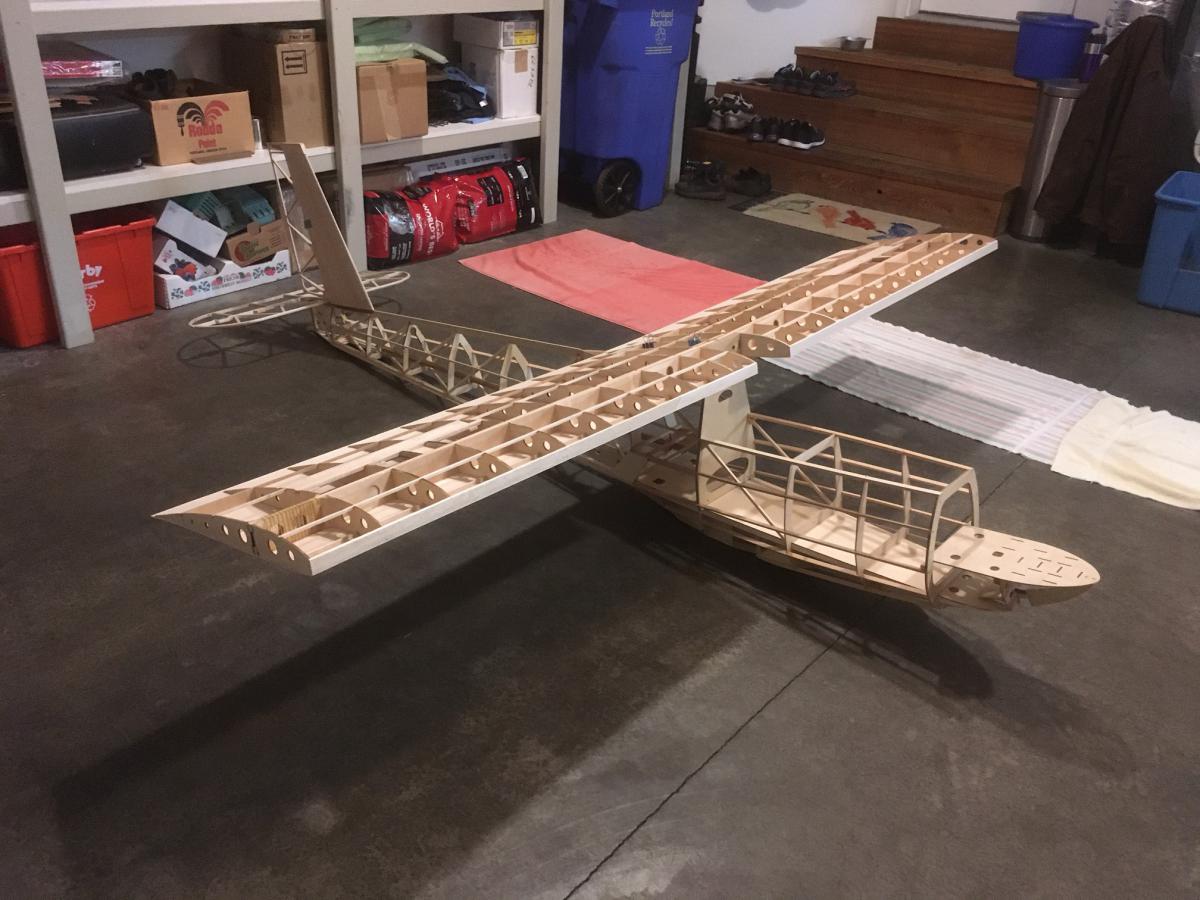

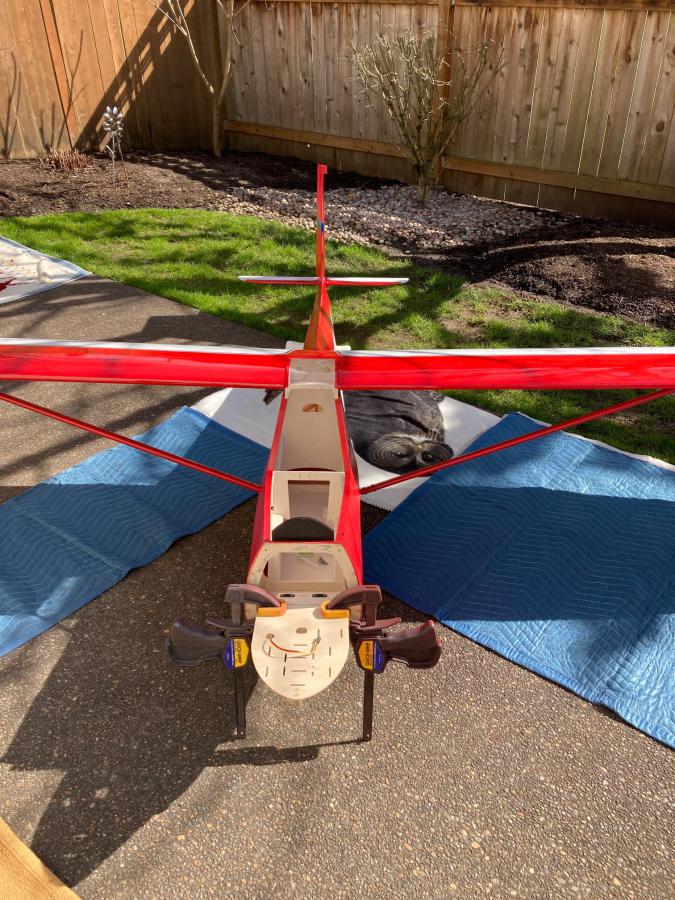

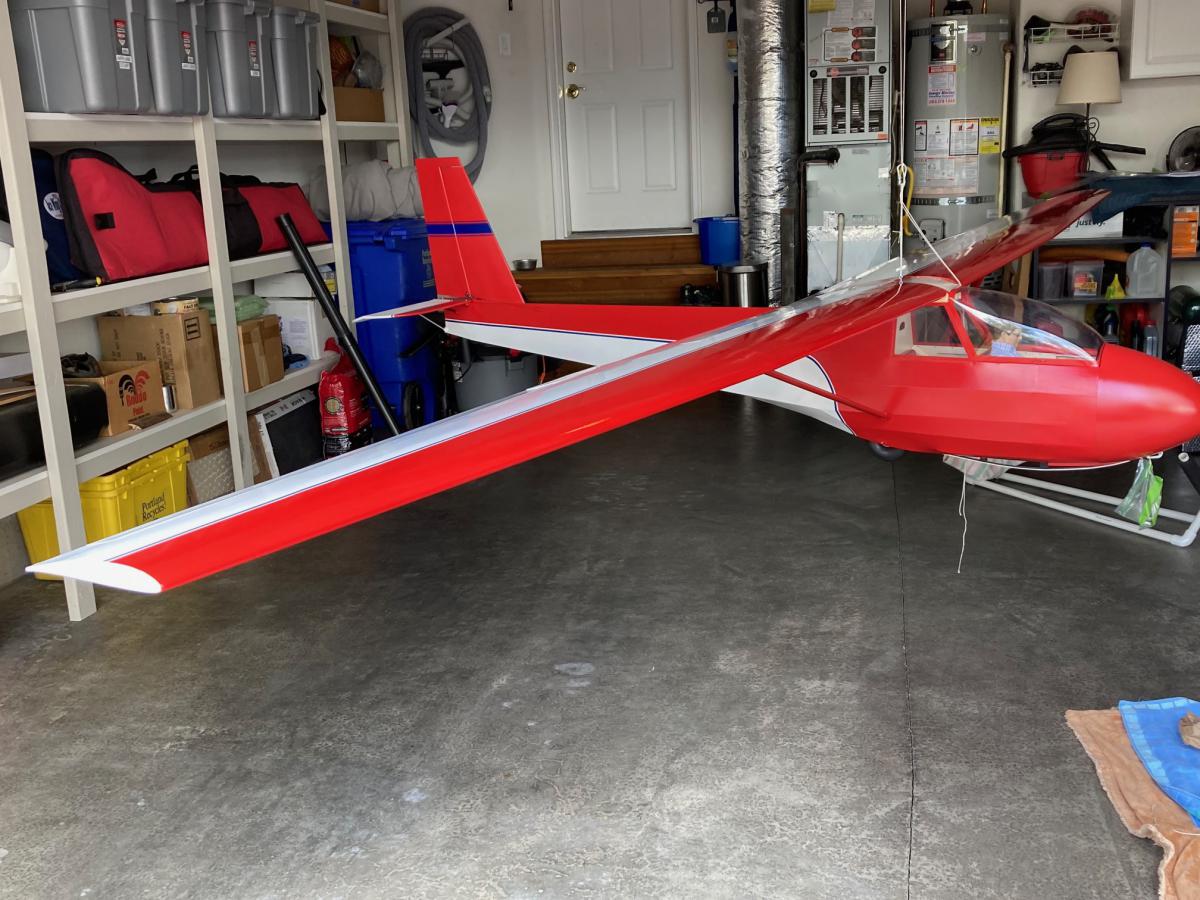

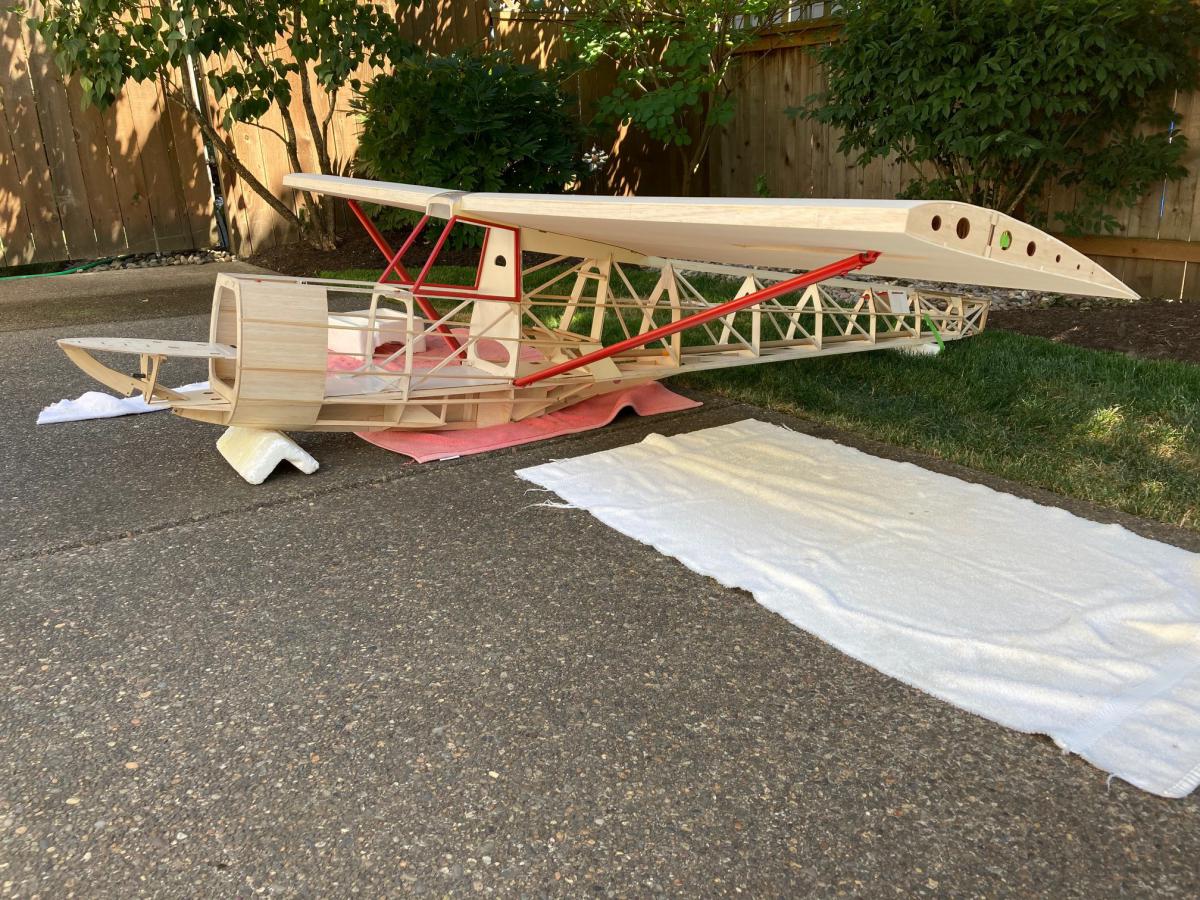

                      We are having a stretch of nice weather so I thought I would take the opportunity to assemble the 2-33 outside where I had plenty of room. This is the first time I've had a chance to see what it looks like after covering and painting. I also needed to check alignment of the wings to stab and rudder to stab. Fortunately everything checked out, but I did forget to check the decalage. Have to save that for another day. I have to say assembling a 17' wing and placing it on the fuselage definitely requires come care and space! Now on to fuselage wiring and stabilizer strut assembly. Below are a few fresh air photos.
                      Jim

                      Click image for larger version  Name:	IMG_2414.jpg Views:	0 Size:	184.8 KB ID:	47136 Click image for larger version  Name:	image_18862.jpg Views:	3 Size:	276.2 KB ID:	47138
                      Click image for larger version  Name:	IMG_2417.jpg Views:	0 Size:	144.0 KB ID:	47137
                      Last edited by Jim Gibson; 03-12-2022, 10:12 PM.

                      Comment


                      • #12
                        Will we get to see it at Cumberland?
                        Kevin K

                        Kremer Aerotowing Team

                        Comment


                        • #13
                          Unfortunately, I will not be at Cumberland. I call home Portland, OR and a 3000+ mile road trip is not in the cards.😂. I’m certainly envious of the venues and aerotow activity out east. Over the last 10 years the Pacific NW aerotow events are now down to a handful. Fortunately our club, Portland Area Sailplane Society, still supports aerotow with several dates during the flying season.
                          Jim

                          Comment


                          • #14

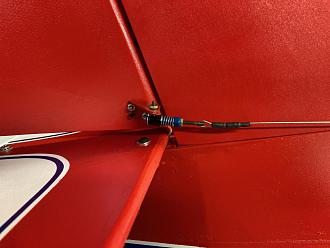

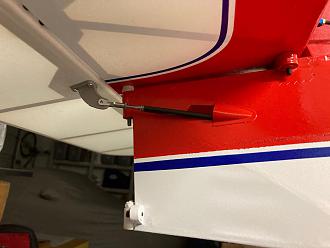

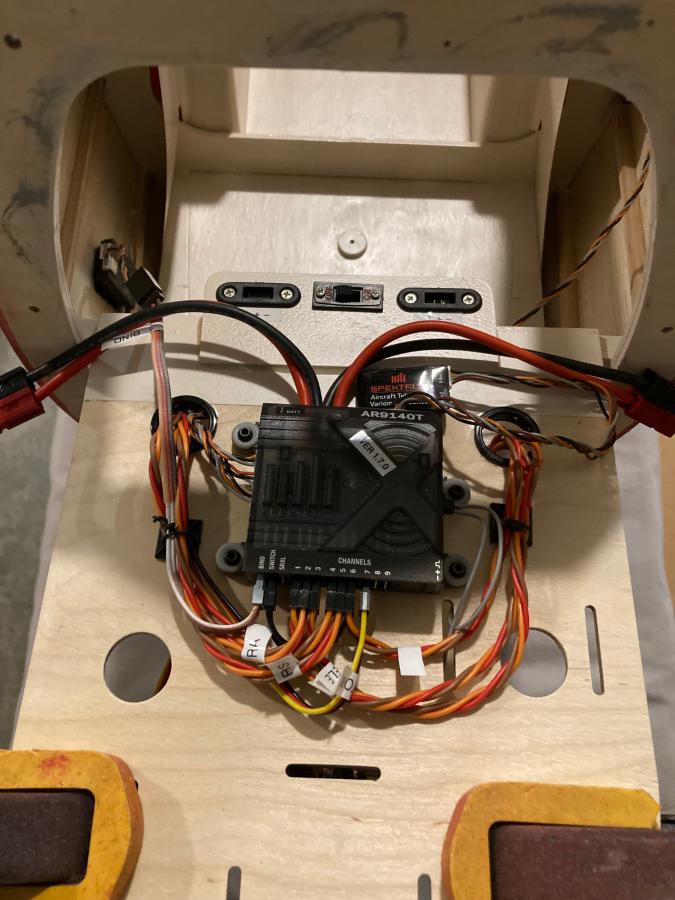

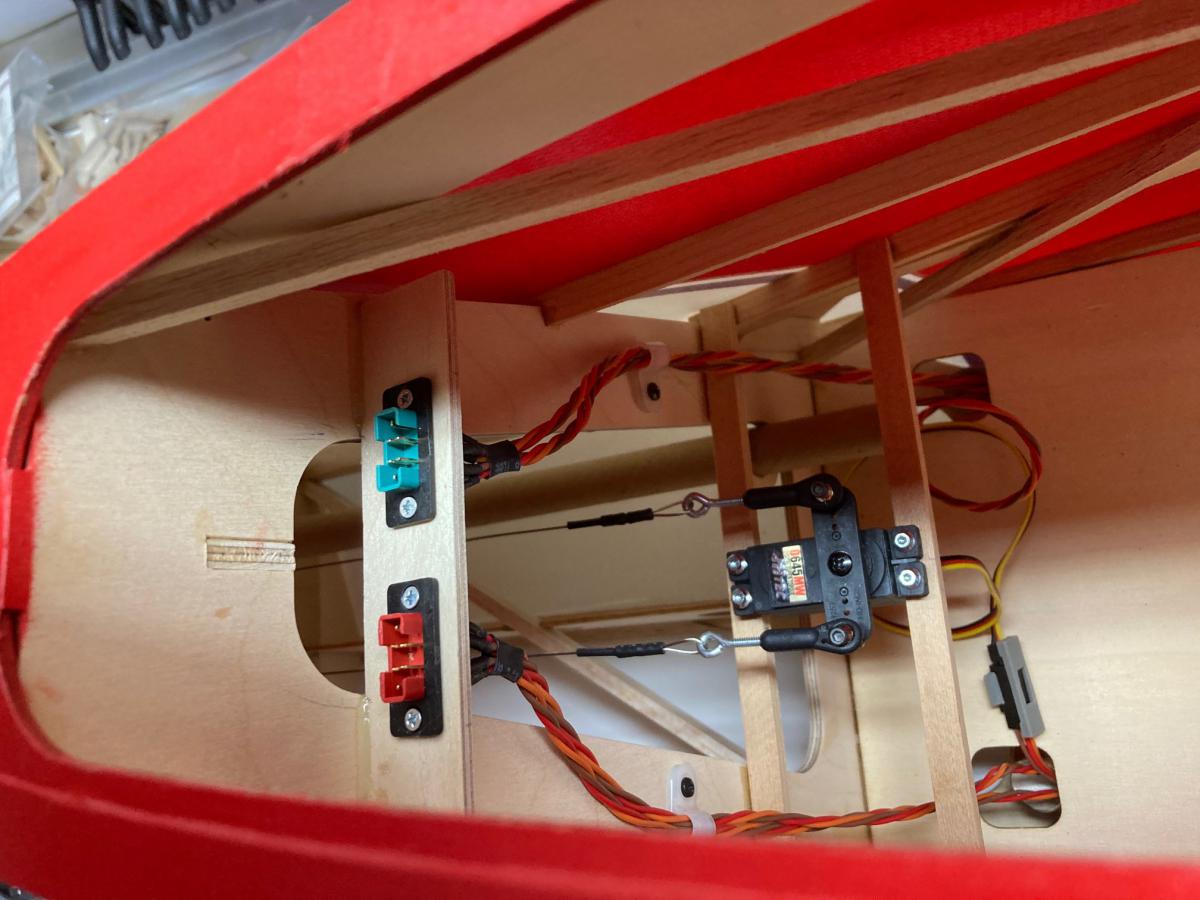

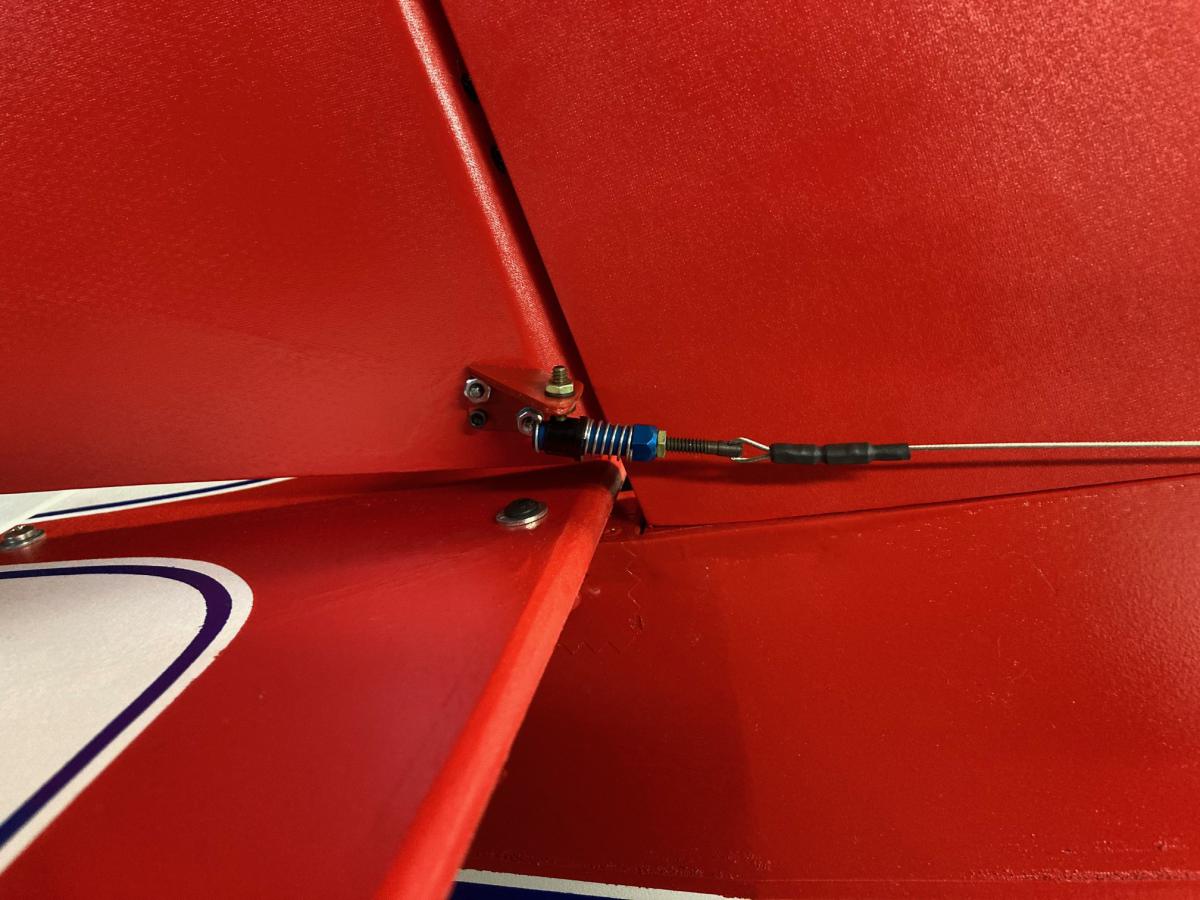

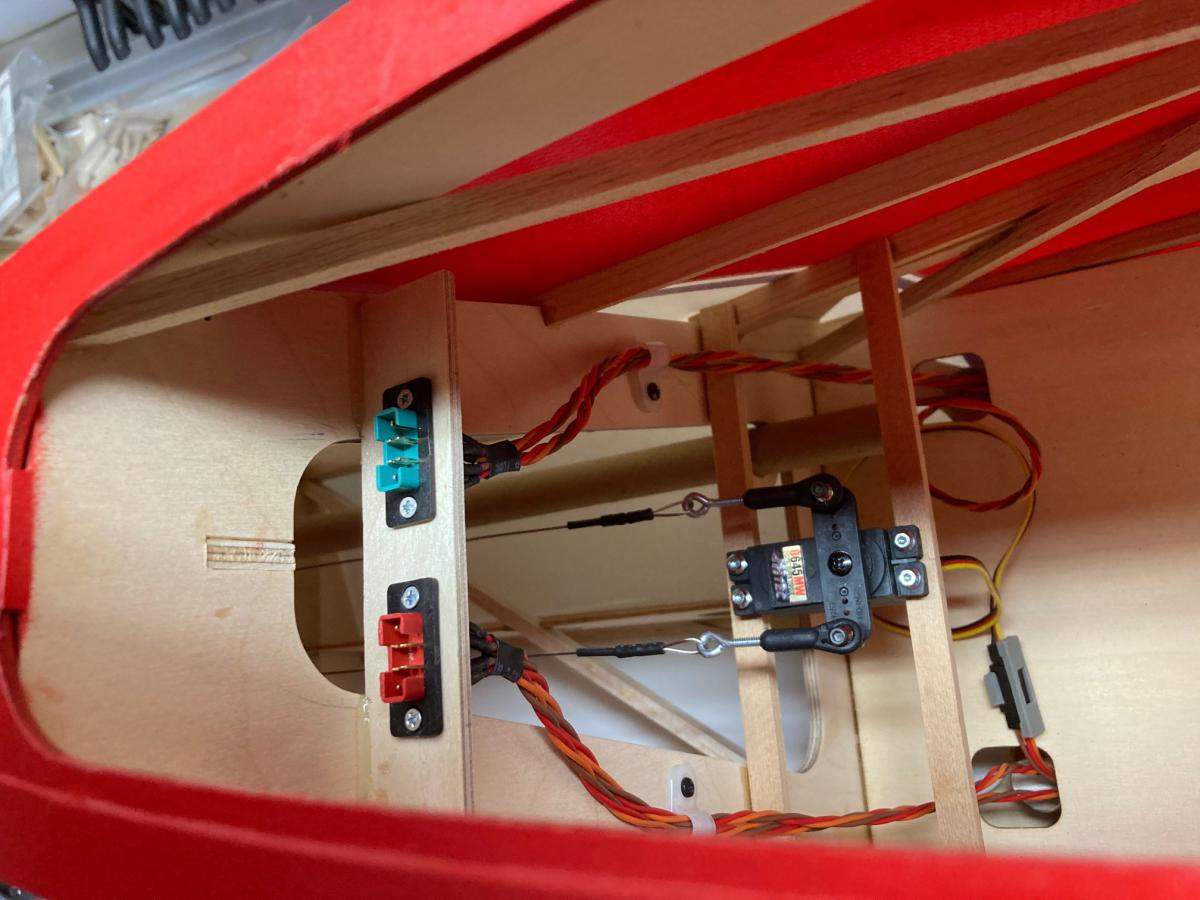

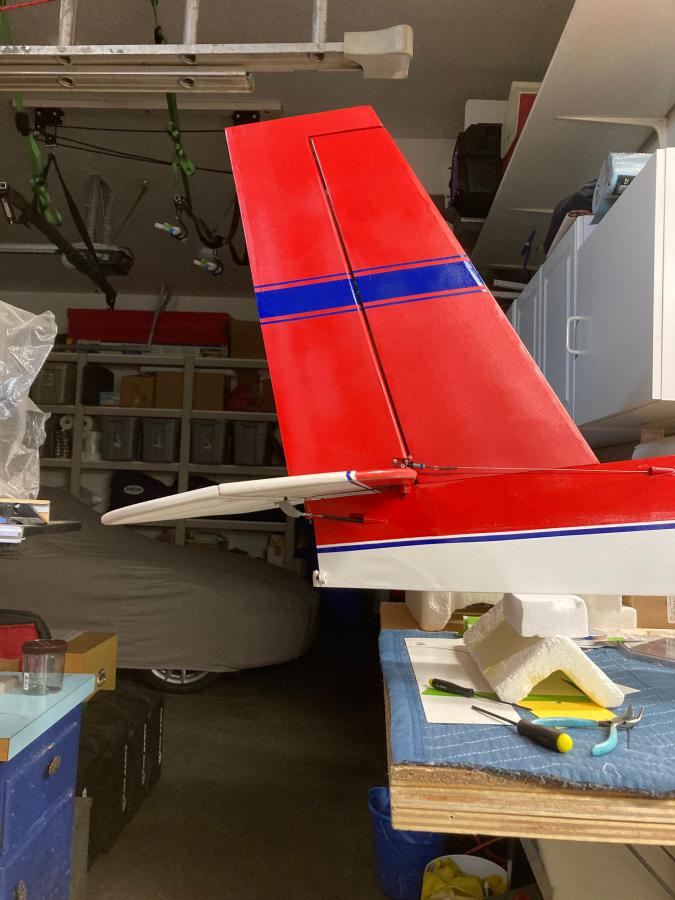

                            Fuselage wiring is now complete. Below are a few detail photos of my install. For the fin, I went with the removable option to make storage and transport easier. Because of this, I wanted a quick and secure way for attaching the pull-pull cables to the rudder. I opted to use Sullivan control horns and ball connectors. I've had no issues with the ball connectors on other models and it was a good solution here. For the elevator I am using a Robart control horn and clevis rod end as shown on the plans. To simplify elevator hookup at the field, I plan to use a pin and set screw collar for attaching the clevis to the control horn. Wing wiring gets plugged in above the rudder servo with Multiplex 6 pin connectors. The connectors are color coded to help avoid a brain fart and get the plugs crossed up. Up front I've installed my Spektrum receiver, on-off switch and LiFe battery charge plugs. Next up is final installation of the skid, tail wheel and balancing.
                            Jim
                            Click image for larger version  Name:	IMG_2420.jpg Views:	0 Size:	74.4 KB ID:	47227

                            Click image for larger version  Name:	IMG_2419.jpg Views:	0 Size:	109.4 KB ID:	47228 Click image for larger version  Name:	IMG_2418.jpg Views:	0 Size:	103.4 KB ID:	47229

                            Click image for larger version  Name:	IMG_2422.jpg Views:	0 Size:	53.2 KB ID:	47223 Click image for larger version  Name:	IMG_2421.jpg Views:	0 Size:	86.6 KB ID:	47230

                            \ Click image for larger version  Name:	IMG_2423.jpg Views:	0 Size:	78.4 KB ID:	47225

                            Attached Files

                            Comment


                            • #15

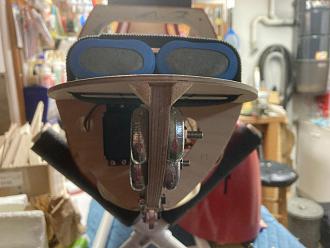

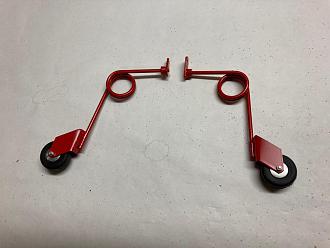

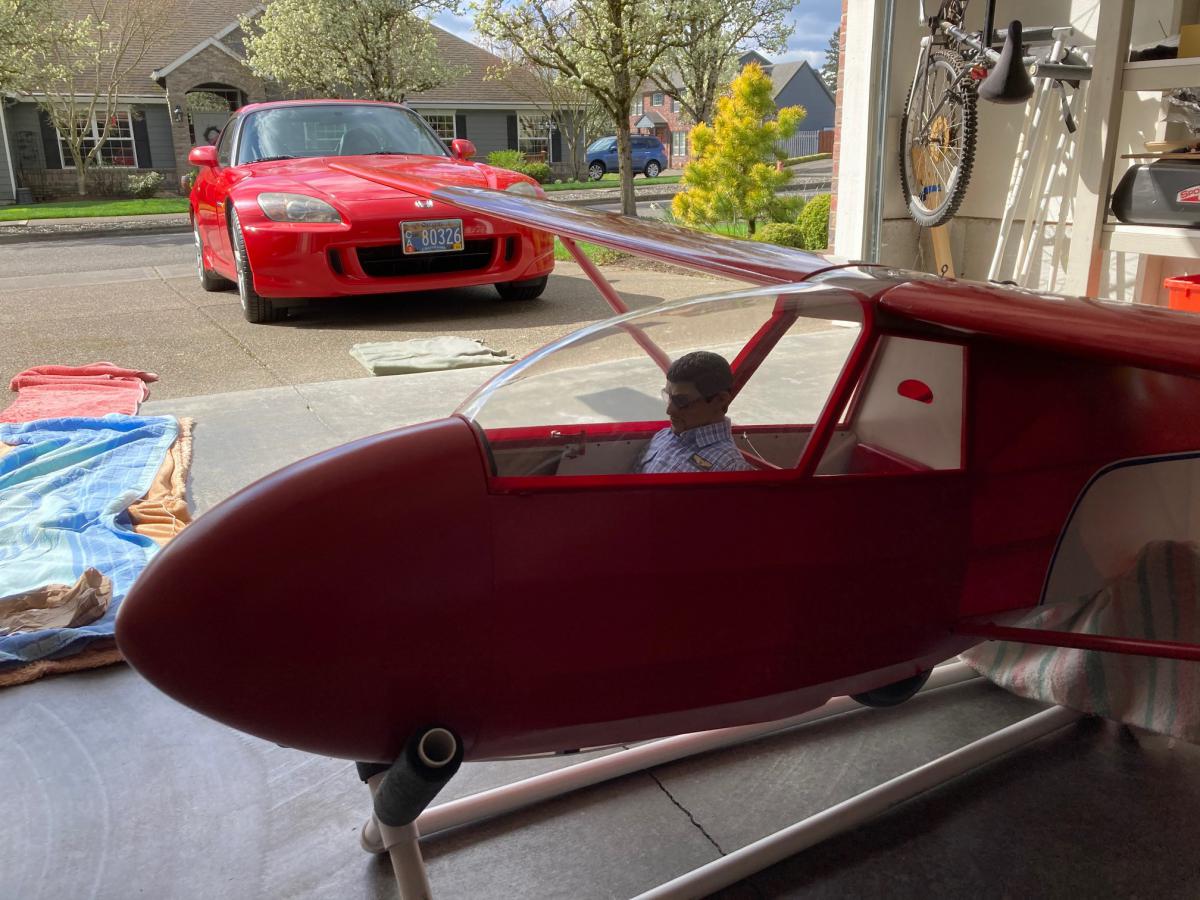

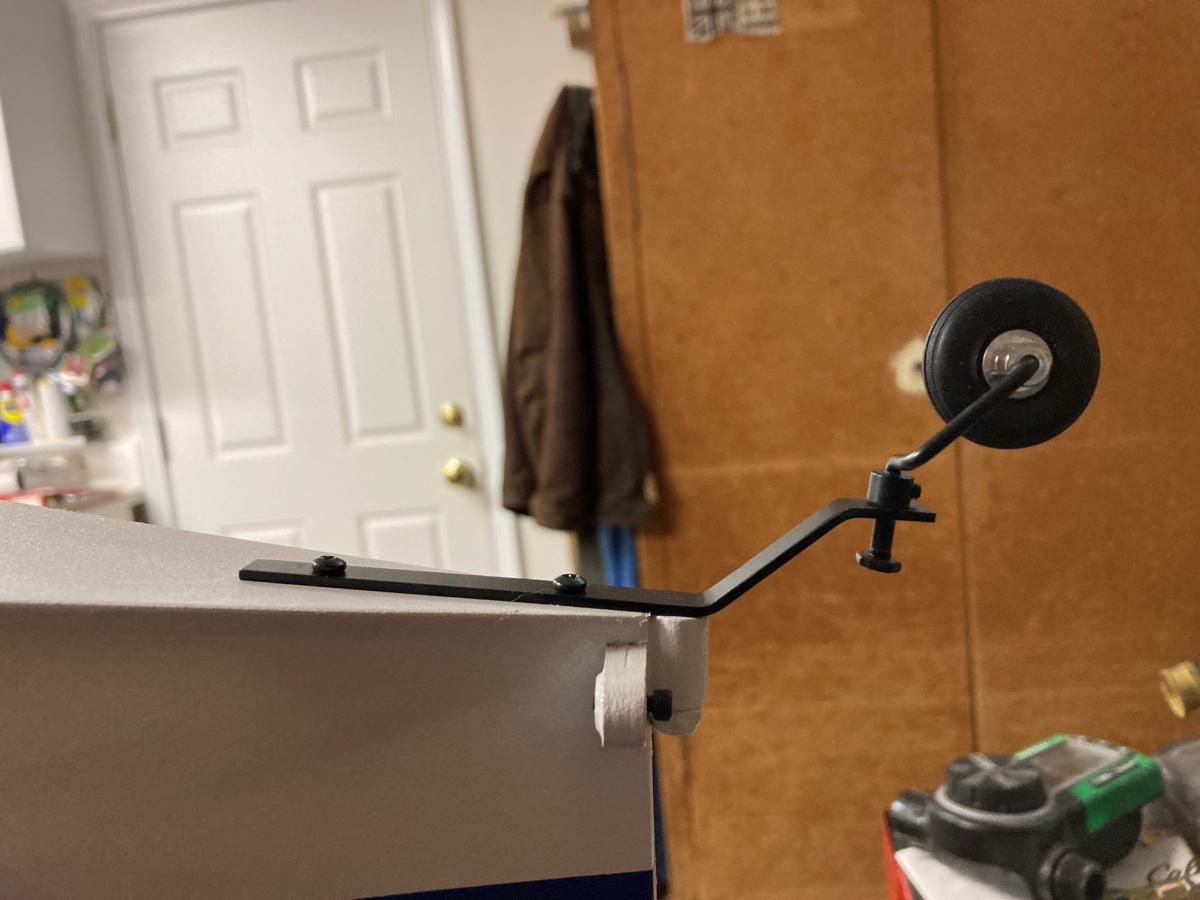

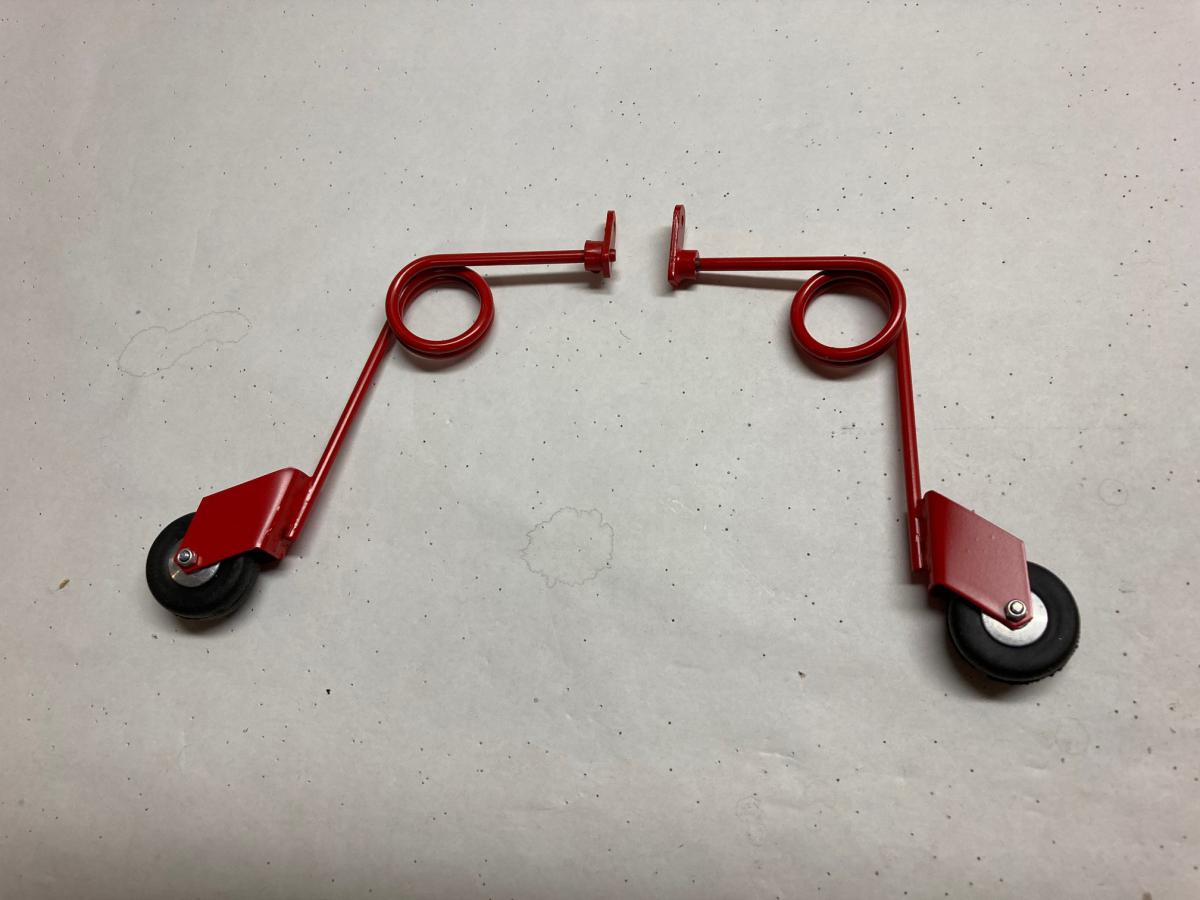

                              More progress and most items have now been crossed off the 'to do' list. The nose skid was installed and I elected to use a rubber block and plywood block in place of the two supplied plywood blocks for the middle anchors in the skid center. The tail wheel is an Ohio Superstar small tail wheel assembly slightly modified per Gunny's instructions. It was finally time to check the CG. I installed the eyehook in the location noted in the instructions and hung the 2-33 in my garage from my garage door opener rail. I installed 10 oz of sinkers in the nose and for the lateral balance I will be adding 0.75 oz of weight in the left aileron servo bay. This would have been an opportune time to check the AUW, but I did not have a fish scale. The decalage checked out per the instructions and requires a 0.156" thick washer at the back end of the elevator. All I have left now is to complete the detailing of the cockpit and set up the control throws. Photos below.................
                              Jim
                              Click image for larger version

Name:	IMG_2428.jpg
Views:	430
Size:	77.7 KB
ID:	47343 Click image for larger version

Name:	IMG_2430.jpg
Views:	405
Size:	147.1 KB
ID:	47349


                              Click image for larger version

Name:	IMG_2431.jpg
Views:	414
Size:	75.5 KB
ID:	47350

                              Click image for larger version

Name:	IMG_2433.jpg
Views:	413
Size:	158.0 KB
ID:	47348 Click image for larger version

Name:	IMG_2434.jpg
Views:	424
Size:	151.3 KB
ID:	47347

                              Click image for larger version

Name:	IMG_2435.jpg
Views:	432
Size:	97.1 KB
ID:	47345
                              Attached Files

                              Comment


                              • Steve P
                                Steve P commented
                                Editing a comment
                                Nice! And, the plane matches the car!
                            Working...
