  • Mibo 1:3 DG-1000 V3 with Torcman FES - photo build log

    This thread is more for cataloging the plane as a resource for the site. The Mibo DG-1000 is currently unavailable, but who knows what the future may hold? As some know, I had the opportunity to test an earlier prototype a few years ago. That was fun and flew beautifully while it unfortunately indicated that the interlocking spar tongues as the joiner system weren't fully up to the task.

    So, here we have a V3 with a MASSIVE rectangular carbon joiner. This thread details putting the bits together...

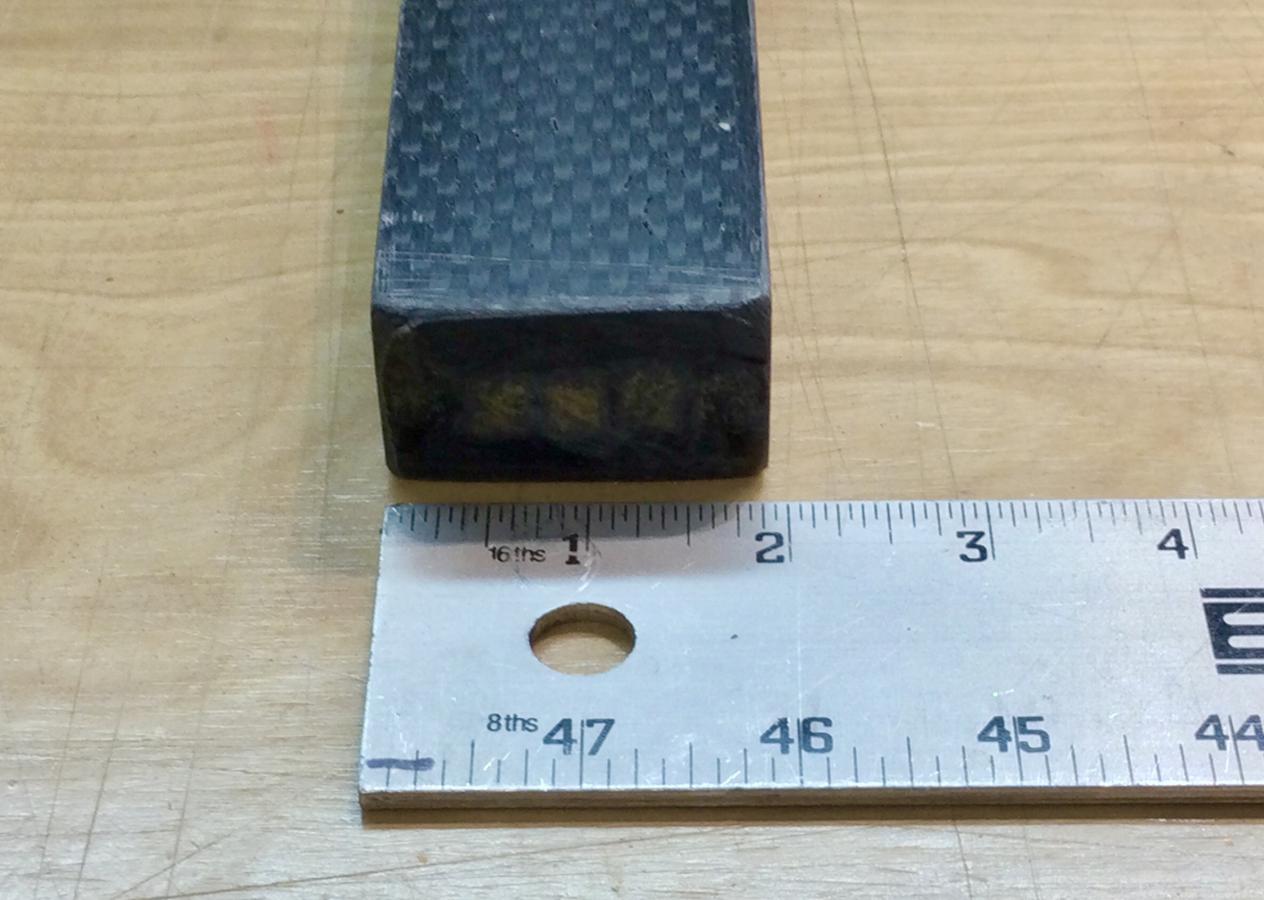

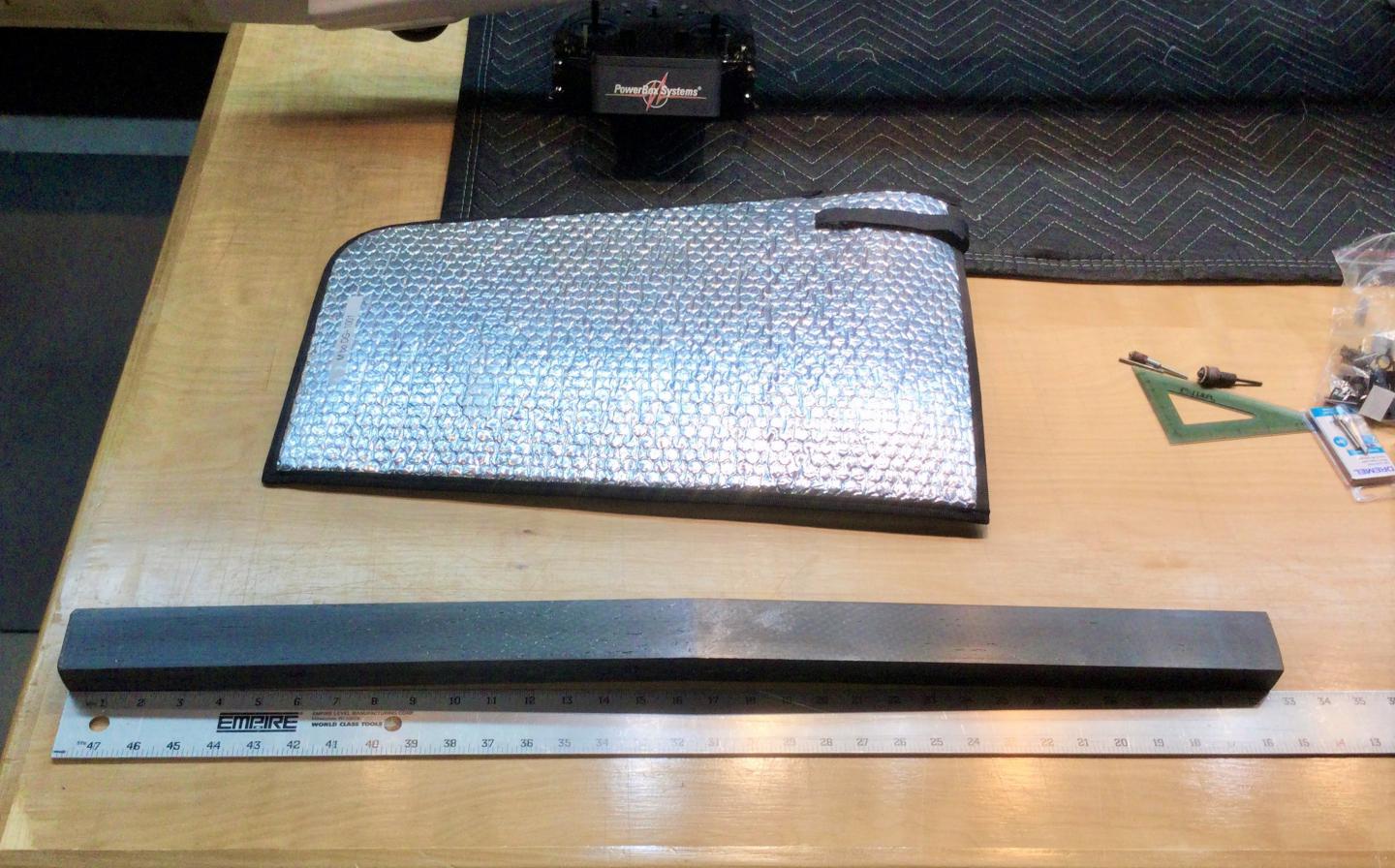

    First up is that wing joiner -- 32 inches in length, nearly 2 inches wide and weighs in at a mighty 45.25 ounces




    Click image for larger version  Name:	 Views:	0 Size:	109.4 KB ID:	44280

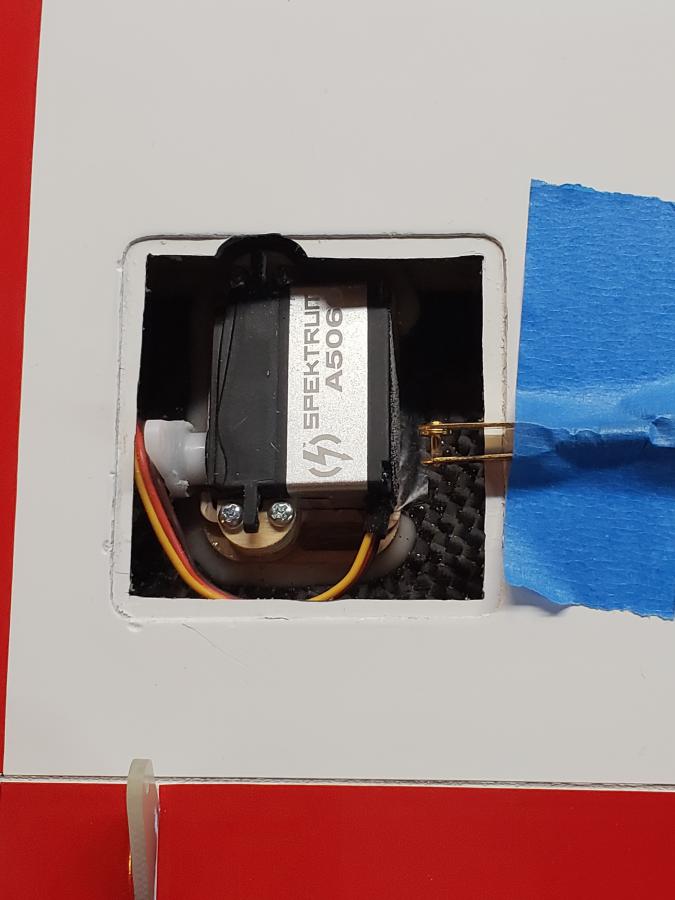

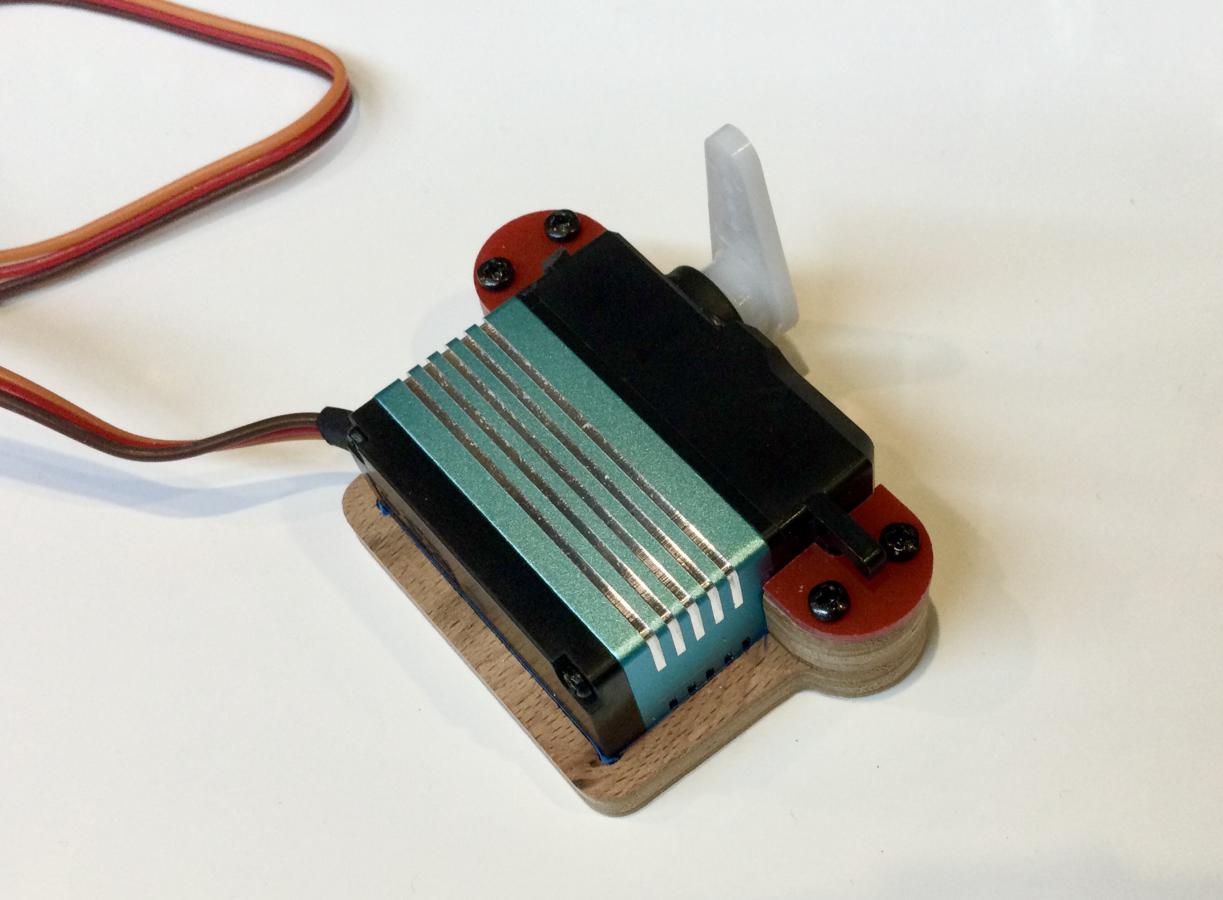

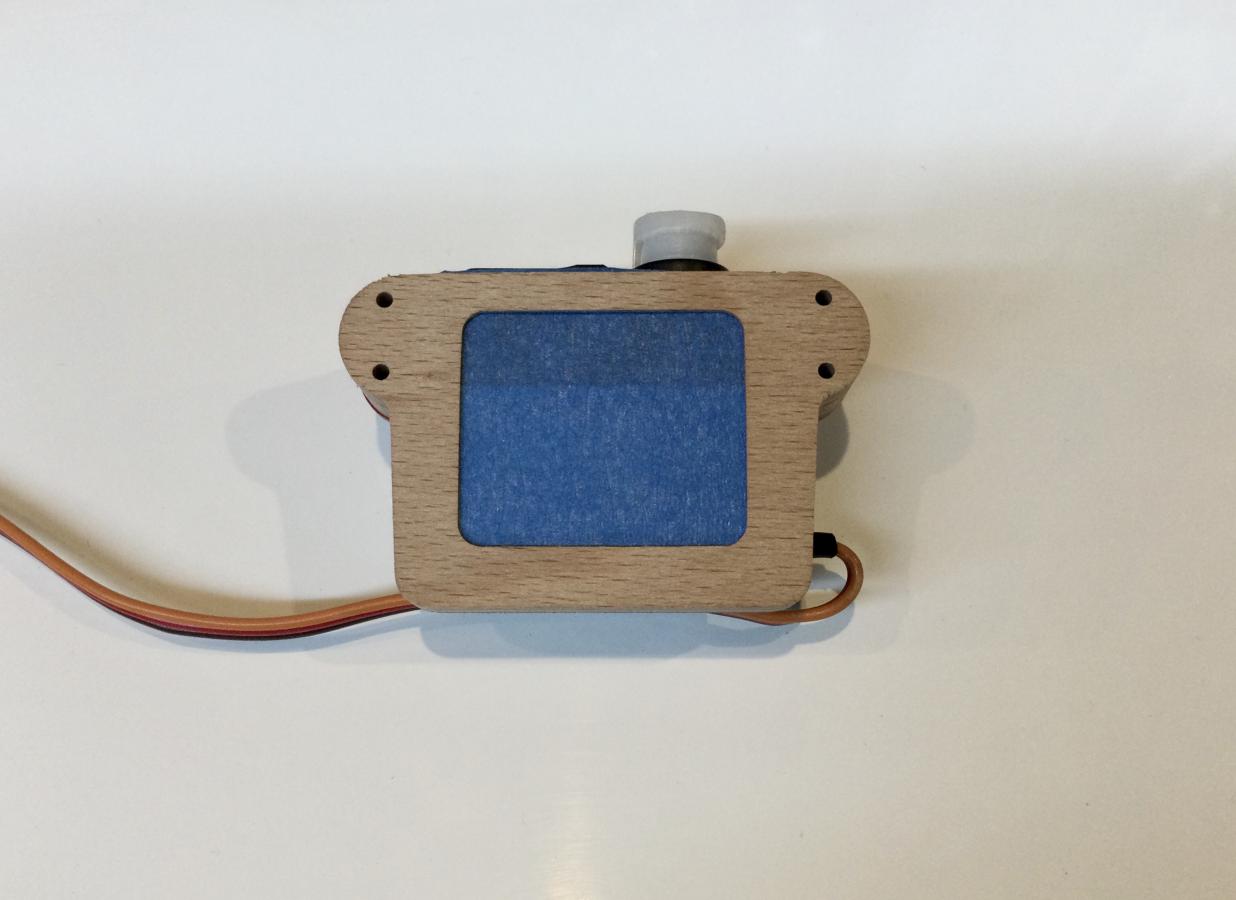

    An easy place to start on a build is to toss in some servos. The tip panels got Spektrum 5060's in frames...

    Click image for larger version  Name:	 Views:	0 Size:	49.8 KB ID:	44283
    Click image for larger version  Name:	 Views:	0 Size:	106.8 KB ID:	44282
    Attached Files
    Last edited by Steve P; 04-07-2021, 12:14 PM.
    Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

  • #2

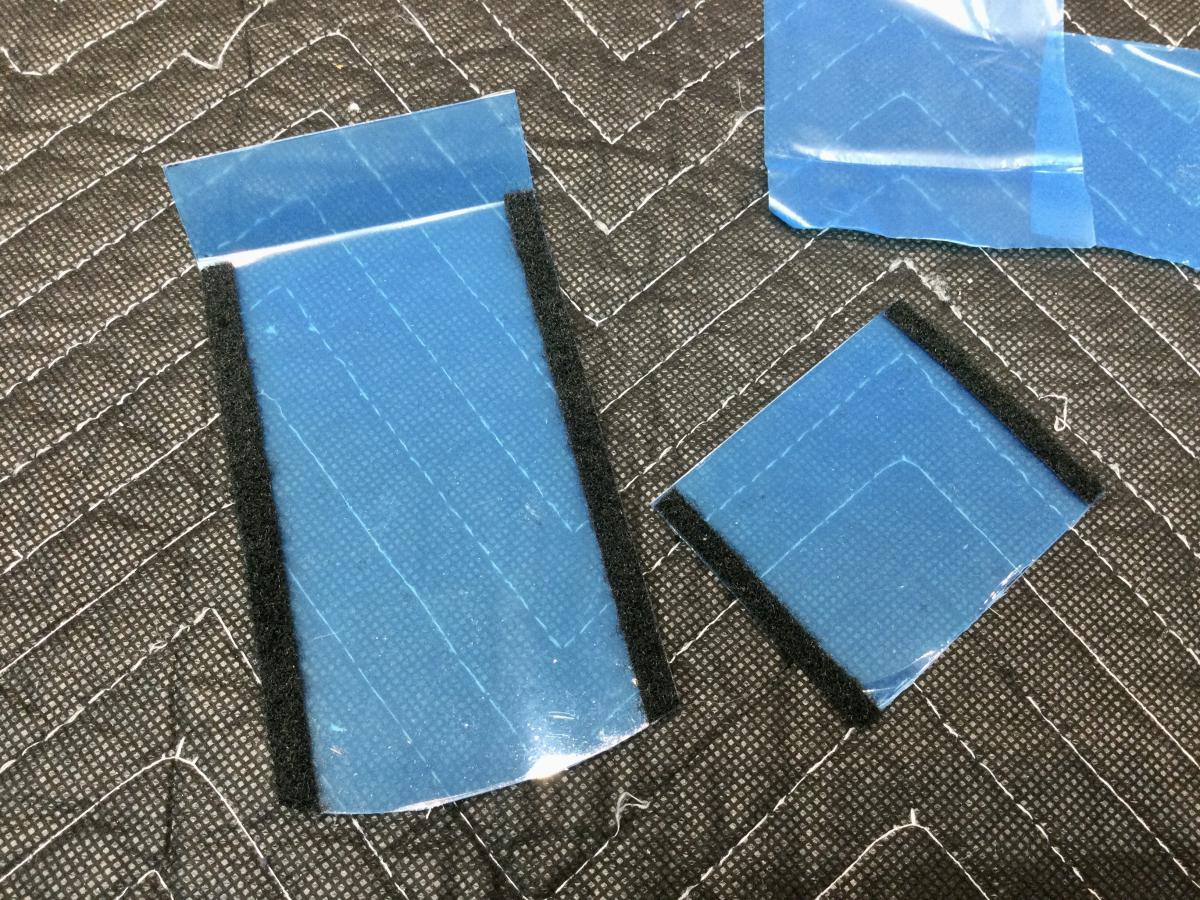

    Venturing inside the wings, it's all about high torque, metal gear, HV JR8931s. These went into frames from STV Tech - I like to place the frames with the servo installed, hence the blue tape on the back of the servo so that it releases from the splooge (another tech term) of epoxy.

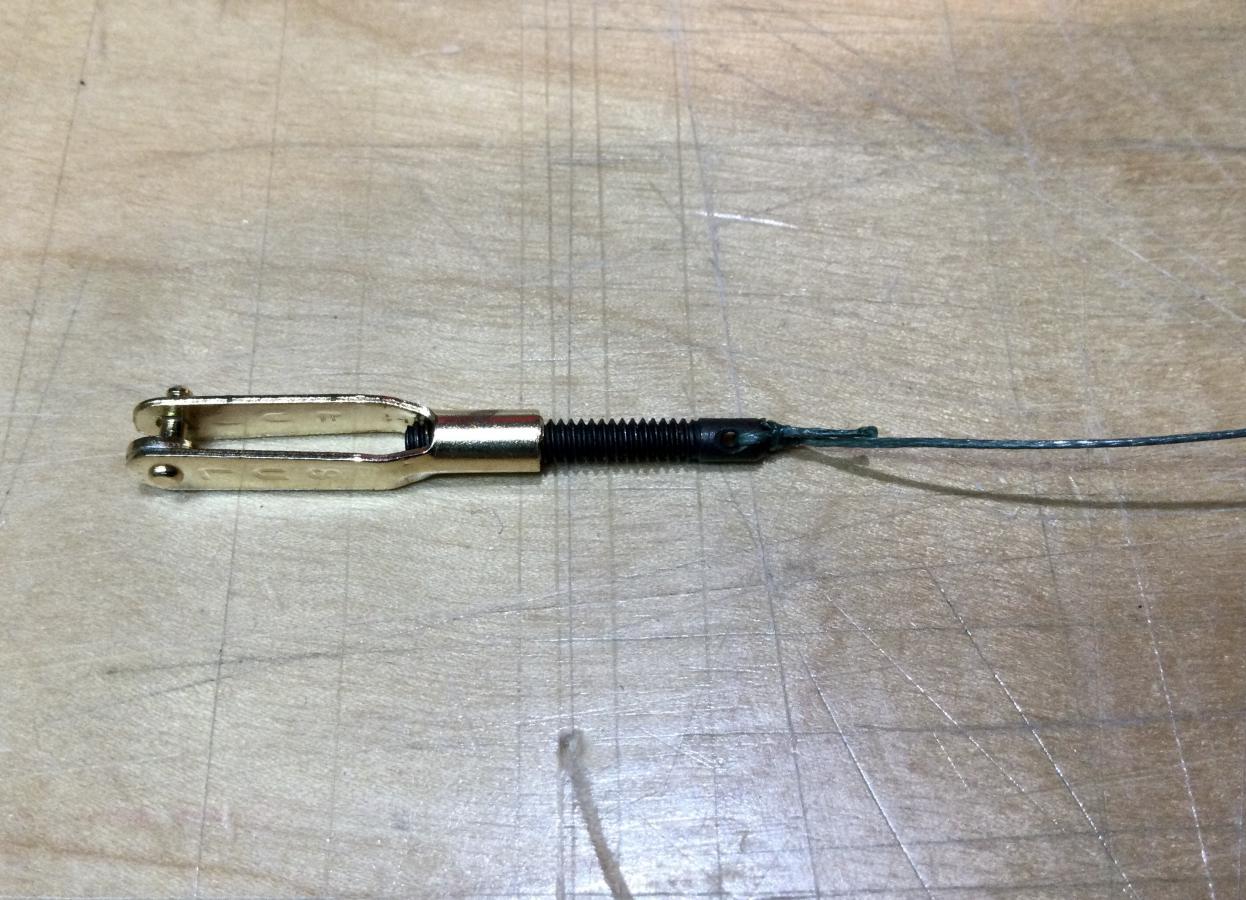

    The model comes with internal linkages that to me were not sufficient. Instead, I installed heavy duty G10 horns deeply into each surface with Hysol. A single for ailerons and a dual set-up with a ball joint between for the flaps.

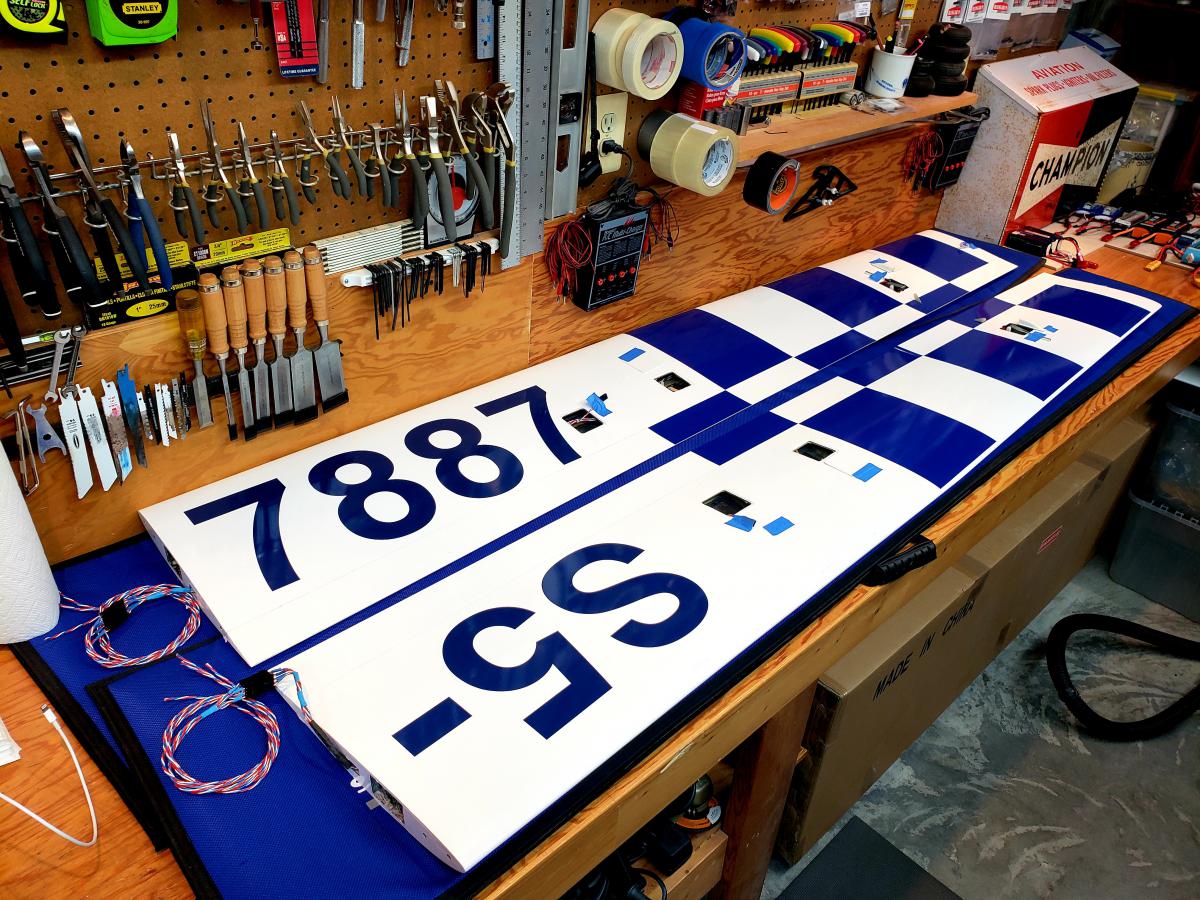

    Plain white wing bottom surfaces were dressed up with blue vinyl.

    Click image for larger version  Name:	 Views:	0 Size:	77.9 KB ID:	44286
    Click image for larger version  Name:	 Views:	0 Size:	62.7 KB ID:	44288
    Click image for larger version  Name:	 Views:	0 Size:	79.3 KB ID:	44287
    Click image for larger version  Name:	 Views:	0 Size:	219.5 KB ID:	44289
    Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

    Comment


    • #3

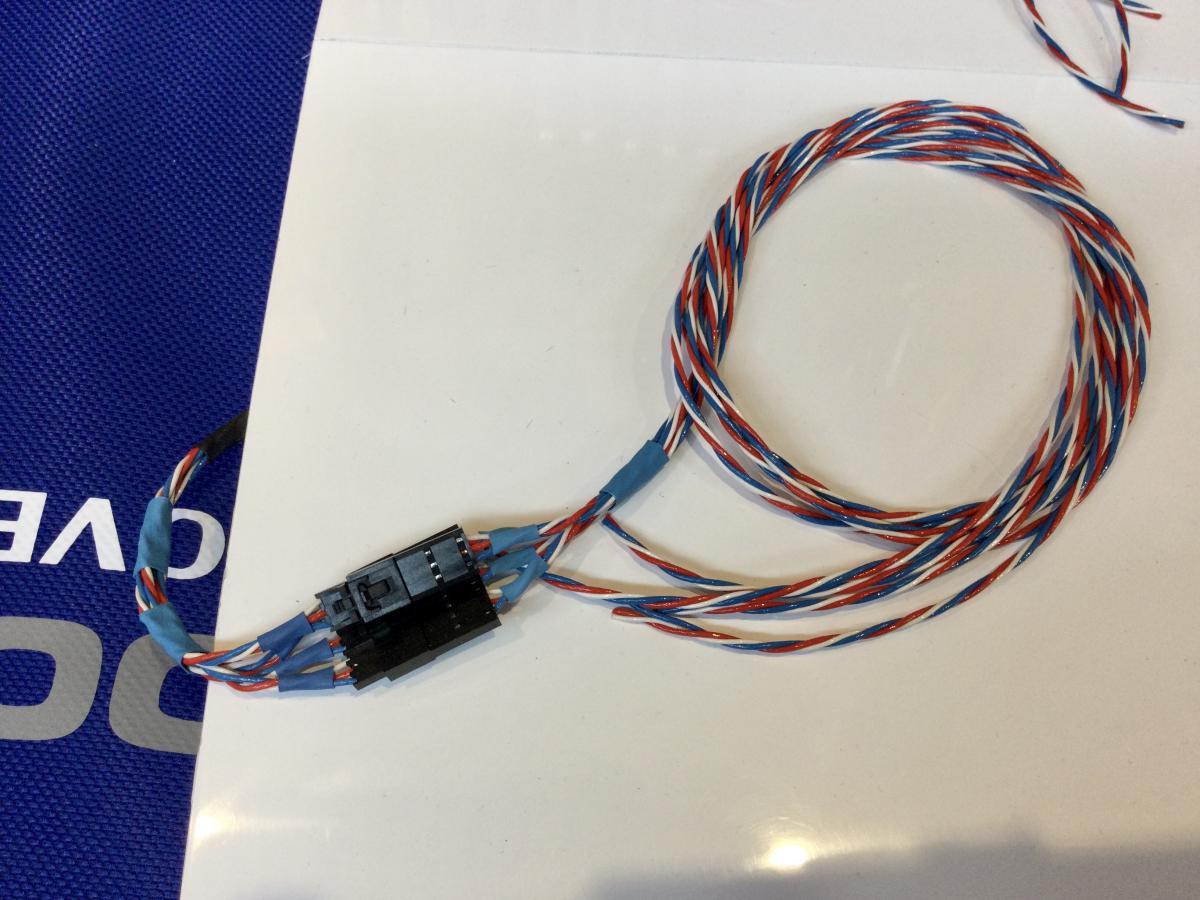

      As visible on the wing photo above, the wiring was done with PowerBox Premium Maxi Wire and Hansen Hobby multi-connectors. Such great stuff!

      Click image for larger version

Name:
Views:	0
Size:	114.9 KB
ID:	44292

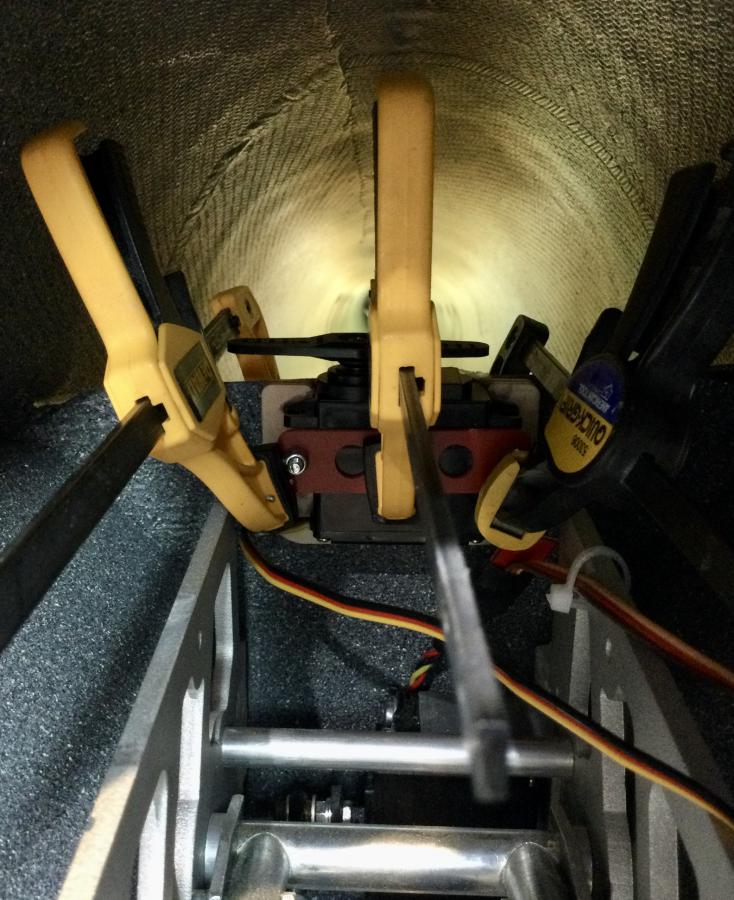

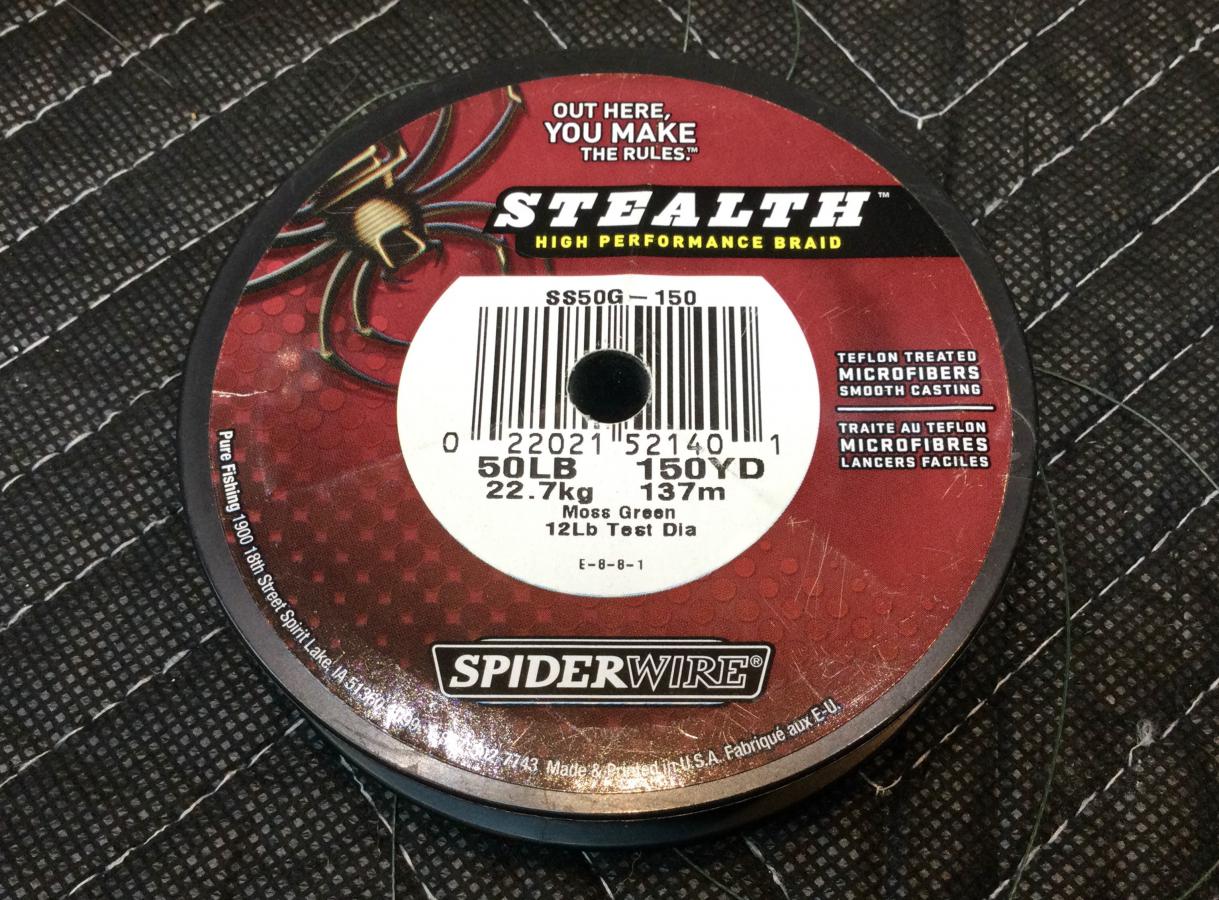

      Inside the fuselage, there was no accommodation for a rudder servo. I chose to mount it to the front of the retract bulkhead with a different format STV Tech Frame so that the servo can be accessed/removed for service. Realizing I didn't have enough cable for a pull-pull, I'm trying an experiment. I did have a roll of 50lb test Spider Wire fishing line. This stuff is insanely tough so it gets first crack at serving the purpose.



      Click image for larger version  Name:	 Views:	0 Size:	211.4 KB ID:	44293

      Click image for larger version  Name:	 Views:	0 Size:	165.6 KB ID:	44294
      Attached Files
      Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

      Comment


      • #4

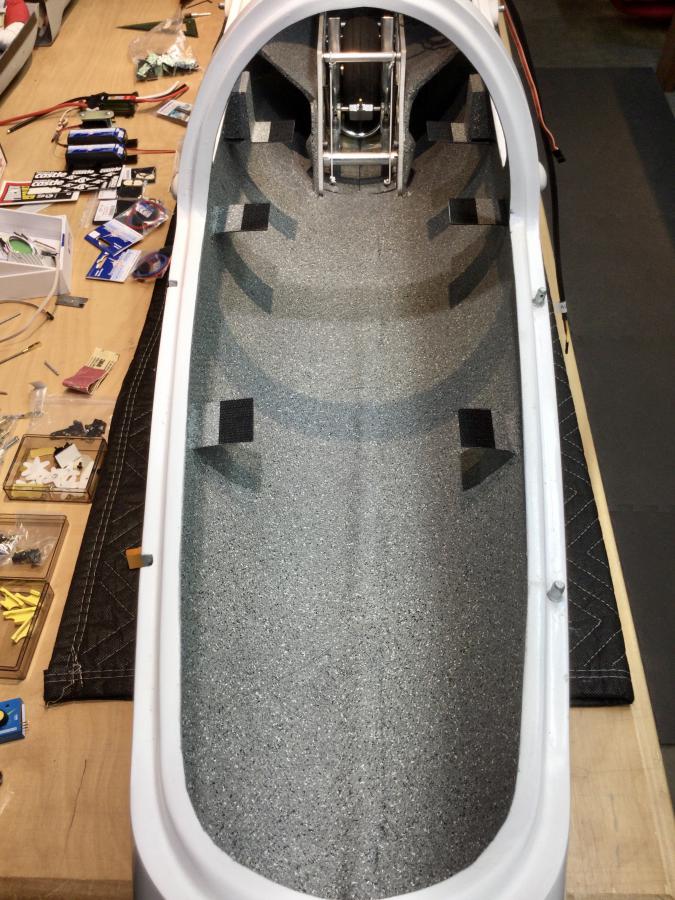

        When the kit arrived, the first thing I did was install heavy fiberglass mounts for seat pans and then paint out the fuselage interior. It is gray primer, gray granite paint and multiple coats of dead flat clear.

        Click image for larger version  Name:	 Views:	0 Size:	113.8 KB ID:	44300

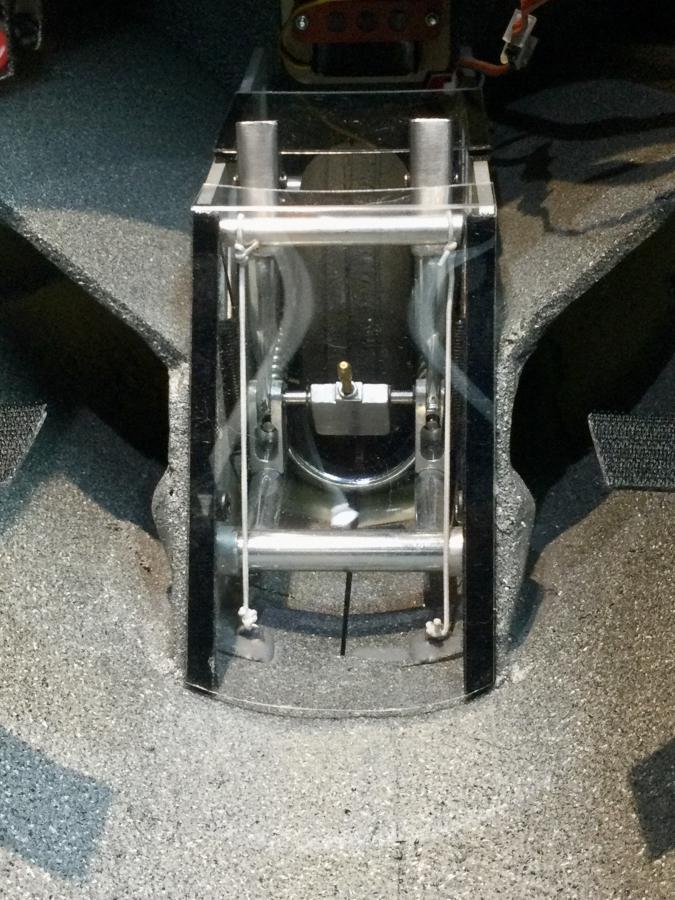

        The retract is actually a used Let unit purchased online. A fender was fashioned with PETG plastic.

        Click image for larger version  Name:	 Views:	0 Size:	114.6 KB ID:	44298

        Click image for larger version  Name:	 Views:	0 Size:	270.0 KB ID:	44299
        Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

        Comment


        • #5
          Grabbing an hour here or there to work on this, sometimes I felt like serious work, other times more of an art project. This is not a logical sequence to be sure! A few more dress-up shots adding color using Oracal vinyl and applying graphics from Callie...

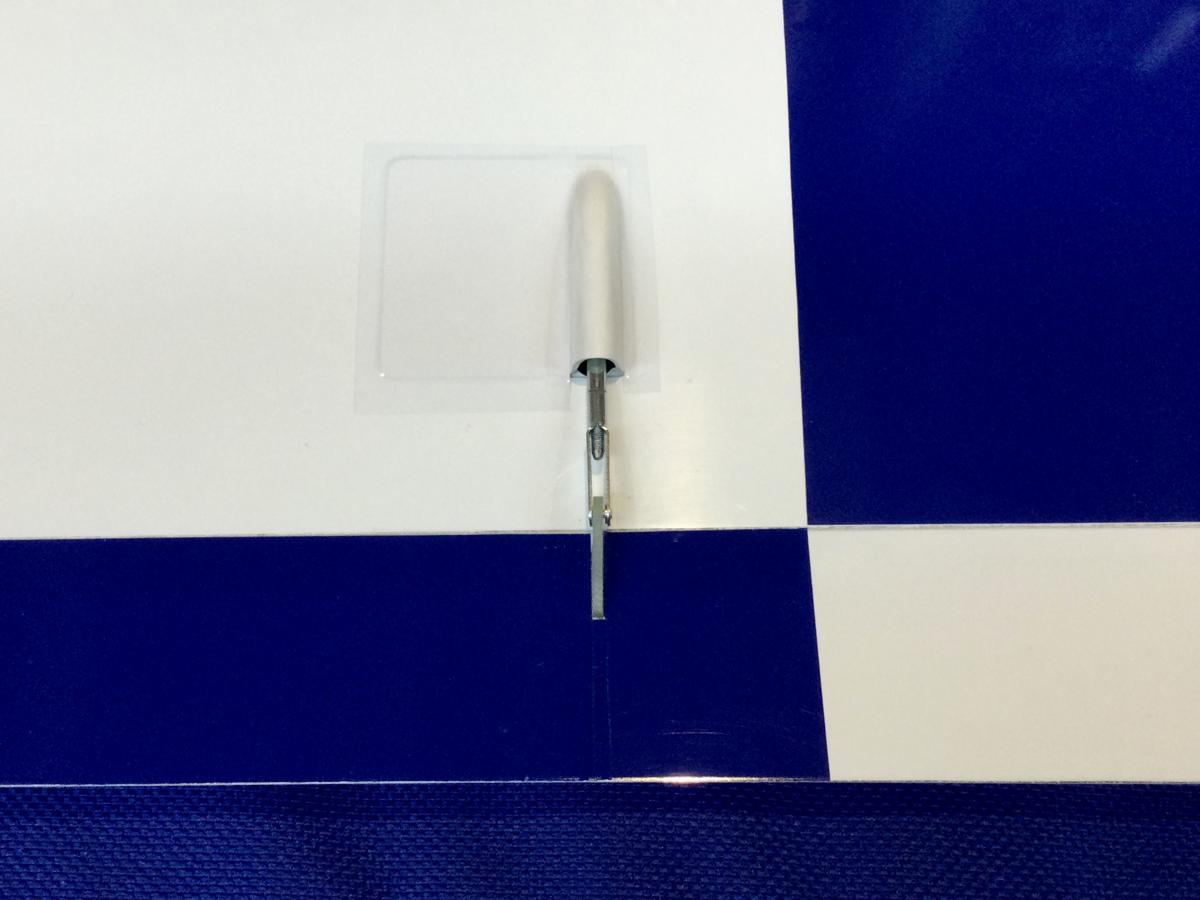

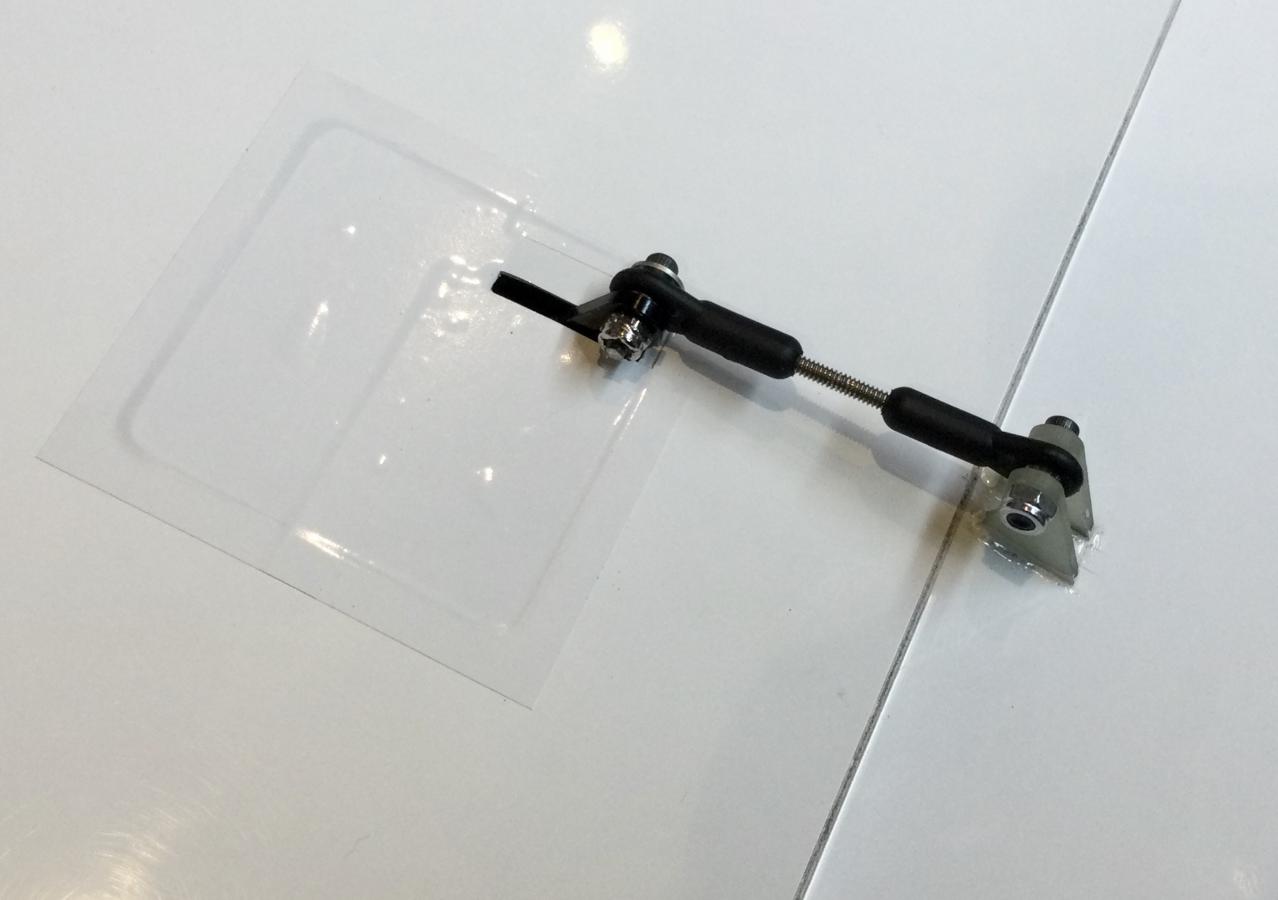

          How an aileron looks when it's all buttoned up. Went will more robust than 4-40 metric rod and clevis. The servo covers used are actually the Radim Horky ones for his 6.6 meter Arcus replacing the simple flat covers intended for the so-so internal linkages I've bypassed.

          Click image for larger version  Name:	 Views:	0 Size:	70.0 KB ID:	44302

          Tips got a splash of red color. Red-Blue-White fits with the Slovenian theme I'm doing. Bottoms have a red check pattern similar to the main panel blue bottoms.
          Click image for larger version  Name:	 Views:	0 Size:	109.2 KB ID:	44304
          Click image for larger version  Name:	 Views:	0 Size:	131.4 KB ID:	44303

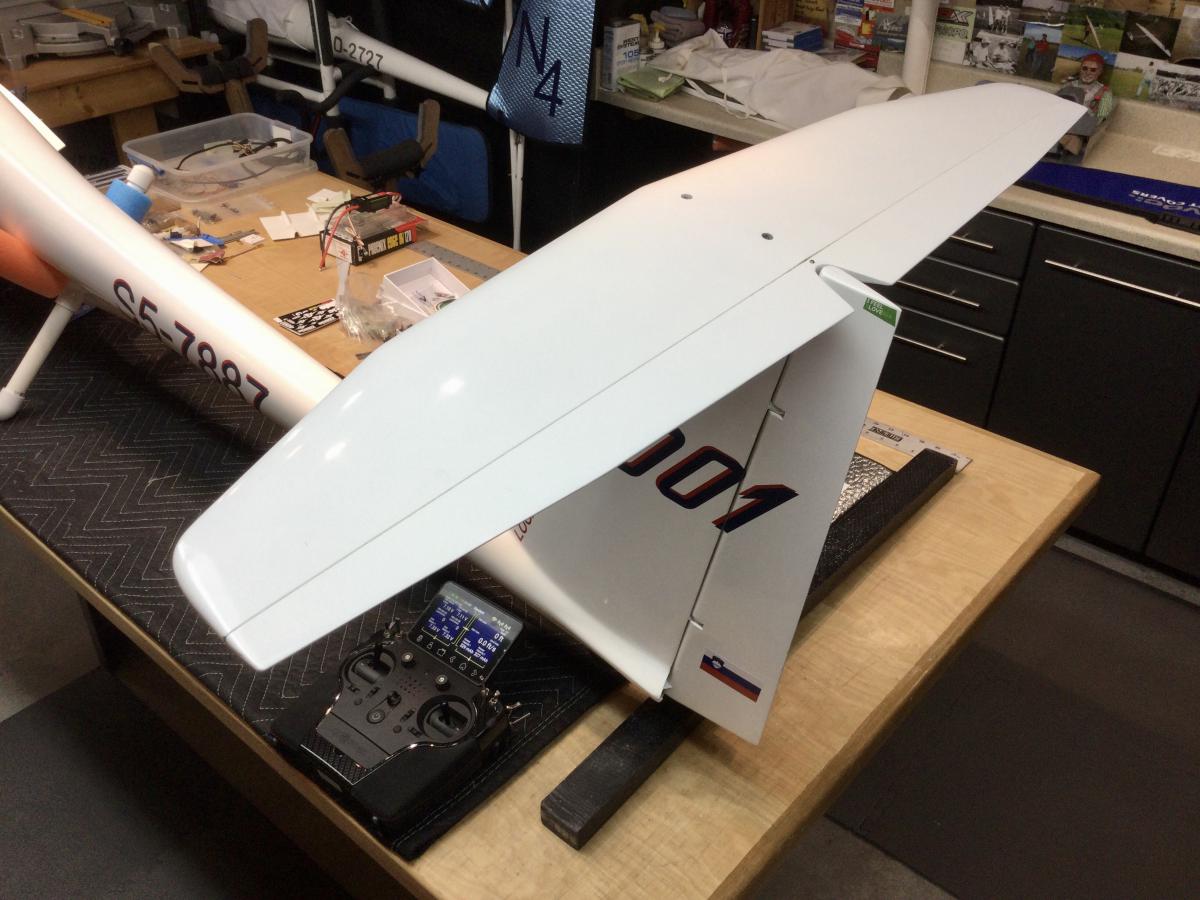

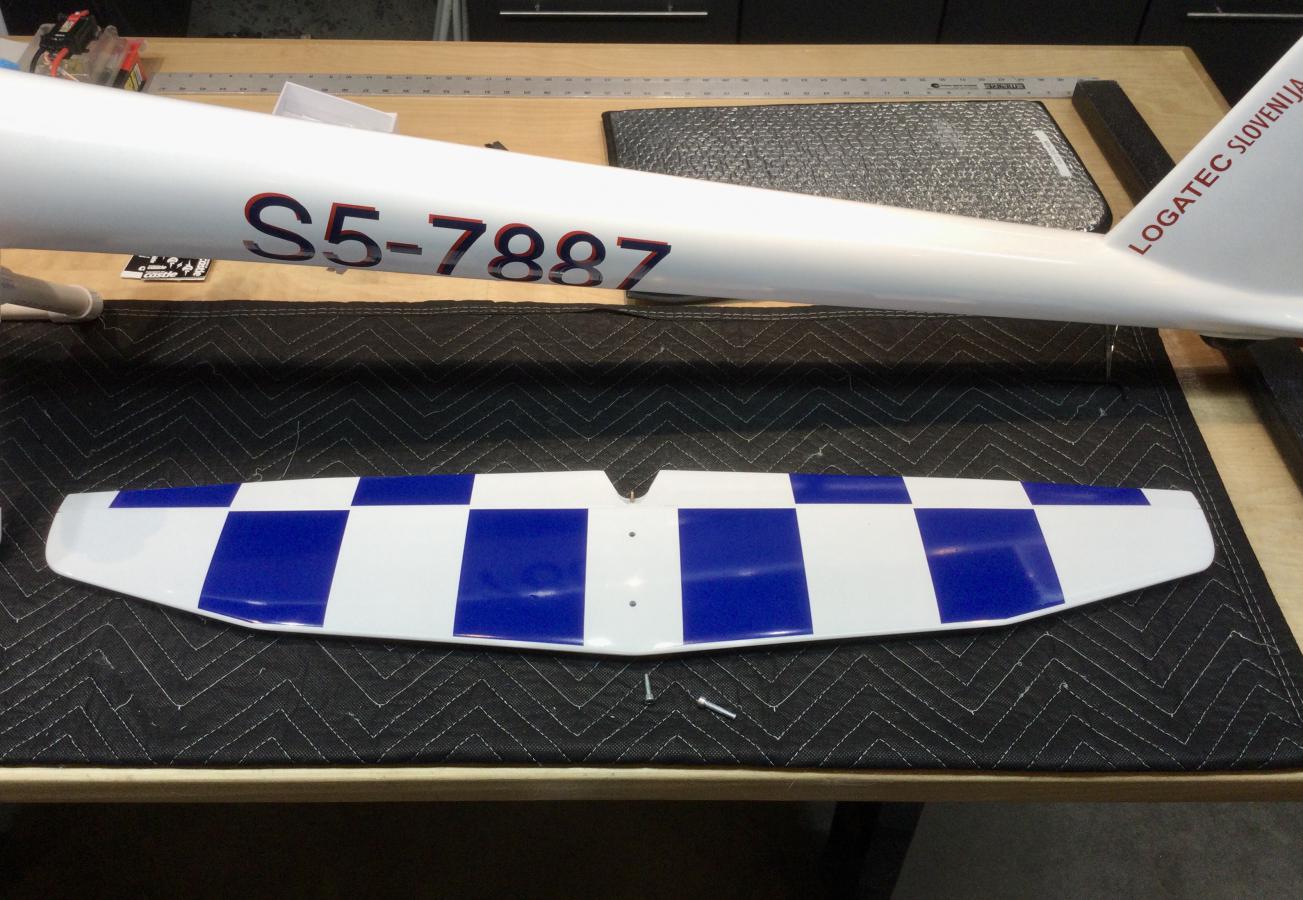

          The horizontal stab felt left out of the party

          Click image for larger version  Name:	 Views:	0 Size:	157.1 KB ID:	44305
          Last edited by Steve P; 04-07-2021, 12:23 PM.
          Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

          Comment


          • #6
            A few more shots before moving back inside the fuselage.

            The flaps are exceptionally long and only have one servo. I decided to try and make everything as stout as possible by using a H9 metal servo arm and doubling the control surface horns, again buried deep in the surface with Hysol. Once all is set on surface travels, the rod will get a thick wall carbon tube cover installed with epoxy physically uniting the two ball joints.

            Click image for larger version  Name:	 Views:	0 Size:	55.9 KB ID:	44308


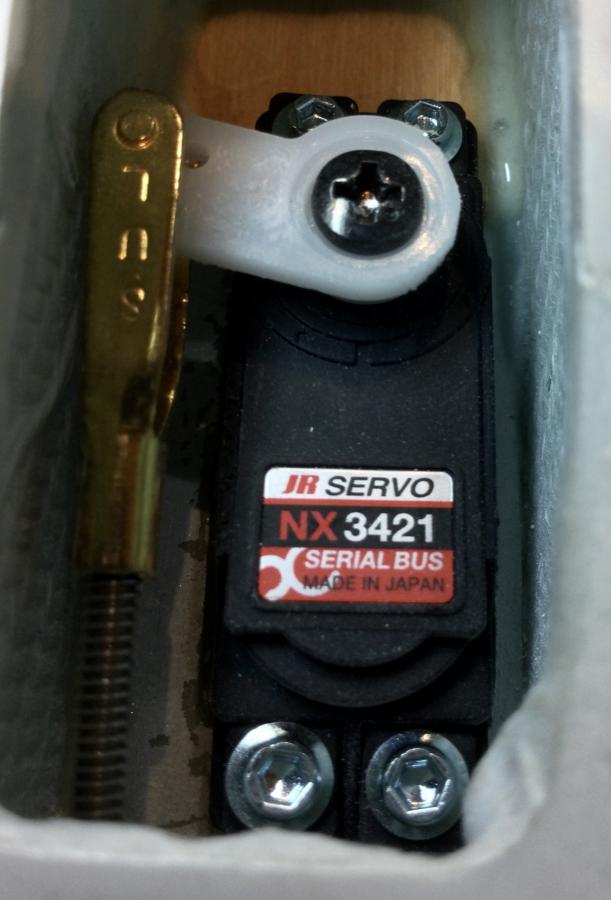

            Inside the tail another HV servo and typical elevator setup. The horizontal stab size is very generous. It's a biggin!

            Click image for larger version  Name:	 Views:	0 Size:	52.5 KB ID:	44307
            Click image for larger version  Name:	 Views:	0 Size:	120.2 KB ID:	44309
            Last edited by Steve P; 04-07-2021, 12:25 PM.
            Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

            Comment


            • #7
              I love wiring -- I know, I'm a sicko.

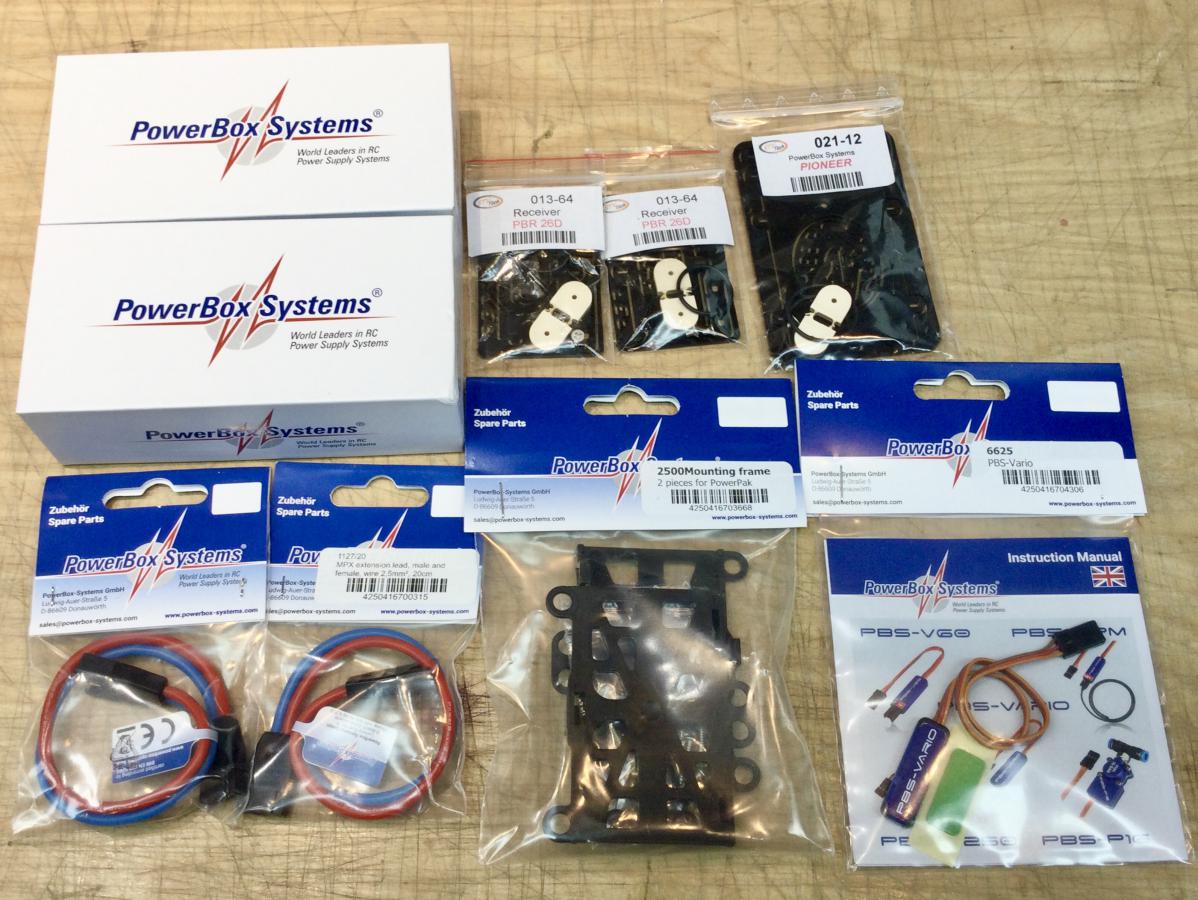

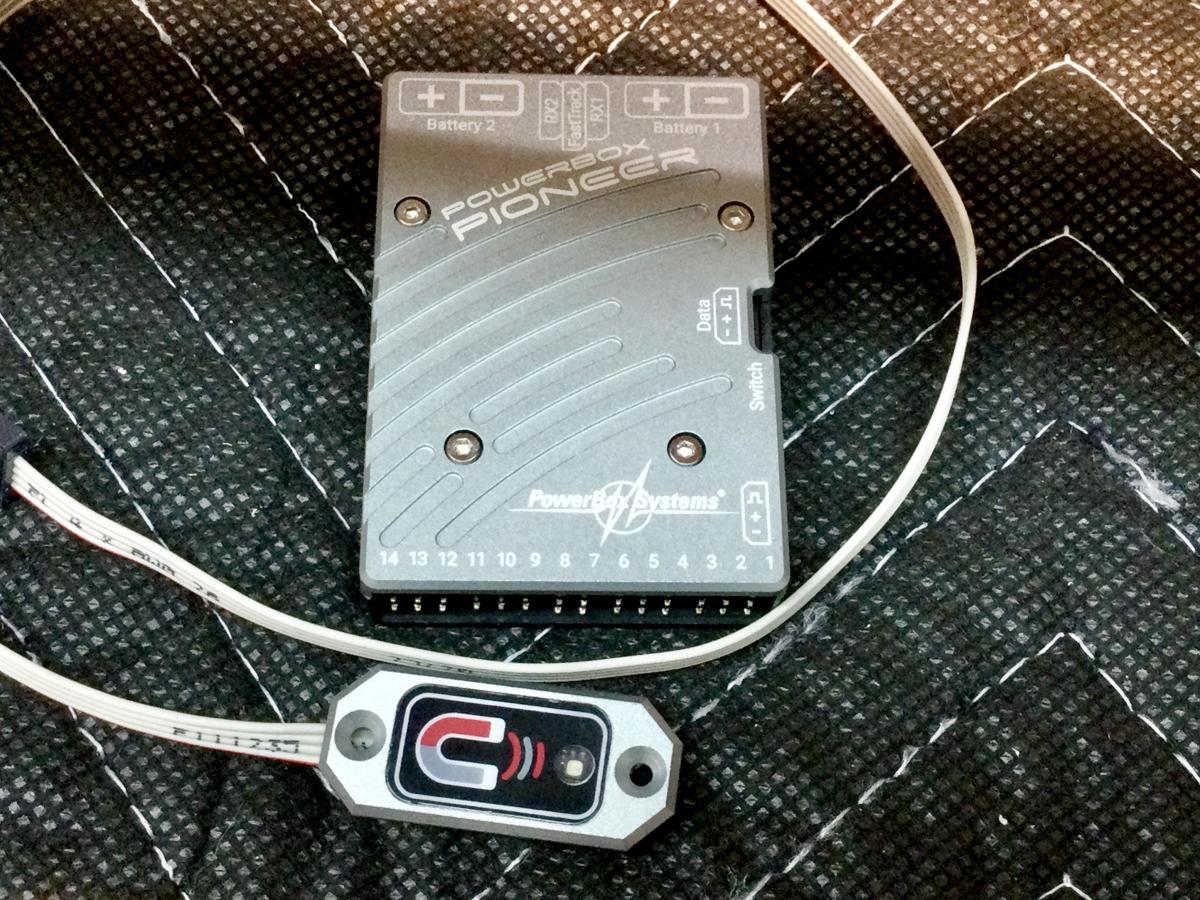

              PowerBox Pioneer + two 26D receivers + two 2500 LiPo packs + PBR Vario + STV Tech mounts

              Click image for larger version  Name:	 Views:	0 Size:	165.2 KB ID:	44311

              Absolutely LOVE the Pioneer. Great for these HV setups

              Click image for larger version  Name:	 Views:	0 Size:	227.9 KB ID:	44312

              Ooh. That's niiiicccceee....

              Click image for larger version  Name:	 Views:	0 Size:	193.6 KB ID:	44313
              Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

              Comment


              • #8
                Final details before a 80 DAY WAIT for a Torcman order that sat at Frankfurt's airport. DHL is a mess as a result of the pandemic. Had I known, overnight service would have been a consideration. In any case, this whole project is in no way shape or form a rush job.

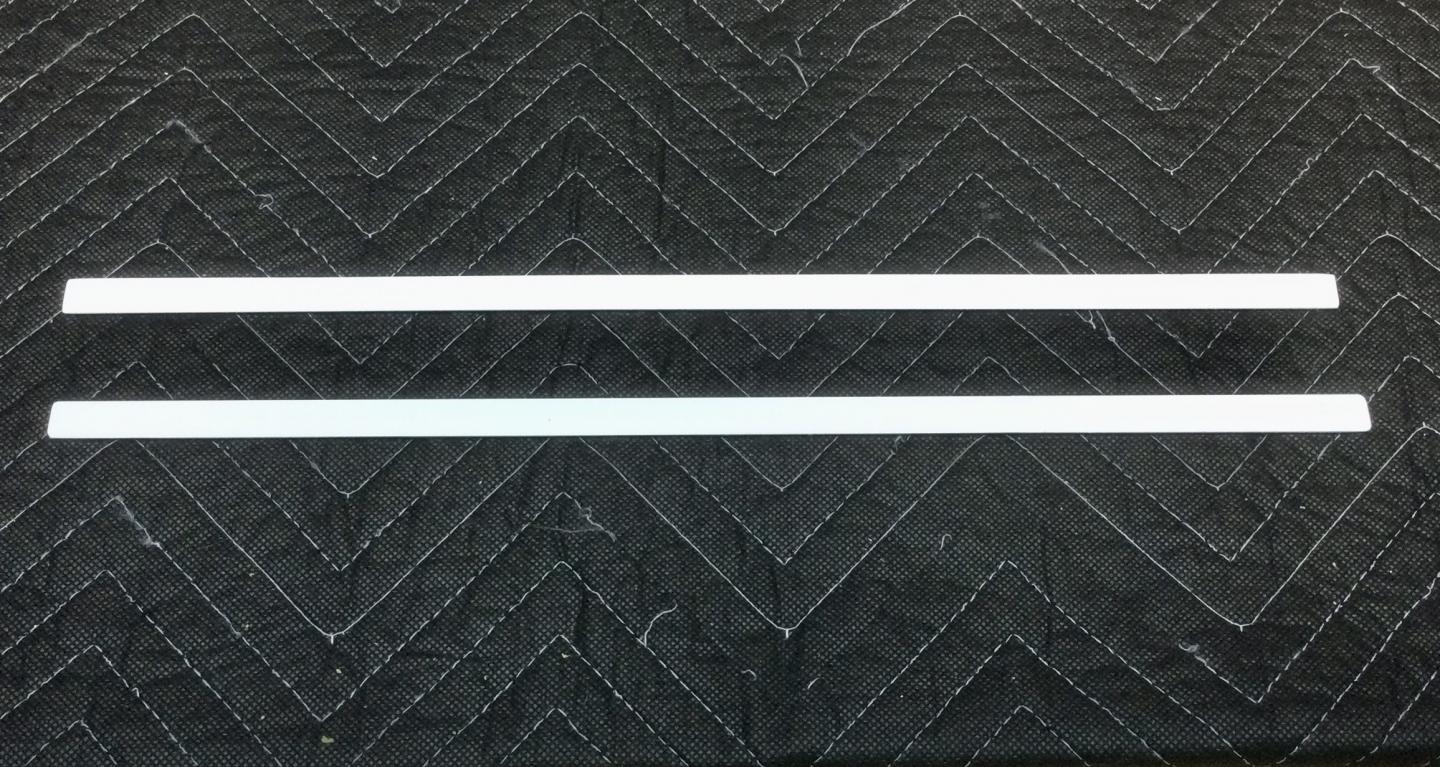

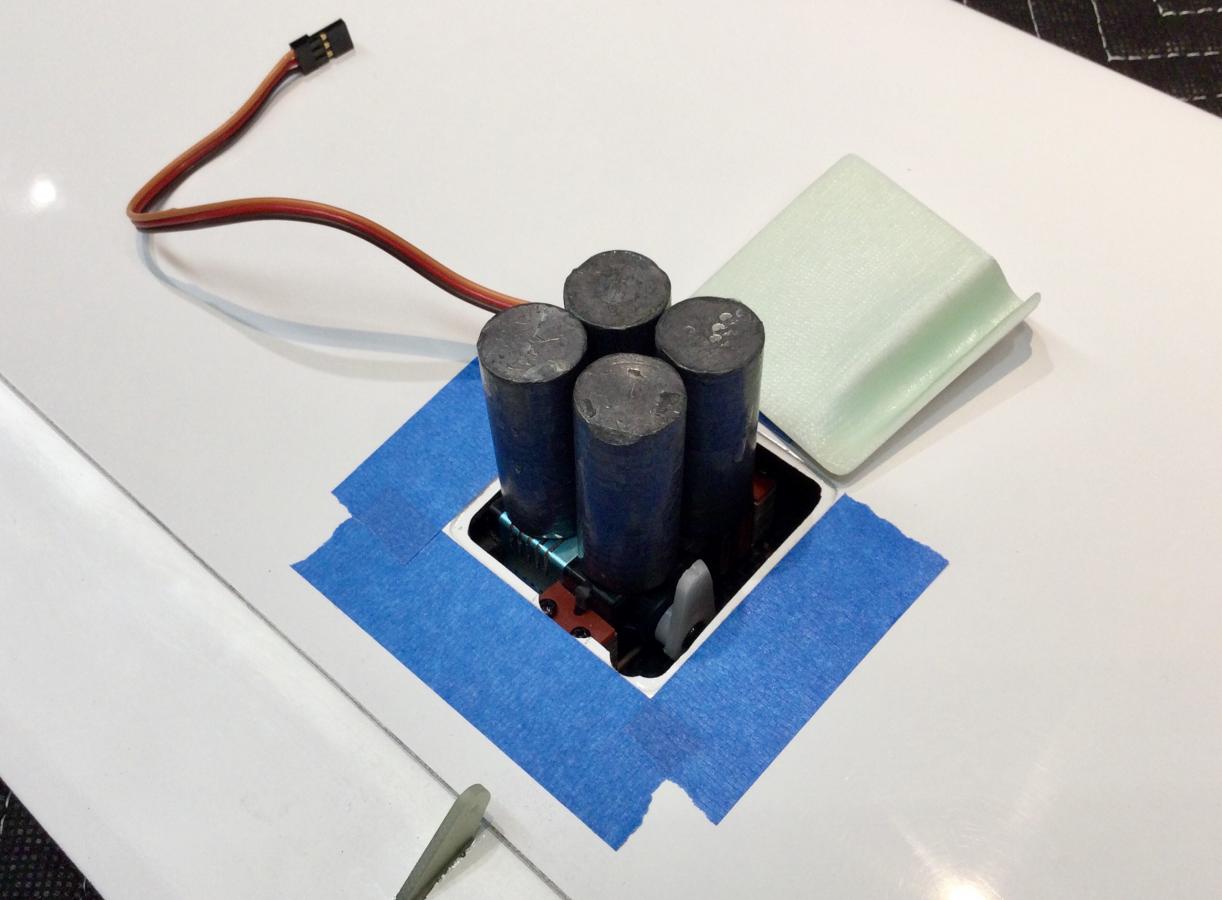

                I may love wiring, but for some reason I hate installing spoiler caps. Gotta get them right and on strong like bull. It went amazingly well with minimal swearing.

                Click image for larger version  Name:	 Views:	0 Size:	227.0 KB ID:	44316

                Final detail at this stage is to make-up a tow release. It needs to sit on the fuselage bottom exactly beneath the front seat pan control binacle. Best to wait for the FES install so there is nothing in the way. So, the parts were made-up and put aside.

                Click image for larger version  Name:	 Views:	0 Size:	195.8 KB ID:	44315

                The waiting is the hardest part

                Click image for larger version  Name:	 Views:	0 Size:	185.6 KB ID:	44317
                Last edited by Steve P; 04-06-2021, 07:34 PM.
                Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

                Comment


                • #9
                  So. While DHL tracking continues to say the package is sitting in Germany, it decided to appear in my mailbox anyway on Good Friday. On to FES joy and excitement. %$#@! New learnings to be sure.

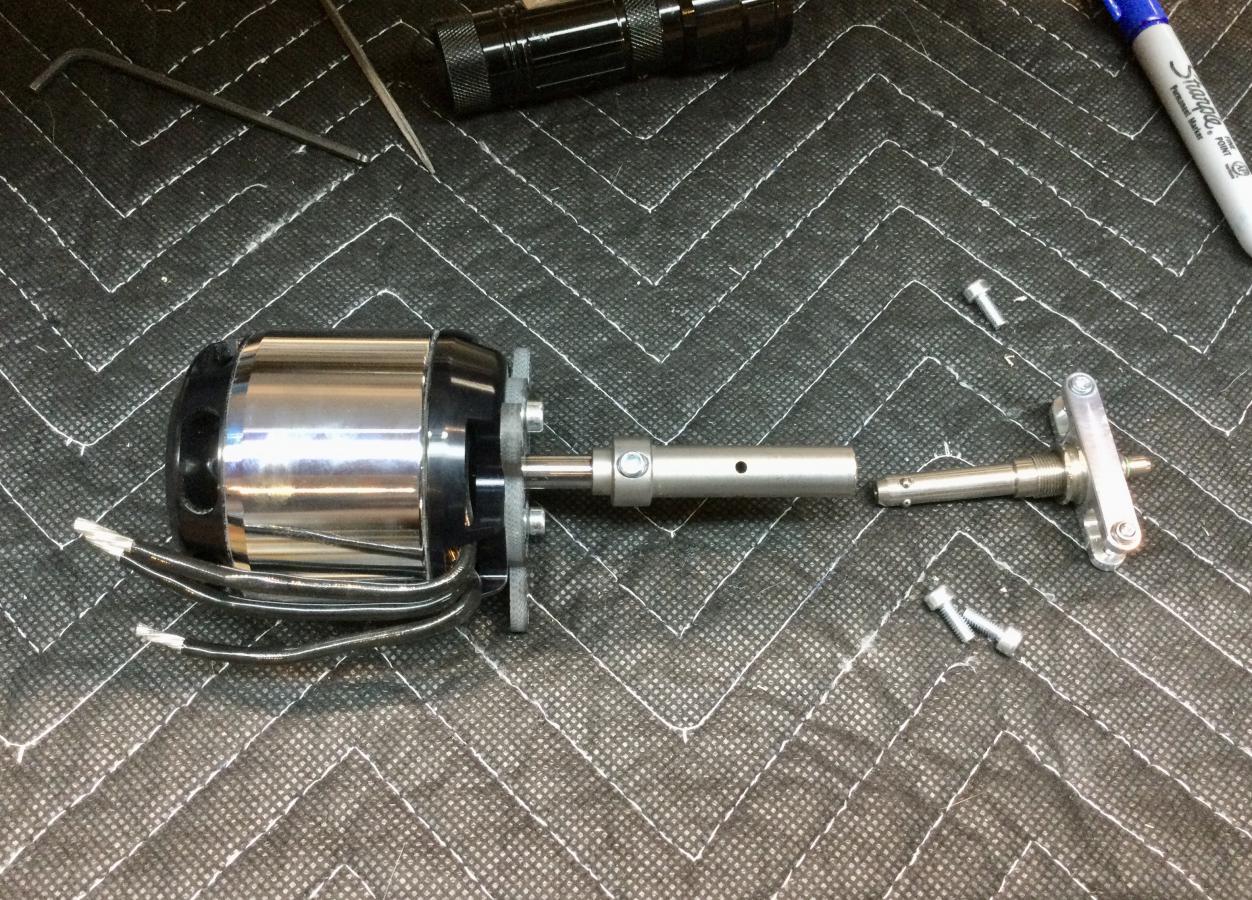

                  Fun toys!

                  Click image for larger version  Name:	 Views:	0 Size:	152.7 KB ID:	44320

                  Measuring up required a call to the FES Helpline (French1) wherein we decided all the math in the world doesn't beat TLAR.

                  And darn good that was the approach. The nose of a DG1000 droops down when the wings are flight level. To install the motor in that manner -- in line with the level wings or slightly up -- would have had an extreme hard upward angle on the motor shaft and the bottom of the circular motor mount would not have fit in the fuselage. As is, the bottom needed to be 80% ground off and the motor can is close to the fuselage bottom at the front. We'll see if some sort of elevator comp to power might be in the cards.

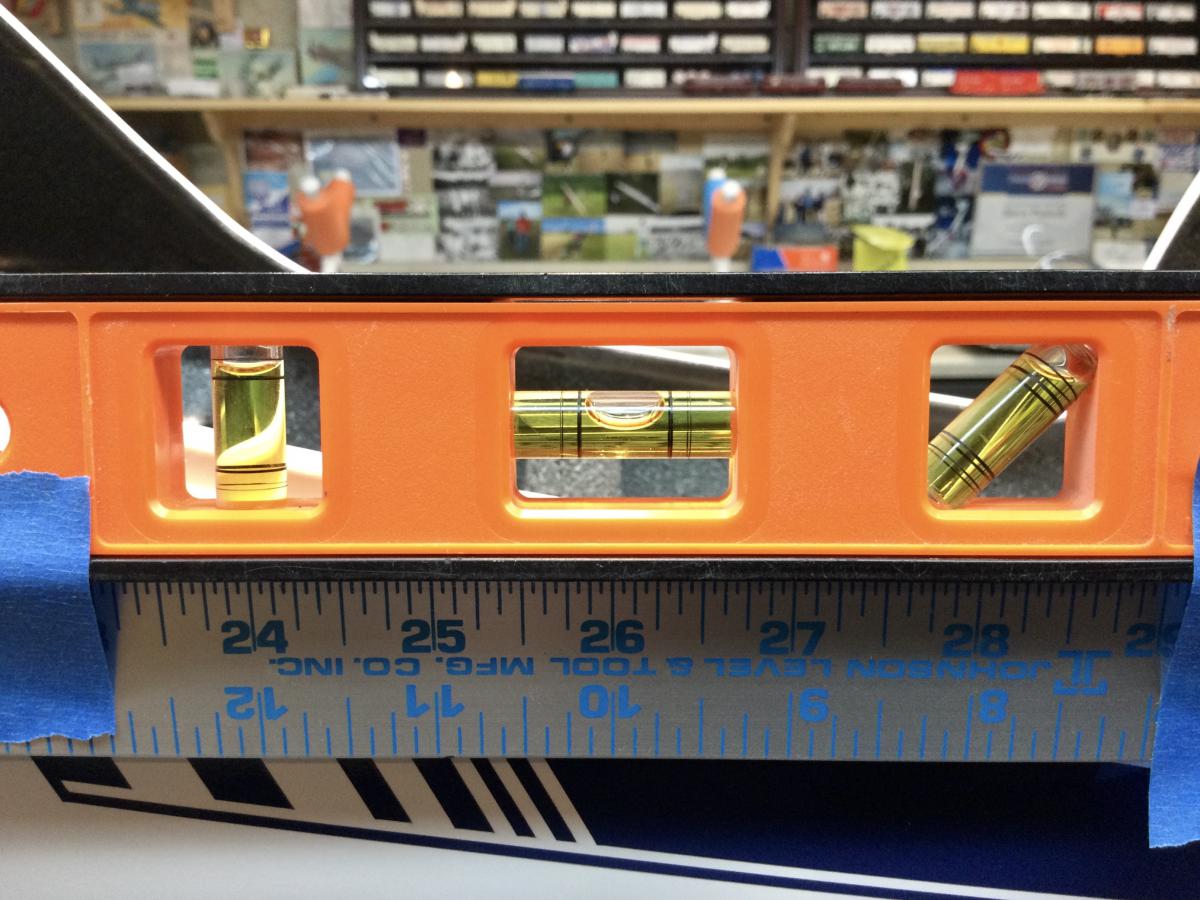

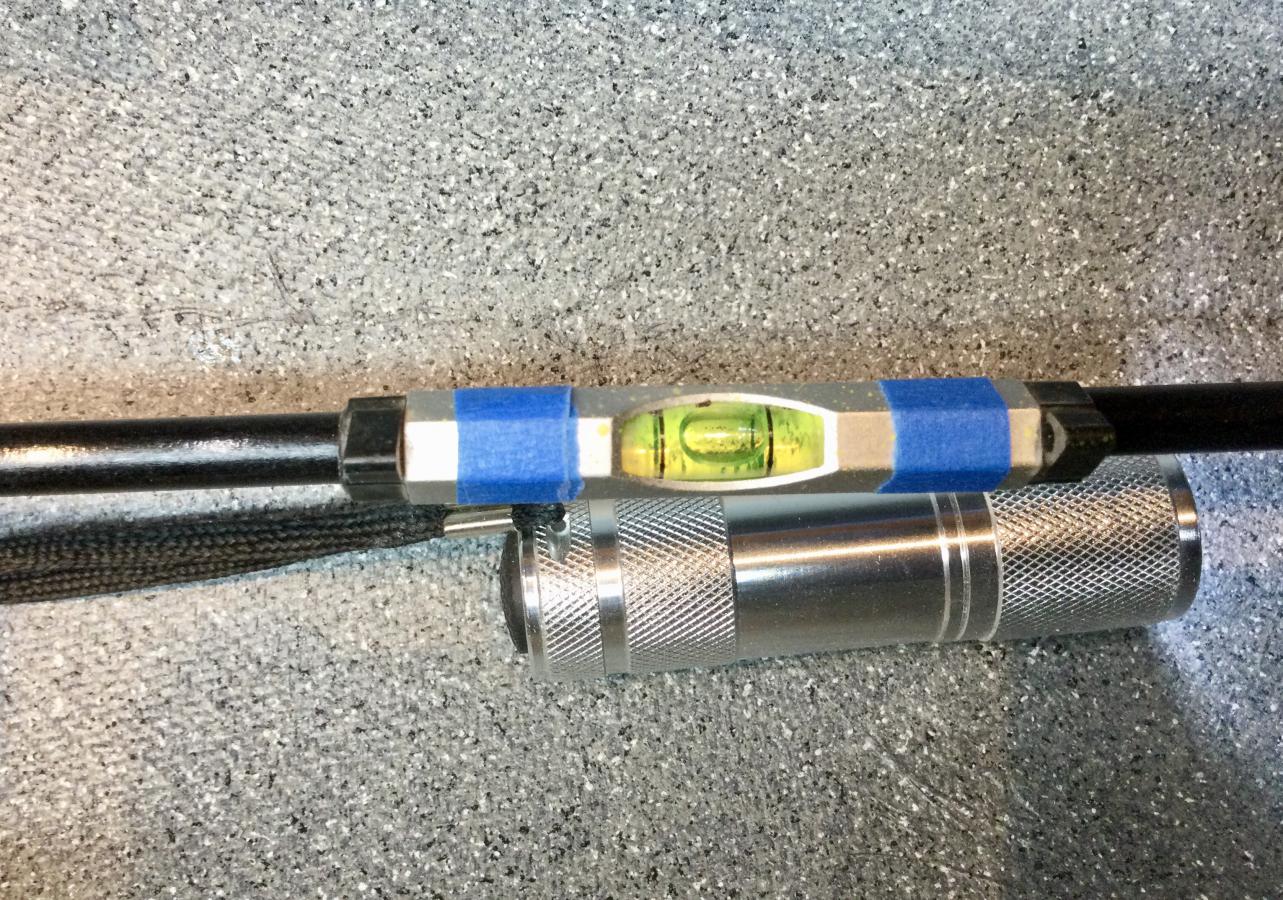

                  Oh well, did the leveling and alignment boogie for future knowledge. It did help give a baseline before the cheat.

                  Click image for larger version  Name:	 Views:	0 Size:	134.9 KB ID:	44321

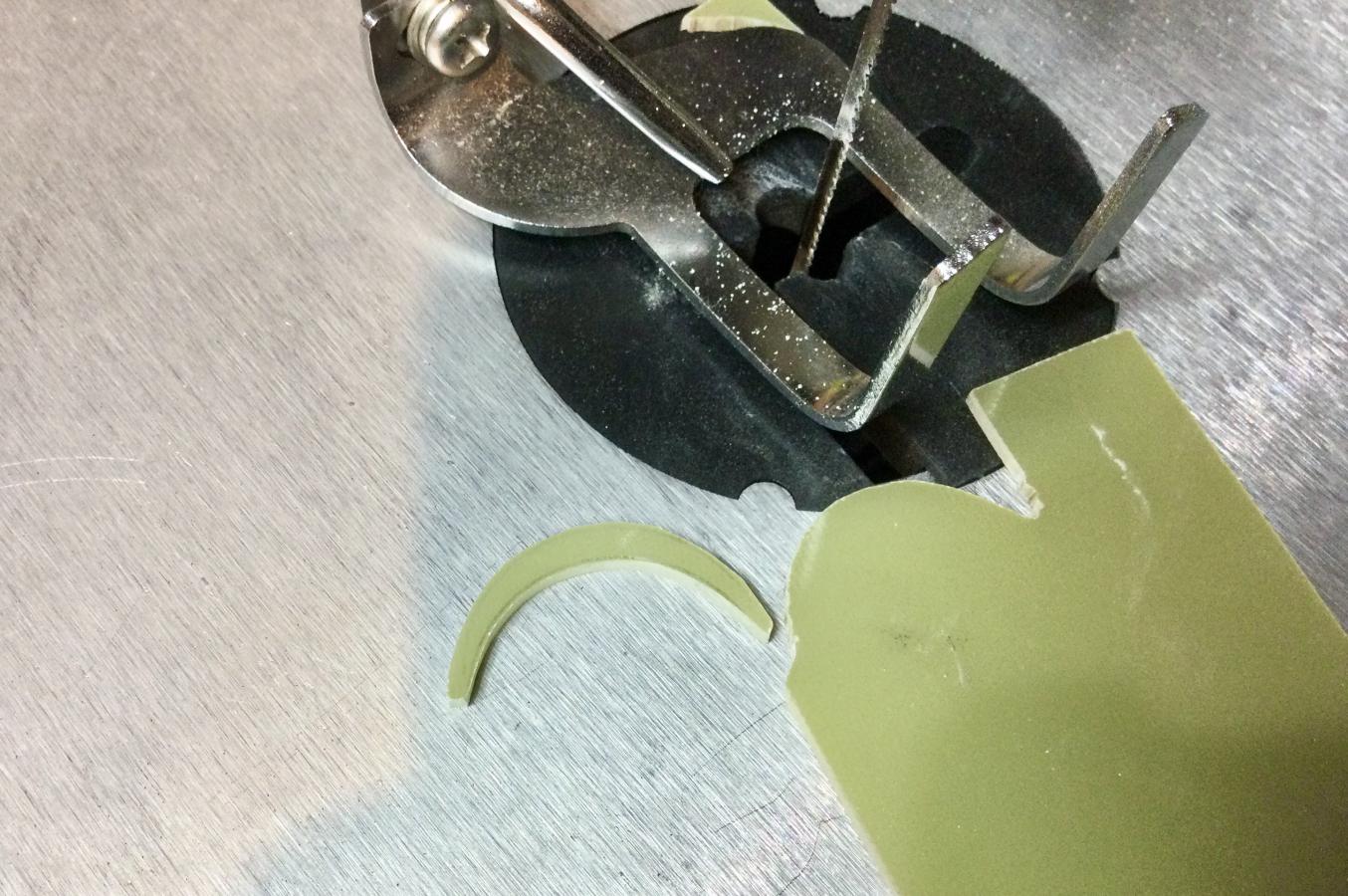

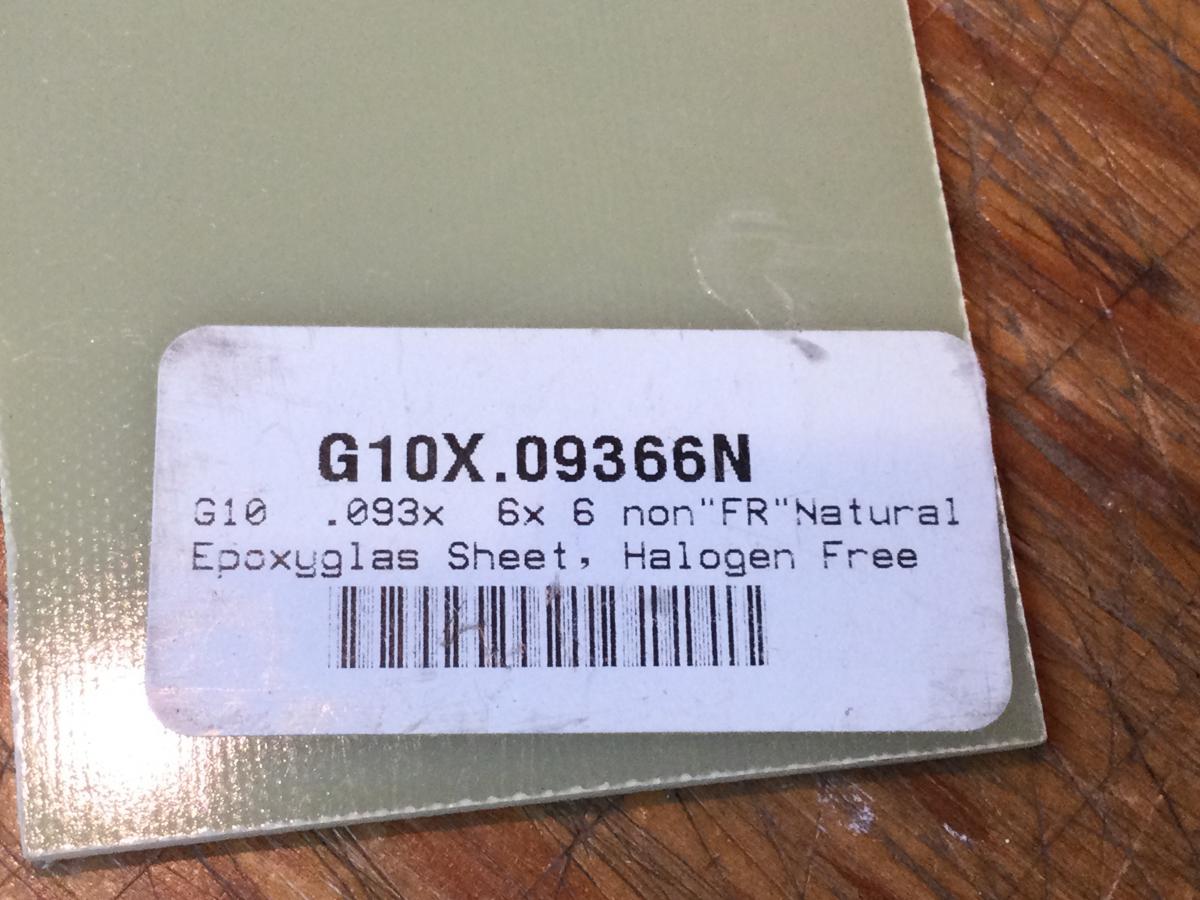

                  A small piece to fit on top of the bearing to fill a gap was fashioned out of G10

                  Click image for larger version  Name:	 Views:	0 Size:	191.9 KB ID:	44322

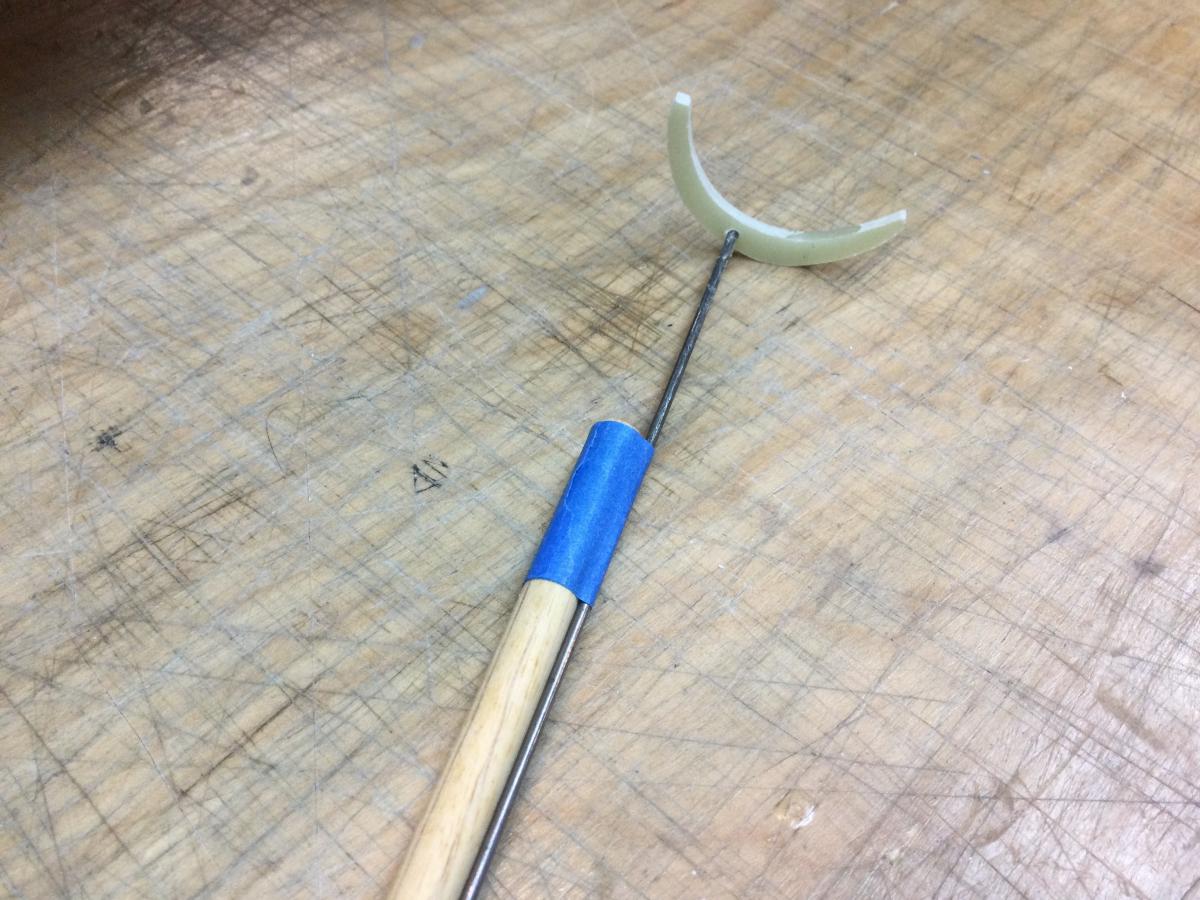

                  Small-piece-fitter-inner device was employed

                  Click image for larger version  Name:	 Views:	0 Size:	146.8 KB ID:	44323

                  About to bear installing the bearing

                  Click image for larger version  Name:	 Views:	0 Size:	106.6 KB ID:	44319

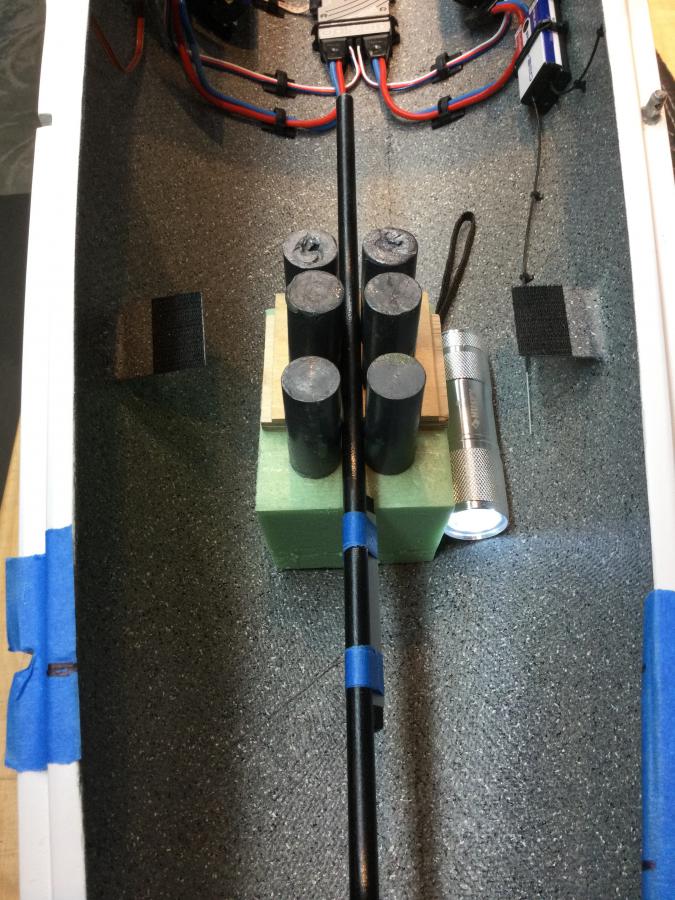

                  Waiting for the epoxy to cure needed to be sure all stayed in alignment

                  Attached Files
                  Last edited by Steve P; 04-06-2021, 08:44 PM.
                  Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

                  Comment


                  • #10

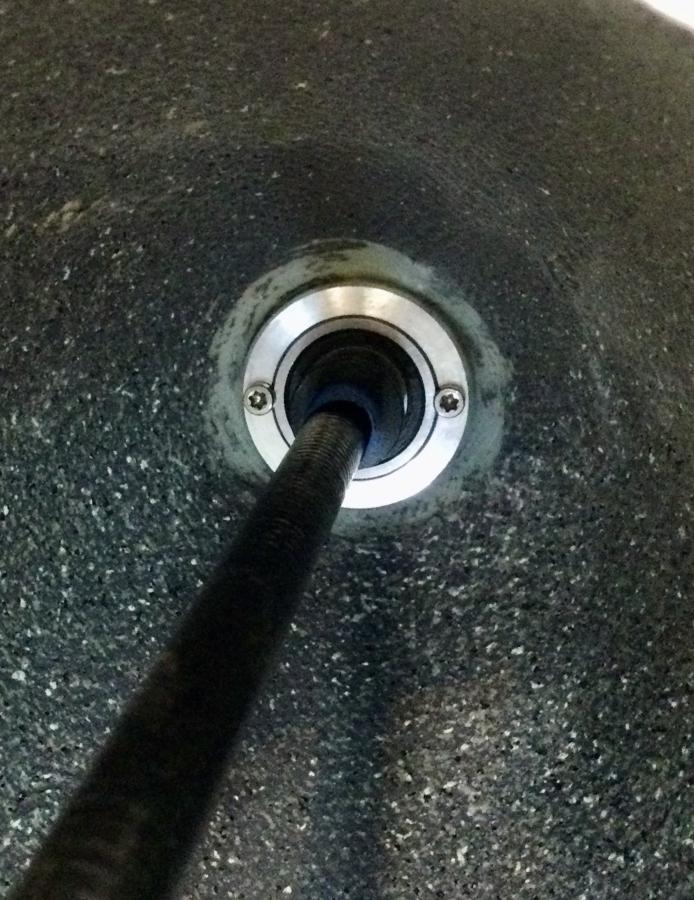

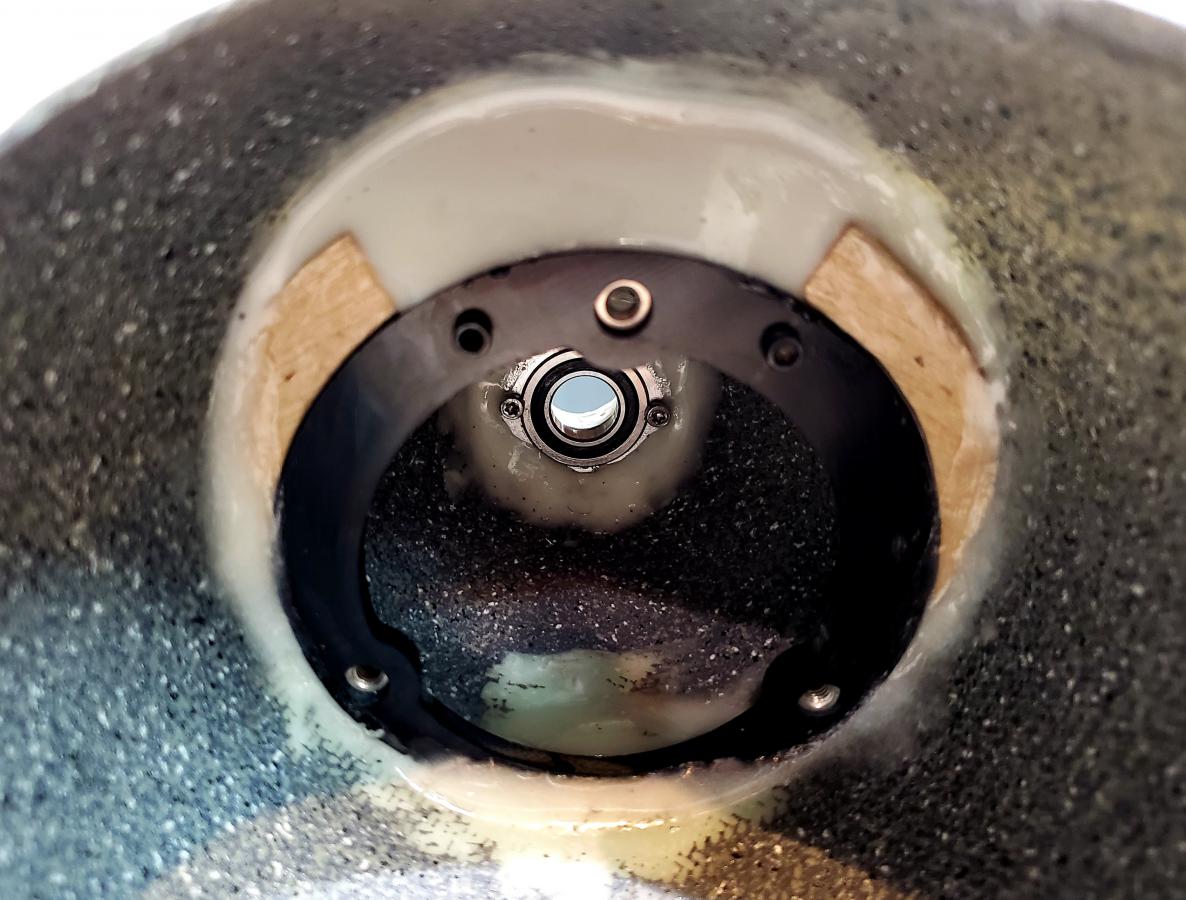

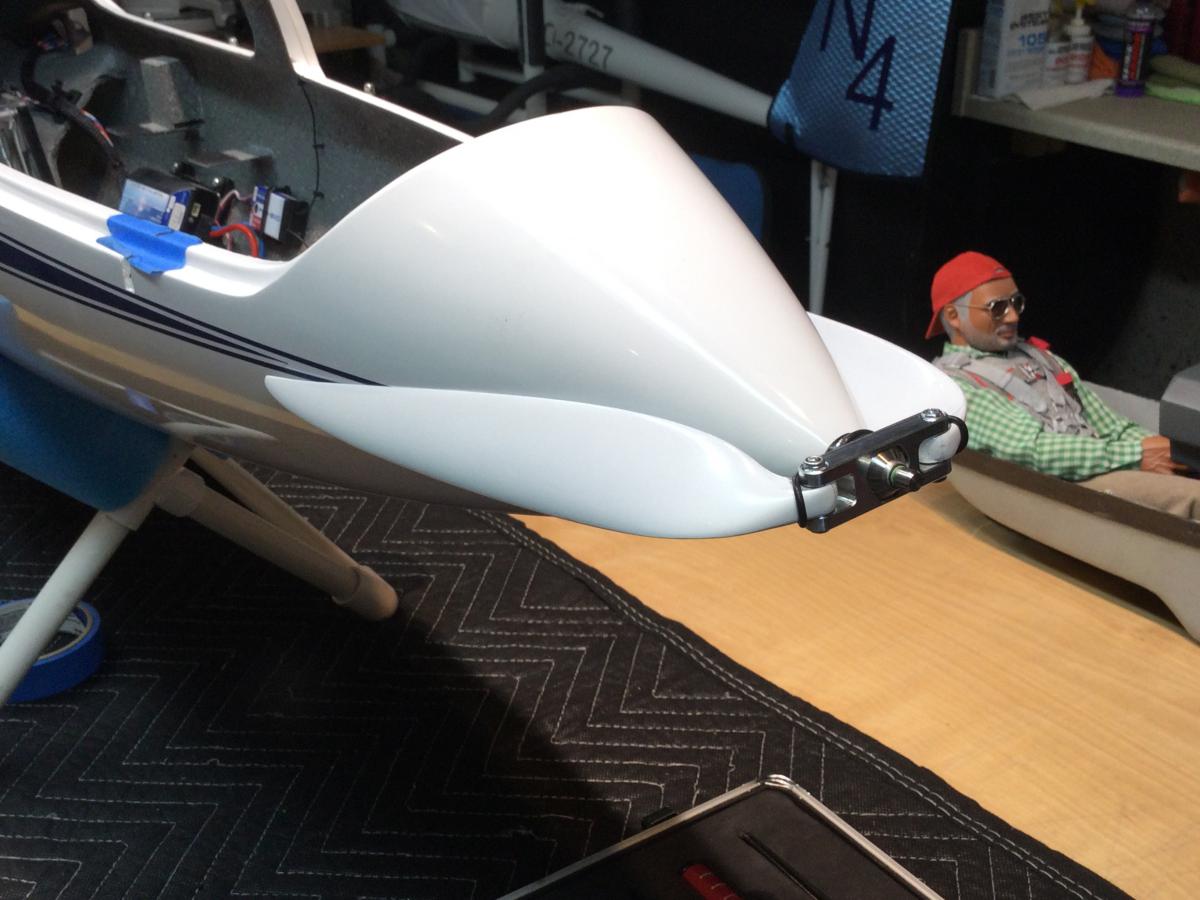

                    And where things stand as of the past weekend. Bearing installed, motor mount outer ring installed so that the shaft and propeller mount (the tube the removeable prop device slides into) align smoothly with the bearing.

                    This takes time and multiple tweaks and checking in and out of the fuselage. The motor must be installed in the mount and then in the ring to get everything aligned. There is no eyeballing here. Patience.

                    The substantial gap at the top of the mount ring was closed with another G10 section bolted to the front of the ring. Once that was all installed and epoxied in place, two small wedges of ply that overlapped a portion of the G10 closed the remaining small gaps to the left and right. A final dose of epoxy further unified everything. Not the greatest shot given the angle, but you get the idea...

                    That's it until another future weekend

                    Click image for larger version  Name:	 Views:	0 Size:	123.2 KB ID:	44327
                    Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

                    Comment


                    • #11

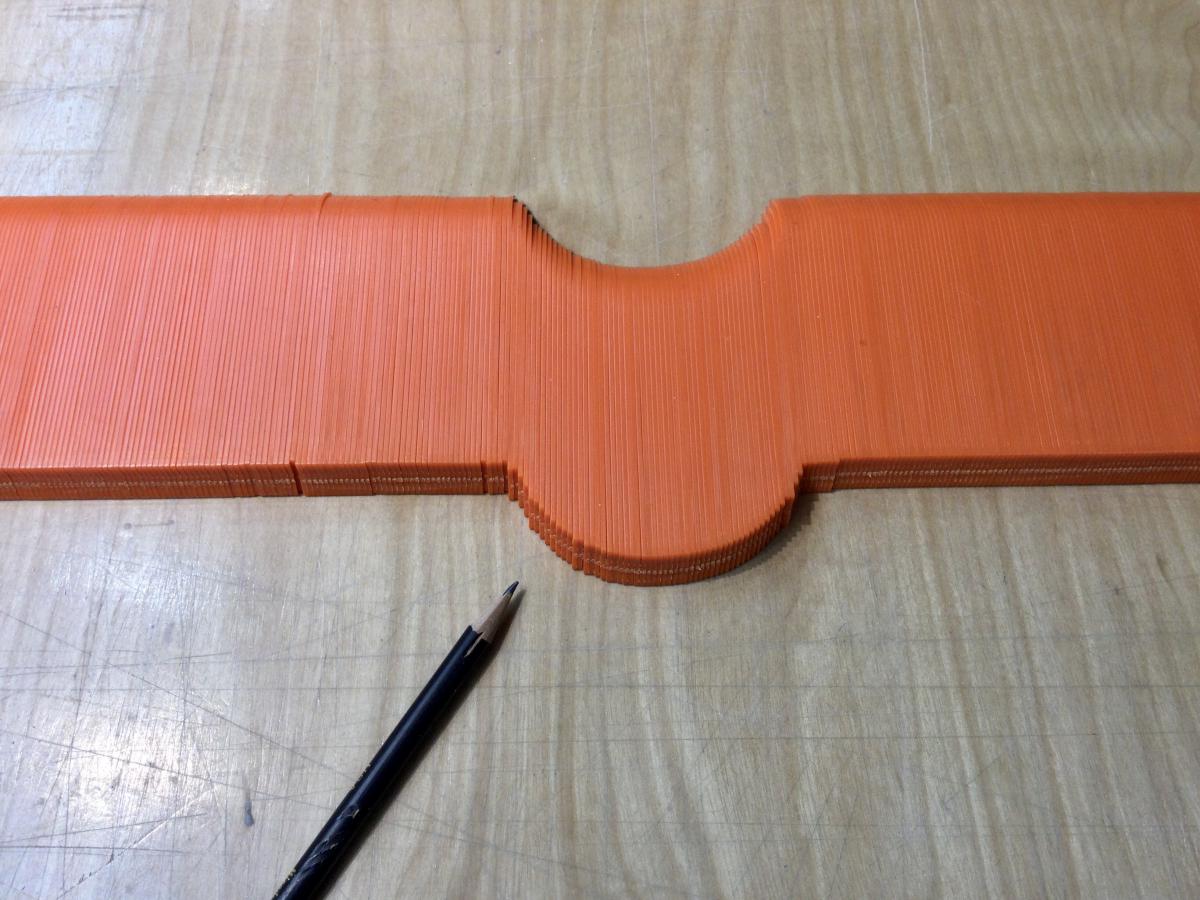

                      Lost a few photos along the way. None of these are consequential, but FWIW... Used a contour gauge on the outside top of the nose to quickly make-up the G10 extension to the motor mount ring, G10 was reasonably thick (still far less that the stout mounting ring), and finally a missing shot of the initial bearing alignment using a long rod and the bearing fitting provided by Torcman.

                      Click image for larger version

Name:
Views:	0
Size:	132.4 KB
ID:	44332

                      Click image for larger version

Name:
Views:	0
Size:	121.4 KB
ID:	44331

                      Click image for larger version

Name:
Views:	0
Size:	281.0 KB
ID:	44333
                      Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

                      Comment


                      • #12
                        Finally back in the workshop to finish the motor (NT530-35/14 Pol/14W) install and tow release.

                        Trimming the motor shaft was a non event using the Dremel EZLock thin metal blade. Took 5 minutes.

                        Click image for larger version  Name:	 Views:	0 Size:	264.1 KB ID:	44352

                        White RFM 18x11 propeller blends in well

                        Click image for larger version  Name:	 Views:	0 Size:	104.5 KB ID:	44350

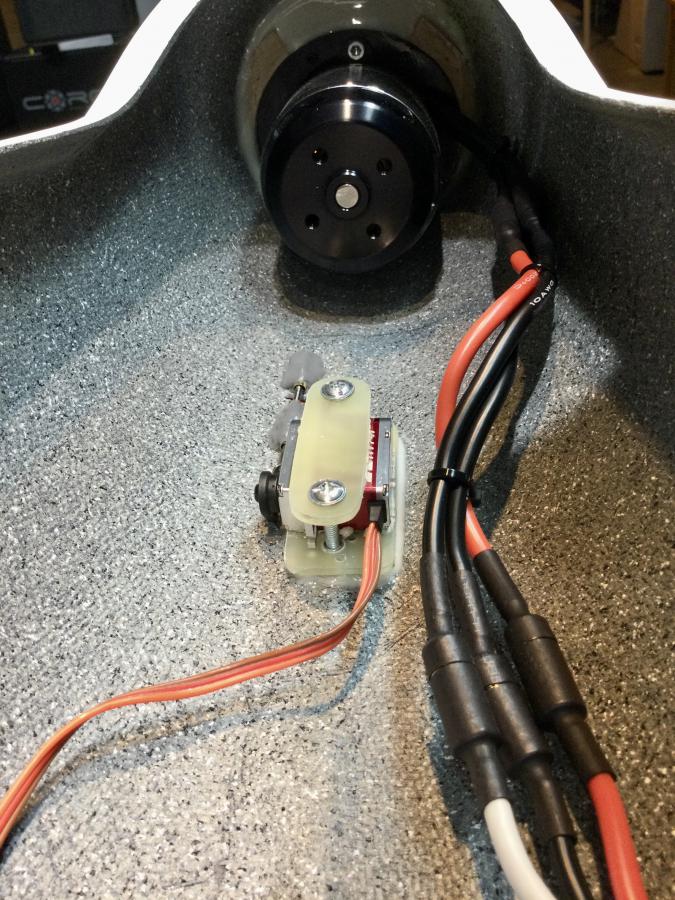

                        Tow release plan worked out.

                        Click image for larger version  Name:	 Views:	0 Size:	132.7 KB ID:	44353

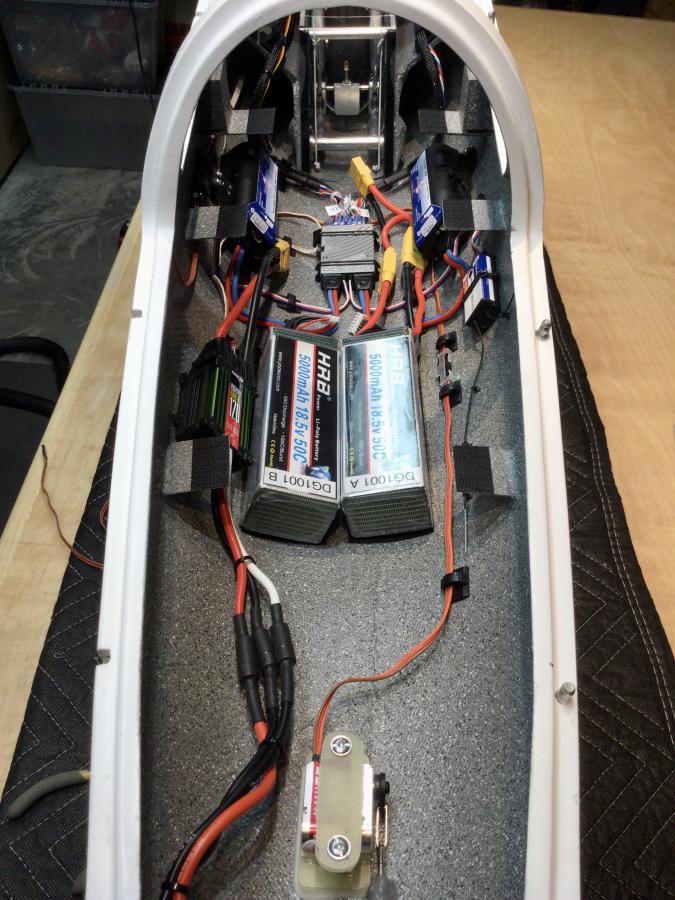

                        All the “stuff” finally in place. 10s 5000mAh 50C motor motivators.

                        Click image for larger version  Name:	 Views:	0 Size:	112.9 KB ID:	44351
                        Last edited by Steve P; 04-11-2021, 07:54 PM.
                        Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

                        Comment


                        • #13

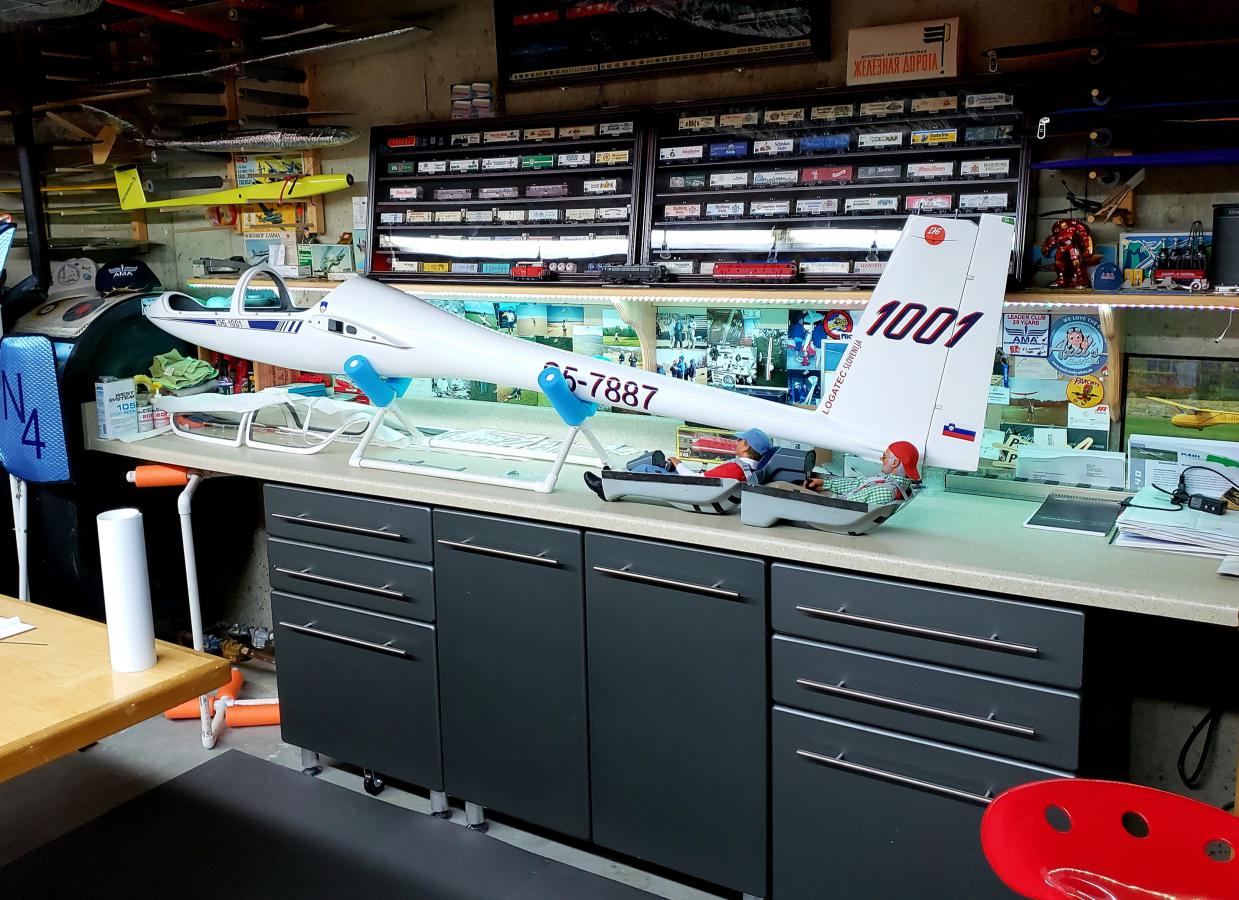

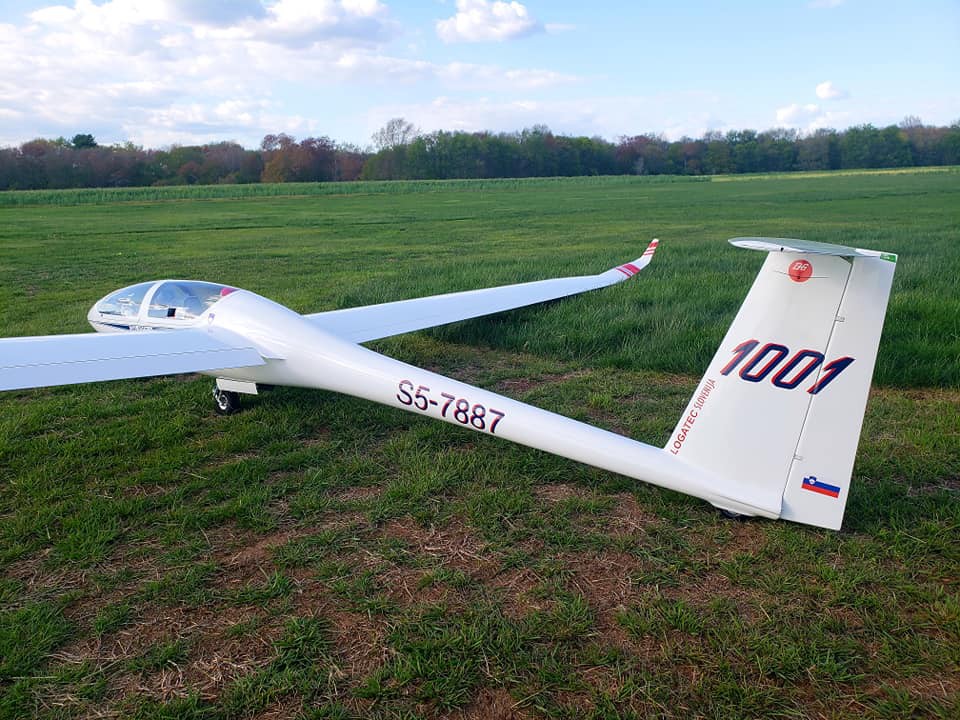

                          All buttoned up...

                          Click image for larger version

Name:
Views:	0
Size:	184.3 KB
ID:	44357

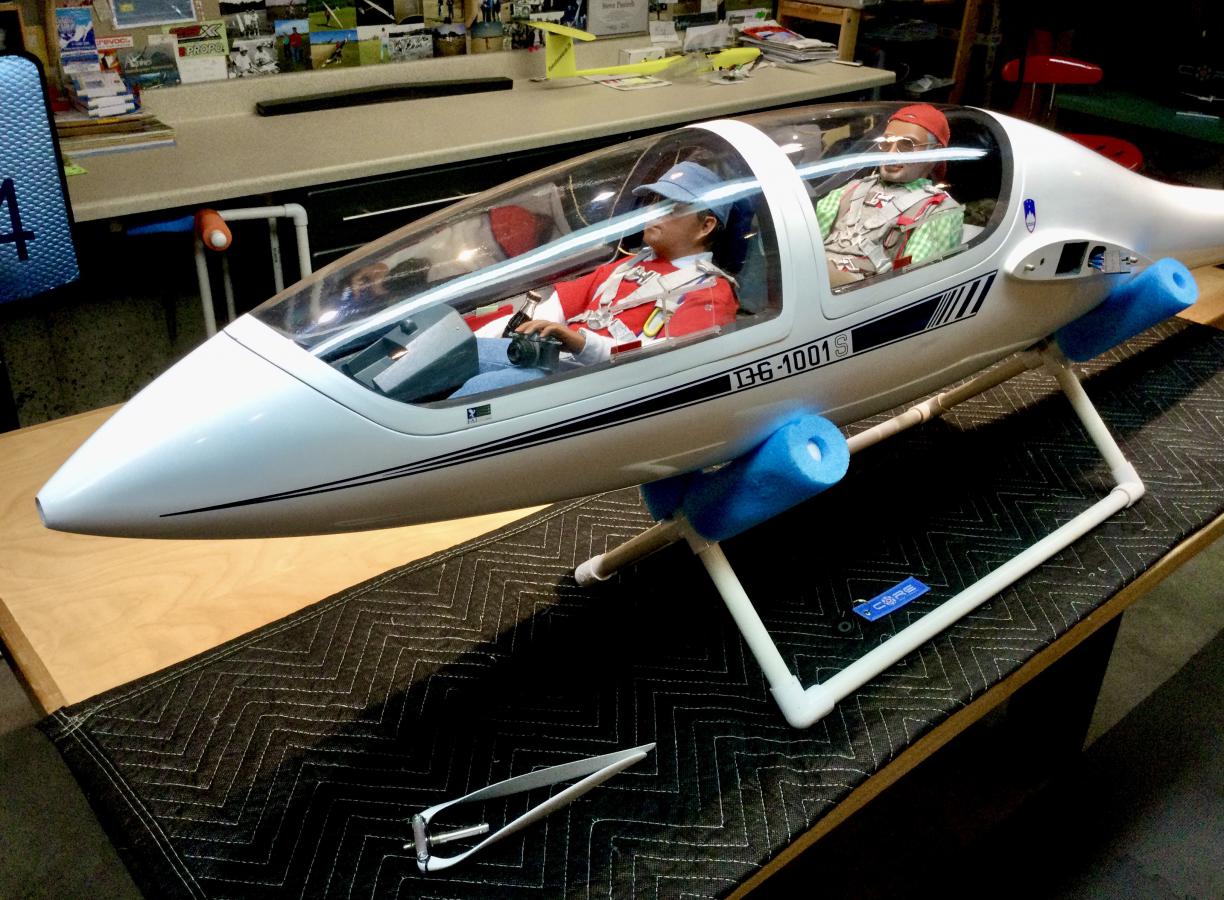

                          Hauling tourists helps pay the bills, but didn’t we say no food or drinks!!!

                          Click image for larger version

Name:
Views:	0
Size:	167.5 KB
ID:	44358
                          Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

                          Comment


                          • Swiss1
                            Swiss1 commented
                            Editing a comment
                            I hope he has a bottle opener in there somewhere!
