  • Gunny's Concept of E-Flite L-13 Blanik

    Click image for larger version

Name:	image_1330.png
Views:	269
Size:	948.3 KB
ID:	4378 Click image for larger version

Name:	image_1339.jpg
Views:	229
Size:	10.4 KB
ID:	4379 Click image for larger version

Name:	image_1340.jpg
Views:	264
Size:	96.3 KB
ID:	4380 Click image for larger version

Name:	image_1341.png
Views:	225
Size:	545.6 KB
ID:	4381 Well folks am back again.
    I am modifying the wings to have scale flaps, spoilers/dive brakes and ailerons.

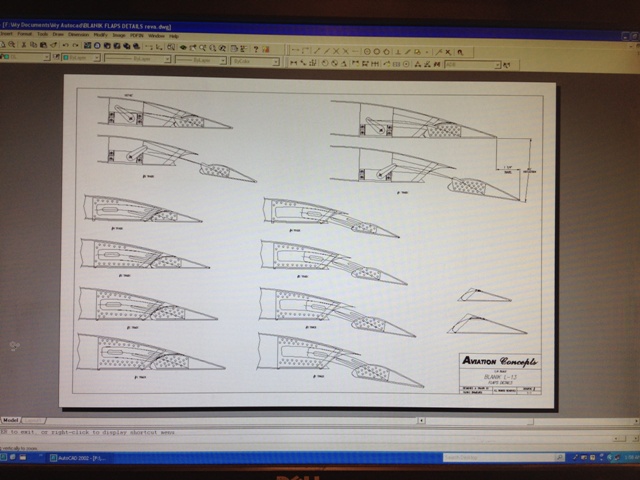

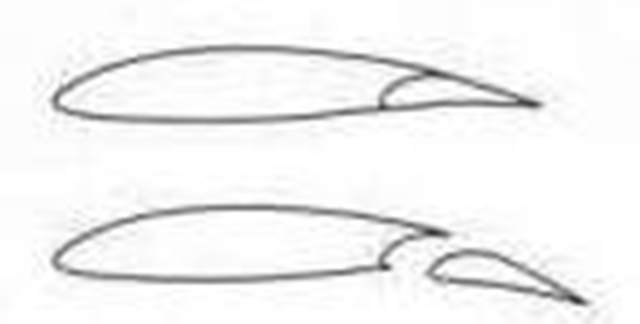

    The scale flaps are of Fowler type flaps that extends from the wing and drop 8°. The real one has 4 tracks guide slots roller bearings and bushings. To make this into a quarter scale I found would be very difficult. So after a month of scratching my head I came up with a simple solution to achieve the same results. Then a couple weeks of engineering and designing prooved that it would work on paper. But as an engineer you know what looks good on paper not necessarily works in the real world. So, off to make a Proto-type. I made 2 prototypes. One was a proof of concept and the 2nd one a working mockup.
    Gunny
    Aviation Concepts rc

  • #2

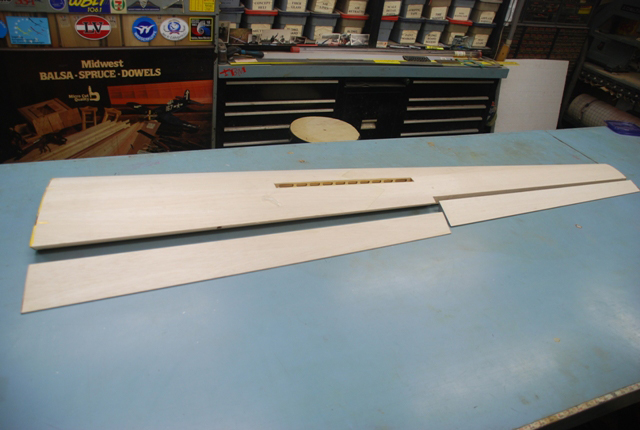

    The 1st thing to do is to strip the covering off of the entire wing separate the aileron's and flaps. Next I removed the internal structure for the spoilers.
    Gunny
    Aviation Concepts rc

    Comment


    • #3
      Gunny

      keep on posting!

      Interested as the blanik is next on the bench after the Discus

      Stéphane
      Stéphane
      Horizon Hobby Team Member

      Comment


      • #4
        I'm sorry to inform you guys that my computer is not playing nicely with scale soaring.com forum. My 2nd post cant upload my pictures from the digital camera where I have many pictures.
        However, you can check out the build thread on the other Groups forum where my pictures can be uploaded and works fine. Thanks Jim for trying to guide me in the right direction of getting my pictures to work piece here but the form says my pictures are corrupted.
        Gunny
        Aviation Concepts rc

        Comment


        • #5

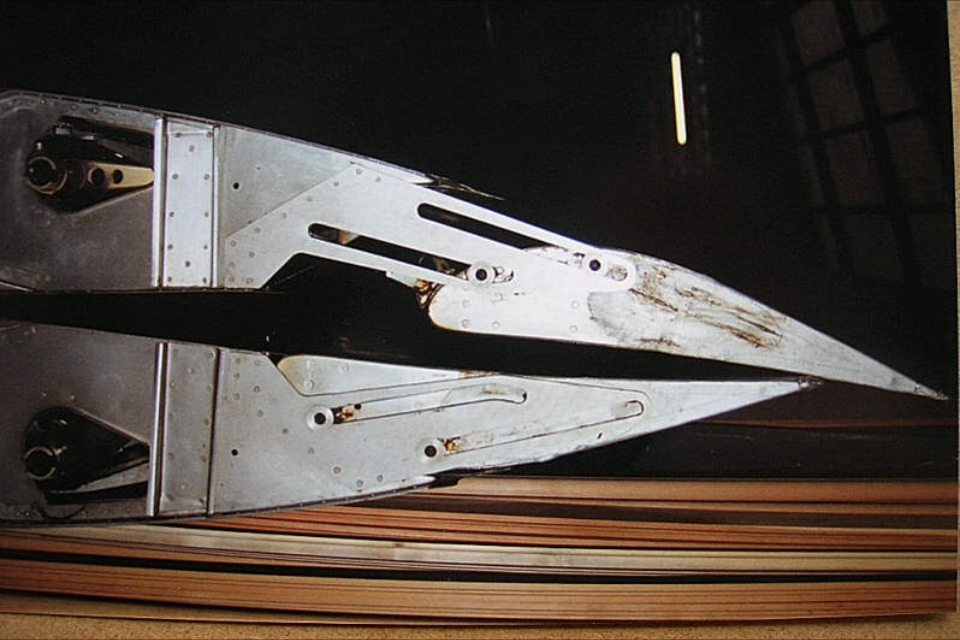

          Gunny- what I did for a Yokosuka D4Y 'Judy' was have the Fowler flaps driven by unequal length and off axis cranks on a torque rod. The flaps are attached to extensions that ride in tracks. as per full scale. If you'd like to see the design then I can e-m it to you. Just PM addy to me. My crappy ISP doesn't play nice with the website. Also, I have pics of yours and Rick's birds at Cumberland I can send.

          Comment


          • #6
            Gunny,

            I have similar issues and upload my picture on Flickr and copy and past the link of the image.

            That is the faster and cleaner way I found...

            Stéphane
            Stéphane
            Horizon Hobby Team Member

            Comment


            • #7
              So Gunny,
              Can we see what you are working on or have created?
              Thanks

              Steve
              Steve K

              Kremer Aerotowing Team

              Comment


              • #8
                Here is the elusive image. I had to use a bigger hammer on the forum!

                (note: I did open this in Photoshop, resave as .jpg high compression and overwrite the original file before uploading)
                Click image for larger version

Name:	DSC_1713.JPG
Views:	150
Size:	207.2 KB
ID:	4477

                Comment


                • #9
                  well, I finally finished it. The flaps were a challange to engineer but mechanically works flawlessly, but not worth the the weight or performace that it does'nt give you.
                  Gunny
                  Aviation Concepts rc

                  Comment


                  • #10
                    Maybe Jeff D. can post some better pictures here that he took at the Salem Meet last month.
                    Gunny
                    Aviation Concepts rc

                    Comment


                    • #11
                      Since it is done I wont go into details with wording and just let the pictures do the explaining.

                      Removing the existing spoiler structure.
                      Gunny
                      Aviation Concepts rc

                      Comment


                      • #12
                        Modifing the contour of the flap
                        Gunny
                        Aviation Concepts rc

                        Comment


                        • #13

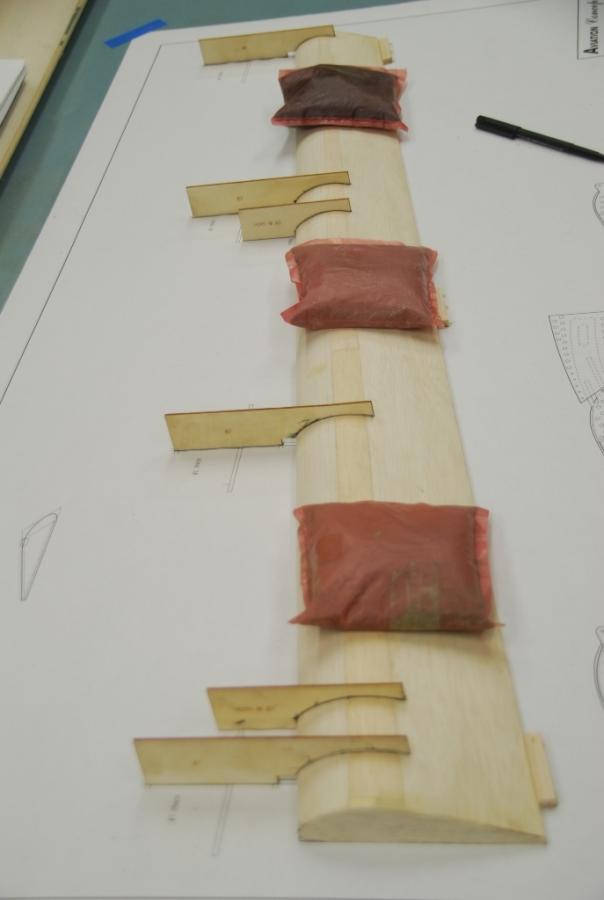

                          Flap jigs to mark horns and tracks
                          Attached Files
                          Gunny
                          Aviation Concepts rc

                          Comment


                          • #14

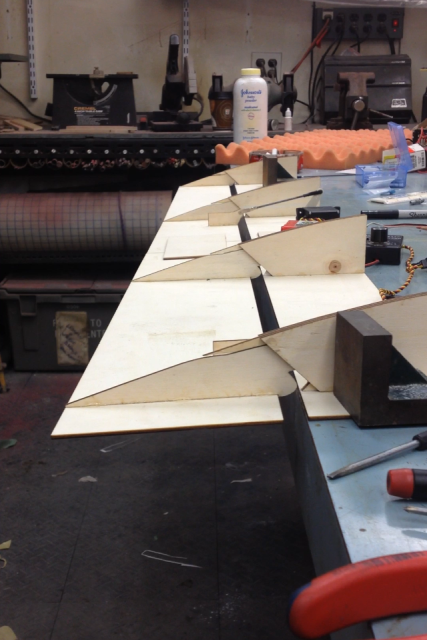

                            G-10 flap sockets and tracks.
                            Gunny
                            Aviation Concepts rc

                            Comment


                            • #15
                              cutting slots in flap
                              Gunny
