Schweizer TG-3 ~ 1/3-scale model by Peter Goldsmith (Build Thread by JimD)

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Schweizer TG-3 ~ 1/3-scale model by Peter Goldsmith (Build Thread by JimD)



    Link to Peter Goldsmith's website page for this model:

    https://www.petergoldsmithdesigns.co...-tg3-1-3-scale

    The TG-3 is the fourth model in Peter's giant scale sailplane series joining the 1/3-scale Slingsby Swallow & Skylark and the 40% Schweizer 1-26 models.

    Click image for larger version  Name:	IMG_0695.JPG Views:	1 Size:	111.3 KB ID:	35482

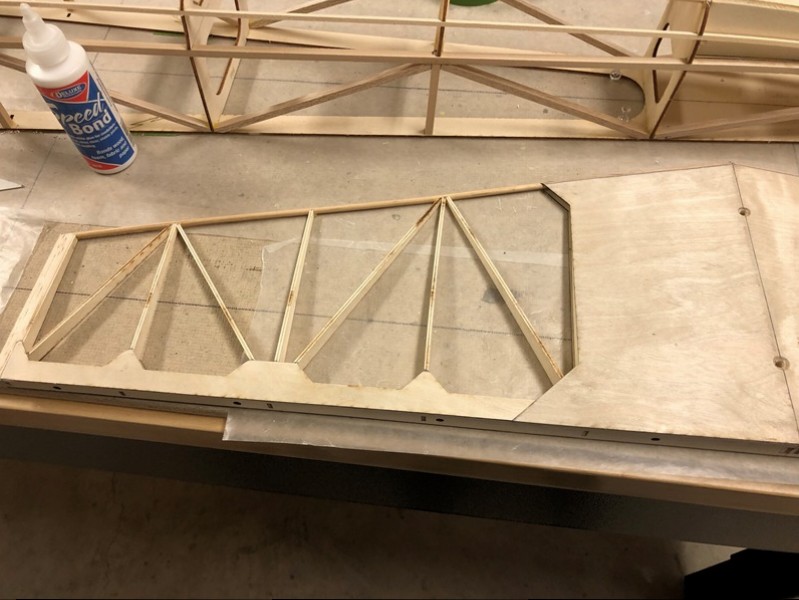

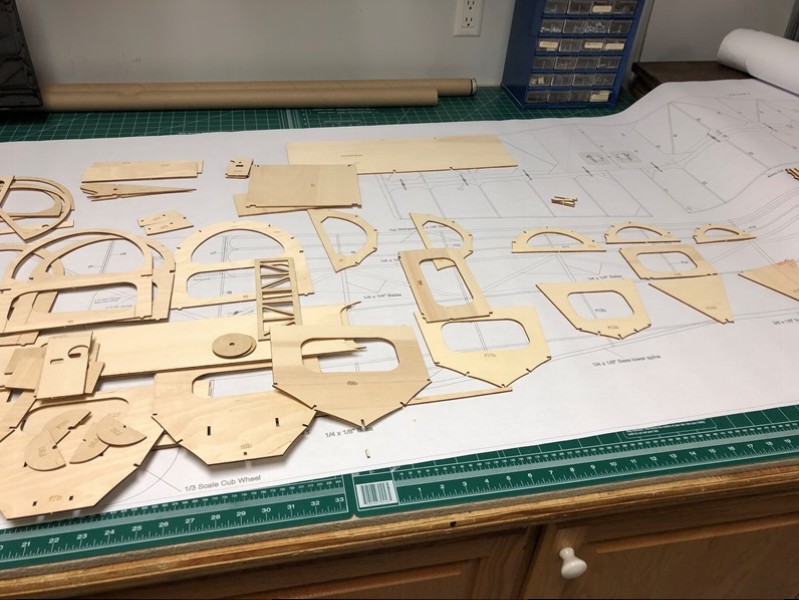

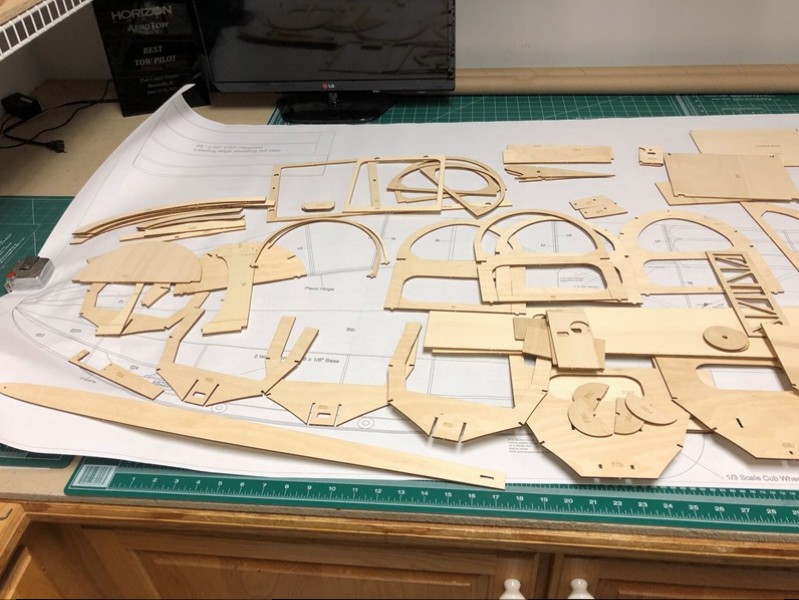

    The model kit is densely packed in a 6"x12"x48" box and includes two large rolled sheets of full-size plans. These plans are really for reference and not to be used as a building template. We started our build by finding all of the fuselage parts and separating them from their carrier sheets. The parts were placed over the fuselage plan in their approximate locations to assist with understanding where all of the parts go.

    Click image for larger version  Name:	IMG_0244.JPG Views:	1 Size:	112.5 KB ID:	35484

    Click image for larger version  Name:	IMG_0245.JPG Views:	1 Size:	110.3 KB ID:	35483
    A Site for Soar Eyes

  • #2

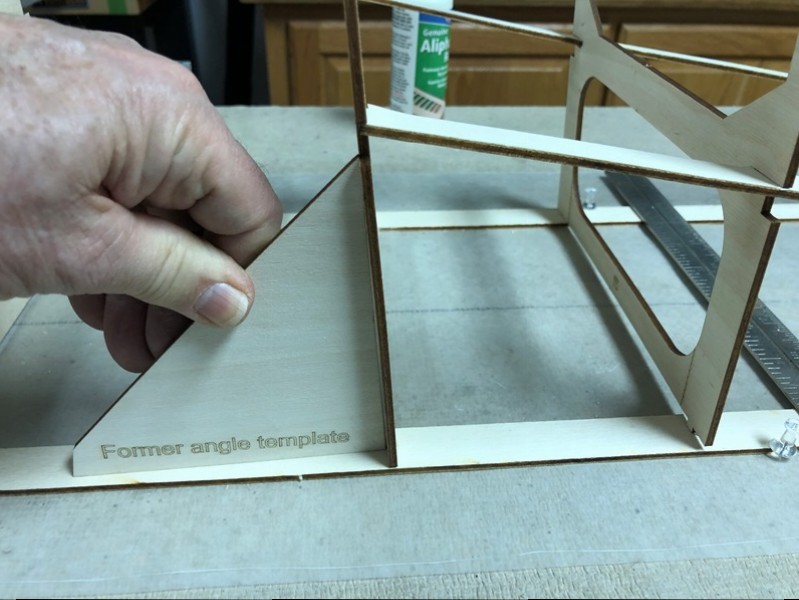

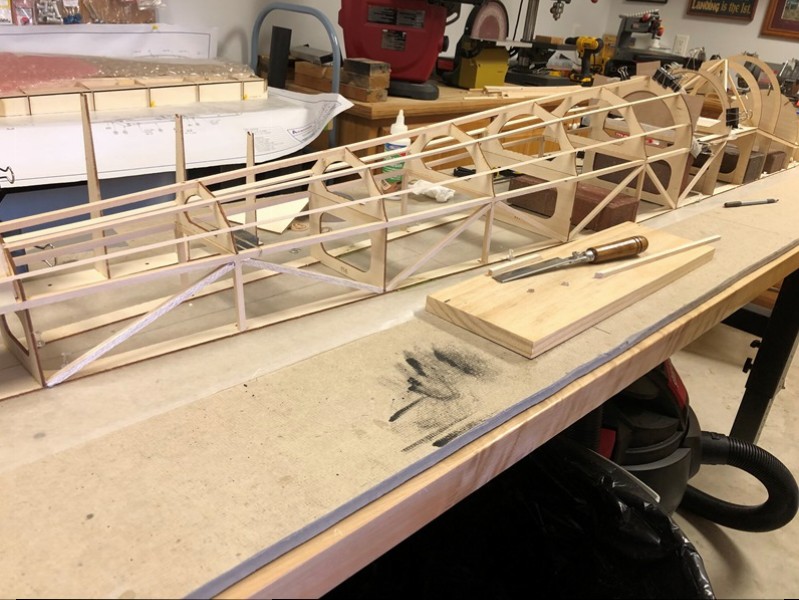

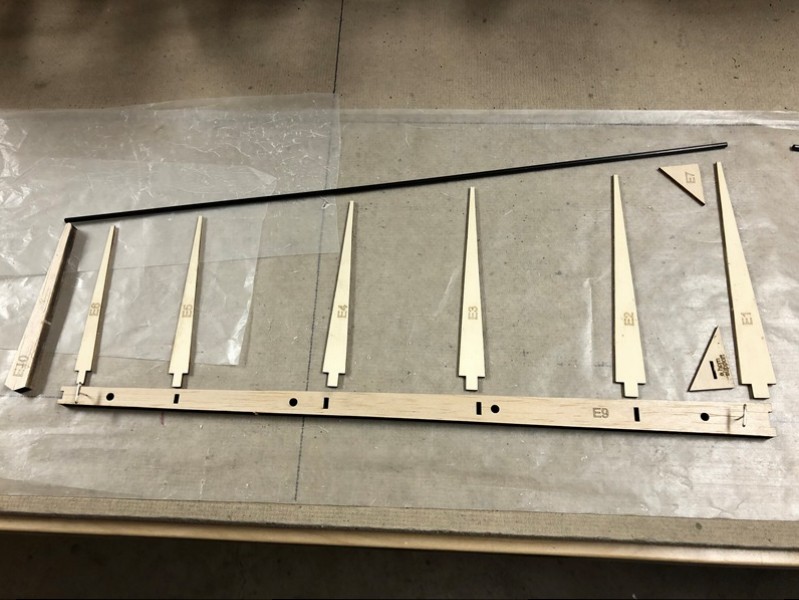

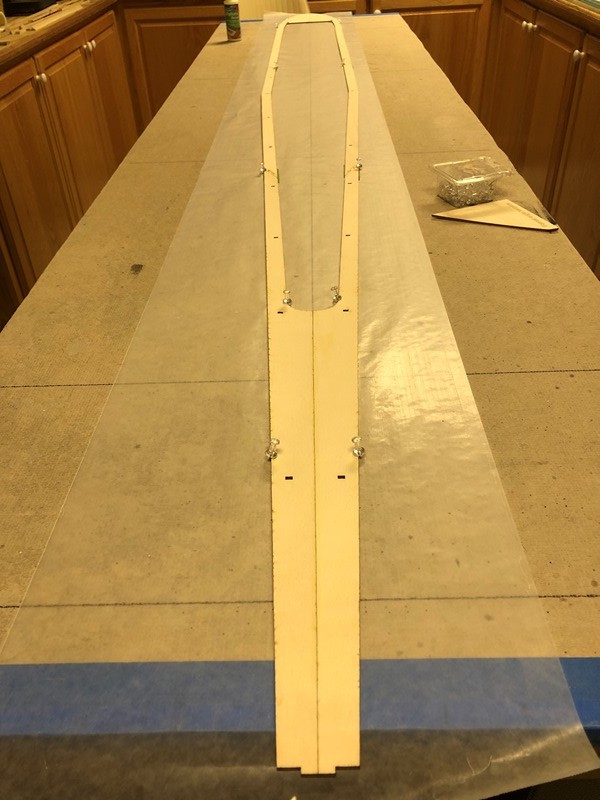

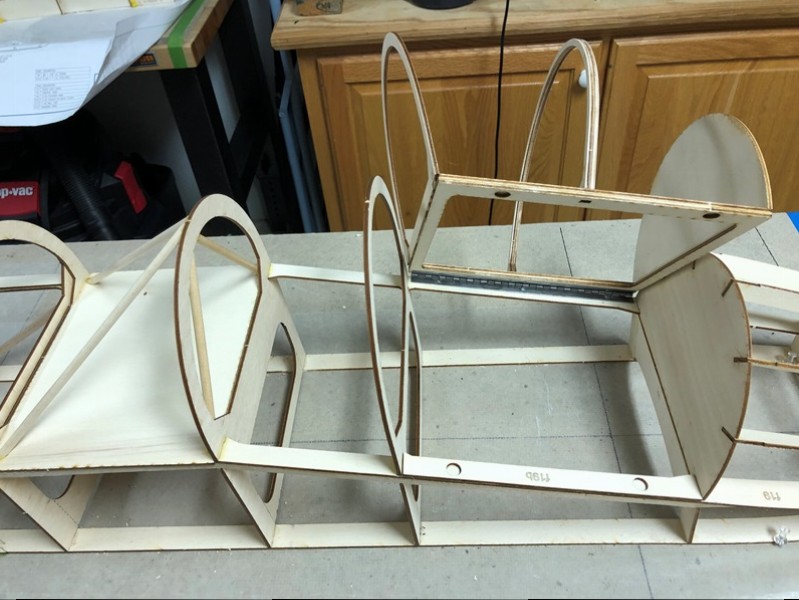

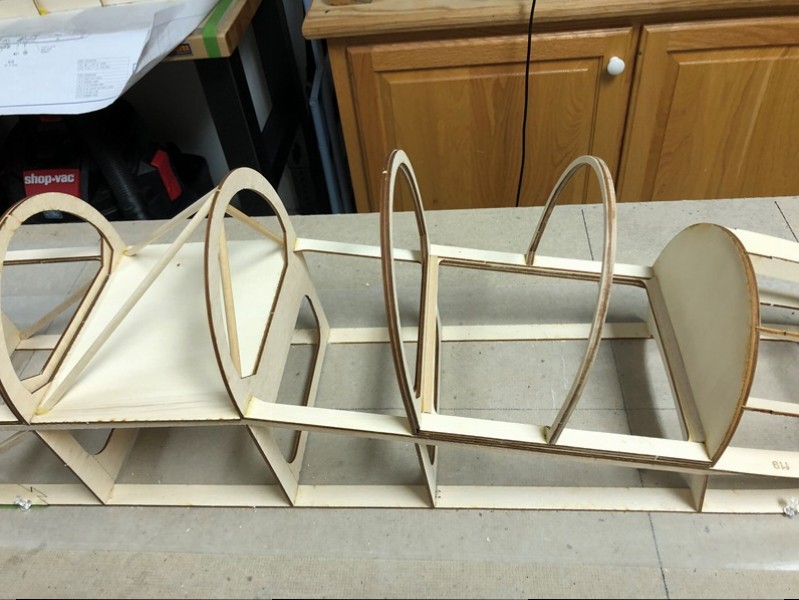

    We were intrigued by Peter's design and build plan for the fuselage, so we decided to start our build here.

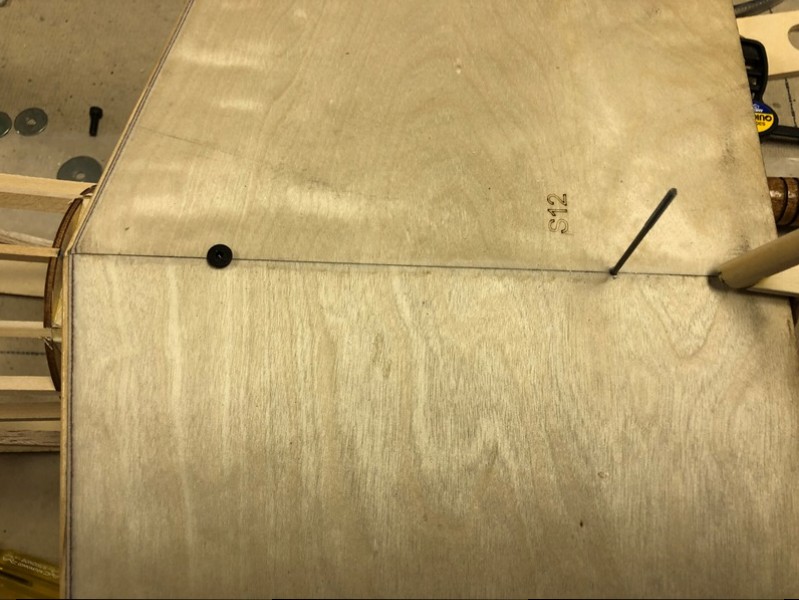

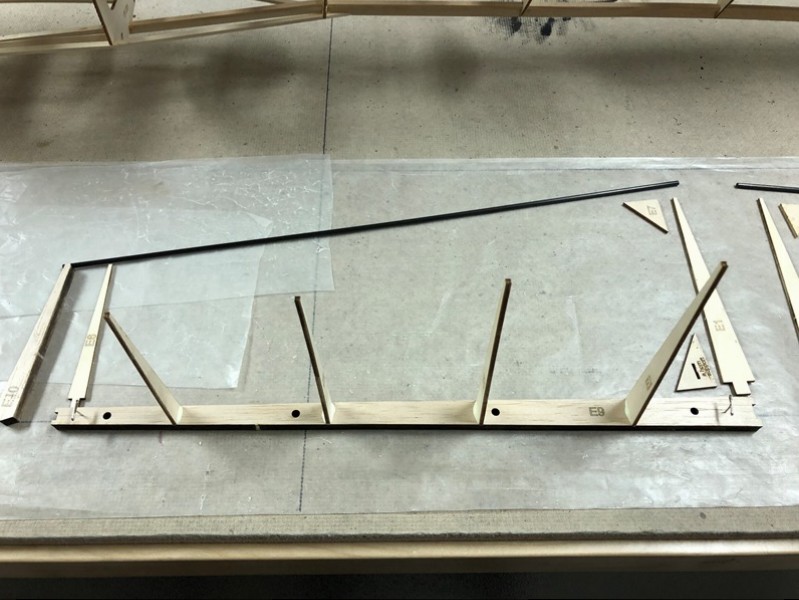

    There is "crutch" section that forms a plane which cuts the fuselage in half top and bottom. Start by establishing a straight reference line on your flat and level building board. It is very helpful to place something on your worksurface that pins can be pushed into. Some builders like sheetrock (drywall board) or Homasote Sound Board for this purpose. Cover the surface with wax paper of other similar non-stick material so your parts don't get glued to the building board!

    The crutch parts need to be aligned with the centerline and check along its length to make sure that the right and left sides are equal distance from the centerline.

    Click image for larger version

Name:	IMG_0250.JPG
Views:	318
Size:	92.2 KB
ID:	35486
    A Site for Soar Eyes

    Comment


    • #3

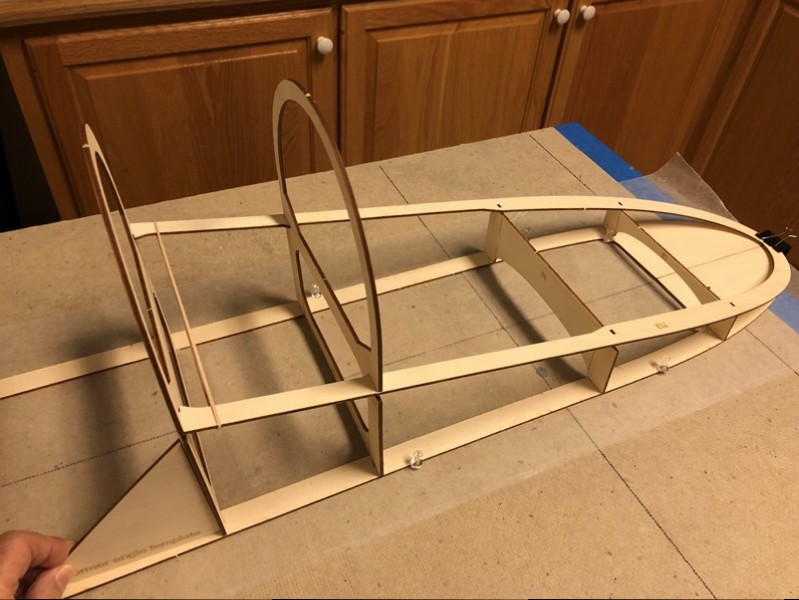

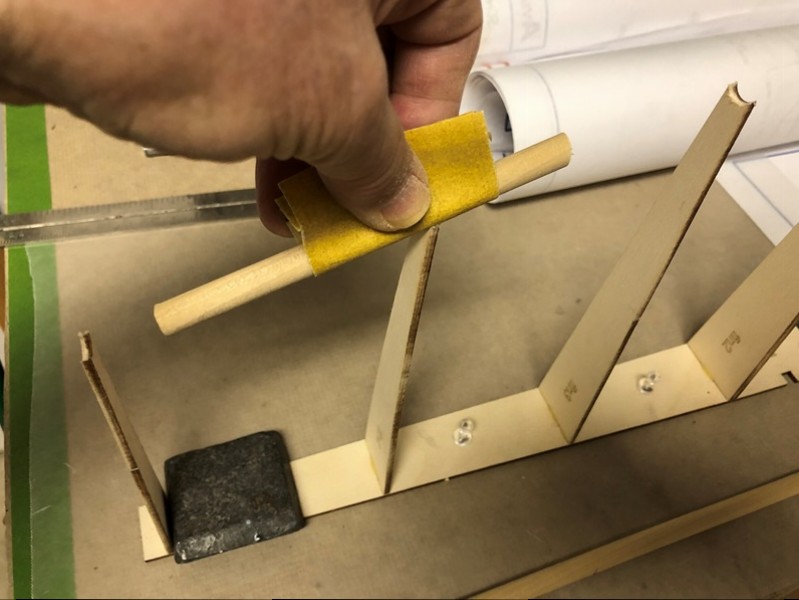

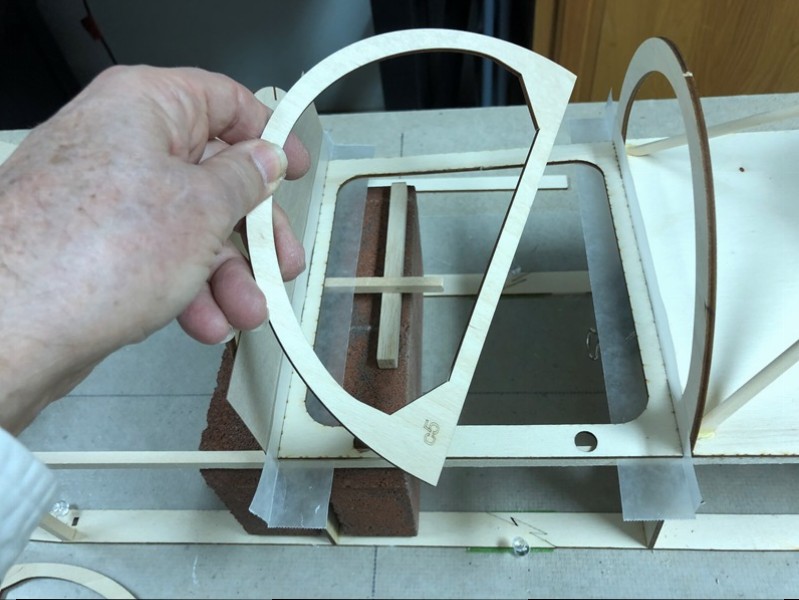

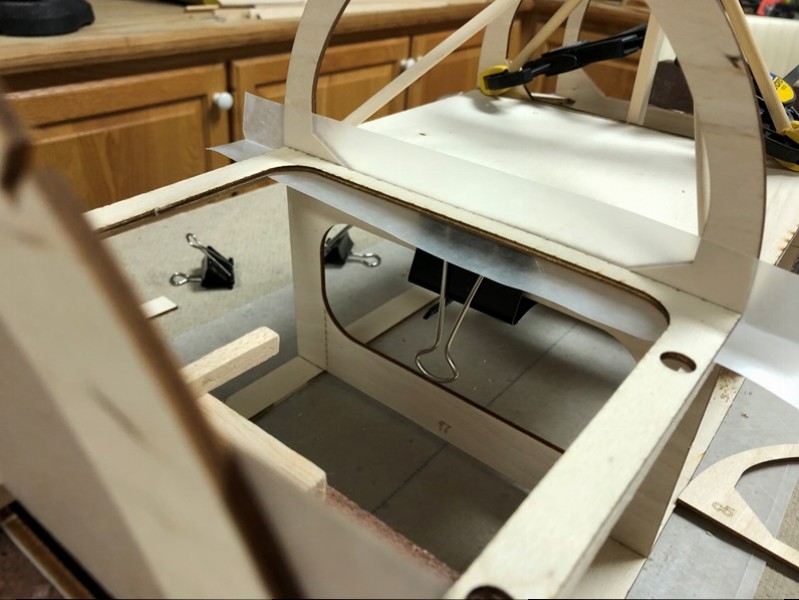

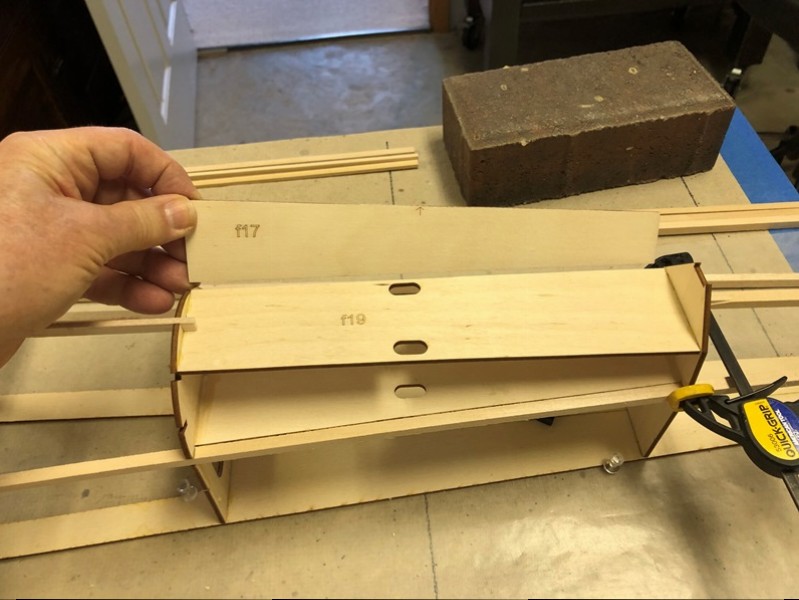

      The formers have tabs that fit into slots in the crutch base plate. Note that they are NOT perpendicular to the base plate. Peter provides an angle gauge to set these parts into place at the correct angle.

      Click image for larger version

Name:	IMG_0254.JPG
Views:	318
Size:	94.0 KB
ID:	35488

      Click image for larger version

Name:	IMG_0255.JPG
Views:	321
Size:	105.8 KB
ID:	35489

      Click image for larger version

Name:	IMG_0256.JPG
Views:	317
Size:	99.2 KB
ID:	35492

      Click image for larger version

Name:	IMG_0257.JPG
Views:	332
Size:	96.7 KB
ID:	35490

      Click image for larger version

Name:	IMG_0259.JPG
Views:	319
Size:	109.3 KB
ID:	35491



      A Site for Soar Eyes

      Comment


      • #4
        Click image for larger version

Name:	IMG_0261.JPG
Views:	321
Size:	117.1 KB
ID:	35497

        Click image for larger version

Name:	IMG_0262.JPG
Views:	316
Size:	115.3 KB
ID:	35494

        Click image for larger version

Name:	IMG_0263.JPG
Views:	326
Size:	90.3 KB
ID:	35495

        Click image for larger version

Name:	IMG_0264.JPG
Views:	313
Size:	113.4 KB
ID:	35496

        Click image for larger version

Name:	IMG_0267.JPG
Views:	343
Size:	105.4 KB
ID:	35498

        Click image for larger version

Name:	IMG_0268.JPG
Views:	315
Size:	101.7 KB
ID:	35499



        A Site for Soar Eyes

        Comment


        • #5

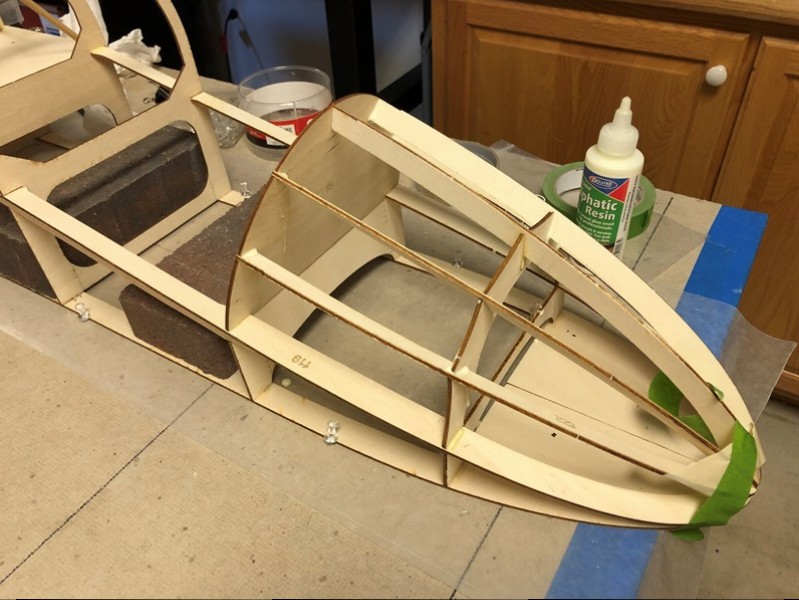

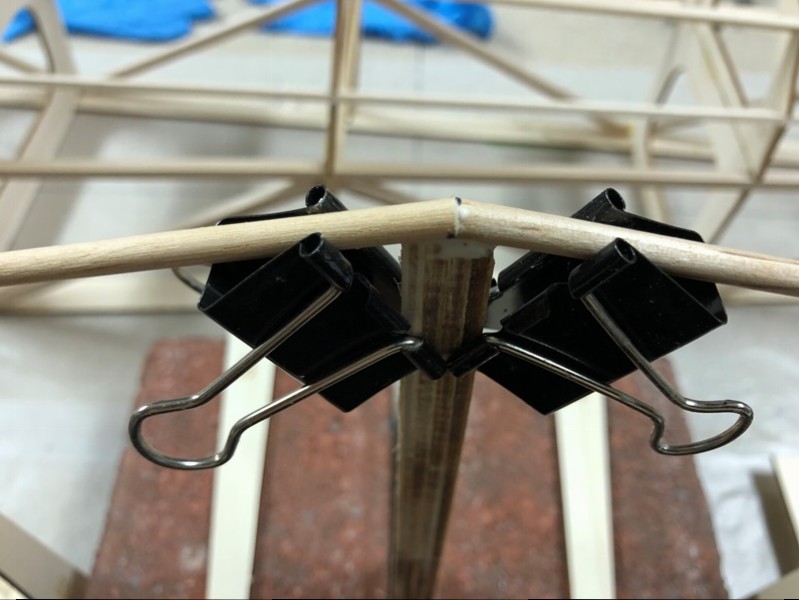

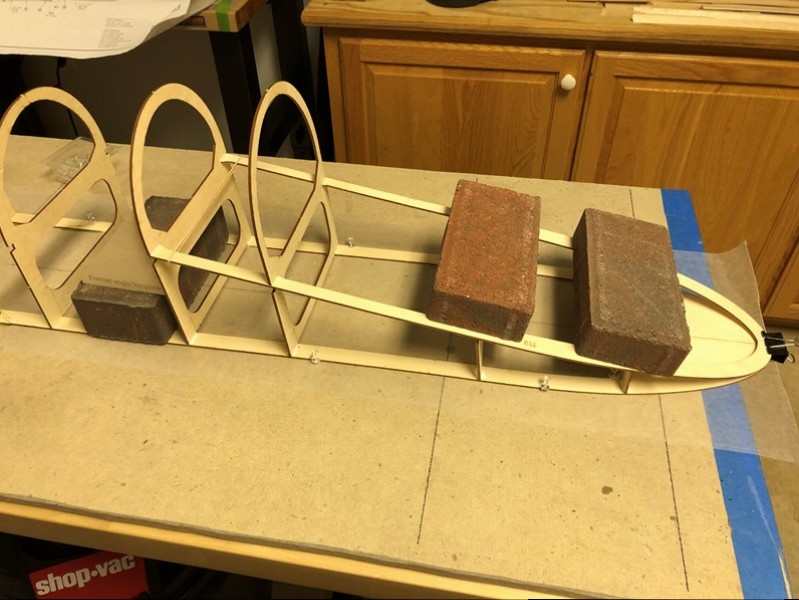

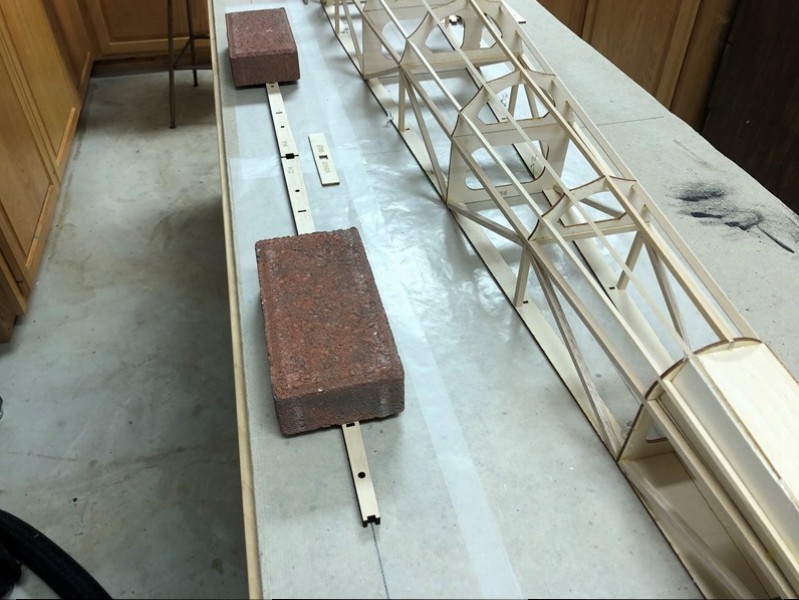

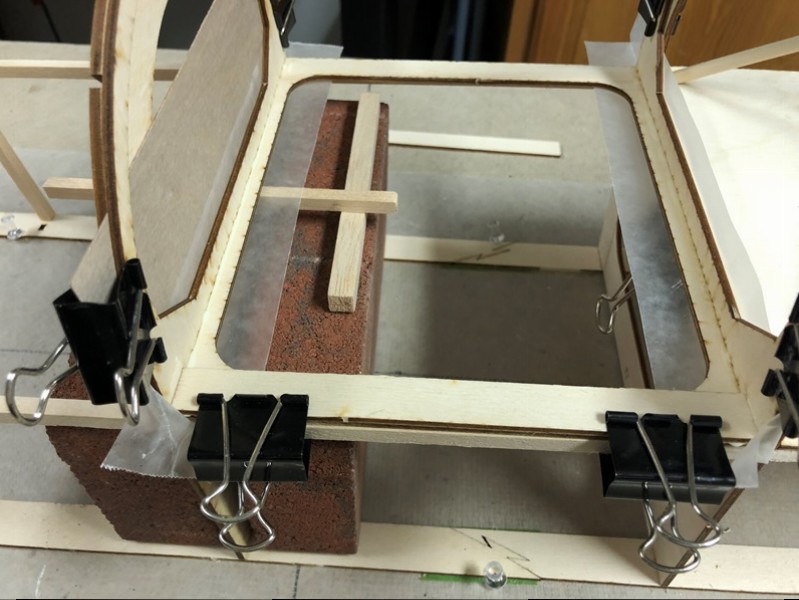

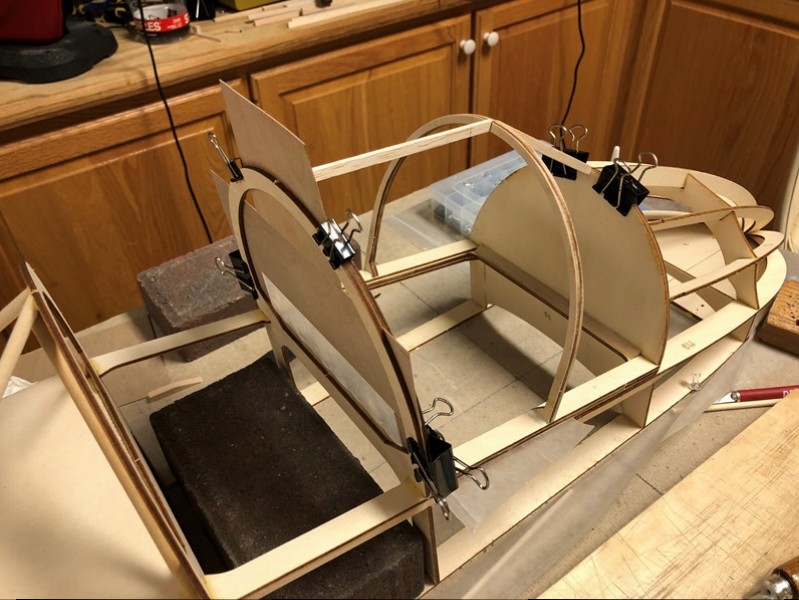

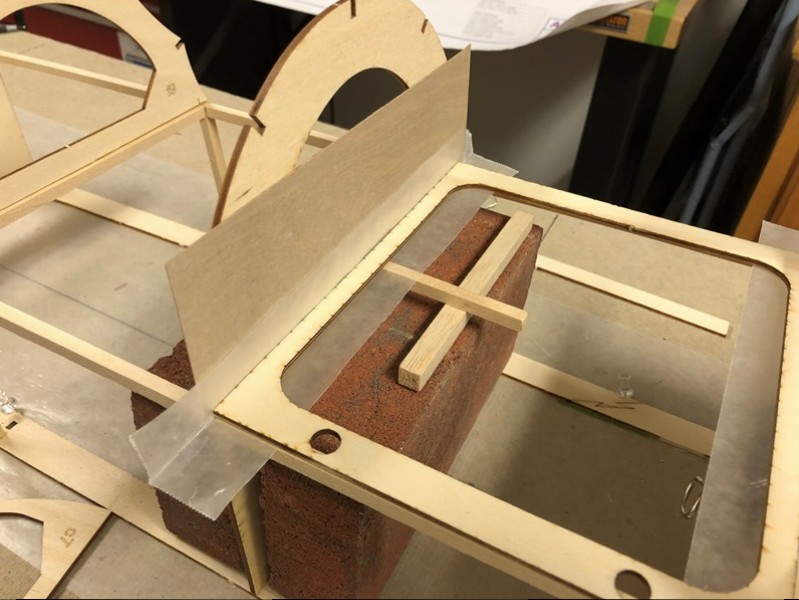

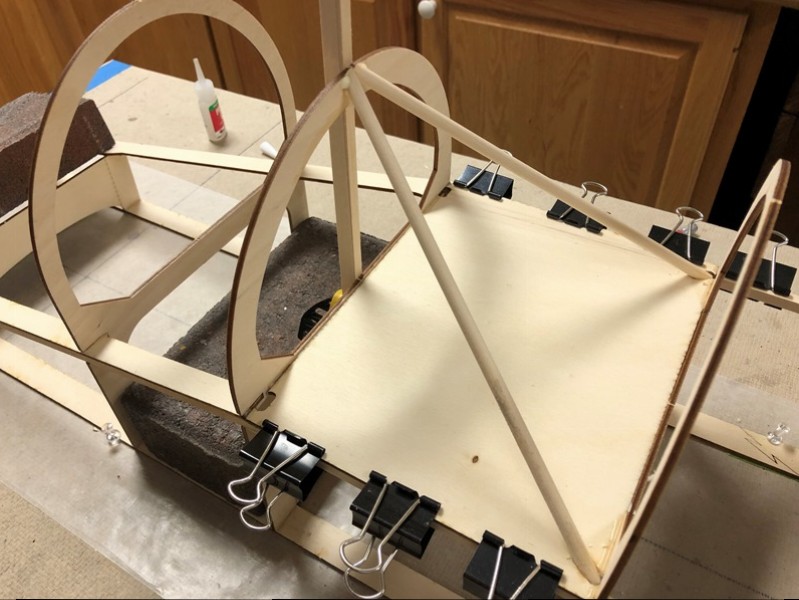

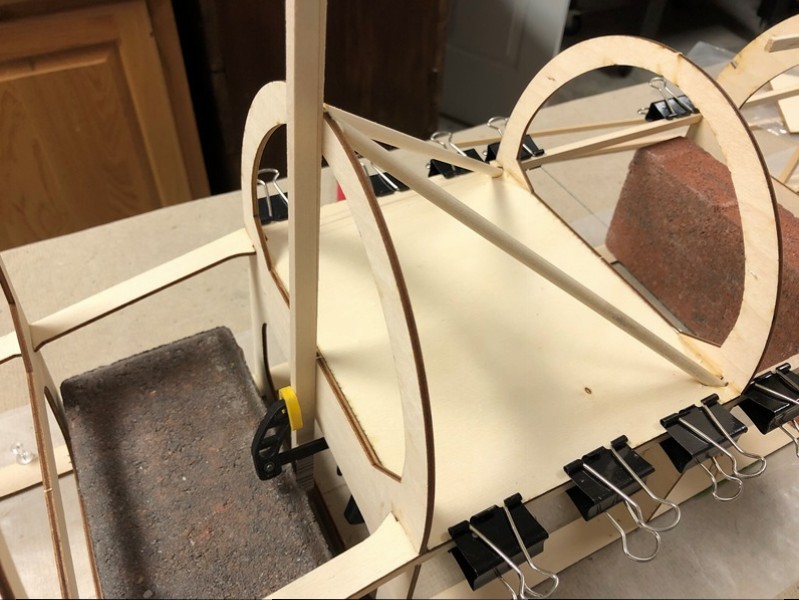

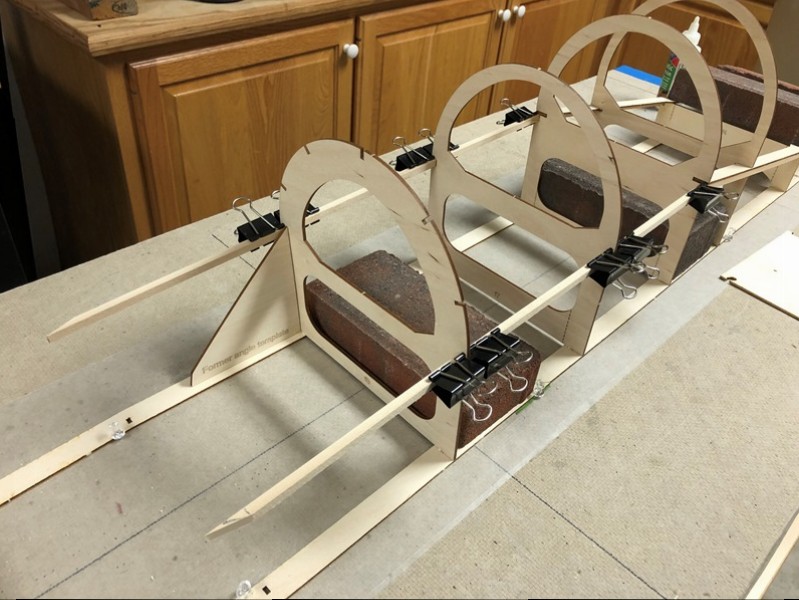

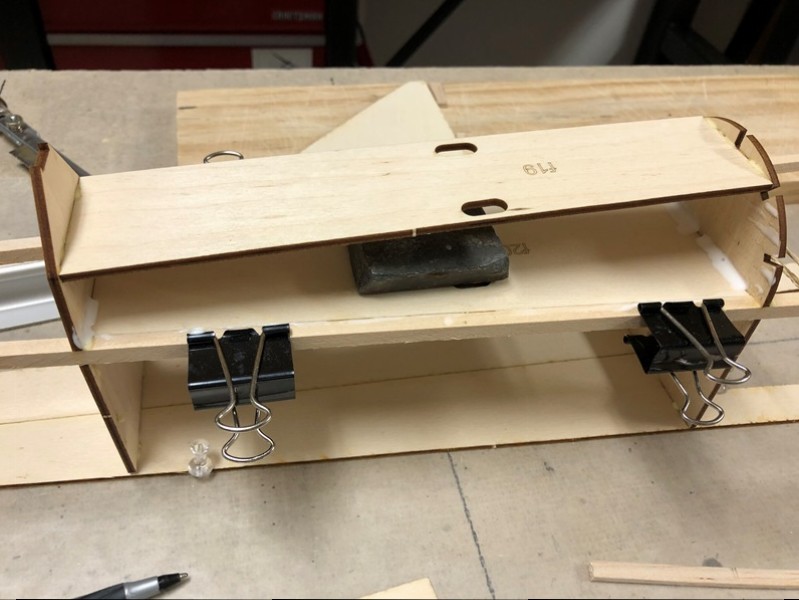

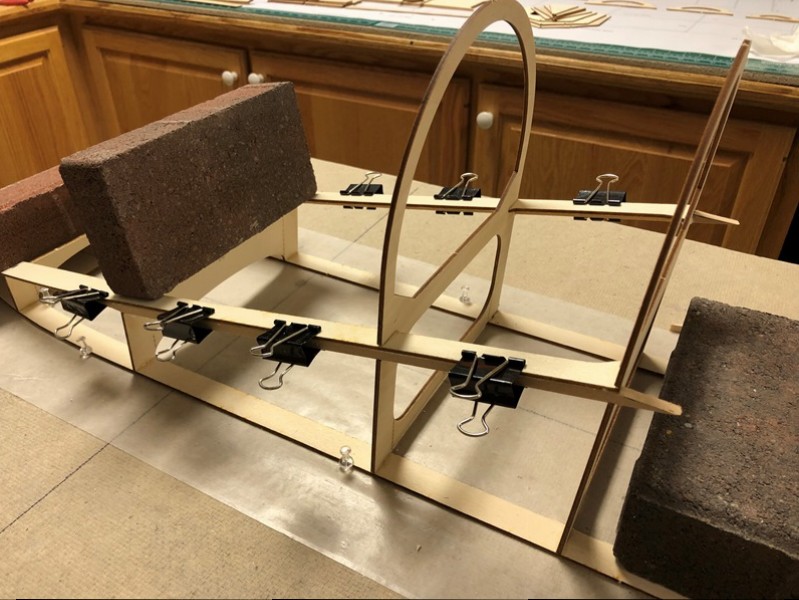

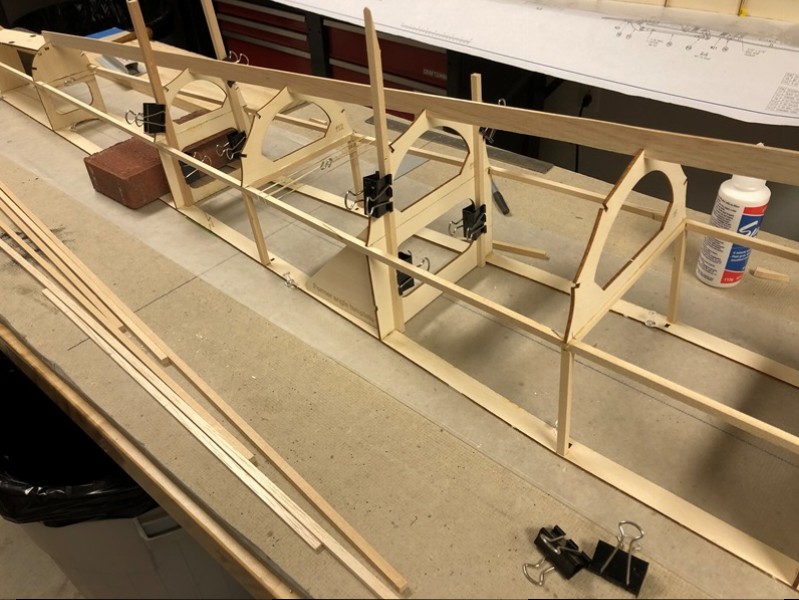

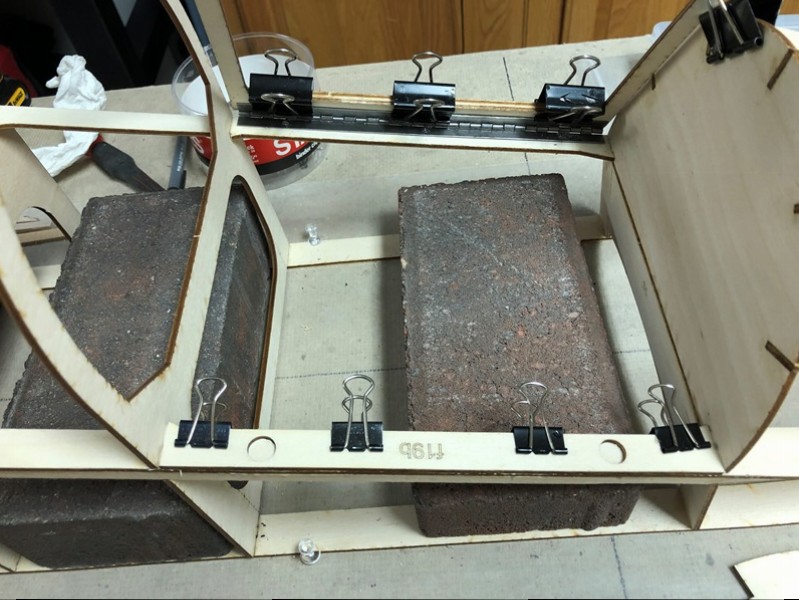

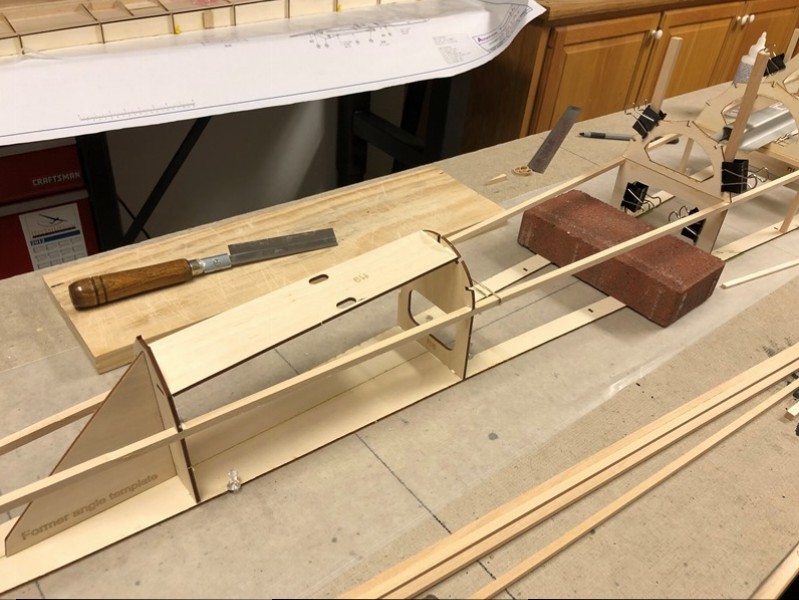

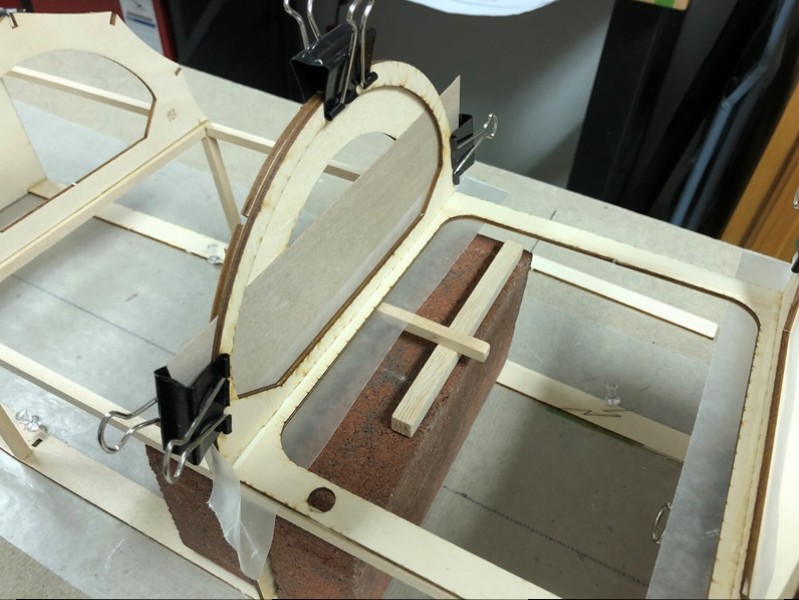

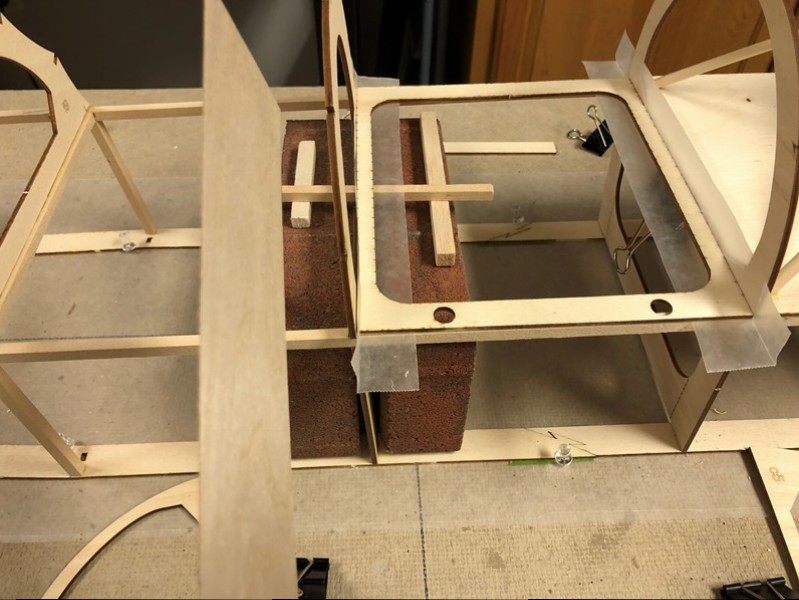

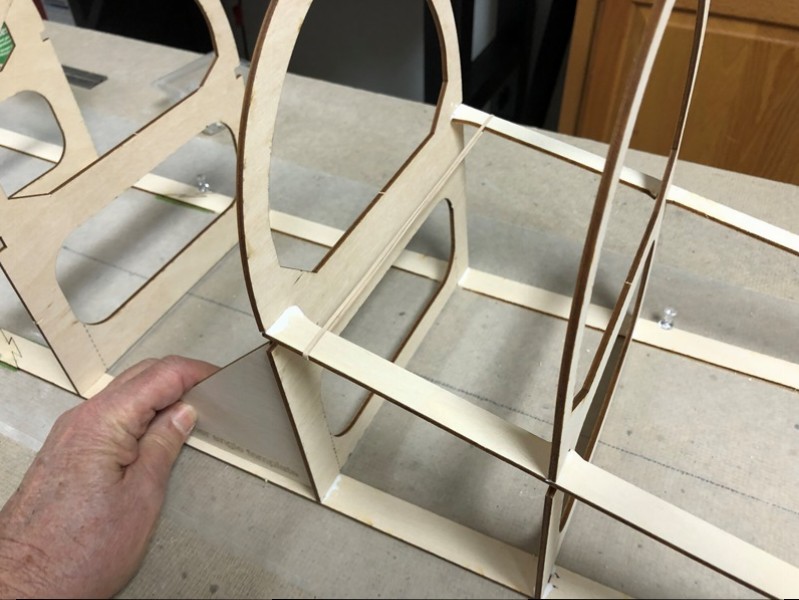

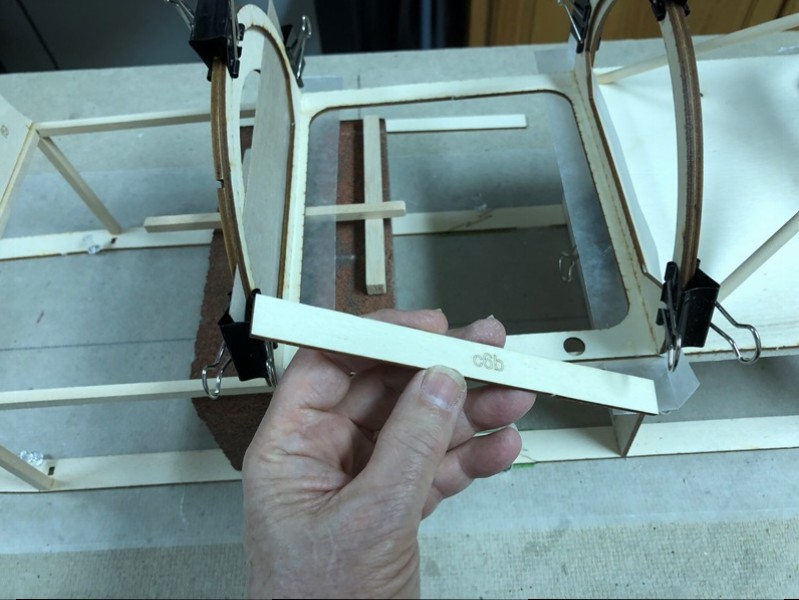

          Scrap hardwood stick, binder clips, rubber bands, and bricks make useful tools to assist in keeps parts in place. In the picture above, we used a hardwood stick to keep the plywood former from bending while fabricating the dowel roll bar structure.

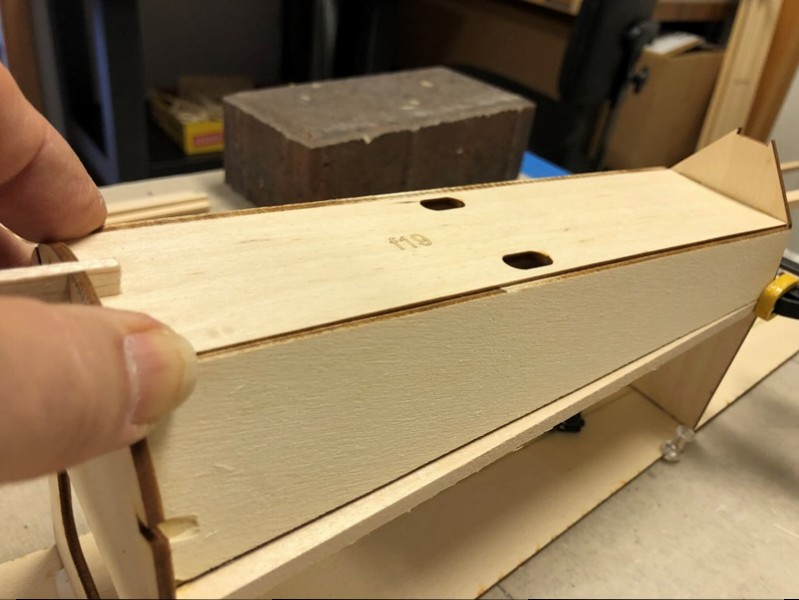

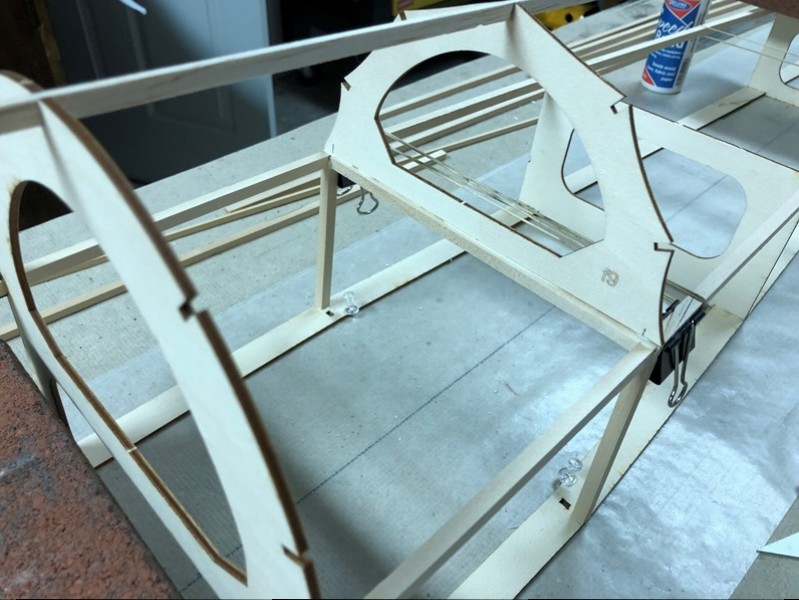

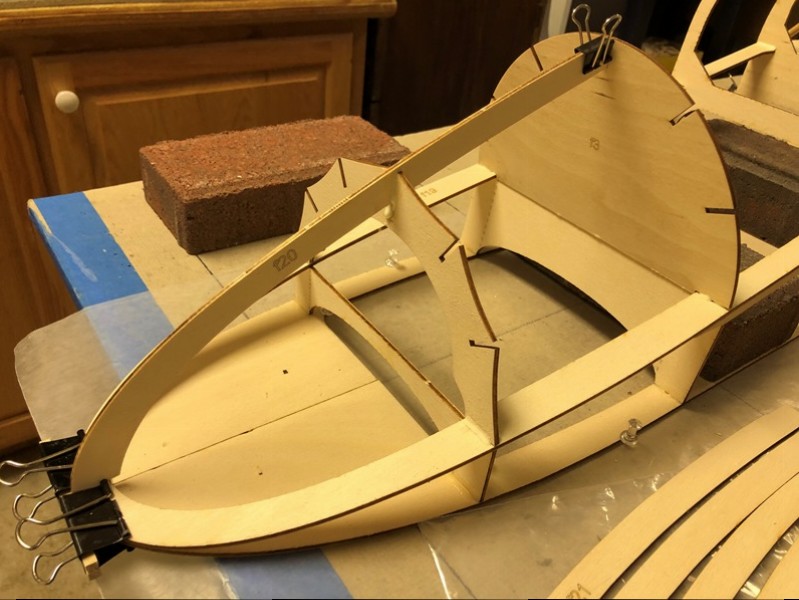

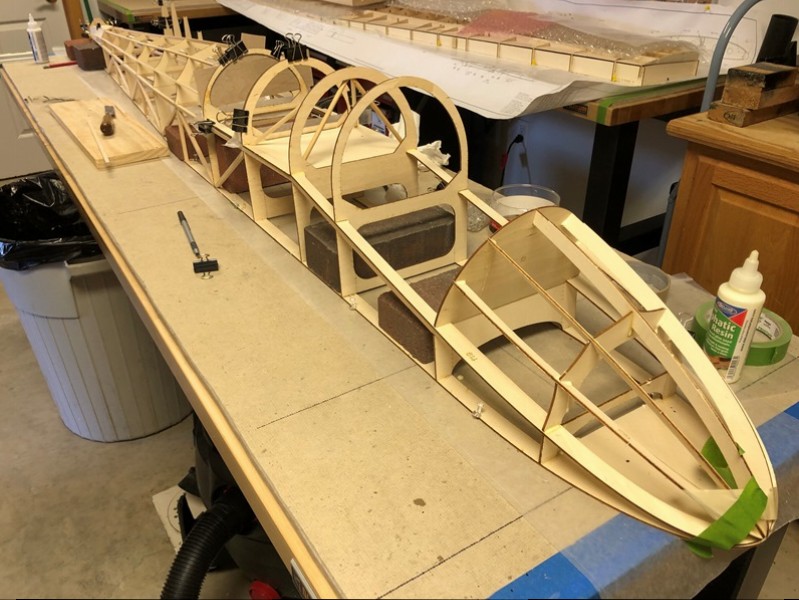

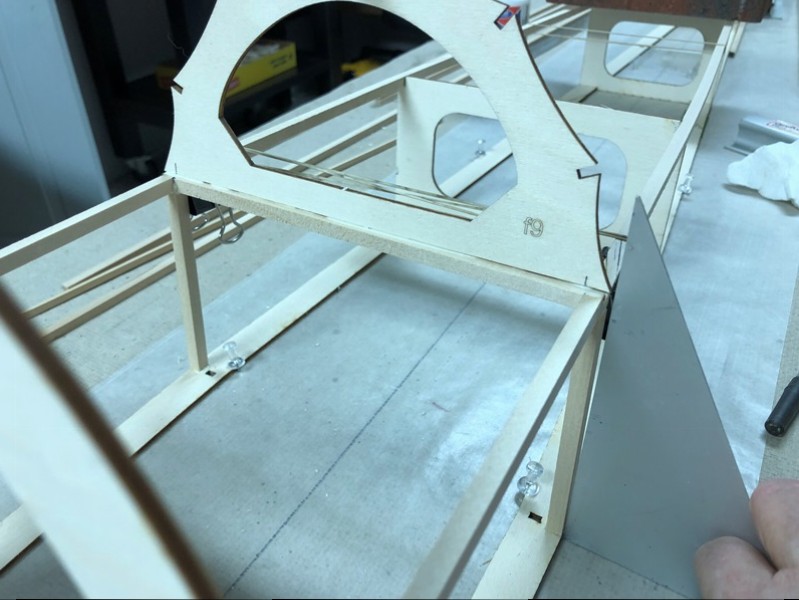

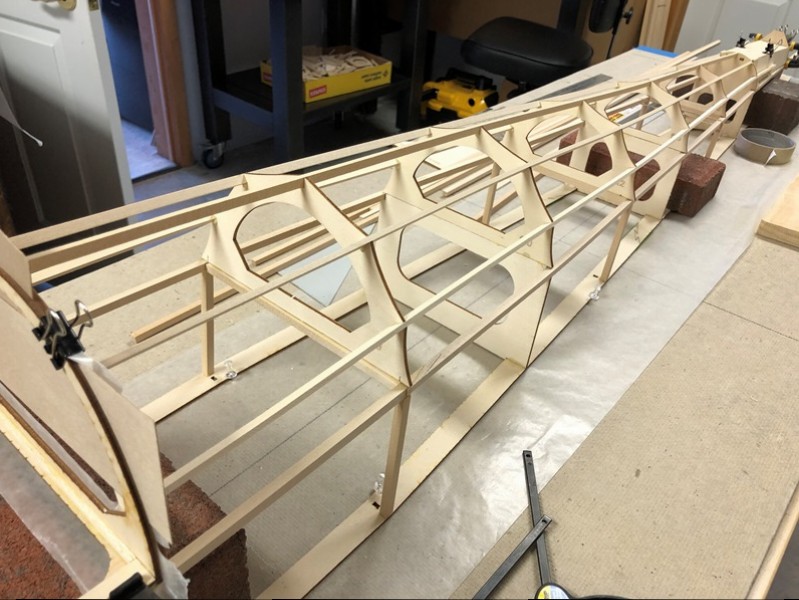

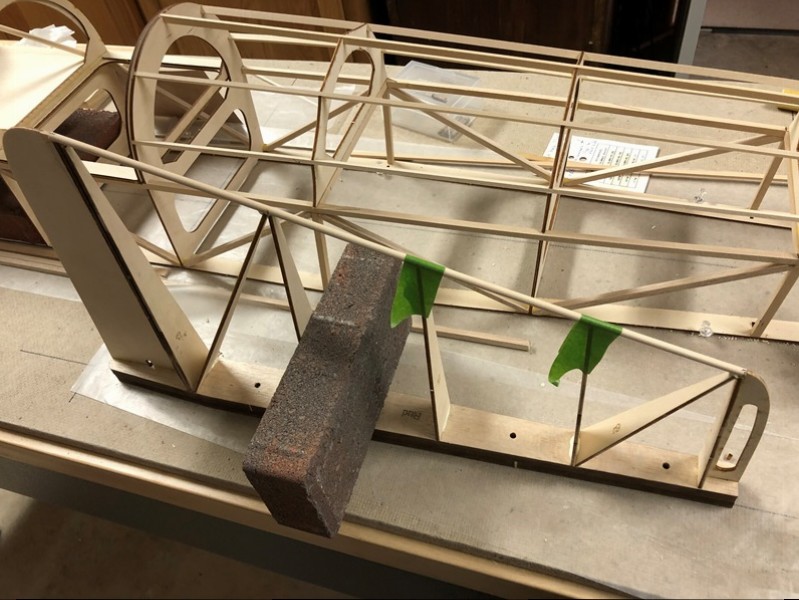

          The upper fuselage parts continue to be added as we progress front the front to the back.


          Click image for larger version

Name:	IMG_0269.JPG
Views:	346
Size:	112.6 KB
ID:	35501

          Click image for larger version

Name:	IMG_0271.JPG
Views:	309
Size:	91.2 KB
ID:	35503

          Click image for larger version

Name:	IMG_0279.JPG
Views:	311
Size:	121.0 KB
ID:	35505

          Click image for larger version

Name:	IMG_0280.JPG
Views:	313
Size:	110.9 KB
ID:	35504

          Click image for larger version

Name:	IMG_0281.JPG
Views:	362
Size:	80.2 KB
ID:	35506

          Click image for larger version

Name:	IMG_0282.JPG
Views:	308
Size:	82.4 KB
ID:	35502



          A Site for Soar Eyes

          Comment


          • #6
            Click image for larger version

Name:	IMG_0291.JPG
Views:	318
Size:	88.9 KB
ID:	35509

            Click image for larger version

Name:	IMG_0295.JPG
Views:	330
Size:	77.7 KB
ID:	35508

            A Site for Soar Eyes

            Comment


            • #7
              Click image for larger version

Name:	IMG_0300.JPG
Views:	352
Size:	101.1 KB
ID:	35511

              Click image for larger version

Name:	IMG_0301.JPG
Views:	336
Size:	122.2 KB
ID:	35513

              Click image for larger version

Name:	IMG_0302.JPG
Views:	310
Size:	130.8 KB
ID:	35514

              Click image for larger version

Name:	IMG_0303.JPG
Views:	336
Size:	126.0 KB
ID:	35515

              Click image for larger version

Name:	IMG_0304.JPG
Views:	314
Size:	111.5 KB
ID:	35512

              Click image for larger version

Name:	IMG_0305.JPG
Views:	310
Size:	125.0 KB
ID:	35516

              A Site for Soar Eyes

              Comment


              • #8

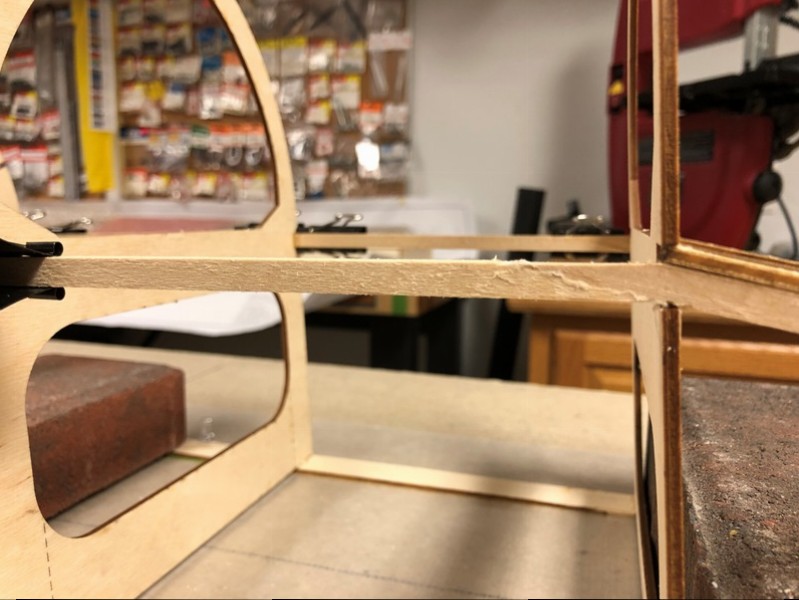

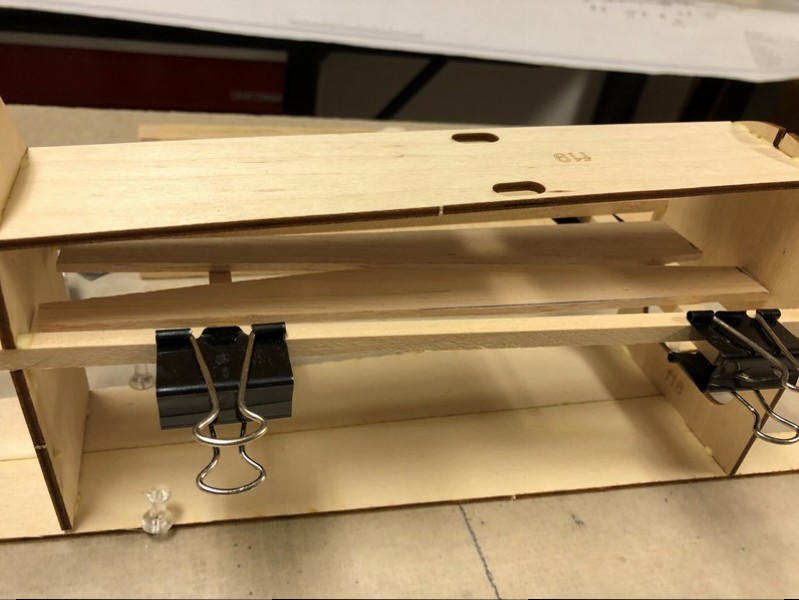

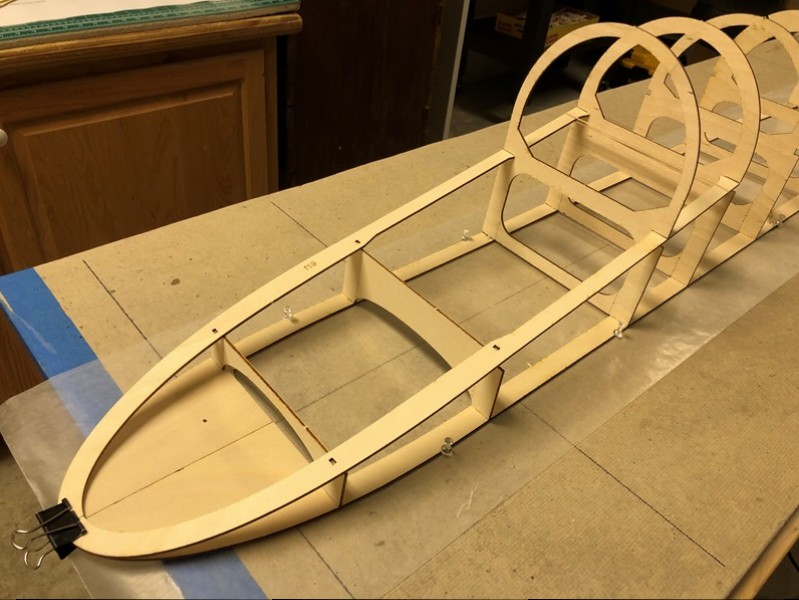

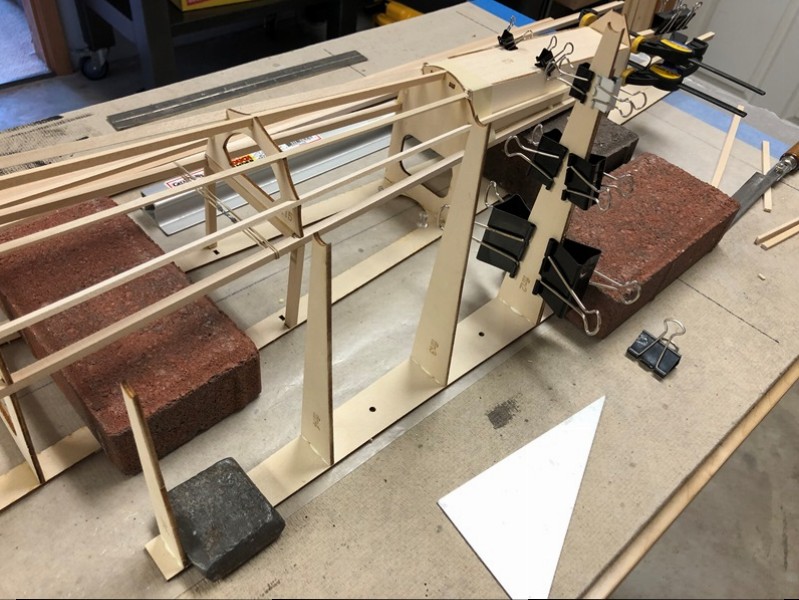

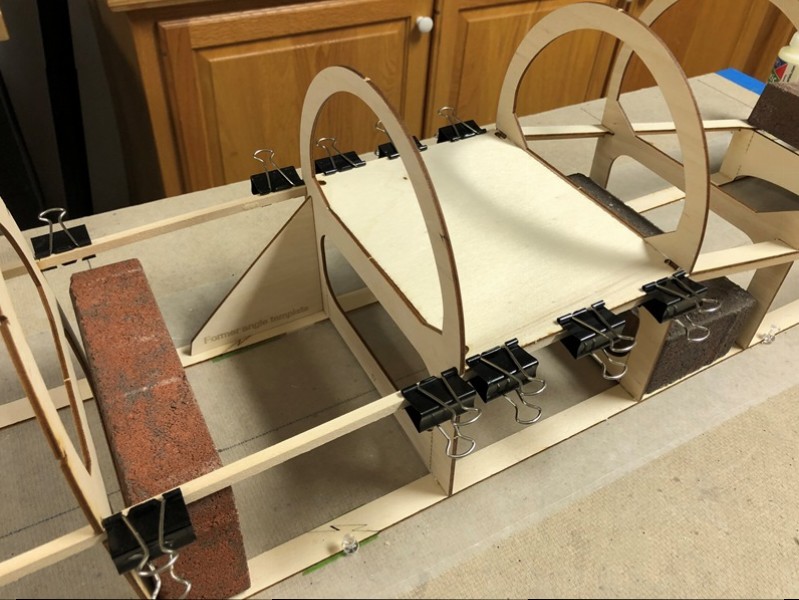

                Pieces of scrap 1/32" plywood were used as shims to help set the spacing around the canopy frames. Strips of wax paper were used to prevent gluing the canopy parts to the fuselage.

                Click image for larger version

Name:	IMG_0283.JPG
Views:	304
Size:	98.8 KB
ID:	35518

                Click image for larger version

Name:	IMG_0284.JPG
Views:	307
Size:	95.7 KB
ID:	35521

                Click image for larger version

Name:	IMG_0285.JPG
Views:	305
Size:	88.8 KB
ID:	35520

                Click image for larger version

Name:	IMG_0286.JPG
Views:	313
Size:	91.0 KB
ID:	35519

                Click image for larger version

Name:	IMG_0287.JPG
Views:	330
Size:	104.2 KB
ID:	35524

                Click image for larger version

Name:	IMG_0288.JPG
Views:	296
Size:	99.3 KB
ID:	35523

                Click image for larger version

Name:	IMG_0289.JPG
Views:	296
Size:	92.1 KB
ID:	35522

                Click image for larger version

Name:	IMG_0290.JPG
Views:	329
Size:	96.2 KB
ID:	35525



                A Site for Soar Eyes

                Comment


                • #9
                  Really love your build threads Jim. Thanks for doing these.

                  Comment


                  • JimD
                    JimD commented
                    Editing a comment
                    It has been quite a journey this past year and four months...have built and flown four of Peter's designs, 40% 1-26, 33% Swallow, 33% Skylark, and Sapphire. Have built three other of Peter's designs and have them nearly ready to fly, the 33% TG-3, the Cmelak tow plane and the RES Foxbat sailplane. Also have Gunny's 33% 2-33 nearly completed.

                • #10

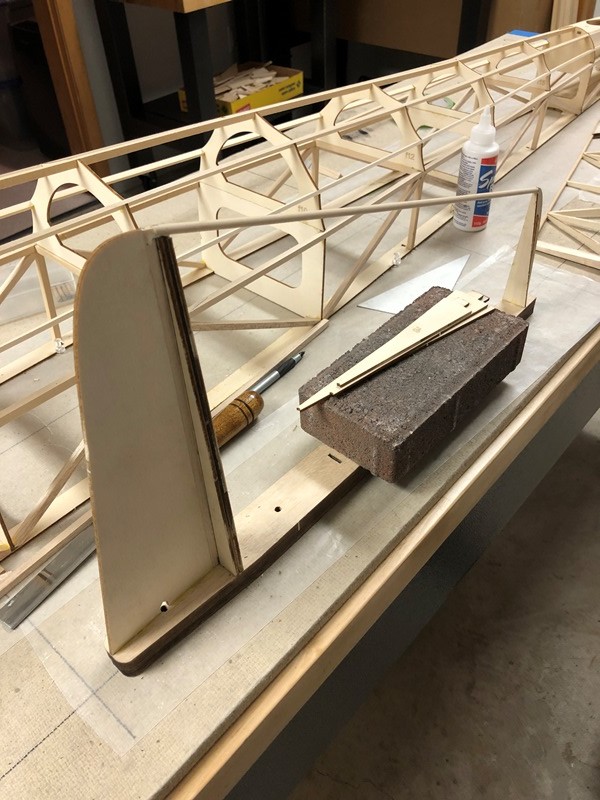

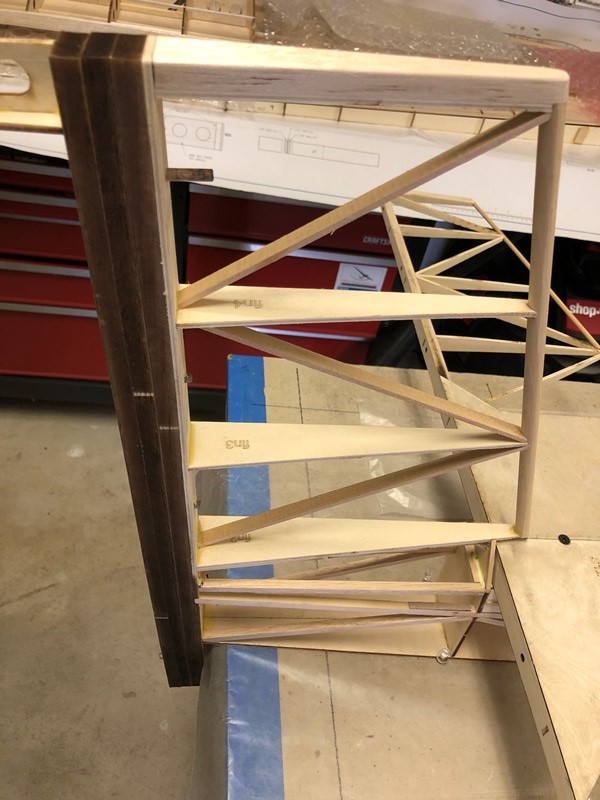

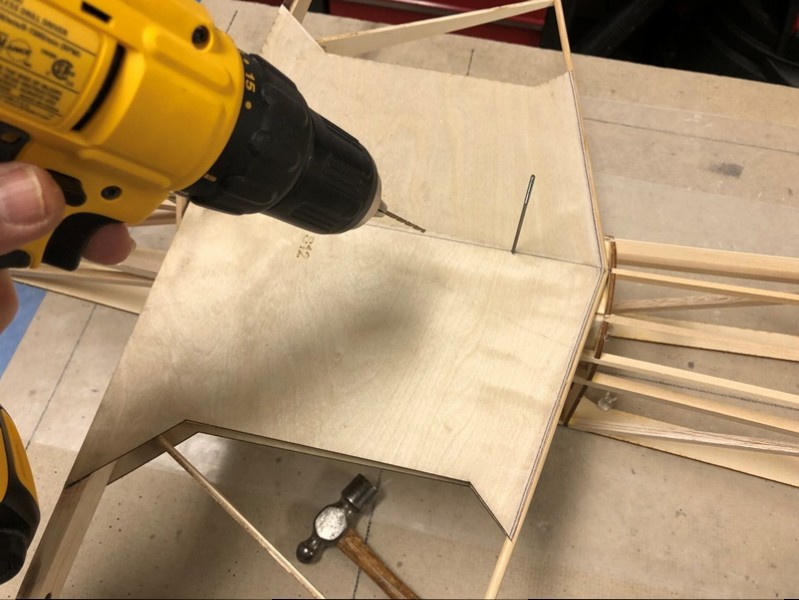

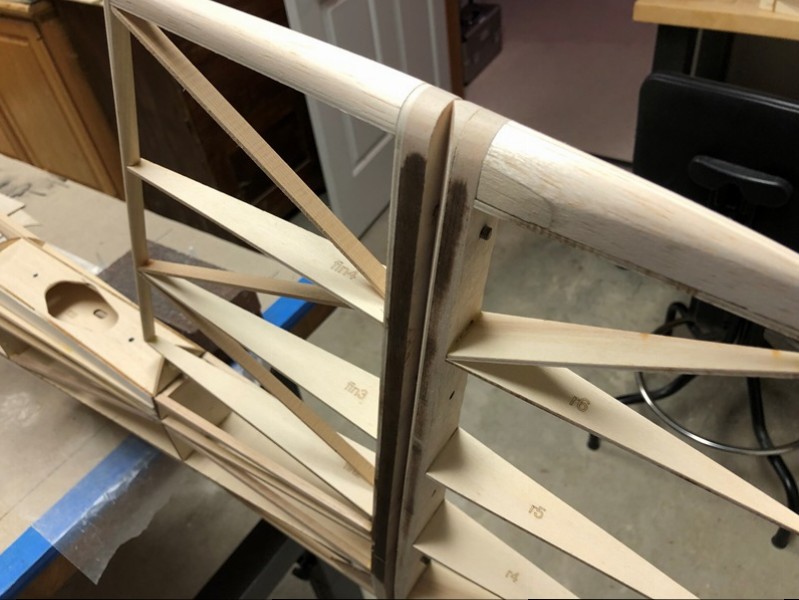

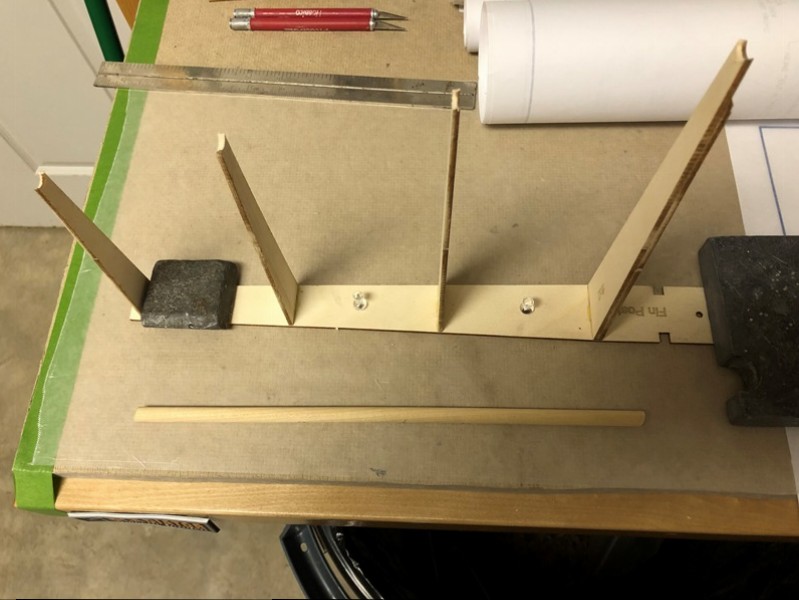

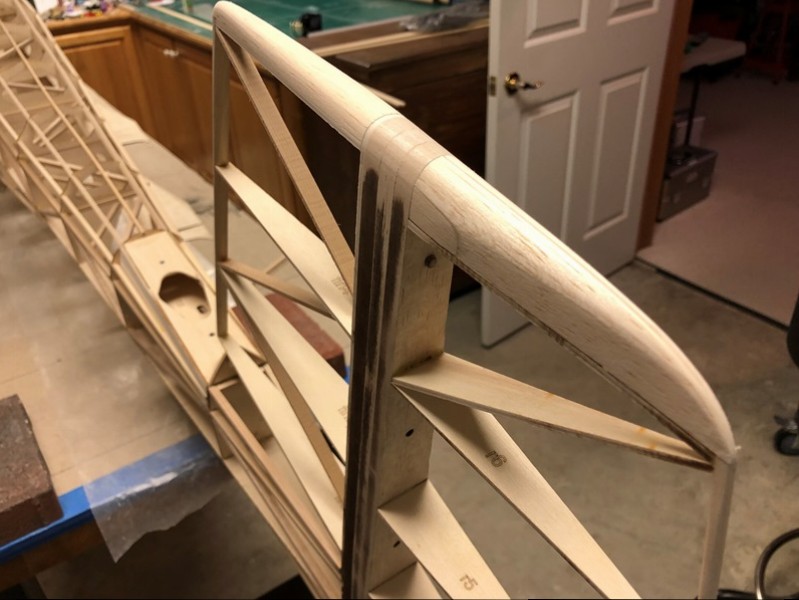

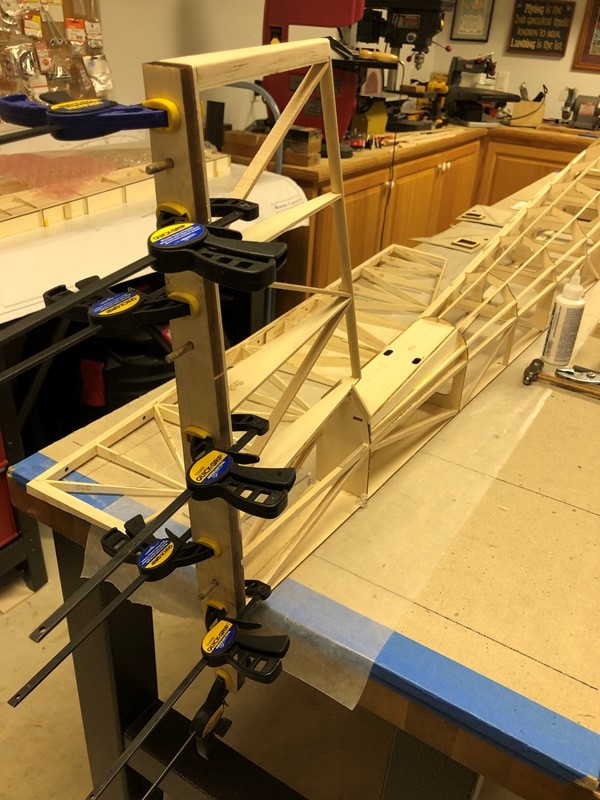

                  While the fuselage is flat and level on the worksurface, the fin can be added. Allow the aft fuselage to overhang the workbench so the lower part of the fin can extend below the bench top. Sandpaper wrapped around a piece of dowel helps angle the fin ribs for a better fit of its dowel leading edge.

                  NOTE:

                  We built the fin separate form the fuselage as shown below. When we attached it to the fuselage, we somehow induced a bend in the 1/8" fin post! This was corrected by cutting the fin2 rib away from the former it sits on at the trailing edge of the stab. This allowed the fin post to straighten, but caused the leading edge of the fin to have a larger space between it and the top of the stab. This was just a cosmetic problem and not serious at all. The space was eliminated by adding a scrap piece of balsa to the bottom of the fin2 rib and leading edge dowel.

                  My recommendation is to do what Peter suggested, install the fin post to the fuselage, make sure it is straight, then add the ribs. In other words, build the fin on the fuselage instead of separately.


                  Click image for larger version  Name:	IMG_0311.JPG Views:	1 Size:	80.5 KB ID:	35529

                  Click image for larger version  Name:	IMG_0312.JPG Views:	1 Size:	75.6 KB ID:	35530

                  Click image for larger version  Name:	IMG_0348.JPG Views:	1 Size:	139.3 KB ID:	35531

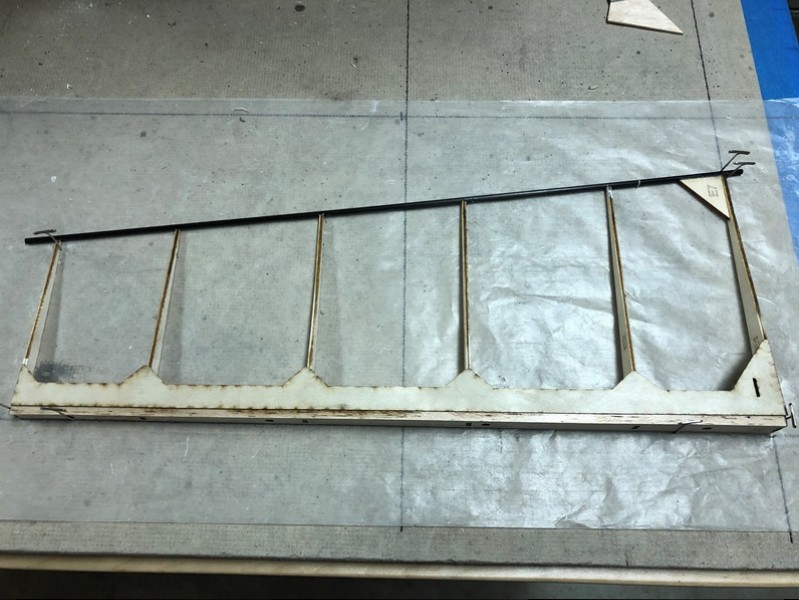

                  The three pieces of thick balsa that form the fin trailing edge and the rudder leading edge were held together with temporary wooden dowel pins and used to keep the 1/8" fin post straight.

                  Note that the bottom of the fin post extends below the workbench surface while the fuselage sits straight and level. This technique allows the stab and fin to be aligned properly while the fuselage is securely held in place.

                  Click image for larger version  Name:	IMG_0372.JPG Views:	1 Size:	106.8 KB ID:	35532
                  Last edited by JimD; 04-08-2019, 11:20 AM.
                  A Site for Soar Eyes

                  Comment


                  • #11

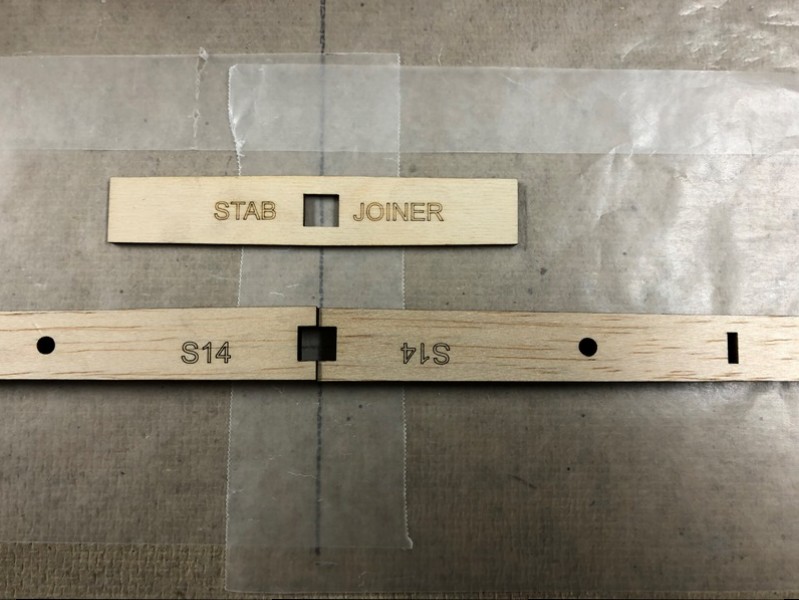

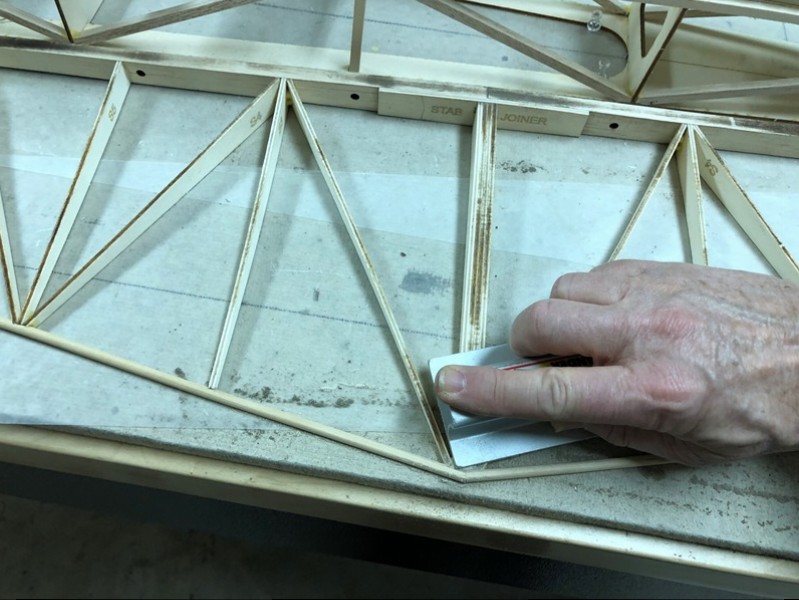

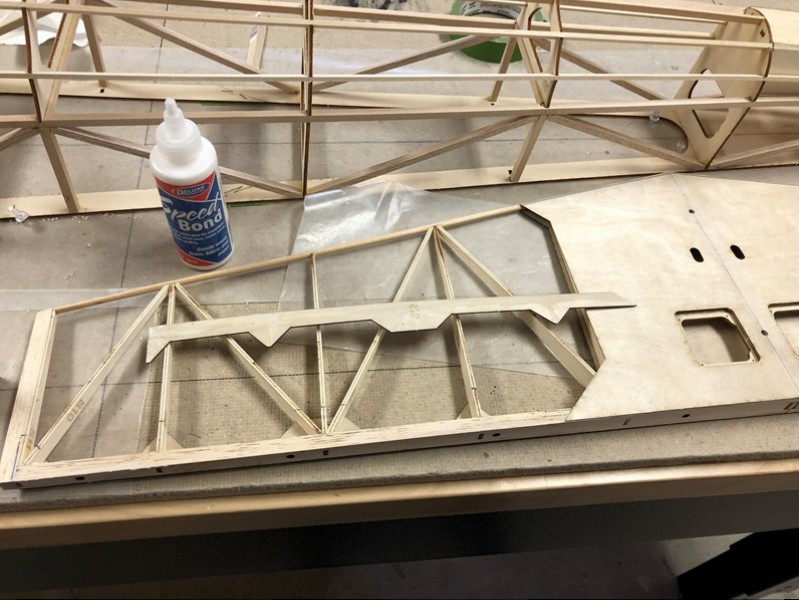

                    This is also a good place to build the stab so it can be mated to the fuselage while the fuselage is firmly sitting on the workbench is a straight and level configuration. Start by aligning the two balsa stab TE pieces and aligning them on a straight line. Find the ribs and the plywood joiner part.

                    Click image for larger version  Name:	IMG_0313.JPG Views:	1 Size:	92.1 KB ID:	35534

                    Click image for larger version  Name:	IMG_0315.JPG Views:	1 Size:	106.9 KB ID:	35536

                    Click image for larger version  Name:	IMG_0318.JPG Views:	1 Size:	79.2 KB ID:	35535

                    Click image for larger version  Name:	IMG_0334.JPG Views:	1 Size:	108.2 KB ID:	35540

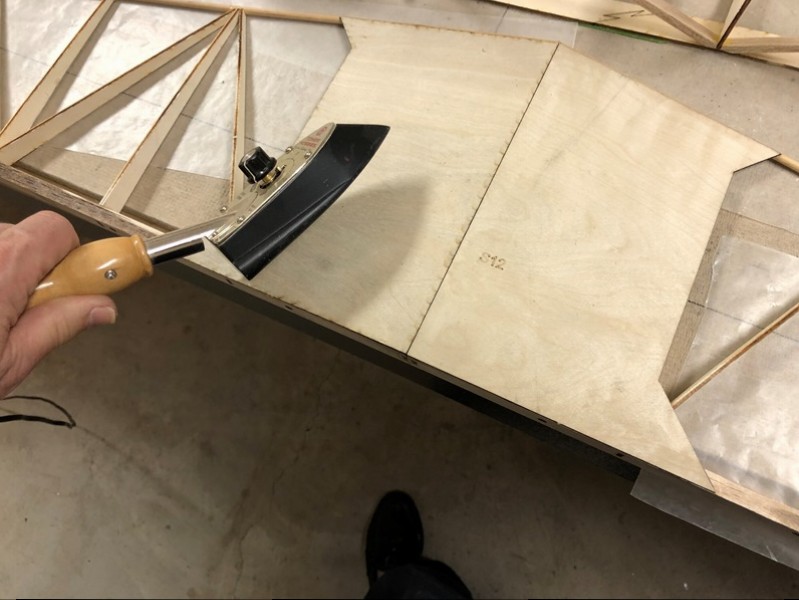

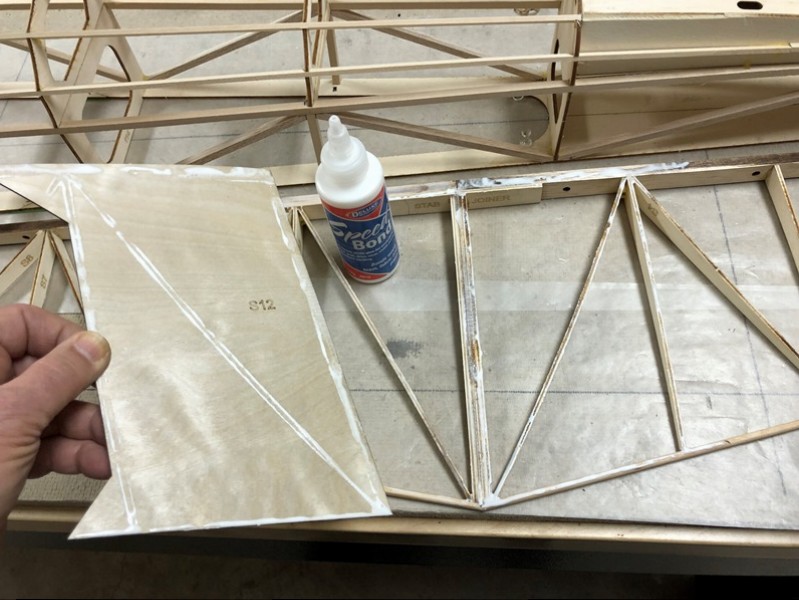

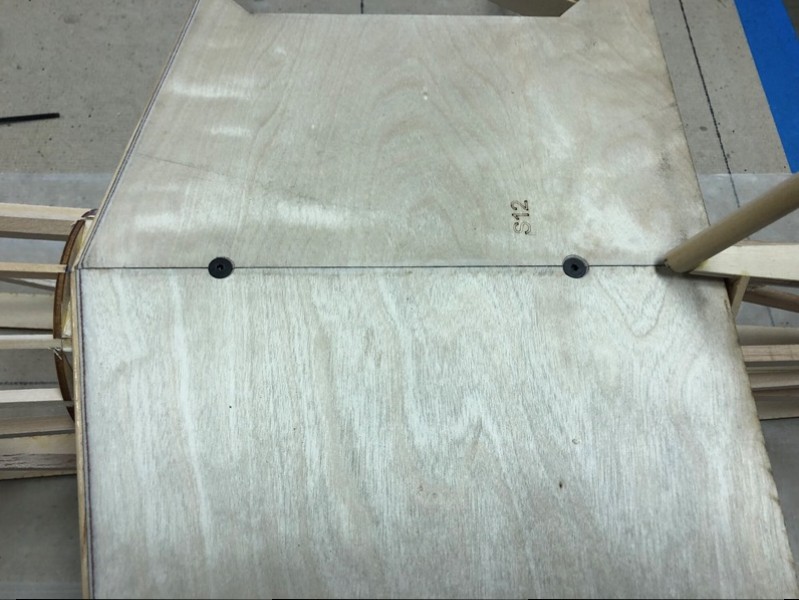

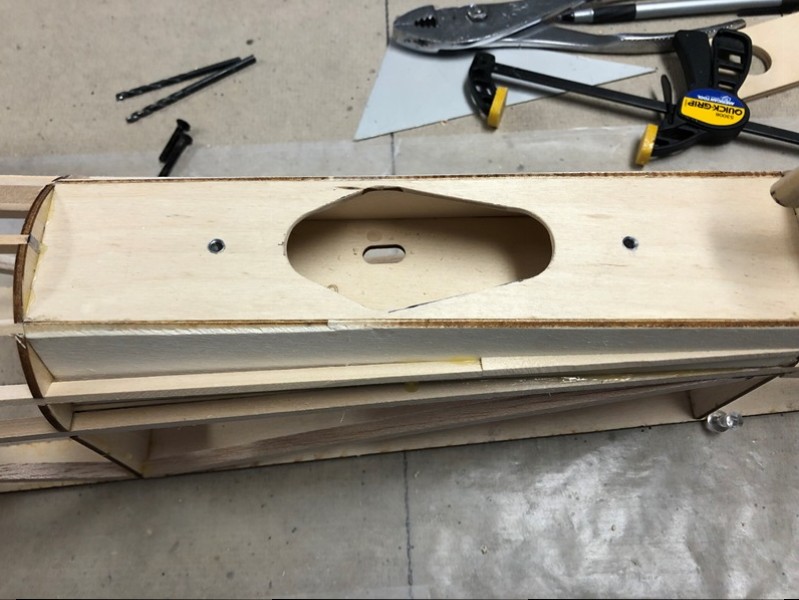

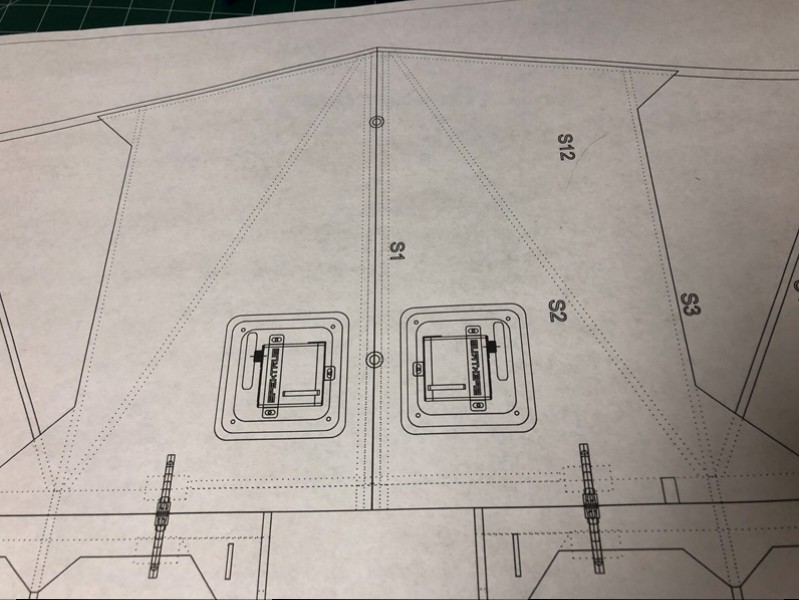

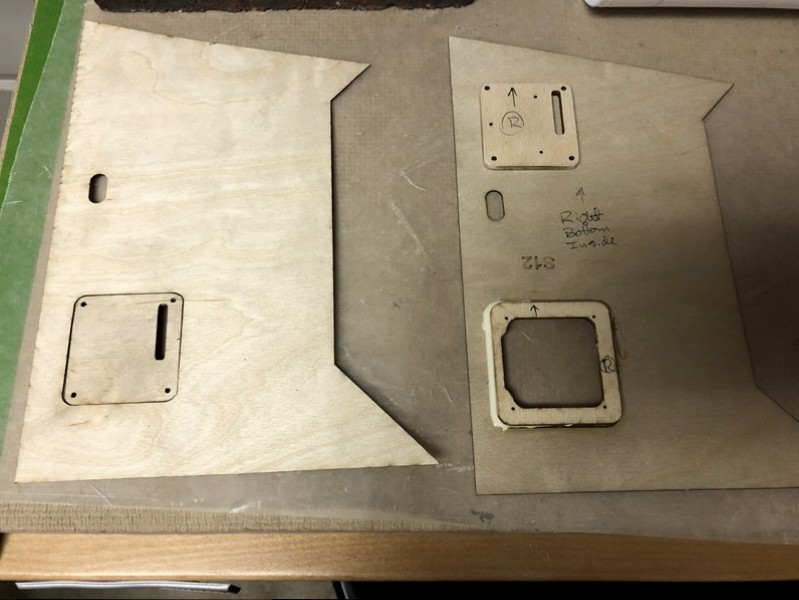

                    Prepare the lower center section sheeting by adding the elevator servo mounting parts. We started with the top sheeting and then added the bottom panels.


                    Click image for larger version  Name:	IMG_0332.JPG Views:	1 Size:	94.1 KB ID:	35538

                    Click image for larger version  Name:	IMG_0333.JPG Views:	1 Size:	87.9 KB ID:	35537

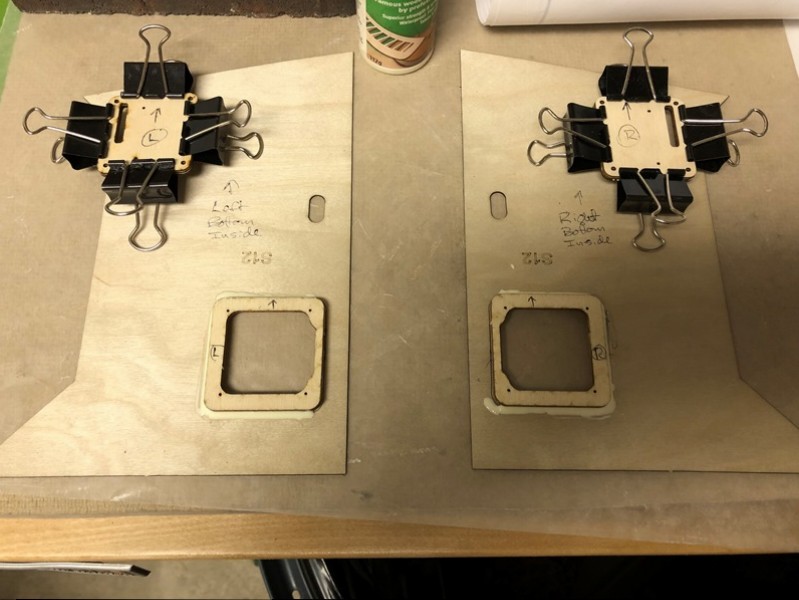

                    Apply Speed Bond glue to both surfaces, spread it into a thin layer, let it dry to clear, then iron parts together.


                    Click image for larger version  Name:	IMG_0335.JPG Views:	1 Size:	109.6 KB ID:	35541

                    Click image for larger version  Name:	IMG_0336.JPG Views:	1 Size:	85.7 KB ID:	35539

                    Click image for larger version  Name:	IMG_0337.JPG Views:	1 Size:	84.7 KB ID:	35542





                    .
                    A Site for Soar Eyes

                    Comment


                    • #12

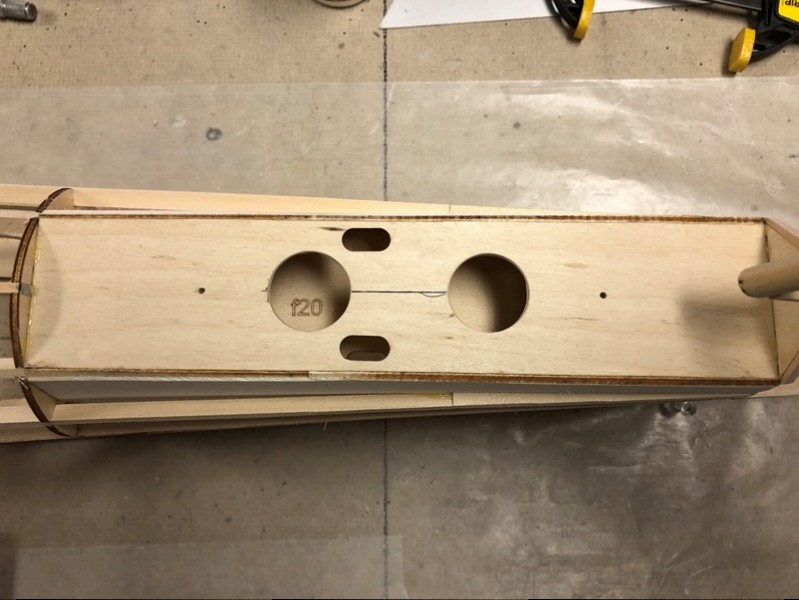

                      Check that the stab slides under the leading edge of the fin, then align stab with fuselage and drill a 1/16" pilot hole. Stick a piece of 1/16" music wire through this hole, double check the alignment, drill rear pilot hole. Remove stab and check to see where these pilot holes penetrated the stab platform. Once satisfied with these being on the centerline, put the stab back in place with the 1/16" pieces of music wire. Now remove one piece and drill out the hole with the size needed for the stab mounting bolts. Double check alignment and then drill out the other. Next, add the blind nut to the underside of the stab mounting plate.



                      Click image for larger version  Name:	IMG_0353.JPG Views:	1 Size:	93.9 KB ID:	35546

                      Click image for larger version  Name:	IMG_0355.JPG Views:	1 Size:	84.3 KB ID:	35545

                      Click image for larger version  Name:	IMG_0365.JPG Views:	1 Size:	102.5 KB ID:	35549

                      Click image for larger version  Name:	IMG_0367.JPG Views:	1 Size:	97.1 KB ID:	35548

                      Click image for larger version  Name:	IMG_0369.JPG Views:	1 Size:	99.3 KB ID:	35550

                      A Site for Soar Eyes

                      Comment


                      • #13
                        Next, add the finishing touches to the stab and build the elevators.

                        Click image for larger version

Name:	IMG_0386.JPG
Views:	334
Size:	113.9 KB
ID:	35554

                        Click image for larger version

Name:	IMG_0388.JPG
Views:	288
Size:	96.0 KB
ID:	35553

                        Click image for larger version

Name:	IMG_0523.JPG
Views:	320
Size:	99.9 KB
ID:	35556

                        Click image for larger version

Name:	IMG_0524.JPG
Views:	294
Size:	98.9 KB
ID:	35557

                        Click image for larger version

Name:	IMG_0525.JPG
Views:	309
Size:	104.3 KB
ID:	35555

                        Click image for larger version

Name:	IMG_0526.JPG
Views:	304
Size:	110.5 KB
ID:	35558

                        A Site for Soar Eyes

                        Comment


                        • #14

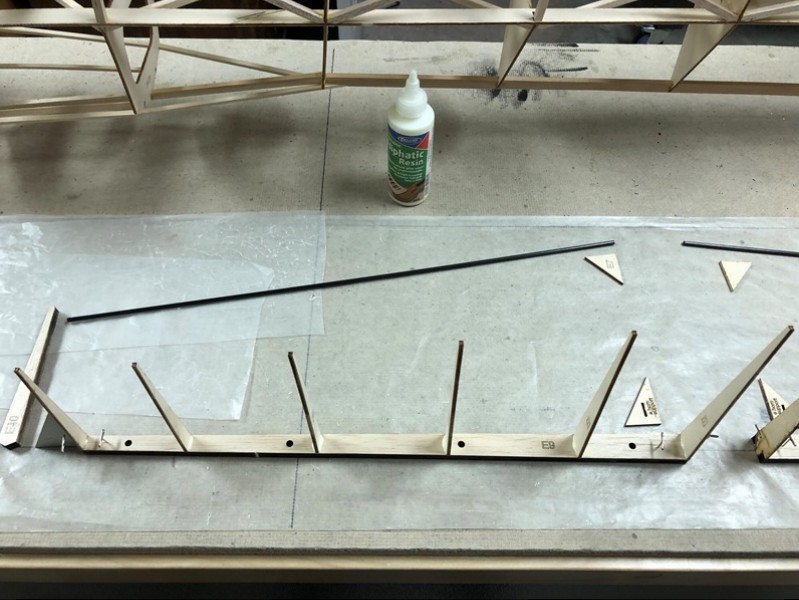

                          The rudder is built in a similar fashion to the elevators. The thick balsa leading edge gets sanded to a "V" shape to allow for the hinge line to have sufficient side-to-side travel. Likewise on the elevators.

                          Click image for larger version  Name:	IMG_0387.JPG Views:	1 Size:	130.3 KB ID:	35560

                          Click image for larger version

Name:	IMG_0390.JPG
Views:	280
Size:	120.6 KB
ID:	35564

                          Click image for larger version

Name:	IMG_0391.JPG
Views:	283
Size:	129.3 KB
ID:	35563

                          Click image for larger version  Name:	IMG_0454.JPG Views:	1 Size:	91.7 KB ID:	35561

                          Click image for larger version  Name:	IMG_0460.JPG Views:	1 Size:	93.6 KB ID:	35562
                          Last edited by JimD; 04-07-2019, 09:18 PM.
                          A Site for Soar Eyes

                          Comment


                          • wesryman
                            wesryman commented
                            Editing a comment
                            Hi Jim. The plans show R1 (large ply vertical piece at bottom of rudder) and R2 touching. On mine there is a gap. In the first picture of rudder construction above it looks like you have added a piece to the top edge of R1 so it touches R2, is that what I’m seeing? I can add a piece like you did, just trying to make sure. Thanks

                          • JimD
                            JimD commented
                            Editing a comment
                            Yes, there was a gap on mine and we added a piece of scrap balsa to fill it in. Peter and I talked about that issue and a couple of other small things. He reviewed his CAD plan files and cut files and made corrections, but some parts for early kits may have slipped through.

                          • wesryman
                            wesryman commented
                            Editing a comment
                            Ok. Thanks. No big deal just wanted to be sure before glue got applied. Thanks again

                        • #15
                          Now we return to our regularly scheduled program!

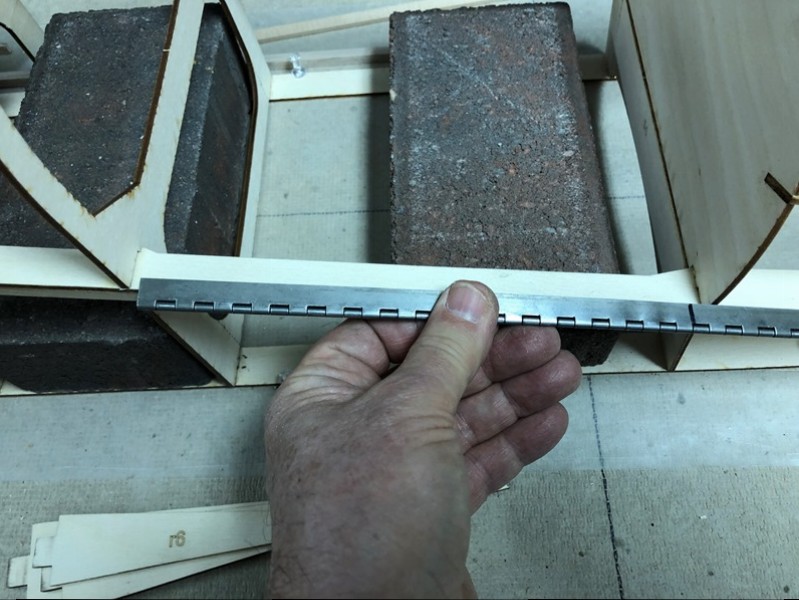

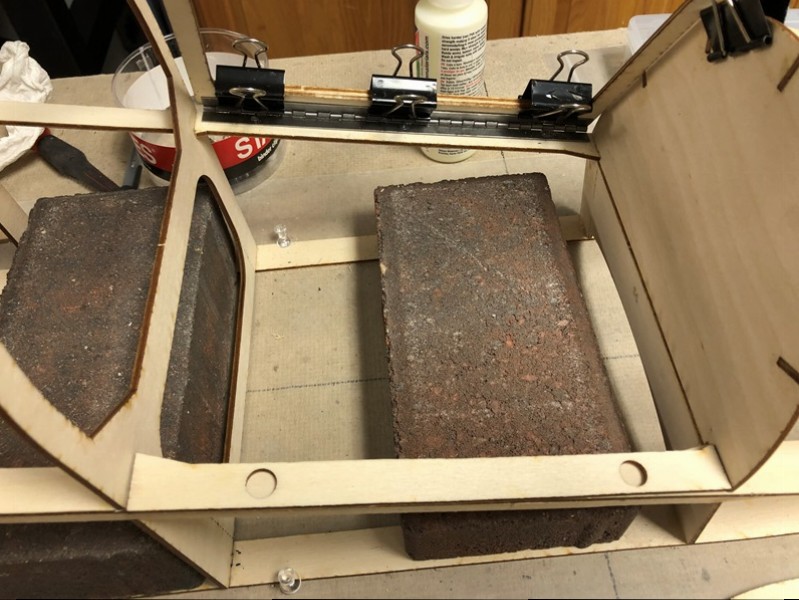

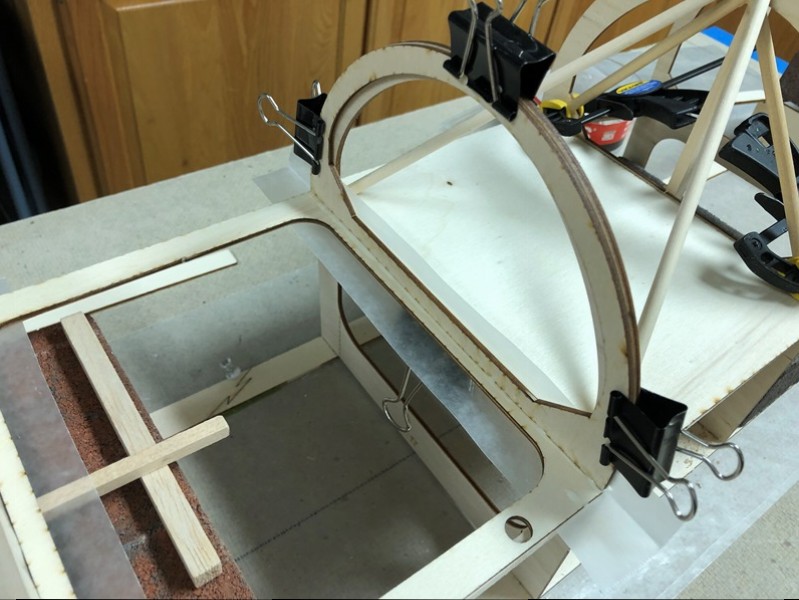

                          Where were we...ah yes, the canopy frames. Time to add the piano hinge to the front canopy. This metal hinge needs to be cut down. We used a cutoff wheel on our Dremel tool.
