Another T45 Swallow - Slingsby --

[MarnochS]

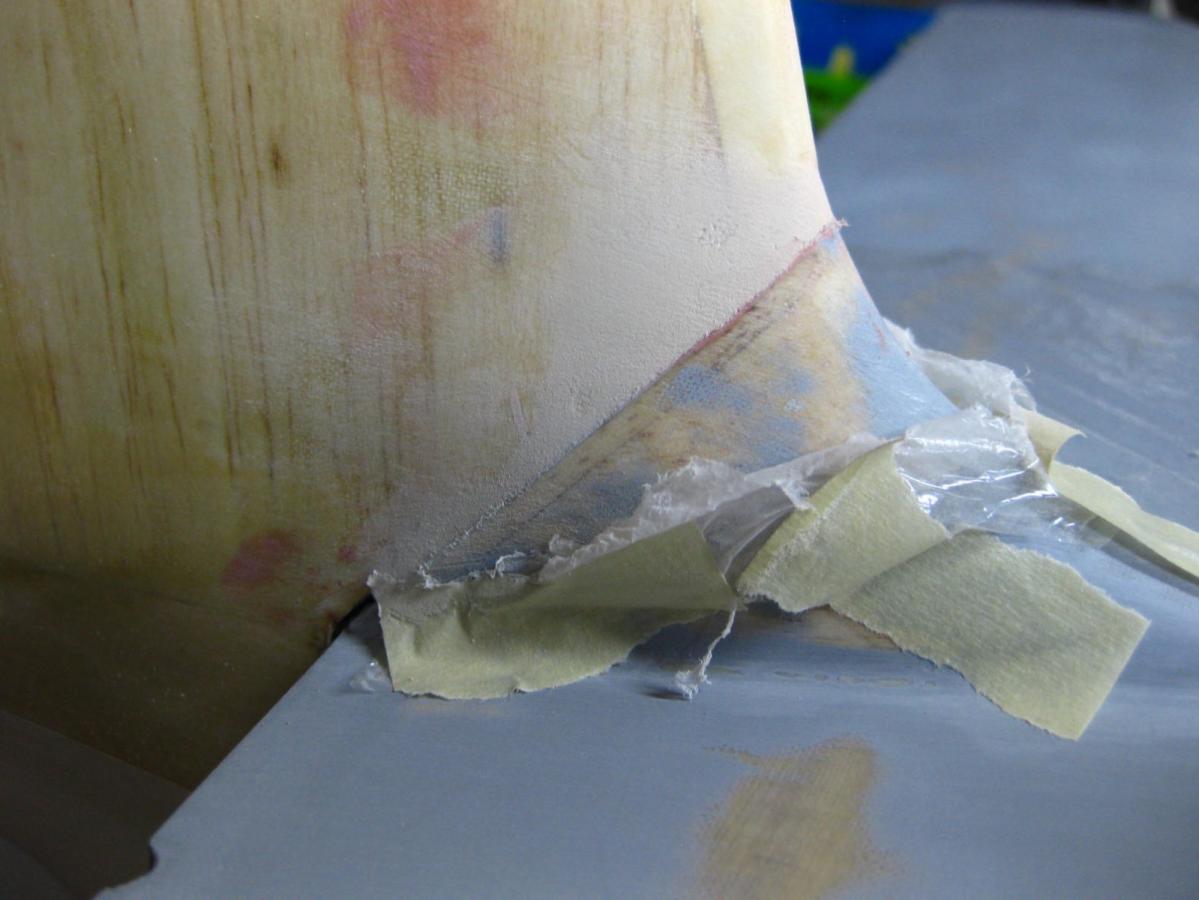

correcting some last minute depressions.....



And time to start masking the fabric area ( part 1 ) and add some primer..




Painted the Canopy frame light blue ( PPG Omini LV ) so it will match the rest of the Cockpit color.....

[lenb]

Tick toc tick toc
LOL
Looking forward to seeing it in IL

[MarnochS]

the ever omnipresent metronome........

Some masking........followed by a base layer of white..........followed by AeroThane 140 Orange-Yellow (thinned 20%)
Pretty good gloss as you can see the paint mask backing paper on the stab.

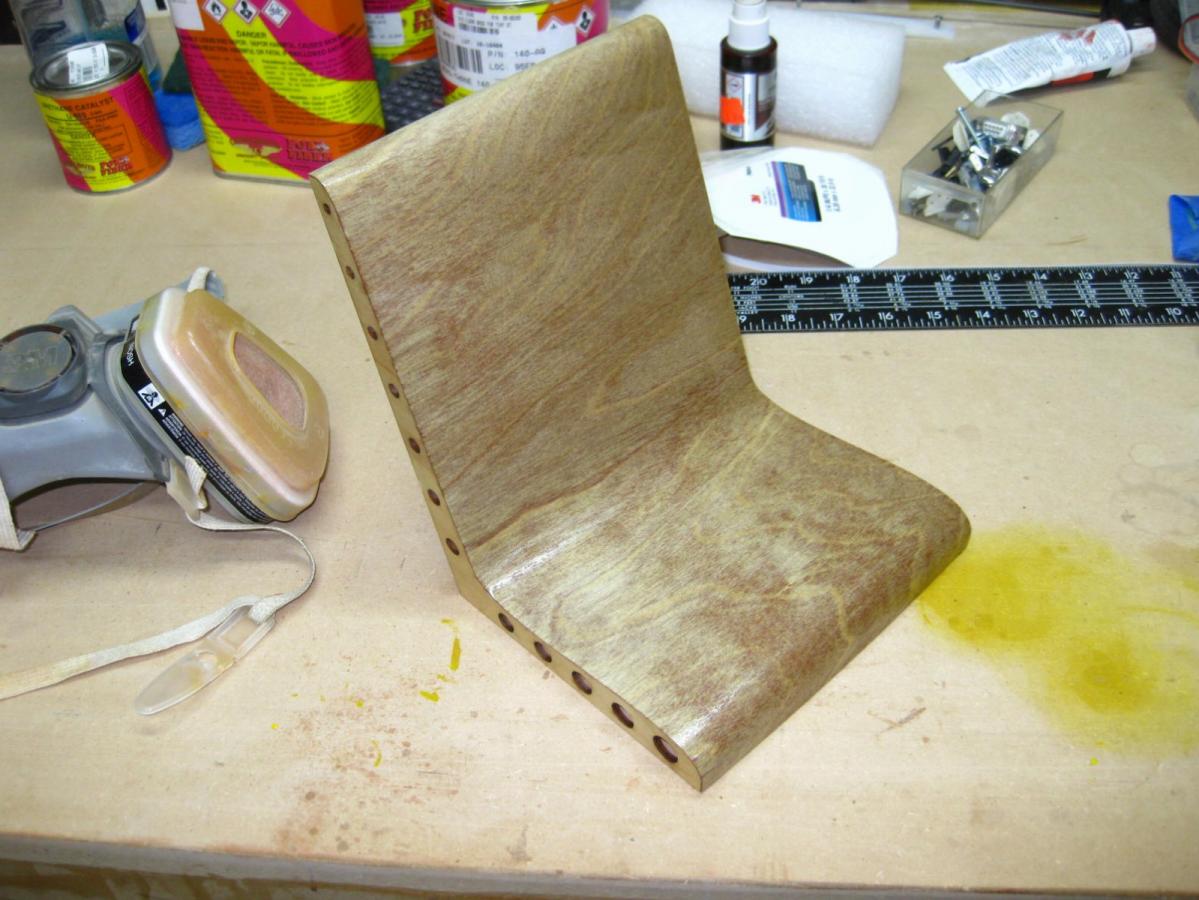

And a coat of Spar Varnish on the constructed Seat.

[MarnochS]

Pulled the paint masks off .......I'm liking it....

[MarnochS]

Things were going along so well and then........I didn't fill the weave well enough on the D-box area.....( skipped the PolySpray step )
Now I've got some sanding in my future.....nuts.......

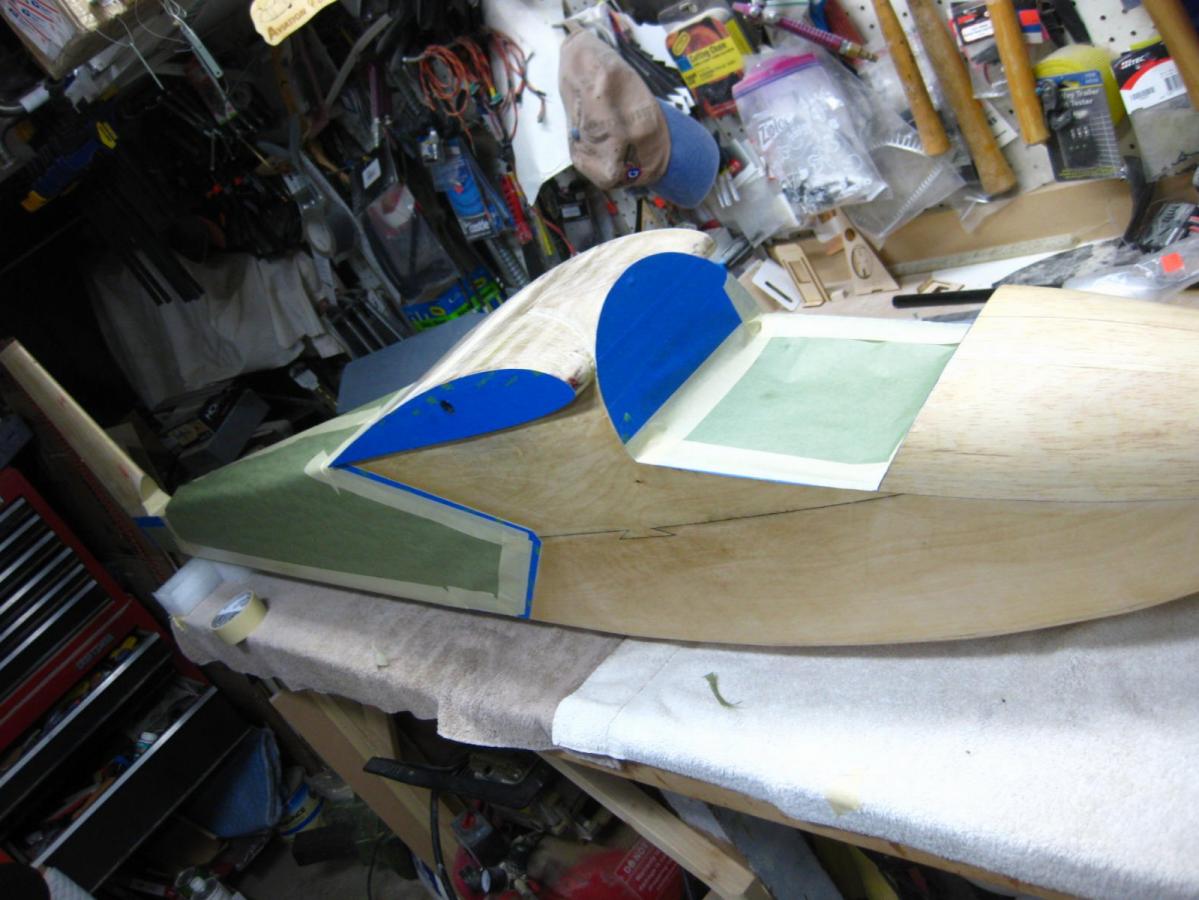

Well - while I wait for paint to dry......moved on to sanding and masking the fuselage.......and filling the rear fabric that didn't get a clear coat
Applying silver to the top of the rear fuselage section as it's going to be yellow and I didn't want the see-thru look.

[MarnochS]

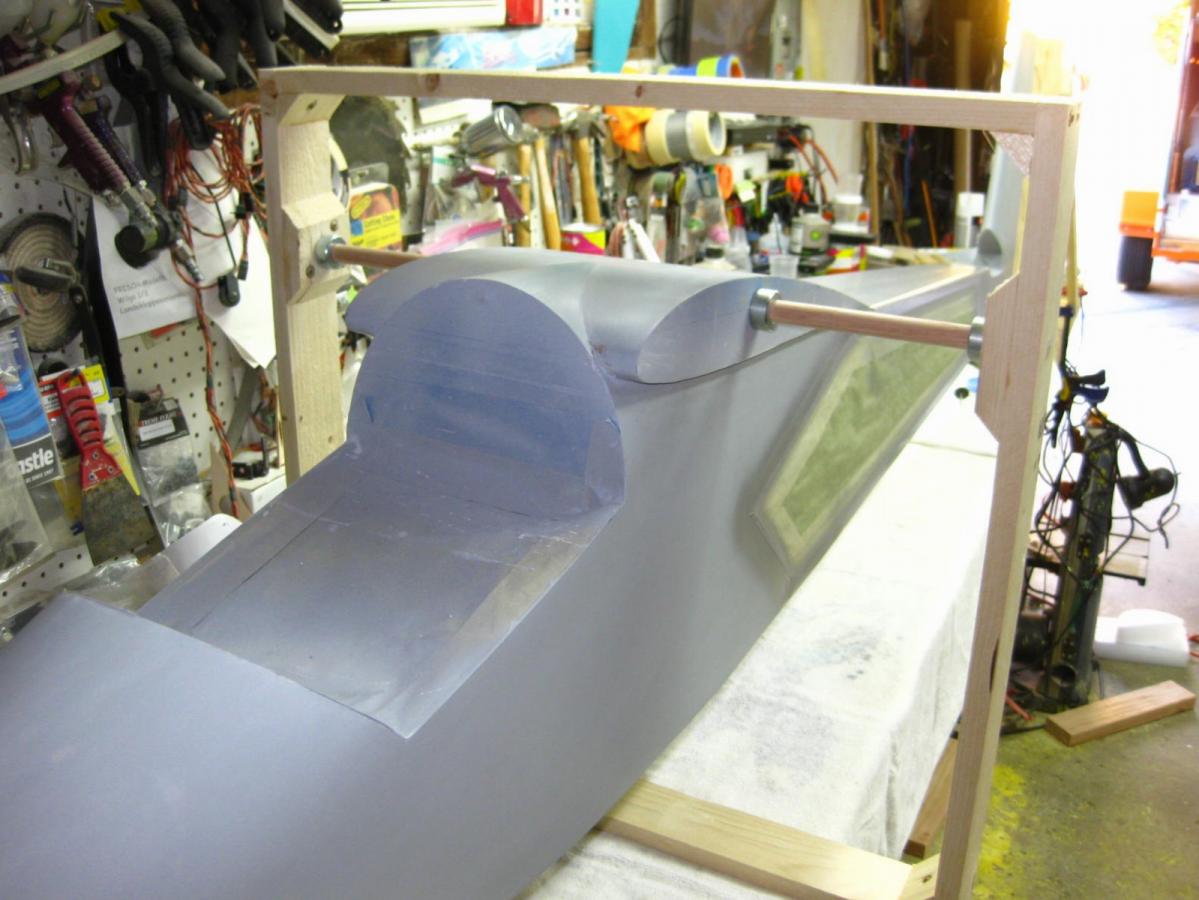

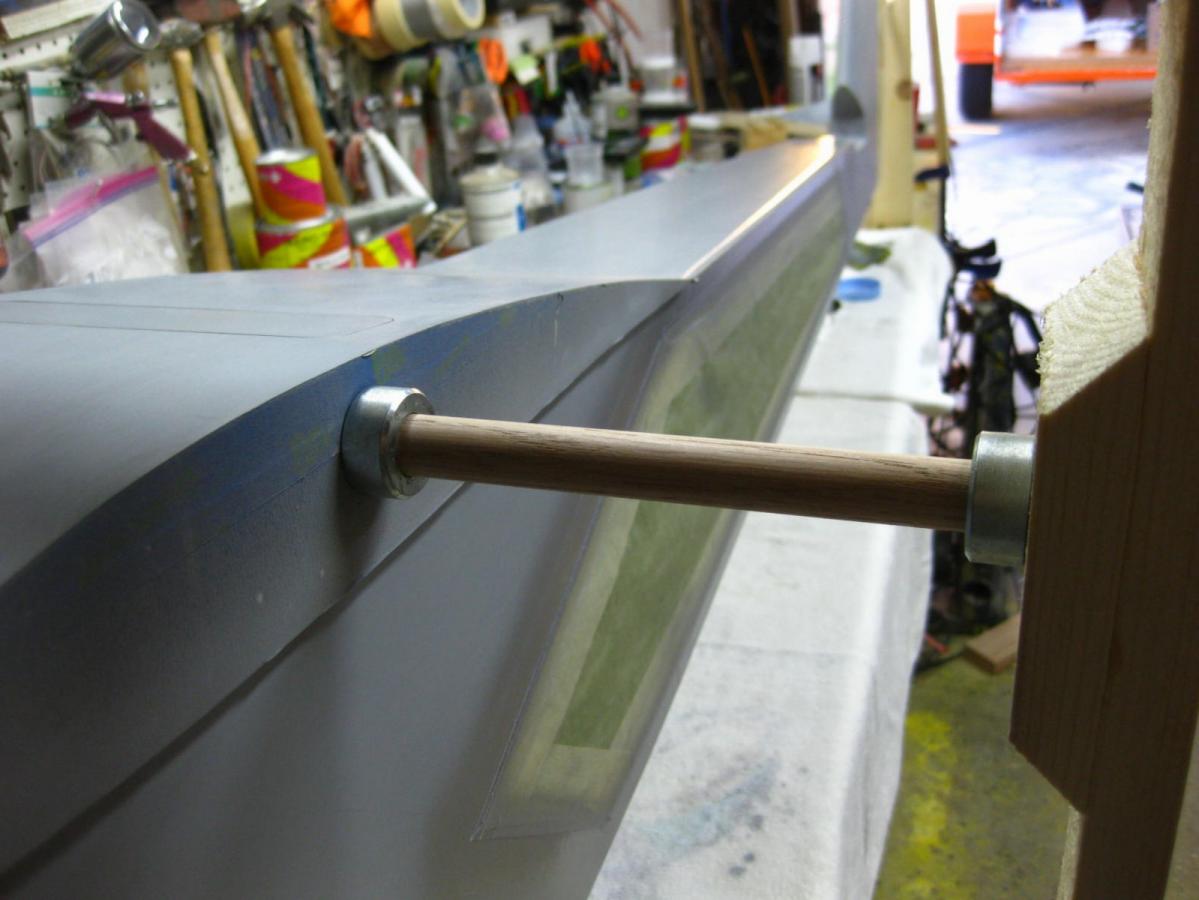

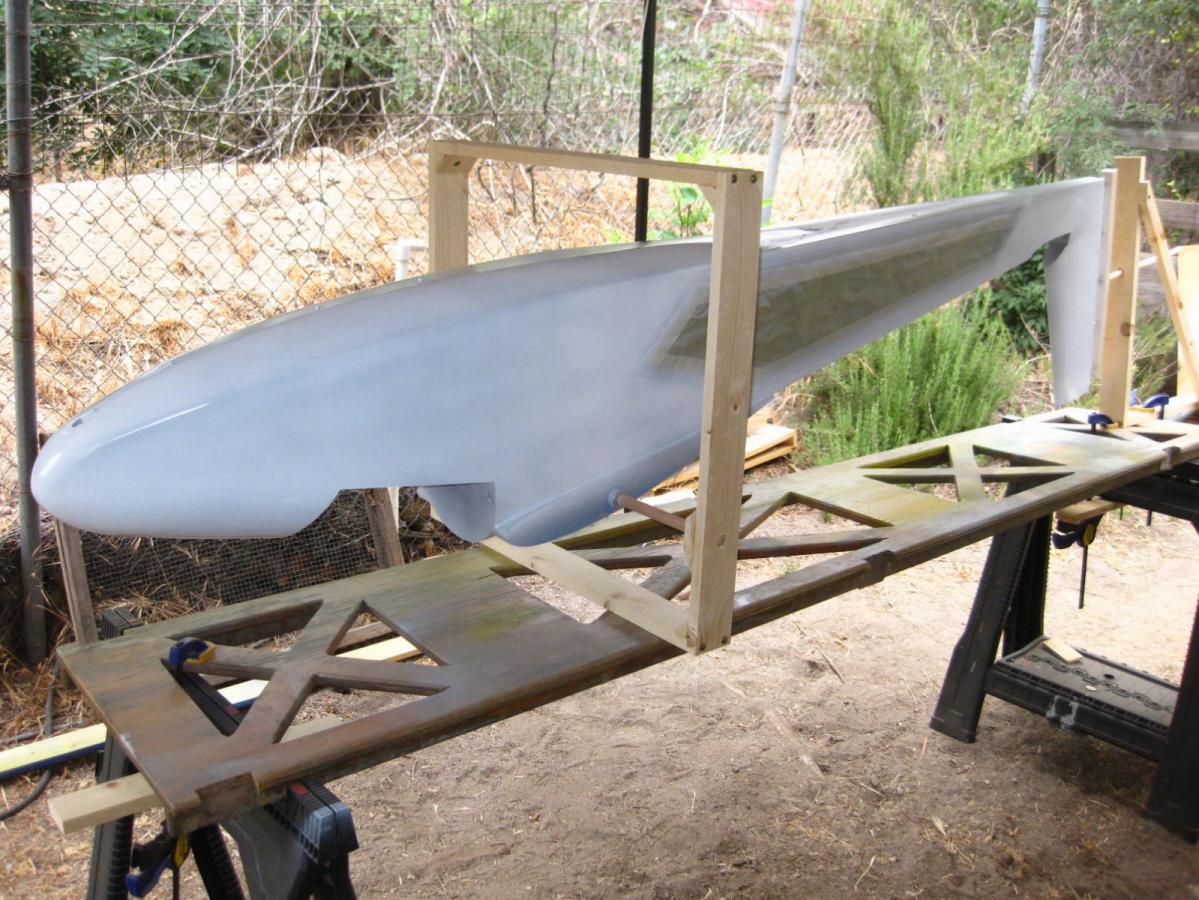

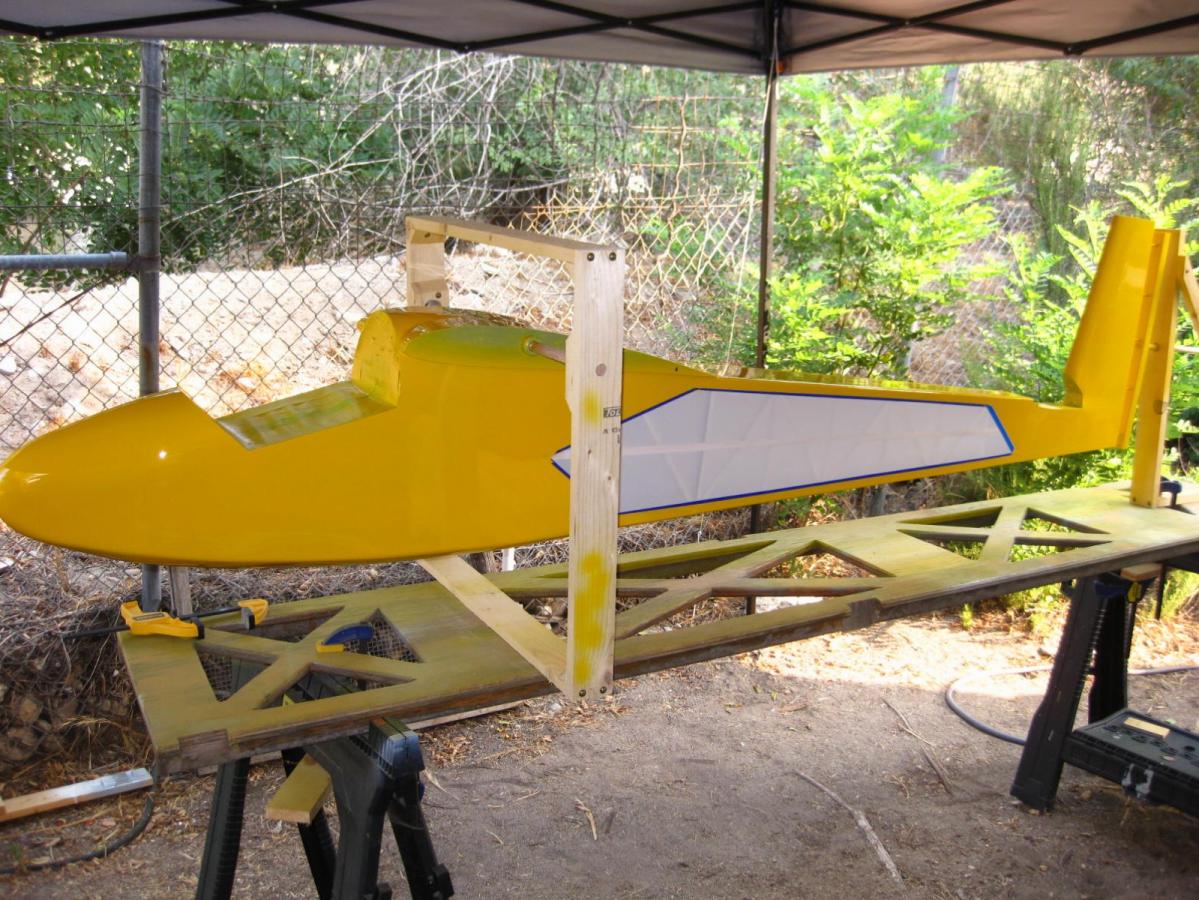

worked out how to hold the fuselage while painting



Two mist coats of white and then the yellow




.................

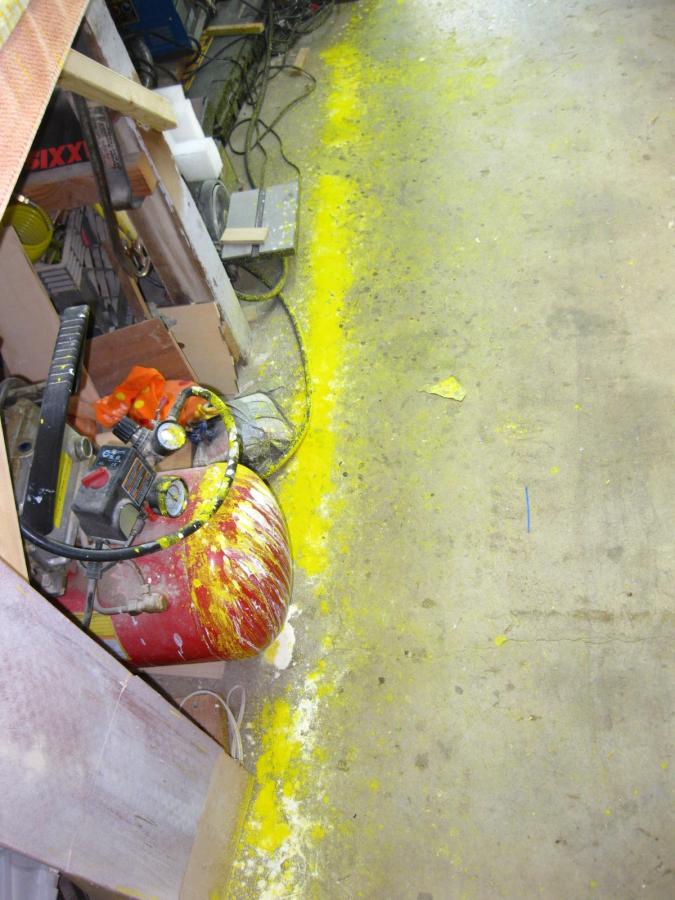

Clean-up on aisle 2.........all the paint I sanded off my wings with 220 grit wet/dry and a spray bottle..

[Asher Carmichael]

Been there, done that.......

[ARUP]

That's a pretty slick fixture! That is really going to show up at altitude, too! Painting with yellow is murder. Takes a bit to get opaque... at least with dope it does! Red is sorta the same.

[MarnochS]

Yellow .....also known as ballasting with paint.....

[ARUP]

Ahahahaha!

[MarnochS]

Yellow............a quick color check with the "reference" subject..... ...the impulse to peel the masking tape back is nearly overwhelming.

[MarnochS]

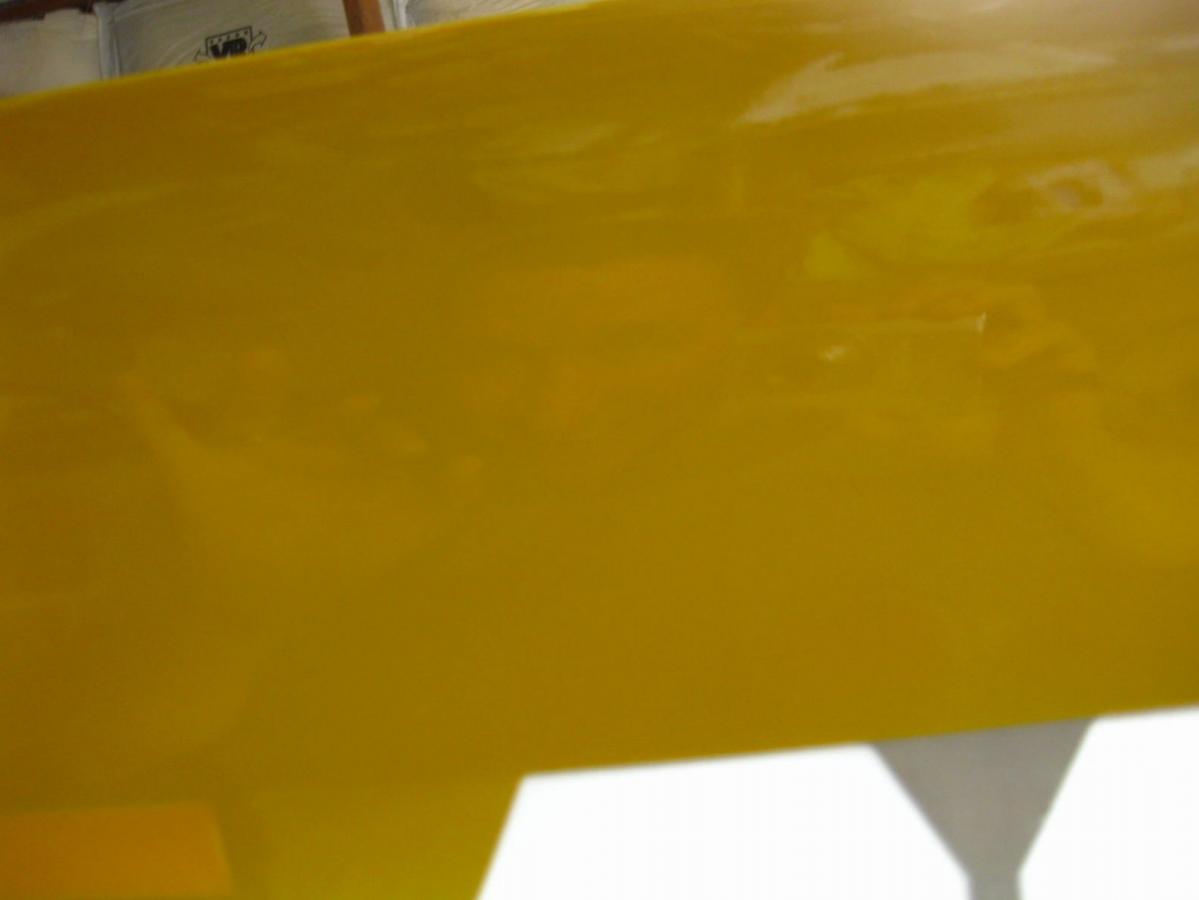

Finally got over the wing painting hurdle.....................checking the "gloss"

​

[Gene C]

Scott,
Just keep plugging away at it as you are and it will soon be ready to fly. It's hard to resist the temptation but hang in there.

[MarnochS]

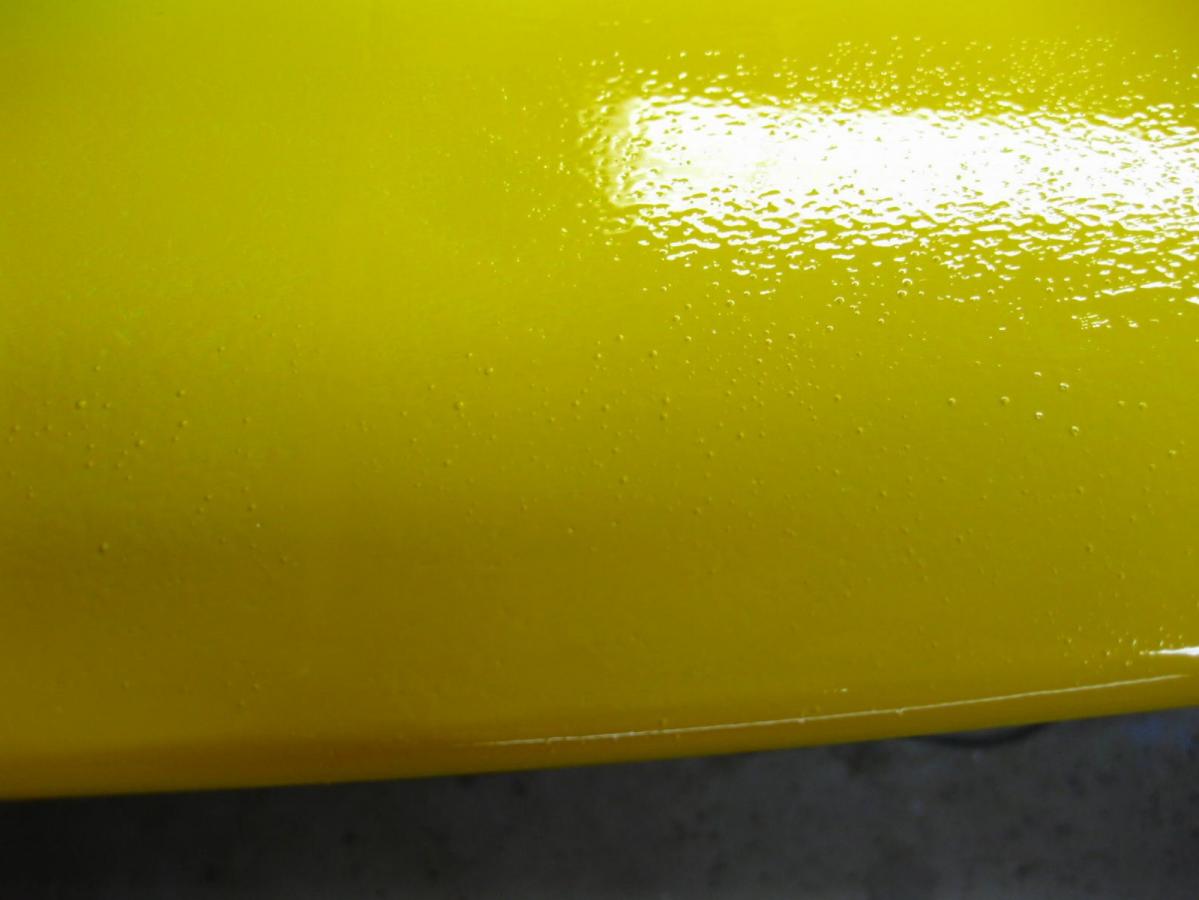

Finally an acceptable paint application - third time's a charm......second attempt - the Black Locust tree spit all over one side of the fuselage as I was carrying it out and ended up with fisheye all over......More quality time with 220 wet/dry and a spray bottle........ This time I got some paint prep wipe solution and" went to town" on the fuselage just before painting .......
Of course I had to remove the paper to have a look......

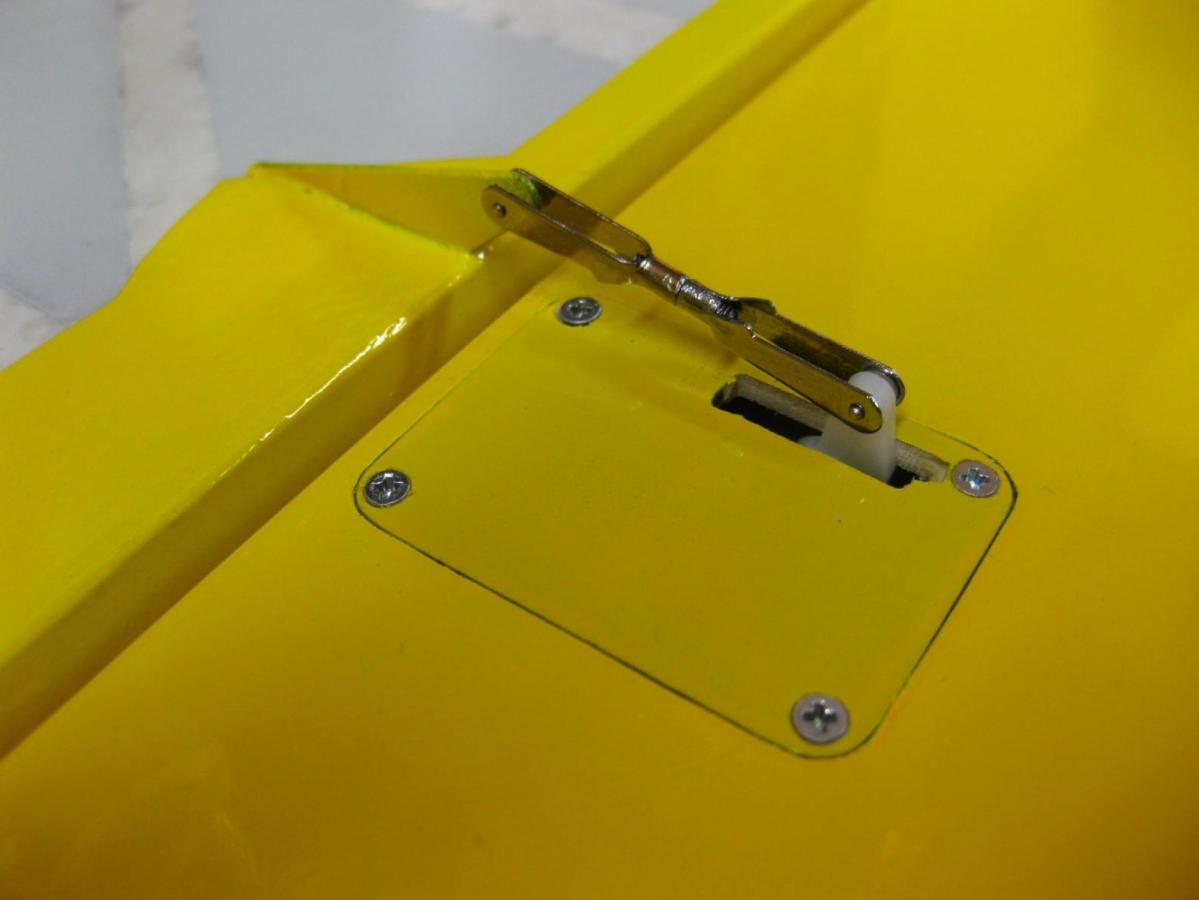

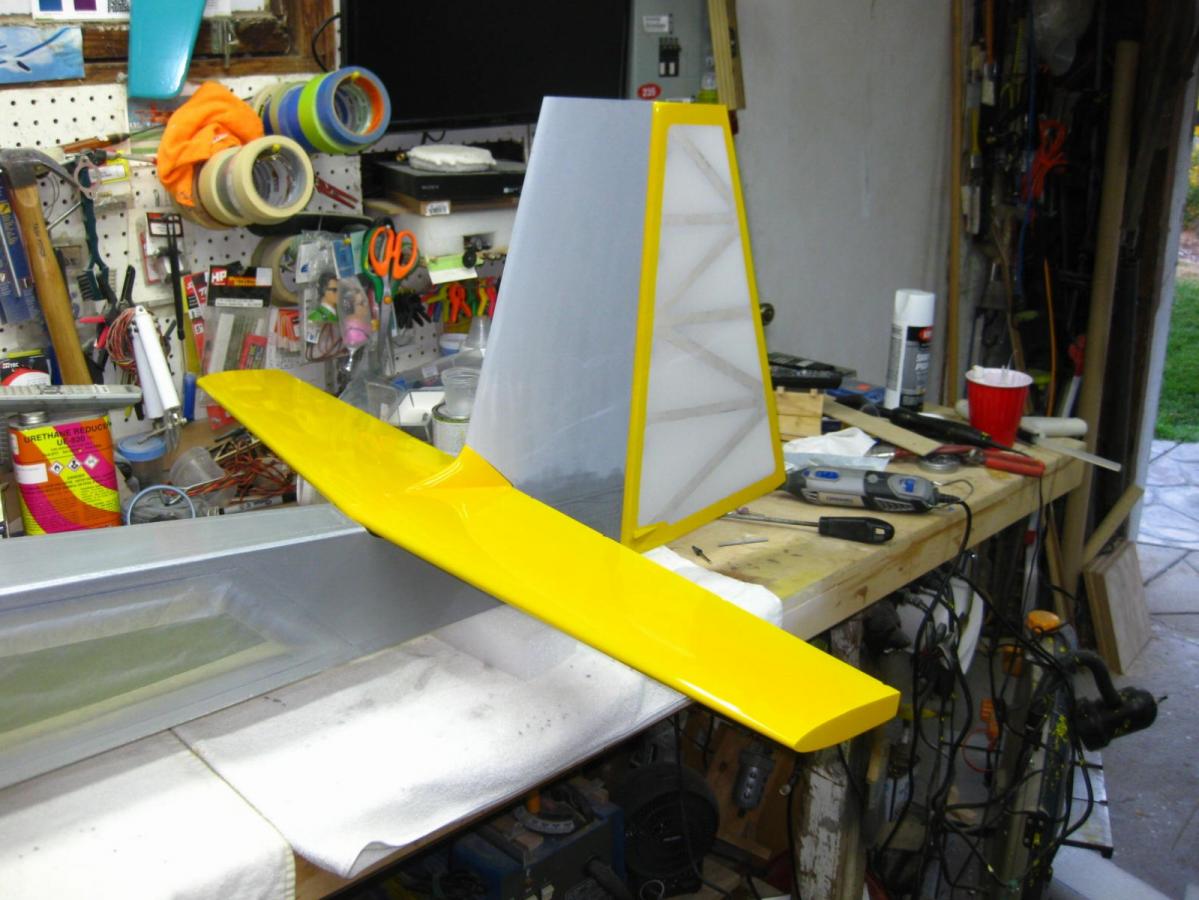

Stabilizer completed. Used some DS368 servo horns and 2-56 threaded clevis that were cut down to fit and then it was glued together.

[Gene C]

Looking fantastic Scott. Should be very visible with air under it's wings.

[BryanB]

Yes, patiently waiting to see it all together. Looks great!

[MarnochS]

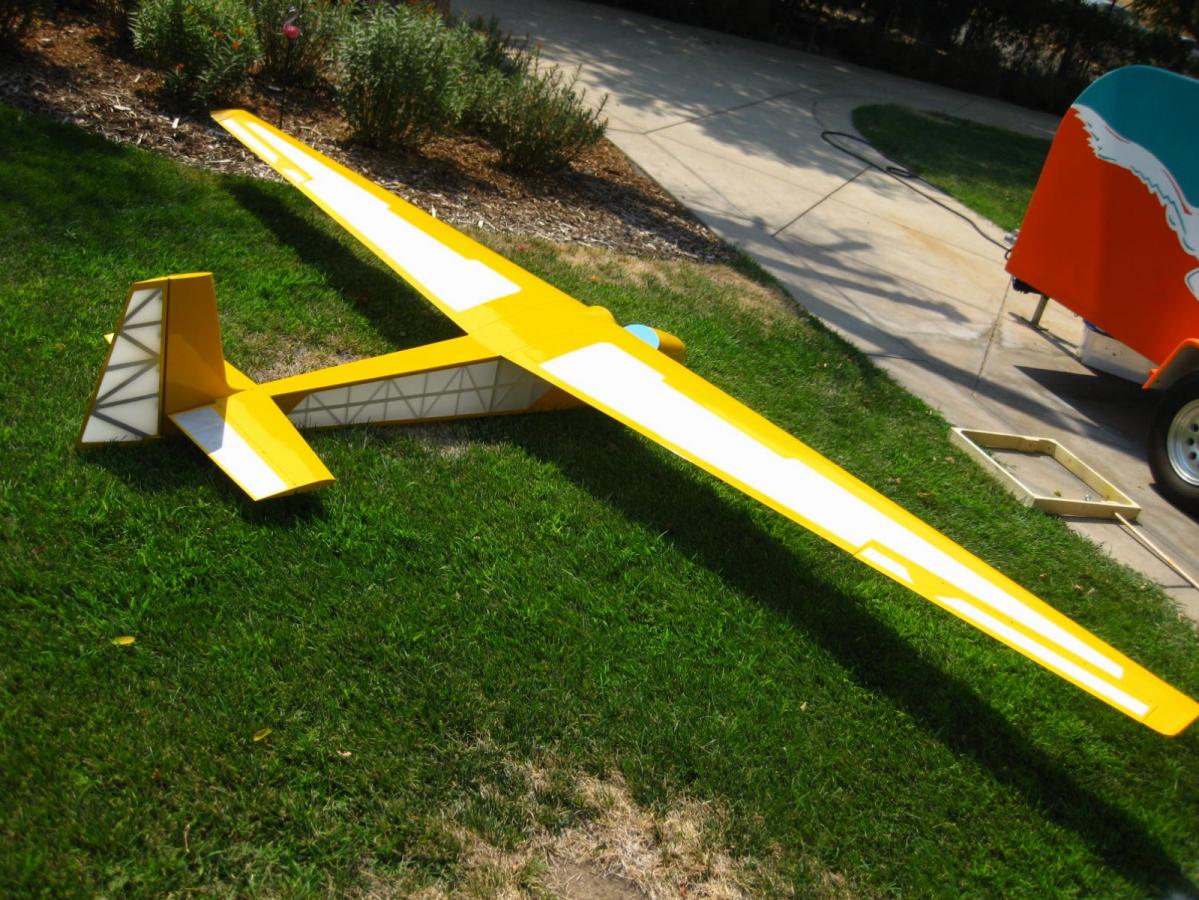

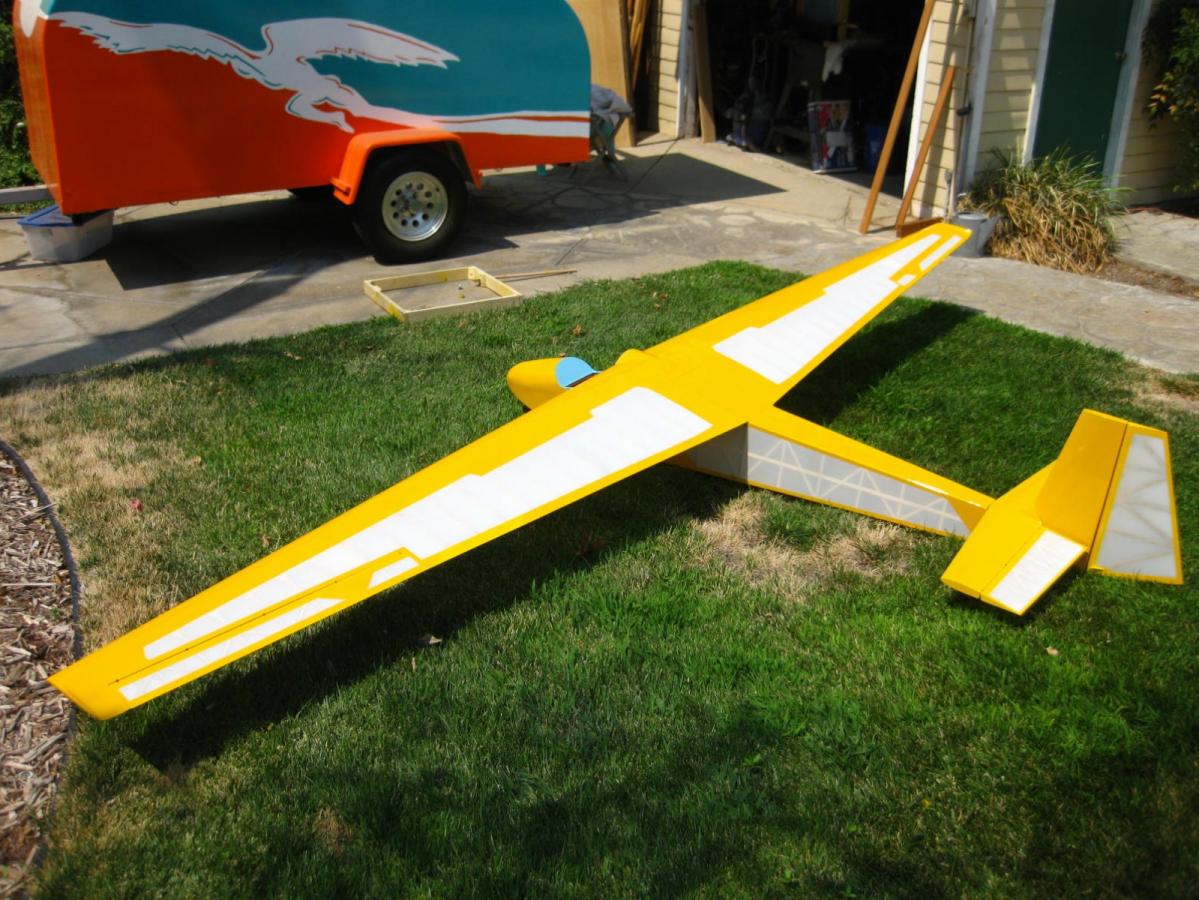

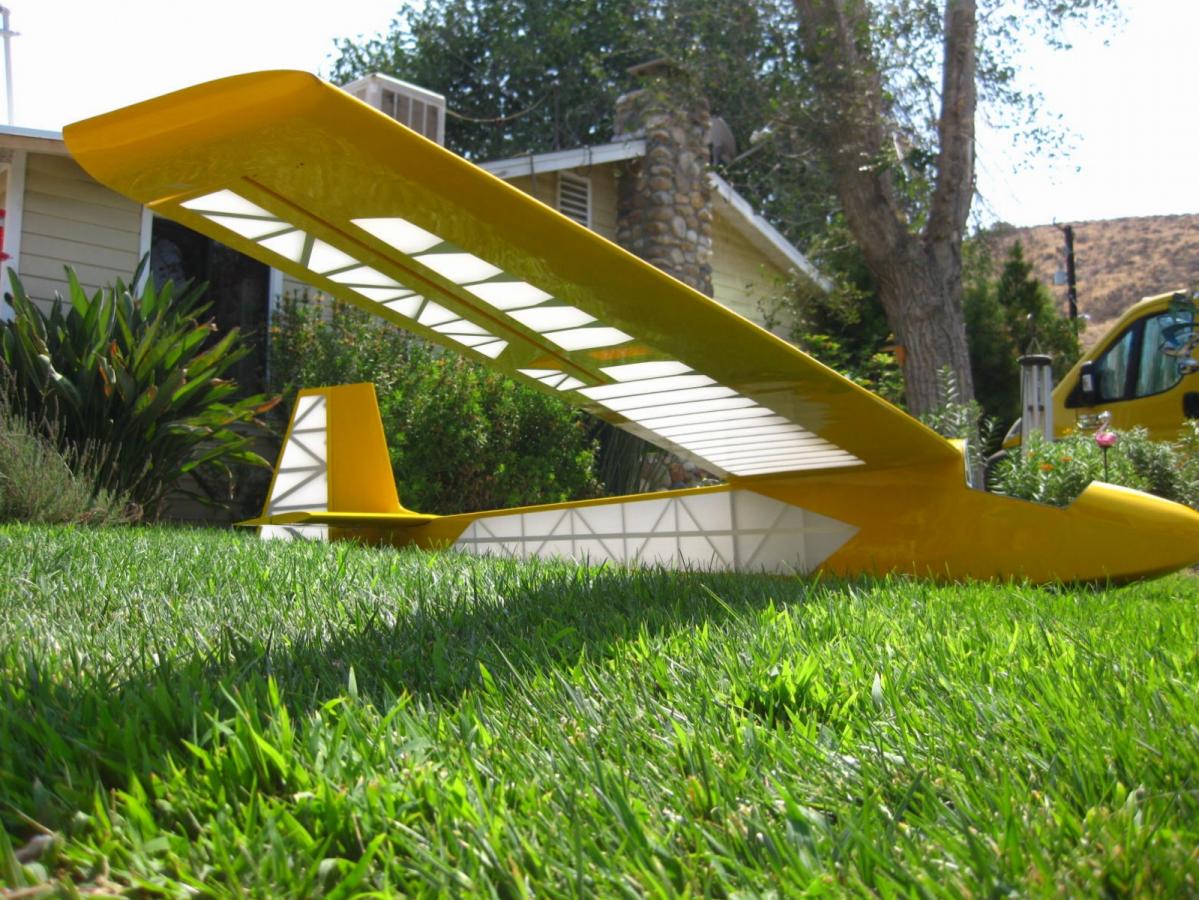

As requested...... the Swallow that is Yellow




90% done..............90% left to do......

.

[BryanB]

Looks fabulous!

[ARUP]

I'll second the fabulous comment!

[Gene C]

Scott,
Fantastic! just doesn't due it justice.

[jgallacher]

Another exceptional model Scott.
Jim

[Pgoldsmith]

Beautiful
Scott, your making me want to build another one,

[MarnochS]

Big day for the Swallow.

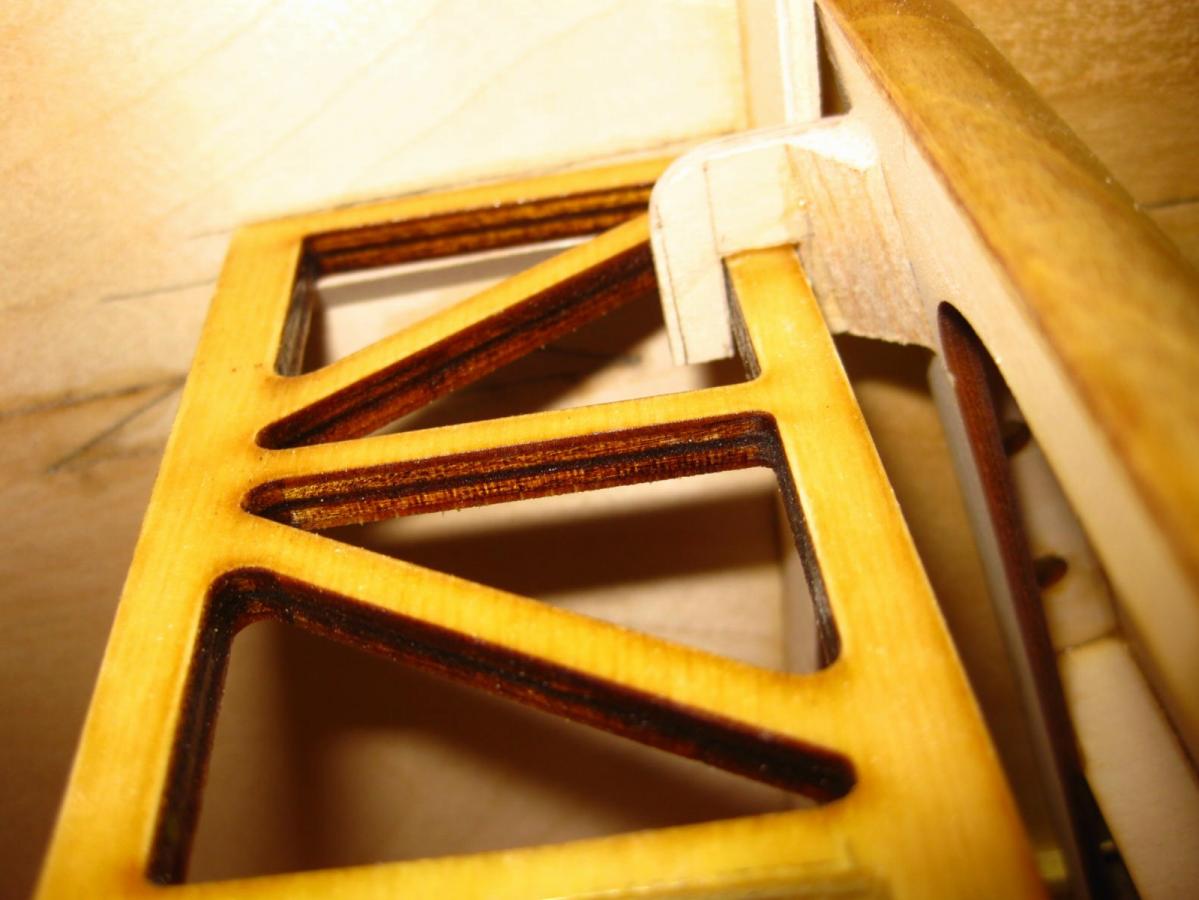

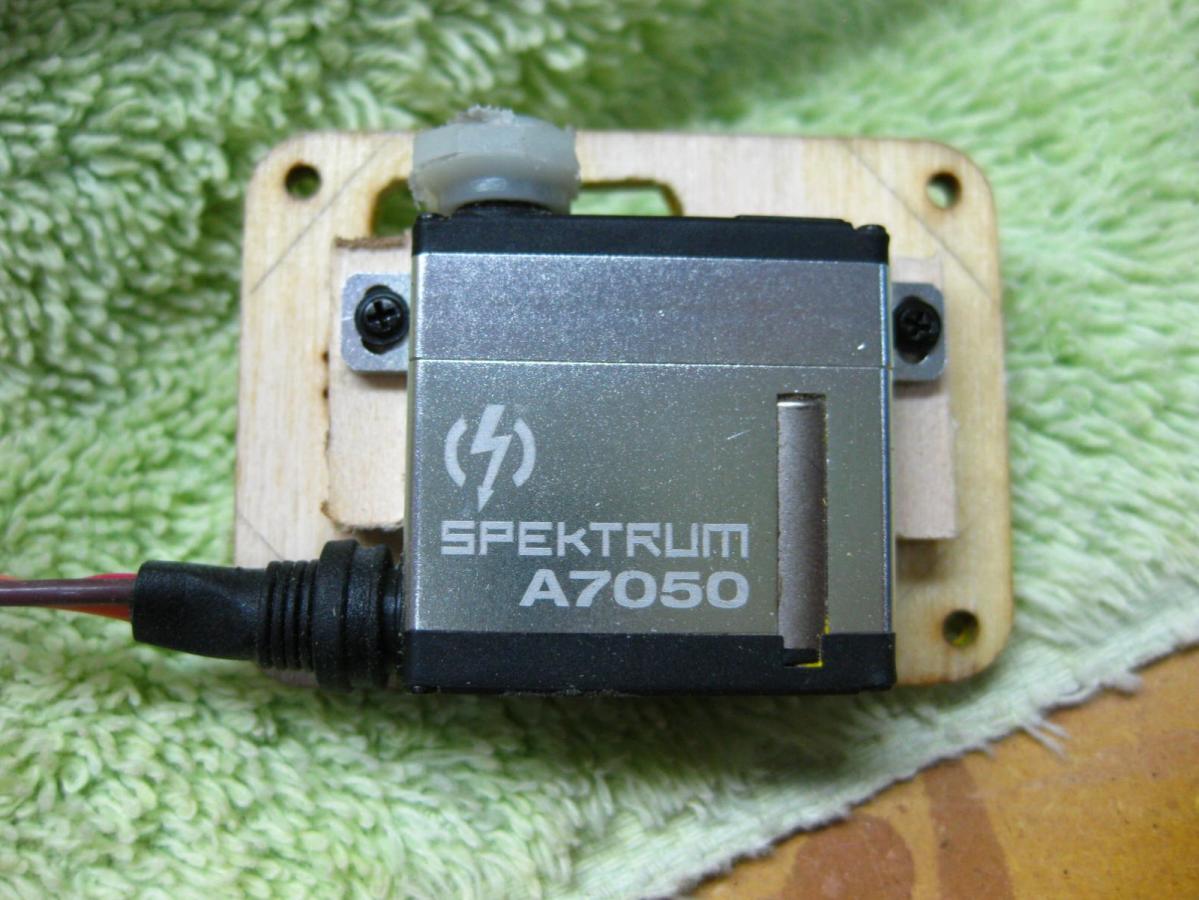

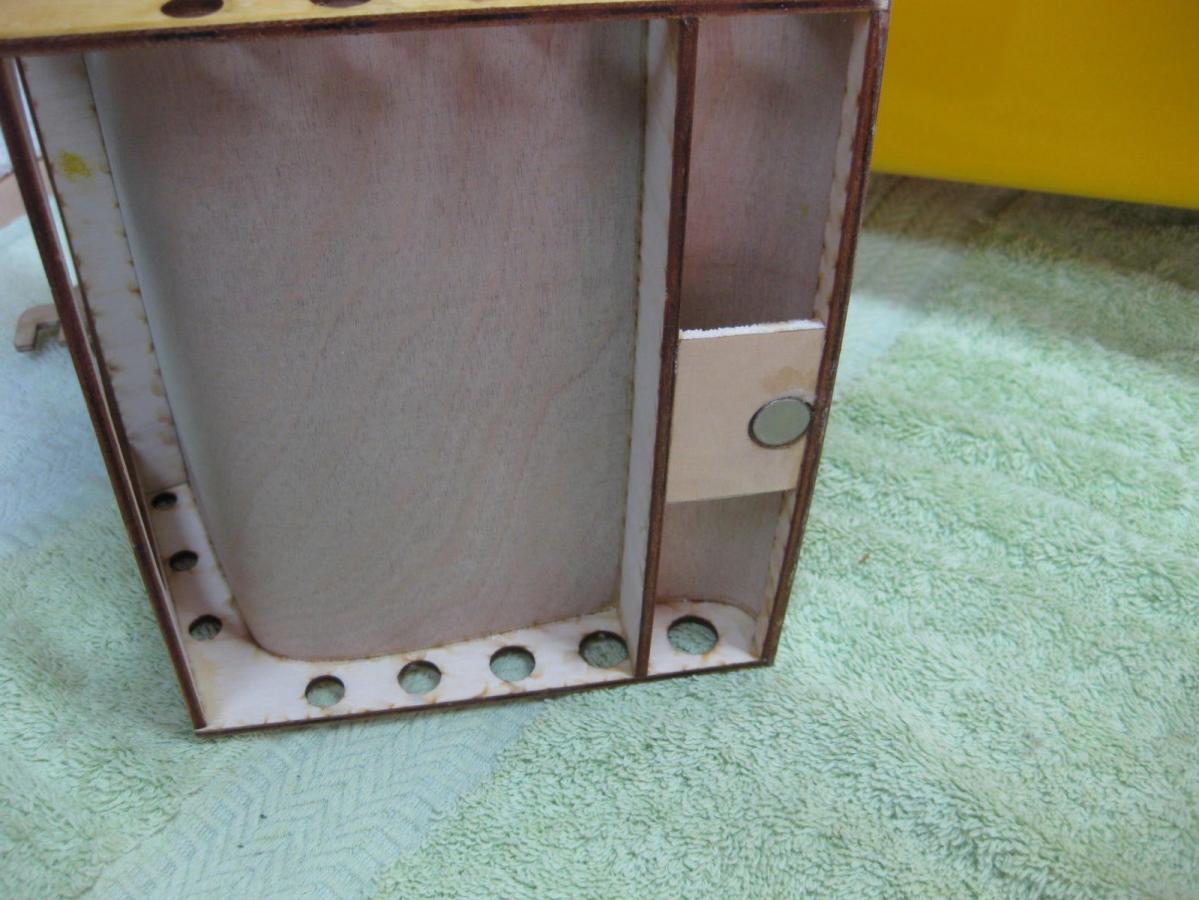

Seat mounted using the Rudder servo tray hooks on the back and a magnet on the front.

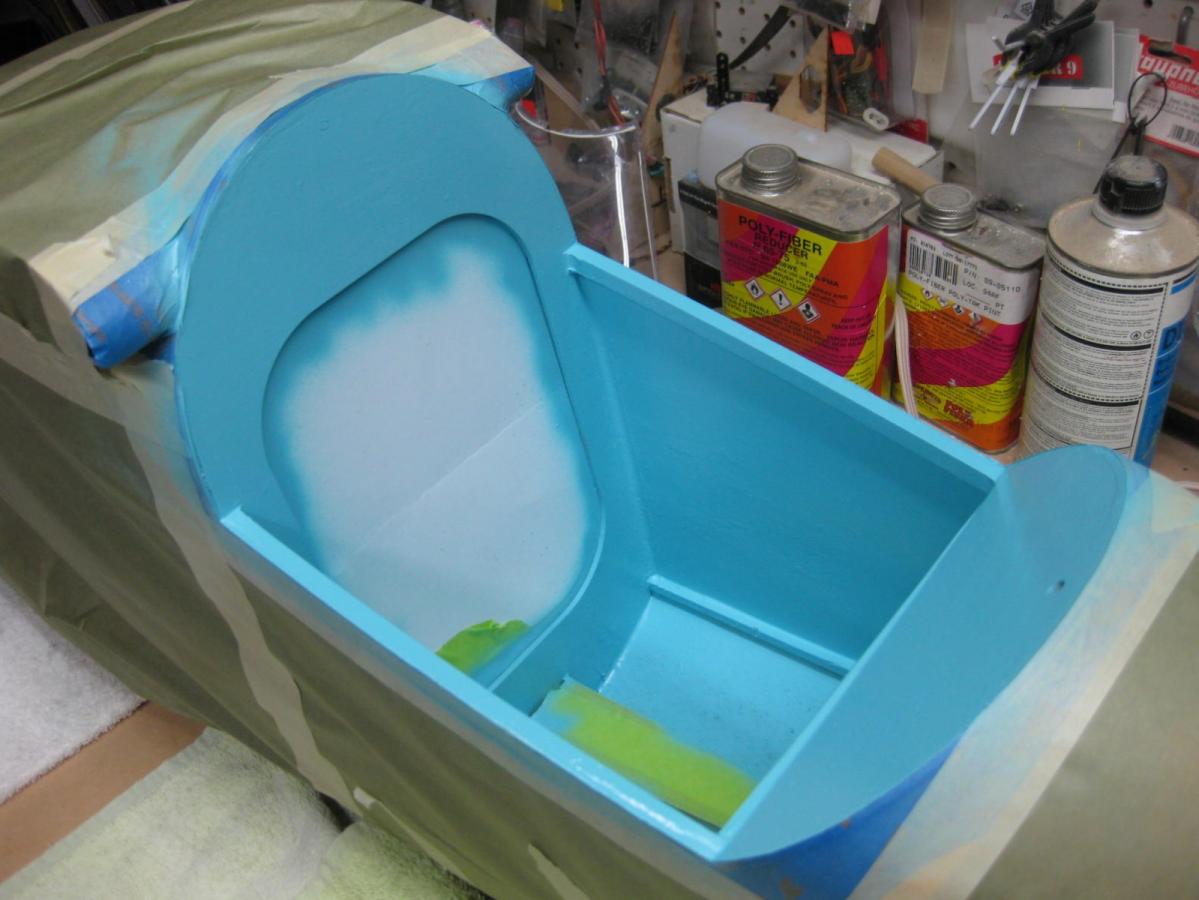

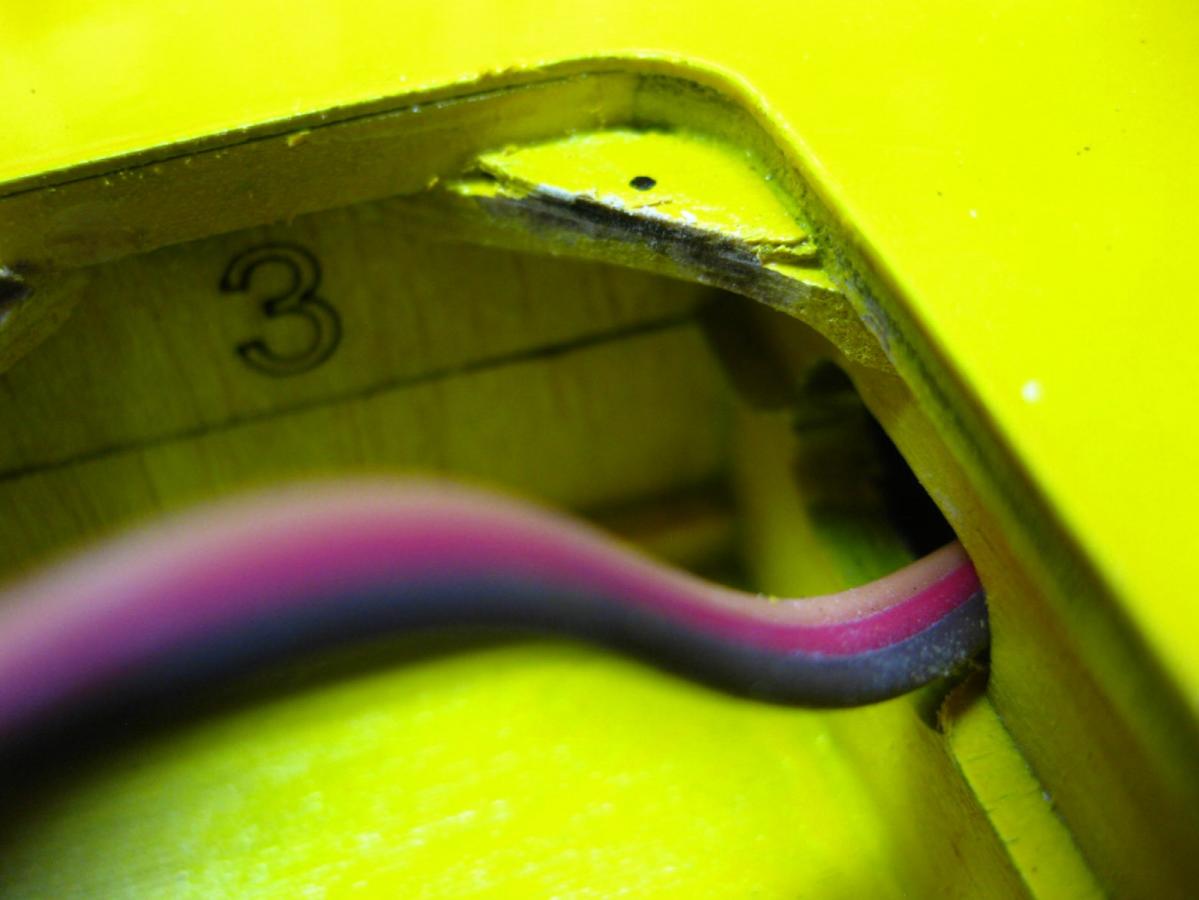

With the servo wires routed, it was time to paint the Cockpit light blue with my trusty Paasche Airbrush.

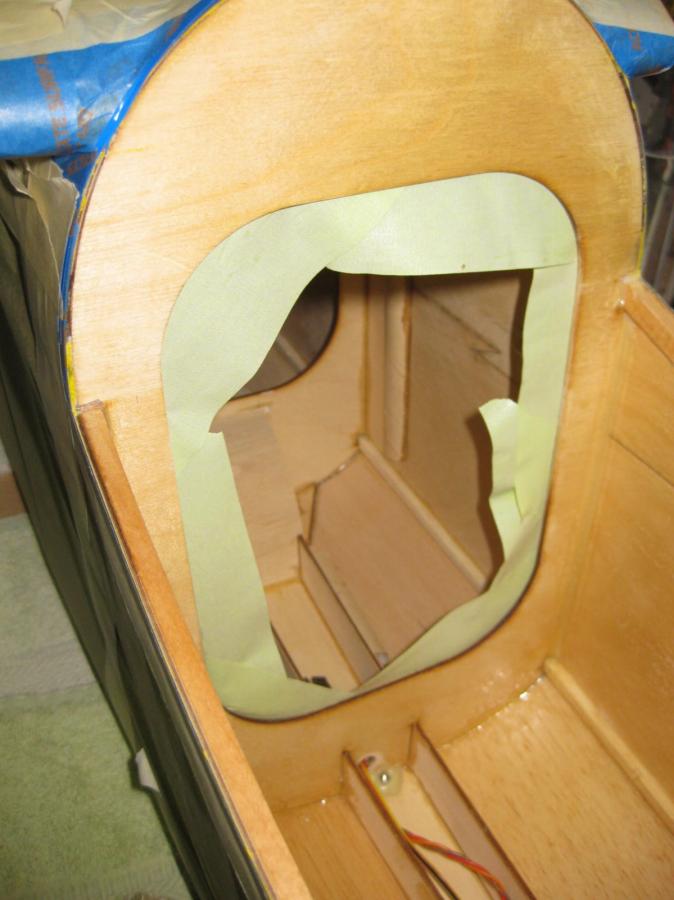

I couldn't stand it any longer and had to take the masking off.......

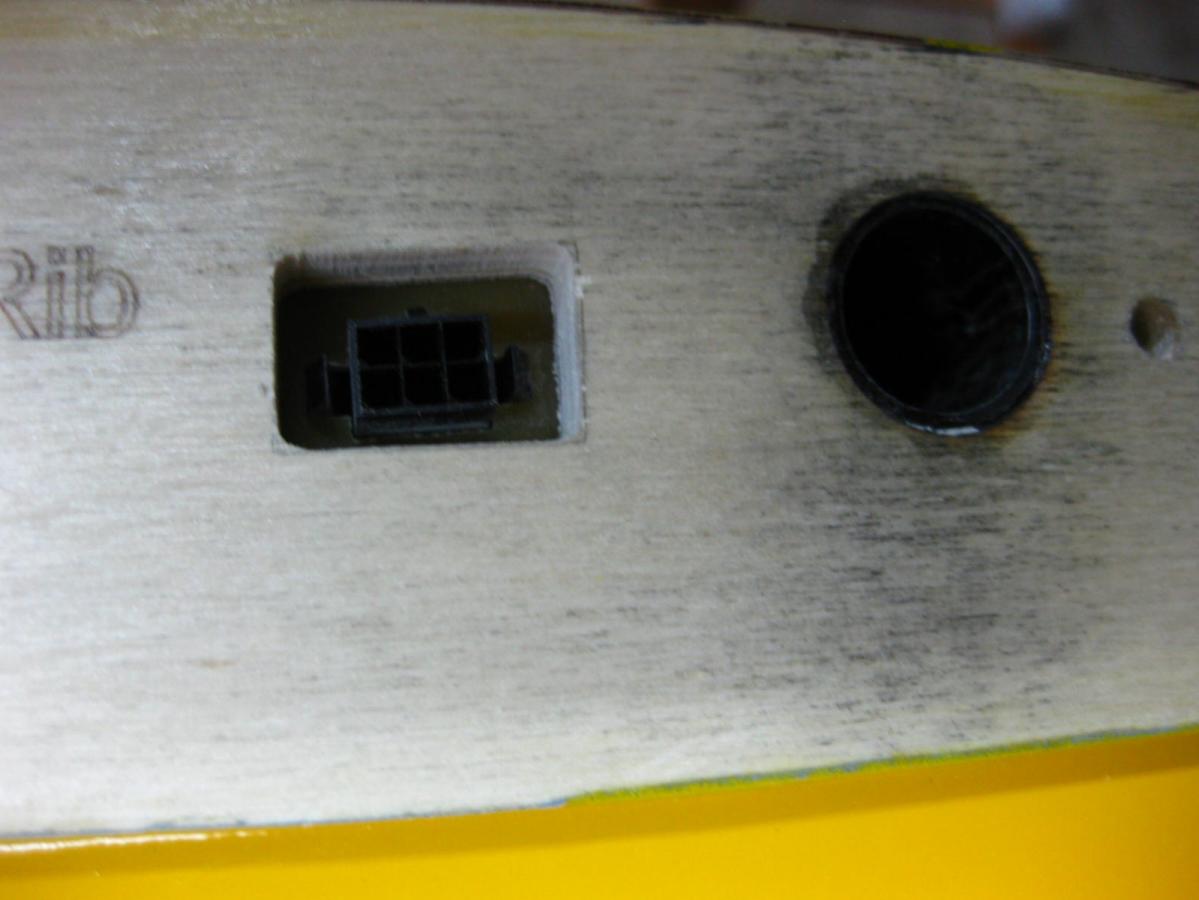

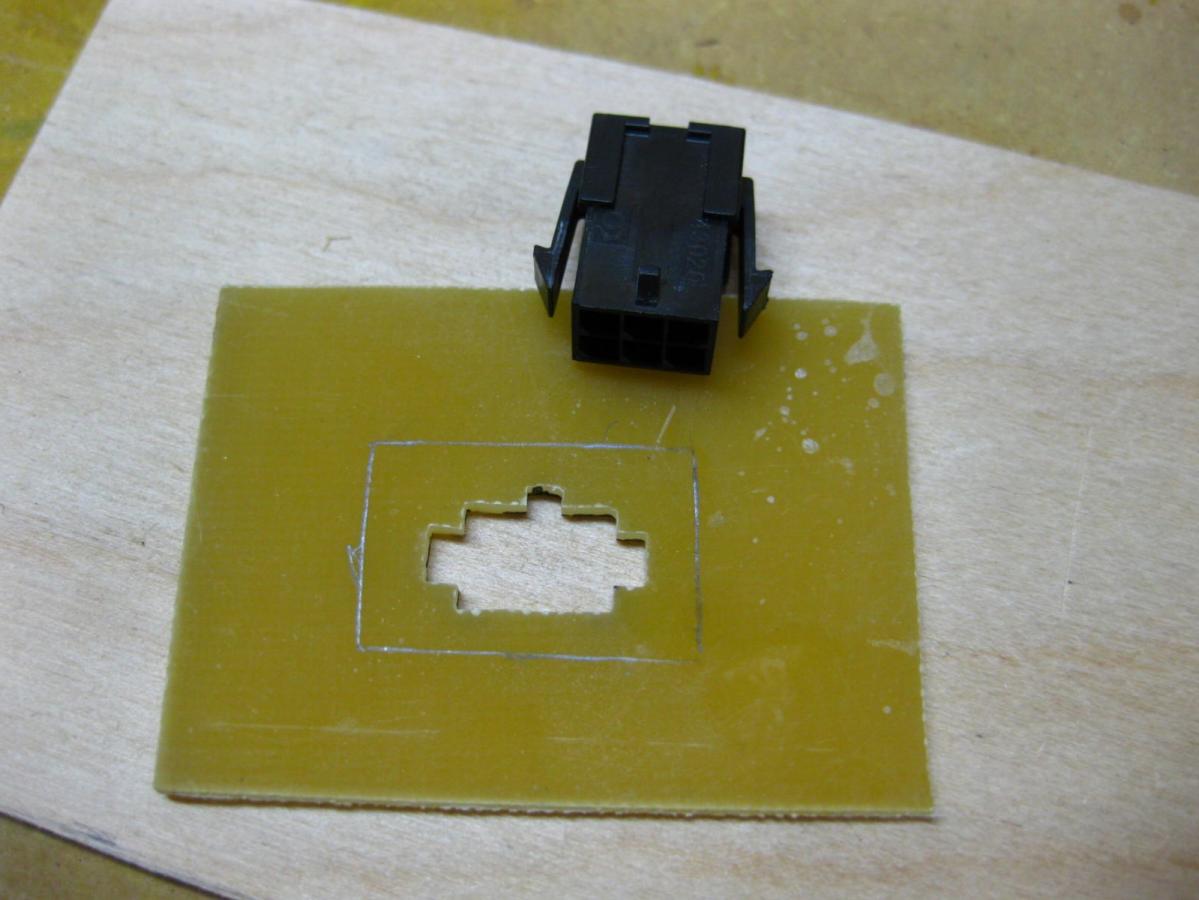

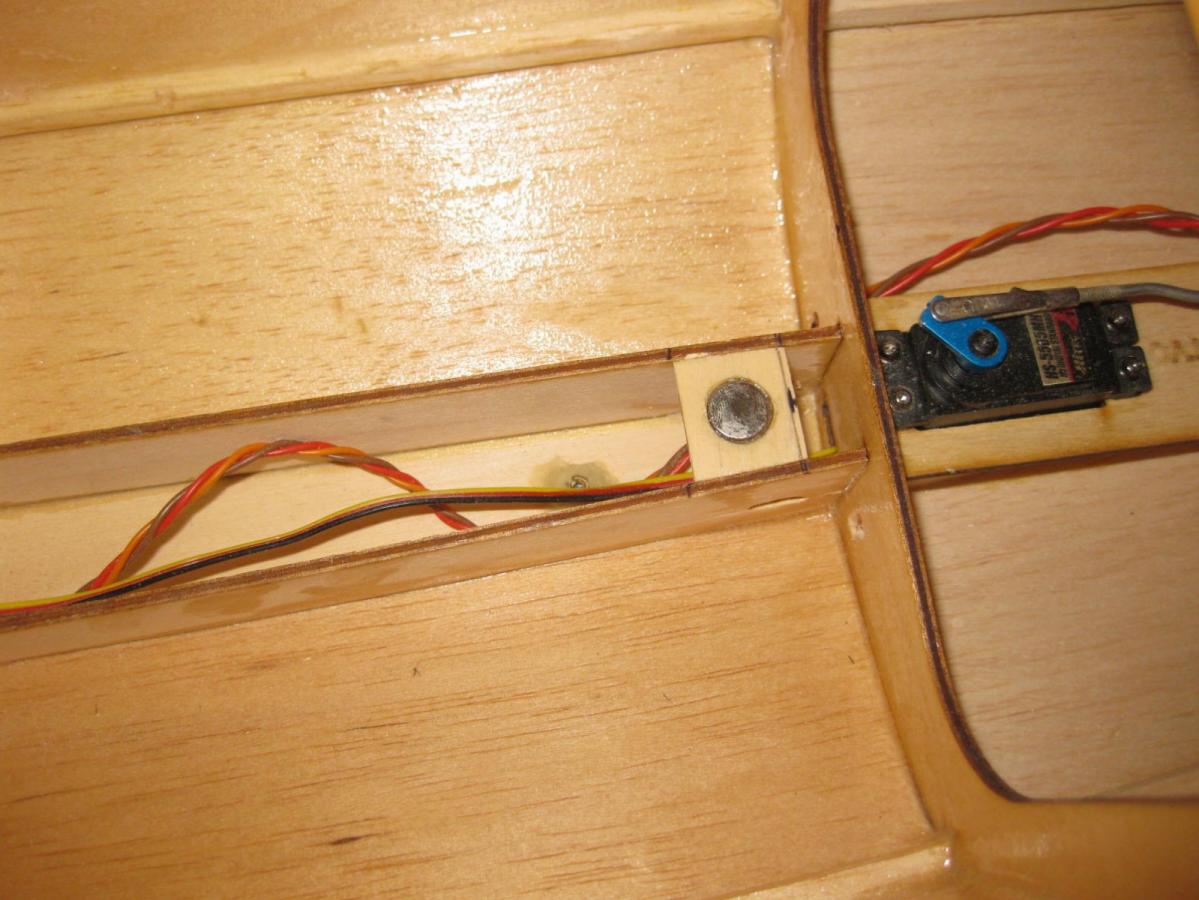

Going to try Molex MicroFit 3.0 locking connectors for the wing root. Since I didn't want any wires showing in the transparent covering, I ran the wires through the D-box area..... so a template was made to replicate the new hole location.
