  • Sig Kadet LT25 Kit Bash

    WARNING the following includes gratuitous kit-bashing. Perfectly good models were harmed in the making of this. The following thread is intended to inspire others to have a go at kit bashing their own towplane projects. Note this is not a guide, nor do I intend to make plans available or produce alternate parts for this particular kit.

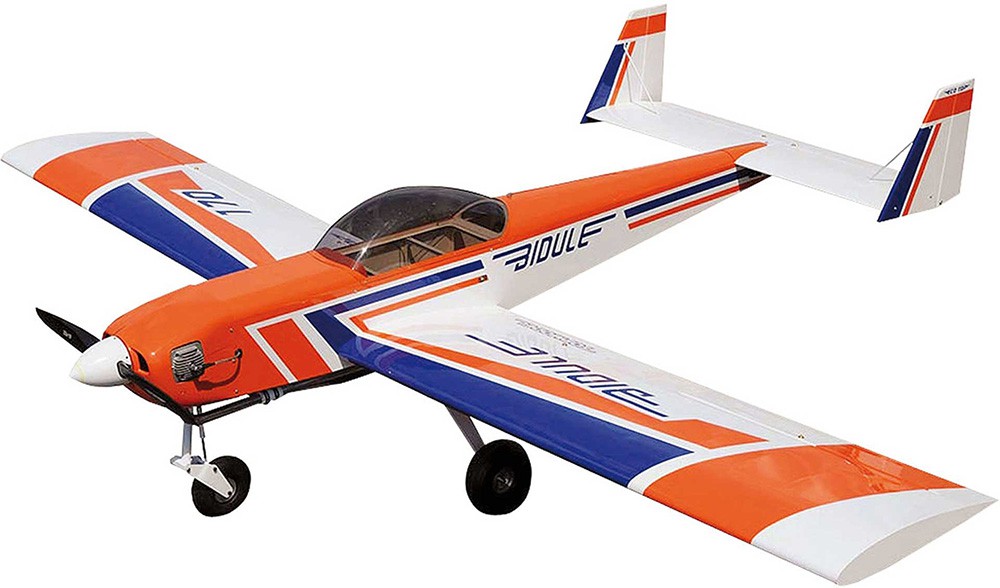

    So anyway... I am a fan of the legendary Bidule. I told myself one of these days... but then reality came knocking & there went that dream. I don't have the room at home to store one of these behemoths (even the smaller one), plus I don't fly gas, plus they're a fair bit beyond my meager budget.

    Click image for larger version  Name:	Sig Kadet LT 25 kit bash 01.jpg Views:	3 Size:	91.8 KB ID:	49037

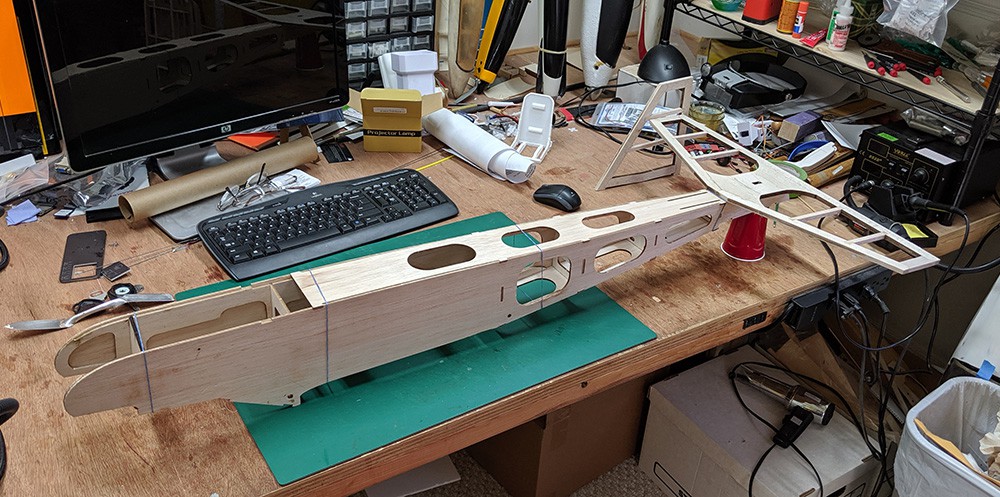

    I did have a half assembled Sig Kadet sitting on my shelf though. I was thinking that looks precisely just like a Bidule doesn't.

    Click image for larger version  Name:	Sig Kadet LT 25 kit bash 02.jpg Views:	3 Size:	240.6 KB ID:	49038

    Although what if we flip the fuselage upside down. Does that look more like a Bidule?

    Click image for larger version  Name:	Sig Kadet LT 25 kit bash 03.jpg Views:	3 Size:	194.5 KB ID:	49039

    Maybe shoulder mount the wing, move the V-Stab to the end of the tail, stick a bubble canopy on top. Hmm you know this might actually be starting to look a little bit like a Bidule. Well a rather small one at least.

    Click image for larger version  Name:	Sig Kadet LT 25 kit bash 04.jpg Views:	3 Size:	320.8 KB ID:	49040

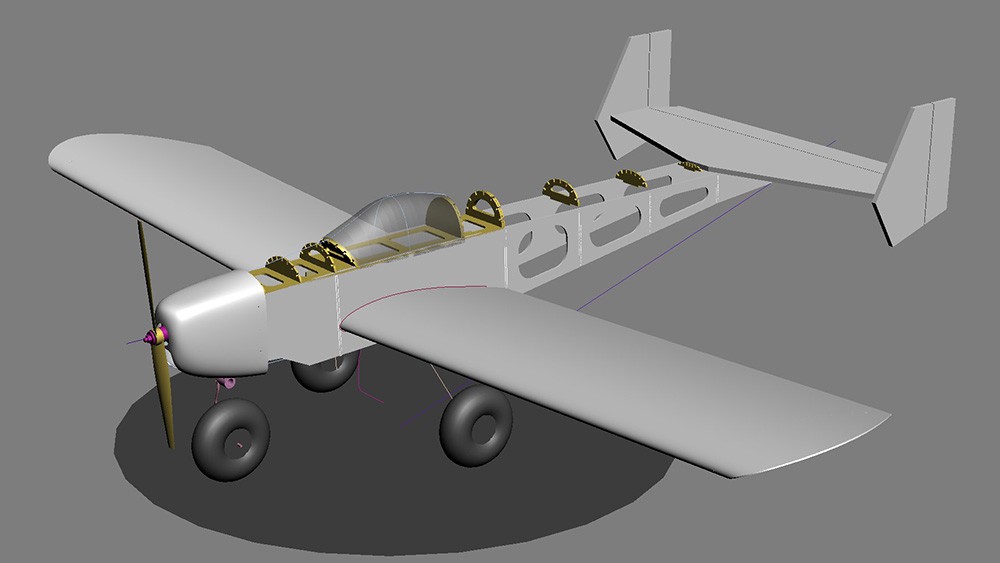

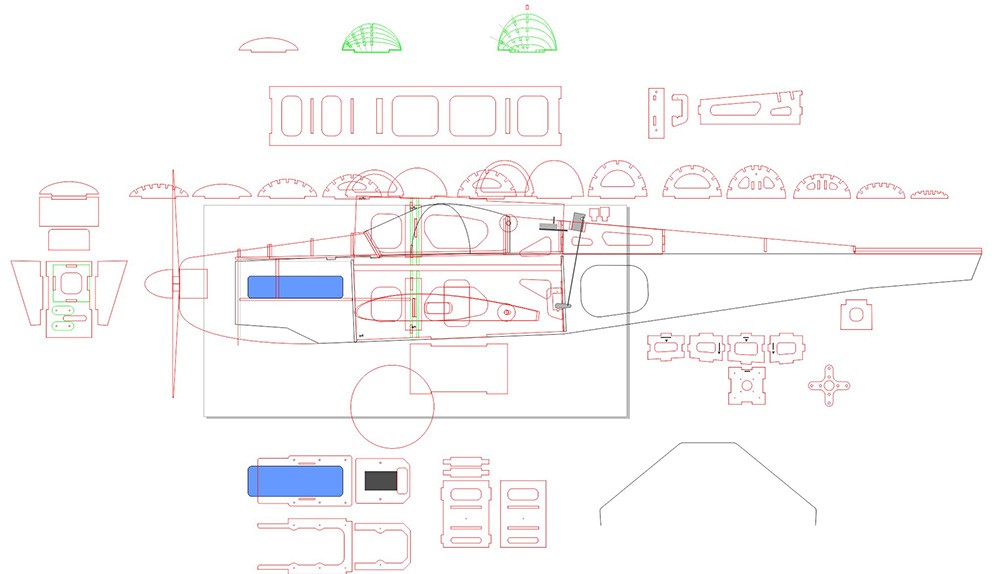

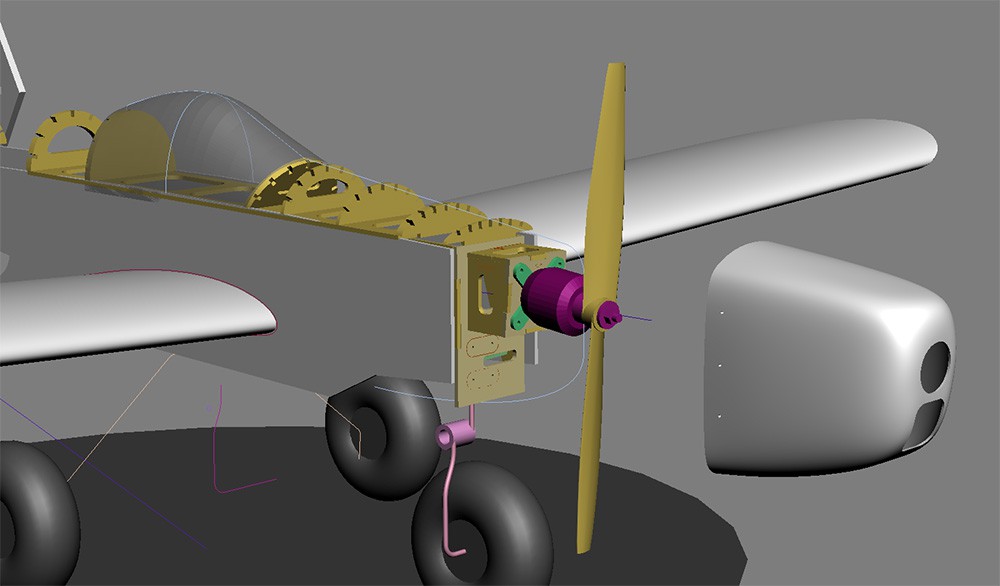

    Time to do some serious digital doodling.

    Click image for larger version  Name:	Sig Kadet LT 25 kit bash 05.jpg Views:	3 Size:	77.1 KB ID:	49041


    And there we go... Its a Kadet/Bidule kit-bashed sorta looking thing.

    Click image for larger version  Name:	Sig Kadet LT 25 kit bash 06.jpg Views:	3 Size:	47.3 KB ID:	49042
    Last edited by Nodd; 02-11-2023, 05:18 AM.
    Nodd - Chris Evans

  • #2
    Began by enlarging the wing's control surfaces. Split the TE stock down the middle & added some lite-ply ribs.

    Click image for larger version

Name:	Sig Kadet LT 25 kit bash 07.jpg
Views:	376
Size:	257.0 KB
ID:	49044

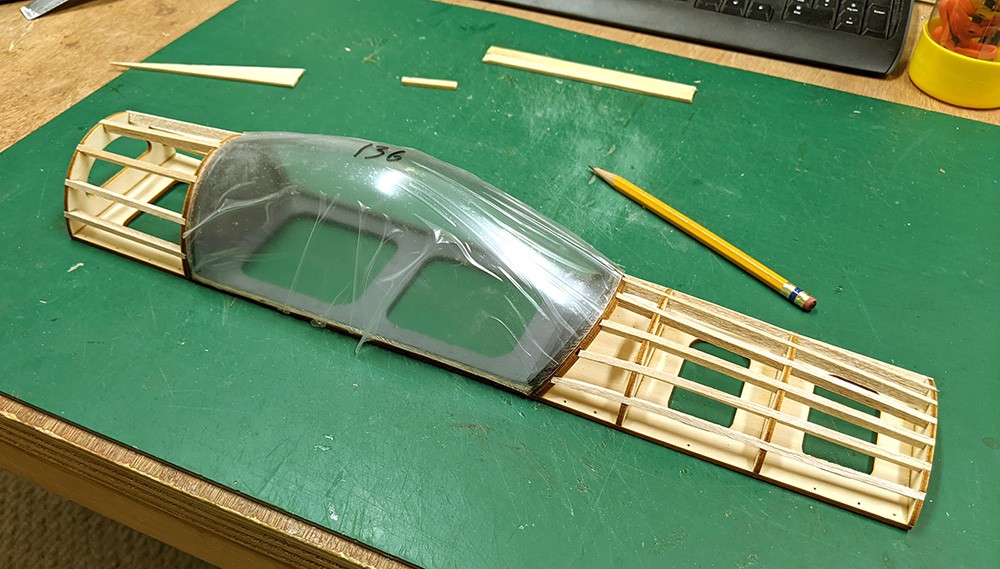

    I found a nice selection of bubble canopies at Park Flyer Plastics. Made myself some rounded structure to make that work on top of the bottom of the fuselage top. Yes we're still thinking the fuselage needs to be upside down.

    Click image for larger version

Name:	Sig Kadet LT 25 kit bash 08.jpg
Views:	270
Size:	176.8 KB
ID:	49045

    As this was going to be a tow-plane I built this reinforced mount thing for the custom DIY tow-release. That will sit directly behind the canopy. And yes by now you've probably figured out, I have a laser-cutter. Or more accurately I have IFlyTailies laser-cutter. Fantastic tool.

    Click image for larger version

Name:	Sig Kadet LT 25 kit bash 09.jpg
Views:	280
Size:	158.3 KB
ID:	49046

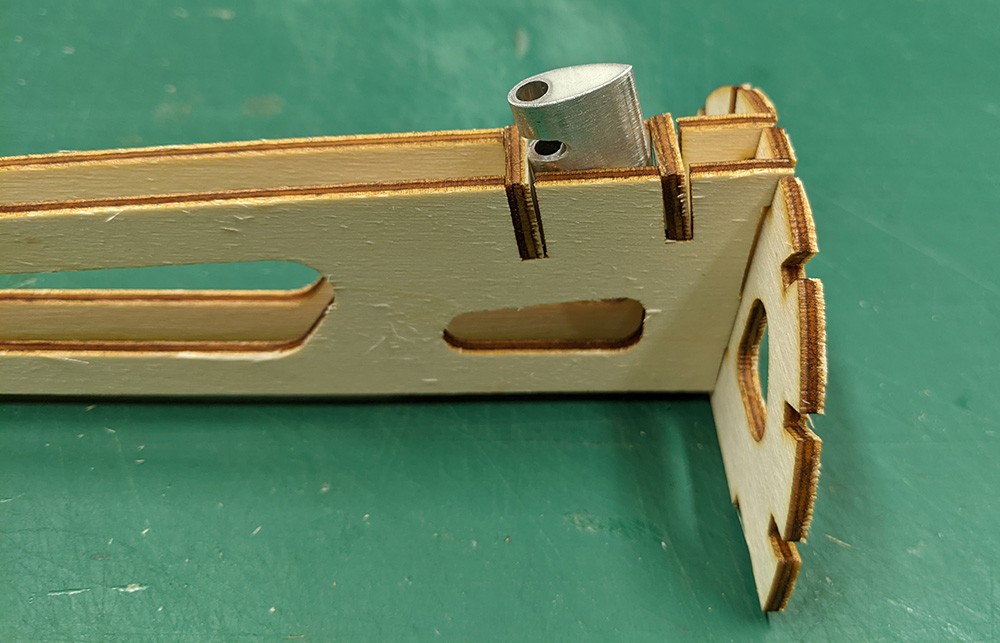

    I made the tow-release out of a short length of aluminum strut, some brass tube & a push-rod. Placed the tube inside the strut, filled the surrounding with epoxy then cut a notch for the tow-line. A push-rod pops up to hold the tow-line, retracts to release it & Bob's your Uncle.

    Click image for larger version

Name:	Sig Kadet LT 25 kit bash 10.jpg
Views:	275
Size:	124.3 KB
ID:	49047

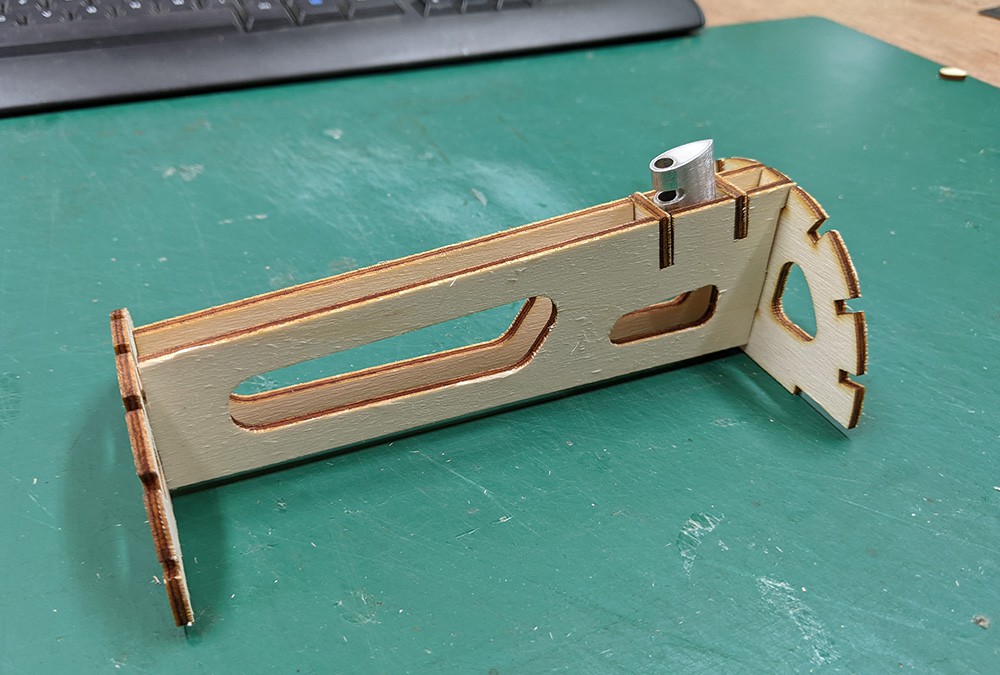

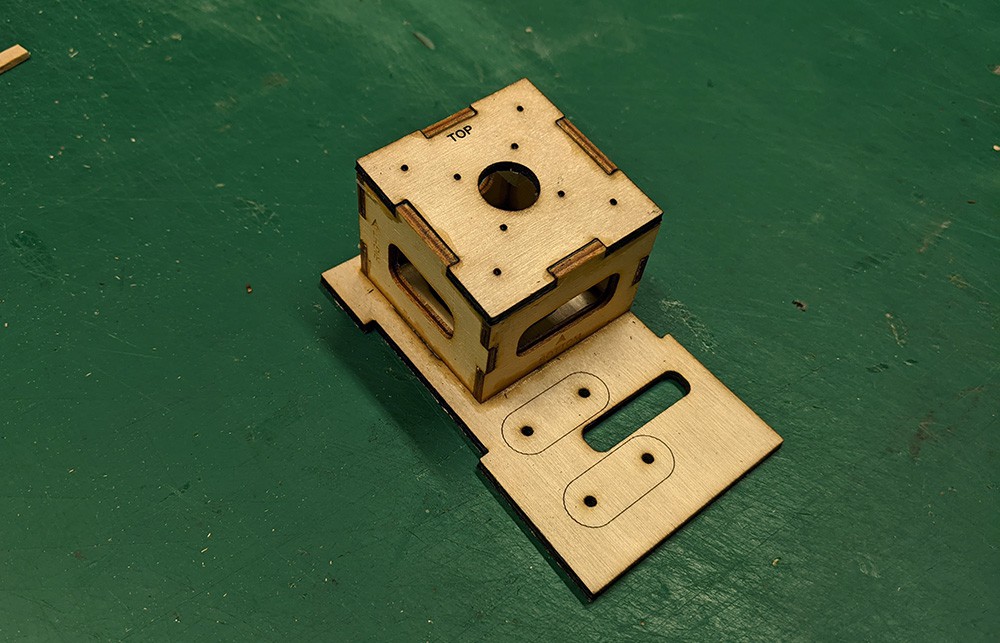

    Another bonus to having a laser-cutter is I can fashion my own motor mount, complete with 3° right, 3° down thrust (sounds about right). I also cut mounting holes in the firewall for the nose wheel.

    Click image for larger version

Name:	Sig Kadet LT 25 kit bash 11.jpg
Views:	271
Size:	161.6 KB
ID:	49048

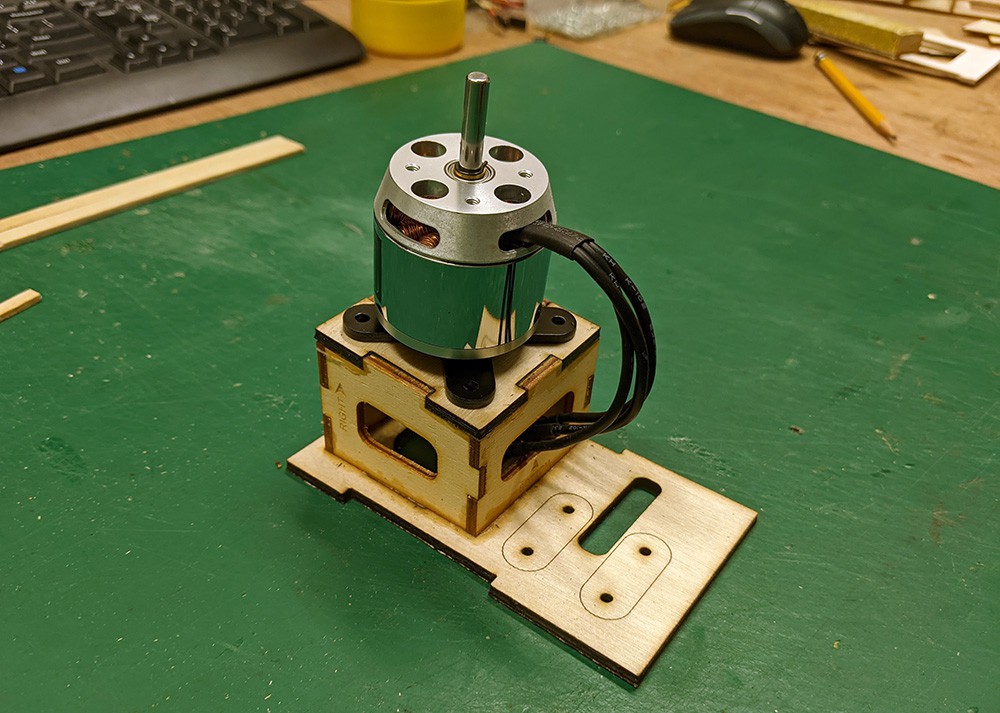

    I messed around in eCalc & determined that this beefy Turnigy Aerodrive SK3 - 4240-620kv motor should have enough umph to haul some fomey gliders, possibly something a bit heavier.

    Click image for larger version

Name:	Sig Kadet LT 25 kit bash 12.jpg
Views:	278
Size:	165.7 KB
ID:	49049

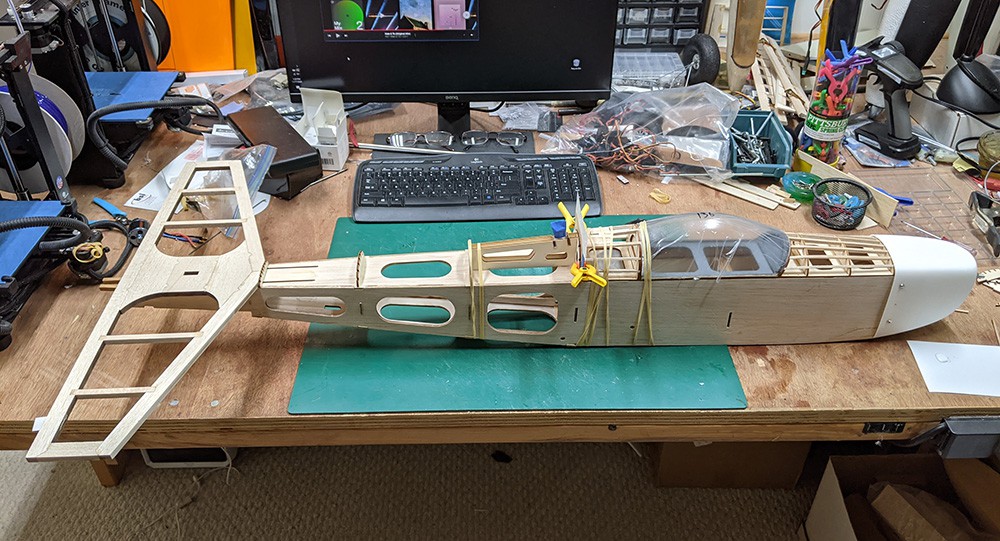

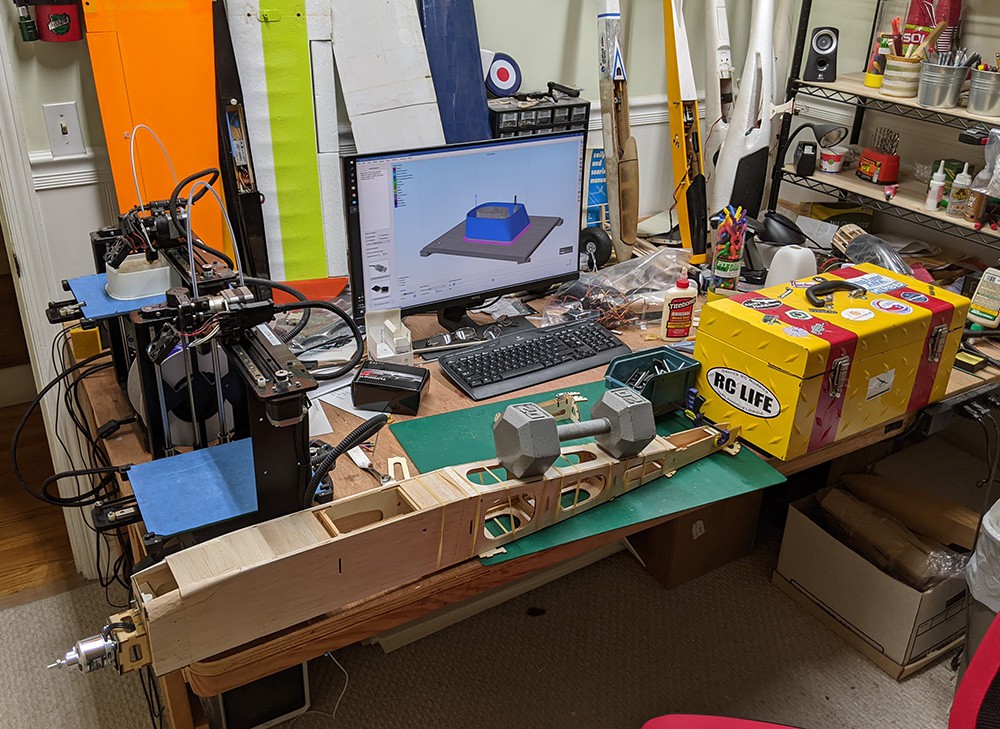

    Progress on the upside-down-upside-down fuselage. 20 lb dumb-bell comes in handy once in a while. I mean its not like I ever use it for working out or anything. I forget what but there's something flat under my battery-box getting flatter.

    Click image for larger version

Name:	Sig Kadet LT 25 kit bash 13.jpg
Views:	267
Size:	258.2 KB
ID:	49050
    Nodd - Chris Evans

    Comment


    • #3

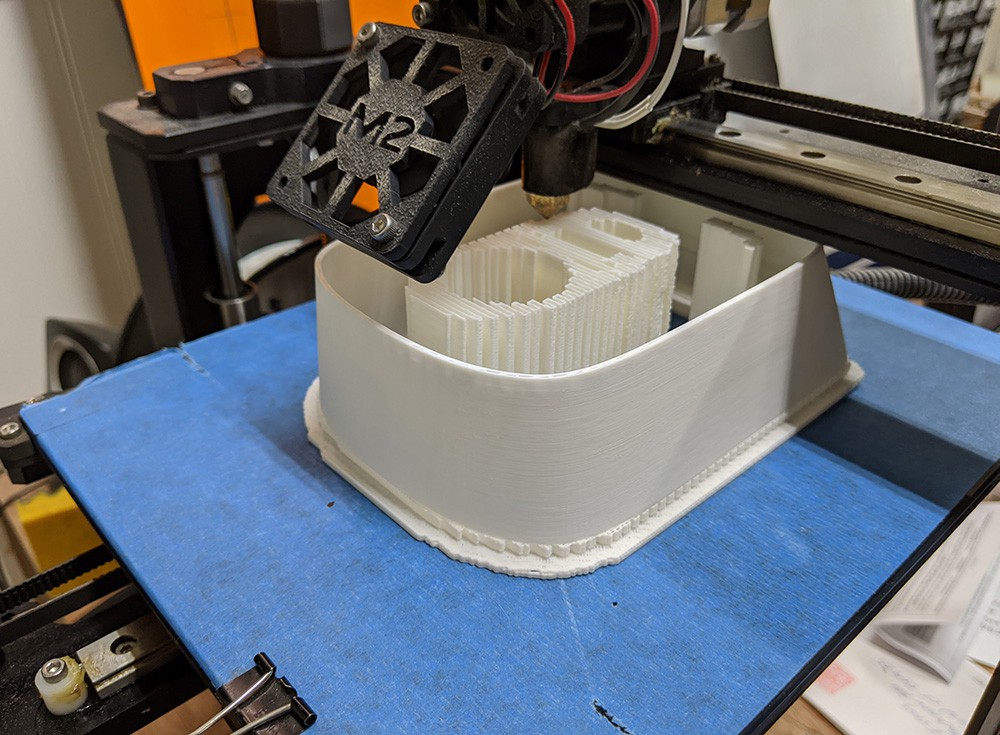

      In addition to a laser-cutter, I also have a few 3D printers. Another workshop-of-the-future tool I can't do without these days. This would be the engine cowl 3D printing.

      Click image for larger version

Name:	Sig Kadet LT 25 kit bash 14.jpg
Views:	377
Size:	181.5 KB
ID:	49052

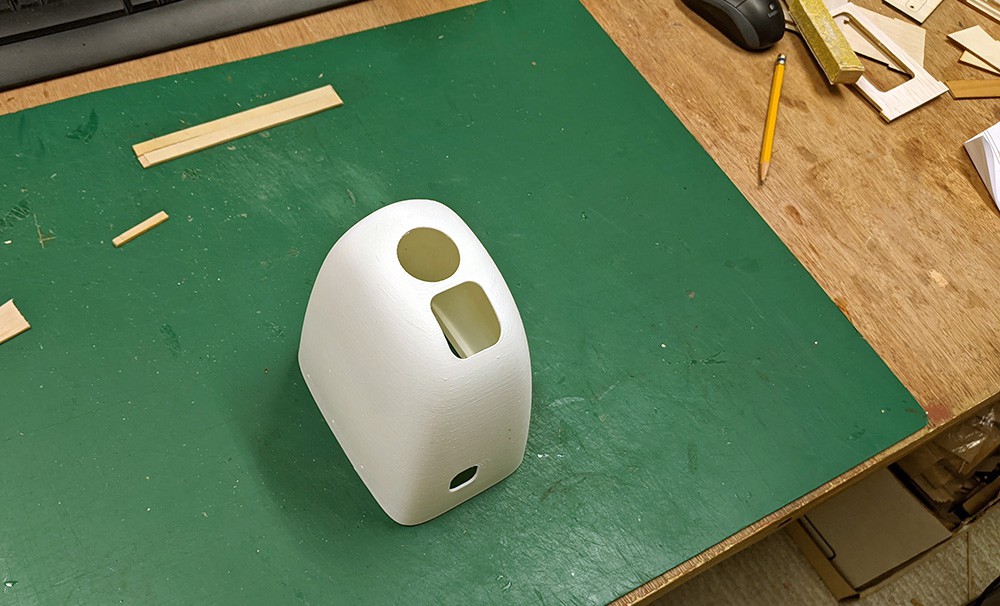

      The finished 3D printed, custom designed, engine cowl. Its nice & lightweight & easy enough to replace if it ever gets damaged.

      Click image for larger version

Name:	Sig Kadet LT 25 kit bash 15.jpg
Views:	279
Size:	152.9 KB
ID:	49053

      Gluing the tow-release bracing to the top of the bottom of the fuselage.

      Click image for larger version

Name:	Sig Kadet LT 25 kit bash 16.jpg
Views:	281
Size:	201.5 KB
ID:	49054

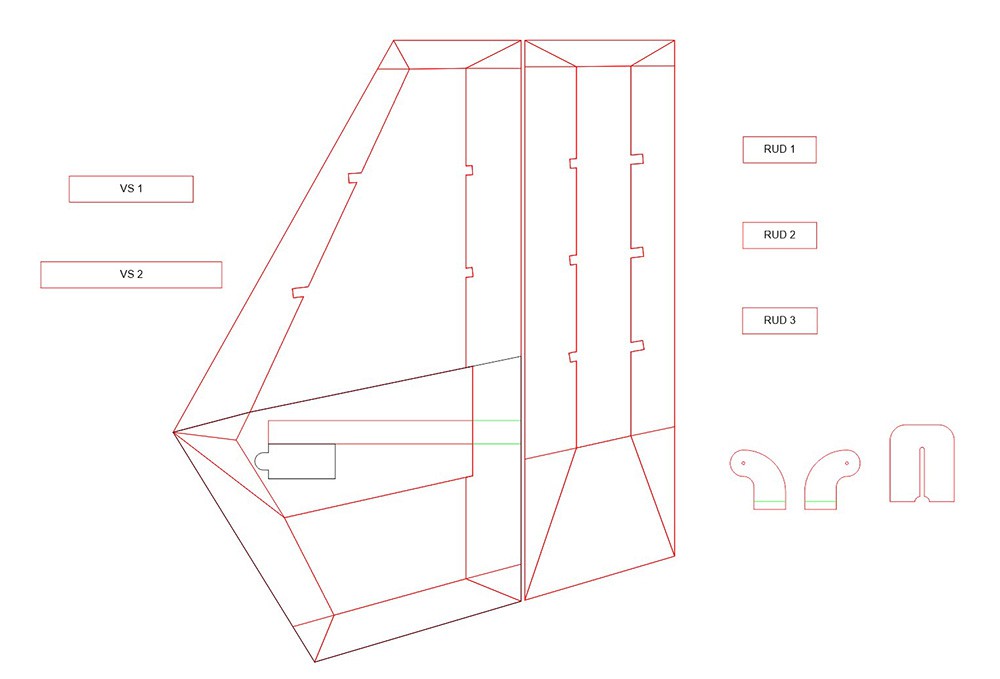

      The Bidule has twin tails. The Kadet did not. So time for some more kit-bashing. Designed this V-stab/rudder. Note the hole for a 9gram servo, one for each of the two rudders. Even designed myself some control horns & a jig to make sure they're straight.

      Click image for larger version

Name:	Sig Kadet LT 25 kit bash 17.jpg
Views:	271
Size:	57.7 KB
ID:	49055

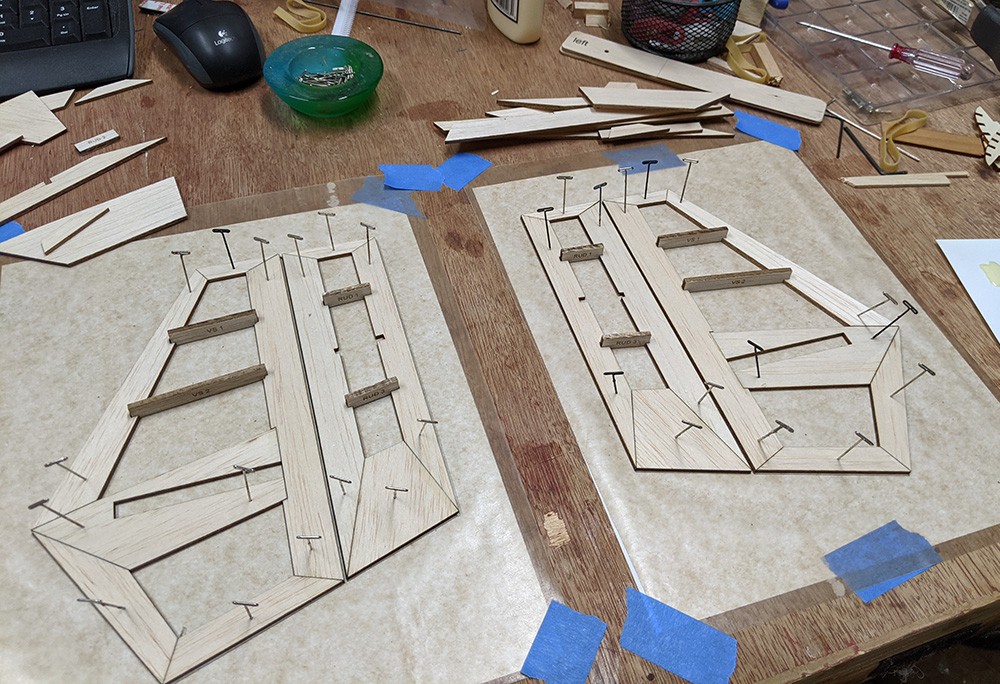

      The laser-cutter will cut fairly thick wood but I find its much cleaner & stronger to cut multiple parts from thinner sheeting & then laminate those on top of each other to build up the necessary thickness. These tail pieces were cut from 1/8" balsa. I then laminated another couple of layers, with opposing grain, on top of that to get my final 3/8".

      Click image for larger version

Name:	Sig Kadet LT 25 kit bash 18.jpg
Views:	274
Size:	242.6 KB
ID:	49056

      Dry fitting the new tail fins. That looks kinda like a Bibule. A naked one at least.

      Click image for larger version

Name:	Sig Kadet LT 25 kit bash 19.jpg
Views:	276
Size:	274.4 KB
ID:	49057

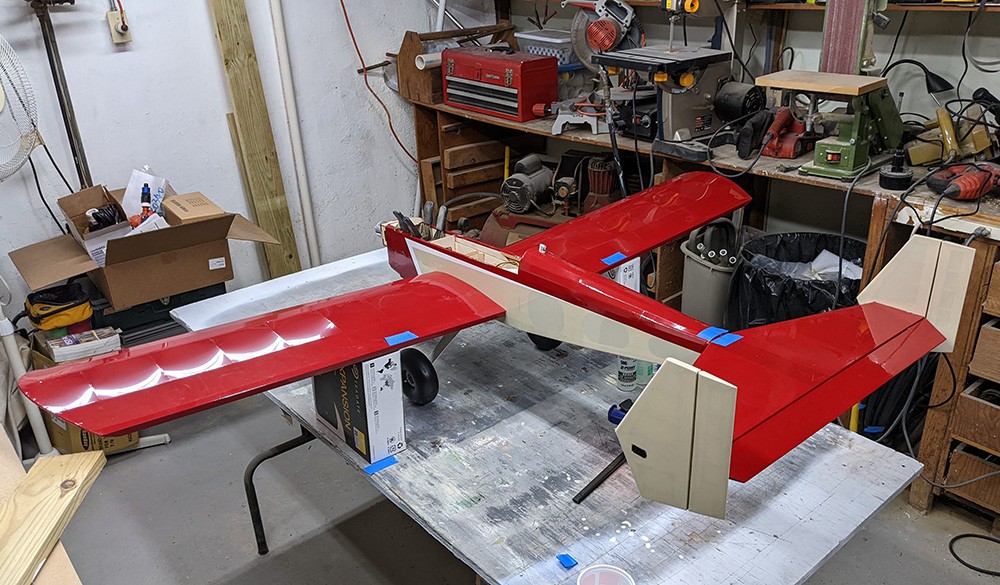

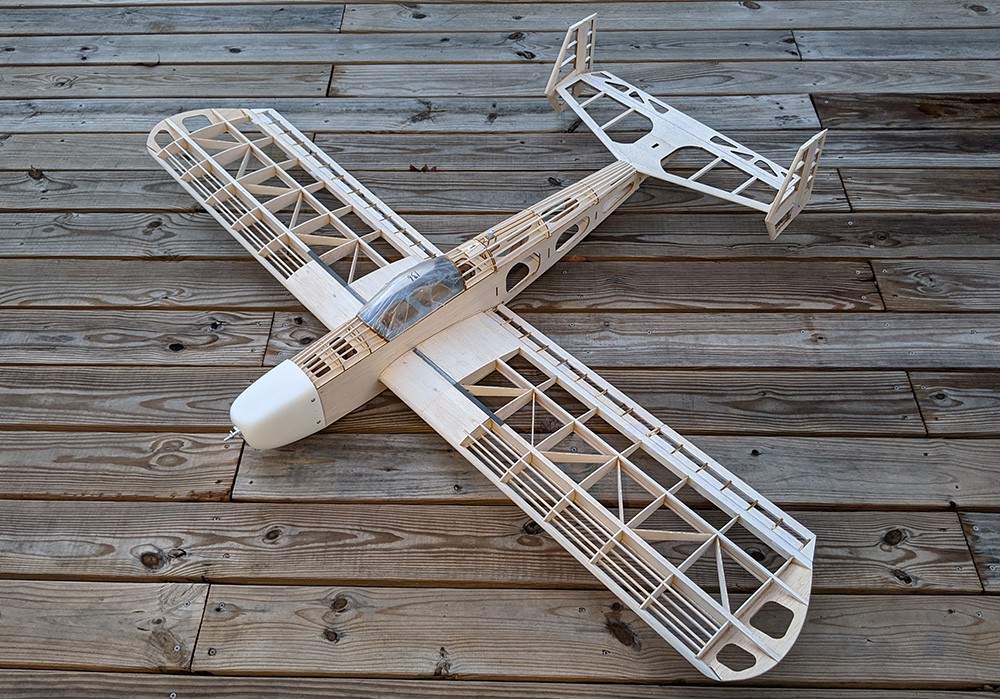

      I also made some extensive changes to the wing so that it could be shoulder mounted to the fuselage. I won't do into detail about that here but I'm pretty happy with the way that worked out. Basically there's a carbon-fiber wing rod that runs through the fuselage. Actually its not a rod its a hefty CF plate that slots into the wing between the spars. Required lots of modifications but that's something for another thread maybe.

      Click image for larger version

Name:	Sig Kadet LT 25 kit bash 20.jpg
Views:	282
Size:	289.4 KB
ID:	49058

      Nodd - Chris Evans

      Comment


      • #4

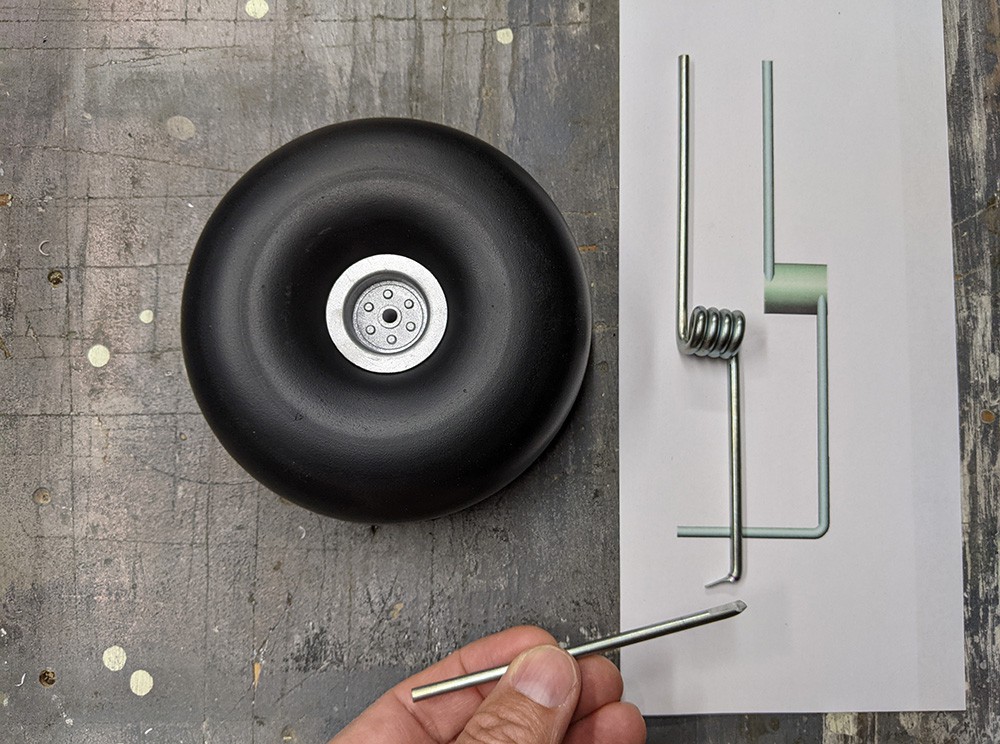

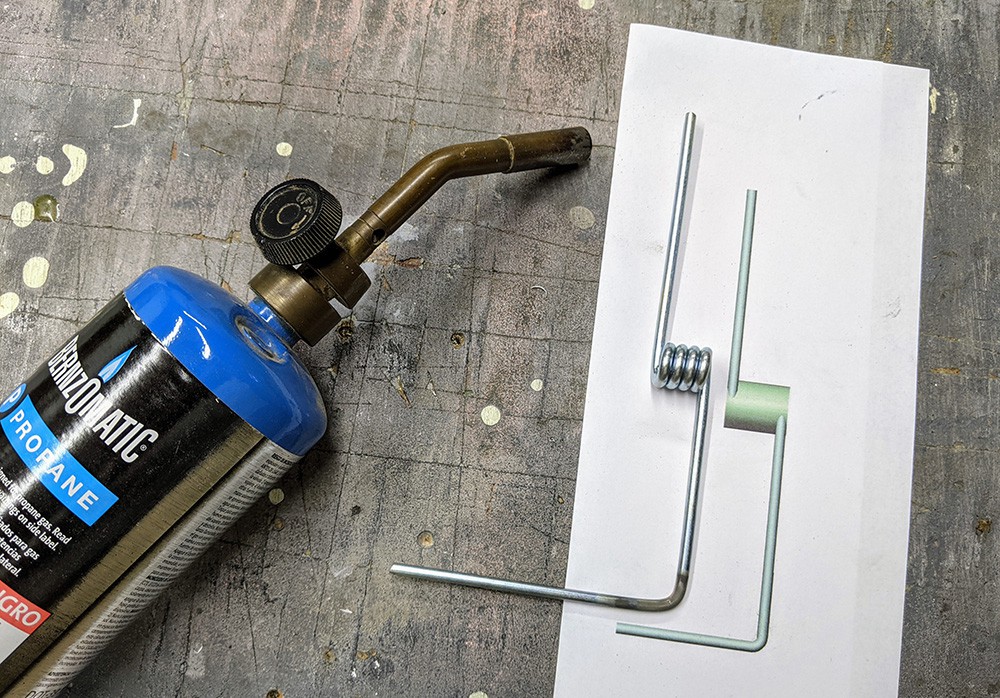

        This was my first tricycle gear. And no that has nothing to do with me working for IFlyTailies. I just haven't owned any non-tail-draggers before. Anyway as you can see I'm having all sorts of fun trying to bend this DuBro nose-wheel wire from hell. I even followed the instructions at their DuBro Tip-of-the-Day video on how not to break the darn thing when bending it. I managed to break it regardless.

        Click image for larger version  Name:	Sig Kadet LT 25 kit bash 21.jpg Views:	0 Size:	203.8 KB ID:	49060

        Several days later a replacement nose-gear wire arrived. I think its 'interesting' that DuBro sells the wire part separately, now I know why. Anyway taking my lead from Pulp Fiction, I got a pair of pliers & a blow torch & got medievil on its arse. Success!

        Click image for larger version  Name:	Sig Kadet LT 25 kit bash 22.jpg Views:	0 Size:	270.3 KB ID:	49061

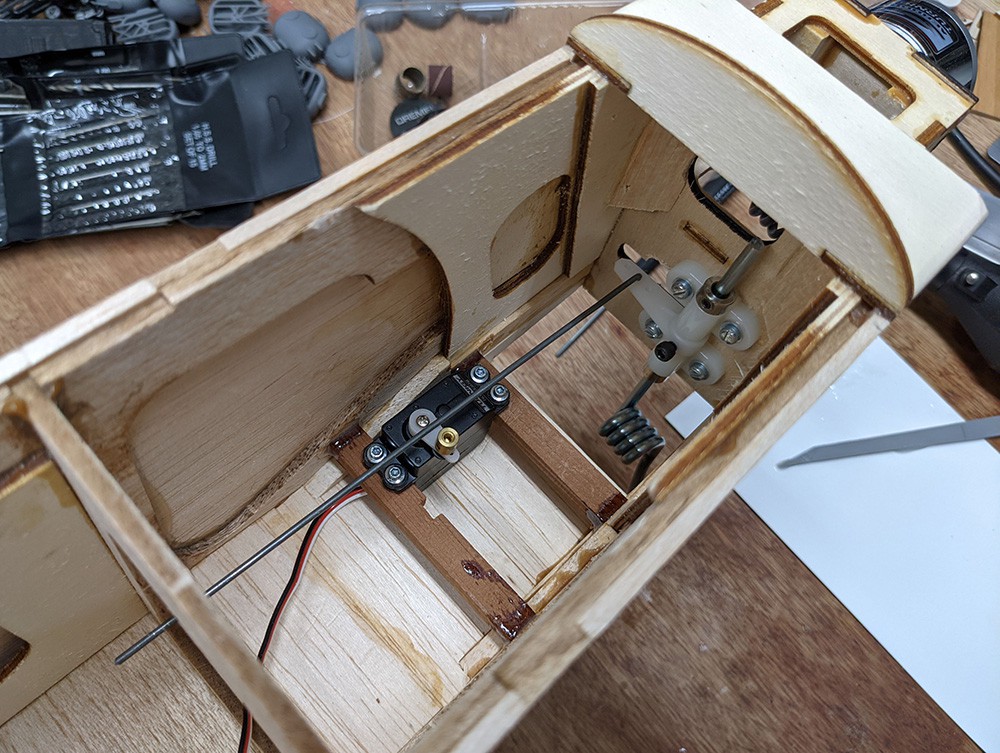

        Remind me next time I decide to install a steerable nose wheel to check see if there's room enough to get my fat hand in there to tighten all these pesky grub screws. Now I understand why you guys all say bigger is better.

        Click image for larger version  Name:	Sig Kadet LT 25 kit bash 23.jpg Views:	0 Size:	231.6 KB ID:	49062

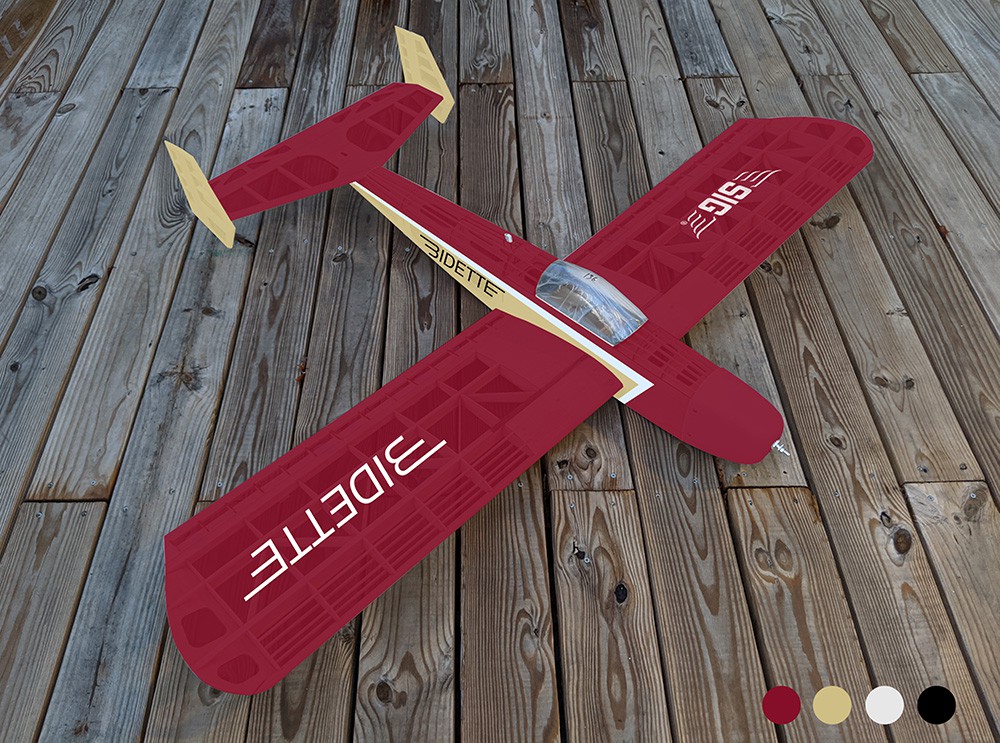

        PhotoShop time. Using one of my 'wood-frame-model' photos from earlier I set about digitally trying out some color schemes. I ended up with this red & beige layout that I thought looked quite nice. The name 'BIDETTE" was me trying to be clever by combining the first part of Bidule with the last part of Kadette. I sent off the lettering CAD to Callie Graphics, she agreed to cut my awesome logo in adhesive backed vinyl.

        Click image for larger version  Name:	Sig Kadet LT 25 kit bash 24.jpg Views:	0 Size:	266.8 KB ID:	49063

        Happy with my design I started the covering job. I recall being really good at covering once upon a time. I have a lifetime's worth of experience covering all sorts of models & yet these days I'm lucky if I get anything wrinkle free. The joys of getting older.

        Click image for larger version  Name:	Sig Kadet LT 25 kit bash 25.jpg Views:	0 Size:	187.7 KB ID:	49064

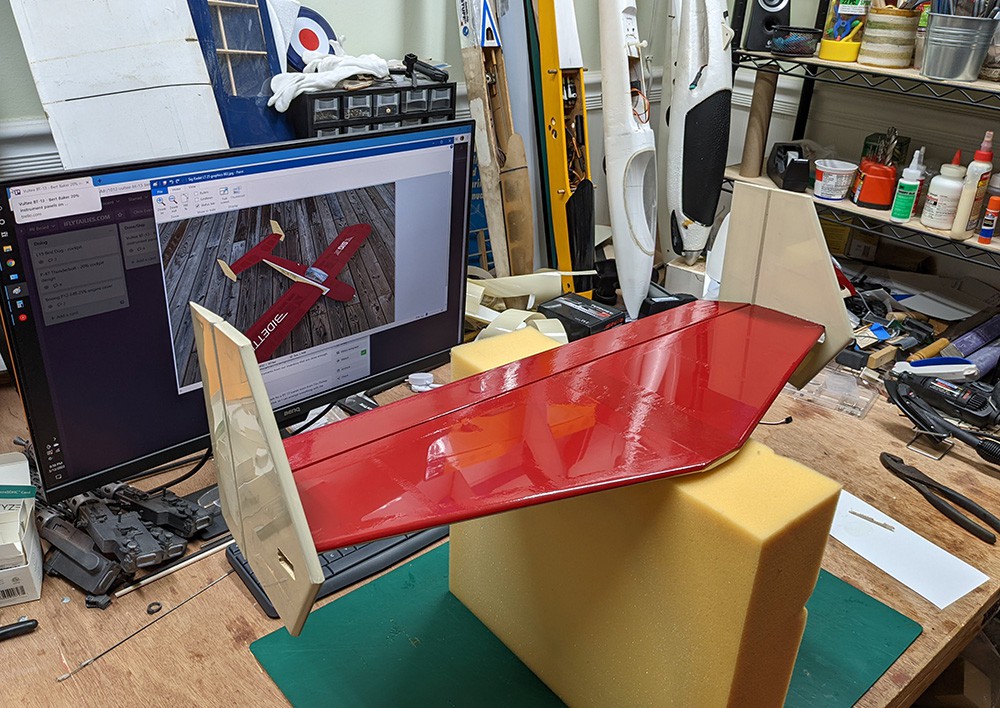

        The tail is looking pretty good though.

        Click image for larger version  Name:	Sig Kadet LT 25 kit bash 26.jpg Views:	0 Size:	245.2 KB ID:	49065

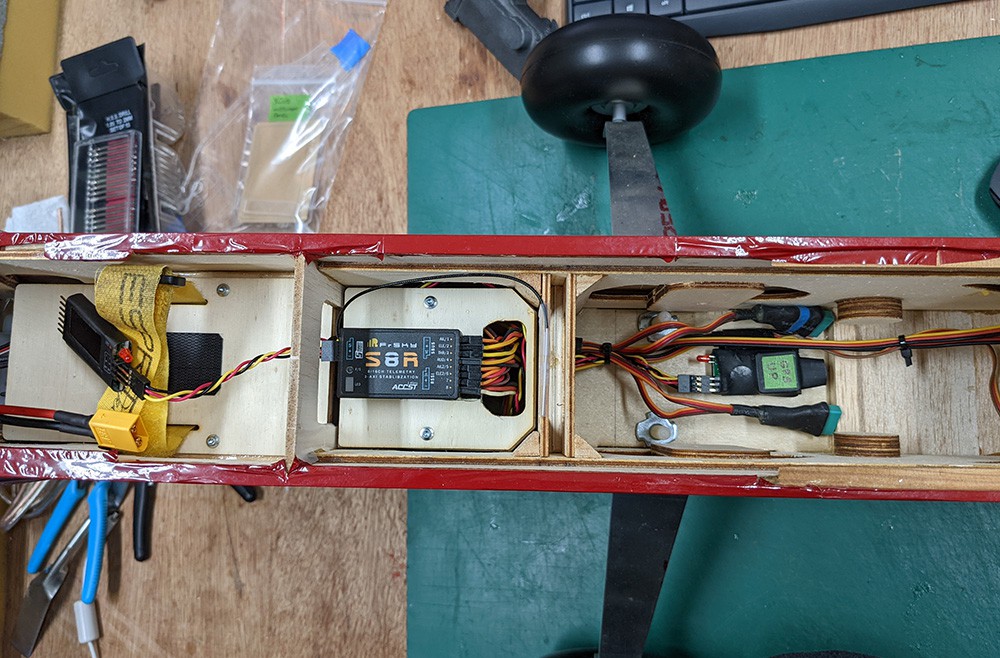

        With the covering done it was time to move some electronics around & see where she'd balance. I have a proper balance stand (not shown here), this was more of a stick the battery here & there, hold her up with my fingers on the CG & see what's what kinda session. I was amazed to find I could balance her just by positioning the electronics. I wasn't going to need to add any weight, always love it when that happens.

        Click image for larger version  Name:	Sig Kadet LT 25 kit bash 27.jpg Views:	0 Size:	209.6 KB ID:	49066

        I laser-cut a few trays for my electronics to mount to. Note the GPS antenna in the rear. That will give me airspeed & altitude telemetry, handy for towing I figured. I also have an amp monitor that will give me the load & voltage of the traction pack. Again, helpful for aerotowing maybe. I can program the radio to yell at me when necessary.

        Click image for larger version  Name:	Sig Kadet LT 25 kit bash 28.jpg Views:	0 Size:	209.9 KB ID:	49067

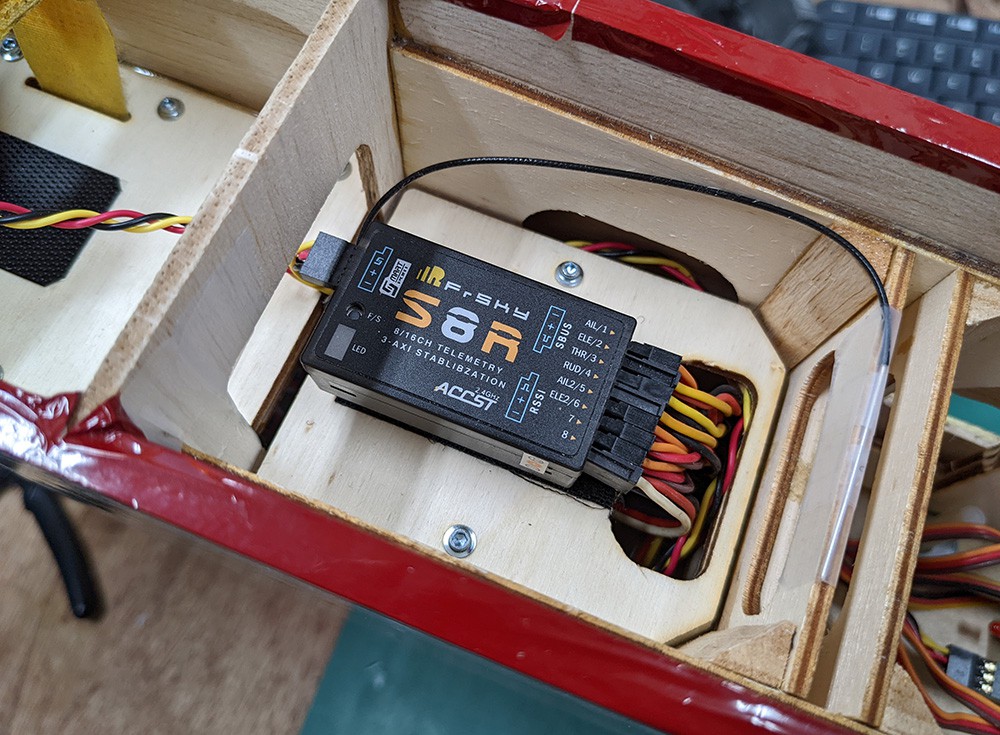

        This receiver has built-in on-demand stabilization if I choose to enable it. I have several other models with gyros but to be honest I almost never end up turning it on. But for a tow plane... I thought it would be nice to offer my customers a nice silky smooth ride, even when its blowing a bit.

        Click image for larger version  Name:	Sig Kadet LT 25 kit bash 29.jpg Views:	0 Size:	224.0 KB ID:	49068
        Last edited by Nodd; 02-11-2023, 05:12 AM.
        Nodd - Chris Evans

        Comment


        • #5

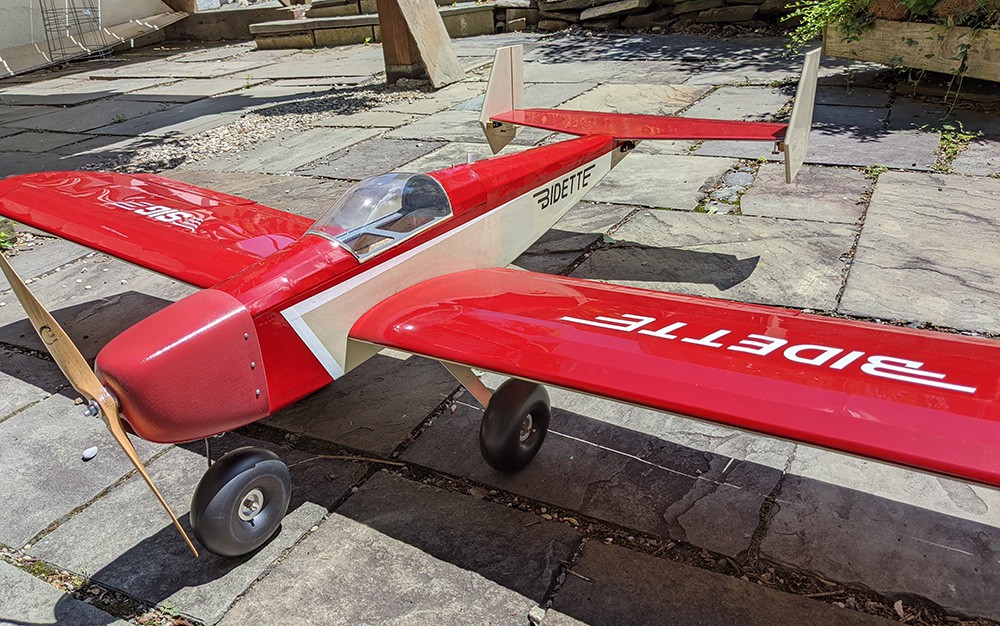

          All done. Time to take the all important photos 'before' the maiden. All that hard work, at the very least I want a nice picture to remember her buy. A bunch of balsa sticks & a large garbage bag just aren't the same.

          Click image for larger version

Name:	Sig Kadet LT 25 kit bash 30.jpg
Views:	364
Size:	261.3 KB
ID:	49070

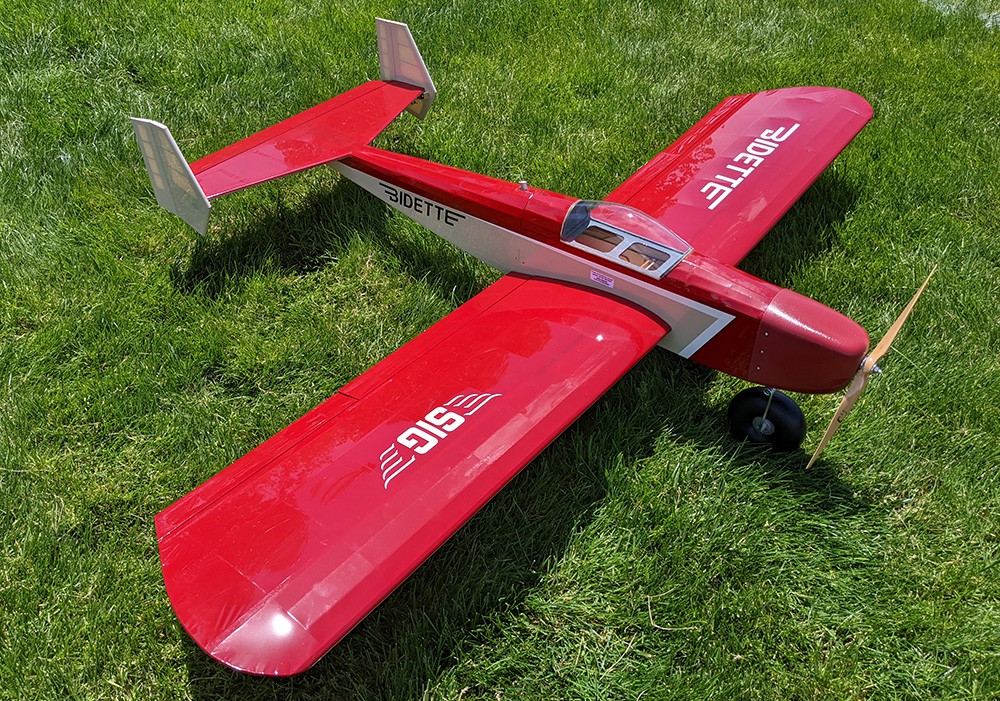

          Quite happy with the way she turned out. You can't tell that the fuselage is upside down at all.

          Click image for larger version

Name:	Sig Kadet LT 25 kit bash 31.jpg
Views:	263
Size:	386.1 KB
ID:	49071

          Moral support from my trusty co-pilot Roger. And pro photographer Alan of shootsnaps ready to document the carnage... ehh I mean first flight.

          Click image for larger version

Name:	Sig Kadet LT 25 kit bash 32.jpg
Views:	252
Size:	276.0 KB
ID:	49072

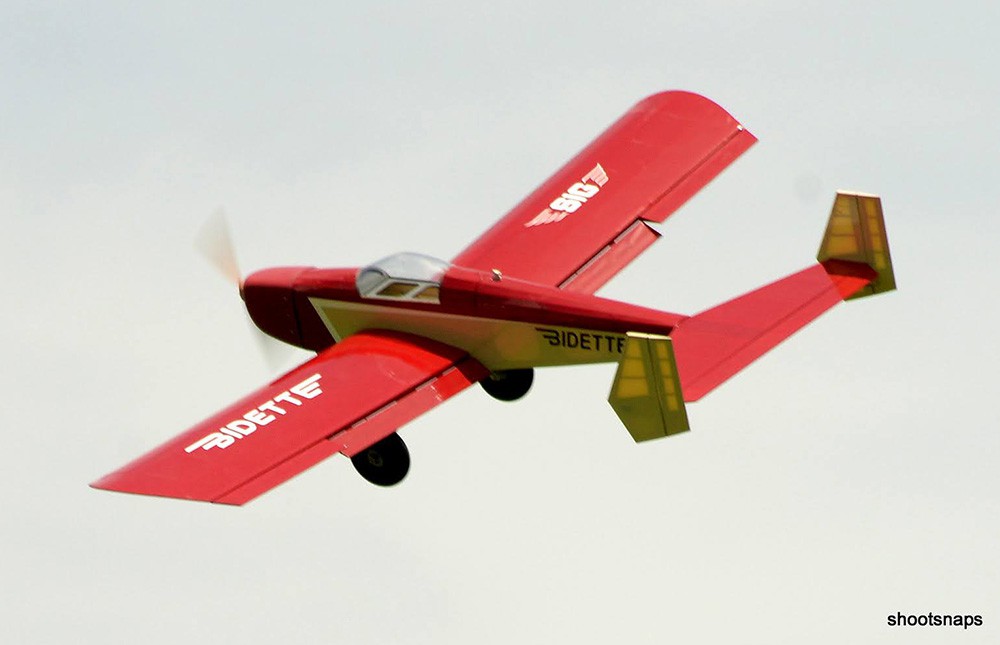

          IT FLIES!

          Click image for larger version

Name:	Sig Kadet LT 25 kit bash 33.jpg
Views:	259
Size:	96.1 KB
ID:	49073

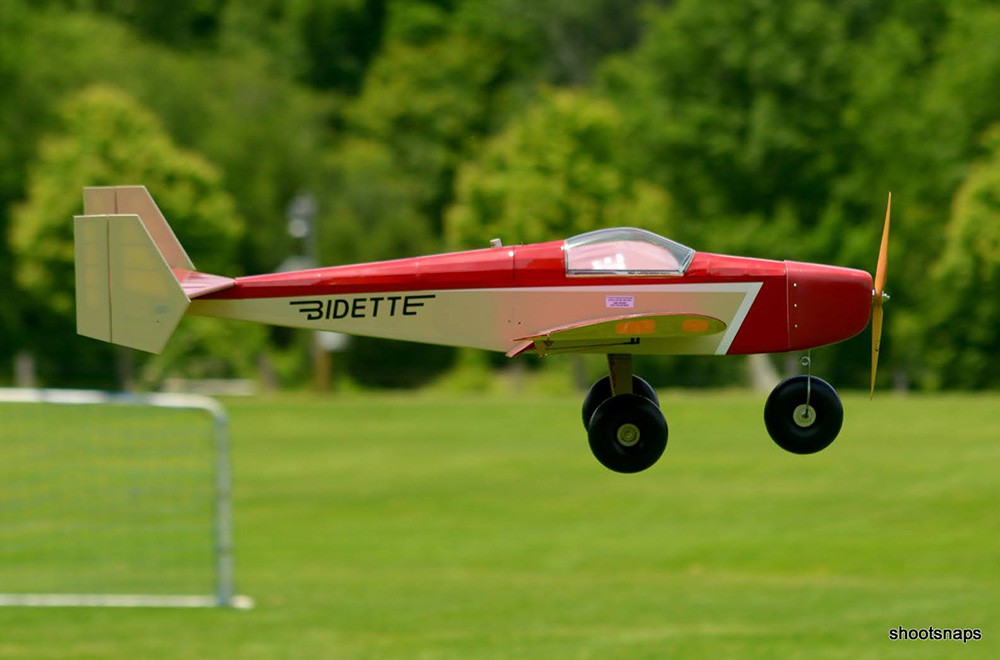

          Initial feel is she's under-powered which was odd as the motor is plenty big. The big 'tundra' tires & the thick Spring grass made the takeoff run longer than I expected. Climb rate was also rather lack-luster. But she was flying & felt really good. No weird tendencies, everything was working great. Plenty of control authority, she also felt nice & light which was a relief. A really nice flying plane. Not sure what was going on with the power though. We did attempt an aerotow of an Easy Glider. That was best described as 'a very scale tow'. LOL, barely able to climb & the ground roll was stupid-long. But it did tow a glider!

          Click image for larger version

Name:	Sig Kadet LT 25 kit bash 34.jpg
Views:	300
Size:	63.4 KB
ID:	49074


          Nodd - Chris Evans

          Comment


          • #6

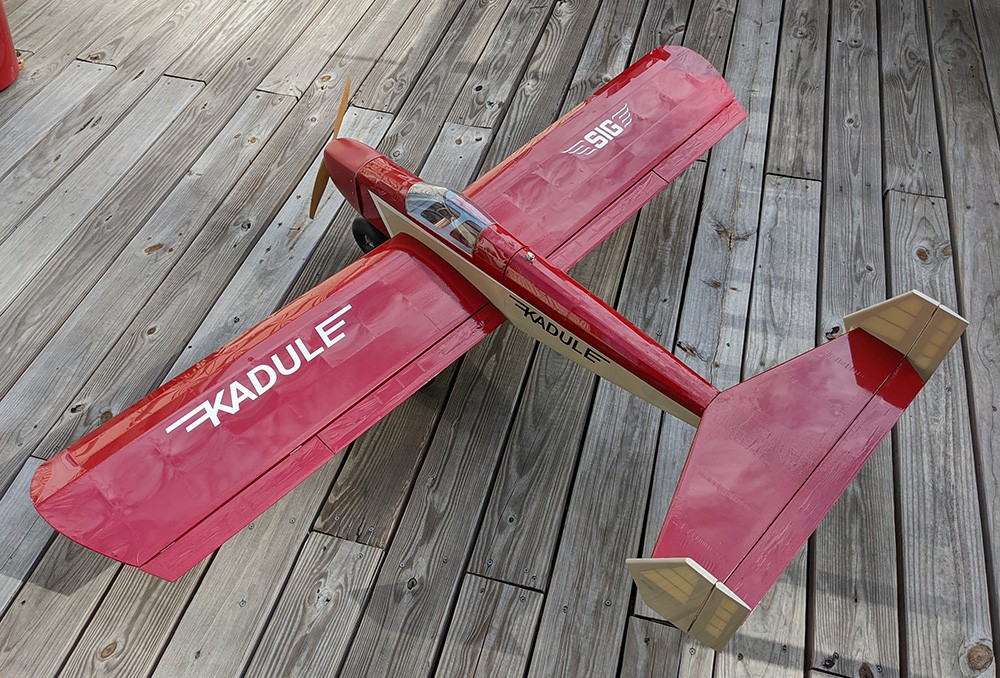

            A lot of head scratching & a couple of weeks later, some changes were made. The most obvious is the name change. Apparently the guys at the field immediately nick-named her 'bidet', as in one of those butt-washing toilets. That wouldn't do so we flipped the names around & came up with Kadette/Bidule... Kadule. Not sure why that version didn't occur to me in the first place. Much better.

            I spent some more time on eCalc looking into the flight performance issue & discovered apparently I was smoking crack that day. She needed & could handle a much more aggressive prop. This one was only pulling maybe 1/4 of the watts available. Actually the motor is so darn powerful I had to go with a three blade (not shown here) to get anywhere near the motor's real potential. Not enough ground clearance for a bigger two blade.

            Subsequent trips to the flying field with the new three bladed prop yielded much better performance. She was able to tow no problem.

            Click image for larger version  Name:	Sig Kadet LT 25 kit bash 35.jpg Views:	0 Size:	277.7 KB ID:	49076

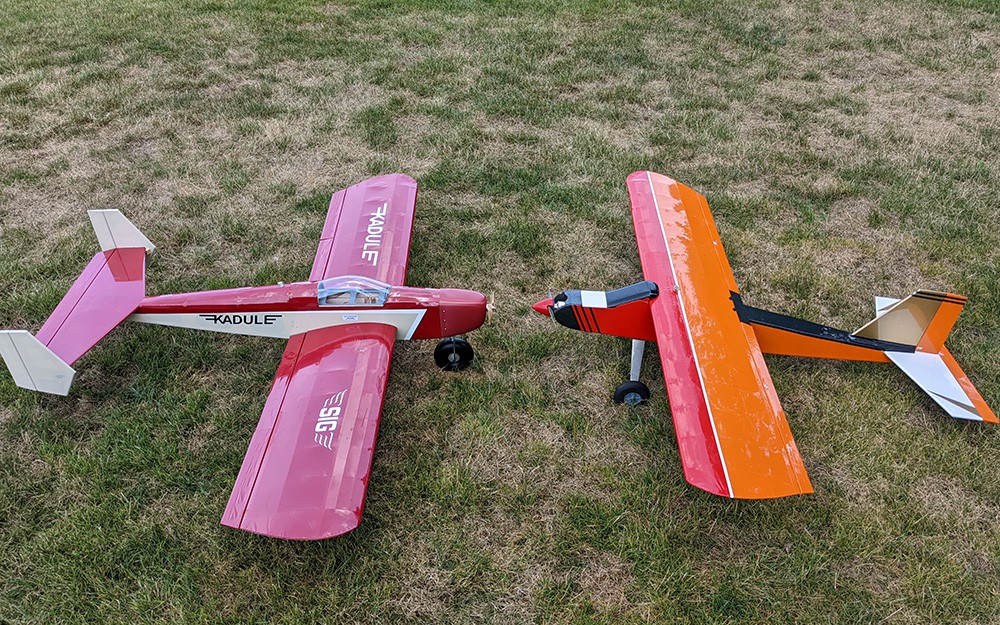

            Just for kicks, here's the 'Kadule' next to Harvey's stock Sig Kadet. Watching him fly his was one of the reasons I got this kit. They sure look different now.

            Click image for larger version  Name:	Sig Kadet LT 25 kit bash 36.jpg Views:	0 Size:	339.4 KB ID:	49077

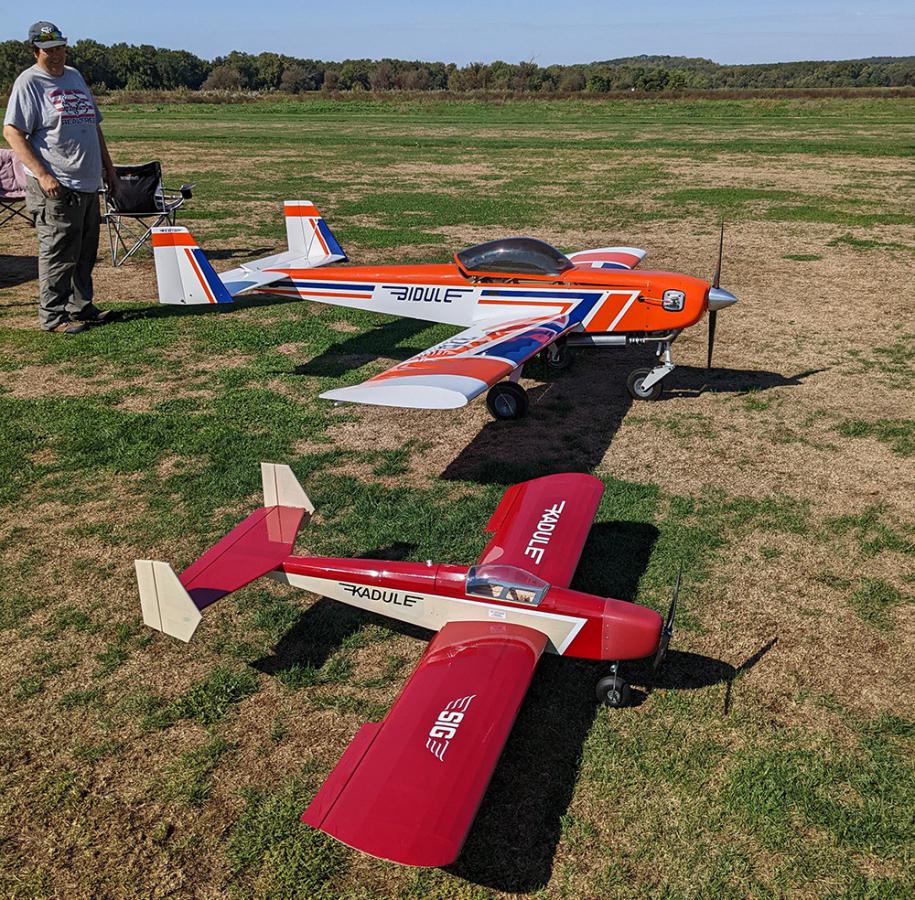

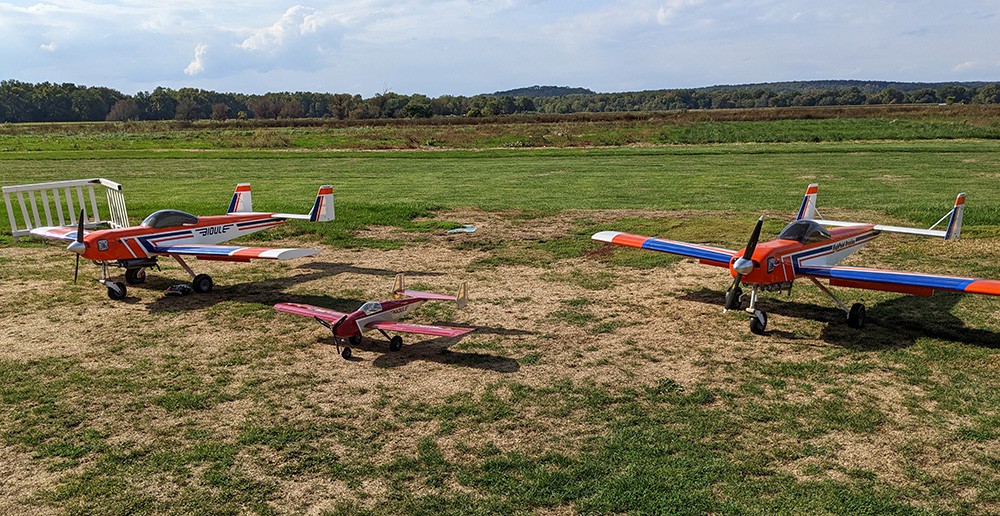

            Out playing with the big boys. Apparently mine is somewhat smaller.

            Click image for larger version  Name:	Sig Kadet LT 25 kit bash 37.jpg Views:	0 Size:	254.7 KB ID:	49078

            So I finally got my Bidule (kinda). It was a lot of fun working on this project & I'm quite pleased with the result. Let me know what you folks think.

            Click image for larger version  Name:	Sig Kadet LT 25 kit bash 38.jpg Views:	0 Size:	232.1 KB ID:	49079
            Last edited by Nodd; 02-11-2023, 05:17 AM.
            Nodd - Chris Evans

            Comment


            • #7
              Awesome work man!
              Kevin K

              Kremer Aerotowing Team

              Comment


              • #8
                Nice Chris!!
                Steve K

                Kremer Aerotowing Team

                Comment


                • #9
                  excellent project...Kudos....

                  Comment


                  • #10
                    Fantastic! Thanks for sharing. What kind of filament did you use for the cowling?

                    Comment


                    • #11
                      Thanks everyone.

                      The engine cowl was 3D printed using regular PLA filament. I think that was 3D Solutech Real White PLA Filament 1.75MM but Solutech seems to have gone out of business so I don't use their filament any more. Slicer settings were set to a single wall thickness with a 12% infill. I did consider making the cowl stronger by using more infill & maybe triple wall thickness but I wanted to keep this fairly lightweight. Plus I don't expect this cowl to take a much abuse being a tricycle gear aircraft. The cowl is unlikely to ever hit the ground unlike tail-dragger models that tends to fall over on its nose a fair amount. And of course the beauty of 3D printed parts is they're easy to replace, just print another if need be.

                      I did run into the usual issue with 3D printed parts out in the sun, the top of the cowl sagged just a little last season but not bad enough that I feel like re-printing it. I do try to keep my 3D printed stuff in the shade as much as possible, especially darker colored stuff. Its fine when its flying though.

                      Click image for larger version

Name:	Sig Kadet LT 25 kit bash 39.jpg
Views:	301
Size:	60.1 KB
ID:	49108
