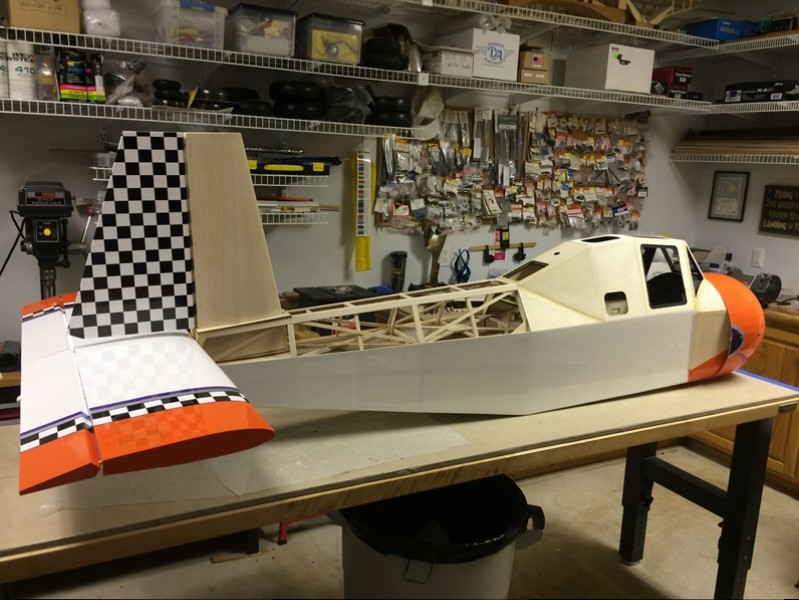

    Link to Peter Goldsmith Designs Web Page:

    Wingspan: 138.5 inLength: 94" w/ SpinnerWeight: 42-44 lbsEngine: 150-170cc (not included)7 ch: 9 Servos The Chmelak is the ultimate in towplane performance. It’s a standoff scale design formulated for aero towing in today’s ever changing market. Designed for 150-170cc engines it will tow up any sailplane you can throw at it. The Z-37 has wonderful flight characteristics that are perfect for towing. Lands super slow due to the above average flaps. The Z-37 can carry enormous fuel capacity, up to 100oz, so time spent refueling is reduced substantially. Kit includes all laser cut wood parts, all wood stock and surface skins, fiberglass Cowl, pVC clear laser cut windows, Robo struts, incorporated tow release, and basic hardware for completion. Full size plan and instruction manual is also included. Completion items:Ail/Elev/Rud/Tow release/Flaps/Throttle 9 x SPMSA6300 Receiver SPMAR12310TFlight Packs 2 x SPMB4000LFRX Support: Chmelak Z-37 ManualChmelak Z-37 Build Thread

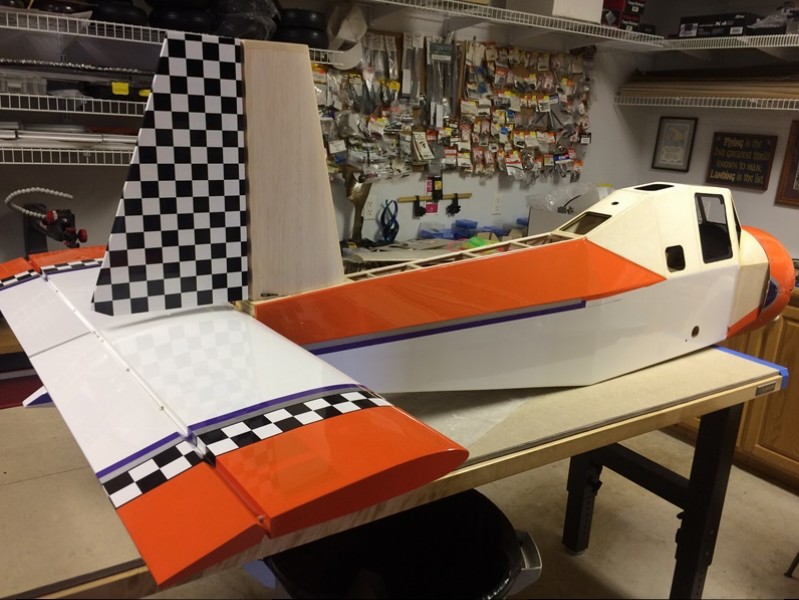

    This is the first kit that I got from Peter, but the 40% Schweizer 1-26 got ahead of it...then the 1/3-scale Slingsby Swallow...then the 1/3-scale Slingsby Skylark...then the EDF Sapphire...has been a busy building year!!!

    Click image for larger version  Name:	IMG_5269.JPG Views:	1 Size:	110.6 KB ID:	30471

    Like Peter's Prototype and Len's "Smelly", mine will be powered with a DA-150 using a 2-blade Mejzlik
    30x12
    Carbon prop.

    Peter's prototype used the Hangar 9 Pawnee gear while Len's plane uses a robust custom aluminum gear from T-n-T Landing Products. Both have fuselage mounted gear.
    Mine will be different in that the landing gear will be wing mounted.

    Most of the structure will be built using Deluxe Materials Aliphatic Resin glue (I have become a major fan of this companies products) that is available through Swiss1 at the Model Box and Horizon Hobby.
    Last edited by JimD; 10-16-2018, 07:55 PM.
    A Site for Soar Eyes

  • #2
    Fin and Rudder

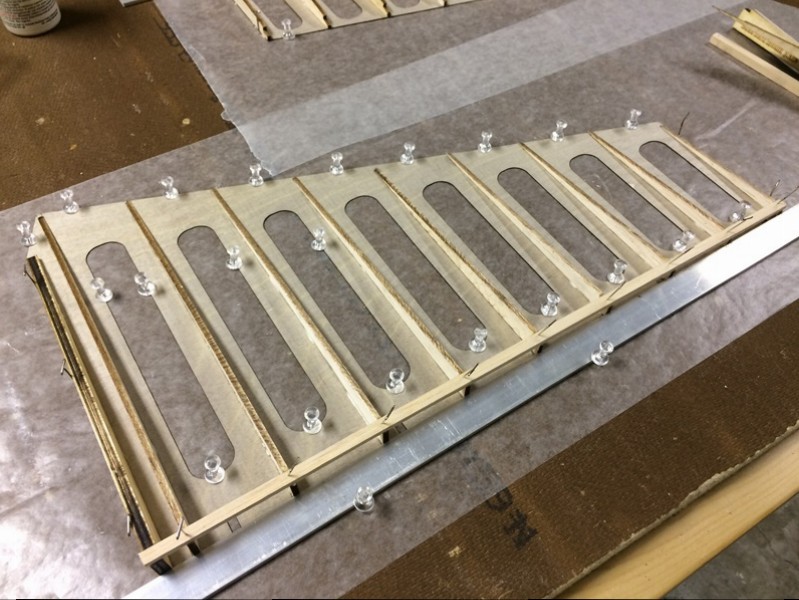

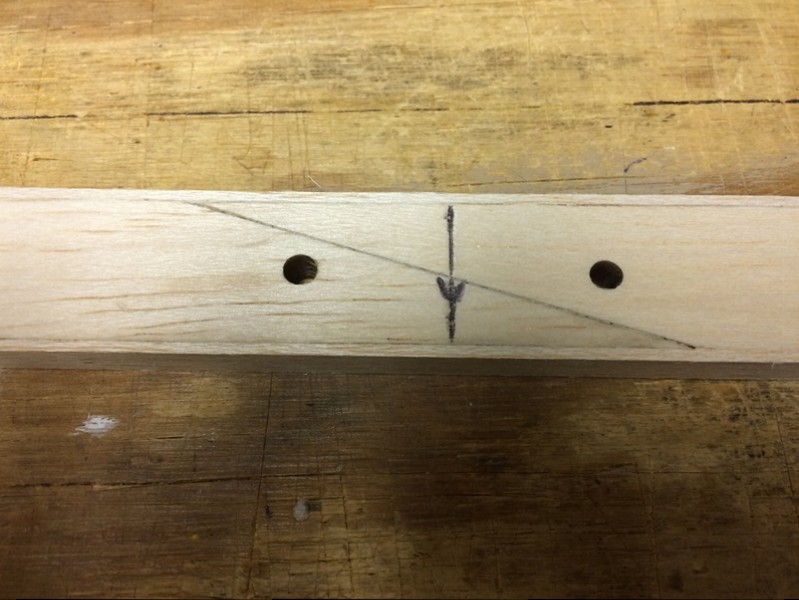

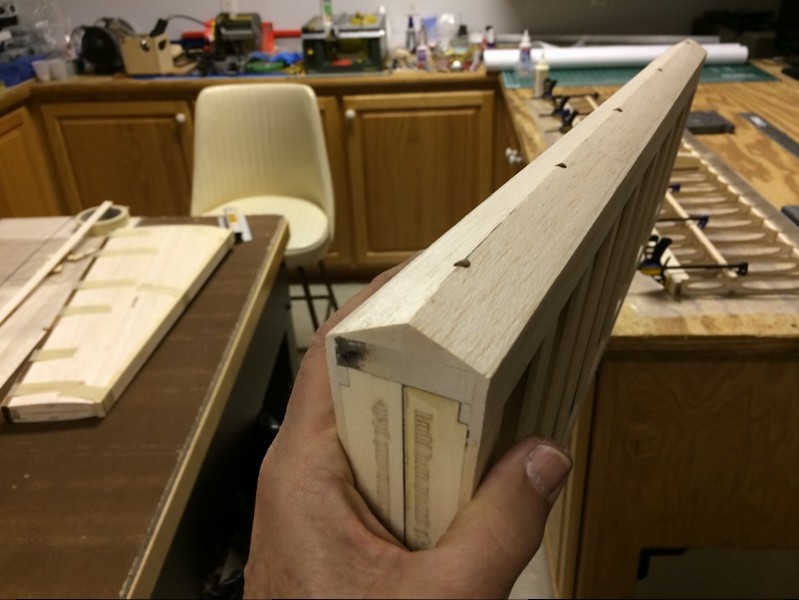

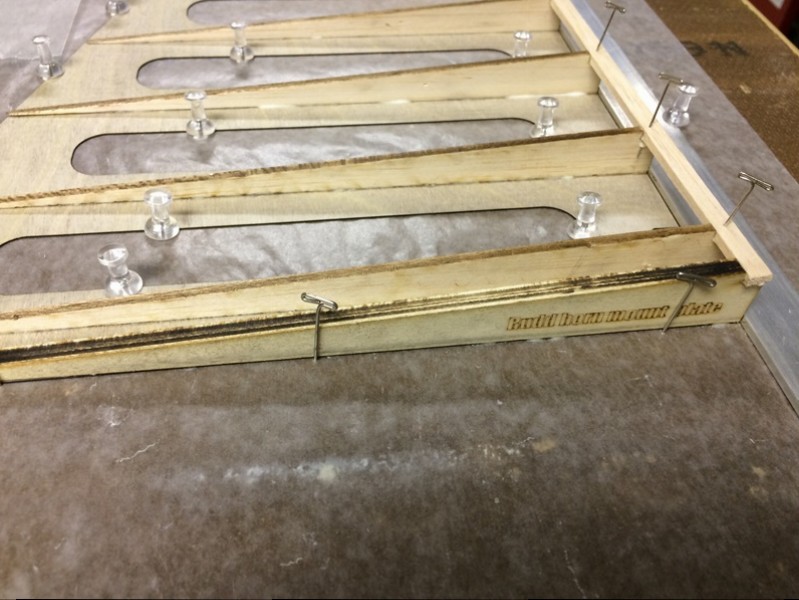

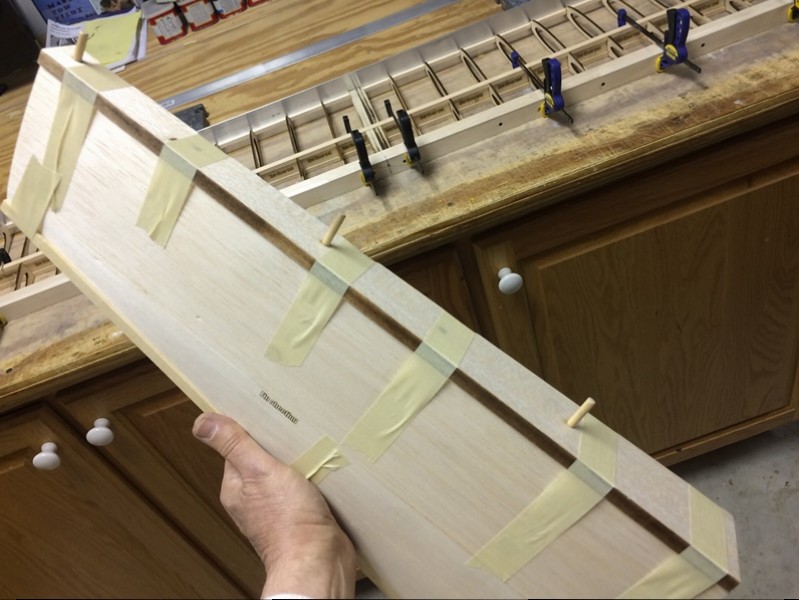

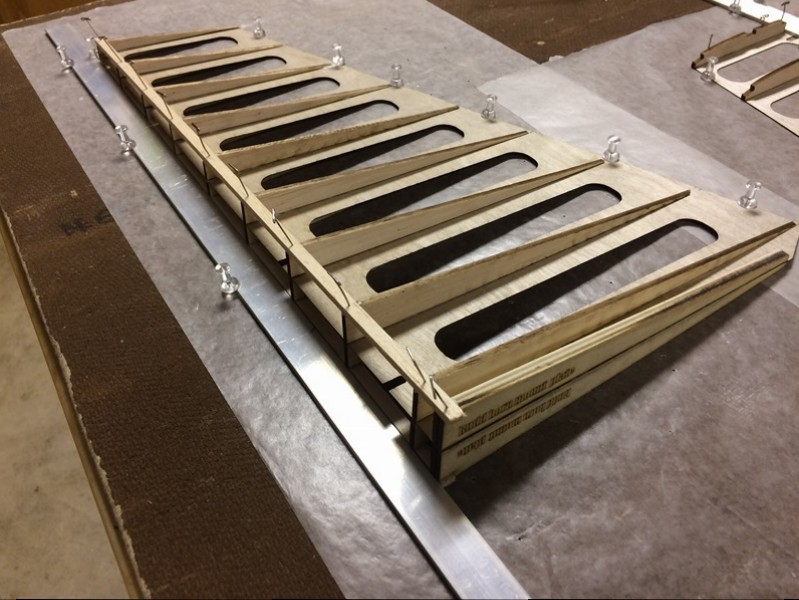

    Both are built over a thin plywood "spine" which allows them to be constructed straight and true on a flat surface (even though they have a symmetrical tapered airfoil shape).

    Click image for larger version

Name:	FR001.JPG
Views:	418
Size:	125.8 KB
ID:	30479

    Click image for larger version

Name:	FR002.JPG
Views:	418
Size:	116.7 KB
ID:	30473

    Click image for larger version

Name:	FR003.JPG
Views:	405
Size:	106.9 KB
ID:	30480

    Click image for larger version

Name:	FR004.JPG
Views:	386
Size:	107.5 KB
ID:	30481

    Click image for larger version

Name:	FR005.JPG
Views:	405
Size:	104.4 KB
ID:	30476

    Click image for larger version

Name:	FR006.JPG
Views:	395
Size:	113.6 KB
ID:	30477

    Click image for larger version

Name:	FR007.JPG
Views:	403
Size:	118.3 KB
ID:	30482

    Click image for larger version

Name:	FR008.JPG
Views:	441
Size:	118.1 KB
ID:	30478

    Click image for larger version

Name:	FR009.JPG
Views:	388
Size:	87.3 KB
ID:	30474

    Click image for larger version

Name:	FR010.JPG
Views:	392
Size:	82.1 KB
ID:	30475

    A Site for Soar Eyes

    Comment


    • #3

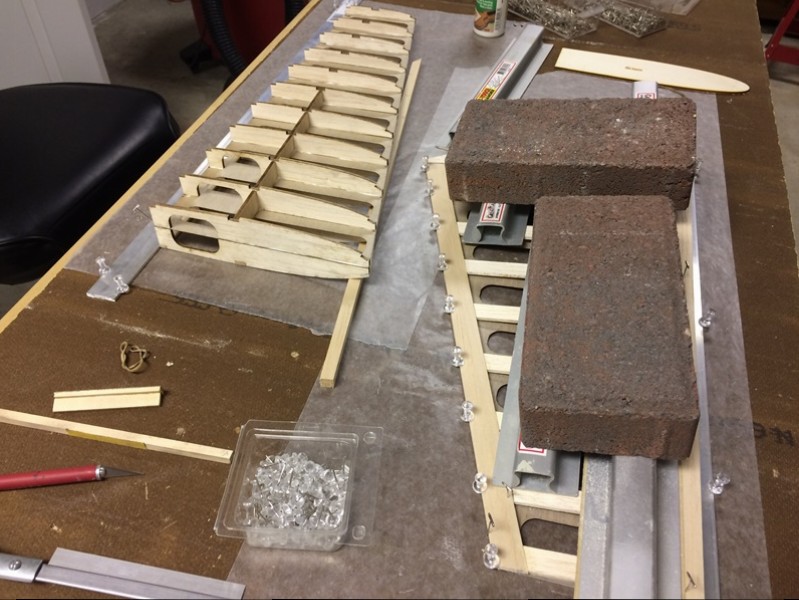

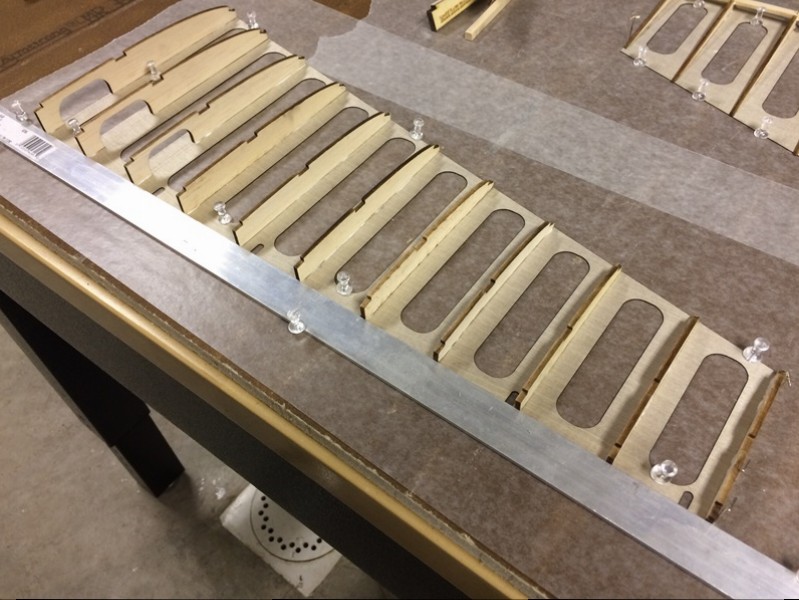

      Stab and Elevator

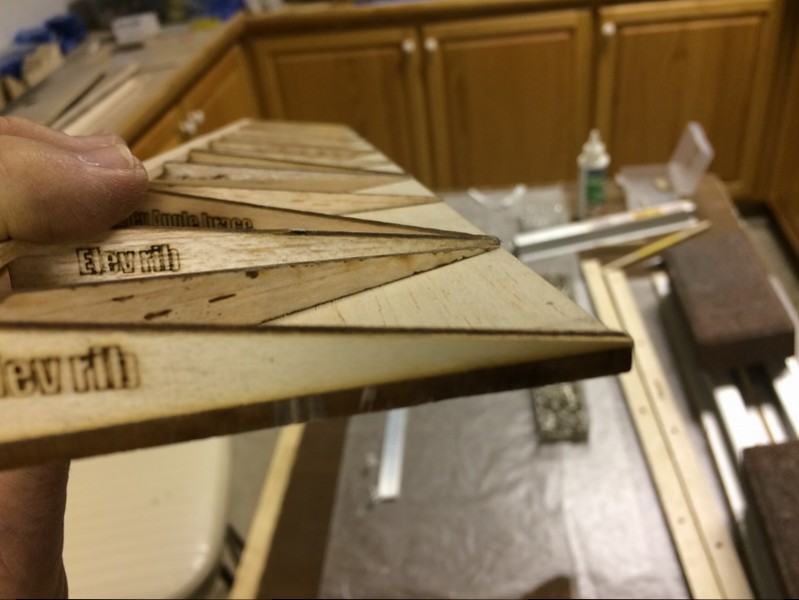

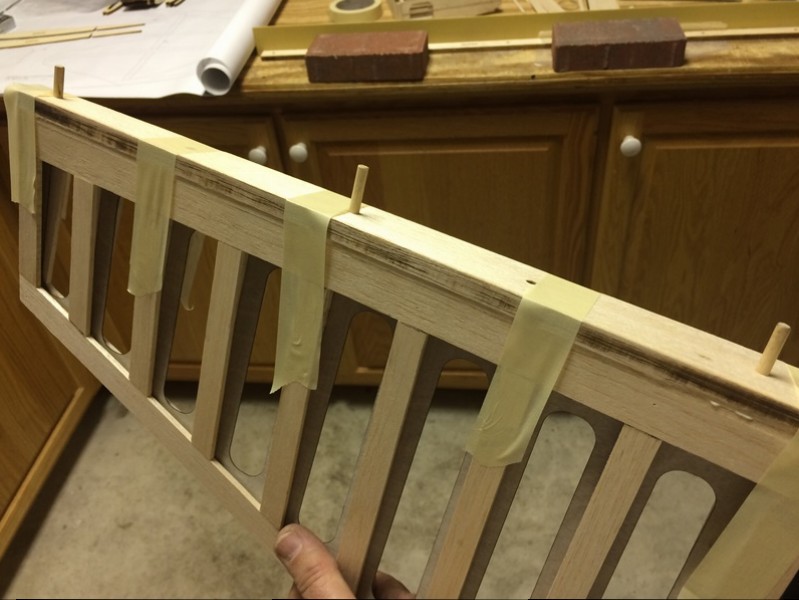

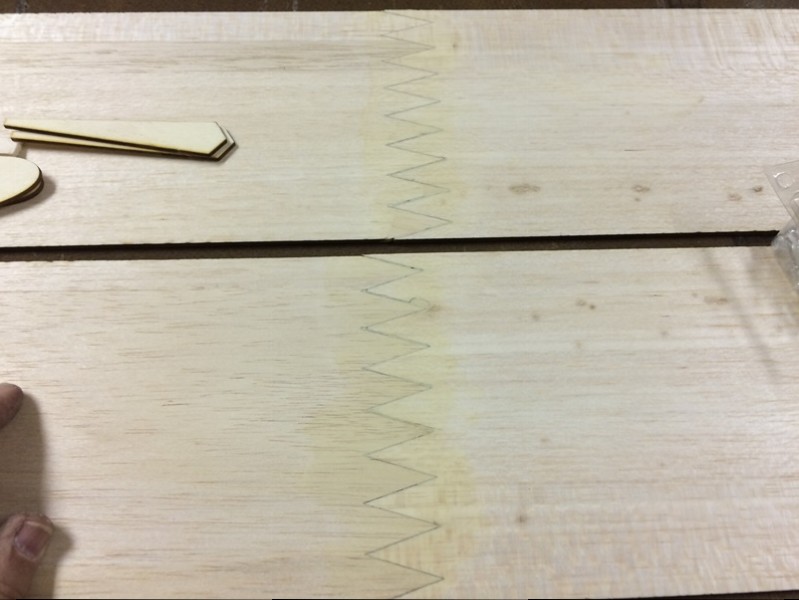

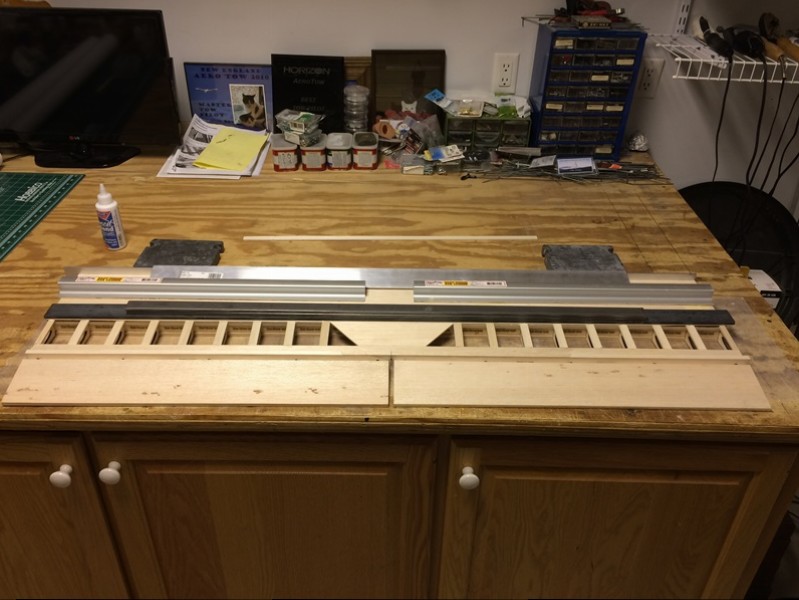

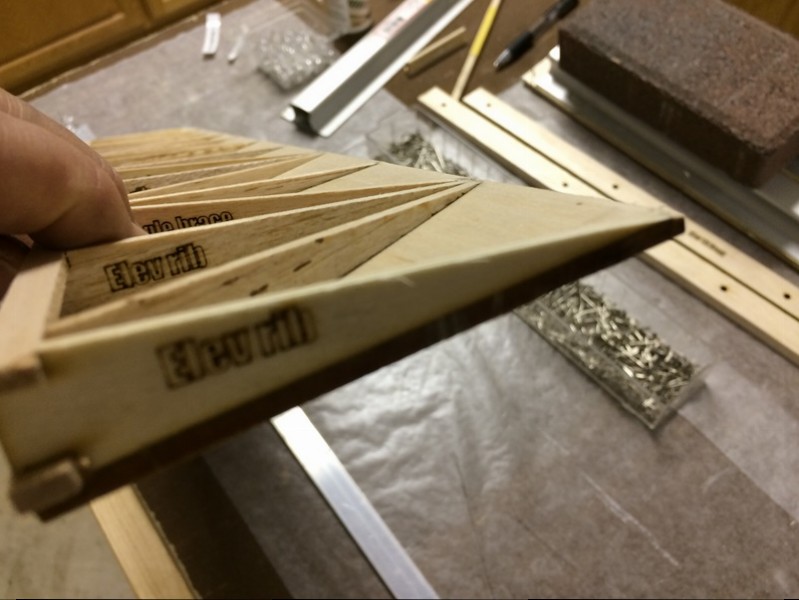

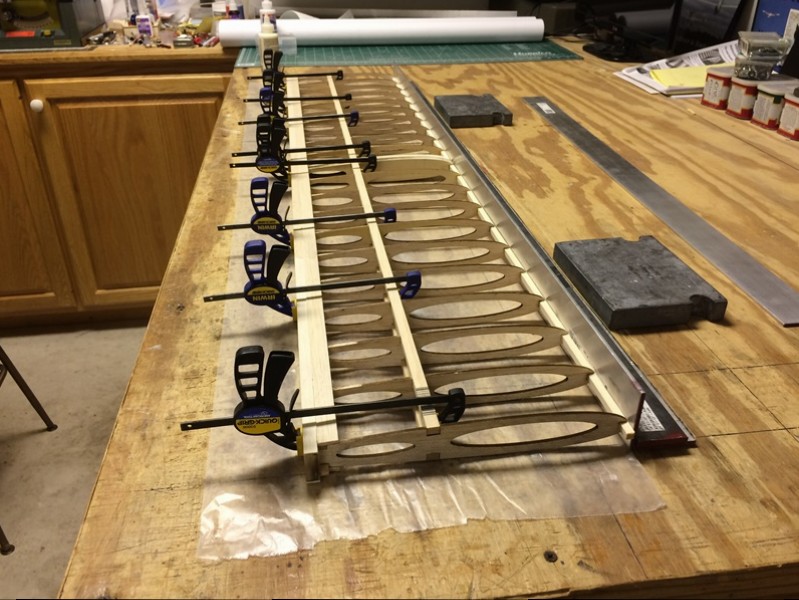

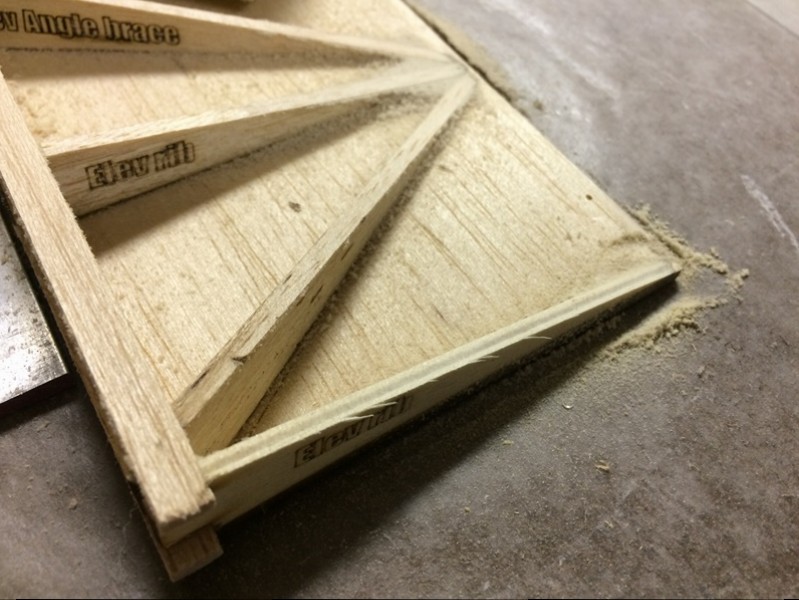

      This kit was one of the very first that Peter produced, so some of the parts were in need of slight modification to match with updates to the design as it evolved. For example, the sheeting thickness was increased, so we had to laminate balsa strips to either side of the stab trailing edge and elevator leading edge parts in order to match. Current kits have corrected parts, so some of what you see in this thread will not be necessary in the newer kit builds.


      Click image for larger version

Name:	SE001.JPG
Views:	421
Size:	124.7 KB
ID:	30494

      Click image for larger version

Name:	SE002.JPG
Views:	392
Size:	74.8 KB
ID:	30484

      Click image for larger version

Name:	SE003.JPG
Views:	400
Size:	121.0 KB
ID:	30486

      Click image for larger version

Name:	SE004.JPG
Views:	399
Size:	108.6 KB
ID:	30493

      Click image for larger version

Name:	SE005.JPG
Views:	381
Size:	84.7 KB
ID:	30489

      Click image for larger version

Name:	SE006.JPG
Views:	375
Size:	95.0 KB
ID:	30490

      Click image for larger version

Name:	SE007.JPG
Views:	407
Size:	95.3 KB
ID:	30485

      Click image for larger version

Name:	SE008.JPG
Views:	417
Size:	101.0 KB
ID:	30488

      Click image for larger version

Name:	SE009.JPG
Views:	372
Size:	75.1 KB
ID:	30487

      Click image for larger version

Name:	SE010.JPG
Views:	412
Size:	130.7 KB
ID:	30491

      Click image for larger version

Name:	SE011.JPG
Views:	382
Size:	96.0 KB
ID:	30492

      A Site for Soar Eyes

      Comment


      • #4
        Fuselage

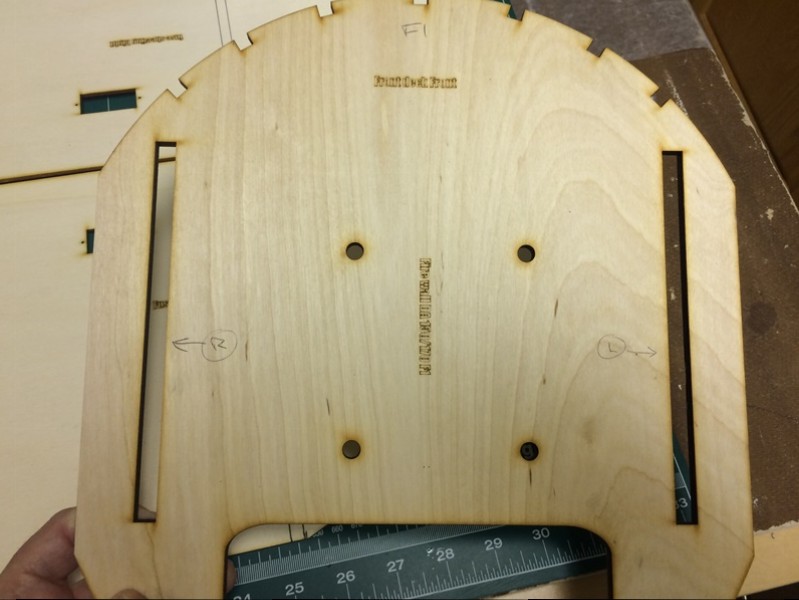

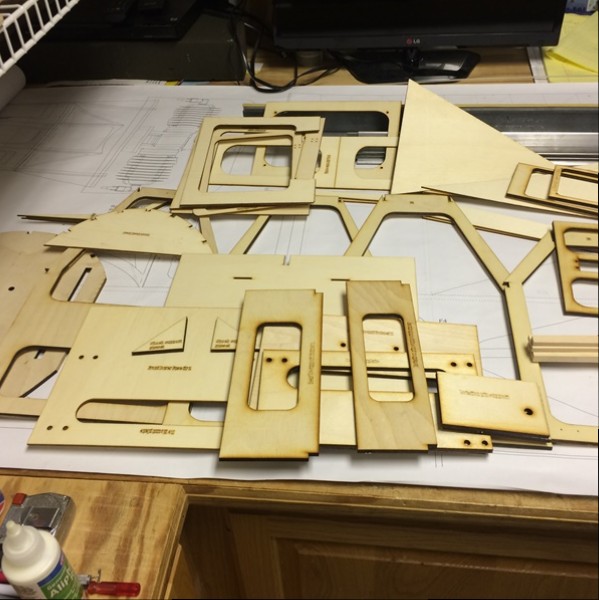

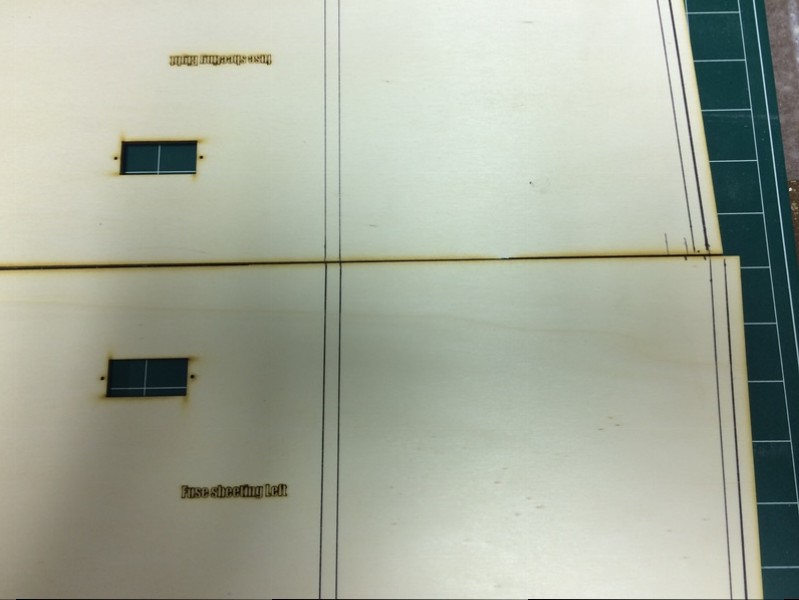

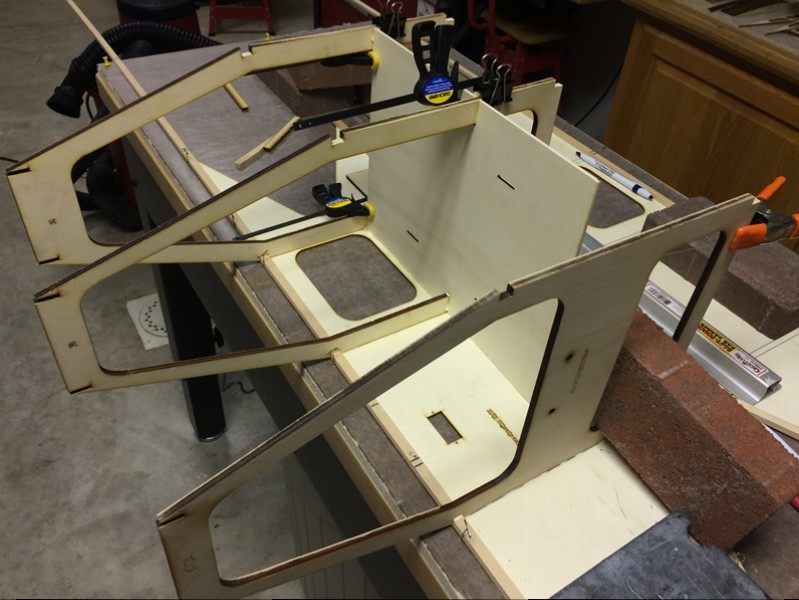

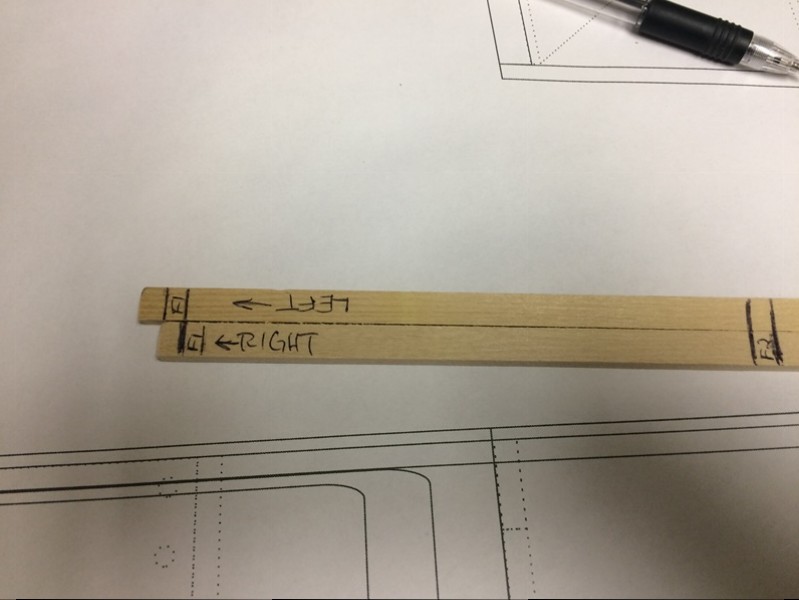

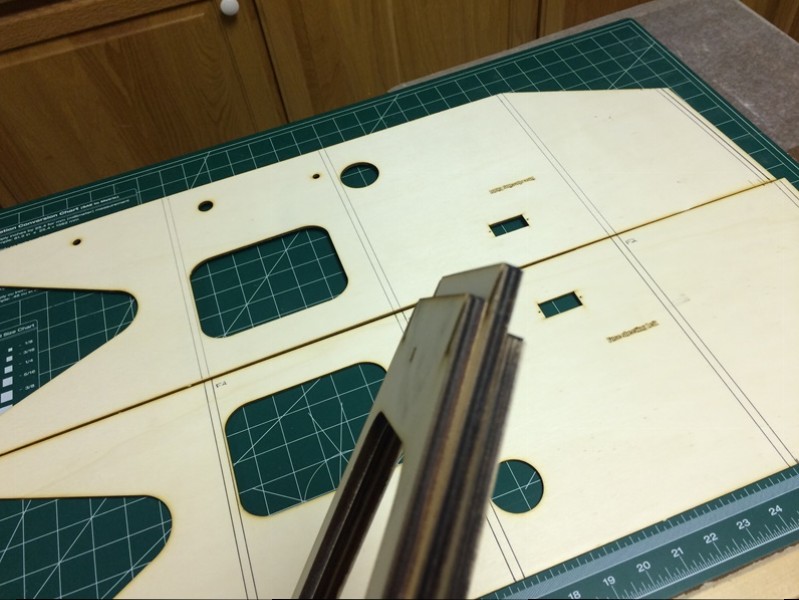

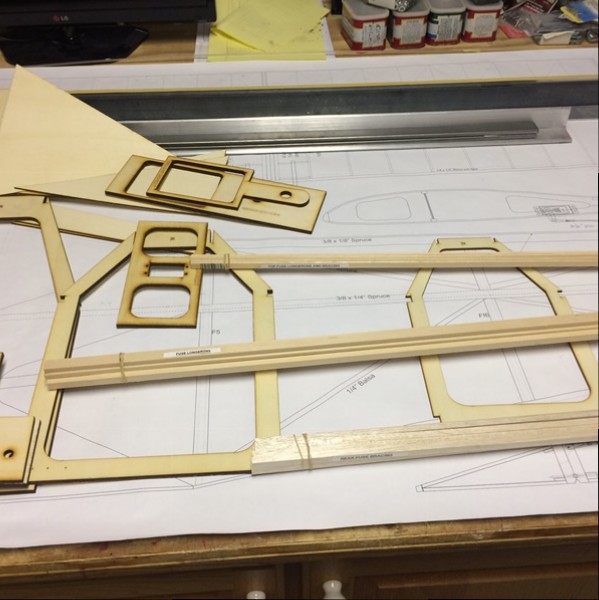

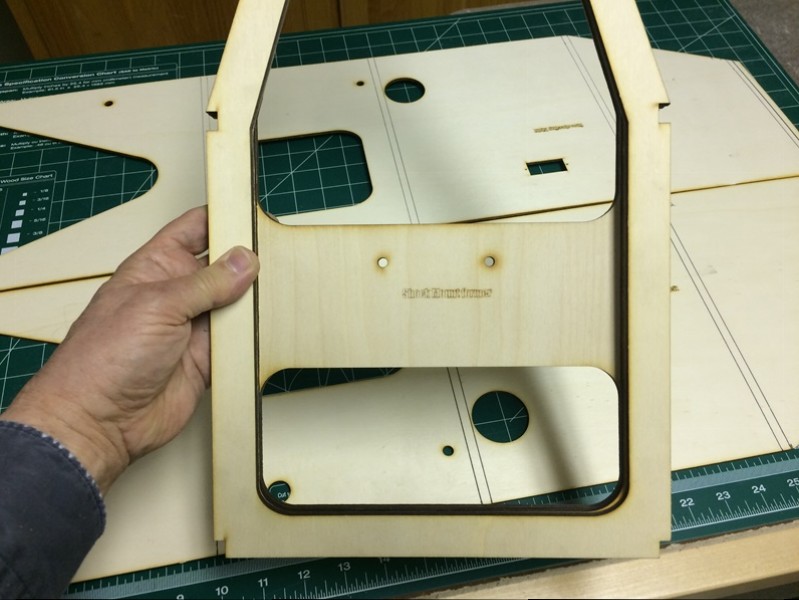

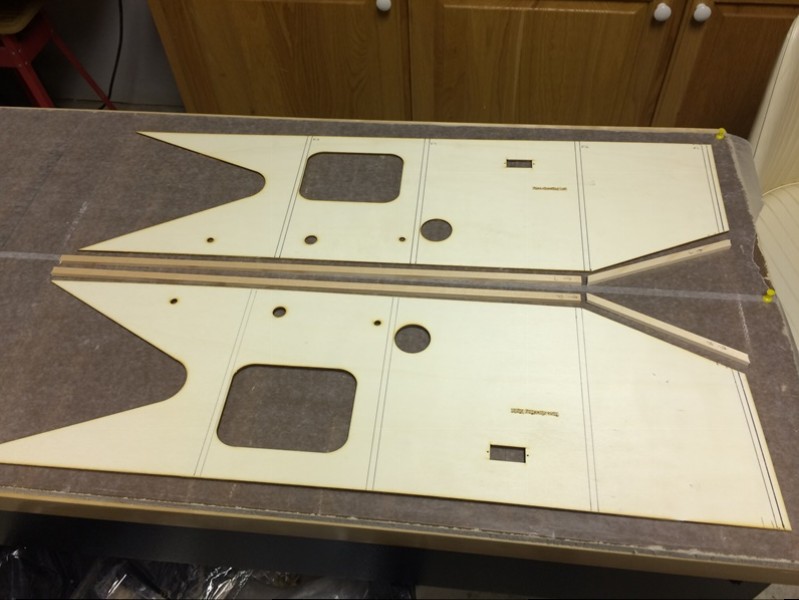

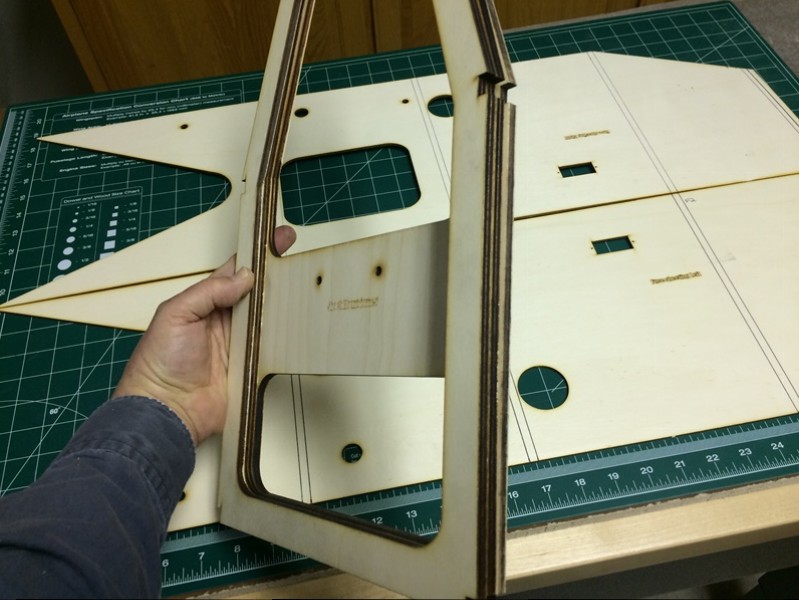

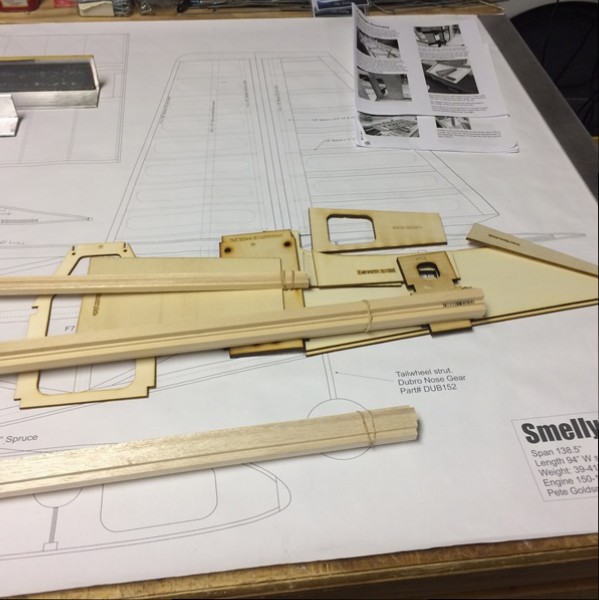

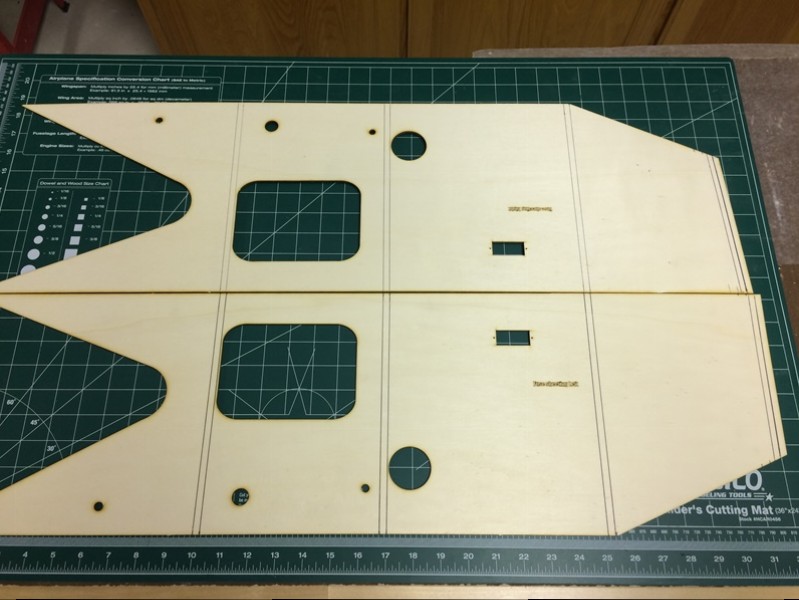

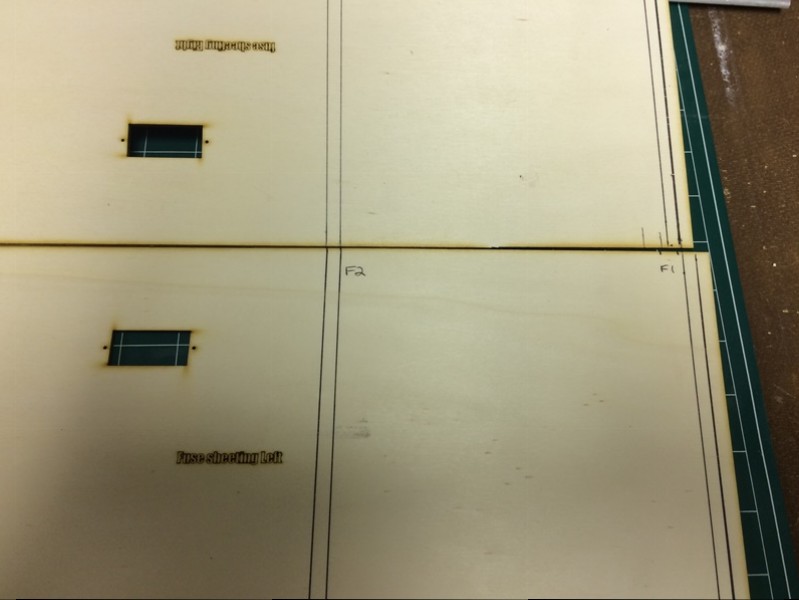

        Start by identifying all of the fuselage parts and marking left and right sides. Note that right side is shorter than the left side to account for the right thrust built into the firewall.


        Click image for larger version

Name:	F001.JPG
Views:	393
Size:	90.5 KB
ID:	30497

        Click image for larger version

Name:	F002.JPG
Views:	402
Size:	56.6 KB
ID:	30498

        Click image for larger version

Name:	F003.JPG
Views:	381
Size:	79.9 KB
ID:	30502

        Click image for larger version

Name:	F004.JPG
Views:	380
Size:	75.0 KB
ID:	30501

        Click image for larger version

Name:	F005.JPG
Views:	417
Size:	67.5 KB
ID:	30500

        Click image for larger version

Name:	F006.JPG
Views:	393
Size:	89.6 KB
ID:	30504

        Click image for larger version

Name:	F007.JPG
Views:	396
Size:	100.4 KB
ID:	30505

        Click image for larger version

Name:	F008.JPG
Views:	386
Size:	96.3 KB
ID:	30496

        Click image for larger version

Name:	F011.JPG
Views:	386
Size:	62.9 KB
ID:	30499

        Click image for larger version

Name:	F012.JPG
Views:	385
Size:	76.3 KB
ID:	30503

        A Site for Soar Eyes

        Comment


        • #5

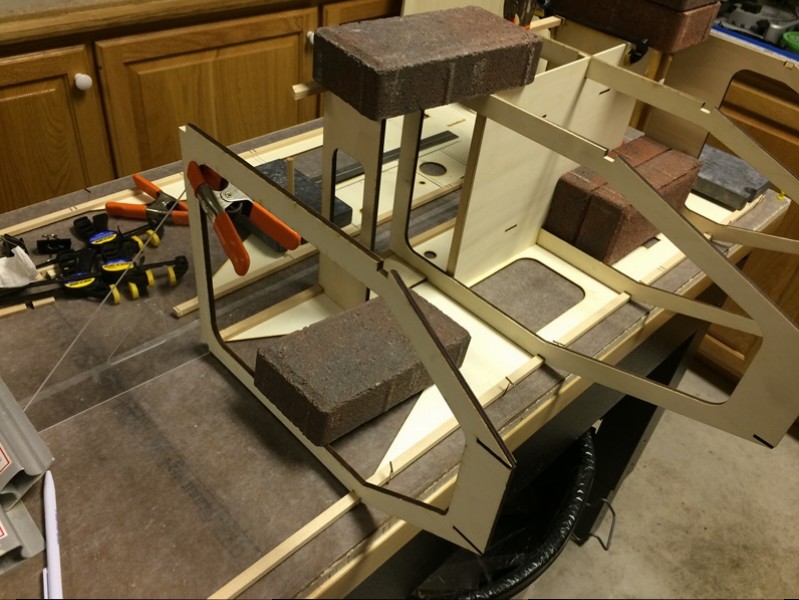

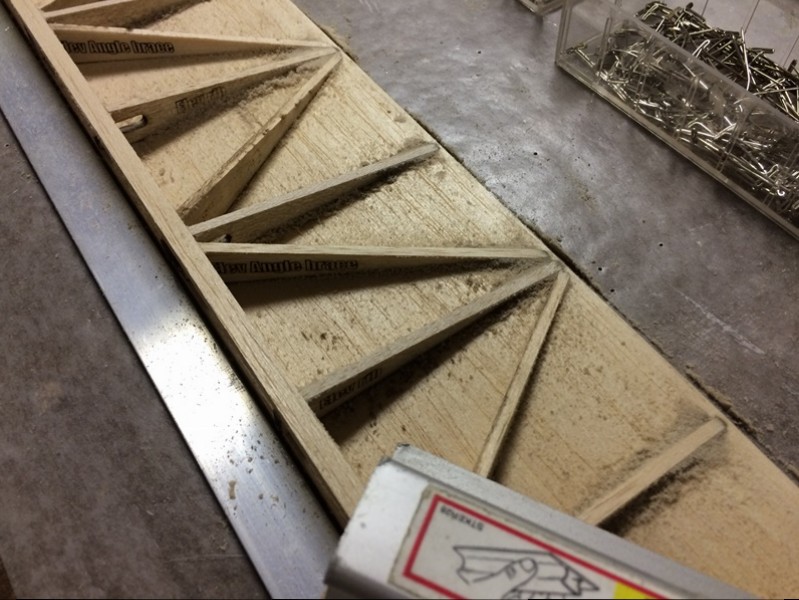

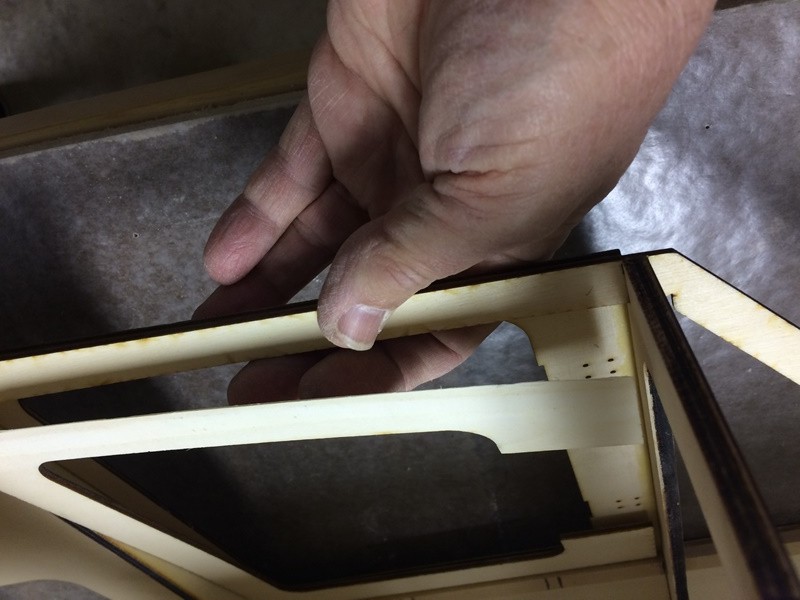

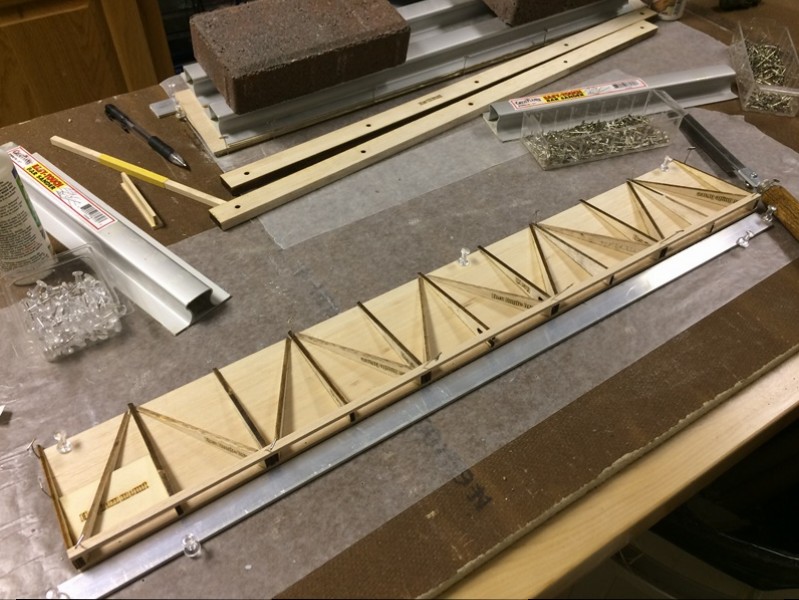

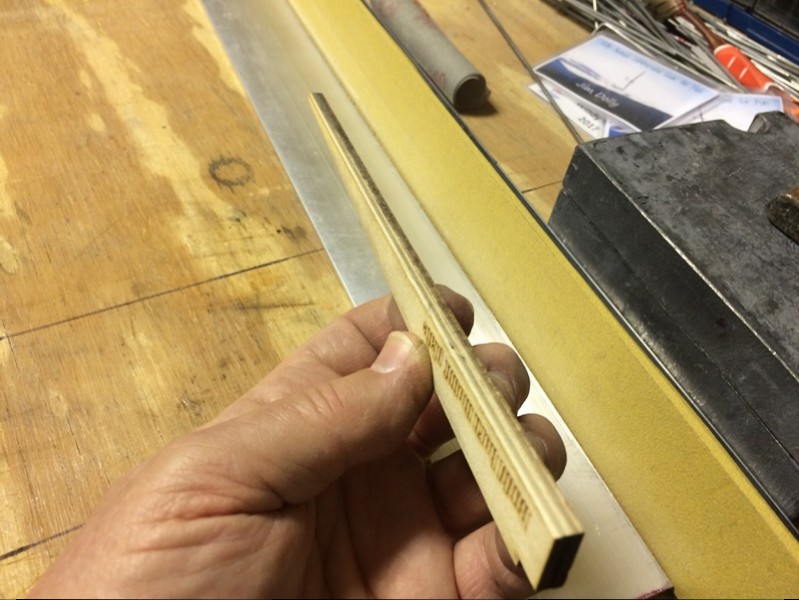

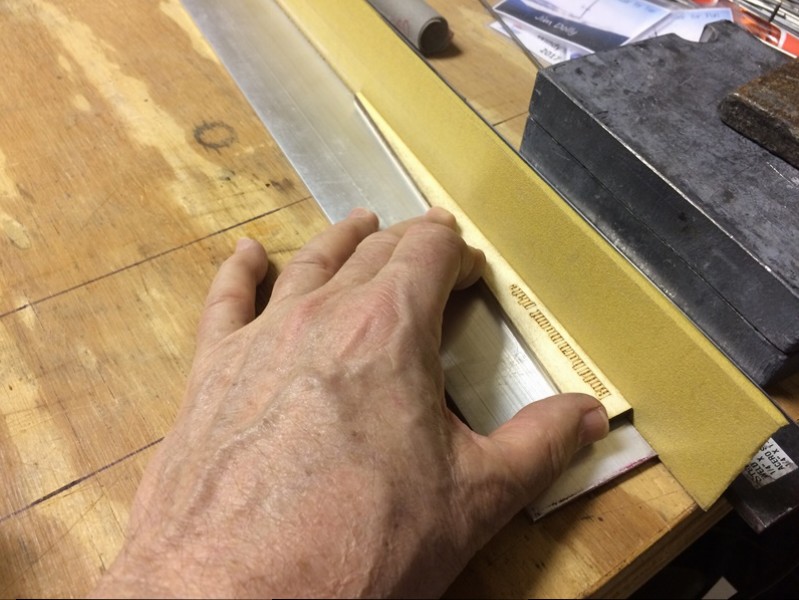

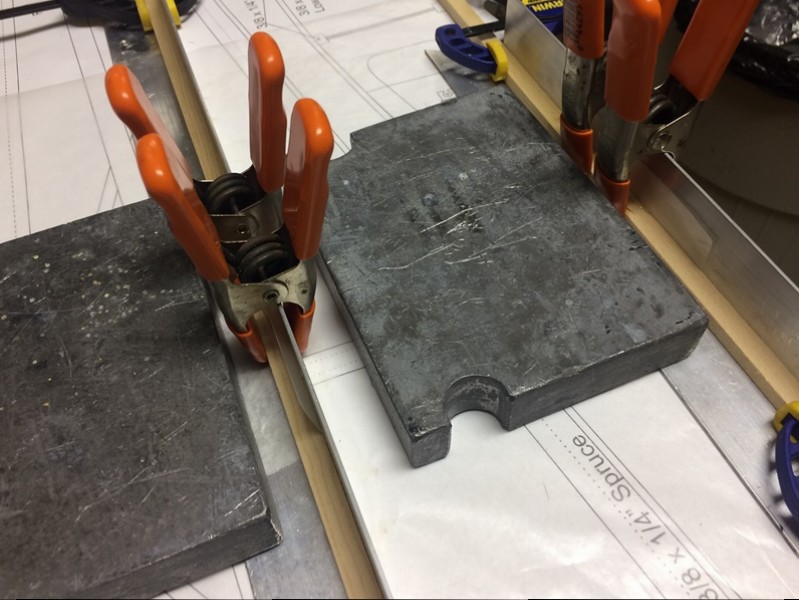

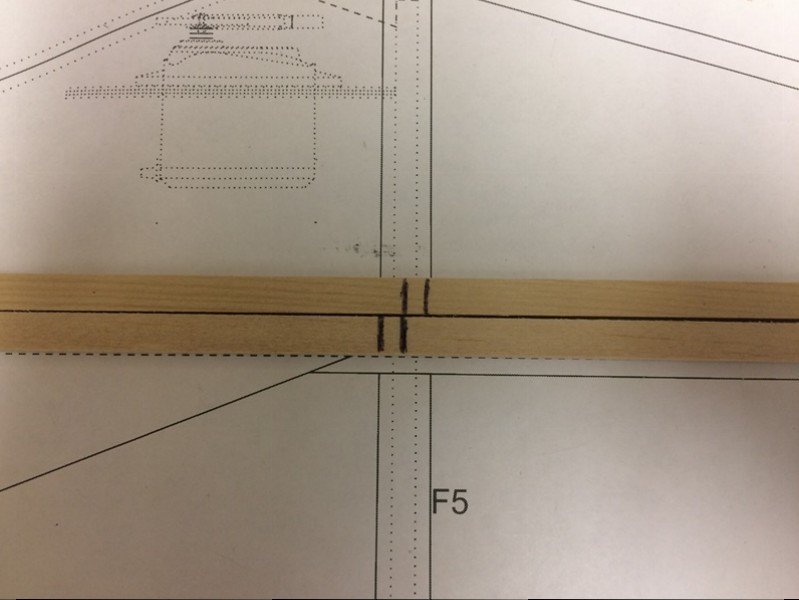

          The fuselage sides are outlined with 1/4"x3/8" spruce stick and the top edge of the fuselage sides has a longeron that runs from nose to tail. Make this longeron by laminating the spruce stick parts using a scarf joint. Clamping the parts to a straight edge assures a nice straight longeron. Mark the location of all the formers (nose to tail) on the longerons for later reference. Notches in the sides of the cabin area formers can be used to set the spacing between the top and bottom stick location. Our scarf join was located to overlap at one of the formers. Since the fuselage is a box with square corners, use builder's squares to keep check on the structure to make sure it is true.

          Click image for larger version

Name:	F015.JPG
Views:	421
Size:	103.5 KB
ID:	30511

          Click image for larger version

Name:	F016.JPG
Views:	397
Size:	73.0 KB
ID:	30510

          Click image for larger version

Name:	F017.JPG
Views:	400
Size:	57.0 KB
ID:	30509

          Click image for larger version

Name:	F018.JPG
Views:	382
Size:	69.1 KB
ID:	30514

          Click image for larger version

Name:	F019.JPG
Views:	390
Size:	59.6 KB
ID:	30516

          Click image for larger version

Name:	F020.JPG
Views:	400
Size:	58.4 KB
ID:	30513

          Click image for larger version

Name:	F021.JPG
Views:	396
Size:	64.3 KB
ID:	30512

          Click image for larger version

Name:	F022.JPG
Views:	396
Size:	77.6 KB
ID:	30507

          Click image for larger version

Name:	F023.JPG
Views:	381
Size:	102.9 KB
ID:	30508

          Click image for larger version

Name:	F024.JPG
Views:	395
Size:	110.7 KB
ID:	30515







          A Site for Soar Eyes

          Comment


          • #6

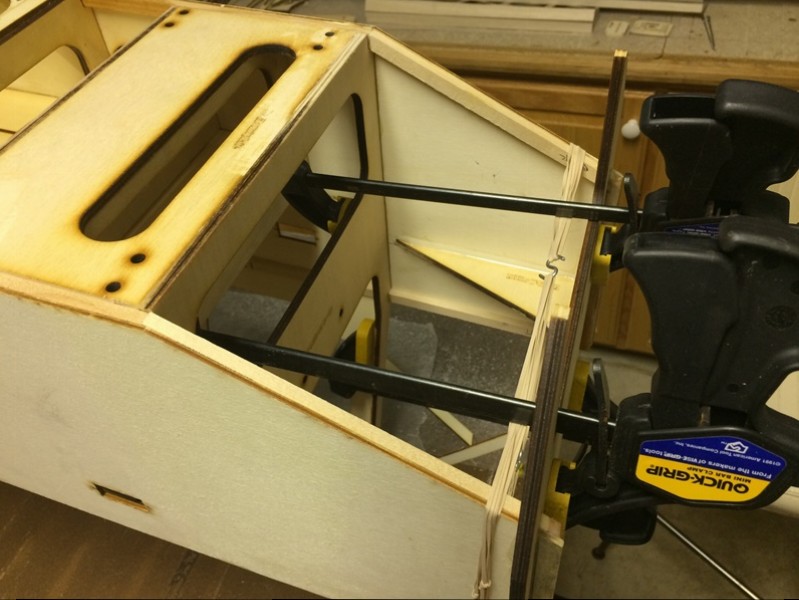

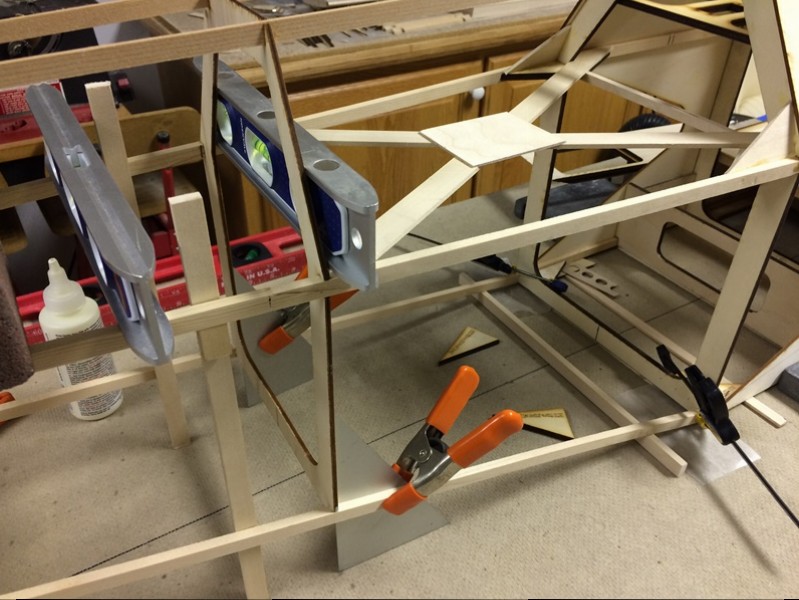

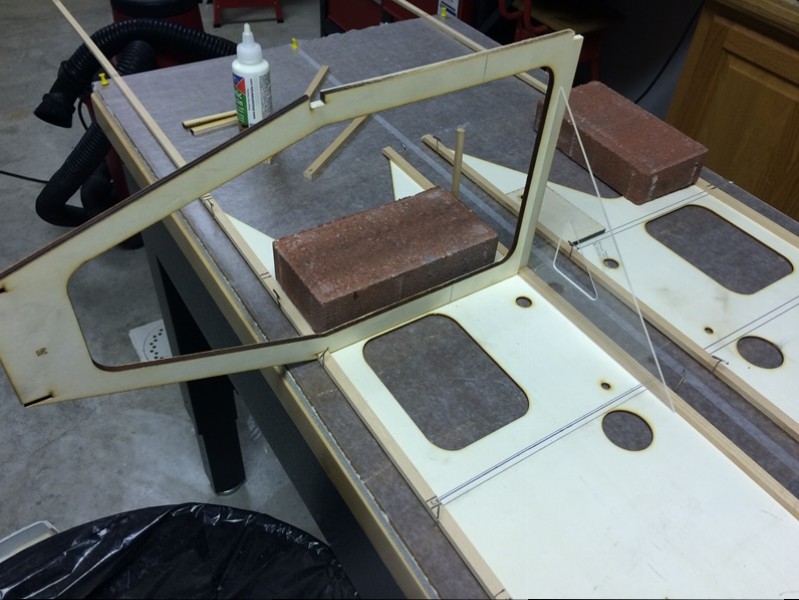

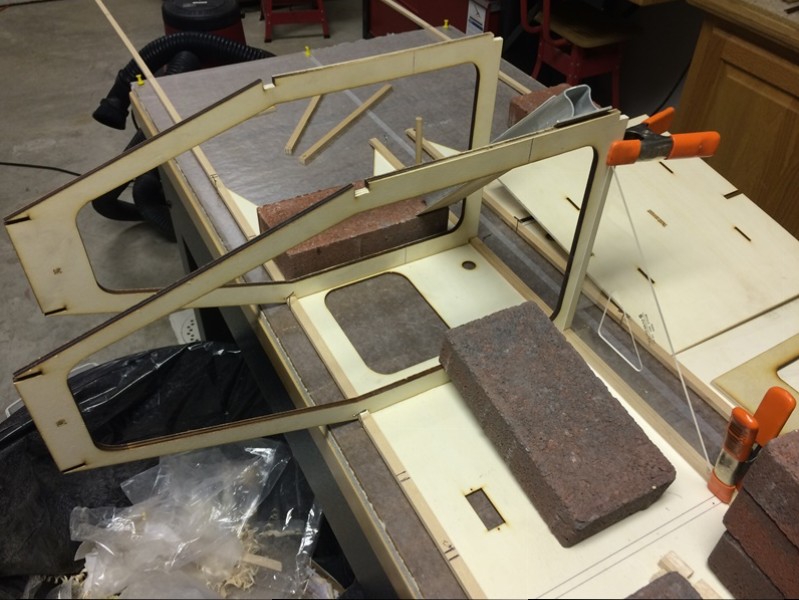

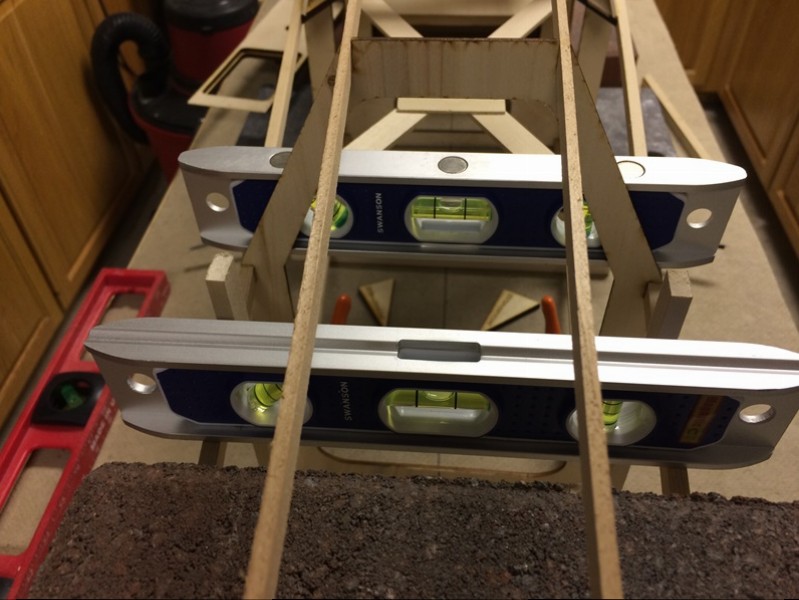

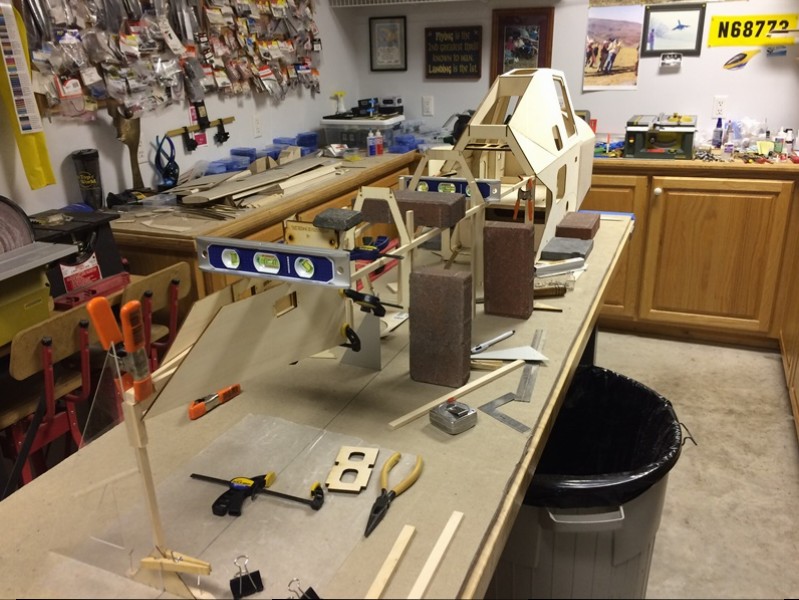

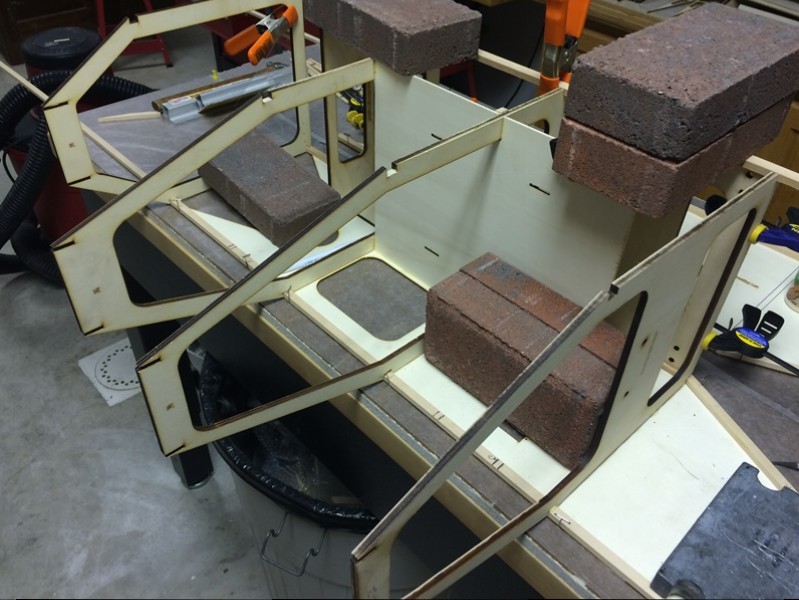

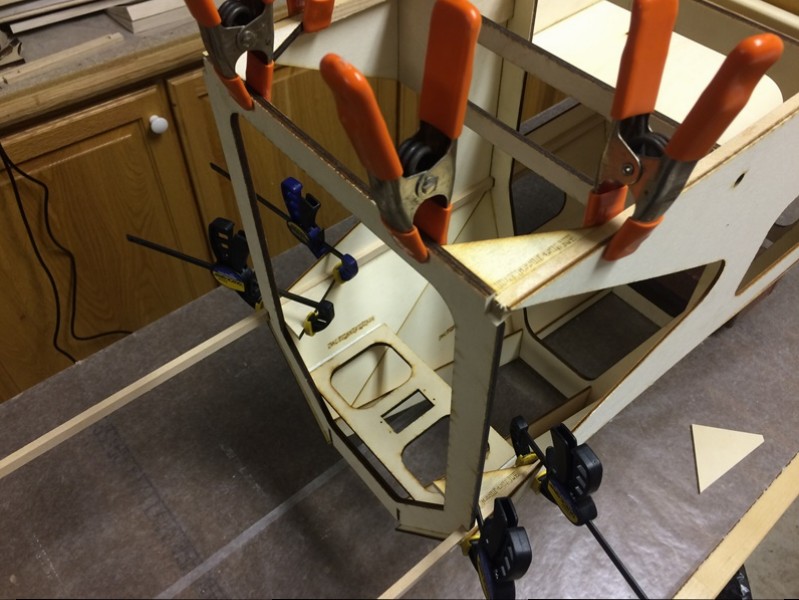

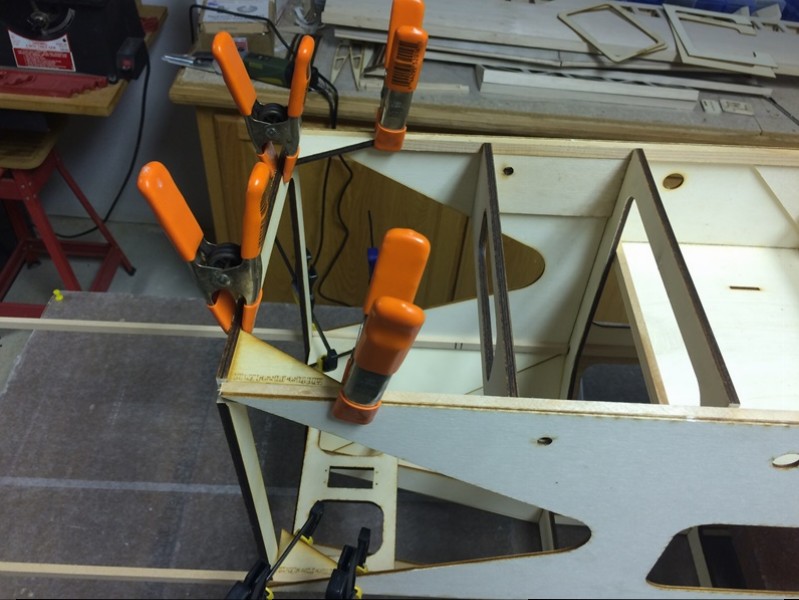

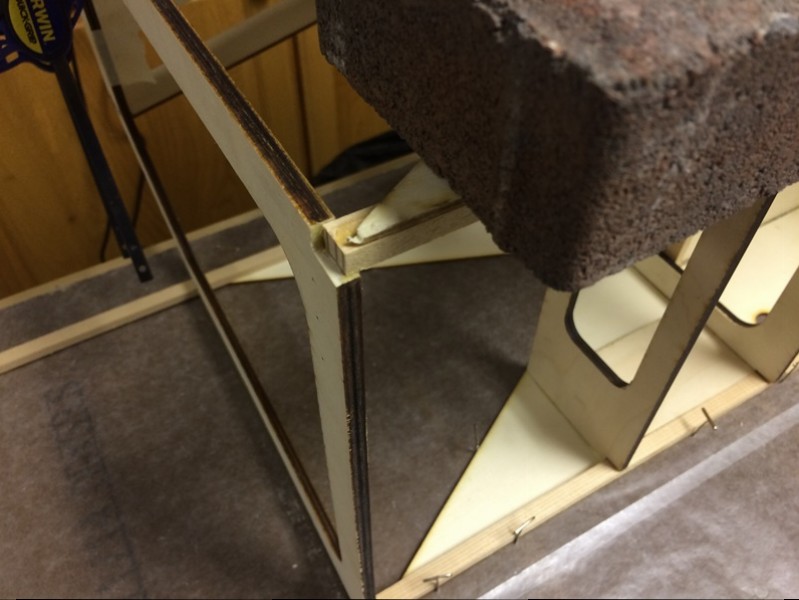

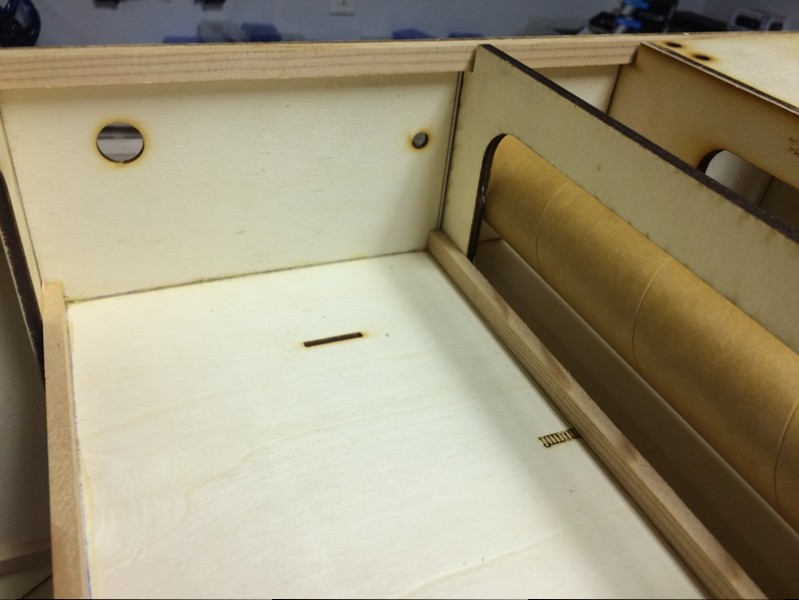

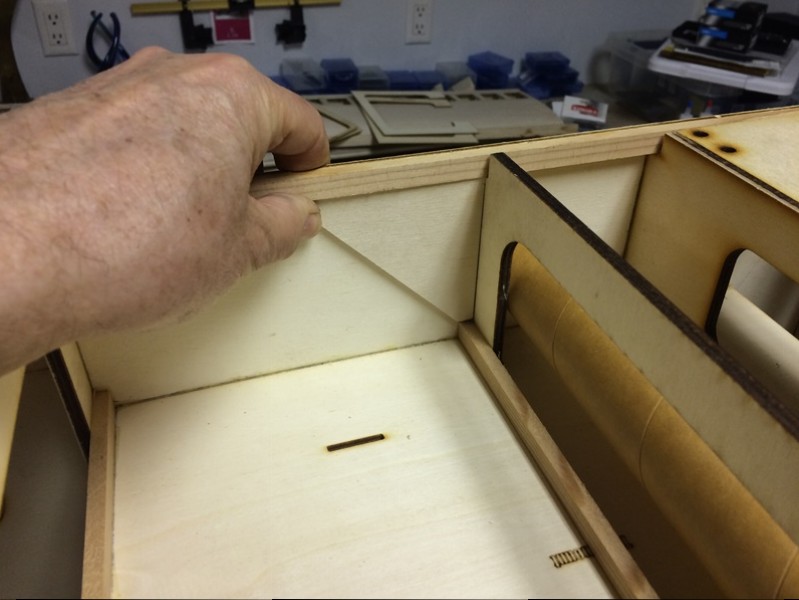

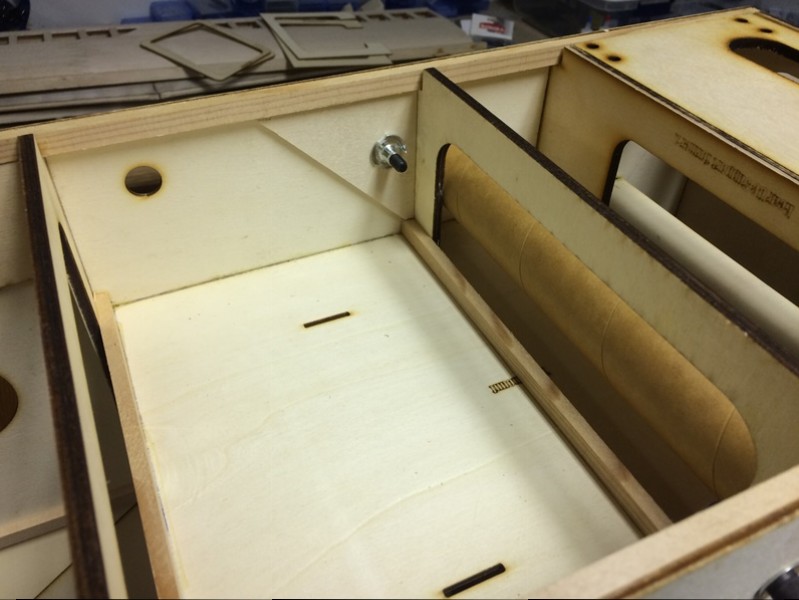

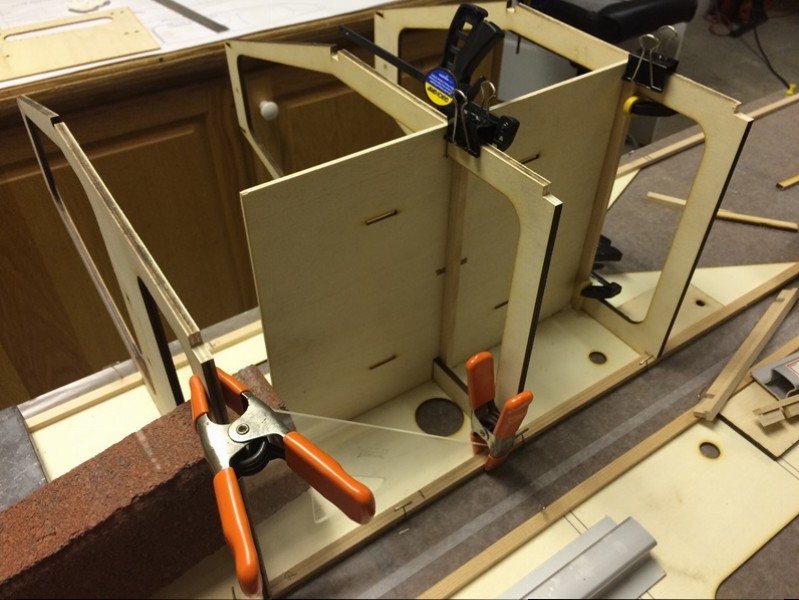

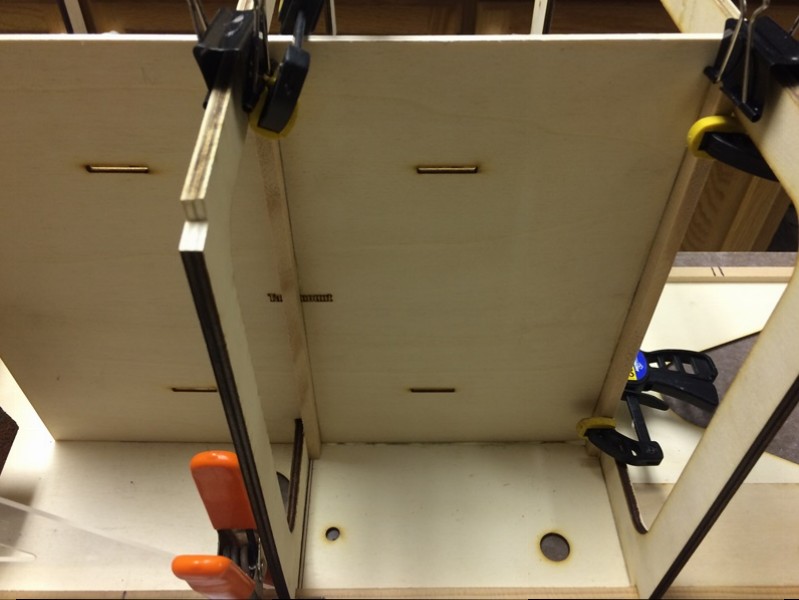

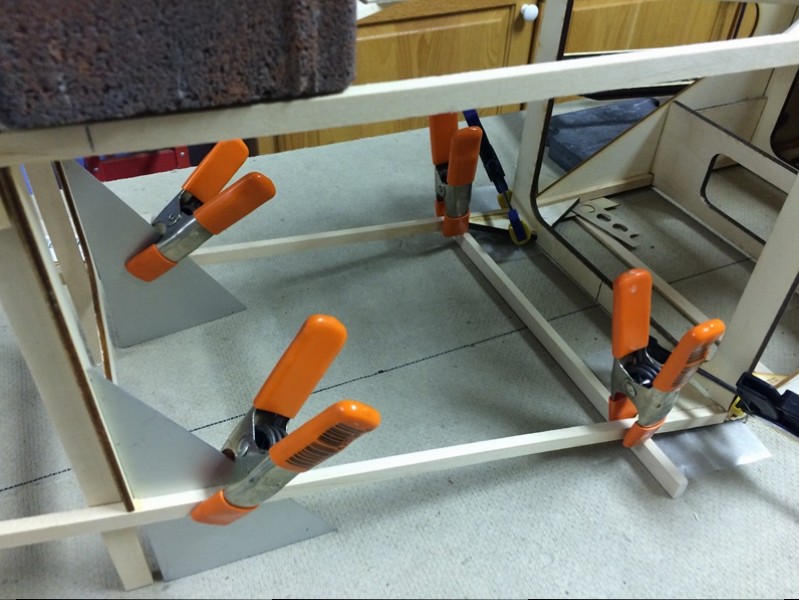

            As parts are added, keep check in all directions to make sure you keep things square and true.

            Click image for larger version

Name:	F025.JPG
Views:	410
Size:	103.0 KB
ID:	30525

            Click image for larger version

Name:	F026.JPG
Views:	387
Size:	103.2 KB
ID:	30519

            Click image for larger version

Name:	F027.JPG
Views:	378
Size:	69.4 KB
ID:	30520

            Click image for larger version

Name:	F028.JPG
Views:	399
Size:	116.2 KB
ID:	30523

            Click image for larger version

Name:	F029.JPG
Views:	388
Size:	114.6 KB
ID:	30522

            Click image for larger version

Name:	F030.JPG
Views:	388
Size:	117.1 KB
ID:	30521

            Click image for larger version

Name:	F031.JPG
Views:	385
Size:	98.0 KB
ID:	30526

            Click image for larger version

Name:	F032.JPG
Views:	401
Size:	100.8 KB
ID:	30518

            Click image for larger version

Name:	F033.JPG
Views:	381
Size:	103.6 KB
ID:	30524

            Click image for larger version

Name:	F034.JPG
Views:	382
Size:	82.3 KB
ID:	30527

            A Site for Soar Eyes

            Comment


            • #7

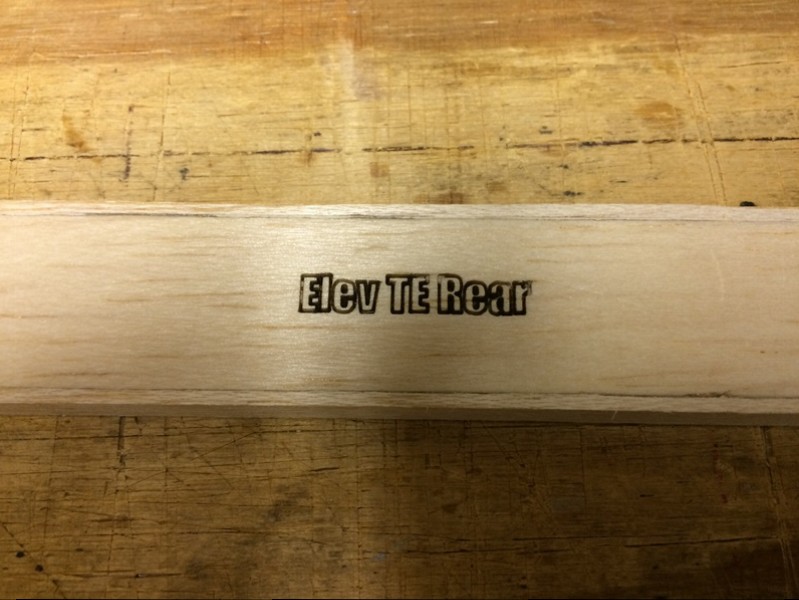

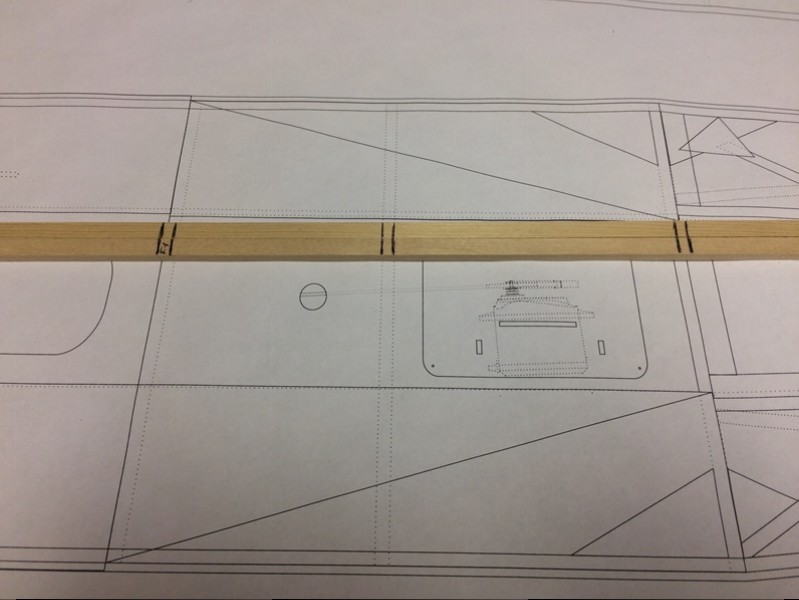

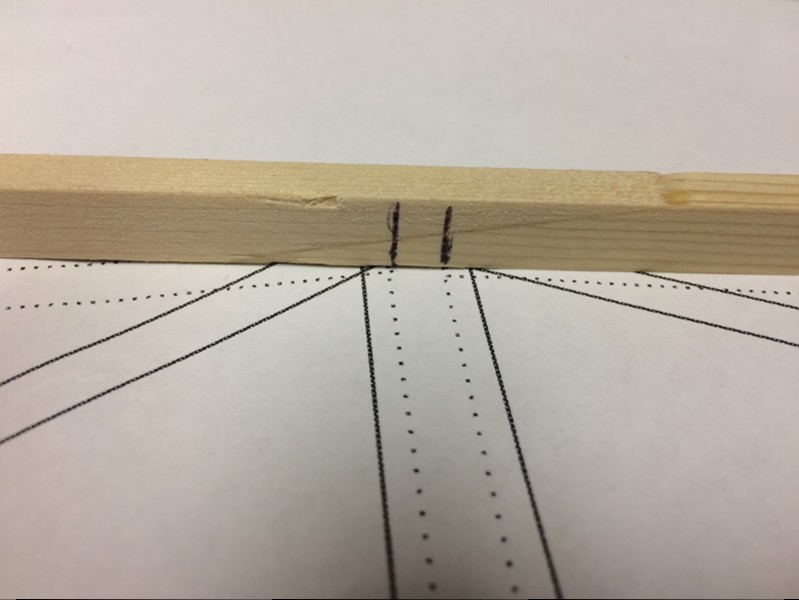

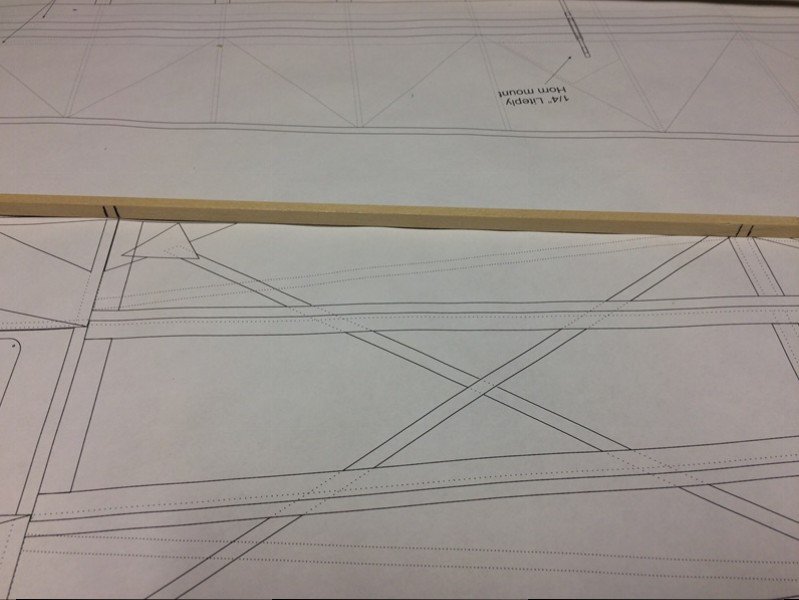

              Note the full-length longerons with former location markings.

              Click image for larger version

Name:	F035.JPG
Views:	371
Size:	117.2 KB
ID:	30532

              Click image for larger version

Name:	F036.JPG
Views:	367
Size:	97.9 KB
ID:	30537

              Click image for larger version

Name:	F037.JPG
Views:	388
Size:	95.6 KB
ID:	30540

              Click image for larger version

Name:	F038.JPG
Views:	380
Size:	106.4 KB
ID:	30539

              Click image for larger version

Name:	F039.JPG
Views:	370
Size:	69.4 KB
ID:	30535

              Click image for larger version

Name:	F040.JPG
Views:	365
Size:	76.1 KB
ID:	30536

              Click image for larger version

Name:	F041.JPG
Views:	377
Size:	81.0 KB
ID:	30533

              Click image for larger version

Name:	F042.JPG
Views:	374
Size:	77.8 KB
ID:	30531

              Click image for larger version

Name:	F043.JPG
Views:	409
Size:	98.4 KB
ID:	30538

              Click image for larger version

Name:	F044.JPG
Views:	381
Size:	97.1 KB
ID:	30534

              A Site for Soar Eyes

              Comment


              • #8

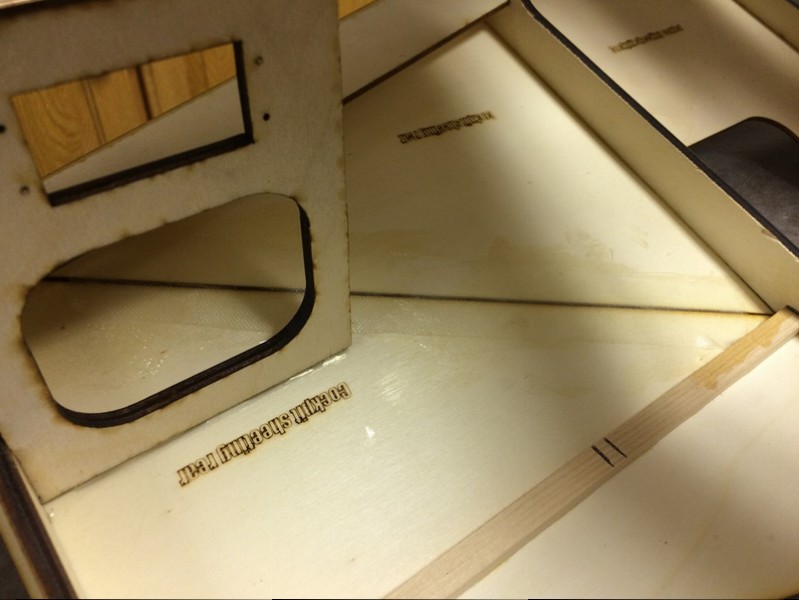

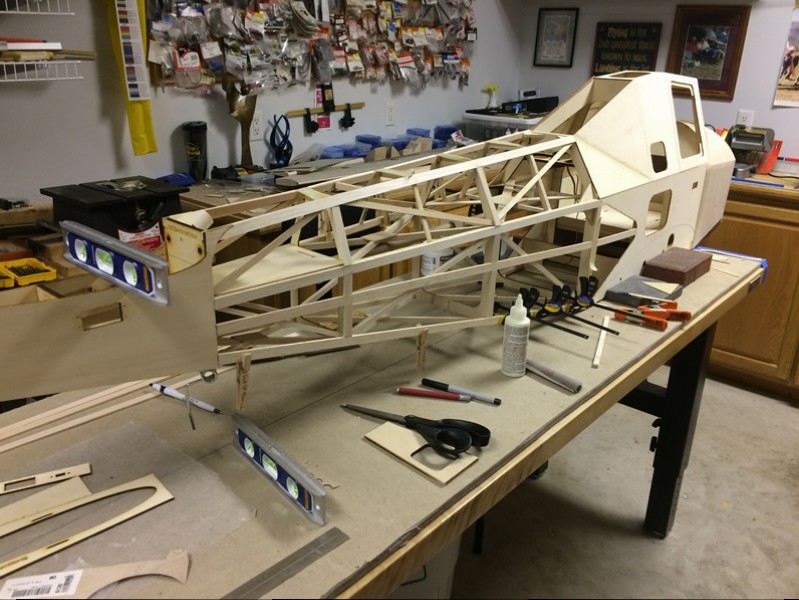

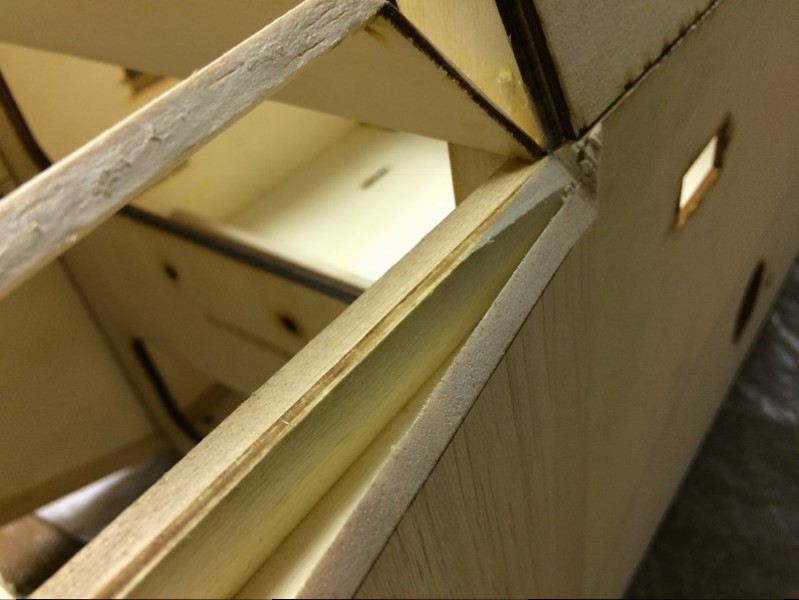

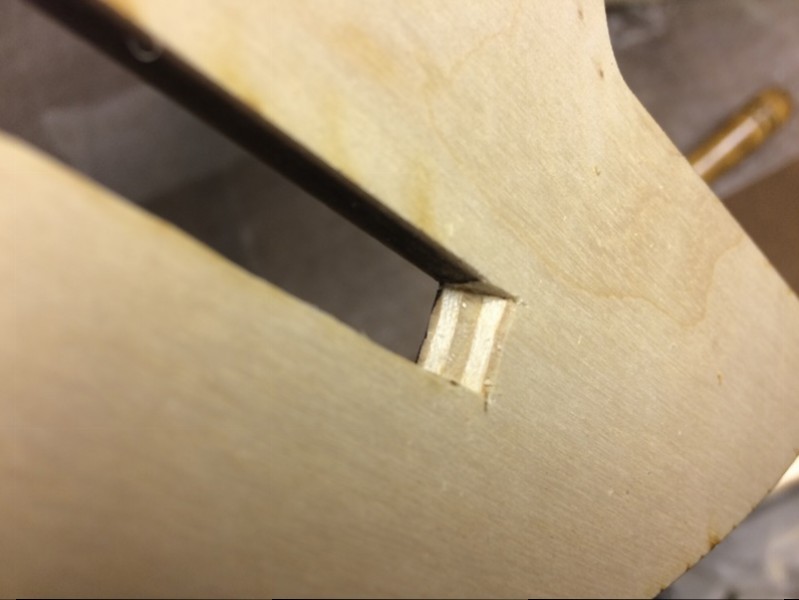

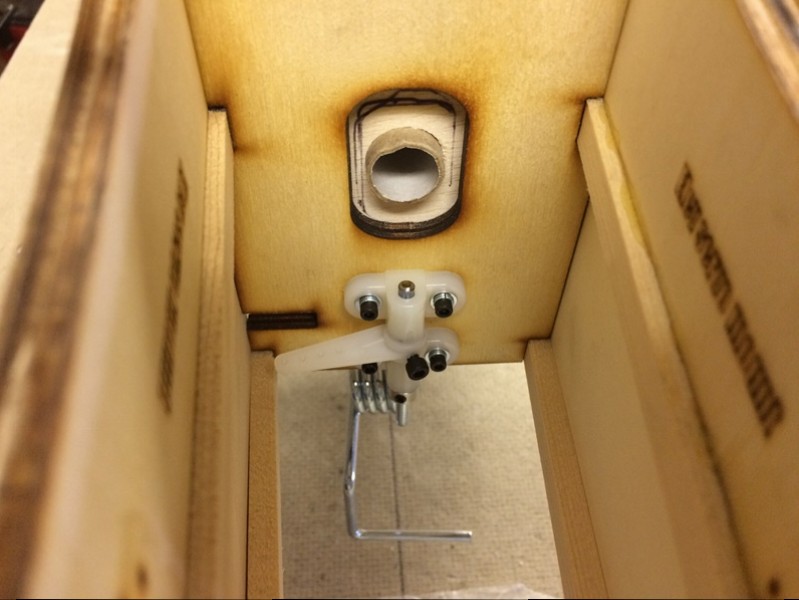

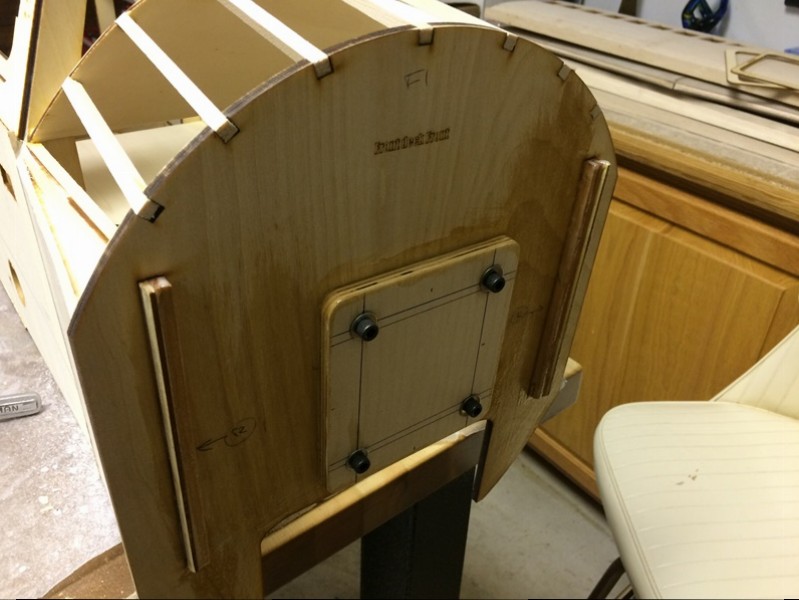

                Once the main section of the fuselage is built and is nice and square, you can move on to pulling the nose together at the firewall. The firewall is slotted to make holding the sides together much easier.

                Click image for larger version

Name:	F046.JPG
Views:	360
Size:	87.8 KB
ID:	30543

                Click image for larger version

Name:	F047.JPG
Views:	400
Size:	91.5 KB
ID:	30547

                Click image for larger version

Name:	F048.JPG
Views:	360
Size:	74.2 KB
ID:	30550

                Click image for larger version

Name:	F049.JPG
Views:	378
Size:	55.4 KB
ID:	30549

                Click image for larger version

Name:	F050.JPG
Views:	374
Size:	97.7 KB
ID:	30545

                Click image for larger version

Name:	F051.JPG
Views:	361
Size:	75.5 KB
ID:	30546

                Click image for larger version

Name:	F052.JPG
Views:	370
Size:	90.5 KB
ID:	30551

                Click image for larger version

Name:	F053.JPG
Views:	373
Size:	87.2 KB
ID:	30544

                Click image for larger version

Name:	F054.JPG
Views:	359
Size:	74.9 KB
ID:	30548

                Click image for larger version

Name:	F055.JPG
Views:	360
Size:	88.3 KB
ID:	30542

                A Site for Soar Eyes

                Comment


                • #9
                  Beautiful building, Jim

                  Comment


                  • ARUP
                    ARUP commented
                    Editing a comment
                    Jim is a building machine!

                  • JimD
                    JimD commented
                    Editing a comment
                    Thanks guys, your encouragement means a lot to me!

                • #10

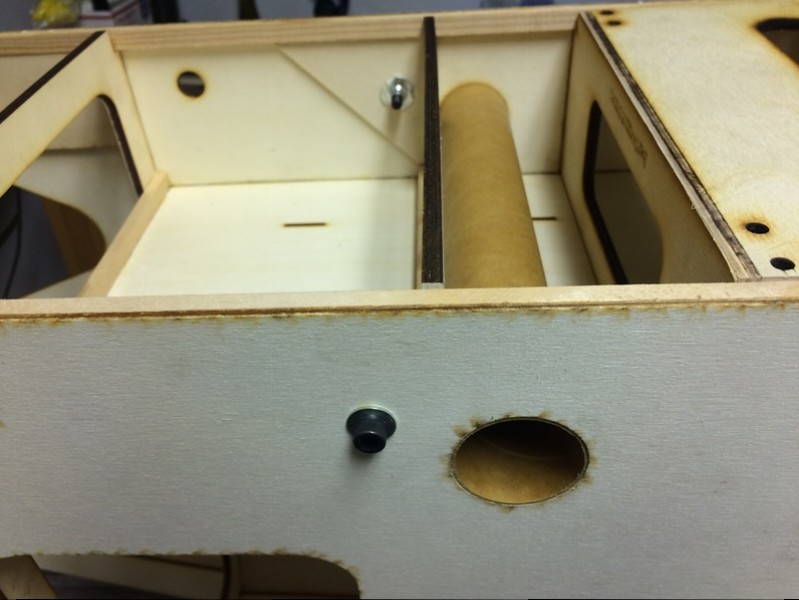

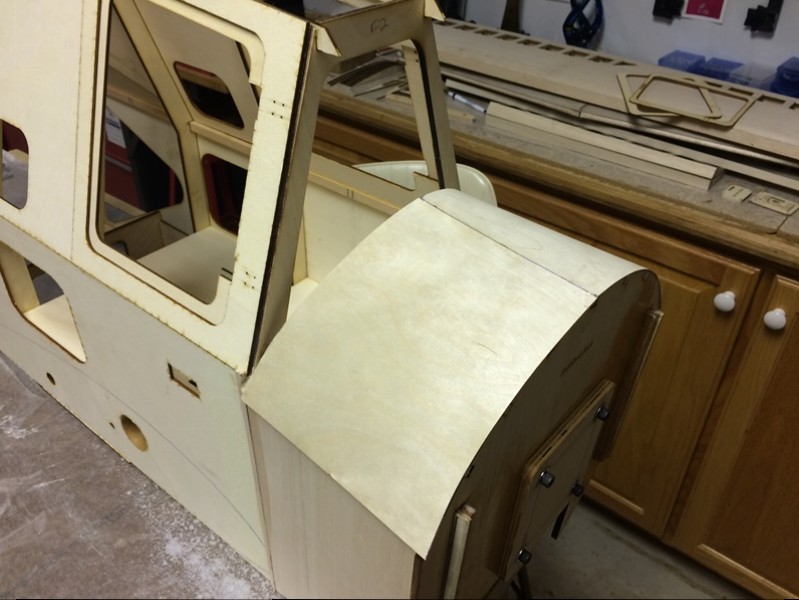

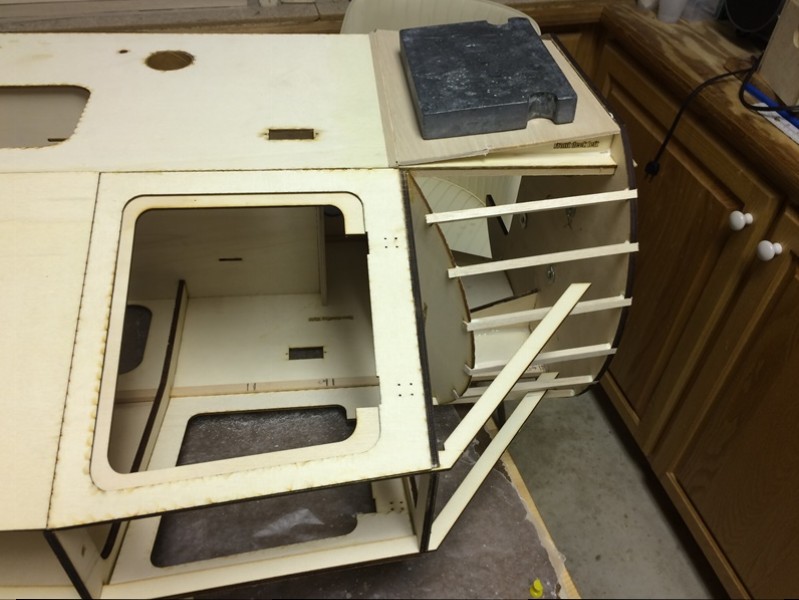

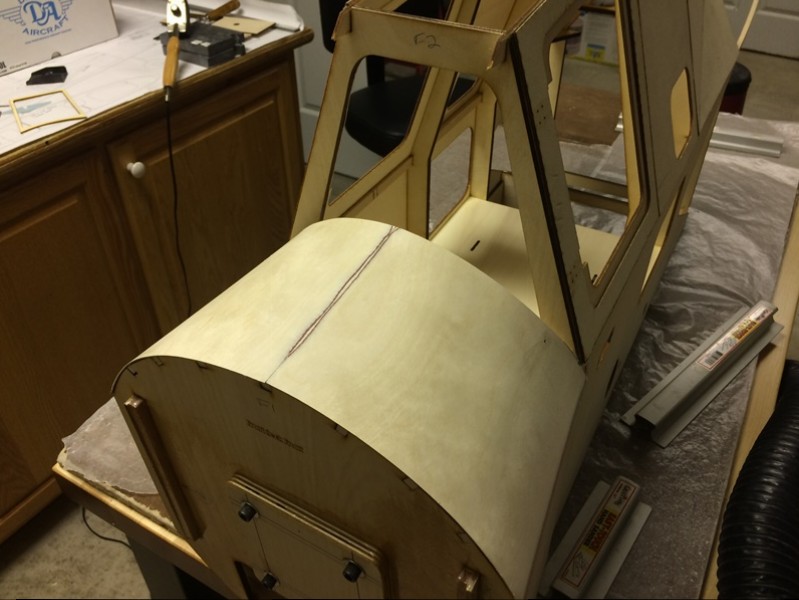

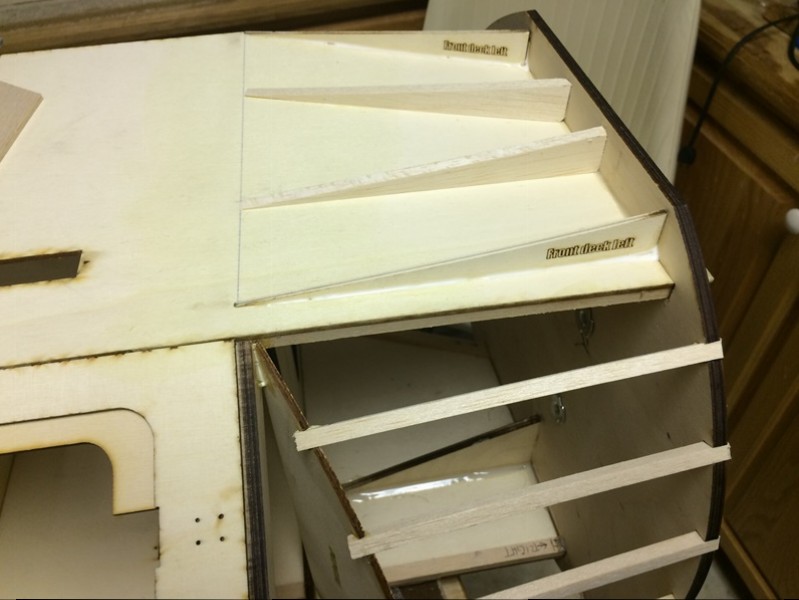

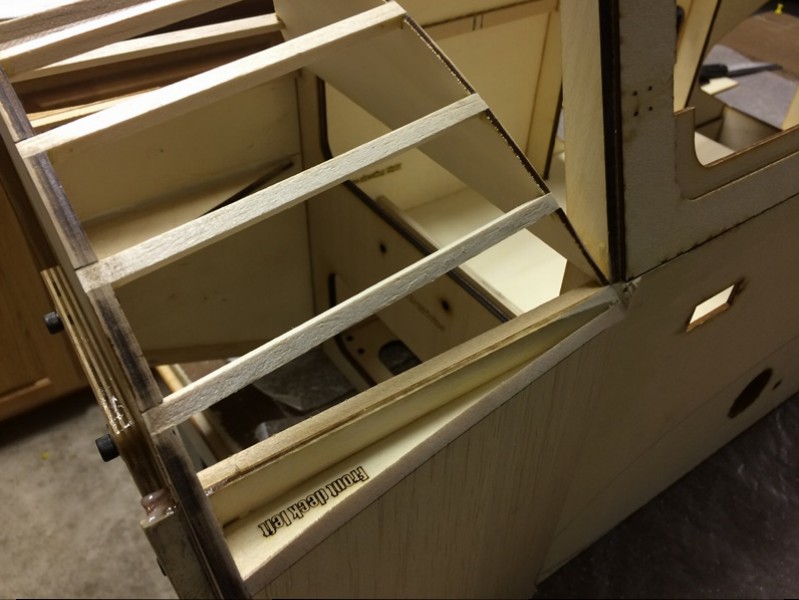

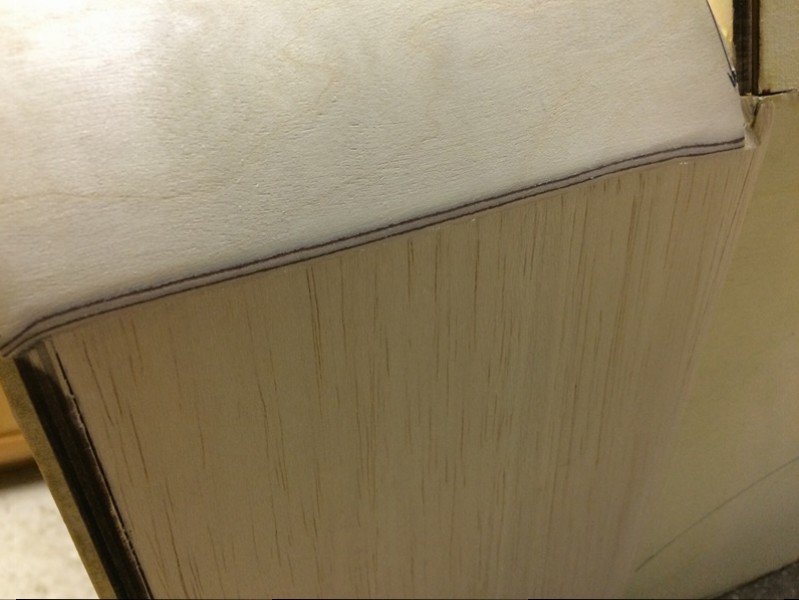

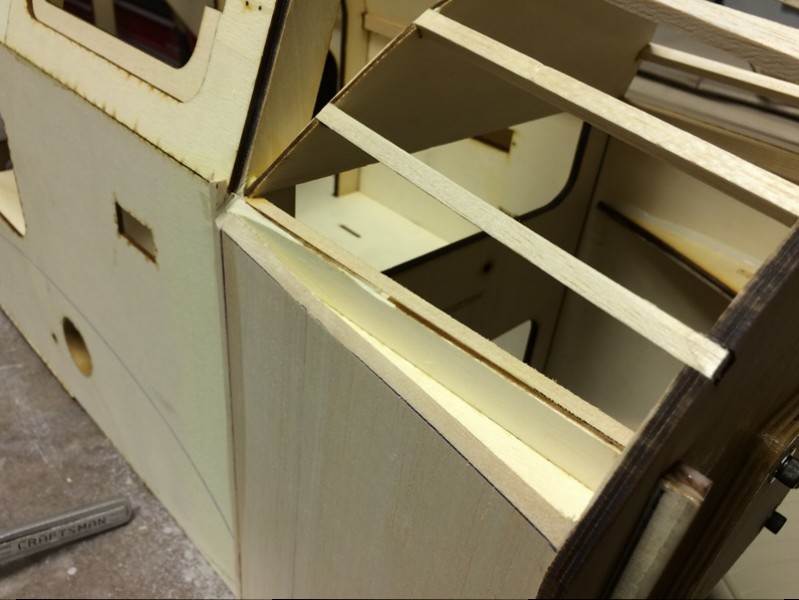

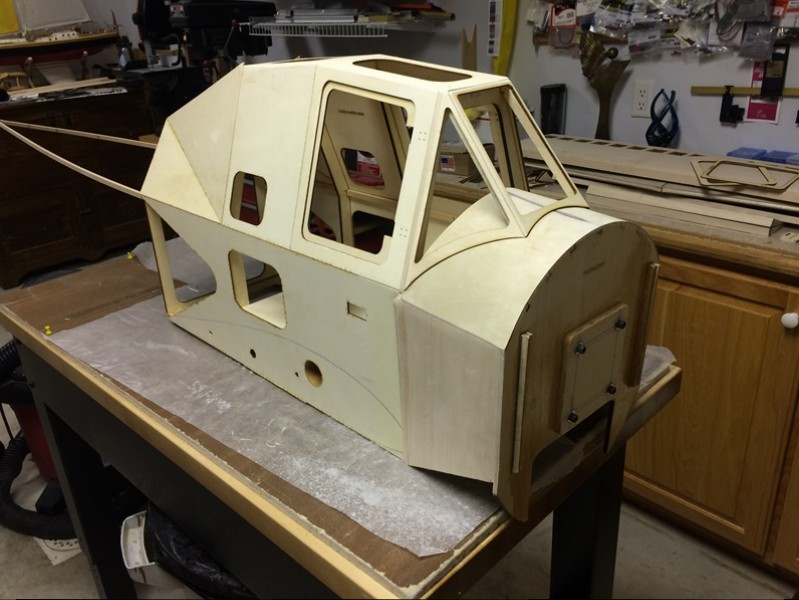

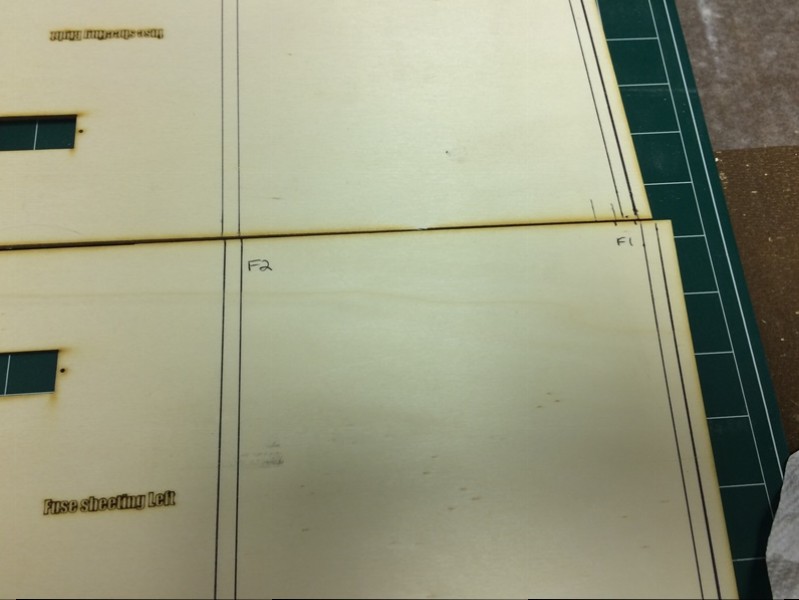

                  Now to finish out the sheeting around the nose. We added balsa sheeting to the sides that Peter does not call for. Just seemed like a good idea to use and adds a little needed nose weight.

                  Click image for larger version

Name:	F056.JPG
Views:	365
Size:	84.2 KB
ID:	30580

                  Click image for larger version

Name:	F057.JPG
Views:	370
Size:	91.8 KB
ID:	30579

                  Click image for larger version

Name:	F058.JPG
Views:	350
Size:	93.6 KB
ID:	30583

                  Click image for larger version

Name:	F059.JPG
Views:	362
Size:	73.5 KB
ID:	30582

                  Click image for larger version

Name:	F060.JPG
Views:	351
Size:	88.5 KB
ID:	30584

                  Click image for larger version

Name:	F061.JPG
Views:	353
Size:	103.0 KB
ID:	30581

                  A Site for Soar Eyes

                  Comment


                  • #11

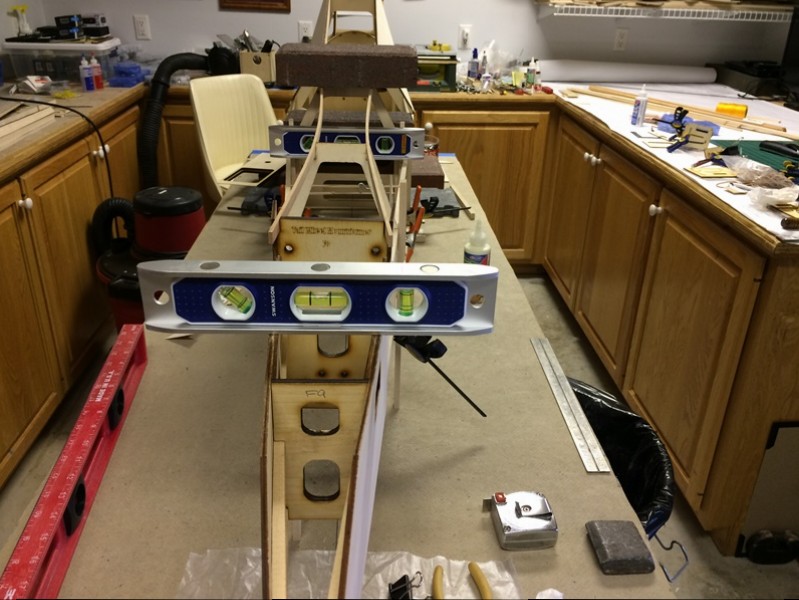

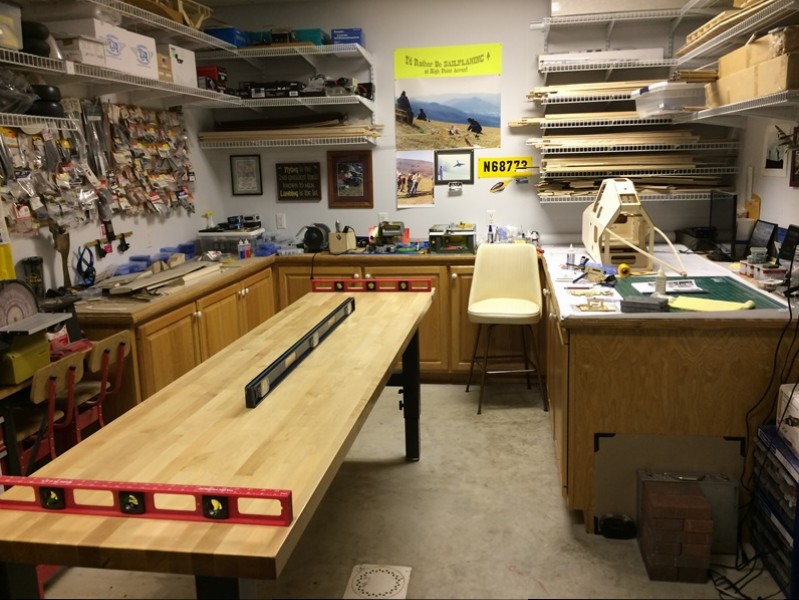

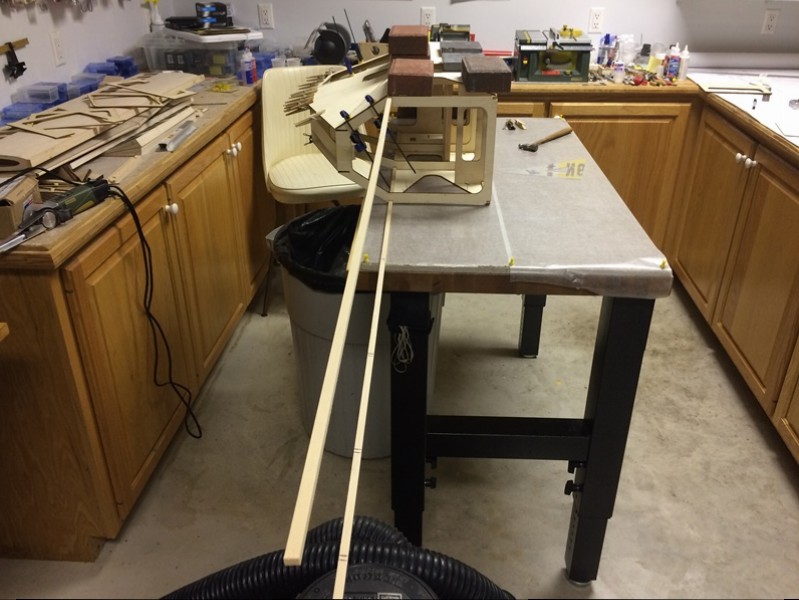

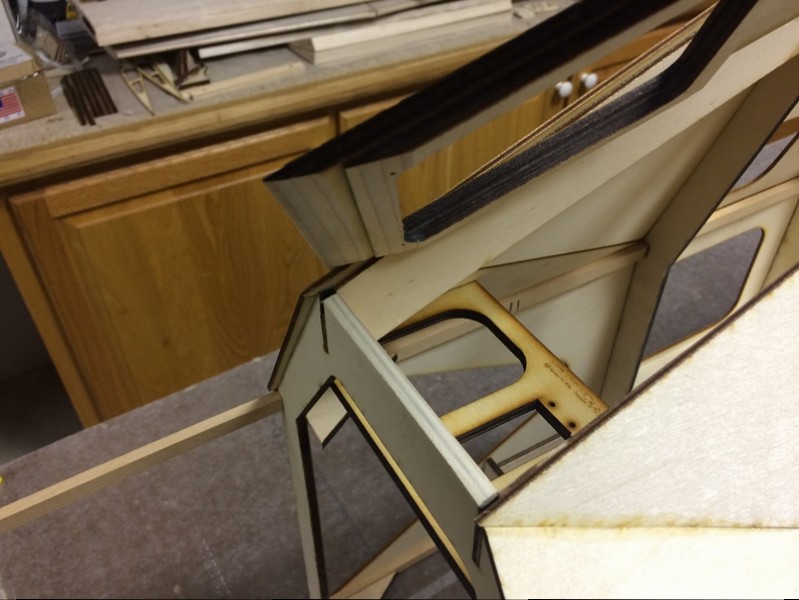

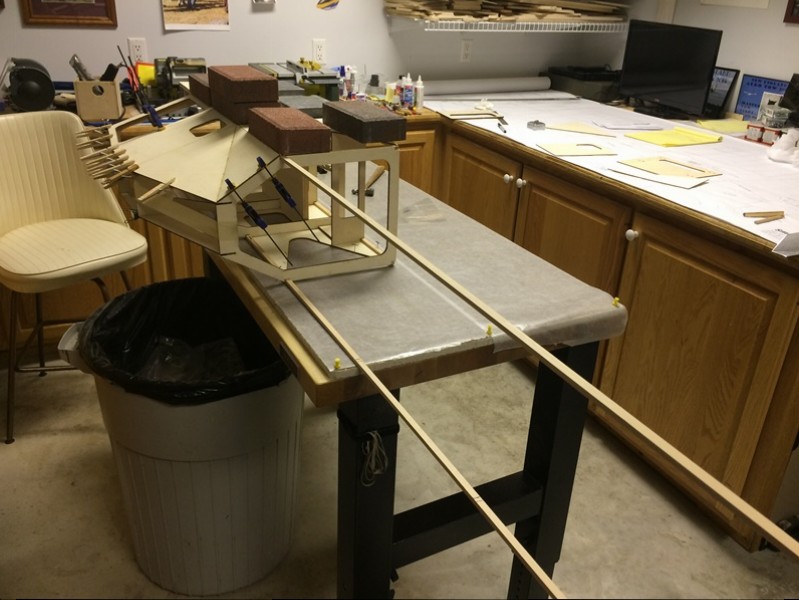

                    Building out the rear fuselage section is greatly aided by having a flat and level workbench. If the bench top is level, it is easy to square up the fuselage sides using the bench surface as a reference.

                    Click image for larger version

Name:	F062.JPG
Views:	361
Size:	125.8 KB
ID:	30587

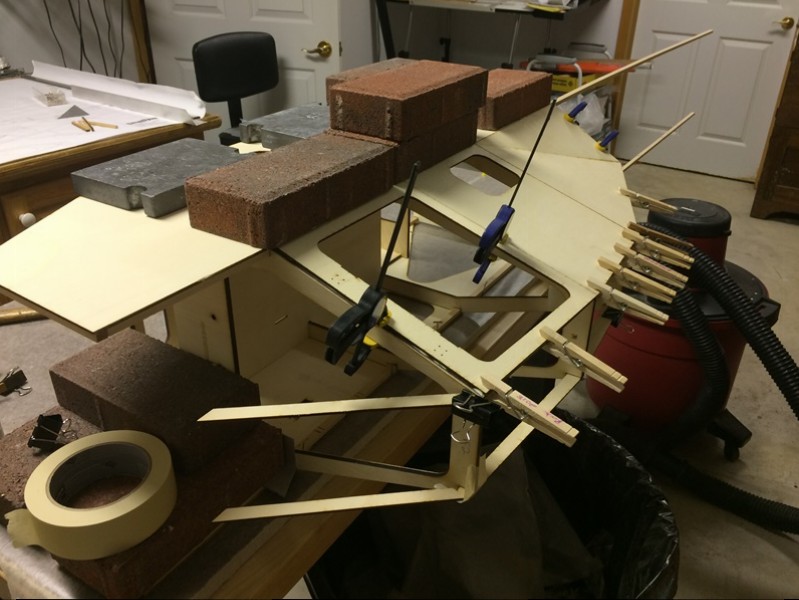

                    With the front section of the fuselage sitting level and square on the benchtop, the rear longerons should be parallel to the surface of the benchtop. A tail post support is used to set this level position of the longerons and to align them with the centerline of the fuselage (there is a centerline drawn on the benchtop as a reference for this). The rear fuselage formers are friction fit into place (using the marks we made earlier on the longerons) and crutch supports added to keep the longerons level. Take your time and use lots of builder's squares, levels, and weights to hold things in place.

                    Click image for larger version

Name:	F063.JPG
Views:	396
Size:	127.2 KB
ID:	30593

                    Click image for larger version

Name:	F064.JPG
Views:	366
Size:	111.8 KB
ID:	30592

                    Click image for larger version

Name:	F065.JPG
Views:	363
Size:	78.7 KB
ID:	30589

                    Click image for larger version

Name:	F066.JPG
Views:	346
Size:	85.4 KB
ID:	30594

                    Click image for larger version

Name:	F067.JPG
Views:	361
Size:	99.5 KB
ID:	30591

                    Click image for larger version

Name:	F068.JPG
Views:	357
Size:	118.2 KB
ID:	30586

                    Click image for larger version

Name:	F069.JPG
Views:	353
Size:	118.1 KB
ID:	30595

                    Click image for larger version

Name:	F070.JPG
Views:	358
Size:	108.0 KB
ID:	30588

                    Click image for larger version

Name:	F071.JPG
Views:	373
Size:	113.7 KB
ID:	30590

                    A Site for Soar Eyes

                    Comment


                    • #12

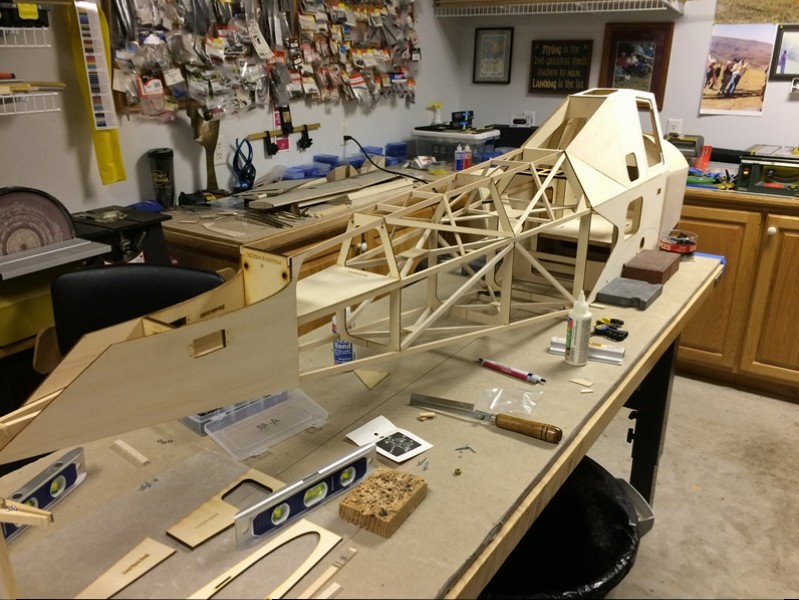

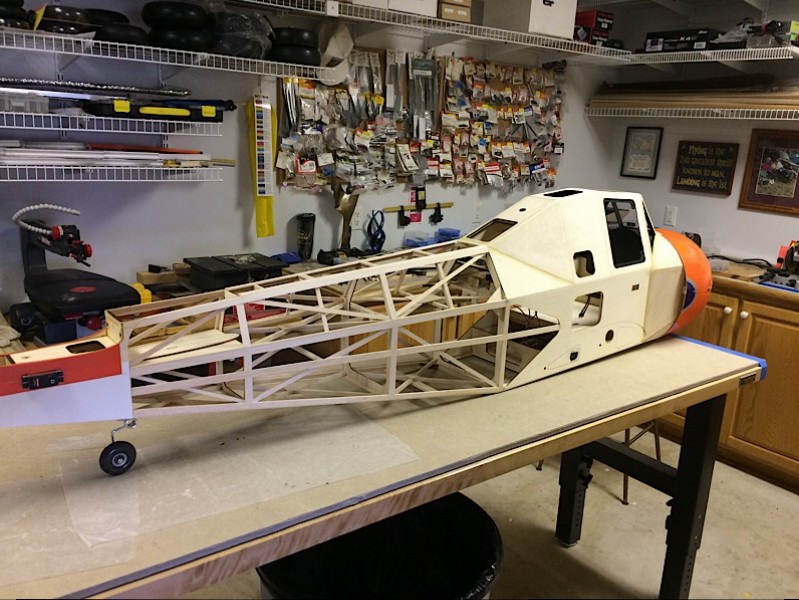

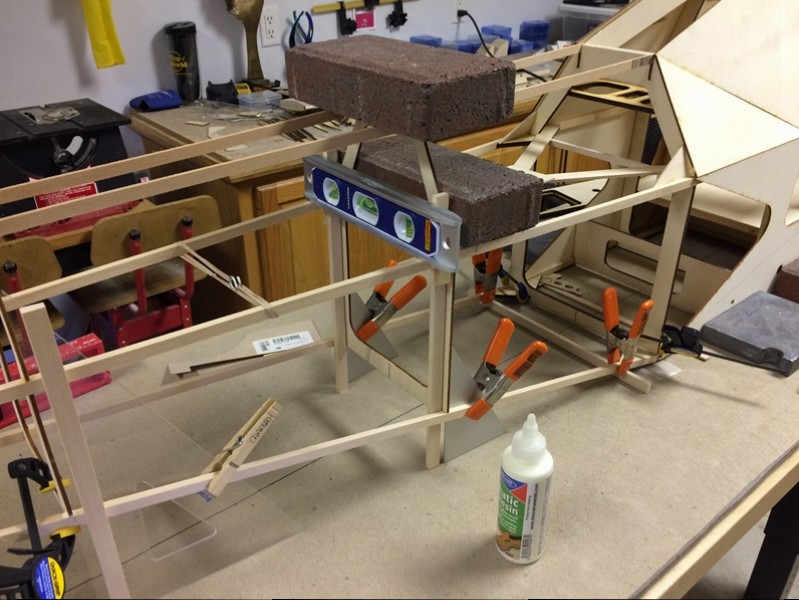

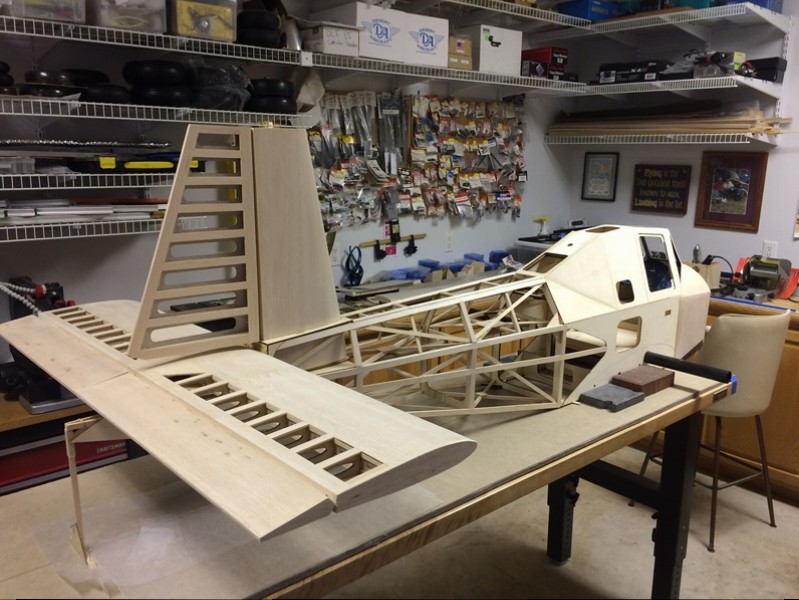

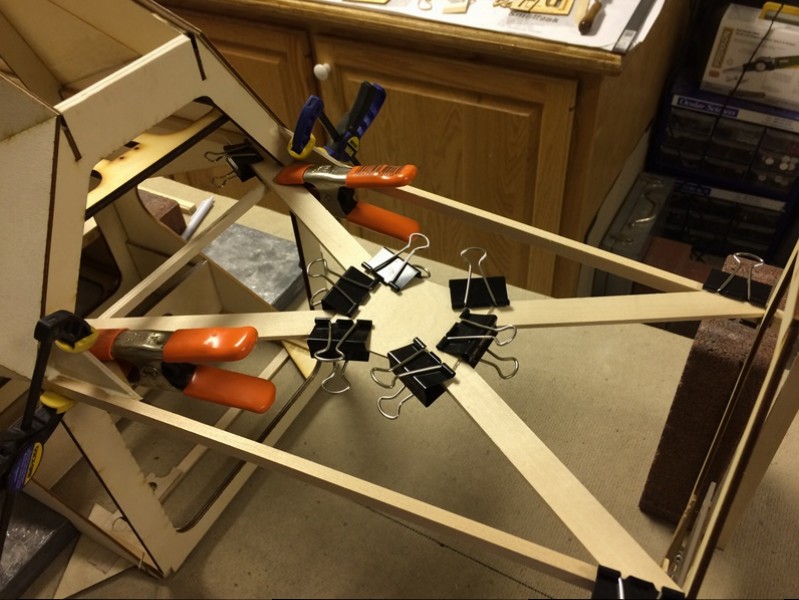

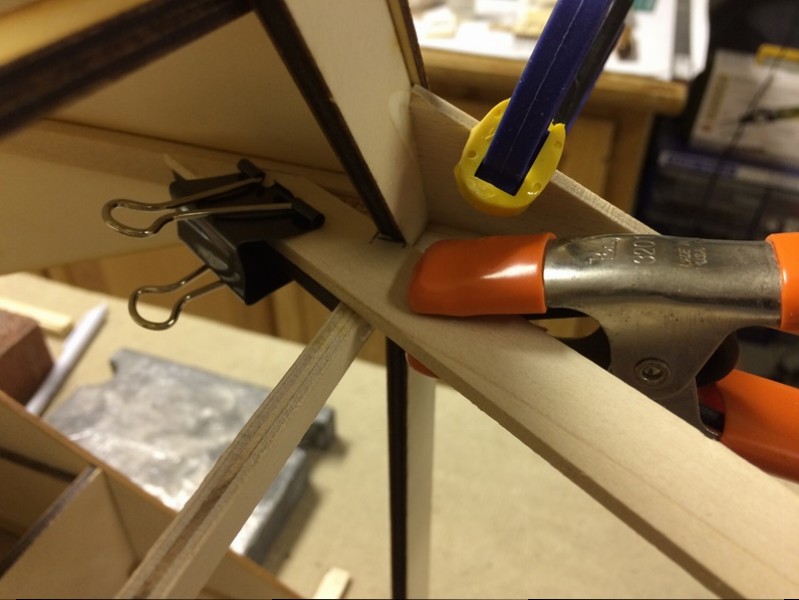

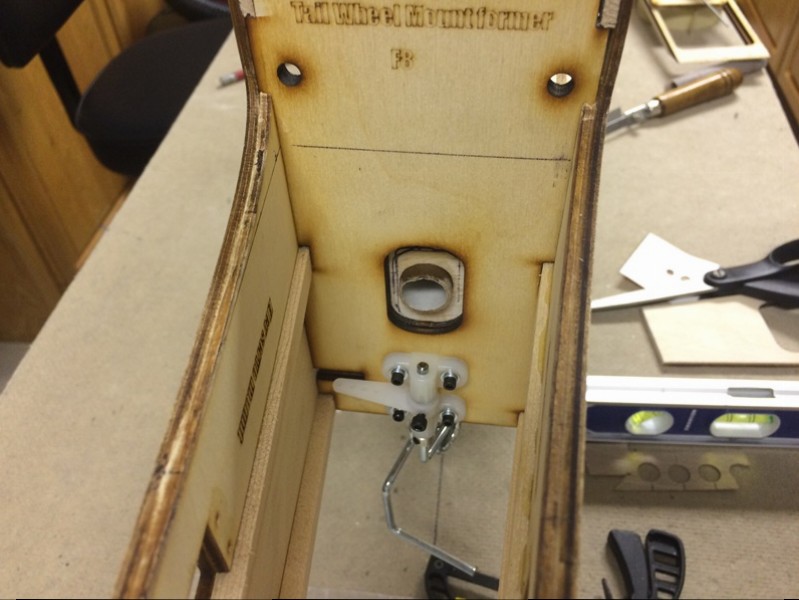

                      Fuselage takes shape and strength increases as truss structure is added.

                      Click image for larger version

Name:	F072.JPG
Views:	374
Size:	132.6 KB
ID:	30605

                      Click image for larger version

Name:	F073.JPG
Views:	331
Size:	76.1 KB
ID:	30598

                      Click image for larger version

Name:	F074.JPG
Views:	349
Size:	96.5 KB
ID:	30599

                      Click image for larger version

Name:	F075.JPG
Views:	351
Size:	89.2 KB
ID:	30602

                      Click image for larger version

Name:	F076.JPG
Views:	361
Size:	98.6 KB
ID:	30606

                      Click image for larger version

Name:	F077.JPG
Views:	350
Size:	87.3 KB
ID:	30600

                      Click image for larger version

Name:	F078.JPG
Views:	347
Size:	126.8 KB
ID:	30597

                      Click image for larger version

Name:	F082.JPG
Views:	361
Size:	99.3 KB
ID:	30601

                      Click image for larger version

Name:	F083.JPG
Views:	346
Size:	138.8 KB
ID:	30603

                      Click image for larger version

Name:	F084.JPG
Views:	355
Size:	124.3 KB
ID:	30604

                      A Site for Soar Eyes

                      Comment


                      • #13

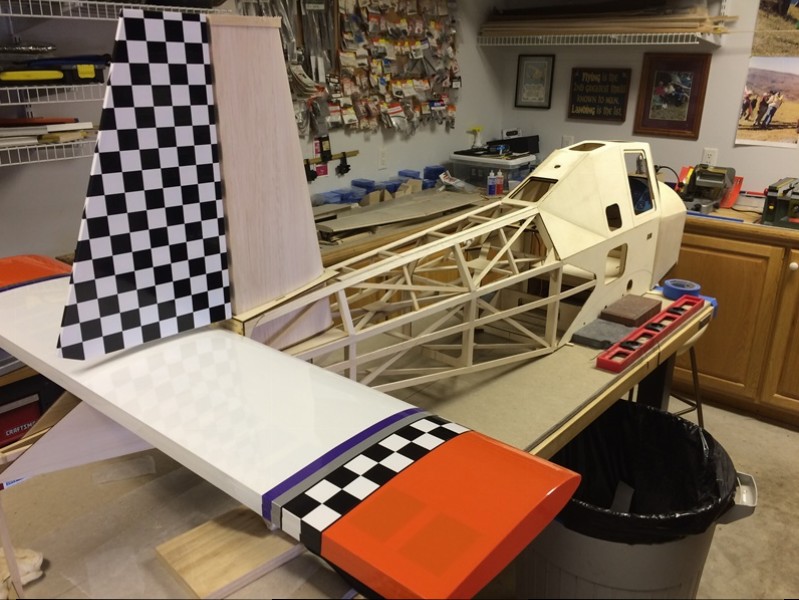

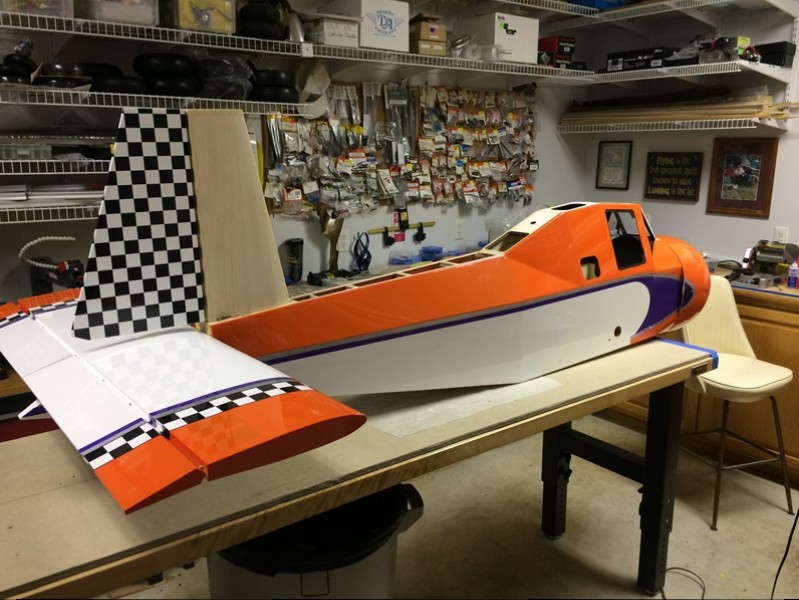

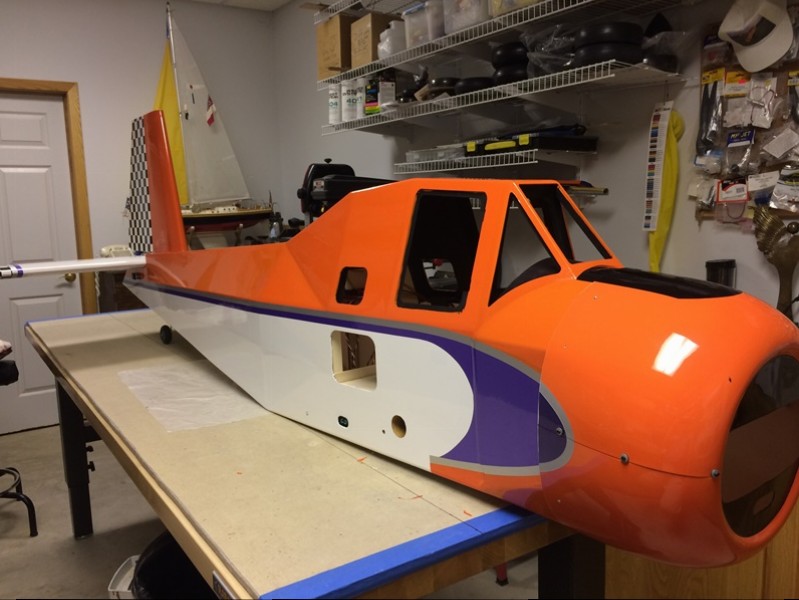

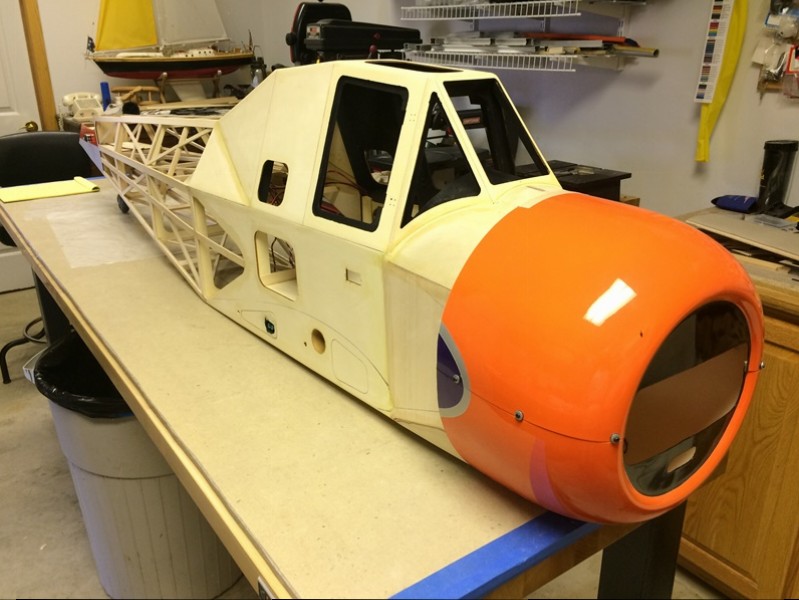

                        Time to add some personality!!!

                        Click image for larger version

Name:	F085.JPG
Views:	345
Size:	119.6 KB
ID:	30608

                        Click image for larger version

Name:	F086.JPG
Views:	345
Size:	119.5 KB
ID:	30611

                        Click image for larger version

Name:	F087.JPG
Views:	361
Size:	111.0 KB
ID:	30609

                        Click image for larger version

Name:	F088.JPG
Views:	353
Size:	121.5 KB
ID:	30612

                        Click image for larger version

Name:	F089.JPG
Views:	335
Size:	93.1 KB
ID:	30610

                        A Site for Soar Eyes

                        Comment


                        • MarnochS
                          MarnochS commented
                          Editing a comment
                          Excellent.......looking forward to the wing construction with the new gear mounting

                      • #14

                        Hi Jim, do you have any info. on how you made your flat and level work bench?

                        Comment


                      • #15
                        That's a lot of work in one day Jim
                        Looking good, dare I ask if will be doing Towing duty in 2 weeks

                        Jeremy
                        SCCAAA TT TN

                        Comment


                        • JimD
                          JimD commented
                          Editing a comment
                          We live in hope! 😎
                      Working...
                      X
