  • #16
    What's wrong with "Swiss Cross" carbon Mike
    And no jokes about holes in it!

    Jeremy and Ben
    SCC AAA TT

    Comment


    • #17
      Originally posted by yyz View Post
      Hey Tom. I'm going to do something similar: obeche with biased carbon cloth underlay, Graphlite spars caps with criss-cross (not to be confused with "Swiss cross") overlap in the fuselage. Definitely going to need some jigs for those dihedral breaks.
      Well damn....... here I thought you might have figured out a less labor intensive way to make those pretty wings!
      TEAM GORGEOUS

      Comment


      • #18
        It's been over a year so it's time to clean shop (literally) and get back to it. Here's a photo I found on the Ventus 3 Facebook page and a few design related images. Airfoil is courtesy of Philip Kolb based on the A-7026 (Ashok Gopalarathnam) section: http://www.rc-network.de/forum/showt...FCgelgrundriss
        Last edited by yyz; 08-25-2016, 05:54 PM.

        Comment


        • #19
          And a little bit of preliminary fuselage work to get the layup and gelcoat straight. Test layup of the front of the fuselage using a 50/50 mix of West Systems 406 (colloidal silica) and 410 (microlight filler) for the "gelcoat" and three layers of Rutan 9 oz structural cloth with one layer on the bias. Seems more than stiff enough and the outer part sanded well. Onward...
          Last edited by yyz; 08-25-2016, 06:06 PM.

          Comment


          • #20
            Originally posted by Dean Gradwell View Post
            I built a wing like that when I was four or five. Couldn't find long pieces of wood so scabbed together several short pieces. My Grandmother liked it but she liked everything I made.
            Thank God for Schleicher.
            Regards Dean

            Love you Dean (and I'm sure your grandmother too) but I think this wing looks pretty bad ass
            Click image for larger version

Name:	the-wing.jpg
Views:	109
Size:	120.1 KB
ID:	12472

            Comment


            • #21
              Excellent! Looking forward to this.

              Dean's grandma was a class act.
              Team PowerBox Systems Americas... If flying were the language of men, soaring would be its poetry.

              Comment


              • #22
                Did the monotonous task of blocking out the foam for the wings today. At least you end up with something that looks like a wing. The templates and foam are 20 mm wider than the final wing will be.
                Last edited by yyz; 09-25-2016, 09:20 PM.

                Comment


                • #23
                  And a couple of shots I just stumbled across of making the mold from Rick Shelby's fuselage.

                  Comment


                  • #24

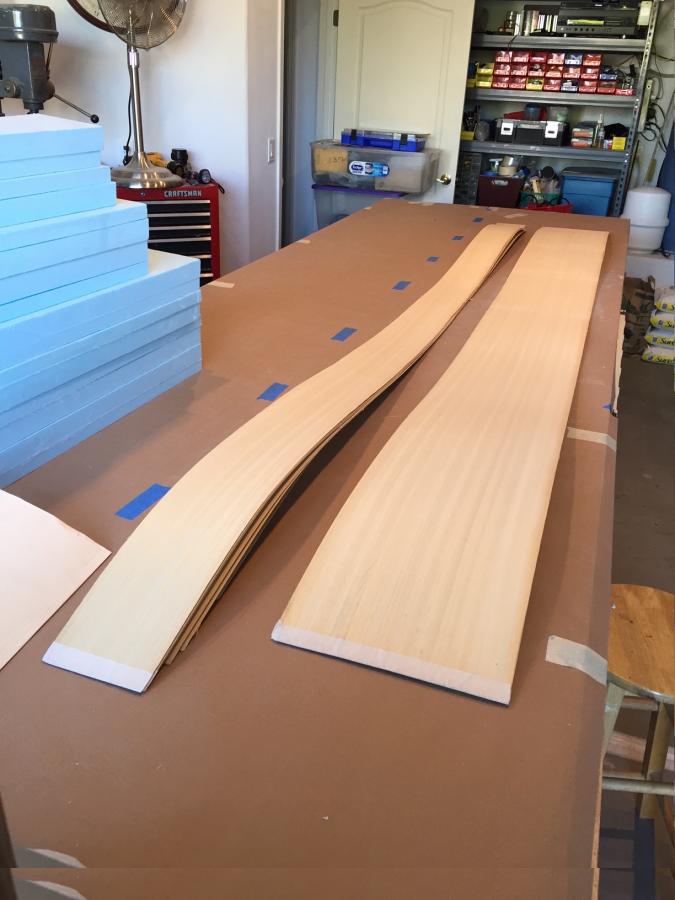

                    Tomorrow's task will be cutting up some of Asher's obeche.

                    Click image for larger version

Name:	IMG_1155d.jpg
Views:	101
Size:	62.1 KB
ID:	13172
                    Last edited by yyz; 09-25-2016, 09:18 PM.

                    Comment


                    • #25
                      Today's effort was centered around cutting wing cores. Michael (SMYK) came to the rescue and laser cut some beautiful templates out of Formica. What a great guy and super knowledgeable. Saved me a BUNCH of time. Thanks again, Mike! Click image for larger version

Name:	IMG_1153a.jpg
Views:	108
Size:	56.8 KB
ID:	13179

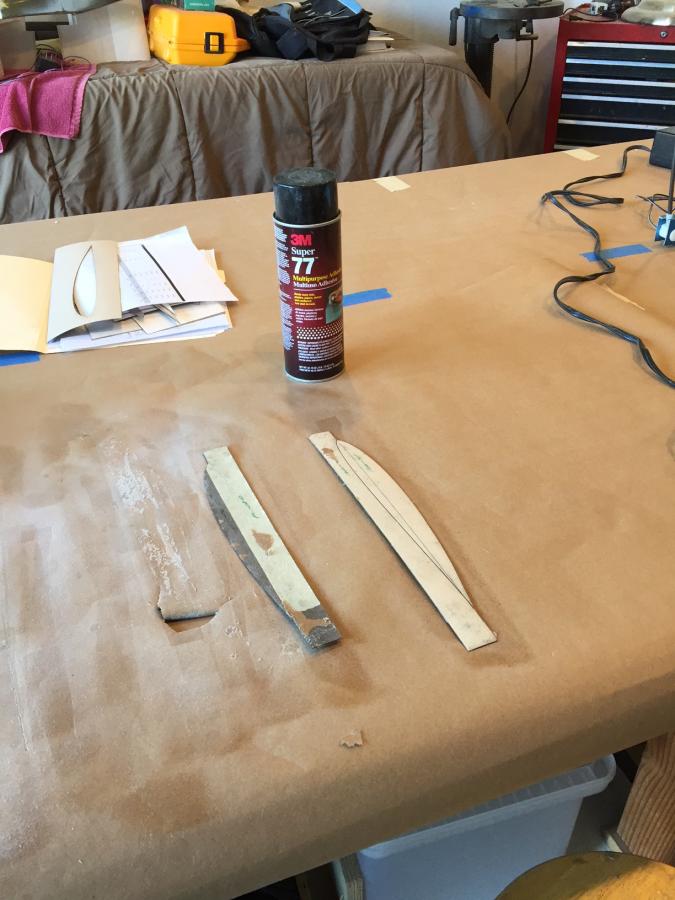

                      The templates and the Olfa knife Mike recommended.

                      Click image for larger version

Name:	IMG_1139a.jpg
Views:	107
Size:	72.1 KB
ID:	13180

                      Rather than mess with registration pins poking in the foam, I use a good dose of 3M 77.

                      Click image for larger version

Name:	IMG_1137a.jpg
Views:	87
Size:	65.7 KB
ID:	13181

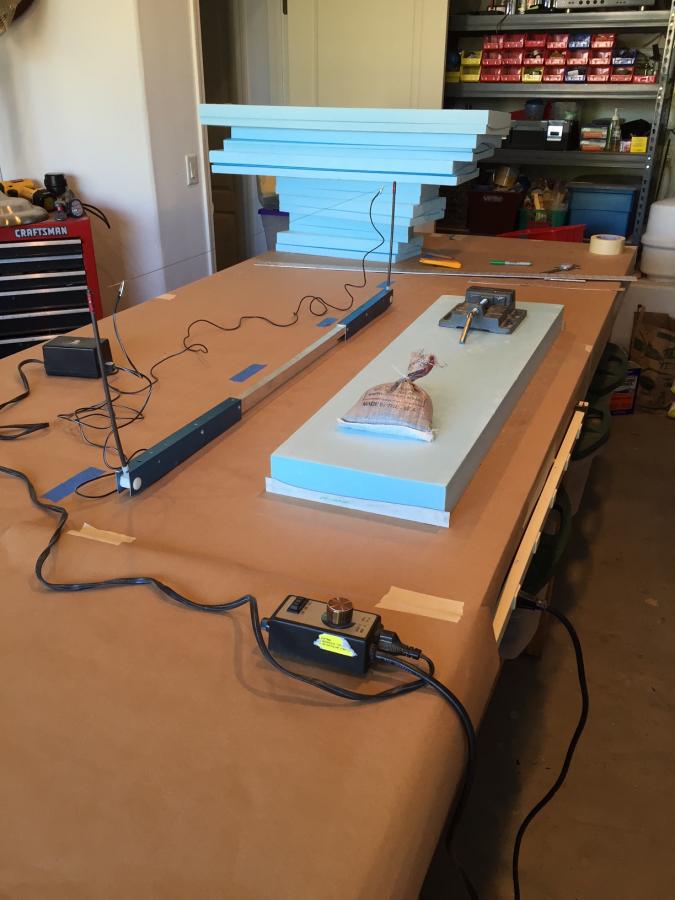

                      Bottom surface cut first....

                      Click image for larger version

Name:	IMG_1138a.jpg
Views:	77
Size:	52.4 KB
ID:	13182

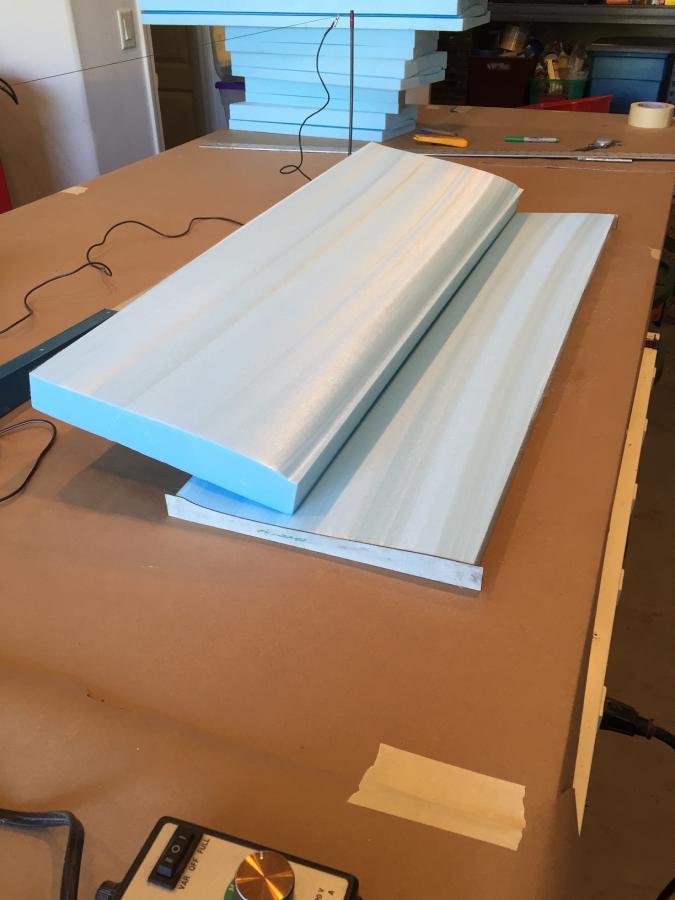

                      ... and then the top side.

                      Click image for larger version

Name:	IMG_1141a.jpg
Views:	83
Size:	56.9 KB
ID:	13183

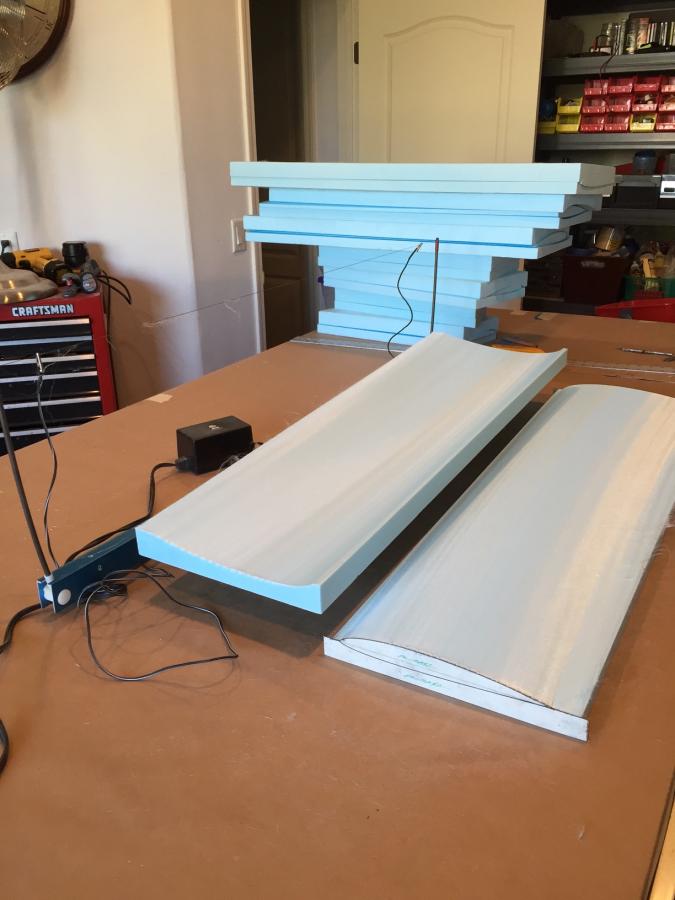

                      Say a little prayer and hope for the best.

                      Click image for larger version

Name:	IMG_1142a.jpg
Views:	85
Size:	60.7 KB
ID:	13184

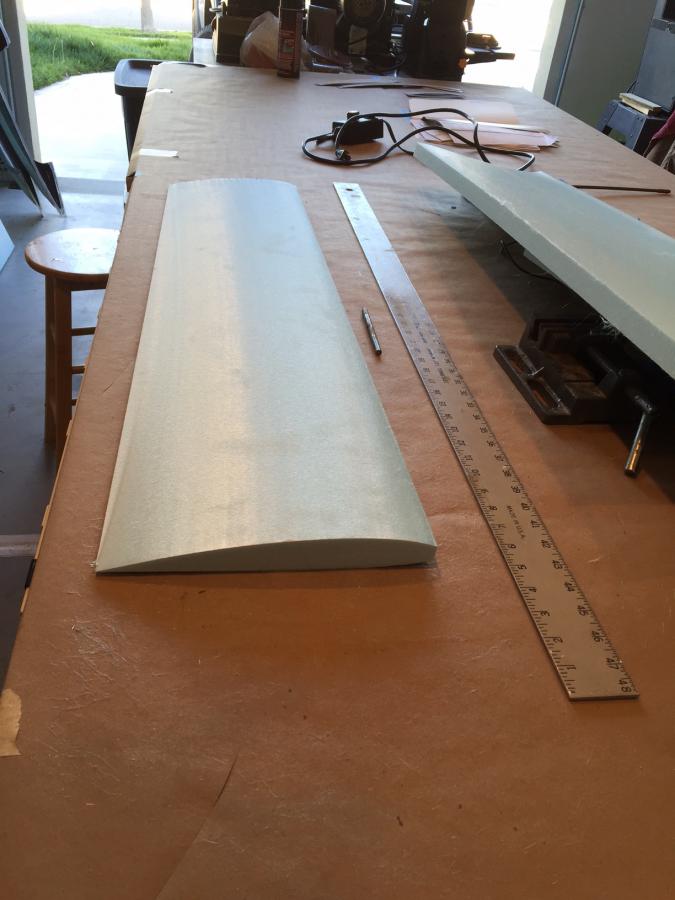

                      All trimmed up with a fresh Xacto knife.
                      Click image for larger version

Name:	IMG_1150a.jpg
Views:	94
Size:	63.1 KB
ID:	13185

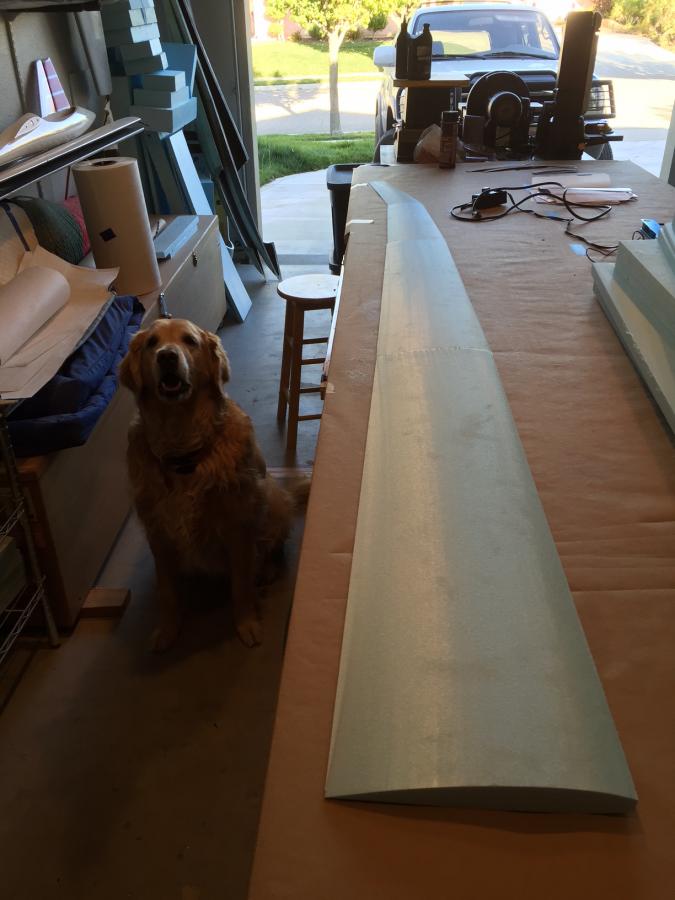

                      Repeat over and over again. Shop supervisor clearly pleased with the results.
                      Last edited by yyz; 09-25-2016, 09:52 PM.

                      Comment


                      • #26
                        Thank goodness for great supervisors! Looks good!

                        Comment


                        • #27
                          Nice Mike.
                          Can I place my order now

                          Jeremy and Ben
                          SCCAAA TT TN

                          Comment


                          • #28
                            Some more photos of the full-sized ship.

                            Comment


                            • #29
                              Stop teasing or I will build one too!

                              Stéphane
                              Stéphane
                              Horizon Hobby Team Member

                              Comment


                              • #30
                                Originally posted by French1 View Post
                                Stop teasing or I will build one too!

                                Stéphane
                                Rumor has it..... (please don't sue me Adele). And no teasing, you're getting the full meal deal as it happens!

                                Comment
