  • #61
    Nice Build thread David. Can't wait to see this one fly.

    Comment


    • #62

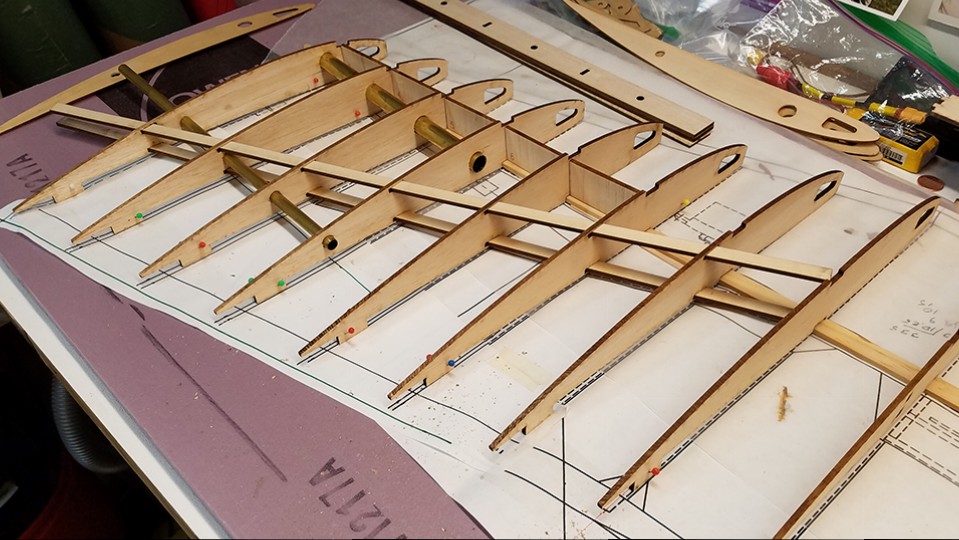

      Started framing up the right wing to check for fit. Tweaked a couple pieces and we are off and running. Will frame up both wings, build a balsa box in each (Tom method for those of you scoring at home), and then the inner box with spoiler.
      Arup - I don't intend to daisy chain the linkages as you mentioned...will mock that up to test it and will have pictures of that when I get there. You are correct in that we don't need the excess slop. More to follow. Until then, here is a picture of the right inner wing trial fit. I was surprised at the added stiffness provided by the diagonal hardwood members.

      Click image for larger version

Name:	Trial Fit 1.jpg
Views:	122
Size:	151.4 KB
ID:	31512

      Comment


      • #63

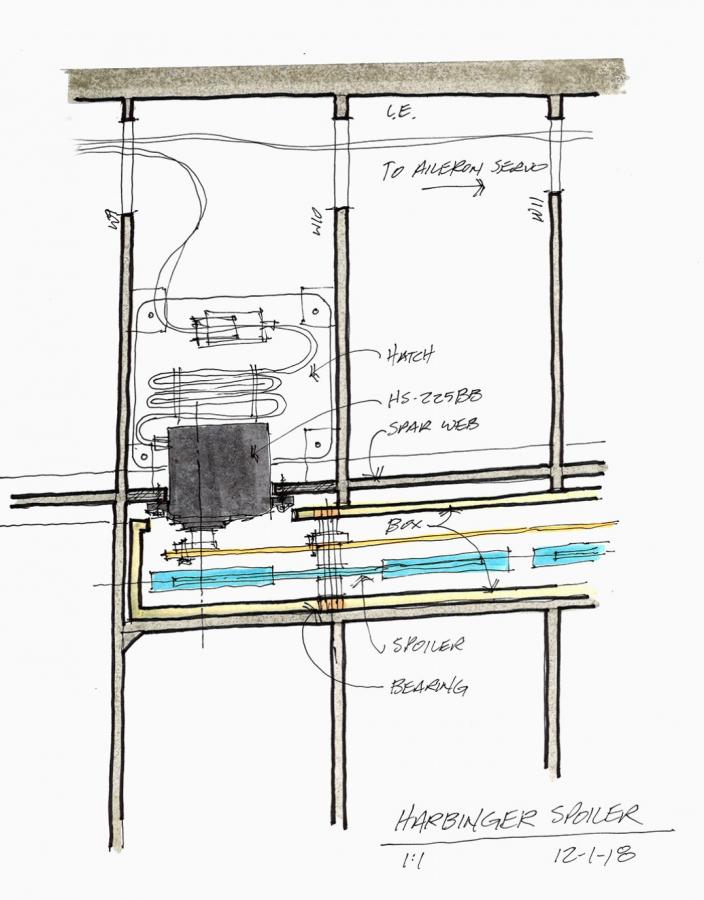

        Took another shot at the spoiler servo mount. Seems to work.

        Click image for larger version

Name:	Spoilers Sketch 12 3 18.jpg
Views:	132
Size:	69.4 KB
ID:	31945

        Comment


        • #64
          Originally posted by Sled-Works 1 View Post
          Took another shot at the spoiler servo mount. Seems to work.

          Click image for larger version

Name:	Spoilers Sketch 12 3 18.jpg
Views:	132
Size:	69.4 KB
ID:	31945
          How do you change out the servo when it goes bad?
          TEAM GORGEOUS

          Comment


          • #65
            And maybe a weak point in the spar due to non-continuous shear webs? Unless everything fits tight as a drum, in which case, as Tom says, you're going to destroy things to swap out the servo.

            (but I love your drawing!!)

            Dave Smith
            Last edited by Dave Smith; 12-03-2018, 04:56 PM.

            Comment


            • #66
              Sled-Works 1,
              You might build a box to insert the servo from the back something like was done on my 1/3 scale Cherokee II. The servo fit is tight but removable. This would require the removal of the servo mounts, but the servo will not be going any where.
              Gene

              Comment


              • #67
                You could put a Rotary Drive fitting on your servo! https://www.robotshop.com/en/actobot...oupler-14.html Just remove a set screw to allow servo the be removed if needed. The shaft which attaches to spoiler array penetrates a small opening in the shear webbing.

                Comment


                • #68
                  Good suggestions and comments guys. Thank you and please keep them coming.
                  Tom - Good question...I failed to call out
                  a second hatch that would run the length of the spoiler box
                  on the underside of the wing. This, when used in conjunction with the servo hatch, would allow swapping out the servo. I will do this with whatever solution I end up implementing so as to gain access to the entire spoiler box.
                  Dave - I agree with you...if not done well, this may very well be a weak point in the spar.
                  Arup - Larry suggested the same idea a few days ago...that is using a rotary drive fitting on the servo. Great minds...
                  Gene - I typically use a hatch with the servo attached directly to it...somewhat similar to your servo box. Will see how this shakes out.

                  This evening I was looking at another design that incorporates an in-line pushrod that would meet the actuator rod (connecting all four of the spoilers) from the fuse side of the spoilers. I think this a valid option and will explore this a little more. - Sled On

                  Comment


                  • #69

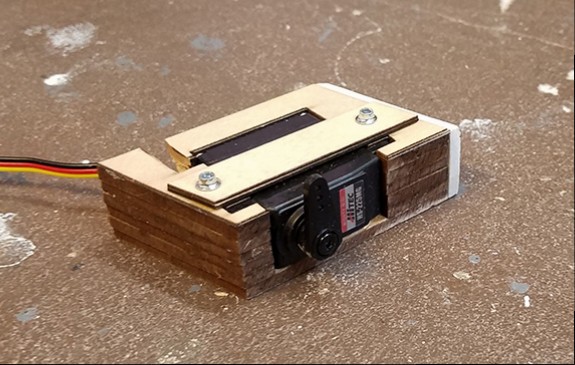

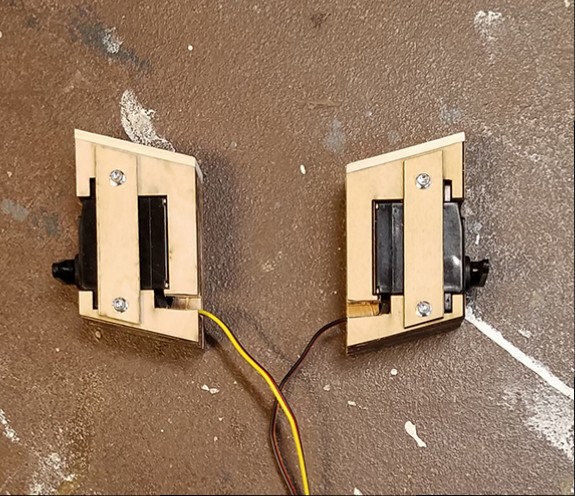

                    Decided to go the route of mounting the spoiler servo inboard of the spoilers and use a pushrod to actuate the spoilers. Here are the servo boxes that will be mounted between wing ribs. They are made of light balsa sandwiched between a layer of ply and a layer of hard balsa. Pretty tough. The servos are Hitec 225mg.


                    Click image for larger version

Name:	Spoiler Servo Mount 1.jpg
Views:	131
Size:	68.9 KB
ID:	34068

                    Click image for larger version

Name:	Spoiler Servo Mount 2.jpg
Views:	132
Size:	108.8 KB
ID:	34069

                    Comment


                    • #70
                      Hey Dave,
                      Where ya been?
                      We want to see this plane out flying this summer..

                      Len Buffinton
                      Team Horizon Hobby

                      Comment


                      • #71
                        Hello Len - Well, life has gotten in the way here a bit but I've gotten back on the horse recently. Also took some time to work on a few other ships for the flying season. More to follow!

                        Comment


                        • #72

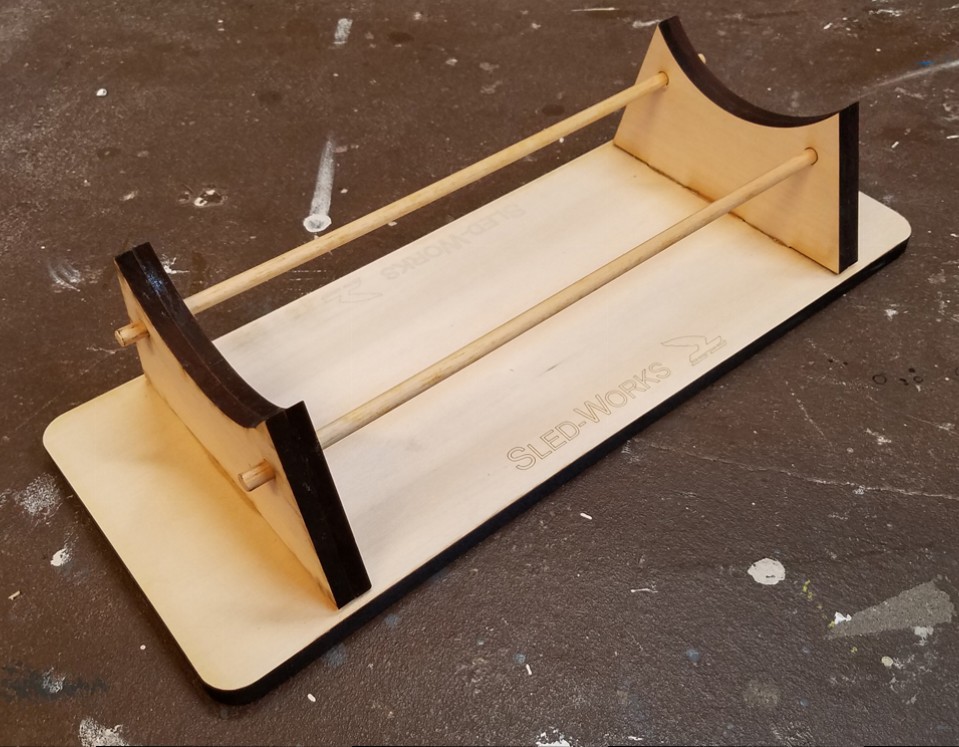

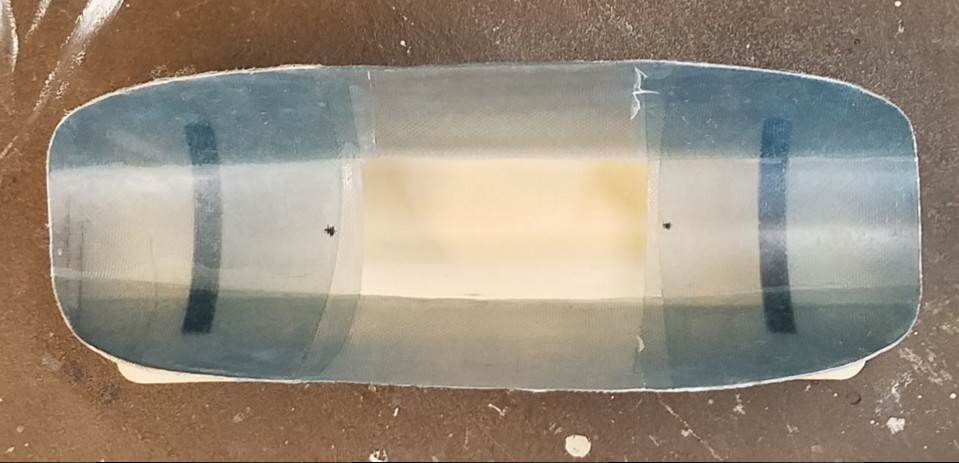

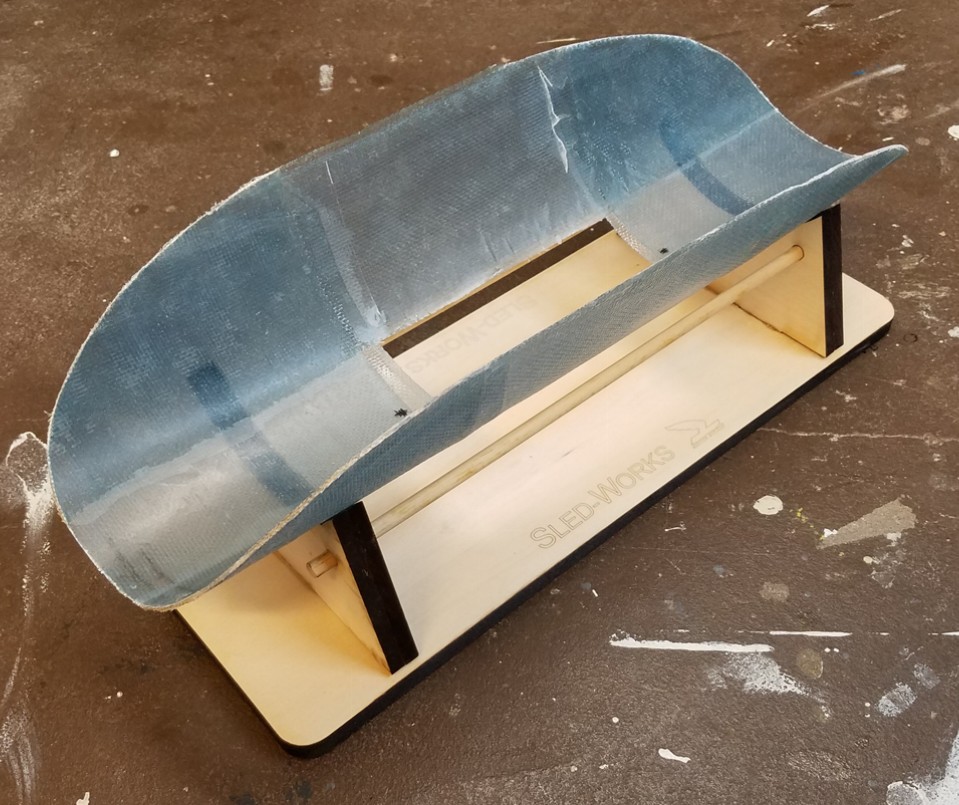

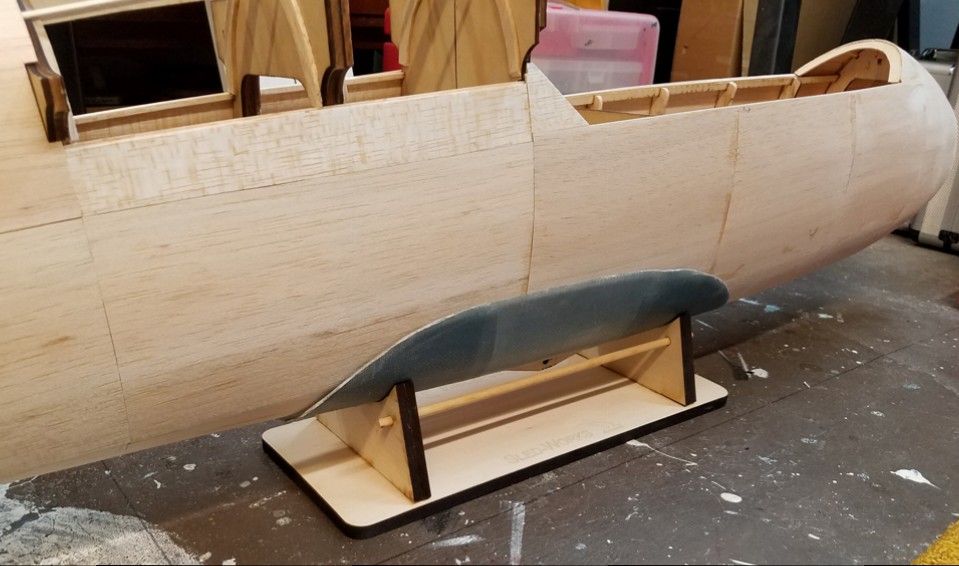

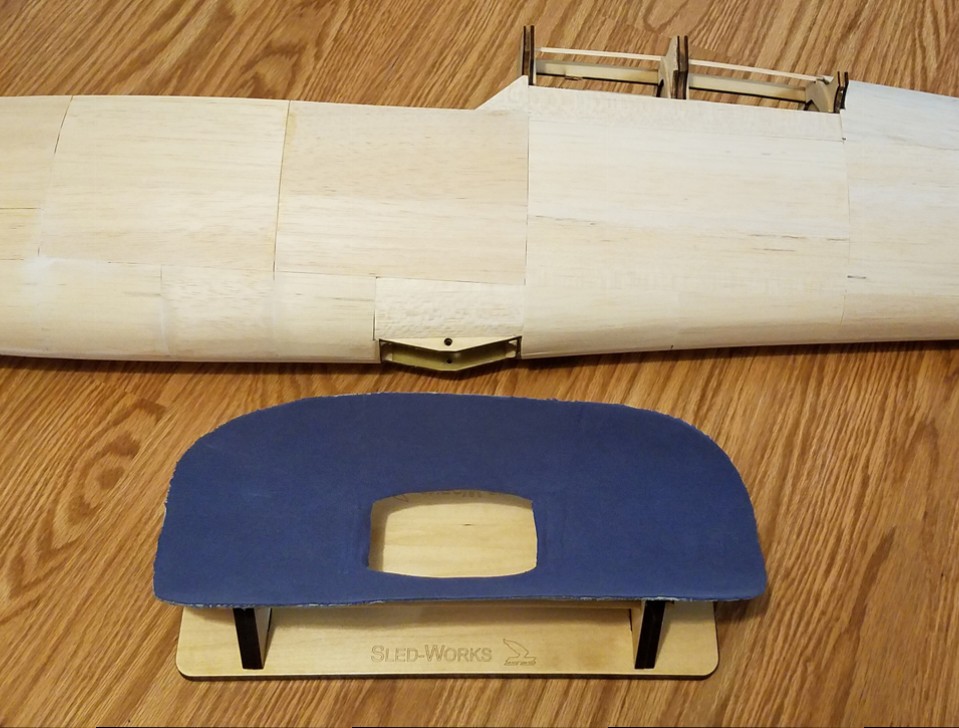

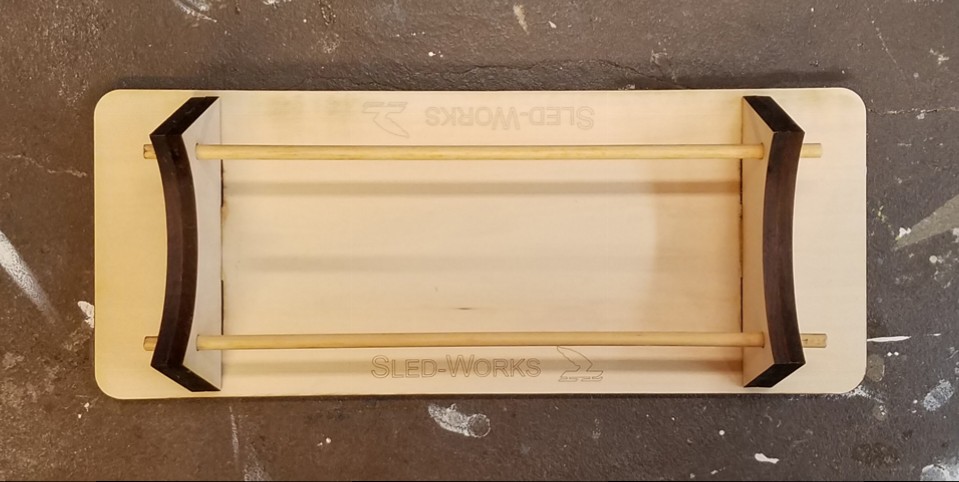

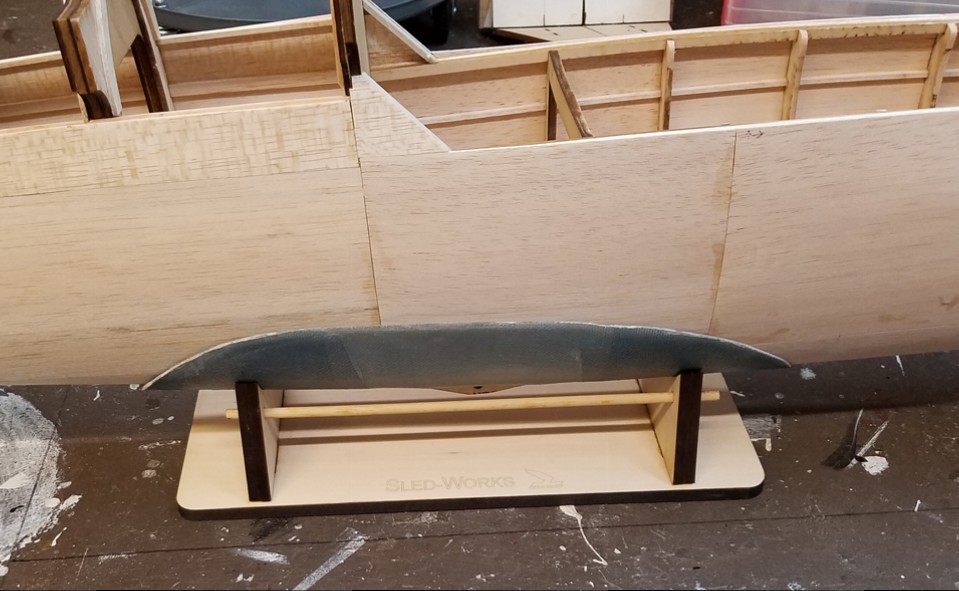

                          Got in some good shop time lately. Covered the stab and built a stand for the fuse. The stand is made w scrap basswood from the model shop, a fiberglass bed formed over the fuse, and then sprayed with 3M-77, and covered with an old blue shirt from the rag bag. The fuse fits seems to love it. The stab is covered with Solartex white and natural. Seems to look okay.

                          Click image for larger version

Name:	20190824_113915.jpg
Views:	118
Size:	89.3 KB
ID:	38009


                          Click image for larger version

Name:	20190824_113931.jpg
Views:	122
Size:	158.4 KB
ID:	38013


                          Click image for larger version

Name:	20190824_114012.jpg
Views:	120
Size:	90.9 KB
ID:	38010


                          Click image for larger version

Name:	20190824_113822.jpg
Views:	142
Size:	185.1 KB
ID:	38015

                          Click image for larger version

Name:	20190824_113728.jpg
Views:	103
Size:	112.1 KB
ID:	38011

                          Click image for larger version

Name:	20190824_183511.jpg
Views:	130
Size:	142.2 KB
ID:	38014
                          Attached Files

                          Comment


                          • #73

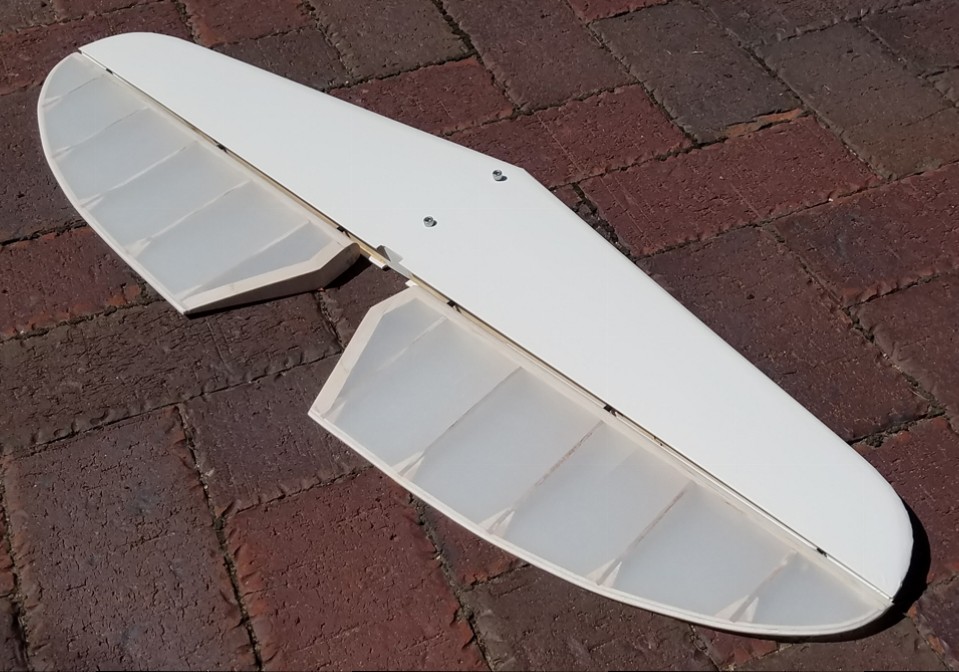

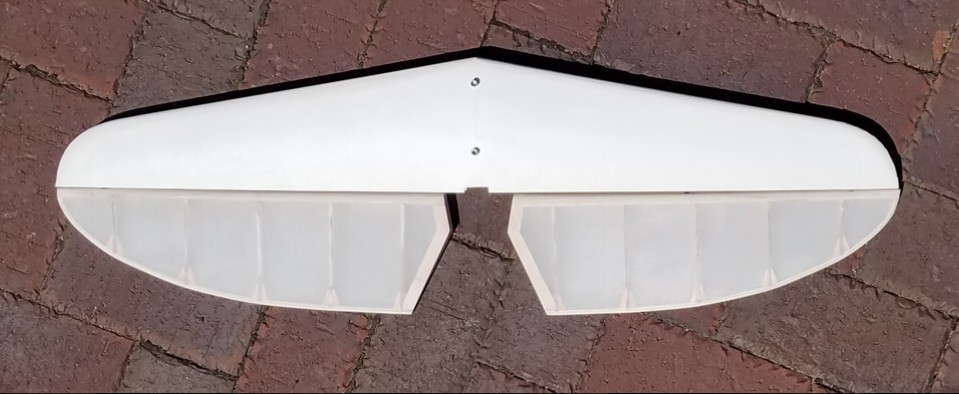

                            Stab covering.

                            Click image for larger version

Name:	20190814_121407.jpg
Views:	128
Size:	80.4 KB
ID:	38018

                            Click image for larger version

Name:	20190814_121318.jpg
Views:	136
Size:	142.9 KB
ID:	38019

                            Comment


                            • #74
                              Nicely done.
                              [B]"I have not yet begun to procrastinate!"[/B] -- [B][I]Geoff Painter[/I][/B]

                              Comment


                              • #75

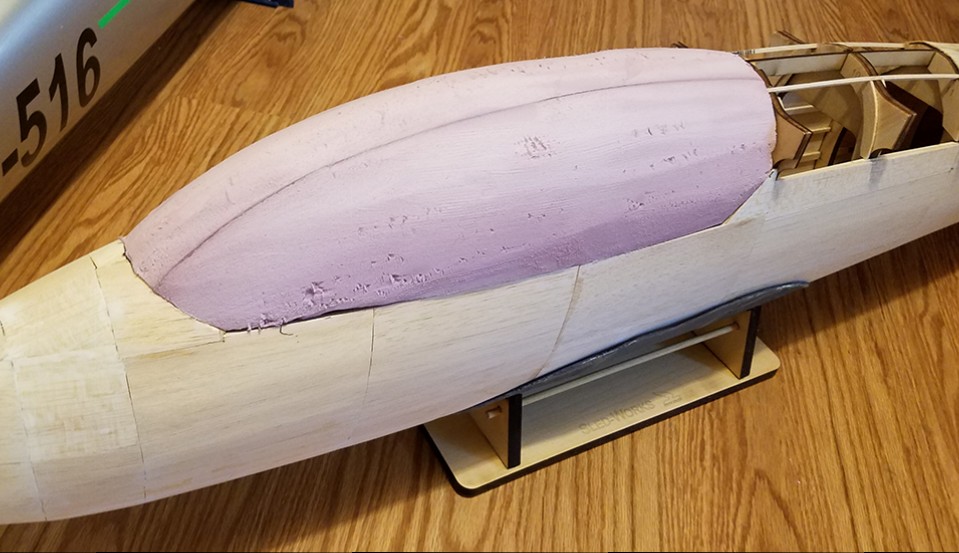

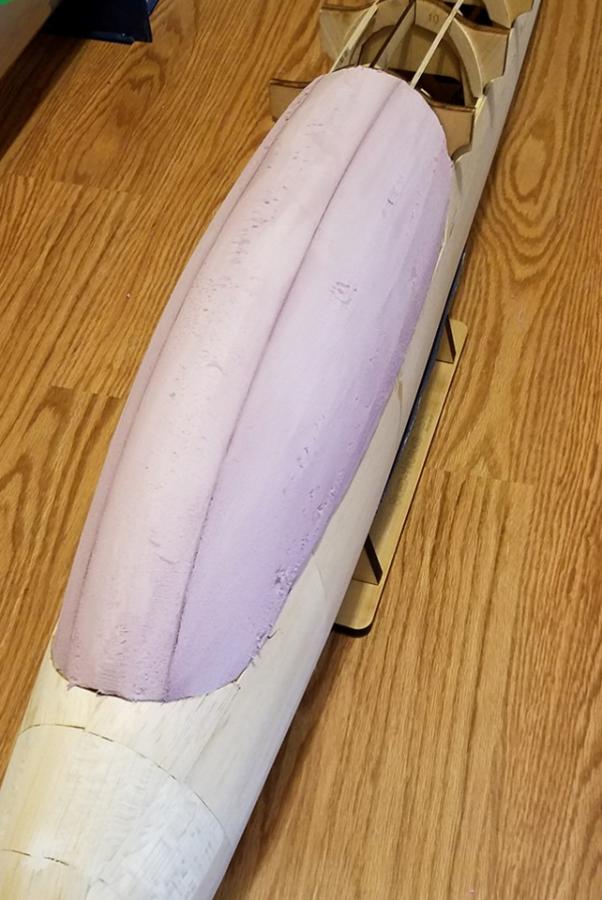

                                Started roughing out the canopy plug last night. Have a long way to go on this one.

                                Click image for larger version

Name:	Canopy 2.jpg
Views:	98
Size:	118.8 KB
ID:	38152

                                Click image for larger version

Name:	Canopy 1.jpg
Views:	95
Size:	69.9 KB
ID:	38153

                                Comment
