  • #46

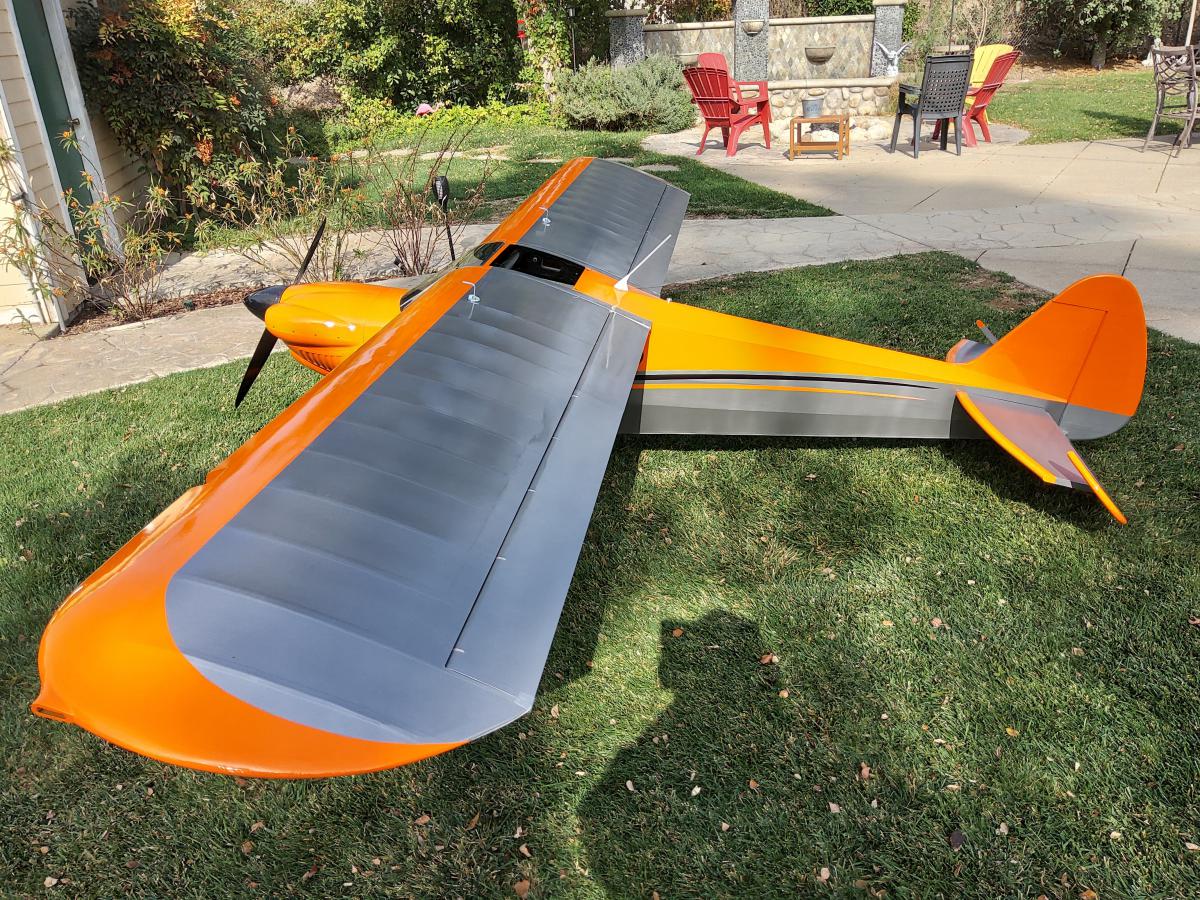

    10% left to do.............
    Click image for larger version

Name:	20211031_104652.jpg
Views:	149
Size:	286.8 KB
ID:	46303 Click image for larger version

Name:	20211031_105910.jpg
Views:	145
Size:	308.6 KB
ID:	46304
    Click image for larger version  Name:	20211031_104710.jpg Views:	0 Size:	253.1 KB ID:	46302 Now on to engine and avionics installation
    Last edited by MarnochS; 10-31-2021, 06:14 PM.

    Comment


    • #47
      Isn't that the hard part? Looks beautiful Scott

      Comment


      • #48
        Nice Job Scott!

        Jeremy

        SCC AAA TT TN

        Comment


        • #49
          Another masterpiece, Scott. Great job!

          Comment


          • #50
            Thanks All - it was very motivating assembly. - just wish i could find some 12" PR Brush wheels to complete the look.

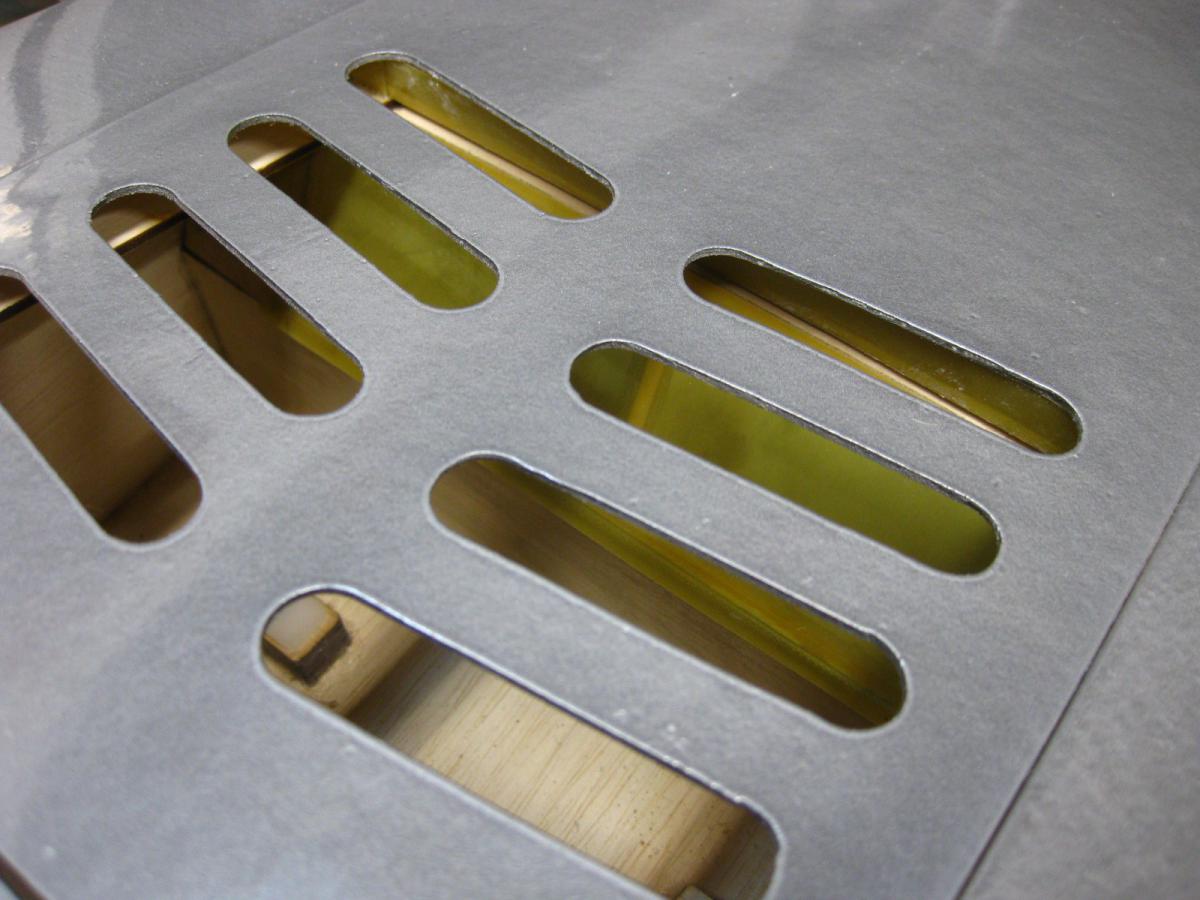

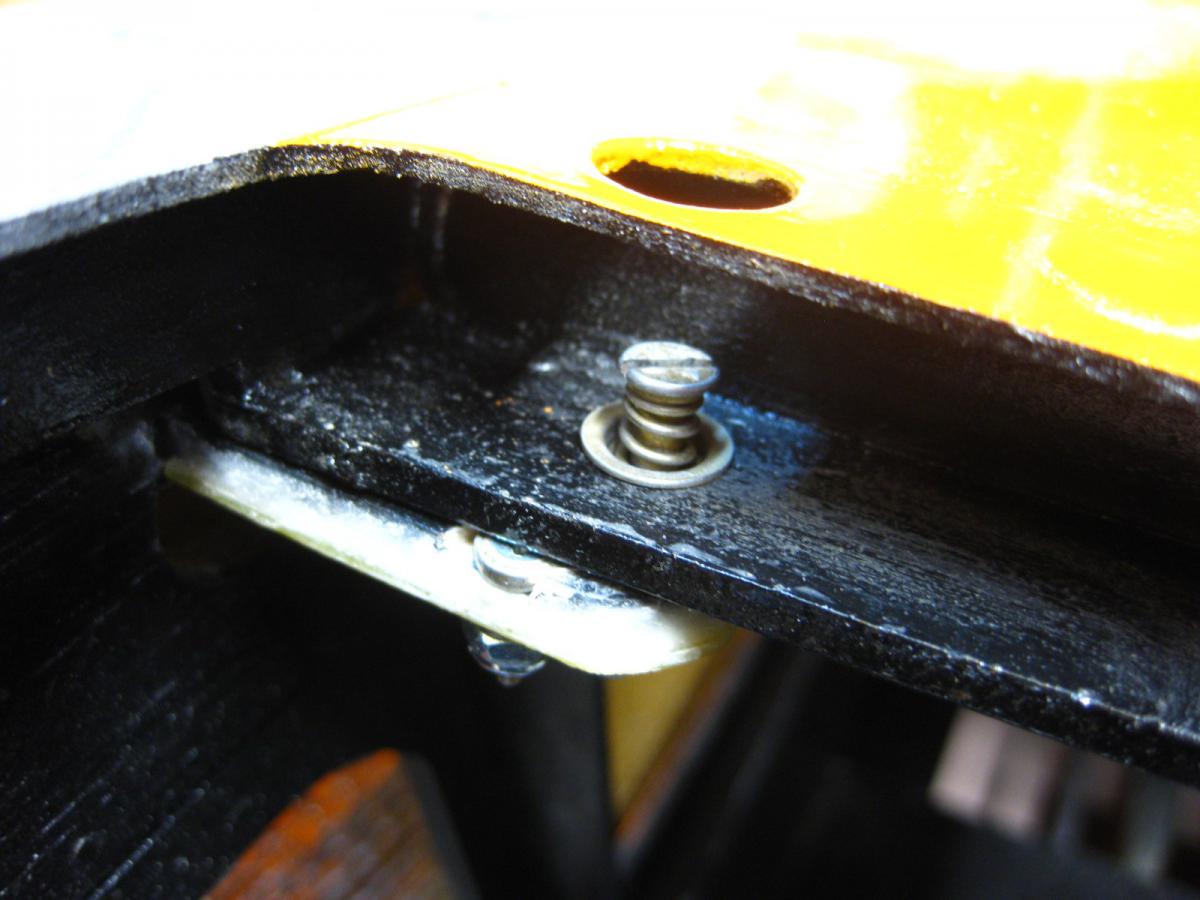

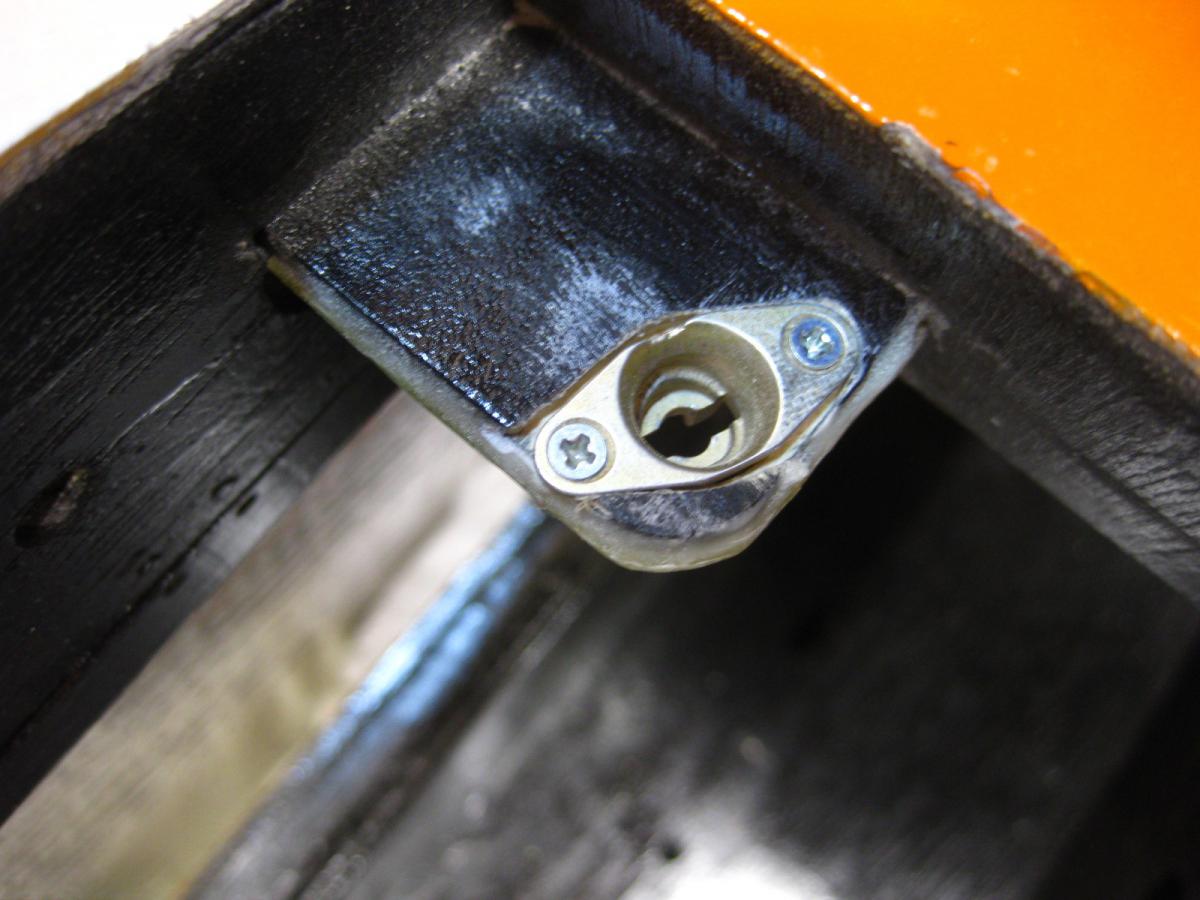

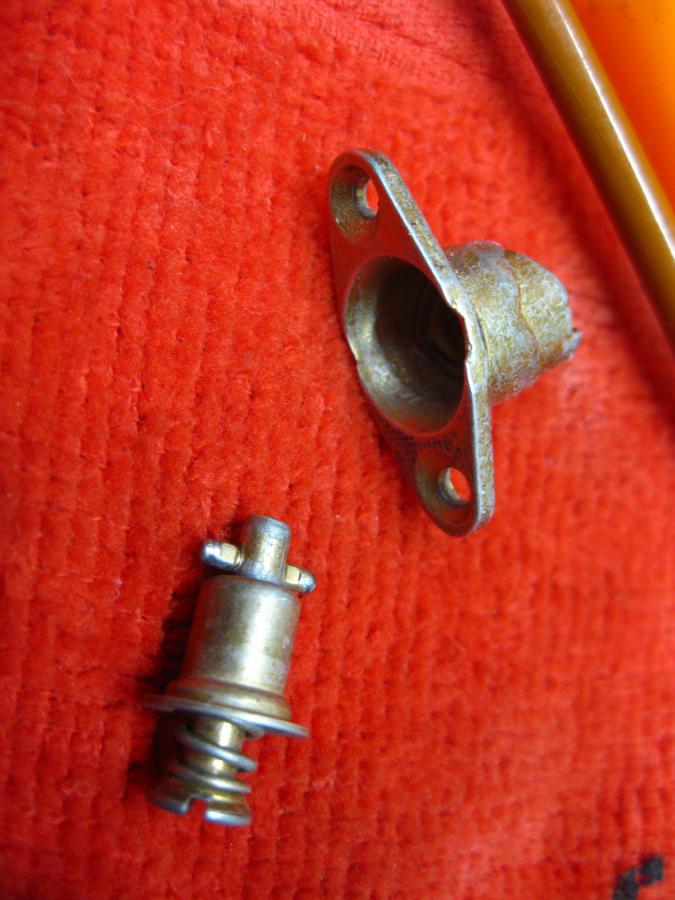

            Meanwhile .....adding some easier access to the top hatch via CamLoc 2700 studs and receptacles.


            Click image for larger version

Name:	IMG_6242.jpg
Views:	130
Size:	76.5 KB
ID:	46320 Click image for larger version

Name:	IMG_6244.jpg
Views:	128
Size:	98.5 KB
ID:	46321 Click image for larger version

Name:	IMG_6245.jpg
Views:	133
Size:	86.0 KB
ID:	46319

            Comment


            • #51
              https://northwestrc.com/PMT--262mm-I...ls_p_3369.html

              Hey Scott these are light and BIG!!

              Comment


              • #52

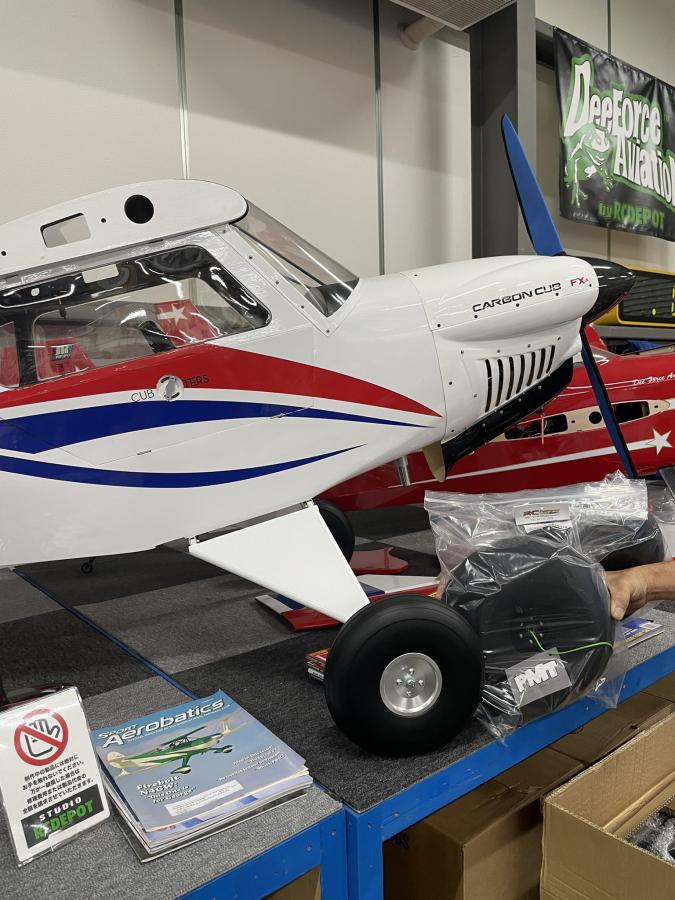

                Thanks .....mine are arriving on Saturday......they should simulate 26" Goodyear tundra tires at 40%
                I'll make some hub caps too. Found some pictures while searching the web.

                Click image for larger version

Name:	E6fgi5CVoAAifFG.jpg
Views:	117
Size:	99.7 KB
ID:	46362 Click image for larger version

Name:	thumbnail_IMG_4638.jpg
Views:	121
Size:	189.2 KB
ID:	46361

                Scott

                Comment


                • #53

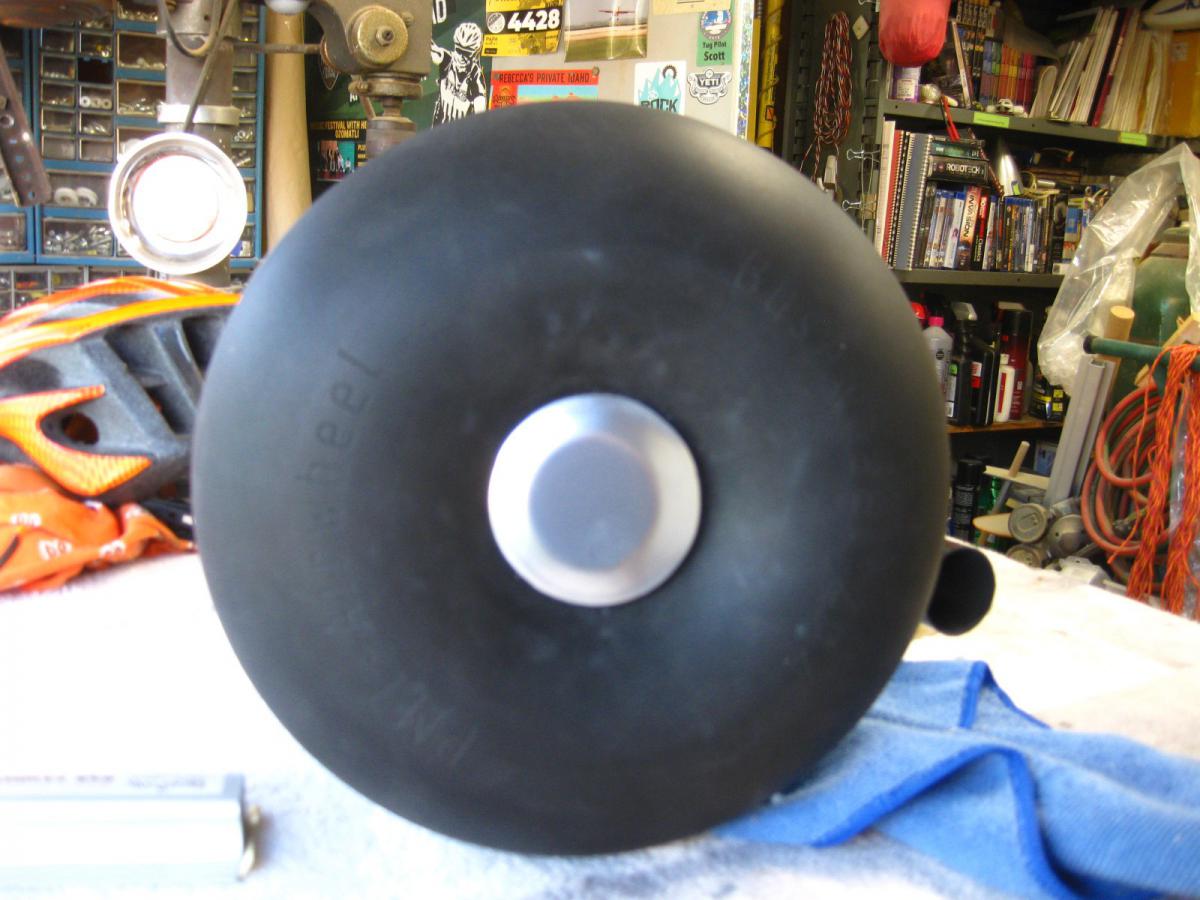

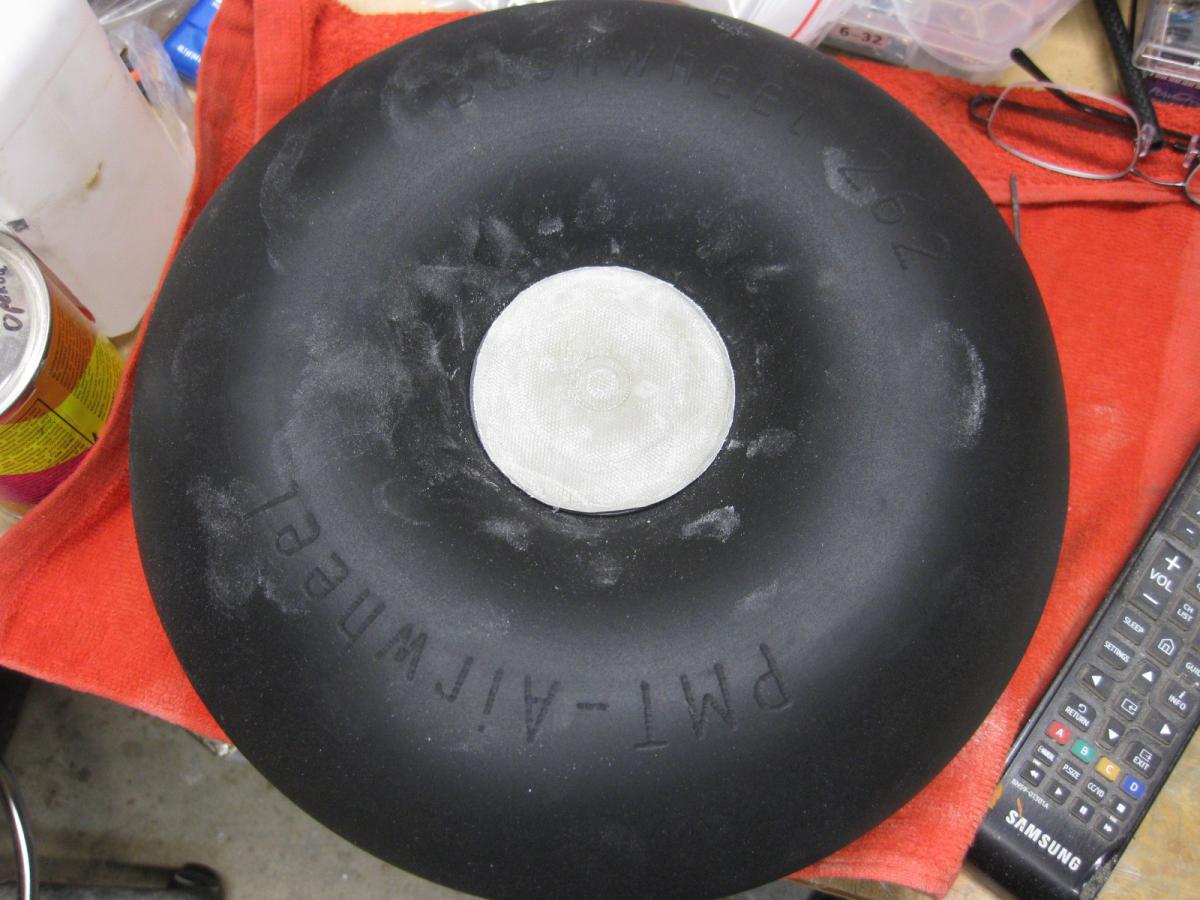

                  Hub Caps for the PMT 262 Bush Wheels - using the stock wheels as a form.....

                  Click image for larger version  Name:	IMG_6252.jpg Views:	0 Size:	123.9 KB ID:	46387 Click image for larger version  Name:	IMG_6253.jpg Views:	13 Size:	120.5 KB ID:	46389


                  Added 5% to the completions schedule - smaller rotor from HPI will fit nicely ( shredder valve clearance on the PMT Wheels ).........

                  Click image for larger version  Name:	IMG_6246.jpg Views:	0 Size:	81.2 KB ID:	46388
                  Last edited by MarnochS; 11-17-2021, 02:43 AM. Reason: Spelling of course

                  Comment


                  • #54

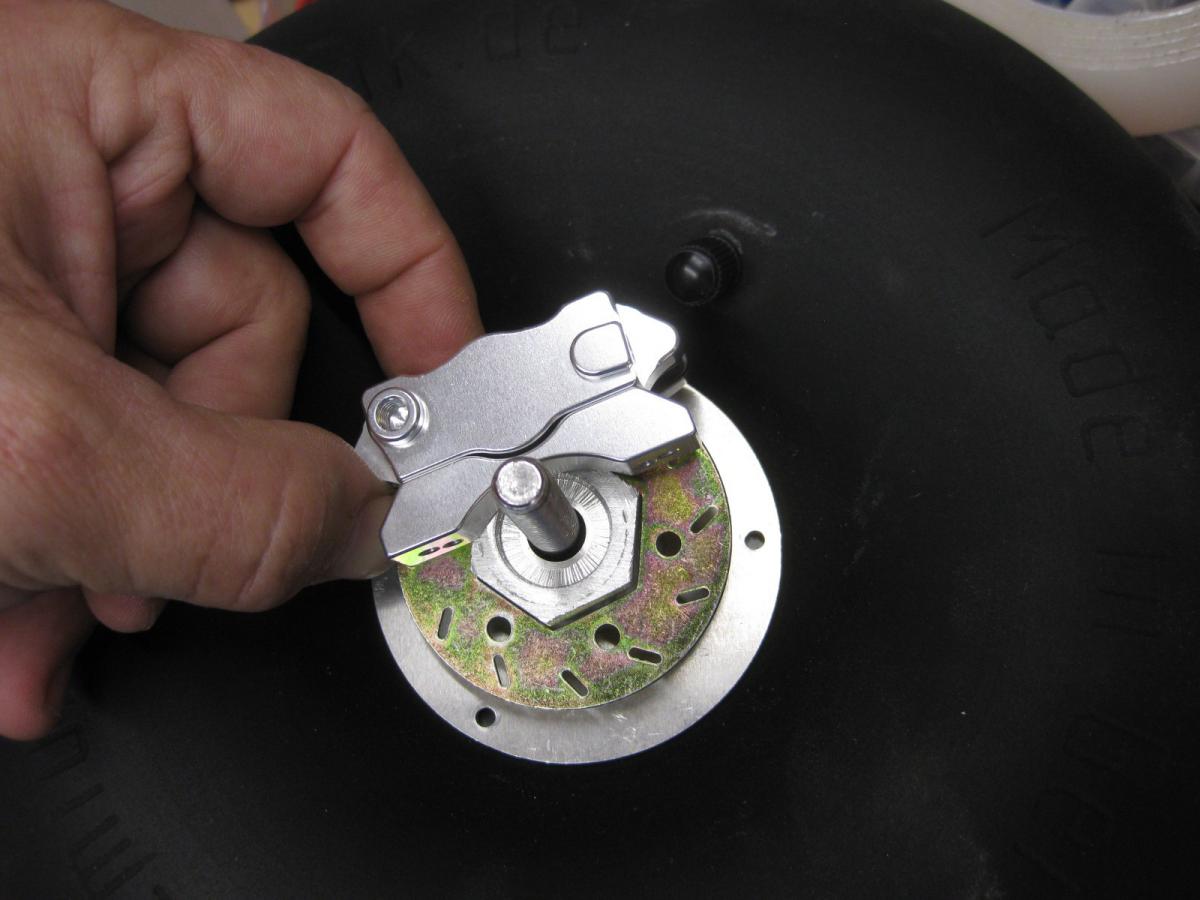

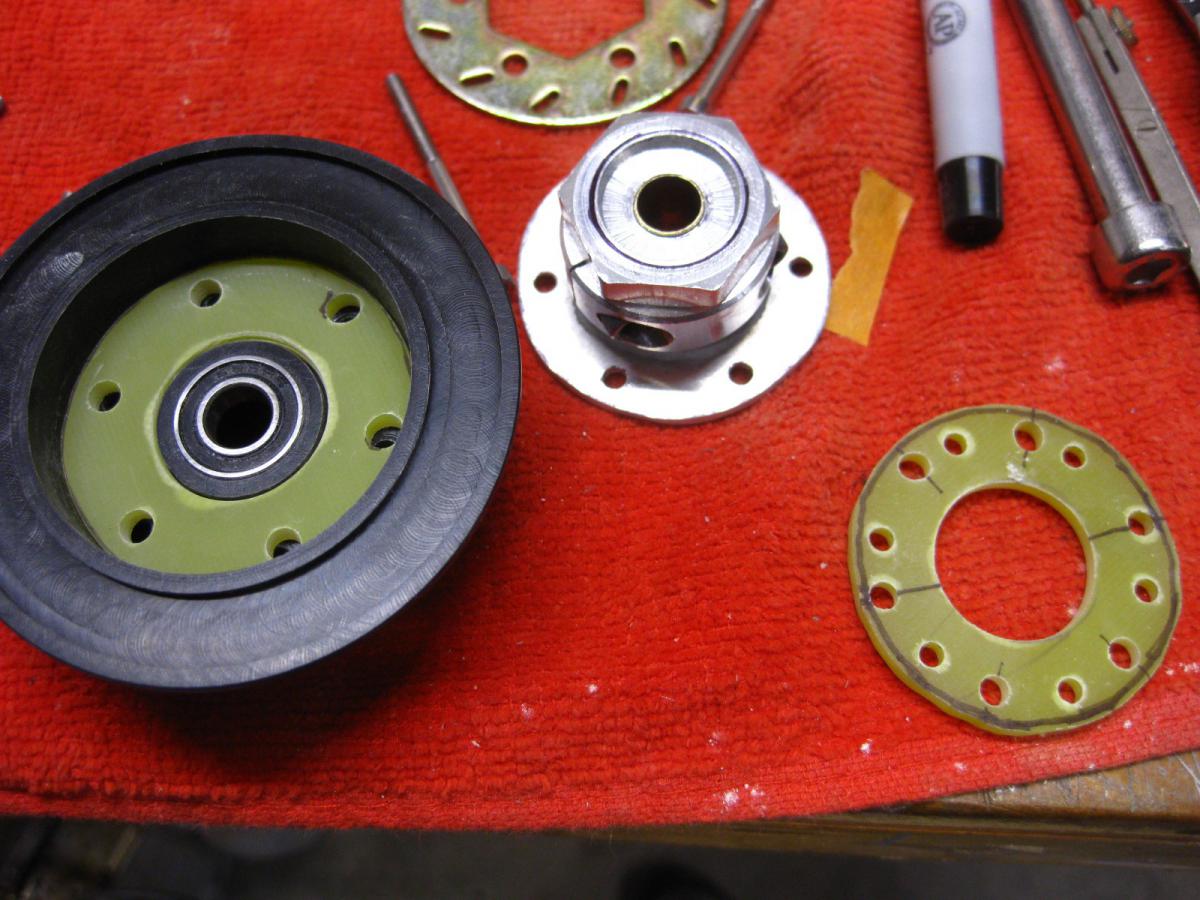

                    Cut down the wheel adaptor plate from Aviation Concepts Bidule Brake kit and drilled, along with the 1/8" spacer......extra holes in the other adaptor plate due to mis-alignment of the alignment jig.......

                    Click image for larger version  Name:	IMG_6267.jpg Views:	0 Size:	137.2 KB ID:	46400 Click image for larger version  Name:	IMG_6256.jpg Views:	0 Size:	108.4 KB ID:	46399

                    Comment


                    • #55

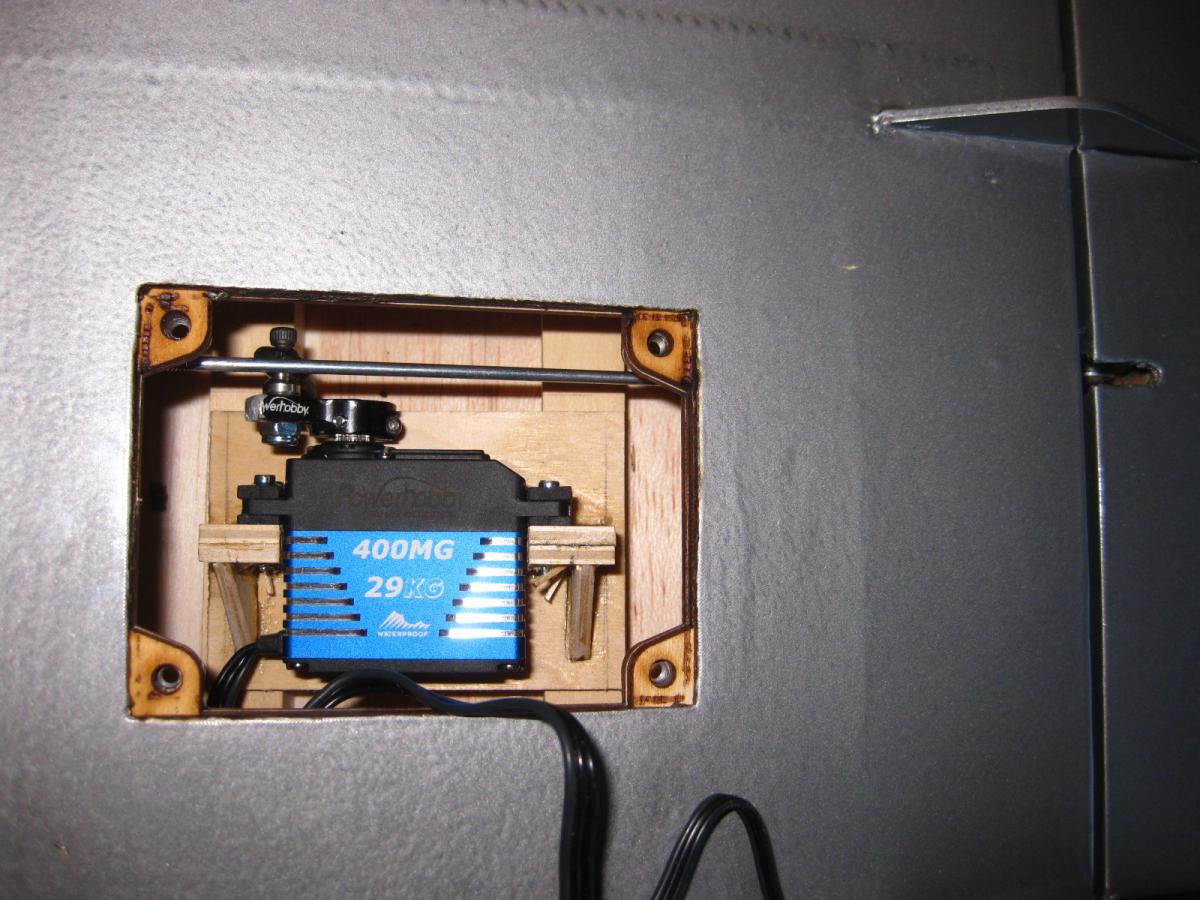

                      Working on the Flap servo installation
                      Need about 20mm of pushrod travel for full flap deployment so the servo arm ball link attachment hole was moved in so I can have full servo arm movement.

                      Click image for larger version  Name:	IMG_6275.jpg Views:	0 Size:	141.0 KB ID:	46445

                      75 degrees of deflection should be good enough to slow thing down

                      Click image for larger version

Name:	IMG_6276-1.jpg
Views:	6
Size:	109.6 KB
ID:	46456
                      Last edited by MarnochS; 11-27-2021, 05:05 PM.

                      Comment
