  • #31
    Hey Jim, very nice changes to your Bidule! On post 16, where did you get the silicone tubing for your comfort mounts? I'm running into the same problem with my Bidule build where the mounts are bigger than the canisters and smaller mounts just are not made. I was going to just shim the mounts but if I'm seeing it right, it looks like you slid the silicone over the straps to take up the slack?

    Tim

    Comment


    • #32
      Hi Tim,

      Actually, I purchased the canisters and mounts from Len when he converted his ZDZ-180 powered Bidule 170 to the canister system available from ZDZ USA.

      However, high temperature silicon tubing is available from McMaster Carr: https://www.mcmaster.com/#standard-h...ubing/=16r3kp5
      A Site for Soar Eyes

      Comment


      • Mosquito
        Mosquito commented
        Editing a comment
        Thanks Jim! Looking good!
        Tim

    • #33
      We got the fuselage sides closed back up and ornage and blue stripes reapplied...now it's time for our new "Scale Soaring.com" Graphics from Callie Graphics to be applied!





      Len had ordered similar decals for general use in both a larger and smaller size then these, so I asked if she could make an in-between size...usually great Callie answer was "no problem' will get them right out to you!"

      Some time back, I had her make the script style logo that says "Aero Towing Team" and used it on my Porters. If you would like to copy the concept, please feel free to do so. If you tell Callie you want the graphics like I got, she will make them. Kevin K got her to do some for his Pawnee last fall.
      A Site for Soar Eyes

      Comment


      • #34
        No High Point Aviation on this one???
        Kevin K

        Kremer Aerotowing Team

        Comment


        • JimD
          JimD commented
          Editing a comment
          It isn't finished yet! :-)

      • #35
        Looks great Jim.
        Len Buffinton
        Team Horizon Hobby

        Comment


        • #36
          We used Sullivan 4-40 Aluminum Ball Connectors and Hangar 9 Titanium Pro-Links 4-40 x 5" to make the elevator push-rods. The Pro-Links have regular threads on one end and reverse threads on the other. The regular threads go into the Sullivan Connector. We cut about 1/8" off of the regular threaded end so that the threads go completely into the connector leaving no threads showing. The Sullivan connectors were installed with Loctite so these Pro-Link push-rods cannot be adjusted in the normal manner.



          Threads on the control surface end are screwed almost all the way in to make the push-rod the perfect length. The Sullivan Ball Connectors allow fairly easy connection and removal of the stabilizer/fin unit.

          A Site for Soar Eyes

          Comment


          • #37
            Extension cables for rudders and elevators installed and connected to receivers:





            Disc brake hubs installed on 8" DuBro main wheels.



            A Site for Soar Eyes

            Comment


            • #38
              Jim, is this a new build or are you just doing some winter tune up's to an existing Bidule?

              Tim

              Comment


              • JimD
                JimD commented
                Editing a comment
                This is Bidule 170 #2 ~ a new build.

            • #39
              Originally posted by JimD View Post
              Power does not come without a penalty. We noticed that the rate of battery consumption increased considerably. What to do?

              As with giant scale sailplane retract servos, we decided to driving this servo with a separate battery. This can be accomplished by making a simple wiring harness that uses the signal voltage and ground wire (yellow/black) from the receiver channel being used combined with the positive and ground wire (red/black) from the auxiliary battery (place a switch inline between this plug and the auxiliary battery). The S9020 steering servo then plugs into the 3-lead connector.

              With this setup, the receiver battery drives the electronics in the servo and the auxiliary battery drives the motor in the servo.
              Jim, at the AMA East Expo this month, I had the opportunity to talk with Chrstopher Hansen of Hansen Hobbies about this same issue. His company makes a small gadget that operaters as a switch, several of them actually.

              Using acspare tx channel the switch could be used to turn on the nose steering servo. Christopher believed the s9020 servo would be controlled fine by his Nano sized onboard switch.

              another thought I had was that this switch would help with one other issue regarding the nosewheel, which is the very large moment applied to the servo by the single wheel bogey arm. If the steering servo is off, as in freewheeling, at the split second the nose wheel hits dirt, the initial sideway force (of rudder input) is lessened and on top of that the servo will not be greeting the jolt load of the wheel hitting the ground with clenched-fist holding power. Ie, the gears are out of harms way for that moment.

              this supposes of course that the aircraft is -flying- when the wheels touch the earth.

              spektrum claims the s9020 is fade proof. Yet if the servo duty cycle is limited to time on the ground, that would further improve its longevity, seems to me.

              phil



              Comment


              • #40
                Hi Phil.
                I love the products from Hansen, they have nice quality items.
                Regarding the nose wheel system, it's really not an issue and adding another layer of complication to it is probably not worth it. Depending on you're personal choice for batteries, you can get many, many hrs of towing before having to think about the batteries.

                I use twin 5000mah lipo packs for the receiver and was using a 4500 Nihi for the ignition, but have switched that to a lipo also with the help of a Sparkswitch regulator from Power box.

                Again, for simplicity the steering does not need its own battery in this set up. With the twin 5000 packs, I get at least 5 hrs before I change them out, and at that point they have used only 50% of the packs. The low power consumption on may be due to the Stewart servo saver system we use on the nose gear.

                Hope this helps.
                Len
                Len Buffinton
                Team Horizon Hobby

                Comment


                • #41
                  In my case, I am using twin 2,500 mAh 6.6v A123 batteries for the receivers and an additional one for the S9020 steering servo. Counting the battery consumption for the three packs, my usage is right in line with what Len reports...but since my total capacity is about half of his, I recharge after 2-1/2 hours of flight time. The recharge only takes 15 minutes at most with the A123 packs.
                  A Site for Soar Eyes

                  Comment


                  • #42

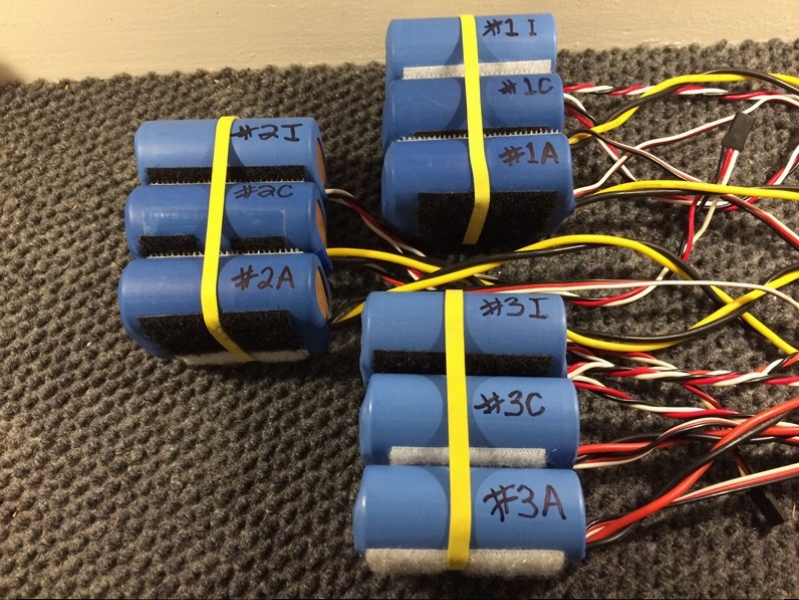

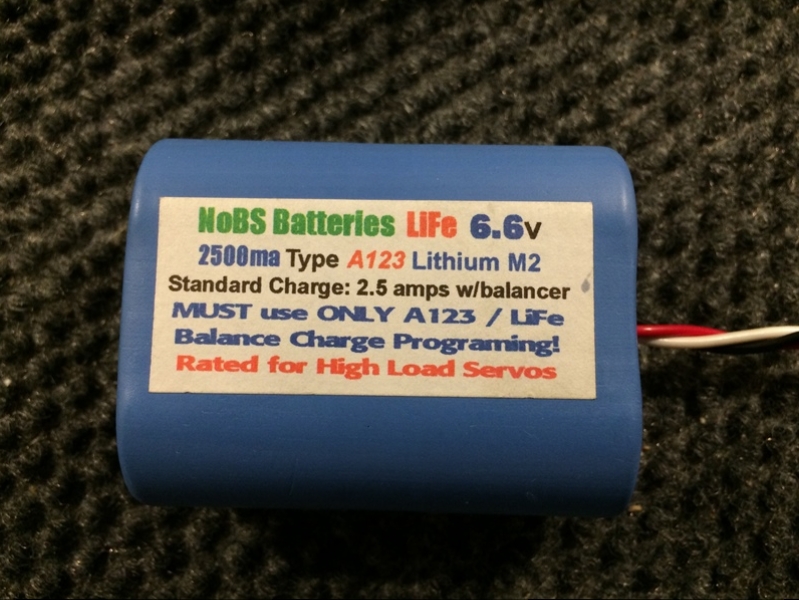

                    A123 Battery Pack Update:

                    After many more hours of operation in both Bidule #1 and Bidule #2, we noted that the nose gear servo battery usage was only around 200 mAh per hour of flight time. Considering this, we elected to eliminate the steering servo battery and just plug the S9020 steering servo into the receiver. Servos loads for Receiver #1 and Receiver #2 were balanced so that each A123 flight pack was being used up at the same discharge rate. This also eliminated a switch and the unnecessary extra wiring.

                    Now, the three A123 packs in use (two receiver and one ignition) are easily accessible and can be changed out quickly for freshly charged packs or, they can be charged in the plane without the need to remove the hatch.

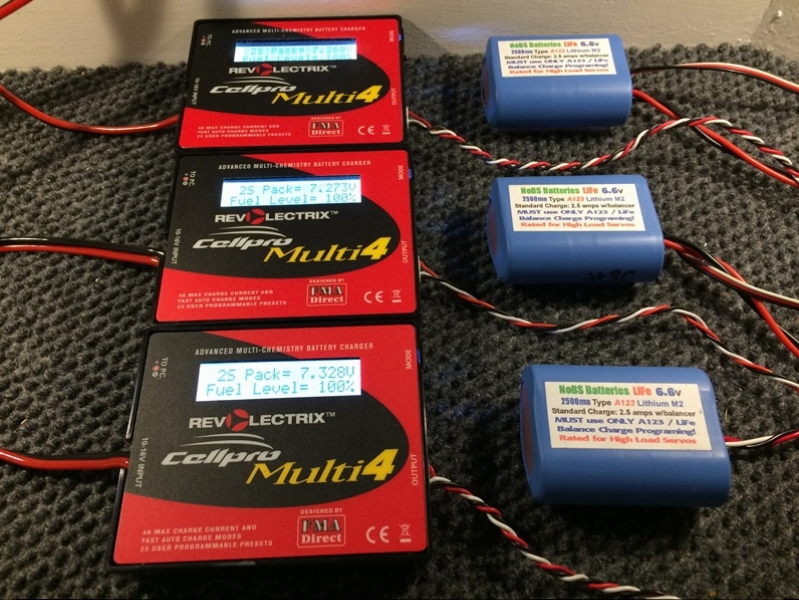

                    With three sets of batteries and three CellPro Multi4 chargers, nearly continuous operation can be maintained.

                    Click image for larger version

Name:	IMG_3752.JPG
Views:	297
Size:	314.2 KB
ID:	19572

                    Click image for larger version

Name:	IMG_3753.JPG
Views:	296
Size:	405.1 KB
ID:	19573

                    Click image for larger version

Name:	IMG_3750.JPG
Views:	303
Size:	389.0 KB
ID:	19571

                    A Site for Soar Eyes

                    Comment


                    • #43
                      After three full seasons of towing with our DA-150 powered Bidule 170, we are addicted to the Aviation Concepts Hydraulic Disc Brakes. Numerous refinements have been made and mostly they work very well. As for wear and maintenance, Gunny's aftermarket brake pads have proven to be much better than the stock pads when using the aluminum rotor discs, but they do wear fairly quickly. Pads need to be shimmed after about 20 hours and replaced after about 40 hours. Still, that represents a lot of tow circuits.

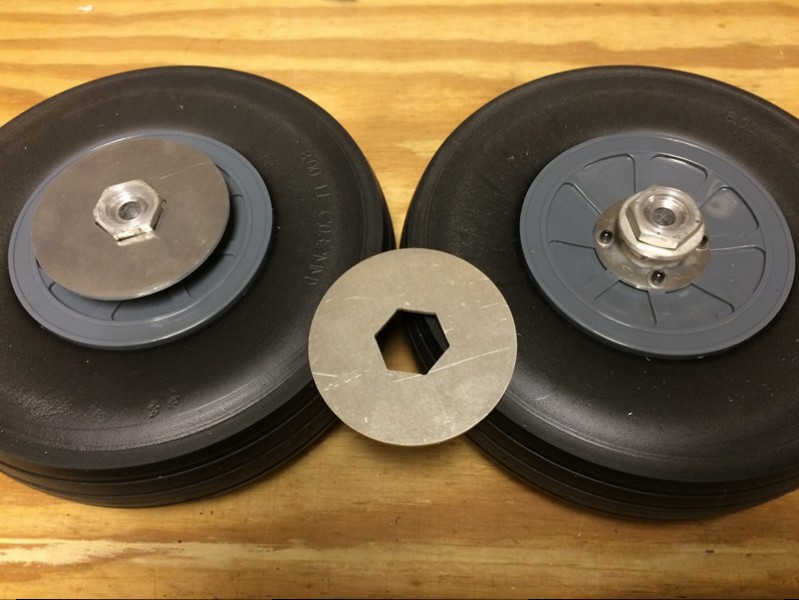

                      The original design had these one piece aluminum discs.


                      Click image for larger version

Name:	IMG_3298.JPG
Views:	295
Size:	92.2 KB
ID:	35683

                      Later, Gunny designed an up graded two part aluminum disc that proved to stay centered on the hex much better and solved the excessive wear on the hex. Len and Scot did some experimentation using the carbon fiber discs that the land based brake systems use and they seemed to wear better and have better stopping power.

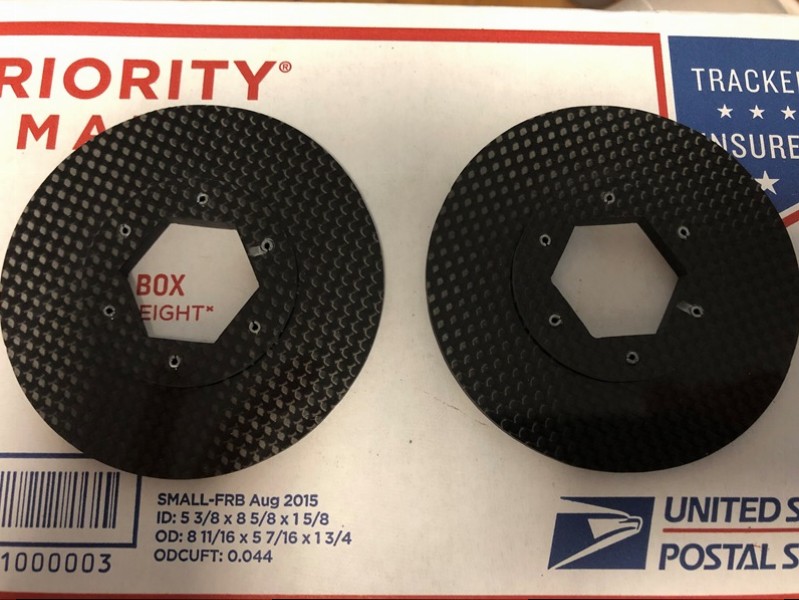

                      With this in mind, I had Gunny make a set of carbon fiber discs in the two piece design just like the aluminum ones. Here they are!


                      Click image for larger version

Name:	IMG_0714.JPG
Views:	274
Size:	109.1 KB
ID:	35684

                      These will be installed and ready for the Salem Aerotow event, so we shall see how this innovation works out this season.
                      A Site for Soar Eyes

                      Comment


                      • #44
                        Bidule 170 owners, like me, wondering if Gunny will be producing these discs for sale? After using aluminum for 2 years, I would like to upgrade to carbon.

                        Tim

                        Comment


                        • #45
                          We will have to wait and see and test them out.
                          Gunny
                          Aviation Concepts rc
