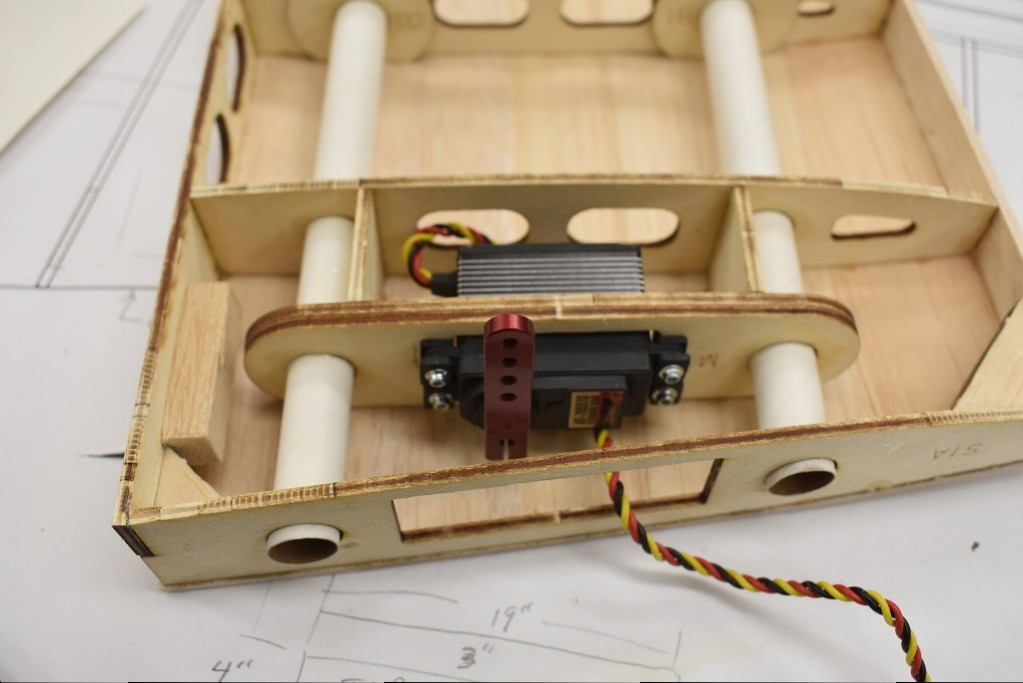

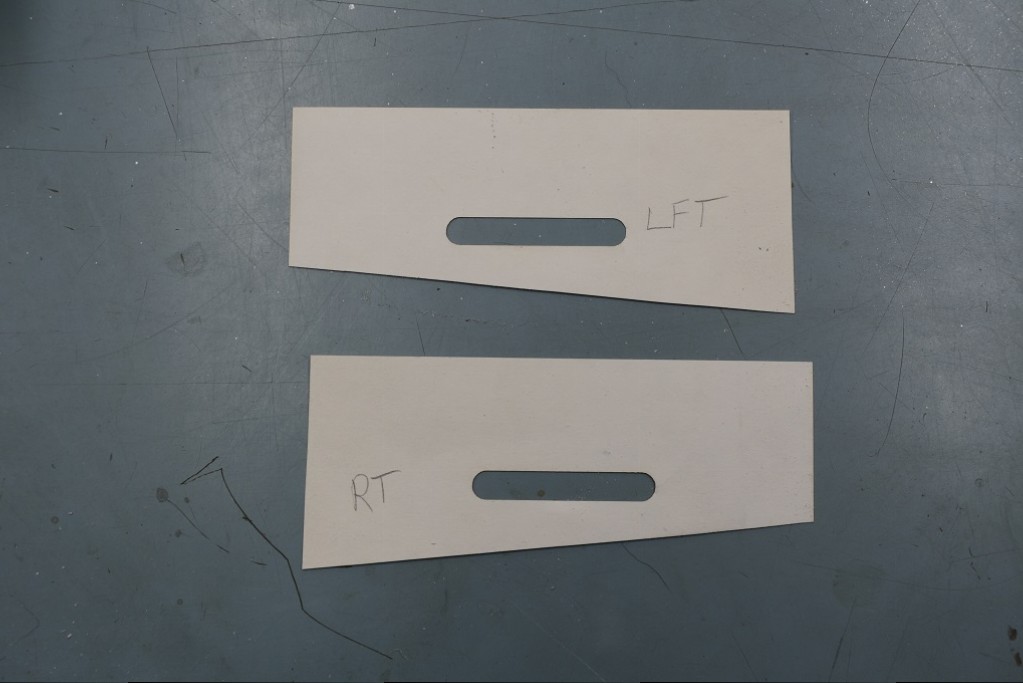

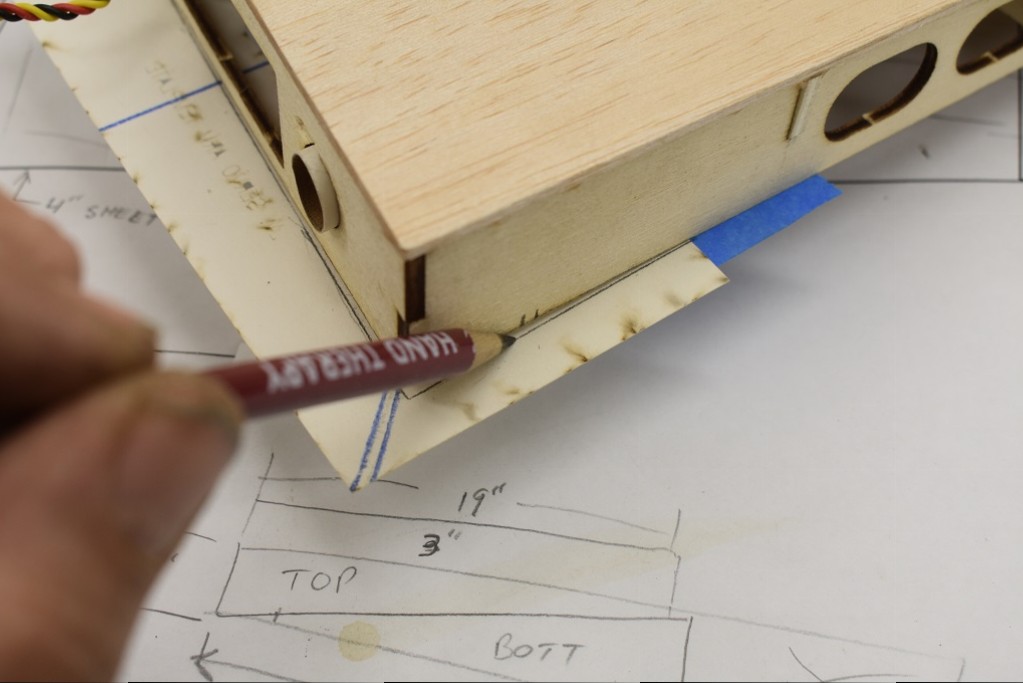

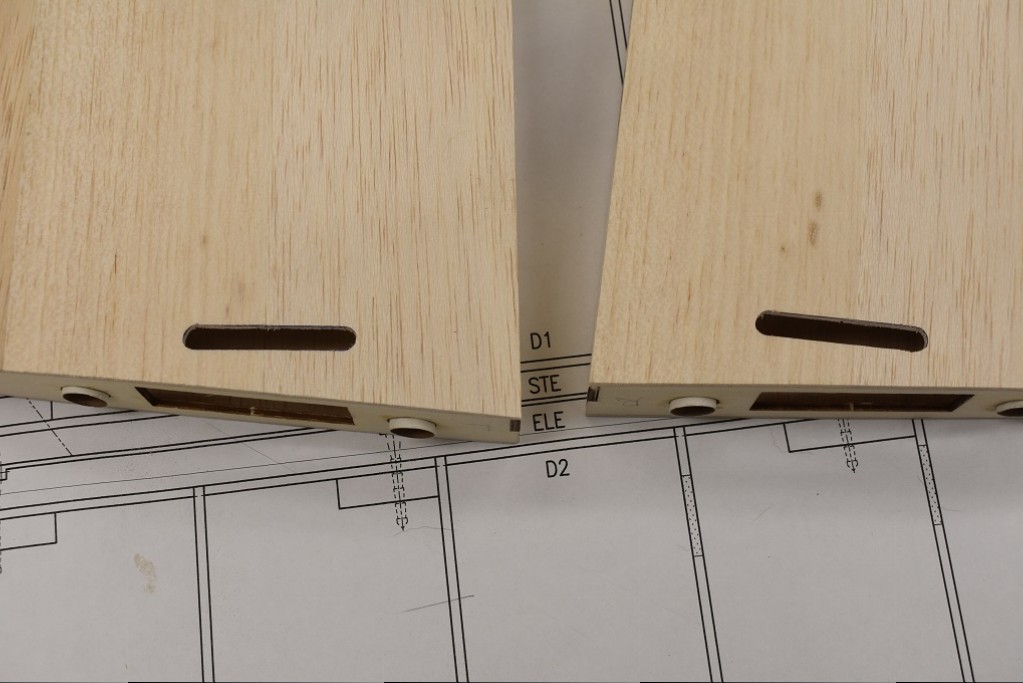

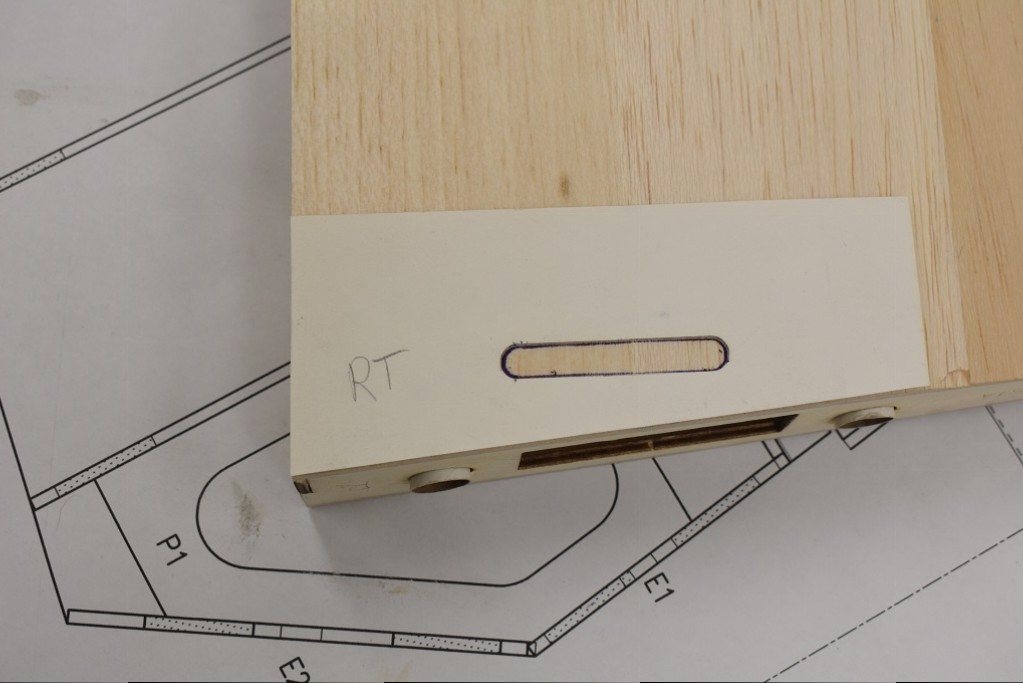

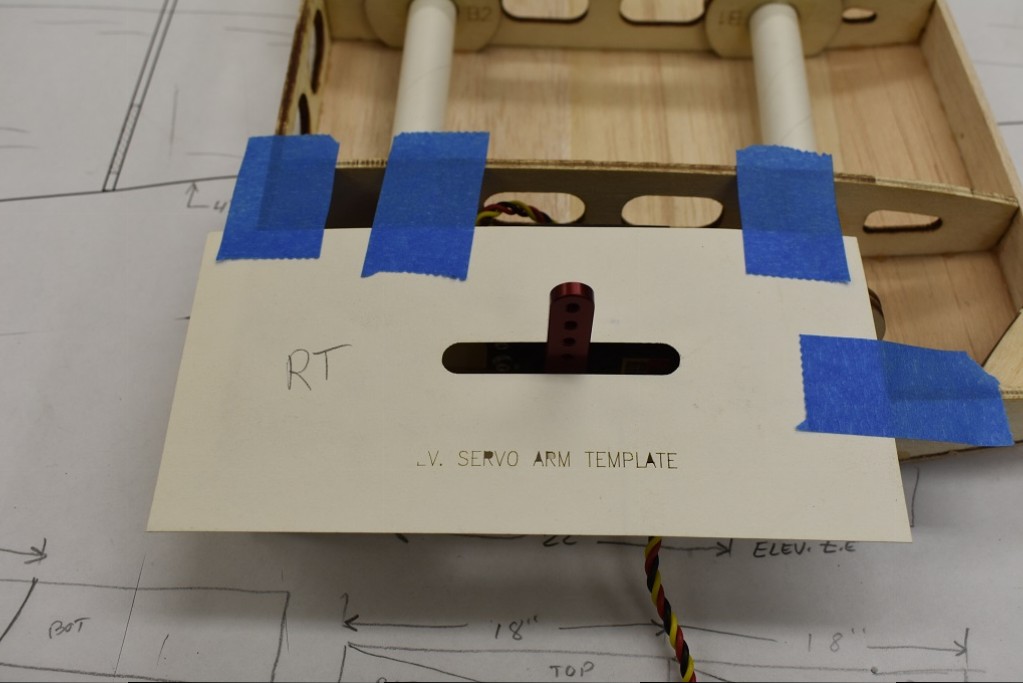

    So now the elev and stab get cut and separated. The build tabs removed, Servo installed and supplied is templates to locate the exits in the bottom sheeting. Trace the templates and mark Lft or Rt.
    Click image for larger version

Name:	DSC_1431.JPG
Views:	1
Size:	122.9 KB
ID:	34673

    Click image for larger version

Name:	DSC_1440.JPG
Views:	1
Size:	94.6 KB
ID:	34675

    Click image for larger version

Name:	DSC_1449.JPG
Views:	1
Size:	87.9 KB
ID:	34676

    Click image for larger version

Name:	DSC_1448.JPG
Views:	1
Size:	89.6 KB
ID:	34674

    Click image for larger version

Name:	DSC_1456.JPG
Views:	1
Size:	83.3 KB
ID:	34677

    Comment


    • #92

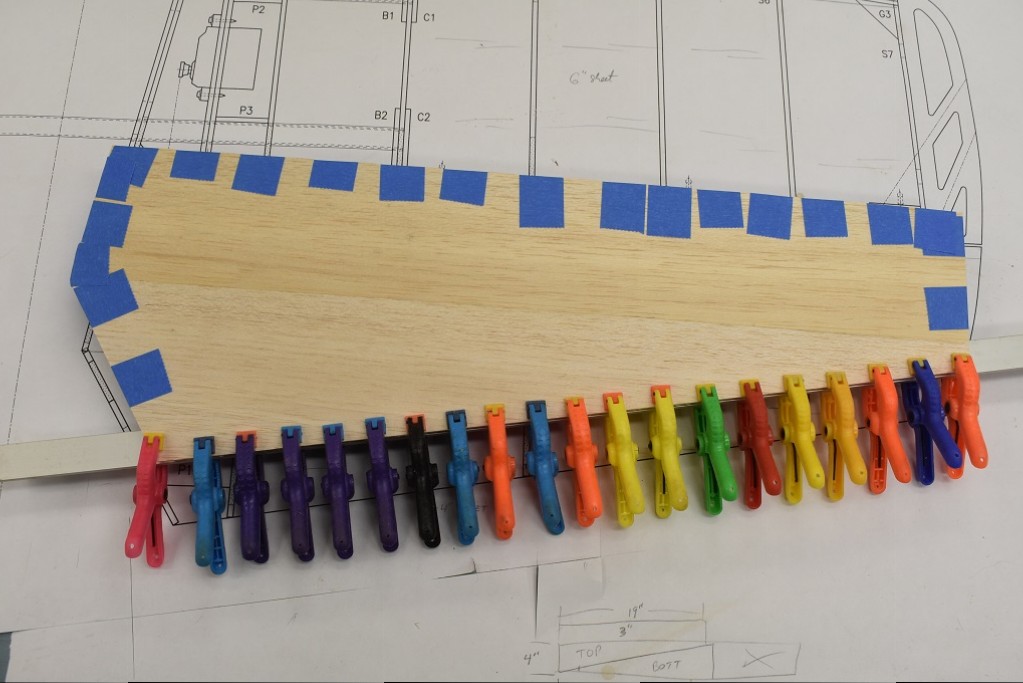

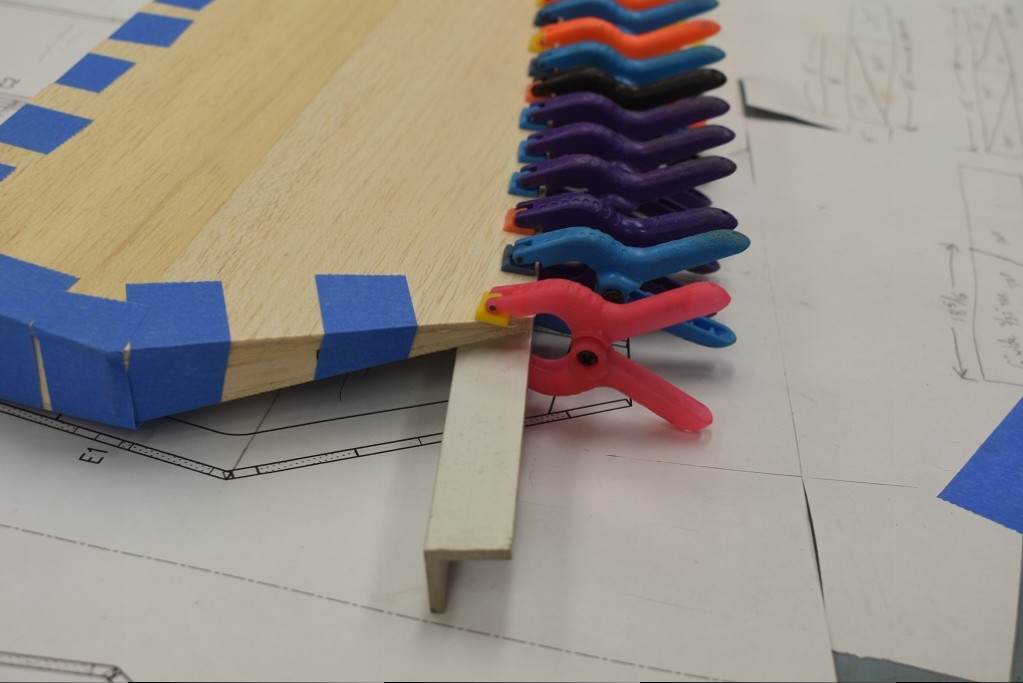

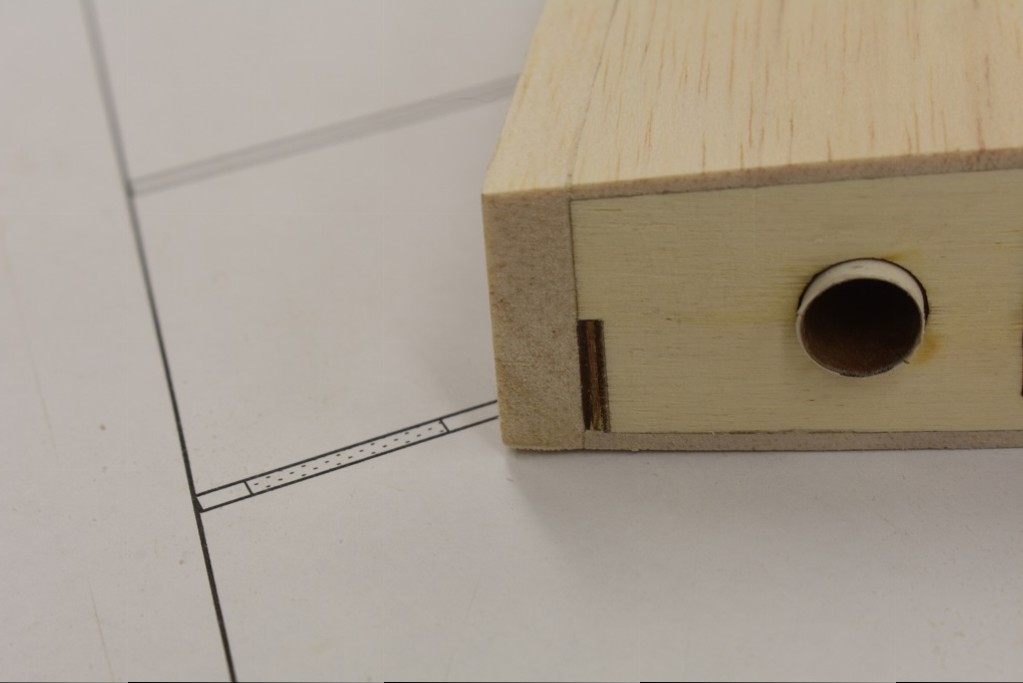

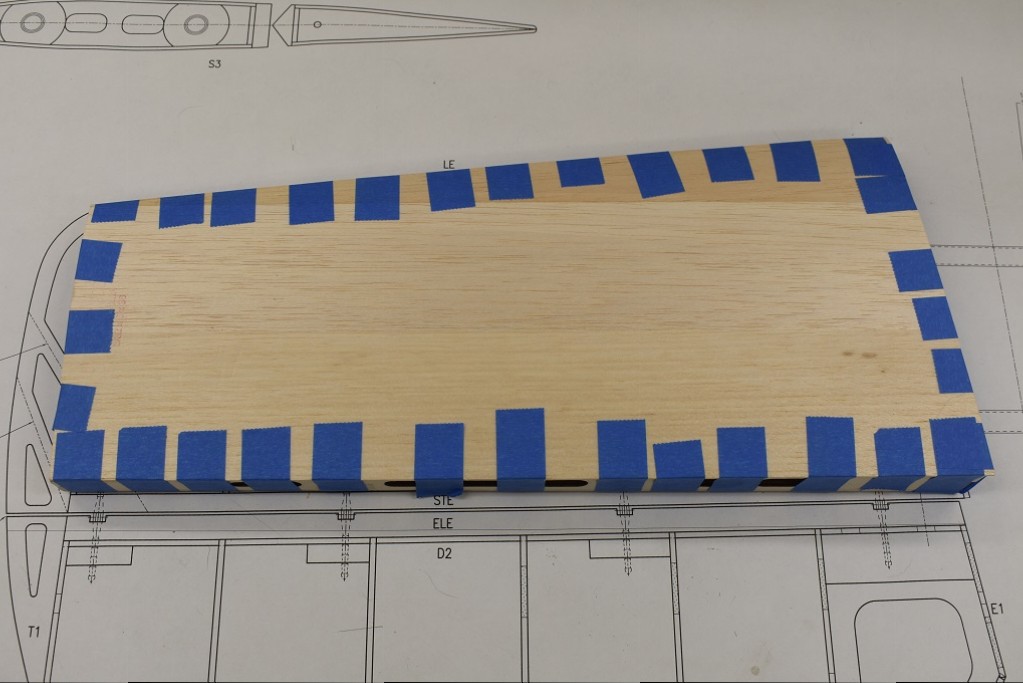

      Sheeting the bottom of the stab and elev. Using the templates to locate the servo arm exits.

      Click image for larger version

Name:	DSC_1457.JPG
Views:	1
Size:	118.6 KB
ID:	34689

      Click image for larger version

Name:	DSC_1458.JPG
Views:	1
Size:	90.4 KB
ID:	34692

      Click image for larger version

Name:	DSC_1459.JPG
Views:	1
Size:	111.9 KB
ID:	34690

      Click image for larger version

Name:	DSC_1460.JPG
Views:	1
Size:	88.0 KB
ID:	34691

      Click image for larger version

Name:	DSC_1461.JPG
Views:	1
Size:	114.1 KB
ID:	34693

      Comment


      • #93

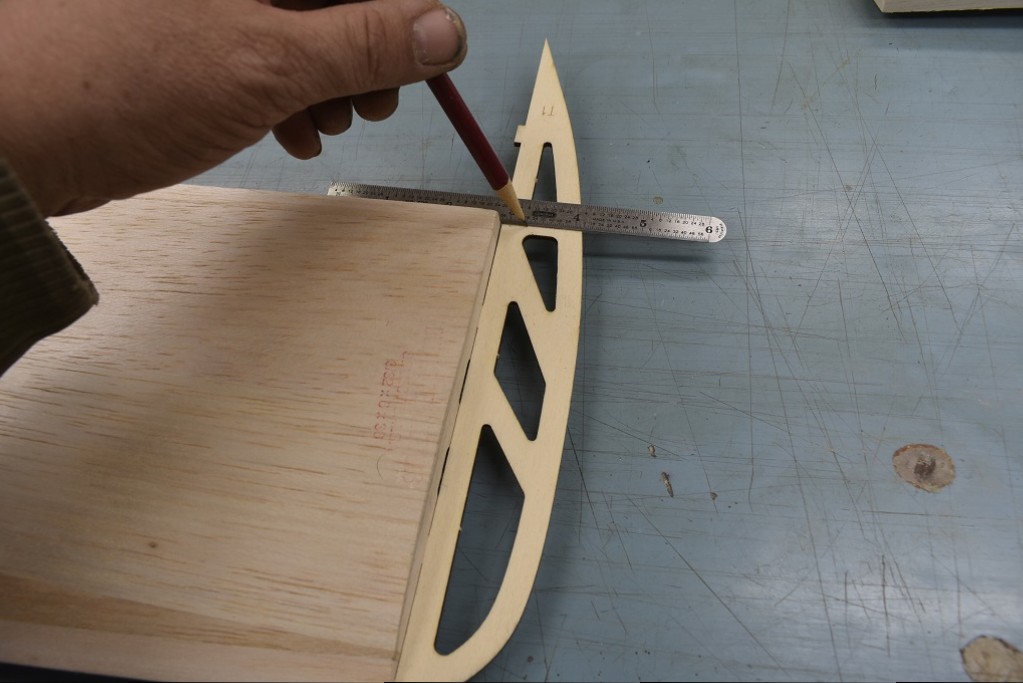

        Adding the leading and trailing edges along with the ply root end cap.

        Click image for larger version

Name:	DSC_1463.JPG
Views:	1
Size:	112.6 KB
ID:	34698

        Click image for larger version

Name:	DSC_1466.JPG
Views:	1
Size:	77.0 KB
ID:	34696

        Click image for larger version

Name:	DSC_1467.JPG
Views:	1
Size:	65.0 KB
ID:	34695

        Click image for larger version

Name:	DSC_1468.JPG
Views:	1
Size:	50.8 KB
ID:	34697

        Comment


        • #94

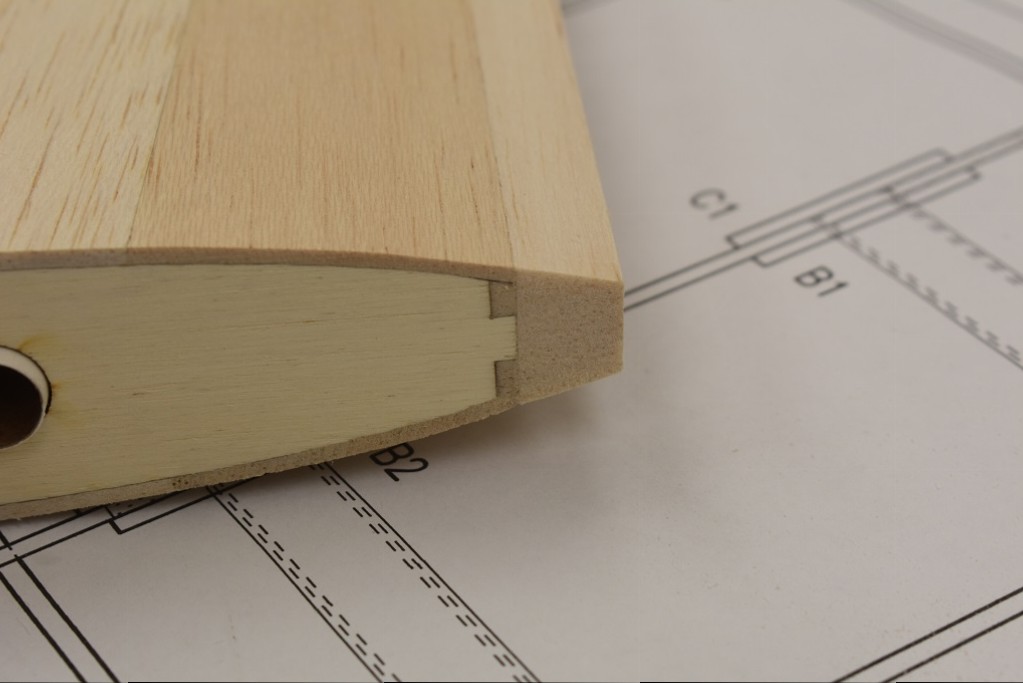

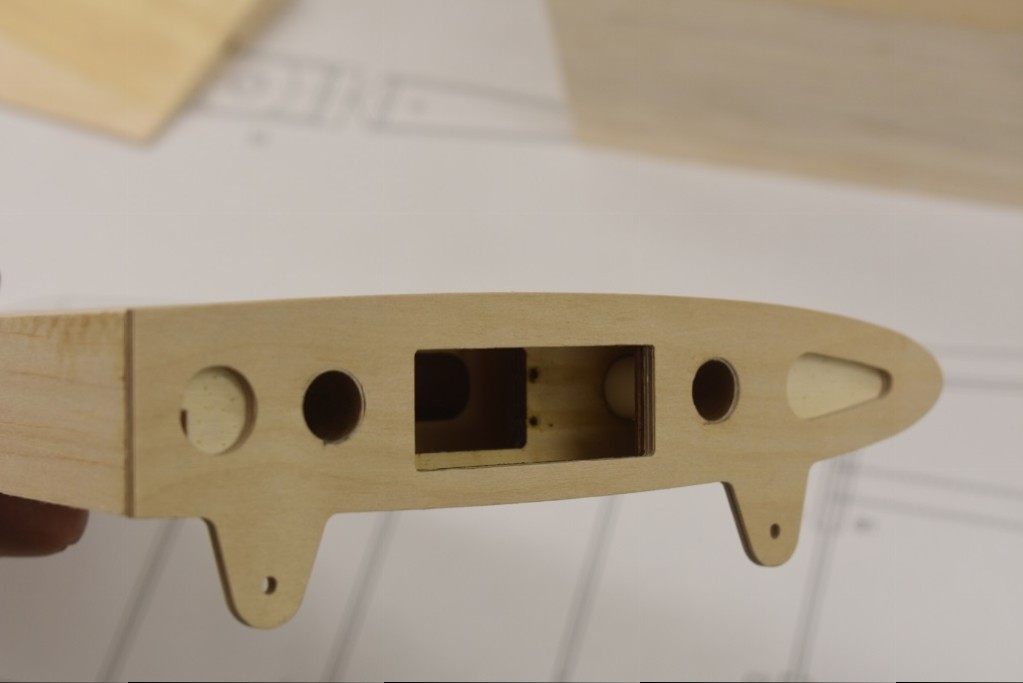

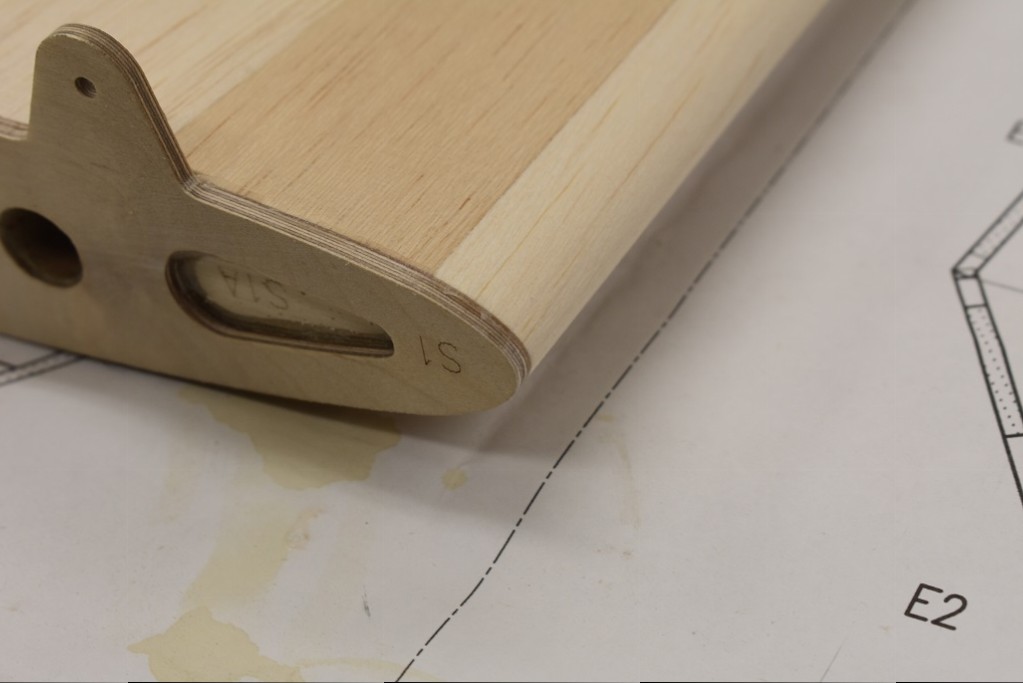

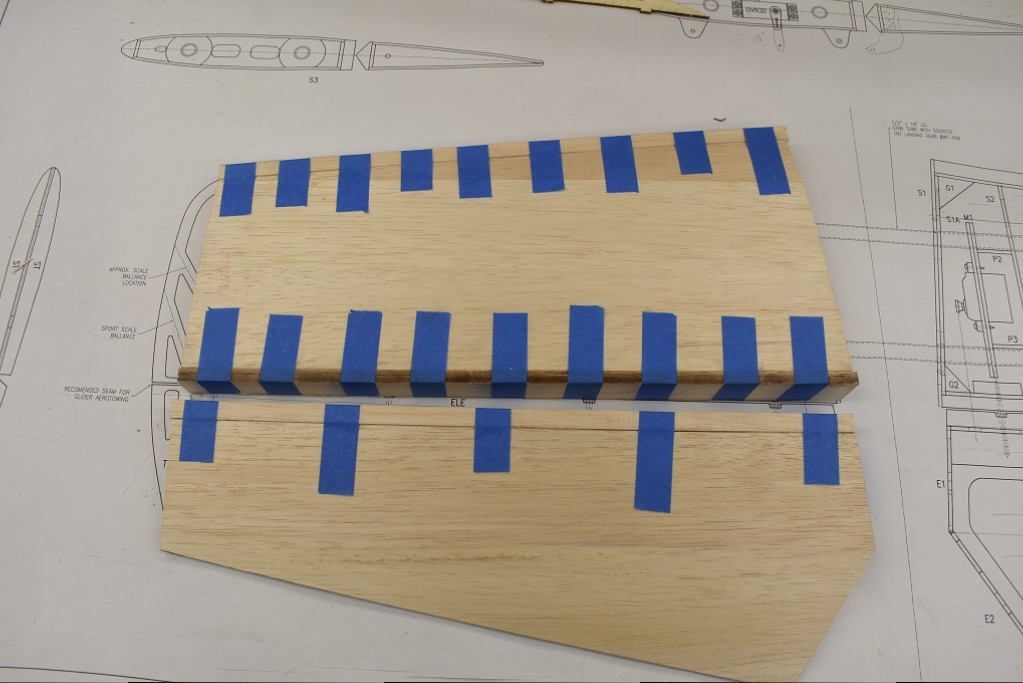

          The balance on the elevators... On the plans show the scale balance, sport scale balance and no balance for tow plane duty. You can kinda see them (the diagonals) on the lite ply center piece.

          Click image for larger version

Name:	DSC_1494.JPG
Views:	1
Size:	112.2 KB
ID:	34715

          Click image for larger version

Name:	DSC_1499.JPG
Views:	1
Size:	104.7 KB
ID:	34716

          Click image for larger version

Name:	DSC_1500.JPG
Views:	1
Size:	127.7 KB
ID:	34718

          Click image for larger version

Name:	DSC_1501.JPG
Views:	1
Size:	96.0 KB
ID:	34717

          Click image for larger version

Name:	DSC_1502.JPG
Views:	1
Size:	111.2 KB
ID:	34719

          Comment

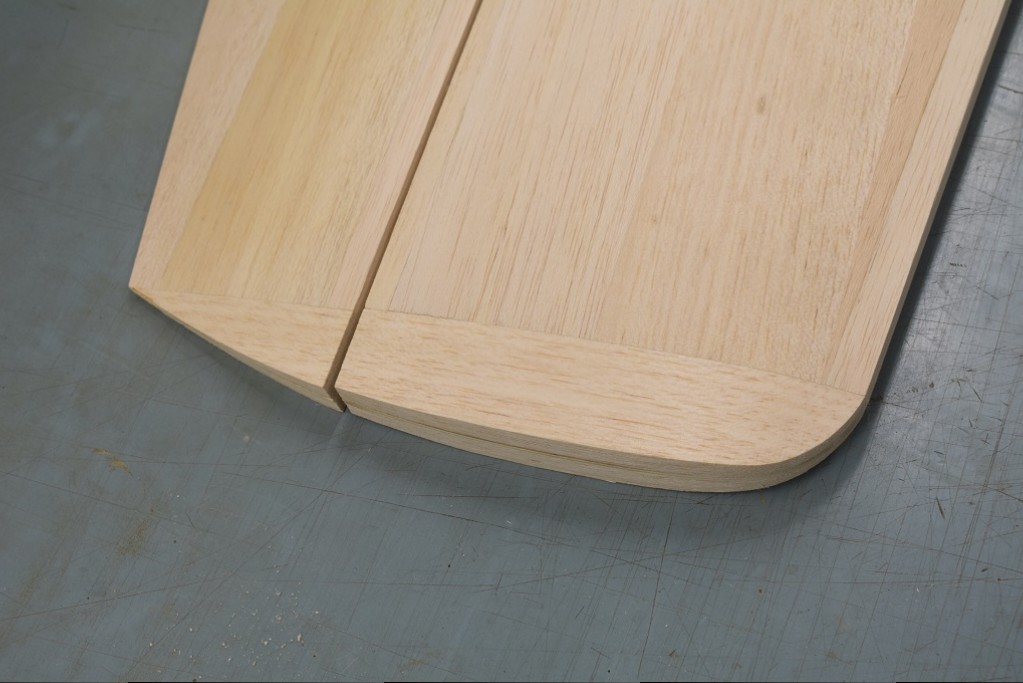

          • #95

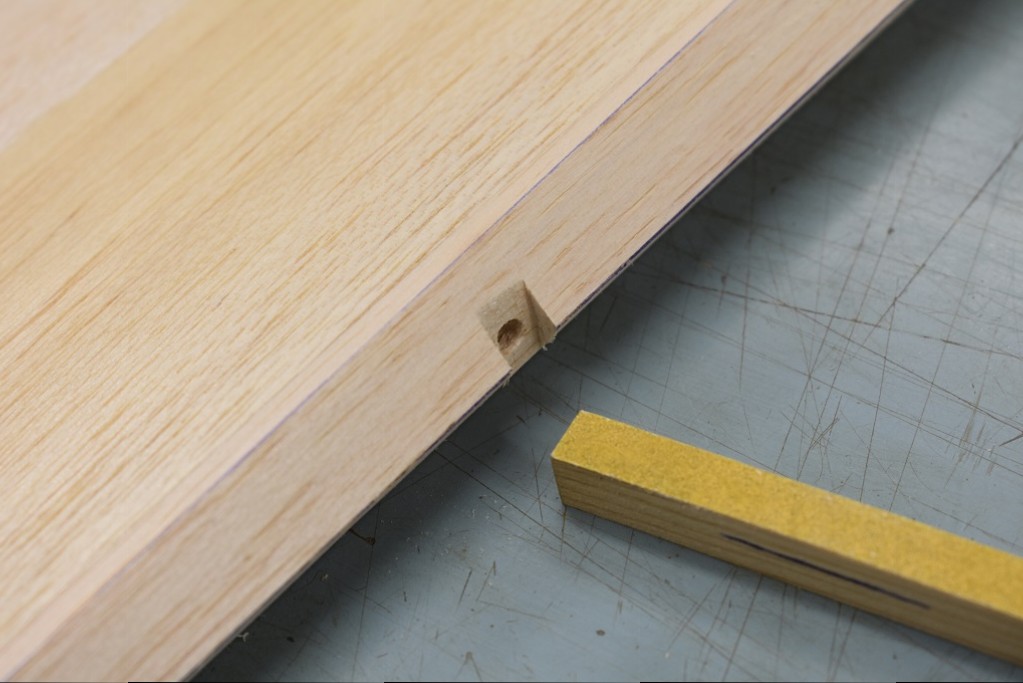

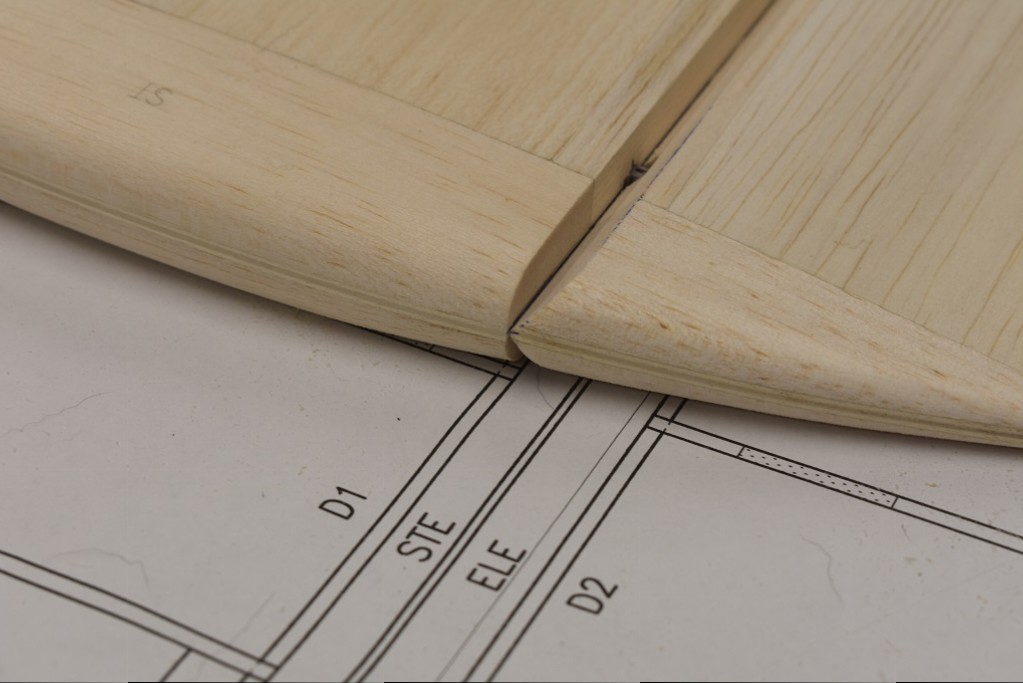

            A little sanding and hinging.

            Click image for larger version

Name:	DSC_1525.JPG
Views:	1
Size:	96.1 KB
ID:	34723

            Click image for larger version

Name:	DSC_1526.JPG
Views:	1
Size:	72.2 KB
ID:	34721

            Click image for larger version

Name:	DSC_1523.JPG
Views:	1
Size:	47.4 KB
ID:	34722

            Click image for larger version

Name:	DSC_1547.JPG
Views:	1
Size:	109.8 KB
ID:	34724

            Click image for larger version

Name:	DSC_1550.JPG
Views:	1
Size:	71.9 KB
ID:	34725

            Comment


            • #96

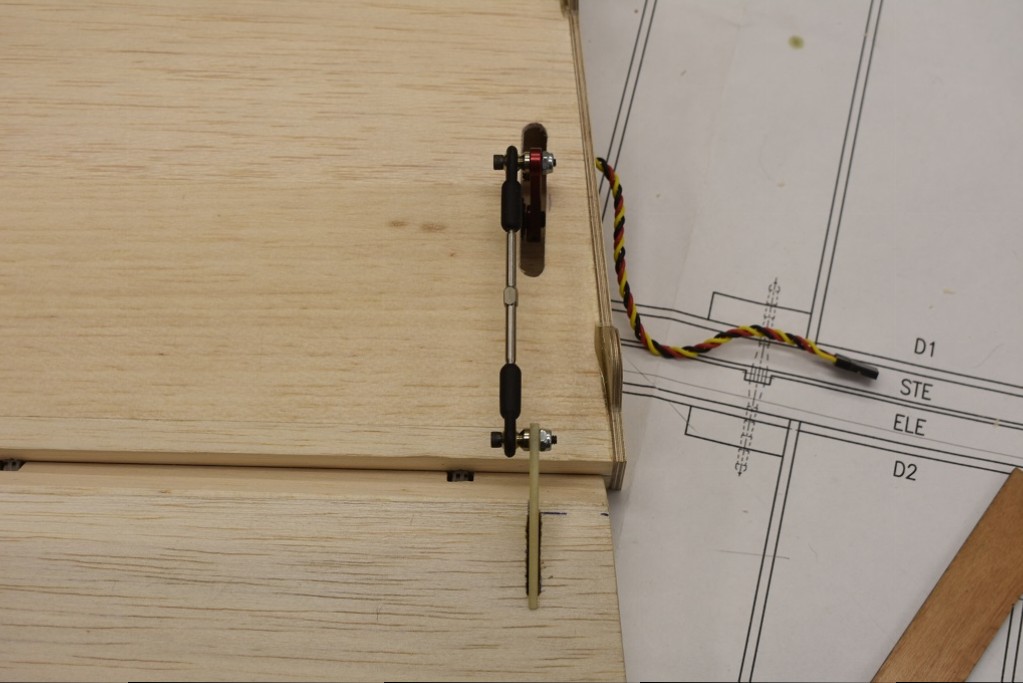

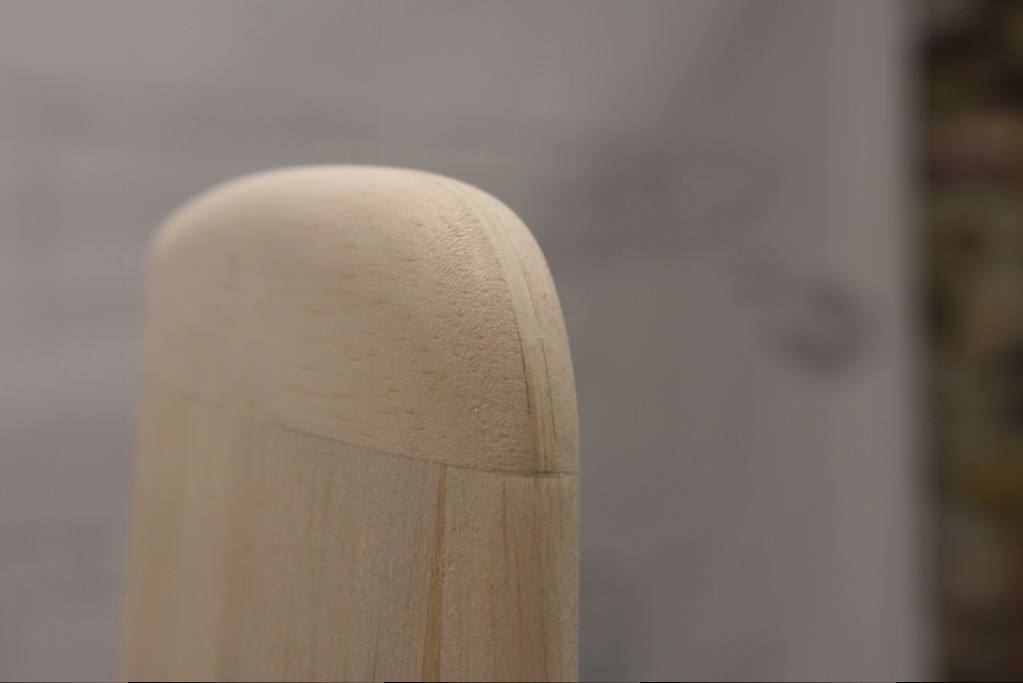

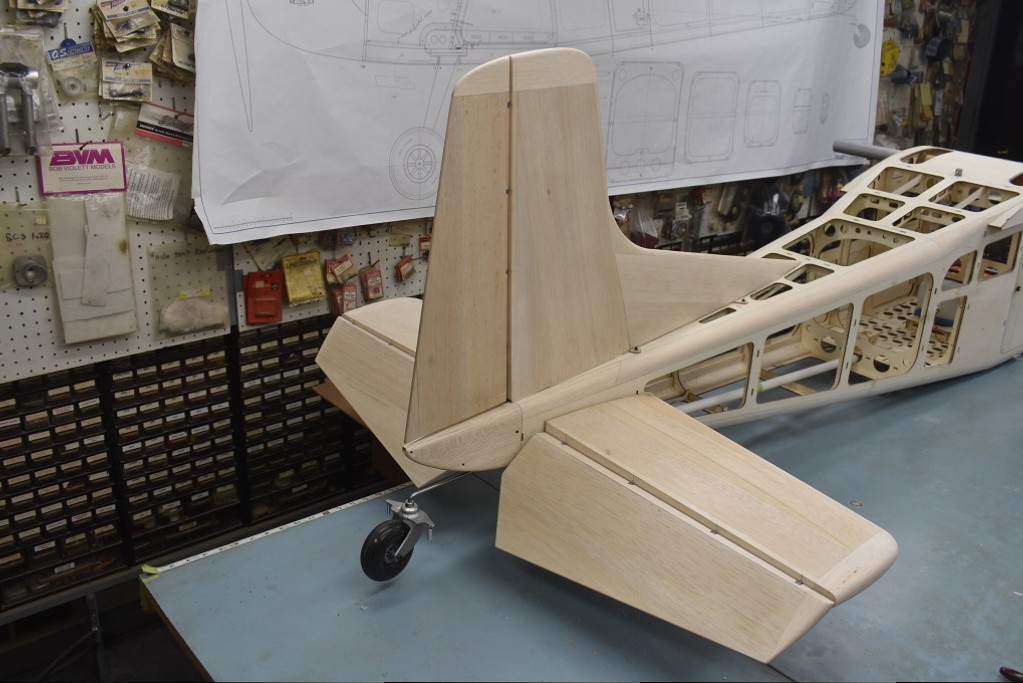

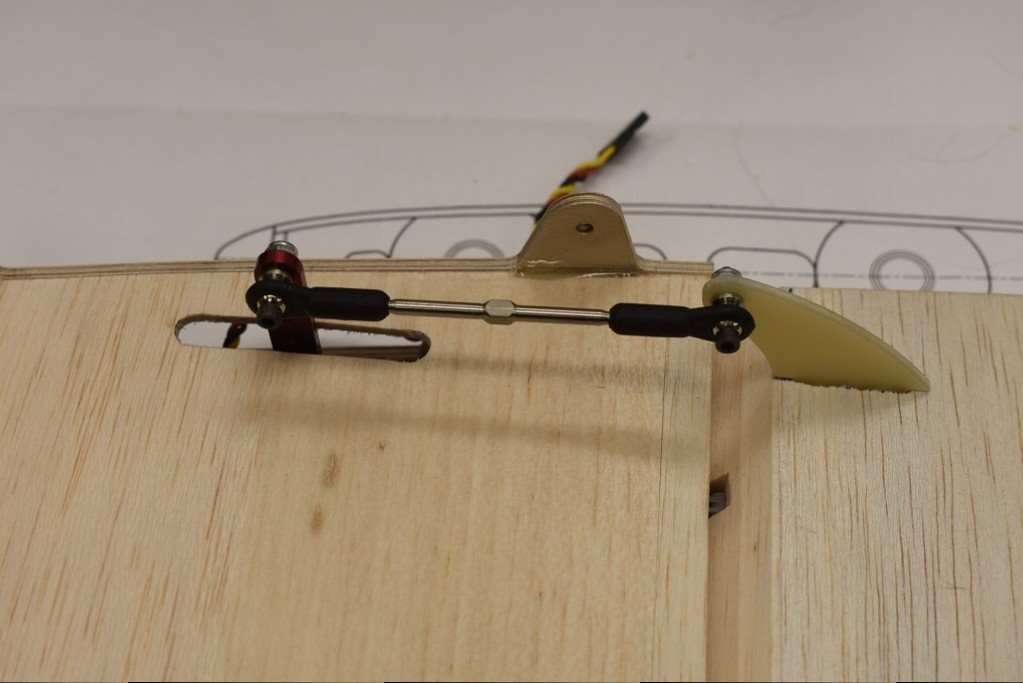

              Pushrod and horn. And the finished tail assembly.

              Click image for larger version

Name:	DSC_1542.JPG
Views:	1
Size:	117.6 KB
ID:	34730

              Click image for larger version

Name:	DSC_1540.JPG
Views:	1
Size:	109.0 KB
ID:	34728

              Click image for larger version

Name:	DSC_1541.JPG
Views:	1
Size:	95.2 KB
ID:	34727

              Click image for larger version

Name:	DSC_1565.JPG
Views:	1
Size:	144.4 KB
ID:	34729

              Comment


              • ARUP
                ARUP commented
                Editing a comment
                Very nice work, Gunny!

            • #97
              Beautiful Gunny!
              Love it!

              Steve K

              Comment


              • #98
                Incredible skills. Always looking forward to the next segment.
                Regards Dean

                Comment


                • #99
                  Top Quality as always Gunny
                  Jeremy

                  SCCAAA TT TN

                  Comment


                  • Thank you Guys! Makes me want to post more.

                    Comment

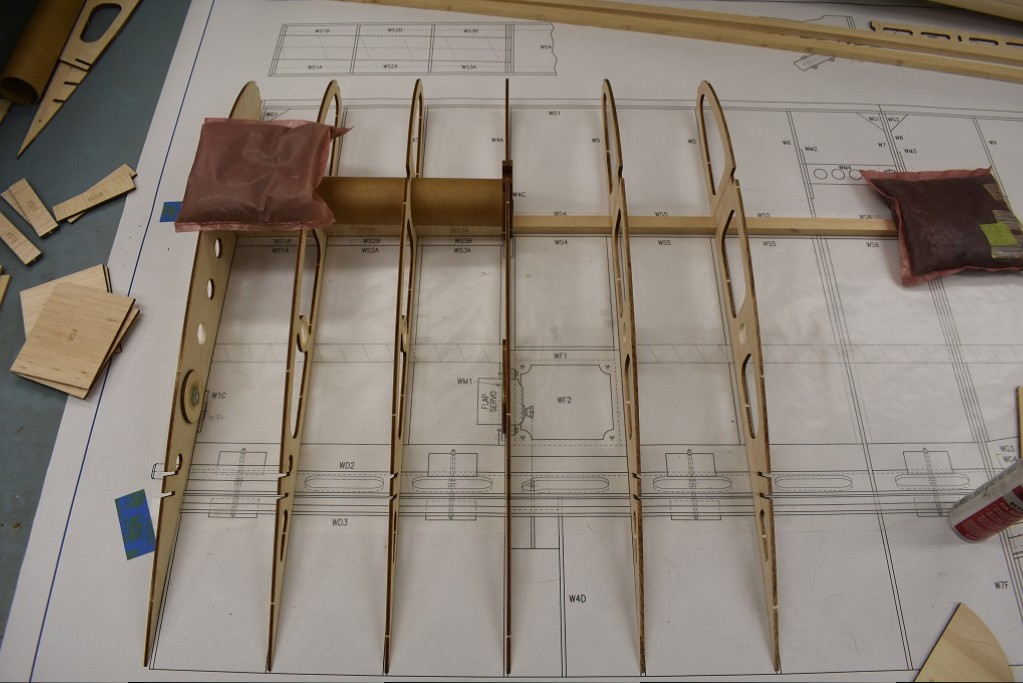

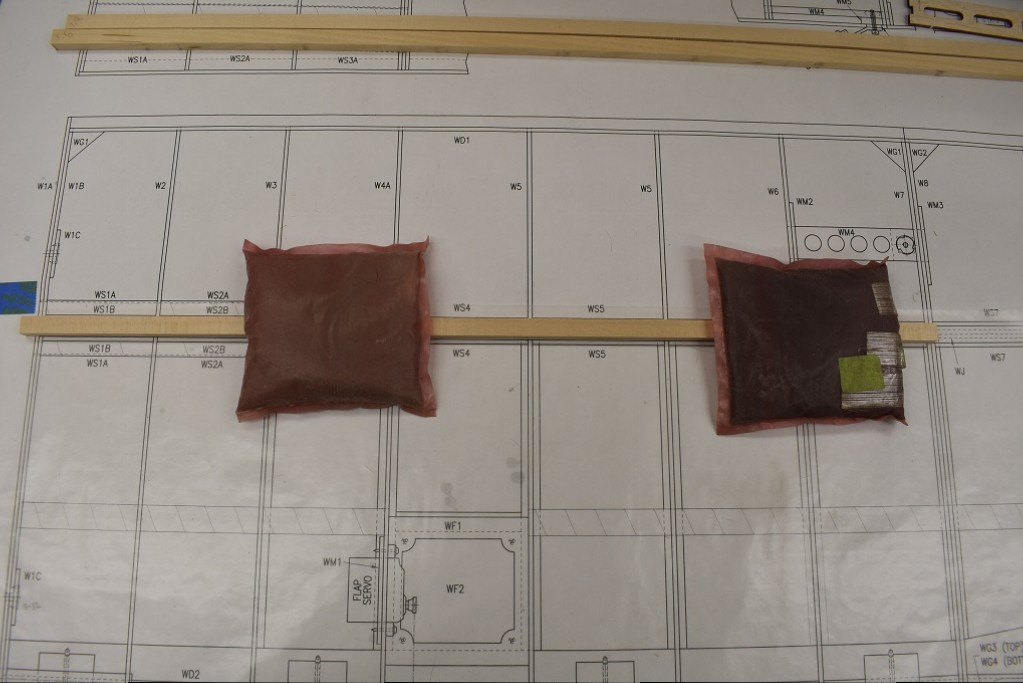

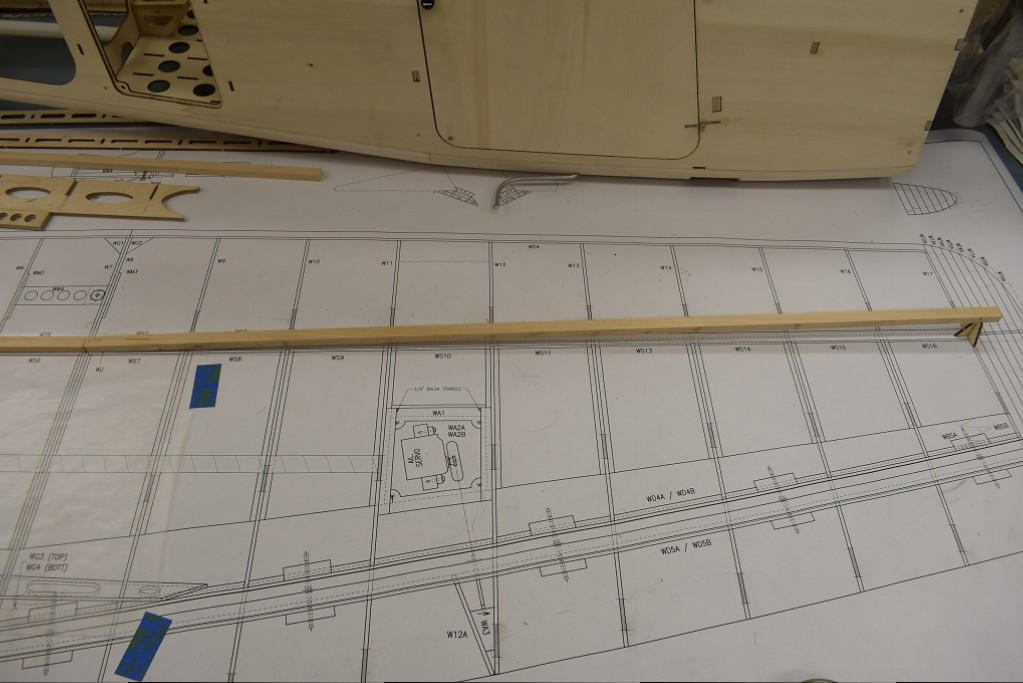

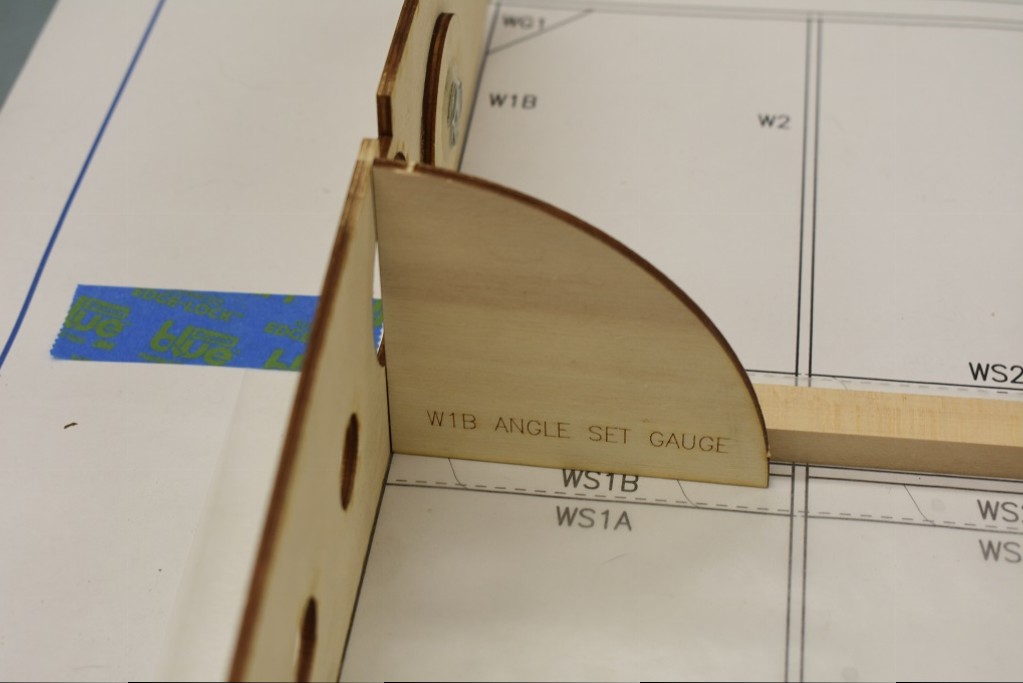

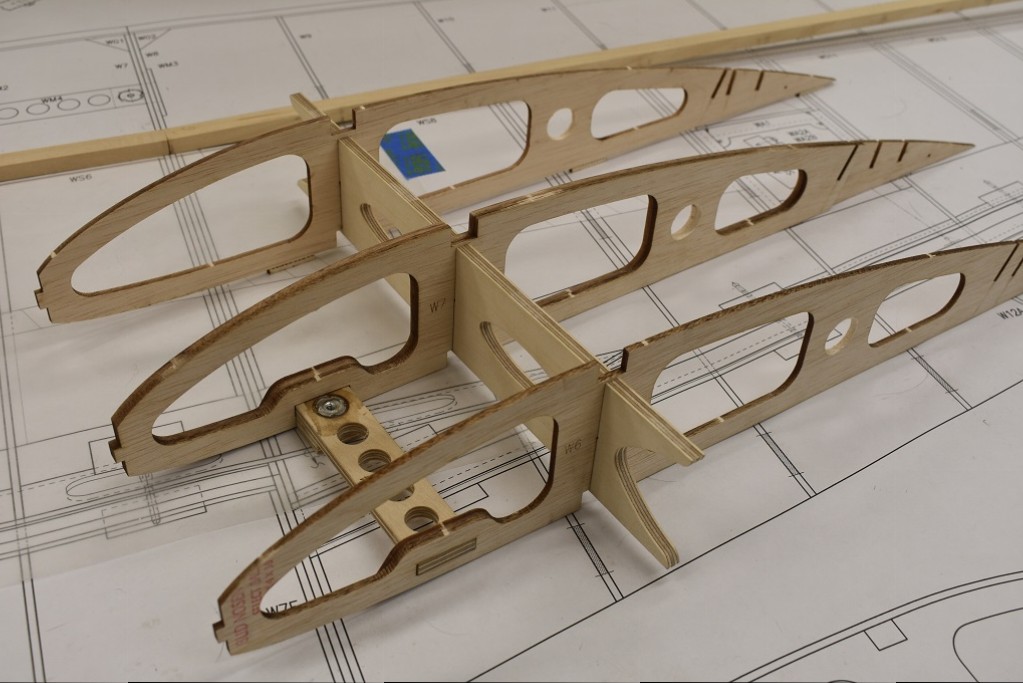

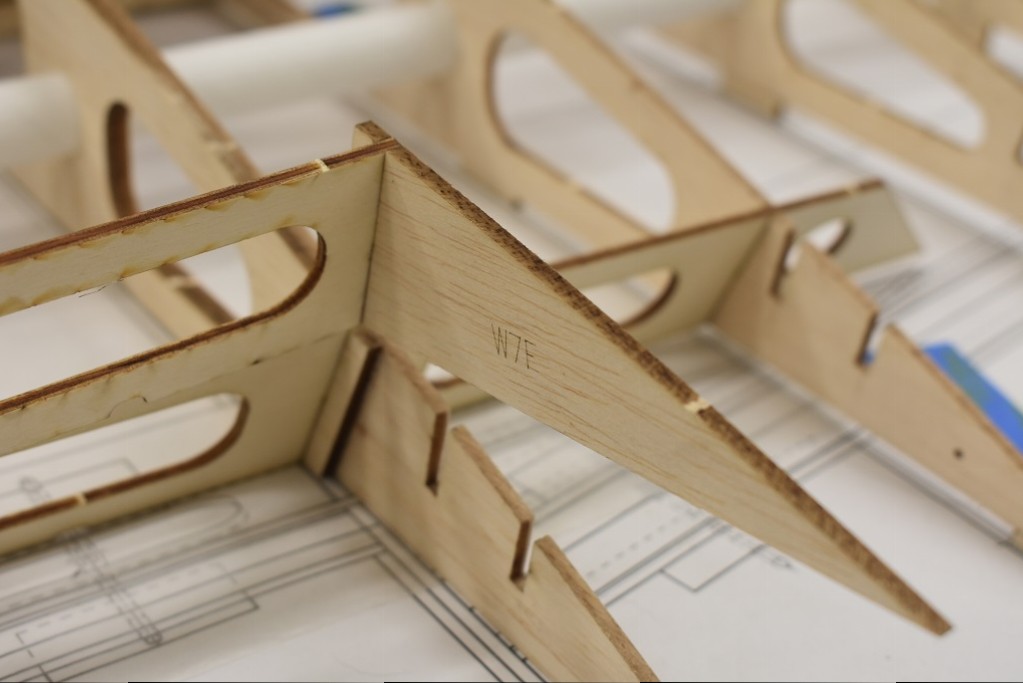

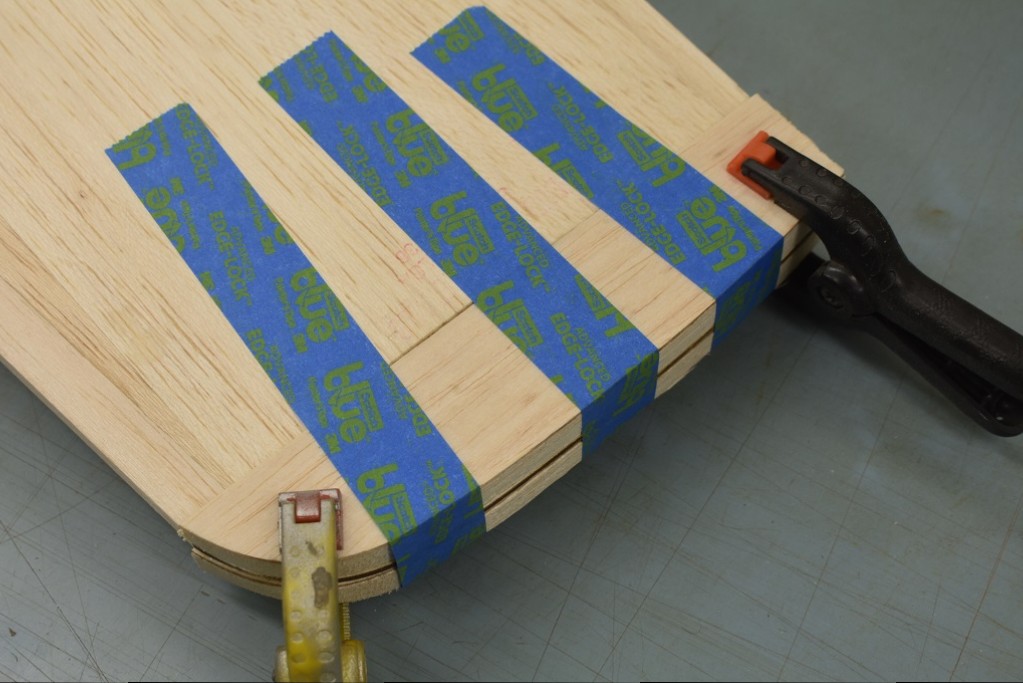

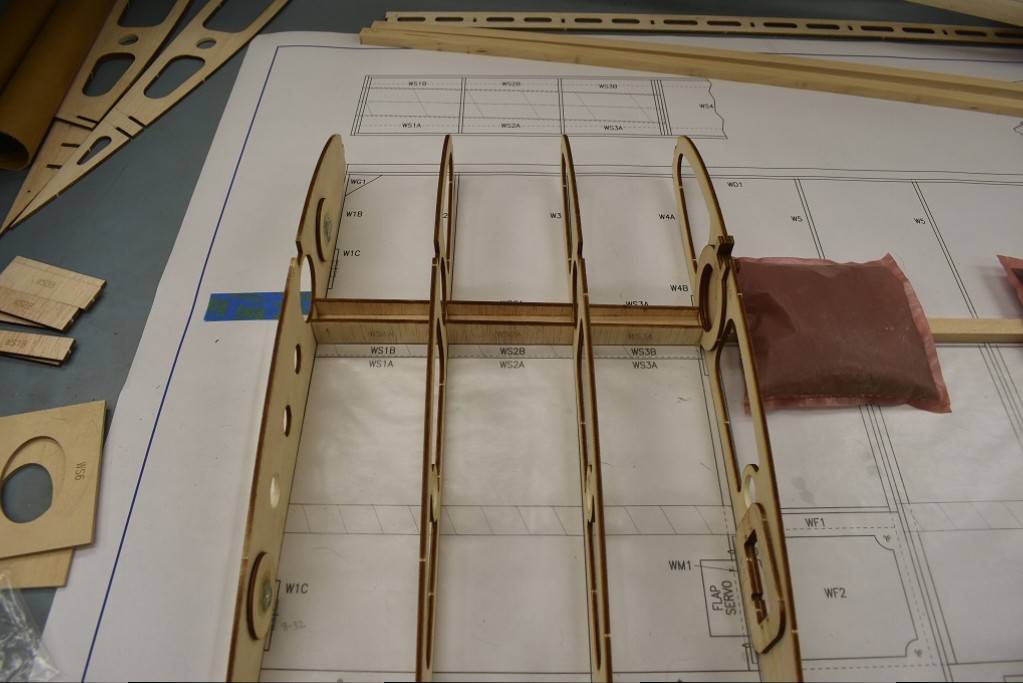

                    • Well Dean, here is the next segment. Wing Structure begins.
                      Pretty much self explanatory.

                      Click image for larger version

Name:	DSC_1604.JPG
Views:	1
Size:	109.3 KB
ID:	34748

                      Click image for larger version

Name:	DSC_1606.JPG
Views:	1
Size:	70.5 KB
ID:	34750

                      Click image for larger version

Name:	DSC_1614.JPG
Views:	1
Size:	120.9 KB
ID:	34752

                      Click image for larger version

Name:	DSC_1616.JPG
Views:	1
Size:	98.7 KB
ID:	34749

                      Click image for larger version

Name:	DSC_1618.JPG
Views:	1
Size:	130.5 KB
ID:	34751

                      Comment

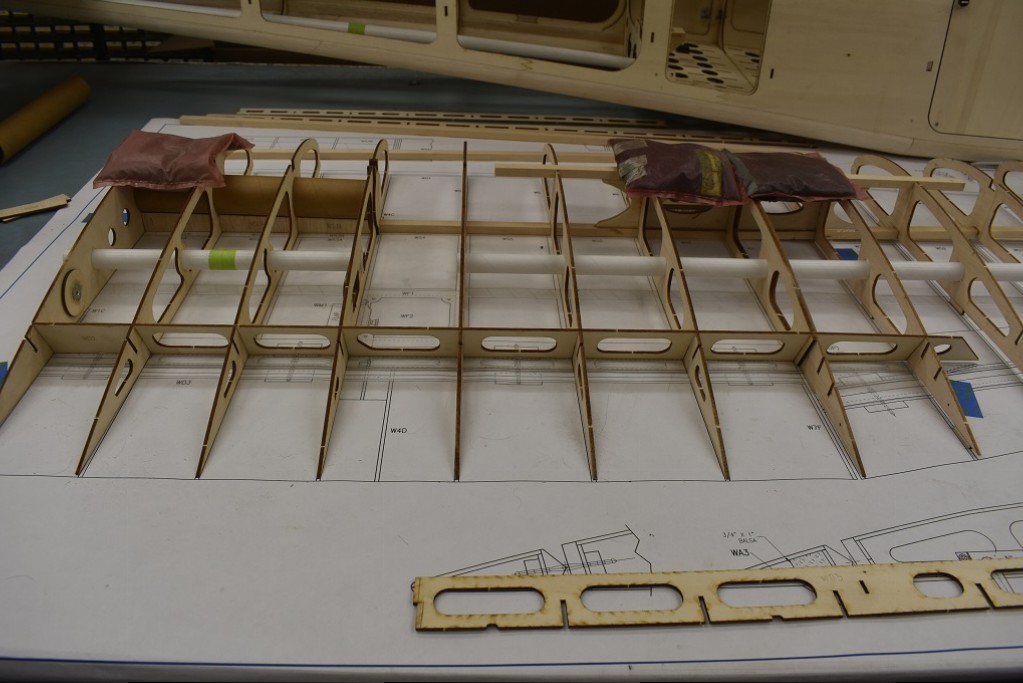

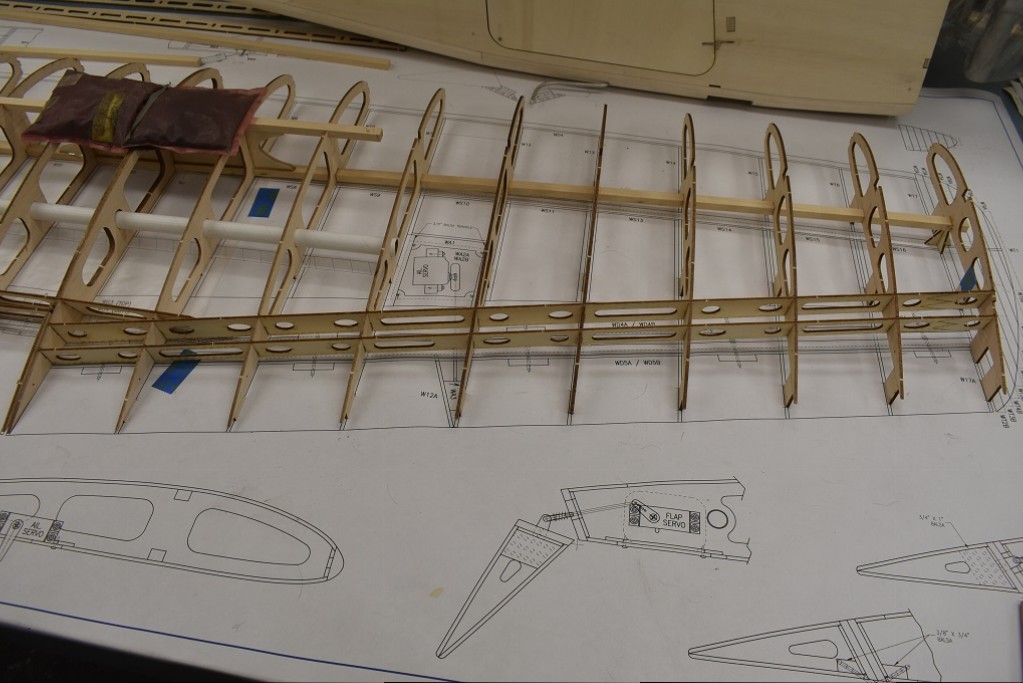

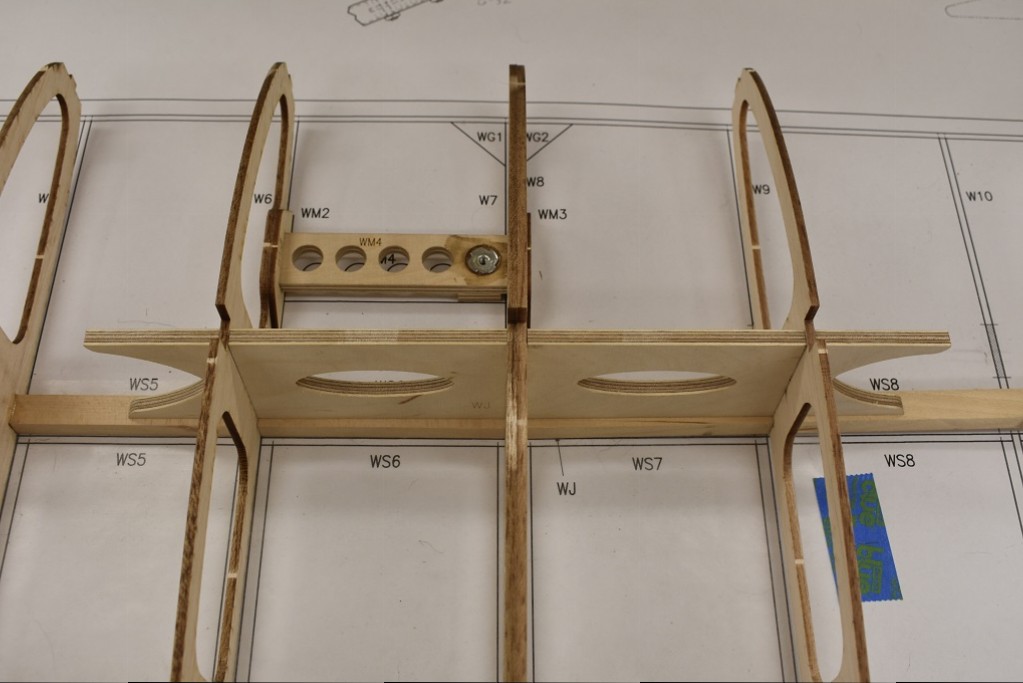

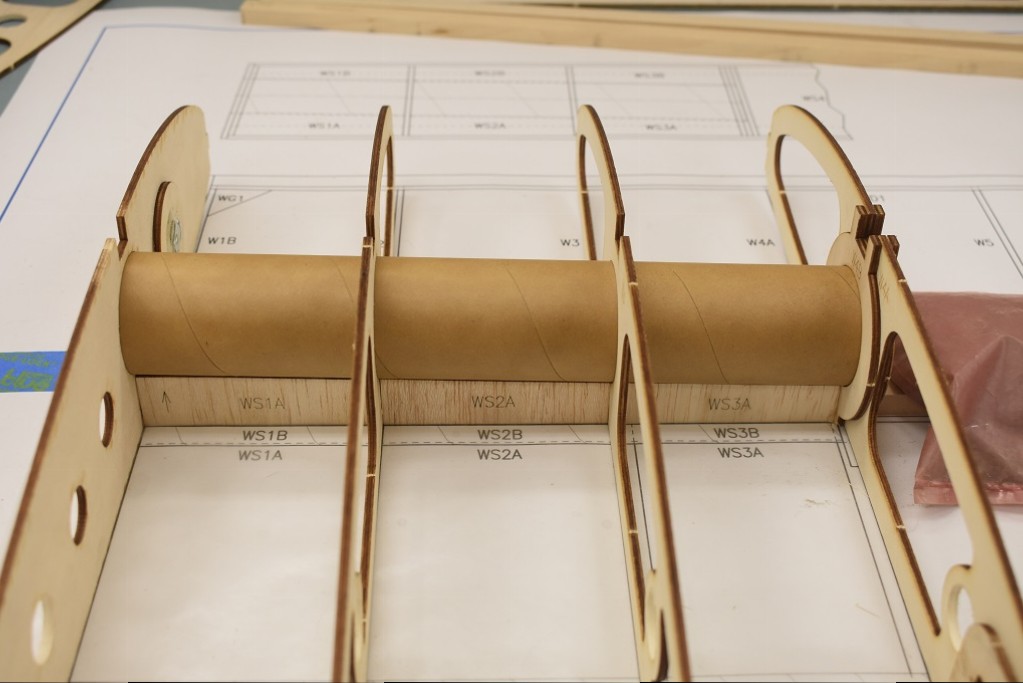

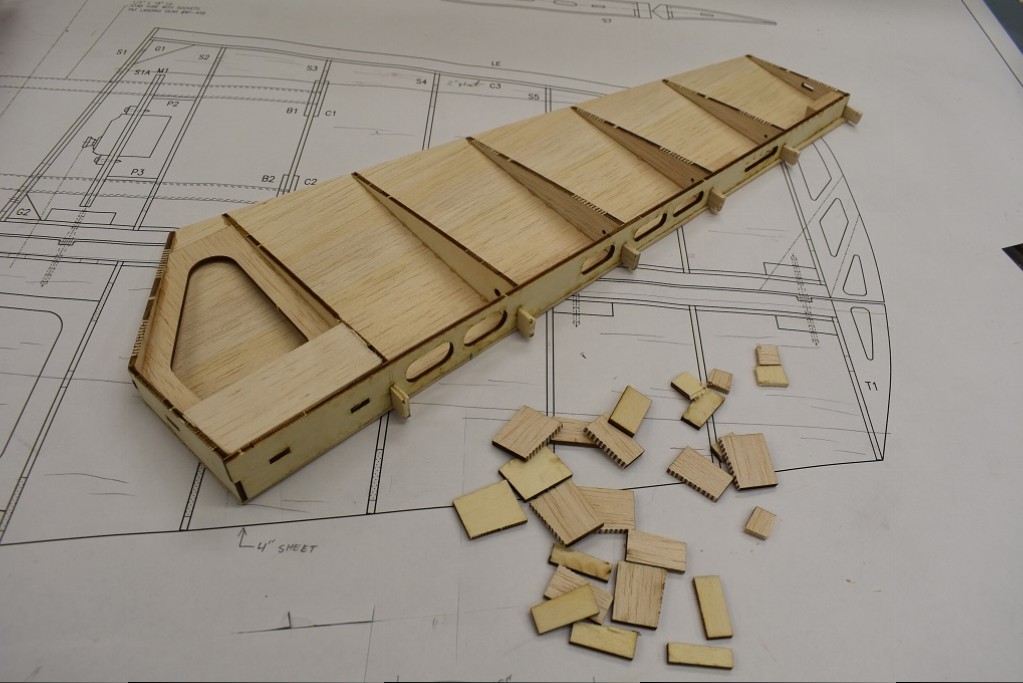

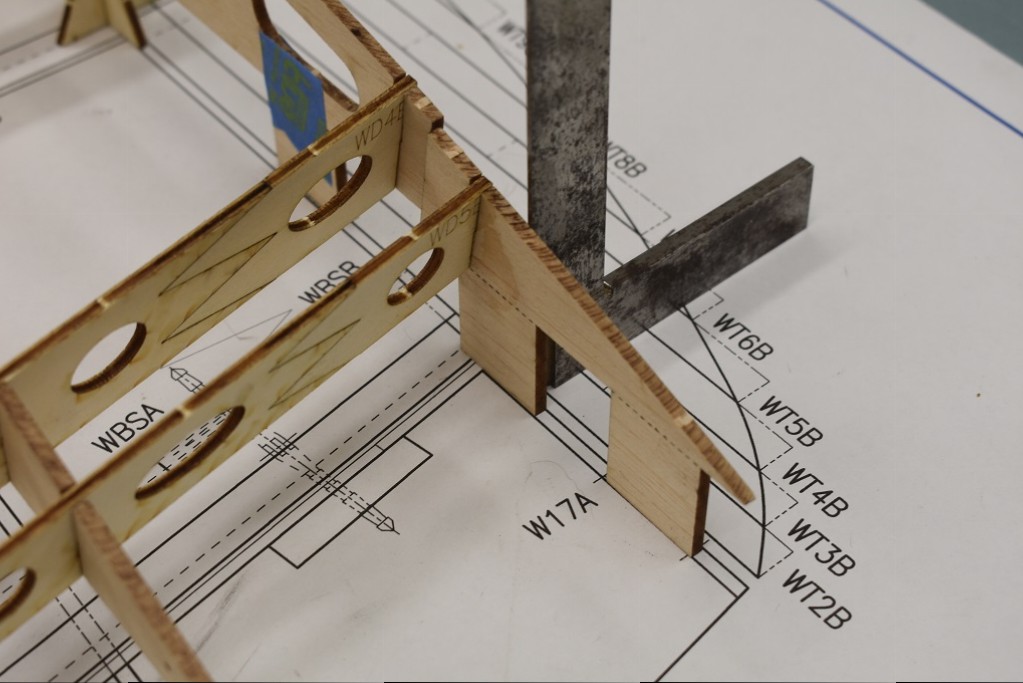

                      • So the outer wing panel is a continuous build off the inboard wing panel. The outboard bottom spar sits on a "jack stand" and the ribs have build tabs that progressively get longer as they approach out towards the tip. The wing break joint assembly has a CNC 1/4" birch ply joiner that gets epoxied to the bottom spars. The joiner and ribs are half notched so they key into one another.

                        Click image for larger version

Name:	DSC_1626.JPG
Views:	1
Size:	121.0 KB
ID:	34794

                        Click image for larger version

Name:	DSC_1628.JPG
Views:	1
Size:	122.7 KB
ID:	34795

                        Click image for larger version

Name:	DSC_1630.JPG
Views:	1
Size:	134.7 KB
ID:	34793

                        Click image for larger version

Name:	DSC_1633.JPG
Views:	1
Size:	99.6 KB
ID:	34792

                        Click image for larger version

Name:	DSC_1644.JPG
Views:	1
Size:	126.7 KB
ID:	34796

                        Comment

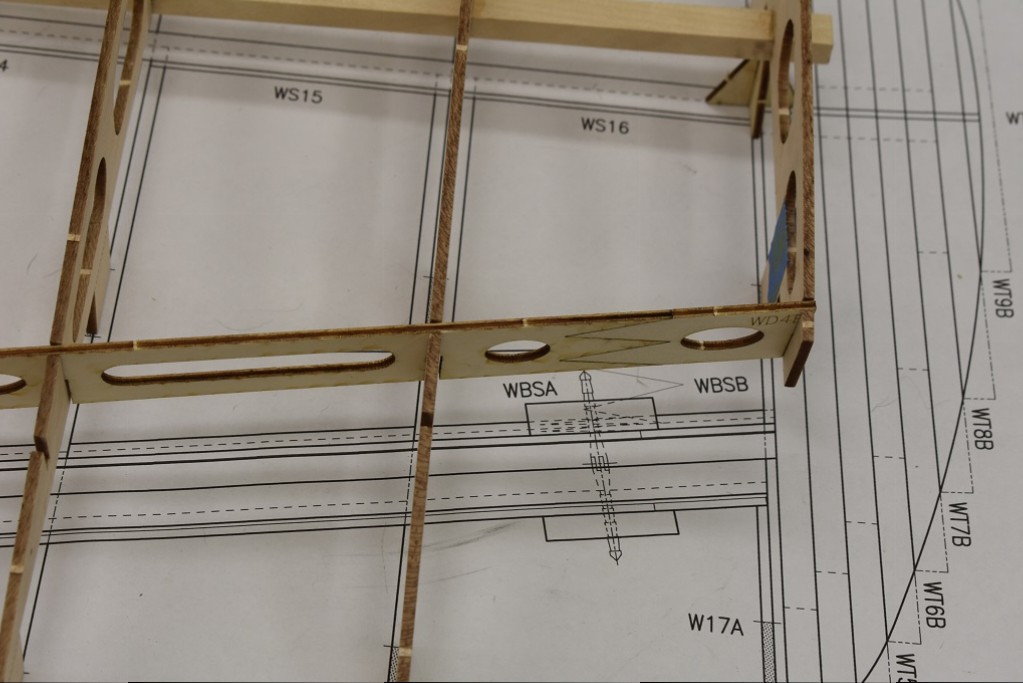

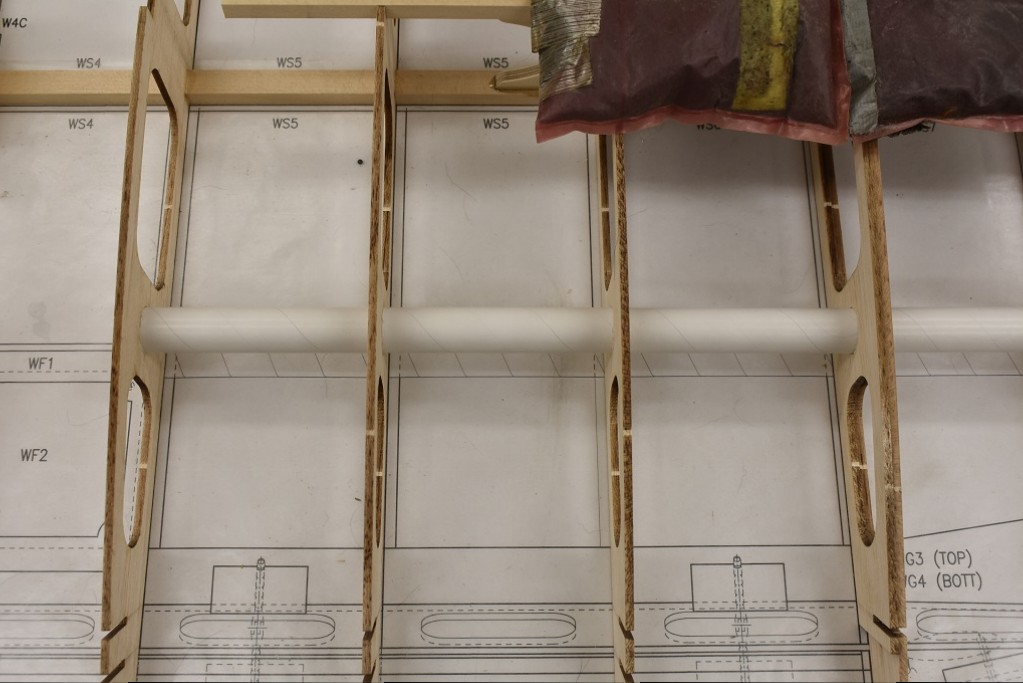

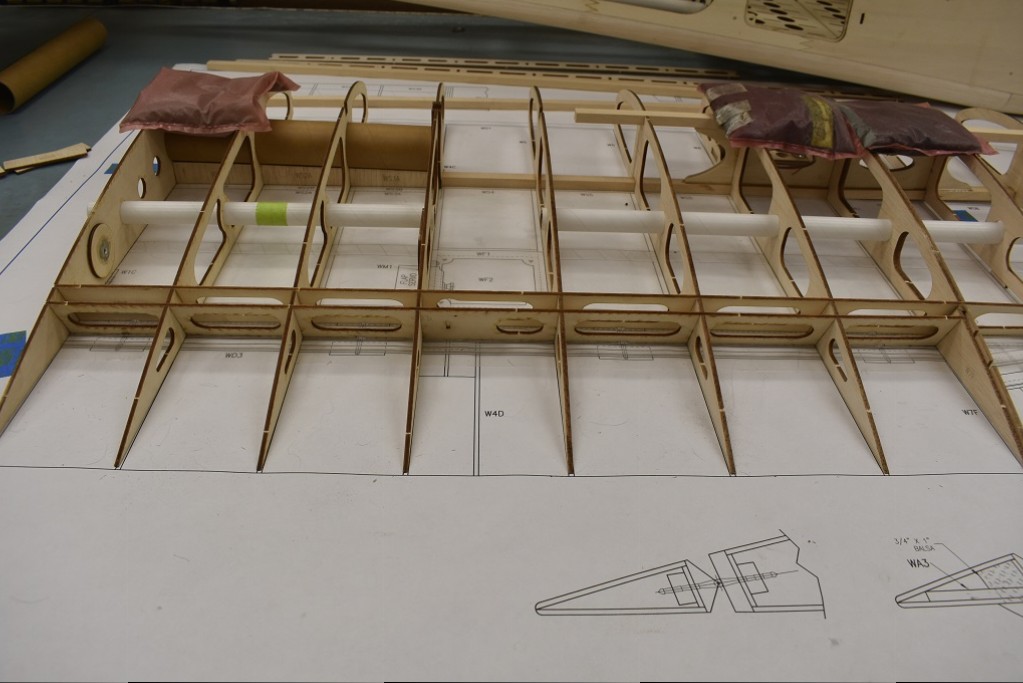

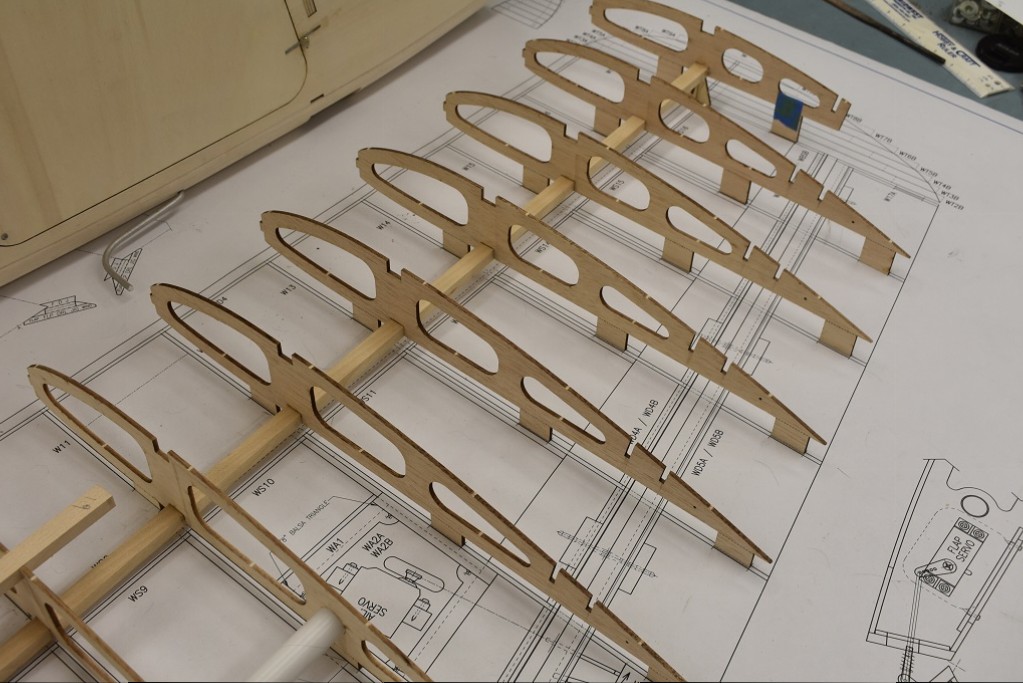

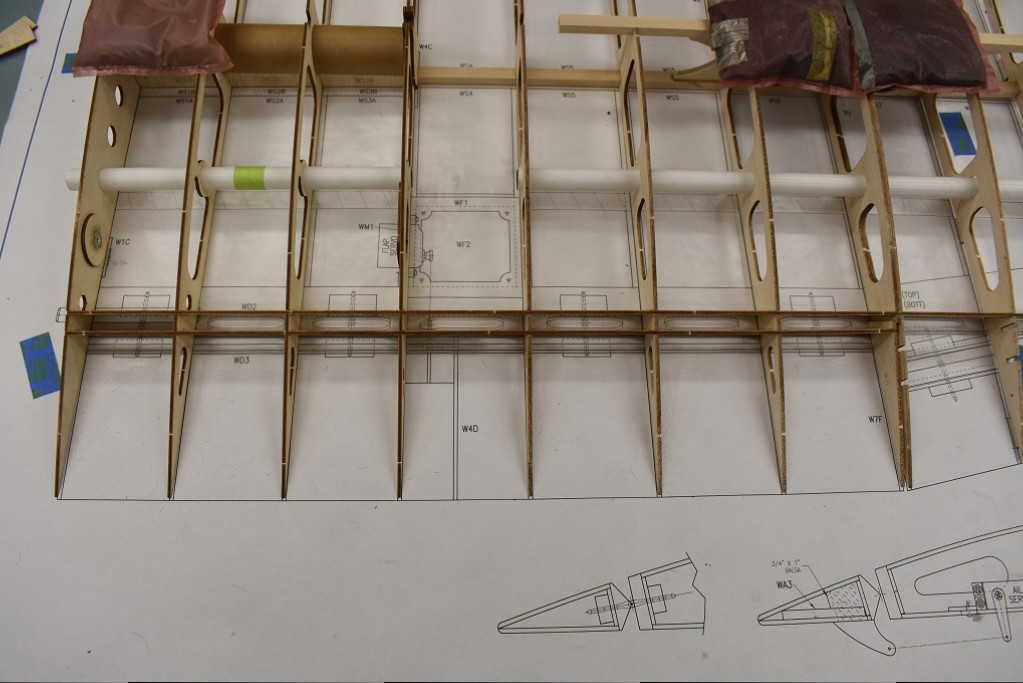

                        • Add another rib and then the servo wire conduit tubes are slipped into place. Then the remaining ribs are all glued in place.

                          Click image for larger version

Name:	DSC_1645.JPG
Views:	1
Size:	122.5 KB
ID:	34799

                          Click image for larger version

Name:	DSC_1646.JPG
Views:	1
Size:	121.3 KB
ID:	34801

                          Click image for larger version

Name:	DSC_1648.JPG
Views:	1
Size:	119.7 KB
ID:	34800

                          Click image for larger version

Name:	DSC_1653.JPG
Views:	1
Size:	122.5 KB
ID:	34798

                          Click image for larger version

Name:	DSC_1655.JPG
Views:	1
Size:	163.7 KB
ID:	34802

                          Comment

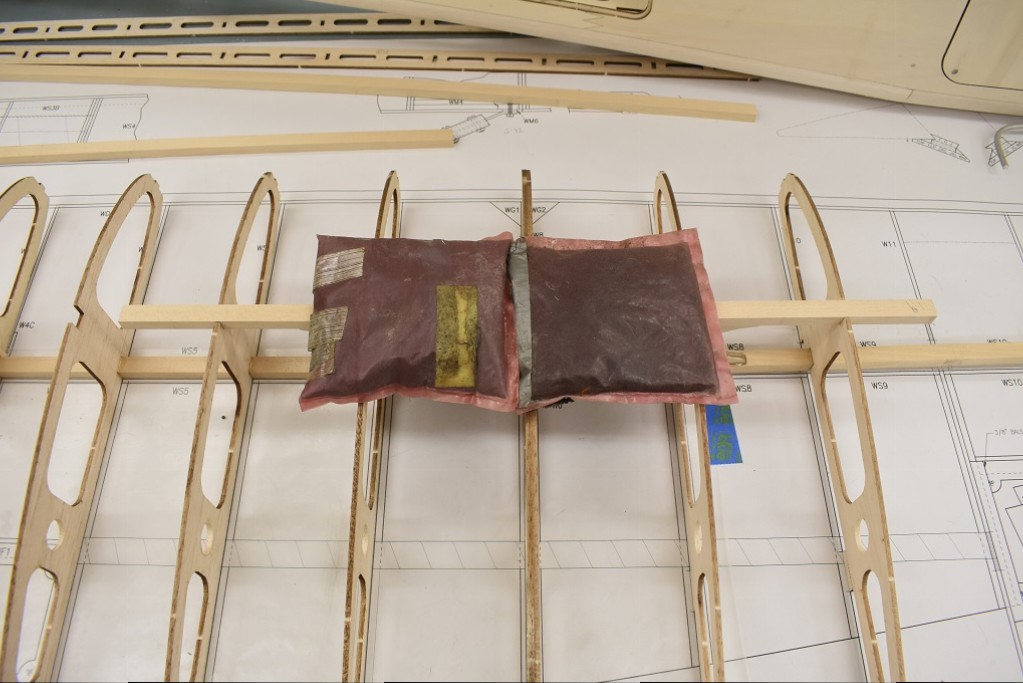

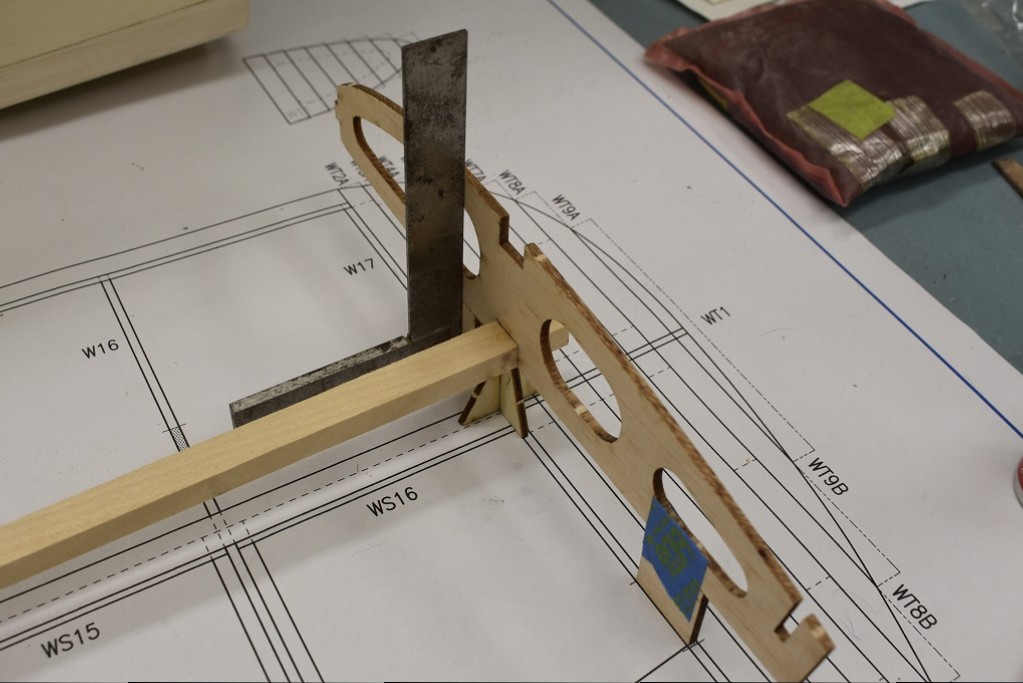

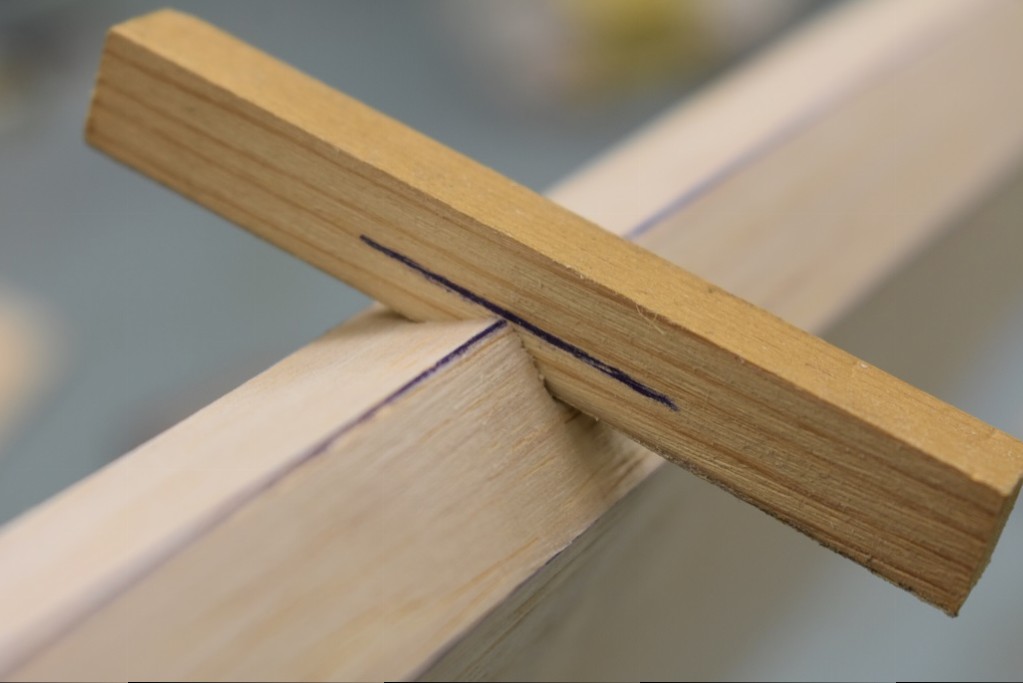

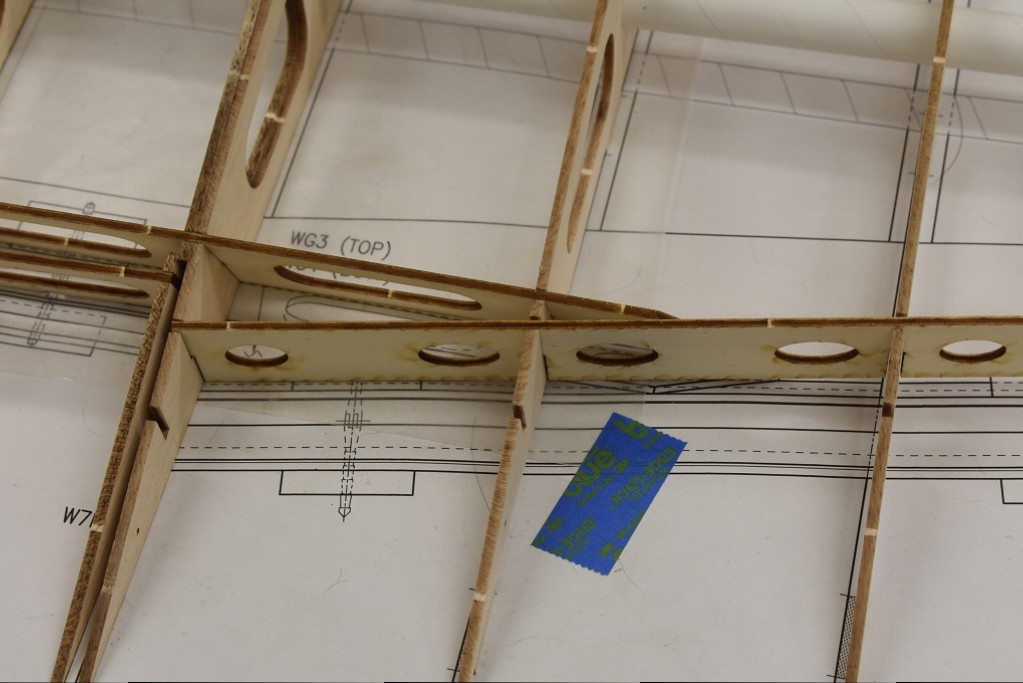

                          • Now the drag spar gets glued into position.

                            Click image for larger version

Name:	DSC_1659.JPG
Views:	1
Size:	129.2 KB
ID:	34816

                            Click image for larger version

Name:	DSC_1660.JPG
Views:	1
Size:	87.6 KB
ID:	34817

                            Click image for larger version

Name:	DSC_1661.JPG
Views:	1
Size:	119.4 KB
ID:	34818

                            Click image for larger version

Name:	DSC_1663.JPG
Views:	1
Size:	123.7 KB
ID:	34819

                            Comment

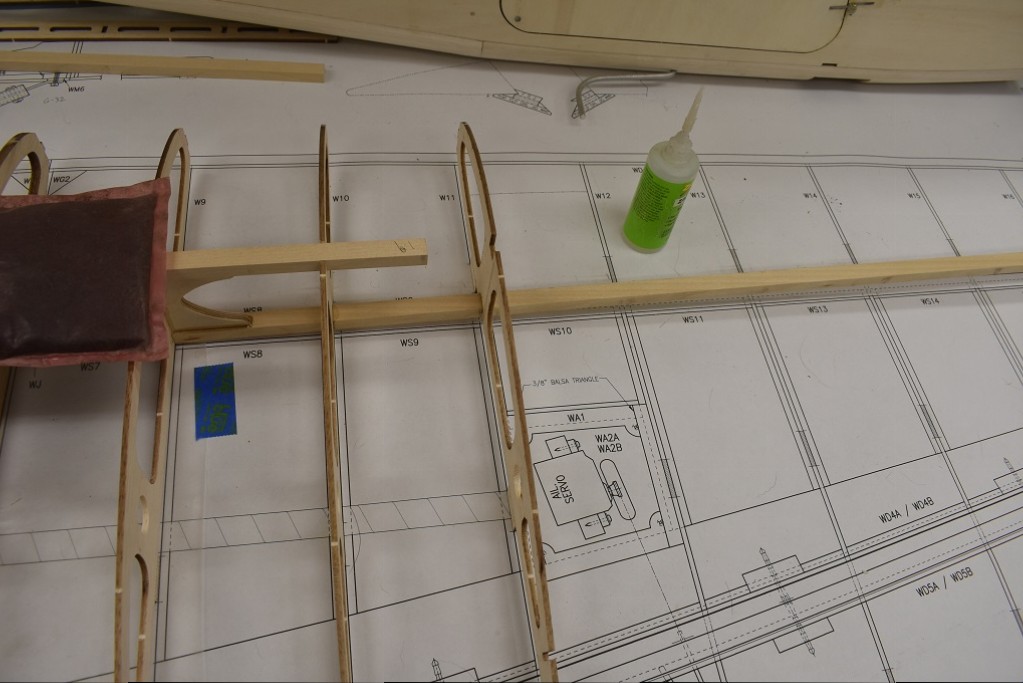

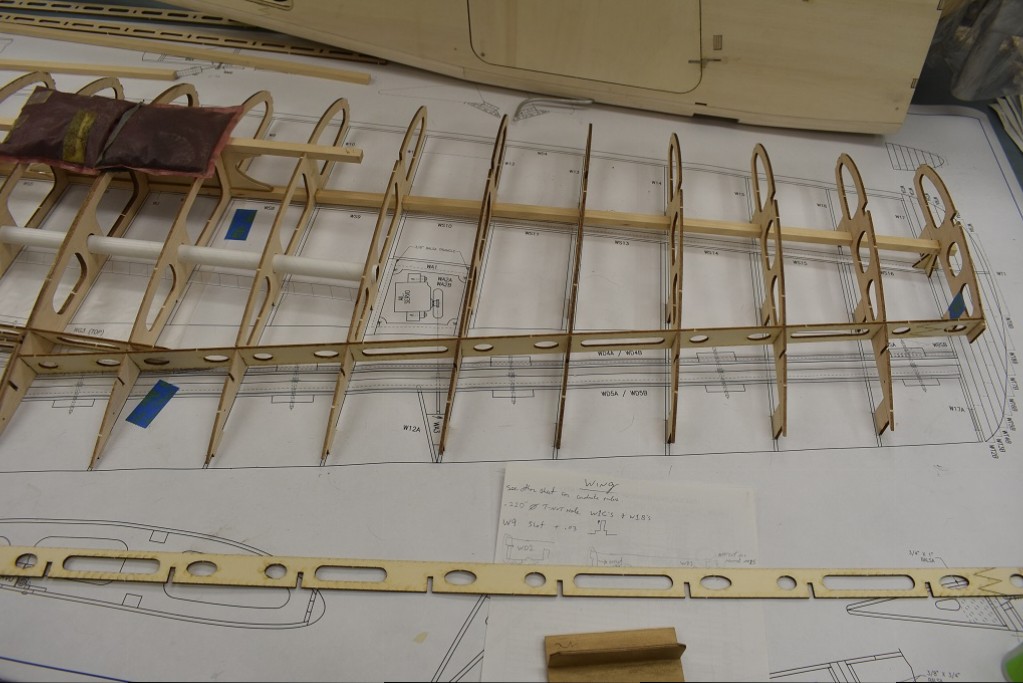

                            • And the drag spars on the outboard panel.

                              Click image for larger version

Name:	DSC_1674.JPG
Views:	1
Size:	109.1 KB
ID:	34825

                              Click image for larger version

Name:	DSC_1675.JPG
Views:	1
Size:	115.7 KB
ID:	34821

                              Click image for larger version

Name:	DSC_1676.JPG
Views:	1
Size:	139.7 KB
ID:	34822

                              Click image for larger version

Name:	DSC_1677.JPG
Views:	1
Size:	135.0 KB
ID:	34824

                              Click image for larger version

Name:	DSC_1682.JPG
Views:	1
Size:	116.8 KB
ID:	34823

                              Comment
