1/3-Scale Cessna 185 ~ by Gunny Bumburs at Aviation Concepts

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • #76

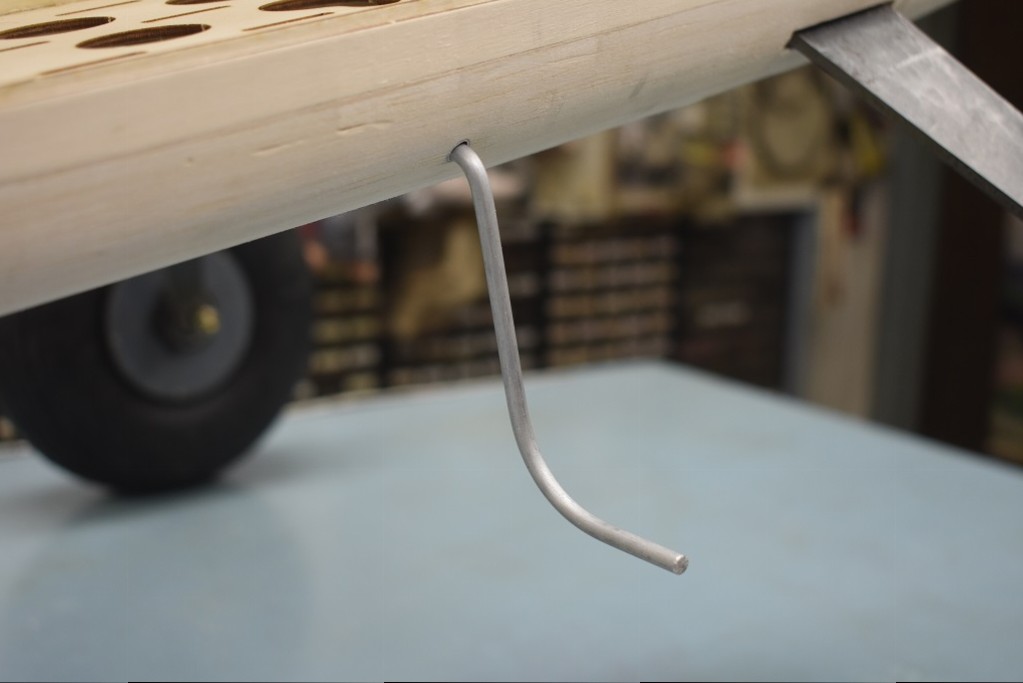

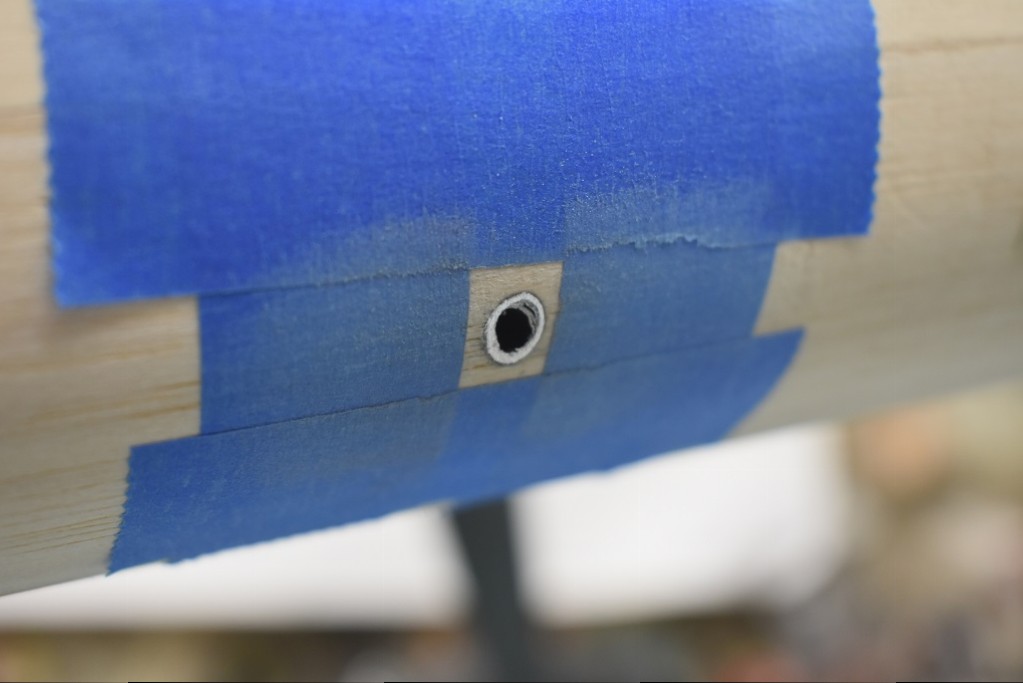

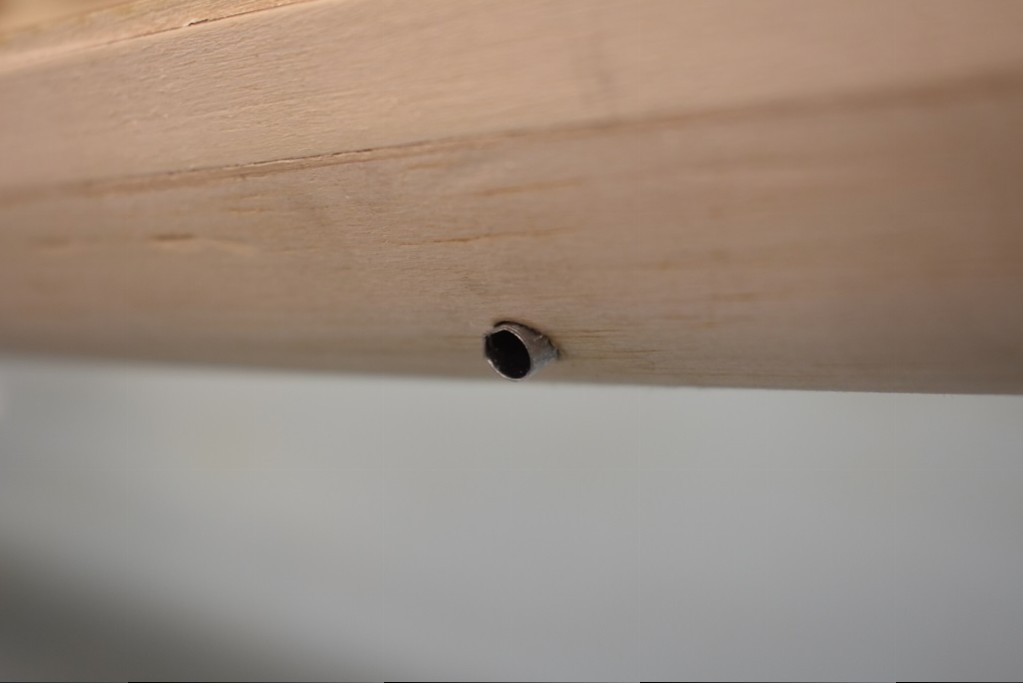

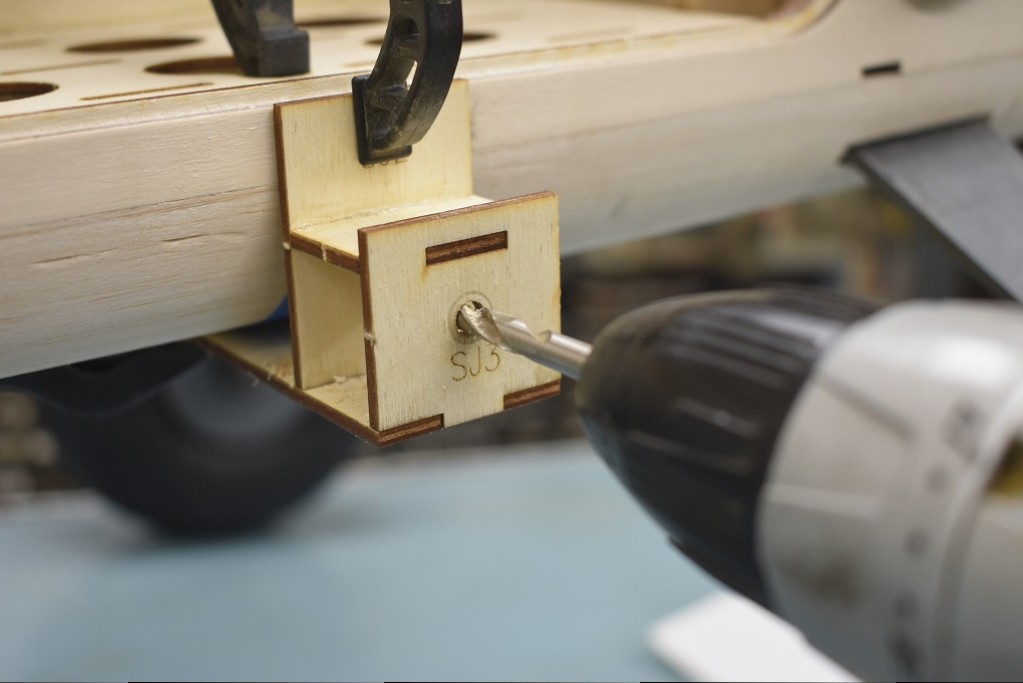

    Solid aluminum step. 3/16" dia. It is removable just by opening the door and loosening a bolt. If it gets bumped, no sweat, it will just swing back.

    Click image for larger version

Name:	DSC_1176.JPG
Views:	1
Size:	79.5 KB
ID:	34120

    Click image for larger version

Name:	DSC_1178.JPG
Views:	1
Size:	47.9 KB
ID:	34124

    Click image for larger version

Name:	DSC_1182.JPG
Views:	1
Size:	79.3 KB
ID:	34121

    Click image for larger version

Name:	DSC_1186.JPG
Views:	1
Size:	65.1 KB
ID:	34123Click image for larger version

Name:	DSC_1197.JPG
Views:	1
Size:	64.0 KB
ID:	34122

    Comment


    • #77
      That pretty much covers the fuselage.For now.

      Comment


      • #78
        What!? I thought that was the hand crank for the inertial starter!
        Last edited by BryanB; 02-17-2019, 07:43 PM.

        Comment


        • gunny11
          gunny11 commented
          Editing a comment
          Lol, don't laugh, before I tightened the bolt I was just doing that.....

      • #79

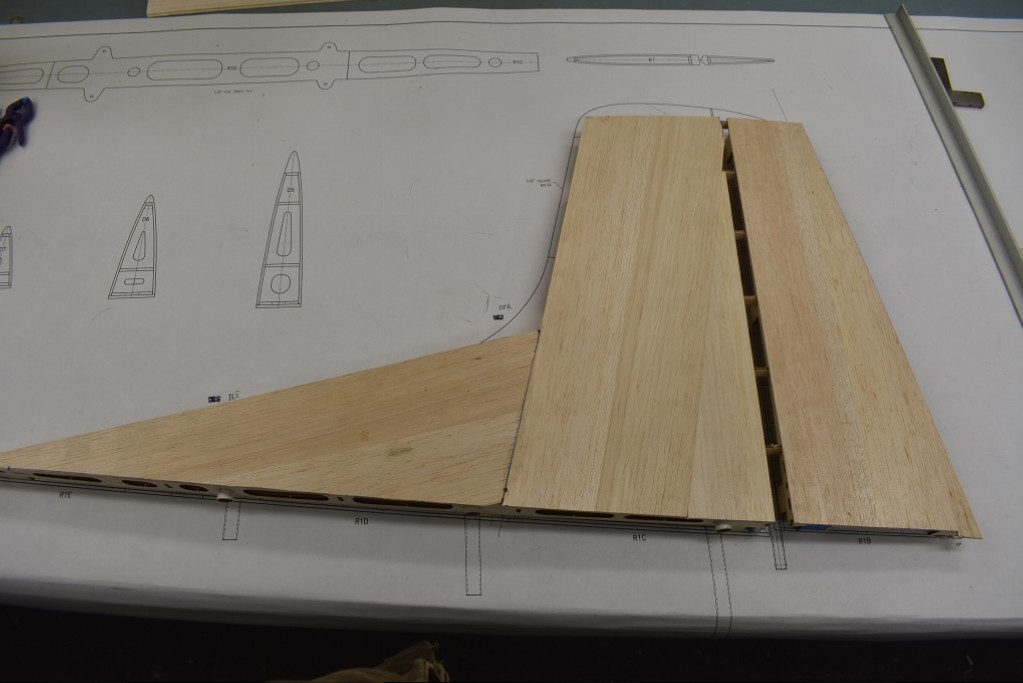

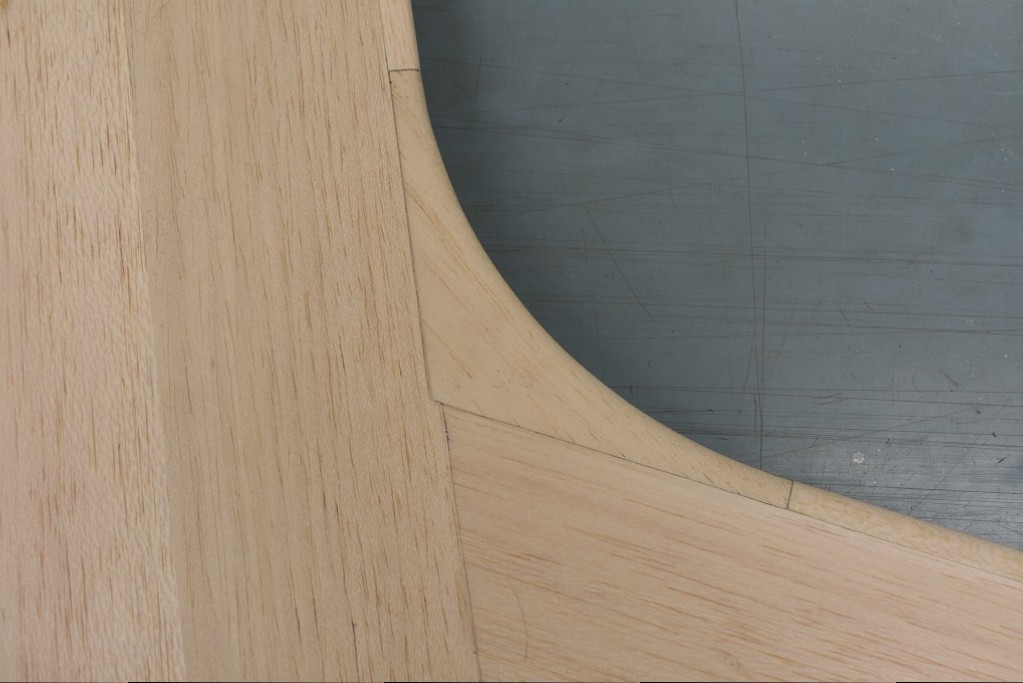

        The vertical fin and rudder assembly begins.

        Click image for larger version

Name:	DSC_1229.JPG
Views:	1
Size:	105.5 KB
ID:	34144

        Click image for larger version

Name:	DSC_1288.JPG
Views:	1
Size:	89.9 KB
ID:	34147

        Click image for larger version

Name:	DSC_1289.JPG
Views:	1
Size:	120.5 KB
ID:	34146

        Click image for larger version

Name:	DSC_1306.JPG
Views:	1
Size:	112.8 KB
ID:	34145

        Click image for larger version

Name:	DSC_1318.JPG
Views:	1
Size:	90.2 KB
ID:	34148

        Click image for larger version

Name:	DSC_1320.JPG
Views:	1
Size:	84.2 KB
ID:	34149

        Comment


        • #80
          Awesome project! Put me on the list for one for sure! This is the first airplane I flew on for a 16th birthday present! I will get in contact through the website and continue to follow along here!

          Jason

          Comment


          • #81
            Awesome Jason! and thanks for following.

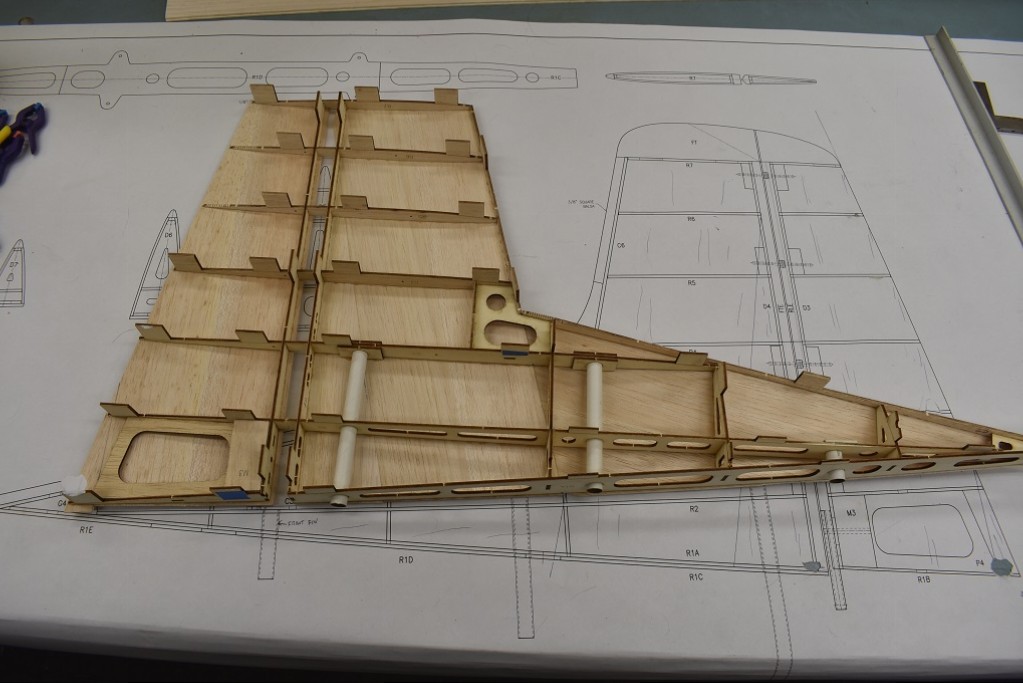

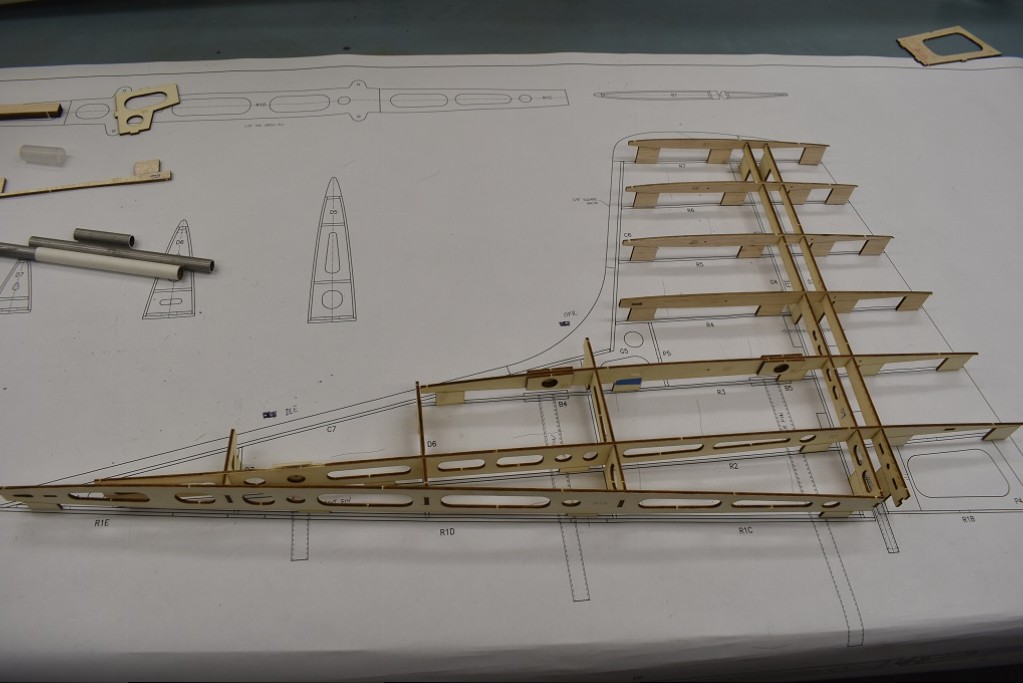

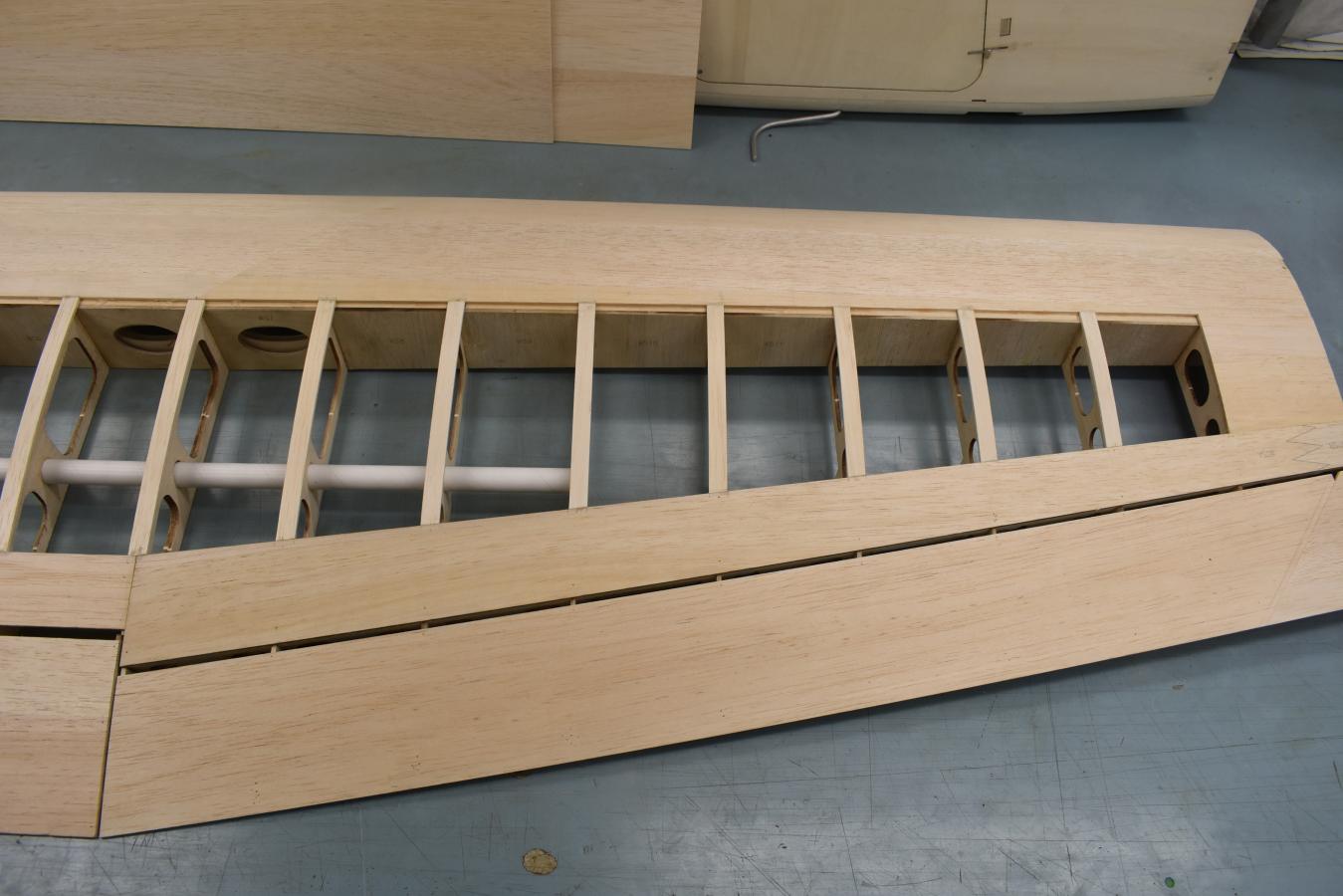

            Again, I got a little carried away with building the right wing. It was so addicting that I just couldn't pull my self off of it. LOL

            Click image for larger version

Name:	DSC_1796.JPG
Views:	1
Size:	109.4 KB
ID:	34561

            Comment


            • #82

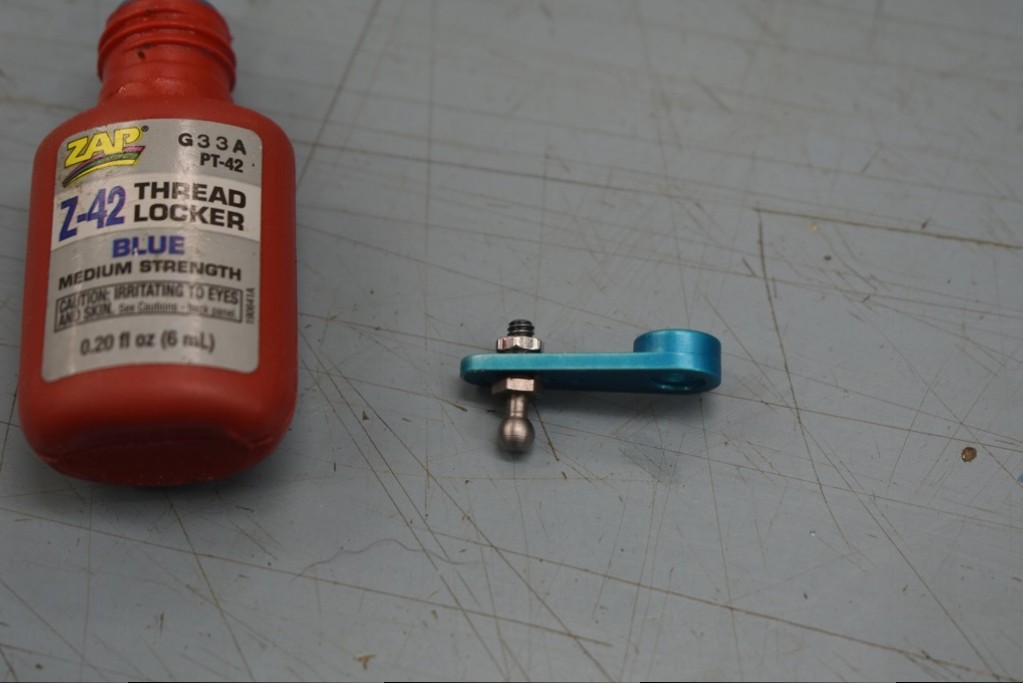

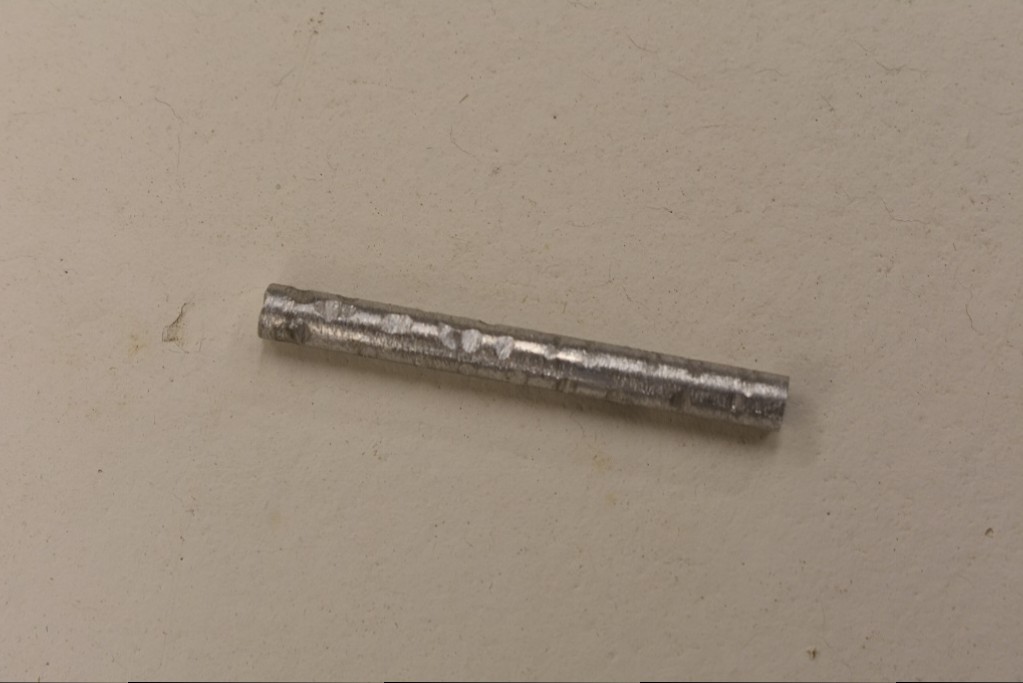

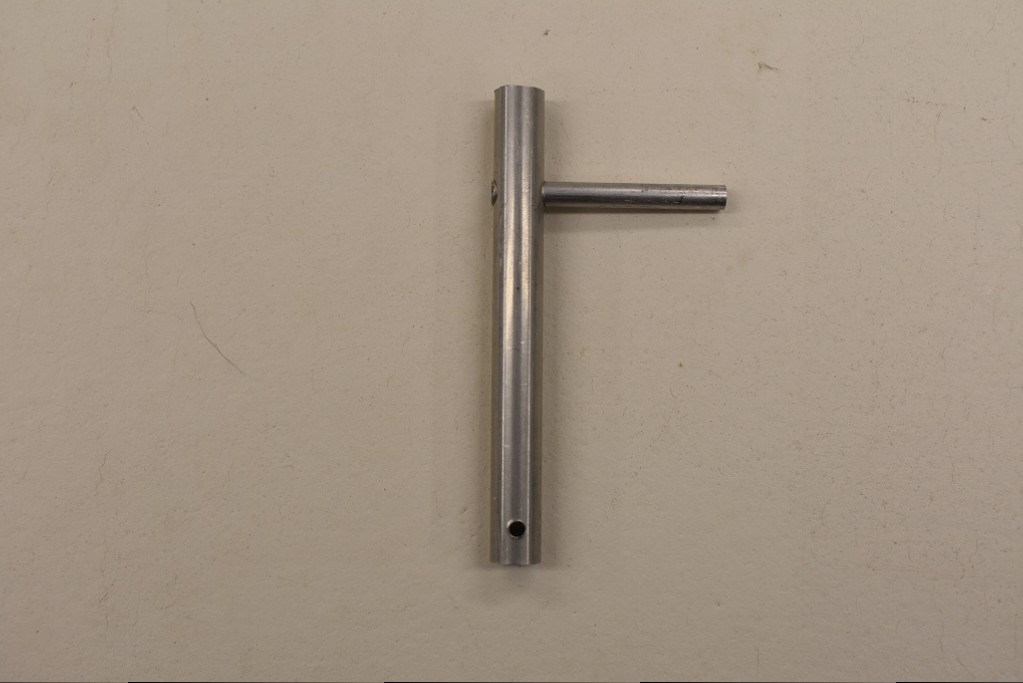

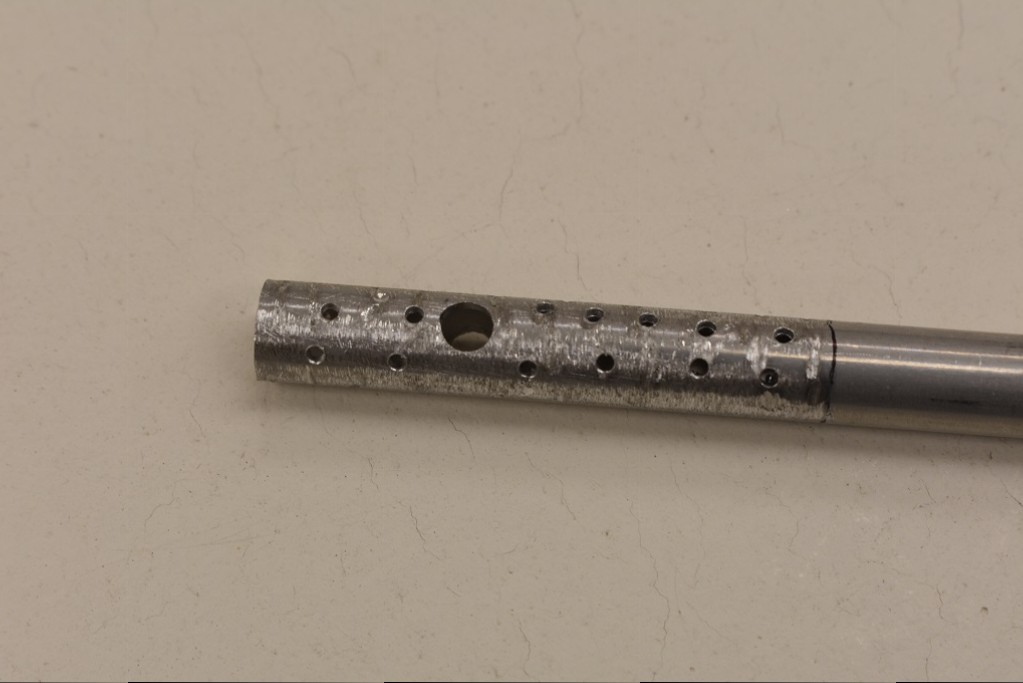

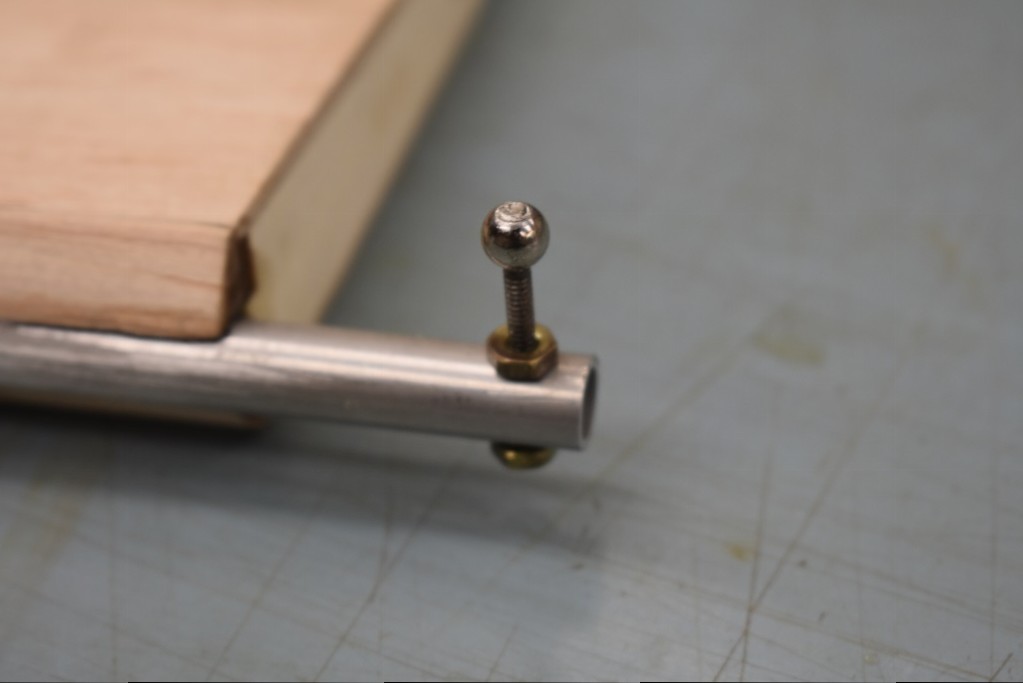

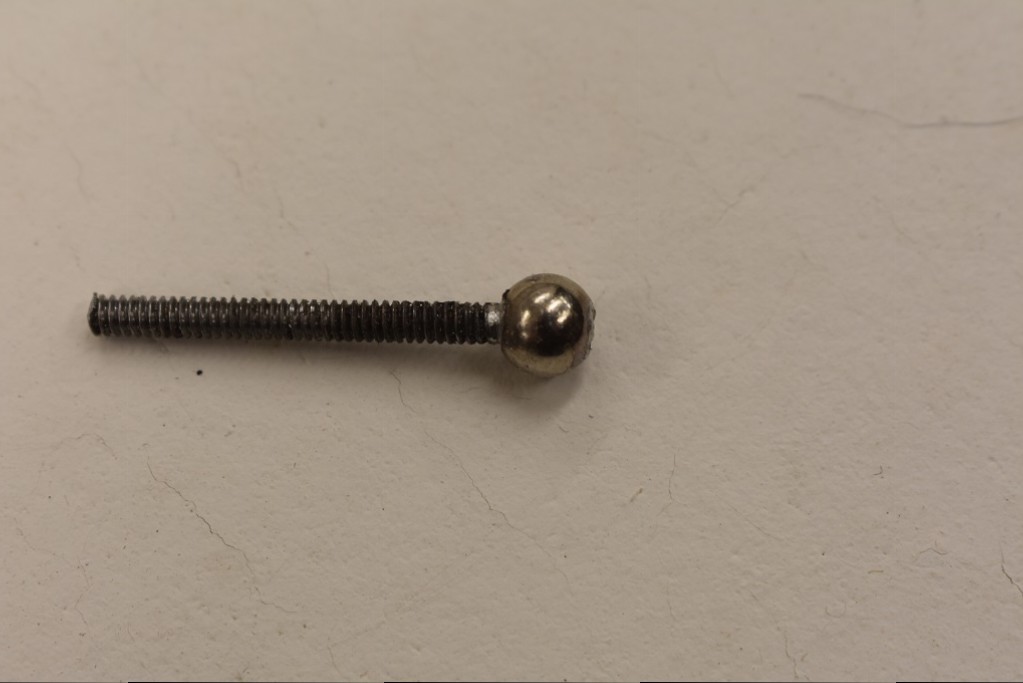

              Lets see, where did I leave off? Ok... The rudder torque rod is from 3/8" dia. thick wall aluminum with a 3/16" dia. solid rod. In order to get the throw (travel) a 4-40 ball link "ball" will be soldered onto a 4-40 stud bolt for the control horn. The head of the socket head bolt and cone wedge spacer will get in the way of the required travel. stay tuned for that....

              Click image for larger version

Name:	DSC_1322.JPG
Views:	1
Size:	85.4 KB
ID:	34566
              Click image for larger version

Name:	DSC_1326.JPG
Views:	1
Size:	72.3 KB
ID:	34563
              Click image for larger version

Name:	DSC_1329.JPG
Views:	1
Size:	77.5 KB
ID:	34564
              Click image for larger version

Name:	DSC_1330.JPG
Views:	1
Size:	64.7 KB
ID:	34565
              Click image for larger version

Name:	DSC_1331.JPG
Views:	1
Size:	86.0 KB
ID:	34567
              Click image for larger version

Name:	DSC_1333.JPG
Views:	1
Size:	63.6 KB
ID:	34568

              Comment


              • #83

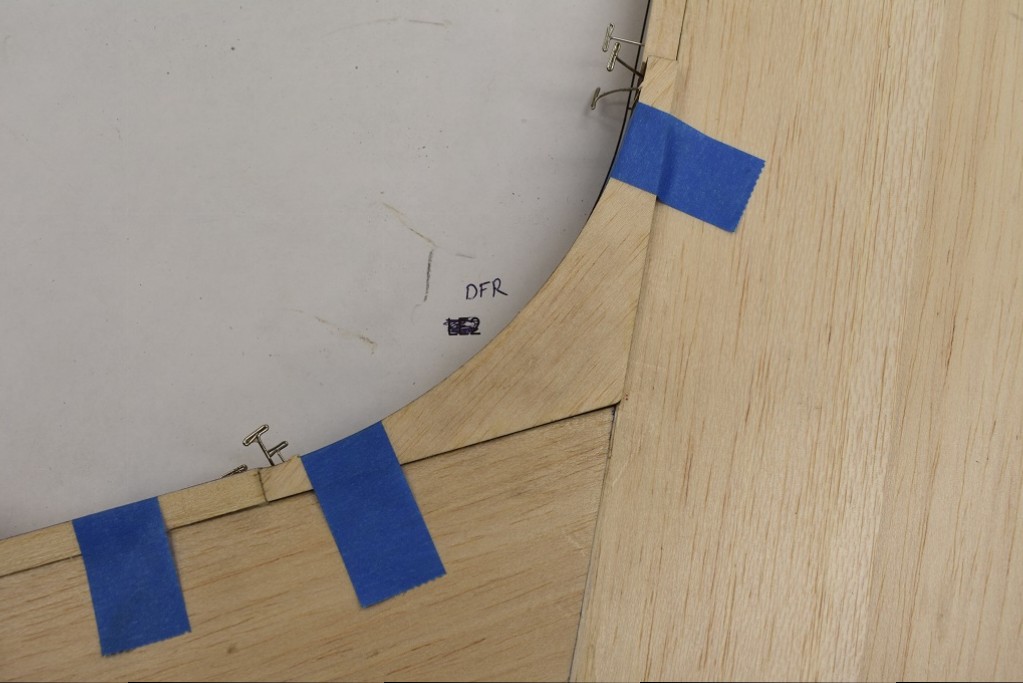

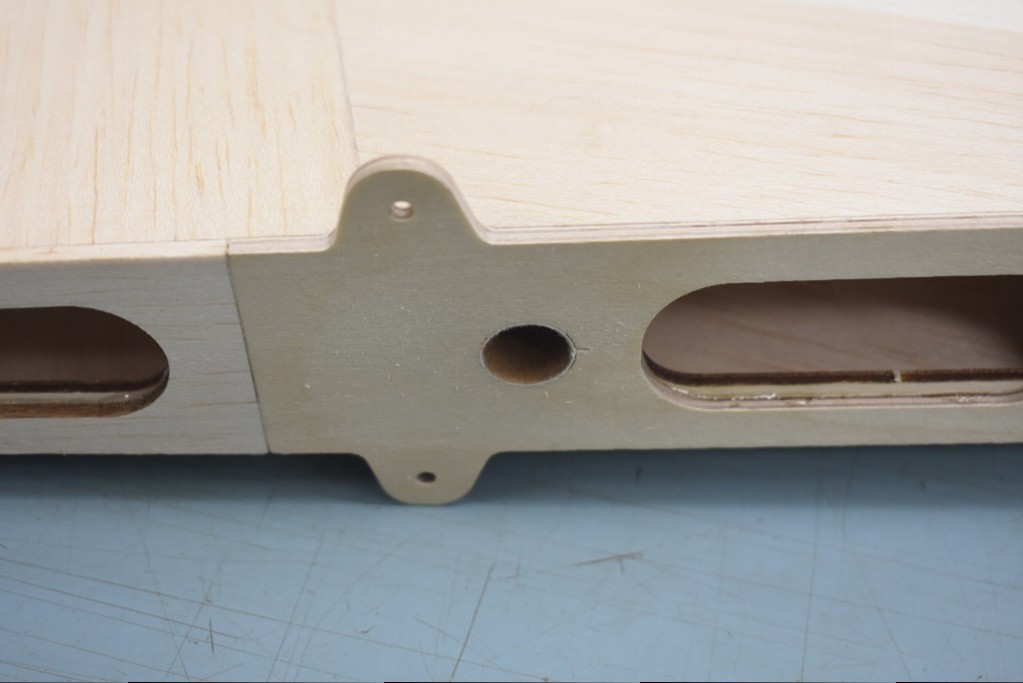

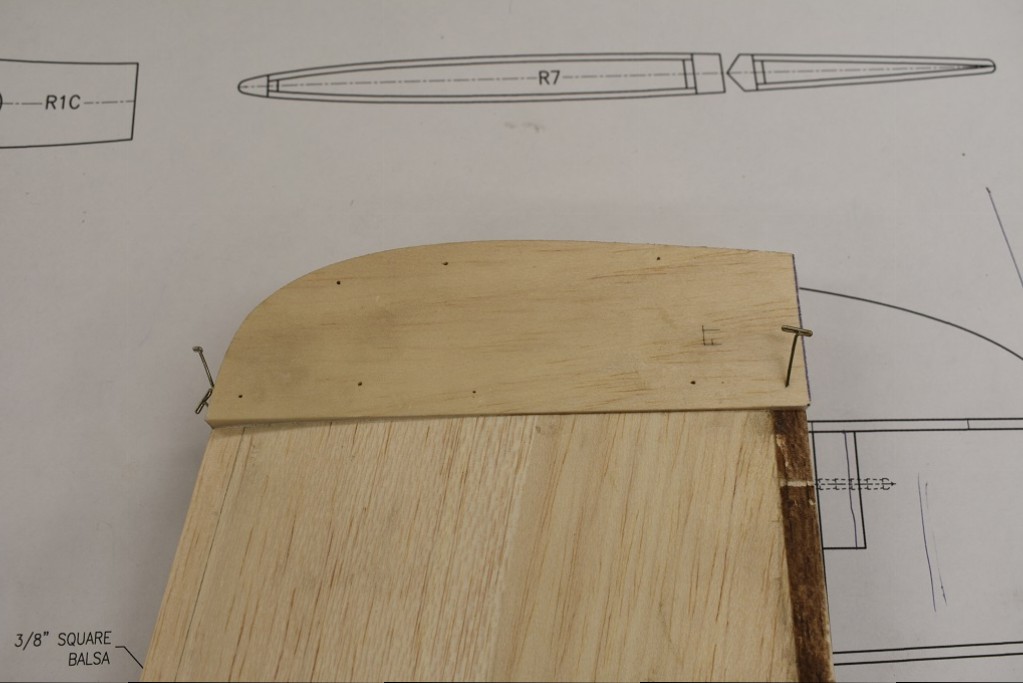

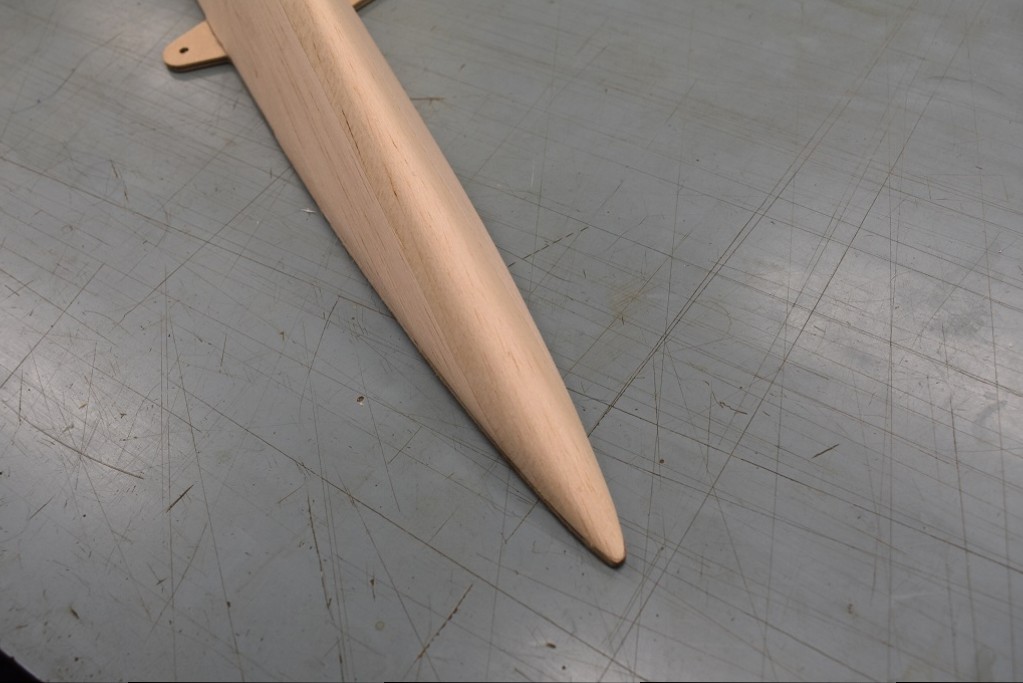

                So while the epoxy is drying on the above step. I decided now is a great time to glue on the base plate with the mounting lugs. This is from 1/8" thick birch aircraft ply. I've seen these made out of lite ply on too many ARF models and they would break off easy. Then a little carving and sanding. Boy, contest balsa sands like butta!

                Click image for larger version

Name:	DSC_1335.JPG
Views:	1
Size:	79.8 KB
ID:	34571
                Click image for larger version

Name:	DSC_1336.JPG
Views:	1
Size:	110.4 KB
ID:	34570
                Click image for larger version

Name:	DSC_1337.JPG
Views:	1
Size:	56.3 KB
ID:	34572
                Click image for larger version

Name:	DSC_1338.JPG
Views:	1
Size:	112.7 KB
ID:	34573
                Click image for larger version

Name:	DSC_1339.JPG
Views:	1
Size:	53.2 KB
ID:	34574

                Comment


                • #84
                  Nice workmanship Gunny, Its a pleasure to see this.

                  Len Buffinton
                  Team Horizon Hobby

                  Comment


                  • gunny11
                    gunny11 commented
                    Editing a comment
                    Thanks Len... and it's my pleasure to post this here on Scale Soaring Forum.

                • #85

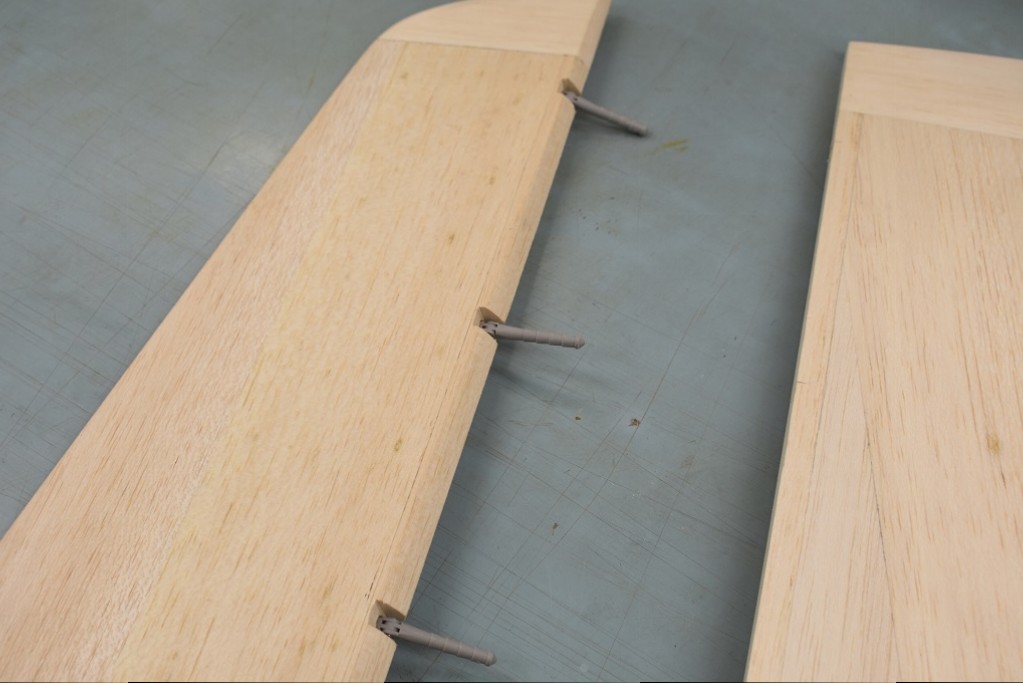

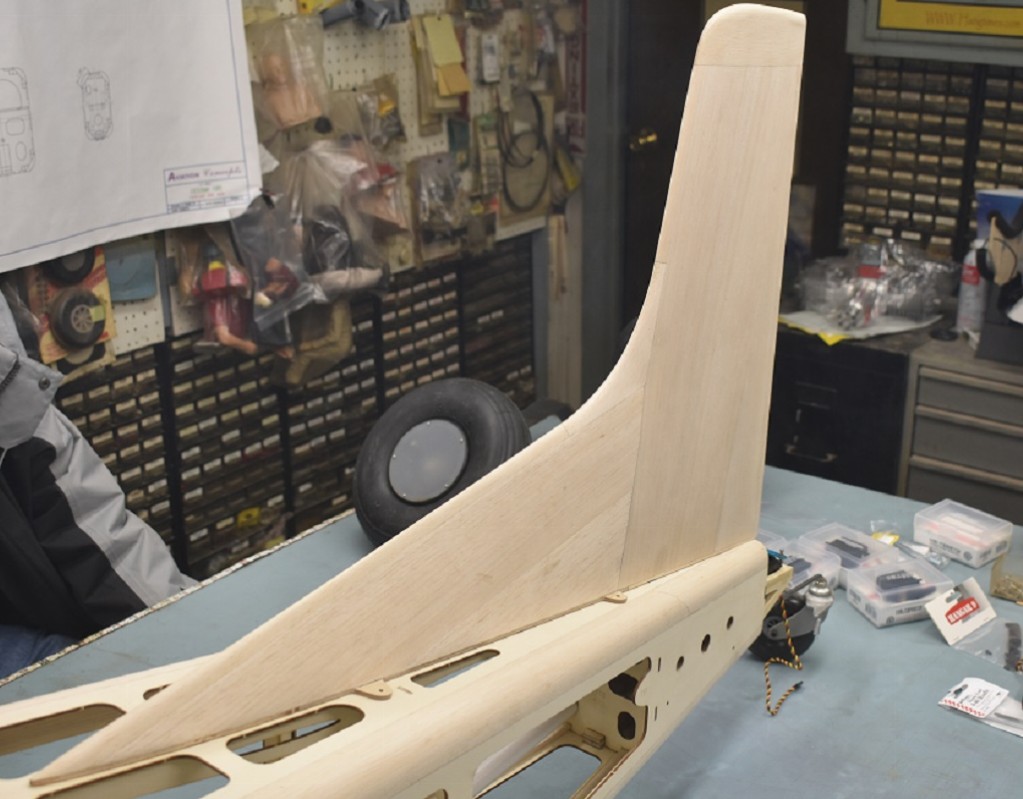

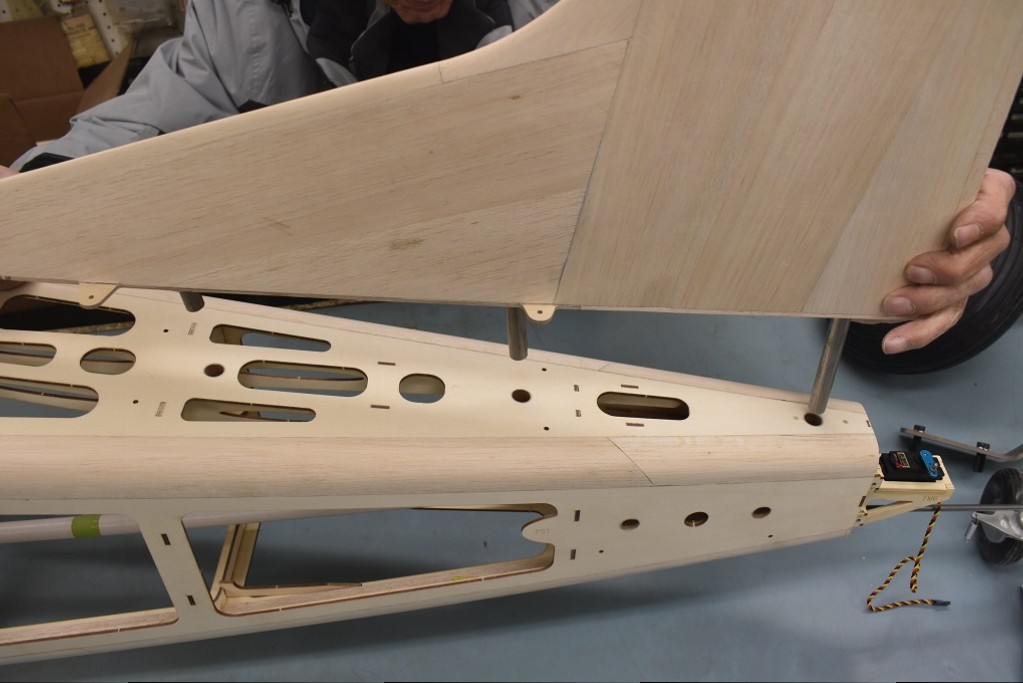

                  Hinging and installing onto fuselage. I changed the aluminum tubes to now be carbon fiber tubes.

                  Click image for larger version

Name:	DSC_1340.JPG
Views:	1
Size:	97.0 KB
ID:	34586

                  Click image for larger version

Name:	DSC_1345.JPG
Views:	1
Size:	109.3 KB
ID:	34585

                  Click image for larger version

Name:	DSC_1349.JPG
Views:	1
Size:	138.1 KB
ID:	34587

                  Comment


                  • #86

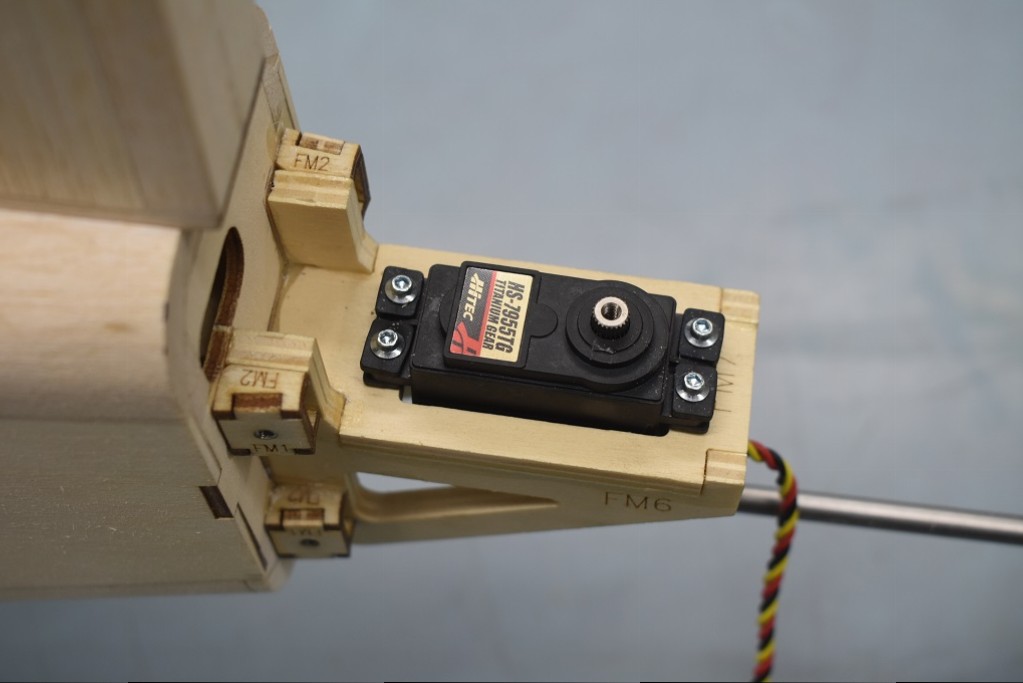

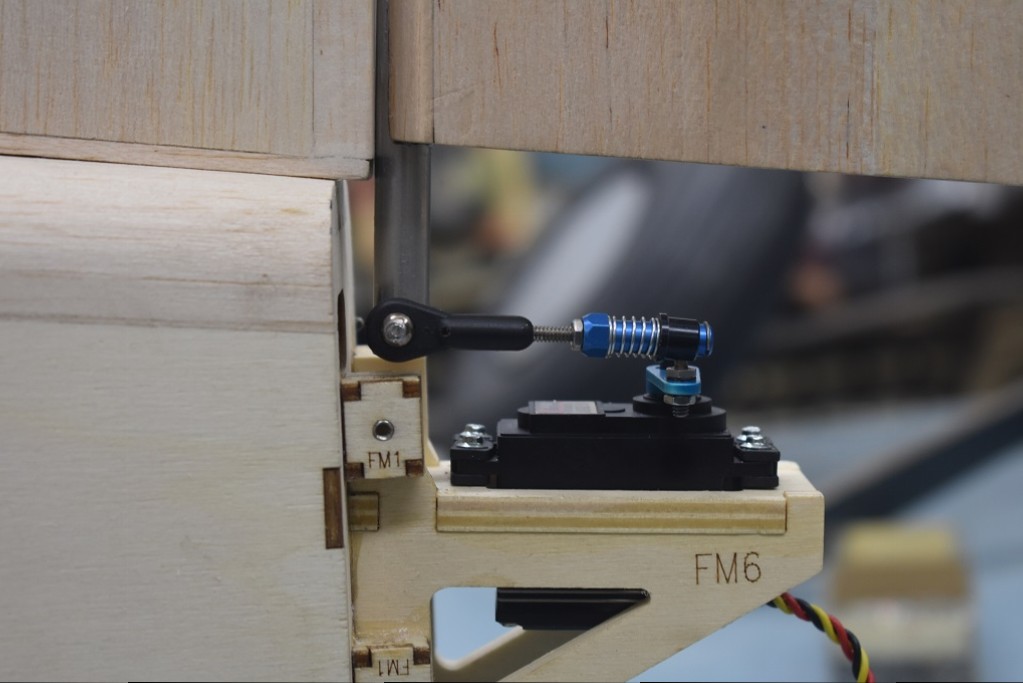

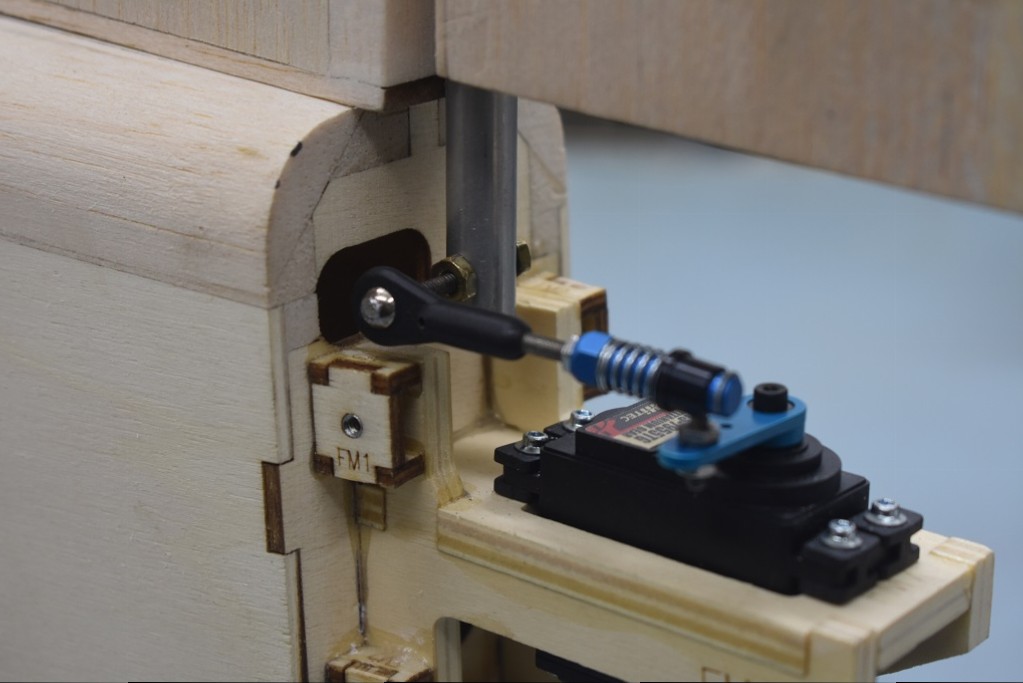

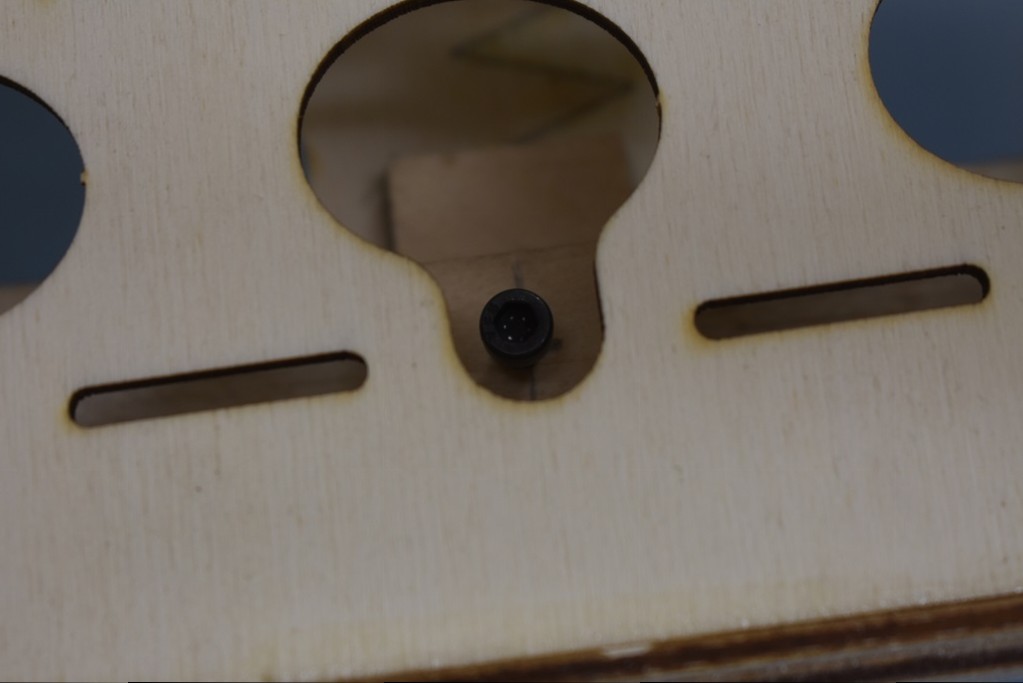

                    So... the fin and rudder is removable, but remember the servo is mounted in the fuselage tail cone. So by removing the tail cone and unhooking the Sullivan aluminum removable ball link is a jiffy. The ball links and rudder pushrod will be included in the kit.

                    Click image for larger version

Name:	DSC_1351.JPG
Views:	1
Size:	73.6 KB
ID:	34590

                    Click image for larger version

Name:	DSC_1354.JPG
Views:	1
Size:	87.6 KB
ID:	34593

                    Click image for larger version

Name:	DSC_1357.JPG
Views:	1
Size:	50.2 KB
ID:	34591

                    Click image for larger version

Name:	DSC_1362.JPG
Views:	1
Size:	96.6 KB
ID:	34592

                    Click image for larger version

Name:	DSC_1363.JPG
Views:	1
Size:	93.4 KB
ID:	34594

                    Comment


                    • #87
                      Awesome Gunny. I tried to send an email a couple of times, but it might be getting kicked over to spam, which happen a lot with my yahoo email. Anyways, I will give you a call tomorrow. Looking forward to getting one of these kits!

                      Comment


                      • gunny11
                        gunny11 commented
                        Editing a comment
                        Only got the one. But you can call me.

                    • #88
                      Well, that pretty sums it up for the fin and rudder.

                      Comment


                      • #89

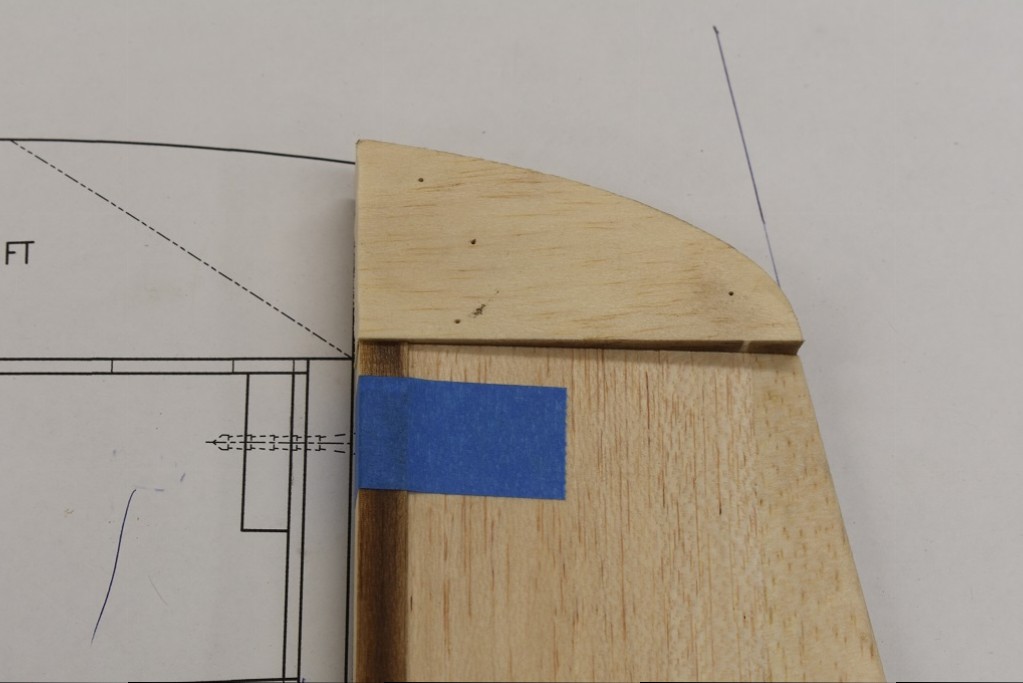

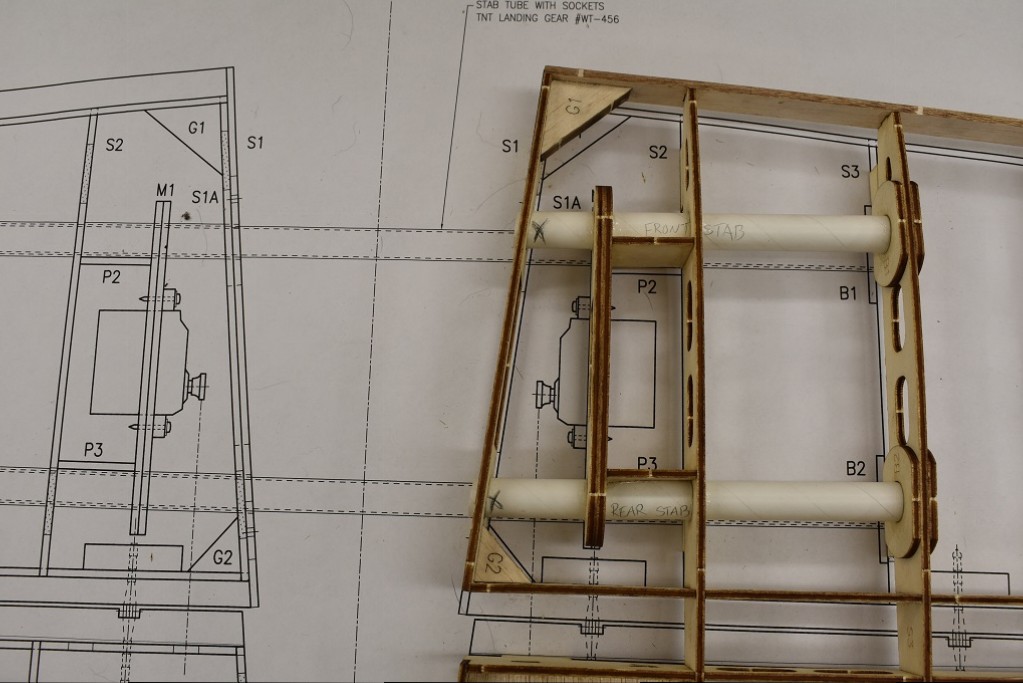

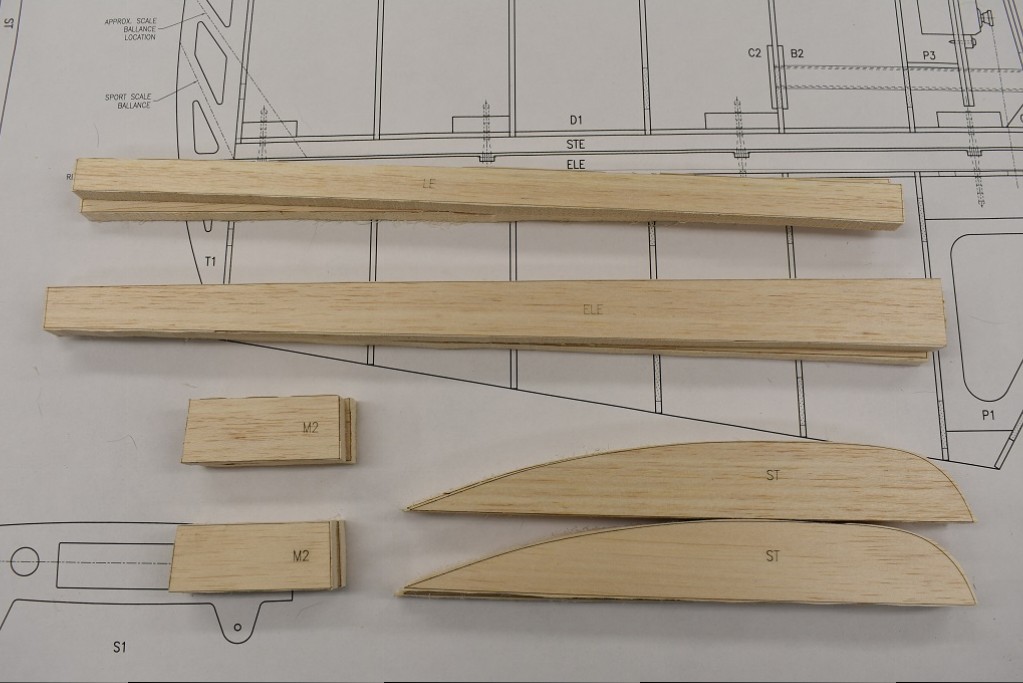

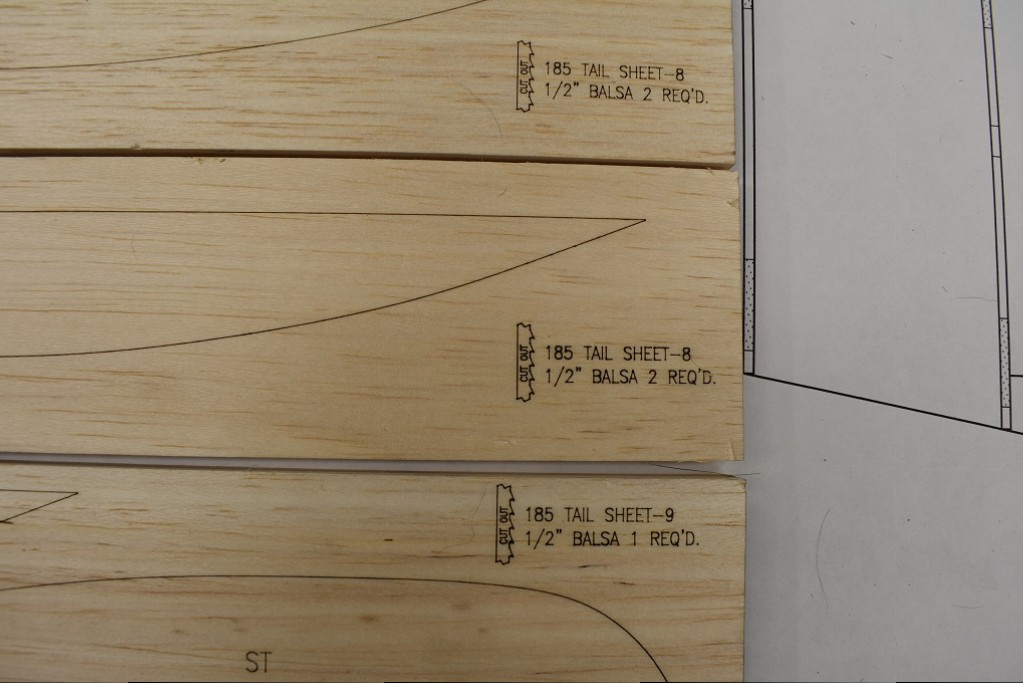

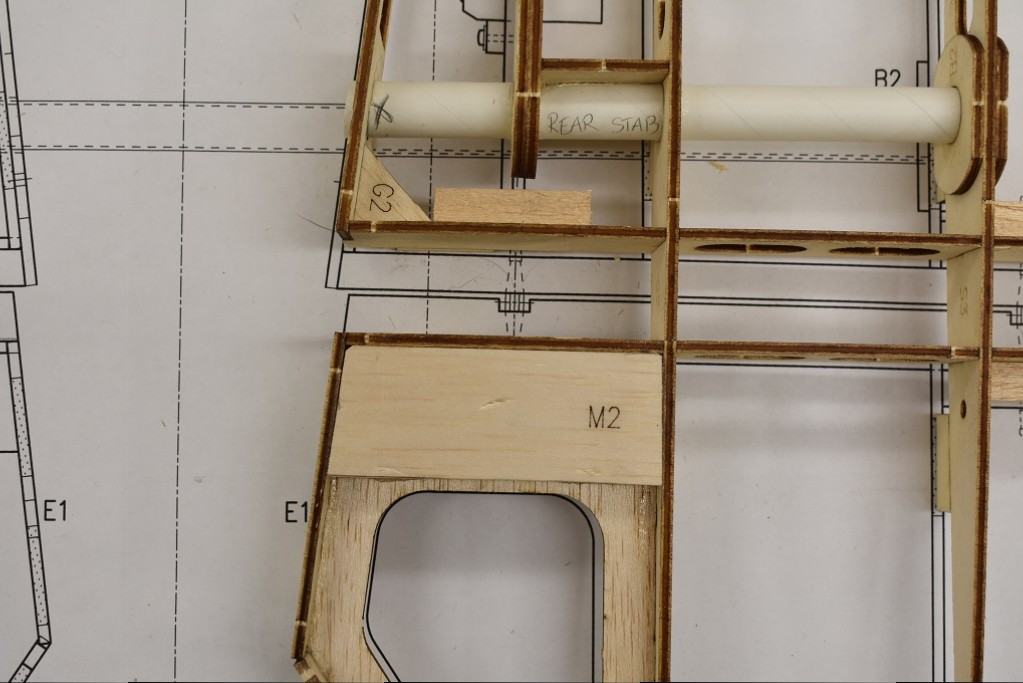

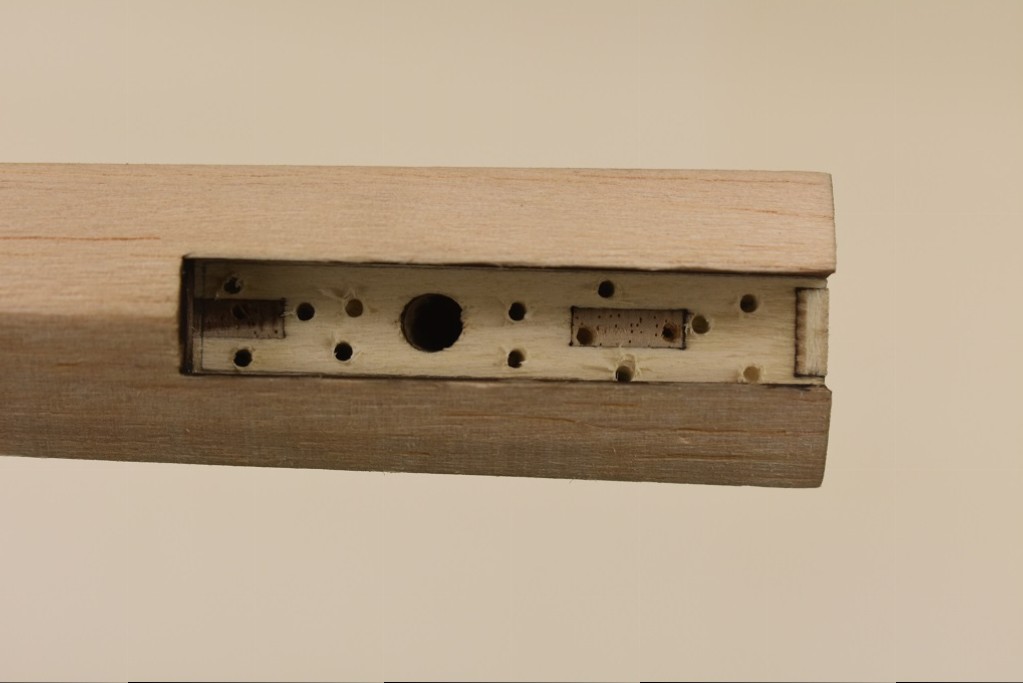

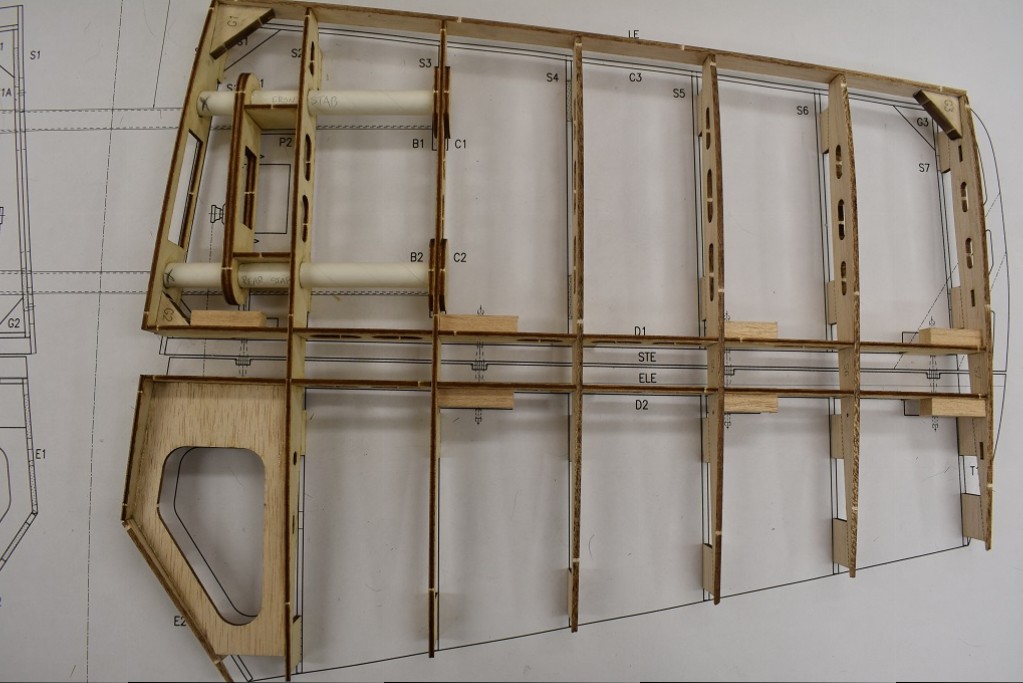

                        Now the stab and elev construction begins. 3 sheets of 1/2" thick balsa needs to cut out. Quick work of this is done on the band saw. Rough trimming only is required and the parts will be sanded after they are glued to the tail. Contest balsa carves and sands really nice and fast. Picture 3 shows the elev servo mounts. Access is through the the root opening. The last picture is showing a balsa horn support blocks. (top and bottom.

                        Click image for larger version

Name:	DSC_1373.JPG
Views:	1
Size:	117.4 KB
ID:	34626

                        Click image for larger version

Name:	DSC_1374.JPG
Views:	1
Size:	113.4 KB
ID:	34628

                        Click image for larger version

Name:	DSC_1400.JPG
Views:	1
Size:	130.5 KB
ID:	34627

                        Click image for larger version

Name:	DSC_1404.JPG
Views:	1
Size:	127.0 KB
ID:	34625

                        Click image for larger version

Name:	DSC_1409.JPG
Views:	1
Size:	119.1 KB
ID:	34629

                        Comment


                        • #90

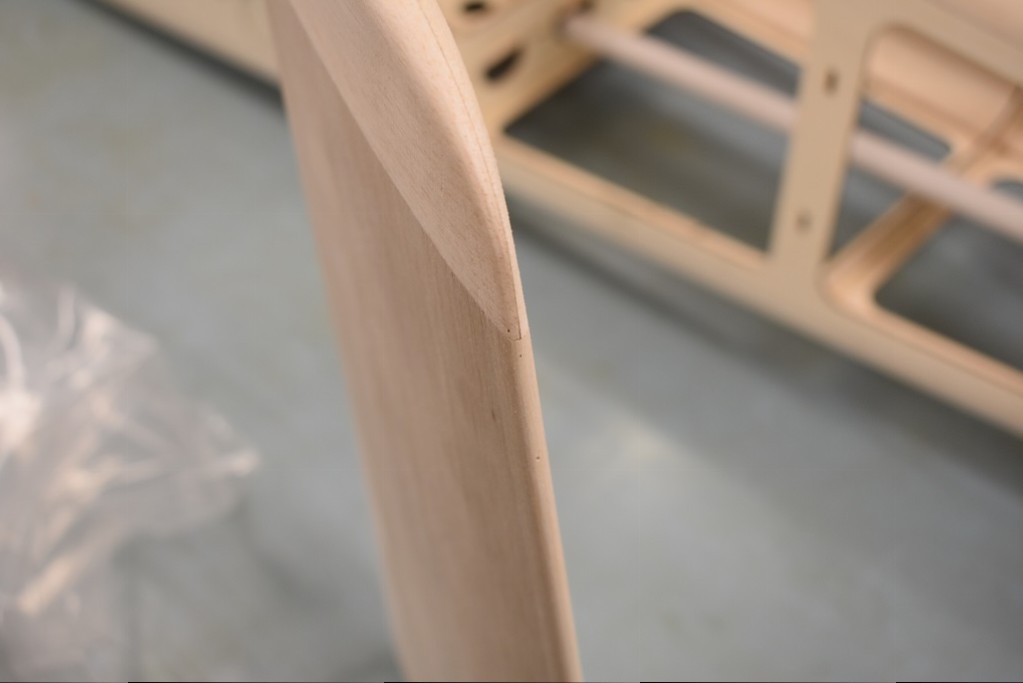

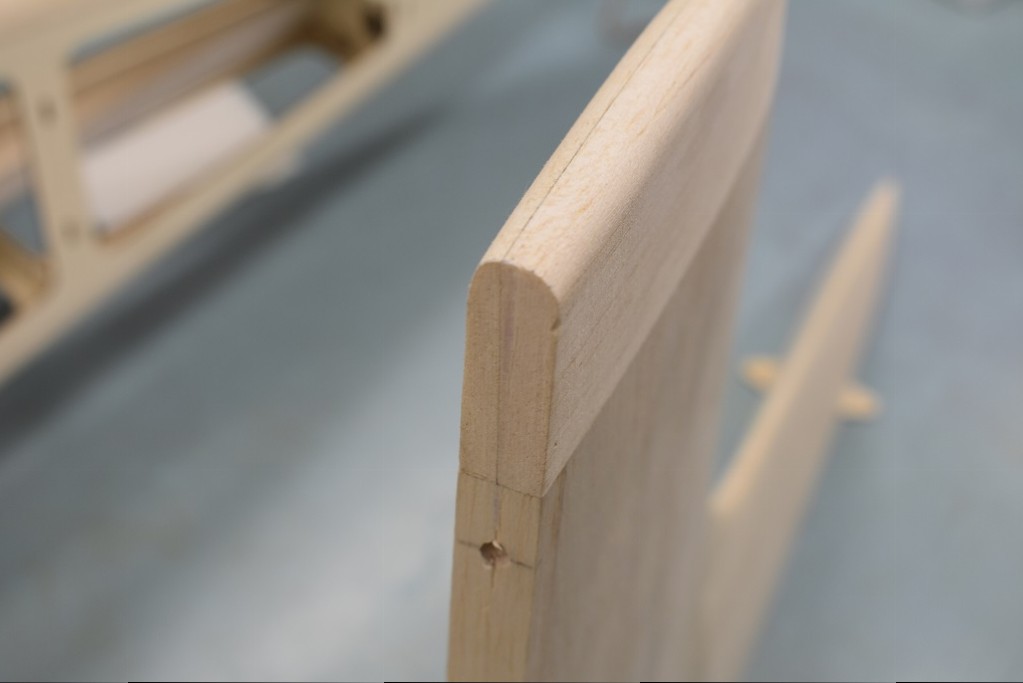

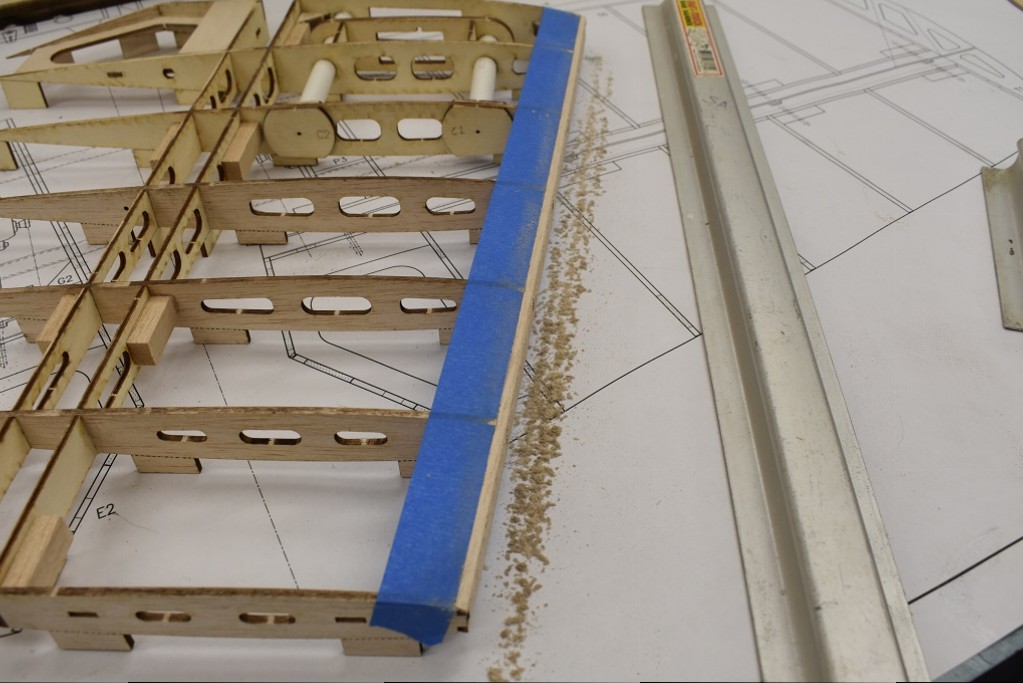

                          A little contour sanding of the L.E. cap.

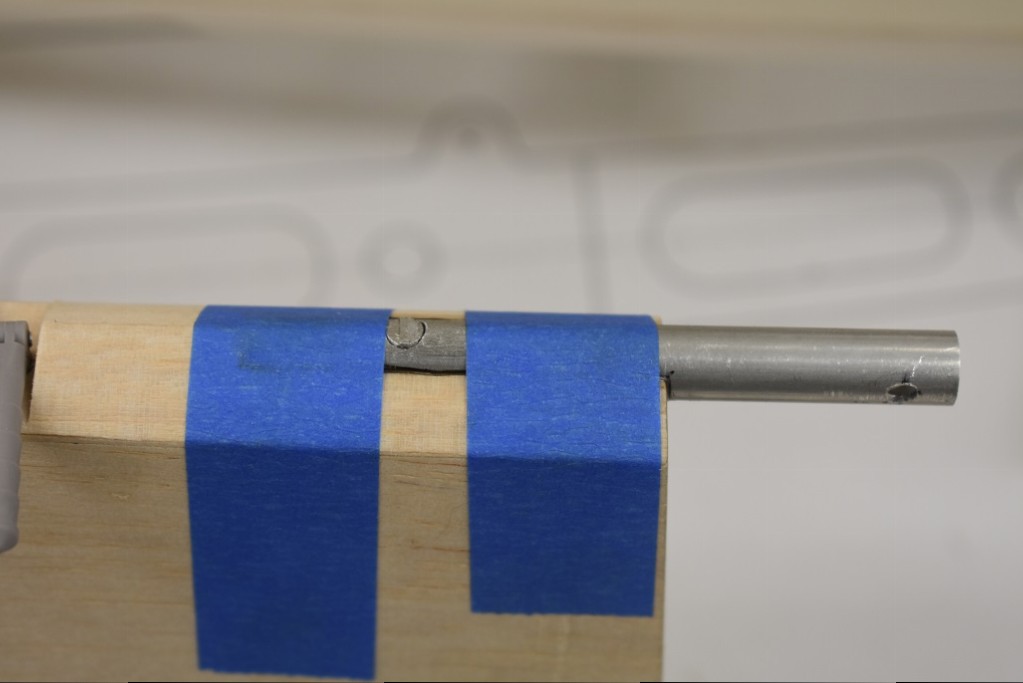

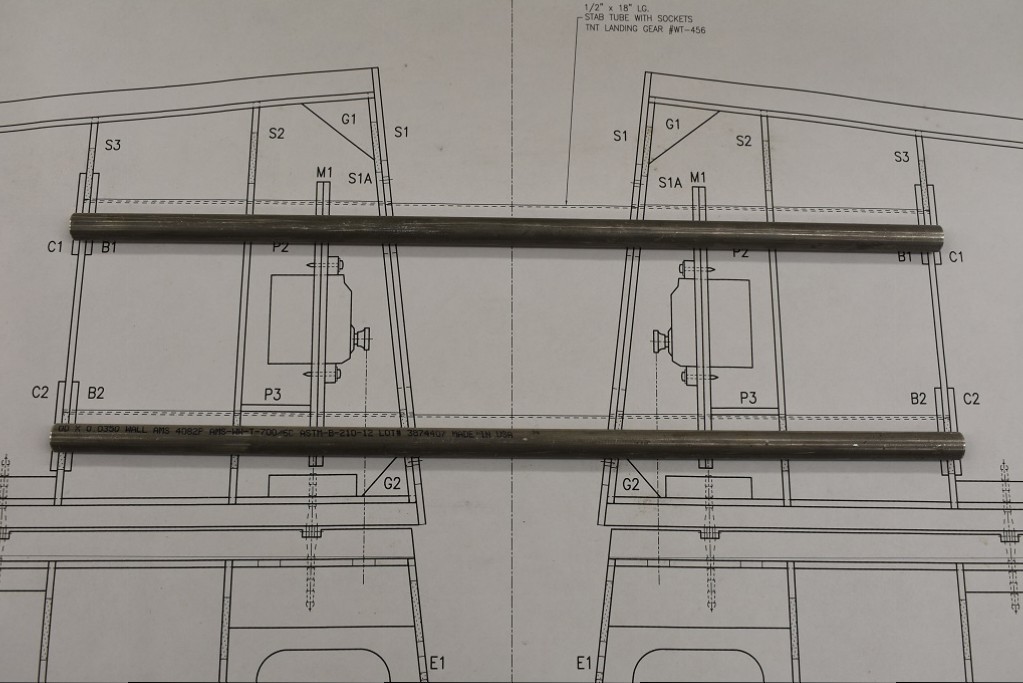

                          Cutting joiner tubes (now will be carbon fiber) to length.

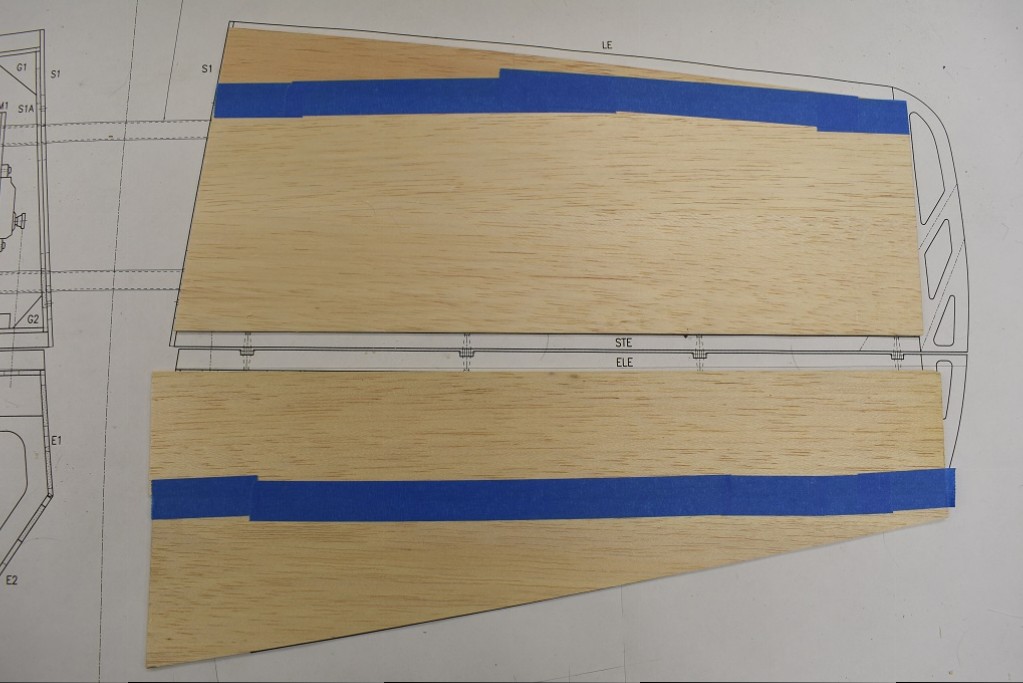

                          Making 3/32" thk. balsa skins.

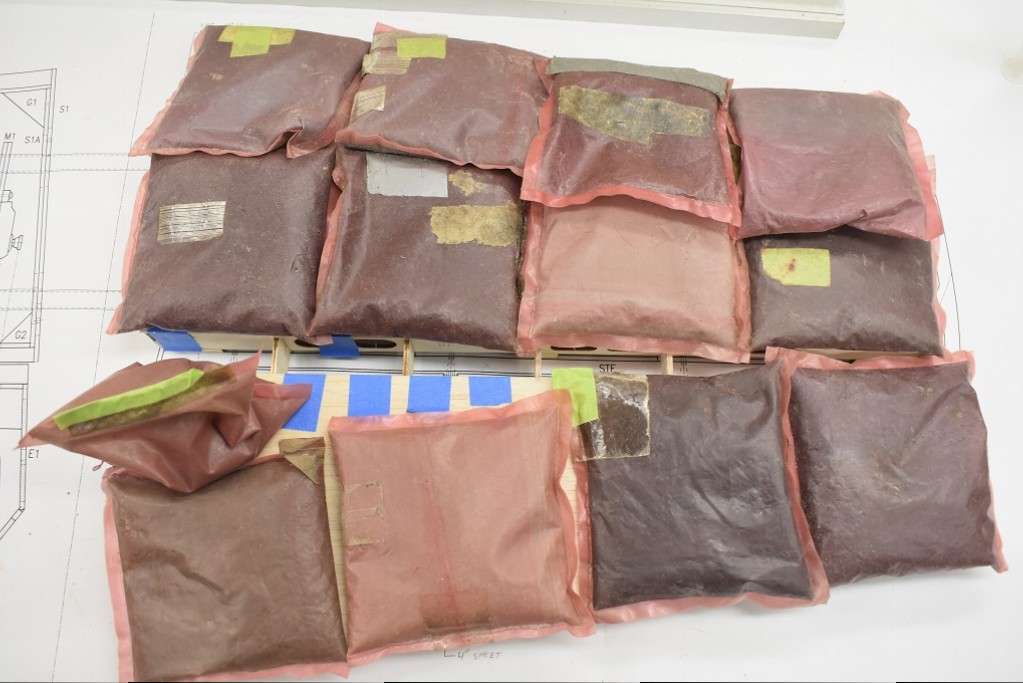

                          Gluing on with sand bag weights.

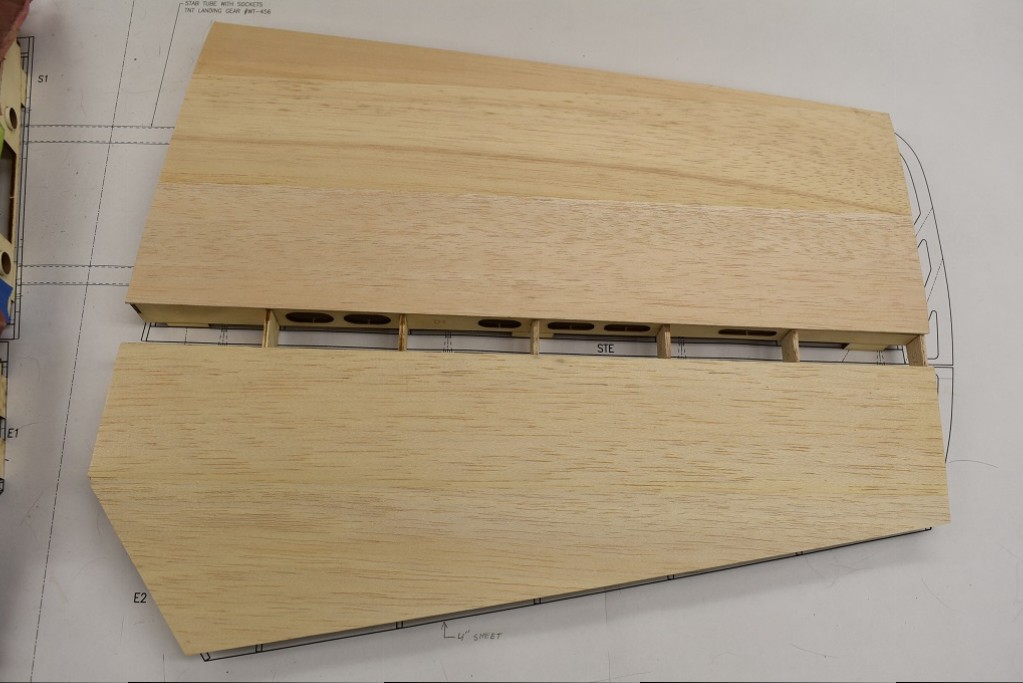

                          Top sheeting done.

                          Click image for larger version

Name:	DSC_1414.JPG
Views:	1
Size:	136.2 KB
ID:	34633

                          Click image for larger version

Name:	DSC_1422.JPG
Views:	1
Size:	124.1 KB
ID:	34631

                          Click image for larger version

Name:	DSC_1423.JPG
Views:	1
Size:	114.3 KB
ID:	34632

                          Click image for larger version

Name:	DSC_1425.JPG
Views:	1
Size:	132.0 KB
ID:	34634

                          Click image for larger version

Name:	DSC_1426.JPG
Views:	1
Size:	112.7 KB
ID:	34635

                          Comment
