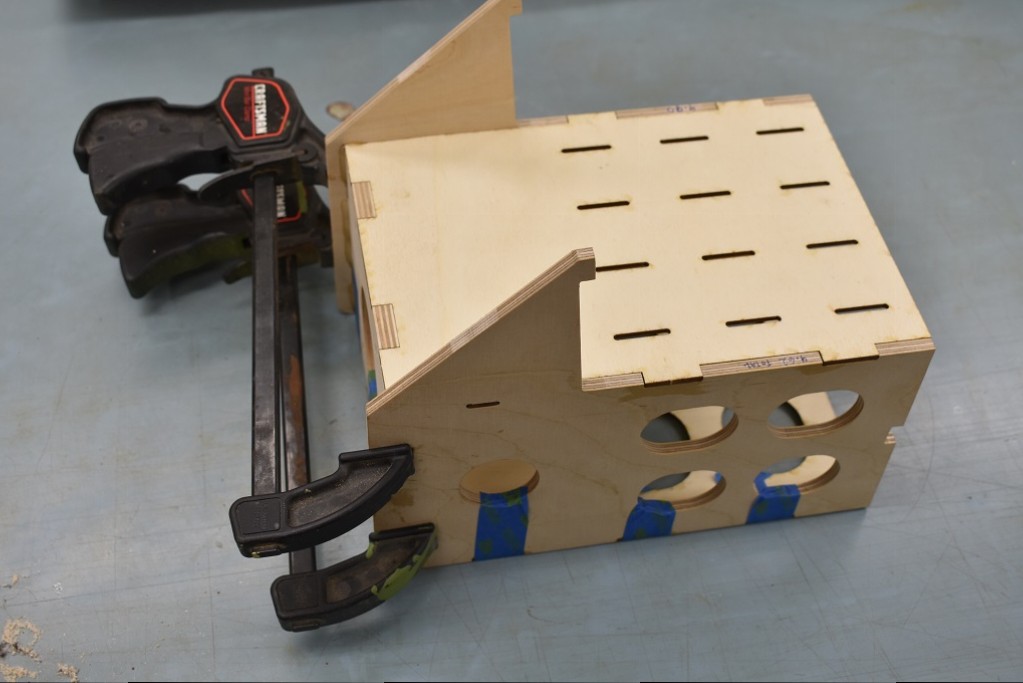

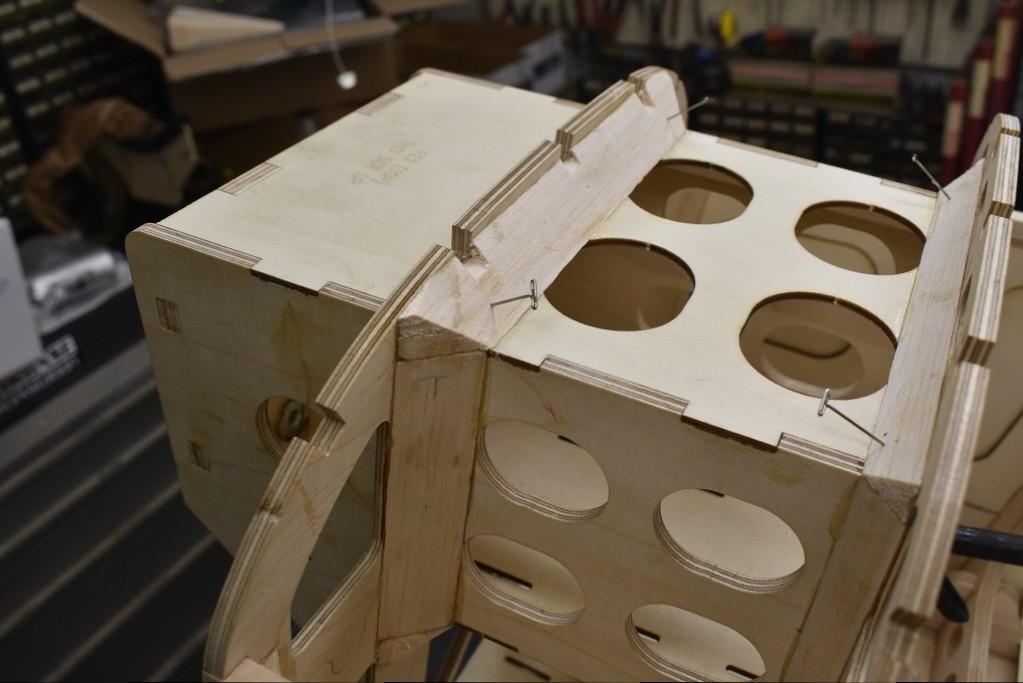

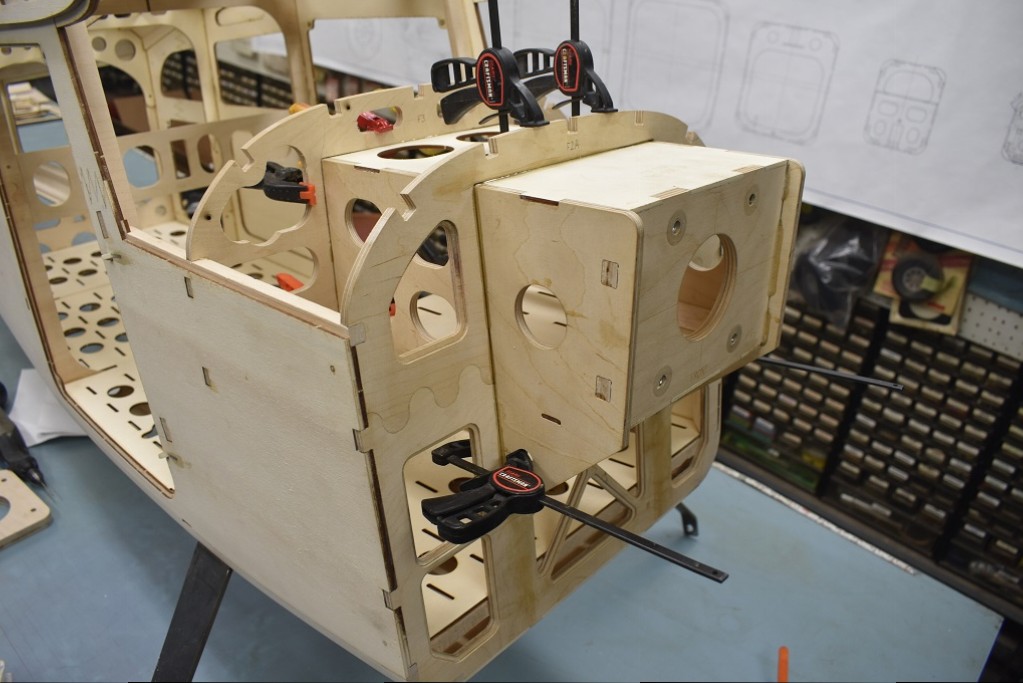

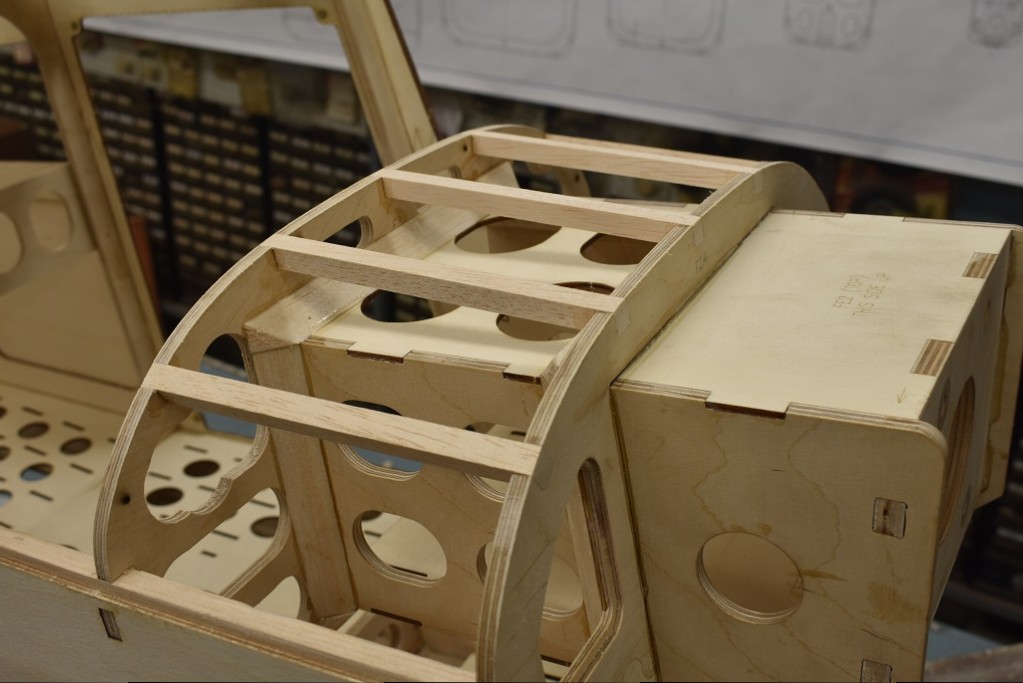

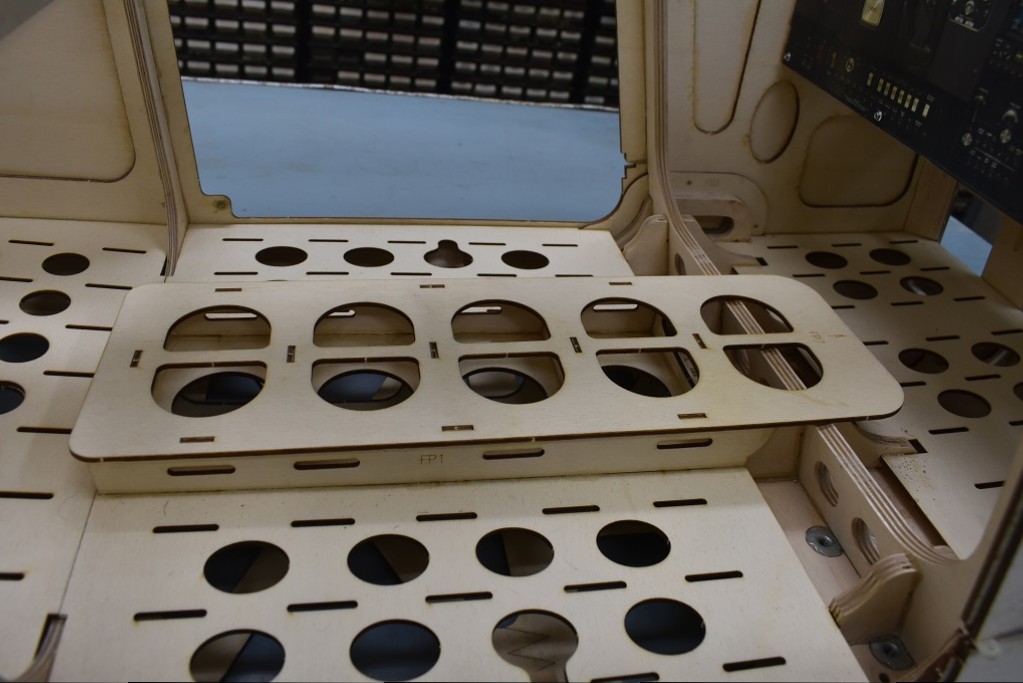

    Ok, back at it with the engine box.

    Click image for larger version

Name:	DSC_0469.JPG
Views:	1
Size:	89.6 KB
ID:	33925
    Click image for larger version

Name:	DSC_0831.JPG
Views:	1
Size:	134.8 KB
ID:	33924
    Click image for larger version

Name:	DSC_0832.JPG
Views:	1
Size:	128.8 KB
ID:	33927
    Click image for larger version

Name:	DSC_0837.JPG
Views:	1
Size:	111.8 KB
ID:	33926

    Comment


    • #62

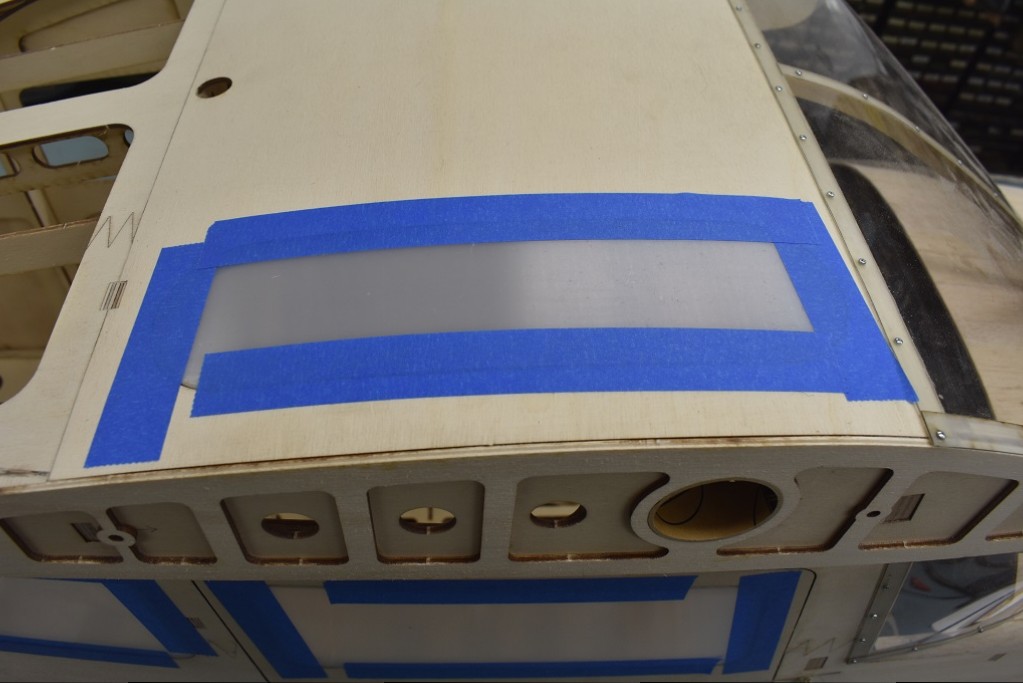

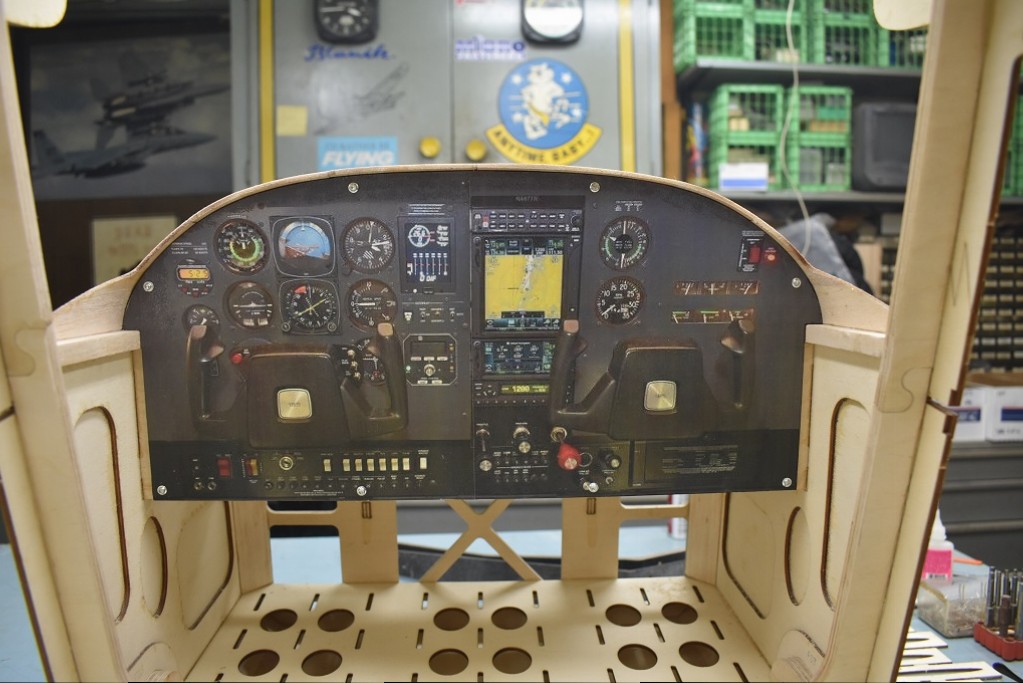

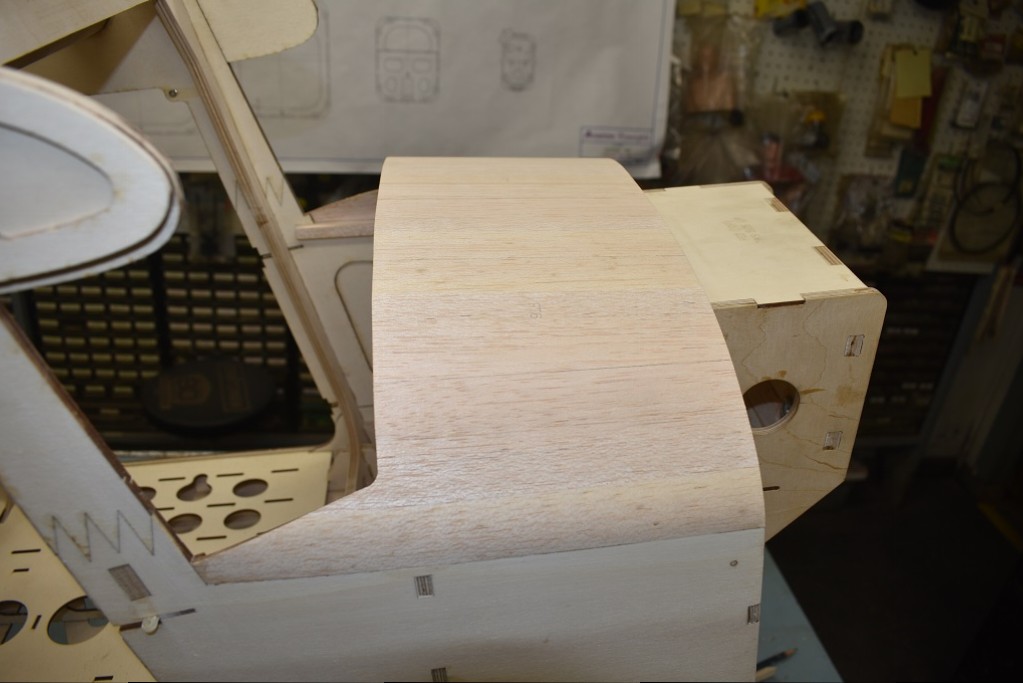

      Top decking and instrument panel which is a two piece decal.

      Click image for larger version

Name:	DSC_0839.JPG
Views:	1
Size:	115.5 KB
ID:	33929
      Click image for larger version

Name:	DSC_0856.JPG
Views:	1
Size:	100.4 KB
ID:	33930
      Click image for larger version

Name:	DSC_0863.JPG
Views:	1
Size:	111.5 KB
ID:	33931
      Click image for larger version

Name:	DSC_0890.JPG
Views:	1
Size:	148.0 KB
ID:	33932

      Comment


      • #63

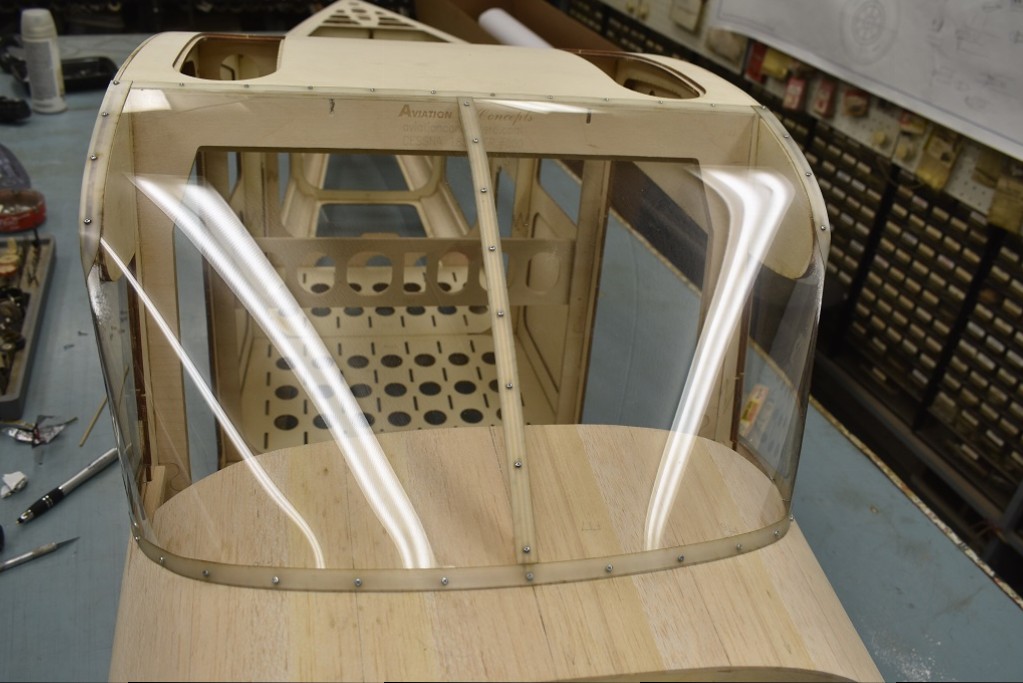

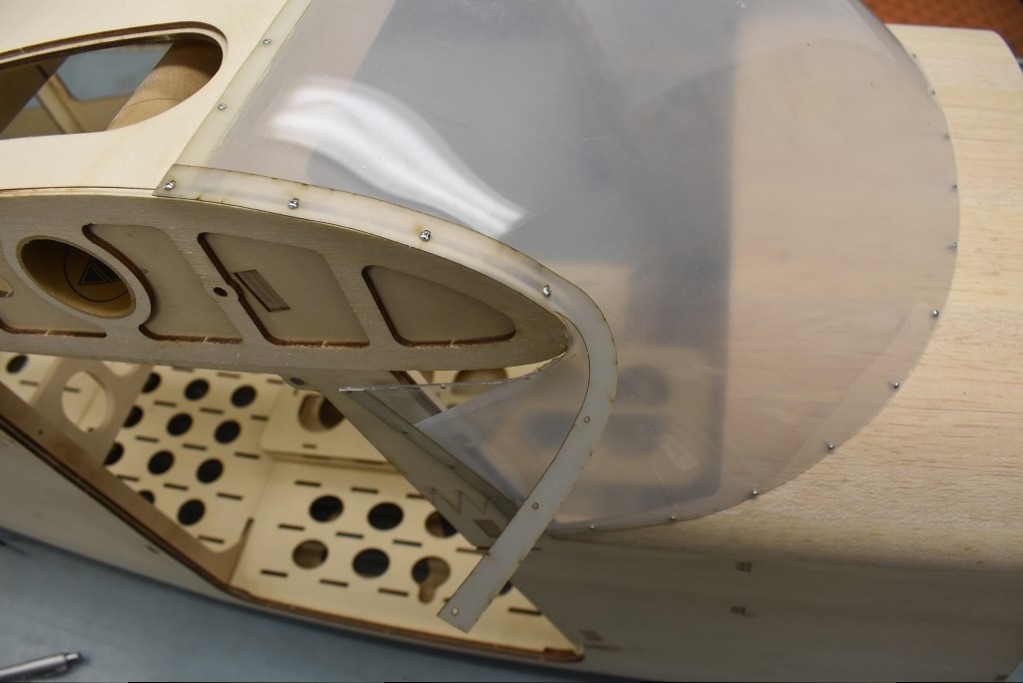

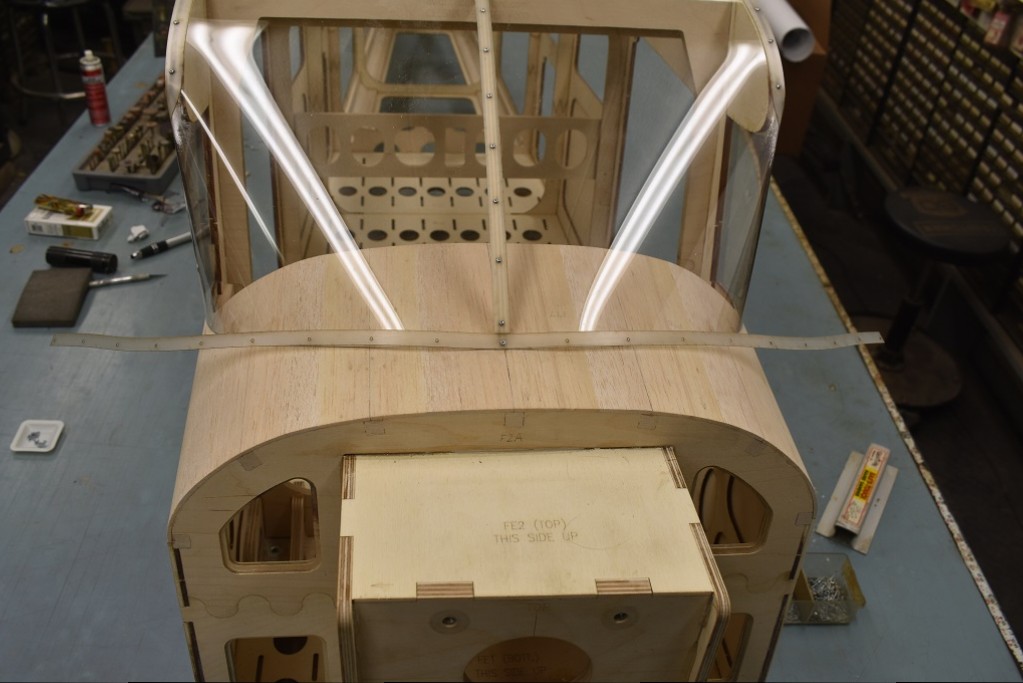

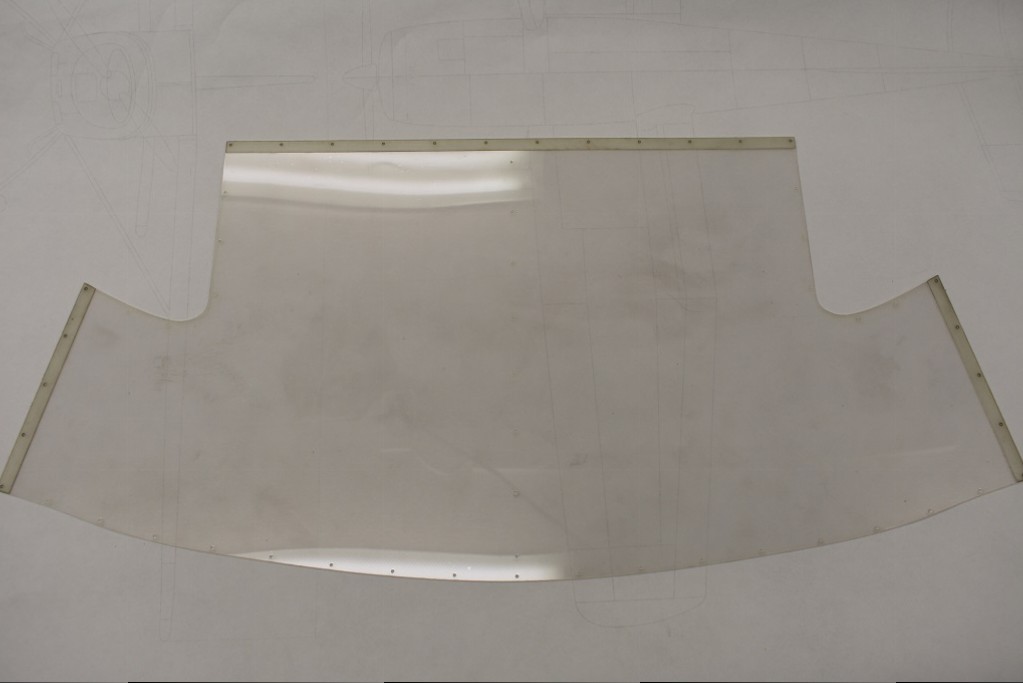

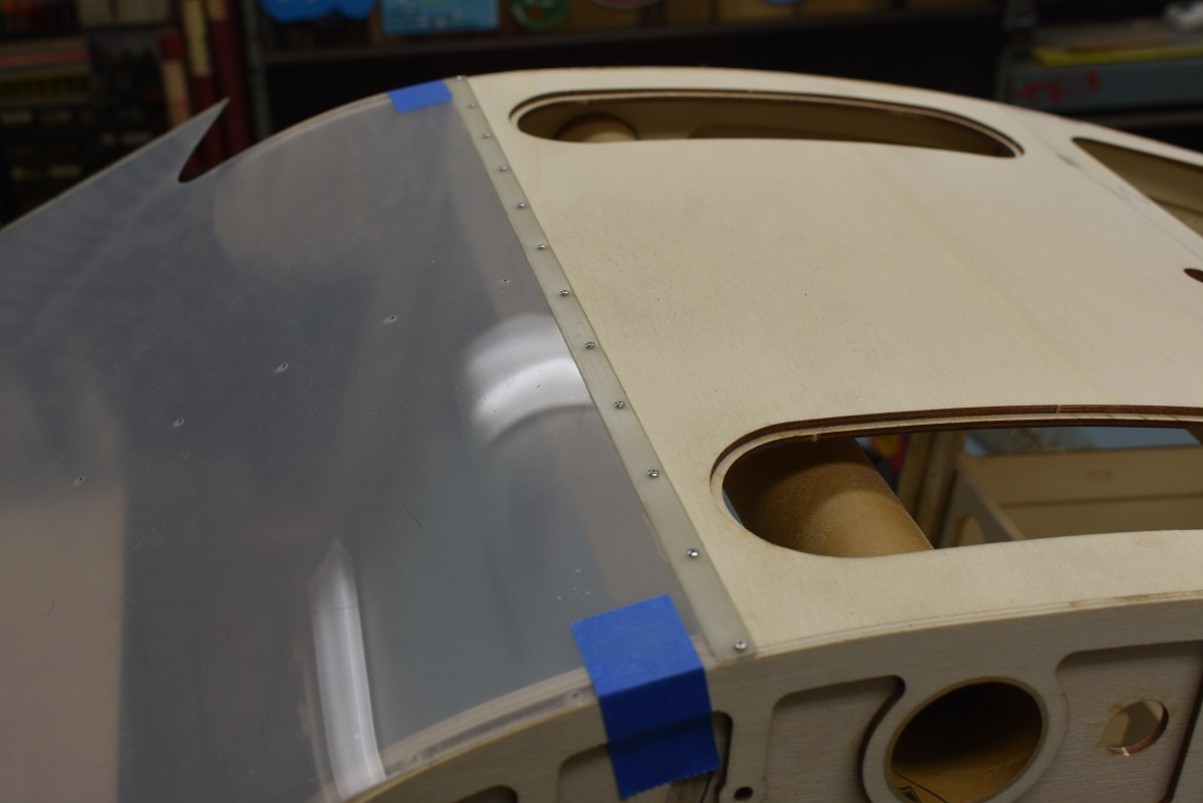

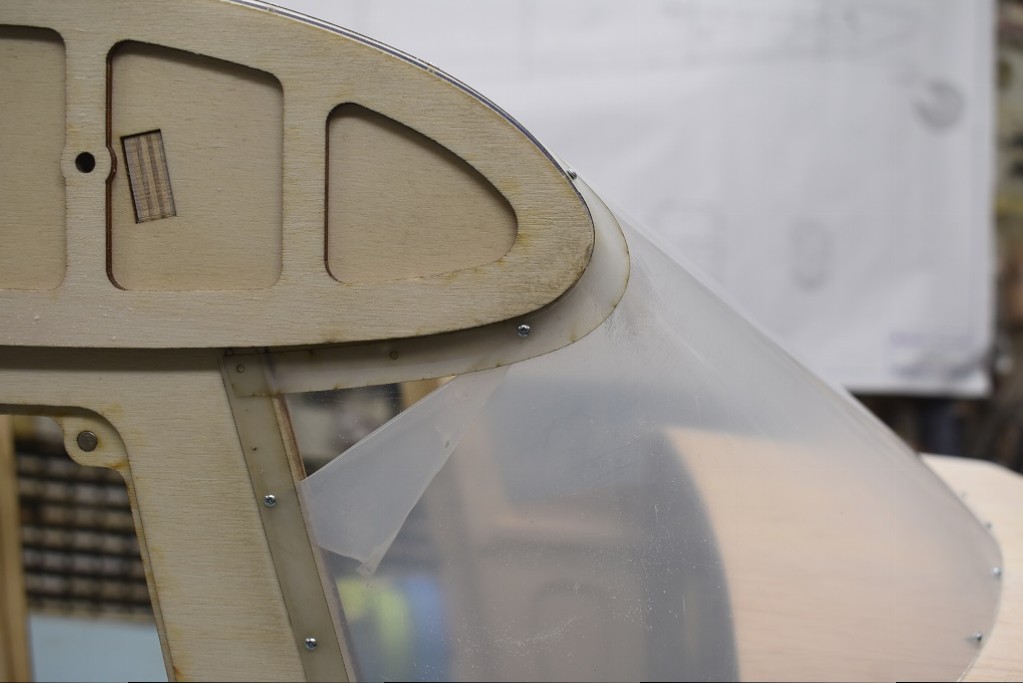

        Wind shield installation. The windshield is laser cut from .030" PETG with all the screw holes. Also included is all the laser cut .010" thick G-10 windshield frames and screws.

        Click image for larger version  Name:	DSC_0937.JPG Views:	1 Size:	95.8 KB ID:	33943Click image for larger version  Name:	DSC_0960.JPG Views:	1 Size:	93.1 KB ID:	33942
        Click image for larger version  Name:	DSC_0964.JPG Views:	1 Size:	89.5 KB ID:	33944
        Click image for larger version  Name:	DSC_0996.JPG Views:	1 Size:	116.9 KB ID:	33945
        Click image for larger version  Name:	DSC_0998.JPG Views:	1 Size:	132.6 KB ID:	33946

        Comment


        • #64
          What 'vitamins' does this bird need to fly? DA 170... 150?

          Comment


          • gunny11
            gunny11 commented
            Editing a comment
            100 to 120 mg I mean cc for sport scale non aerotowing.... And 150 to 180cc for aerotowing. So far everything is designed around the DA 150.

        • #65

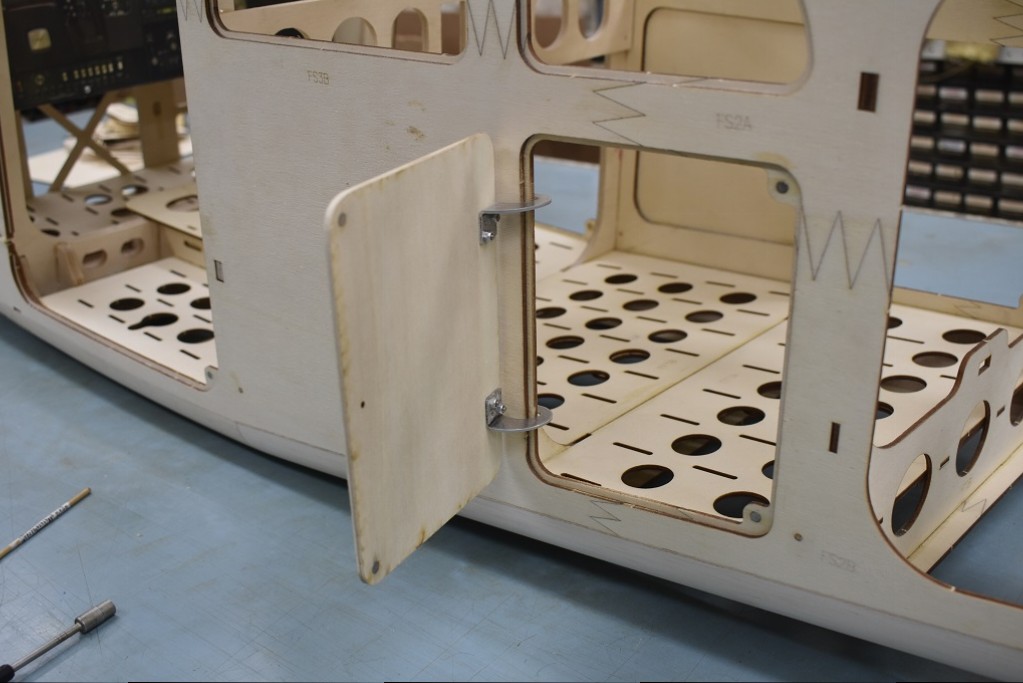

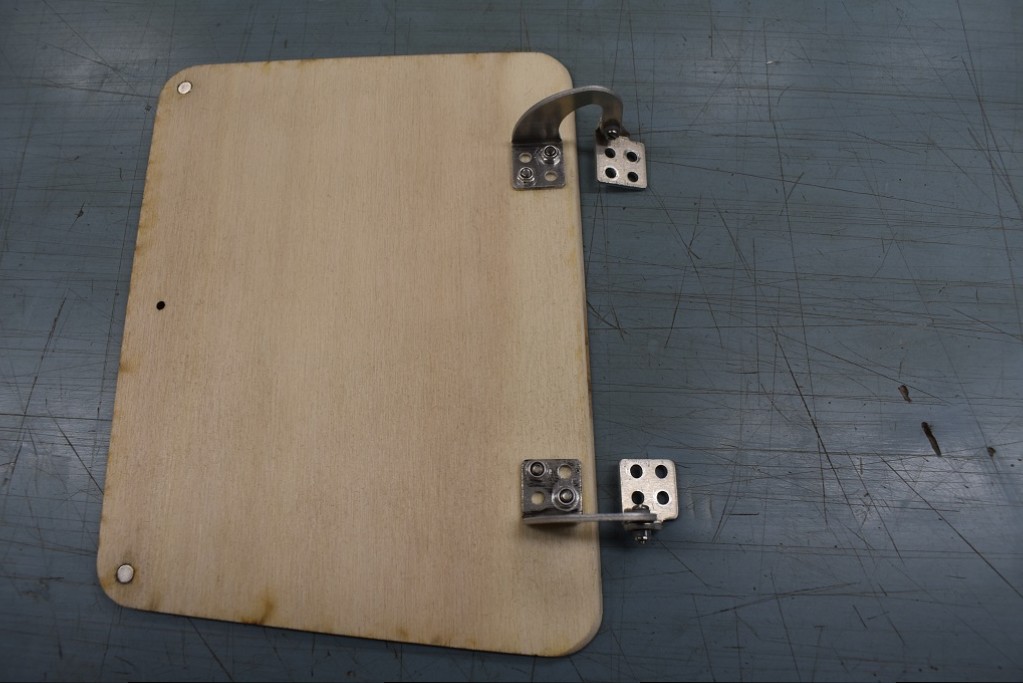

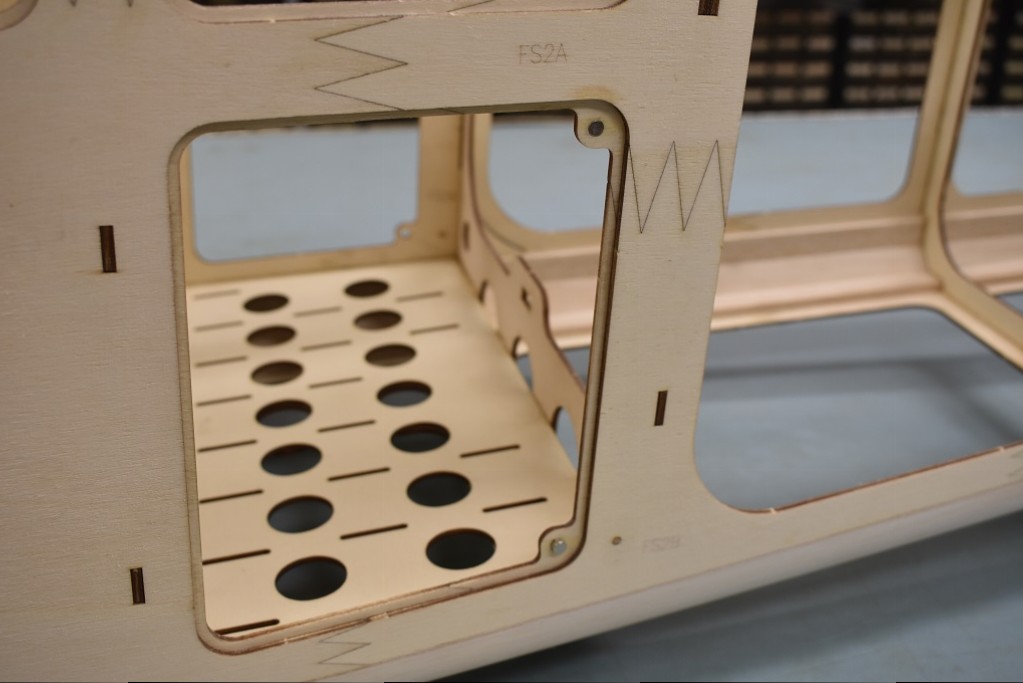

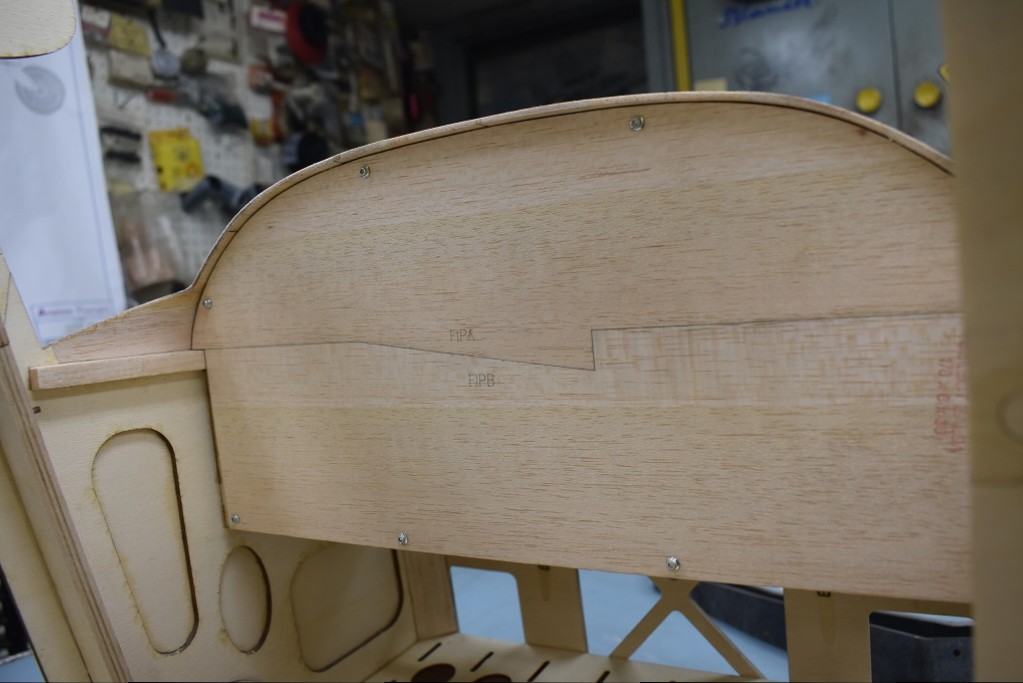

          The Luggage Door. There is only one on the left side and it's behind the T.E. of the wing. This to me will be a great place to mount the Rx switches.The kit will include the offset hinges and magnets.

          Click image for larger version

Name:	DSC_1003.JPG
Views:	1
Size:	90.4 KB
ID:	33998
          Click image for larger version

Name:	DSC_1011.JPG
Views:	1
Size:	70.8 KB
ID:	33999
          Click image for larger version

Name:	DSC_1030.JPG
Views:	1
Size:	119.1 KB
ID:	34001
          Click image for larger version

Name:	DSC_1038.JPG
Views:	1
Size:	64.5 KB
ID:	34000
          Click image for larger version

Name:	DSC_1042.JPG
Views:	1
Size:	112.2 KB
ID:	34002

          Comment


          • #66

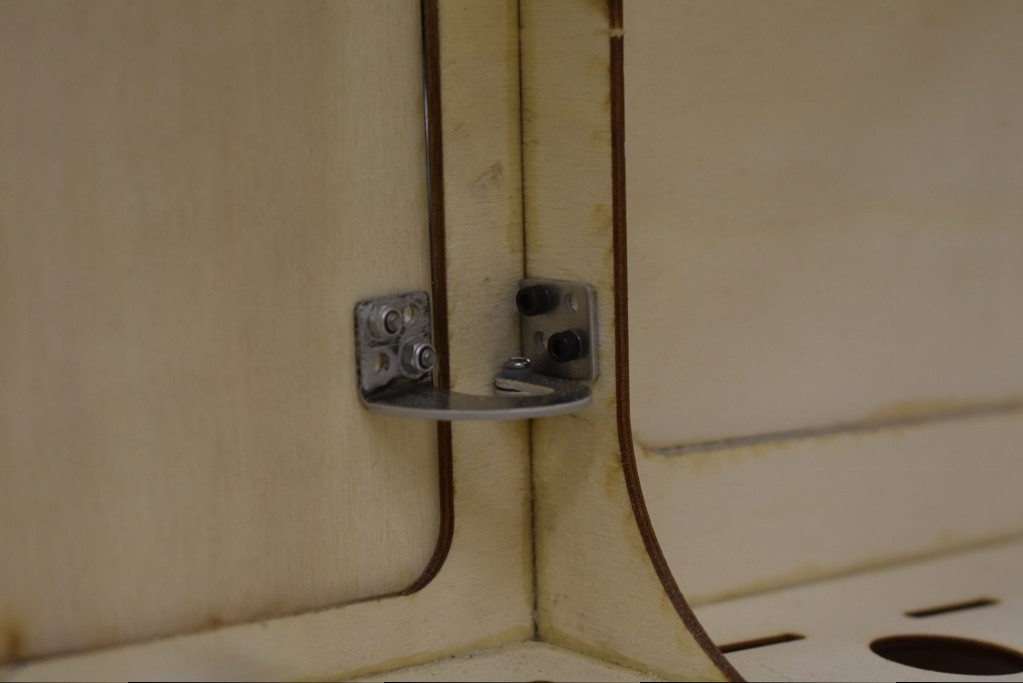

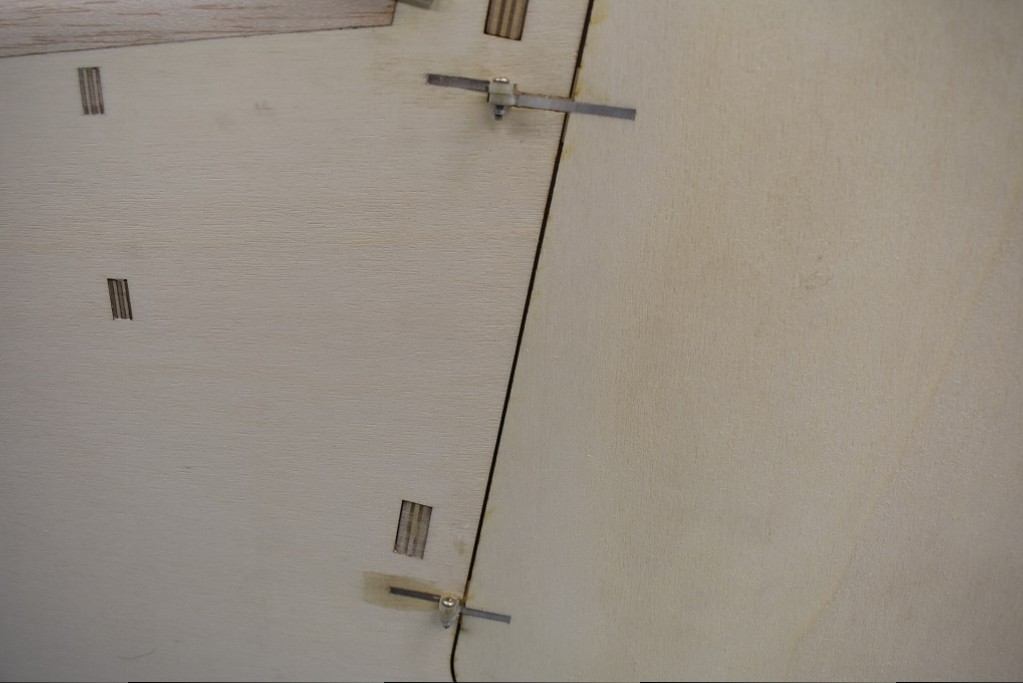

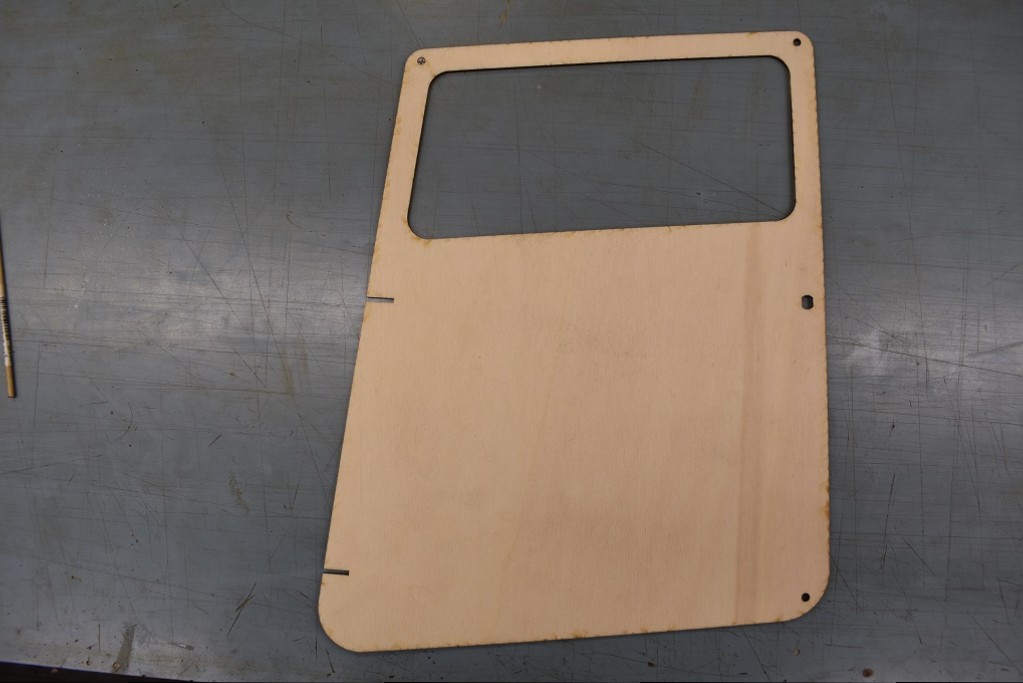

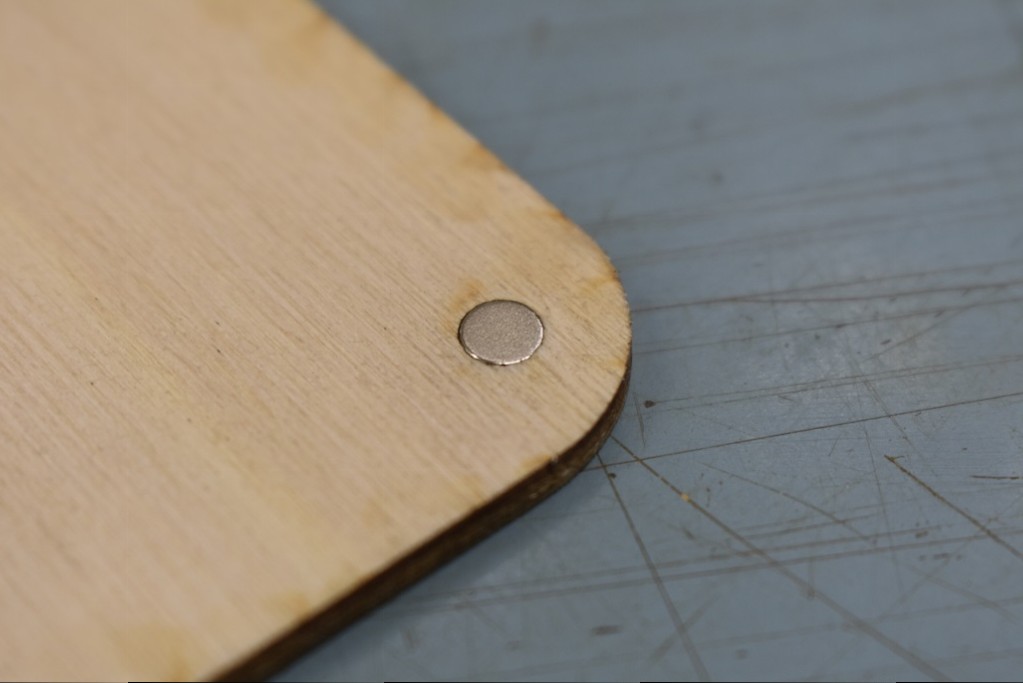

            The main doors. They are big and have three magnets and an actual latch. The hinges are from G-10.

            Click image for larger version

Name:	DSC_1051.JPG
Views:	1
Size:	97.7 KB
ID:	34007
            Click image for larger version

Name:	DSC_1058.JPG
Views:	1
Size:	113.8 KB
ID:	34006
            Click image for larger version

Name:	DSC_1059.JPG
Views:	1
Size:	95.0 KB
ID:	34005
            Click image for larger version

Name:	DSC_1068.JPG
Views:	1
Size:	75.3 KB
ID:	34004
            Click image for larger version

Name:	DSC_1077.JPG
Views:	1
Size:	73.6 KB
ID:	34008
            Click image for larger version

Name:	DSC_1087.JPG
Views:	1
Size:	99.6 KB
ID:	34009

            Comment


            • #67

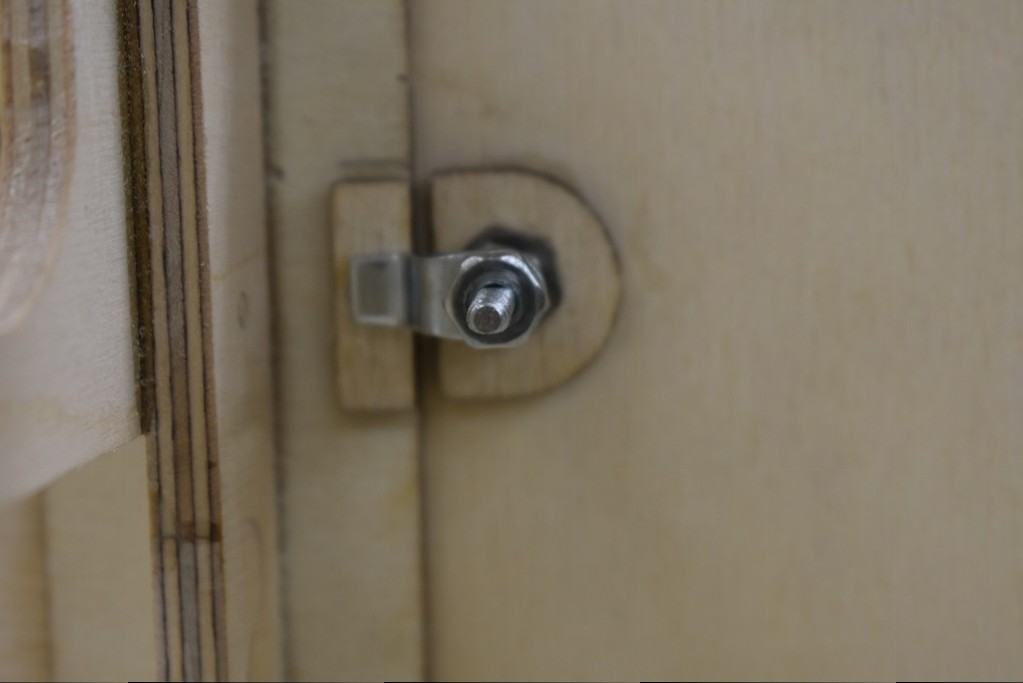

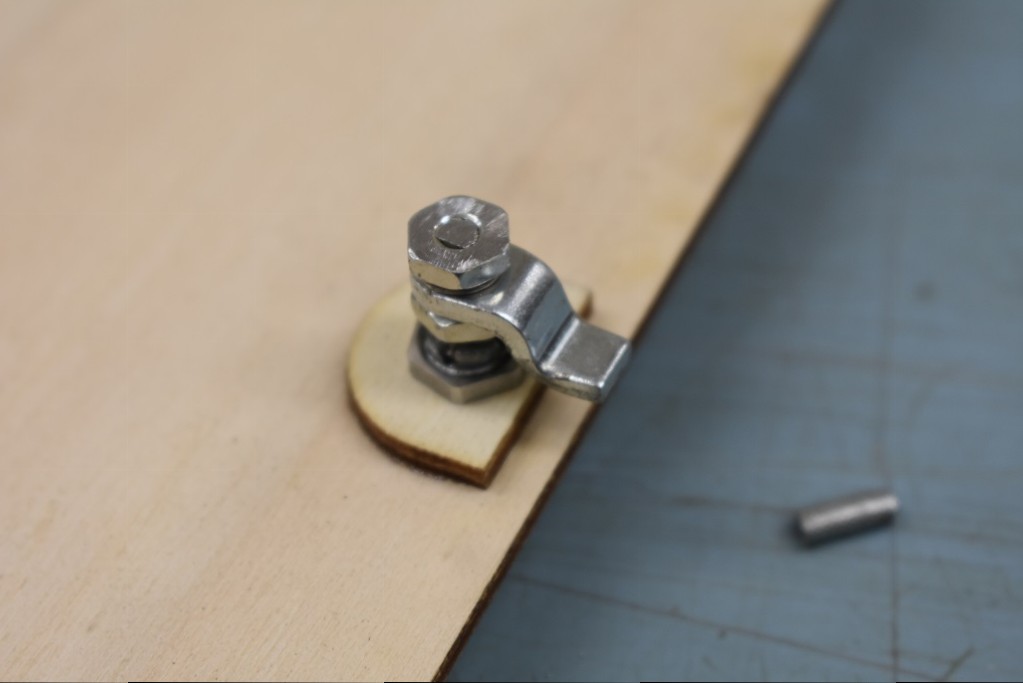

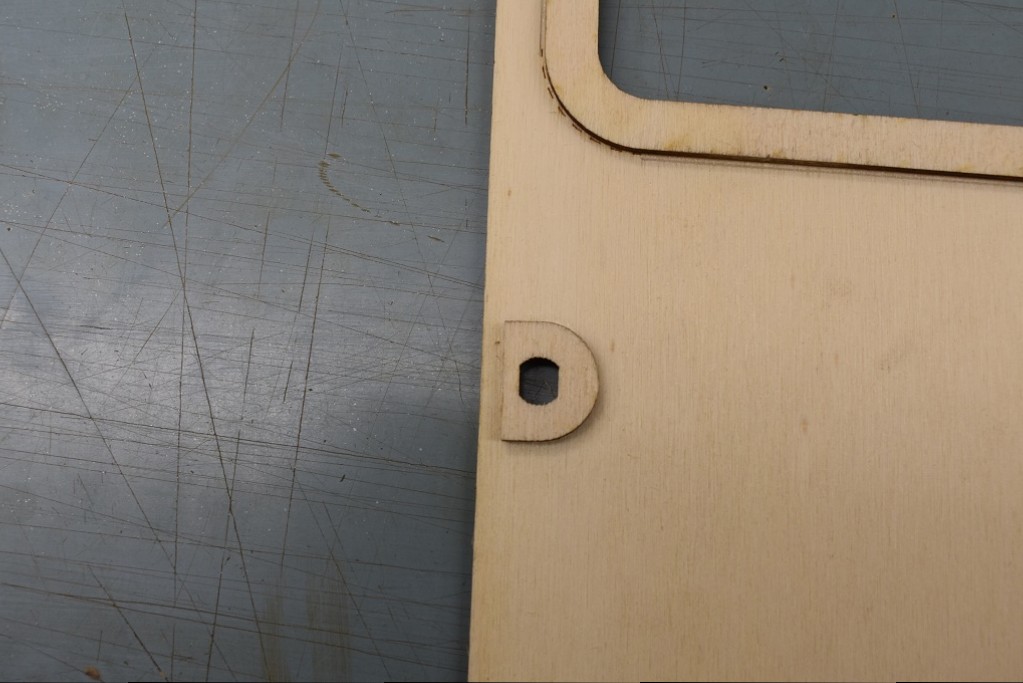

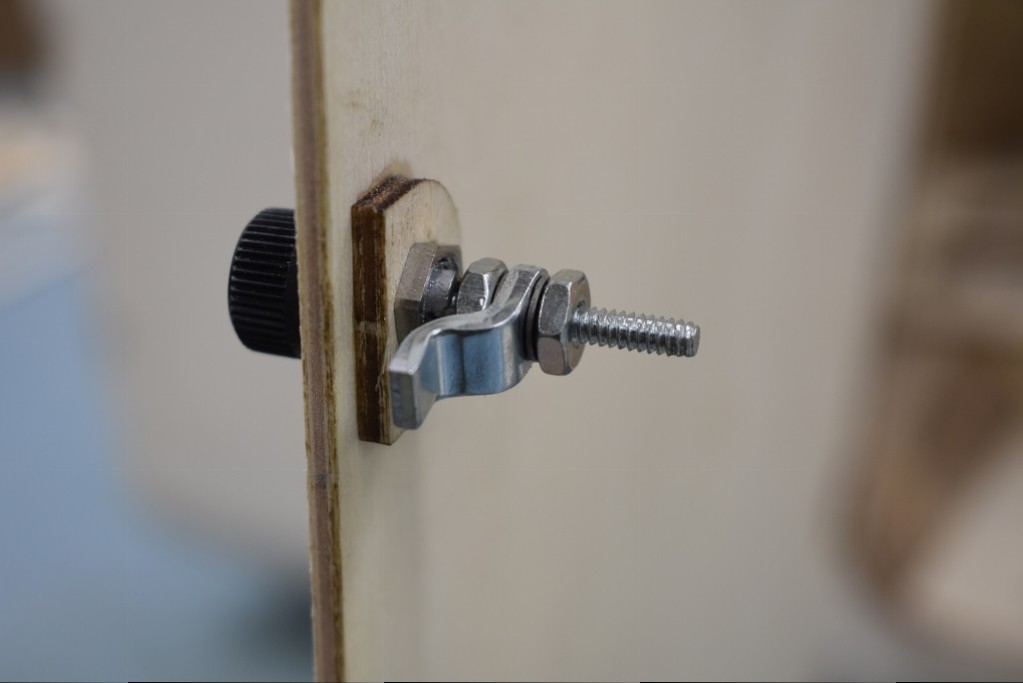

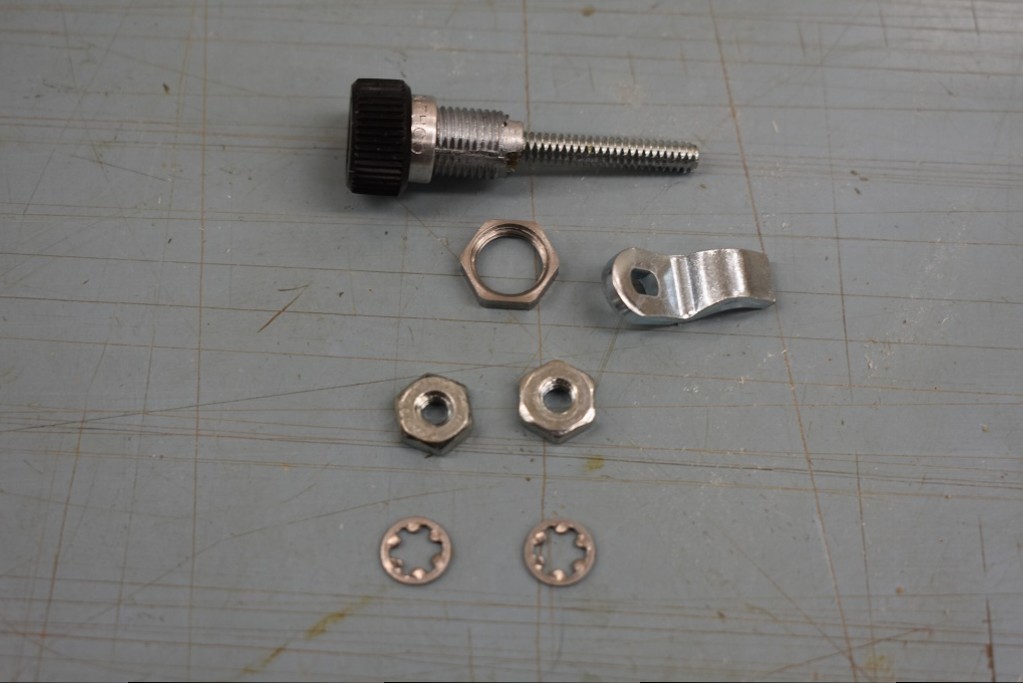

              And the door latch witch also is included.

              Click image for larger version

Name:	DSC_1090.JPG
Views:	1
Size:	94.8 KB
ID:	34012
              Click image for larger version

Name:	DSC_1095.JPG
Views:	1
Size:	52.5 KB
ID:	34014
              Click image for larger version

Name:	DSC_1101.JPG
Views:	1
Size:	59.9 KB
ID:	34013
              Click image for larger version

Name:	DSC_1104.JPG
Views:	1
Size:	54.4 KB
ID:	34011

              Comment


              • #68
                Credits: Jim D. for the luggage door hinges and the top front corner of the main door additional magnets.
                Kevin K. for the idea of adding a positive latch to the main door.
                Jeff D. for the source of the latch mechanism (which actually was for my generator cover project)
                Last edited by gunny11; 02-11-2019, 06:47 PM.

                Comment


                • #69
                  Wow! Awesome project Gunny! Is the windshield flat wrap or is is formed?

                  Comment


                  • gunny11
                    gunny11 commented
                    Editing a comment
                    Laser cut flat wrapped

                • #70
                  Here is a picture of the windshield with these G-10 frames glued to the glass. These frames reinforce the glass and prevent the whoopdies between the screws.

                  Click image for larger version

Name:	DSC_0917.JPG
Views:	1
Size:	57.0 KB
ID:	34032

                  Comment


                  • #71

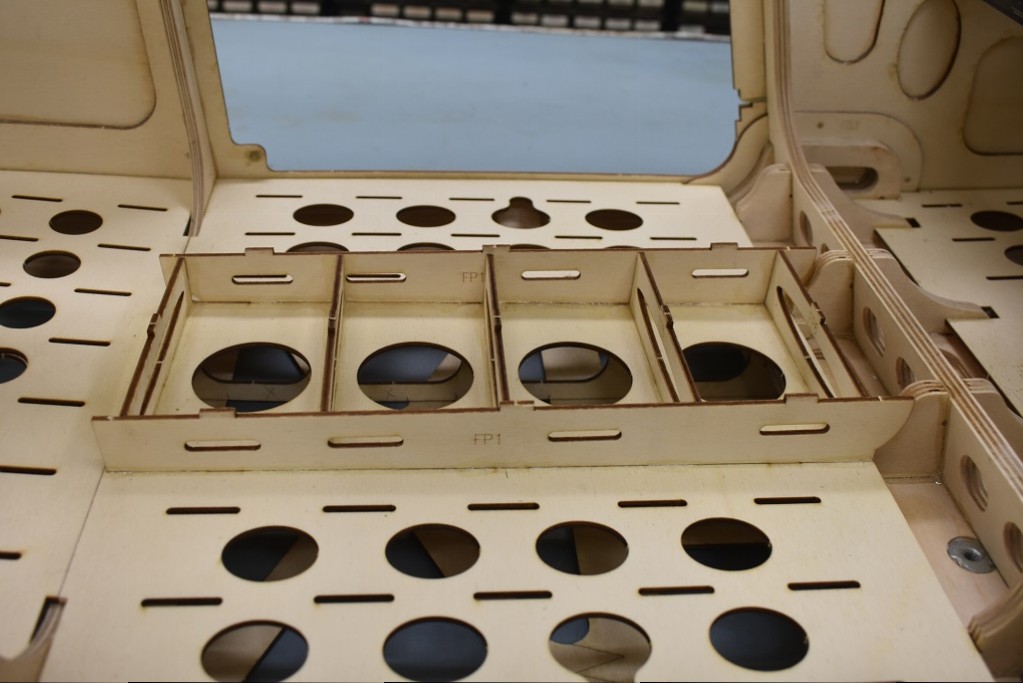

                    The fuel tank platform.

                    Click image for larger version

Name:	DSC_0926.JPG
Views:	1
Size:	113.3 KB
ID:	34034
                    Click image for larger version

Name:	DSC_0928.JPG
Views:	1
Size:	119.9 KB
ID:	34035

                    Comment


                    • #72

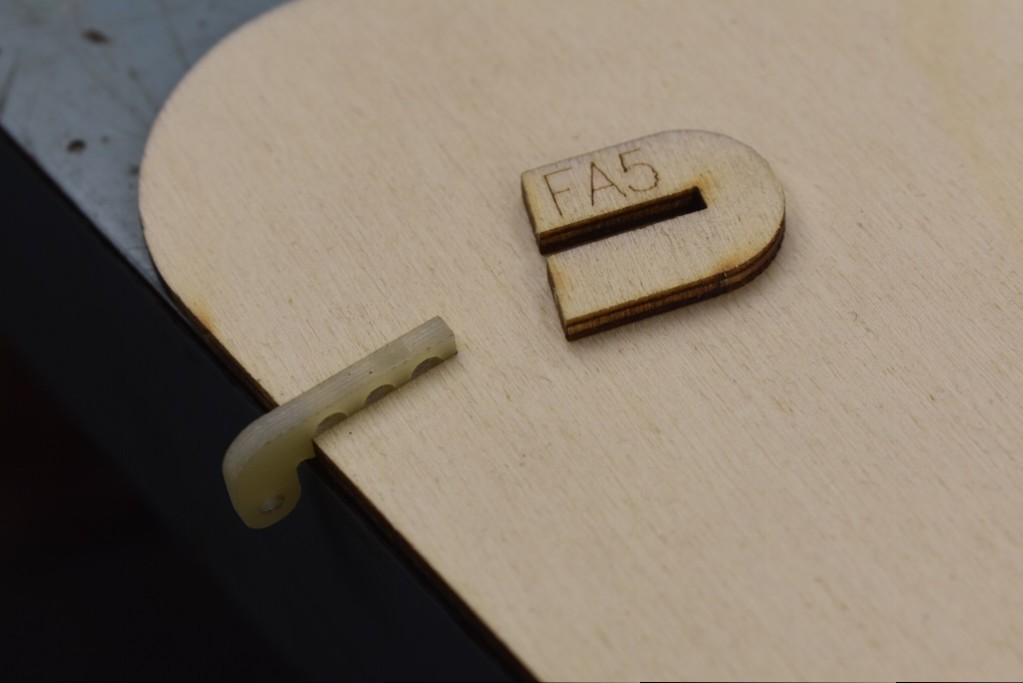

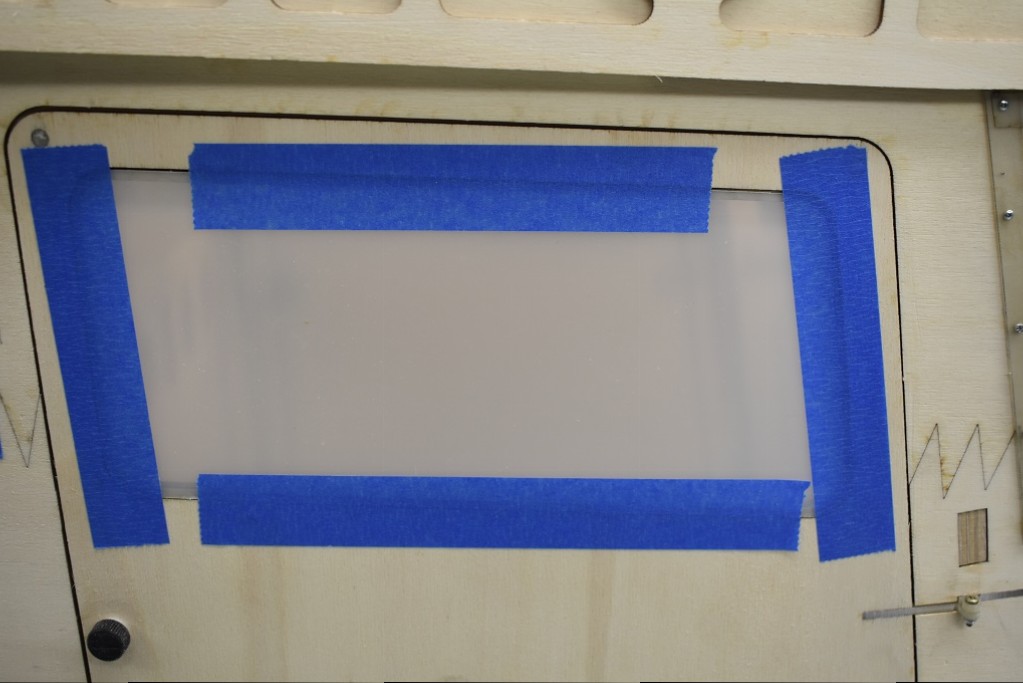

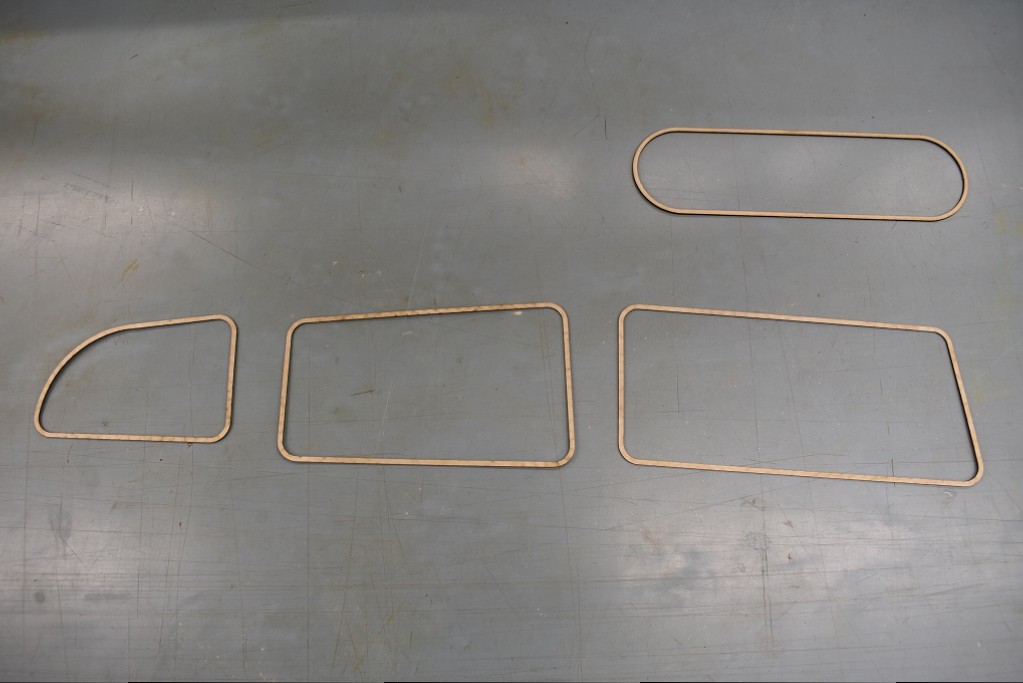

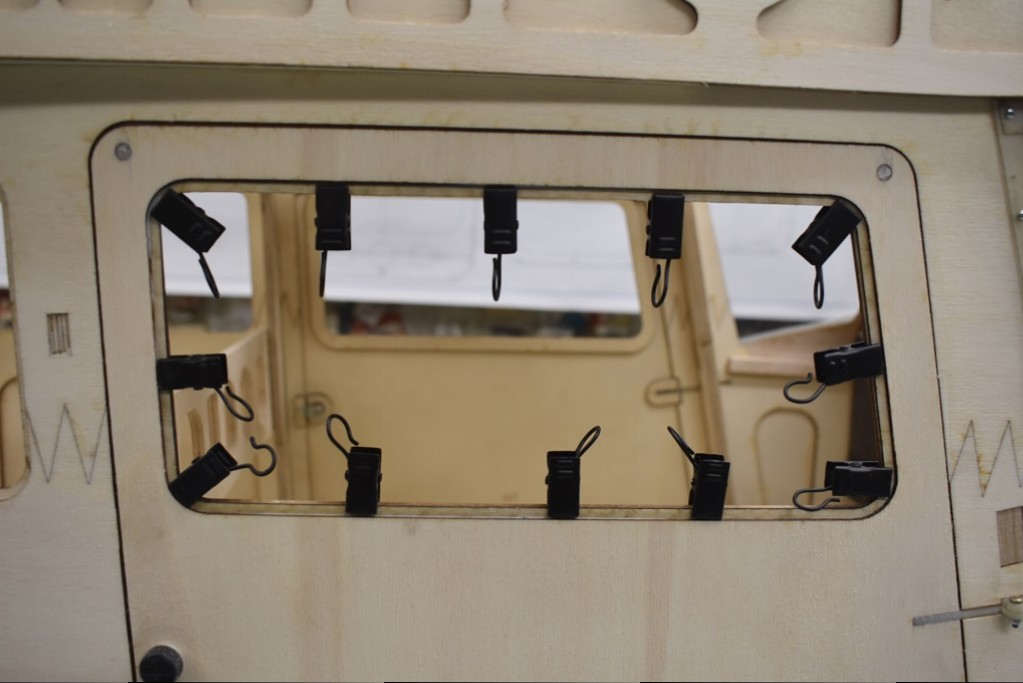

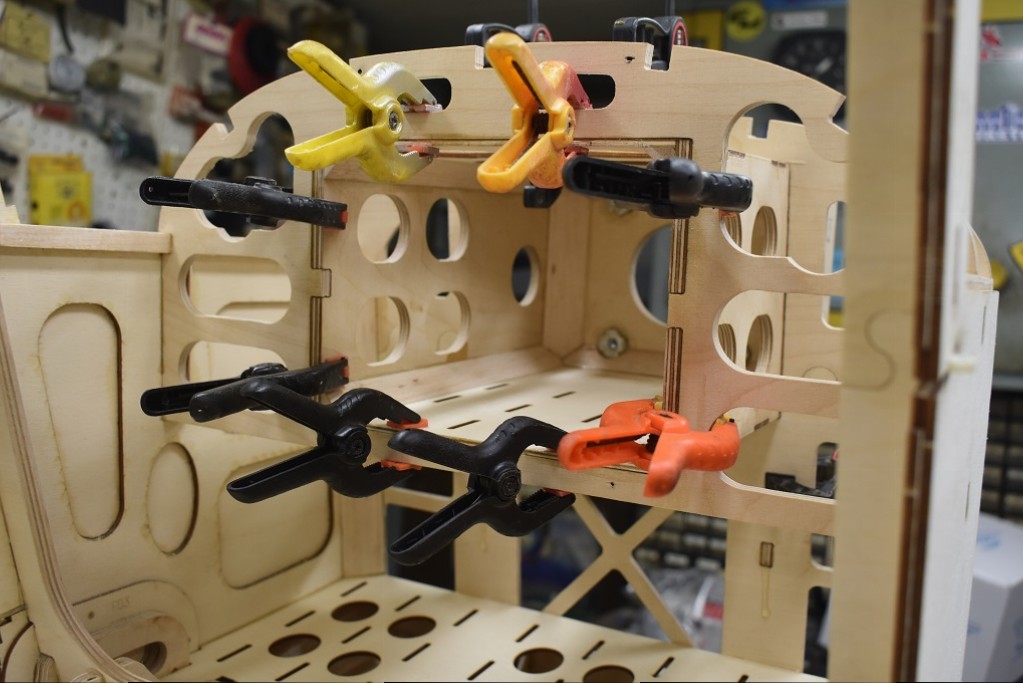

                      Window frame extensions. 1/16" thk. ply glue into the fuselage to bring the side and top windows flush. You can go through a bucket of binder clips easily....
                      So i just used the glass to "clamp" those frames into place while the glue dries. Not to worry about accidentally gluing them in yet because the protective wrapping is still on. They will be glued in after the model is covered.

                      Click image for larger version

Name:	DSC_1105.JPG
Views:	1
Size:	90.9 KB
ID:	34038

                      Click image for larger version

Name:	DSC_1109.JPG
Views:	1
Size:	97.5 KB
ID:	34039

                      Click image for larger version

Name:	DSC_1112.JPG
Views:	1
Size:	100.3 KB
ID:	34040

                      Click image for larger version

Name:	DSC_1113.JPG
Views:	1
Size:	107.2 KB
ID:	34037

                      Comment


                      • #73

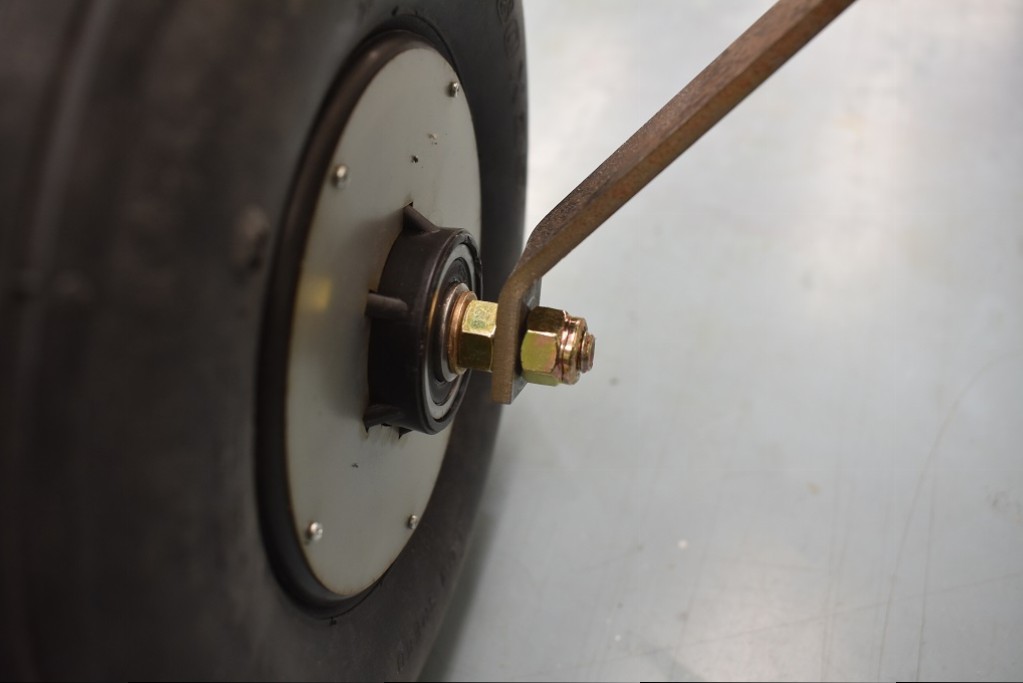

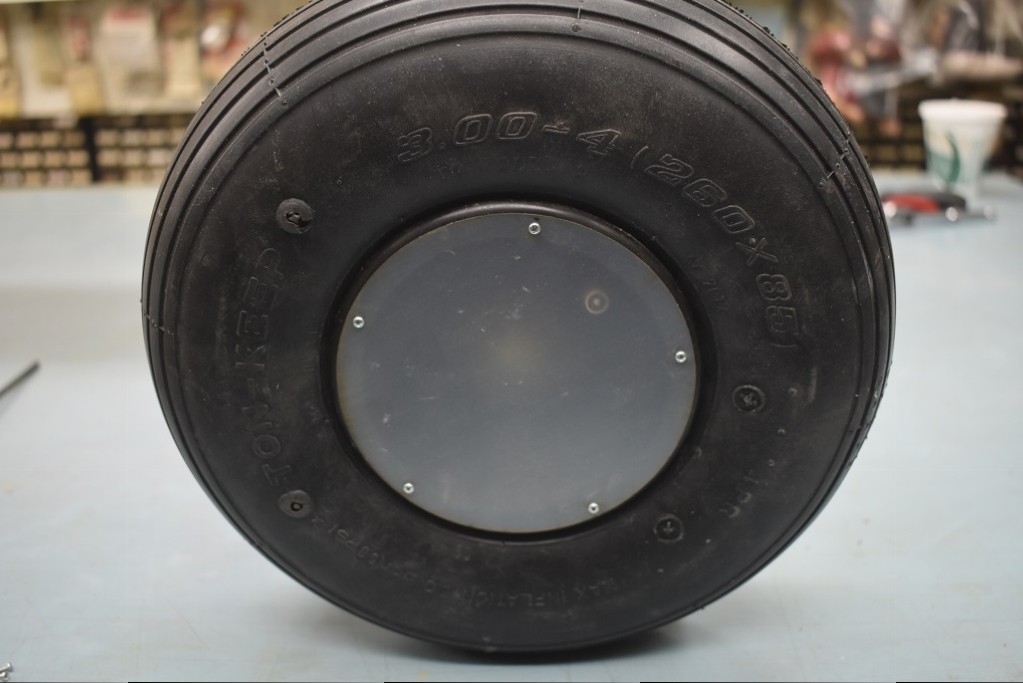

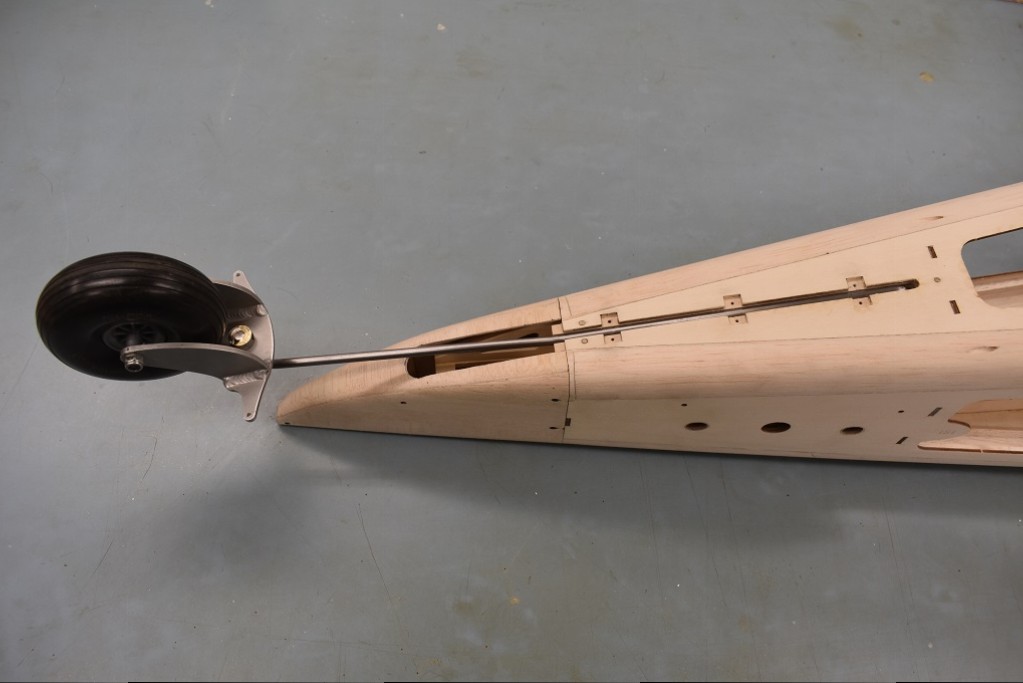

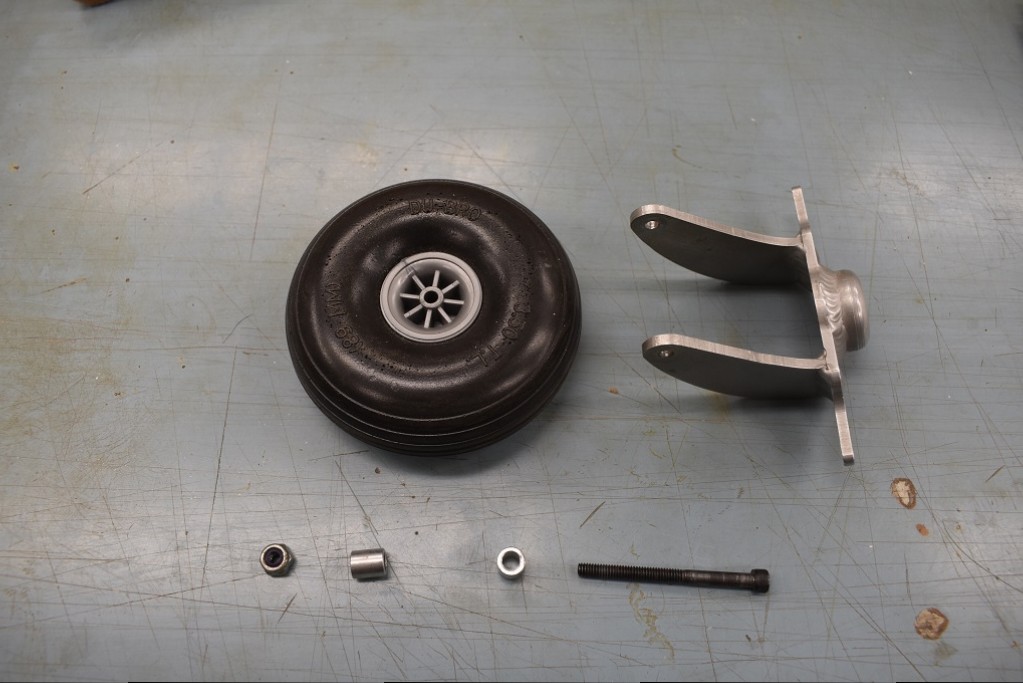

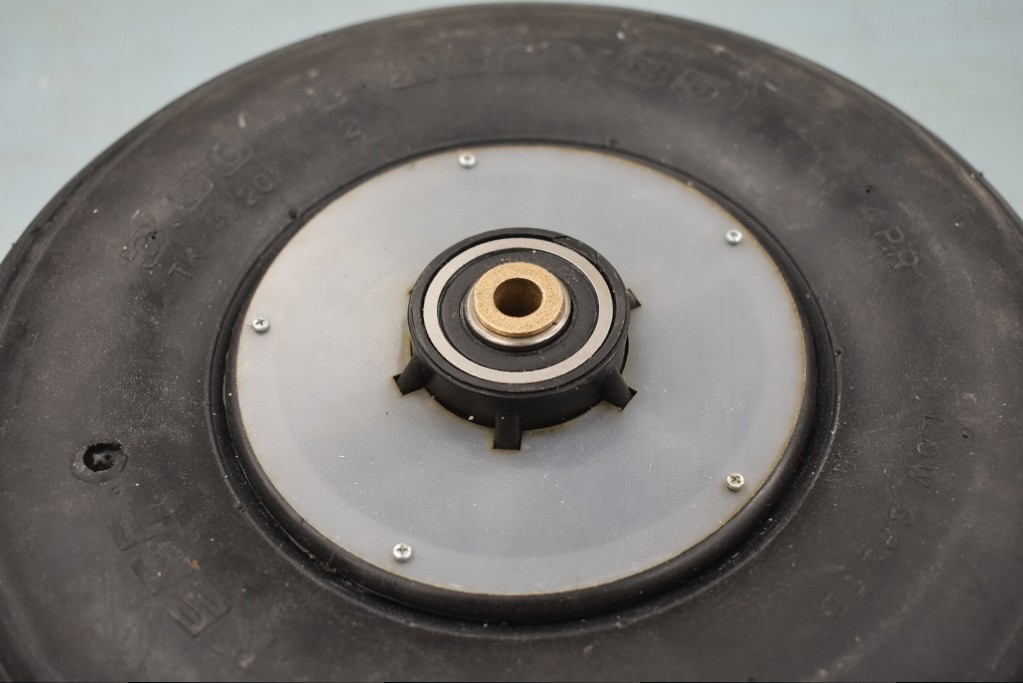

                        Tail wheel and main wheels. The tail wheel and assembly is included in the kit. The 10" main wheels and G-10 hub caps shown will be an option for the kit.

                        Click image for larger version

Name:	DSC_1119.JPG
Views:	1
Size:	121.8 KB
ID:	34050

                        Click image for larger version

Name:	DSC_1131.JPG
Views:	1
Size:	77.7 KB
ID:	34049

                        Click image for larger version

Name:	DSC_1143.JPG
Views:	1
Size:	103.7 KB
ID:	34048

                        Click image for larger version

Name:	DSC_1153.JPG
Views:	1
Size:	99.0 KB
ID:	34052

                        Click image for larger version

Name:	DSC_1149.JPG
Views:	1
Size:	58.8 KB
ID:	34051

                        Comment


                        • #74
                          Tail wheels really take a beating. FWIW- consider making the portion mounted in the fuselage have its axis run through the tire contact patch. That reduces 'lever' forces in side load conditions.

                          Comment


                          • gunny11
                            gunny11 commented
                            Editing a comment
                            I think I know what you are trying to say... It's 7/32" dia. 1095 music wire and set up as a torsion rod. I tested it on my hydraulic test bed weighing 50 lbs. There's a video of it on my web site. But not to worry, because I'll give it to Kevin K. and let him put it to the ultimate tests with his STOL Tundra type tail wheel landings,
