1/3-Scale Cessna 185 ~ by Gunny Bumburs at Aviation Concepts

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    Click image for larger version

Name:
Views:	0
Size:	103.7 KB

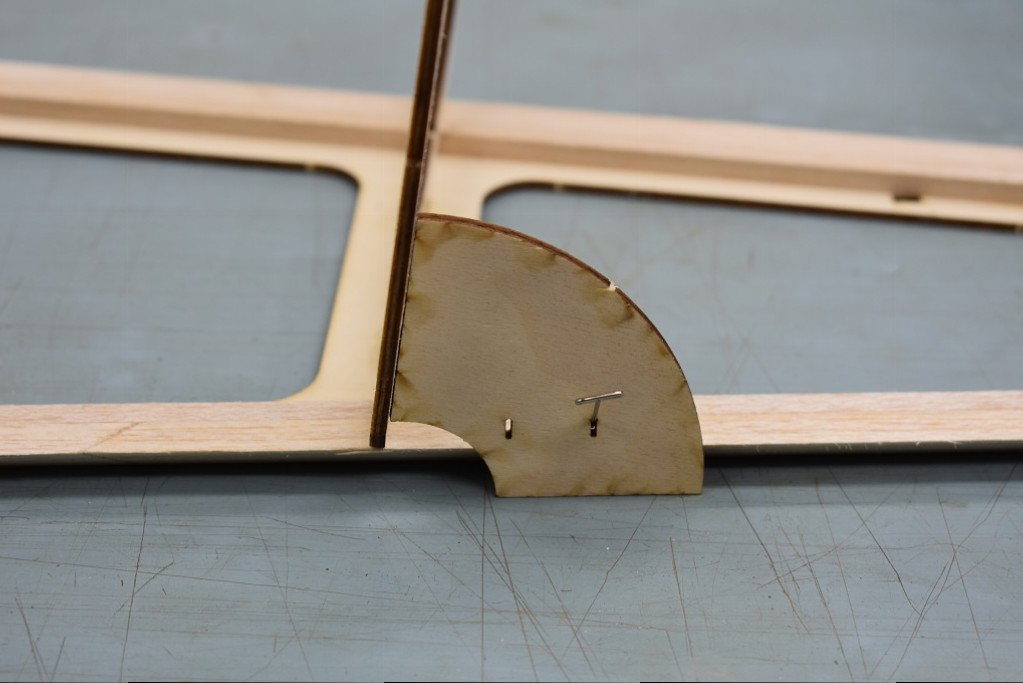

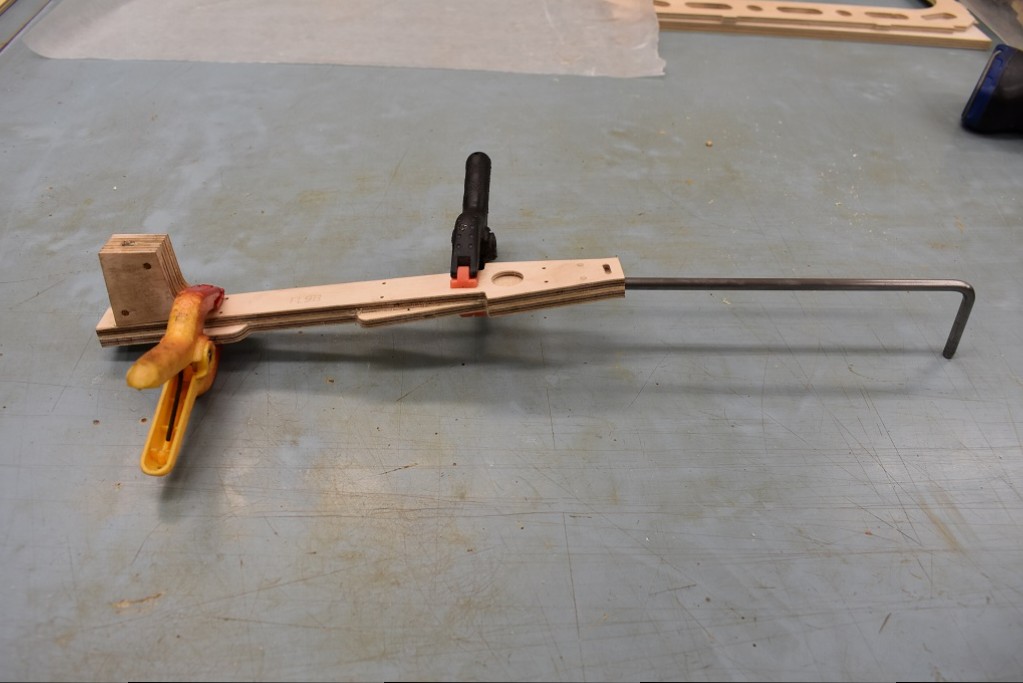

ID:	33490 The tail wheel assembly mount.
    Gunny
    Aviation Concepts rc

    Comment


    • #17
      Gunny,
      What are you planning on for covering and finishing? Always enjoy seeing your designs come together, they are outstanding!!

      Comment


      • gunny11
        gunny11 commented
        Editing a comment
        Thanks, Ultracoat for the entire airframe and Krylon paint for the cowl and landing gear.

    • #18
      Click image for larger version  Name:	 Views:	1 Size:	104.5 KB ID:	33514Click image for larger version  Name:	 Views:	1 Size:	104.4 KB ID:	33513

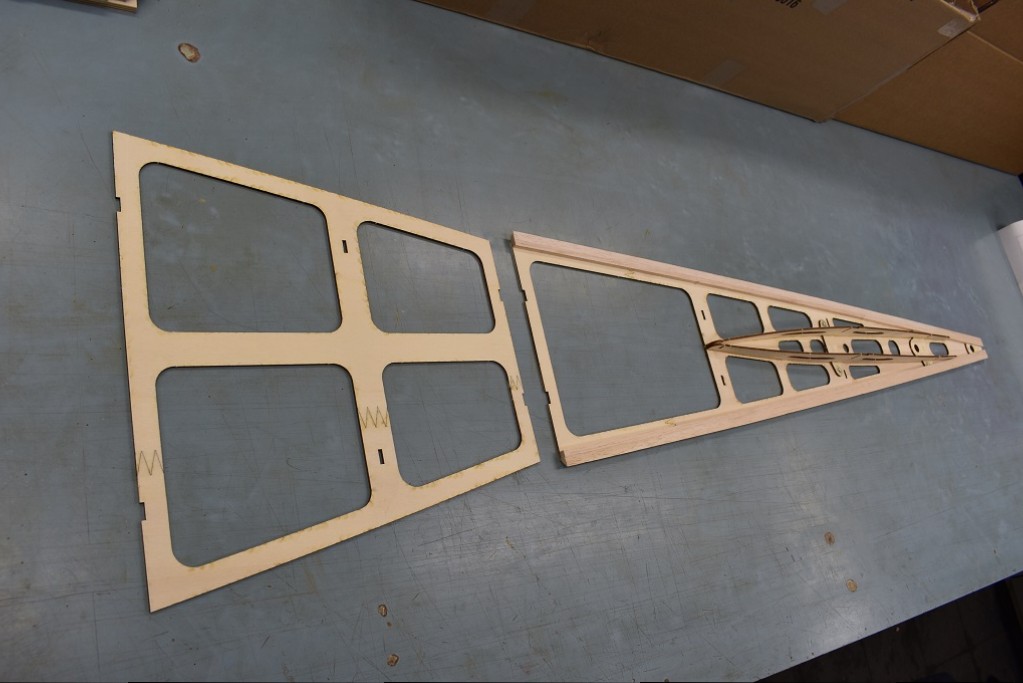

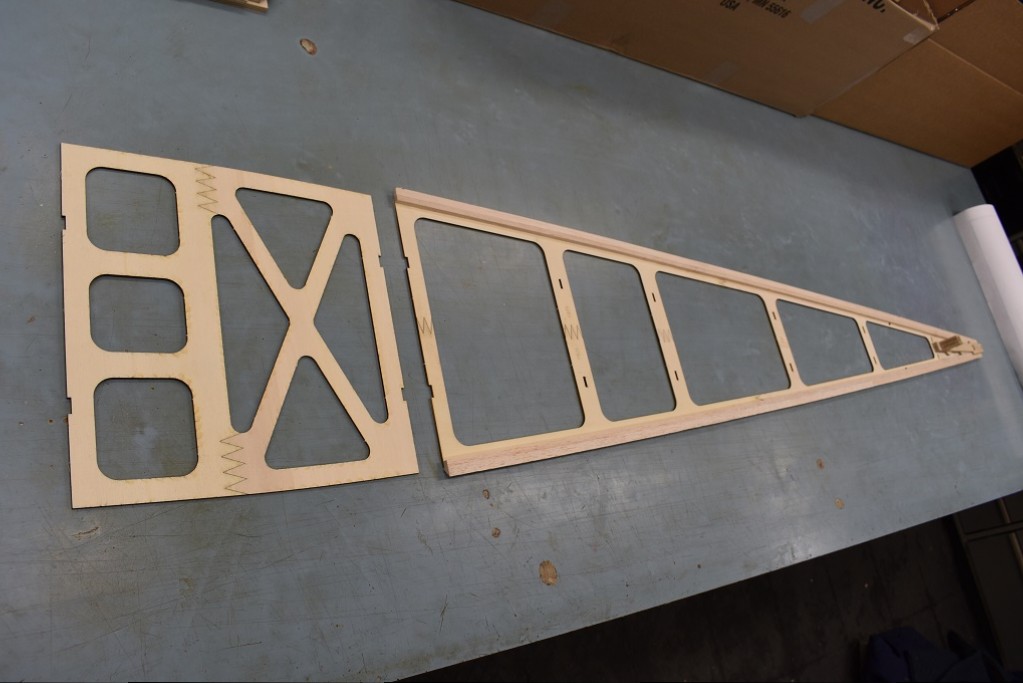

      The fuselage bottom and top sub assemblies. To get the rounded corners of the fuselage is achieved by these assemblies first having 1/4" square balsa sticks glued to the bottom edge and then along side of these is 3/8" balsa triangle stock,
      Last edited by gunny11; 01-28-2019, 09:29 PM.
      Gunny
      Aviation Concepts rc

      Comment


      • #19

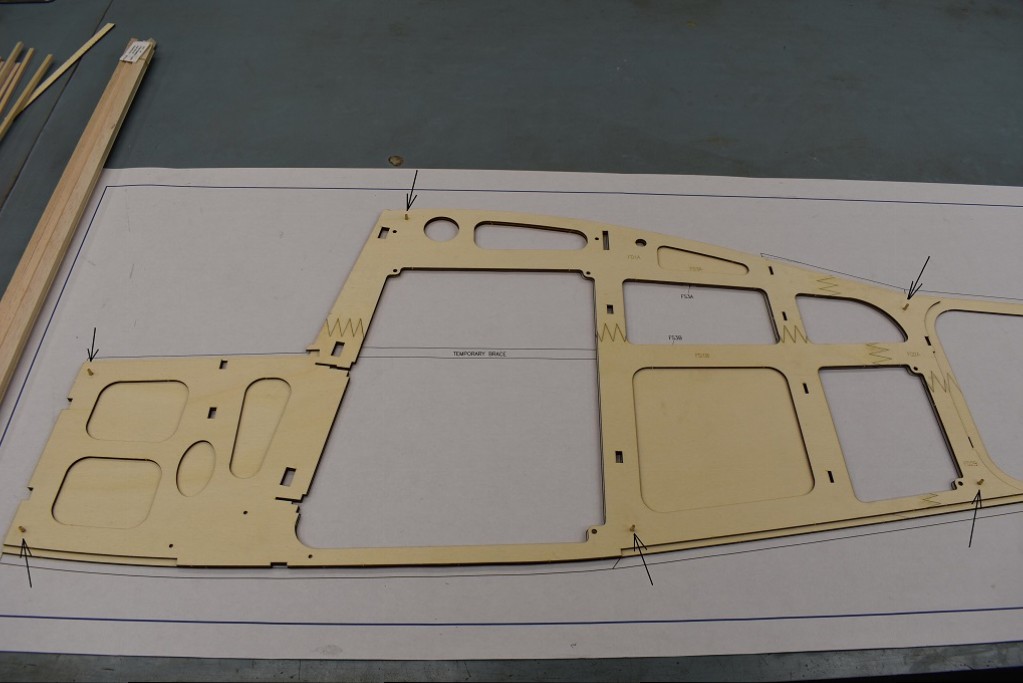

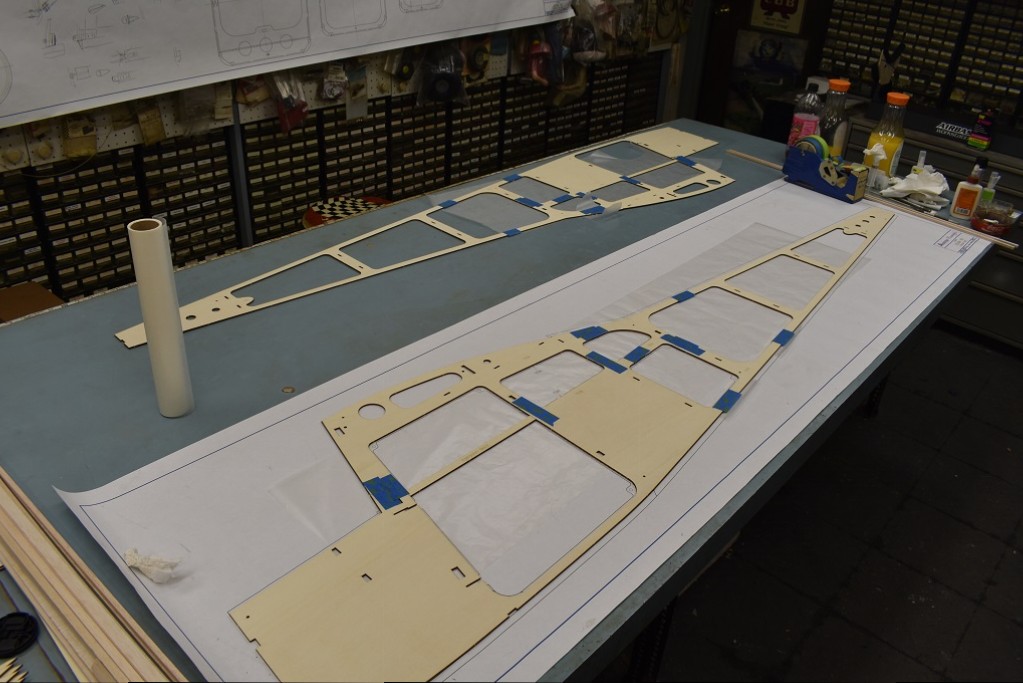

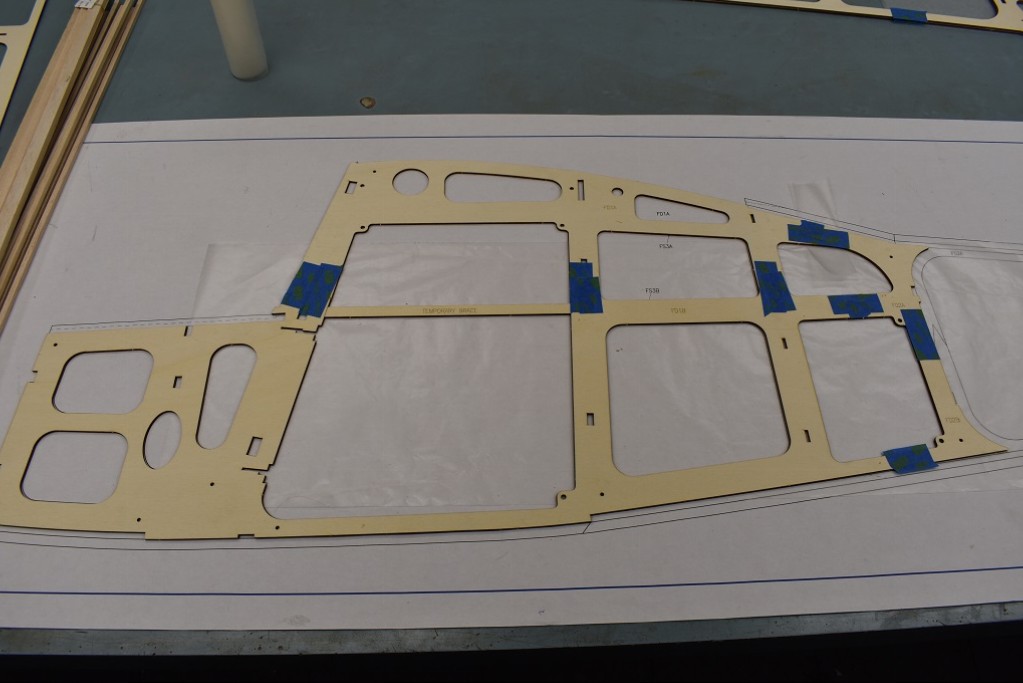

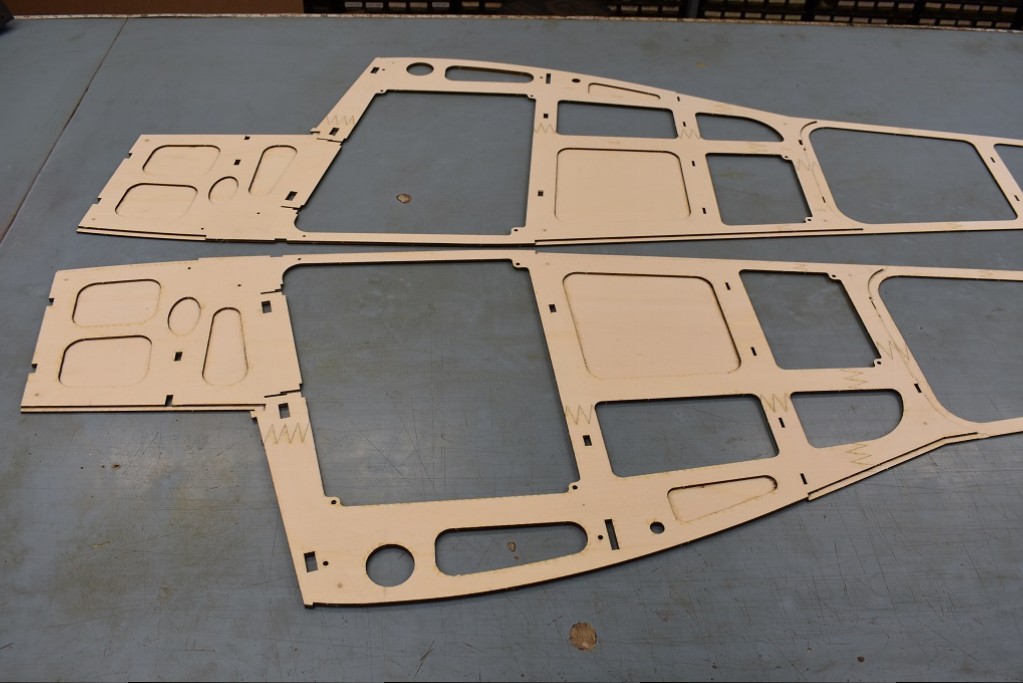

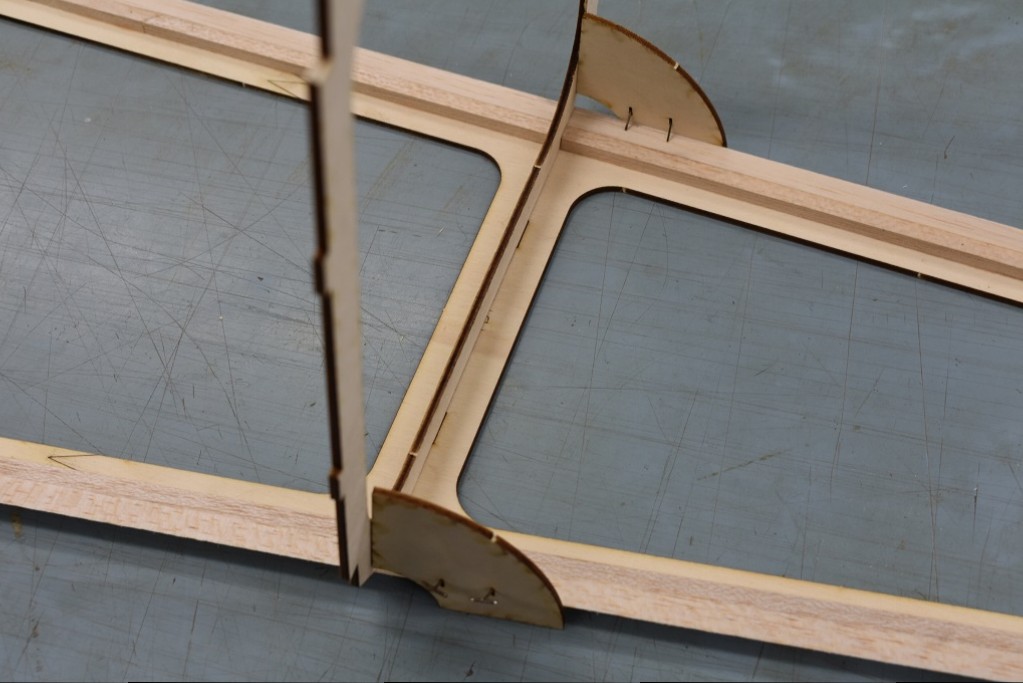

        Click image for larger version  Name:	 Views:	1 Size:	96.7 KB ID:	33516Click image for larger version  Name:	 Views:	1 Size:	139.3 KB ID:	33517Click image for larger version  Name:	 Views:	1 Size:	97.0 KB ID:	33518Click image for larger version  Name:	 Views:	1 Size:	118.2 KB ID:	33519 The fuselage sides and doublers are assembled. The alignment of gluing on the doubler is via the six 1/8" dia. dowel alignment pegs.
        Gunny
        Aviation Concepts rc

        Comment


        • #20
          So i just wanted to say that this is a general build thread. (Kinda like a synopsis) The kit like all of my other kits has a step by step construction manual with TONS of color photos which is laser printed and wire bound. In the past I used to finish the prototype and sit down and do the manual. Ugh! I would sit there for a month straight trying to figure out what I was trying to show. So now i take about 100 pictures and then do those steps while it's still fresh in my mind.
          Gunny
          Aviation Concepts rc

          Comment


          • #21
            Watching all the way Gunny, nice stuff

            Jeremy
            SCCAAA TT TN

            Comment


            • gunny11
              gunny11 commented
              Editing a comment
              Much appreciated, Thanks Jeremy!

          • #22
            Click image for larger version  Name:	 Views:	1 Size:	124.7 KB ID:	33542Click image for larger version  Name:	 Views:	1 Size:	85.9 KB ID:	33543Click image for larger version  Name:	 Views:	1 Size:	114.6 KB ID:	33544

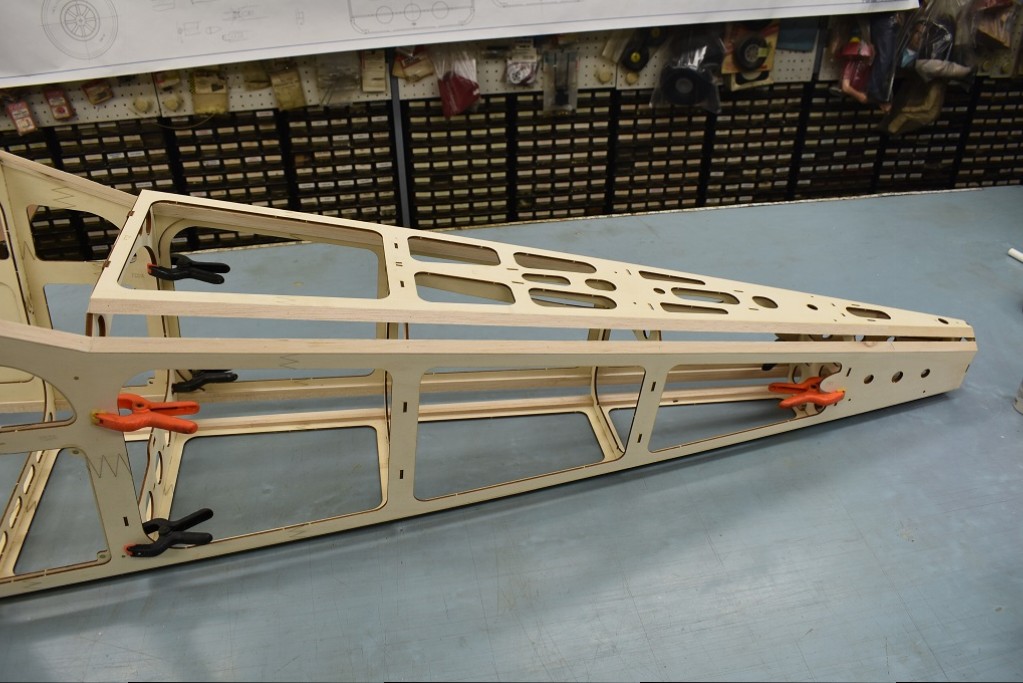

            The fuselage starts its aft construction assembly flat on the work bench.
            Gunny
            Aviation Concepts rc

            Comment


            • #23
              Click image for larger version

Name:	DSC_0310.JPG
Views:	368
Size:	142.7 KB
ID:	33546Click image for larger version

Name:	DSC_0313.JPG
Views:	353
Size:	152.4 KB
ID:	33547Click image for larger version

Name:	DSC_0324.JPG
Views:	340
Size:	155.1 KB
ID:	33548
              Gunny
              Aviation Concepts rc

              Comment


              • gunny11
                gunny11 commented
                Editing a comment

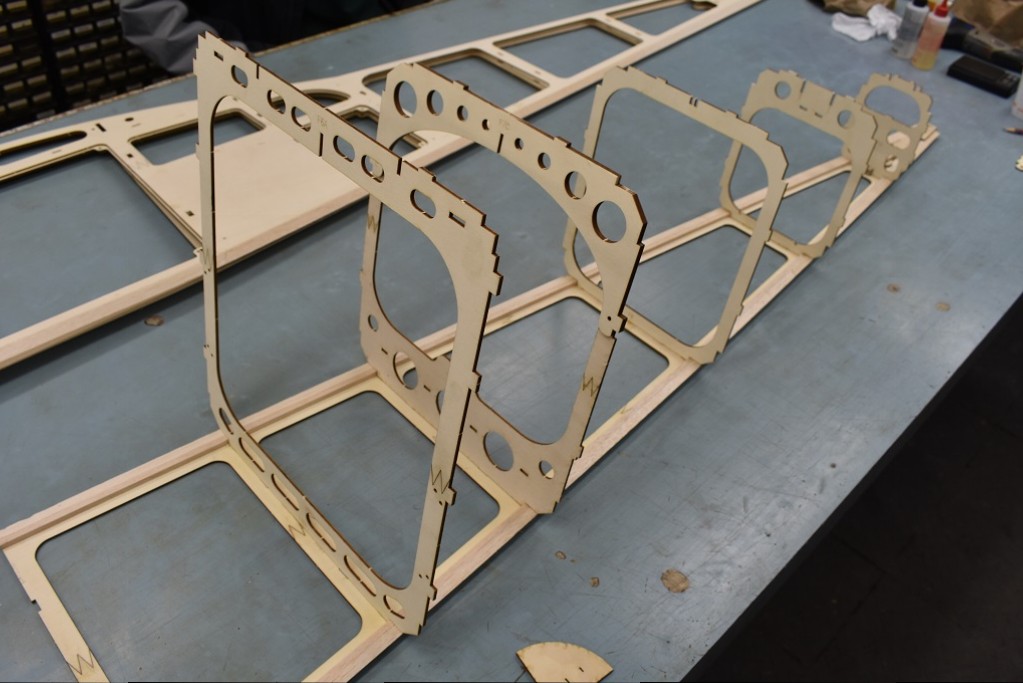

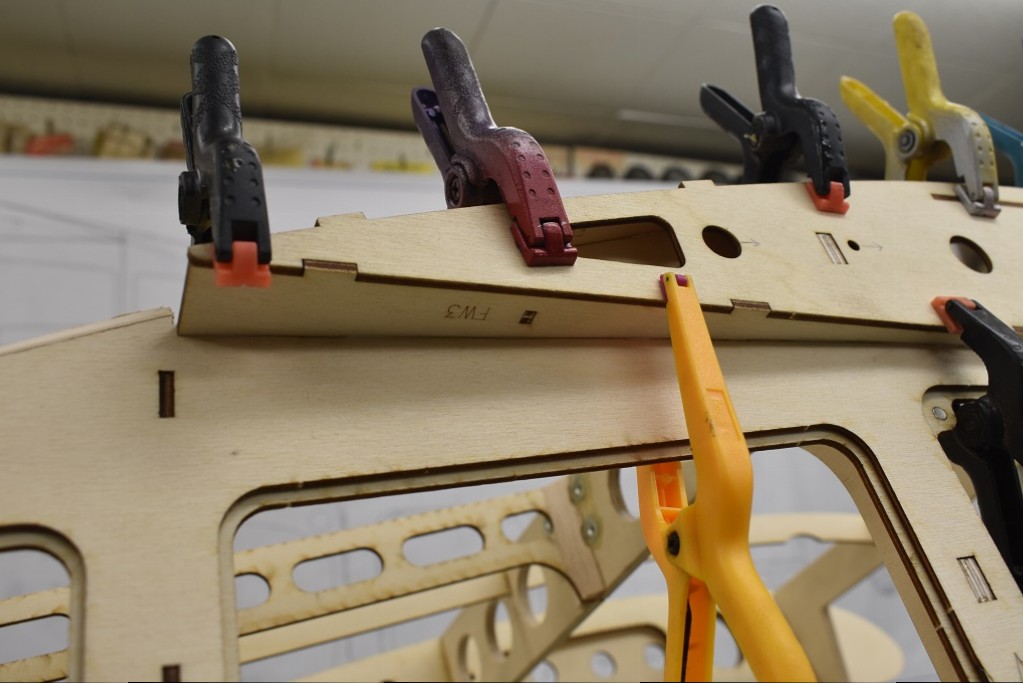

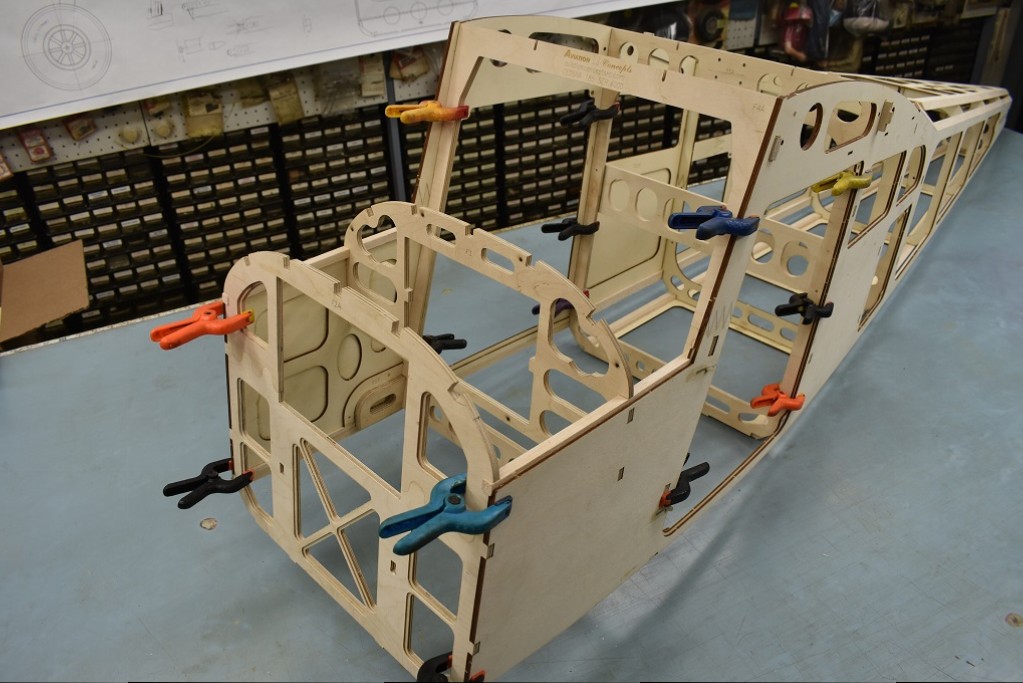

                The fuselage sides are hung on (glued) along with the rear top section. Then the remaining CNC cut birch ply formers are epoxied into place.

            • #24
              Click image for larger version  Name:	DSC_0355.JPG Views:	1 Size:	71.6 KB ID:	33552Click image for larger version  Name:	DSC_0371.JPG Views:	1 Size:	102.2 KB ID:	33553
              Click image for larger version  Name:	DSC_0373.JPG Views:	1 Size:	106.0 KB ID:	33551

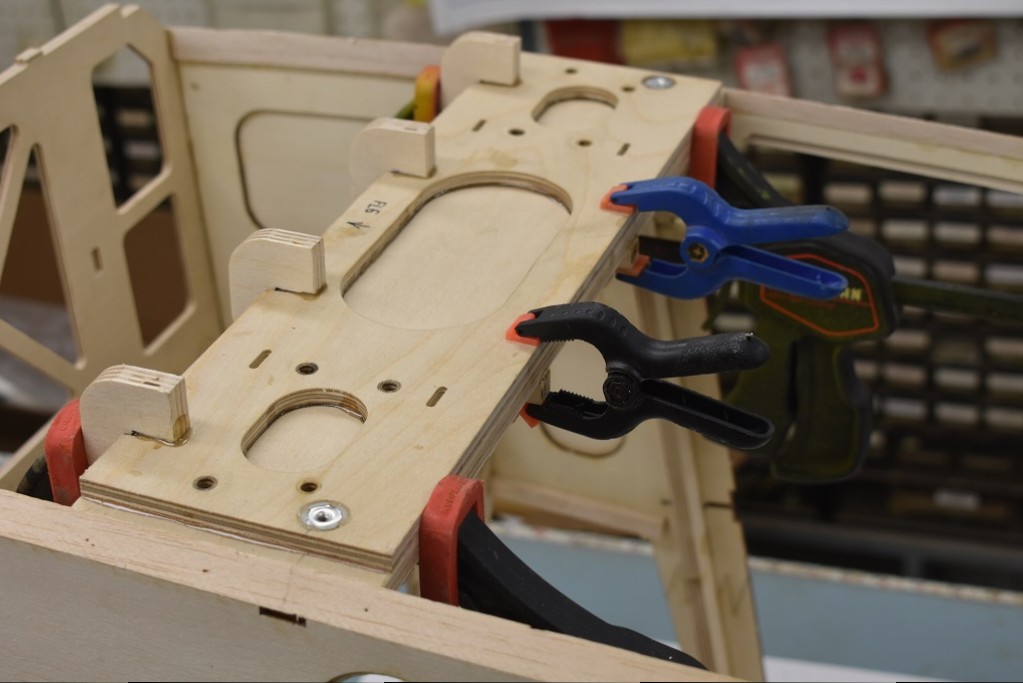

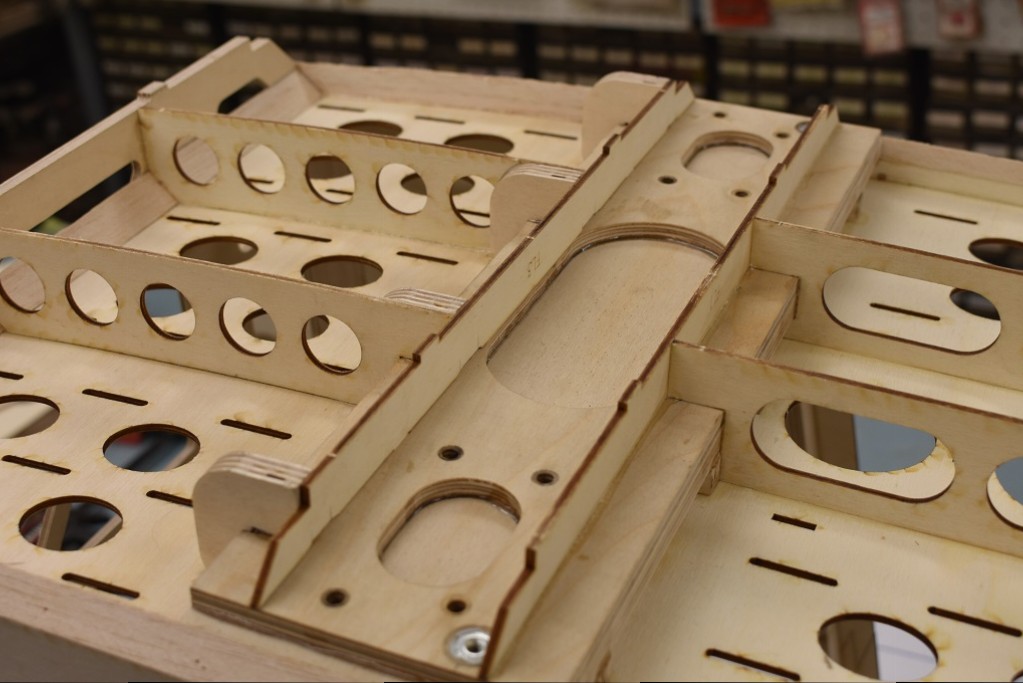

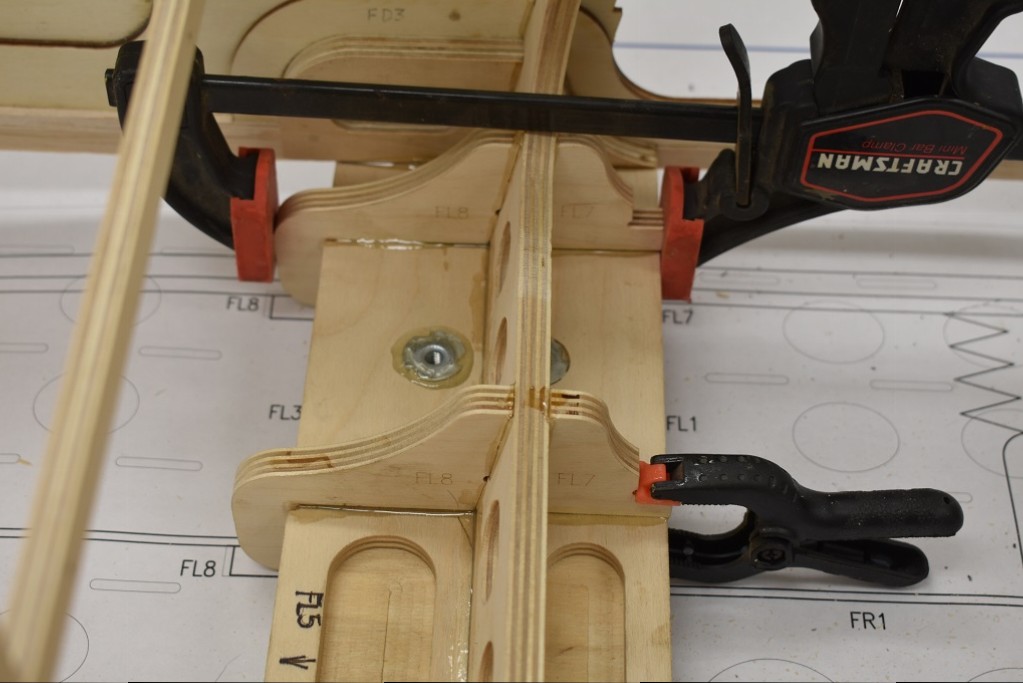

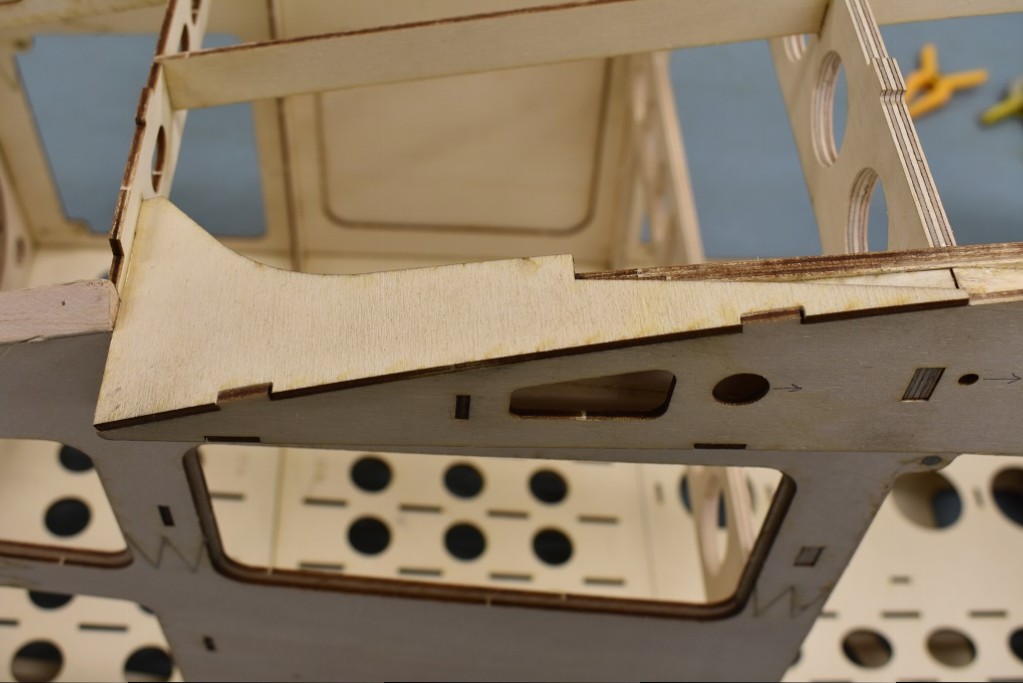

              The landing gear mounting plate is not only just tied into the fuselage side but onto the main 3/8" birch ply former.
              Gunny
              Aviation Concepts rc

              Comment


              • #25

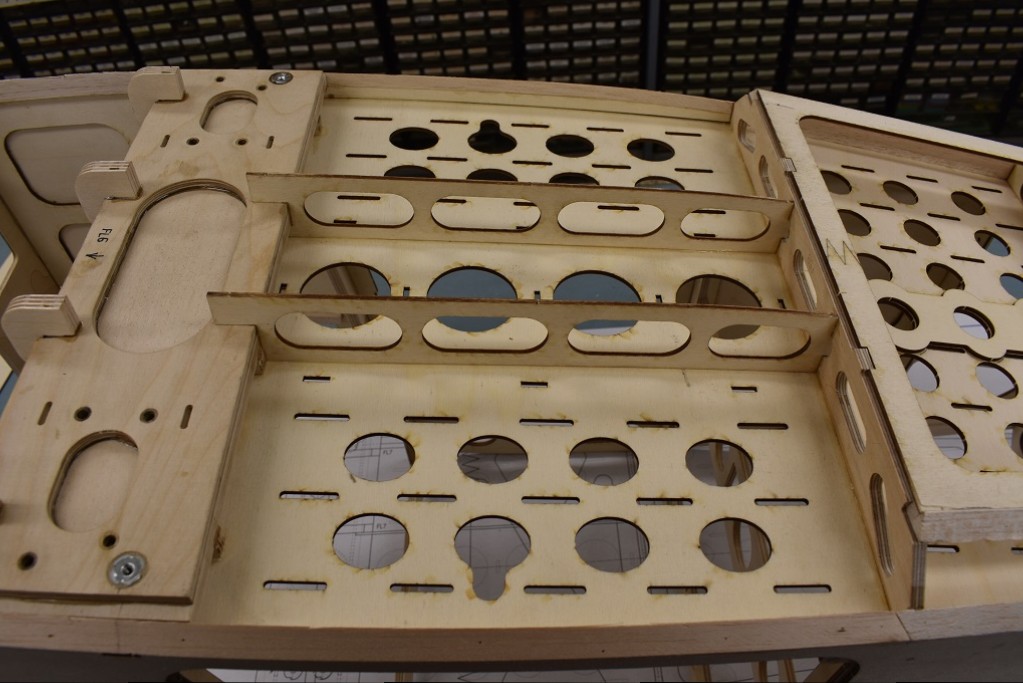

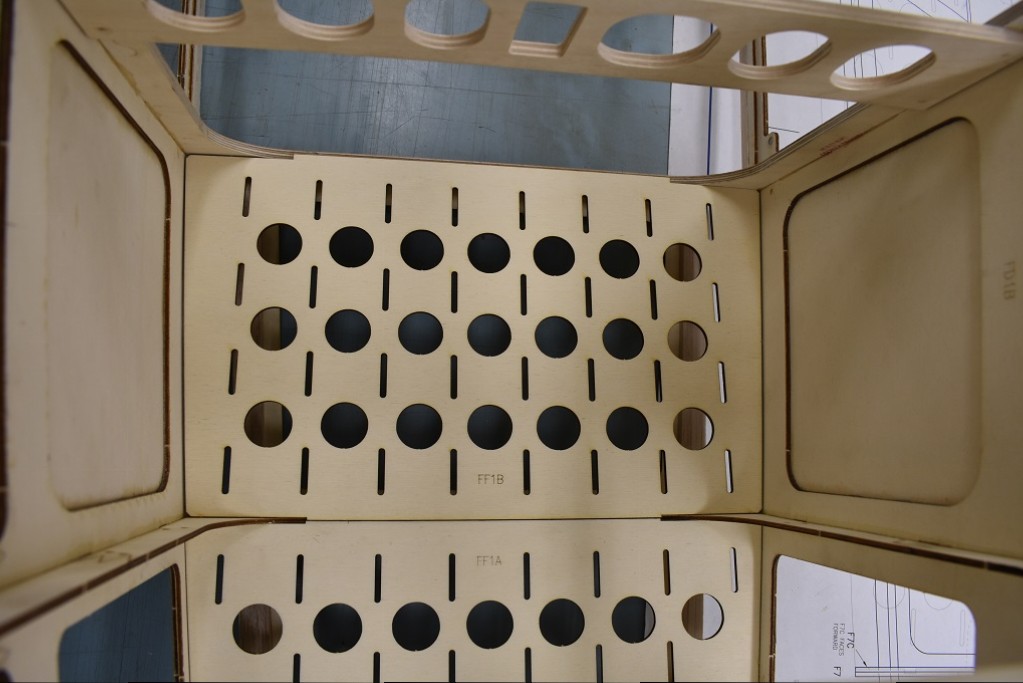

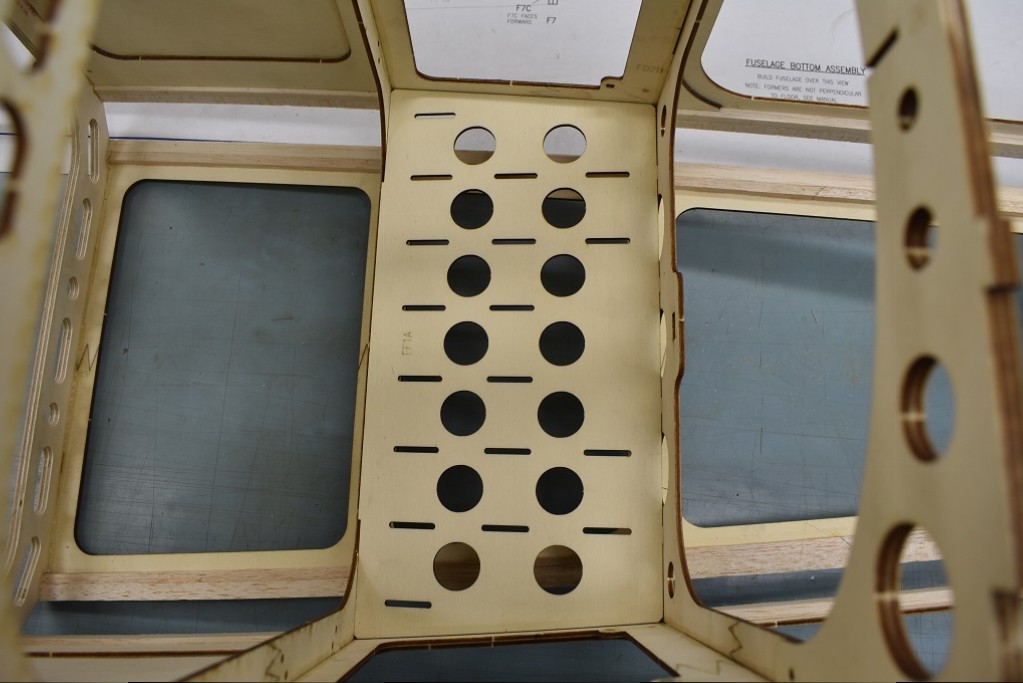

                The cockpit cabin floor will give you plenty of room for securing batteries, receivers, telemetry etc. etc.

                Click image for larger version

Name:	DSC_0380.JPG
Views:	333
Size:	113.9 KB
ID:	33584
                Click image for larger version

Name:	DSC_0381.JPG
Views:	345
Size:	112.3 KB
ID:	33583Click image for larger version

Name:	DSC_0393.JPG
Views:	367
Size:	104.7 KB
ID:	33585Click image for larger version

Name:	DSC_0400.JPG
Views:	333
Size:	112.0 KB
ID:	33586
                Gunny
                Aviation Concepts rc

                Comment


                • #26

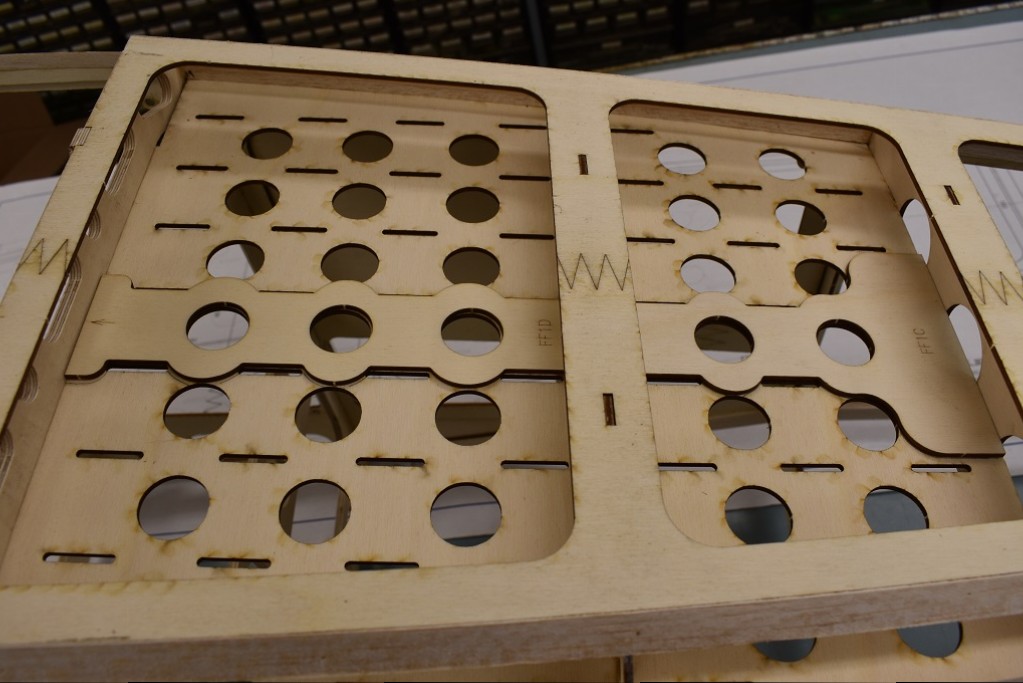

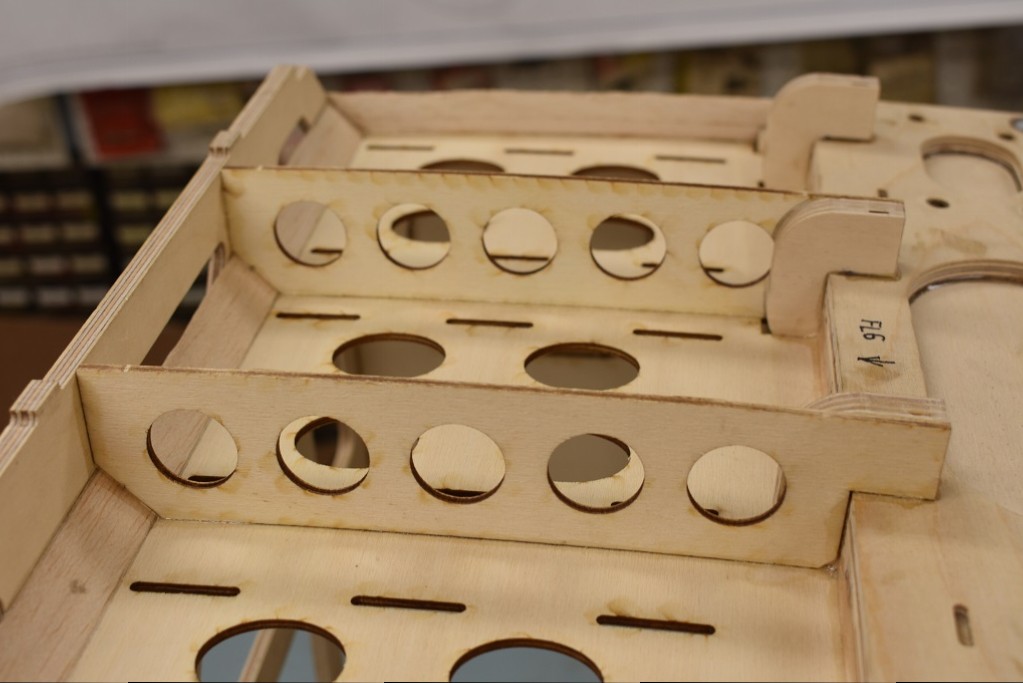

                  and some under floor reinforcing is added.

                  Click image for larger version

Name:	DSC_0385.JPG
Views:	343
Size:	126.0 KB
ID:	33588Click image for larger version

Name:	DSC_0405.JPG
Views:	340
Size:	101.8 KB
ID:	33589Click image for larger version

Name:	DSC_0394.JPG
Views:	327
Size:	141.0 KB
ID:	33590
                  Gunny
                  Aviation Concepts rc

                  Comment


                  • #27
                    Forward fuse. bottom pieces added into place.

                    Click image for larger version

Name:	DSC_0416.JPG
Views:	335
Size:	120.1 KB
ID:	33595Click image for larger version

Name:	DSC_0433.JPG
Views:	326
Size:	135.6 KB
ID:	33596
                    Gunny
                    Aviation Concepts rc

                    Comment


                    • #28

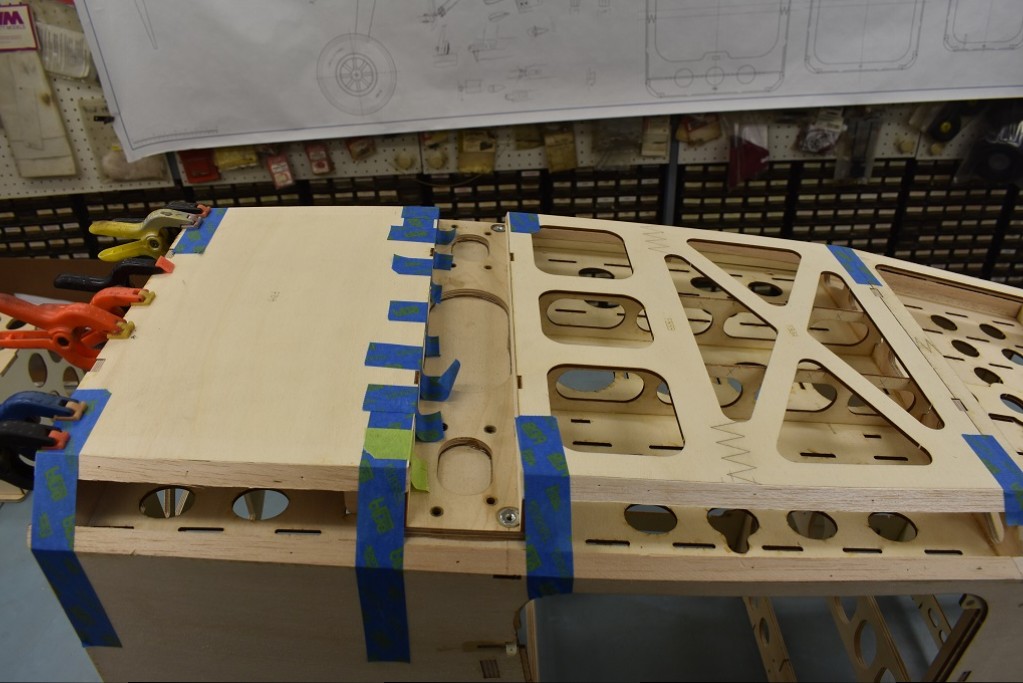

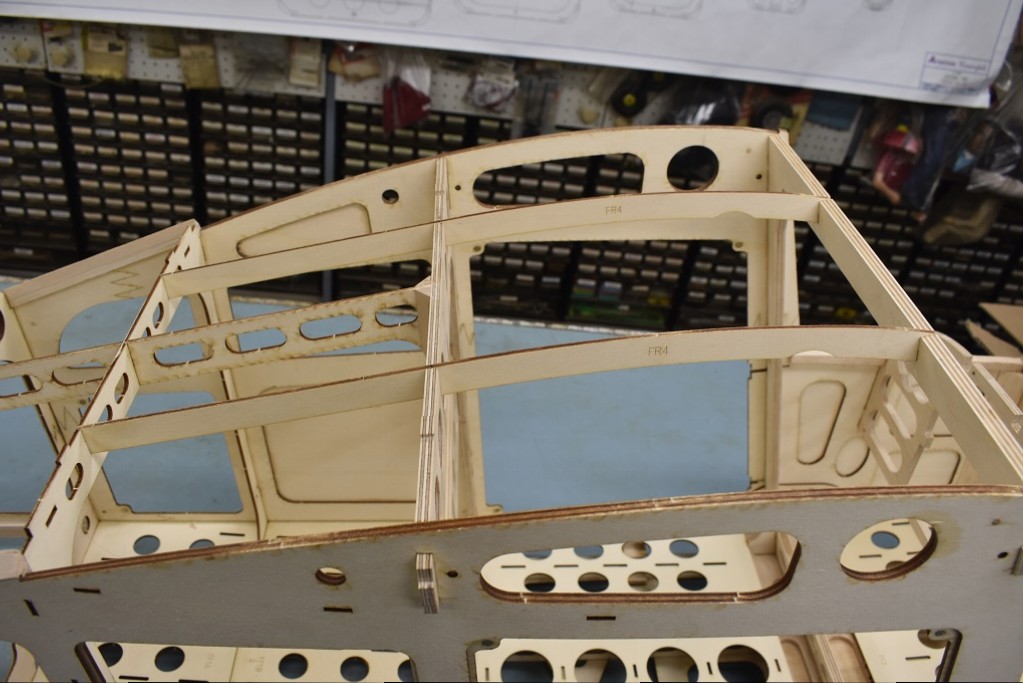

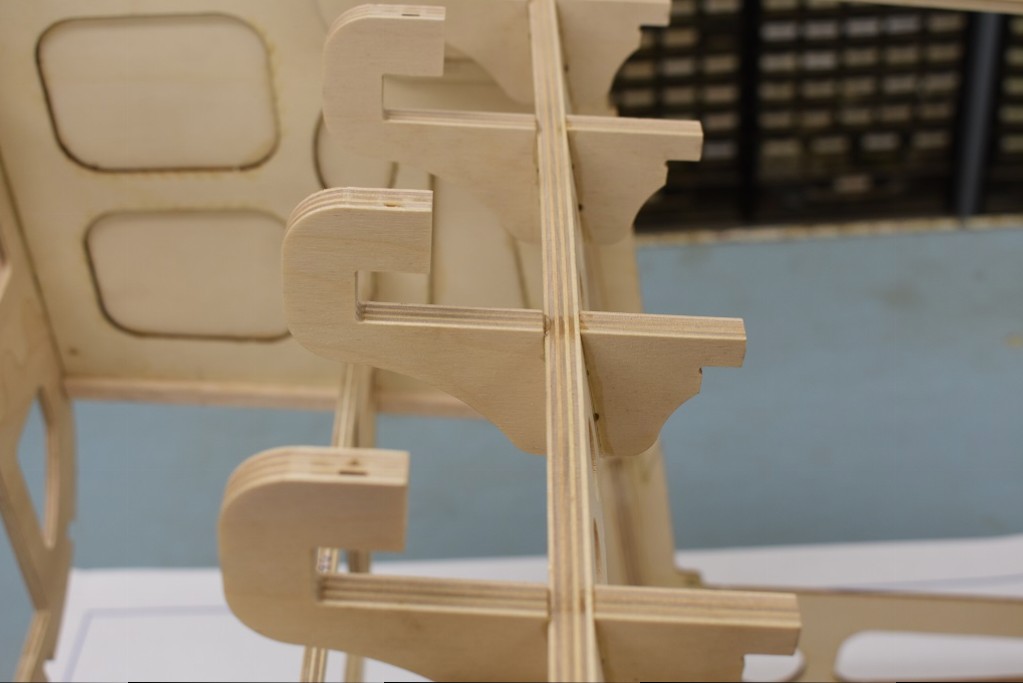

                      Top fuse/wing structure.

                      Click image for larger version

Name:	DSC_0514.JPG
Views:	301
Size:	137.9 KB
ID:	33598Click image for larger version

Name:	DSC_0534.JPG
Views:	341
Size:	113.5 KB
ID:	33599Click image for larger version

Name:	DSC_0530.JPG
Views:	315
Size:	144.7 KB
ID:	33600Click image for larger version

Name:	DSC_0536.JPG
Views:	324
Size:	100.4 KB
ID:	33601
                      Gunny
                      Aviation Concepts rc

                      Comment


                      • #29
                        Super nice. You're making it look too easy!

                        Comment


                        • gunny11
                          gunny11 commented
                          Editing a comment
                          Thank you yyz, I try to make it easy with interlocking parts and tabs. What makes it even easier will be the instruction manual.

                      • #30
                        I just had to post this picture. WOW!

                        Click image for larger version  Name:	image.jpeg Views:	1 Size:	43.0 KB ID:	33615
