  • #16
    Pretty cool! Blue foam is great!

    Comment


    • #17

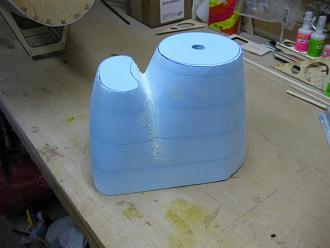

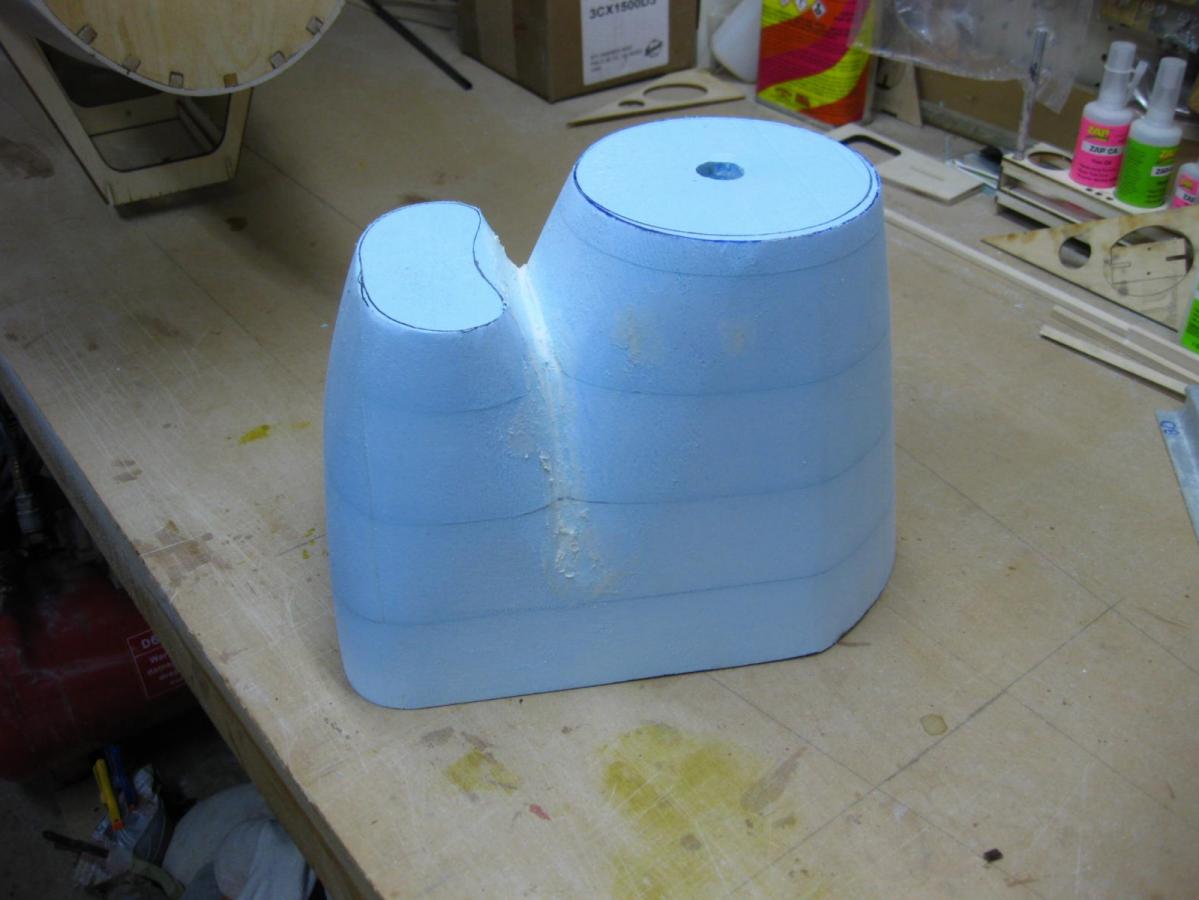

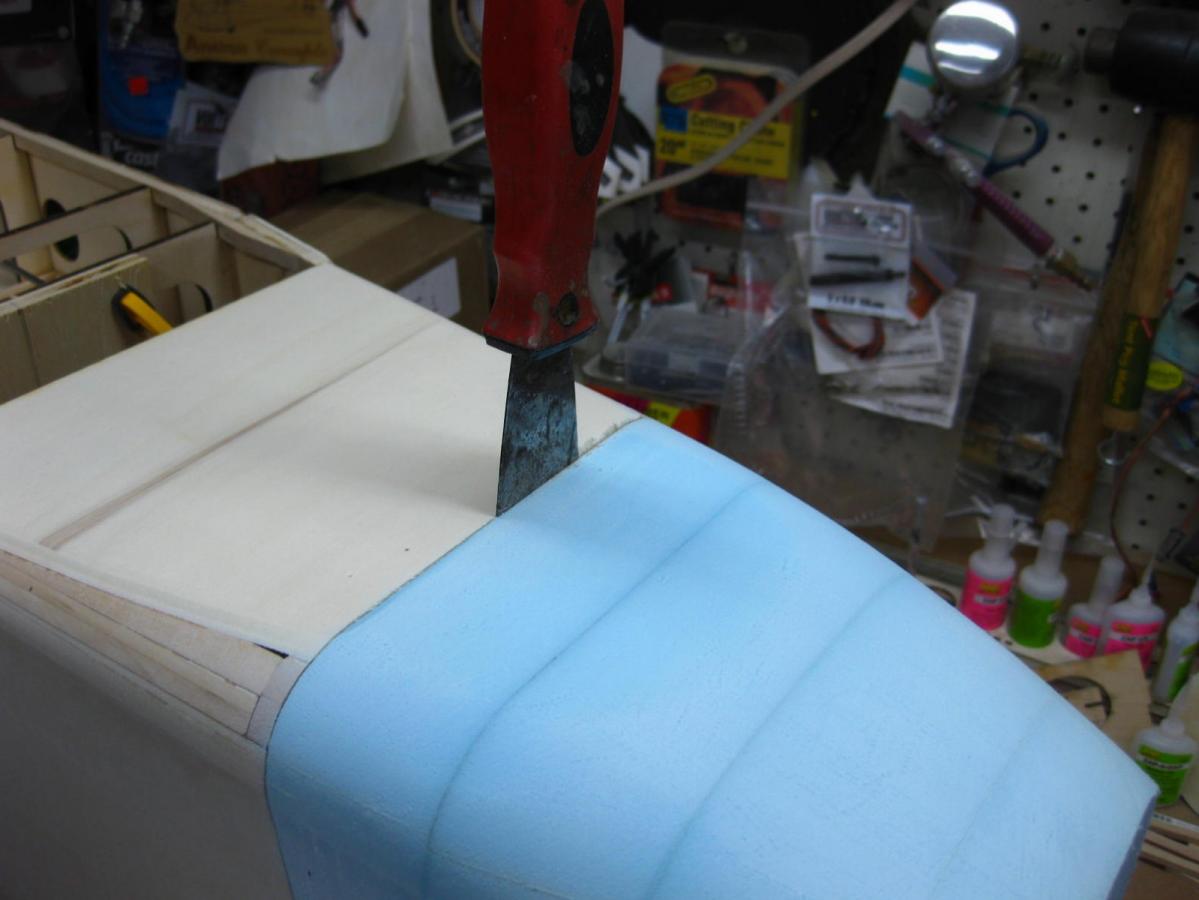

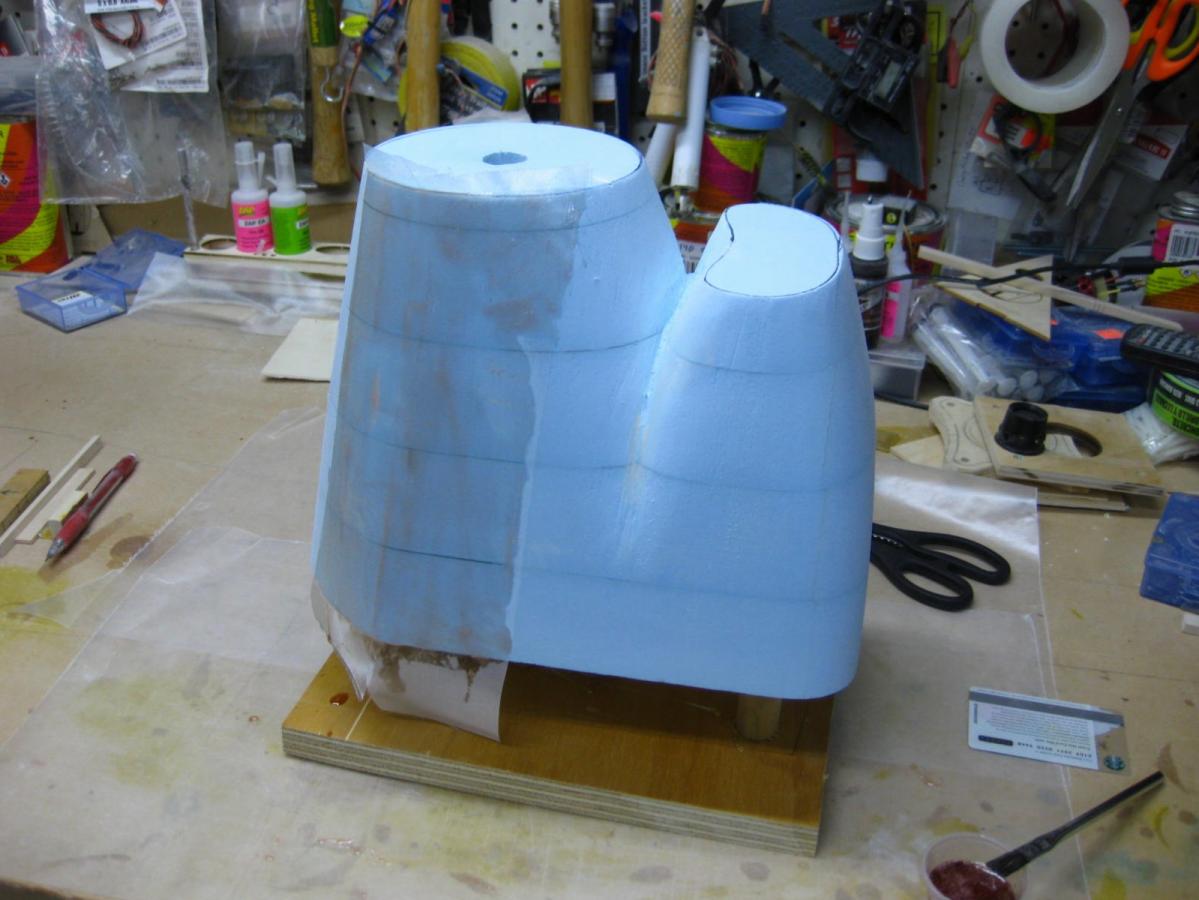

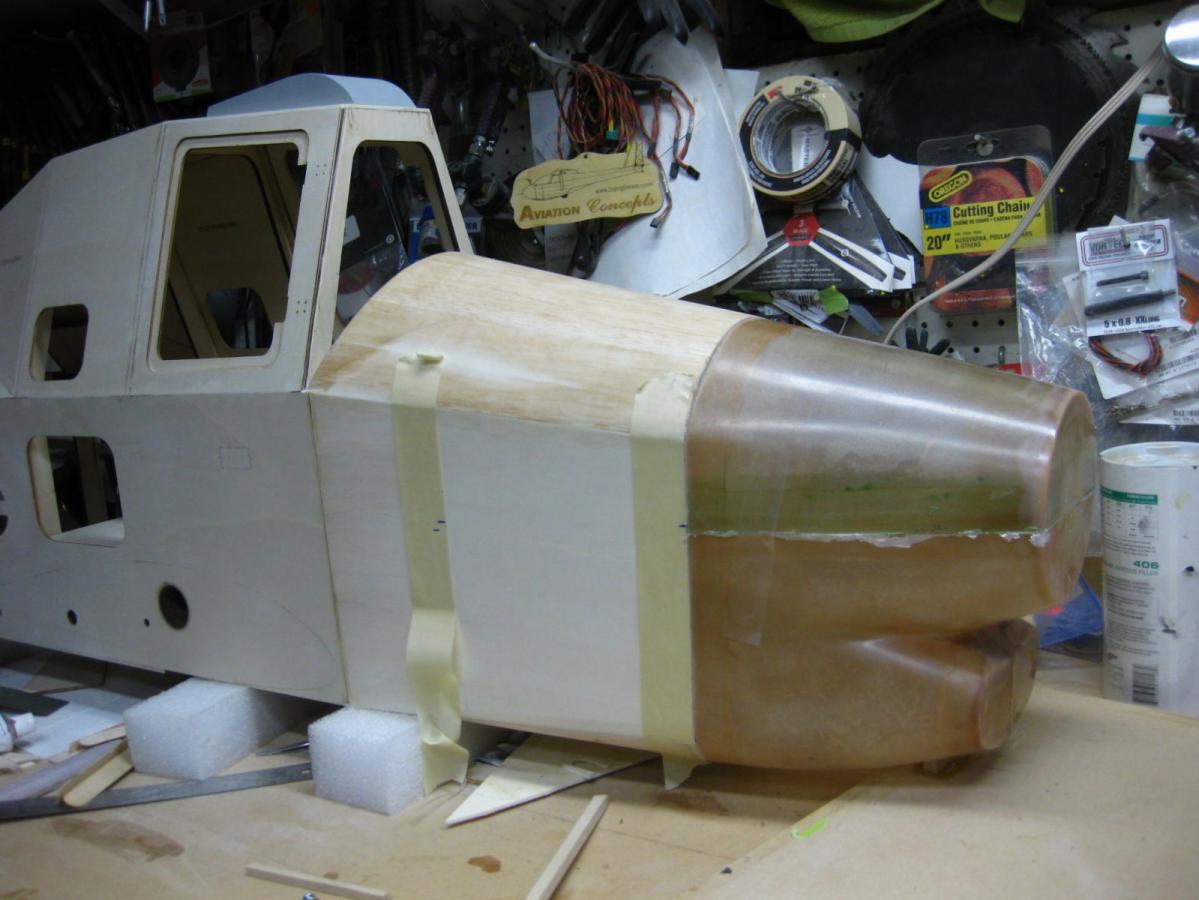

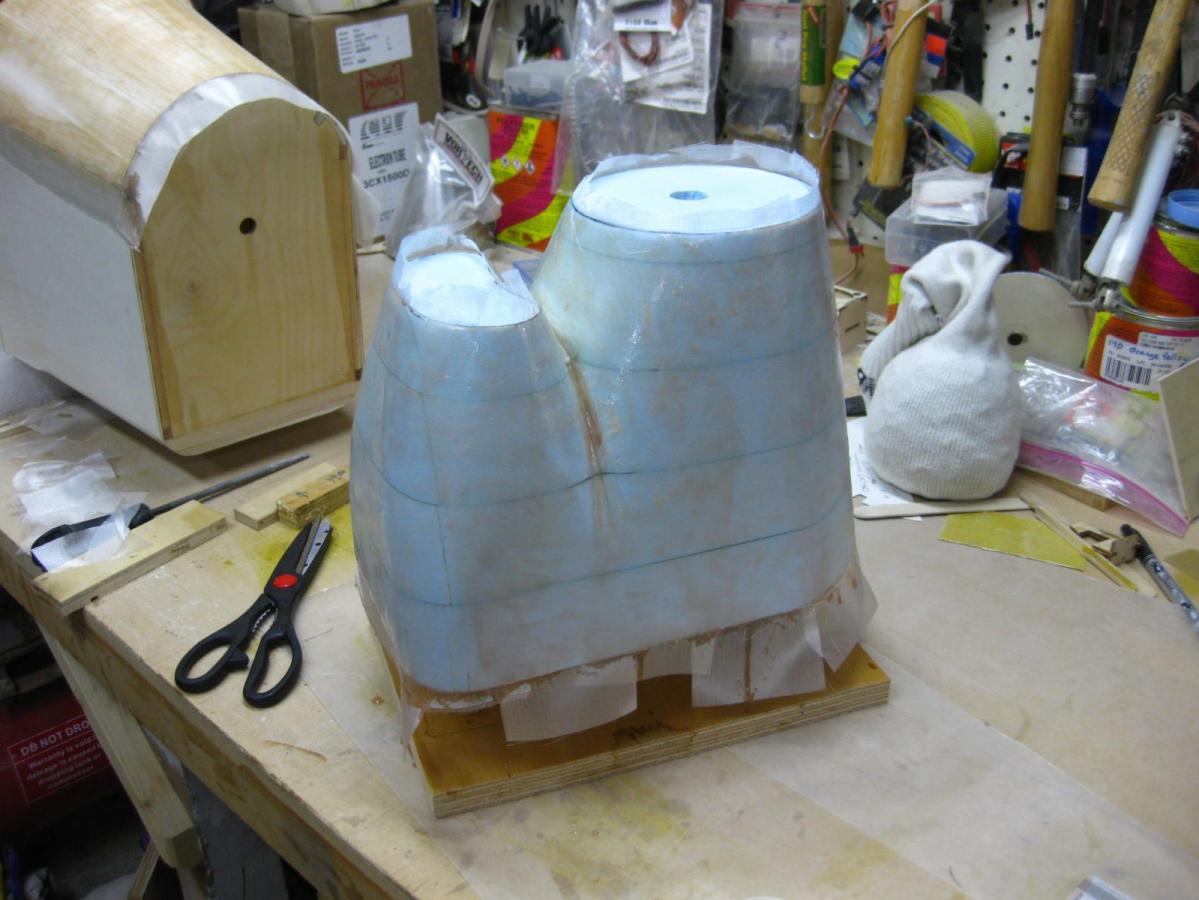

      Cowl separation so I can glass it for plug purposes. The 3M 77 spray adhesive did a good job of keeping things together.

      Click image for larger version

Name:	IMG_4723.JPG
Views:	1
Size:	73.6 KB
ID:	32628Click image for larger version

Name:	IMG_4724.JPG
Views:	1
Size:	84.9 KB
ID:	32629

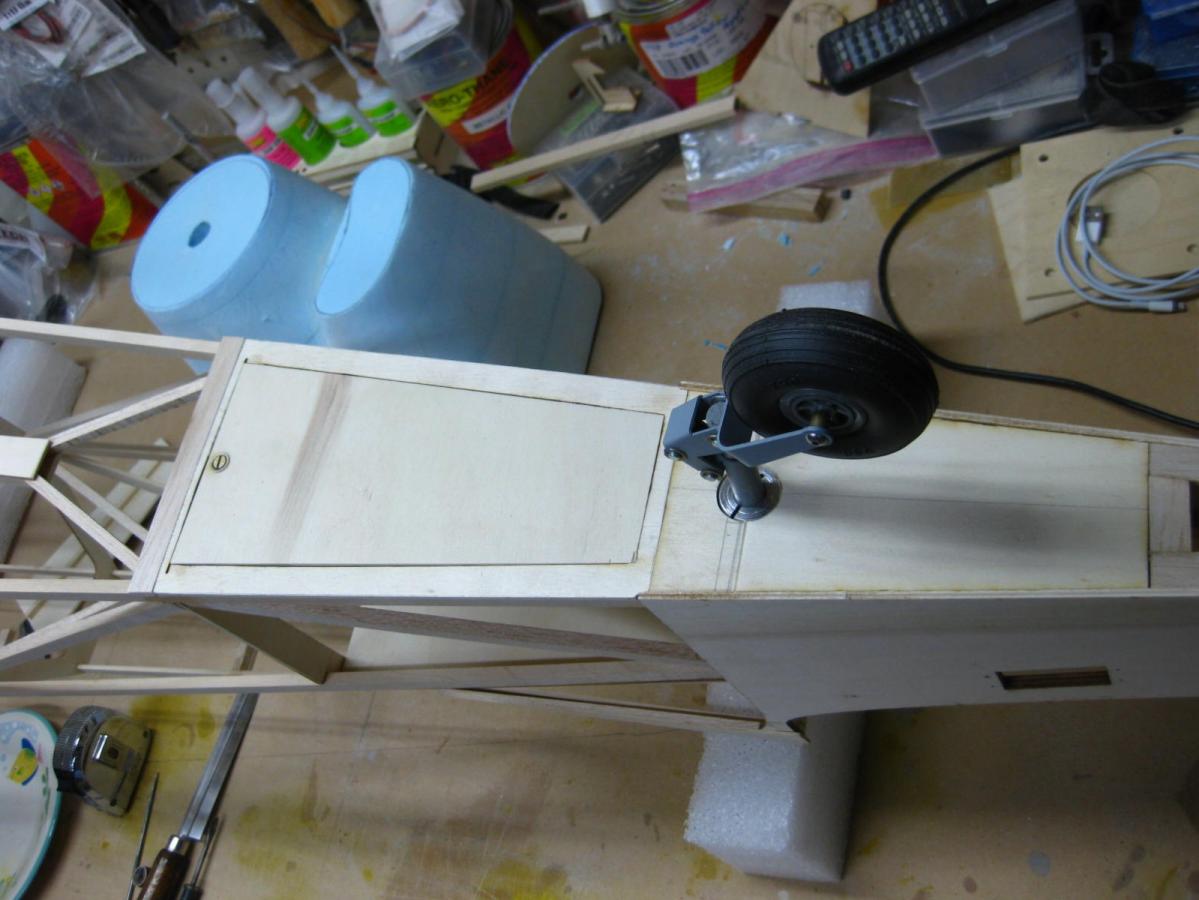

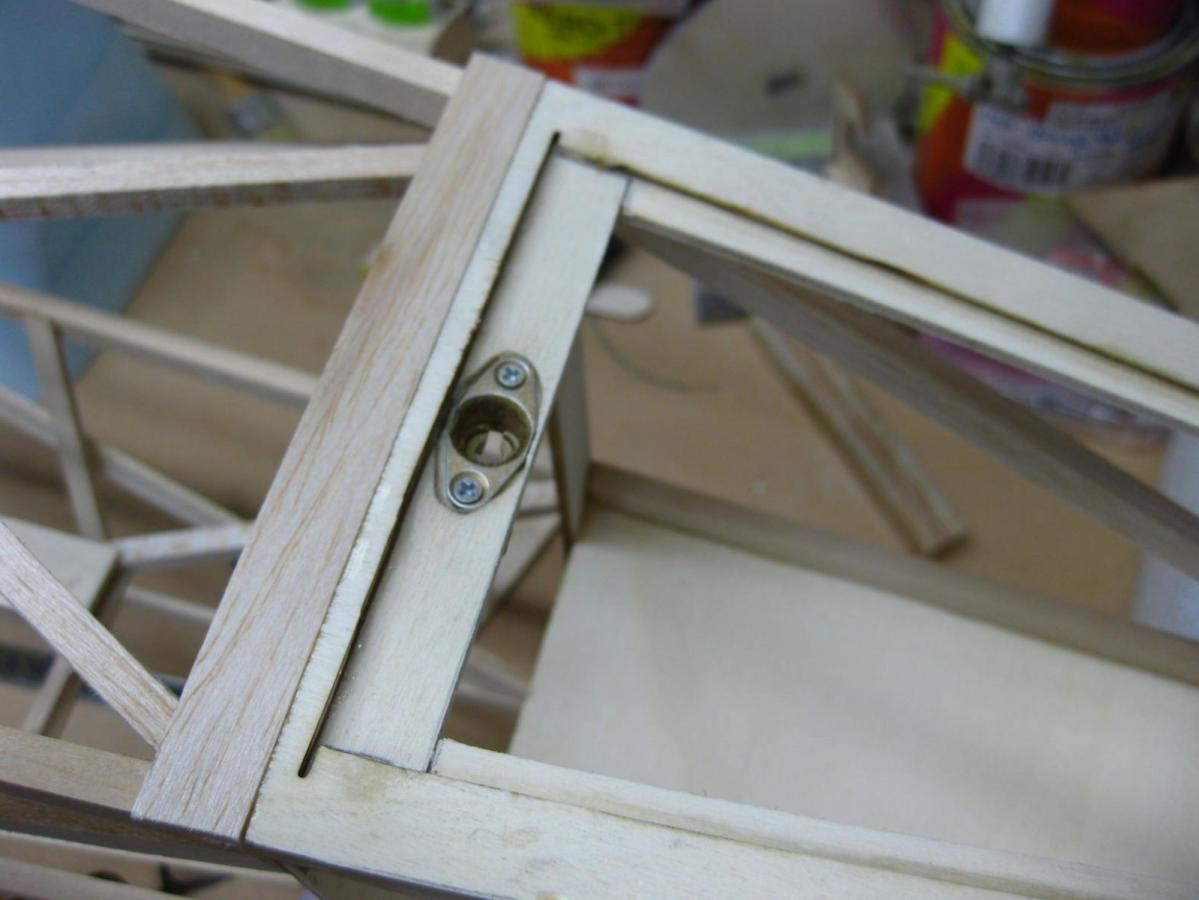

      Since I'm going to need tail weight I might as well put the flight / ignition batteries in the back. Used a CamLoc fastener the make access easy.
      I liked Len's cover plate for access to the tail wheel servo

      Click image for larger version

Name:	IMG_4729.JPG
Views:	1
Size:	75.1 KB
ID:	32631Click image for larger version

Name:	IMG_4727.JPG
Views:	1
Size:	97.7 KB
ID:	32630

      Comment


      • #18
        Nice stuff Scott, but as you made it a turbine version, you should install a turbine!!
        Who's CamLok are you using?

        Jeremy
        SCCAAA TT TN

        Comment


        • #19
          Hi Jeremy,
          The CamLoc thats pictured are CamLoc 4002-3 ( Cad plated , 0.111-0.141 depth ) series Studs and the Cad plated receptacles. I see on the Aircraft-Spruce website there are a couple of options now. It was a toss-up weather to go Phillips or slotted......all depends what type of hole / dent you want to put in the skin when you miss......

          The turbine would be super cool but just not practical for towing and the 25 hr maintenance interval is a bit of a hindrance.

          Scott

          Comment


          • #20
            Scott, super cool! I hope this new tug gets a chance to tow my repaired KA-6 this summer. Maybe I should say, I hope my KA-6 can be towed up by your new tug this coming summer. Thanks again.
            Larry

            Comment


            • #21
              Hi Larry,
              Looking forward to towing your big KA-6.

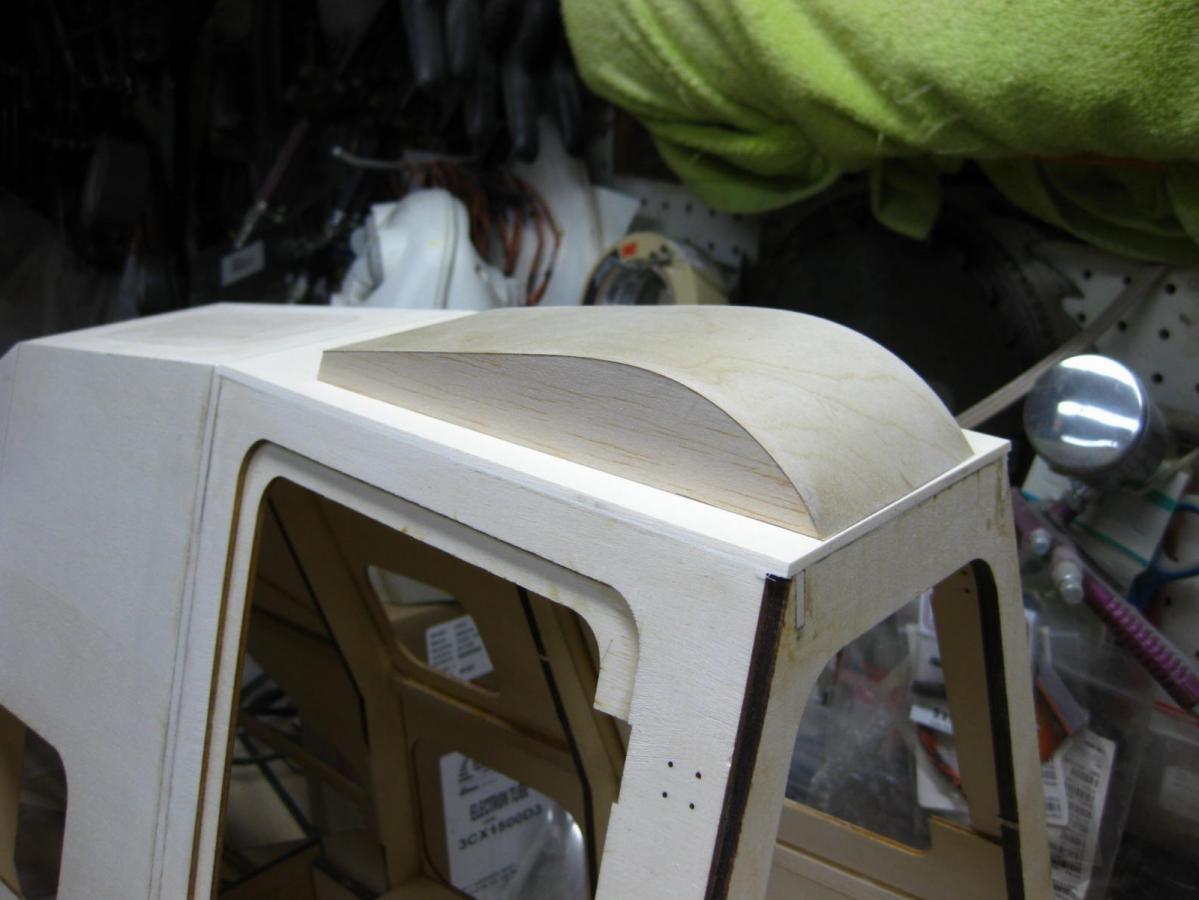

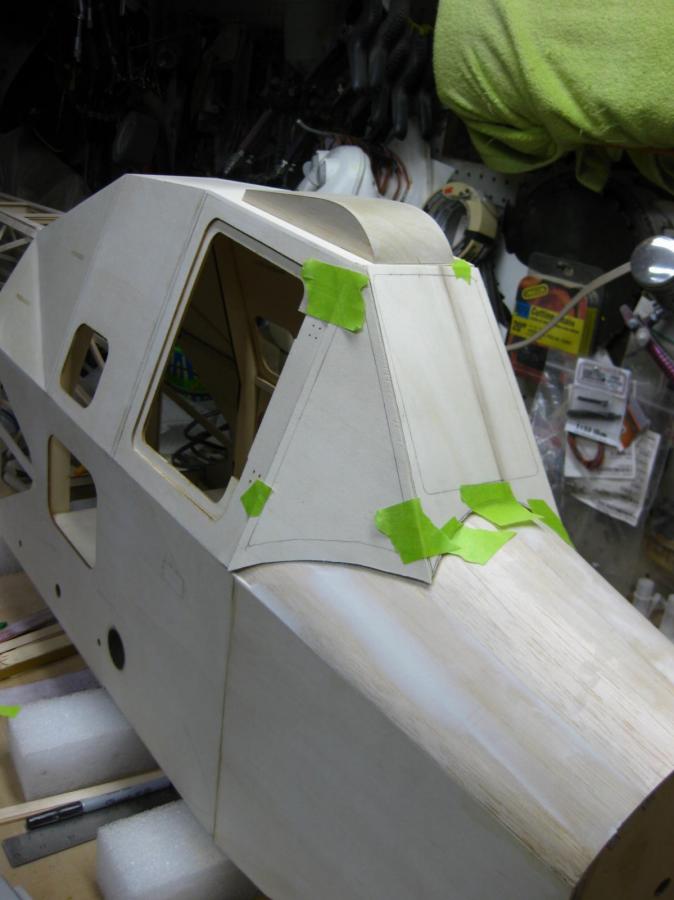

              Some fun stuff today, made the little turtle deck on top of the cockpit and covered it with 1/64 ply. I used overhead projector clear sheets to copy the profile image off my computer screen after zooming in to get the approximate size.
              Click image for larger version  Name:	IMG_4730.JPG Views:	1 Size:	83.3 KB ID:	32706

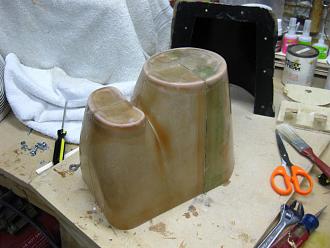

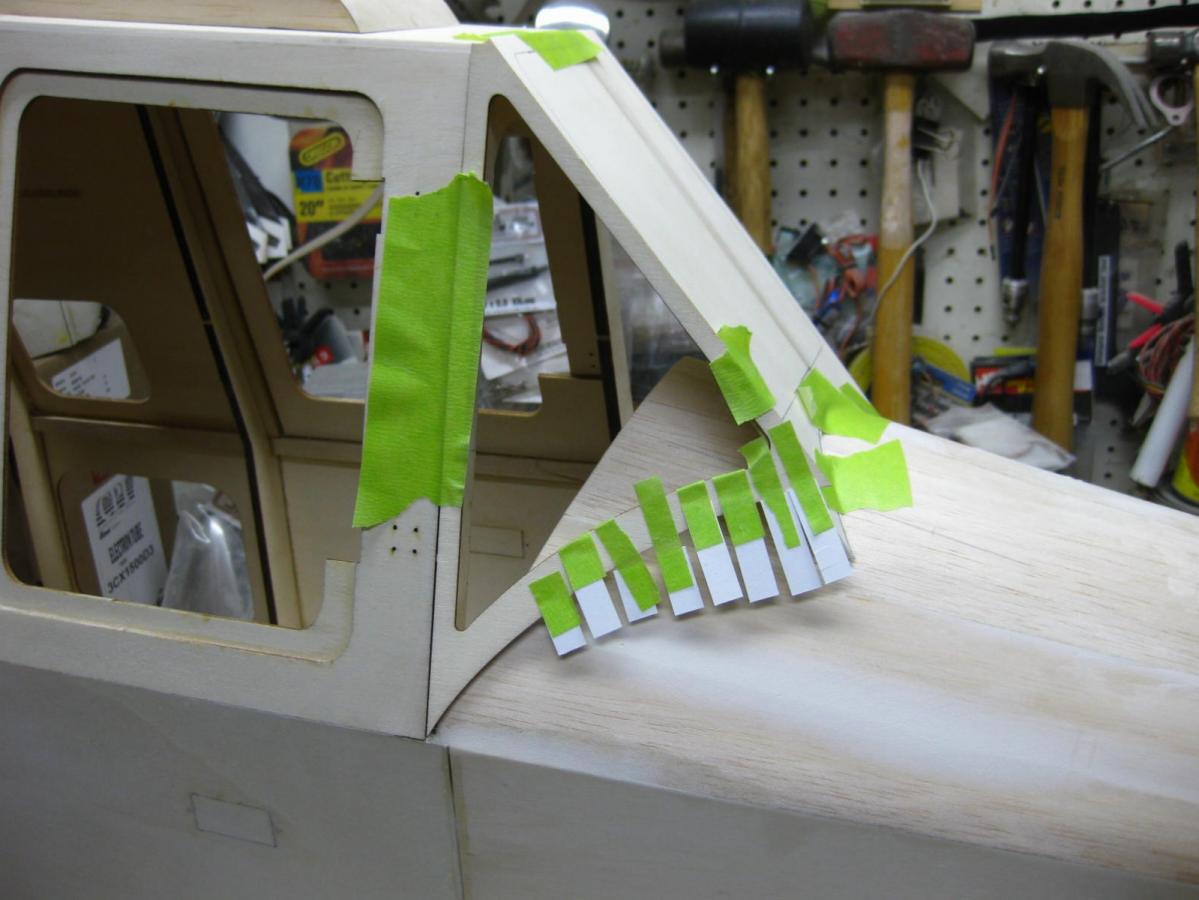

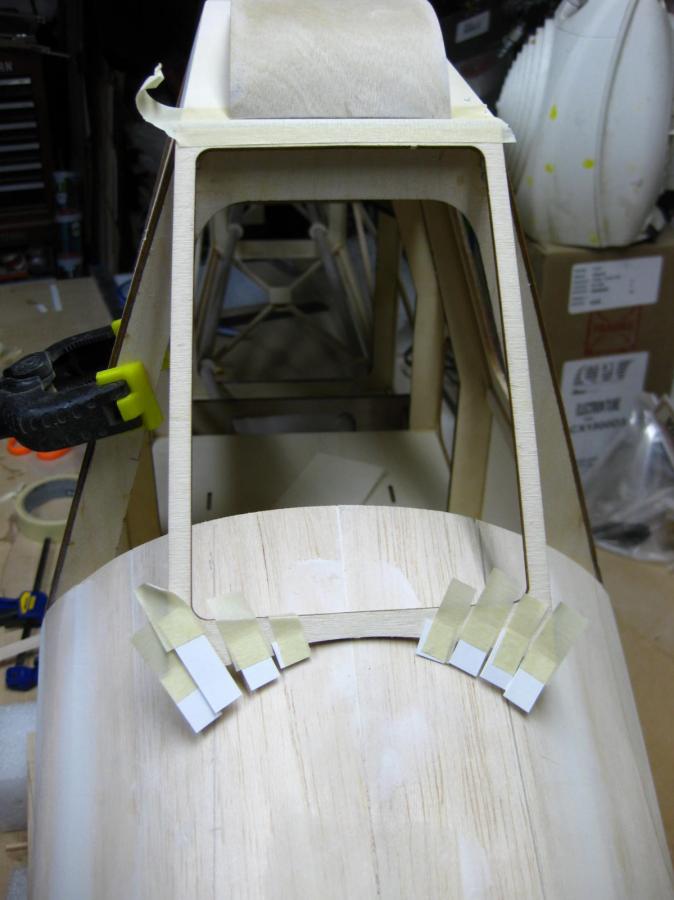

              Since the instrument panel and sheeting is a different shape than the Radial cowl, I used some paper and tape to approximate the correct shape and then "sanded to shape".

              Click image for larger version  Name:	IMG_4734.JPG Views:	1 Size:	93.5 KB ID:	32702Click image for larger version  Name:	IMG_4733.JPG Views:	1 Size:	56.4 KB ID:	32705Click image for larger version  Name:	IMG_4735.JPG Views:	1 Size:	55.2 KB ID:	32704

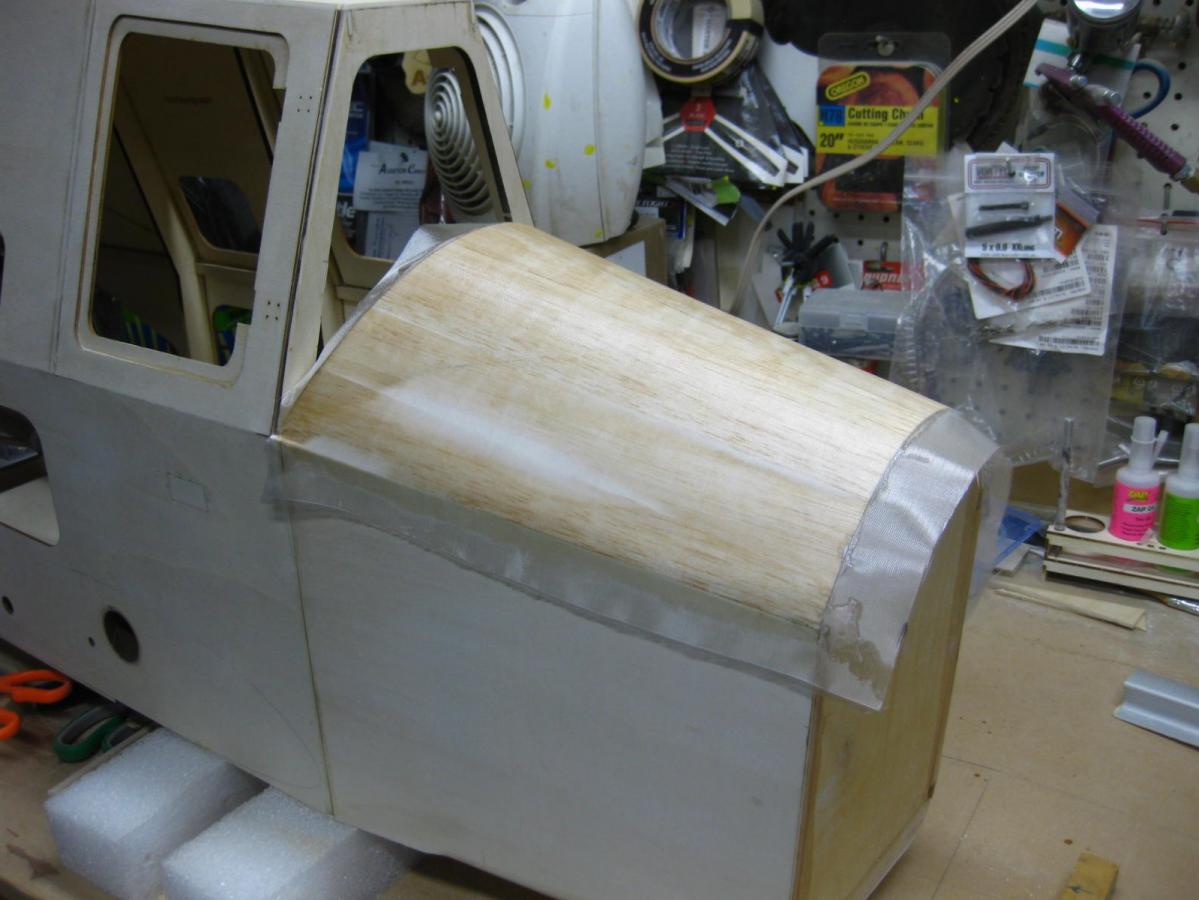

              Next step is some fiberglass on the forward deck and then the Cowl

              Click image for larger version  Name:	IMG_4737.JPG Views:	1 Size:	96.1 KB ID:	32707Click image for larger version  Name:	IMG_4738.JPG Views:	1 Size:	101.9 KB ID:	32703Click image for larger version  Name:	IMG_4739.JPG Views:	1 Size:	109.0 KB ID:	32708
              Last edited by MarnochS; 01-07-2019, 02:38 AM. Reason: Spelling, of course

              Comment


              • #22

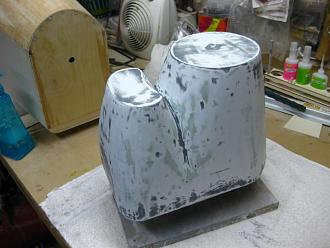

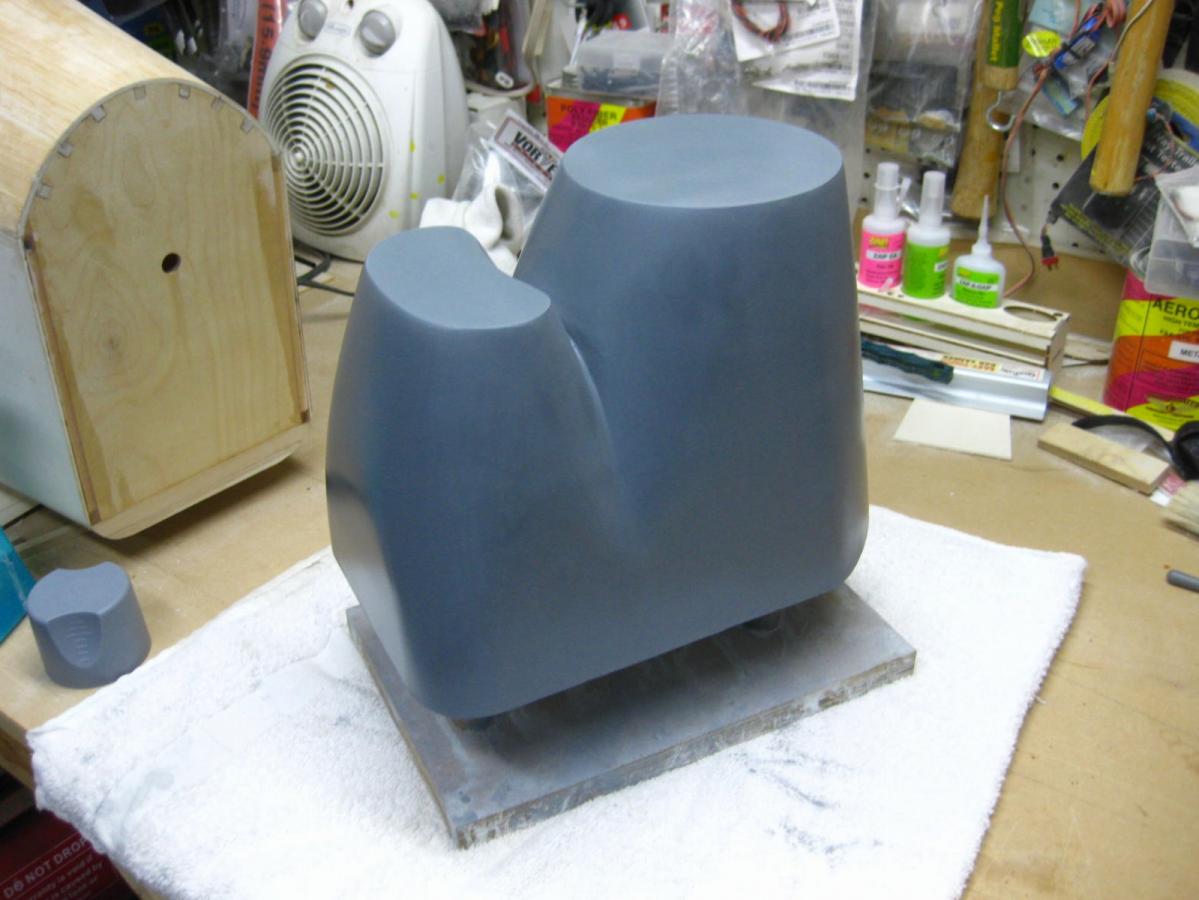

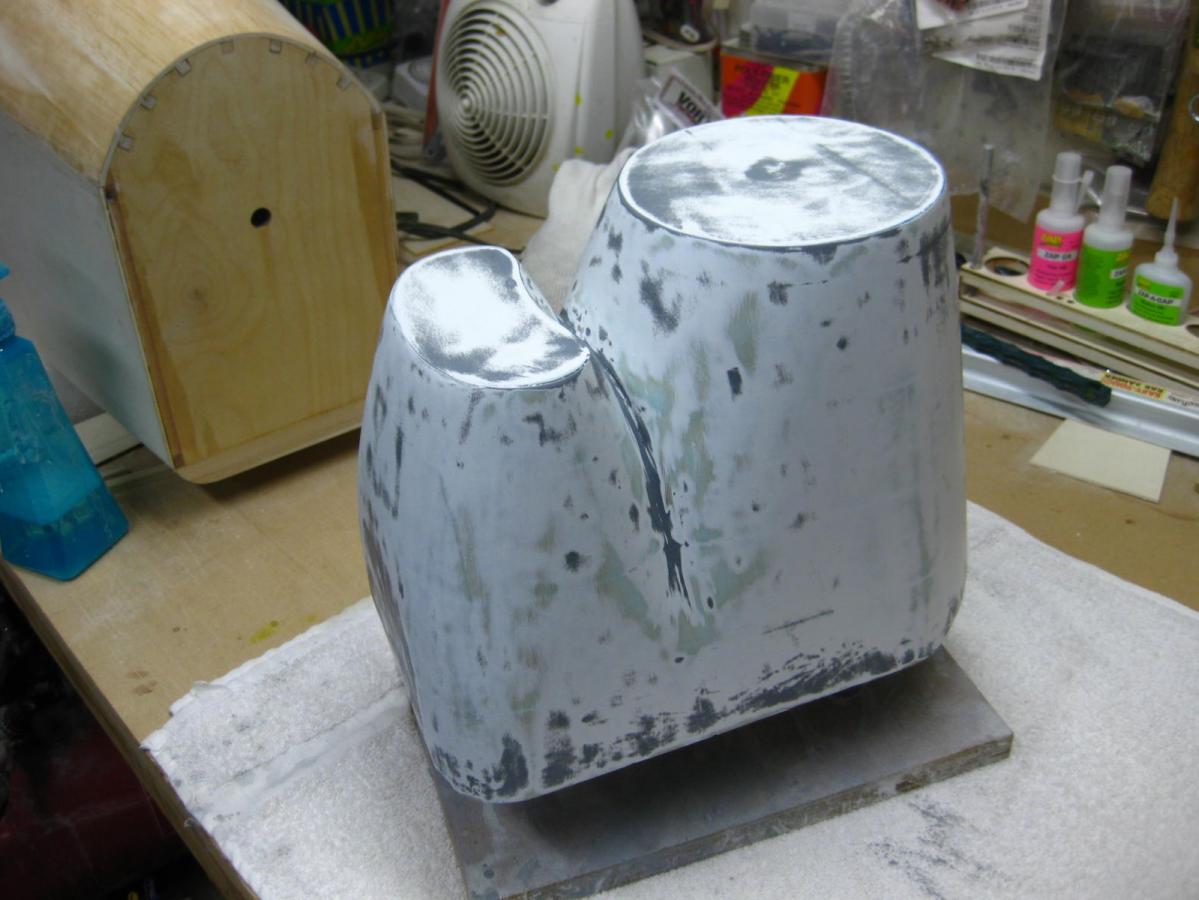

                Getting closer to being a Plug.....primer....sand....primer....sand.....prim er......sand...

                the white primer doesn't build up very much like the gray stuff (primer&filler) from Krylon.

                Click image for larger version  Name:	IMG_4741.JPG Views:	1 Size:	100.3 KB ID:	32771Click image for larger version  Name:	IMG_4742.JPG Views:	1 Size:	95.4 KB ID:	32770.
                Last edited by MarnochS; 01-08-2019, 04:33 PM.

                Comment


                • #23
                  Fun with Epoxy & fiberglass....

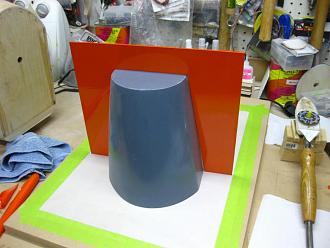

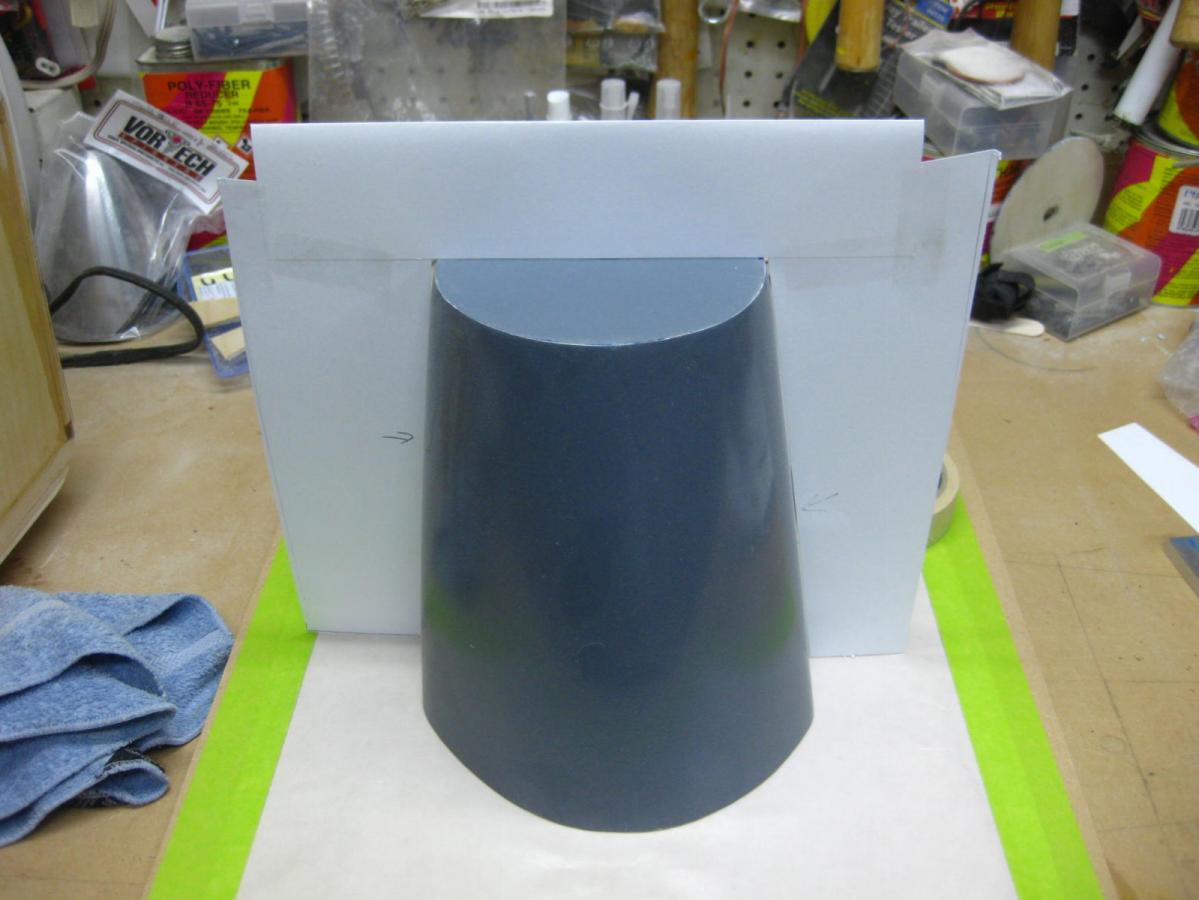

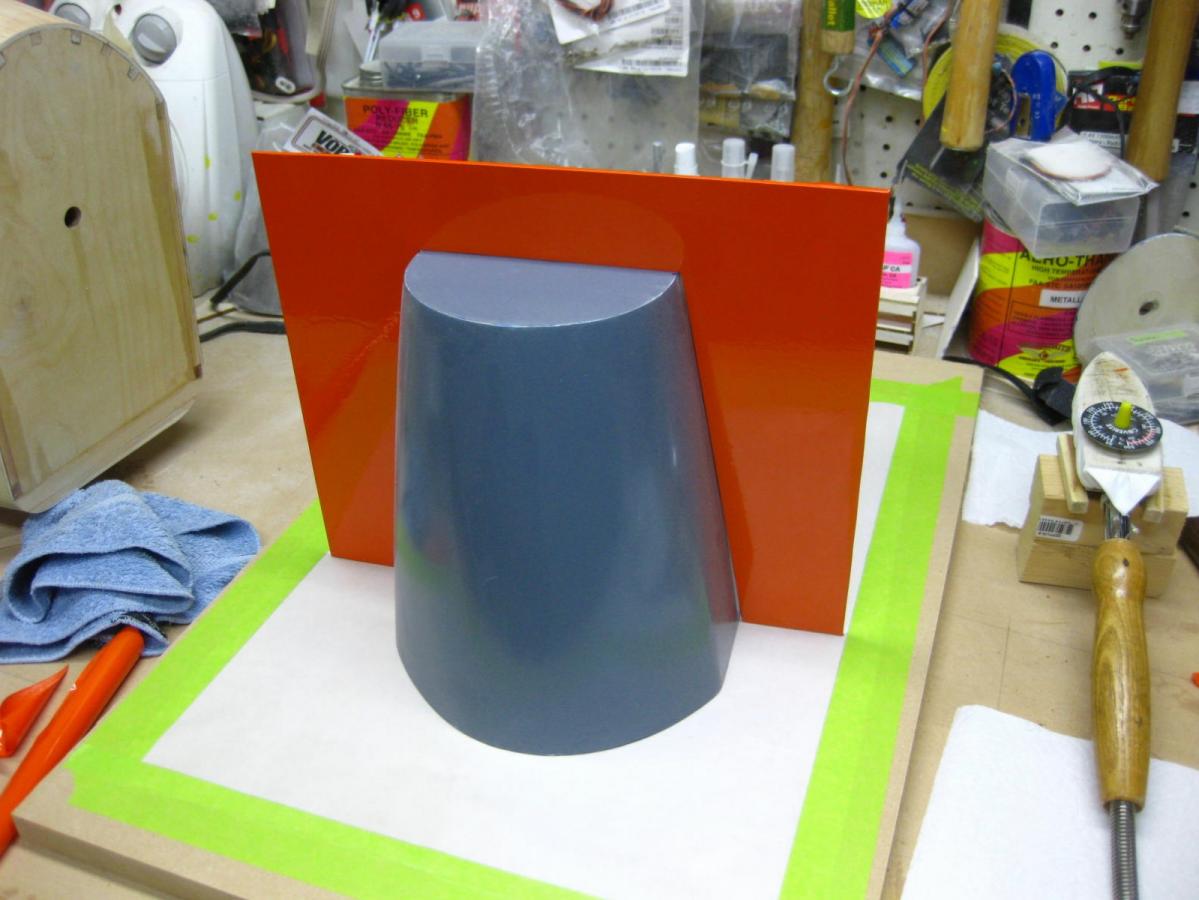

                  mocked up a parting board with some construction paper and then transferred to some 1/8" plywood. Covered it with some leftover UltraCote. Who says a parting board has to be white......
                  Attached with hot melt glue after waxing the ..... out of the plug.


                  Click image for larger version

Name:	IMG_4744.JPG
Views:	1
Size:	83.7 KB
ID:	32857Click image for larger version

Name:	IMG_4745.JPG
Views:	1
Size:	98.0 KB
ID:	32855Click image for larger version

Name:	IMG_4746.JPG
Views:	2
Size:	89.2 KB
ID:	32859

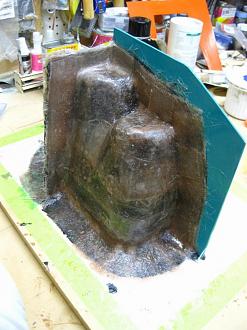

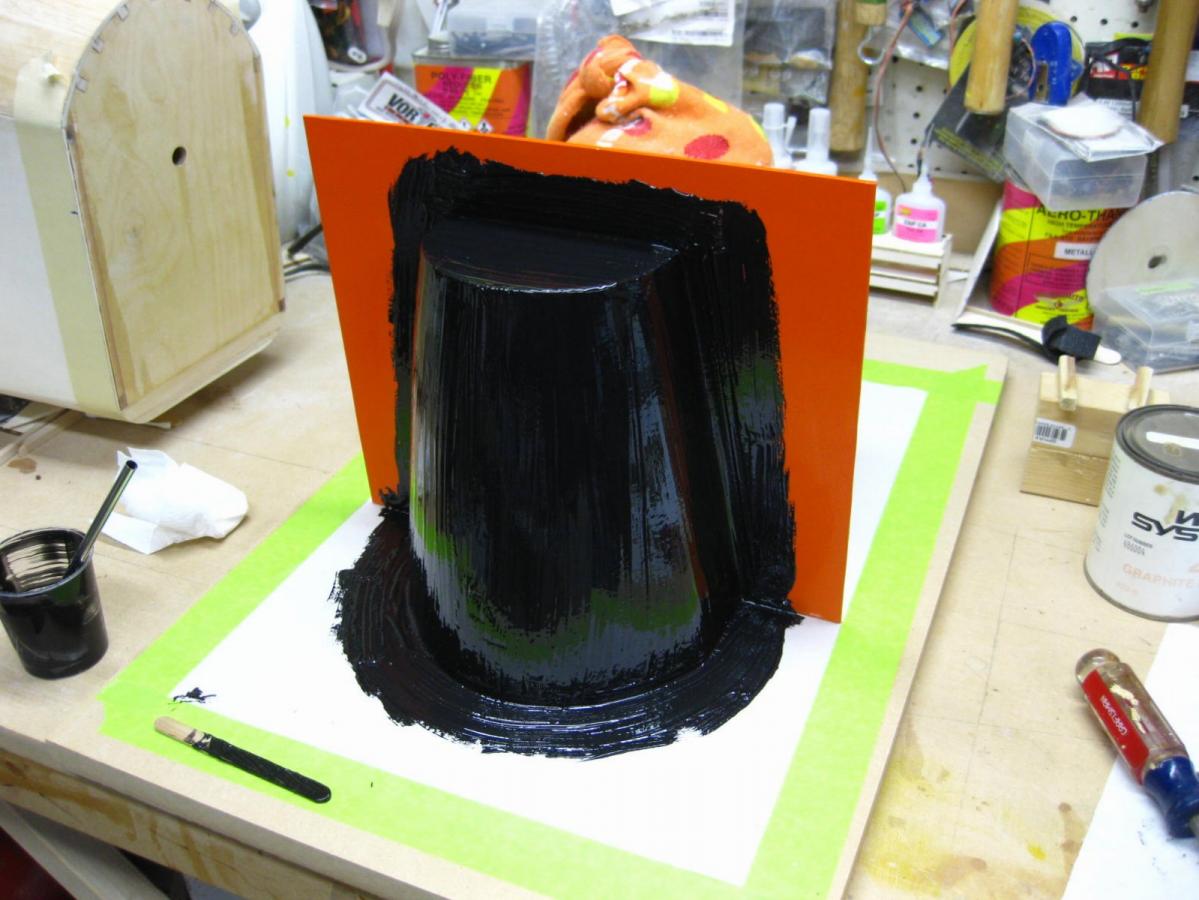

                  I'm committed now..........for better or worse....I'm planning on a 3 part mold......easy part first......

                  Click image for larger version

Name:	IMG_4747.JPG
Views:	1
Size:	111.0 KB
ID:	32856Click image for larger version

Name:	IMG_4748.JPG
Views:	2
Size:	138.6 KB
ID:	32860

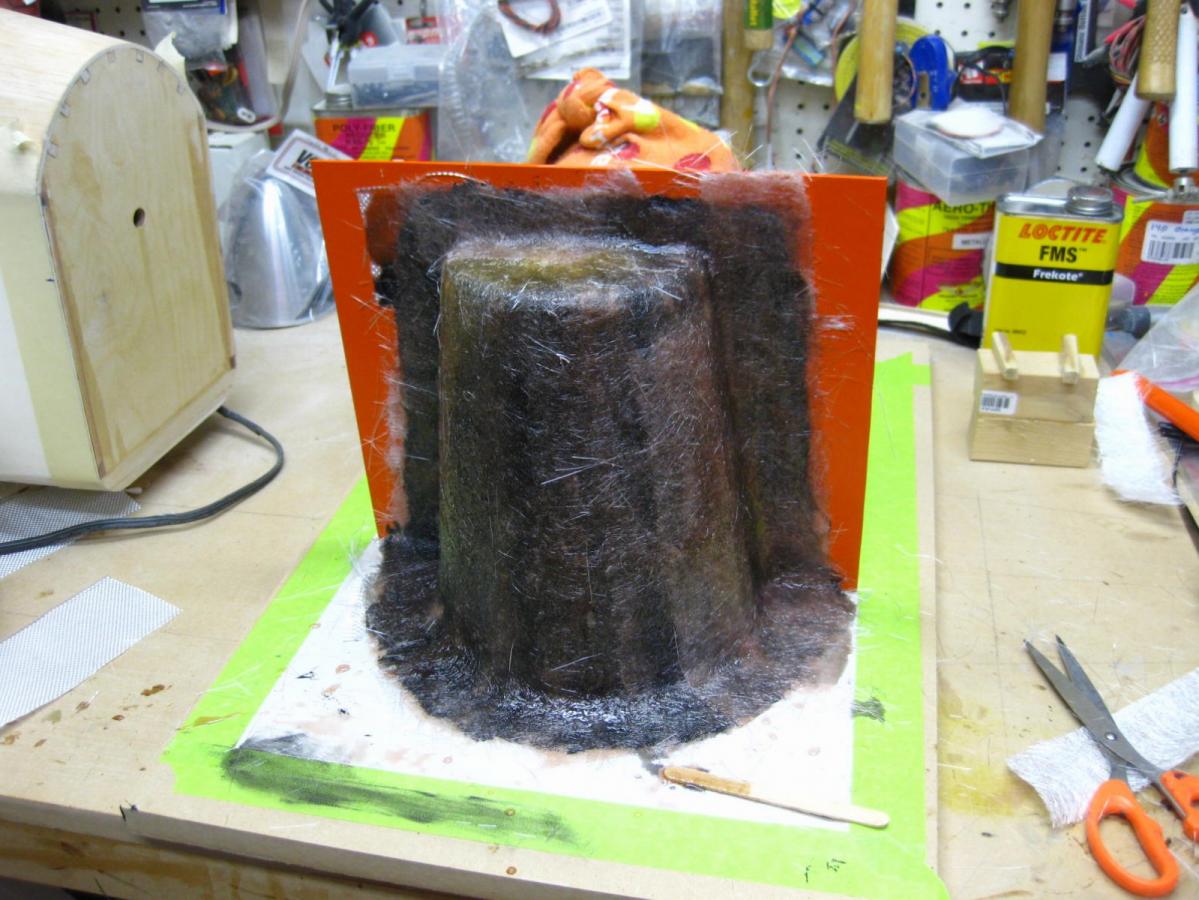

                  Graphite powder gel coat and then glass and then mat ( the stuff that is needle like when you get some epoxy on a fiber )
                  Attached Files

                  Comment


                  • #24

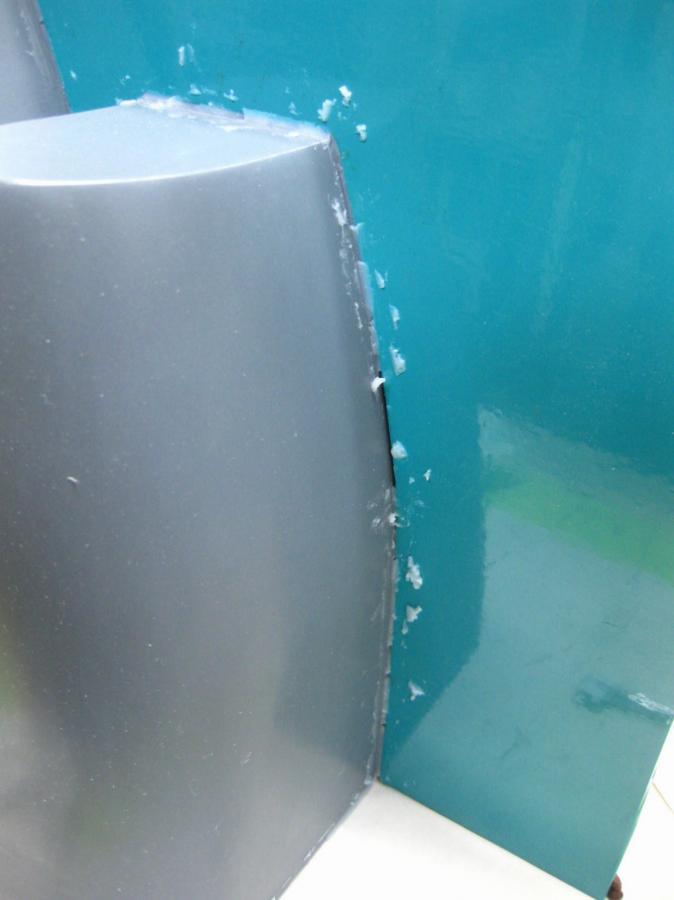

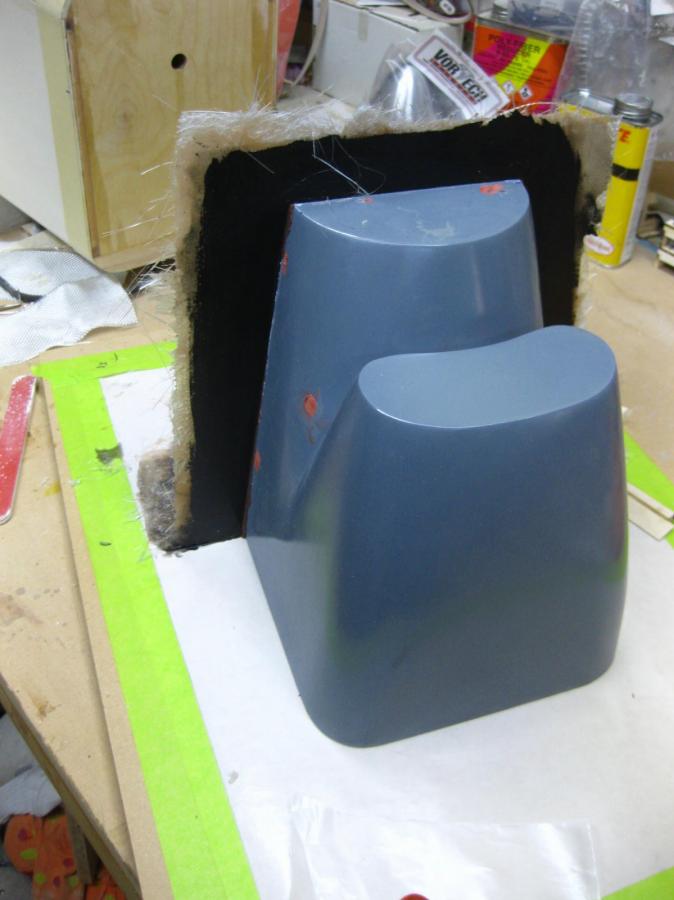

                    So....the hot melt glue did a little damage to the plug, not much , just melted the primer......on a good note, the Frekote 700-NC is super cool as the parting board came off with out a problem.

                    Click image for larger version  Name:	IMG_4749.JPG Views:	1 Size:	52.7 KB ID:	32907

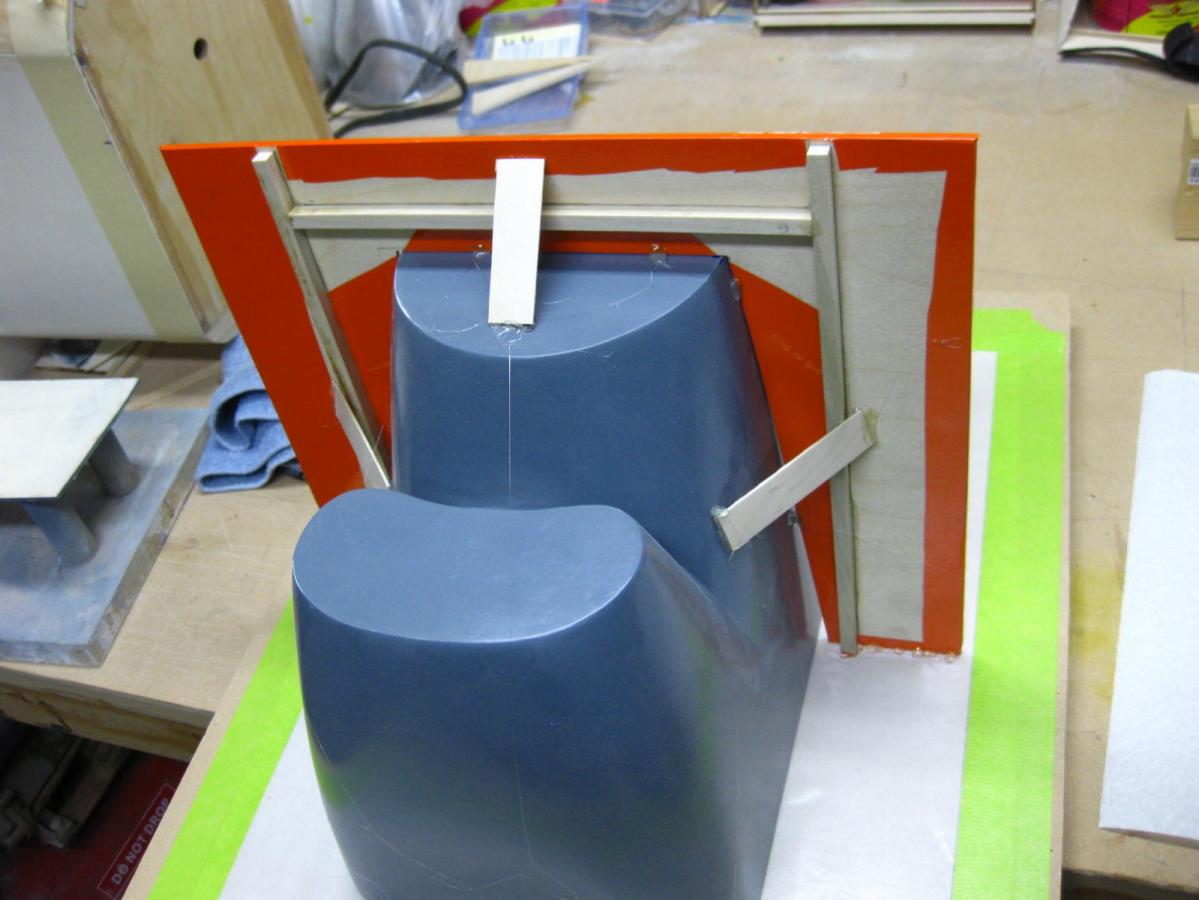

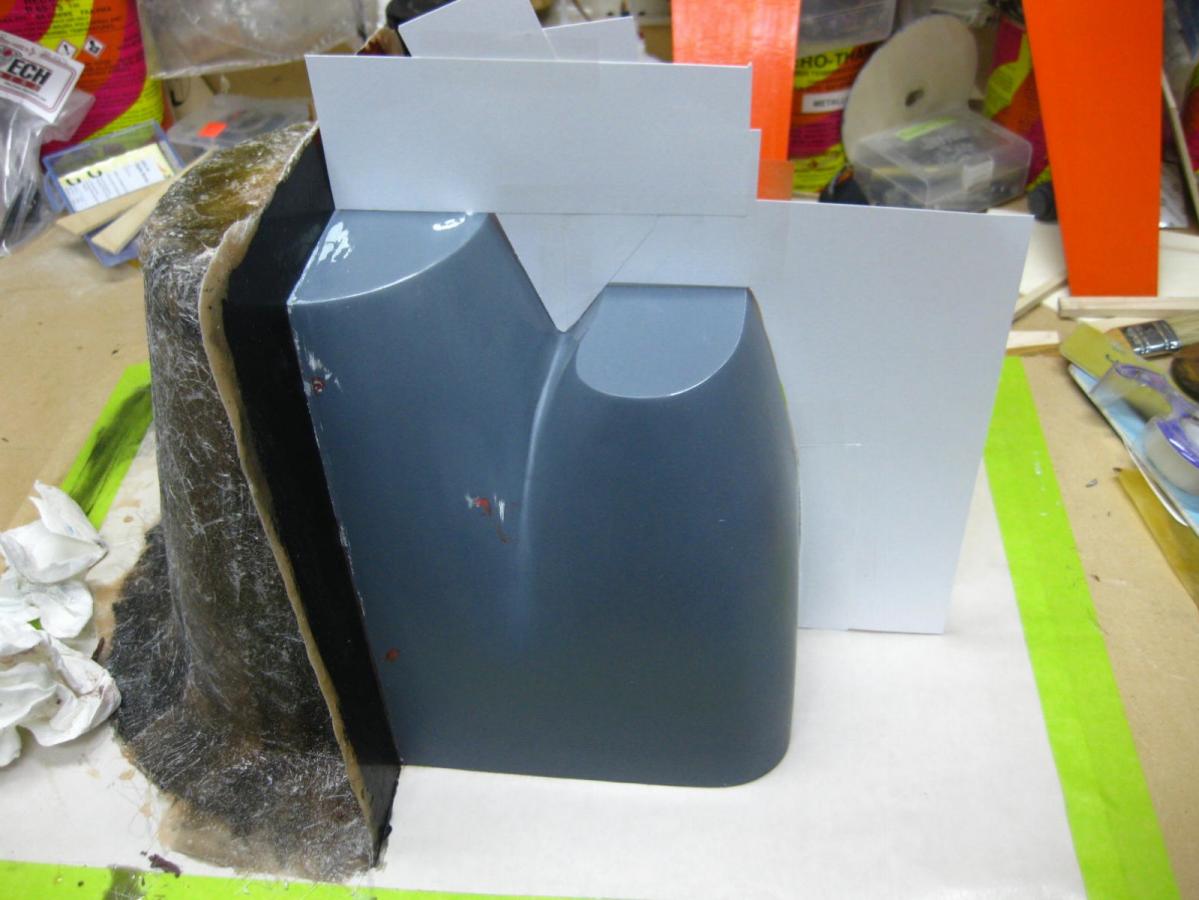

                    Next step is the front parting board.....a little more challenging to construct but the construction paper made is pretty simple.

                    Click image for larger version  Name:	IMG_4752.JPG Views:	1 Size:	92.1 KB ID:	32905

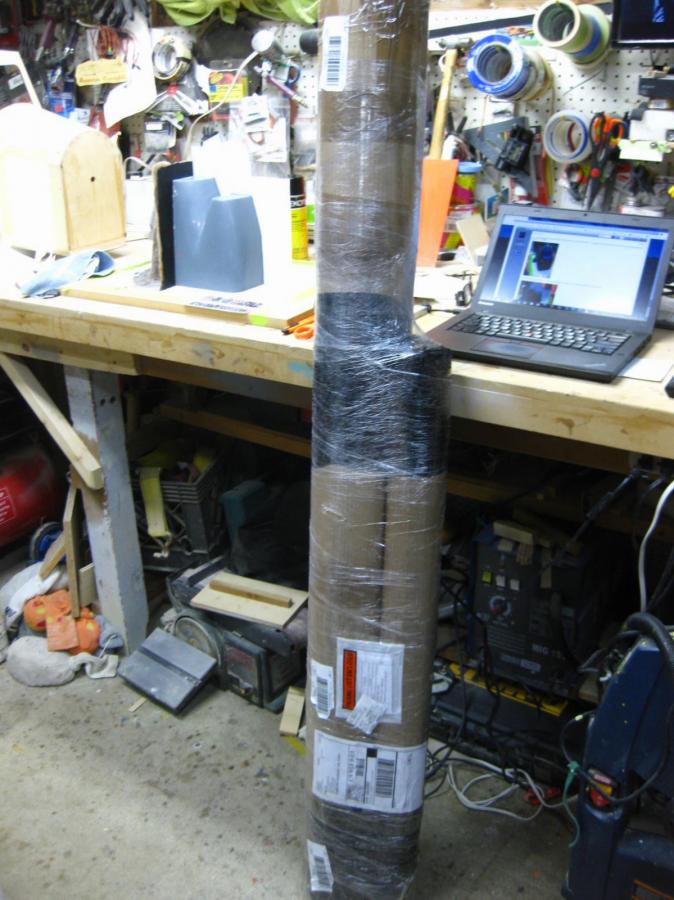

                    Stickers via USPS.......and more fiberglass via UPS and http://www.Thayercraft.com

                    Click image for larger version  Name:	IMG_4750.JPG Views:	1 Size:	102.6 KB ID:	32906 Click image for larger version  Name:	IMG_4753.JPG Views:	1 Size:	90.0 KB ID:	32908
                    Last edited by MarnochS; 01-12-2019, 07:03 PM.

                    Comment


                    • #25

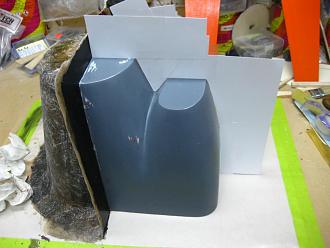

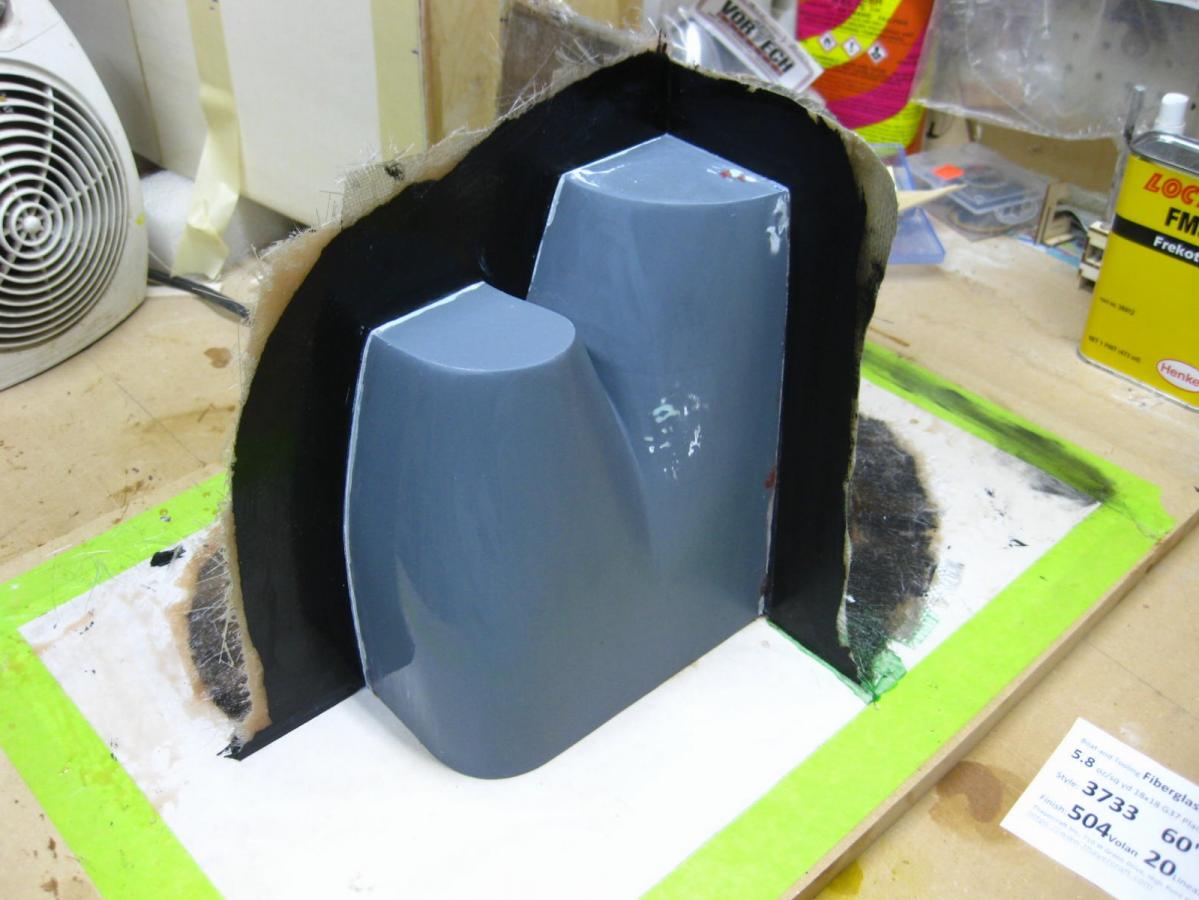

                      Productive day on the Cowl mold

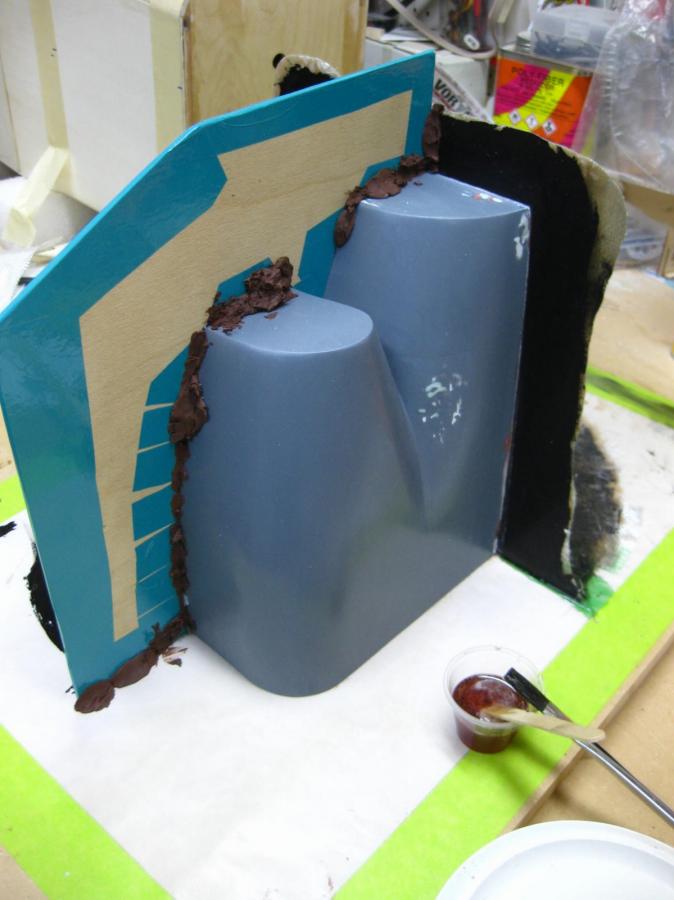

                      Saw a video on YouTube where they used the partall wax to seal the seams and thought I'd give that a try......It would work really good if I'd have painted my plug with a two part epoxy primer. Since it was only rattle can primer, the wax partially removed some of the primer ( food for thought next time....). Other than that, it worked great......

                      Click image for larger version

Name:	IMG_4754.JPG
Views:	1
Size:	38.3 KB
ID:	32930Click image for larger version

Name:	IMG_4755.JPG
Views:	1
Size:	50.4 KB
ID:	32931Click image for larger version

Name:	IMG_4756.JPG
Views:	1
Size:	76.8 KB
ID:	32935Click image for larger version

Name:	IMG_4758.JPG
Views:	1
Size:	83.8 KB
ID:	32936

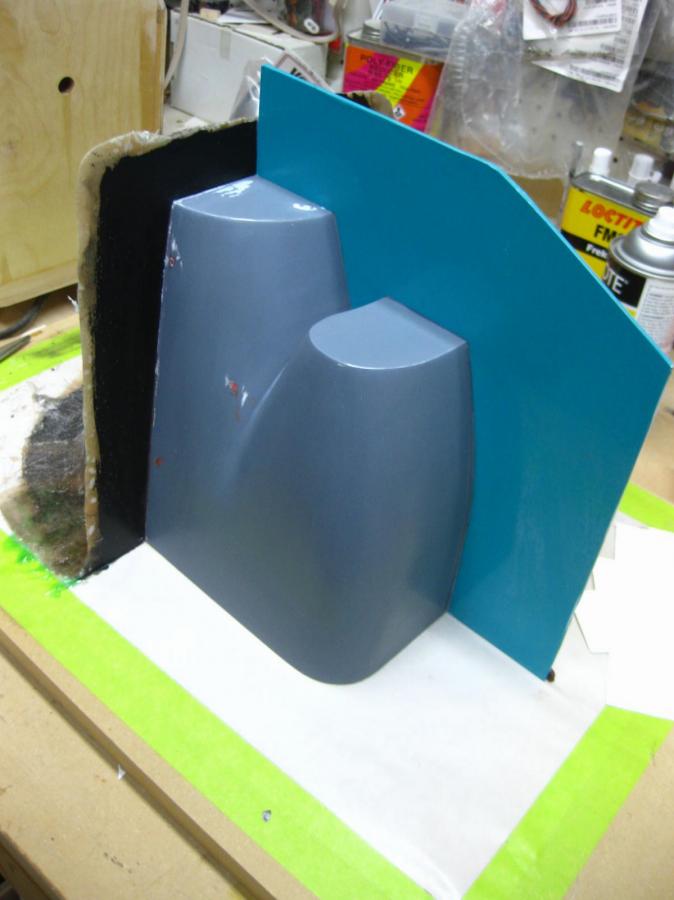

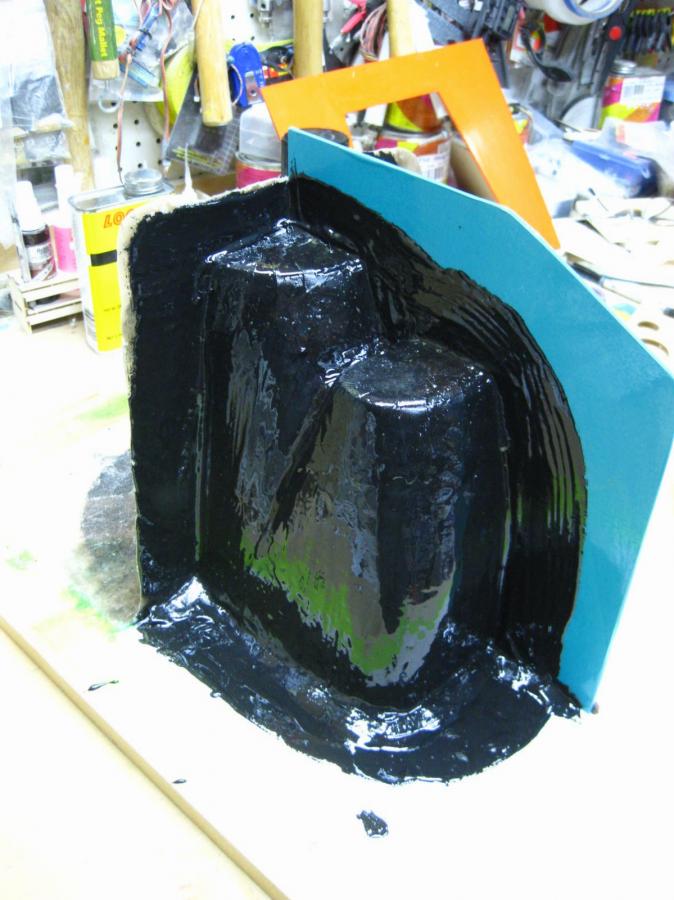

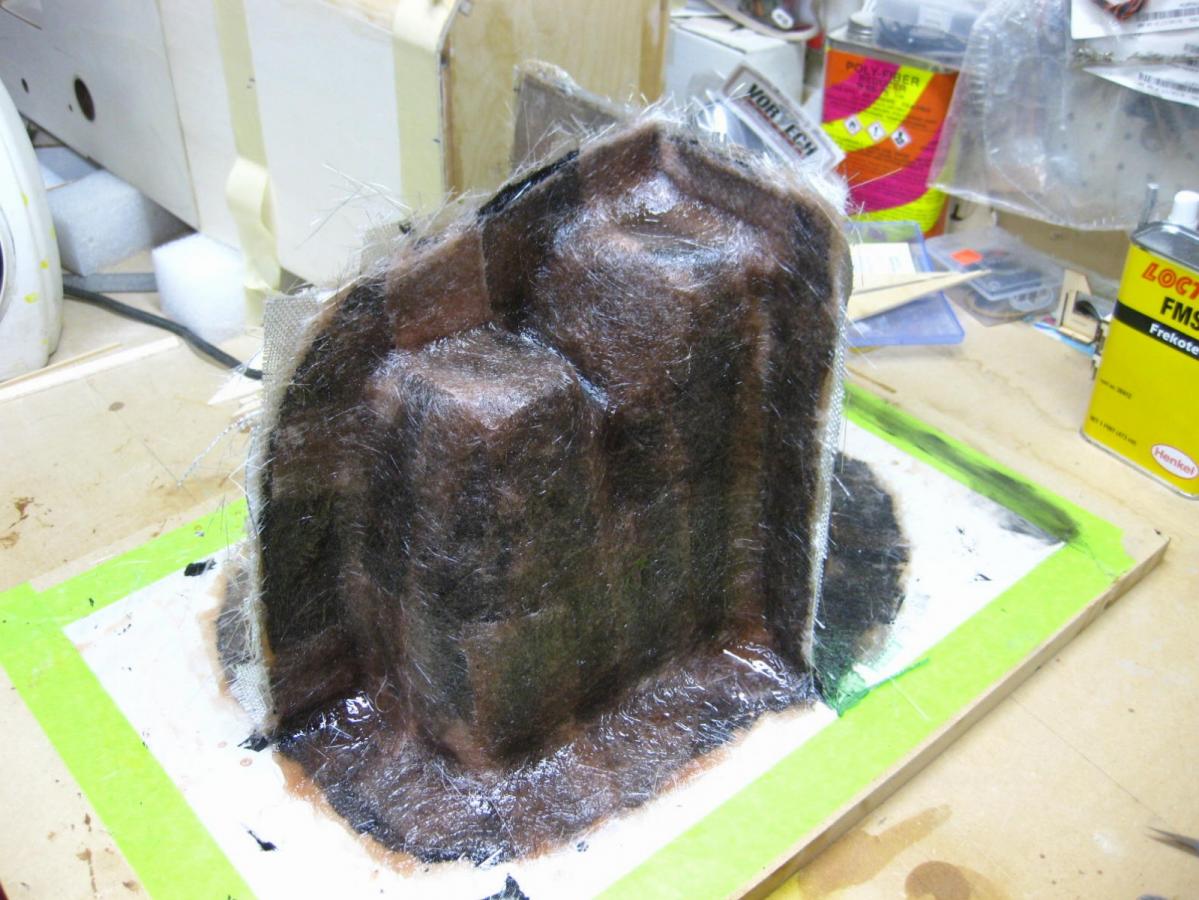

                      Then on to the other side......

                      Click image for larger version

Name:	IMG_4759.JPG
Views:	1
Size:	96.8 KB
ID:	32932Click image for larger version

Name:	IMG_4760.JPG
Views:	1
Size:	136.7 KB
ID:	32933

                      Now, the real trick will be to extract the plug........
                      Attached Files

                      Comment


                      • French1
                        French1 commented
                        Editing a comment
                        Well Done Scott, really great work!

                    • #26

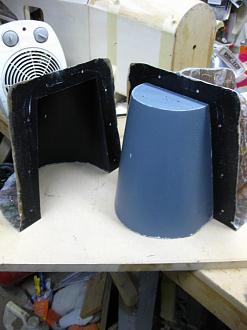

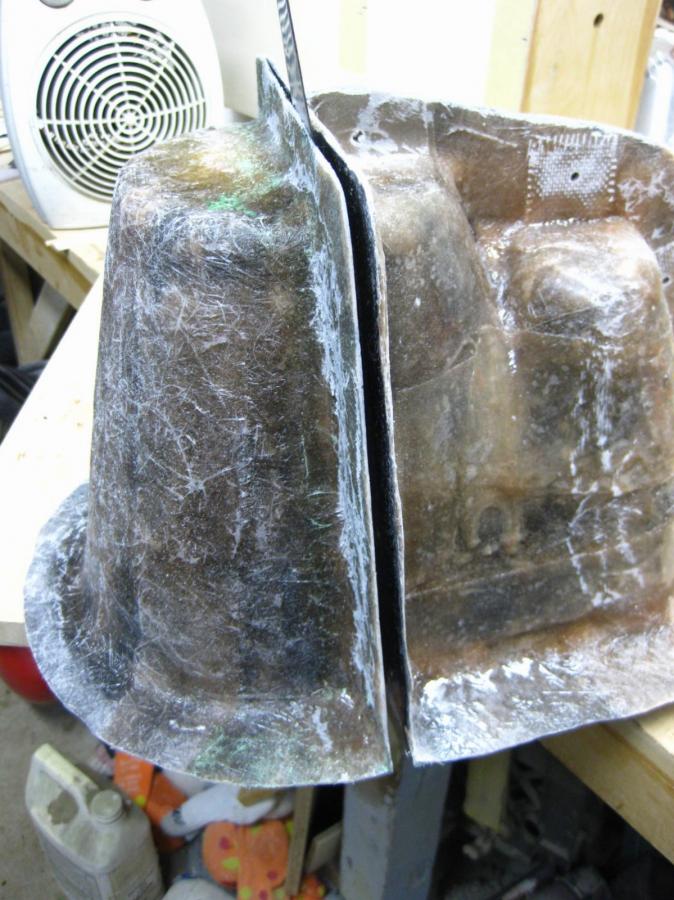

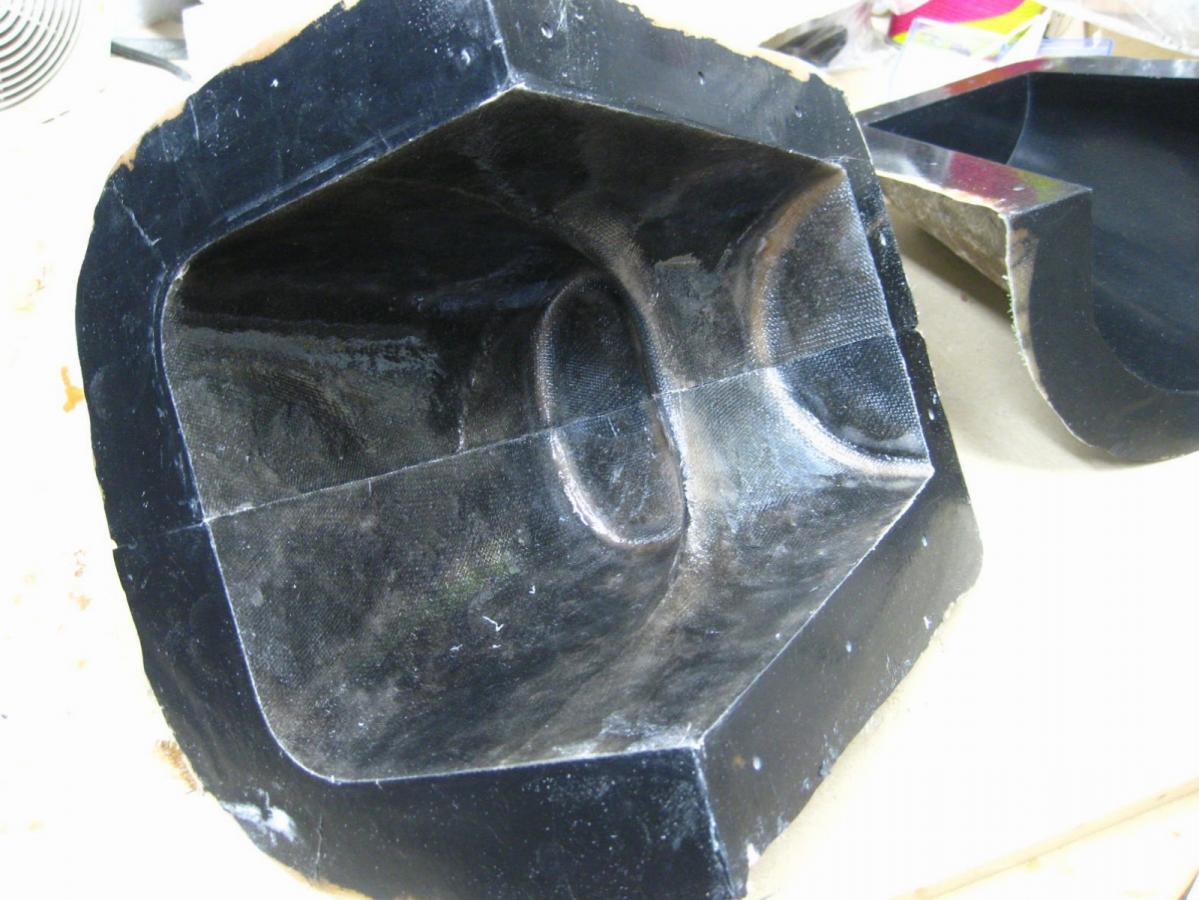

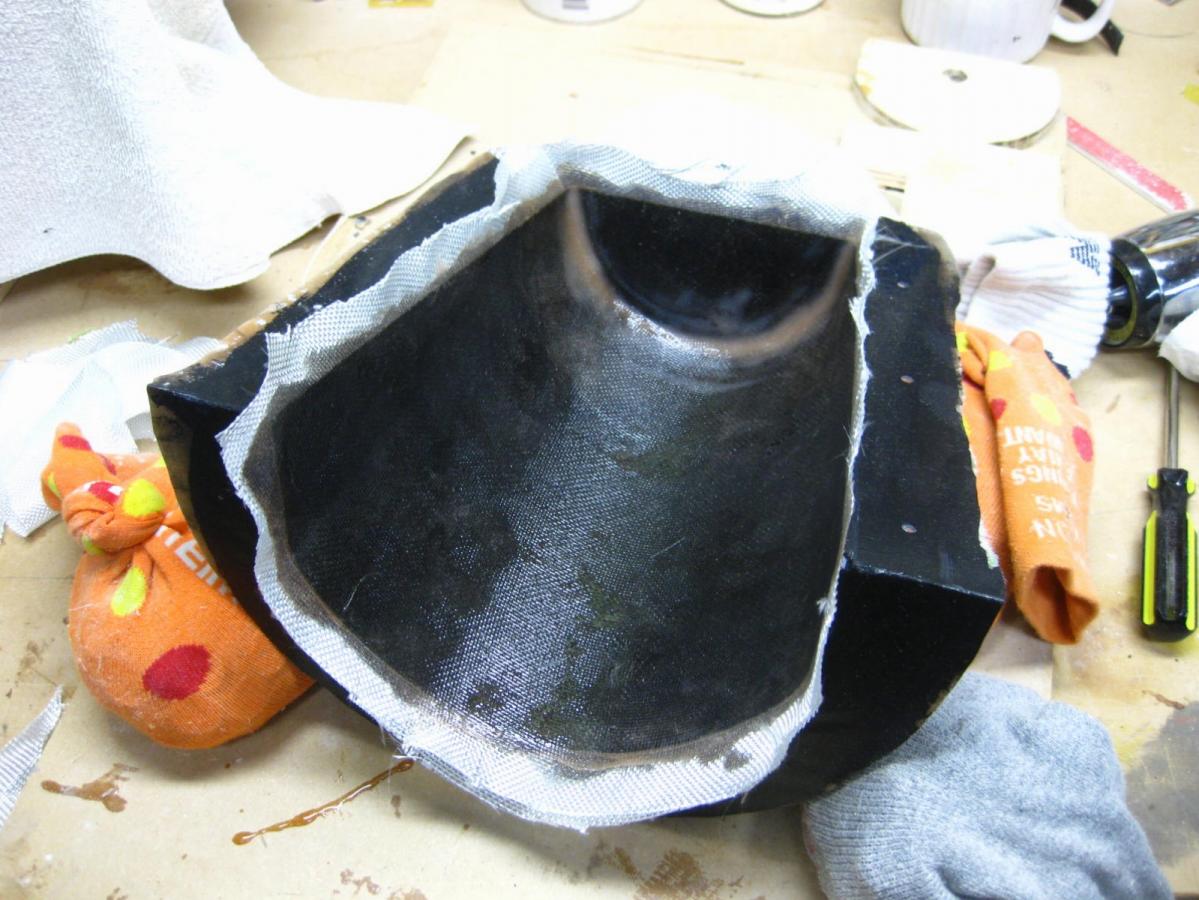

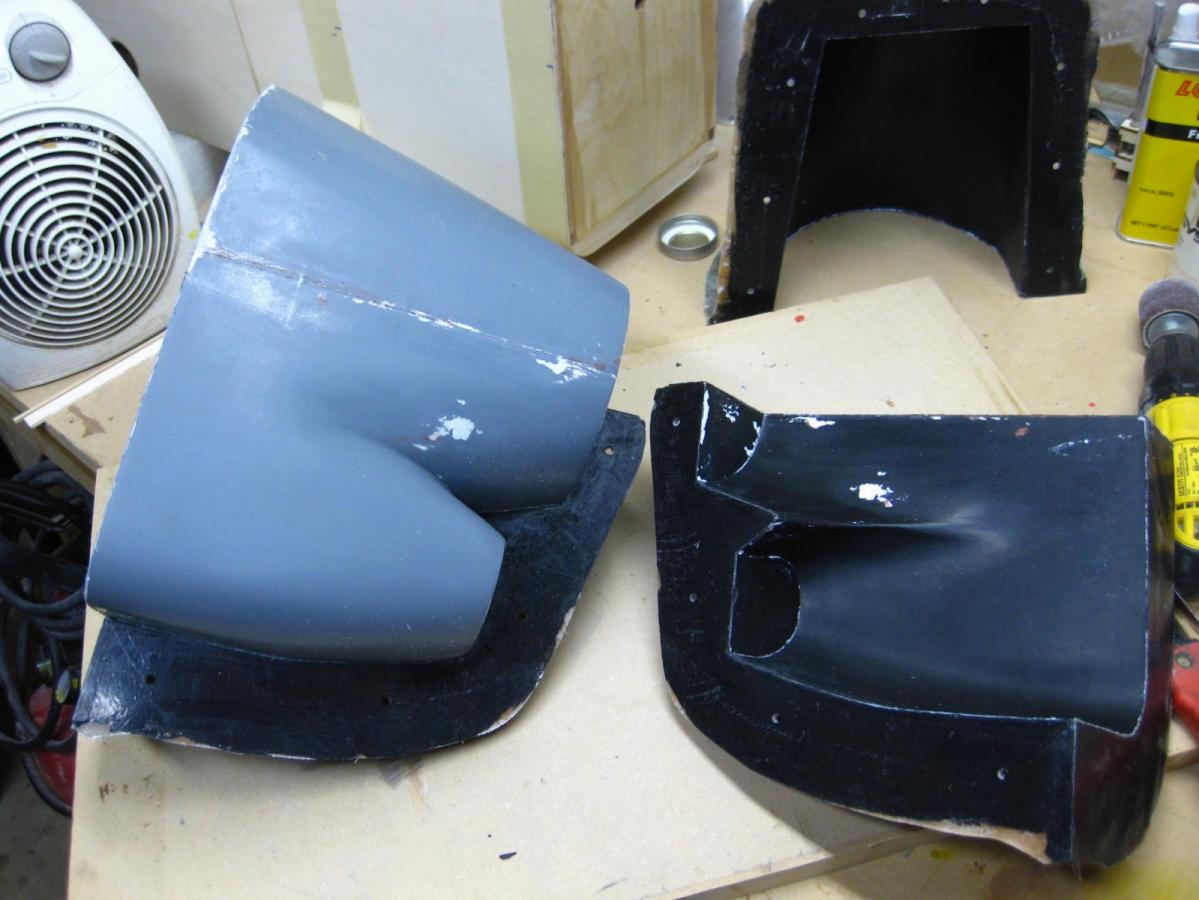

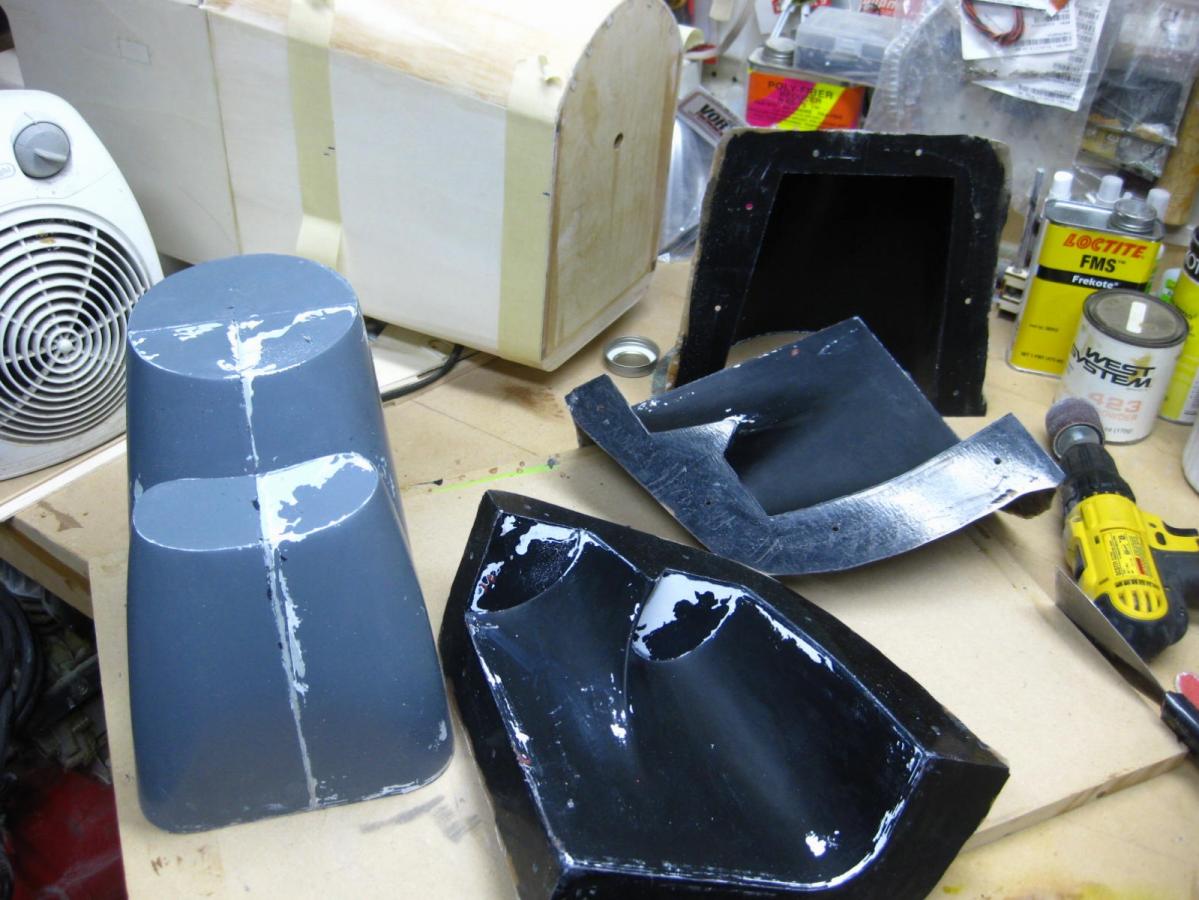

                      Successful Extraction ...YEA !!!

                      Click image for larger version

Name:	IMG_4761.JPG
Views:	1
Size:	94.0 KB
ID:	32956Click image for larger version

Name:	IMG_4762.JPG
Views:	1
Size:	99.1 KB
ID:	32959

                      Click image for larger version

Name:	IMG_4763.JPG
Views:	1
Size:	57.6 KB
ID:	32957Click image for larger version

Name:	IMG_4764.JPG
Views:	1
Size:	100.8 KB
ID:	32955Click image for larger version

Name:	IMG_4765.JPG
Views:	1
Size:	122.9 KB
ID:	32960

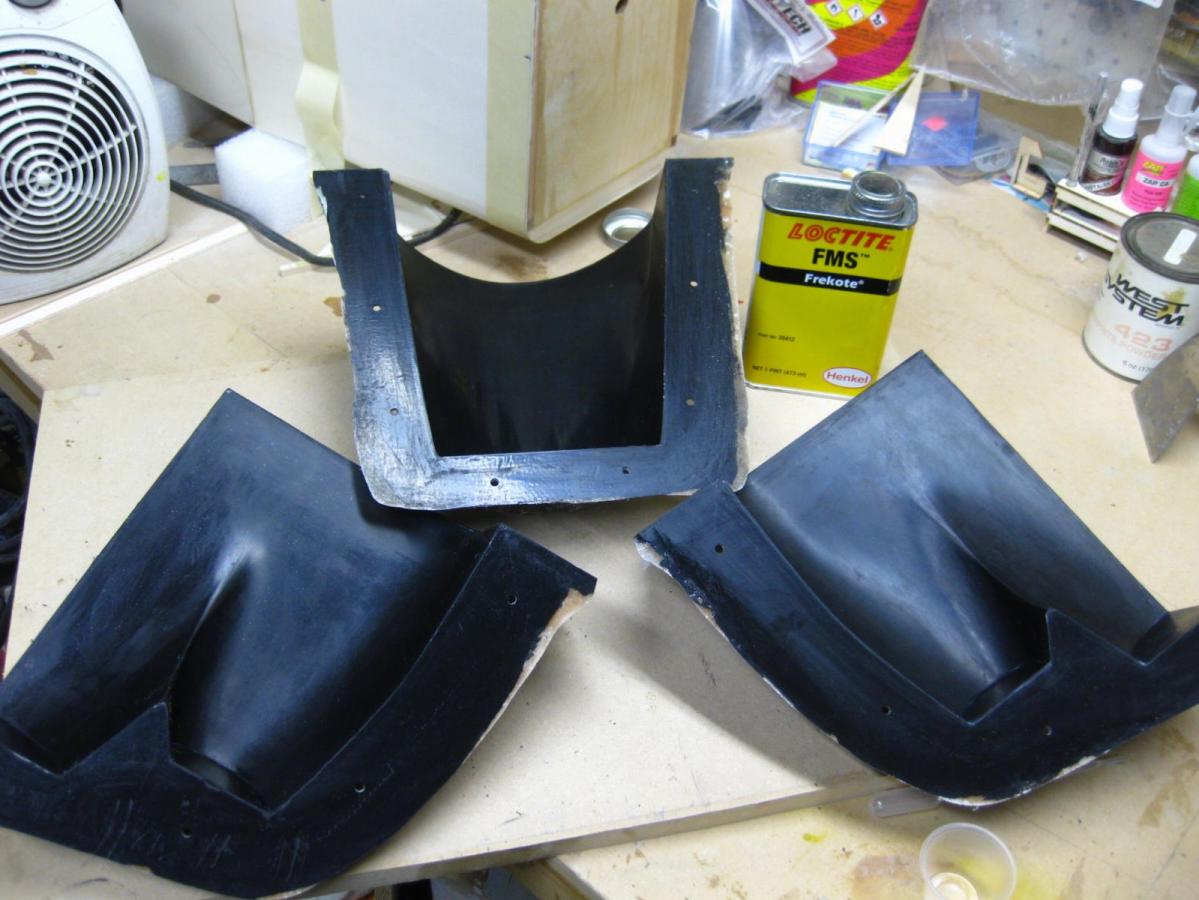

                      After some cleanup with solvent to get the primer out ....time for the Frekote Mold Sealer ( FMS ) wipe on process.

                      Click image for larger version

Name:	IMG_4766.JPG
Views:	1
Size:	113.5 KB
ID:	32958

                      Comment


                      • #27
                        Nice work with the plug and molds. Builds arm muscle, too!

                        Comment


                        • #28
                          Thanks Mike.

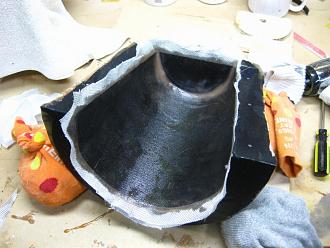

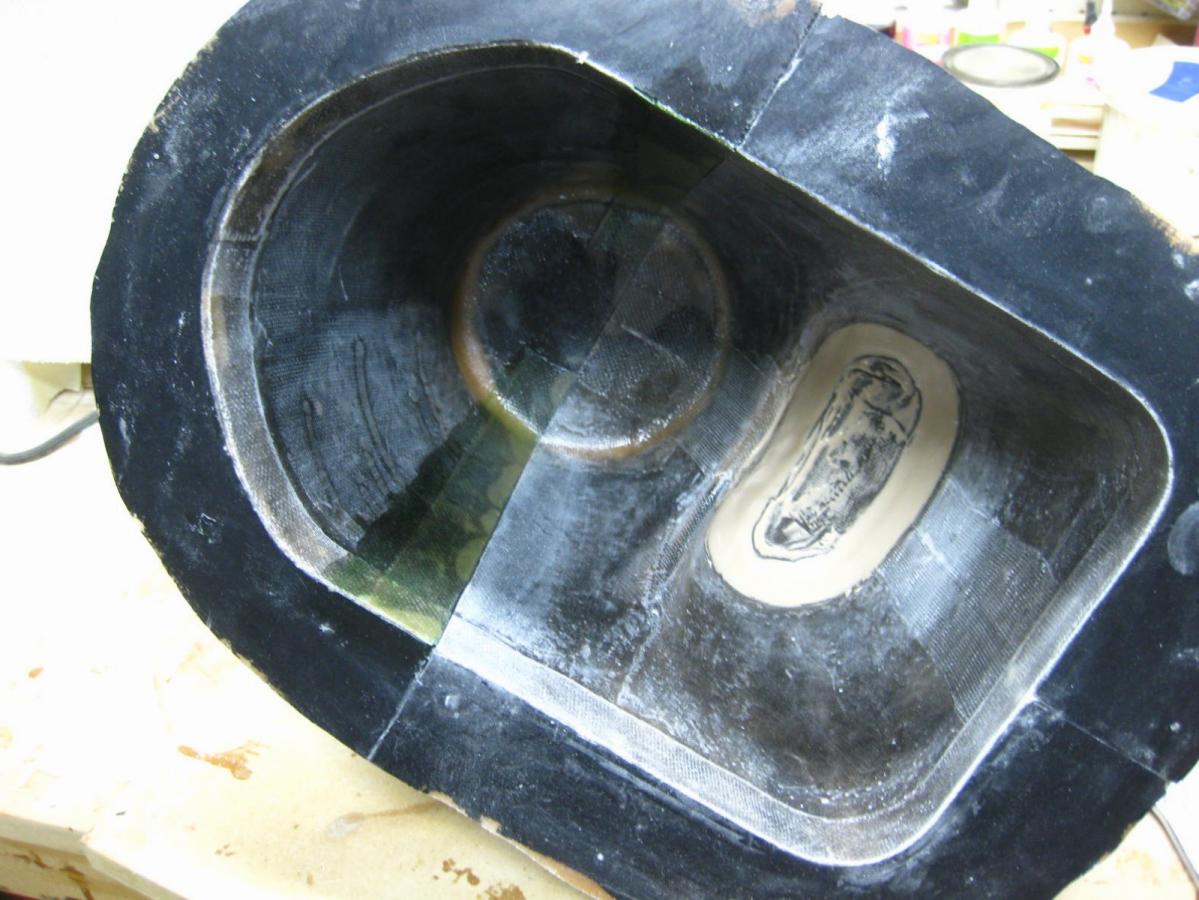

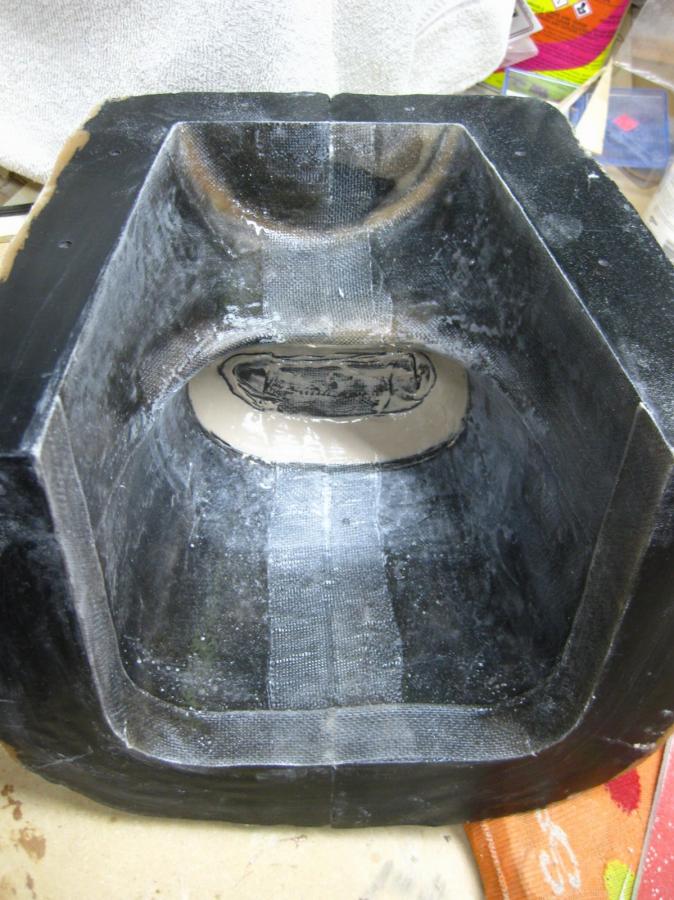

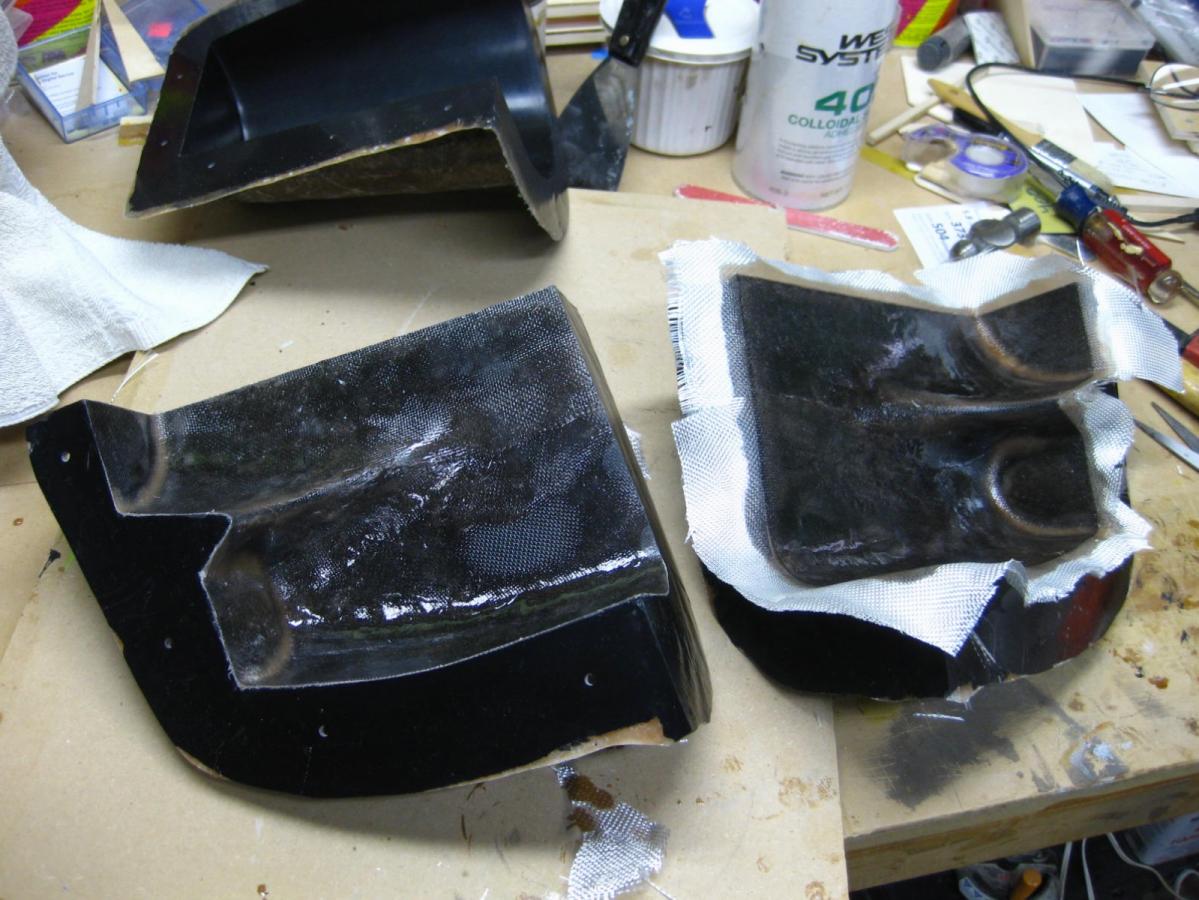

                          Two layers of 5.8 oz plain weave. On the intake scoop to spinner transition, it's a bit of a severe angle.....found if I cut a 1" strip at a 45 degree angel to the weave, it lays down nicely.

                          Click image for larger version

Name:	IMG_4767.JPG
Views:	1
Size:	137.2 KB
ID:	33005Click image for larger version

Name:	IMG_4768.JPG
Views:	1
Size:	121.5 KB
ID:	33006

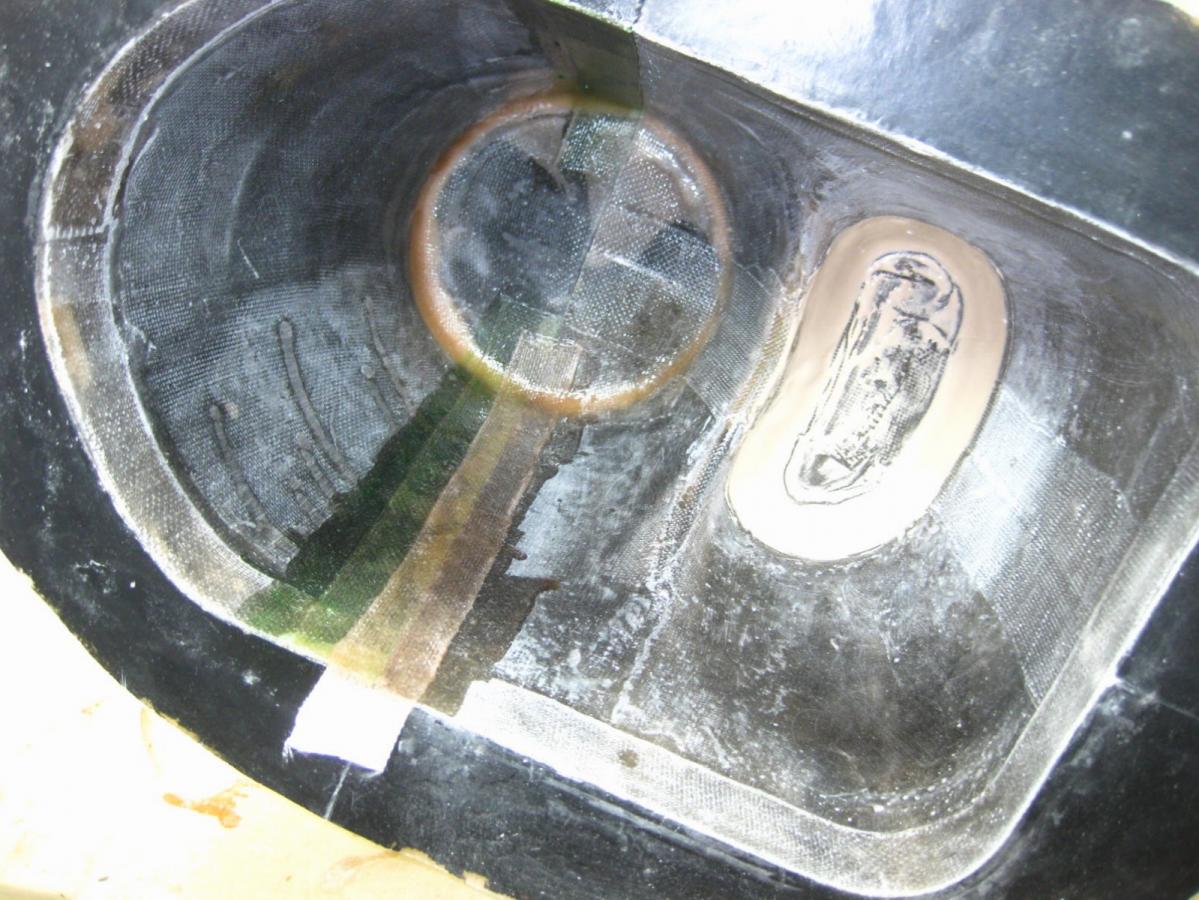

                          Reinforcing tapes and some 410 microlight fairing filler on the intake scoop.

                          Click image for larger version

Name:	IMG_4773.JPG
Views:	1
Size:	96.7 KB
ID:	33004Click image for larger version

Name:	IMG_4771.JPG
Views:	1
Size:	135.2 KB
ID:	33007

                          Comment


                          • ARUP
                            ARUP commented
                            Editing a comment
                            Wouldn't it be nice to have some of those fancy bladders to put in there to hold the glass in place in an assembled mold? Nice work with a tedious process!

                        • #29
                          Going with a split cowl and Ring mount so I added the divider (two layers of 1" standard fiberglass tape ( Partall Film #10 brushed on the top cowl )

                          Click image for larger version

Name:	IMG_4774.JPG
Views:	1
Size:	126.7 KB
ID:	33026Click image for larger version

Name:	IMG_4776.JPG
Views:	1
Size:	159.7 KB
ID:	33028

                          and then I couldn't stand it any longer and just had to get it out of the mold.......

                          Click image for larger version

Name:	IMG_4782.JPG
Views:	1
Size:	111.9 KB
ID:	33025Click image for larger version

Name:	IMG_4785.JPG
Views:	1
Size:	99.5 KB
ID:	33027
                          YEA !! !!

                          Comment


                          • #30
                            Very interesting!
