  • #16
    Well, we didn't make our deadline with the Smellyak, but we did fly both the Skylank and the Sapphire at the Fall Soar for Fun.

    Back to the wing build now!

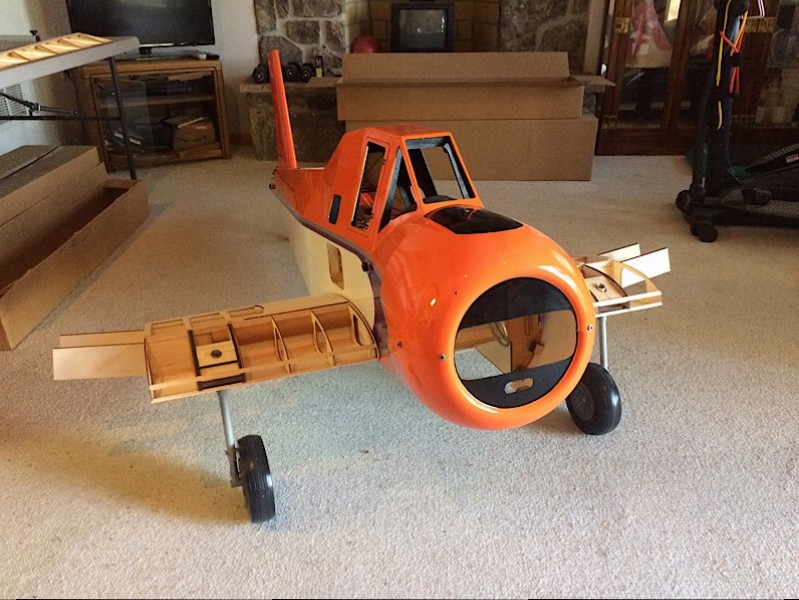

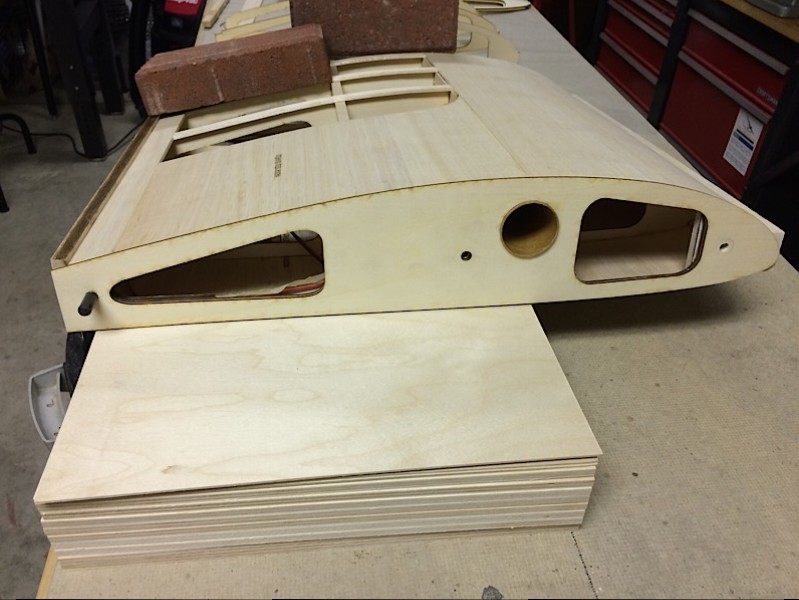

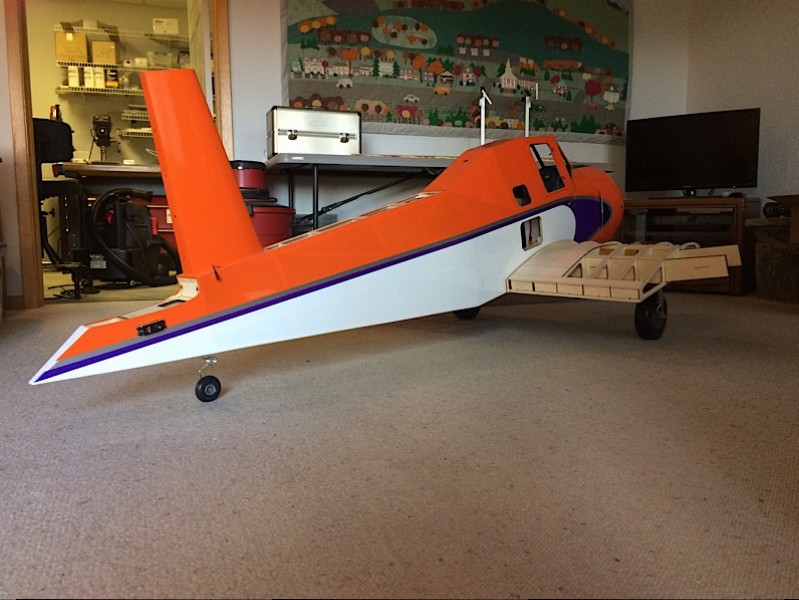

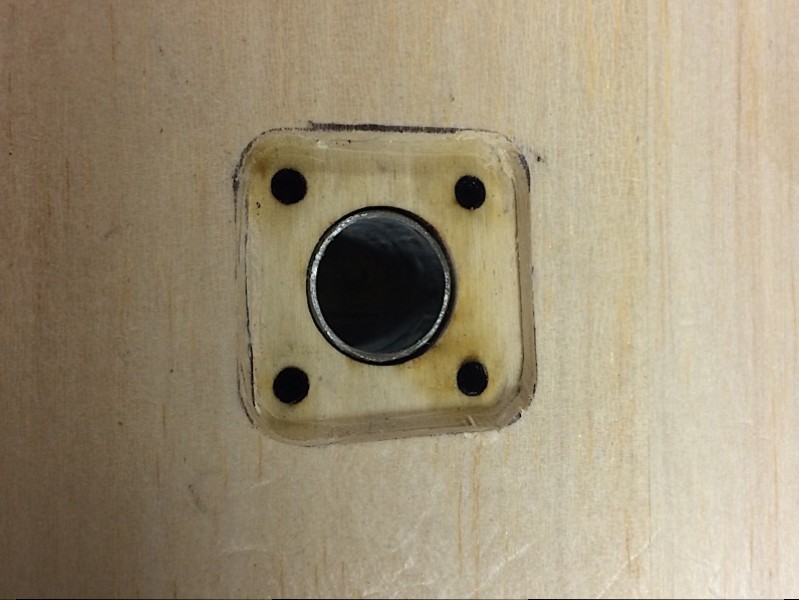

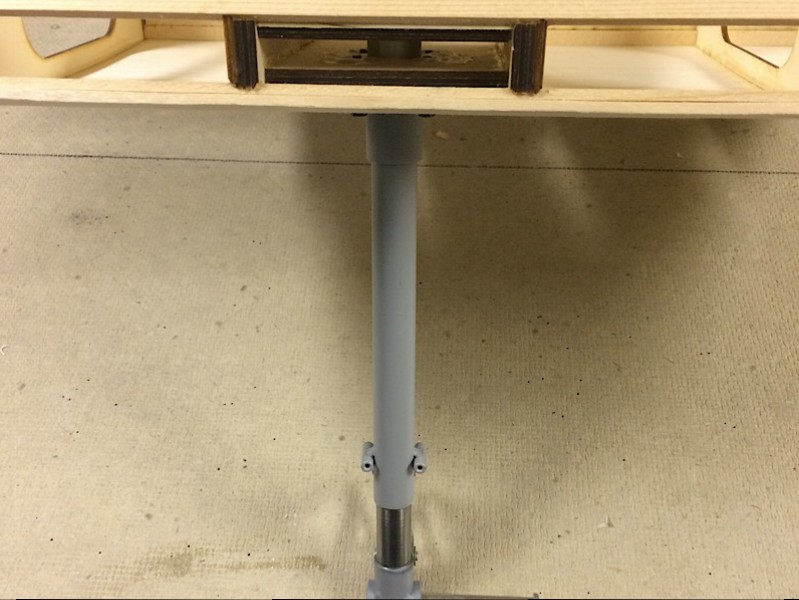

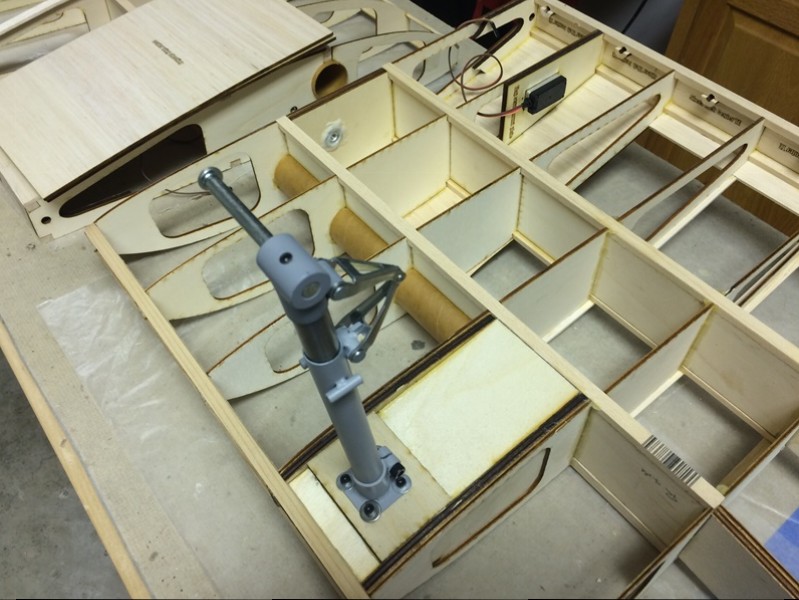

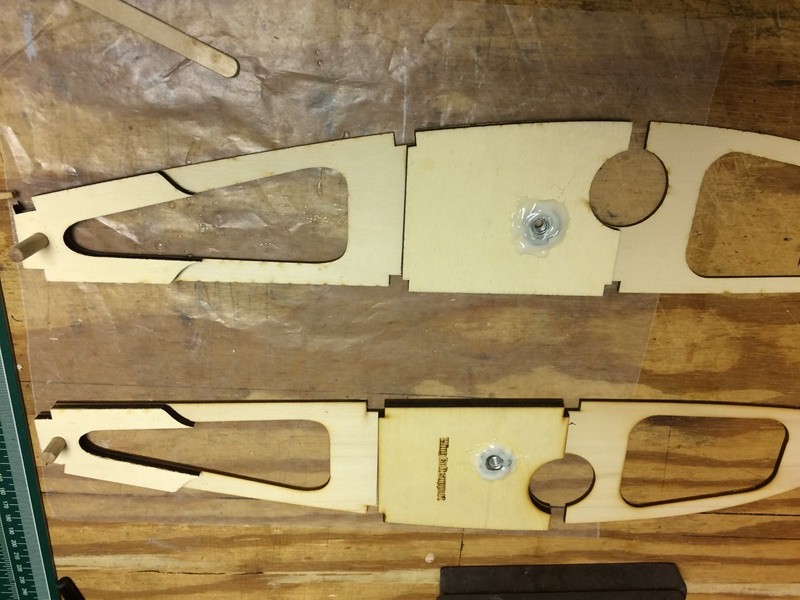

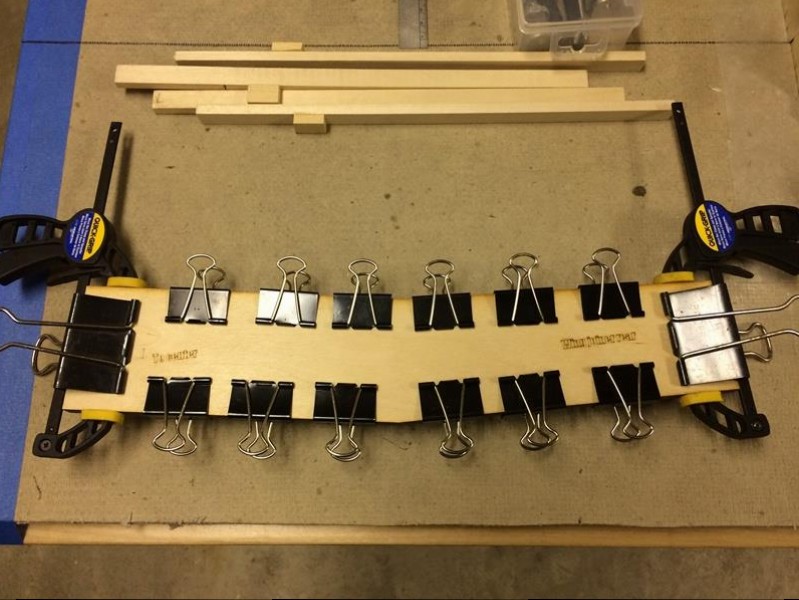

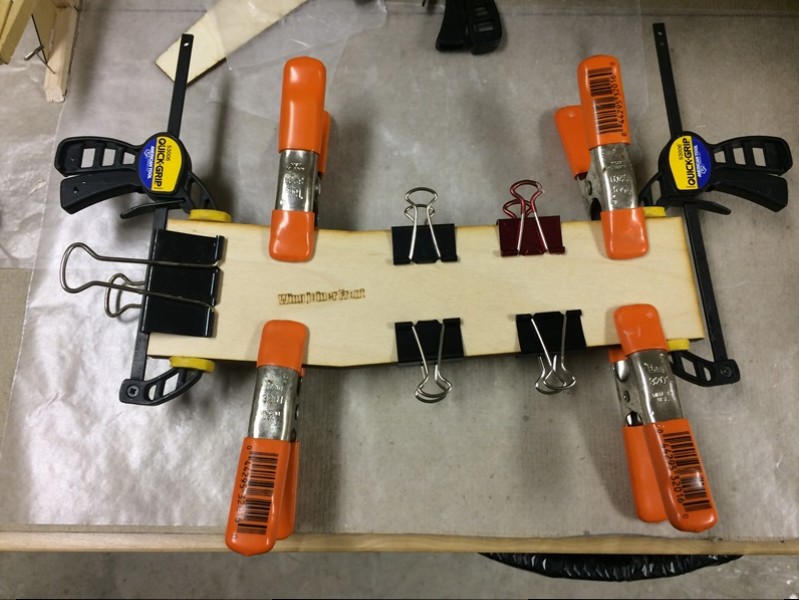

    Started by doing the spar joiner laminations and blind nut installations for the center sections. Then we test fit the wing mounted Robart Robostruts.

    Click image for larger version

Name:	W001.JPG
Views:	351
Size:	105.4 KB
ID:	31702

    Click image for larger version

Name:	W002.JPG
Views:	351
Size:	105.1 KB
ID:	31704

    Click image for larger version

Name:	W003.JPG
Views:	325
Size:	76.1 KB
ID:	31703

    Click image for larger version

Name:	W004.JPG
Views:	322
Size:	118.9 KB
ID:	31709

    Click image for larger version

Name:	W005.JPG
Views:	317
Size:	114.4 KB
ID:	31705

    Click image for larger version

Name:	W006.JPG
Views:	323
Size:	92.9 KB
ID:	31707

    Click image for larger version

Name:	W007.JPG
Views:	318
Size:	85.8 KB
ID:	31706

    Click image for larger version

Name:	W008.JPG
Views:	332
Size:	110.4 KB
ID:	31708

    Click image for larger version

Name:	W009.JPG
Views:	323
Size:	120.1 KB
ID:	31711

    Click image for larger version

Name:	W010.JPG
Views:	330
Size:	134.1 KB
ID:	31710

    A Site for Soar Eyes

    Comment


    • #17

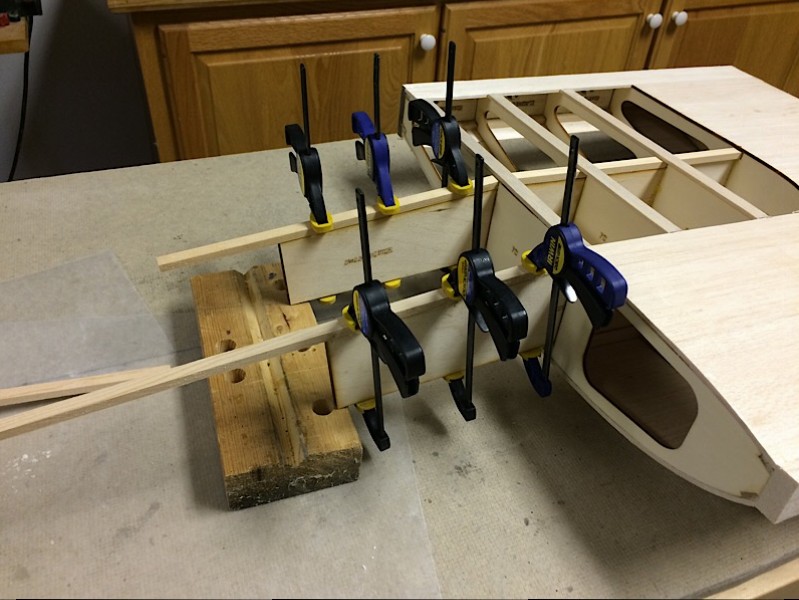

      Next step is to build the outer wing panels. We started by firmly gluing the bottom main spar and rear short spar to the spar joiners.

      Click image for larger version

Name:	W011.JPG
Views:	312
Size:	106.0 KB
ID:	31718

      Click image for larger version

Name:	W012.JPG
Views:	330
Size:	112.7 KB
ID:	31729

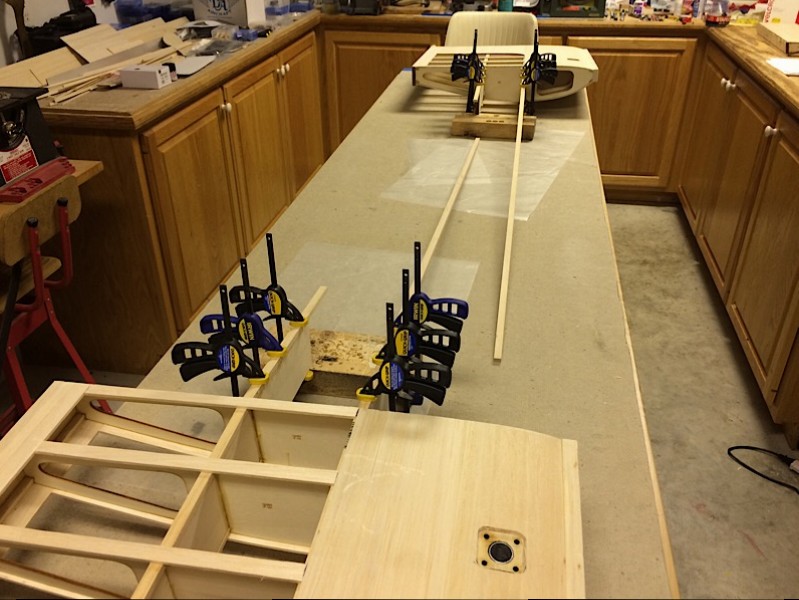

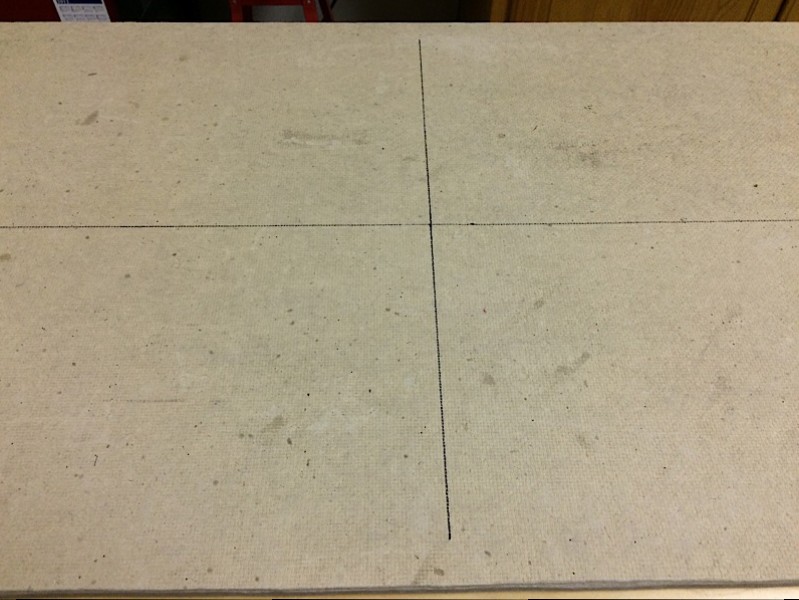

      Our building board has a centerline with a perpendicular line to use as a reference to keep the wing panels aligned.

      Click image for larger version

Name:	W013.JPG
Views:	315
Size:	98.8 KB
ID:	31724

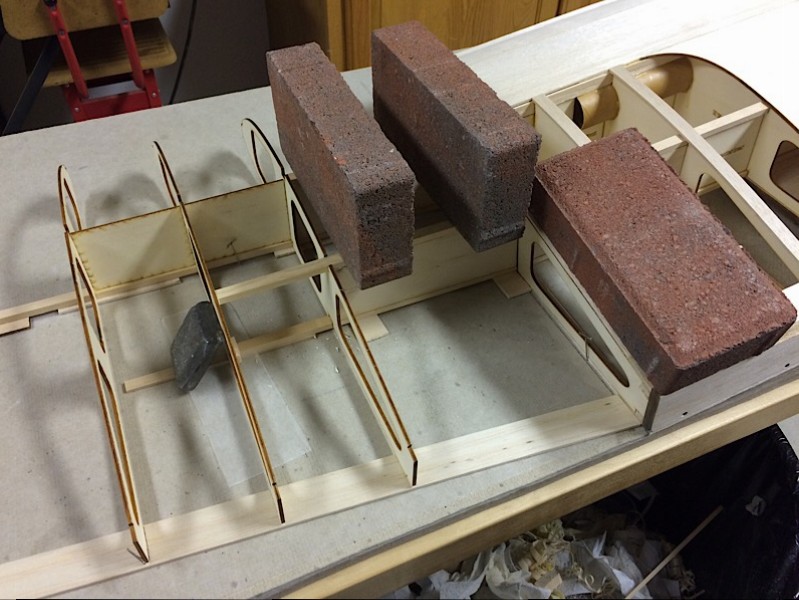

      The outboard rib of the center section aligns with the cross line and the lower spar with the centerline. Now to start adding ribs and shear webs keeping the flat section of the ribs (from spar to trailing edge) flat on the bench. Note that the spar needs to be shimmed up with 1/8" thick pieces of scrap balsa to account for the sheeting that will be added later.

      Click image for larger version

Name:	W014.JPG
Views:	315
Size:	98.0 KB
ID:	31719

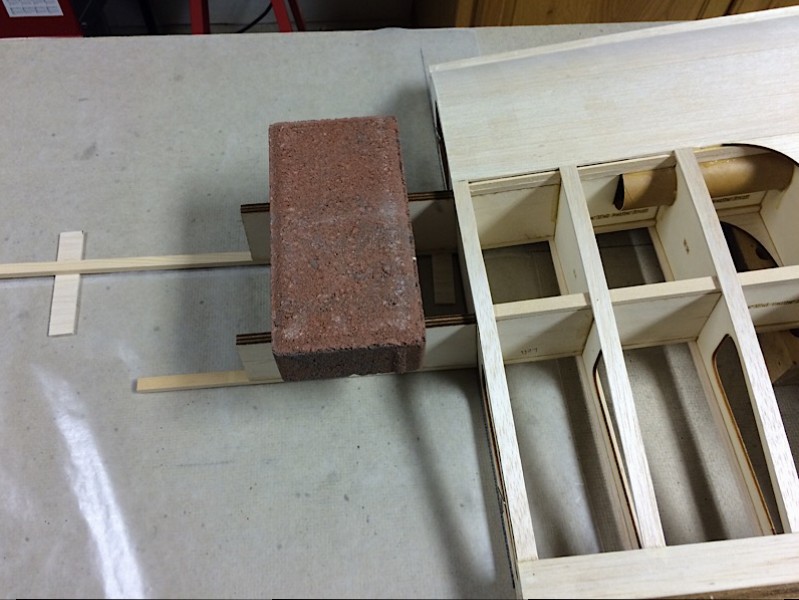

      The wing root needs to be supported, again keeping the flat section of the root rib parallel to the top of the workbench..

      Click image for larger version

Name:	W015.JPG
Views:	316
Size:	92.9 KB
ID:	31728

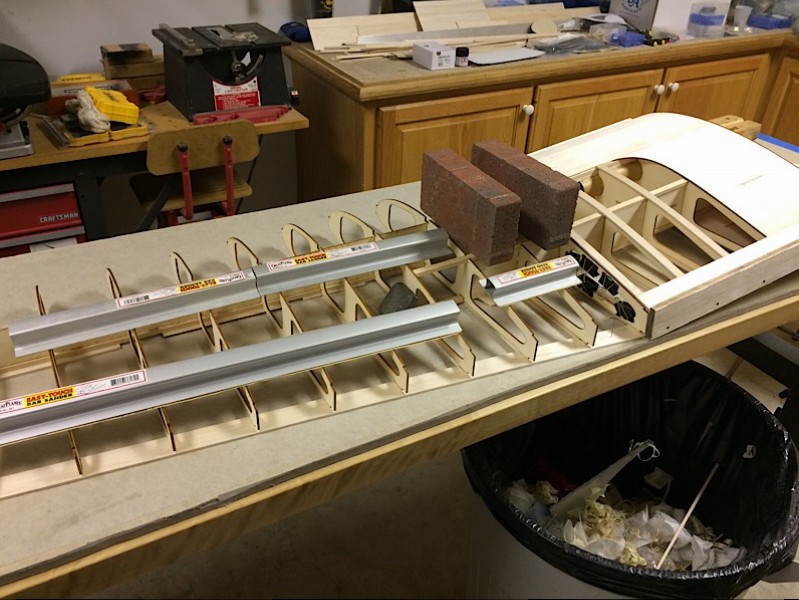

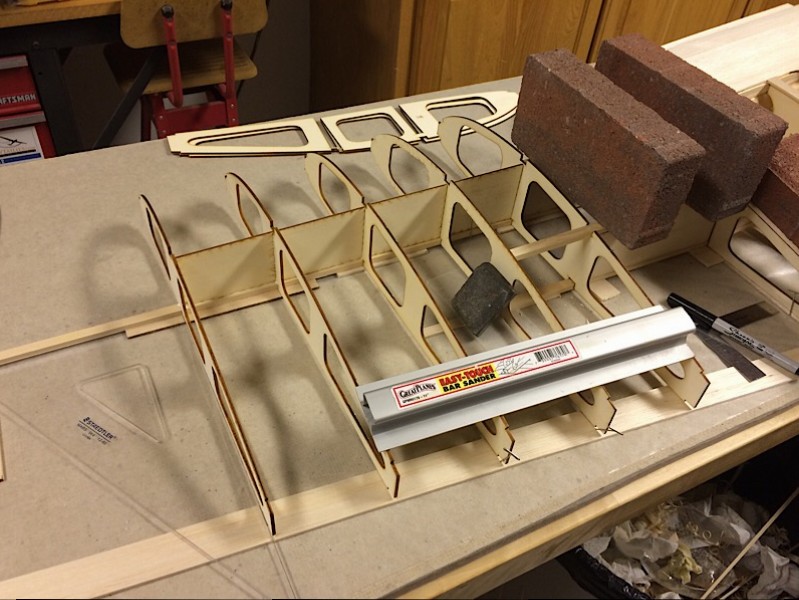

      Continue out the spar adding a shear web, then a rib, then another shear web, and then another rib, and so on out to the tip.

      Click image for larger version

Name:	W016.JPG
Views:	306
Size:	114.6 KB
ID:	31723

      Click image for larger version

Name:	W017.JPG
Views:	320
Size:	119.5 KB
ID:	31720

      Keep the ribs at a 90 degree angle to the spar line.

      Click image for larger version

Name:	W018.JPG
Views:	311
Size:	127.8 KB
ID:	31725

      Click image for larger version

Name:	W019.JPG
Views:	336
Size:	124.8 KB
ID:	31727

      The inspector stopped by!

      Click image for larger version

Name:	W020.JPG
Views:	317
Size:	101.1 KB
ID:	31721

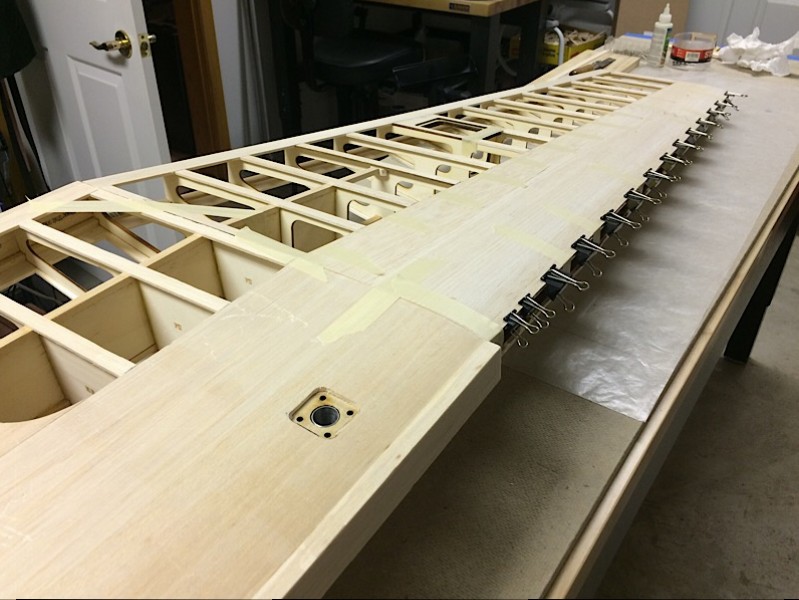

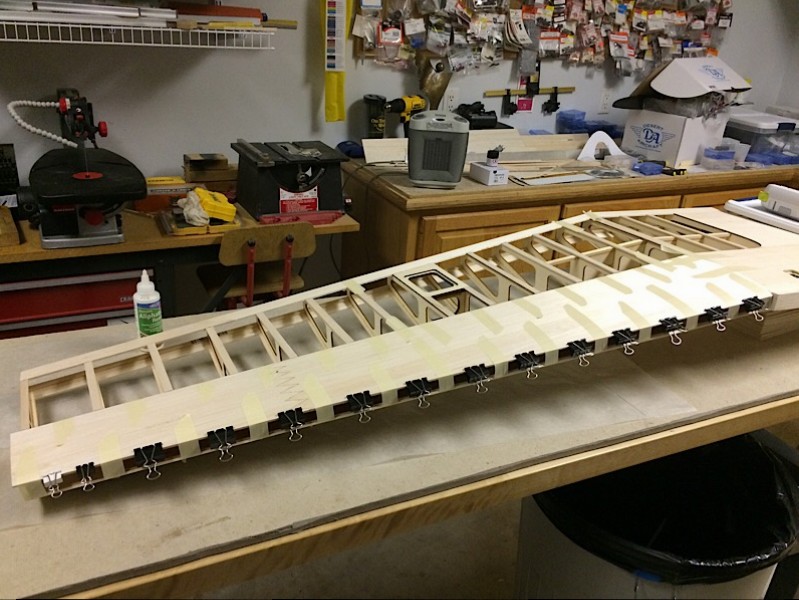

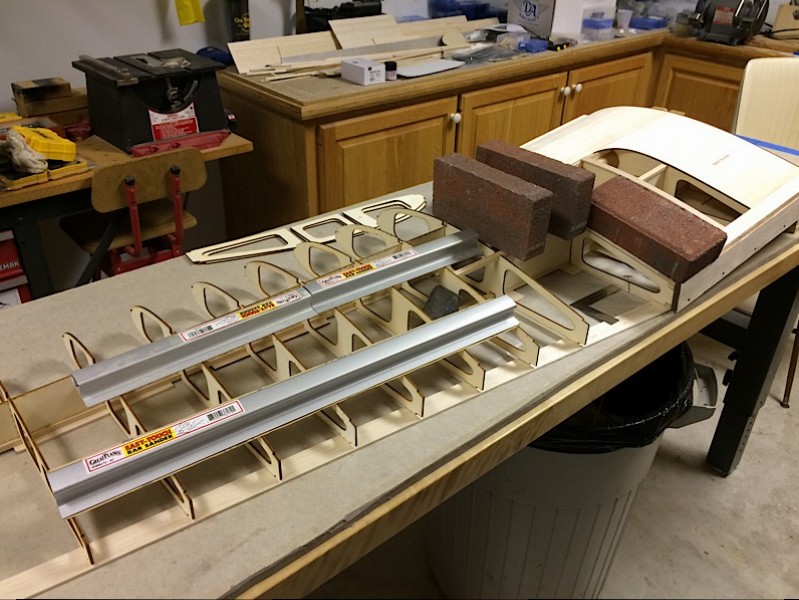

      Top sheeting, rear trailing edge sub spar, trailing edge sheeting, and cap strips are added to the top and then the wing is flipped over and the bottom sheeting and cap strips are added.

      Click image for larger version

Name:	W021.JPG
Views:	331
Size:	125.0 KB
ID:	31726

      Click image for larger version

Name:	W022.JPG
Views:	312
Size:	104.6 KB
ID:	31722


      A Site for Soar Eyes

      Comment


      • #18
        Looks fantastic Jim.....the new landing gear placement and struts look great !

        Comment


        • JimD
          JimD commented
          Editing a comment
          Hi Bob, have you been able to start your build yet?

        • BobM
          BobM commented
          Editing a comment
          I've got the tail feathers and wing panels completed on Cmelak 1.....still have to build the fuselage. Cmelak 2 is in the box carefully tucked away for now. I'm hoping to take advantage of the time off in December/January from school to get things finished up on Cmelak 1........hopefully I'll have it finished by the end of January and then can start on some of the other builds I have waiting.....my Skylark and Cmelak 2.

      • #19
        Great shots with excellent detail. This should be a lot of help to others planning on this build!

        Comment


        • #20
          Super cool...will the landing gears be easy to remove for transport or is it a "leave together" situation ?? the cool shocks would probably be good for a pilot like me !!!
          on the home stretch on mine now, too late to re do my wings for this mod...

          Comment


          • #21
            Jim,
            Looks like you are using the Dubro wheels. I would strongly suggest the the Sullivan wheels. The Dubro wheels have a square profile. On porter #5 with the dubro wheels, I kept bending the axle when sliding sideways. Porter #3 never did this with the Sullivan wheels. Sullivan wheels have have a radius profile. I changed Porter #5 to Sullivan wheels and no more bent axles.

            Steve K
            Steve K

            Kremer Aerotowing Team

            Comment


            • #22
              Interesting point Steve.
              Len Buffinton
              Team Horizon Hobby

              Comment


              • #23

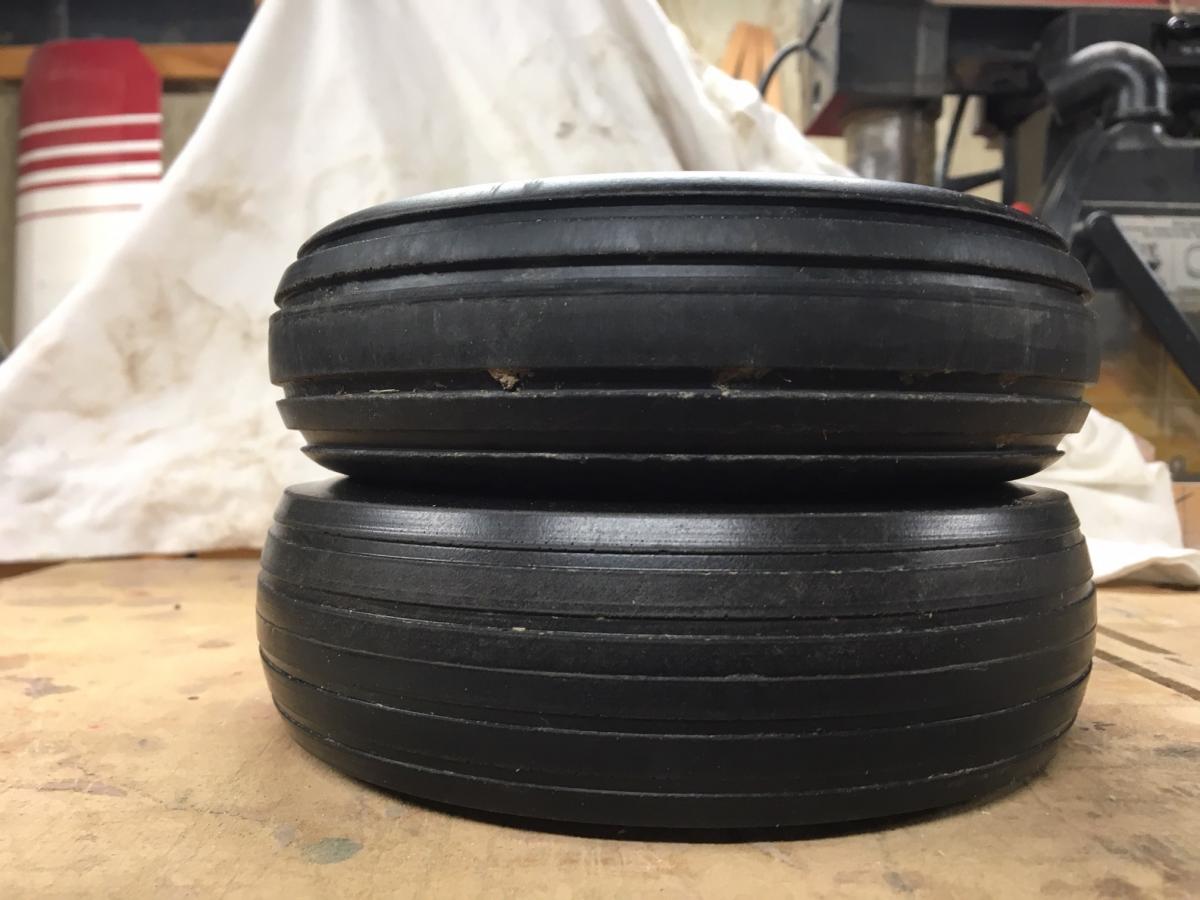

                Here are photos of both. Sullivan on top, Dubro on bottom. Both are 7" wheels. BTW if someone wants 7" dubro wheels, let me know. I have two. Click image for larger version

Name:	Wheels.JPG
Views:	320
Size:	93.9 KB
ID:	31823
                Steve K

                Kremer Aerotowing Team

                Comment


                • Mosquito
                  Mosquito commented
                  Editing a comment
                  Sullivan make an 8" tire?

                • stevekremer
                  stevekremer commented
                  Editing a comment
                  Not that I can find

              • #24
                Steve, call me, I'll purchase them. Need them for my 185
                Gunny
                Aviation Concepts rc

                Comment


                • #25
                  Jim,

                  Been a while since an update on your Chmelak build (also Bob M's and Kevin K's). How is your build going? Is it true you are scaling up the flaps and making them wider and 4 piece?

                  Tim

                  Comment


                  • #26
                    Tim,

                    The build has been progressing albeit slowly. Wing leading edges have been added and sanded to contour, so wings are ready to cover. I decided to split the ailerons to make an additional section of flap. Unbeknownst to me, Peter had made this same modification to his undated Cmelak kit. Anyway, I had Gunny make G10 control horns for the new flap sections and they are ready to hinge and cover.

                    Meantime, I've built Peter's new TG-3, and his Foxbat RES model, built three of the four sections of wings for Gunny's 1/3-scale 2-33 plus finished out the fuselage for it, went for jury duty, put on the Cumberland Spring Soar for Fun, suffered with a herniated disc in my neck, done physical therapy, and did excavation and contruction of a new hangar at my HighPoint Aviation property.

                    So I'm a slacker...🙄
                    A Site for Soar Eyes

                    Comment


                    • #27
                      Beyond Amazing JIm….you are an inspiration to all of us !!!
                      kevin

                      Comment


                      • #28

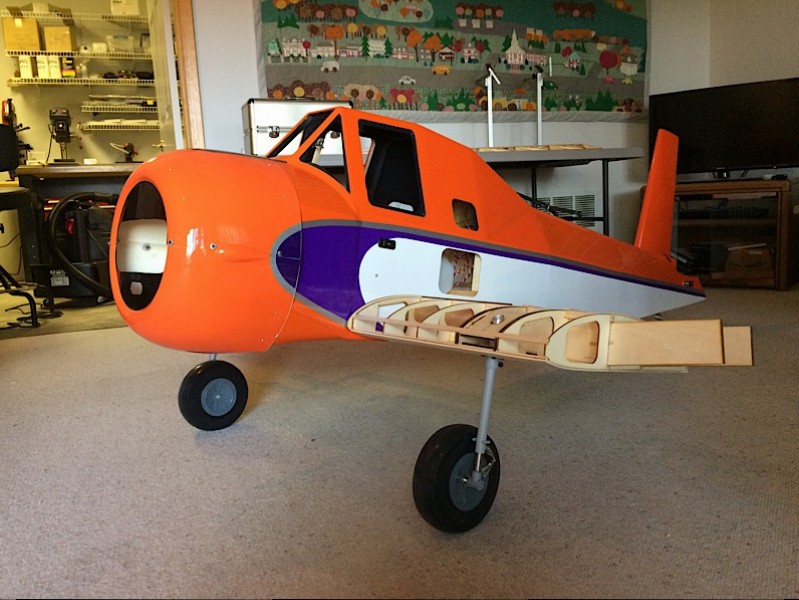

                        Okay Tim, I've picked up the pace on the Cmelak build...😎

                        Click image for larger version

Name:	IMG_2907.JPG
Views:	277
Size:	120.0 KB
ID:	36819

                        A Site for Soar Eyes

                        Comment


                        • #29

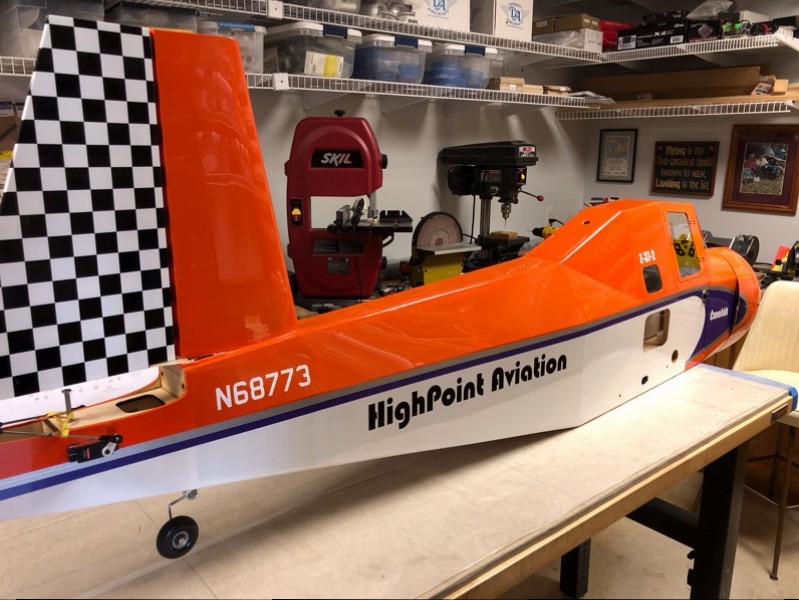

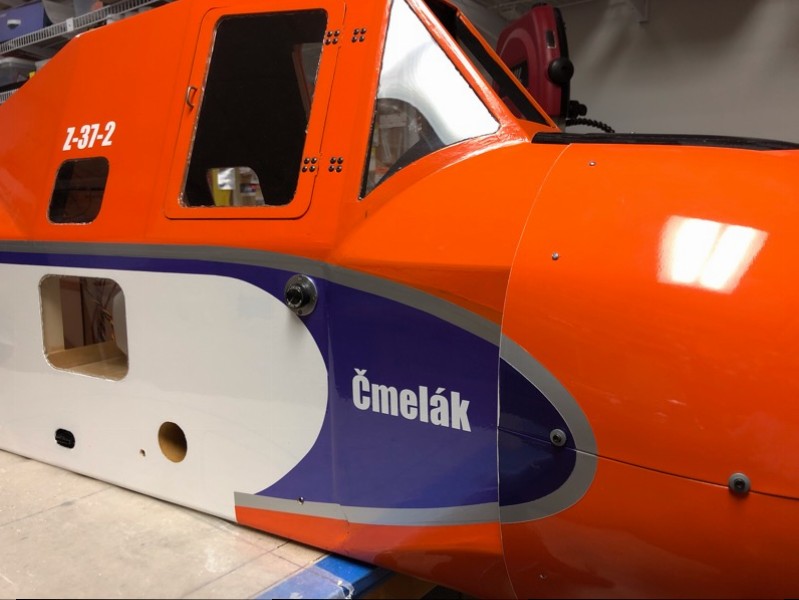

                          Got my graphics from Callie Graphics. Really enjoyed installing the door hinges...all 32 button head screws and nuts. 😜

                          Click image for larger version

Name:	IMG_2910.JPG
Views:	304
Size:	72.5 KB
ID:	36823

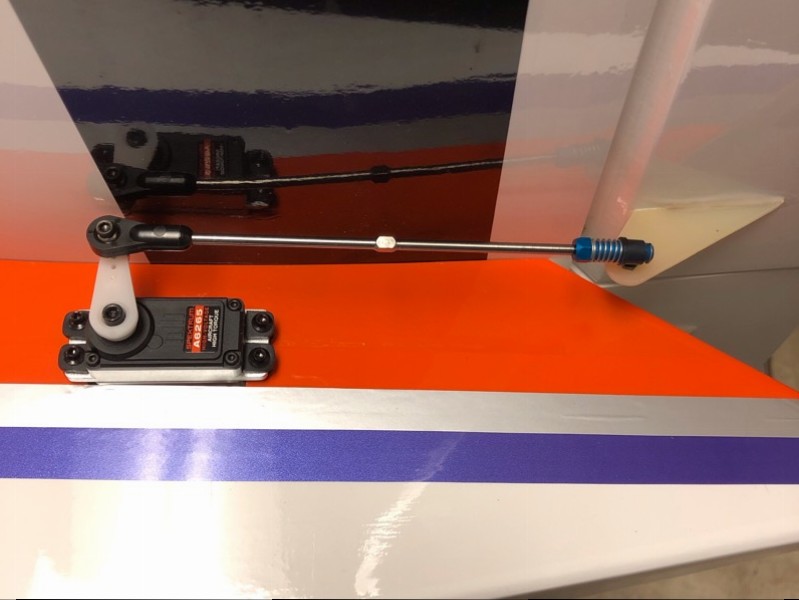

                          Have used the Sullivan removable ball links on the Bidule 170 with total success. Makes mounting/removing the stab much easier.

                          Click image for larger version

Name:	IMG_2909.JPG
Views:	276
Size:	63.8 KB
ID:	36821

                          Mr. Bates checked things out and approved!

                          Click image for larger version

Name:	IMG_2908.JPG
Views:	282
Size:	88.8 KB
ID:	36822

                          A Site for Soar Eyes

                          Comment


                          • #30
                            jim it looks great such nice covering job..

                            i am in about the same stage on the bidule.. hope to have it flying for july and looks like yours will make that time line also..........

                            Comment


                            • Steve P
                              Steve P commented
                              Editing a comment
                              My guess is that Jim’s will be flying at the Horizon tow in a couple weeks...
