Piper Pawnee 235 (33% - Hanger 9)

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • #61

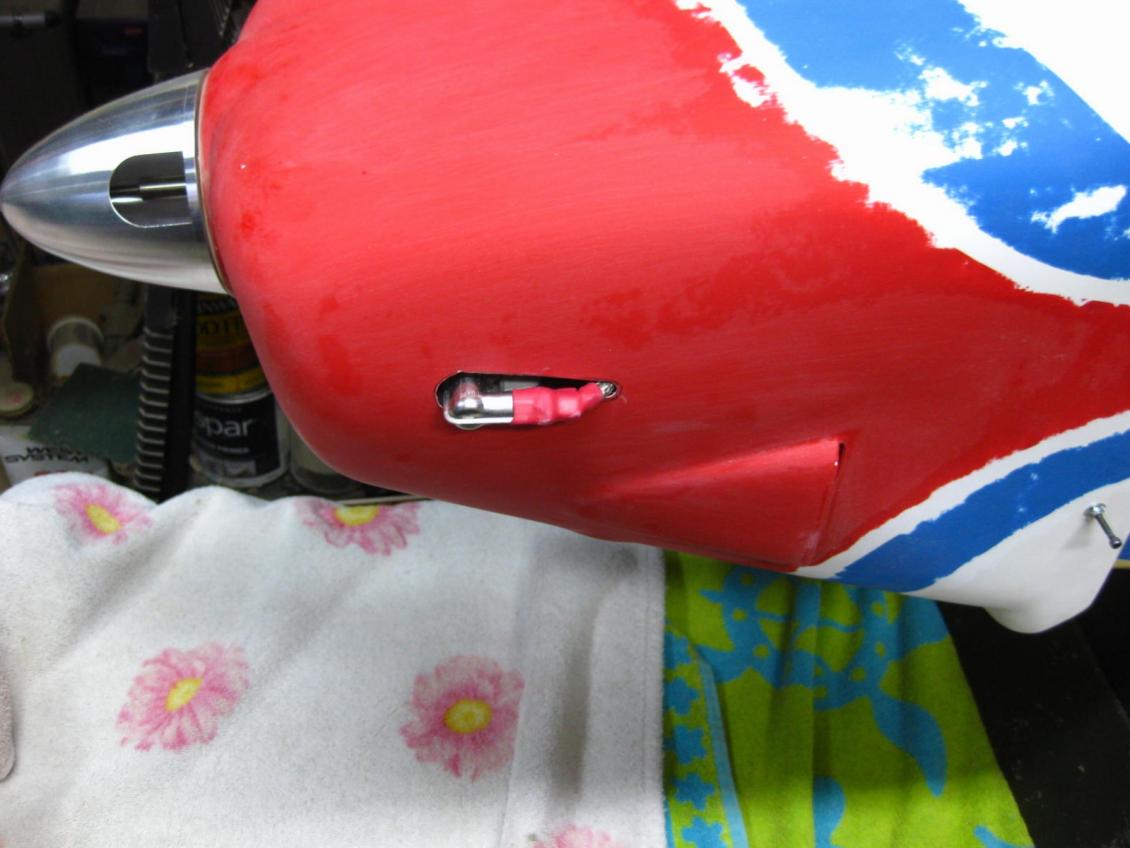

    Rick Shelby designed Sailplane release mechanism

    I can testify that the release is "strong enough" with first hand experience......As I found myself in a Torque Roll attitude with a ballasted Antares at the bottom. Quite the sight to behold and surprisingly stable. The minor concern was the slow decent rate......Sailplane was unable to release so I gave mine a "go" before having to result to any unusual attitude recovery maneuvers.
    Click image for larger version

Name:	IMG_4145.JPG
Views:	1
Size:	82.7 KB
ID:	21994Click image for larger version

Name:	IMG_4146.JPG
Views:	1
Size:	77.3 KB
ID:	21996Click image for larger version

Name:	IMG_4144.JPG
Views:	1
Size:	49.2 KB
ID:	21995

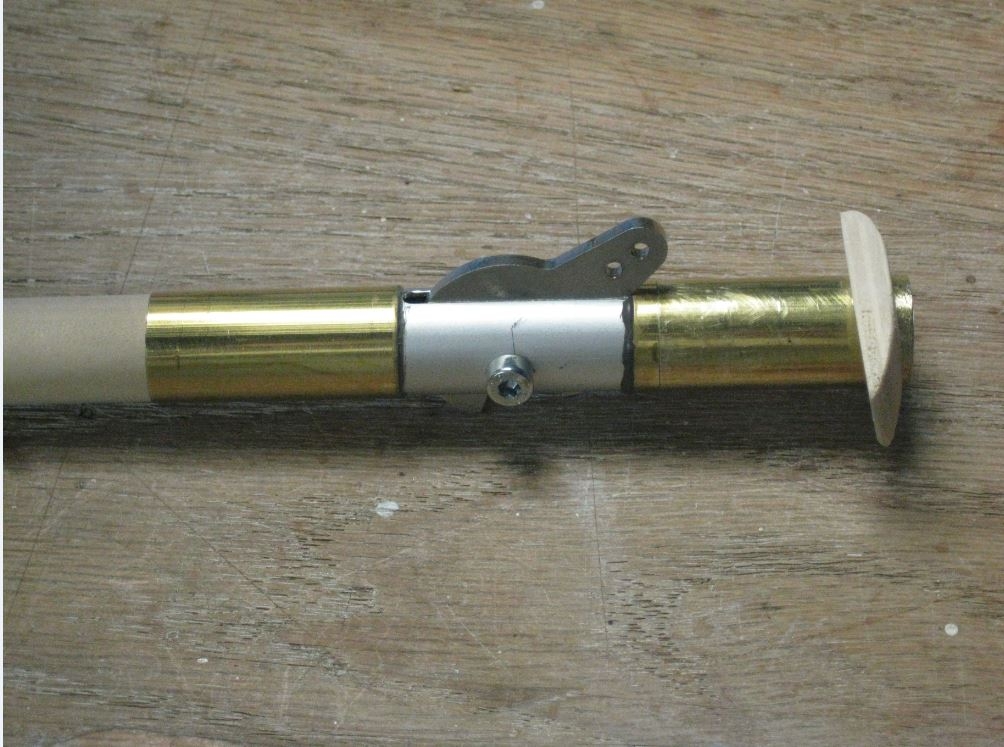

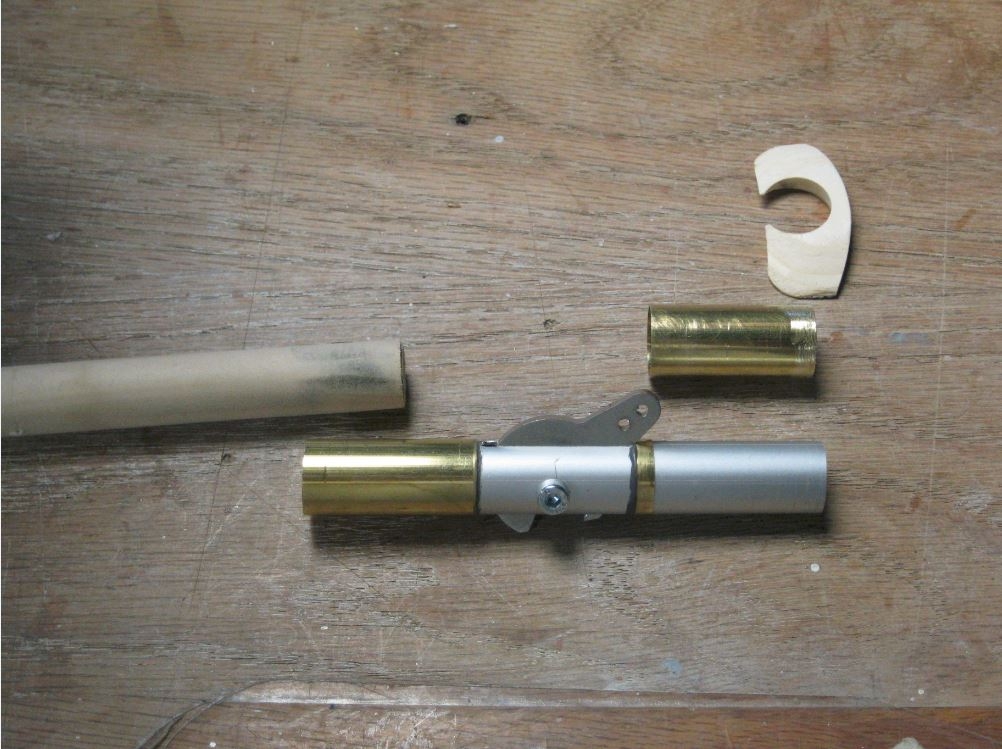

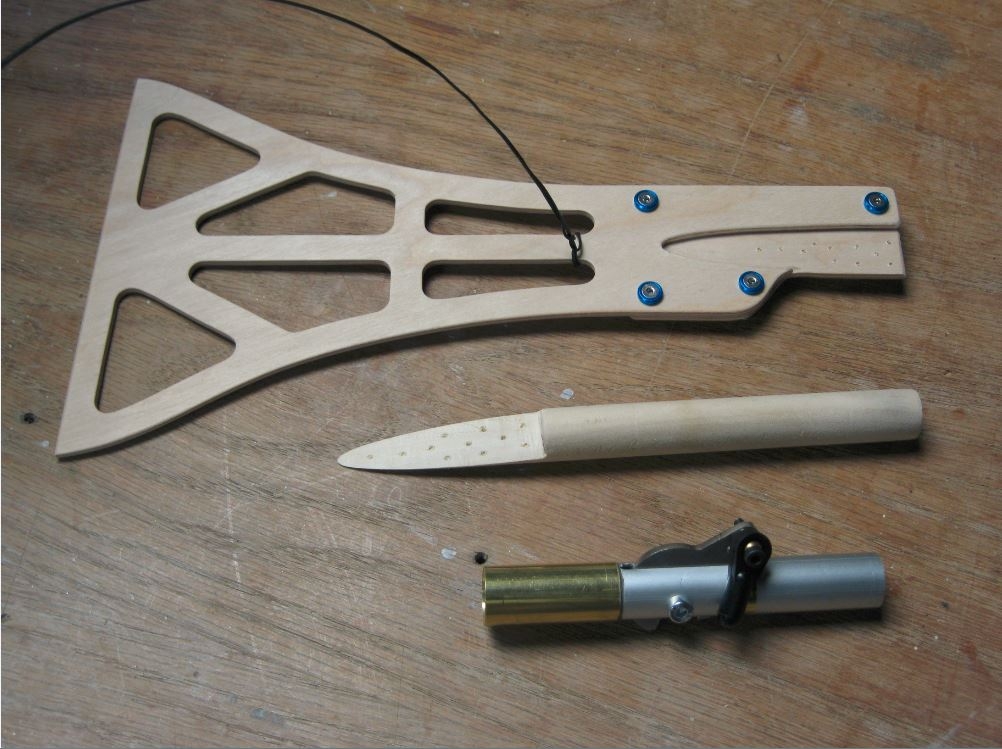

    These are some of Rick's photos showing parts

    Click image for larger version

Name:	RS release 1.JPG
Views:	1
Size:	330.4 KB
ID:	21998Click image for larger version

Name:	RS release 2.JPG
Views:	1
Size:	350.5 KB
ID:	21999Click image for larger version

Name:	RS release 3.JPG
Views:	1
Size:	347.0 KB
ID:	21997

    Comment


    • #62
      beautiful work Scot... and Rick
      Len Buffinton
      Team Horizon Hobby

      Comment


      • #63

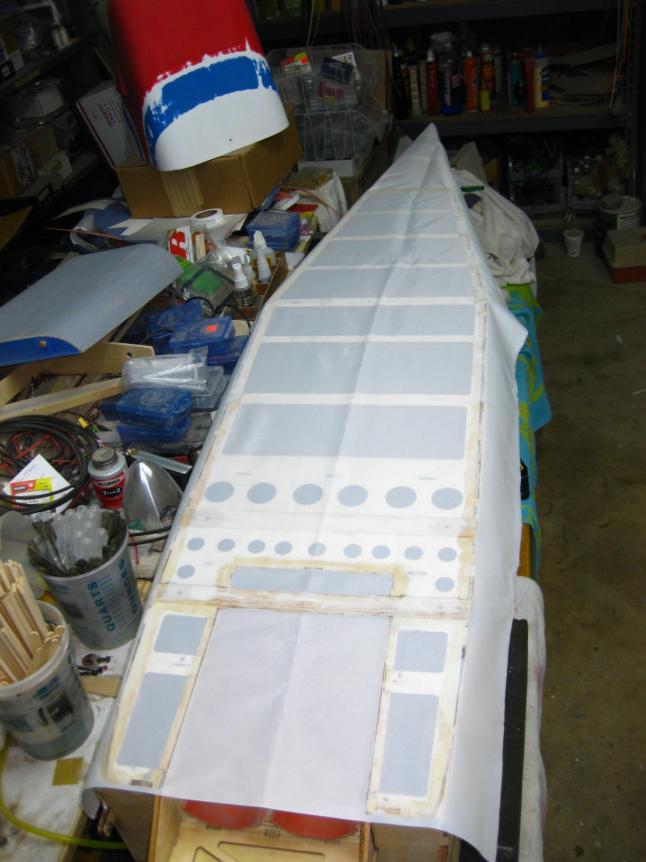

        Ringing in the New Year with the satisfying aroma of PolyTaK Click image for larger version

Name:	PolyTak.JPG
Views:	1
Size:	94.3 KB
ID:	22006 and some Polyester fabric......

        Click image for larger version

Name:	IMG_4151.JPG
Views:	1
Size:	67.1 KB
ID:	22005 ​​​​​​ Click image for larger version

Name:	IMG_4153.JPG
Views:	1
Size:	50.6 KB
ID:	22004

        Comment


        • #64
          Dizzy with excitement............or maybe it's the Methyl Ethyl Ketone.......

          Click image for larger version

Name:	IMG_4158.JPG
Views:	1
Size:	79.7 KB
ID:	22016Click image for larger version

Name:	IMG_4159.JPG
Views:	1
Size:	74.6 KB
ID:	22017

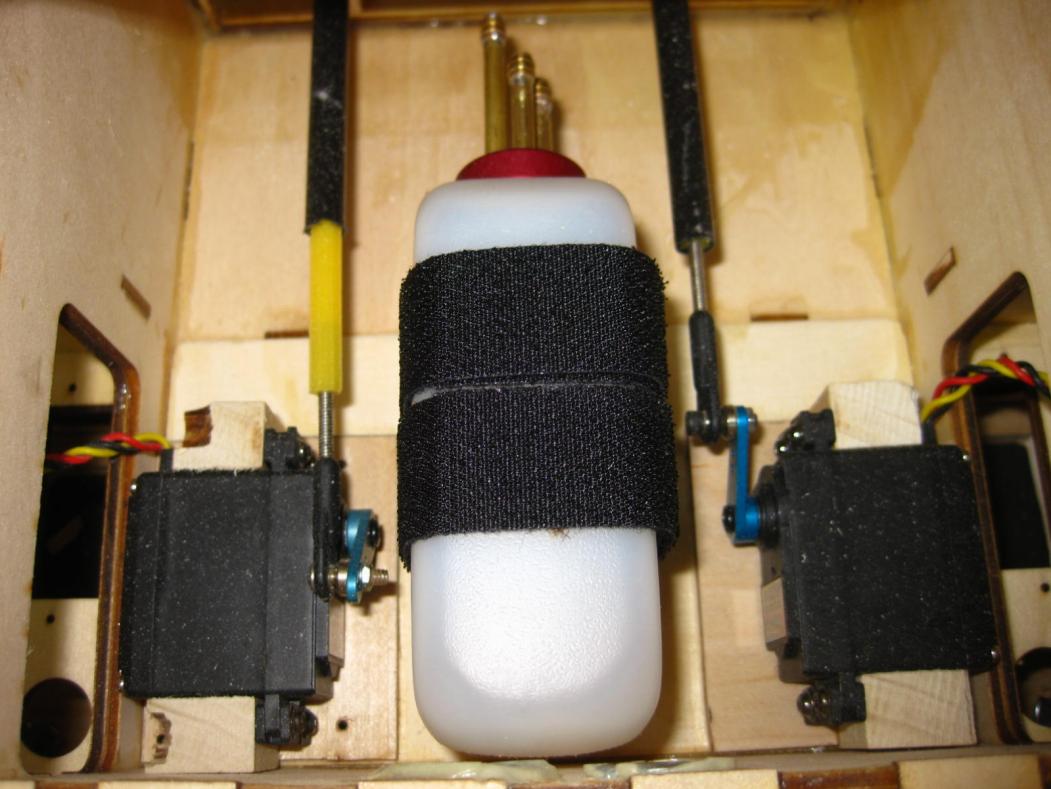

          Throttle / Choke / header tank install

          Click image for larger version

Name:	IMG_4157.JPG
Views:	1
Size:	91.9 KB
ID:	22015

          Comment


          • #65
            Can you see the finish line? It's right there behind the paint cans.

            len
            Len Buffinton
            Team Horizon Hobby

            Comment


            • #66

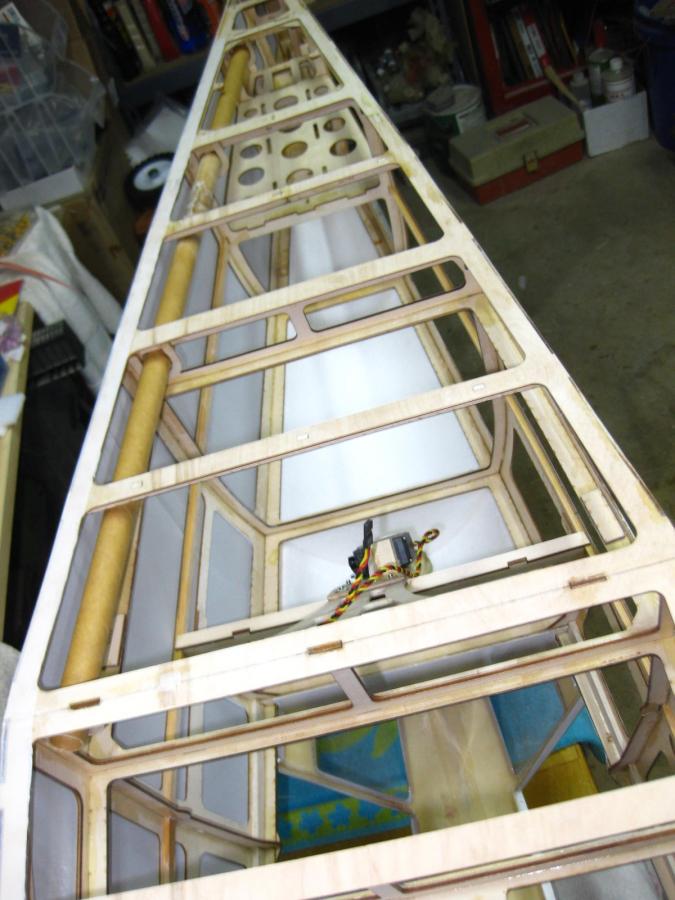

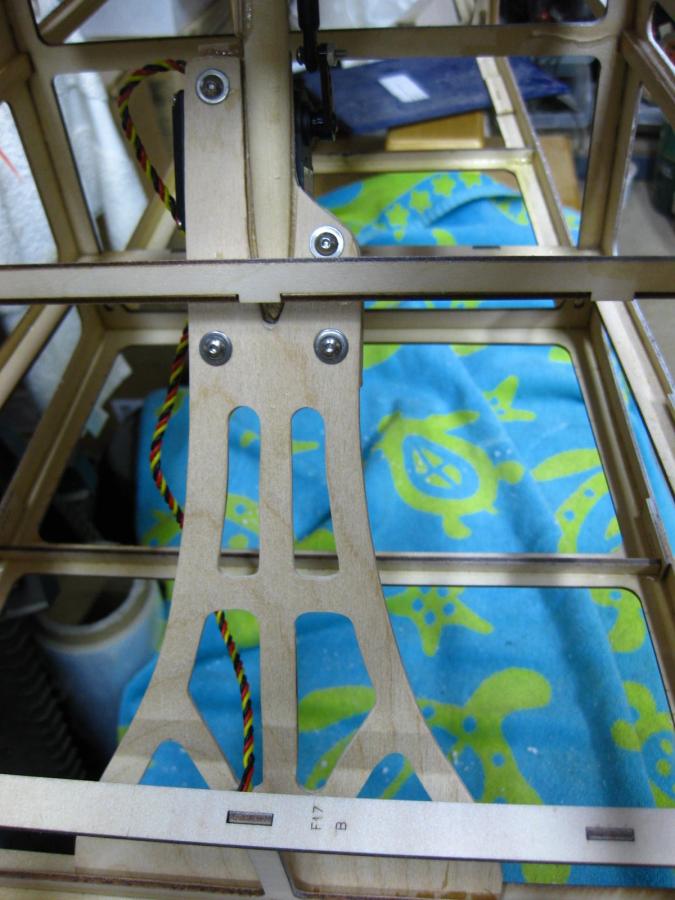

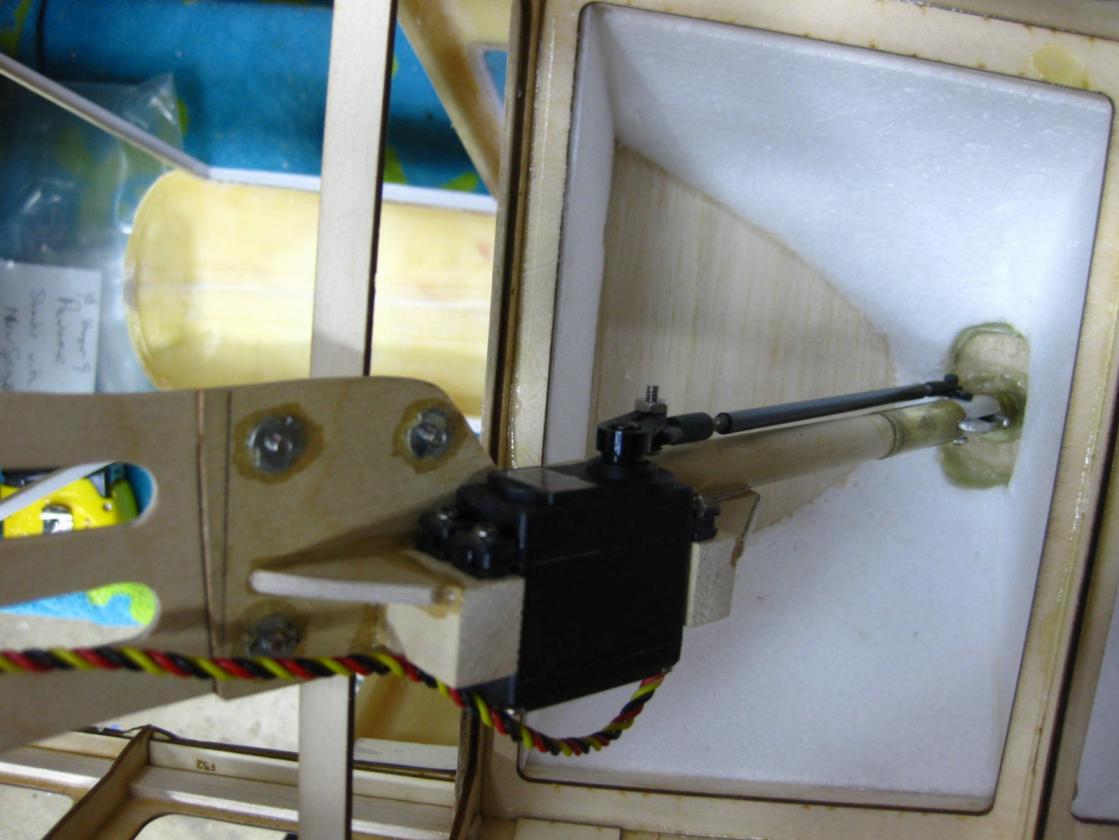

              Installed servo tube down the side of the fuselage to keep them contained.
              Click image for larger version  Name:	IMG_4161.JPG Views:	1 Size:	80.2 KB ID:	22124

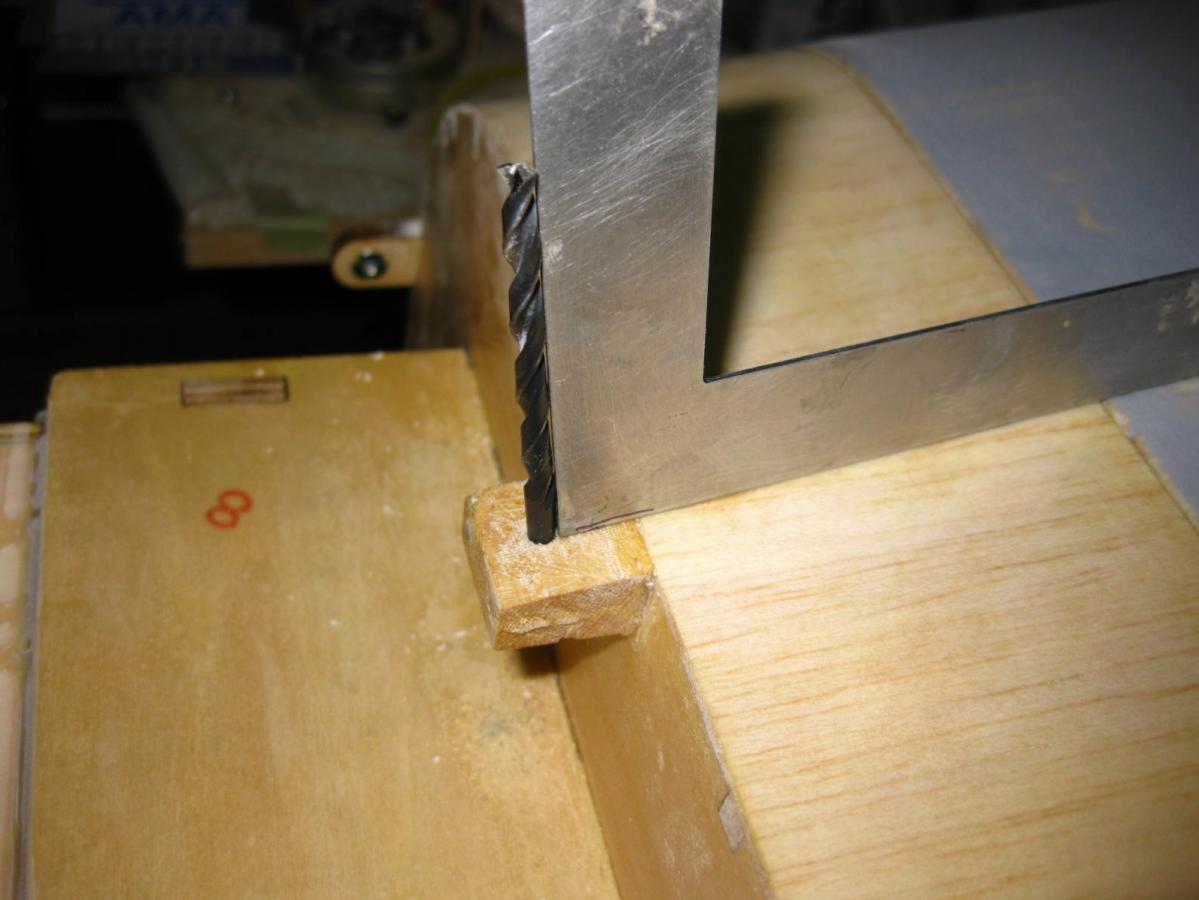

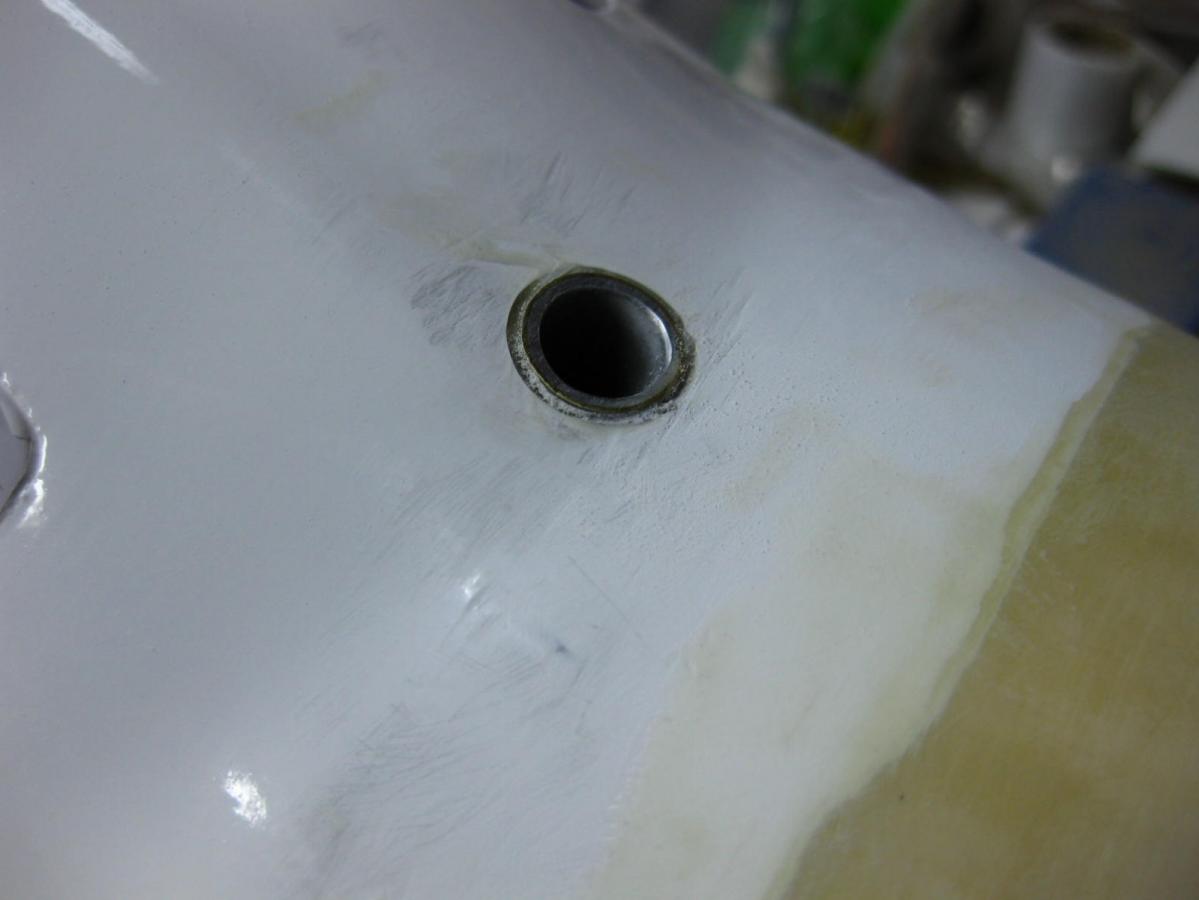

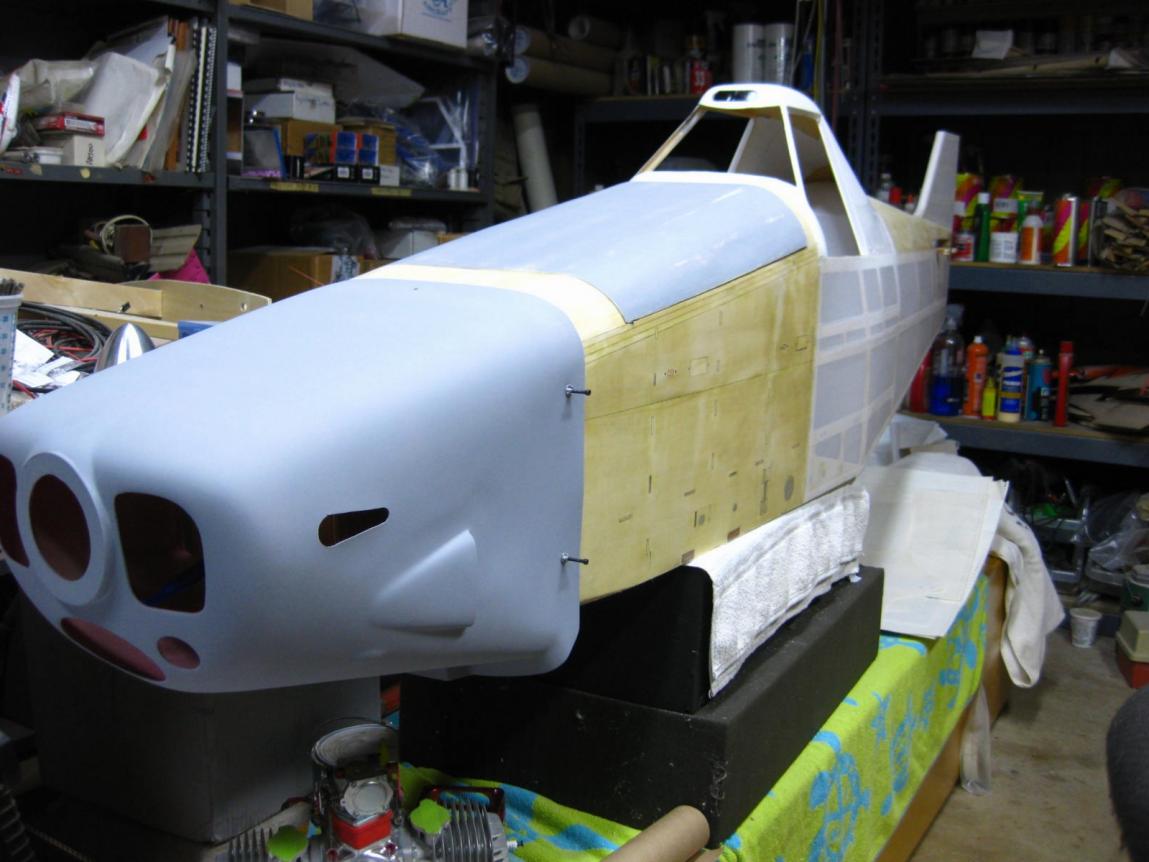

              Squared up the top Cowl screw mount and installed a brass threaded insert instead of the blind nut

              Click image for larger version  Name:	IMG_4163.JPG Views:	1 Size:	79.4 KB ID:	22122

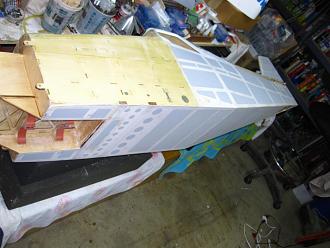

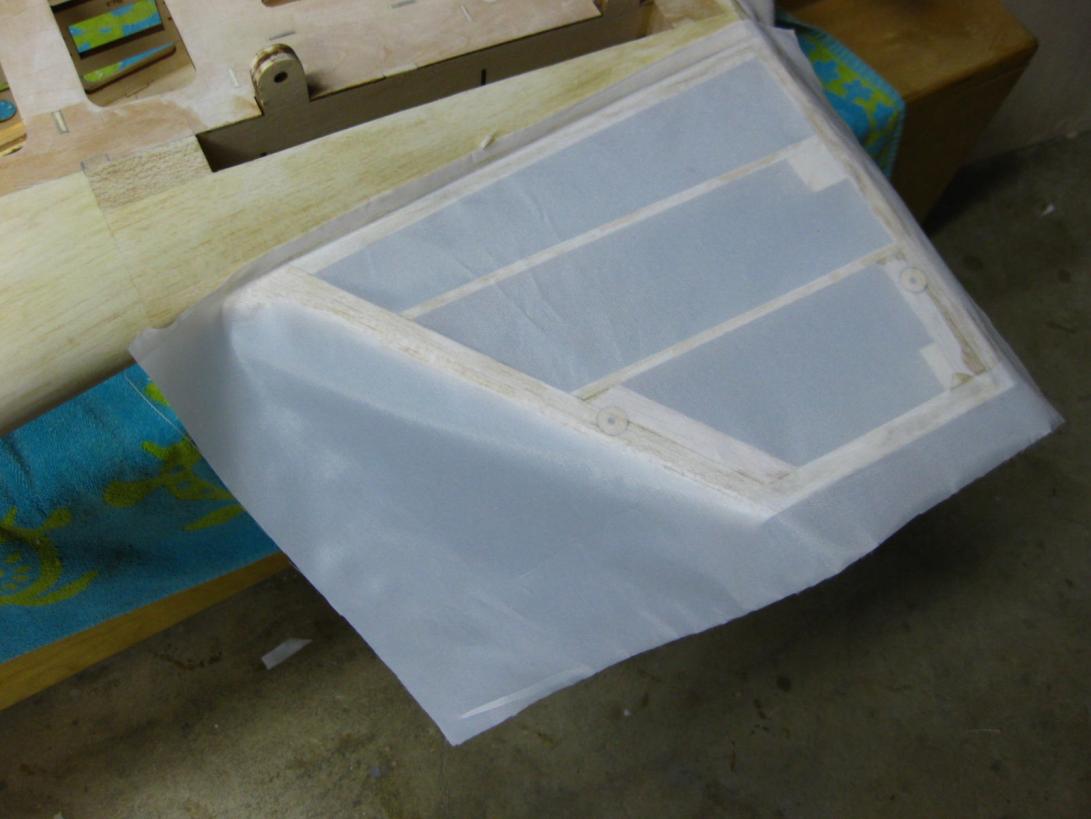

              Then the "B" side and the bottom covering.........

              Click image for larger version  Name:	IMG_4162.JPG Views:	1 Size:	56.9 KB ID:	22121Click image for larger version  Name:	IMG_4165.JPG Views:	1 Size:	59.7 KB ID:	22126Click image for larger version  Name:	IMG_4170.JPG Views:	2 Size:	88.9 KB ID:	22125Click image for larger version  Name:	IMG_4169.JPG Views:	1 Size:	88.0 KB ID:	22128

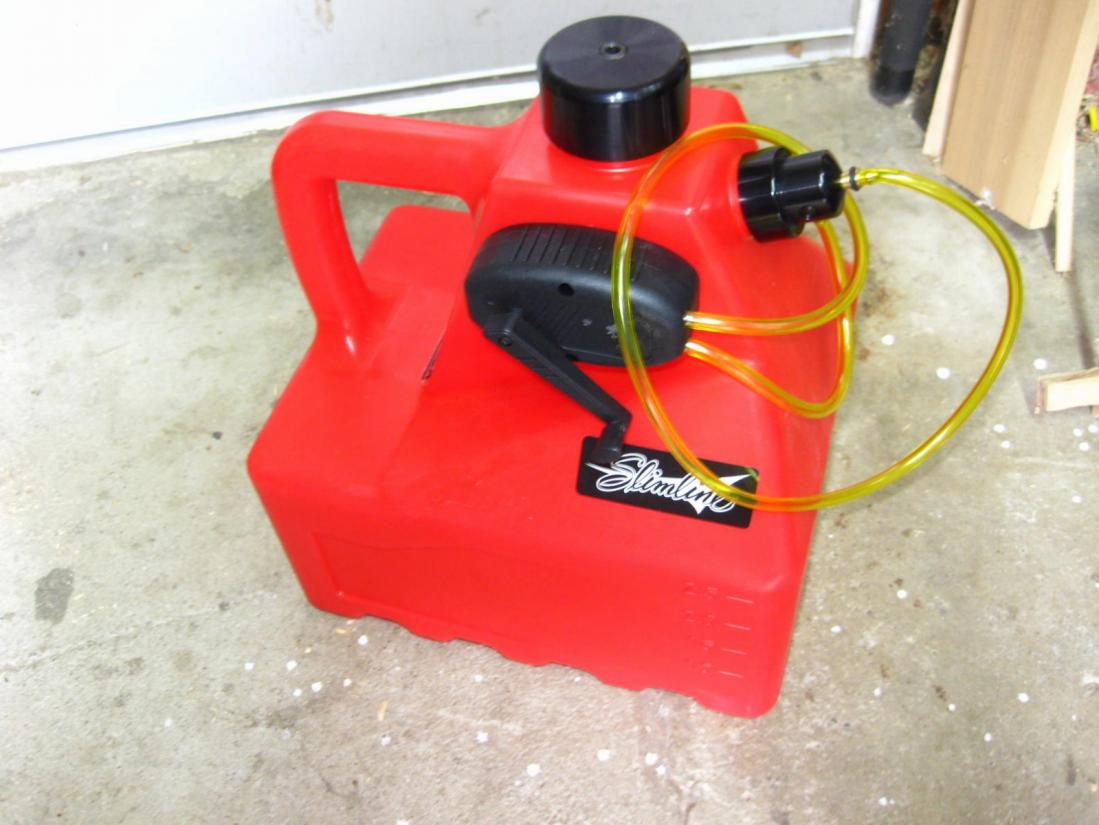

              Picked up a new Slimline Flightline Fueler - 2.5 gal at the AMA Convention in Ontario, CA. Looks like it will hold more that 2.5 gallons by a fair bit.

              Click image for larger version  Name:	IMG_4172.JPG Views:	1 Size:	87.6 KB ID:	22123
              Last edited by MarnochS; 01-10-2018, 01:47 PM.

              Comment


              • ARUP
                ARUP commented
                Editing a comment
                Those brass threaded inserts are great! You are getting closer to the paint booth! 'Groovy' marine themed sheet or towel on workbench! lol

            • #67

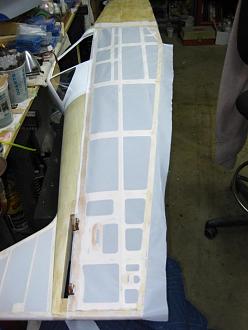

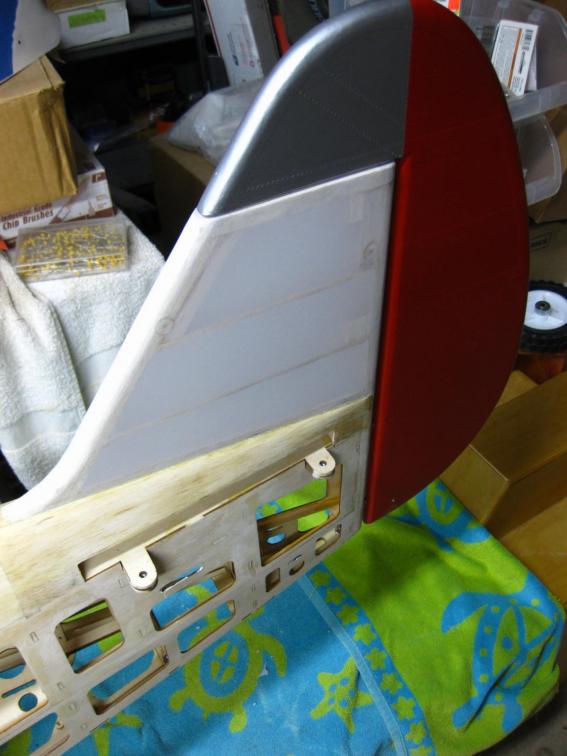

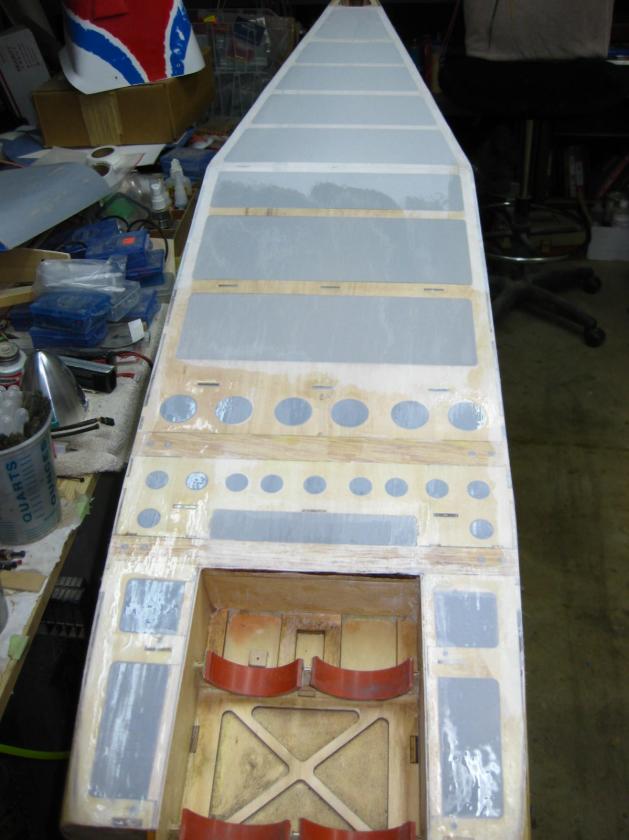

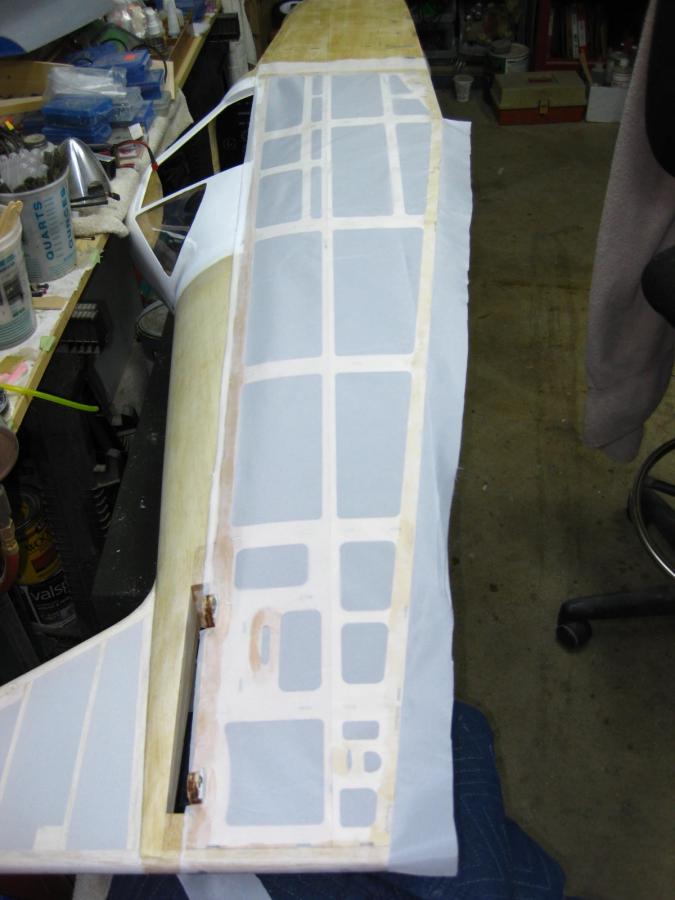

              Poly-Brush (untinted) sealing of the fabric after it was shrunk to 275-300F.
              Looks like a Fuselage Rotisserie jig is next on the list to aid the finishing process

              Click image for larger version

Name:	IMG_4176.JPG
Views:	1
Size:	59.0 KB
ID:	22208

              Comment


              • #68

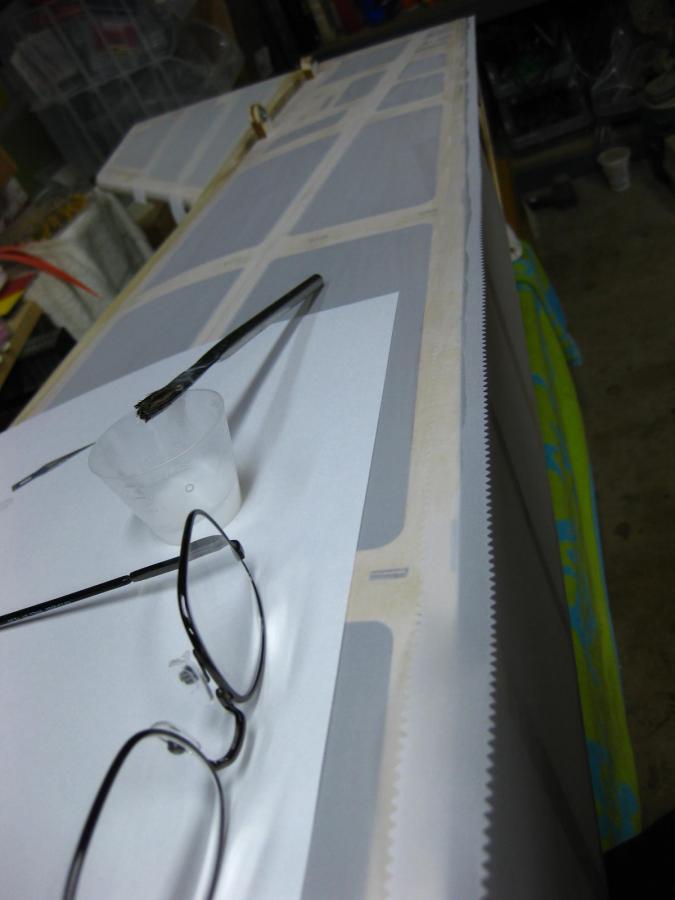

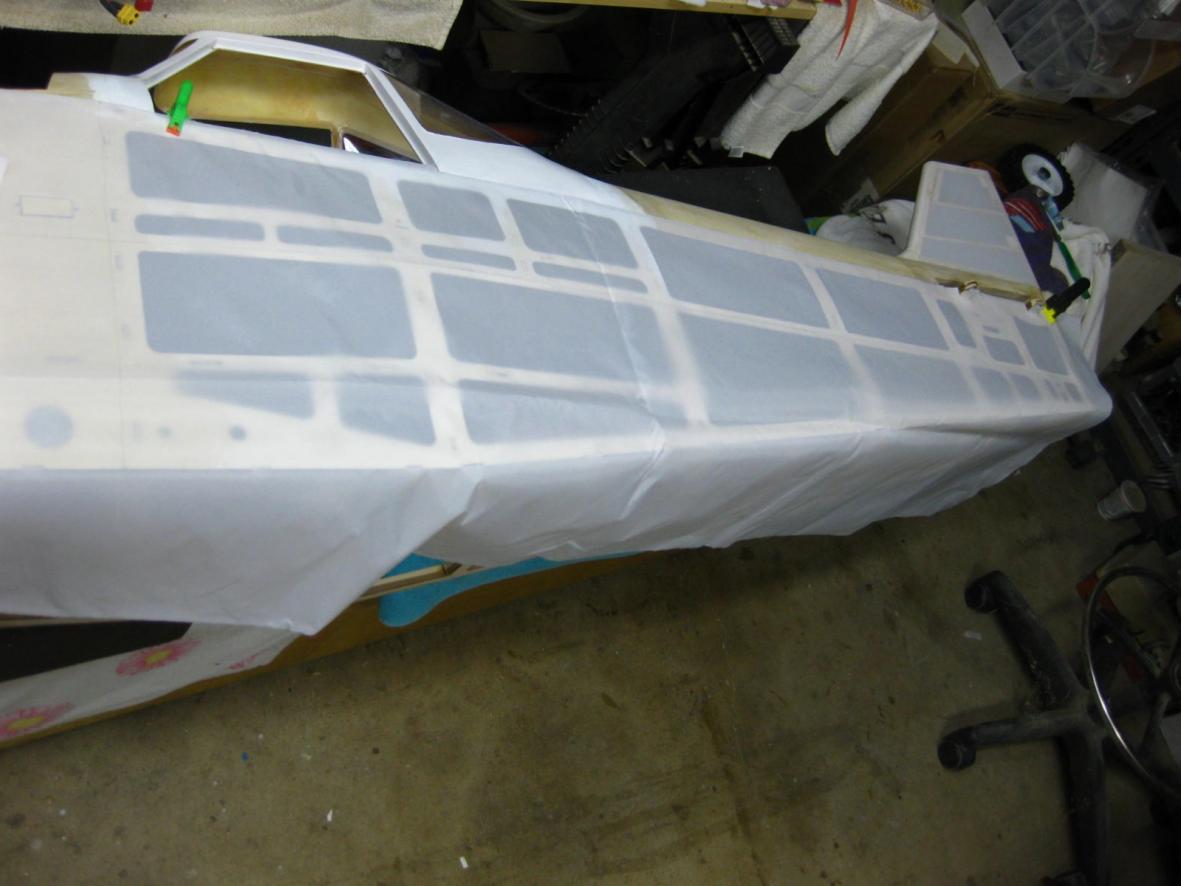

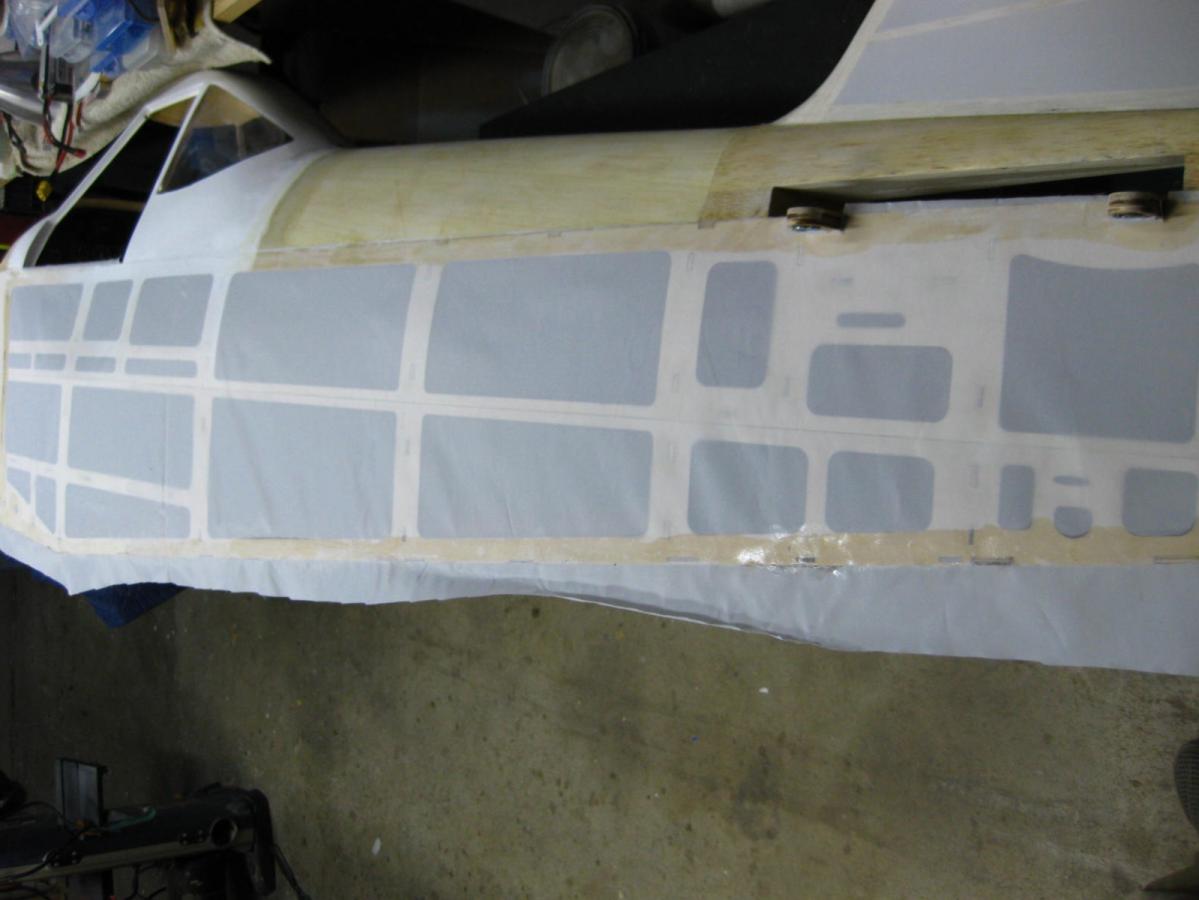

                Fuselage Tapes.............and .....alas,...."installation aid" .......

                Click image for larger version  Name:	IMG_4183.JPG Views:	1 Size:	42.2 KB ID:	22286

                With the un-tinted polybrush, the Tapes are almost hidden.

                Another oddity is that before I applied the polybrush, the fabric didn't sound all that tight ....kind of a thunk,thunk sound ......after the Poly-Brush it sounds nice and tight....tink tink tink.
                Must be that its glued down to all the wood
                Last edited by MarnochS; 01-14-2018, 02:20 PM.

                Comment


                • ARUP
                  ARUP commented
                  Editing a comment
                  Still lurking in the shadows! Nice work! If you're gonna wear 'installation aids' get some 'purdy' ones... like my blue or neon green ones! Are you a bona fide card carrying member of the 'reading glasses' crowd, now?

                • MarnochS
                  MarnochS commented
                  Editing a comment
                  Shadows.....its too dark in hear to see any shadows........

              • #69
                Probably stiffens it a bit too, making the fabric not as soft.
                Len Buffinton
                Team Horizon Hobby

                Comment


                • #70

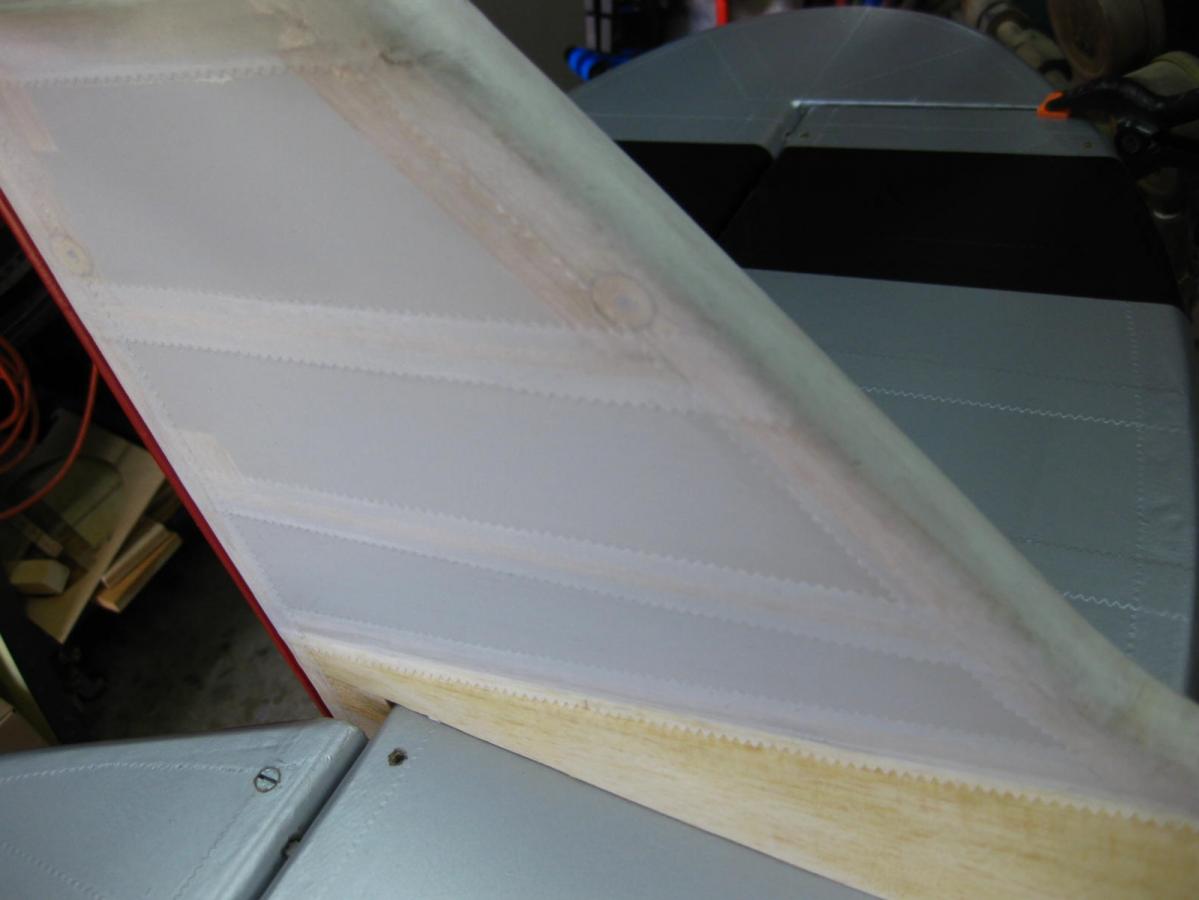

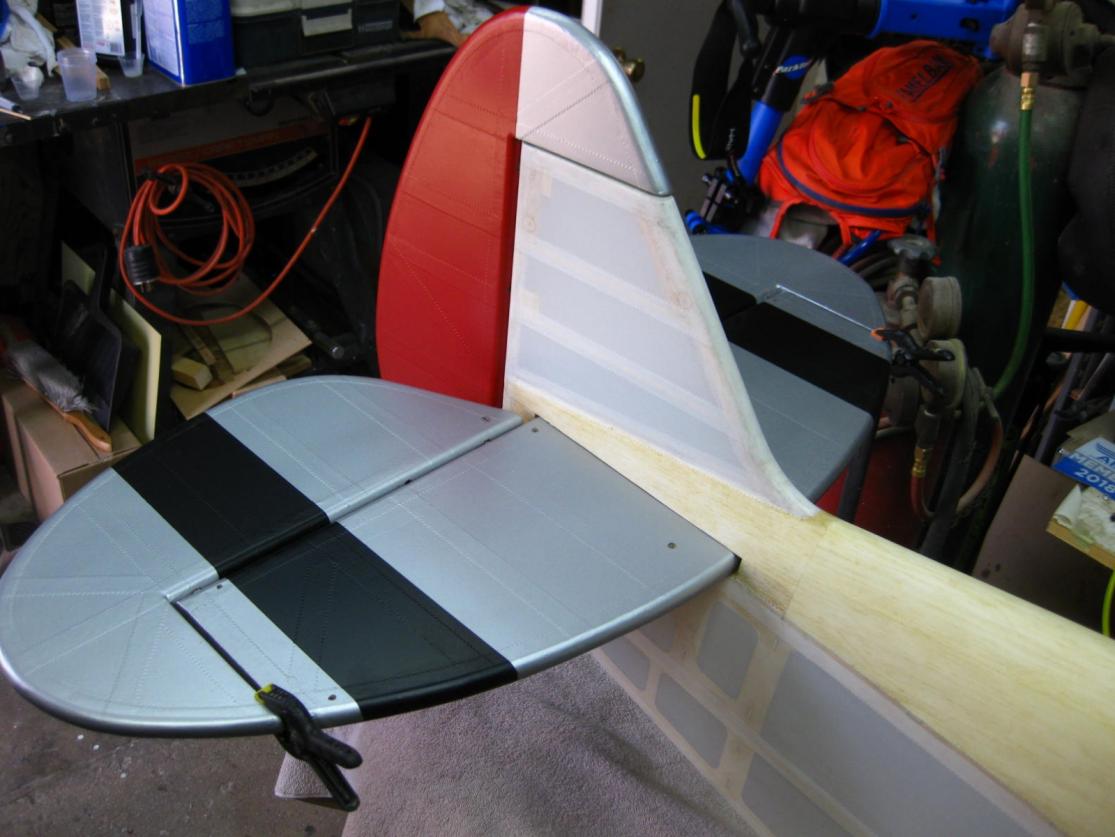

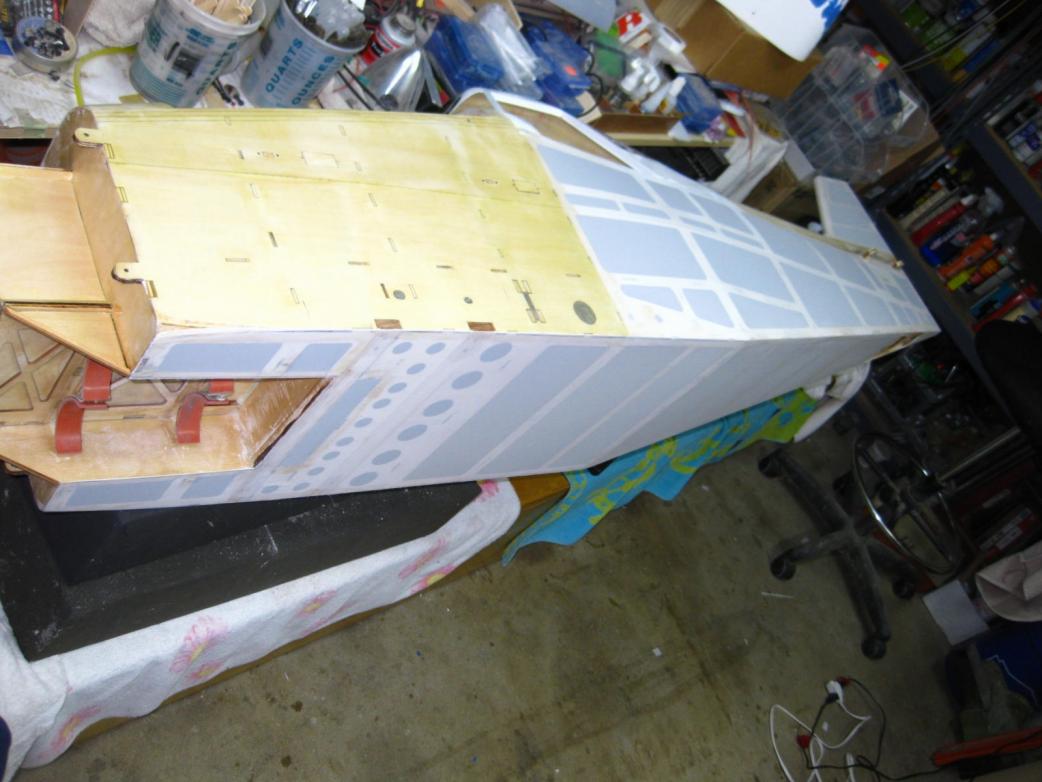

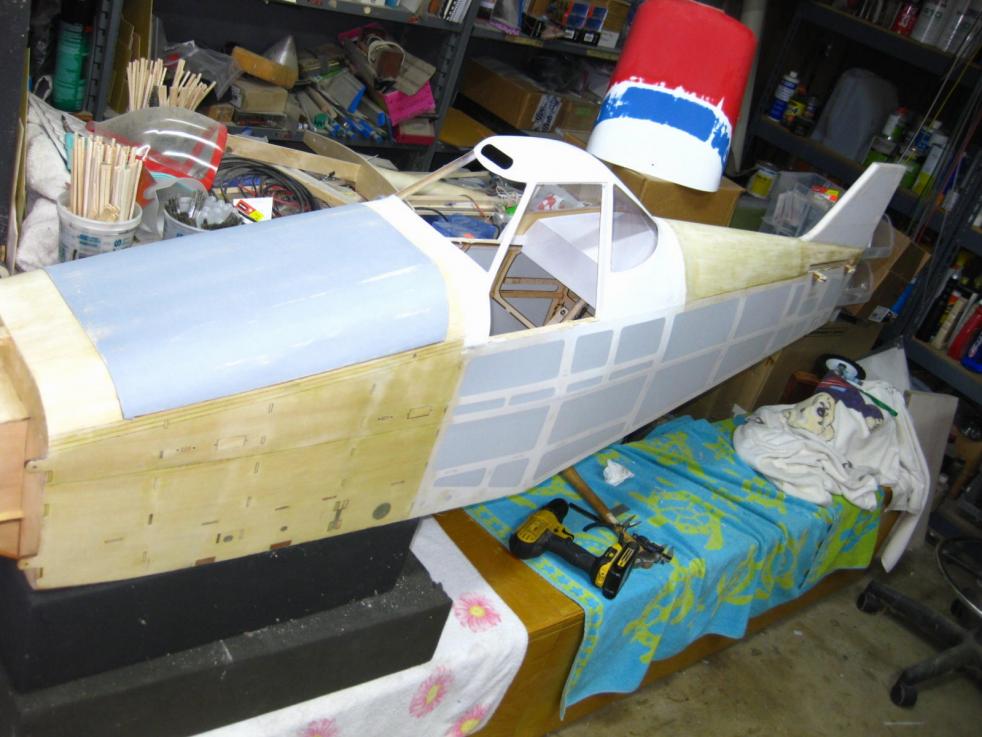

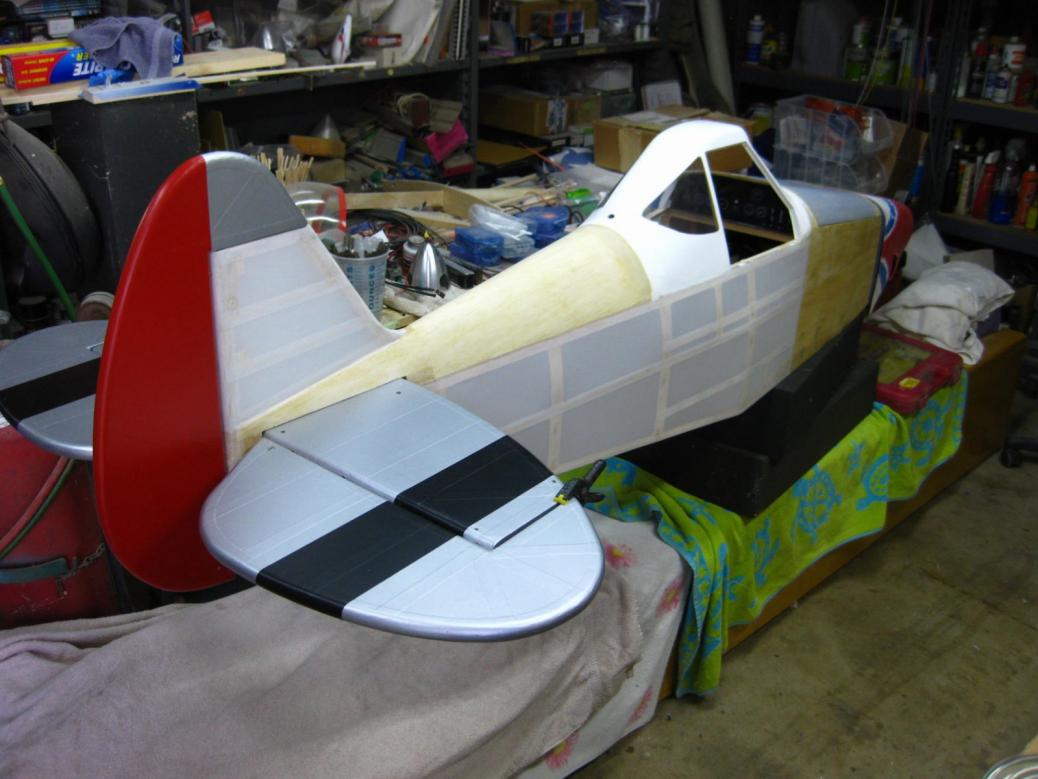

                  Tapes completed ....,,,,,and some Hanger flying....

                  Found a quick pass with a Top Flight Trim Sealing Tool on the edges of the tapes seals them down nicely -----

                  Click image for larger version

Name:	IMG_4188.JPG
Views:	1
Size:	59.0 KB
ID:	22343Click image for larger version

Name:	IMG_4189.JPG
Views:	1
Size:	89.9 KB
ID:	22346Click image for larger version

Name:	IMG_4185.JPG
Views:	1
Size:	85.2 KB
ID:	22345

                  and, of course, some minor inspiration.

                  Click image for larger version

Name:	HighFlight-InvasionStripes1.jpg
Views:	1
Size:	147.0 KB
ID:	22344



                  Comment


                  • #71

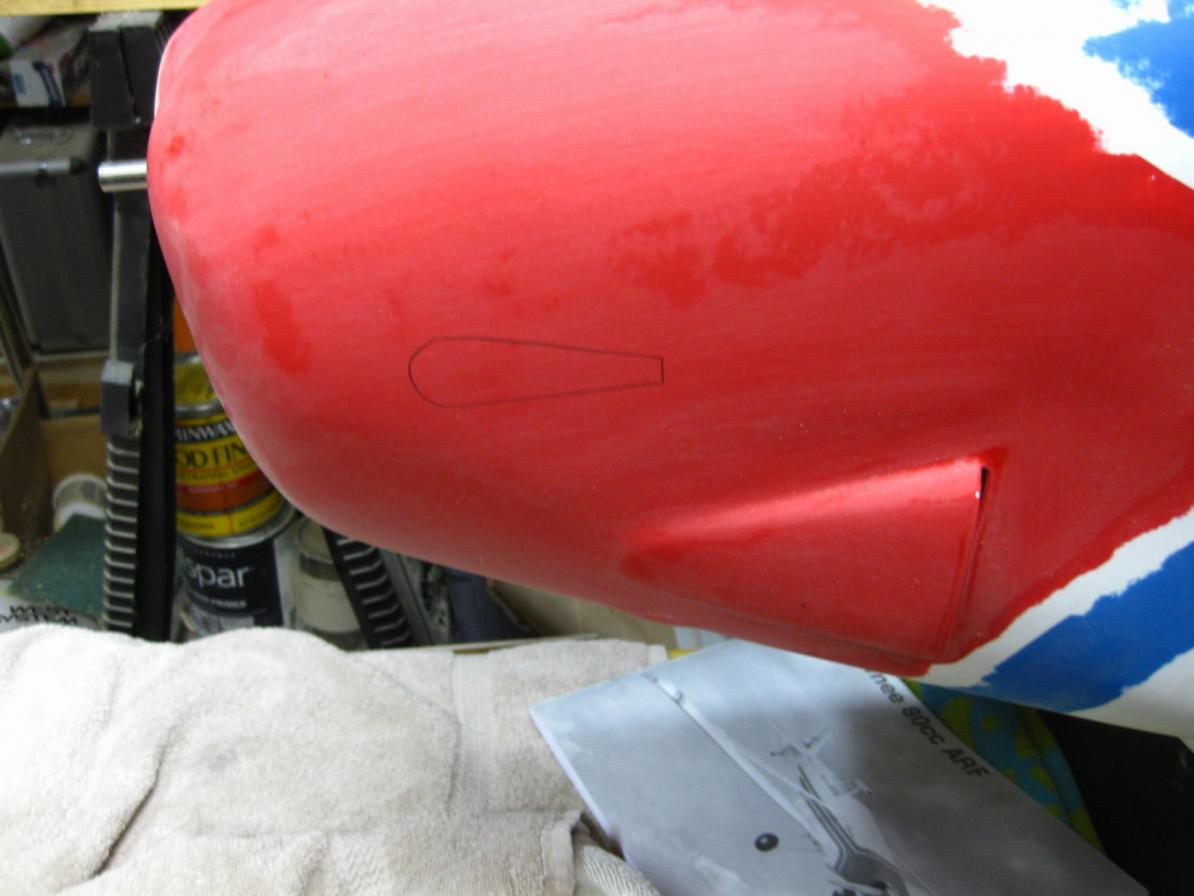

                    Spark plugs - I was planning on installing some teardrop covers to hide the spark plugs but the Left side plug protrudes a little bit too much for that, and the fact that I can't install the Cowl with both plugs on .....is a limiting factor. I guess I'll go with the backup plan of painting the spark plug caps to match the Cowl.

                    Click image for larger version

Name:	IMG_4190.JPG
Views:	1
Size:	74.8 KB
ID:	22402Click image for larger version

Name:	IMG_4191.JPG
Views:	1
Size:	76.1 KB
ID:	22403Click image for larger version

Name:	IMG_4192.JPG
Views:	1
Size:	80.8 KB
ID:	22401

                    Comment


                    • #72
                      I had the same issue Scot and did just about the same cut you made. After a month or so I noticed the fiberglass cowl was chaffing the wire on the spark plug where it touches.

                      Love the build....


                      Len
                      Len Buffinton
                      Team Horizon Hobby

                      Comment


                      • MarnochS
                        MarnochS commented
                        Editing a comment
                        Thank for the heads up on the chaffing - planing on using spiral wire wrap to protect the wires.

                    • #73

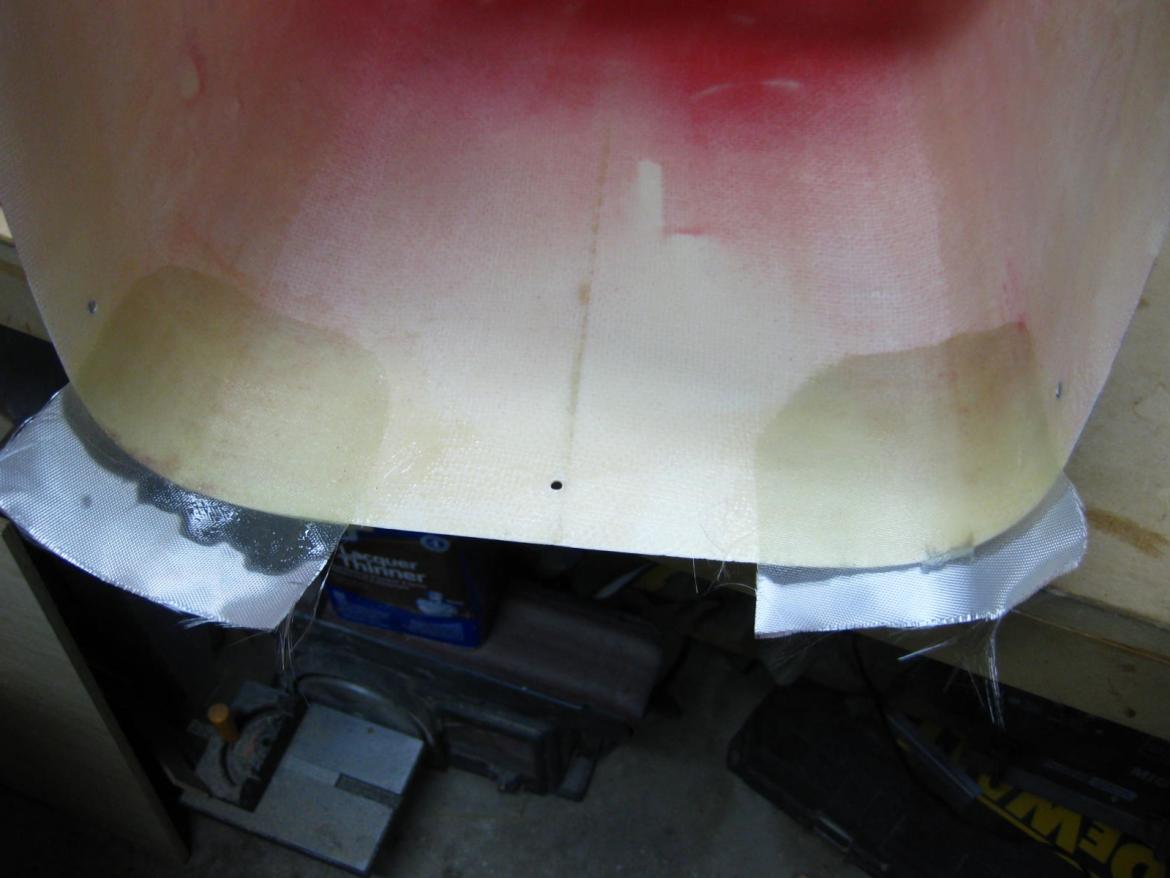

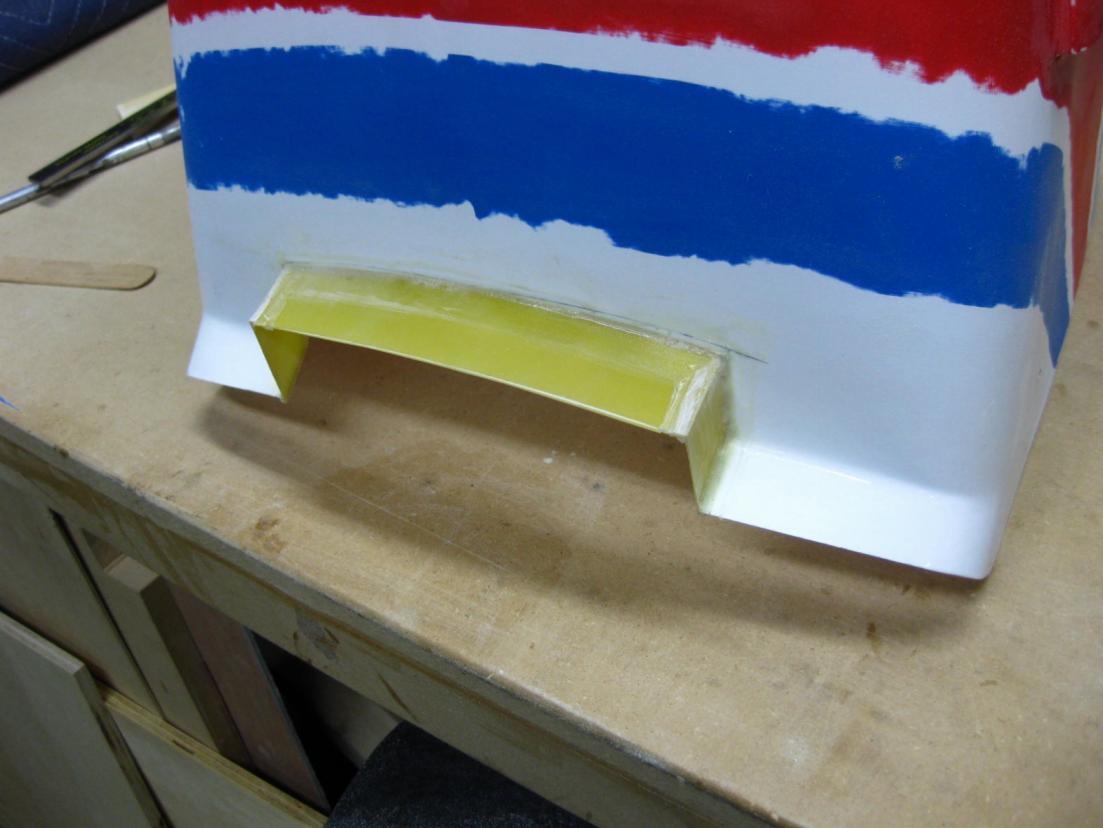

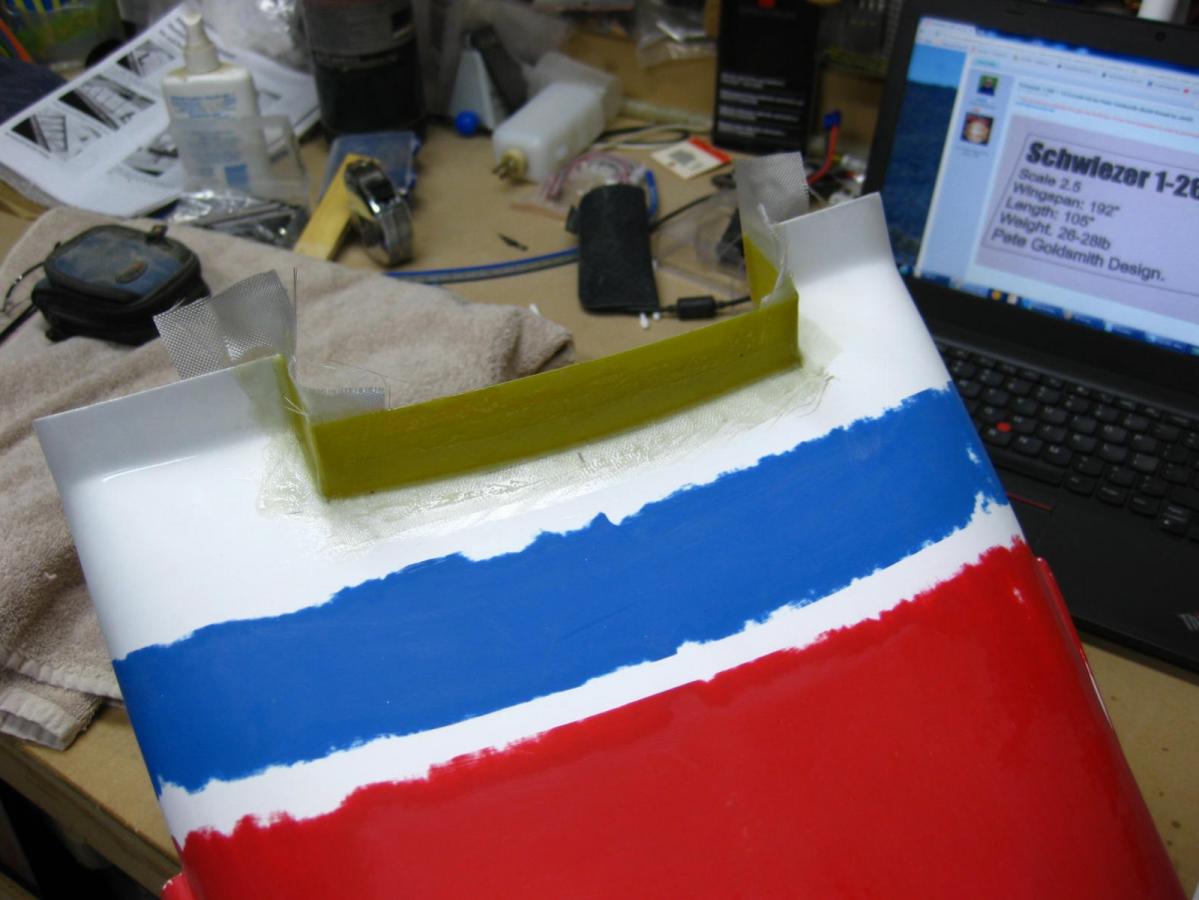

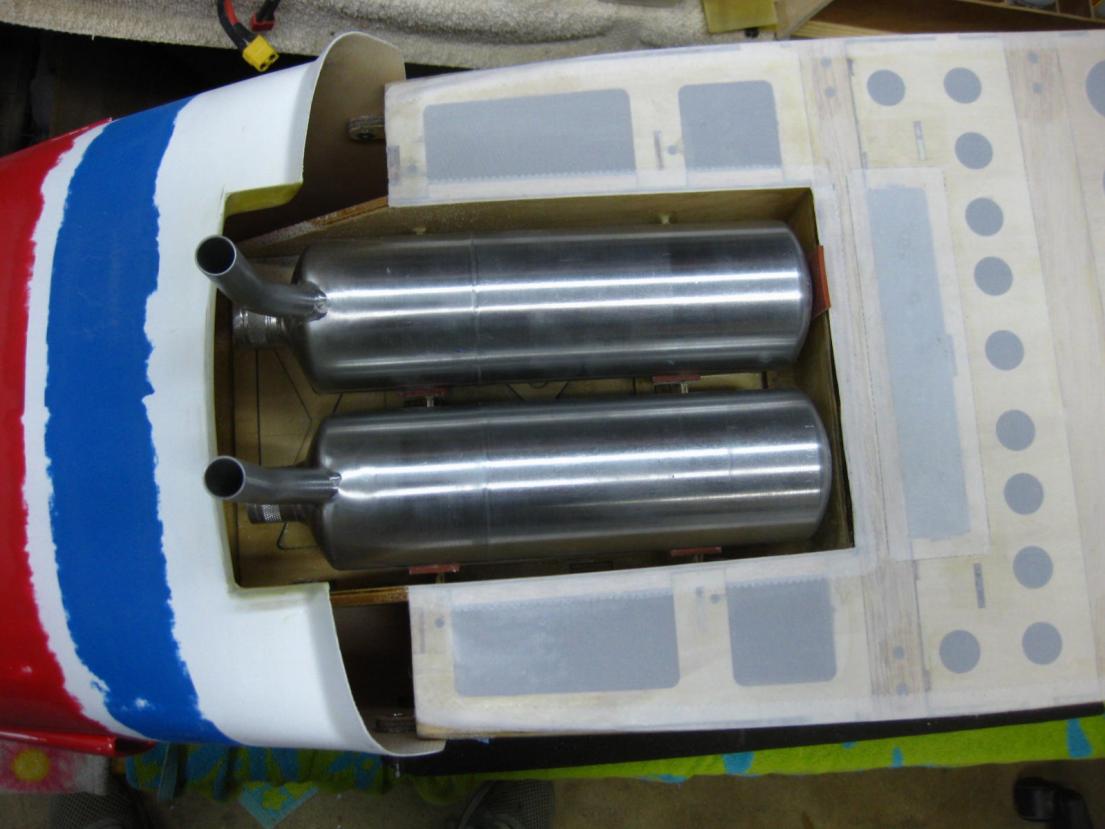

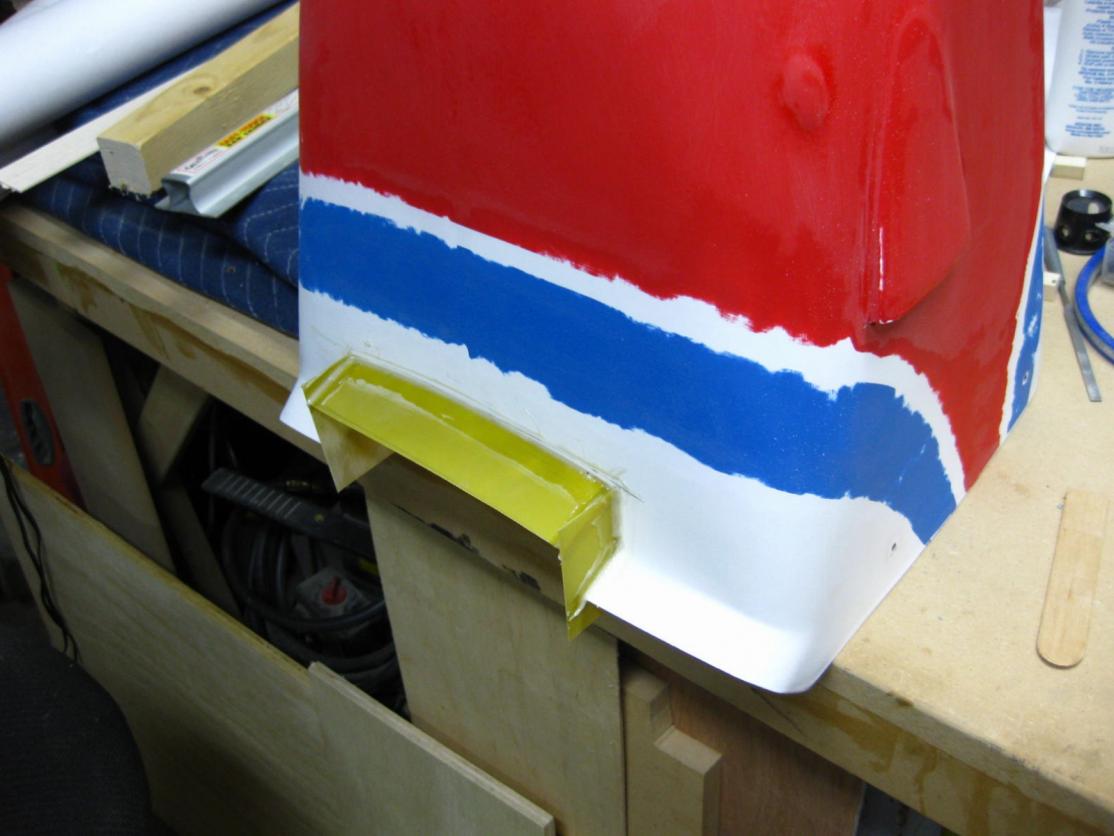

                      More Cowl re-configurations. After getting too happy with the Dremel drum sander attachment cutting the exhaust exits, reverted to Rick Shelby's modification.
                      Used 0.015 G10 material and then reinforced with 1oz glass cloth

                      Click image for larger version  Name:	IMG_4197.JPG Views:	1 Size:	77.5 KB ID:	22470Click image for larger version  Name:	IMG_4198.JPG Views:	1 Size:	72.0 KB ID:	22472
                      Click image for larger version  Name:	IMG_4200.JPG Views:	1 Size:	82.9 KB ID:	22473Click image for larger version  Name:	IMG_4203.JPG Views:	1 Size:	86.8 KB ID:	22471


                      On the top side, some reinforcement with 6 oz cloth

                      Click image for larger version  Name:	IMG_4204.JPG Views:	1 Size:	75.8 KB ID:	22474

                      Comment


                      • #74

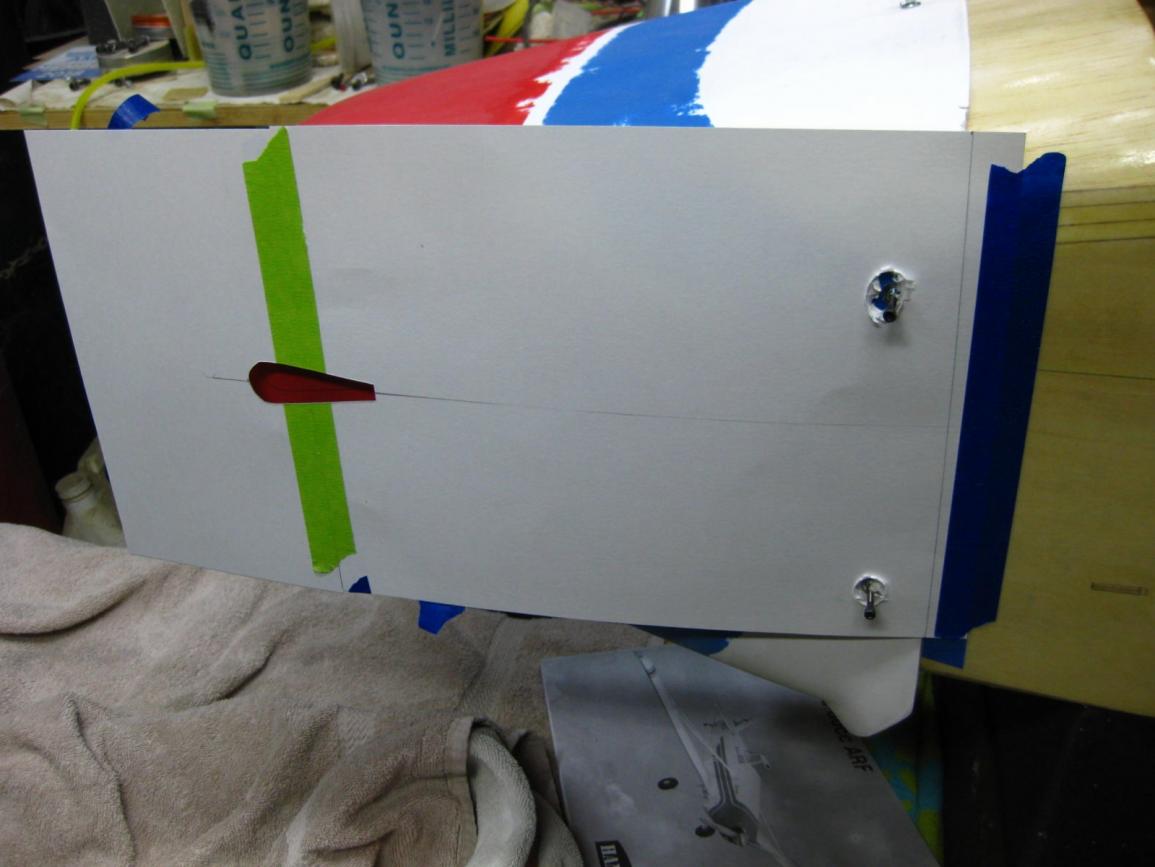

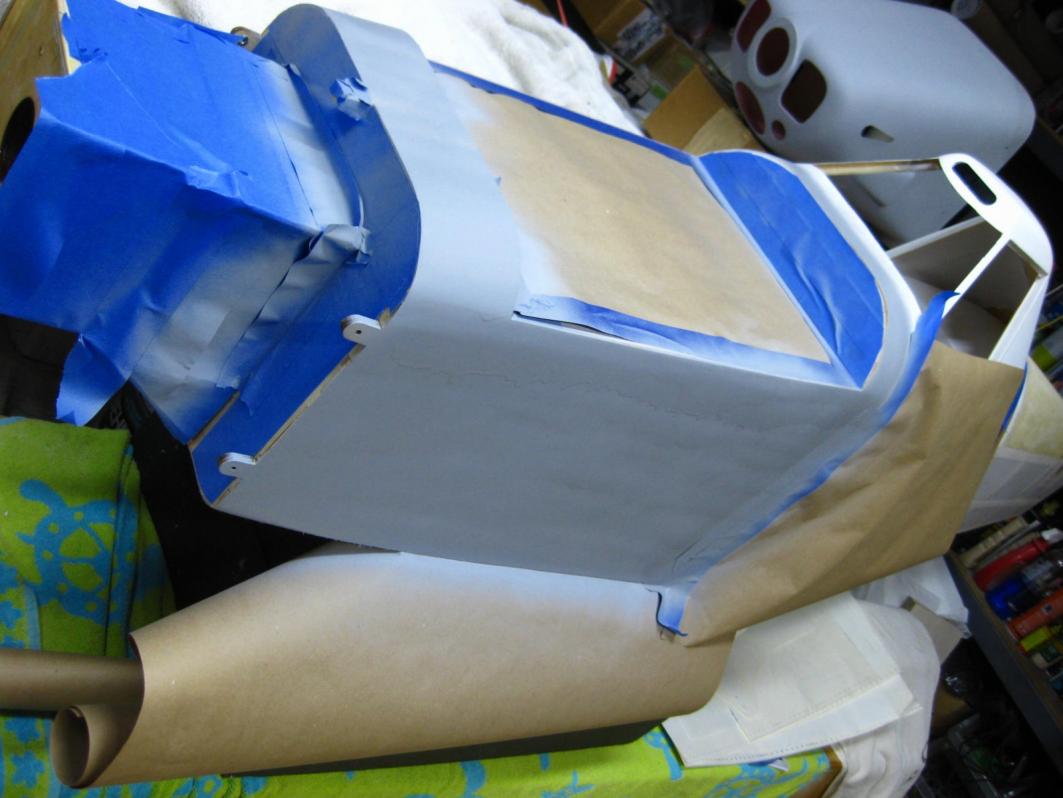

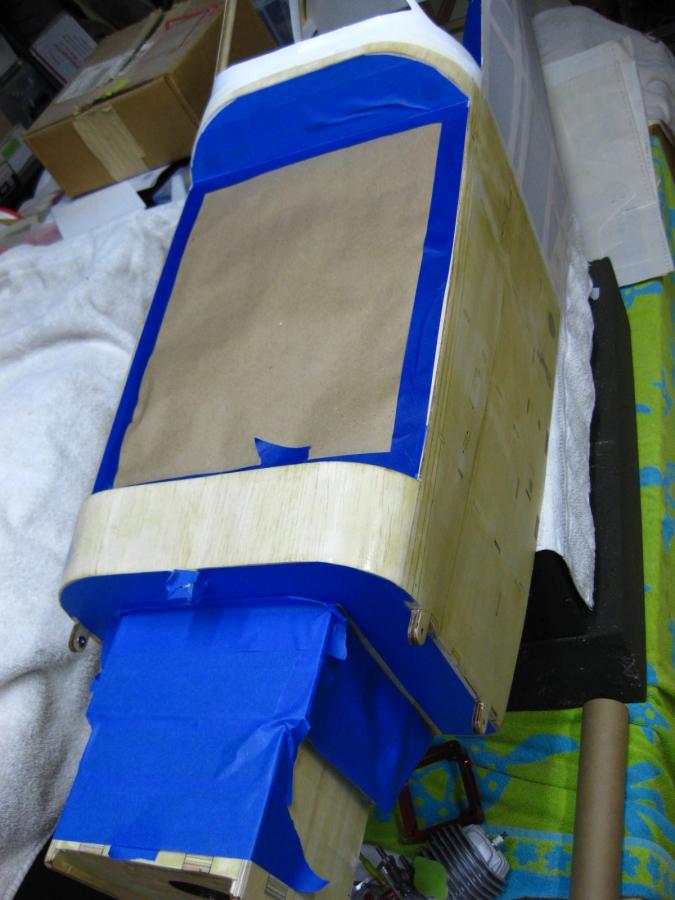

                        Some Primer and Masking tape.......

                        Click image for larger version

Name:	IMG_4208.JPG
Views:	1
Size:	92.6 KB
ID:	22604Click image for larger version

Name:	IMG_4209.JPG
Views:	1
Size:	65.5 KB
ID:	22605Click image for larger version

Name:	IMG_4210.JPG
Views:	1
Size:	78.5 KB
ID:	22606

                        Comment


                        • #75
                          Originally posted by lenb View Post
                          I had the same issue Scot and did just about the same cut you made. After a month or so I noticed the fiberglass cowl was chaffing the wire on the spark plug where it touches.

                          Love the build....


                          Len
                          I wrapped the affected area of the spark plug wire with silicone tape. After 5 years and hundreds of hours of towing there is still no chafing on either the wire or the cowl.

                          Rick

                          Rick Shelby
                          Team Horizon

                          Comment
