  • #32

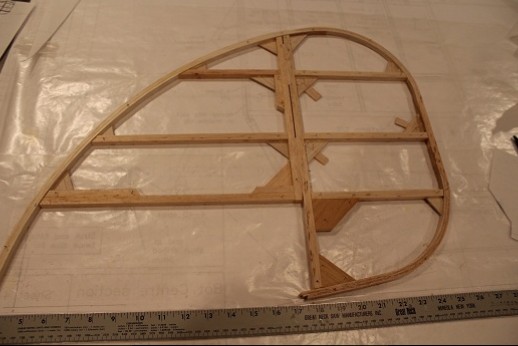

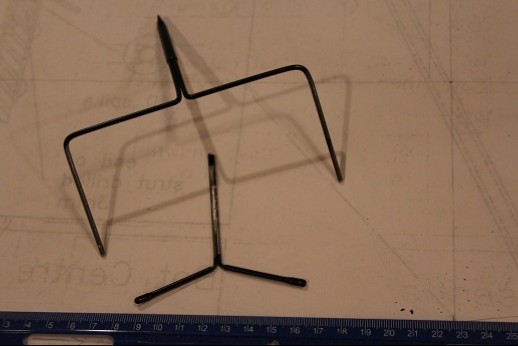

    Dobranoc! All the edges have been rounded. The tail feathers will be removable. Pulling a hinge pin allows the elevators to be removed as the elevator horn is slid out of its 'drive tube'. The same set up was done on the Eaglet and works nicely. Here are the components loose, dry fitted then soldered and with the push rod clevis hole drilled.

    Click image for larger version

Name:	IMG_3665.JPG
Views:	1
Size:	25.3 KB
ID:	34074Click image for larger version

Name:	IMG_3664.JPG
Views:	1
Size:	38.6 KB
ID:	34075

    Click image for larger version

Name:	IMG_3666.JPG
Views:	1
Size:	22.2 KB
ID:	34076

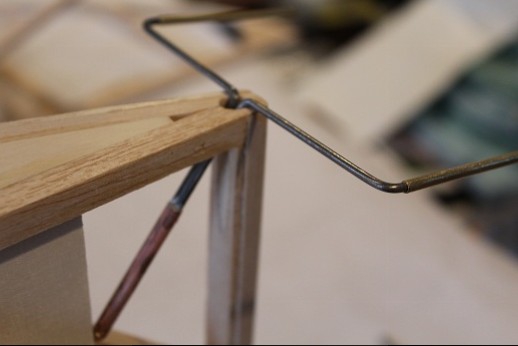

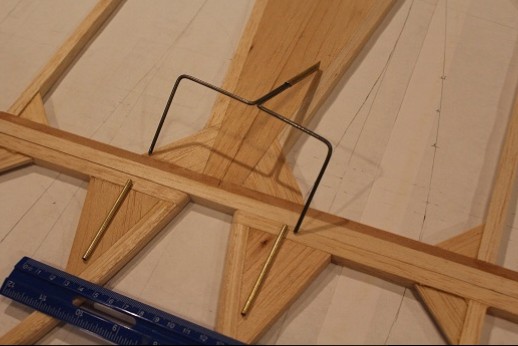

    The elevator horn's push rod end is canted forward to clear the fin post end of the fuselage. The 'drive tubes' will get let into the elevators as the hinges are installed.

    Pozniej!

    Comment


    • #33

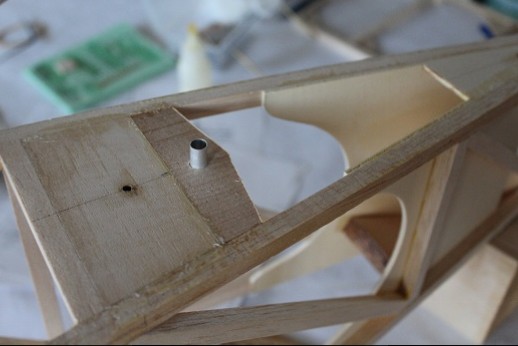

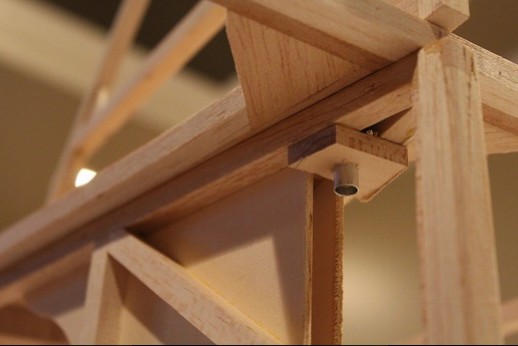

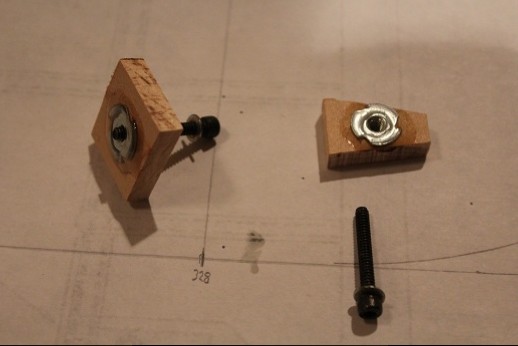

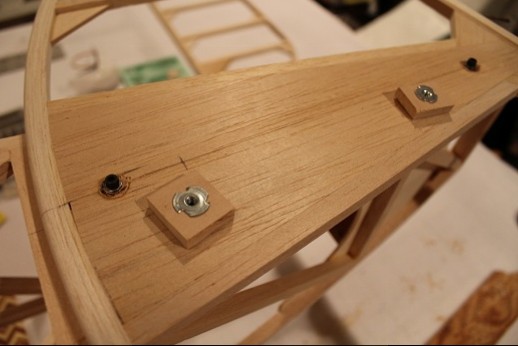

      Znowu ja! The hard points were glued into the stab. Two are to mount the stab onto fuselage and two are for cables to attach. The cables and turnbuckles will get set up later. The fin and rudder outlines are made up of laminations just like what was done for the stabilizer and elevators. The wide one was cut in half length wise to make the two rear-most rudder curves. After the outlines were scarfed together and re-inforced with 1/64" ply at the joints the internal structure was put in place along with gussets and a rudder horn mount. Everything will get sanded fair once the glue has dried. The alignment pegs will get glued into the fin's bottom surface and corresponding holes will receive them in the stab.

      Click image for larger version

Name:	IMG_3669.JPG
Views:	1
Size:	27.3 KB
ID:	34154Click image for larger version

Name:	IMG_3670.JPG
Views:	1
Size:	37.1 KB
ID:	34155

      Click image for larger version

Name:	IMG_3667.JPG
Views:	1
Size:	42.6 KB
ID:	34156Click image for larger version

Name:	IMG_3668.JPG
Views:	1
Size:	36.3 KB
ID:	34157

      Click image for larger version

Name:	IMG_3671.JPG
Views:	1
Size:	37.1 KB
ID:	34158

      PA!

      Comment


      • Gene C
        Gene C commented
        Editing a comment
        Awesome! Looking good.

      • gunny11
        gunny11 commented
        Editing a comment
        Very cool...

      • ARUP
        ARUP commented
        Editing a comment
        Thanks guys! Sorry for the late response.

    • #34
      So what is your go to adhesive on this build Jelly?
      Is it CA or Alphatic?

      Jeremy
      SCCAAA TT TN

      Comment


      • #35

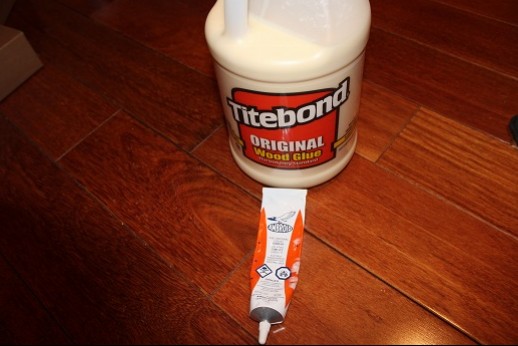

        Jeremy, I know you asked for glue used for this build but here is what I do for every build, sailplane or otherwise. CA gives me a runny nose so I would say I have an allergy to it. The only time I might use CA is to make a quick jig or fixture. I do this outdoors to avoid the fumes. Otherwise, I am just not a fan of it for my style of building. For me, it is difficult to sand relative to the softwood surround. If others like using it then... great! I usually buy Elmer's wood glue (aliphatic) by the gallon because I use a lot and it doesn't cost much but I bought Titebond last time because Elmer's was sold out. They work pretty much the same. I have had absolutely no glue failures with aliphatics as some have reported on other, less informed, websites!!! The wood lets go first! I would have no problems gluing firewalls to airframes using it but since I like the fuel proofing associated with epoxies I use them. I have a nice stash of Ambroid for joining sheets of wood or for glue joints that will show after sanding. Ambroid is the best! Sig-ment and Duco cements come close. 3 Rivers Archery sells a fletching cement (nitrocellulose cement) by the can which is very good. I have fletched arrows (I'm a recurve kind of guy! Now... if I could only learn to knap flint broadheads like my buddy BillyB...) with it but have never glued wood together and sanded it for a test. 30 minute epoxy and longer cure finishing resins are also used. These are used to laminate CF tow into wood or for applying fiberglass cloth to structures. If I lay up fiberglass items with polyester resins then the same is used to add details to these parts. It takes a little time to cure if temperatures aren't above 70F so I only do this in the summer and... outdoors because polyester resins stink. Sometimes, I use RC56 for canopies. Lastly... contact cements, like what is use to put down linoleum flooring, work really well. The Prufling and Balestruccio have 1/64" ply stuck onto their frame work using contact cement. You get one chance to stick the parts together correctly because the wood gets destroyed taking them apart. I think I covered them all. There you are!

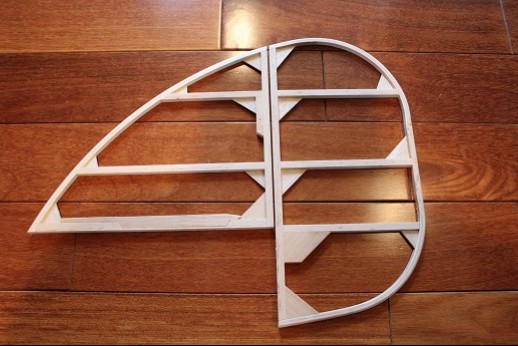

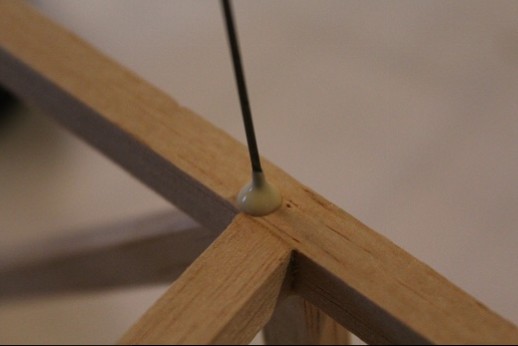

        Dobranoc! I put the elevator horn in position so you can see the clearance needed at the fin post. The fin and rudder are done. The stab was aligned then pinned onto the fuselage then the mounting holes were drilled. 6-32 bolts and 'T' nuts will keep the stab in place. The 'T' nuts were secured with 30' epoxy at their surface and onto the stab mount plate. The bolt heads are proud of the surface so the fin's bottom edge was clearanced for these. Next, pilot holes were drilled into the stab and through the fuselage. The holes were enlarged in the stab and fuselage to fit aluminum guide tubes for wood dowels located in the fin. What was done was to dry fit the tubes and pin the fin to the stab then push a sharpened dowel segment up through the tubes and into the fin's base. This provided a 'punch mark' guide for drilling the fin to receive the dowels. Then all was taken apart, glued then re-positioned for the glue to dry. What is neat about this set-up is the aluminum tubes are proud of the stab mount surface so the stab can be placed in proper position easily then its bolts screwed in place without fiddling around for alignment. The wood dowels glued in the fin are long enough so the fin LE won't 'rise up' at speed. Cables and turnbuckles will secure the tail feathers relative to each other. Split pins will allow easy disconnect for dis-assembly as is done for the Vampyr and Eaglet.

        Click image for larger version

Name:	IMG_3679.JPG
Views:	1
Size:	42.9 KB
ID:	34221Click image for larger version

Name:	IMG_3672.JPG
Views:	1
Size:	25.6 KB
ID:	34222

        Click image for larger version

Name:	IMG_3673.JPG
Views:	1
Size:	53.4 KB
ID:	34223Click image for larger version

Name:	IMG_3674.JPG
Views:	1
Size:	36.0 KB
ID:	34224

        Click image for larger version

Name:	IMG_3675.JPG
Views:	1
Size:	27.5 KB
ID:	34225Click image for larger version

Name:	IMG_3676.JPG
Views:	1
Size:	31.2 KB
ID:	34226

        Click image for larger version

Name:	IMG_3677.JPG
Views:	1
Size:	35.1 KB
ID:	34227Click image for larger version

Name:	IMG_3678.JPG
Views:	1
Size:	40.2 KB
ID:	34228

        PA pa!

        Comment


        • Mosquito
          Mosquito commented
          Editing a comment
          Mike, about the fletching glue. Are you buying it in a big supply? If so, how are you applying it? I have used it before and it's kinda like plastic model airplane glue if I remember correctly. I usually am using the smaller tubes of it and it can be deposited in small amounts on the fletchings.

        • ARUP
          ARUP commented
          Editing a comment
          We bought one can that is a pint(?) but I don't have it in front of me. It is at my buddy's house. We use those cheap plastic 'artist's' brushes found at the toy section of the Dollar General Store. They are small enough to apply the glue to the arrow shaft and then to the fletchings. He has the tools for coating the wood shafts and I bought the fletching jigs as a sort of community effort!

      • #36
        OK, I think you covered my question

        Jeremy SCCAAA TT TN
        Last edited by Swiss1; 02-22-2019, 05:51 PM.

        Comment


        • #37
          With that emoticon I take it the answer is not to your standards. If you don't think you will like the answer then don't ask the question. You needn't visit this or any of my threads in future.

          Comment


          • Swiss1
            Swiss1 commented
            Editing a comment
            I use that emoticon on all my posts! I meant what I said, that you gave a concise answer.

          • Swiss1
            Swiss1 commented
            Editing a comment
            Sorry, I see what you meant, I thought I put a smiley face emoticon, my bad!

        • #38
          Originally posted by Swiss1 View Post
          OK, I think you covered my question

          Jeremy SCCAAA TT TN
          Originally posted by ARUP View Post
          With that emoticon I take it the answer is not to your standards. If you don't think you will like the answer then don't ask the question. You needn't visit this or any of my threads in future.
          Play nice now boys.....or do I have to stop this car and pull over??? 🤪🤪
          TEAM GORGEOUS

          Comment


          • #39

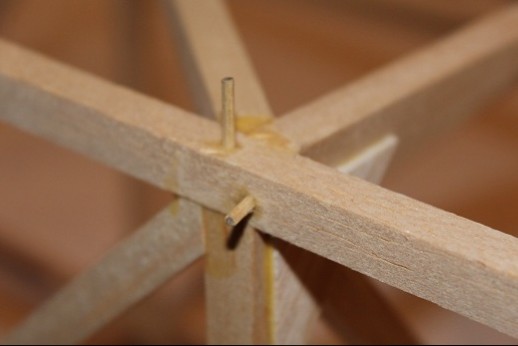

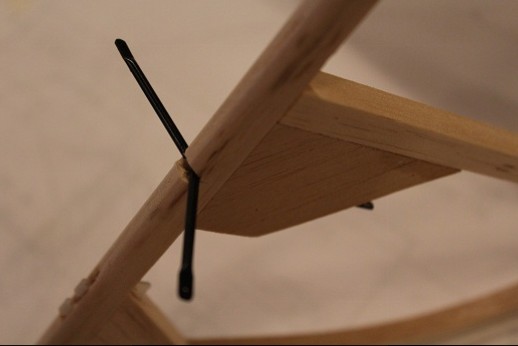

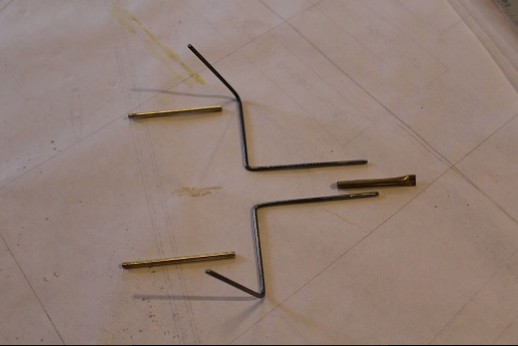

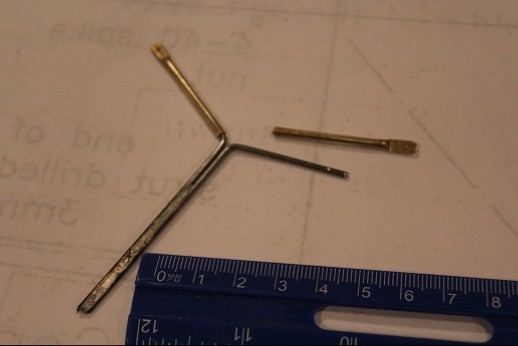

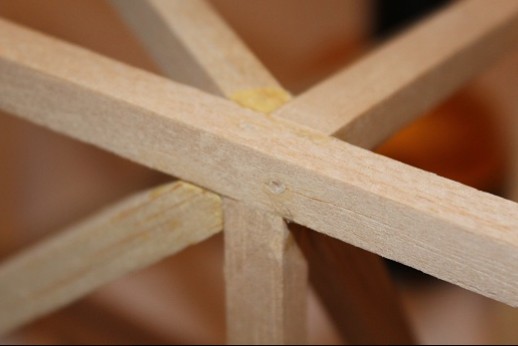

            Wiecej! These are 'loose ends' pics. The hinges for the tail feathers have been epoxied in place. A long music wire hinge pin allows them to be taken apart. Also, the elevators can be put either side of the stab for they are mirror images of each other. You can see how the aluminum tubes, proud of the surface, are able to guide the stab and then the fin once the stab is bolted down. The next pics shows where clay was stuck into one end of the brass elevator horn guide tubes before they were epoxied into the elevators. Rudder horn components are shown before and after assembly and paint. The elevator horn is shown in situ as is the rudder horn. Some pics show how dowels reinforce the structure (I hope!). The dowels are just toothpicks. Wood glue was worked into drilled holes via music wire before the dowels were hammered home.

            Click image for larger version

Name:	IMG_3681.JPG
Views:	1
Size:	33.5 KB
ID:	34340Click image for larger version

Name:	IMG_3682.JPG
Views:	1
Size:	29.4 KB
ID:	34341

            Click image for larger version

Name:	IMG_3684.JPG
Views:	1
Size:	27.4 KB
ID:	34342Click image for larger version

Name:	IMG_3685.JPG
Views:	1
Size:	28.6 KB
ID:	34343

            Click image for larger version

Name:	IMG_3686.JPG
Views:	1
Size:	36.0 KB
ID:	34344Click image for larger version

Name:	IMG_3687.JPG
Views:	1
Size:	22.2 KB
ID:	34345

            Click image for larger version

Name:	IMG_3688.JPG
Views:	1
Size:	24.7 KB
ID:	34346Click image for larger version

Name:	IMG_3689.JPG
Views:	1
Size:	26.2 KB
ID:	34347

            Click image for larger version

Name:	IMG_3690.JPG
Views:	1
Size:	22.9 KB
ID:	34348

            Dobranoc!

            Comment


            • #40

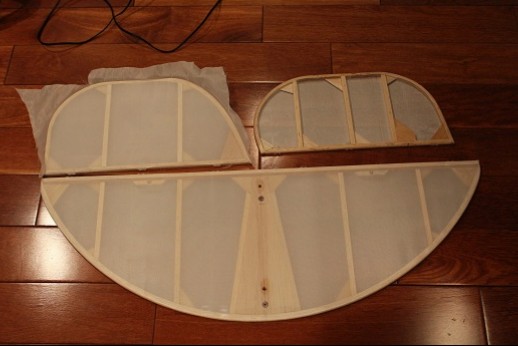

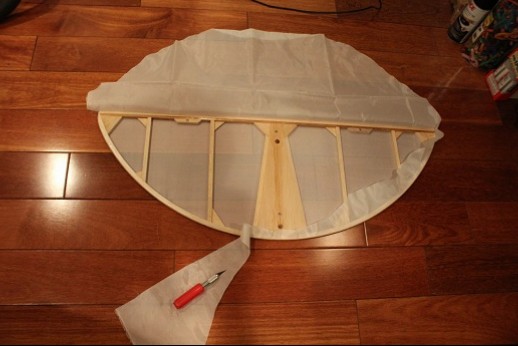

              I can't start the wings until the Aircraft Spruce cap strip stock order arrives so I started covering the tail feathers. Sig Mfg. Stix-It was brushed on the perimeter of the structures then Koverall was attached using iron. The pics show some stages of the process. Use sharp blades to remove the fabric. To avoid the 'fuzzies' Stix-It was brushed onto the fabric at the edges and allowed to dry before the fabric was trimmed. I used a lot of leftover Koverall so that has been saving some $$$!

              Click image for larger version

Name:	IMG_3691.JPG
Views:	1
Size:	39.7 KB
ID:	34352Click image for larger version

Name:	IMG_3692.JPG
Views:	1
Size:	35.2 KB
ID:	34353

              The second pic show an elevator and the rudder above the stab.
              Stodkie sny!

              Comment


              • JimD
                JimD commented
                Editing a comment
                Absolutely beautiful work Mike, look forward to your pictures everyday!

              • ARUP
                ARUP commented
                Editing a comment
                Thank you, Jim! Can't wait to 'climb the mountain' in March!

            • #41

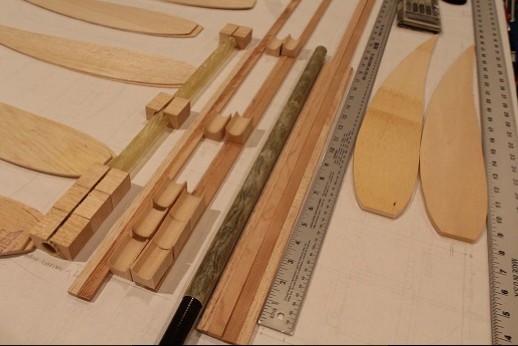

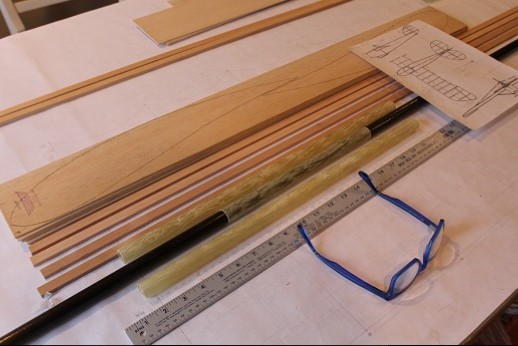

              Dzien Dobry! Parts are getting assembled and cut so the wings can get started this weekend. The wing rod has its wing tubes cut to length, spar stock is ready and ribs will get cut out. The drawing shows one pair of landing wires/cables(?) and a set of stabilizing struts just like what is done for the Vampyr. The sticky point is the wing is drawn as if there is no 'D' tube. If that is truly the case then something has to be done in order that the wing not twist with aileron input. That would create some roll reversal, adverse yaw or whatever it is called. One thought was to put a 'mini- D' tube in the LE so that the LE ribs noses would still be proud. It would tie the fore spar and LE together. The second option is to add more cables and keep the spar simple. The second route it is! Stay tuned for more build pics!

              Click image for larger version

Name:	IMG_3693.JPG
Views:	1
Size:	47.2 KB
ID:	34459

              Do widzenia!

              Comment


              • #42

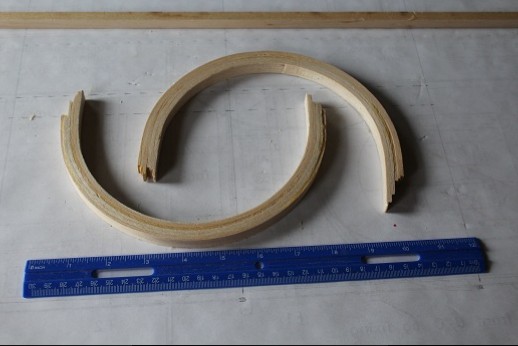

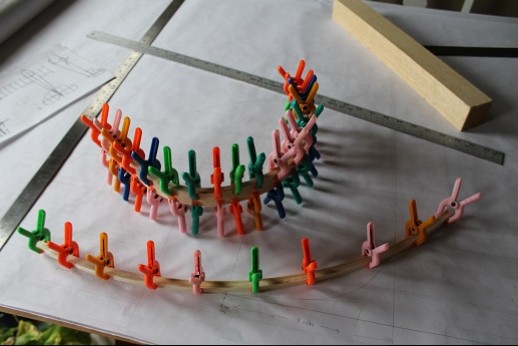

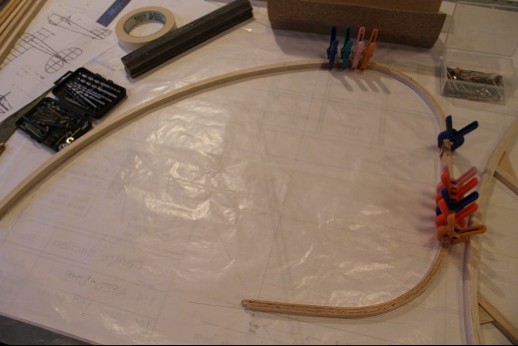

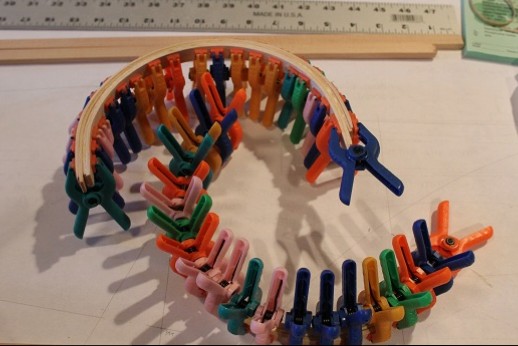

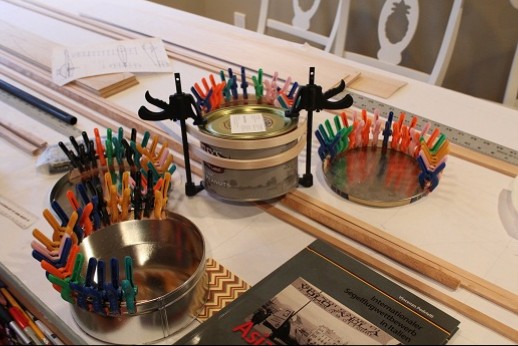

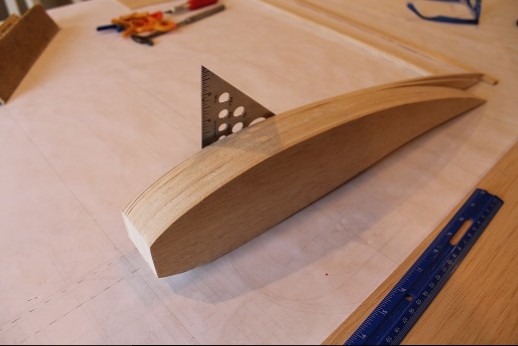

                Dzien dobry! Cookie tins were used as forms for the curved tips of the ailerons. 3/32" balsa was soaked in hot water (remember...no ammonia) then clamped onto the tins to dry. When dry the laminates were put together with aliphatic glue and are drying as I type.

                Click image for larger version

Name:	IMG_3694.JPG
Views:	1
Size:	58.3 KB
ID:	34469Click image for larger version

Name:	IMG_3695.JPG
Views:	1
Size:	46.4 KB
ID:	34470

                Do widzenia!

                Comment


                • Gene C
                  Gene C commented
                  Editing a comment
                  There might have been room for another clamp in there somewhere, but that's how it's done. Watching your building step by step.

                • ARUP
                  ARUP commented
                  Editing a comment
                  Ahahaha! That's right Gene... I might squeeze another clamp in there! Thanks for tagging along. This glider isn't very sophisticated but it's been fun so far... and builds pretty quick, too!

              • #43

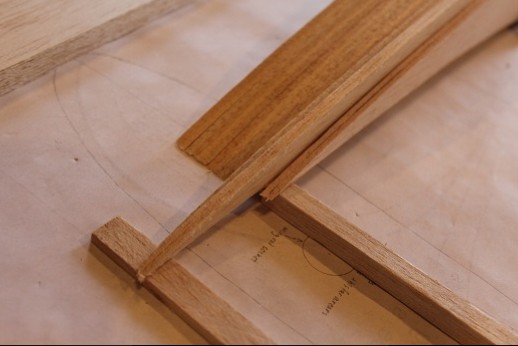

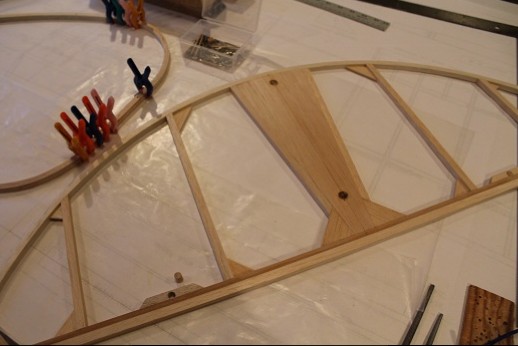

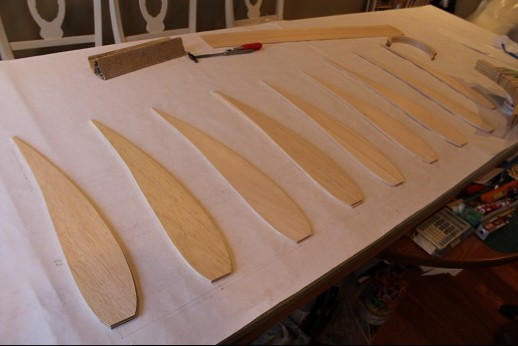

                Znowu ja! The aileron curved tips were sanded to smooth them out but they will need to be tapered in thickness, later. All the ribs were cut out and their noses were trimmed to receive the false LE. The two outermost aileron ribs were blocked up on their TEs to account for washout as they were pinned to the stack for the nose job. The false LE will lay squarely against them by doing this and not be twisted. 3/32" balsa Laminates for the swept portion of the LE were soaked in hot water then put on a form to dry. They get glued later. All the ribs are shown at their stations. There aren't many!

                Click image for larger version

Name:	IMG_3696.JPG
Views:	1
Size:	35.7 KB
ID:	34483Click image for larger version

Name:	IMG_3697.JPG
Views:	1
Size:	32.9 KB
ID:	34484

                Click image for larger version

Name:	IMG_3698.JPG
Views:	1
Size:	33.2 KB
ID:	34485Click image for larger version

Name:	IMG_3699.JPG
Views:	1
Size:	41.2 KB
ID:	34486

                Click image for larger version

Name:	IMG_3700.JPG
Views:	1
Size:	36.1 KB
ID:	34487

                Pozniej!

                Comment


                • #44

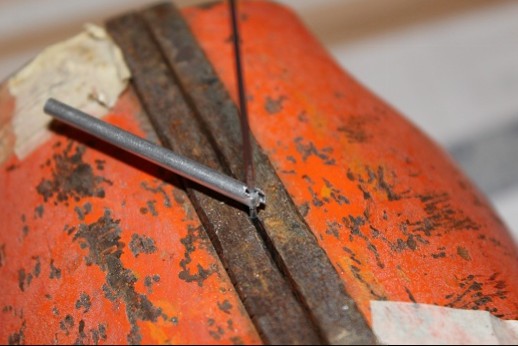

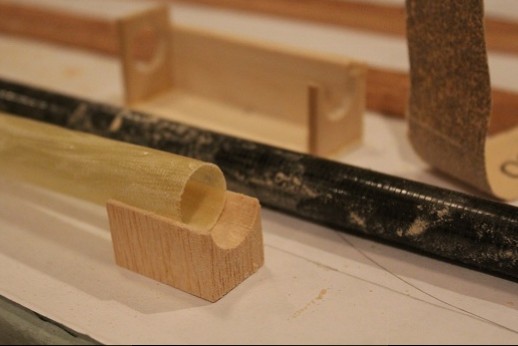

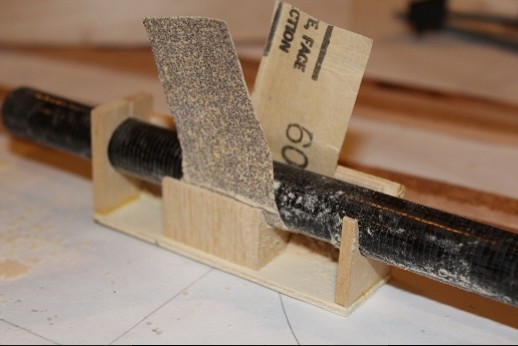

                  Csesc wszystkim! A tool was made to shape the wing tube shear webs. These shear webs will encapsulate the wing tube within the spar. The spars had a small segment glue to them so that this portion of the spar is as wide as the wing tube.

                  Click image for larger version

Name:	IMG_3705.JPG
Views:	1
Size:	37.4 KB
ID:	34501Click image for larger version

Name:	IMG_3706.JPG
Views:	1
Size:	32.1 KB
ID:	34502

                  Click image for larger version

Name:	IMG_3707.JPG
Views:	1
Size:	48.8 KB
ID:	34503

                  In the picture above you can see the wing tube cradled in half of its shear web. One done... a whole bunch more to go!
                  Dobranoc!

                  Comment


                  • #45

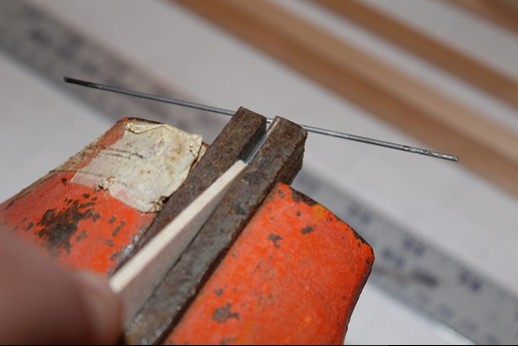

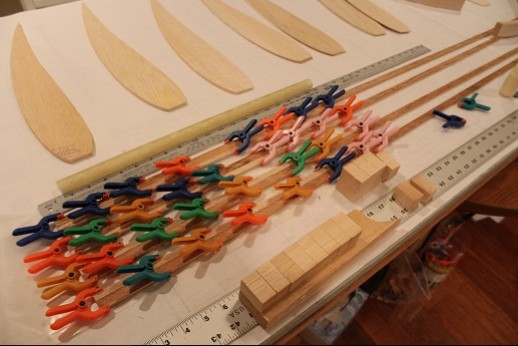

                    Witamy! The first picture shows the spars, wing tube packing supports and two 1/4" ply root ribs which were cut tonight. The next series of pictures show how the wire TE will be captured. Aluminum tube segments were cut to length, slotted one end with a Dremel cut off wheel then the 'ears' of the tubes peened over a mandrel. The really blurry picture is supposed to show how a radius on the anvil was used to 'fine tune' the wire pass-through on the tube. These tube will get let into each rib and 1/64" ply either side will secure them. This worked well on the Charlotte so I'm using this method again!

                    Click image for larger version

Name:	IMG_3714.JPG
Views:	1
Size:	44.2 KB
ID:	34544Click image for larger version

Name:	IMG_3708.JPG
Views:	1
Size:	48.9 KB
ID:	34545

                    Click image for larger version

Name:	IMG_3710.JPG
Views:	1
Size:	45.6 KB
ID:	34546Click image for larger version

Name:	IMG_3711.JPG
Views:	1
Size:	40.2 KB
ID:	34547

                    Click image for larger version

Name:	IMG_3712.JPG
Views:	1
Size:	33.1 KB
ID:	34548Click image for larger version

Name:	IMG_3713.JPG
Views:	1
Size:	36.2 KB
ID:	34549

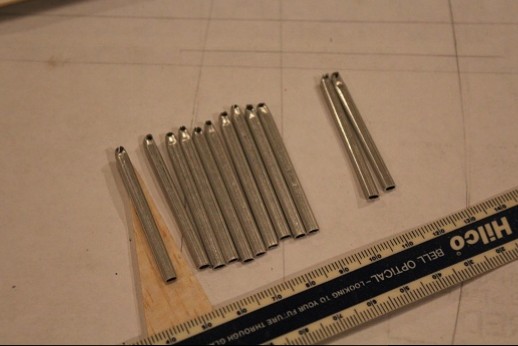

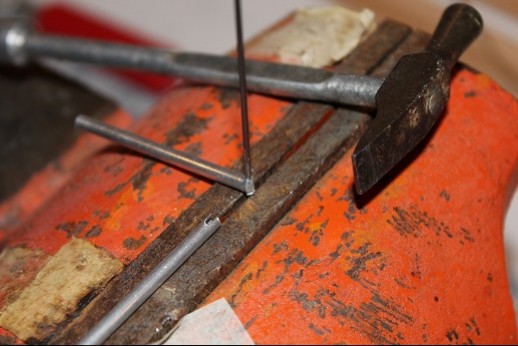

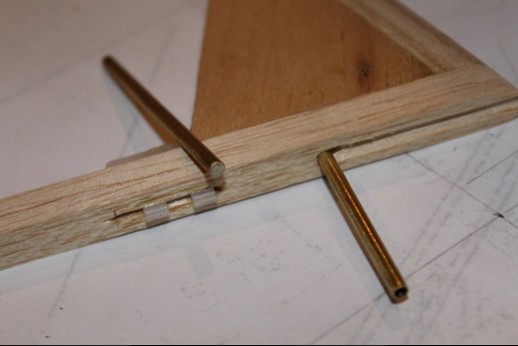

                    The tubes were squeezed in the vise to the thickness of the ribs. In the last picture the two tubes on the right have their pass-through holes at an angle. These are the ribs next to the ailerons which are a little longer than the others.
                    Dobranoc!

                    Comment


                    • BryanB
                      BryanB commented
                      Editing a comment
                      I love craft metal work.

                    • ARUP
                      ARUP commented
                      Editing a comment
                      Thanks for looking, Bryan! I love working with that little hammer!
