  • #61
    Finished fabricating my new CG machine so I got a chance to try it out on the ASH31. Worked like I had hope and was very stable.
    Straight sailplane (no motor), fully flight configured it needed 34.4oz (2.15lbs.) to get it to balance right in the middle of the published CG range.
    Click image for larger version  Name:	 Views:	1 Size:	170.8 KB ID:	33317
    Click image for larger version  Name:	 Views:	1 Size:	145.2 KB ID:	33318

    Comment


    • BryanB
      BryanB commented
      Editing a comment
      No bushing or bearings. I've been thinking this thing through for a year. I really wanted one of those "EZBalancers" but after seeing they are $230 I figured I could fabricate my own for less. Ended up being a little over $100 with all new material and hardware. I used 1/4" 6061 aluminum for everything above the tracks. Could probably have saved a couple bucks but by just using flat bar for the spacing bars with holes drilled in them but went with U channels instead.
      As for bushings, not needed. It's not like this thing gets a lot of use and with medium/heavy models rotation friction is negligible. Put your model up there, find your balance and then off. Not a lot of wear. Besides, 6061 is pretty tough aluminum.

    • ARUP
      ARUP commented
      Editing a comment
      Your balance stand is nice! It look as if a strutted wing would fit, too! I bought one of those pricey German made stands and can't use it with the vintage birds, : (

    • edfmaniac
      edfmaniac commented
      Editing a comment
      Very nice work.

  • #62

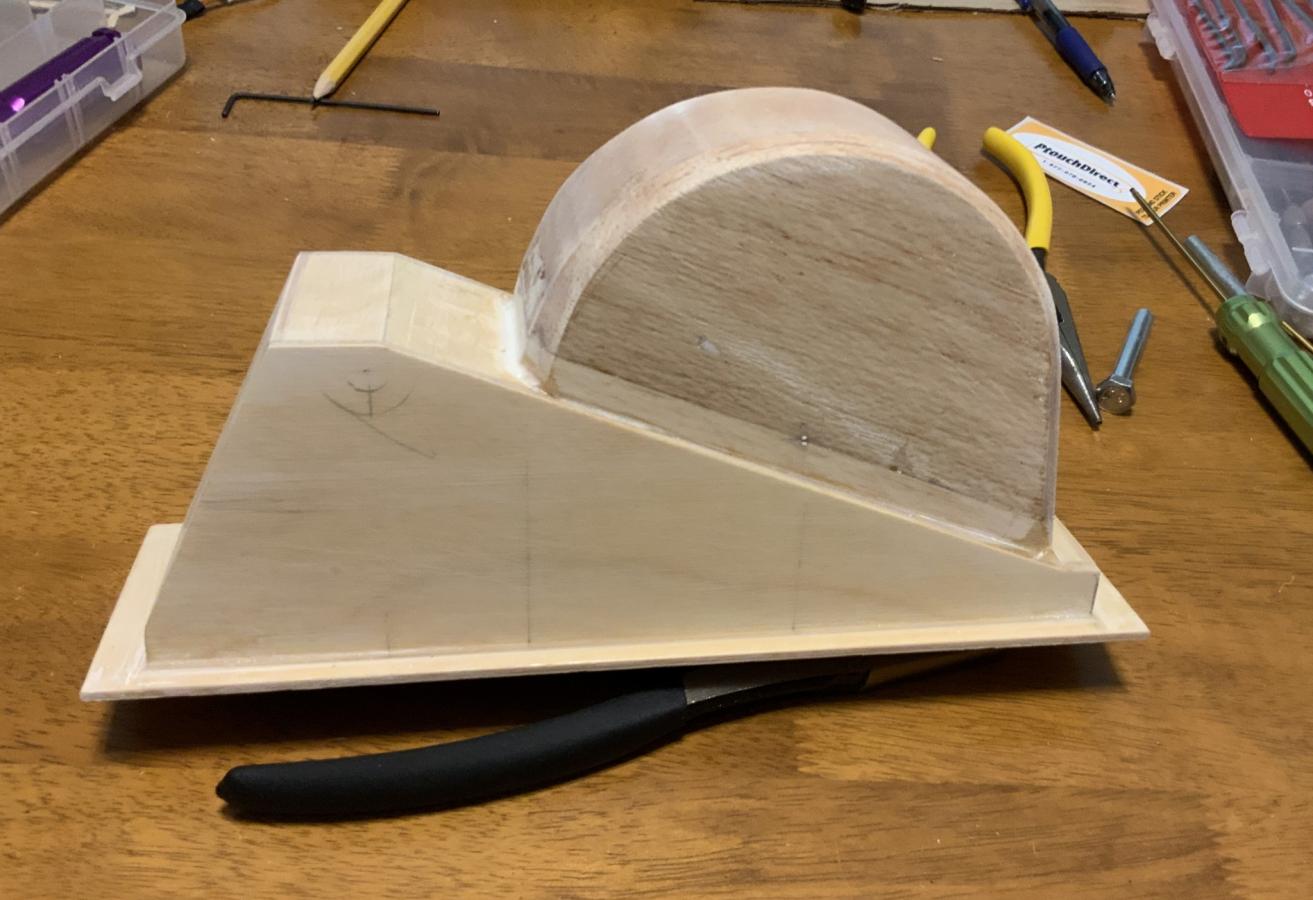

    31 is very close to being done now. I started off finishing off the wiring and harnesses for the fuse. Got everything situated, then trimmed and installed the cockpit tub, fits perfectly over my radio setup! I had some of the velvet left over from one of my 20's that never got a cockpit, so I used that to dress up the tub a bit.

    Then it was time to finally put the wings on! This is about as big a sailplane as I can fit in my shop. Got all the control surfaces, flight modes and throws set up. Still have some setup to do with the AS3000, but the radio is basically ready now.

    Got the vinyl done on the fuse. I learned to fly full size sailplanes at Harris Hill. so I'm basing the N number and contest number on "If HHSC had a 31". The dark blue really looks good with the orange! Bottom of the wings still to go and need to get something to cover up the painted on German flag.

    While it was all assembled I got it up on the balance stand. Used lead in the cockpit tub to simulate the Tailored Pilot that is on order. It took 28oz to balance at 75mm, which is in the middle of the suggested range. I put 20 oz of lead shot mixed with epoxy into the nose and will keep the other 8 as removable to dial it in.

    So close to finished... too bad its -5 outside!
















    Last edited by Sinkhappens86; 01-31-2019, 03:08 AM.

    Comment


    • #63
      Very nice Kevin. Looks great!

      Comment


      • ARUP
        ARUP commented
        Editing a comment
        Looks like Kevin had so much fun getting his 31 together that I'll just have to trade my yet to be started one for his so he can have fun all over again! Merry Christmas... early!

    • #64

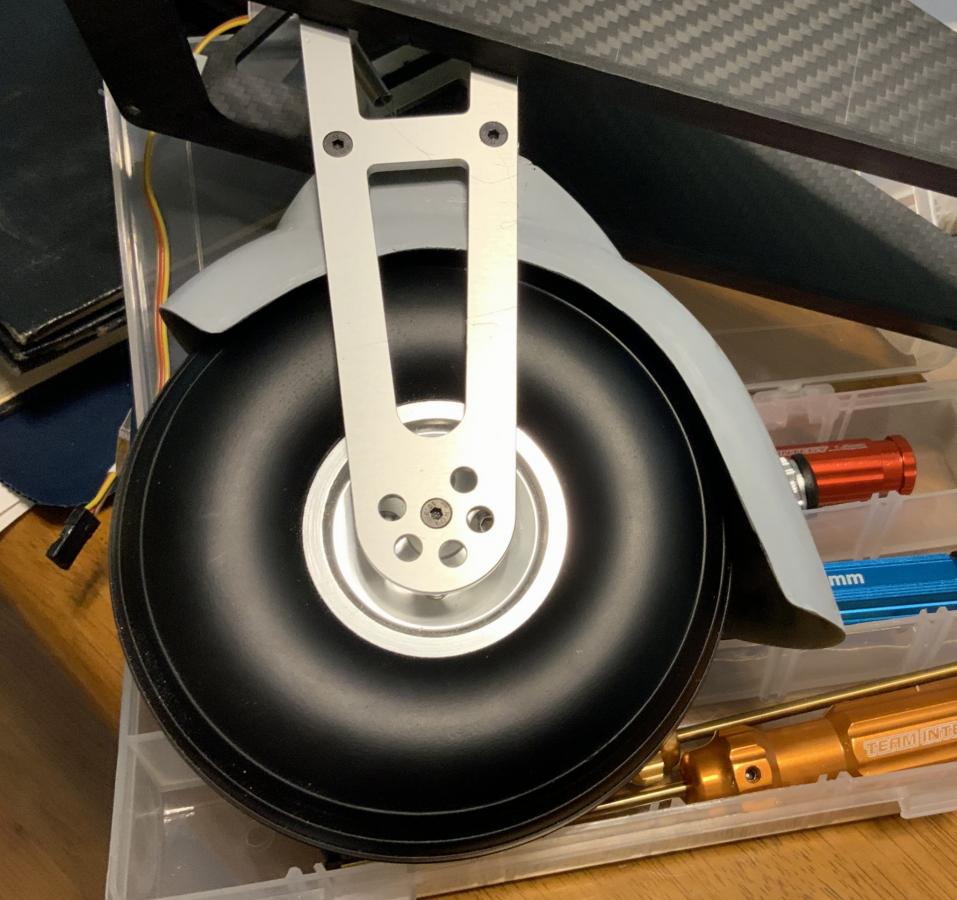

      Here is my mods on the electric LG

      Just in case you would flip the wrong switch at the wrong time and destroy the electrical mechanism. Here is my way to convert the electric landing gear that has a great mechanism to a servo operated LG.
      I used a 1x1in aluminum angle, a programmable servo and 0.04 music wire for the spring.


      Sans titre by steffruelle, sur Flickr


      Sans titre by steffruelle, sur Flickr

      Sans titre by steffruelle, sur Flickr

      Sans titre by steffruelle, sur Flickr

      Sans titre by steffruelle, sur Flickr

      Sans titre by steffruelle, sur Flickr

      St├ęphane
      Horizon Hobby Team Member

      Comment


      • #65
        Nice Stephane
        Will probably do the same on Michael's!

        Jeremy
        SCCAAA TT TN

        Comment


        • #66
          Nice Stephane,
          Looks like the one we made in Windy Ridge. Works really well.
          Len Buffinton
          Team Horizon Hobby

          Comment


          • French1
            French1 commented
            Editing a comment
            I took inspiration on your work with Scott, that was a great filed repair that allowed me to fly the entire season
