  • #46
    Nice work, Dave. Following.

    Comment


    • #47
      Keep on truckin'.... get one of those Hazmat suits and the balsa dust will never get ya!

      Comment


      • #48
        Ha ha ha - The dust will definitely be flying when I get to sanding the fuse. Yow. I finished the sheathing last night and will try to rough sand it and the nose blocking outside this weekend with the full mask and all the gear. Next up is fitting the stab to the fuse and then faring them together. Thanks Al and Michael.

        Comment


        • #49


          Get this latex kind of Haz-Mat suit. You can inflate it with (1) extra air or (2) your own nitrogen + CO2 + CH4 + O2 + H2S + mercaptan source so that when it is opened the dust will get blown away! Just don't strike any matches if you use 'number 2'!

          Comment


          • #50
            Originally posted by ARUP View Post


            Just don't strike any matches if you use 'number 2'!

            EWWWWWW,
            Thats just disgusting.
            Len Buffinton
            Team Horizon Hobby

            Comment


            • #51
              Here we go....and by the way, this is about when Mattsson would typically chime in. Tim?

              Comment


              • #52

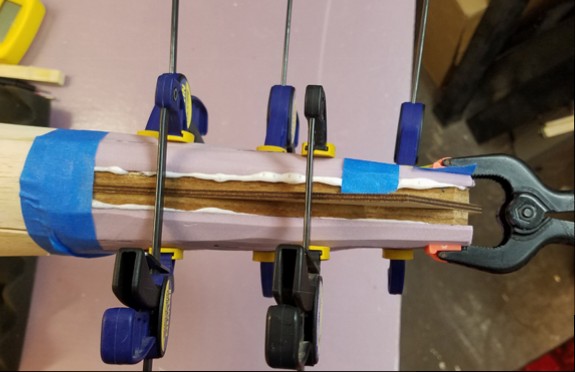

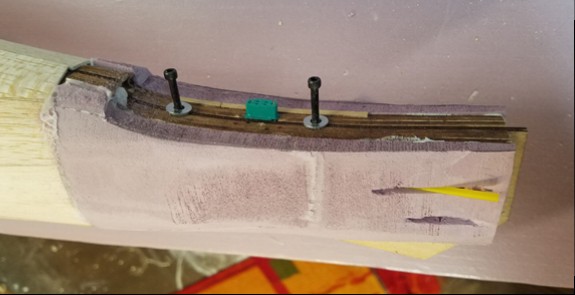

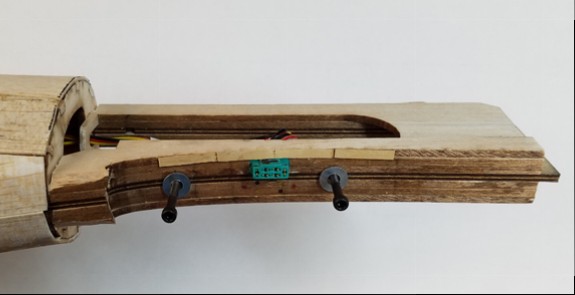

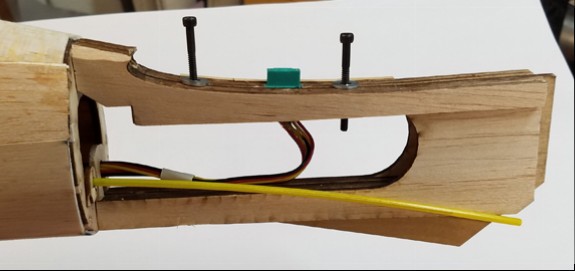

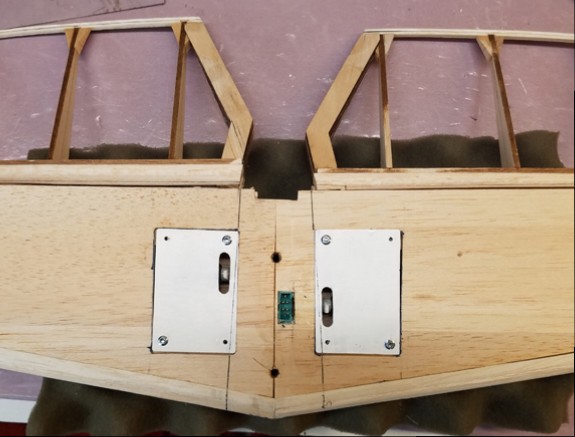

                Got the stabs female plug wired and Gooped in place the other night. After all that goes into planning, fitting, aligning, and then making these work, they sure don't look like much when completed. Ha. Its a good fit and very solid. Then with the stab attached to the fuse, I cut scrap foam to fit on either side of the plywood and hard balsa fuse keel to continue the fuse lines to the rudder. This step seemed a little daunting at first with the rudder pushrod on one side, the stab meeting the fuse, and the oddly shaped fuse keel. Once started the two pieces were done in no time and gluing in place. - David

                Click image for larger version

Name:	Stab Plug n Play 1.jpg
Views:	2
Size:	52.2 KB
ID:	28664

                Click image for larger version

Name:	Stab Plug n Play 4.jpg
Views:	1
Size:	29.8 KB
ID:	28657

                Click image for larger version

Name:	Stab Plug n Play 3.jpg
Views:	1
Size:	26.1 KB
ID:	28658

                Click image for larger version

Name:	Stab Plug n Play 2.jpg
Views:	1
Size:	32.6 KB
ID:	28659

                Click image for larger version

Name:	Fuse Aft Furring 3.jpg
Views:	1
Size:	43.5 KB
ID:	28660

                Click image for larger version

Name:	Fuse Aft Furring 2.jpg
Views:	1
Size:	33.3 KB
ID:	28661

                Click image for larger version

Name:	Fuse Aft Furring 1.jpg
Views:	1
Size:	35.4 KB
ID:	28662





                Attached Files

                Comment


                • ARUP
                  ARUP commented
                  Editing a comment
                  Nice! Are you going to glass the fuse once completed?

              • #53
                Yes, the plan is to glass the fuse Michael.

                Comment


                • #54

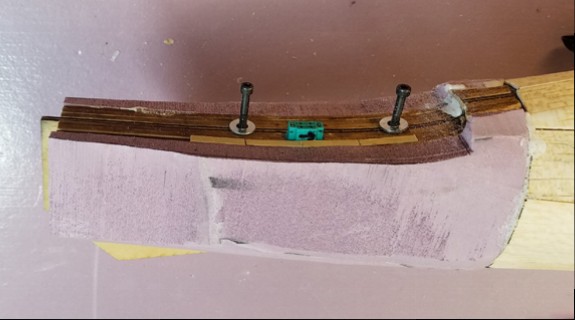

                  Finally back to the build and working on the crazy spoilers. They sure look like they are going to be a handful...what could go wrong? Ha ha.

                  Click image for larger version

Name:	2462_002.jpg
Views:	2
Size:	66.7 KB
ID:	31291


                  Click image for larger version

Name:	20181111_204126.jpg
Views:	1
Size:	155.4 KB
ID:	31290




                  Attached Files

                  Comment


                  • #55
                    YEAHHHHHHH.
                    Back at it
                    Len Buffinton
                    Team Horizon Hobby

                    Comment


                    • #56

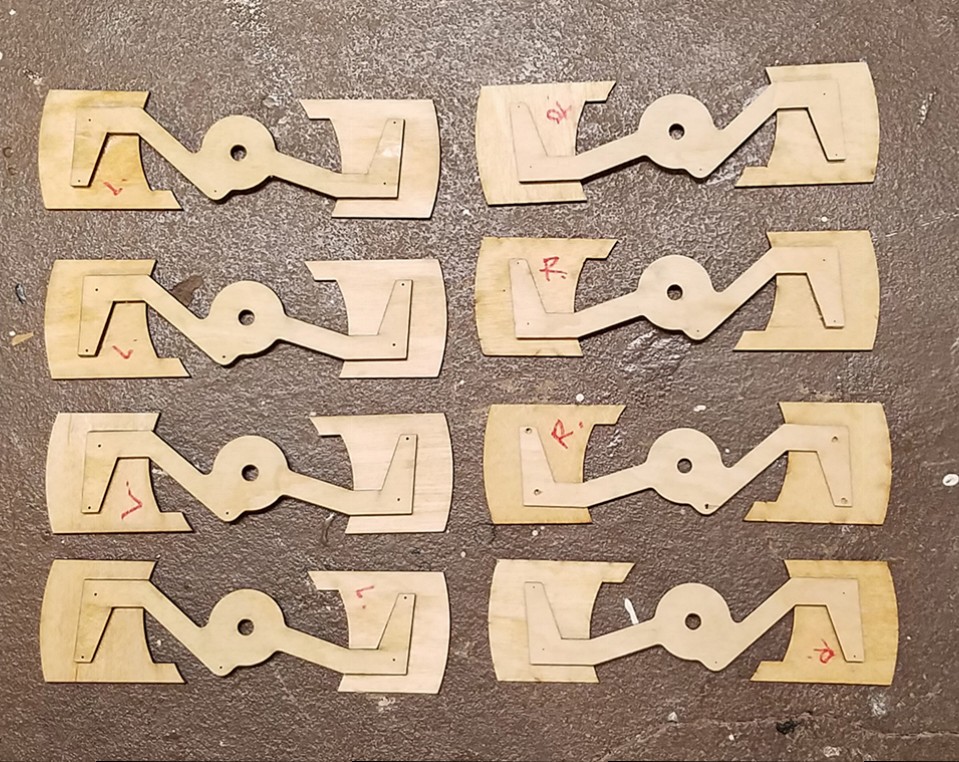

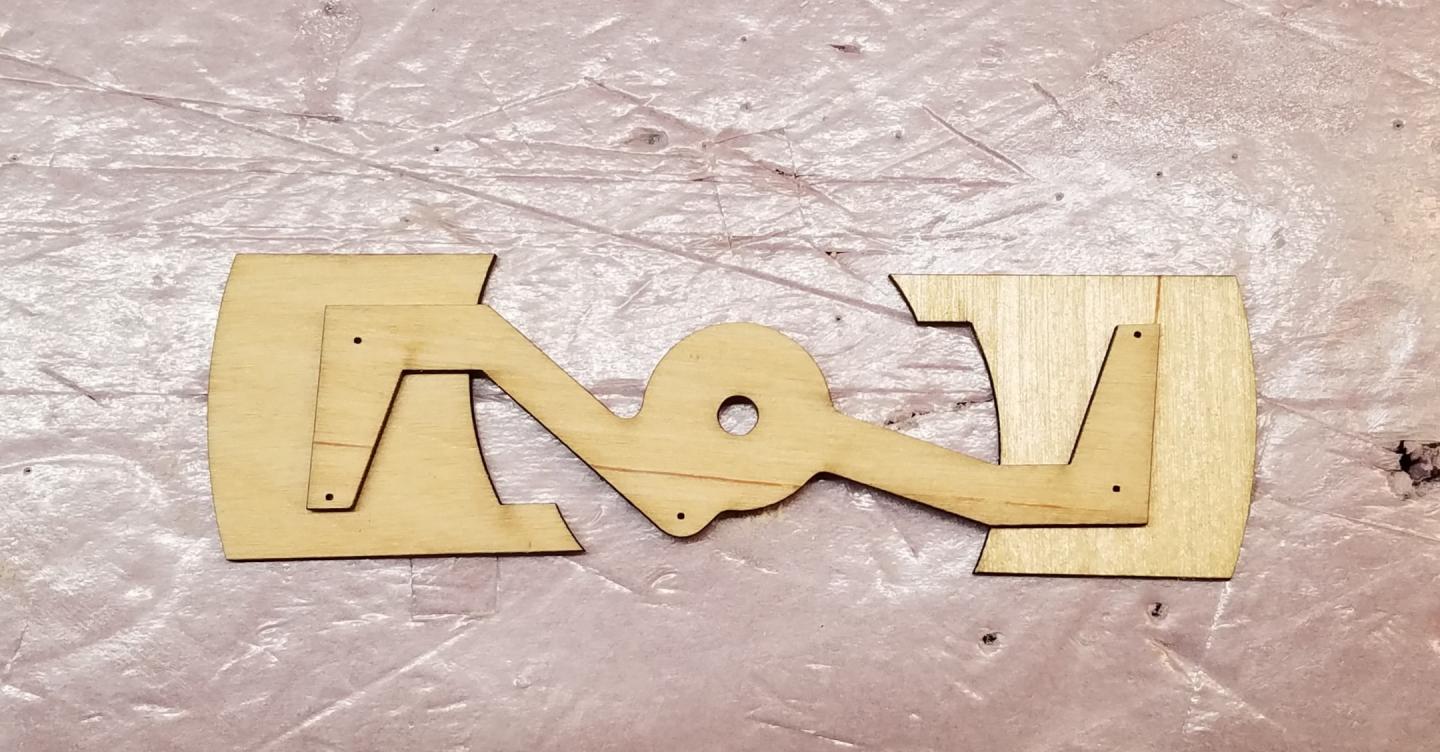

                      Thanks Len - Made a little progress last night as well. Four left paddles and four right. Will have to mock up one side to test the pushrod mechanism/system to make sure it works properly before building it into the wing. Each 'Z' shaped arm is made from (1) 1/16" ply piece sandwiched with (1) 1/32" ply piece in an effort to keep them stiff and from warping. That seems to have worked well.

                      Click image for larger version

Name:	Harbinger Spoilers 2.jpg
Views:	1
Size:	258.6 KB
ID:	31322

                      Comment


                      • #57

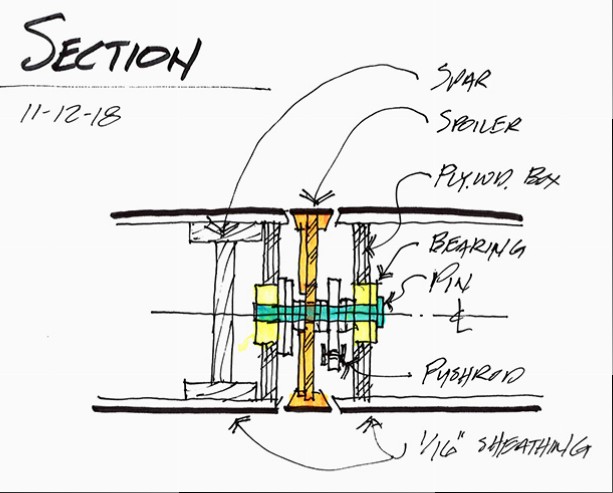

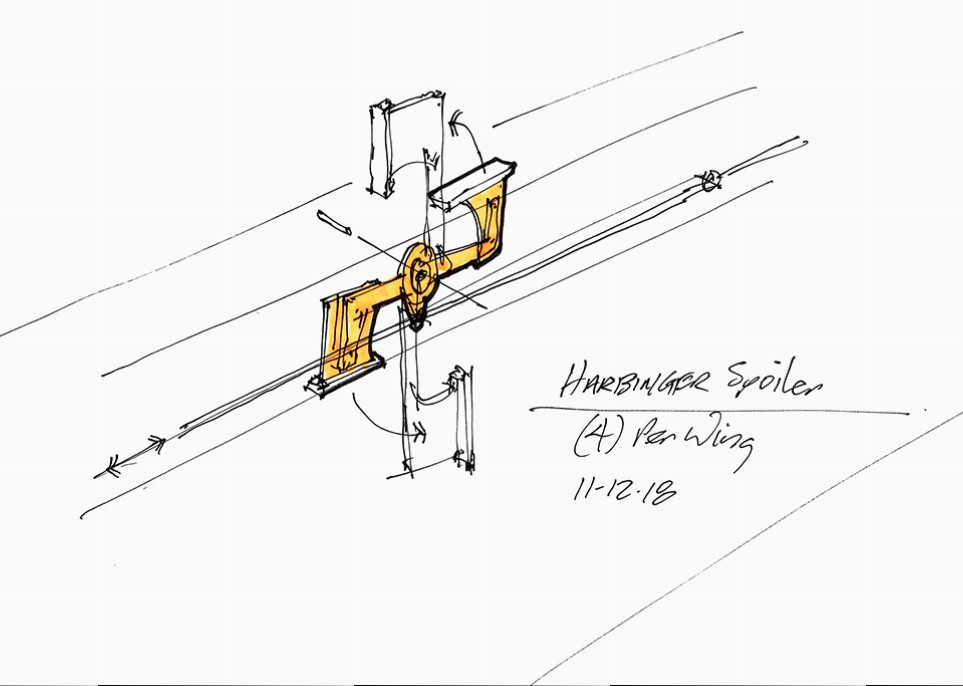

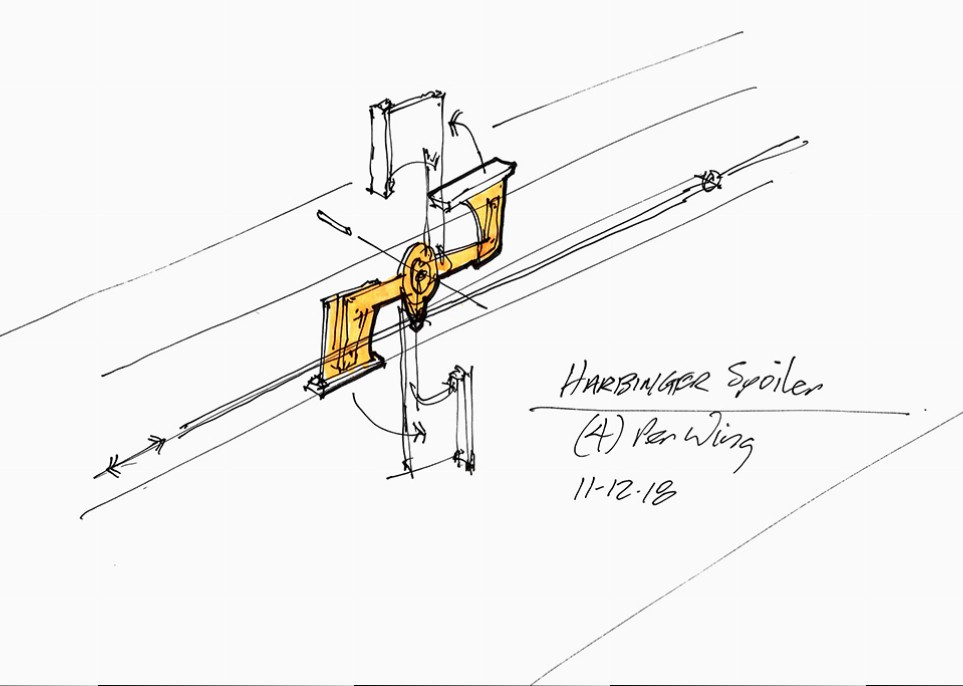

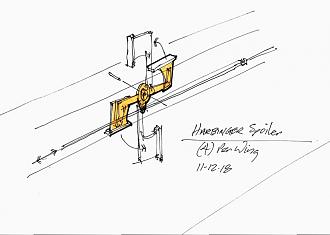

                        Trying to work out the details for the spoiler "box" last night. I like the idea of building the box on the workbench and then placing it in the wing. Will keep you posted on how that works when I get there. The bearings just came in the mail so it is game on. Here is a section sketch showing how it could come together...petty sure it can be simplified.

                        Click image for larger version

Name:	Spoiler Sketch 2.jpg
Views:	1
Size:	56.3 KB
ID:	31378

                        Comment


                        • #58
                          Originally posted by Sled-Works 1 View Post
                          Trying to work out the details for the spoiler "box" last night. I like the idea of building the box on the workbench and then placing it in the wing]
                          I have done exactly that.......the only difference is I use 2 “boxes”......the first is built of hard balsa built into the wing and the spoiler box itself is fabricated from ply which then mounts inside the first box.......the reason for doing it that way is it’s just easier to fabricate the actual spoiler box because you already have the balsa box that is made to fit the wing profile.
                          TEAM GORGEOUS

                          Comment


                          • #59
                            Crazy spoilers!

                            Comment


                            • #60
                              Tom - I'm going to follow your lead with the double box. Great suggestion, thank you. This contraption is fussy and getting all those parts in the right place, moving properly, will be tough enough
                              when isolated on the bench.
                              Arup - They are crazy spoilers. Ha.

                              Comment


                              • ARUP
                                ARUP commented
                                Editing a comment
                                I'm thinking... don't 'daisy chain' the links from each spoiler paddle to the next or cumulative 'slop' will accrue. That would be akin to a locomotive initiating its pull of the cars. Have one push-pull rod (wire) with each paddle connection soldered to the main push-pull rod, right?
