  • Arcus/Duo/Janus/Nimbus

    That will be this winter build.

    This started with a smashed fuselage that has gone from 1000ft to ground level straight like to a faulty elevator. In route it met some hard wood in the form of a forest somewhere in Connecticut. This fuse missing love has been donated by Steve P to get a better life.

    I have detailed a bit of this on the old forum.

    some work on the nose...

    IMG_0321 by steffruelle, sur Flickr

    the tail

    IMG_1481 by steffruelle, sur Flickr

    a little bit everywhere

    IMG_0320 by steffruelle, sur Flickr


    Lot of work to get this back in shape, changing fairings, and making it a plug that has been completed this year.

    IMG_1549 by steffruelle, sur Flickr

    Sans titre by steffruelle, sur Flickr



    This summer project has been molded with the help of Vladimir

    Fuse #1 is in my basement and will be my winter project. I will build a Janus, the predecessor of the Duo Discus. I like swept forward wings, seems to be a good subject.


    [url=https://flic.kr/p/NgREP2]


    Here is ALL te pictures I have of the transformation

    https://www.flickr.com/photos/422200...57638494999395

    Stéphane

    Stéphane
    Horizon Hobby Team Member

  • #2
    I just knew you were going to build a Janus! Awesome!

    Comment


    • #3

      foam cutter is done, first panel has been cut tonight and work quite well, here are the pictures

      Stéphane

      Click image for larger version  Name:	IMG_9174.JPG Views:	1 Size:	8.1 KB ID:	14142Click image for larger version  Name:	IMG_9175.JPG Views:	1 Size:	10.1 KB ID:	14143Click image for larger version  Name:	IMG_9173.JPG Views:	1 Size:	11.2 KB ID:	14144Click image for larger version  Name:	IMG_9178.JPG Views:	1 Size:	10.9 KB ID:	14145Click image for larger version  Name:	IMG_9177.JPG Views:	1 Size:	8.8 KB ID:	14146
      Click image for larger version  Name:	IMG_9179.JPG Views:	1 Size:	7.2 KB ID:	14147 Couple news,
      Stéphane
      Horizon Hobby Team Member

      Comment


      • #4

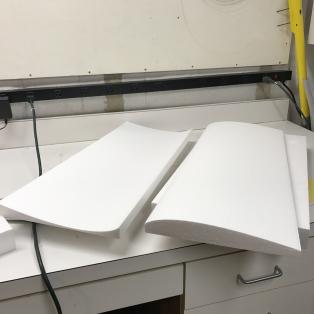

        Here is the foam cores laying on there bed, the janus has a characteristic straigh leading edge with a swep forward making it a very distinctive sailplane, the unlimited version of this one was the nimbus 3D, similar wing but way longer.

        now seeking for obeche, found some sold by the bundle in Washington state, anybody has closer sources?

        Click image for larger version

Name:	IMG_9188.JPG
Views:	1
Size:	11.3 KB
ID:	14210
        Click image for larger version

Name:	IMG_9185.JPG
Views:	2
Size:	6.4 KB
ID:	14211
        Attached Files
        Stéphane
        Horizon Hobby Team Member

        Comment


        • #5
          oh boy ! lots of work has been done , work benches, foam cuter etc. still too many wires to know witch one dose the cutting .looks good keep going. dan

          Comment


          • #6
            Hey bud,
            give me a call , I can help you out with the Obechee
            Len Buffinton
            Team Horizon Hobby

            Comment


            • #7
              Thanks Len,

              but I need thinner stuff, 1mm or 0.6mm

              stephane
              Stéphane
              Horizon Hobby Team Member

              Comment


              • #8
                Stephane, check with Asher, I thought he had some!

                Jeremy and ben
                SCCAAA TT TN

                Comment


                • #9
                  After coming back from the other side of the pond, I finally get started on the Janus wings

                  First the assembly of the wing core and beds using PU glue



                  slight sanding to have a smooth transition and roughness

                  then preparing the veneer for the upper surface, slightly bigger than needed as I have 1/4in extra length on the beds to roll LE and get TE straight

                  I picked a bunch of 0.6mm obeche, if anybody need some I have 12inx186in sheets



                  Underlayment of the obeche will be composed of 2.3oz glass, 3 degressive layers, full length, 2/3 of length and 1/3 of length.



                  spar caps will be 2 layers of 6oz carbon fiber, full length and half length.







                  Bagging should start next week end


                  Stéphane
                  Stéphane
                  Horizon Hobby Team Member

                  Comment


                  • #10
                    that looks to easy with the foam you need a lot more balsa wood. almost finished with the other wing on the TG-3/2.0

                    Comment


                    • #11
                      Continuing the prep work, second core glued.

                      First core sanded,on junctions and LE, TE cut.

                      Now as I intend rolling LE, I added two tapes of 2.3oz 3in wide that I tacked on with 3M77 (don't forget the gloves or it will be a disaster).









                      Core is taped on the beds and bag is positioned on the bench, getting closer!!!
                      Also marked the ailerons and flaps to have the hinge line, we will go with live hinges.
                      Stéphane
                      Horizon Hobby Team Member

                      Comment


                      • Mosquito
                        Mosquito commented
                        Editing a comment
                        your shop is too clean!

                      • French1
                        French1 commented
                        Editing a comment
                        Don't worry Tim it is temporary 😬

                    • #12
                      Love watching the process, thanks for sharing this.


                      Len
                      Len Buffinton
                      Team Horizon Hobby

                      Comment


                      • #13
                        my pleasure!
                        Stéphane
                        Horizon Hobby Team Member

                        Comment


                        • #14
                          It is in the bag!
                          Left upper sheeting of the Janus completed this morning, just need to wait result tomorrow morning. If happy the right one will be done right away

                          first, get some epoxy on the spar cap, ratio CF/epoxy is 1/1.2 in weight.
                          I used a roller to avoid fraying the cloth too much, worked pretty well





                          then the lay up of the FG on the veneer, there the used credit card or the hotel card is your best friend! FG/epoxy ratio is 1/1 in weight






                          Peel ply is soaked with a lot of epoxy for it to become transparent



                          you can see here that the peel ply is in between two layers of glass



                          Ready for bagging, couple painted tape pieces to avoid the veneer to slip on the core or plastic protection



                          Vacuum! you can see here the veneer rolling on the LE




                          heating blanket for the next 24h!



                          Stéphane
                          Stéphane
                          Horizon Hobby Team Member

                          Comment


                          • #15
                            Nice stuff French 1!

                            Jeremy and Ben
                            SCCAAA TT TN
